PAINTED HILLS

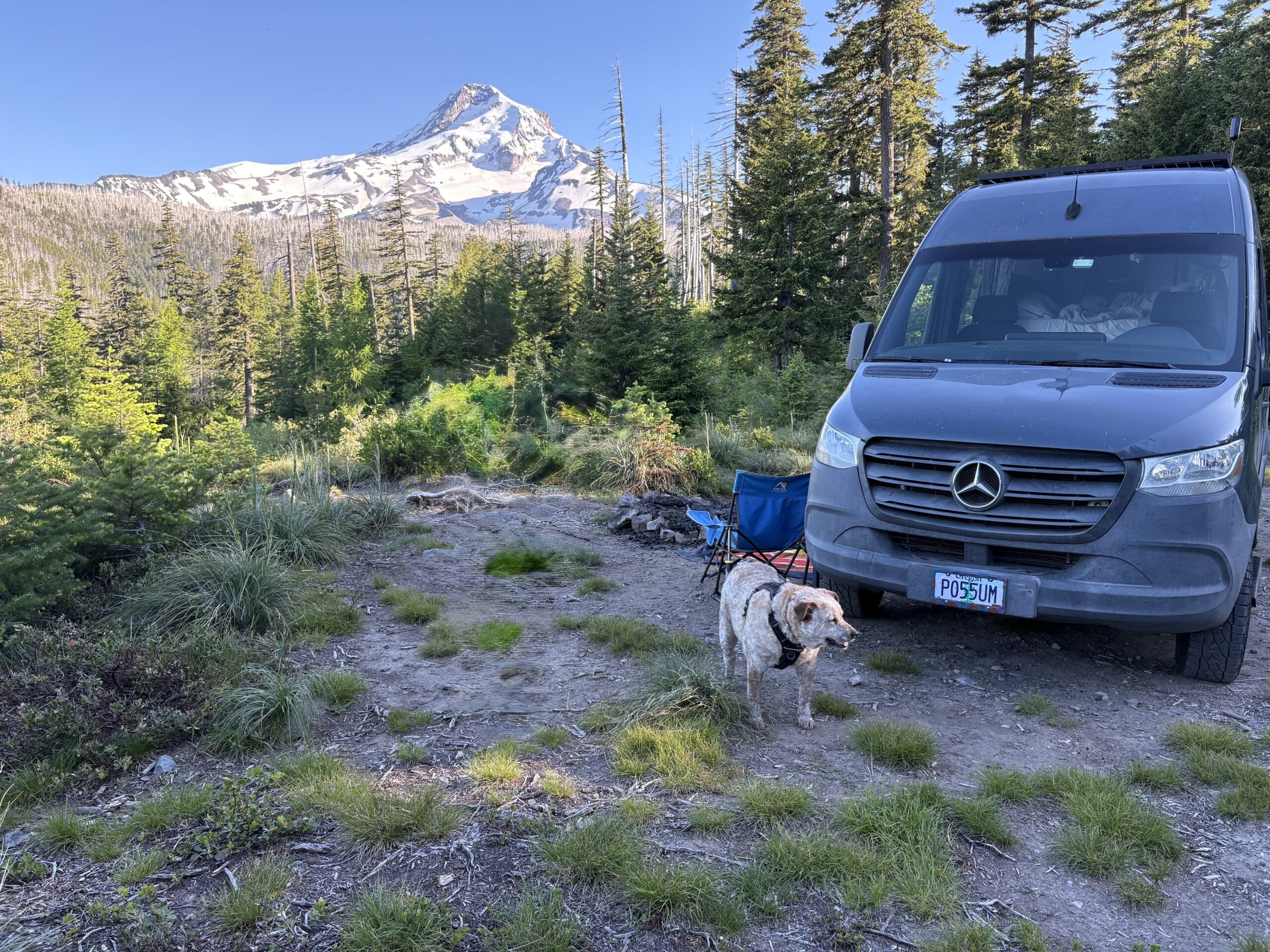

Beautiful 2019 Mercedes Benz Sprinter Custom Campervan
Meet “Painted Hills,” a 2019 Mercedes-Benz Sprinter (170 Wheelbase & High Roof) custom conversion that has it all. This camper van features premium amenities and was designed with comfort, functionality, and a luxury camping/road trip experience in mind. Consider it your “home” on wheels.
This gorgeous rig is ready for you to climb aboard and go. Painted Hills sleeps 4 (potentially more), sits 4, and has enough storage to carry all your gear for an extended outdoor adventure or road trip. Whether it be a family camping outing, a road trip to visit friends and family, or tailgating at your favorite entertainment or sporting event, Painted Hills has what you need to make your trip most enjoyable.

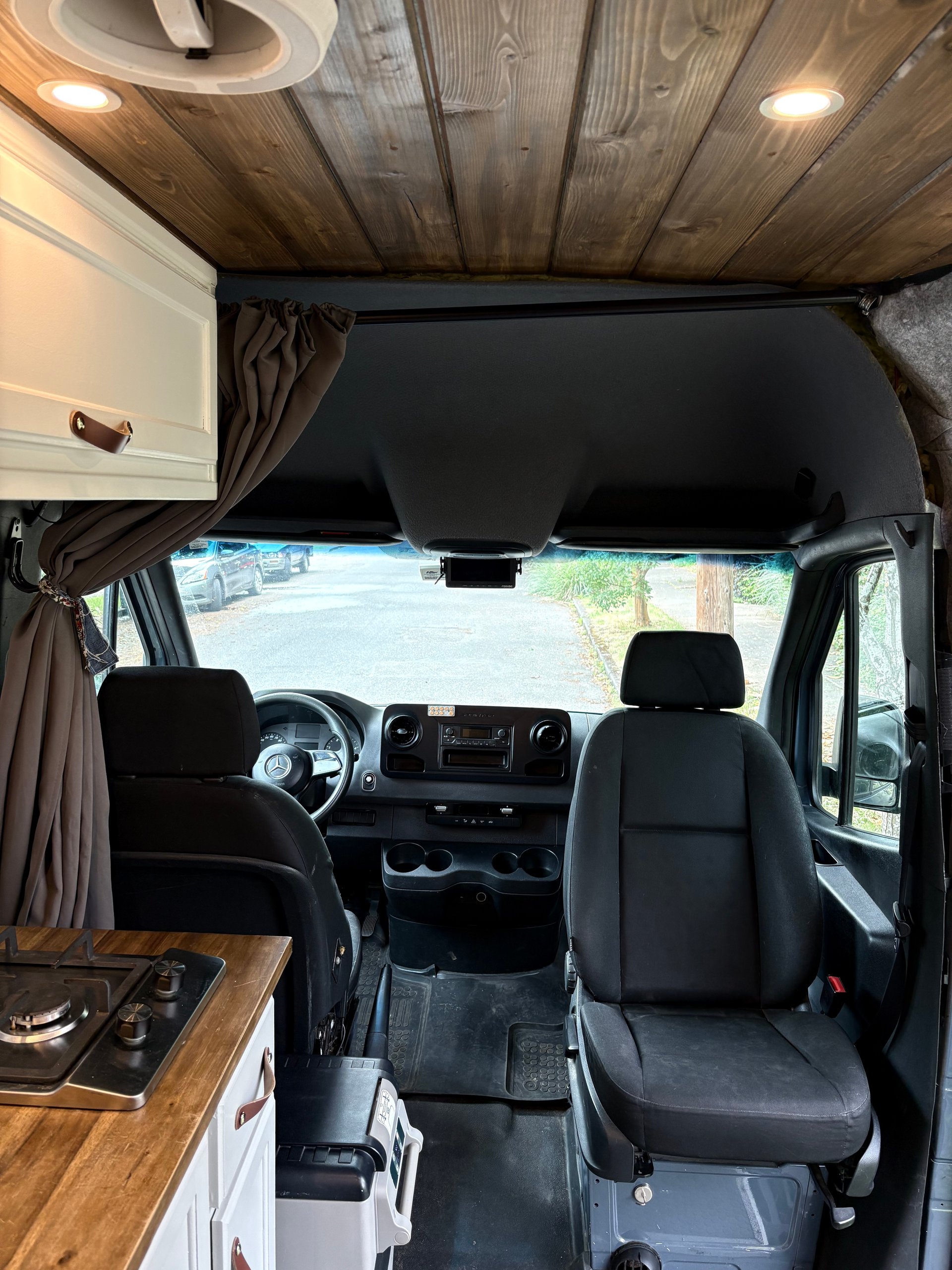

Seat configuration: In addition to the driver and passenger seats up front, which both have swivel capabilities built into them, there is also a beautiful custom-made bench behind the driver (with lap belts) that sits two and converts into a bed. You can safely sit 4 people in this van. The bench is deep enough to use a child booster or car seat.
Sleeping arrangements: The main bed is a king size bed with a 6” memory foam mattress. The custom bench converts into a larger than twin bed, and the storage nook underneath the main bed can fit a twin mattress.
The details of this van and some of the house features included in the conversion are as follows:
Van Details/Productivity/Utility:
· 2019 Sprinter 2500 Cargo Van
· 170” Wheelbase
· 3.0L V6 Turbo Diesel 7-Speed Transmission
· Standard Radio (FM/AM Radio, LED Display, Integrated USB-C Port, Bluetooth)
· Communication Module (LTE) for Digital Services
· Keyless Start
· USB-C Socket (5V)
· Rear View Camera (Rear View Mirror Display)
· Air Conditioning Front
· Omission Bulkhead
· Sliding Door (Passenger Side)
· Interior Lights

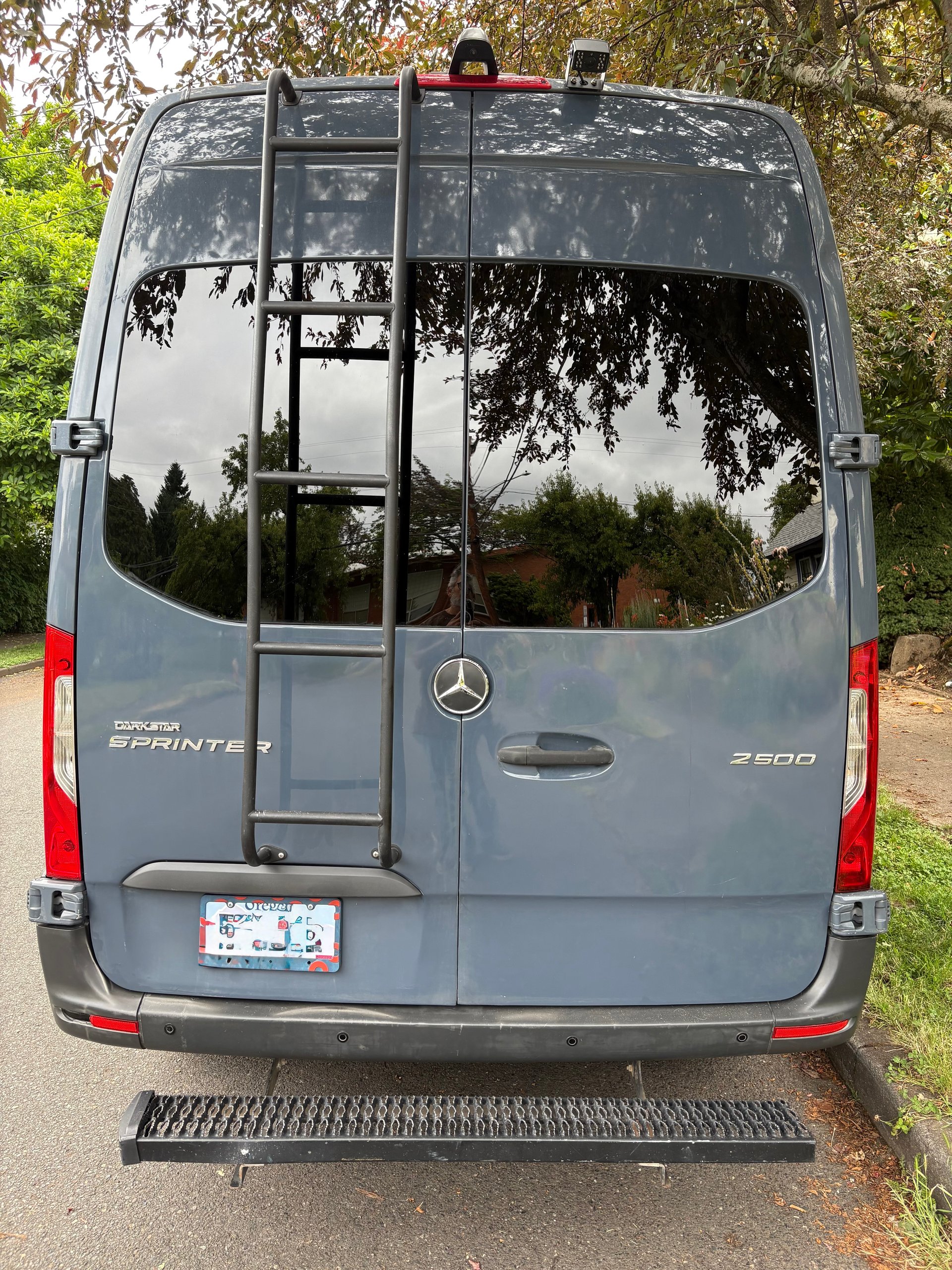

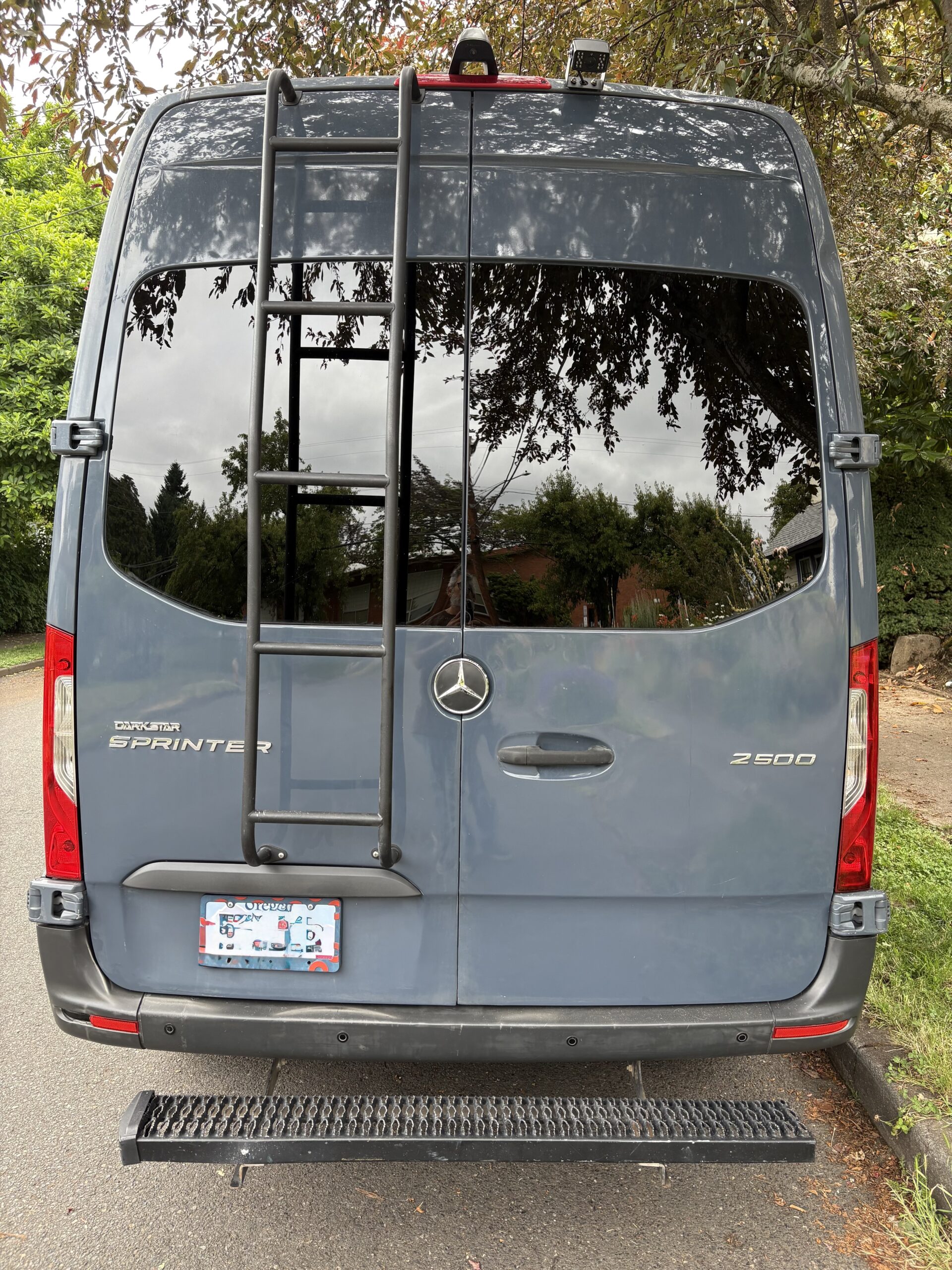

· Rear Door, 180 Degree Opening
· Pre-Wiring for Trailor Hitch
· Mercedes Pro Connect
Performance/Capability:
· GVWR 9,050 lbs
· High Roof
· 16” Steel Wheel
· LT 245/75 R16 All Season Tires
· Axle Ratio 3.923
· Spare Wheel & Hydraulic jack
· 24.5 Gallon Fuel Tank
· 3rd generation SCR Emission Control System (DEF)
· AGM Battery 12V 70 ah
· Body Builder Connector (Under Driver’s Seat)
Safety/Convenience:
· Load Adaptive Electronic Stability Program (ESP9i)
· 4-Wheel Anti-Lock Braking System (ABS)
· Tire Pressure Monitoring System (TPMS)
· Dual-Circuit 4-Wheel Disc Brakes
· Hill Start Assist
· Hold Function
· Headlight Assistant
· Emergency Call System
· Breakdown Management
· Airbags (Drive & Passenger)
· Thorax-Pelvis Side Airbags (Driver & Passenger)
· Window Airbags (Driver & Passenger)
Optional Equipment:
· Cruise Control
· Assist Handle- Left Rear Door
· Assist Handle- Right Rear Door
· Rear Door Step- Bumper
· Driver Convenience Package:
o Electrically Folding Exterior Mirrors
o Heated & Electrically Adjustable Exterior Mirrors
o Blind Spot Assist
o Attention Assist
o 2 Additional Master Keys
o Cruise Control
o Multifunction Steering Wheel
o Driver Seat 12V Power Outlet

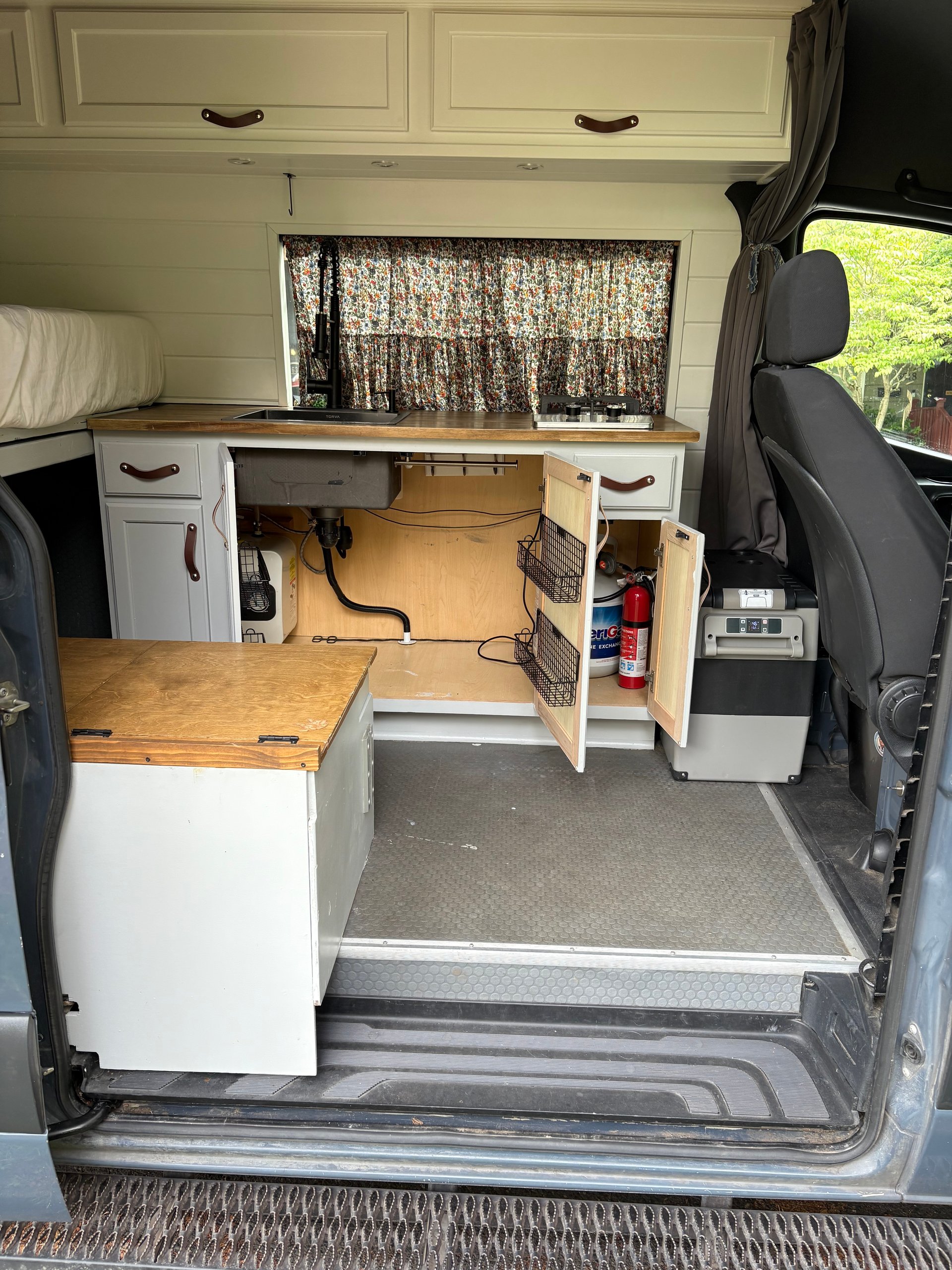

Galley:
· Dometic two-burner propane stainless steel cook top.
· Stainless Steel deep sink with retractable faucet.
· Dometic 3.8 cu ft. Refrigerator & Freezer (AC/DC installed).
· Spacious, custom-built, thermally modified ash cabinets and drawers
· Drawers are enclosed within custom steel framework to last a lifetime
· Custom built paperstone countertops
Heat & Air:
· Espar D5 Heating system for hot water and heat
· Fan-tastic roof vent fan with automatic opening, 3-speed, variable speed, & reverse
· Coachman Mach 8 Plus 13.5 BTU Ultra-low profile roof AC unit.
Lights & Electric:
· 8- LED Puck lights throughout ceiling of van with separate dimmer switches located on main control panel and next to passenger door.
· 2- LED Birth Lights installed on the passenger and driver side at rear of van and driver front above seating area.
· 4- battery auxiliary power system w/ 6-volt AGM batteries (448 amp hours) charged by shore power hook up, three 100 Watt Zamp Solar Panels and engine alternator via battery bypass separator (isolated from starting battery).
· Battery Separator 12v Aux Start Amp B-Directional
· 3- 100 Watt Zamp solar panels (on roof)
· Magnum Energy 2000 Watt/12VDC Pure Sine Wave Inverter Charger MS Series with ME-ARC remote control & digital display (inverter is inside van, under main bed)
· Inverter Auto Transfer switch. Changes 120vac outlets in the van to run off invertor or shore power.
· 12 Gang fuse panel for 12v DC distribution
· 30Amp/125V stainless steel exterior shore power inlet with breaker box and outlet for auxiliary battery charge. (Power cord included)
· 4- 120vac outlets installed throughout house
· 1- USB charging ports with dual outputs
· 2- USB-C charging ports
Water & Plumbing:
· 22 gallon fresh water tank (inside van, under main bed)
· Shure Flo water pump, blow out fitting, & diverter/mixing valve
· Valterra City/Gravity Box for shore water hook up & city water inlet
· Outdoor shower box (located inside van @back door) with hot & cold mixing valve
· Stainless Steel deep sink with pull out faucet with hot & cold mixing valve
External Additions:
· OEM factory roof rails in order to attach awning and solar panels
· Manchester 5.5 Gallon LP tank mounted under van on passenger side
· Fiamma F80s 12.2’ awning with manual crank. Installed on passenger side roof mount.
· Luverne aluminum running boards on passenger side and driver side.
· 3x’s 100 Watt Zamp solar panels on roof
· Fan-tastic roof vent fan with automatic opening, 3-speed, variable speed, & reverse
· Coachman Mach 8 Plus 13.5 BTU Ultra-low profile roof AC unit.
· Shore Power Outlet on driver’s side
· City & Tank water fills on driver side
· Grey Water release valve on driver’s side
Additional Customization Details:
· FatMat sound deadener installed throughout van to reduce noise volume while driving.
· Froth-Pak 200 Spray foam insulation throughout entire walls of van to enhance heat retention and moisture resistance.
· Custom upholstered ¼” plywood paneling throughout van. Upholstered with high end wool fabric and single needle topstitch quilting pattern. Plywood Panels lined with 1/8” closed cell foam for cushioning.
· 14’ (Driver side) and 8’ (Passenger side) of custom overhead cabinets (14”H x 12”D) with magnetic closures along each side of van driver side with custom doors. Wood used for cabinets is thermoregulated ash (eco-friendly and chemical free).
· Custom steel frames built for galley cabinet & drawer system.
· Custom built cabinets & drawers are made w/ thermoregulated ash.
· Custom built cabinets & drawers with spacious paperstone countertops on both driver & passenger side, with 3 pull out drawers each. Drawers are soft close and have latch locks to prevent drawers from opening while driving.
· Size of driver side drawer galley frame is approximately 35”H x 48”W x 25.5”D
· Size of passenger side galley frame is approximately 35”H x 24”W x 23.5”D.
· Custom made convertible bench (35” H x 43” W x 24”D Total/18”D Seat). Bench converts into a bed that is slightly larger than a twin bed. Bench has custom made cushions upholstered with marine grade durable vinyl and custom stitch pattern throughout.
· Large storage cabinet (16”H x 38”W x 21”L) underneath main bench with hinge door and brass ball latch closure
· Removable custom walnut tabletop with Todd marine fitting.

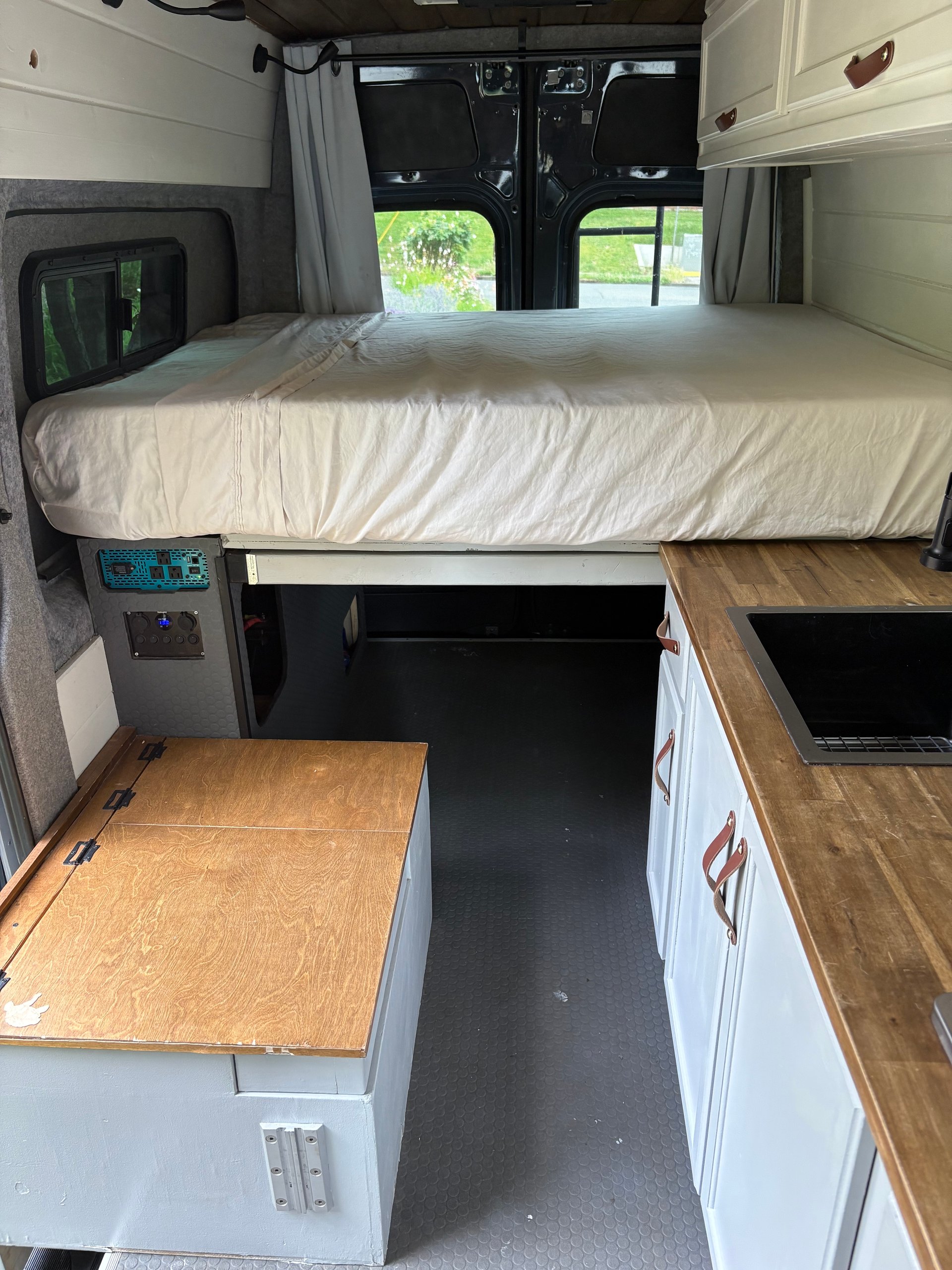

· Huge king size main bed (78”L x 69”W) bed with 6” memory foam mattress.
· Very large (82”L x 41”W) storage space/sleeping nook under main bed with custom made storage cubbies in walls.
· Custom Marmoleum flooring throughout the van.
· 2007+ OEM Design All-Glass Sprinter Van Driver & Passenger Side Middle & Cabin Windows added post-purchase, during conversion
· 36”W x 10”H ½ slider window w/ black frame, dark tint on rear driver’s side of van.
· Infinity Reference 6532IX 6.5” Coaxial Speakers (installed in rear of van)
