Meticulously crafted custom-built home and remote workplace on wheels designed to elevate your adventures. With a robust electrical system, thorough insulation and heating system to keep you warm during cold winter months, and air conditioning system for hot summer days, you’ll enjoy off-grid independence all year round. Solidly built using Baltic birch plywood throughout, fastened using rivet nuts and 3/4-inch plywood furring strips for strength and longevity. Conveniently located AC and DC power outlets throughout to power all of your appliances and devices. 400 Amp Hours of battery storage, 360 Watts of solar, and 40 gallons of fresh water onboard allow you to enjoy longer trips to more remote areas.

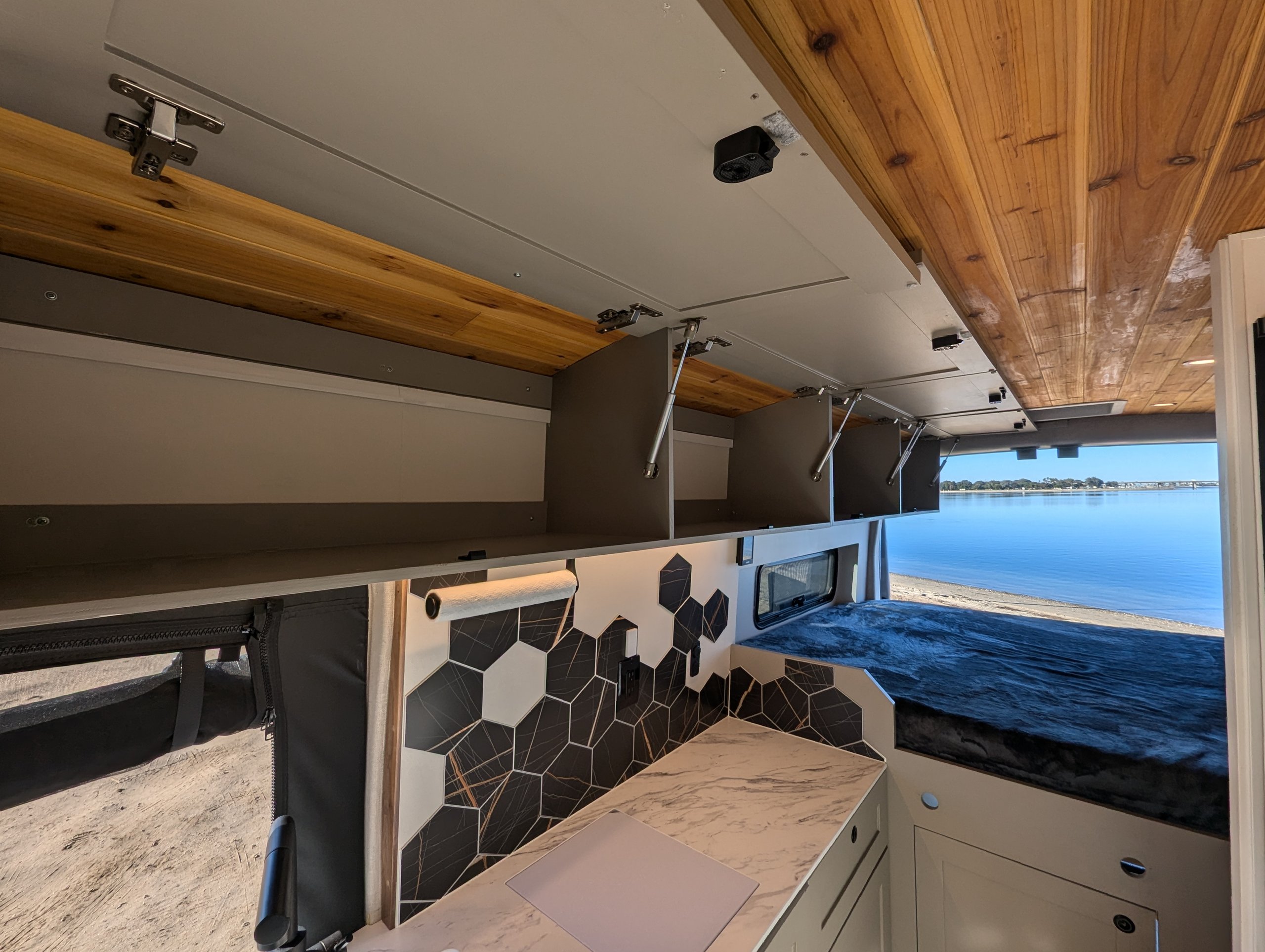

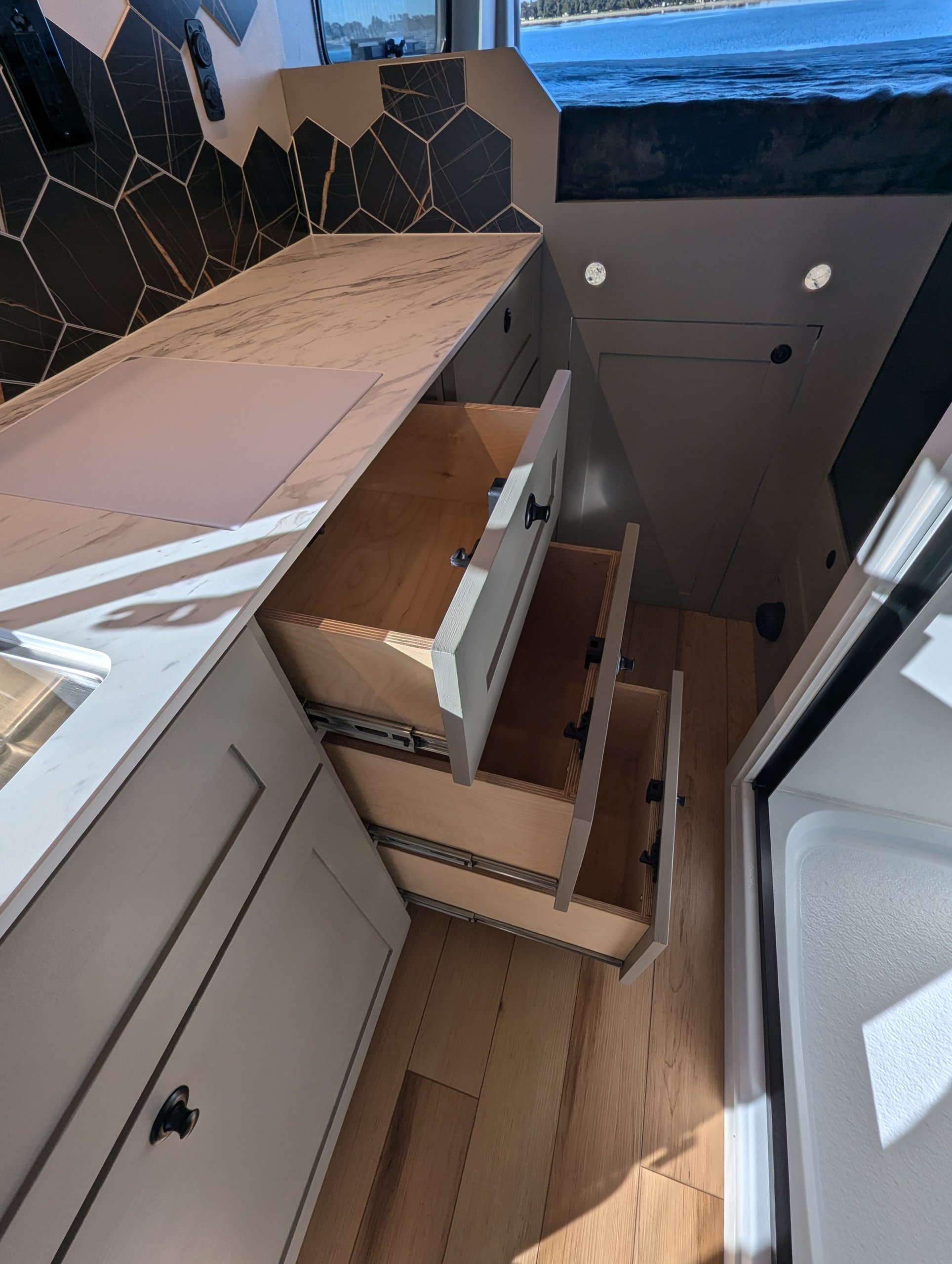

The interior is a masterpiece of design and functionality. Fine woodworking techniques, combined with high-quality materials, create a luxurious and inviting space. The thoughtful layout maximizes every inch, offering ample storage featuring soft close drawers and pneumatic self opening overhead doors.

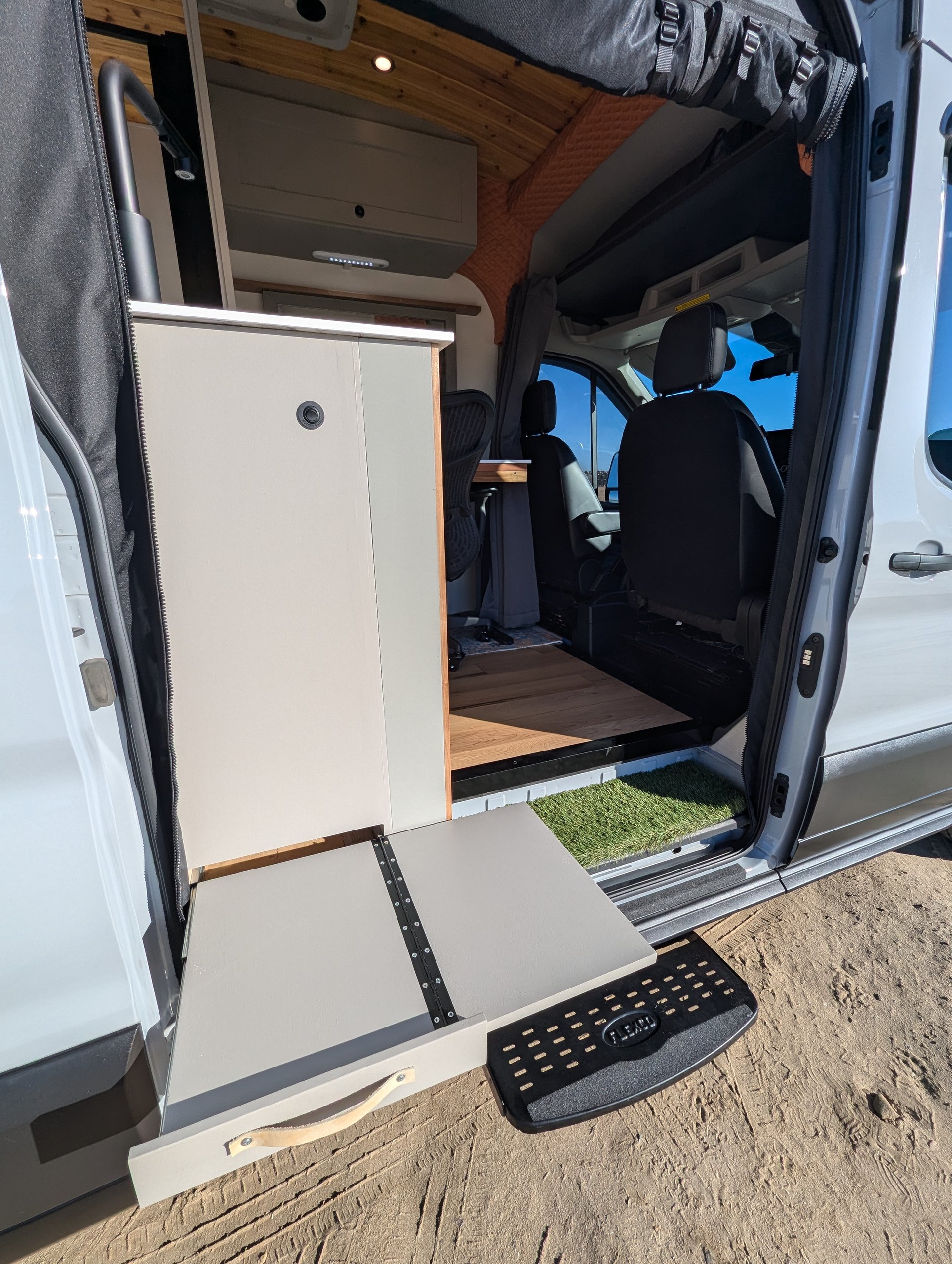

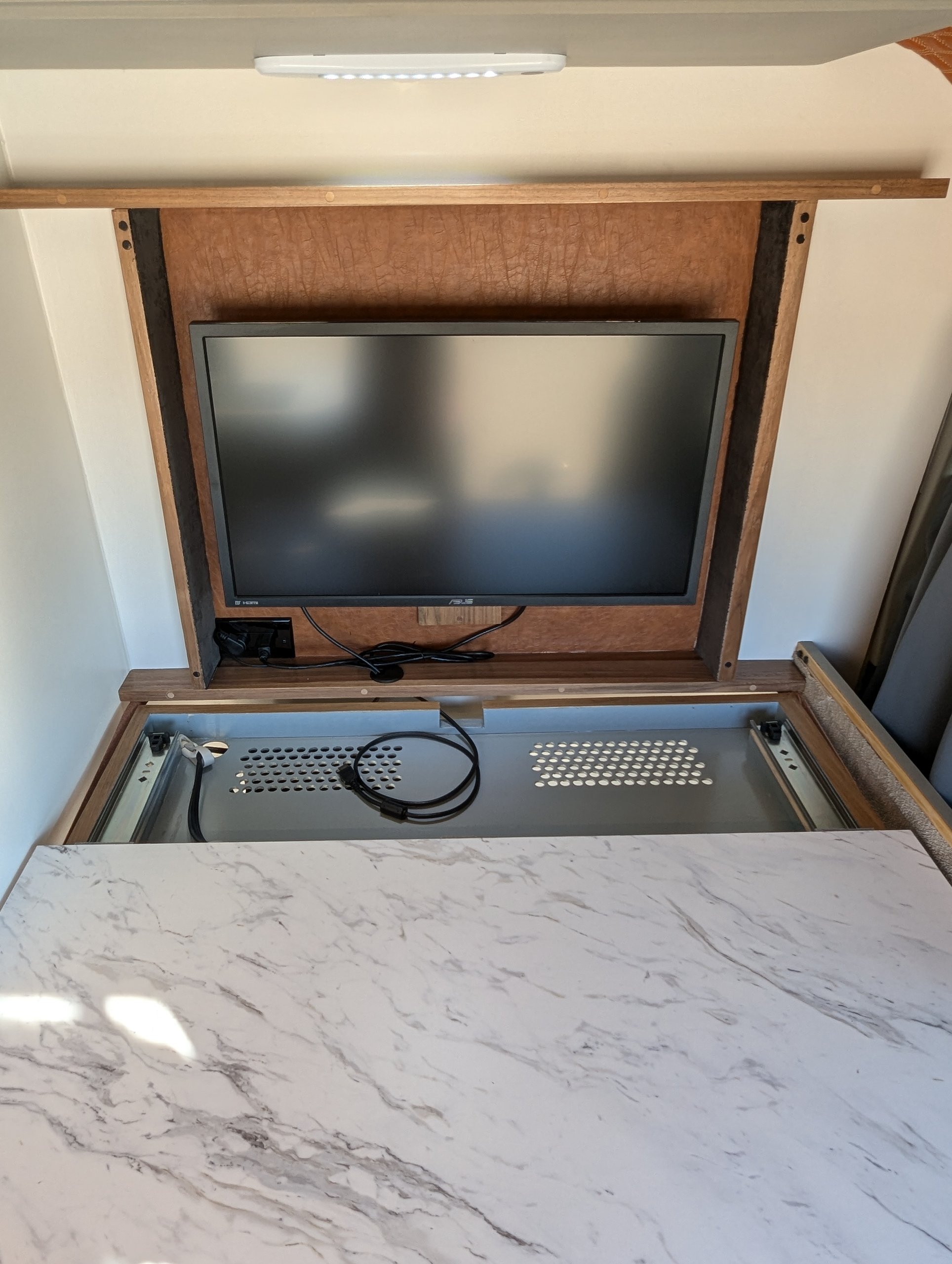

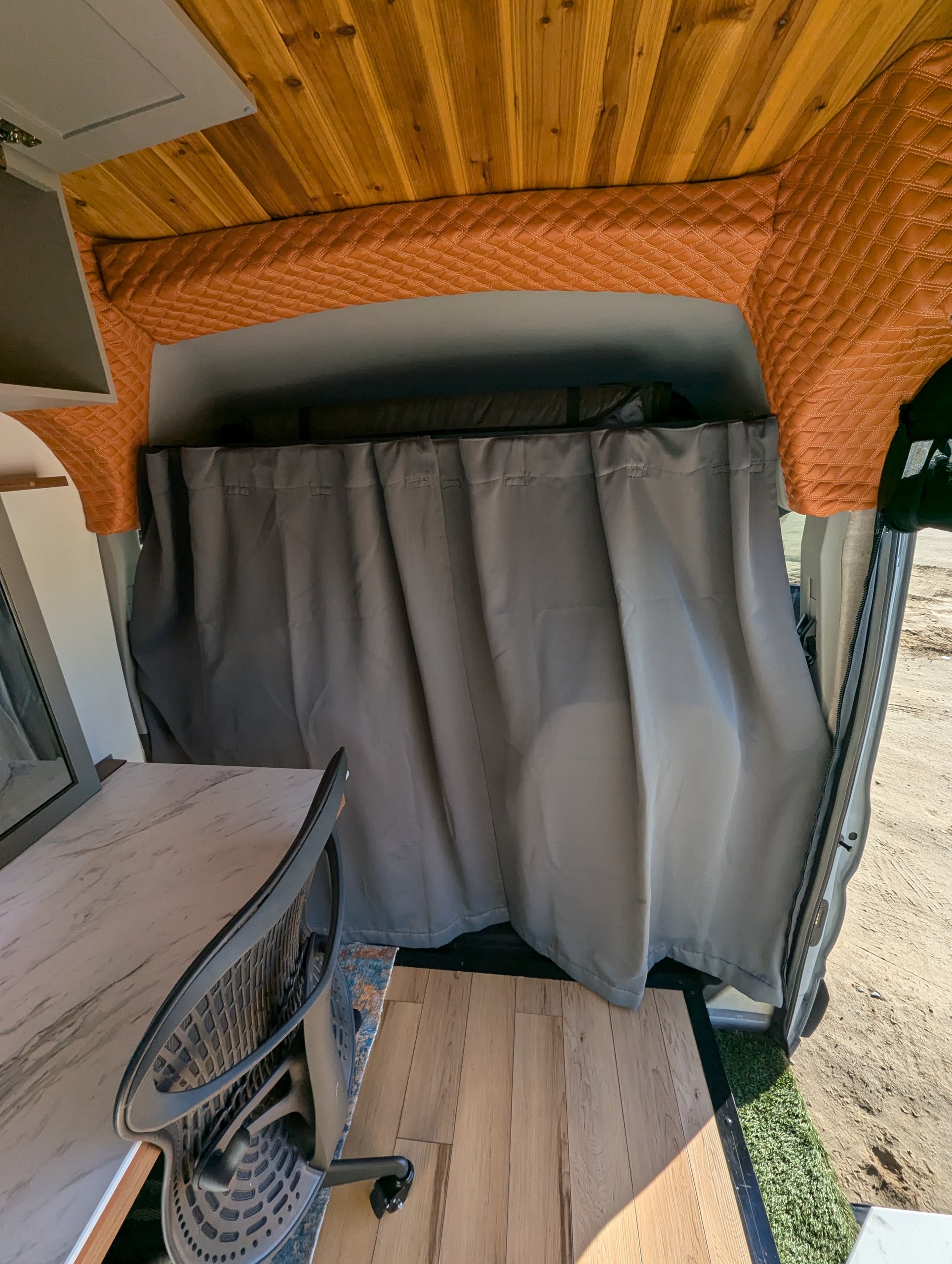

The workstation features a large worktop with sit/stand desk, hidden laptop storage and 28″ 4K monitor. Paired with a powerful external 5G/4G antenna and internal WIFI setup you can stay connected for longer.

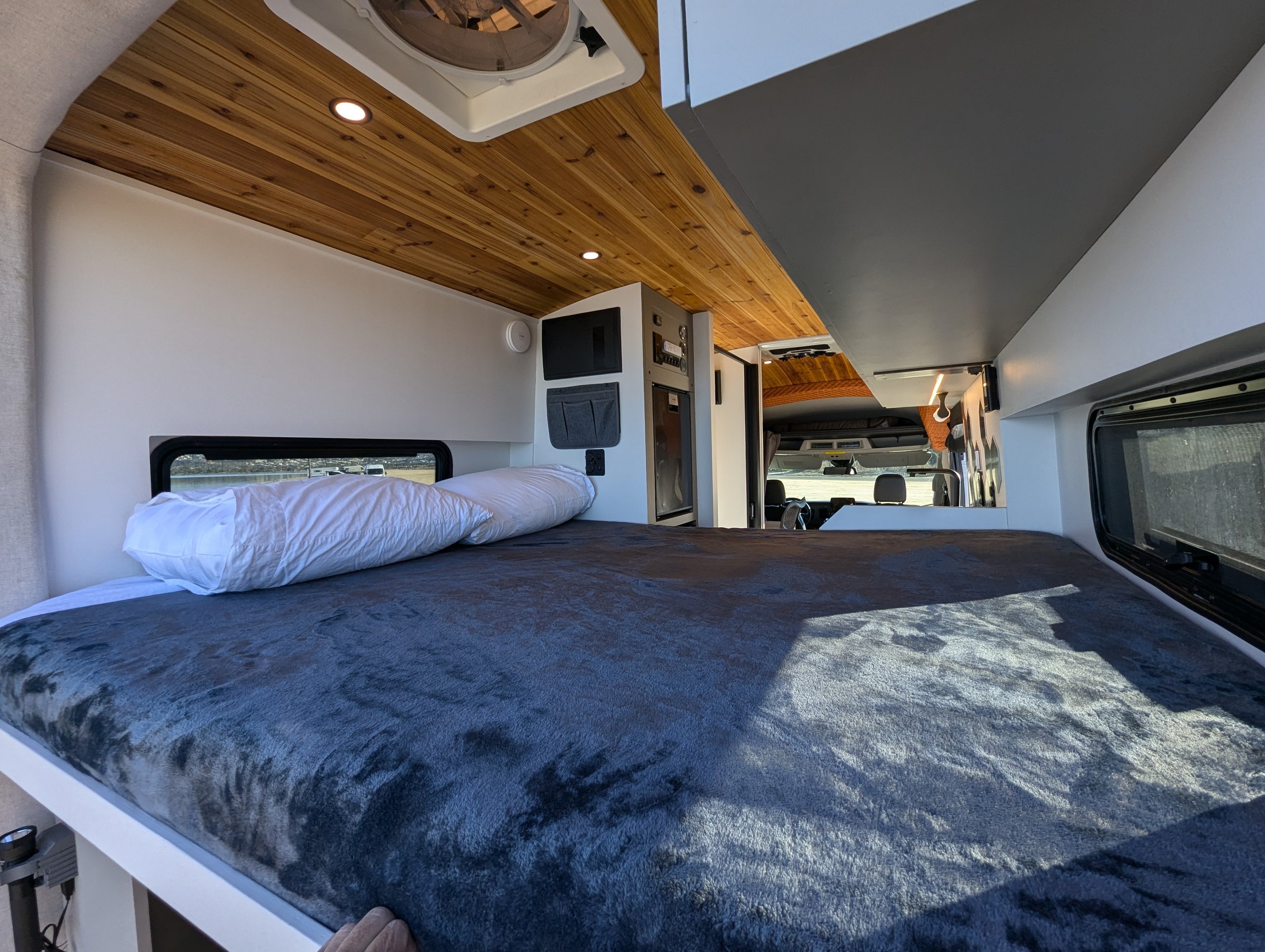

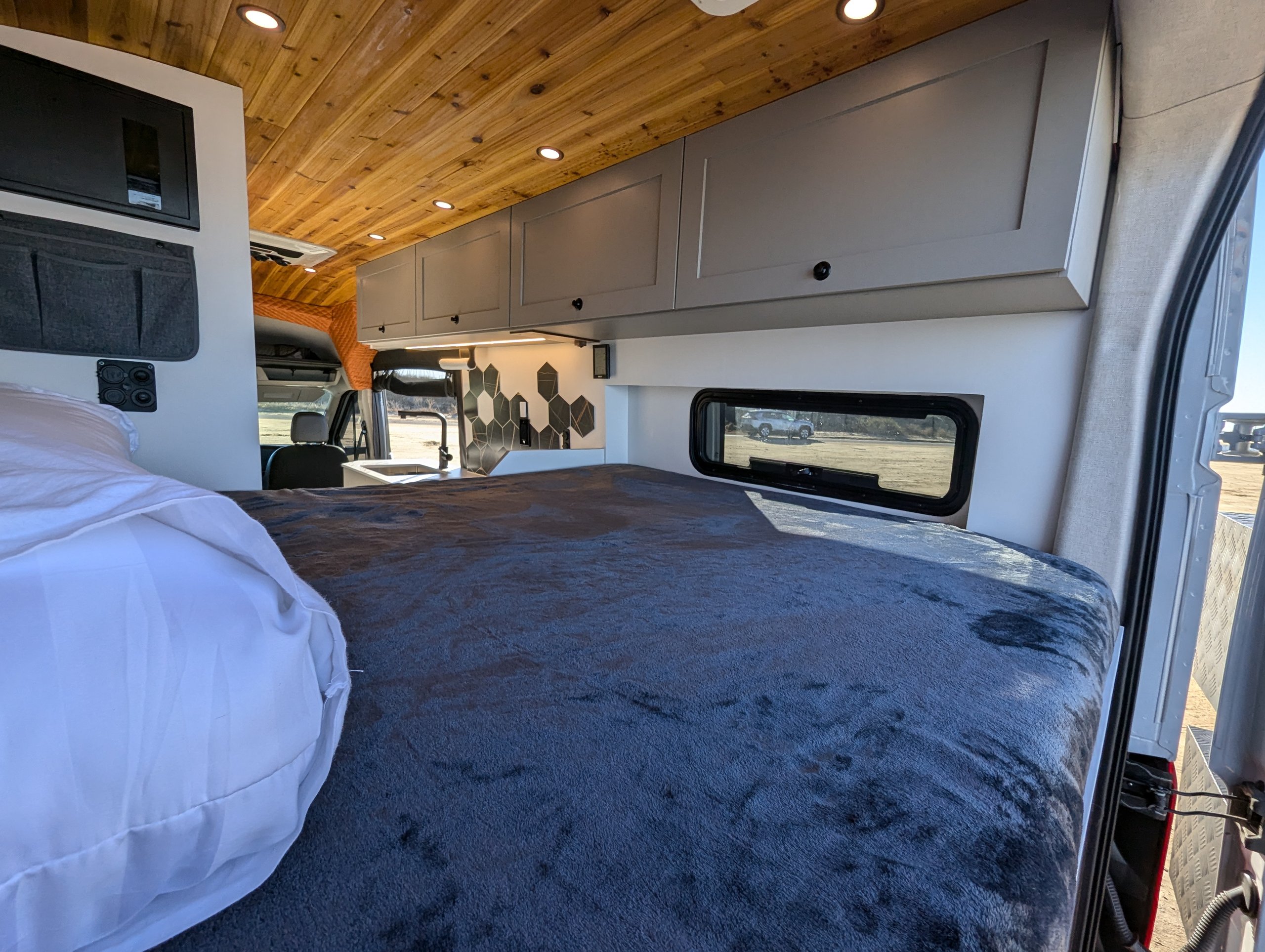

A bedroom with an RV queen sized bed, dimmable LED lighting and bunk windows for air flow make a cozy sleeping area.

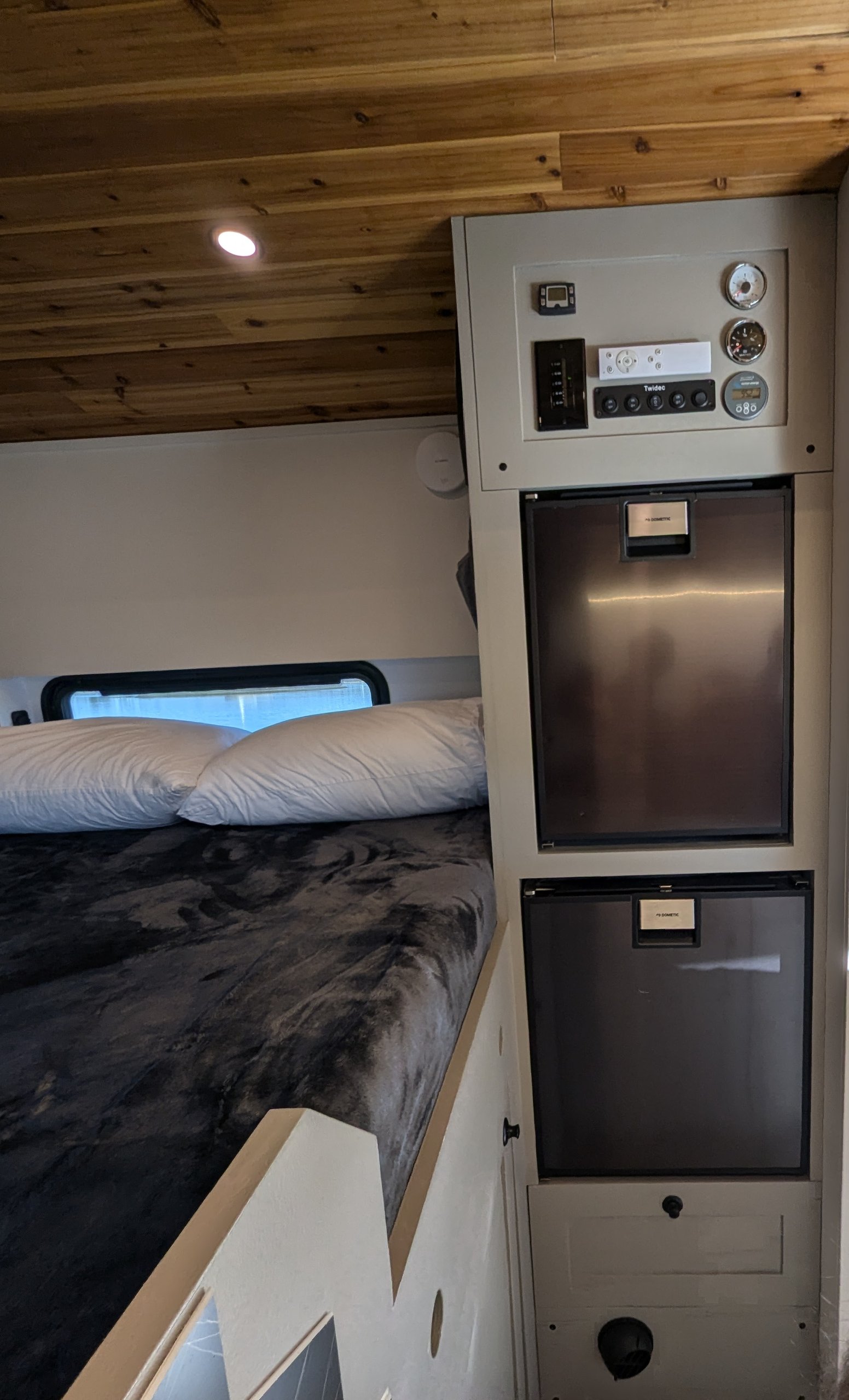

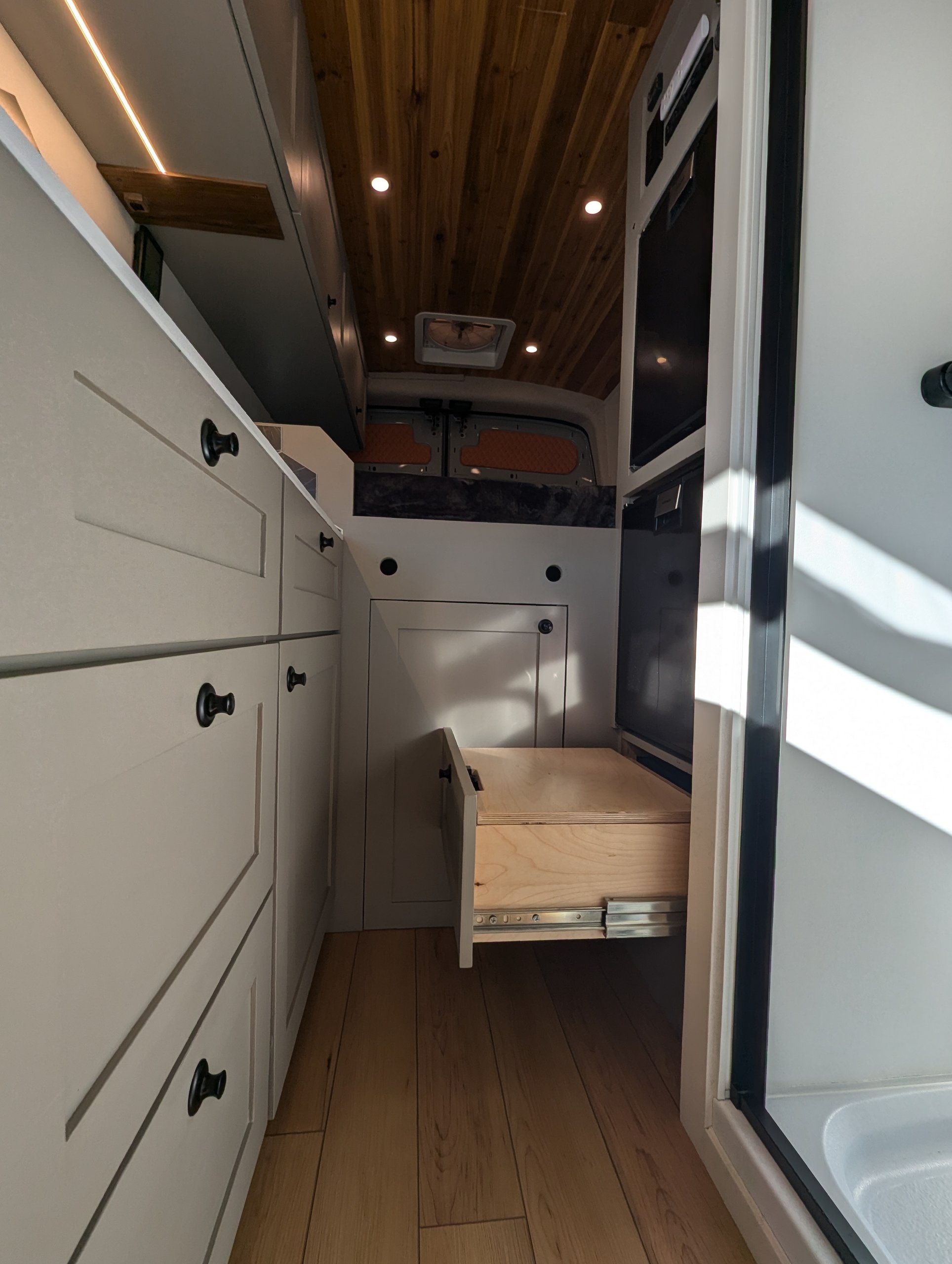

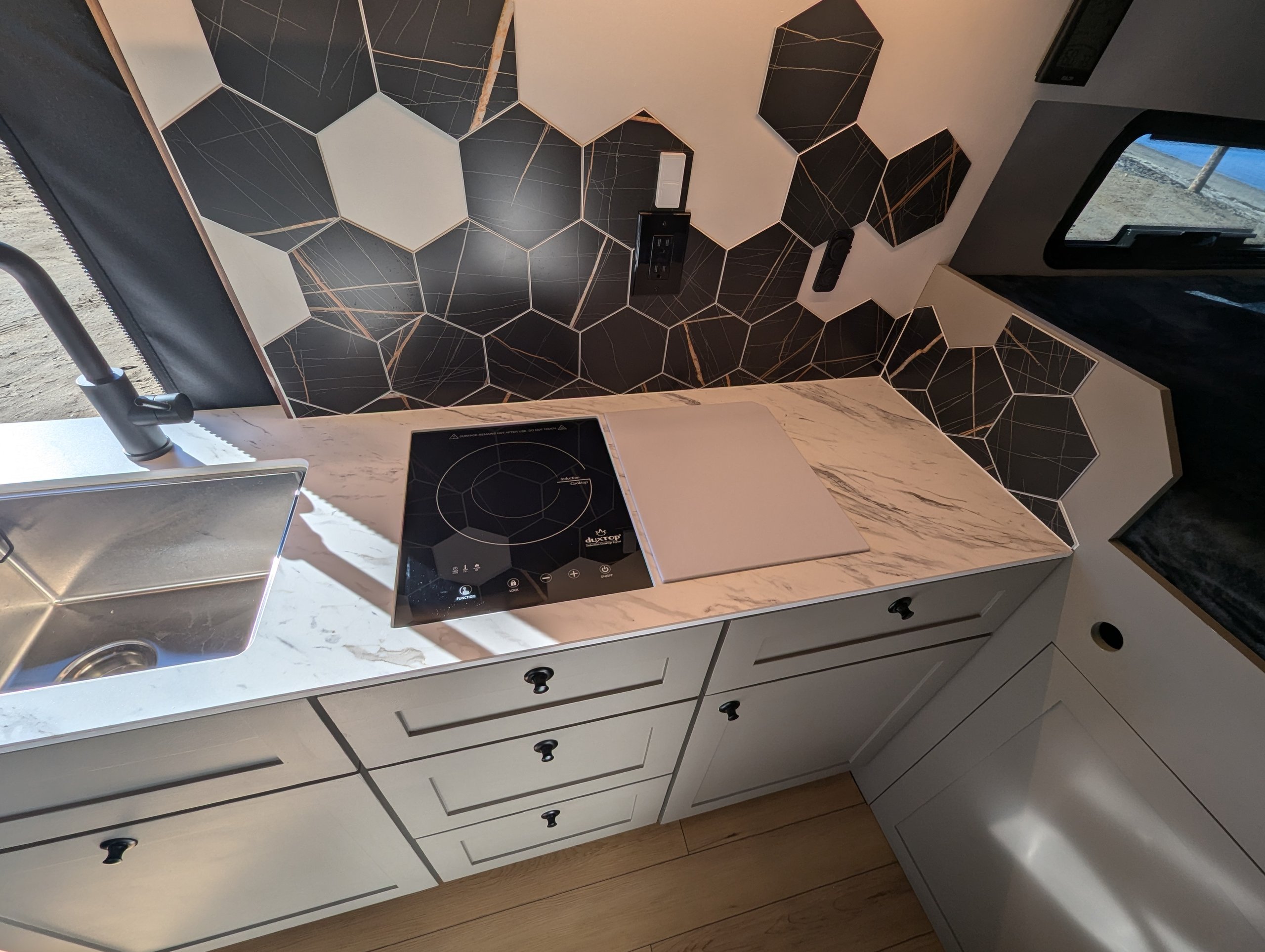

The kitchen is equipped with modern appliances, including two high-quality fridge/freezer units and an inset and removable induction cooktop, deep stainless steel sink, under cabinet lighting and a large amount of solid surface counter space making meal preparation and cleanup a breeze. The dry flush toilet is hidden in a cabinet and is mounted on heavy duty drawer slides for ease of use. The shower is generously sized and with the hot water heater on a timer you can enjoy hot showers every day.

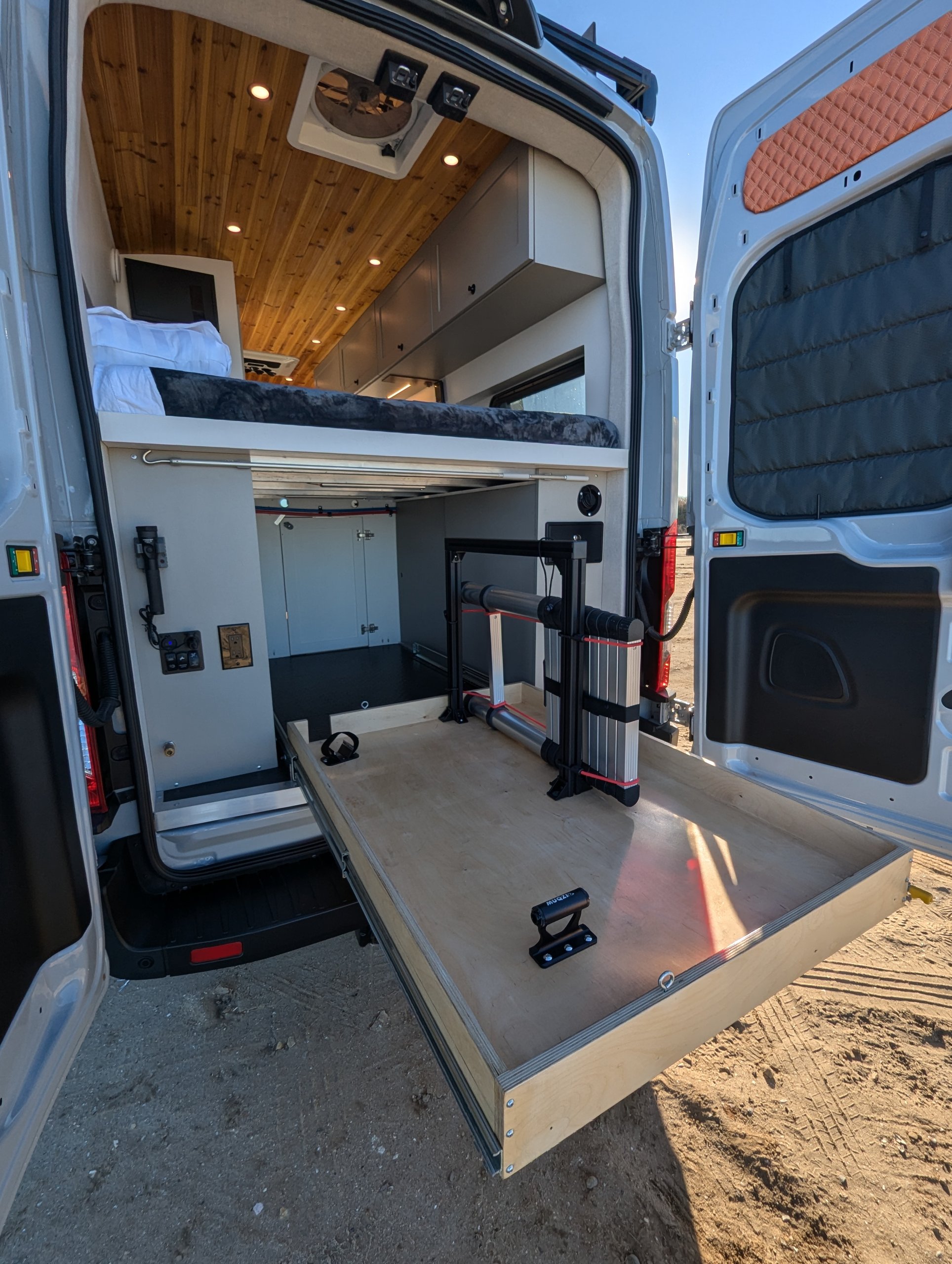

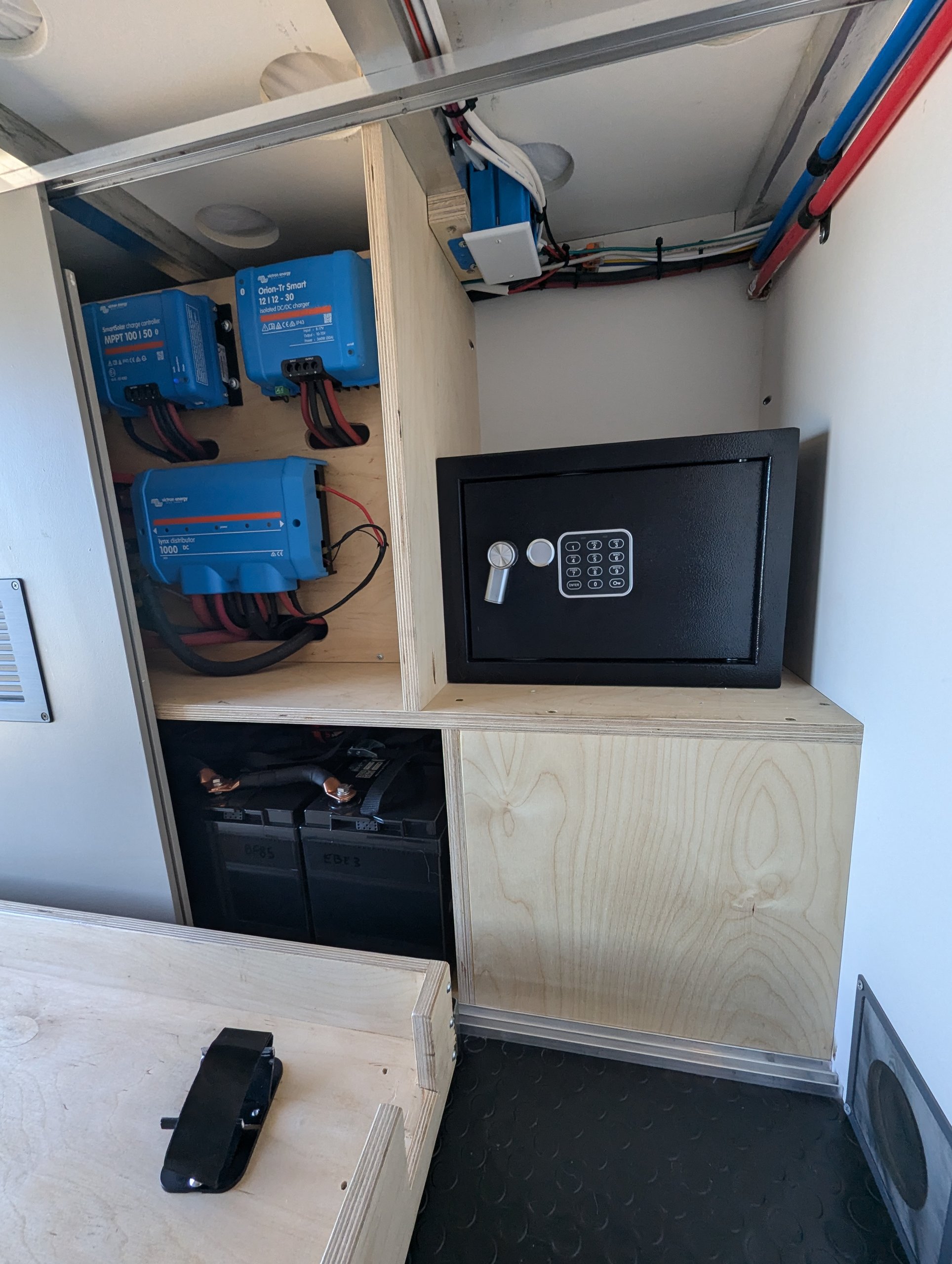

The spacious garage houses the electrical and water systems, with sliding doors for easy access. A large drawer with 500lb slides makes for easy stowage and access to all your gear.
This van is more than just a vehicle; it’s a gateway to a life of freedom and exploration. Whether you’re a digital nomad, a nature enthusiast, or simply seeking a unique way to travel, this custom-built van offers the perfect solution.
Electrical Systems
20 Amp shore power plug
Victron smart solar MPPT 100/50 Charge Controller
Victron Multiplus 3000 watt Inverter

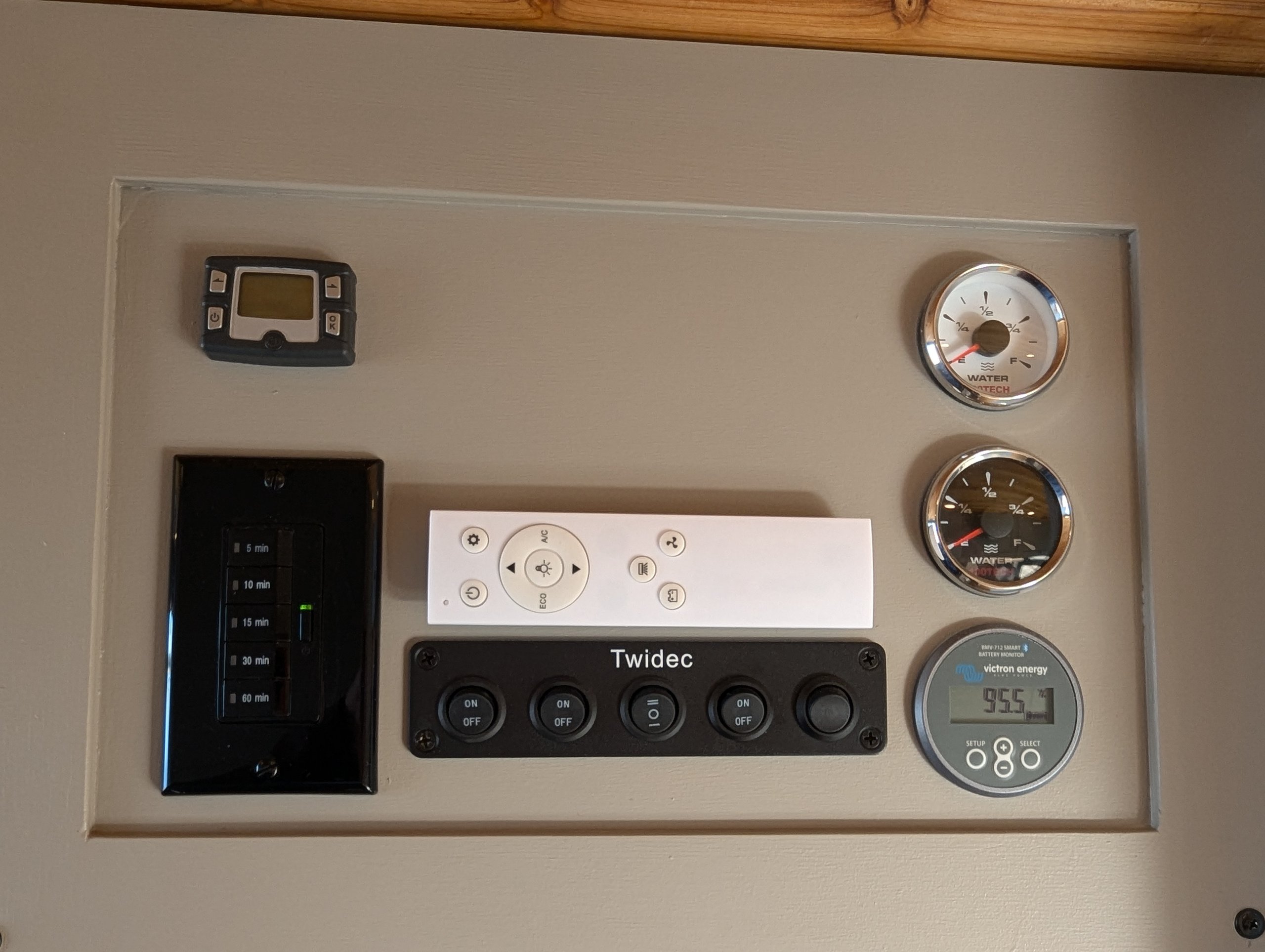

Victron BMV-712
Victron VE.Bus smart dongle
Victron Lynx Distributor
Victron Orion-Tr Smart DC/DC charger
360 watts of solar- 2x Bouge RV 180 watt solar panels
WFCO WF-8930/WF8950 Ultra Distribution panel 30/50 Amp
400 Amp hours of battery- 4x Renogy 100 amp hour Lithium Ion
Water Systems
Seaflo 12 volt 3.0 GPM 45 PSI water pressure pump
Seaflo Accumulator tank
Bosch 4 Gallon electric water heater
Class A Customs 40 gallon fresh water tank
3-stage full RV water filter system
Climate control
General Components Bison 2000A Forced Air heater, 2KW gasoline heater with digital controller tapped into Van gas tank
Maxxair 00-05100k 10 speed intake and exhaust fan
9000 BTU 12v DC roof mounted air conditioner/heat pump
Interior Build

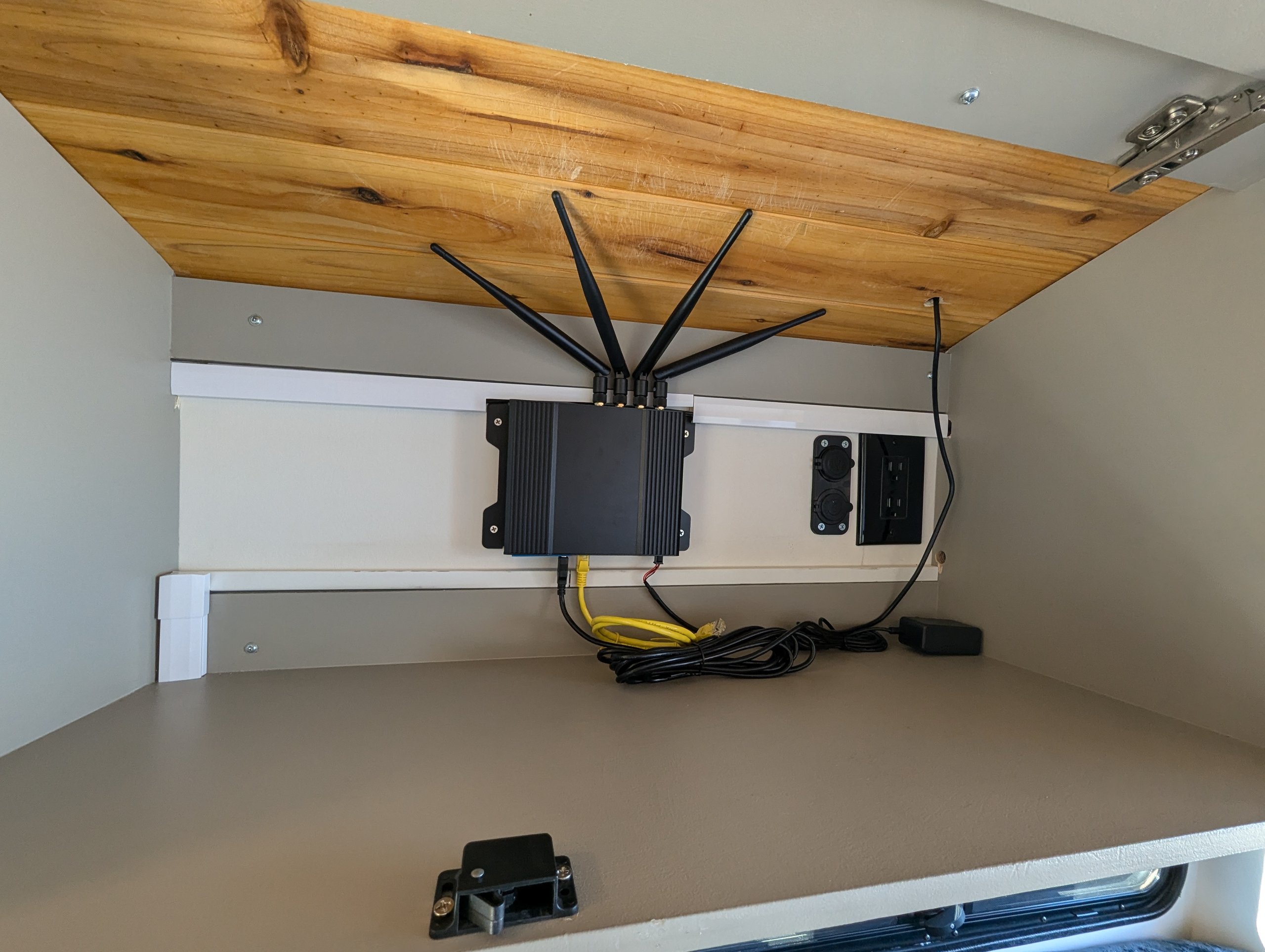

Insty Connect squared 5G antenna with WIFI router
Rear view camera mirror
Hidden Laveo Dry flush toilet mounted on 500Lb slides
Whitetop Adventures Headliner Shelf
Stoett Nautilus self squeegee shower door

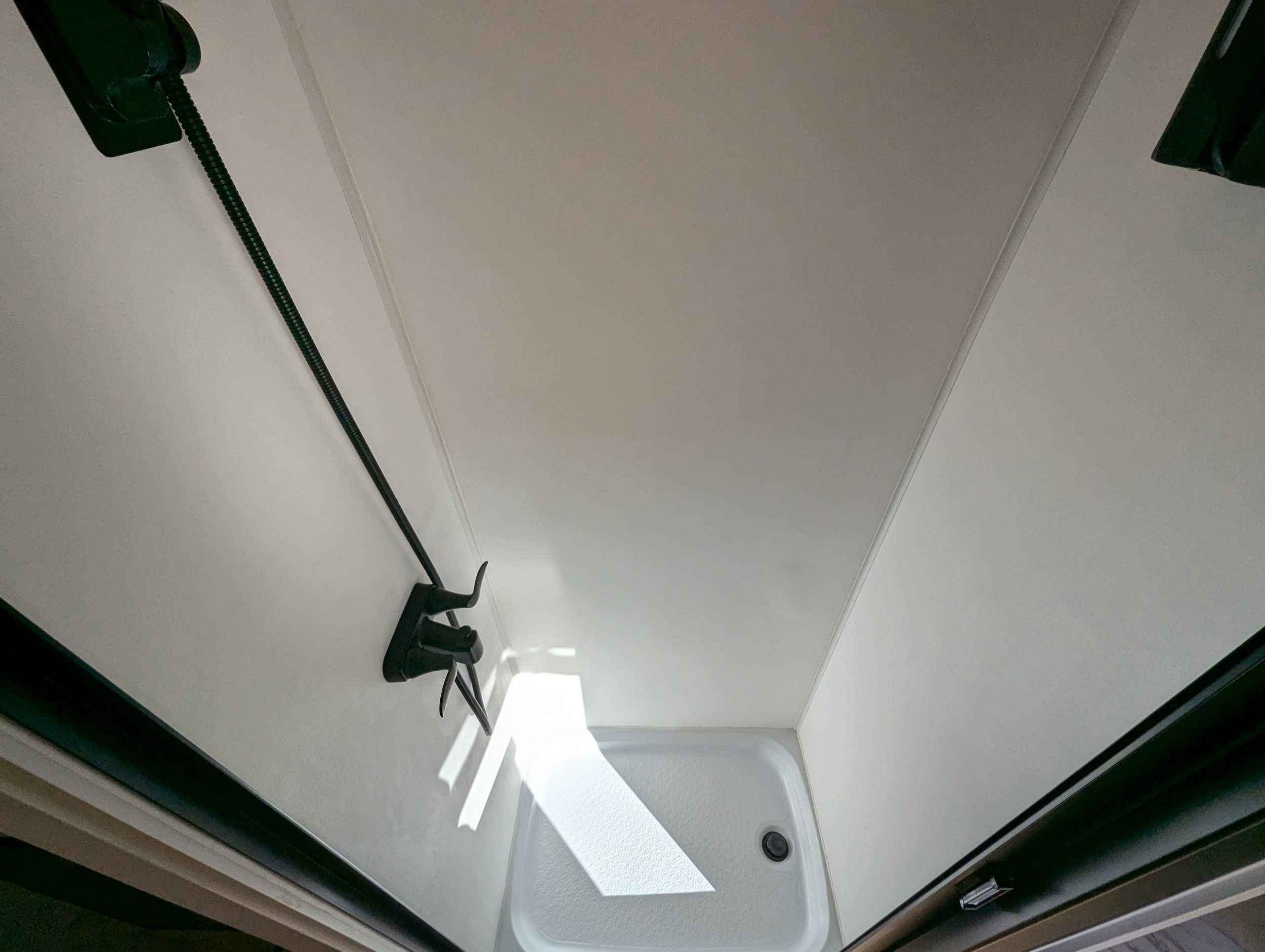

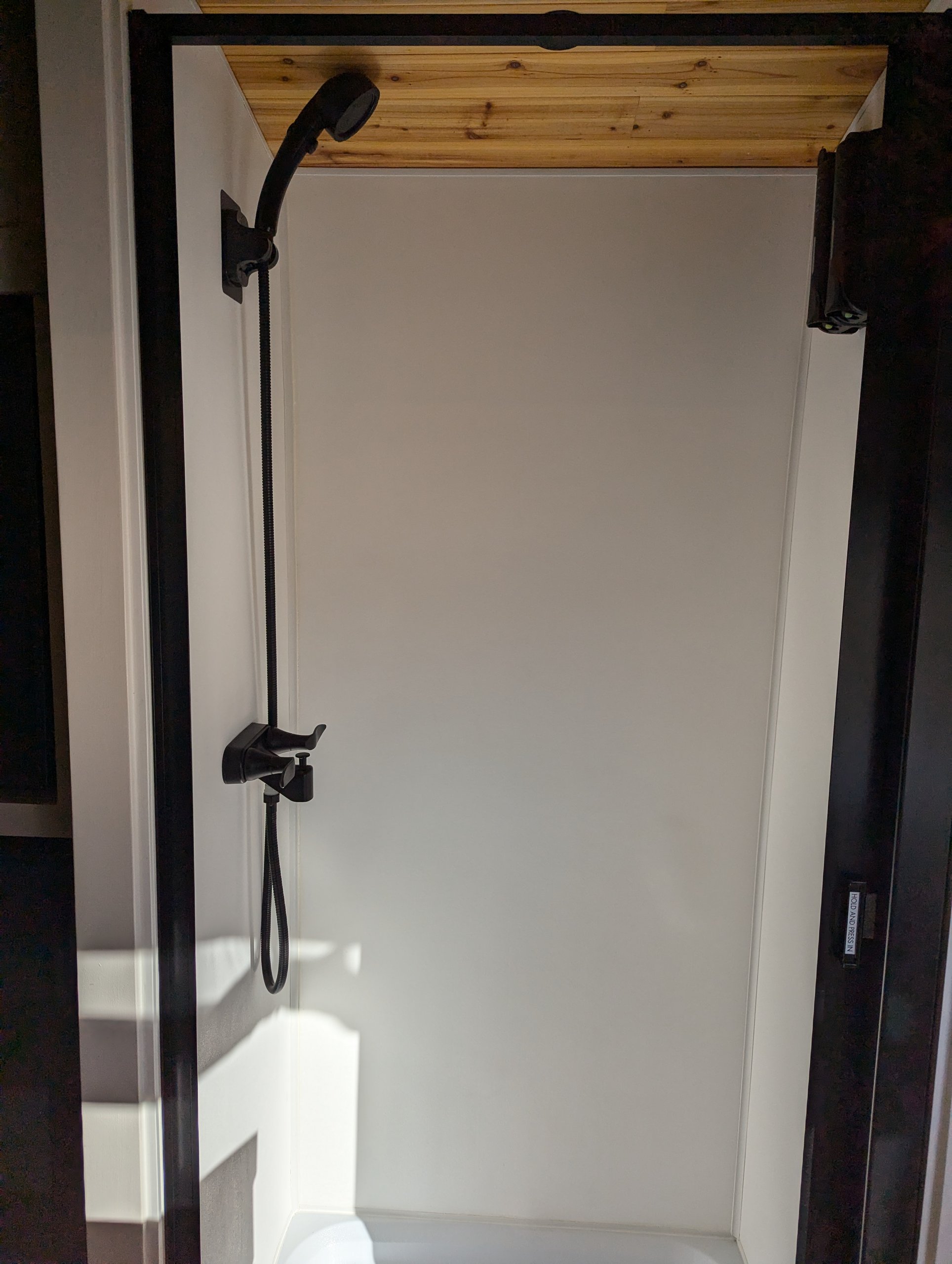

24×32 indoor Shower
Outdoor shower located in the rear garage area
Dometic CRX 50 PRO refrigerators
Dometic CRX 65 PRO refrigerators
16x12x9 Brushed stainless steel kitchen sink

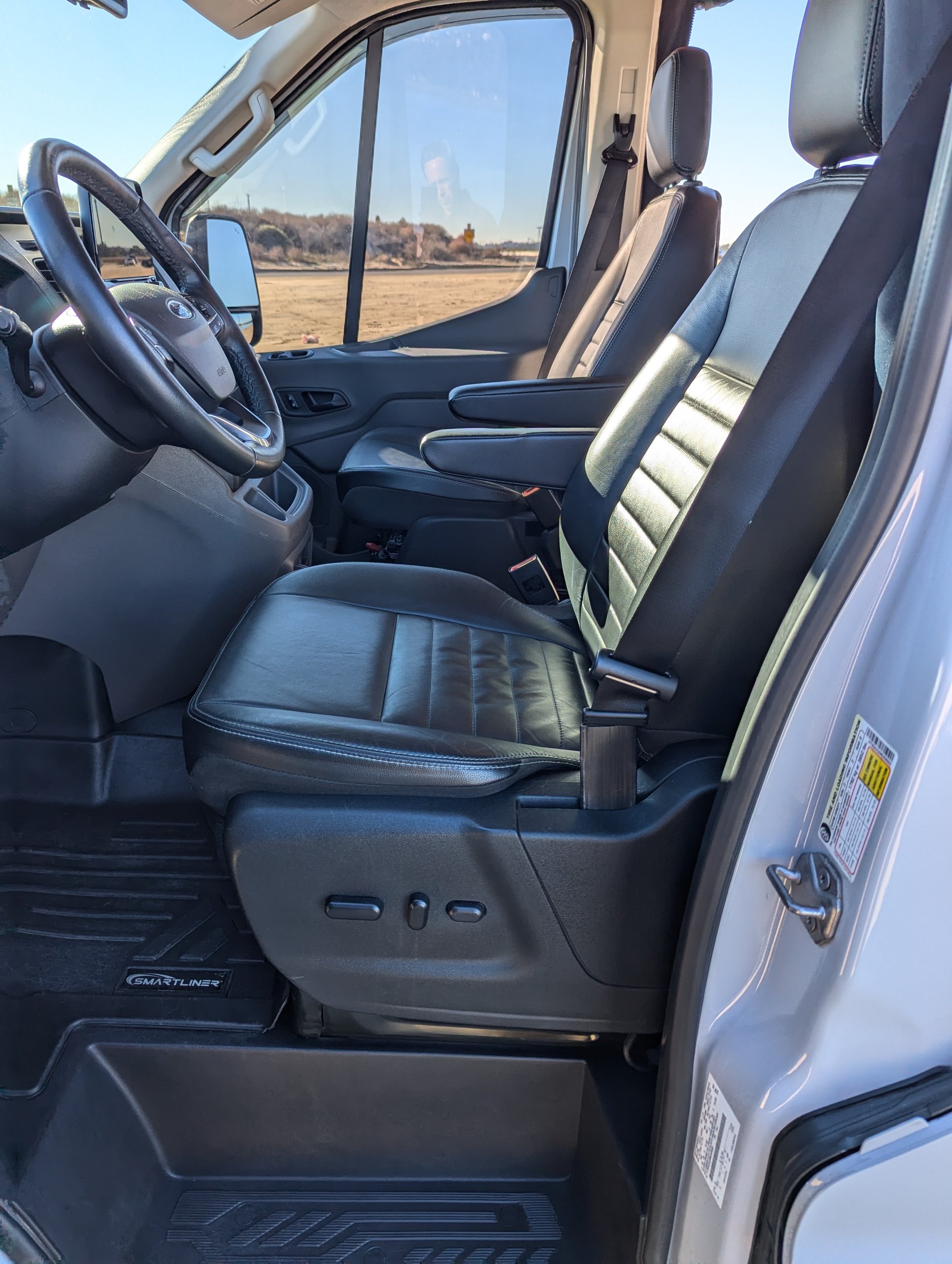

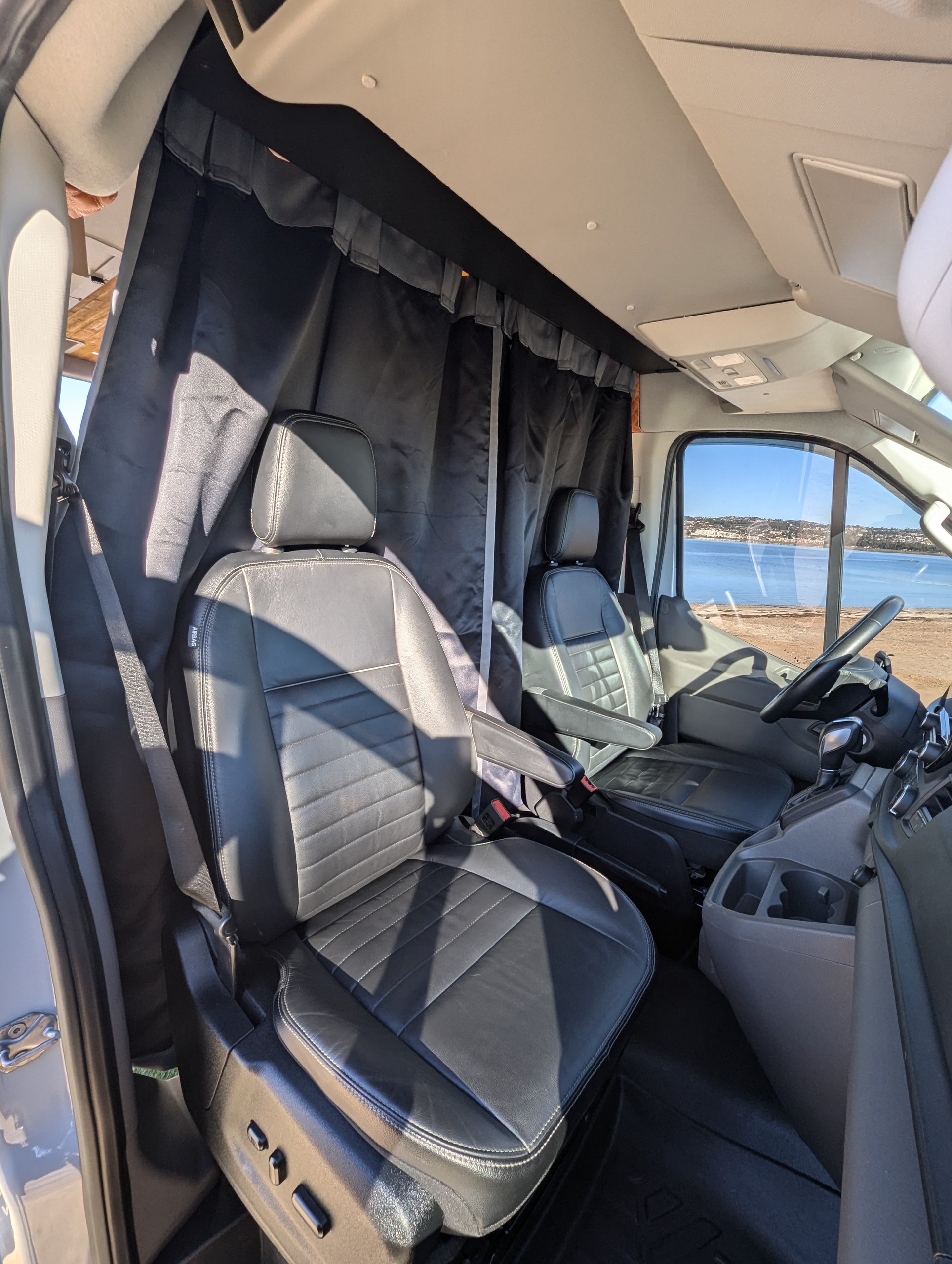

Passenger seat swivel
Sound deadening with Kilmat
Insulated with foam board, havelock wool, and Thinsulate

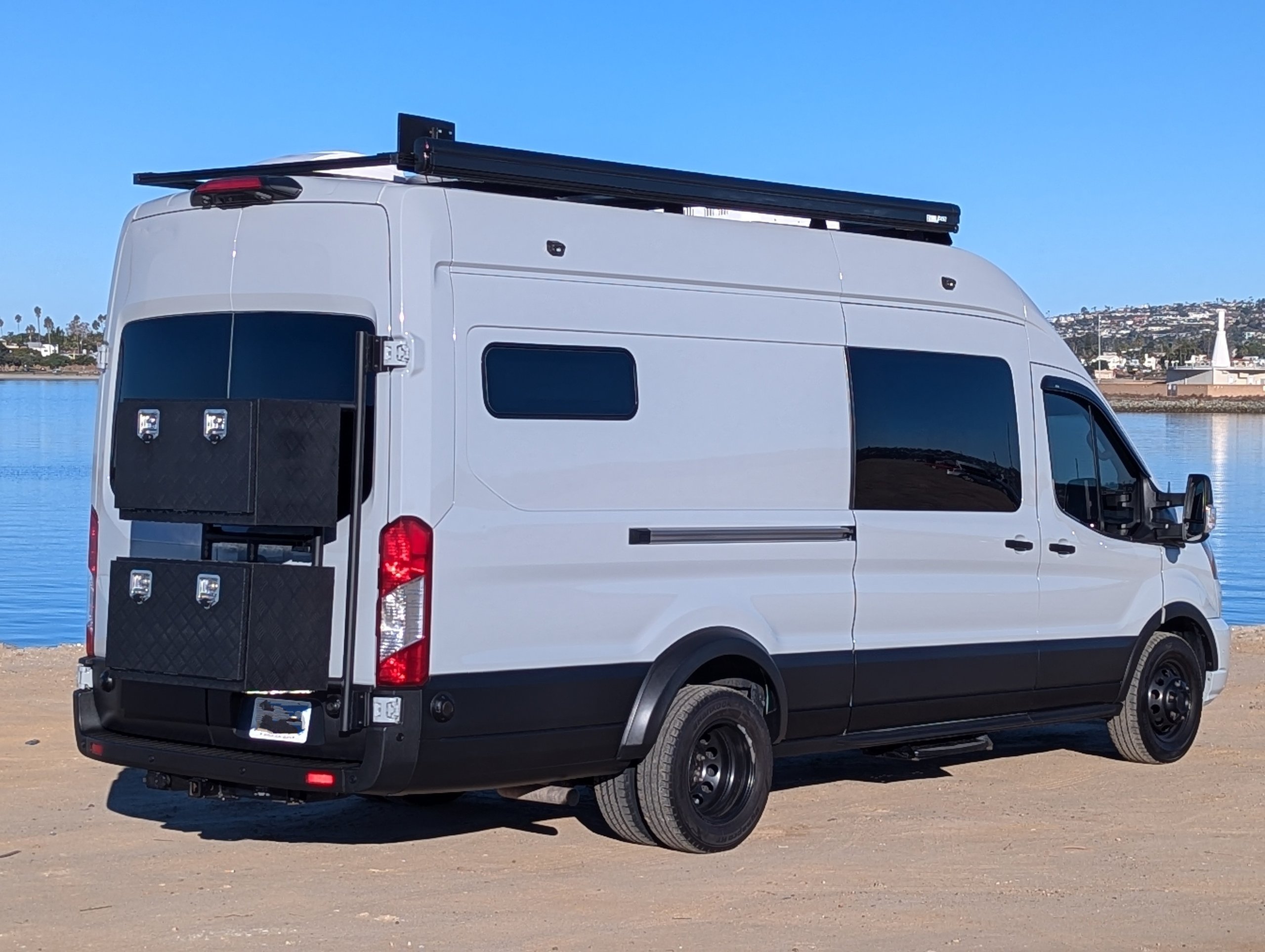

Exterior Build
Aluminess Backpack rear door carrier with 2 storage boxes
Fiamma F45S Awning
Unaka Gear 8020 Roof Rack
ARB on board air compressor
Class A Customs 15 gallon grey water tank
Bugwall sliding door screen

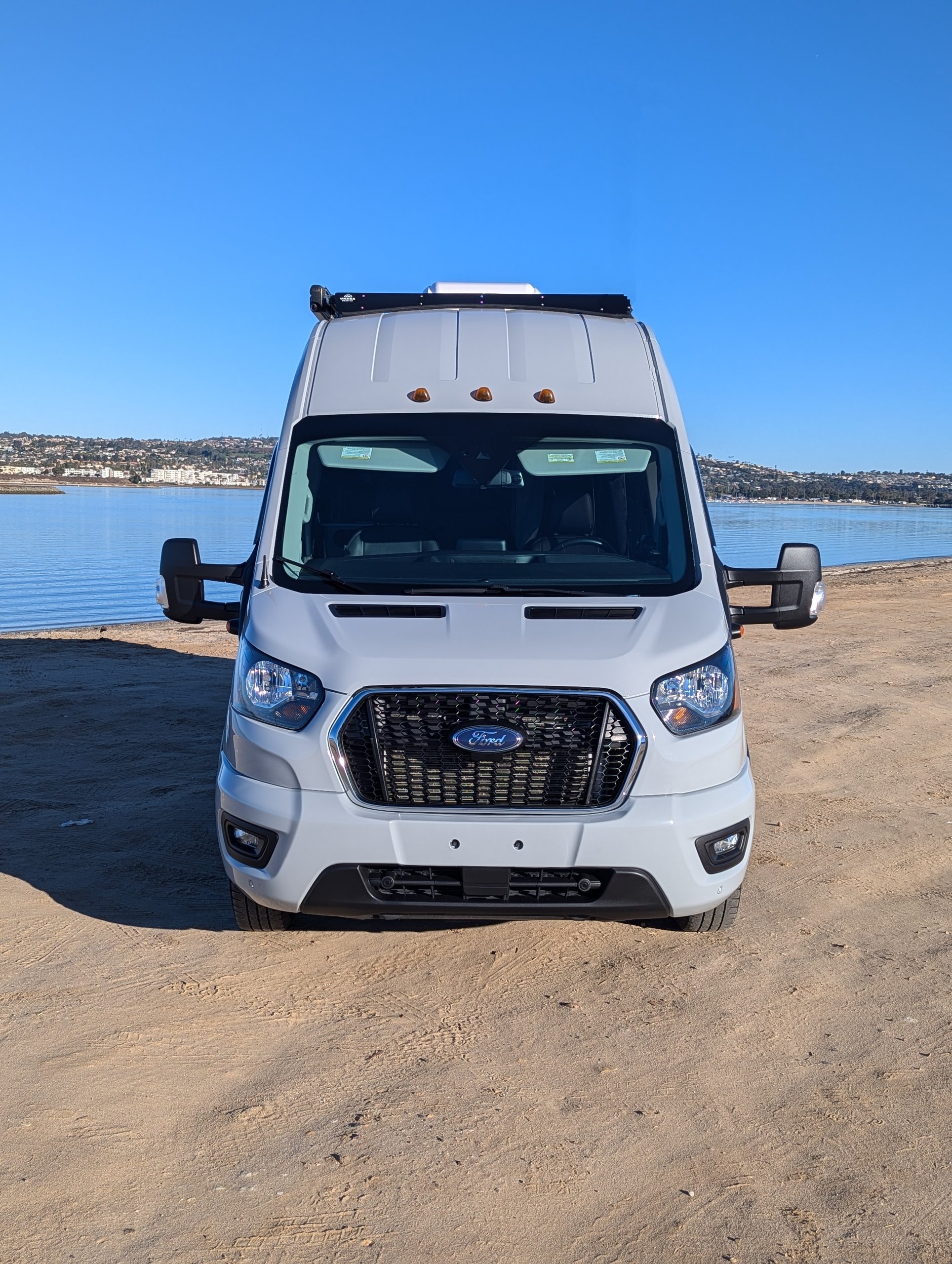

Ford Van options
Factory warranty through 72,000 miles
350 HD Dually AWD
3.5 Liter ECO BOOST
8 inch SYNC infotainment system with Apple Car Play and Android Auto
Lane Keep Assist
Adaptive cruise control
Forward collision monitoring
Cross traffic alert
Side sensing system
Pre collision alert
Pre collision assist
Reverse sensing system
10 way Power + Heated Leather Seats
Adventure prep package
Keyless entry pad
Dual batteries
Body colored front bumper
Power and heated mirrors
Rain sensing wipers
Auto high beams
Trailer hitch and trailer brake control
Heavy duty front axle
