2024 noovo – Helena
This camper van is the perfect home for full-time living and remote working, without sacrificing comfort and style.
Our sleek black noovo van, Helena, offers a private bathroom with a built-in toilet and a lavish hot shower. Helena’s kitchen is a chef’s dream with a microwave, fridge, and induction stove – enjoy all the comforts of home while on the road.

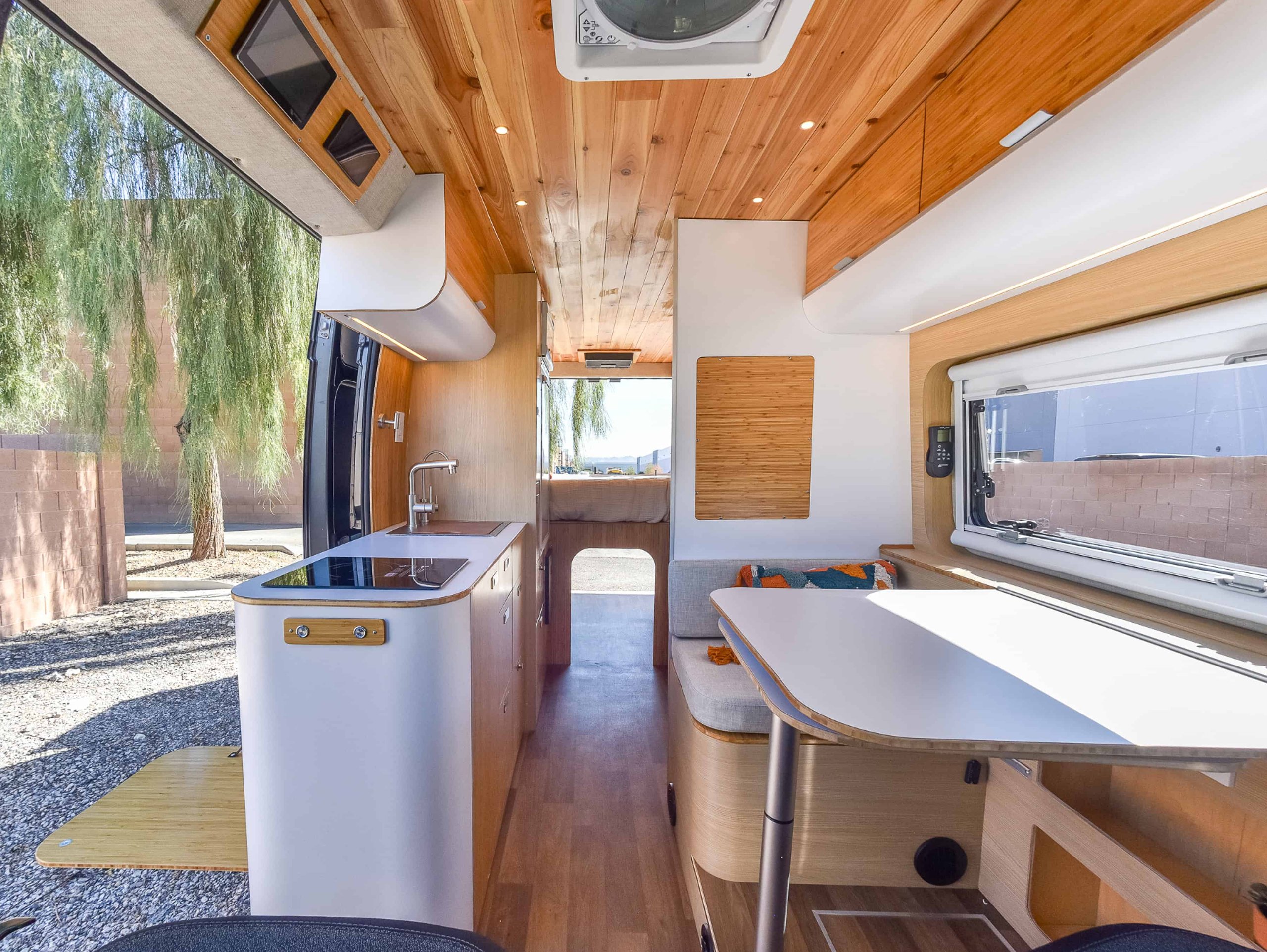

A cozy queen-sized bed awaits you, and the spacious living area with a sliding table and swivel seats is perfect for dining, relaxation, and remote work.
Helena features exquisite bamboo wooden finishes, combining style and sustainability.
Certified by the RV Industry Association, this van complies with over 500 safety-related standard requirements covering electrical, plumbing, heating, fire & life safety systems, and construction. This makes it easier to finance, insure and resell.
HIGHLIGHTED FEATURES
Victron off-grid electrical system
600Ah lithium battery back (upgrade available up to 1000Ah)
400W solar panels
36 gal fresh water / 33 gal grey water tanks
12V AC
12V Rixen heater system
Bathroom with hot shower and built-in toilet

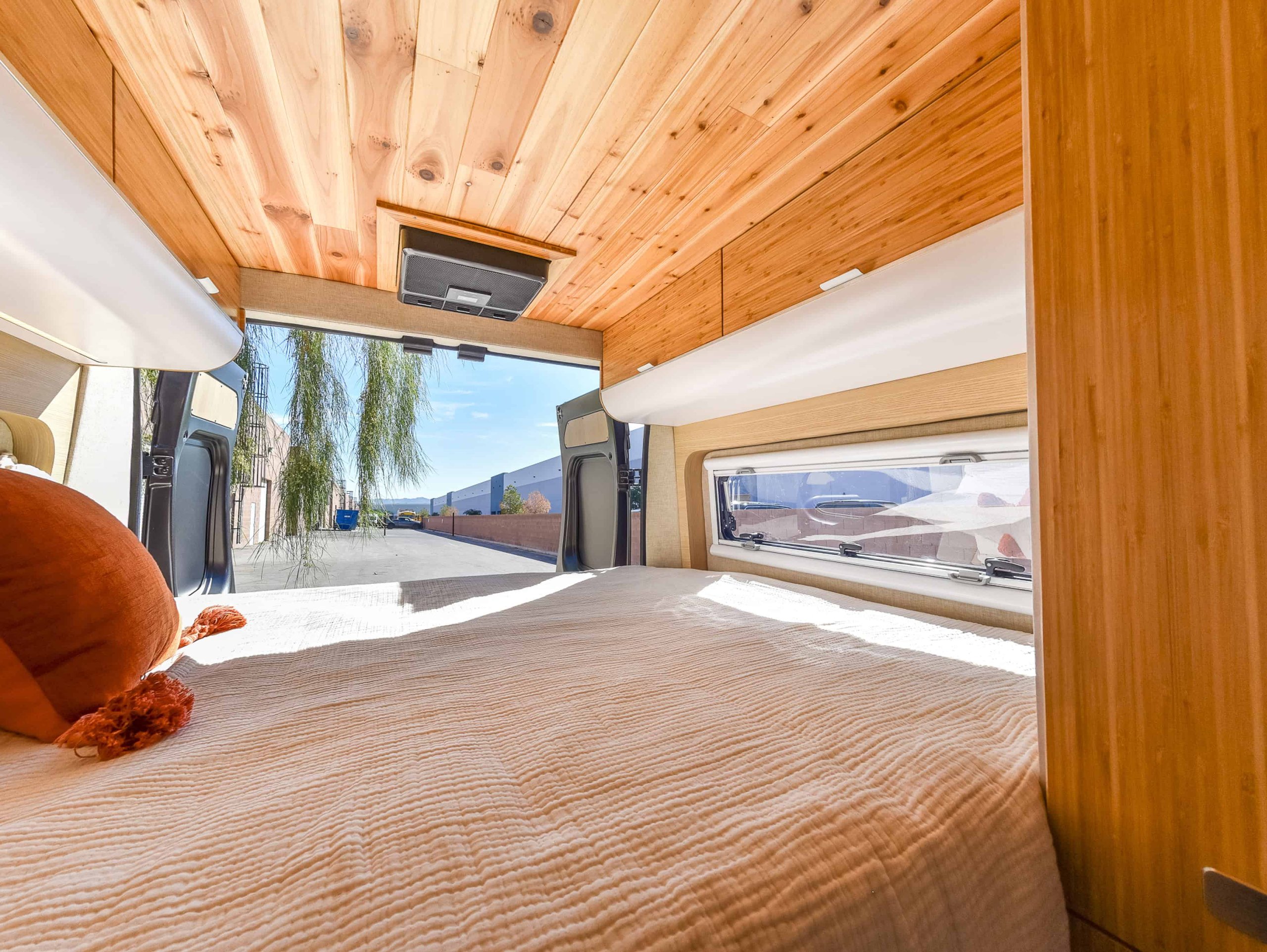

Permanent queen-sized bed
Swivel table and swivel seats
Induction cooktop
Dometic 12V Fridge with freezer
Microwave
Plugs & ports for your electronic devices
Internet by satellite (installation service available)
TECHNICAL SPECIFICATIONS
Vehicle

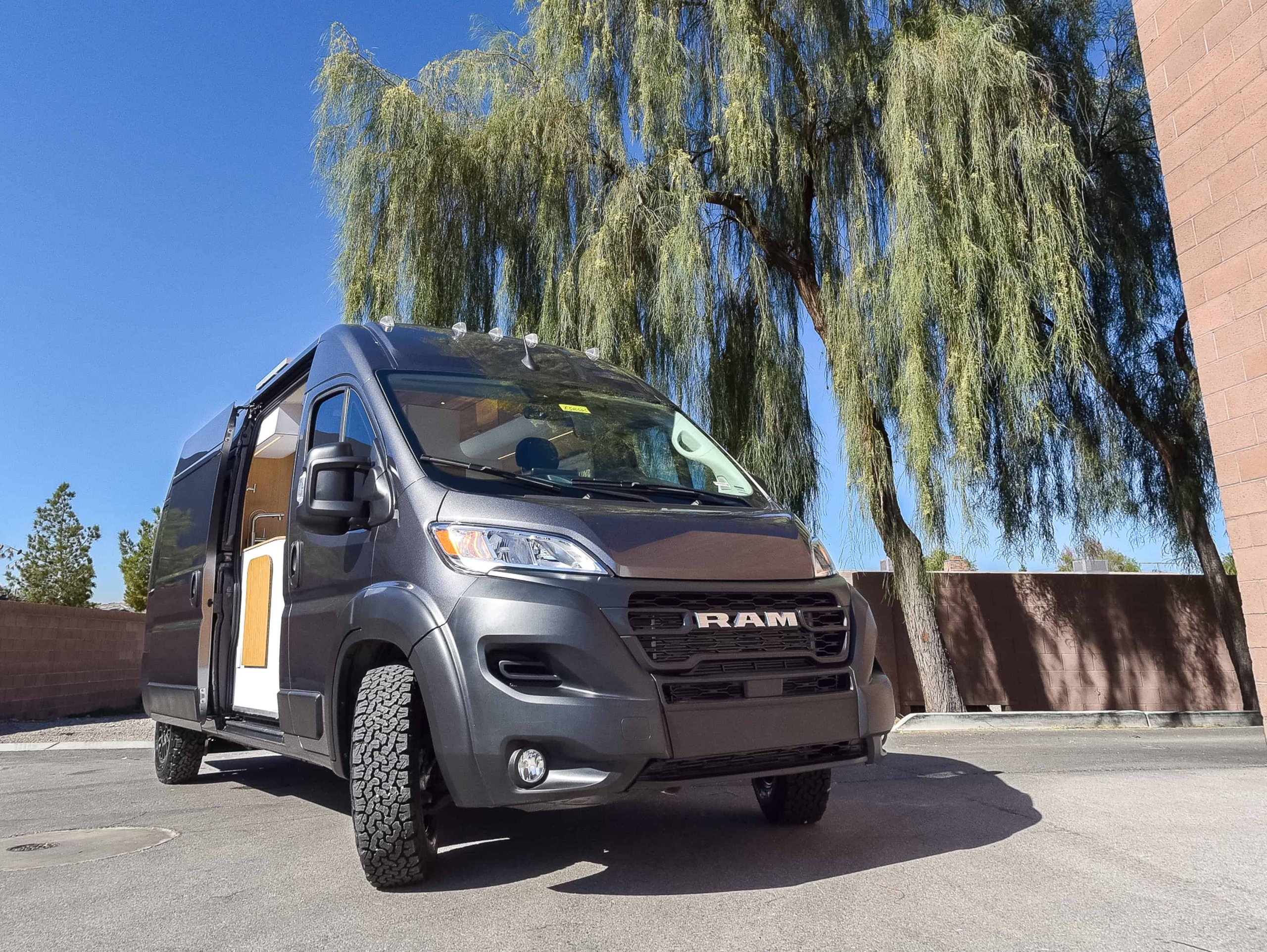

Chassis: RAM ProMaster 3500 EXT 2024
Mileage: 90 miles

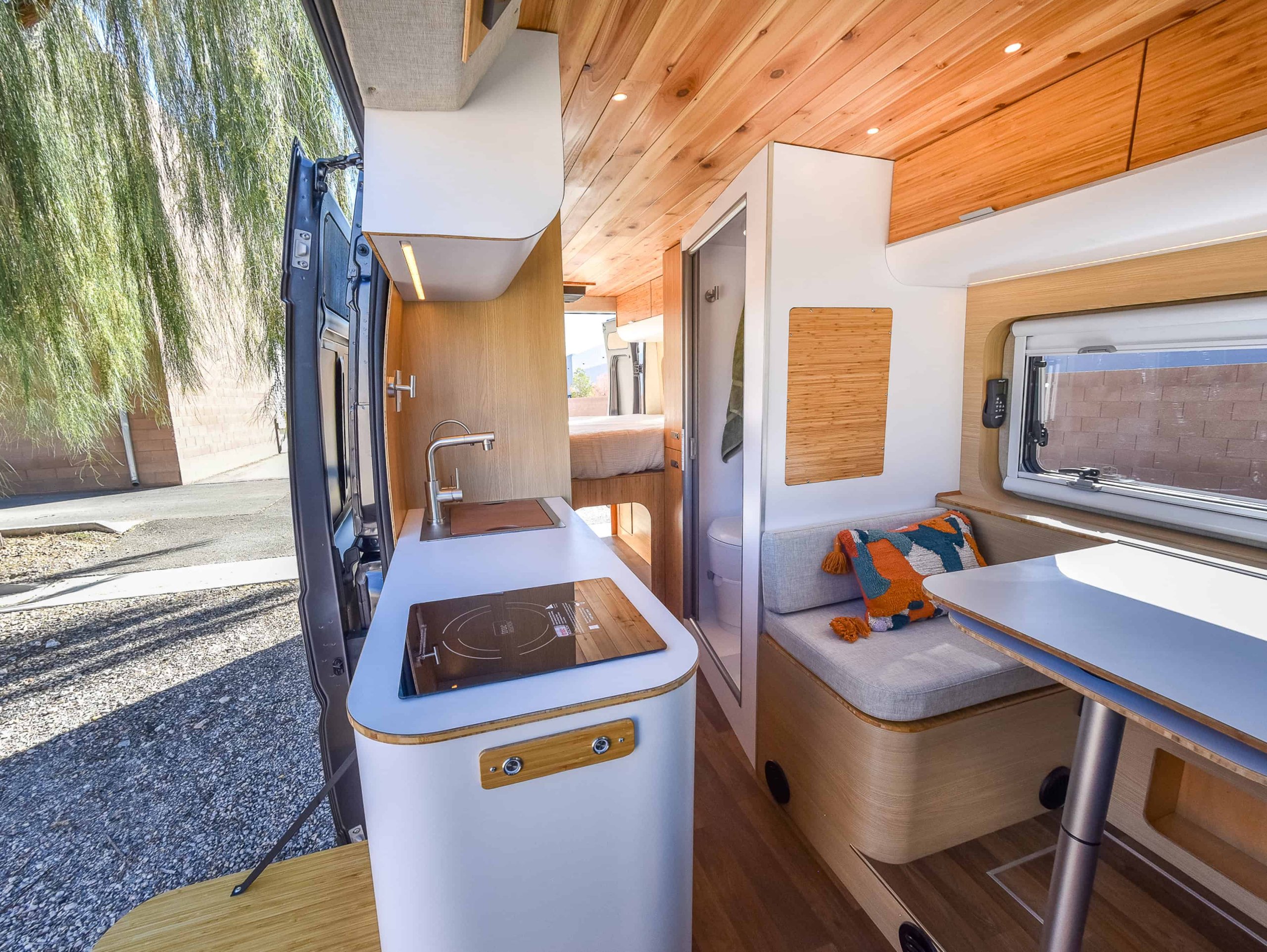

Kitchen
Single burner induction cooktop – True
12V Fridge – Vitrifrigo C85i
Microwave – Contoure RV788
UV Water filter – Acuva Arrowmax 2.0
Counter top laminated
Faucet
Drawers & 1 undersink closet
Upper storages
Outlet 110V
12V LED lights
Carbon & smoke detection
Fire extinguisher

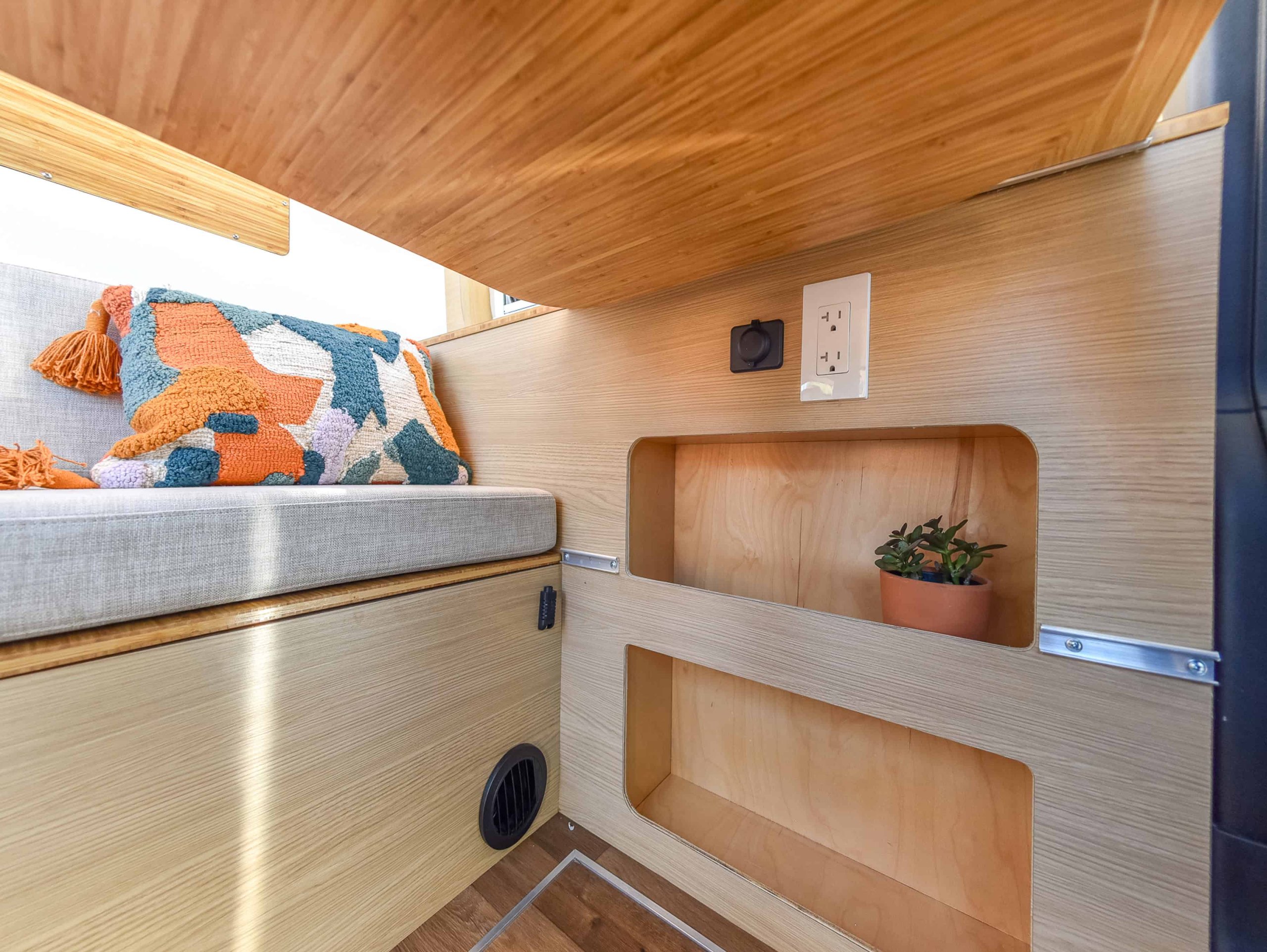

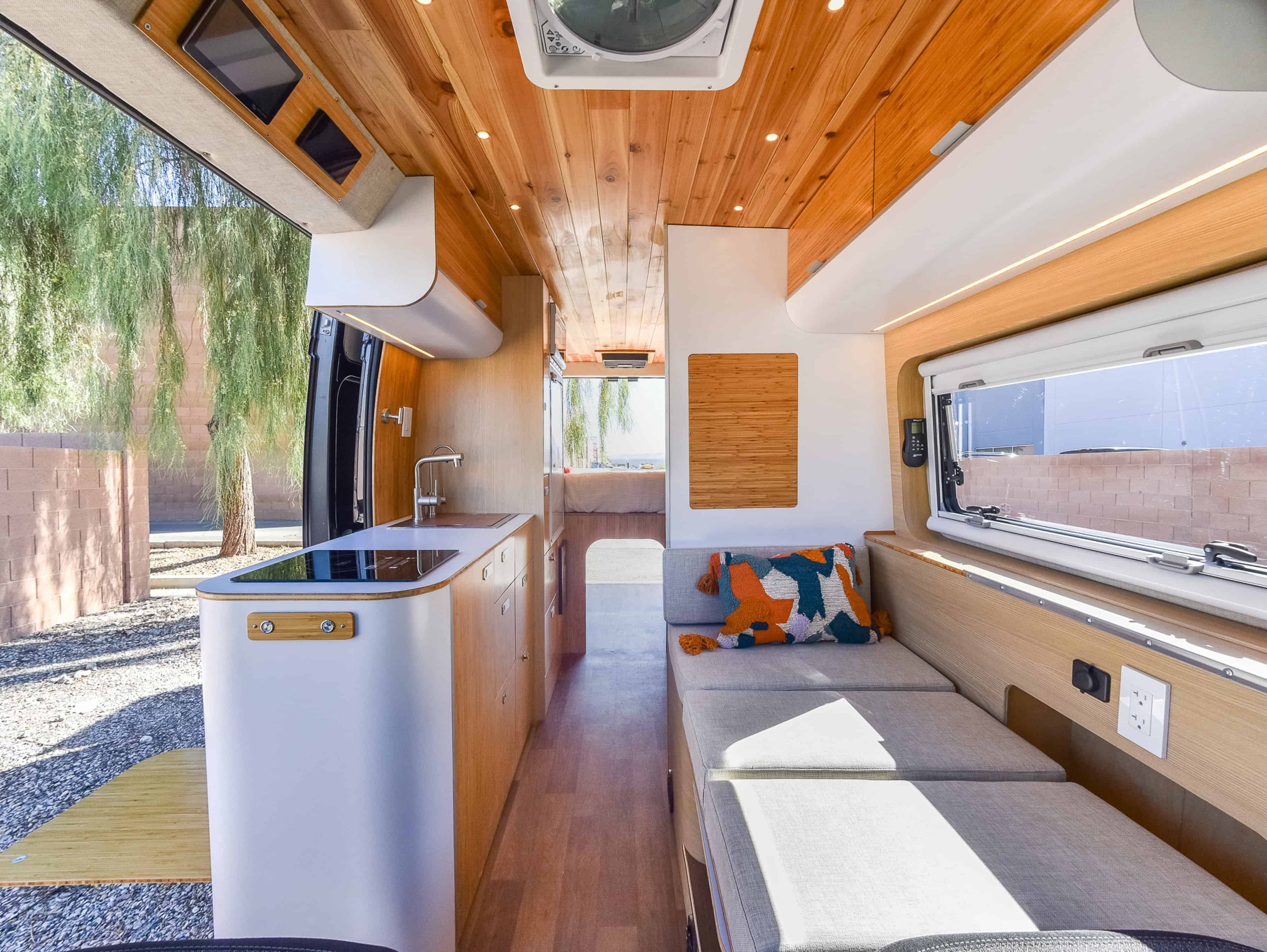

Living Room
Custom cushions
Outlet 110V & 12V
MaxxAir Fan deluxe 7500K with remote
12V LED light under cabinet & ceiling
Bathroom
Full size shower cabin
MaxxAir Fan Dome+, 6” fan, LED
Shower head and shower handle

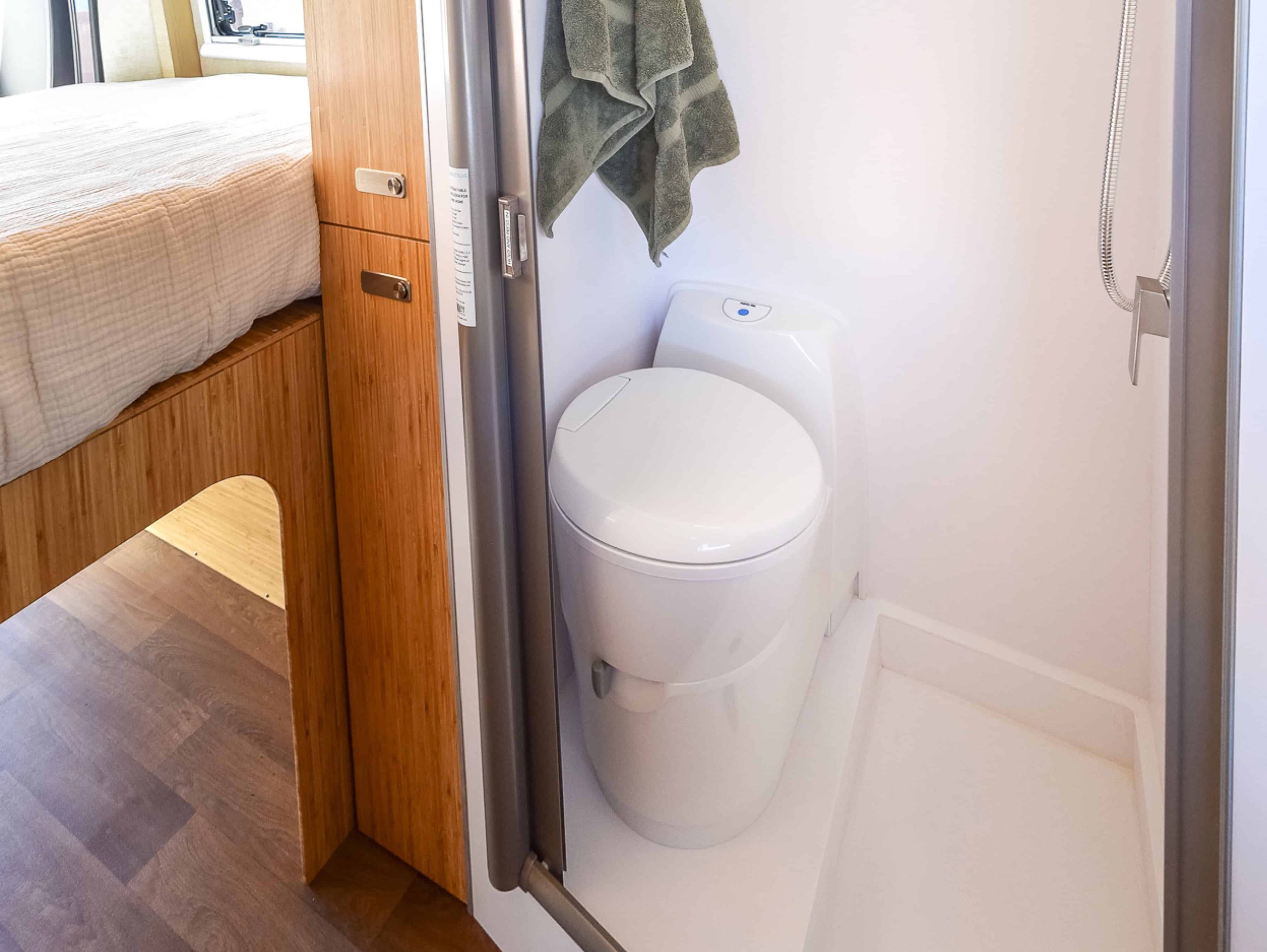

RV cassette toilet – Thetford C223CS (water connected & electrical flush)

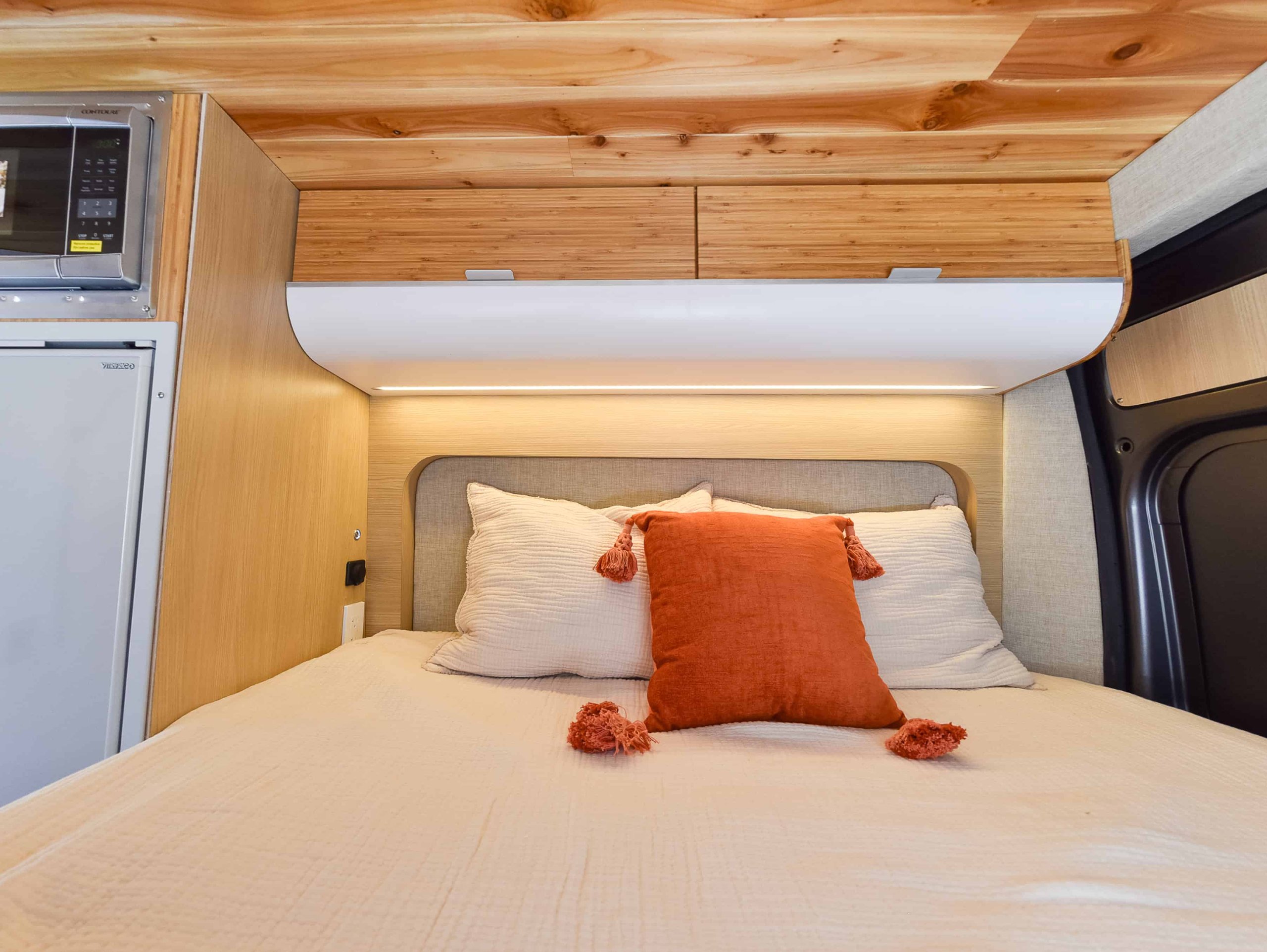

Bedroom
12V roof AC – Dometic RTX 2000
RV queen-sized mattress 6”
Outlets 110V & 12V
12V LED light under cabinet
Electricity – Victron Lithium System
Victron multiplus 12/3000/120-50V
Victron LiFePO4 battery 12.8V/200Ah Smart
400W solar panels
Smart solar MPPT 100/30
DC/DC charger 60A
Smart BatteryProtect 12/24V-220V
Lynx Power In (M8)
Lynx Smart BMS 500 (M8)
GX Touch 70
GX Tank 140
Cerbo GX
WFCO distribution center
20 amp and 30 amp breakers
Shore Power & Water Connection
RV power inlet 30 amp
RV extension 30 amp
15A to 30A and 30A to 50A adapters
Gravity Water Inlet & waste valve – Valterra
Fresh & grey water hose
Plumbing
Heater & on-demand water heater – Rixens hydronic furnace system
3.5 GPM water pump and pre-pressurized accumulator – Shurflo
Outdoor shower – Scandvik
36 gallon fresh water / 33 gallon grey water tanks
CAB
Swivel seats (driver & passenger side) – Scopema
Insulation & Flooring
Havelock Wool R13 batt insulation
Wood Vinyl or Marine Fabric
(Location: Las Vegas – Nationwide shipping available)
Pre-orders available for 2024! Contact us on contact@noovo.com or by phone +1 (725) 215-2114
Re-invent your living with our high-end campers. Built for life on the road.
