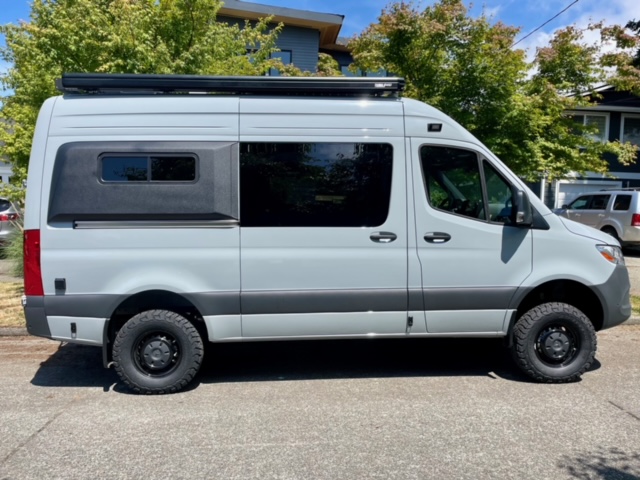

Brand New 2024 Mercedes Sprinter 144 length AWD 12v AC

This van has been SOLD - Thanks so much for all the interest - I sincerely appreciate it. If you are interested in commissioning a bespoke build, please contact me directly. I have an open spot in early 2026 for a late Spring delivery.

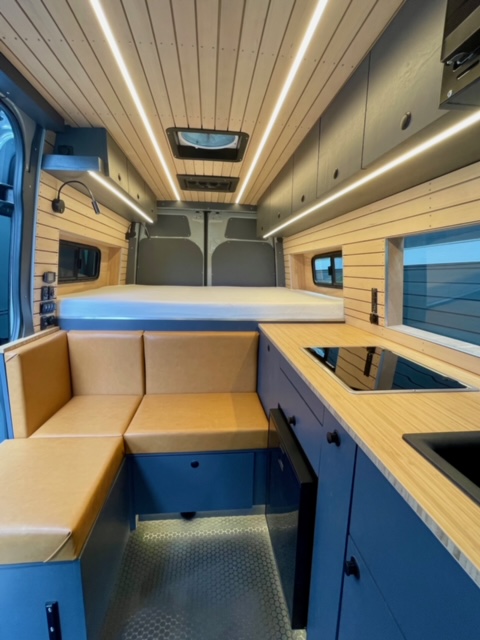

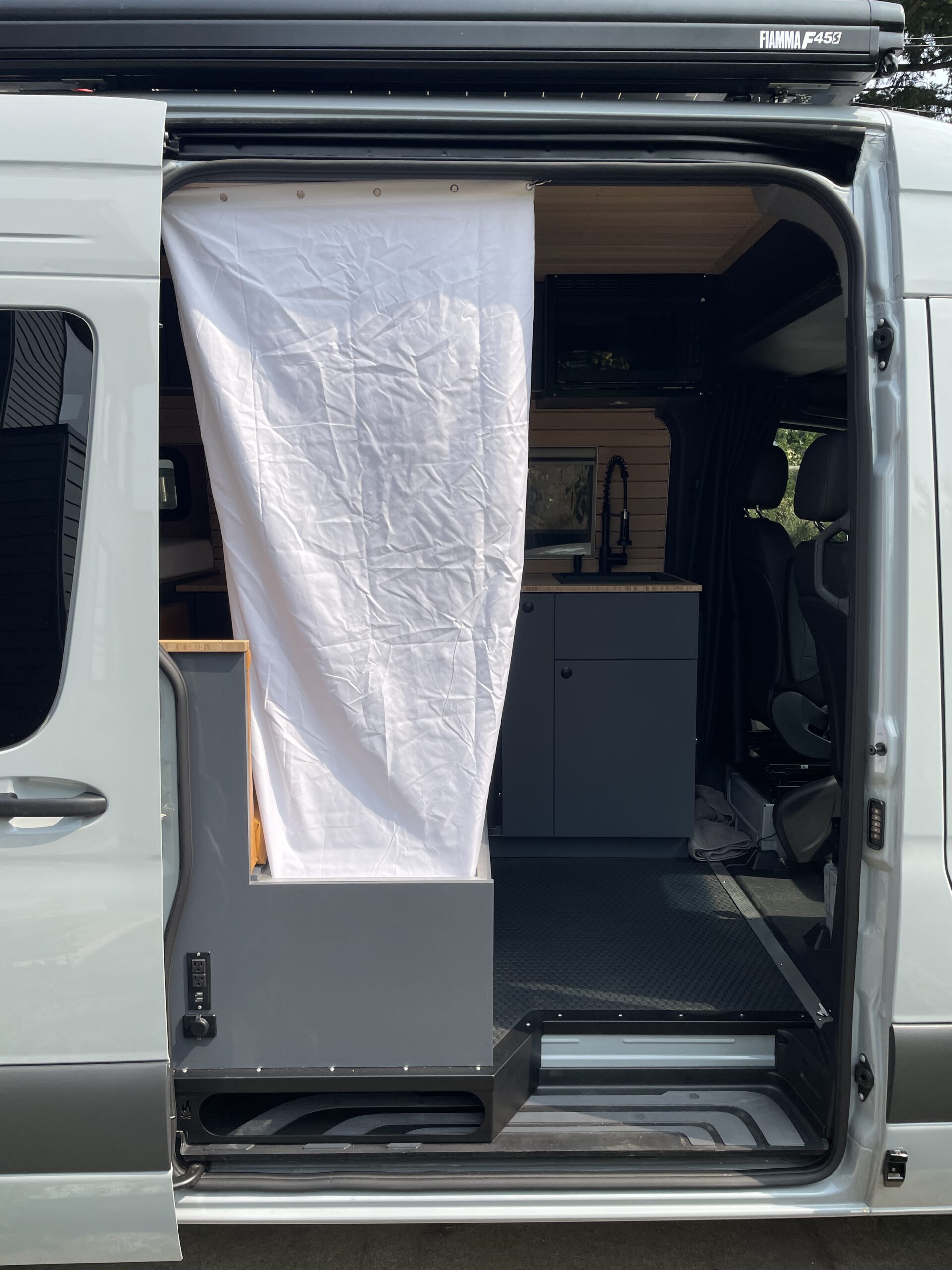

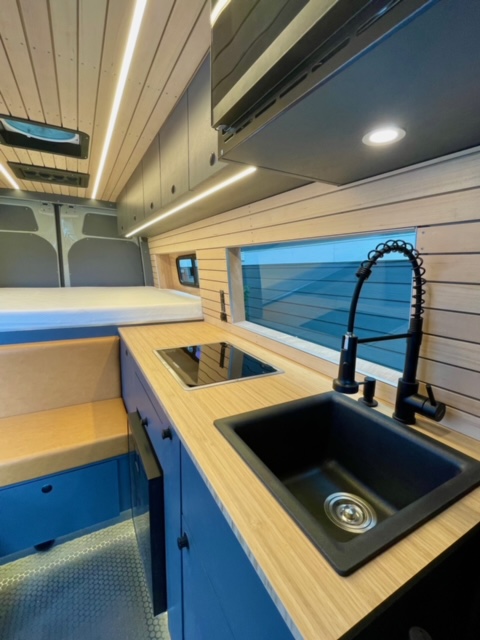

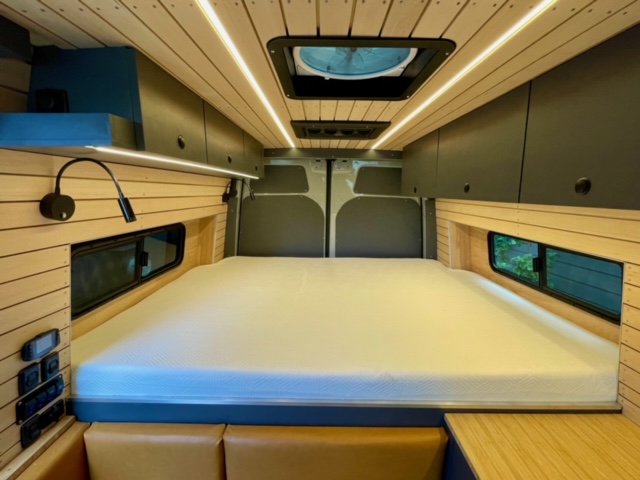

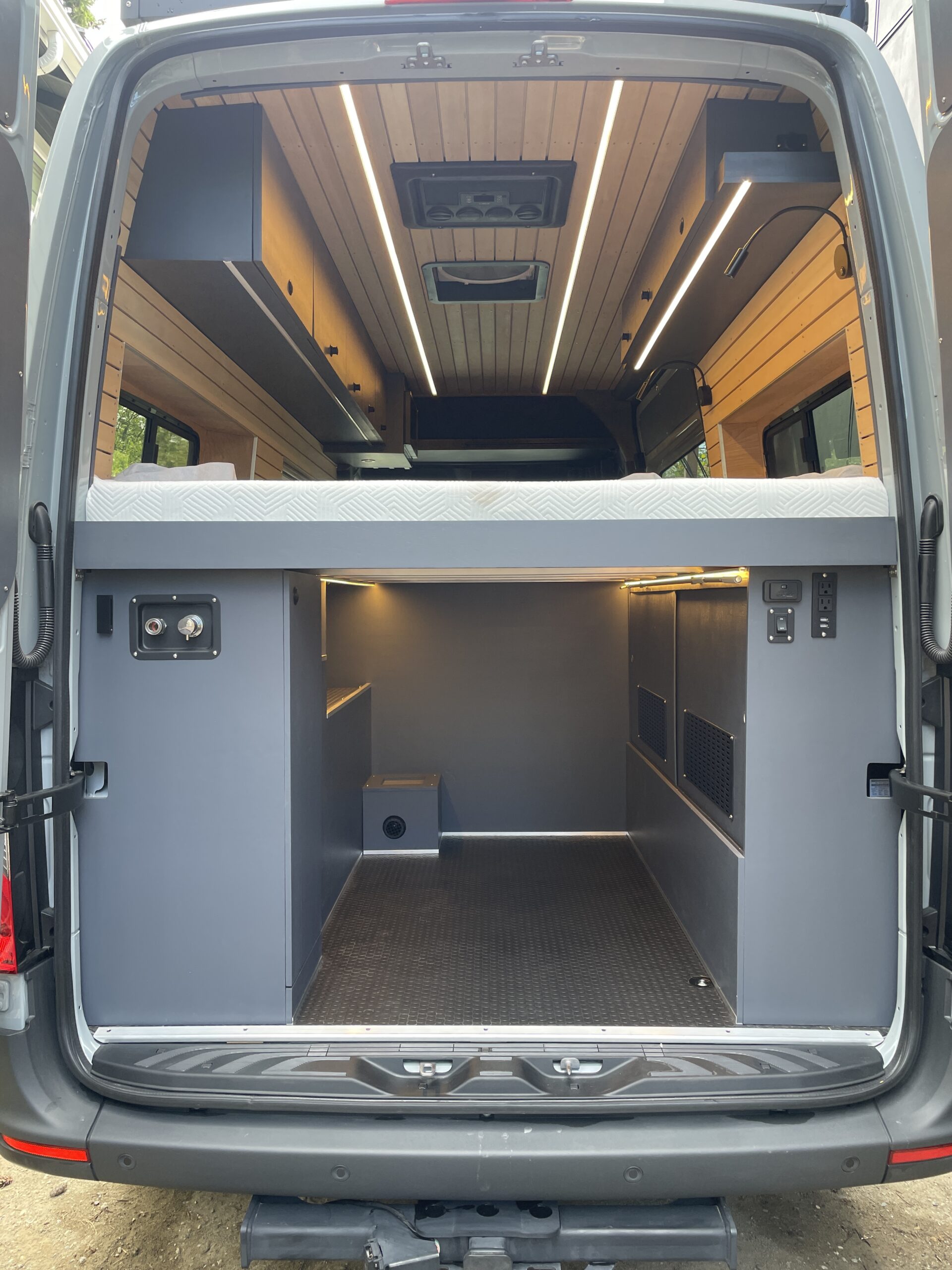

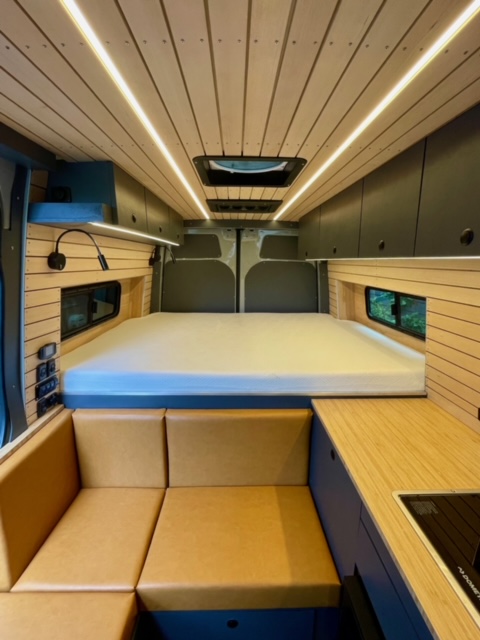

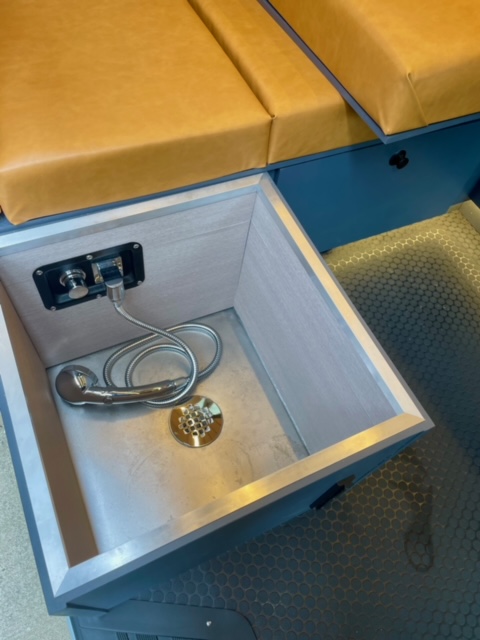

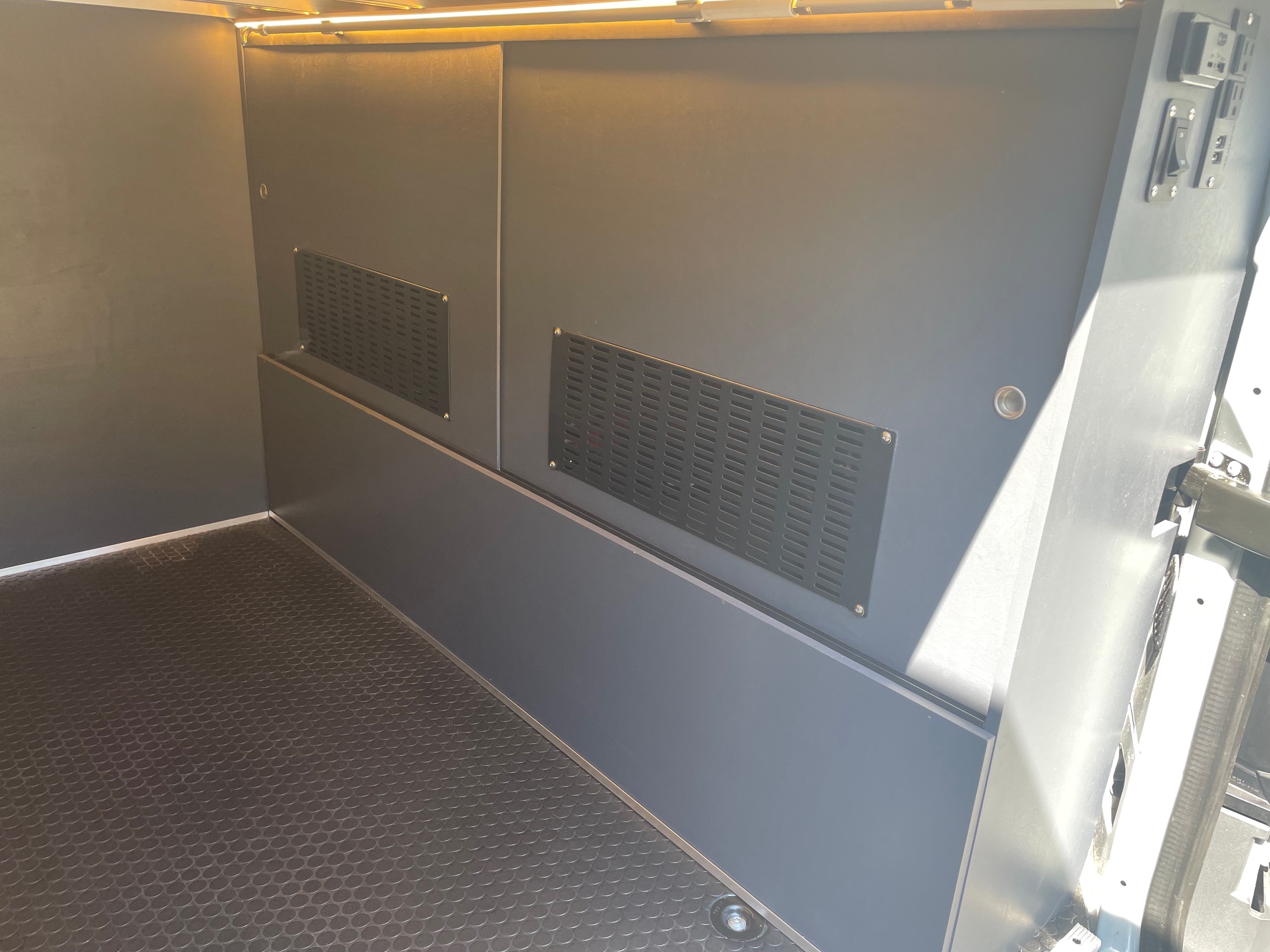

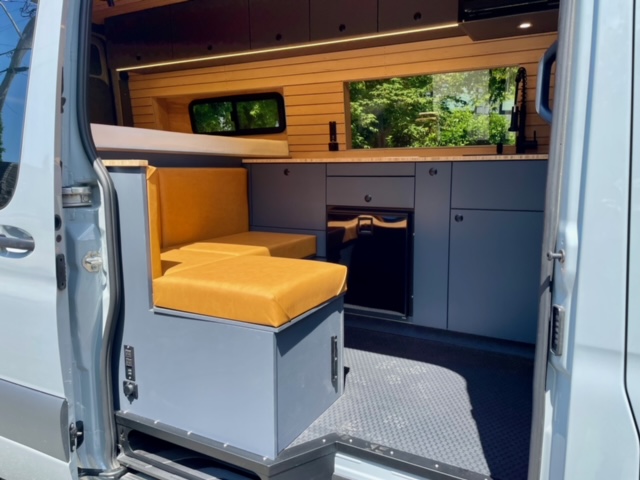

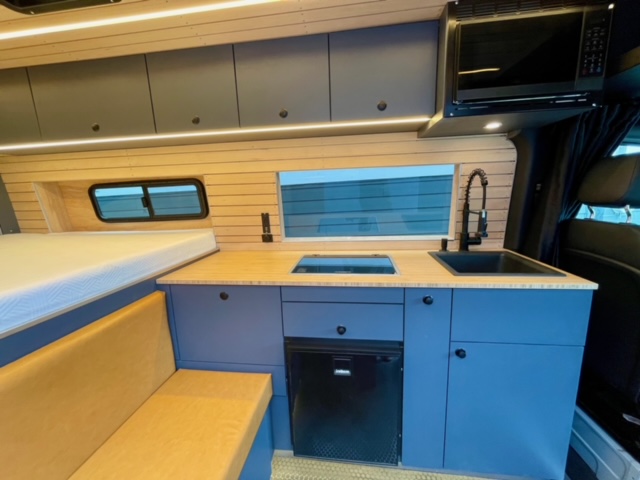

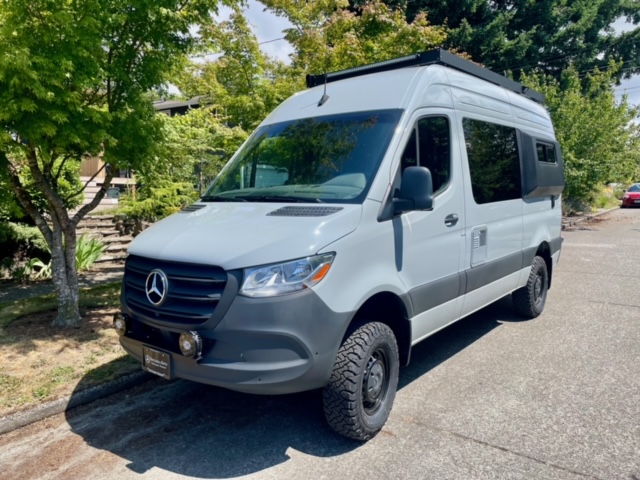

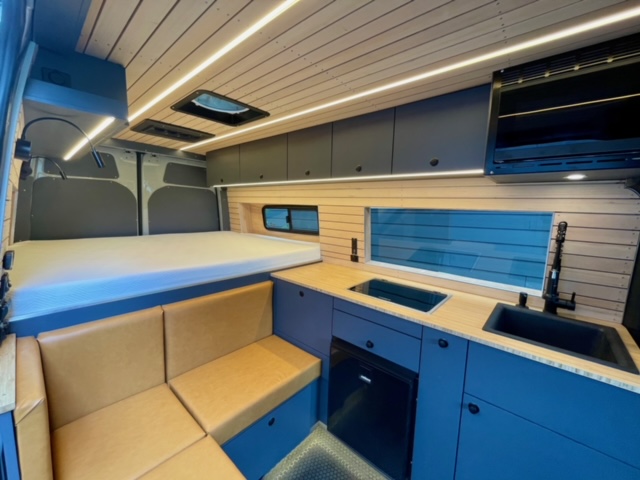

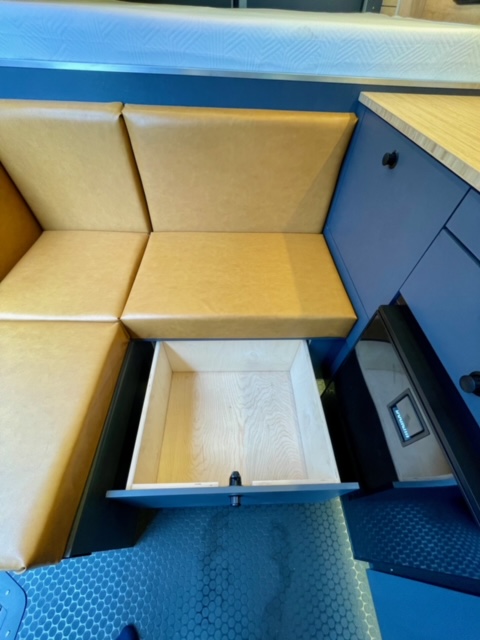

Brand new 2024 Sprinter AWD, Professional Build – just completed. This highly optioned,Mercedes Sprinter conversion was thoughtfully designed, methodically engineered, and meticulously constructed to be the ultimate expression of a 144 length, off grid camper van. The high functioning utility of the various systems coupled with a gorgeous interior much more akin to a fine home than a typical RV set this van apart. With tons of useful storage in the fully custom, yet light weight cabinetry, a deluxe kitchen area with sink, cooktop, fridge, microwave and plenty of counter space, a queen size bed, expansive seating options, a huge garage space for all your toys, an indoor convertible shower in the bench seat, rooftop 12v. AC, and a Fiama awning, this van truly has it all.

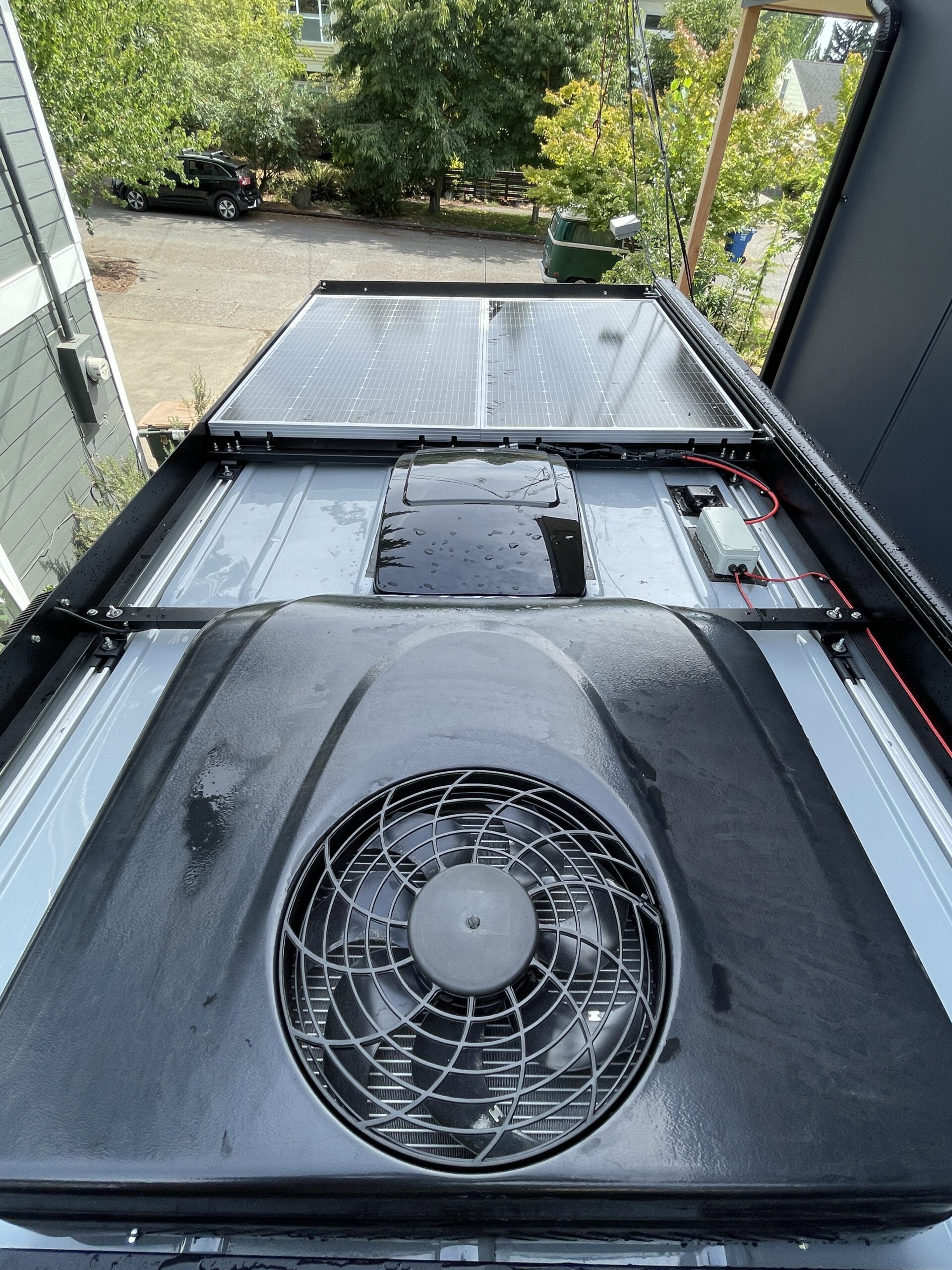

The 36 gallons of fresh water, plus 6 more in the propane fired water heater, 400 watts of solar on the roof rack, 300ah of lithium battery, DC/DC charging by the van alternator, propane for cooking and water heating, and low amp draw appliances and LED lighting, easily allow for extended periods of time off grid with the only real limit being your food supply and access to water.

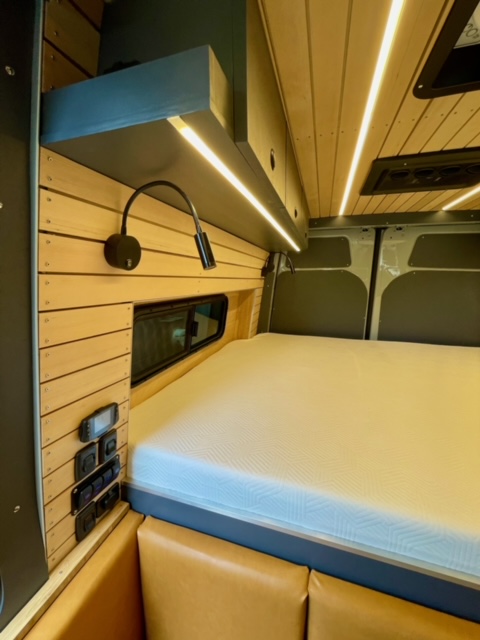

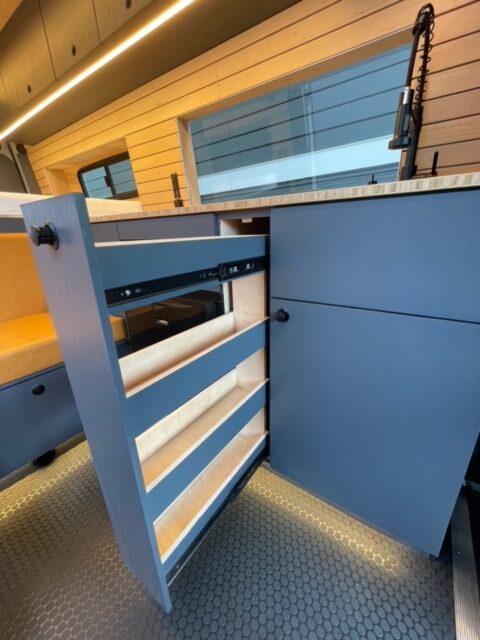

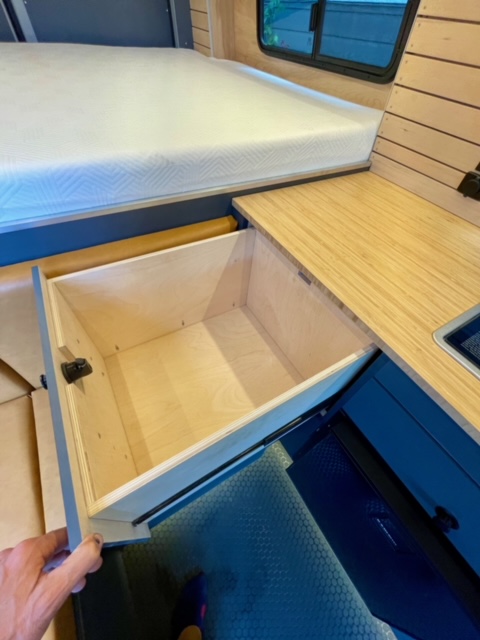

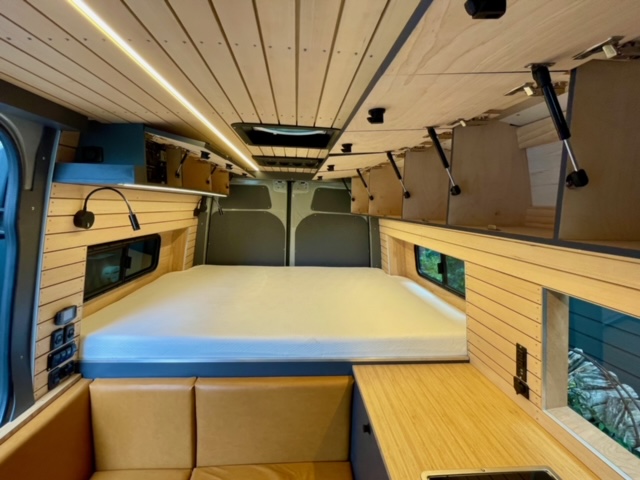

Meticulous attention to detail and thoughtful design is clearly evident everywhere you look in this van. Full custom baltic birch cabinetry. Stunning Douglas Fir ceiling and wall trim. Bamboo counters. “Vanspeed” capsules for space saving sideways sleeping, Slider windows in both capsules with bug screens. Rubber “coin tread” waterproof flooring. All interior lights dimmable. Extensive Usb charging ports (12v and 110v) thru out the van. Mat style high density sound deadening, 3M thinsulate insulation, and EZ Cool between wall panels and insulation.

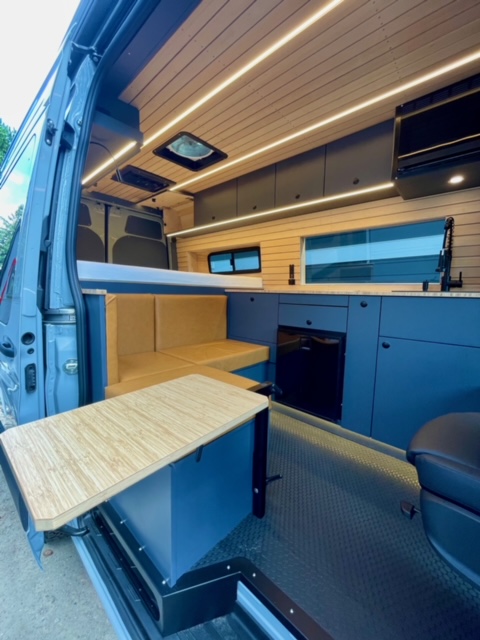

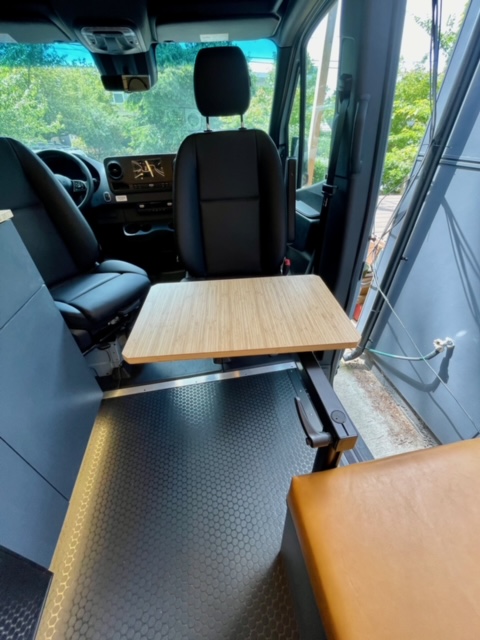

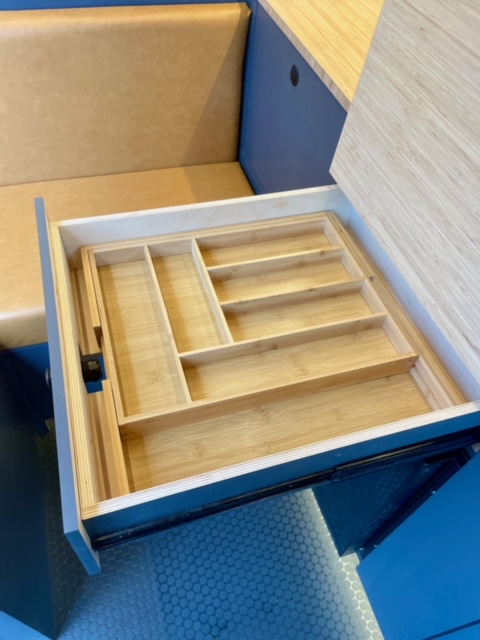

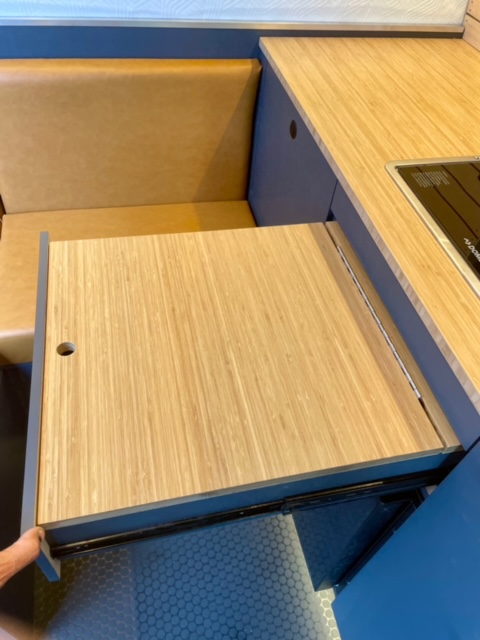

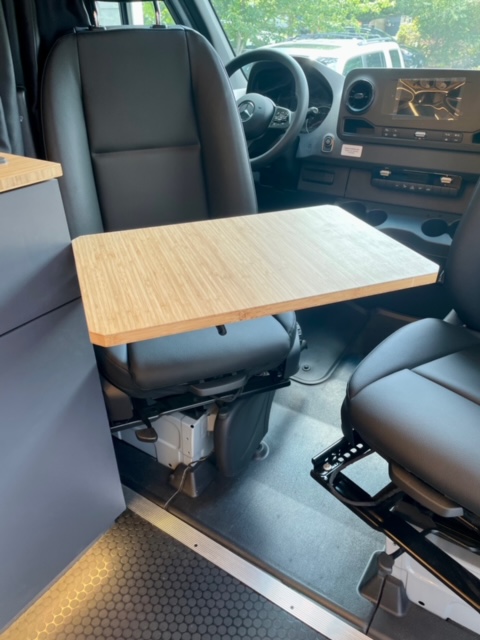

Multiple table options with a Lagun table and two mounts – one on the end of the galley kitchen for use with the factory swivel seats, or as a countertop extension for more surface area, and a second mount on the end of the seat by the slider door which is usable as an exterior table or as a dining table from the bench seats. Additionally the pullout table above the fridge provides a super easy eating solution and disappears into the cabinet when not in use. The pullout table also has a hinged lid with a utensil storage drawer below which is super handy.

Control Panel inside upper cupboard with:

Victron Digital Multi Control GX panel,

Victron BMV 712 smart/bluetooth battery monitor,

KUS water level gauge,

Water heater on/off switch,

Mopeka propane level monitor,

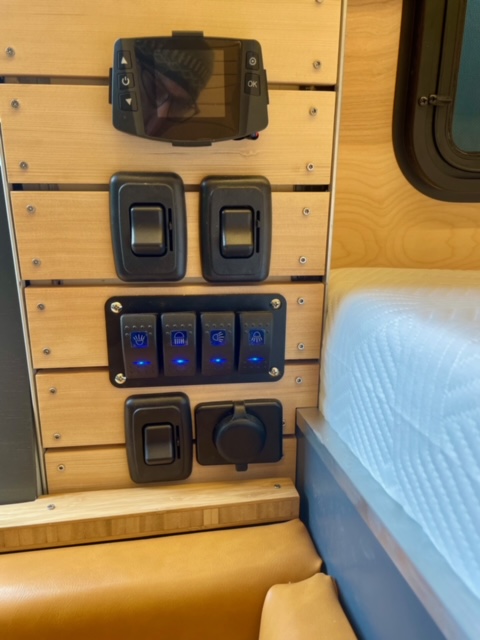

On/off switch panel w/circuit breakers for fridge, water pump, cabin heater and spare.

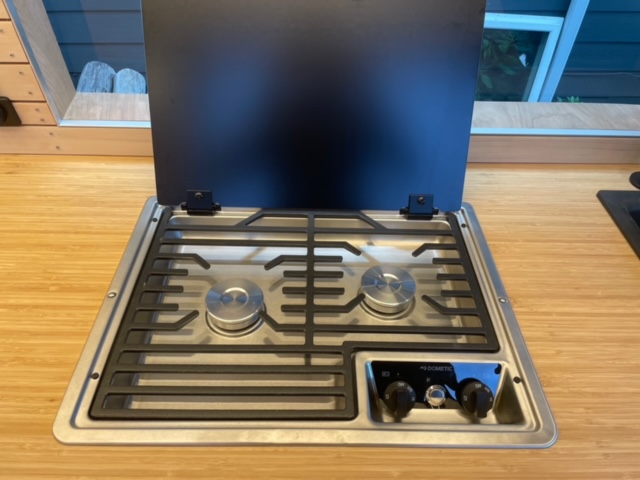

Dometic two burner propane stove. Isotherm Cruise 65 2.3CU 12v. Full Depth Marine Refrigerator with freezer. Dometic Porta Potty lives in shower base. Suburban 6 gal. propane water heater. Velit 12 volt A.C. Maxxfan ceiling fan. Diesel heater with factory fuel tap off of vehicle diesel fuel tank.

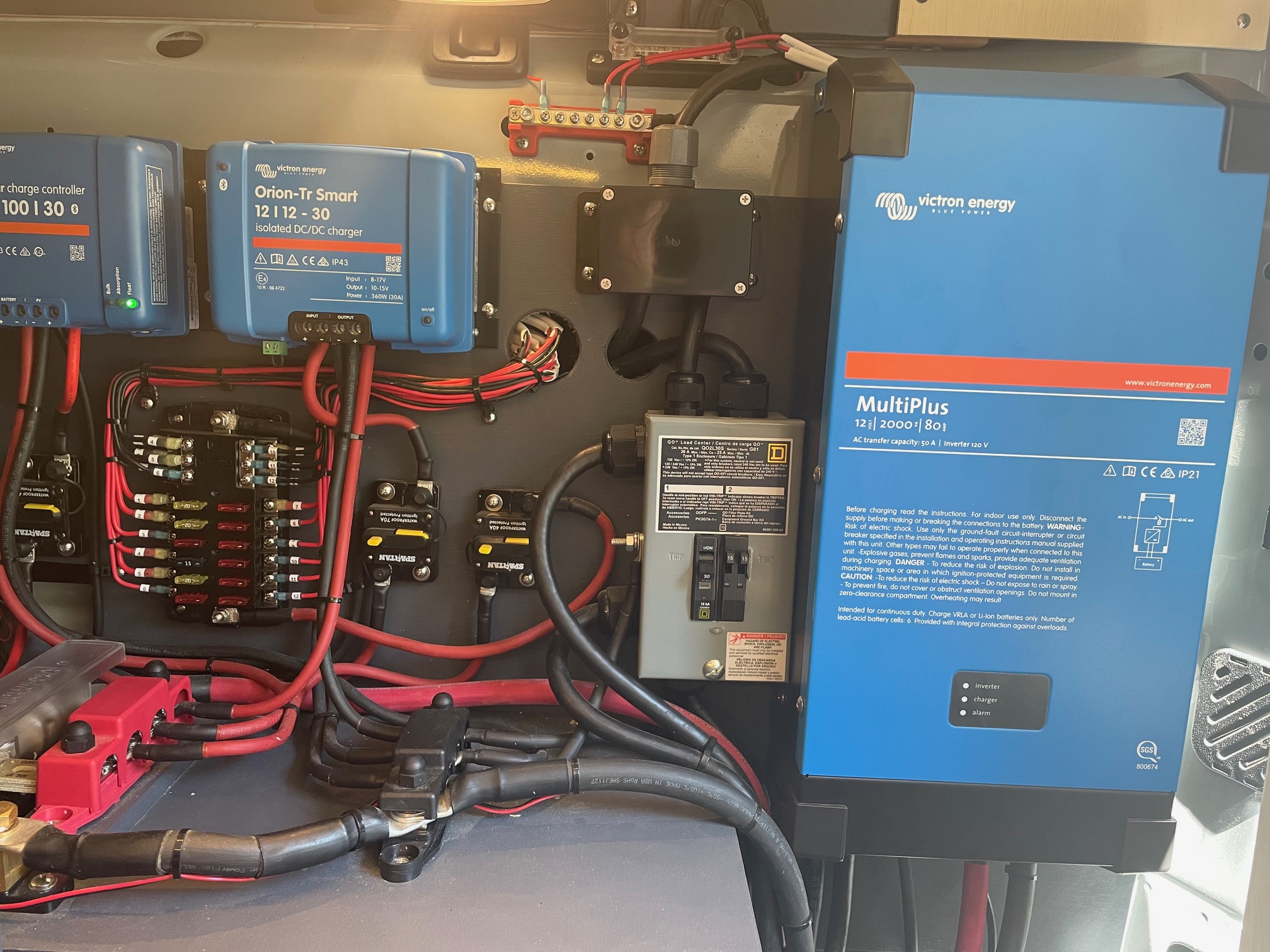

Electrical System:

Victron MultiPlus Compact 2000 watt inverter/charger,

Victron Solar smart MPPT 100/30 solar controller,

Victron Orion Tr smart 12/12-30 DC/DC charger,

300ah lithium battery,

Newpowa 400 watt monocrystalline solar panels.

30 amp shorepower connection.

“Northwest Conversions” 36gal fresh water tank and 11gal grey tank for shower. Additional 15 gallon grey tank for sink. Off the back, hot and cold rear exterior shower.

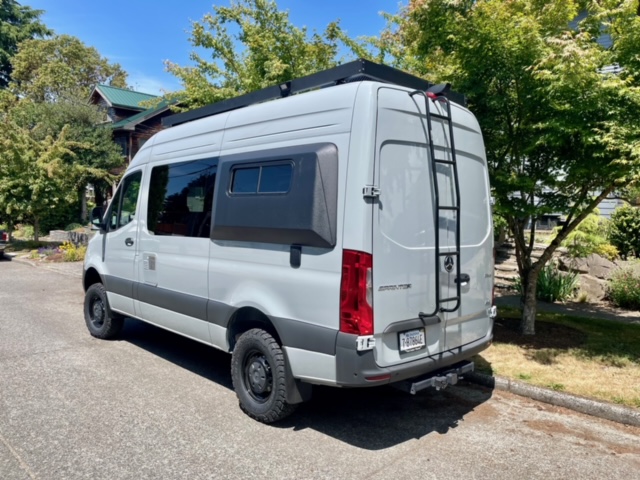

BF Goodrich All Terrain TA KO3 radials. Full length aluminum rack and ladder. Hella driving lights on custom aluminum front bumper mount. LED light bar with pencil beam and wide angle lights on front of roof rack
