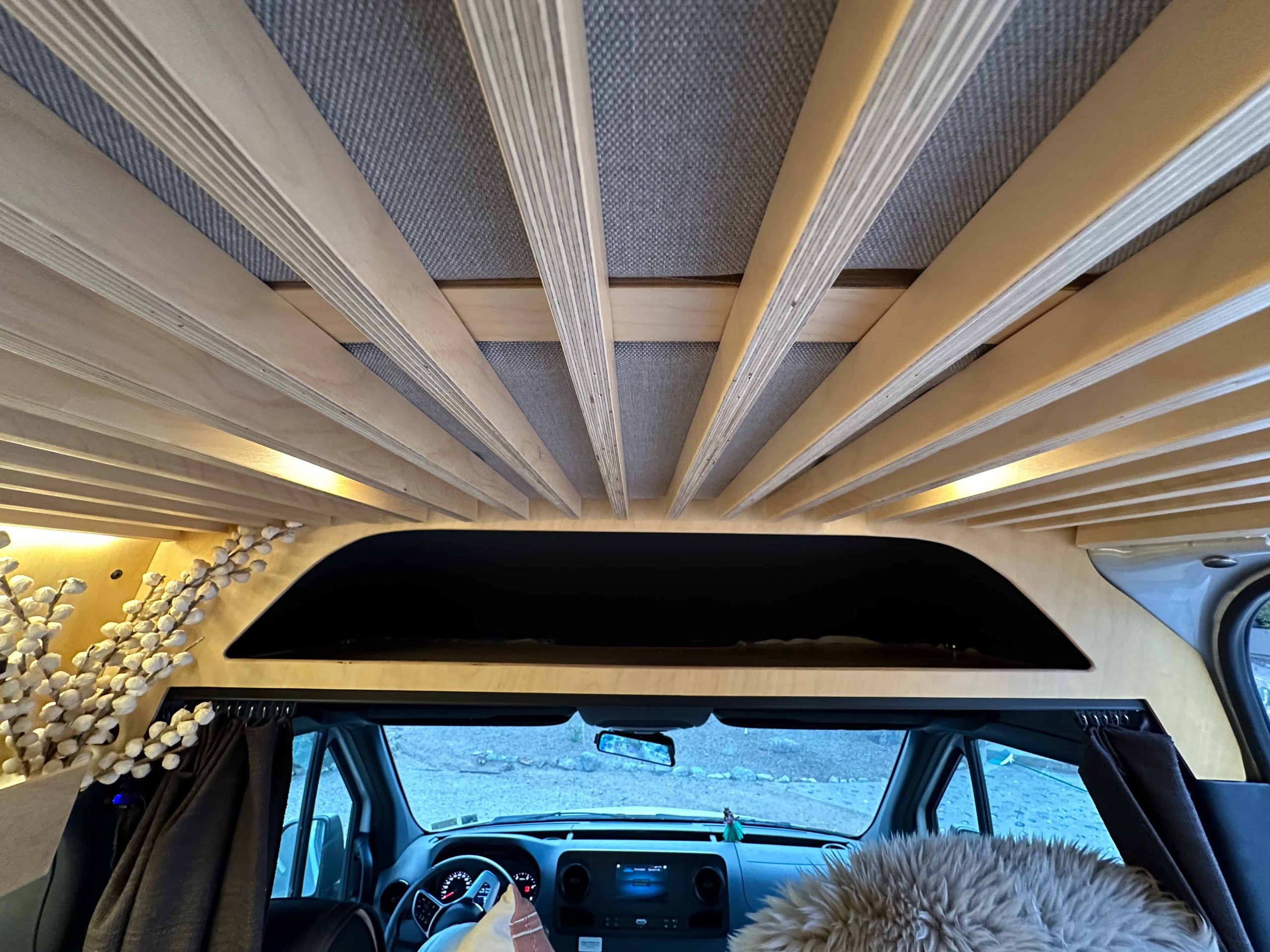

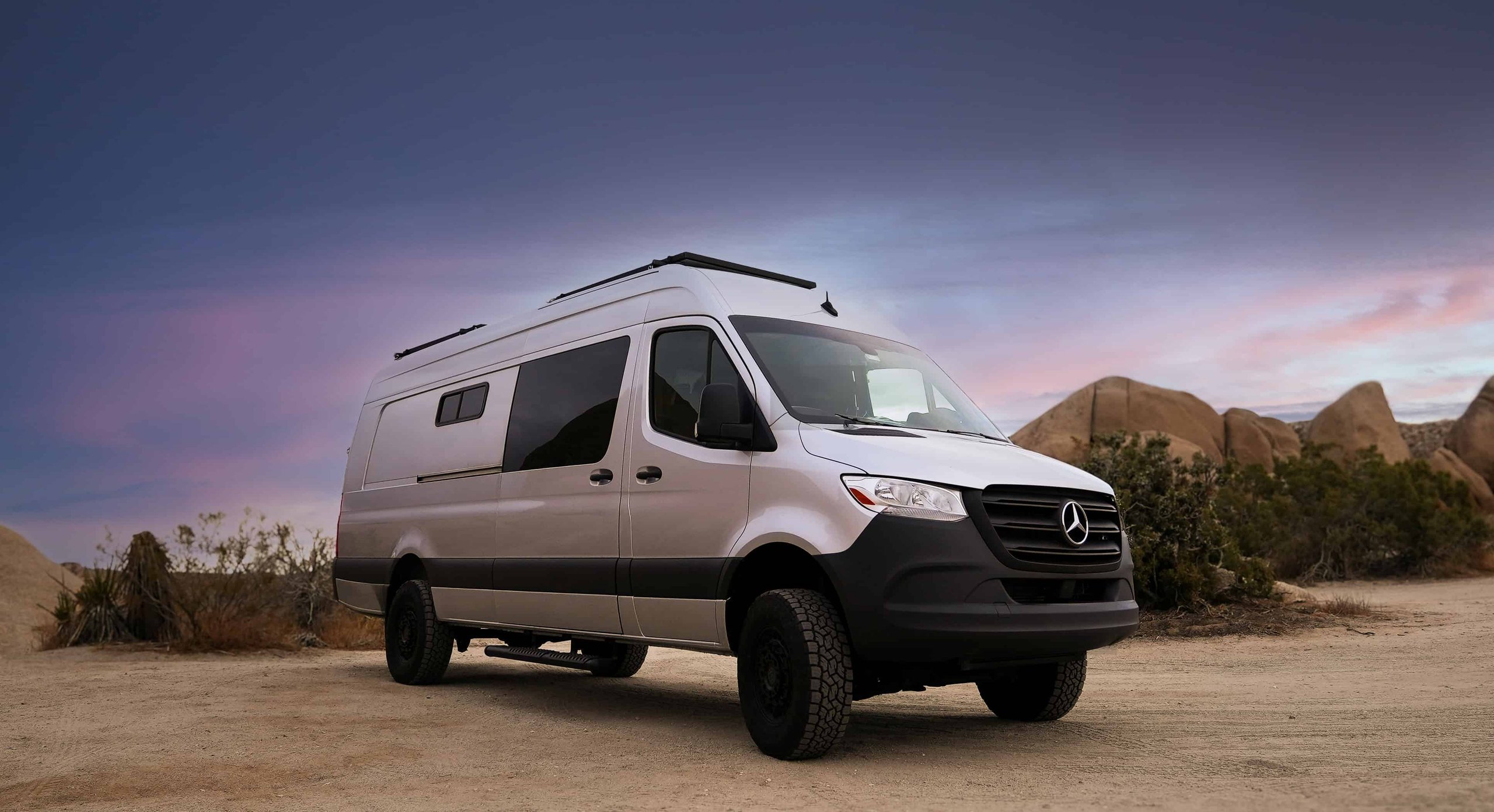

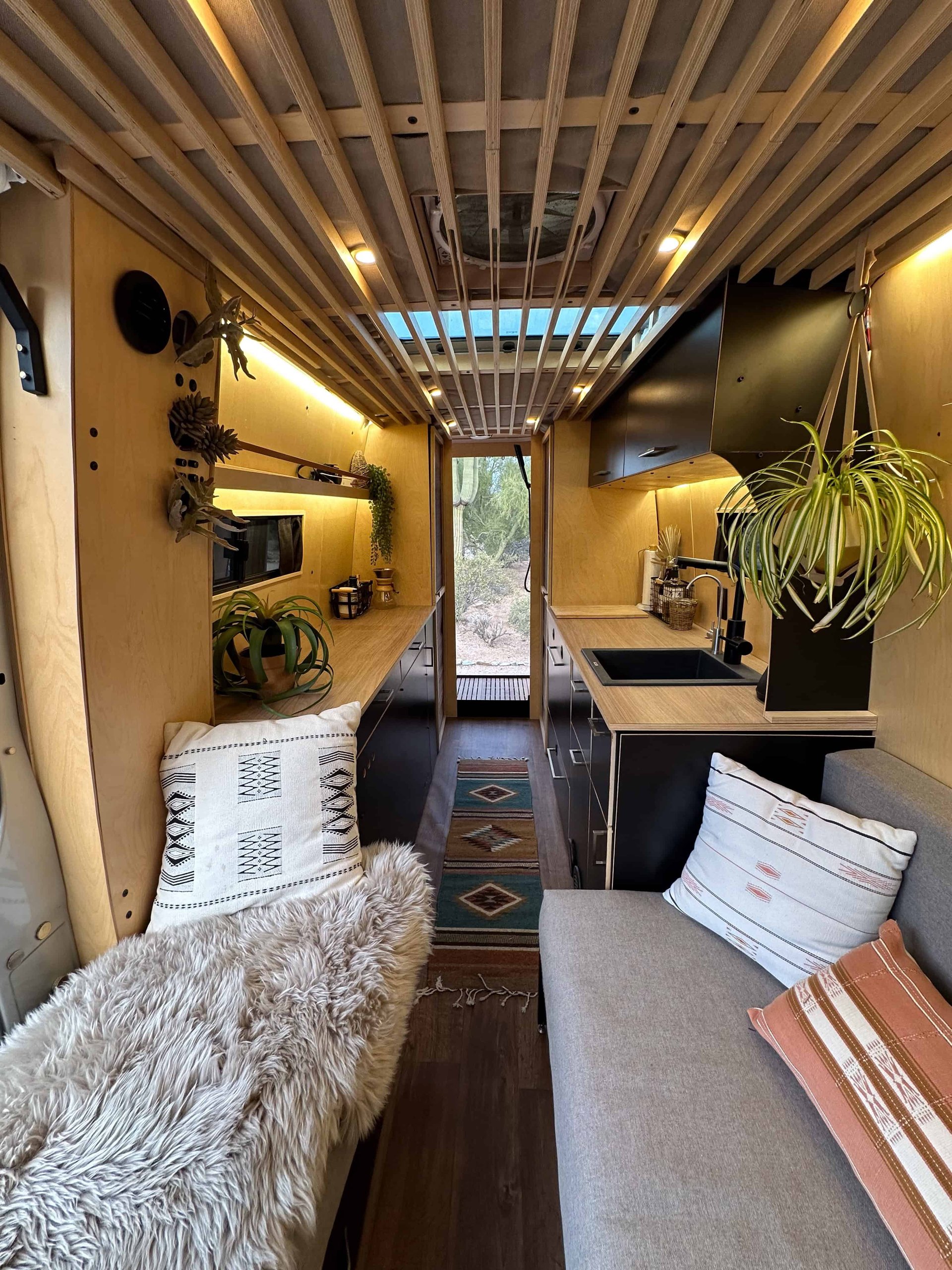

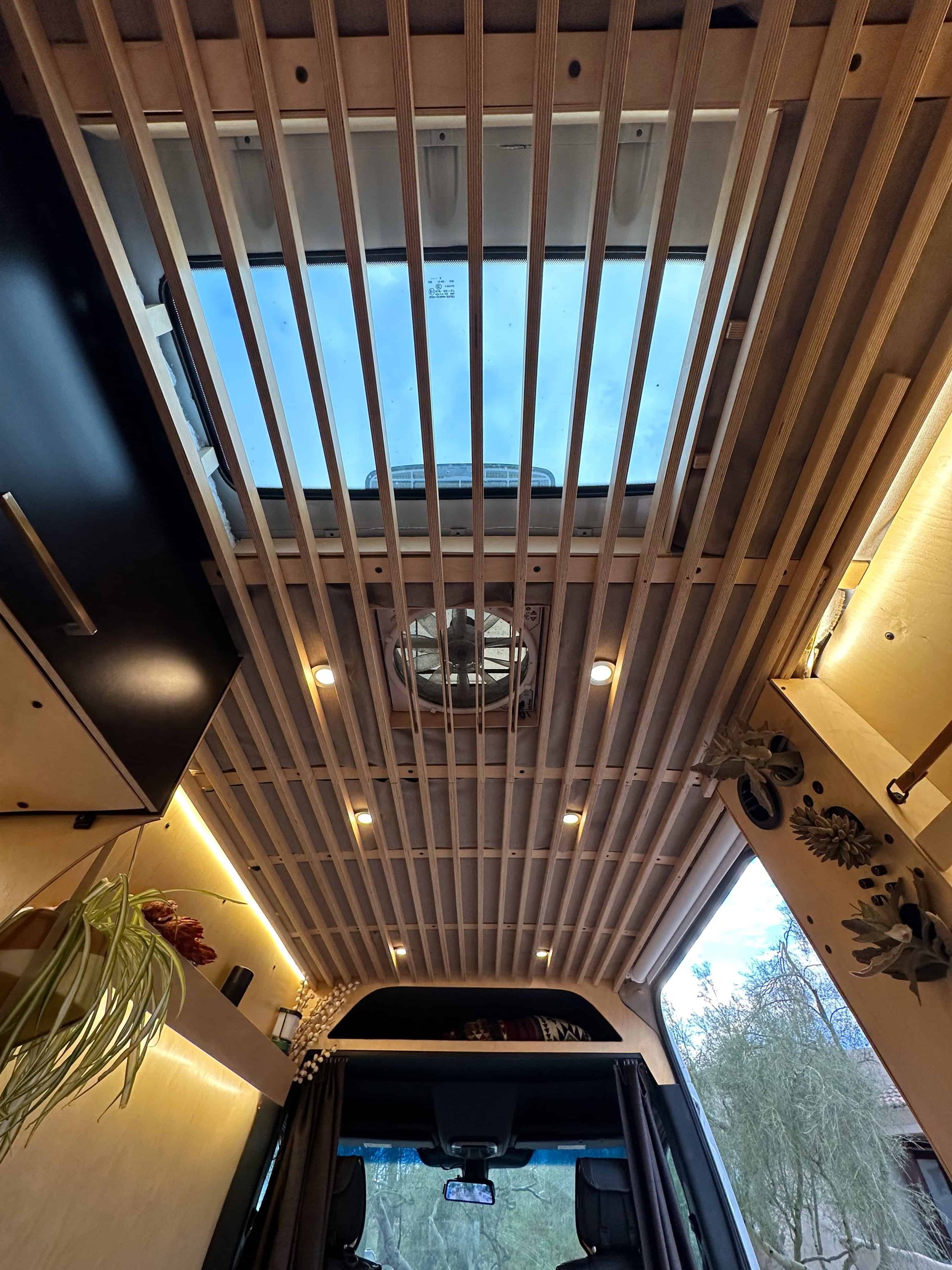

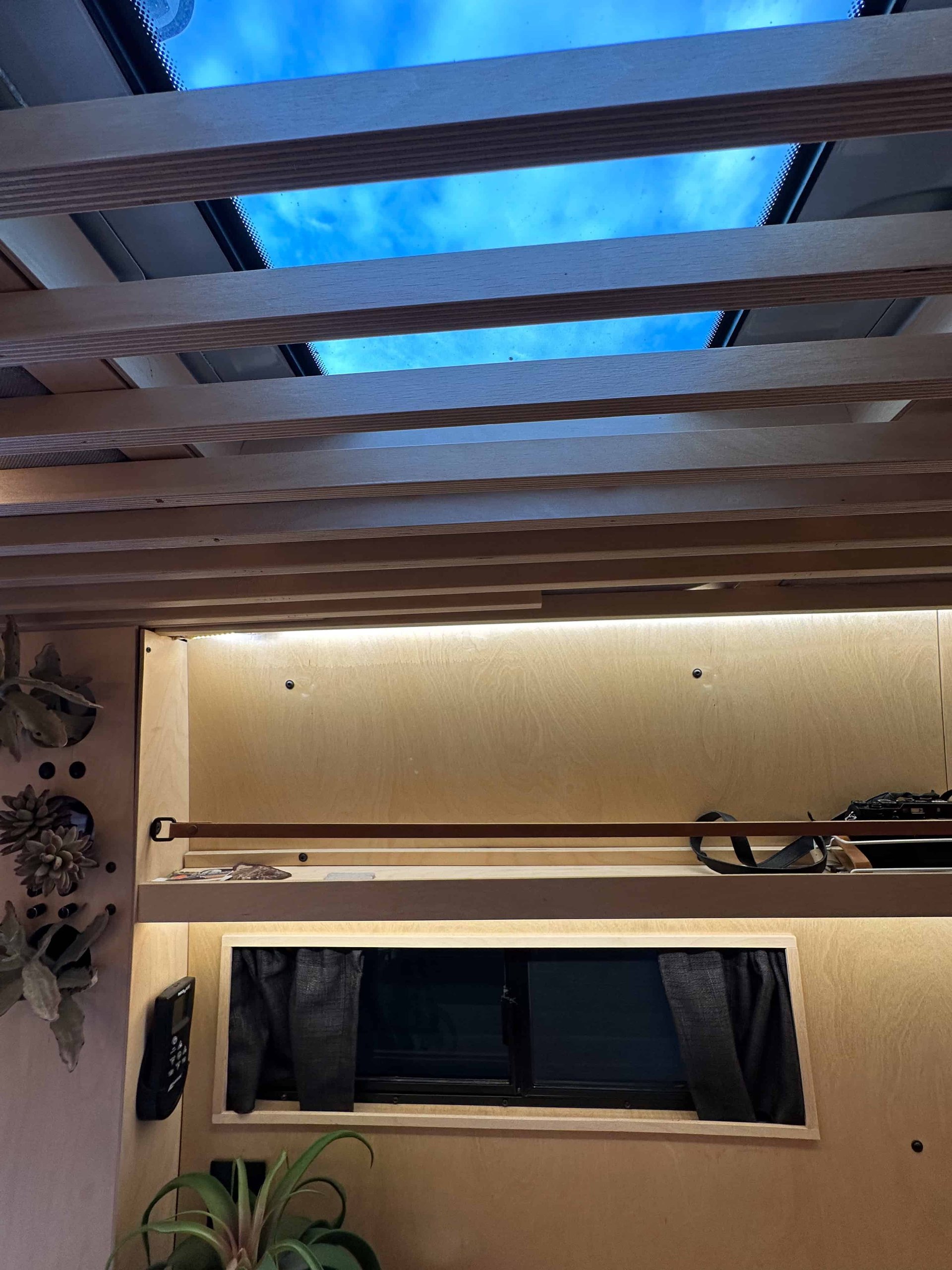

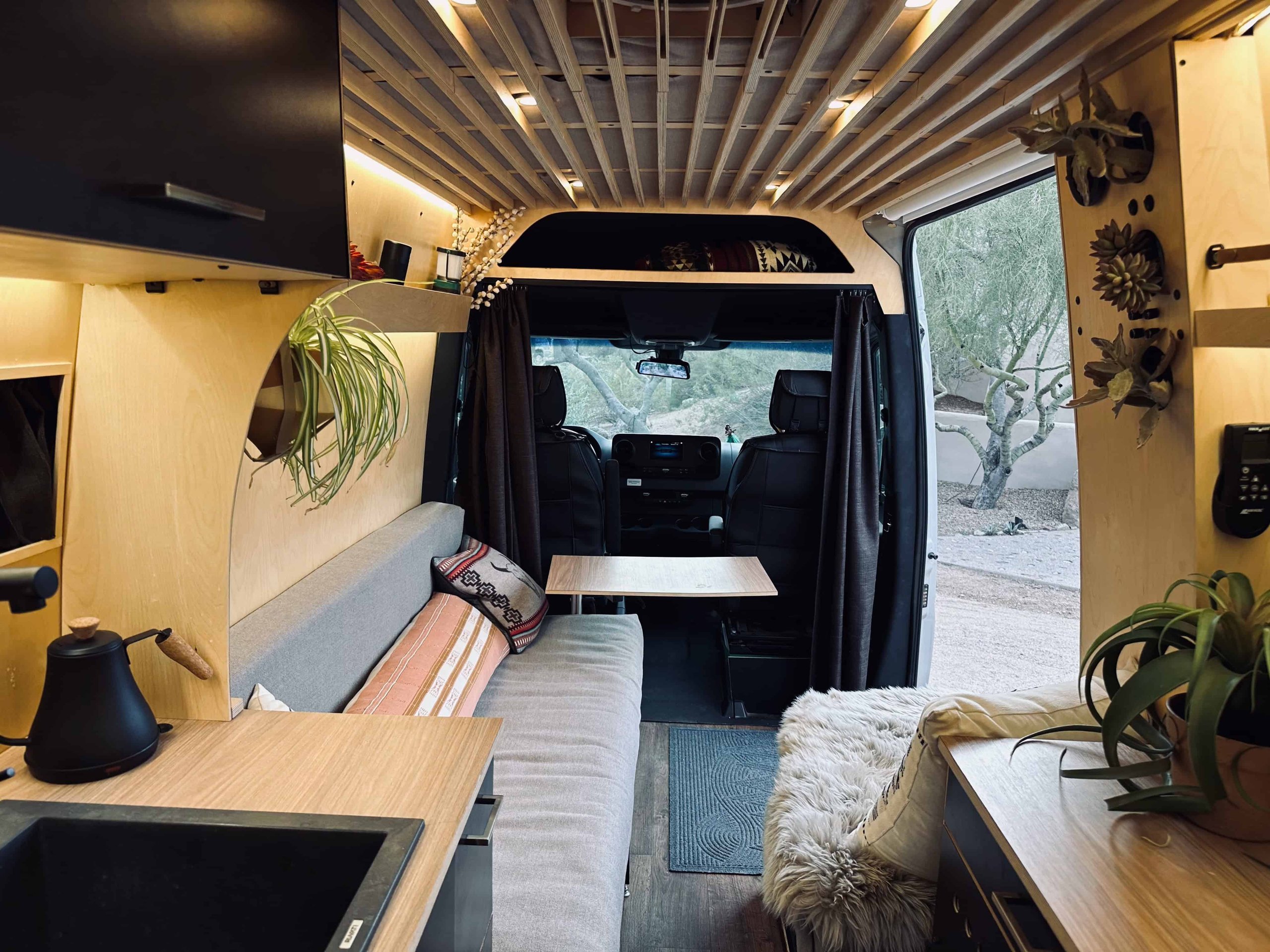

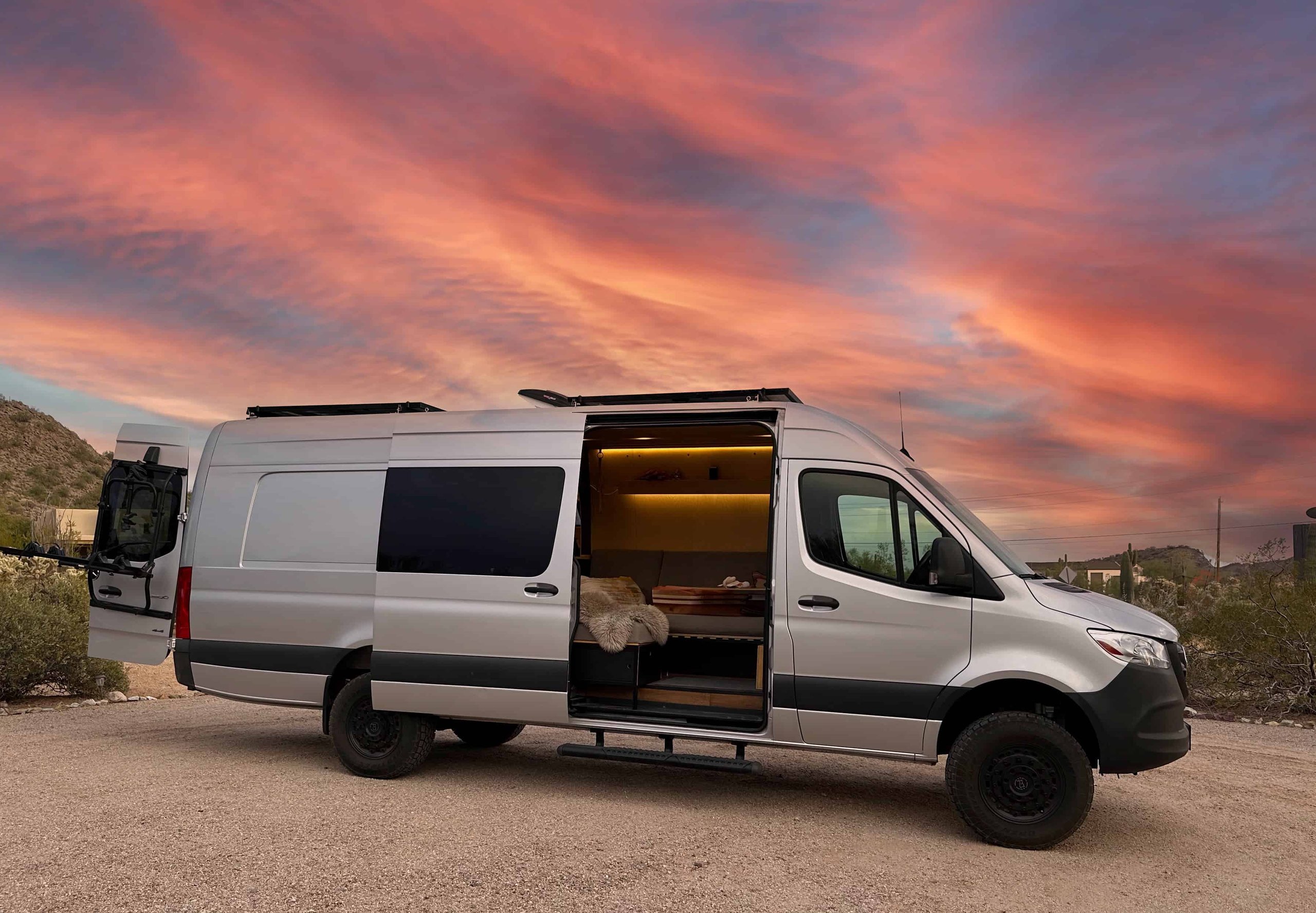

Dive into the world of van life with this 4×4 beast, a blend of strength and style. Unlike the cramped interiors of most vans, this one is designed to maximize space and comfort. The ceiling is lined with slates to create an illusion of height, and the large skylight floods the interior with natural light, enhancing the spacious feel.

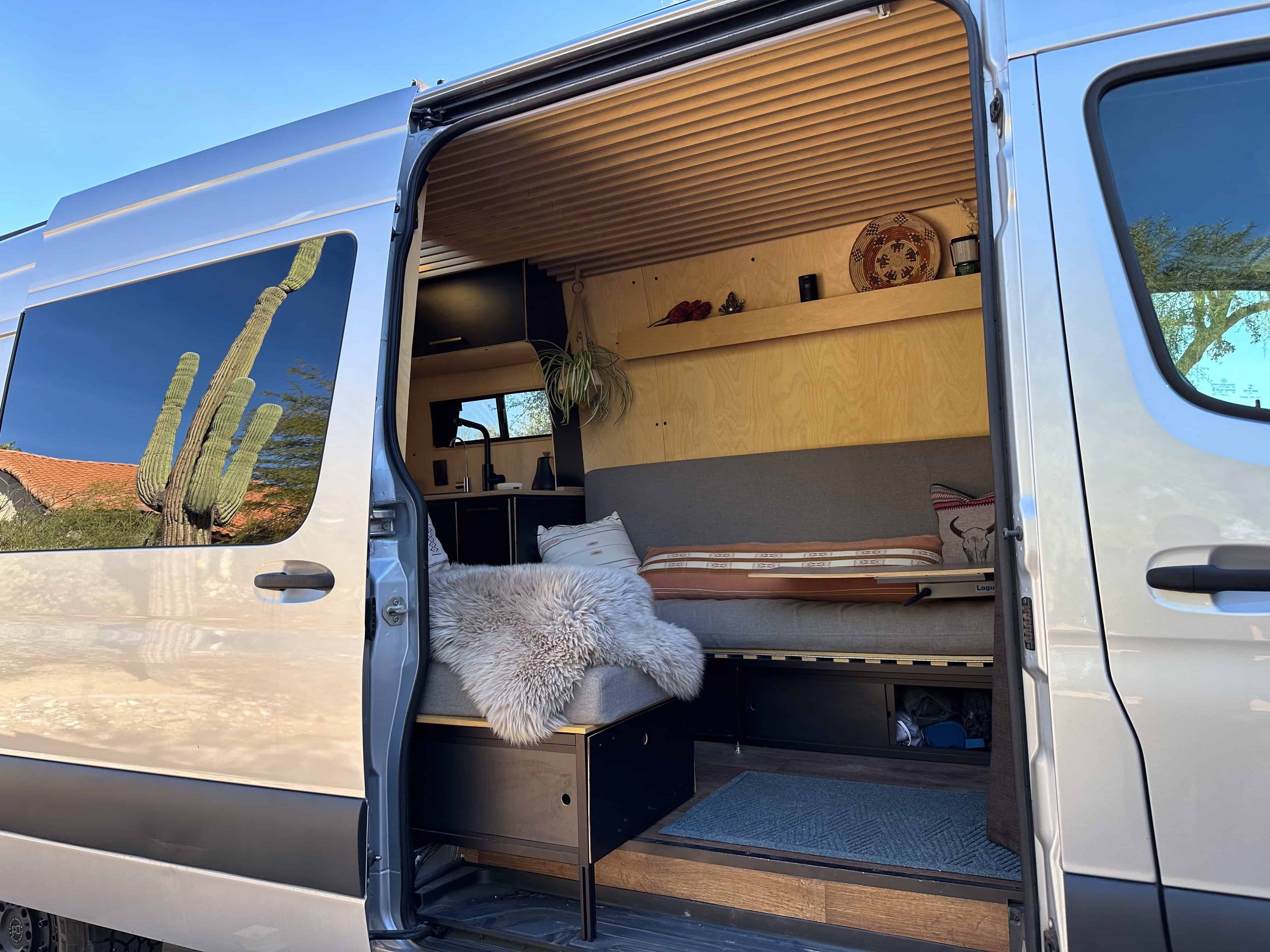

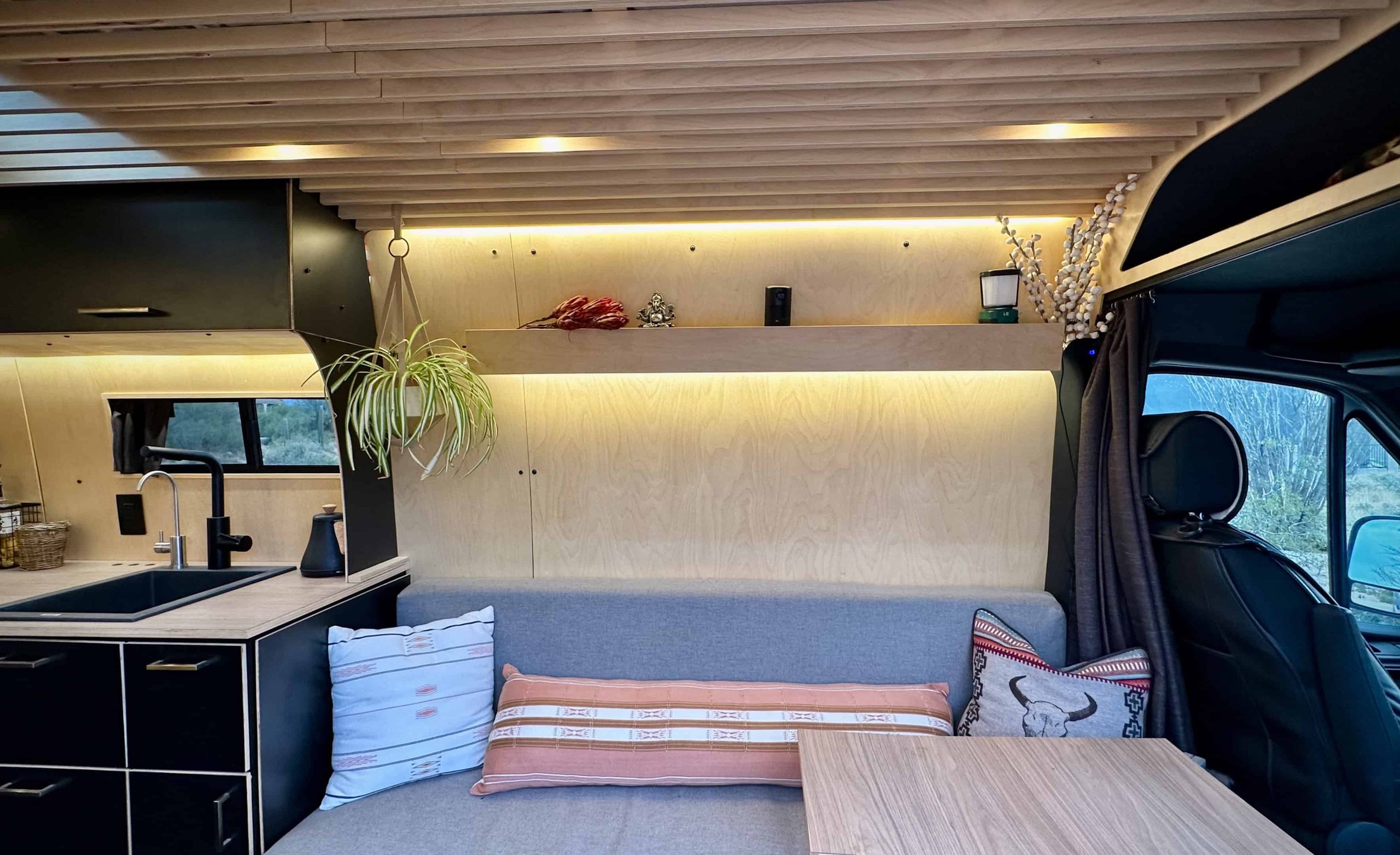

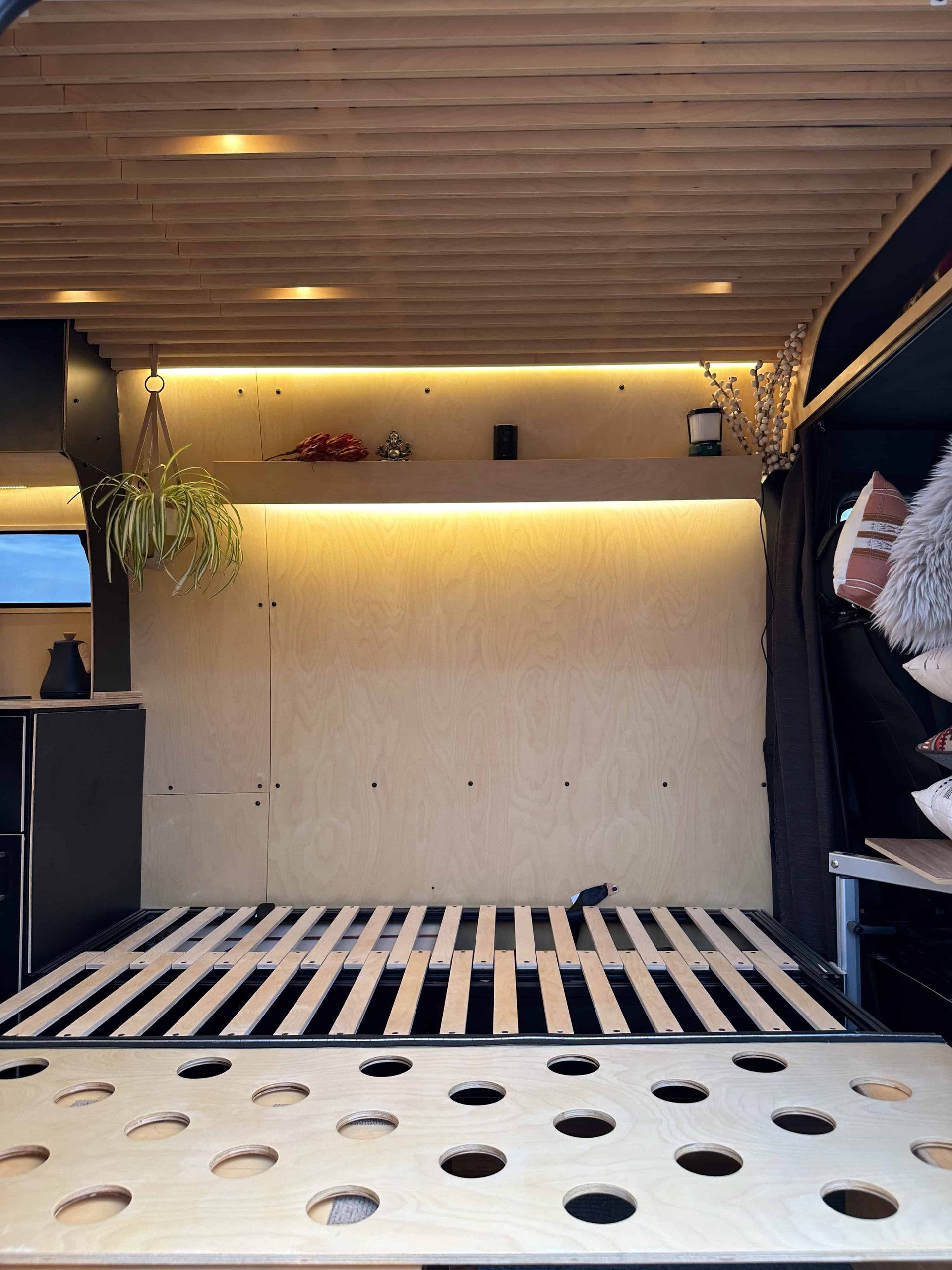

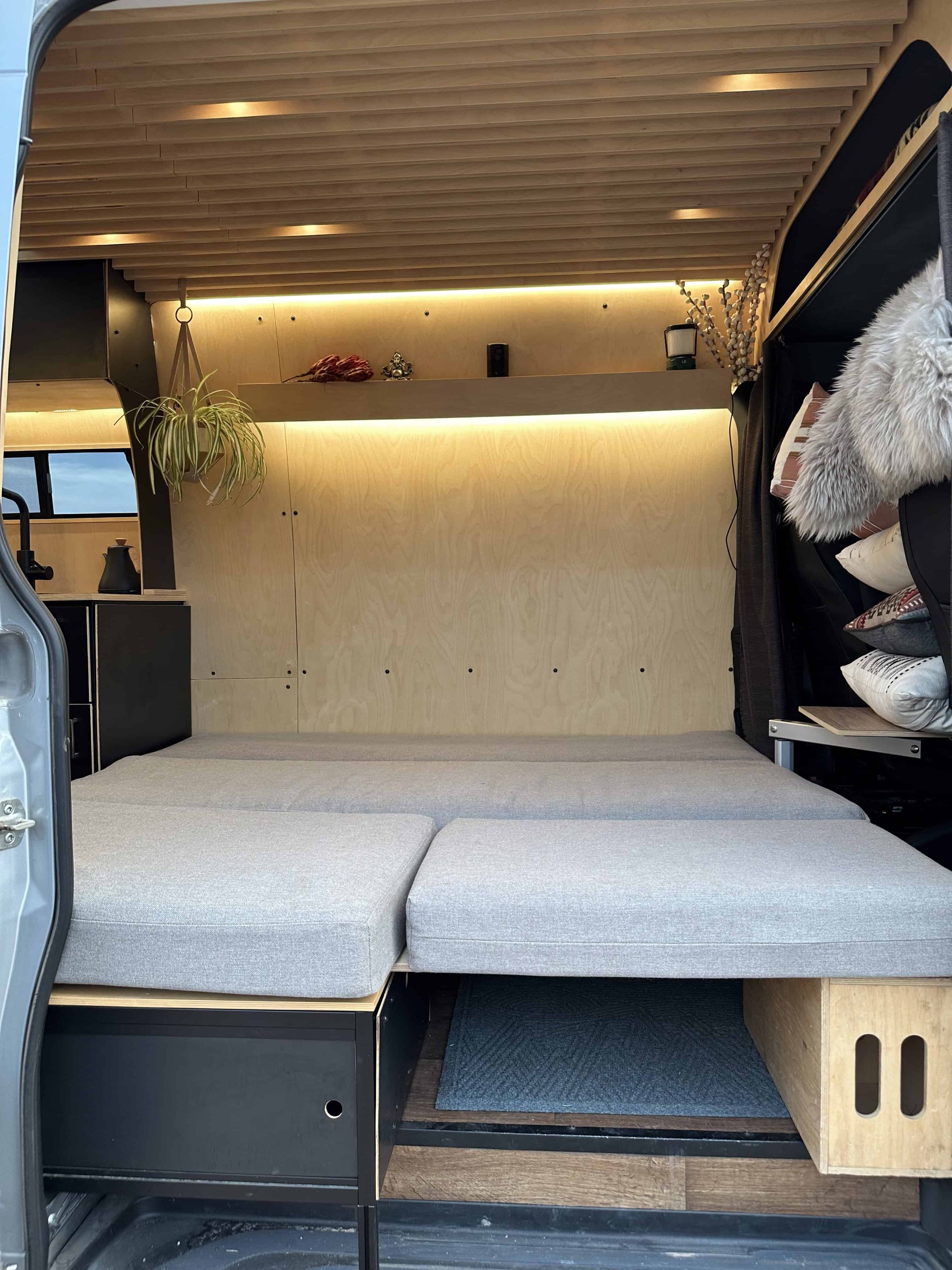

In a departure from the typical rear layout, the couch and bed are situated at the front, allowing the couch to adjust into a comfortable lounge or a king-sized bed. This design choice not only offers a more open living room but also ensures a roomy sleeping area, perfect for those who value comfort and space.

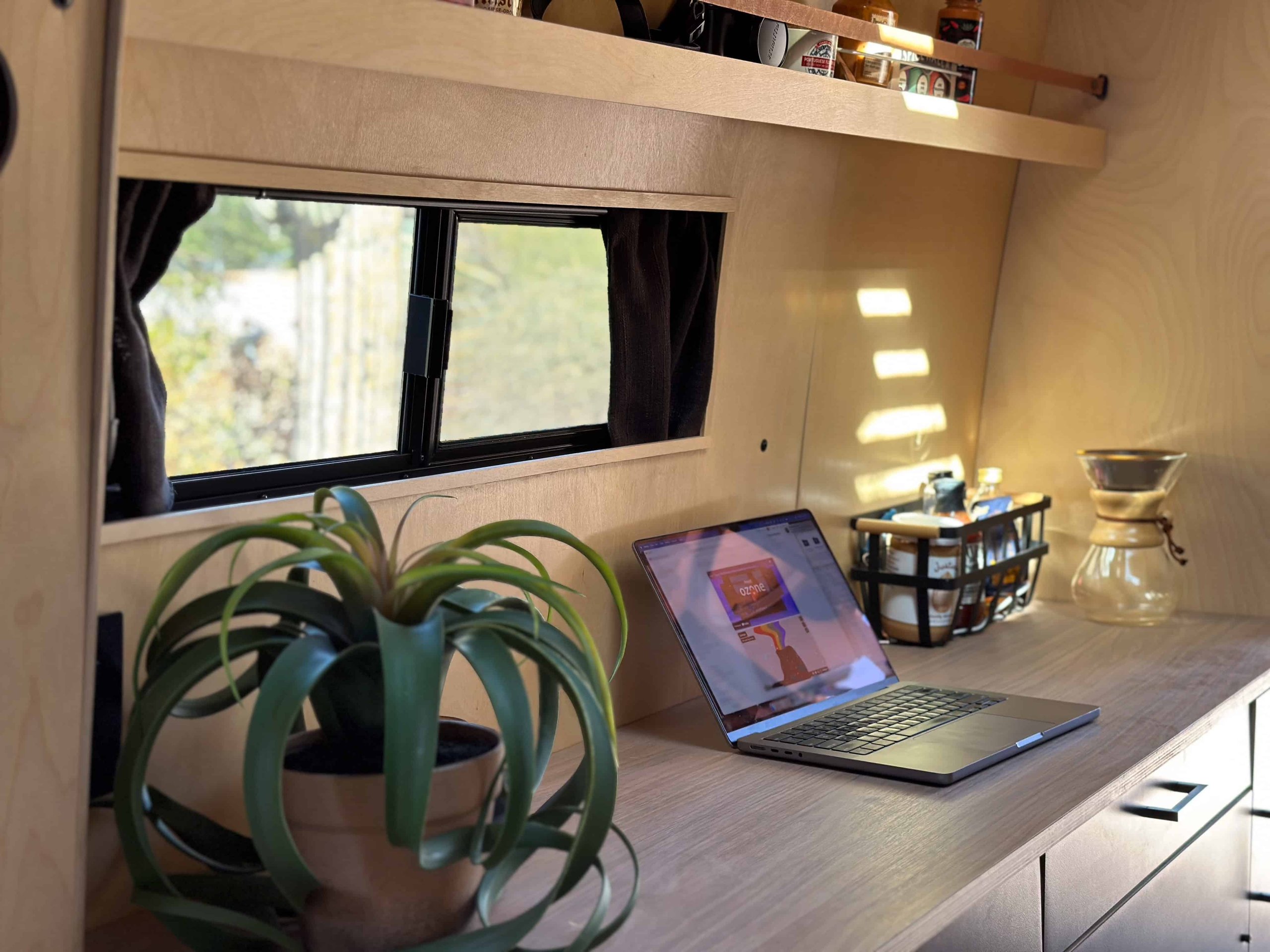

The van boasts an impressive amount of counter space, a crucial feature once you realize how essential it is for a comfortable van life. Whether you’re preparing meals, working, or just need space for your belongings, the ample counters make a significant difference in the livability of the van.
The interior is built with 80/20 aluminum, balancing strength and light weight to save space. The upgraded sumo leaf springs and falcon variable shocks elevate the van, providing increased clearance and stability. Coupled with the added Power Pedal, the van drives with ease and agility.
Well-insulated with natural wool and 3m thinsulate, the Zen Voyager maintains a comfortable temperature in various climates. The 12 Volt DC Mini Split System Air Conditioner and Van Life Techs hydronic heating system ensure the air inside is just right, making the van a cozy retreat no matter where you are.
The power system is a testament to self-sufficiency, featuring high-quality 700watt panels and a 400amh battery system from Tiny Watts Solar (w/ Lifetime maintenance warranty). It’s designed to keep you powered up for all your adventures.
This van is more than a vehicle; it’s a mobile sanctuary designed to bring comfort and freedom to your doorstep. It’s ready to take you to mountaintops or cityscapes with equal ease. Ready to embrace the van life? Your adventure starts here.

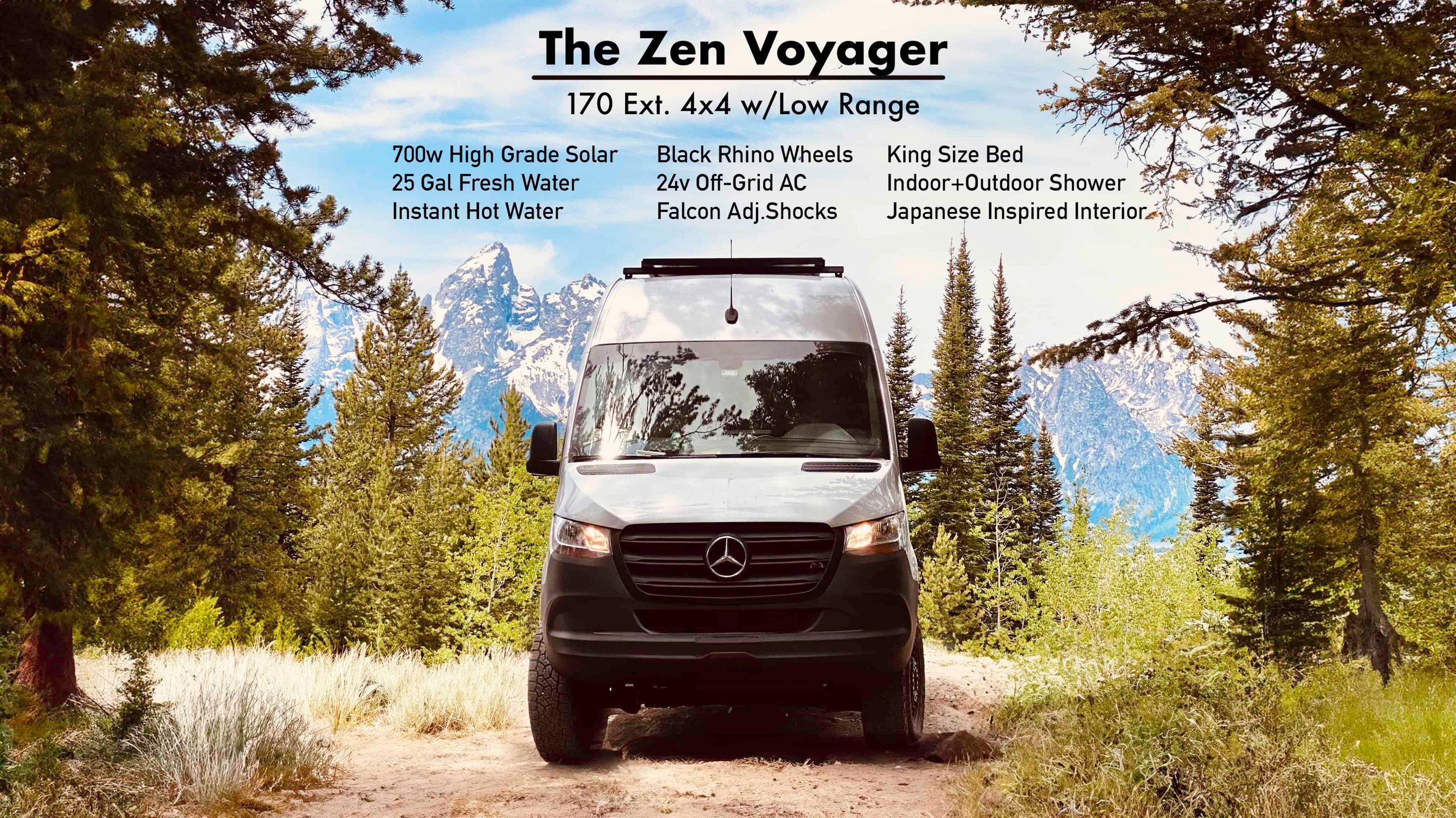

VAN SPECS
- 4×4 High Range w/Low Range
- Diesel
- 170 Extended 2500 High Roof
- Falcon Adjustable Shocks

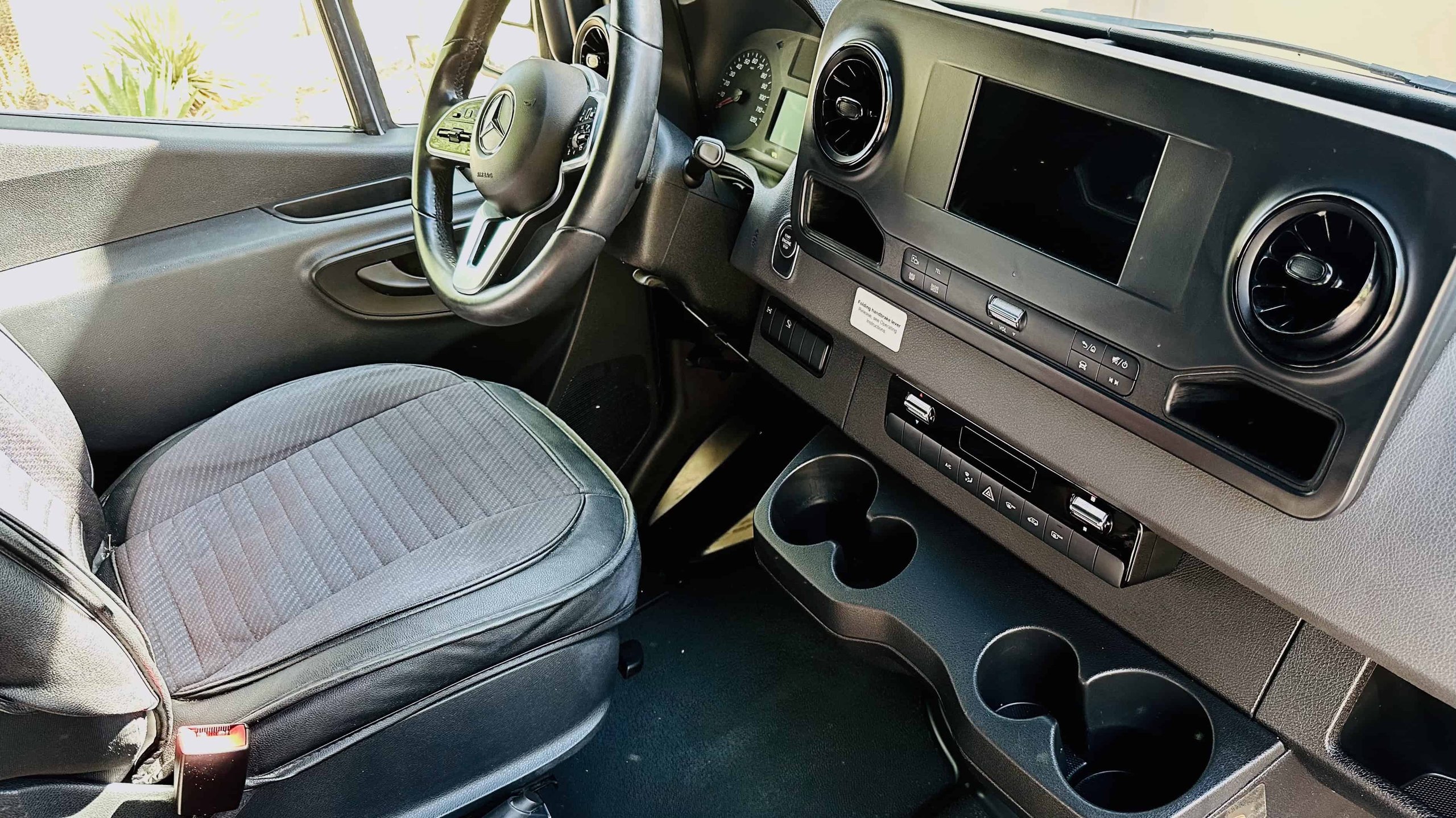

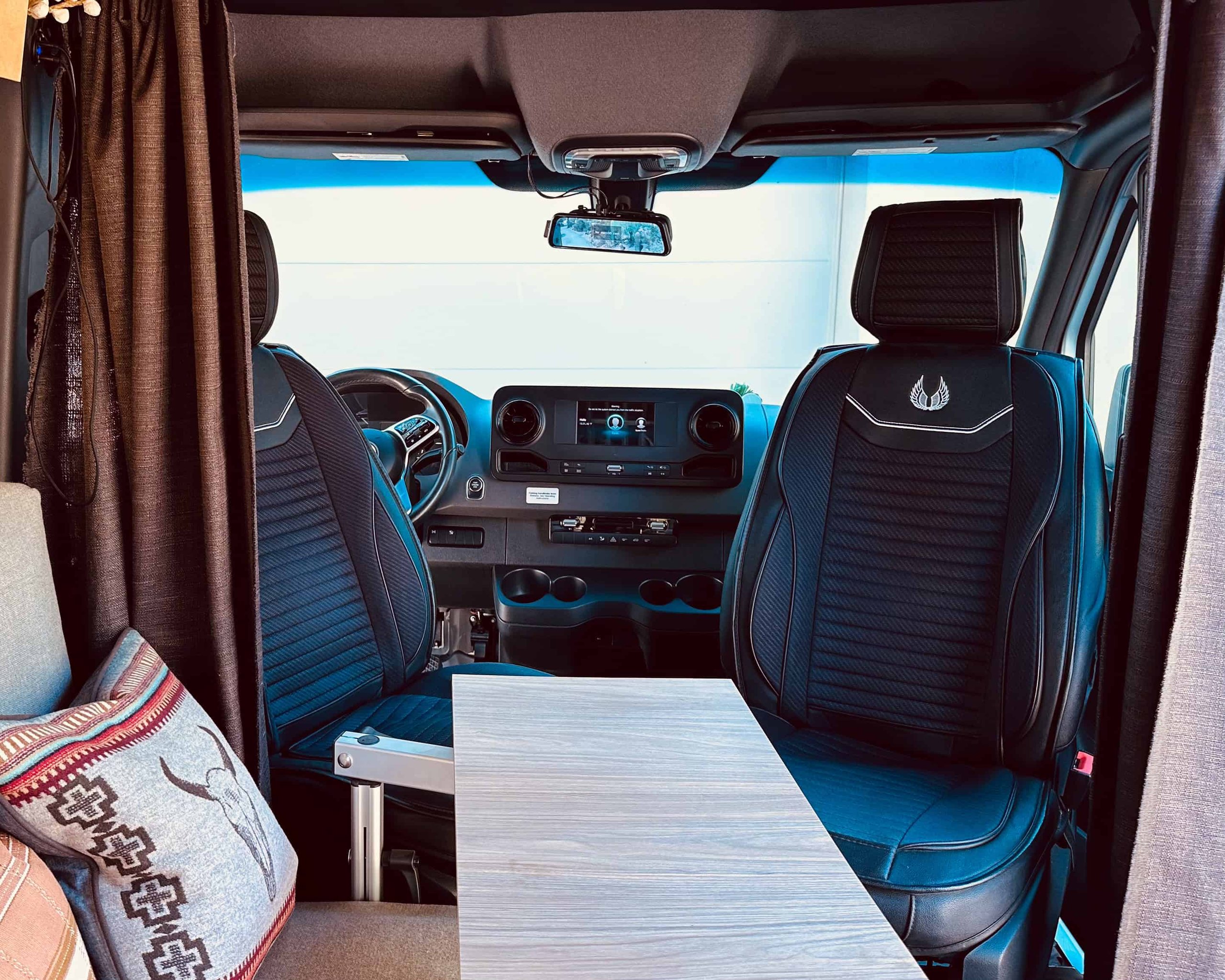

- Swivel Seats
- Rain-sensing wipers
- Auto high-beam headlights
- Cross wind Assist (very important!)
- Heated Seats
- Blind spot Assist
- Multiple keys
- Electronic pwr assist steering
- Rear view camera
- Tow/haul trailer wiring
- cruise control

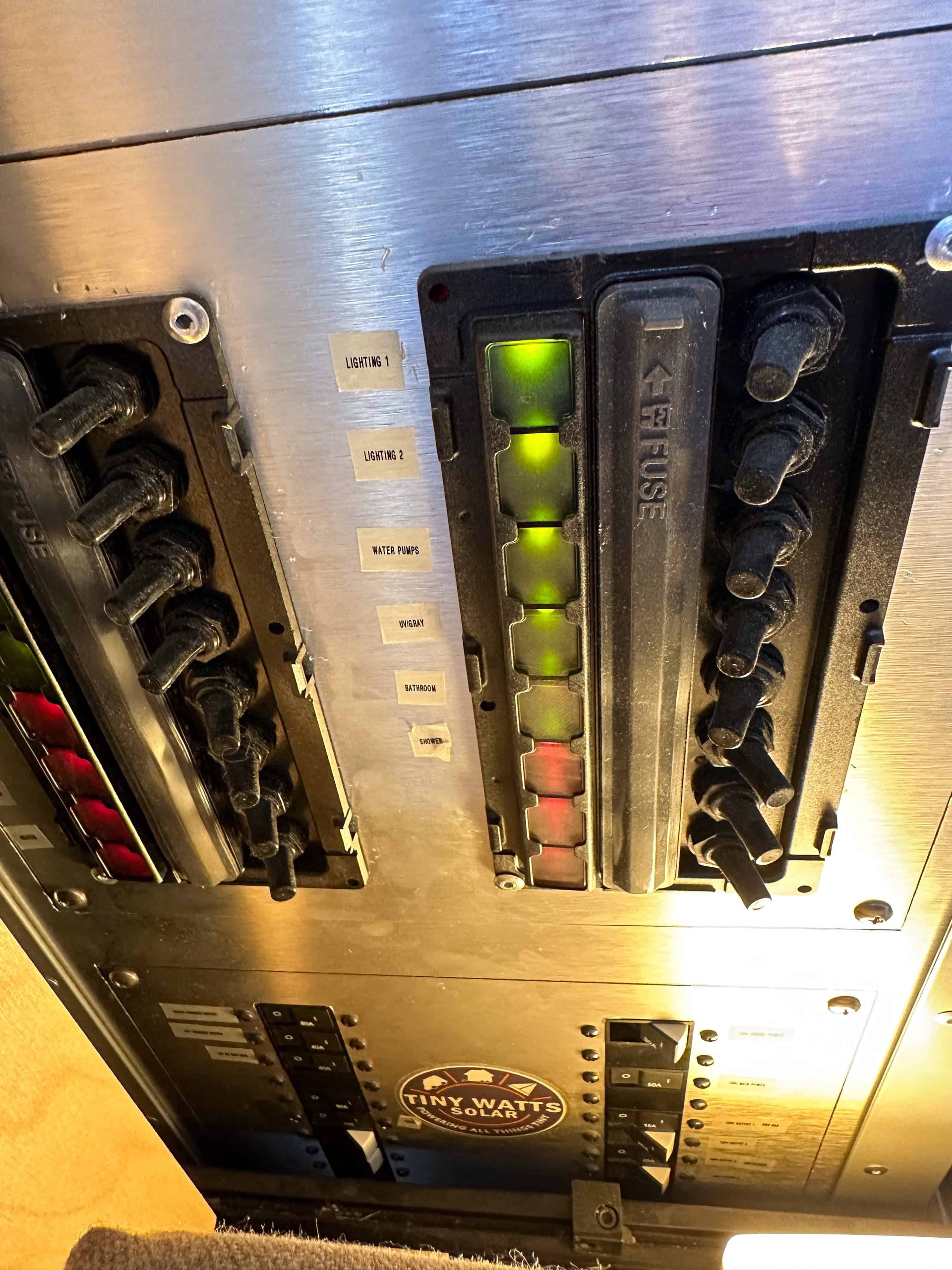

ELECTRICAL
- Tiny Watts Full Send Kit with Lifetime Warranty & Troubleshooting
- 400 AH life po4 Battery Bank

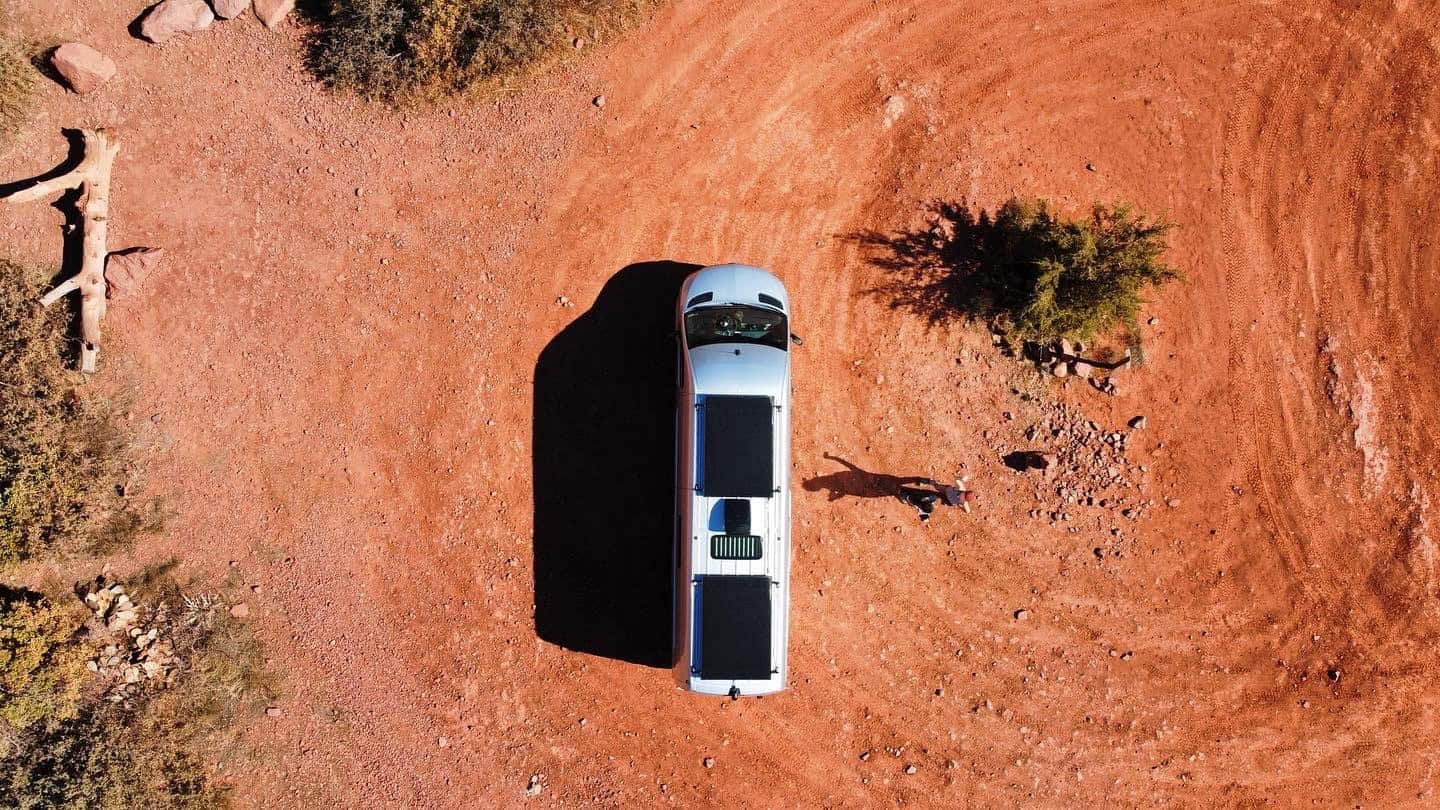

- 700W High grade Solar ((2x 350W Panels)
- 5000 Watt Renogy Inverter/Charger
- Victron Controllers
- Victron Color Display with Remote Capability
- Alternator charging
- Marine wiring
LIGHTING
- 12V Ultra Bright AspectLED Warm White LEDs
- 2 Lighting Modes (Behind Panels Non-Direct + Overhead)
- 12v LED Puck Light in Shower
- Dimmers used for all LED runs.
PLUMBING
- 25g Fresh Water Inside Water Tank
- 5 Gallon grey tank (aluminum fuel cell) with 12v Dump Valve
- SHURFLO 4028-100-E54 Revolution Pump-2.3 GPM
- Seaflo Accumulator Tank 125 psi 23.5 oz

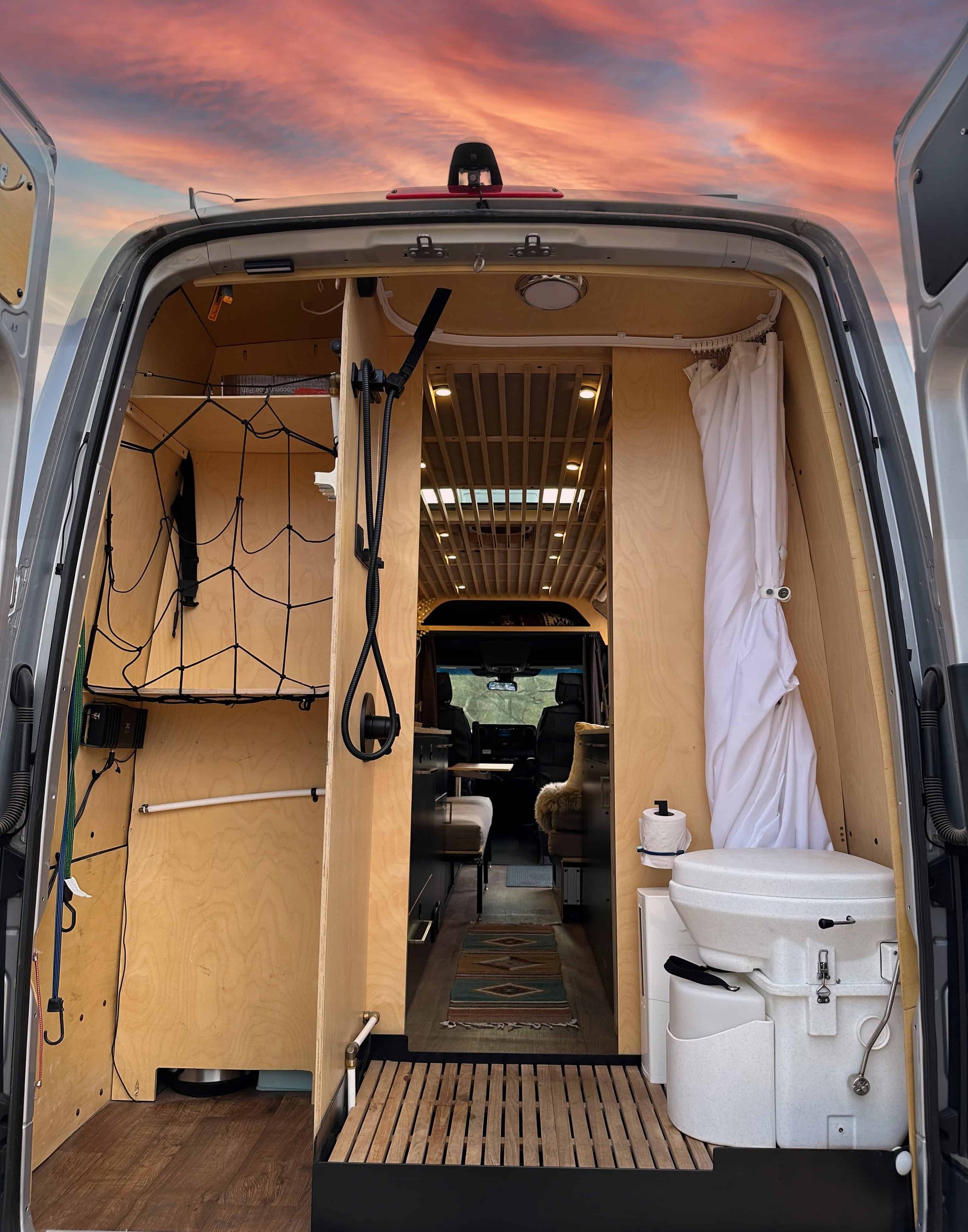

- Hot water shower system
- VanLife Tech Siesta System
- Single Stage Hydronic Heating
- Ducted Fan Coil
- Domestic Hot Water – Generation and Storage
- Closed loop Shower System Ready (Recycling hot water shower)
- Powder Coat of Shower Pan
- Bosch 4g Electric Water Heater
- Garage Water Hookup
- Teak Shower Floor

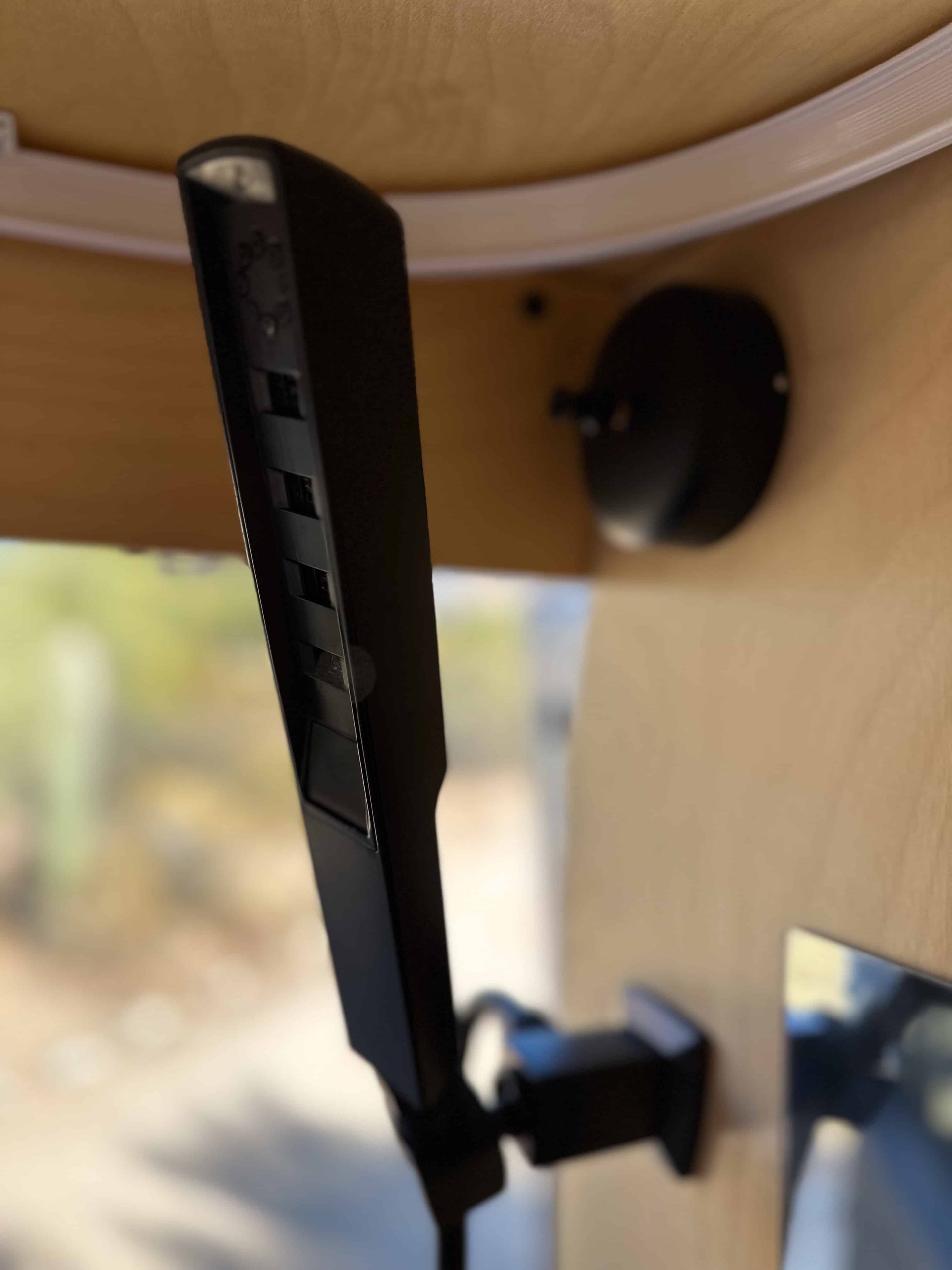

- Brizo Vettis Multi-Function Hand Shower with quick Thumb on/off switch
- Delta Mixing Valve

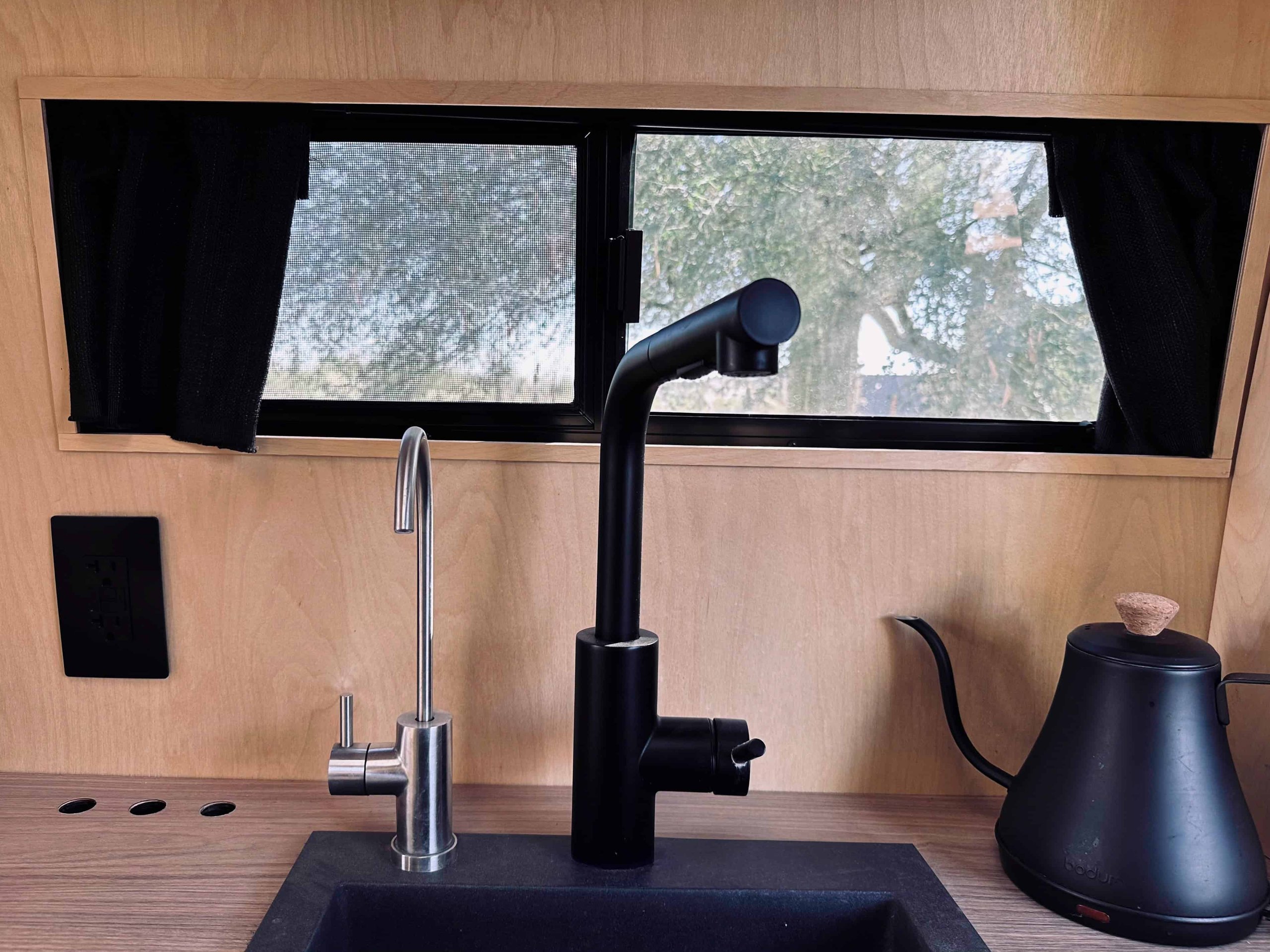

- Miseno Pull-Out Kitchen Faucet with Multi-Flow Spray Head
- Sink (15in Long X 20in Wide X 8in Deep
- Triple filtration system
- Waterdrop Water Filter
- Acuva NX-Silver UV-LED Water Purifier with Smart Faucet
- Pex A with Expansion Fittings

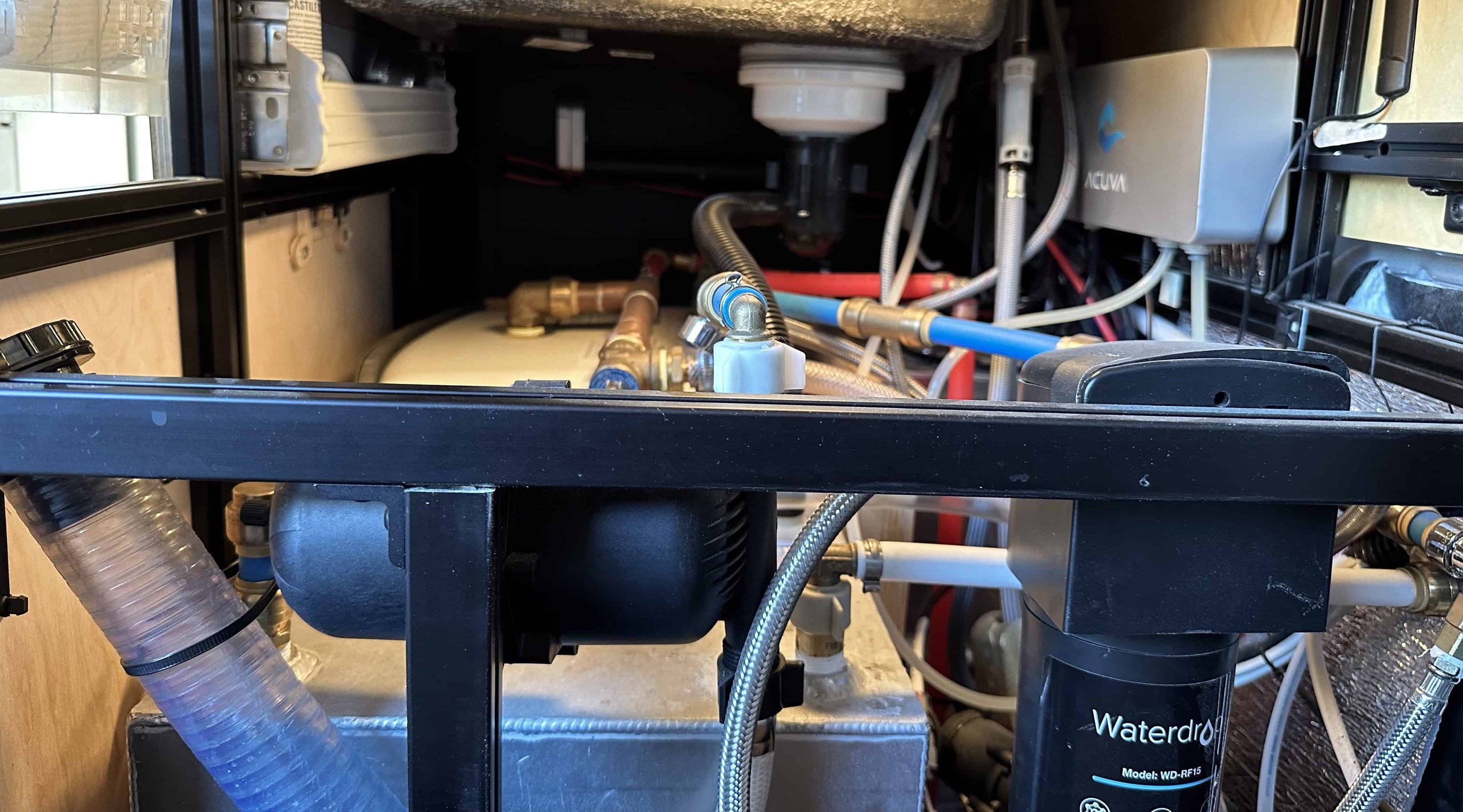

- All plumbing left exposed for easy monitoring
APPLIANCES
- Espar D5 Hydronic Heat with Glycol Tank
- CruiseNComfort 24V Air Conditioner (Dual Fan Condenser HD/VES Series)

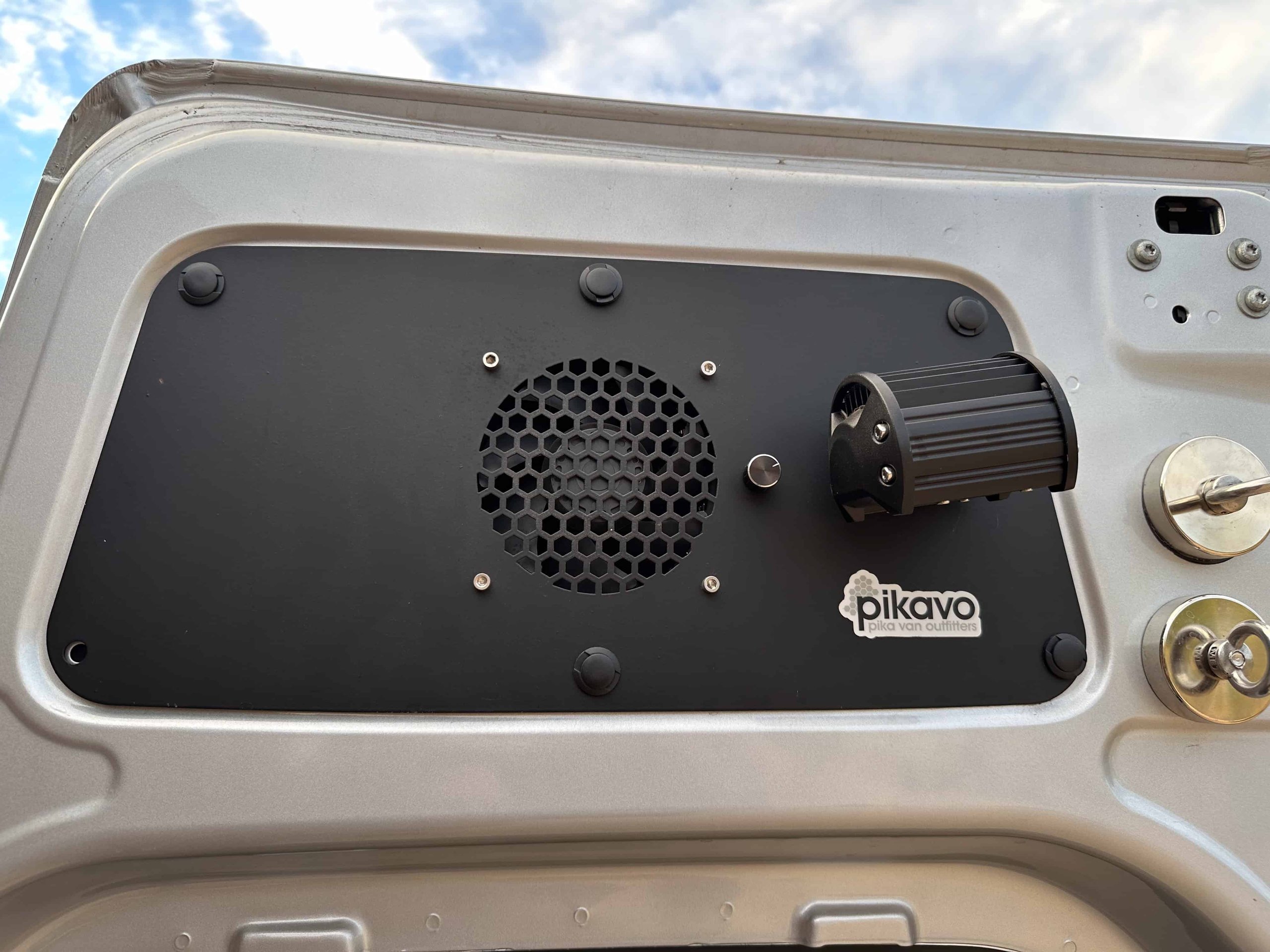

- Pikavo Shower Exhaust Fan
- Maxxair Ventilation Fan
- Weboost Cell Signal Booster
- Smart Rear View Mirror with Rear Camera

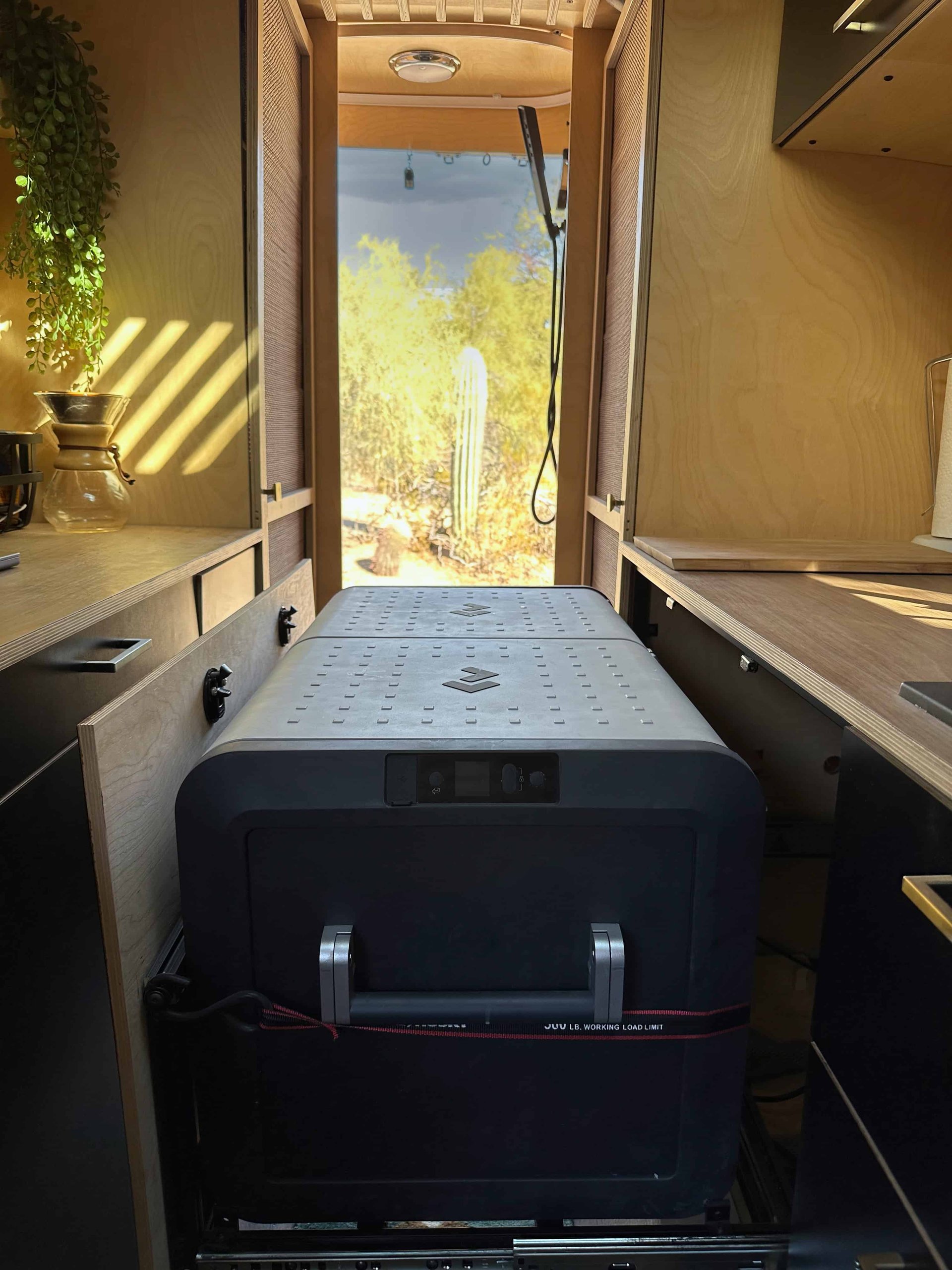

- Dometic CFZ75DWZ 12V Fridge/Freezer
- Natures Head Composting Toilet
- Smoke/CO2 Detector and Fire Extinguisher
- Sumo Springs Solo
FEATURES
- King Size 5” Mattress
- Quality fixers and switches
- Shower head with quick button for on/off to conserve water
- Shower is recyclable ready and system is included in the price (will ship to you when arrives)
- Multiple lighting options with dimmers.
- Two options for table placement.

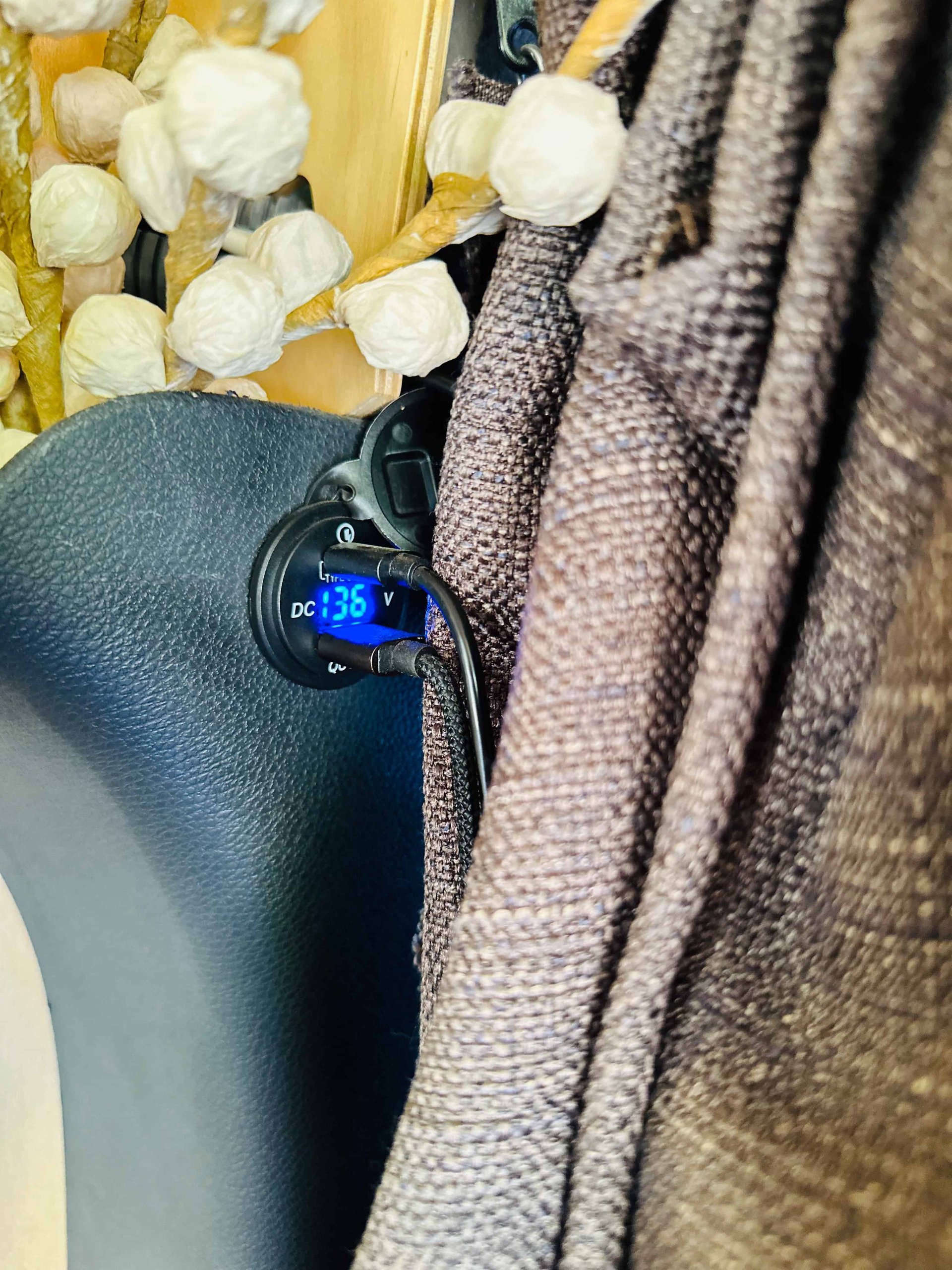

- Multiple 12v outlets with USB/USB-C outputs.
Storage

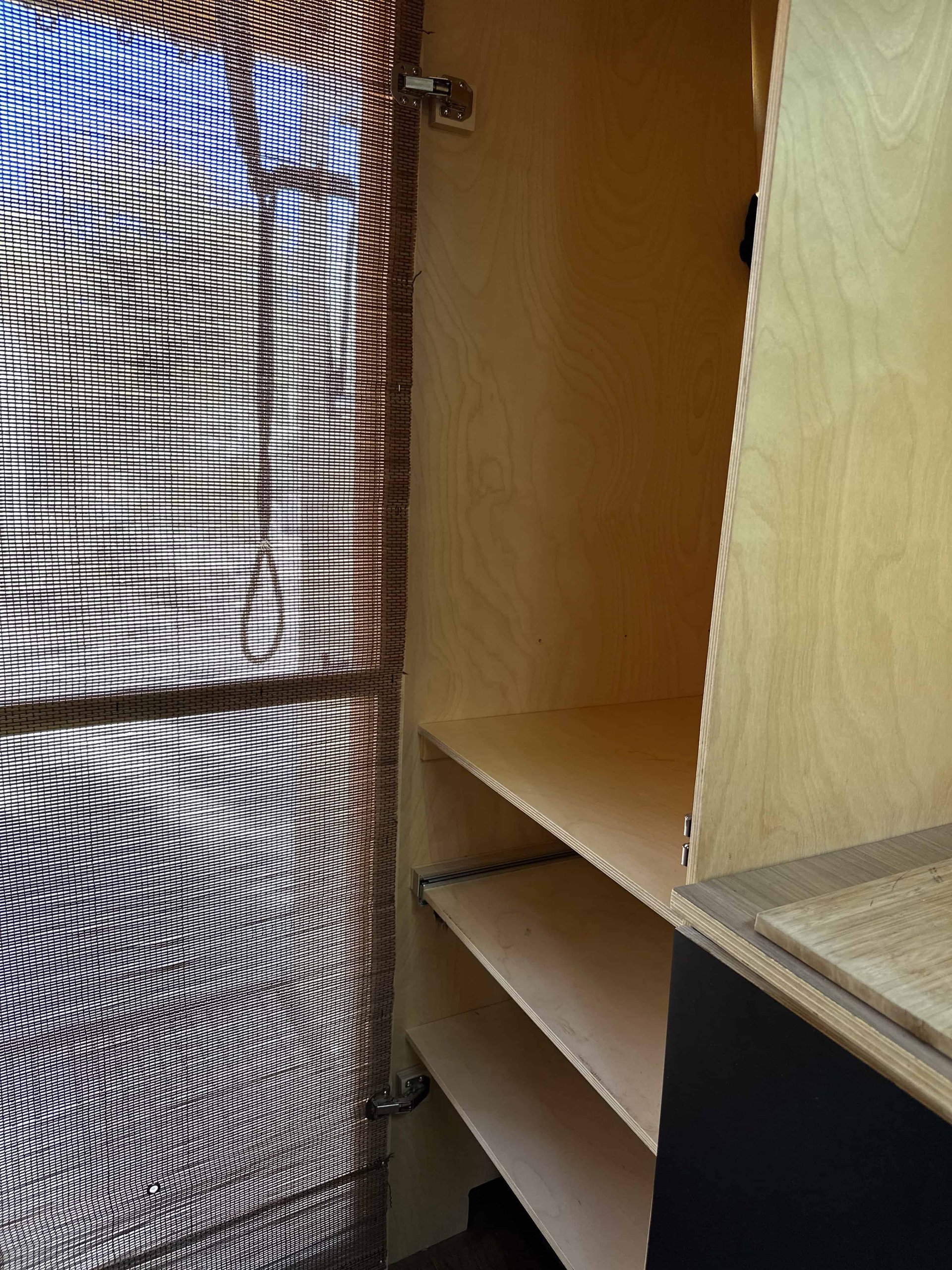

- 2x Full closets
- Large Vertical Garage
- 2 x Kitchen Soft-Close Drawers.
- Large under Fridge/Freezer Drawer
- Medium Cabinet.
- Under Sofa Cabinate.

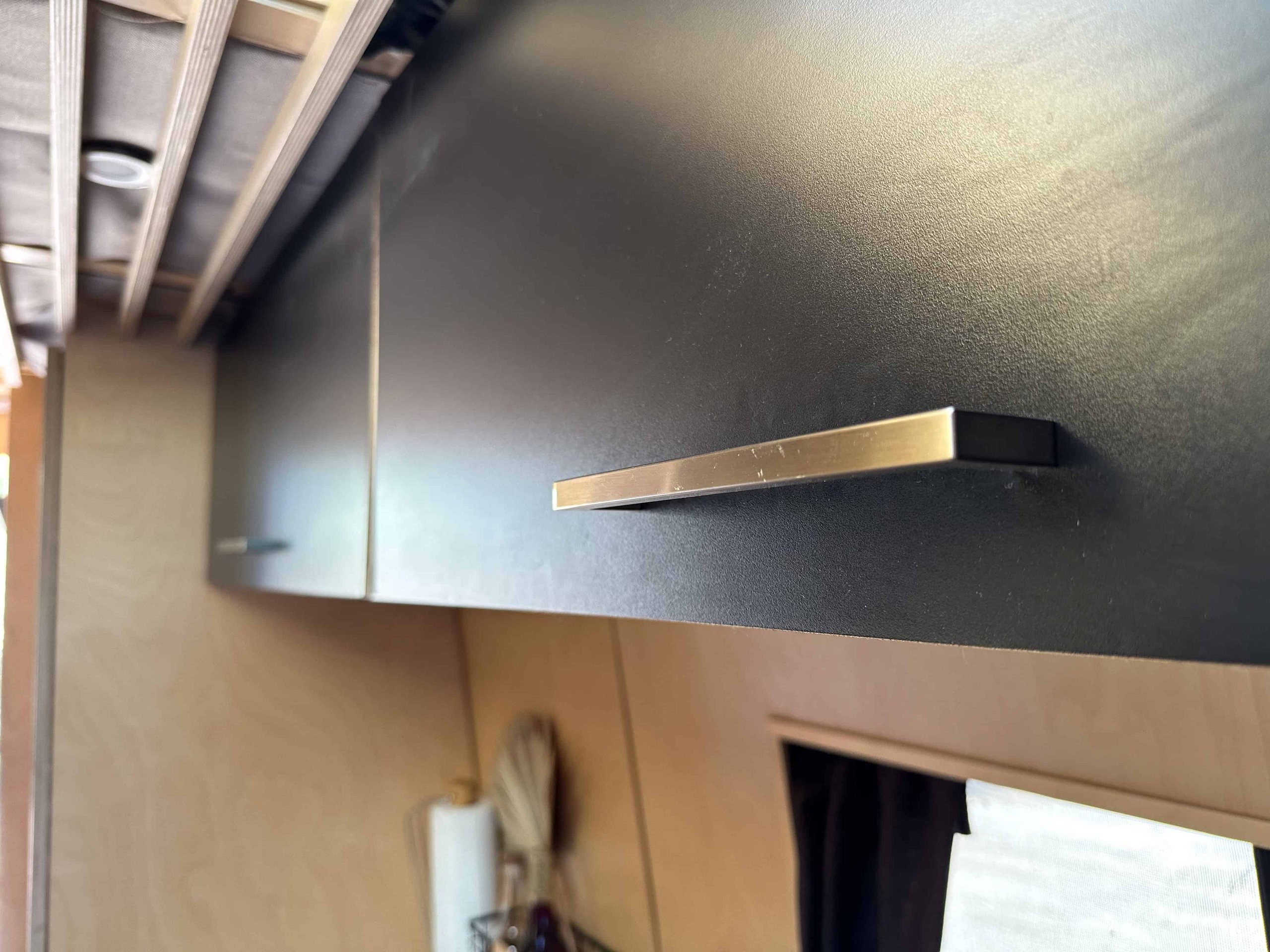

- 2x Overhead Kitchen Cabinets.
- Above Cab Storage.
- Shoe Closet
MATERIALS
- All materials used are Low to Zero VOC’s.
- 3d Thinsulate + Havelock Wool
- Rattle Trap Sound Deadening
- Minicell floor insulation
- All wiring is marine grade.
- Laminated countertops
- Sailrite fabric
- Baltic Birch wood
- Teak Shower Floor
- 80/20 for all internal framing
