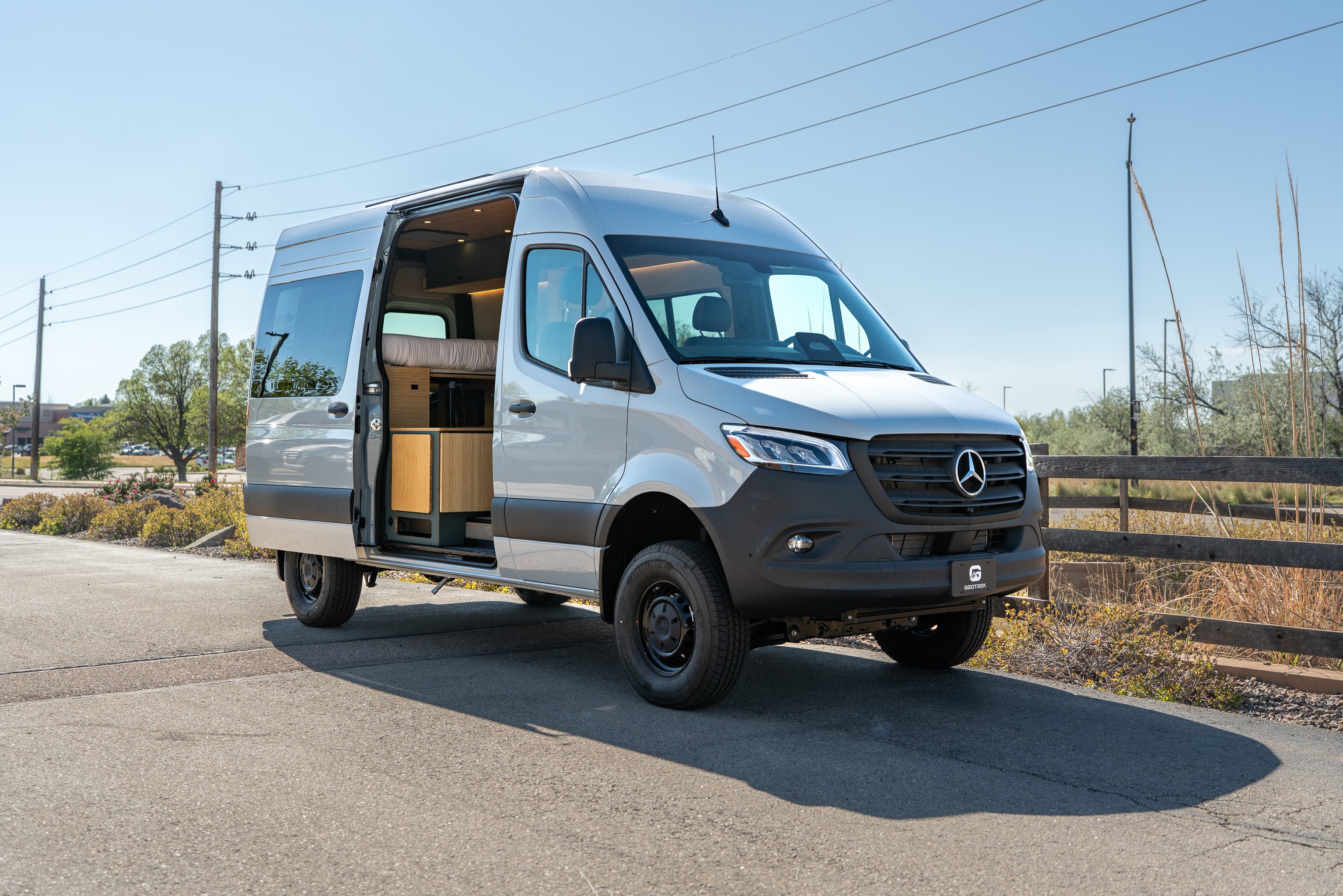

2026 Geotrek Flatiron #506 Mercedes Sprinter AWD

2026 Mercedes Sprinter

VIN: W1Y4NBVYXTT604814

Van Number: #506

This 2026 Geotrek is built for those who crave the road less traveled. Off-grid capable with all the comforts that make the journey even better.

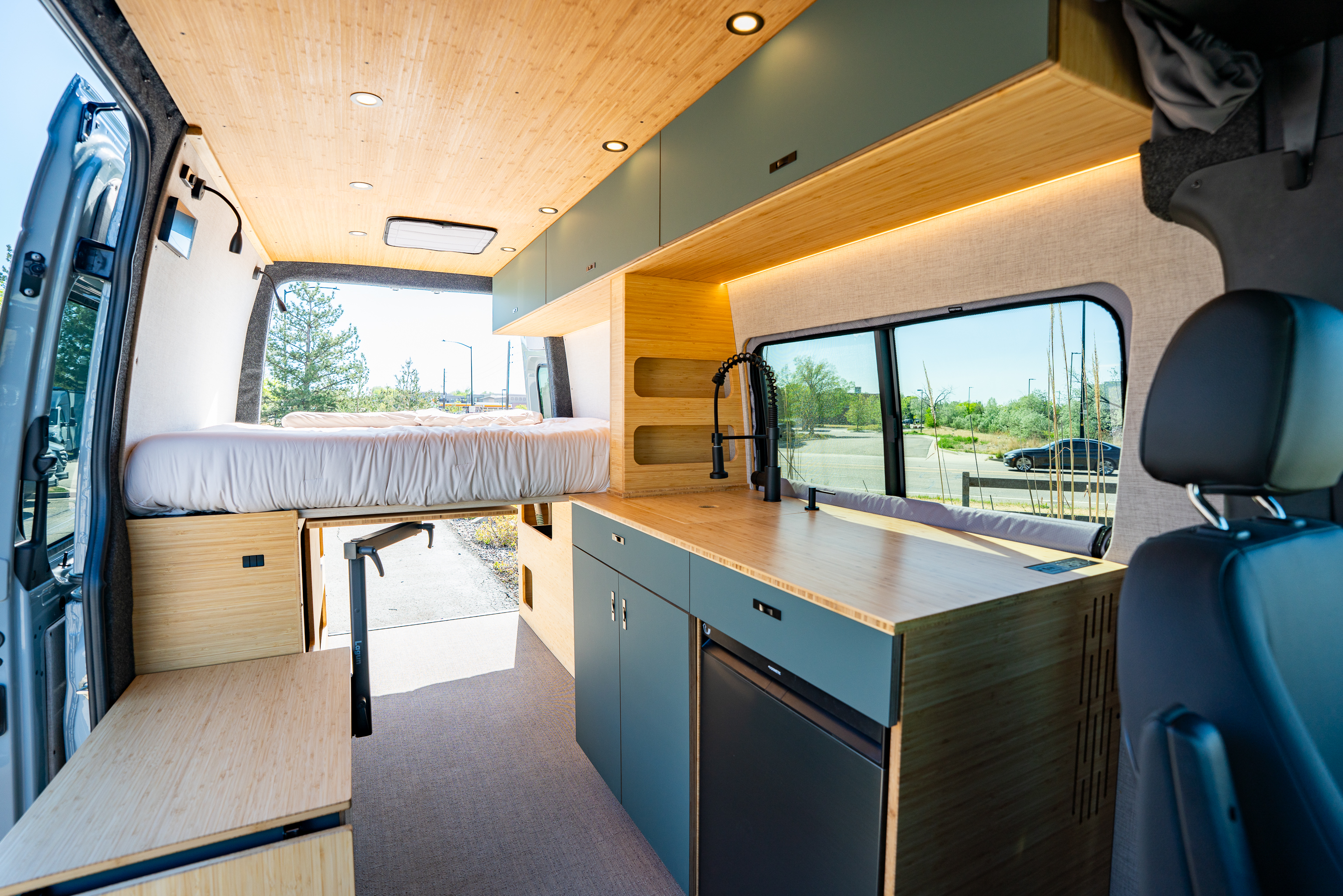

INTERIOR:

1. Interior Standing Height: 6ʼ2ˮ
2. Interior Width: 5ʼ8ˮ

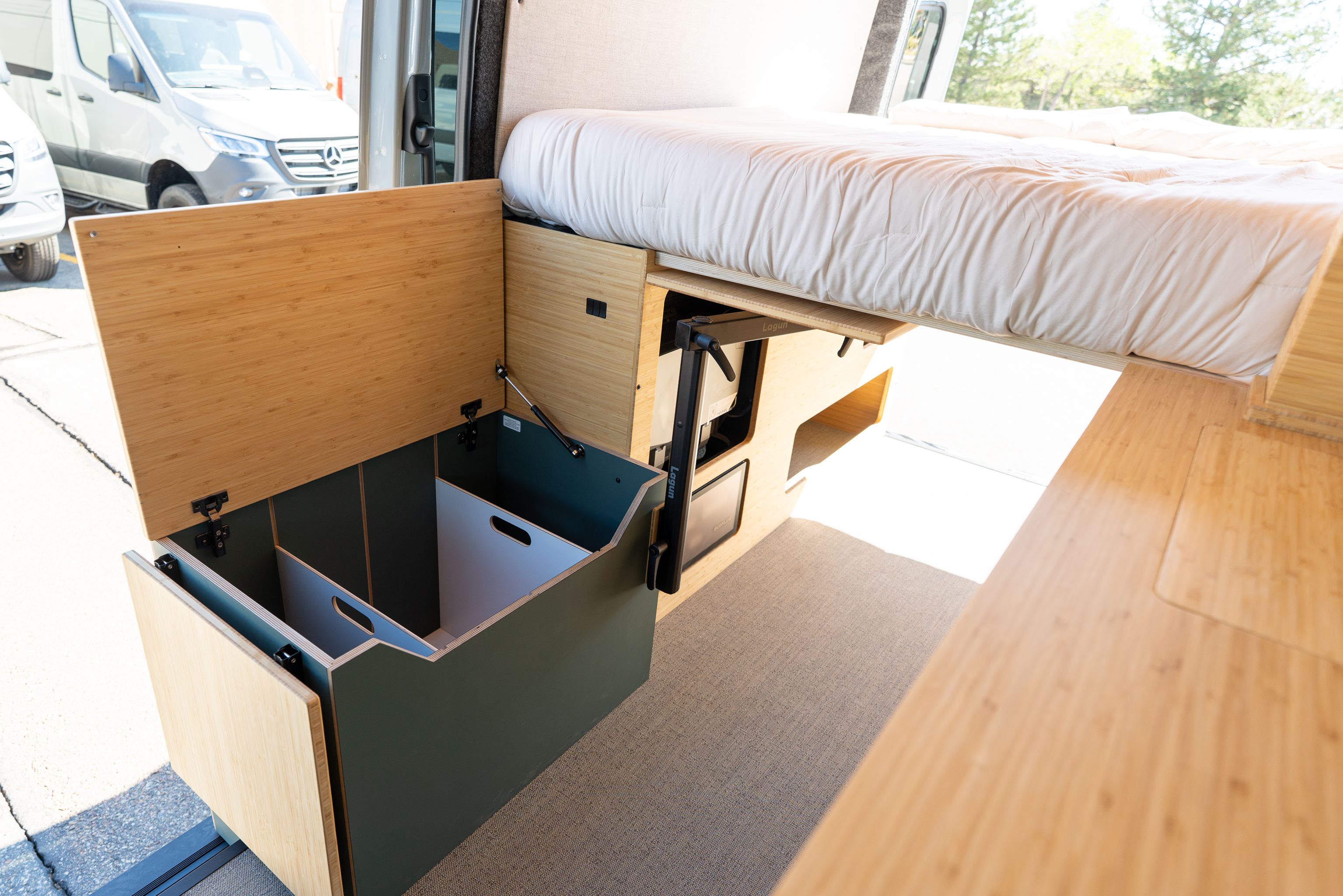

3. Bench Seat with storage
4. Bamboo Ceiling (UV-Finished)
5. Sand Upholstery Walls
6. Cabinet Faces: Fenix Laminate on Baltic Birch: Evergreen Color
7. Cabinet Structure: Bamboo 2TEC2 Moonrock Flooring
8. Removable Lagun Table Fold Down Happy Hour Table
9. Bench Extension Flip Up

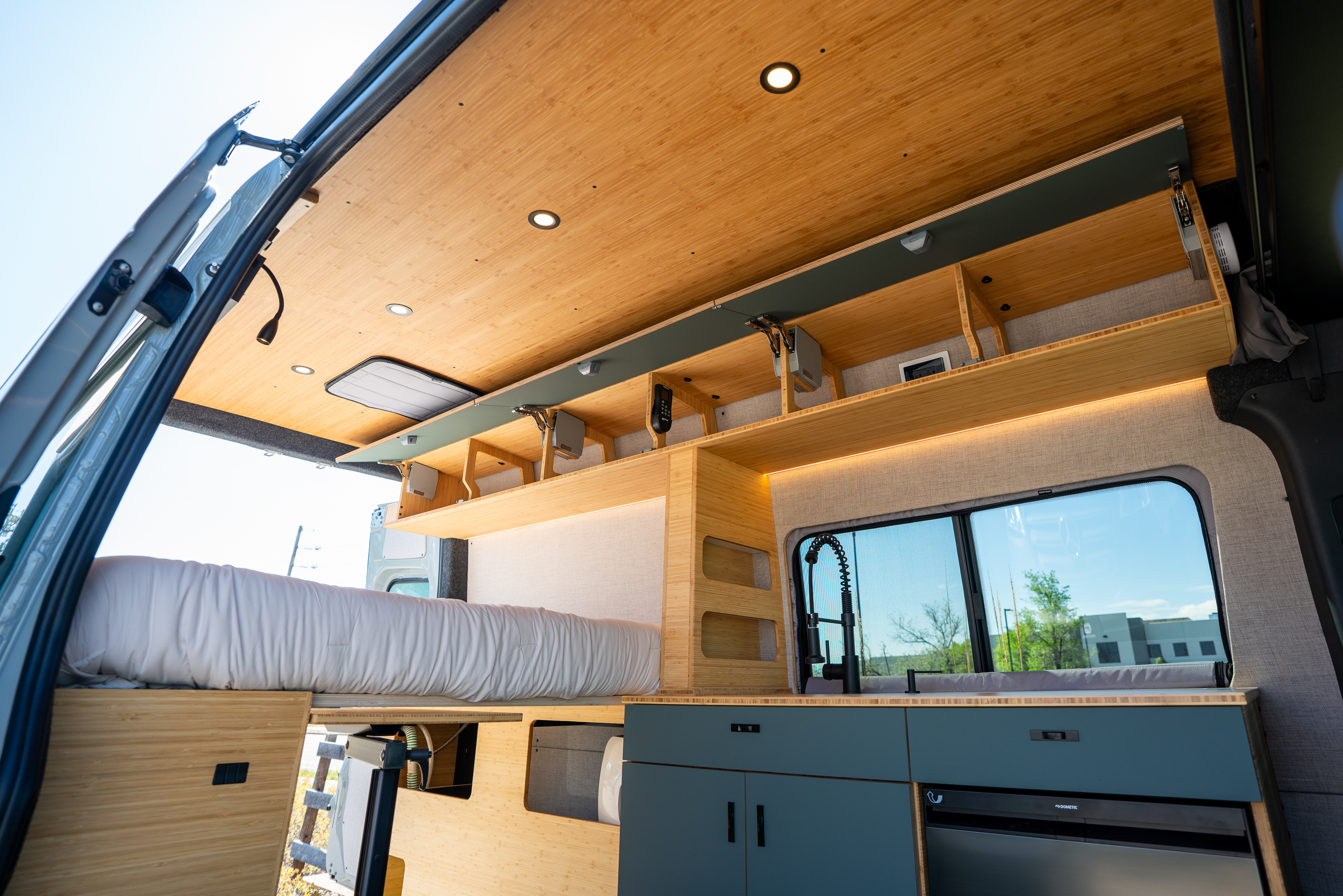

10. Geotrek Headliner Shelf
11. Counter Cubby
12. Window Covers Set of 7

KITCHEN / BED AREA:

1. Mattress Size: 73" x 68"
2. Sheets, Pillows, and Comforter
3. Farmhouse Sink (18" × 18")
4. Dometic NRX 115E 4 cu. ft. 12v Fridge
5. Integrated Soap Dispenser

WATER SYSTEM:

1. 24 Gallon Fresh Water Tank
2. 5 Gallon Grey Water Tank (Inside)
3. Outdoor Shower
4. Camplux 4-Gallon Hot Water Heater
5. 3-Stage Water Filtration System (Dedicated Filtered Drinking Faucet)
6. Gooseneck Kitchen Faucet
7. Interior Water Fill Port

VENTILATION & CLIMATE:

1. 48V Air Conditioner (15,000 BTU Cooling and Integrated Heat Pump Function)
2. Dual-Direction MaxxAir Roof Fan
3. Espar Diesel Heater
4. GeoTherm Ceramic Coating

LIGHTING & OUTLETS:

1. Dimmable Reading Lights (Bed Area)
2. (2) Dimmable LED Strip Lights
3. (6) Dimmable Overhead Puck Lights
4. (1) Garage Lighting
5. Outlets + USB-A + USB-C Throughout

ELECTRICAL:

1. 5kWh EcoFlow Power Kit
2. 400W Roof-Mounted Solar Array Solar Cable Entry Port
3. 30A Shore Power Inlet
4. Dimmer Switches Throughout

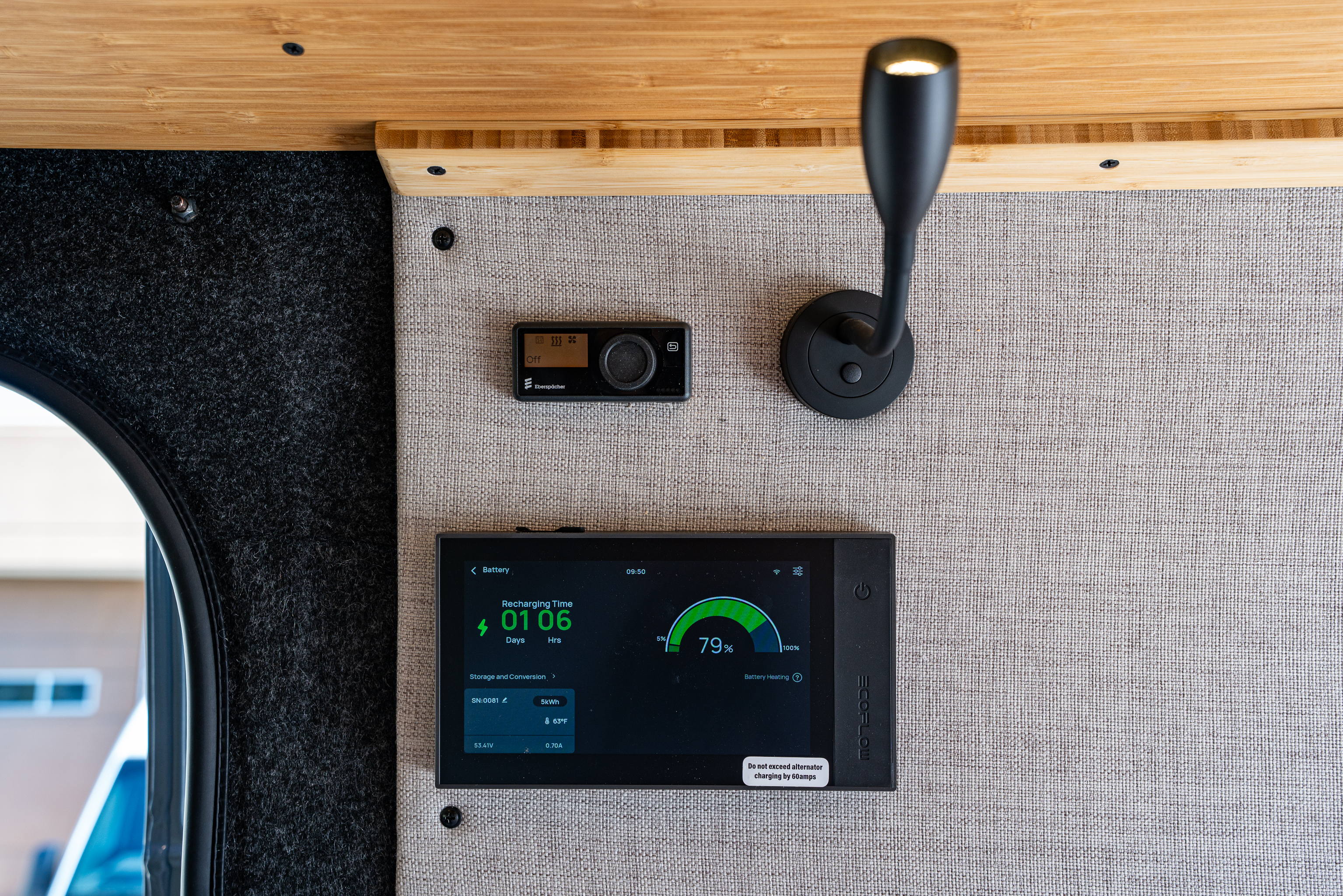

5. Power System Control With Ecoflow App Monitor

CHASIS & STRUCTURE:

1. Mercedes Sprinter 144" High Roof Chassis
2. Paint: Silver Grey
3. Swivel Seats (Driver & Passenger) Mercedes Factory Tires and Rims
4. Clear Coat Hood Wrap
5. Window Tinting

SPECS:

1. Length: 19ʼ 5ˮ
2. Width with Mirrors: 8' 2"
3. Height: 9' 6"
4. Interior Height: 6' 2"
5. Interior Width: 5' 8"
6. GVWR: 9,500 lbs
7. Weight:
8. 6,500 lbs (dry weight)
9. 6,800 lbs with full fresh and grey tanks)
10. OCCC: 2,047 lbs (includes full water tanks)

WARRANTIES:

1. 3 Year / 36,000 Mile Geotrek Build Warranty
2. 3 Year / 36,000 Mile Mercedes Factory Warranty

ADD-ONS AVAILABLE (EXTRA COST)

1. 5kWh Ecoflow BatteryAdditional
2. Fiamma F45s (13ʼ)Awning
3. Laveo Dry-FlushToilet
4. Microwave
5. Starlink GEN3
6. BF Goodrich KO3 Tire Upgrade
7. Offroad Wheel and Tire Package
8. Offroad Wheel Tire and Suspension Package
9. Geotrek Side Steps
10. Alternator Charging Speed Upgrade
11. 22 Gallon Grey Tank
12. 3 Stage Water Filter
13. Bench Shower
14. 11 Gallon Bench Shower Grey Tank
15. 48v AC Unit
16. S&B 45 Gallon High-Capacity Fuel Tank

Don’t miss out on this amazing, fully adventure-ready rig. For more information, please contact us, or come visit our shop in Boulder, Colorado.

If you are interested in a different van or layout, we're happy to help you find one that fits your needs.

Van Sold by Geotrek Dealership
