2024 Professional Build in a Sprinter 144″

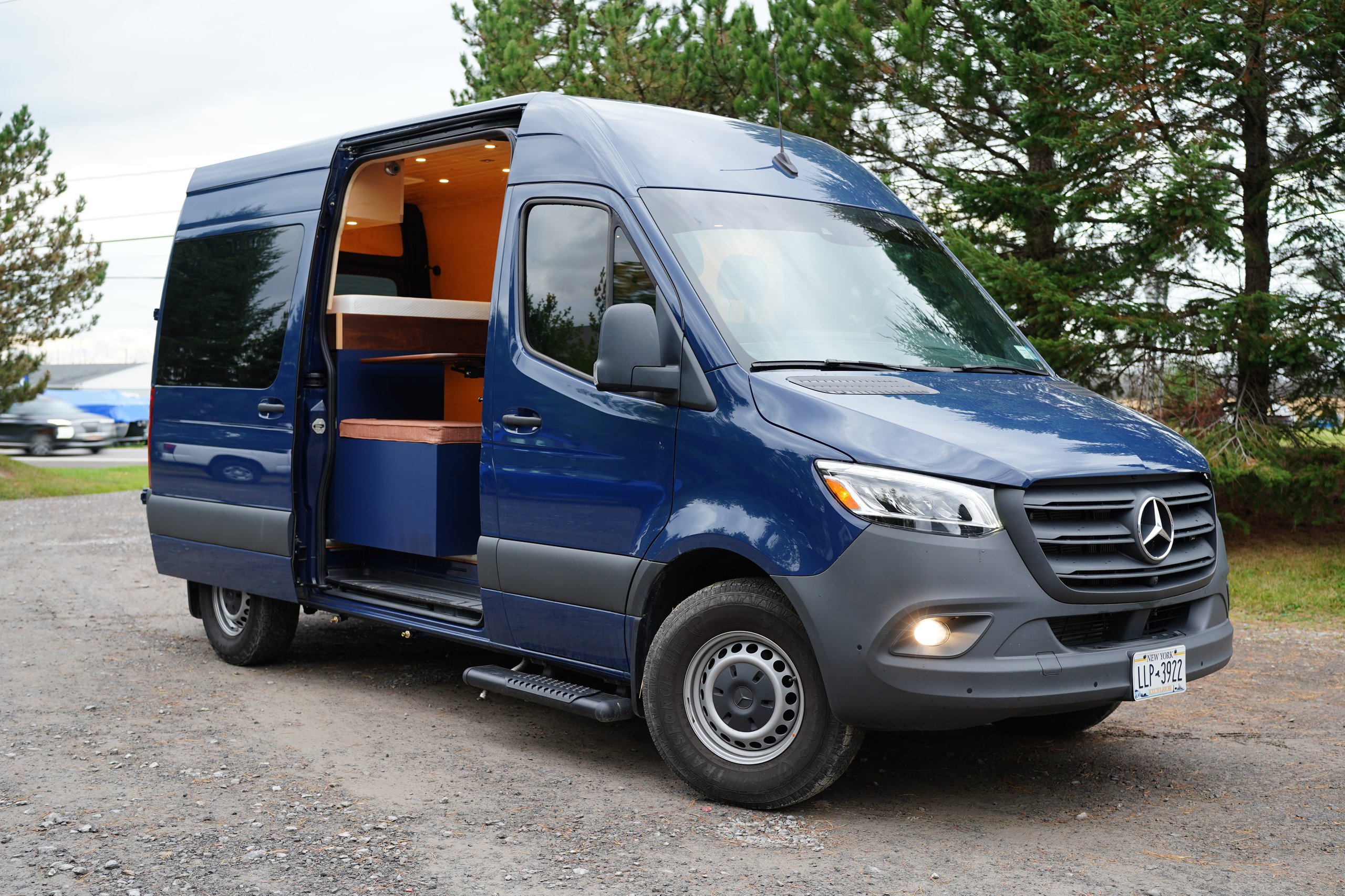

2021 Mercedes Sprinter 2500 144″ RWD

3.0L 6-Cylinder Turbo Diesel Engine

Professionally built in 2024 by East Coast Vanlife in Canandaigua, NY. One-of-a-kind design. Professionally tested. Cozy and warm interior. Off-Grid, 4-Season, All-weather ready.

Insulation/Sound Deadening:

1. KILMAT Sound Deadening in all cargo wall bays, cargo ceiling bays, headliner, wheel wells, and cargo doors.
2. Reflectix insulation in all cargo wall bays, cargo ceiling bays, headliner, and cargo doors.
3. 3M Thinsulate insulation in all cargo wall bays, cargo ceiling bays, headliner, wheel wells, and cargo doors.
4. Havelock wool insulation in all wall ribs, ceiling ribs, and cargo door ribs.
5. ½” Foil-backed rigid foam floor insulation.

Walls, Ceiling, and Flooring:

1. ¼” Pine Plank Ceiling finished with water based polyurethane.
2. ¼” Maple Walls finished with water based polyurethane.
3. ¾” Plywood subfloor with Lifeproof waterproof vinyl plank finished floor. Nickel thresholds on entrances/edges.

Lighting:

1. (10) Recessed 12V Ceiling Lights. Single Zone and Dimmable.
2. (2) 12V Reading Lights w/ USB. Dimmable. ON/OFF directly on the lights.
3. (4) 12V Recessed Lights underneath bed overhead cabinets.
4. (3) 12V Recessed Lights underneath kitchen overhead cabinets. (Same zone as bed overheads. Dimmable).
5. (6) 12V Recessed Lights underneath platform bed. On a 3-way switch (one accessible from the garage and one accessible from the front). Non-Dimmable.
6. 12V LED Strip Lighting underneath driver’s side base cabinet. Dimmable. White or RGB

Cabinetry/Features:

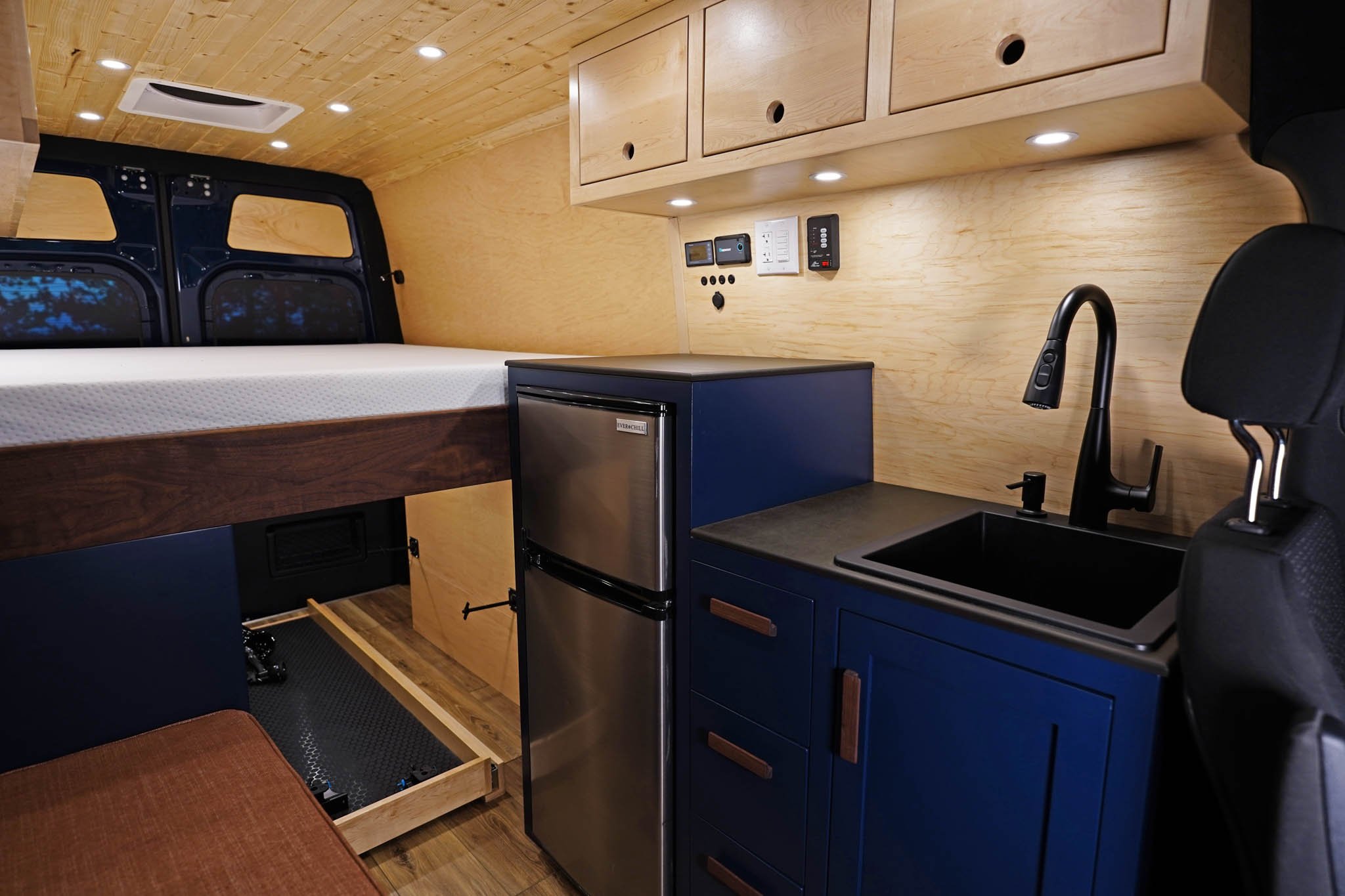

1. Driver’s side base cabinet with sink and Everchill fridge with separate freezer. Large storage space under sink and (3) deep drawers between sink and fridge/freezer. Custom-made walnut drawer pulls. ½” Richlite Countertop.

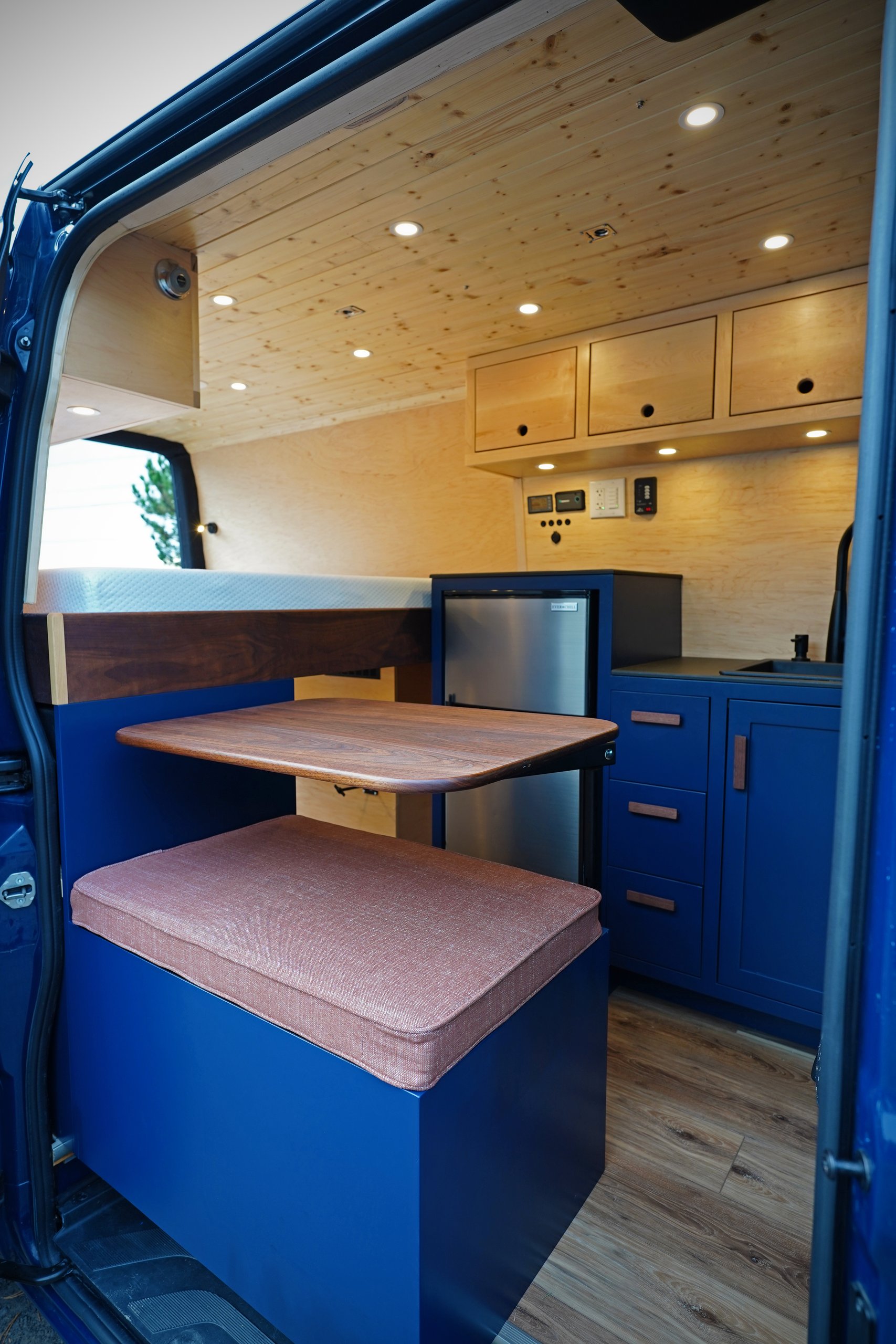

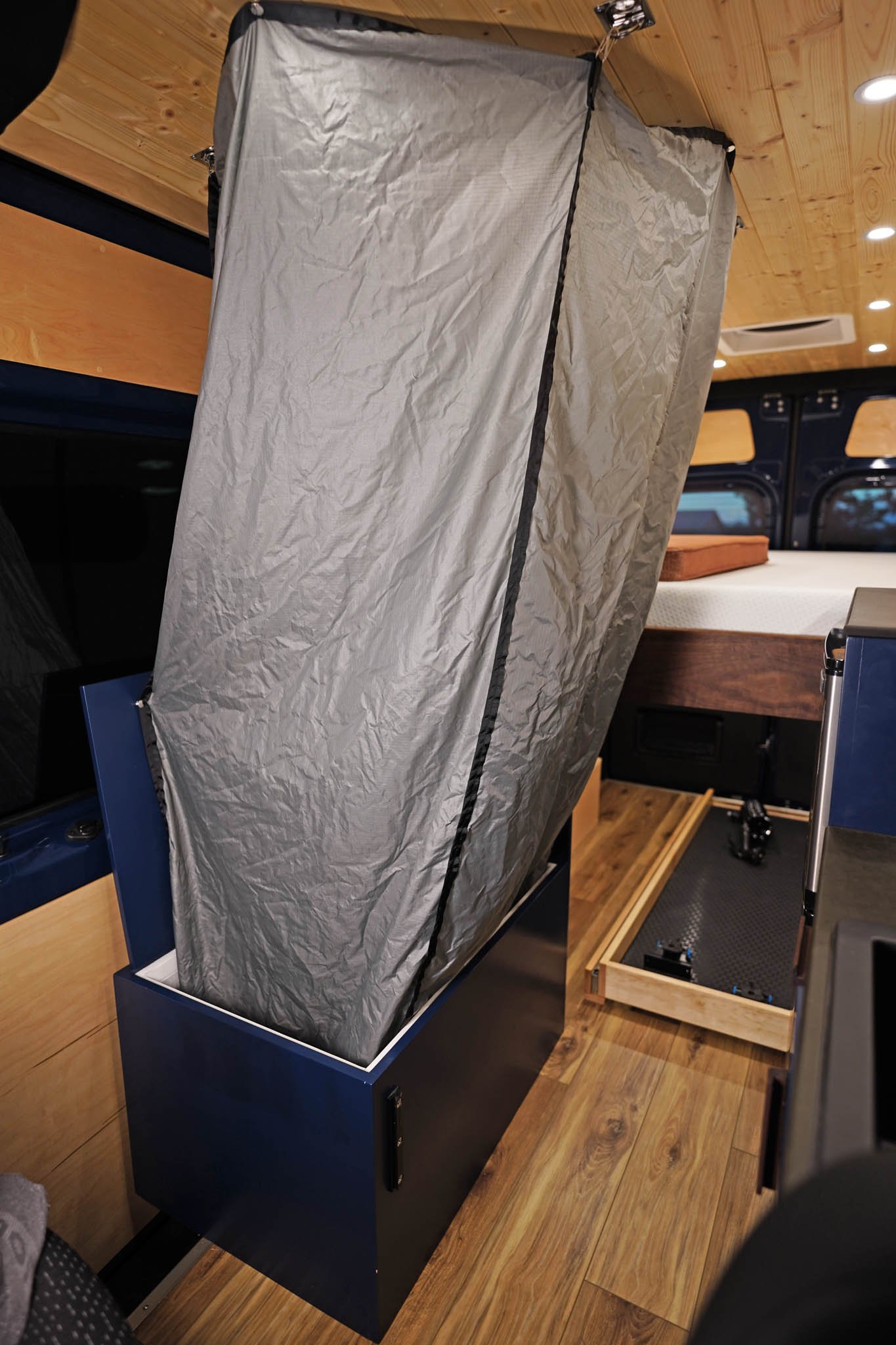

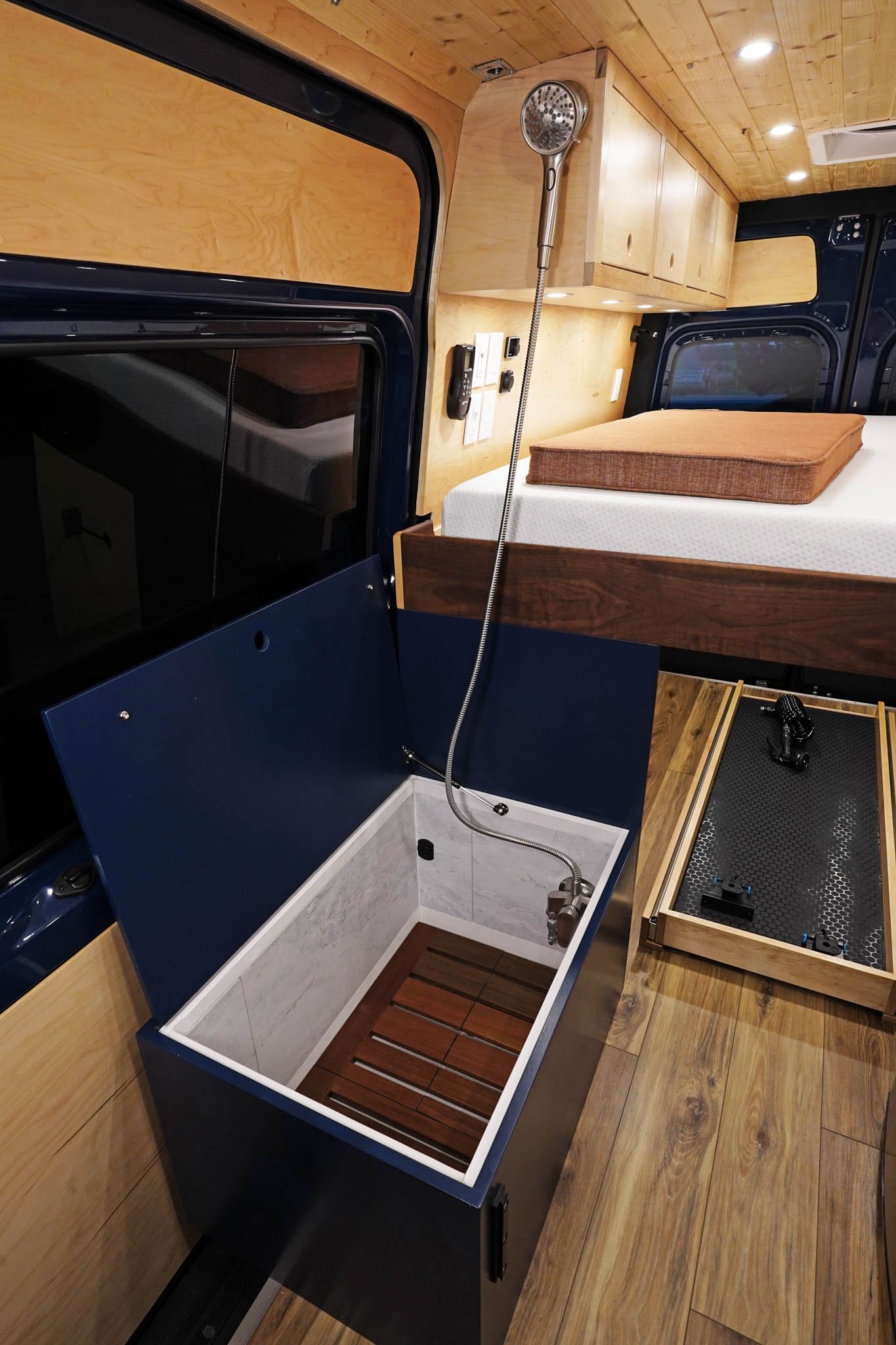

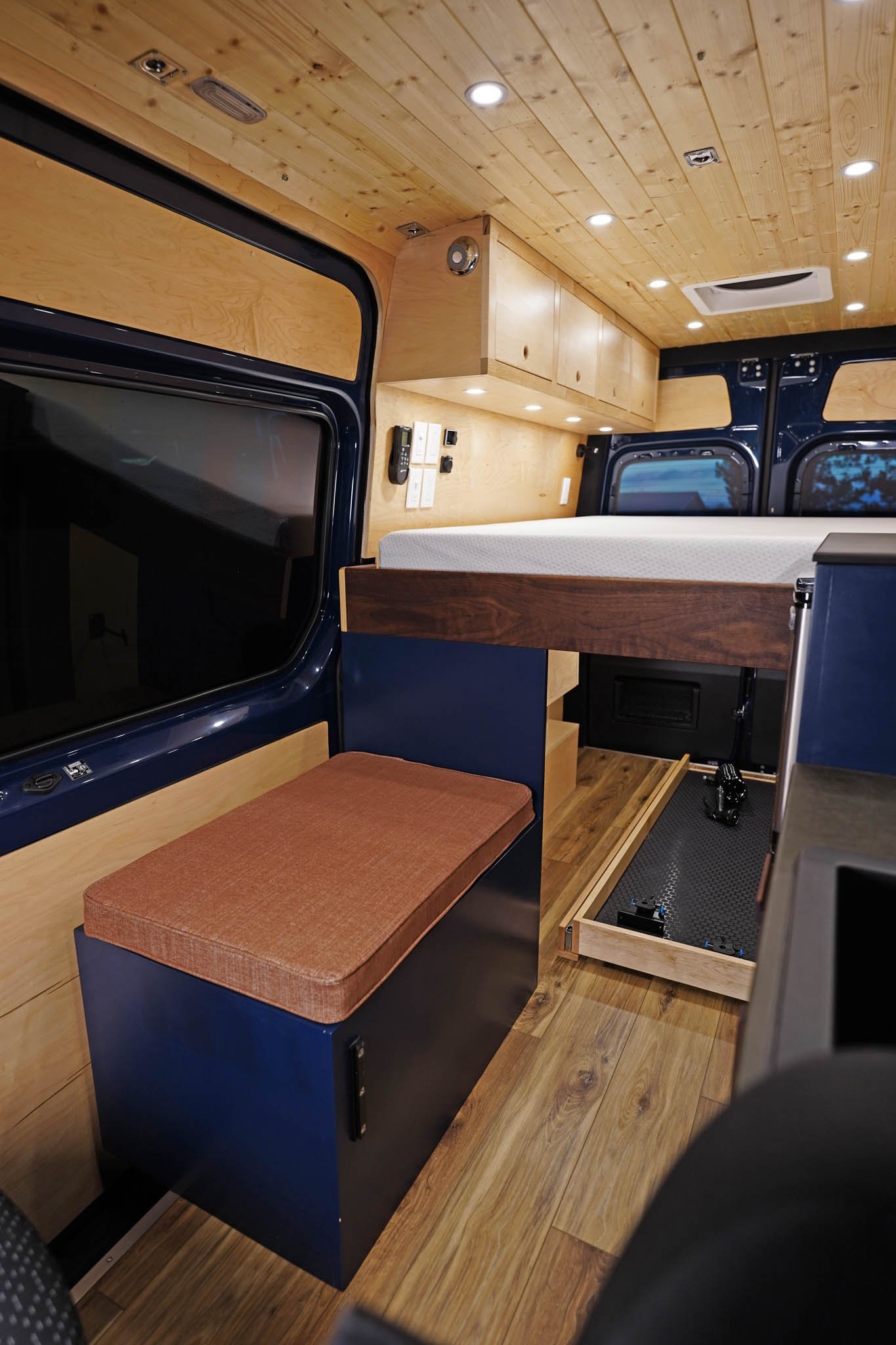

2. Passenger side seating bench that converts to a shower. Palisade vinyl tile inside of bench with Tertravan 360 degree curtain, magnetic shower head, and Laveo dry flush toilet. Fully waterproofed. When in “seating bench” mode, a custom cushion goes on top for sitting.
3. 60”x75” (short queen) platform bed with 6” memory foam mattress. Sleeping front to back/north-south.

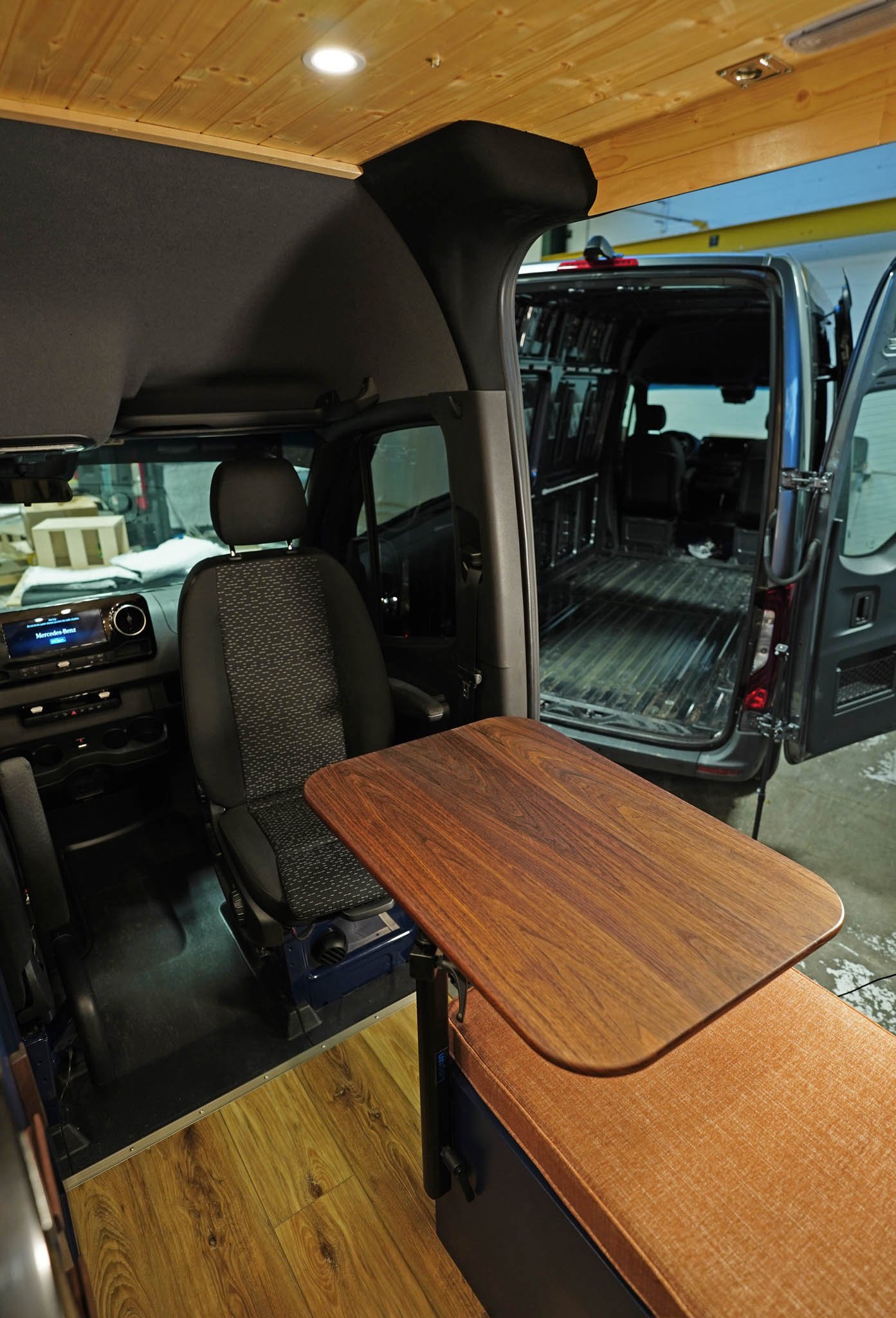

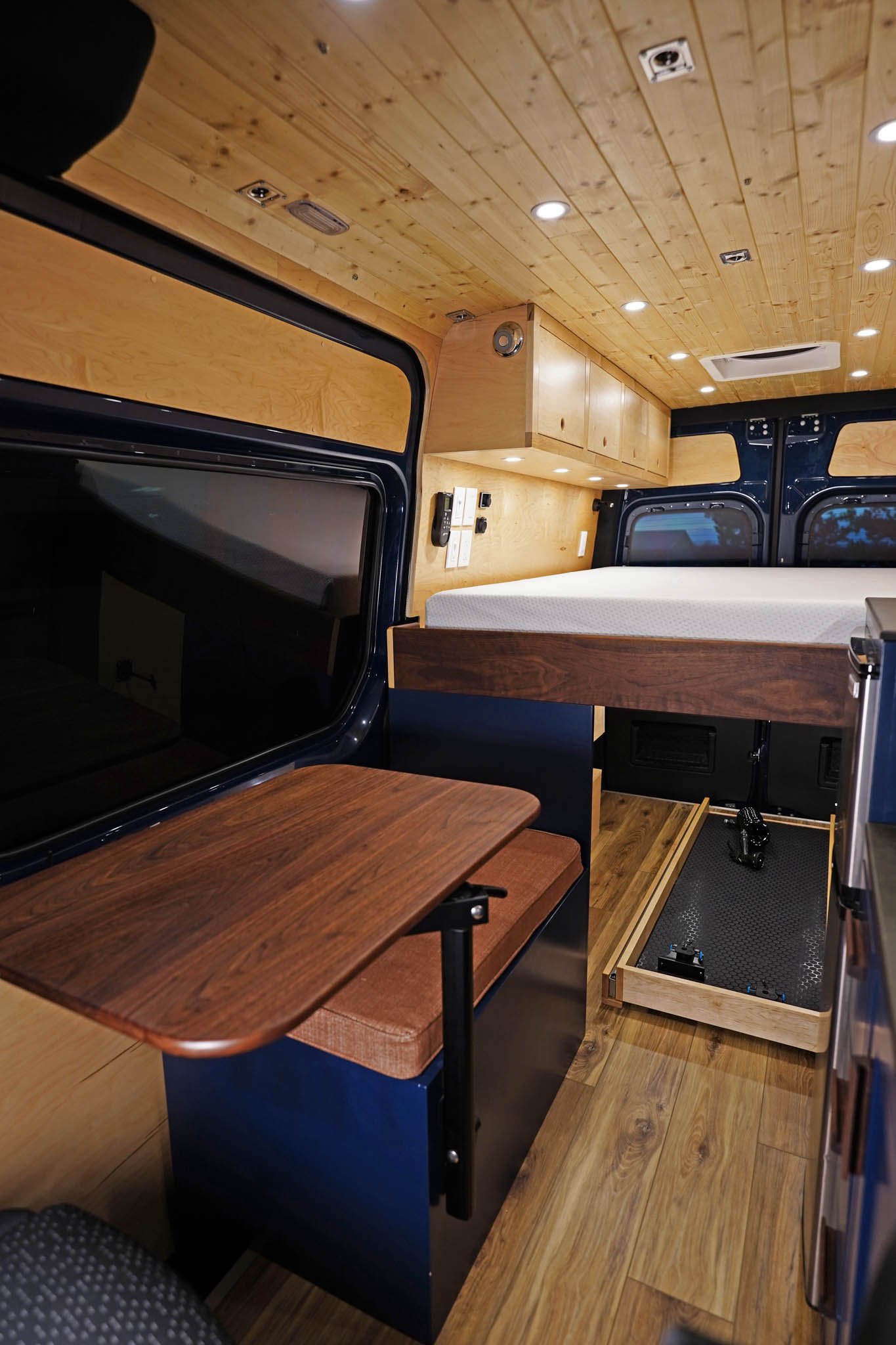

4. Lagun walnut table. Mount is on the face of the passenger side seating bench.
5. Passenger swivel seat to use in conjunction with the passenger side seating bench and Lagun table.
6. Large overhead cabinets above the kitchen and bed.

Garage:

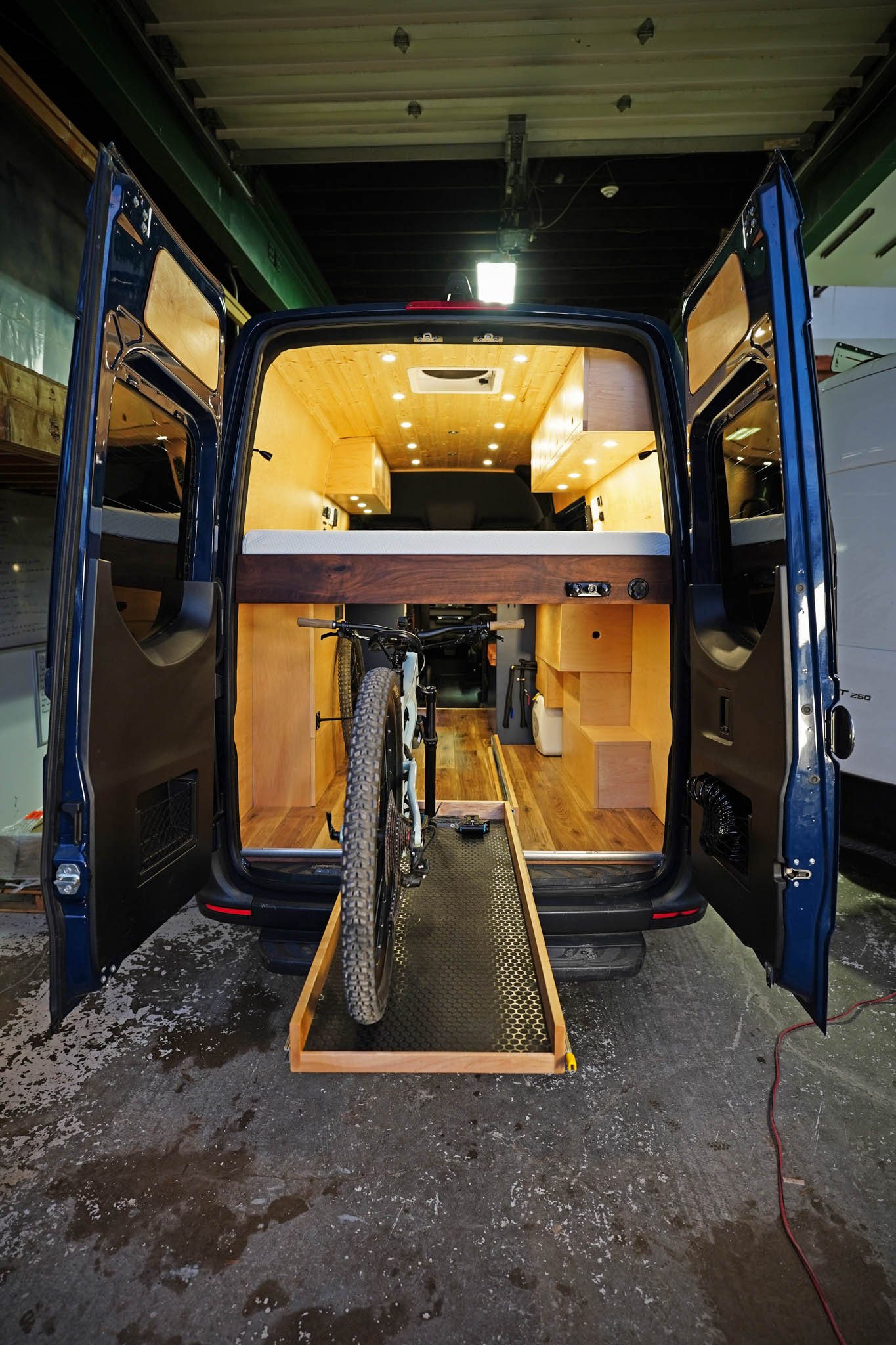

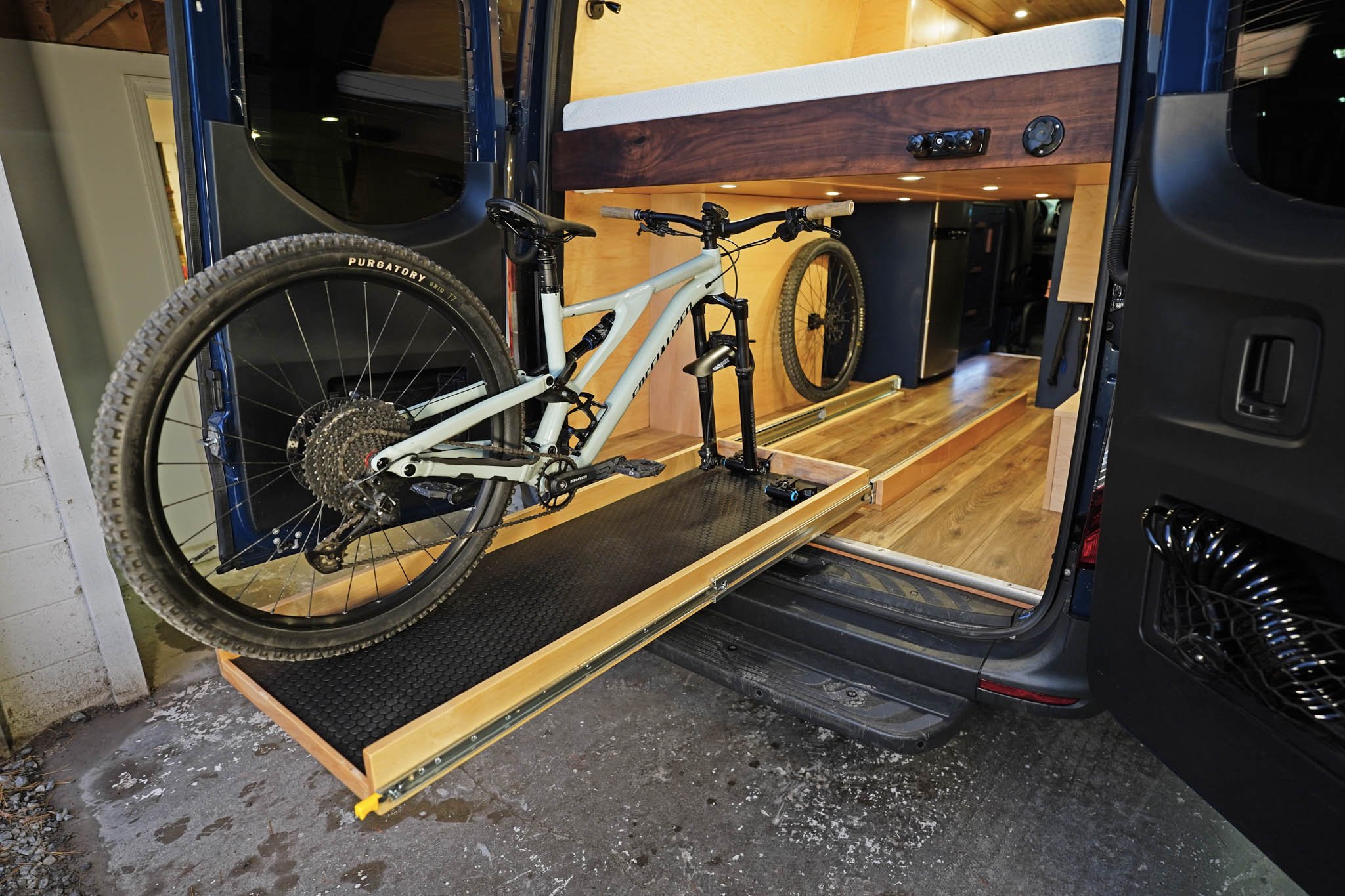

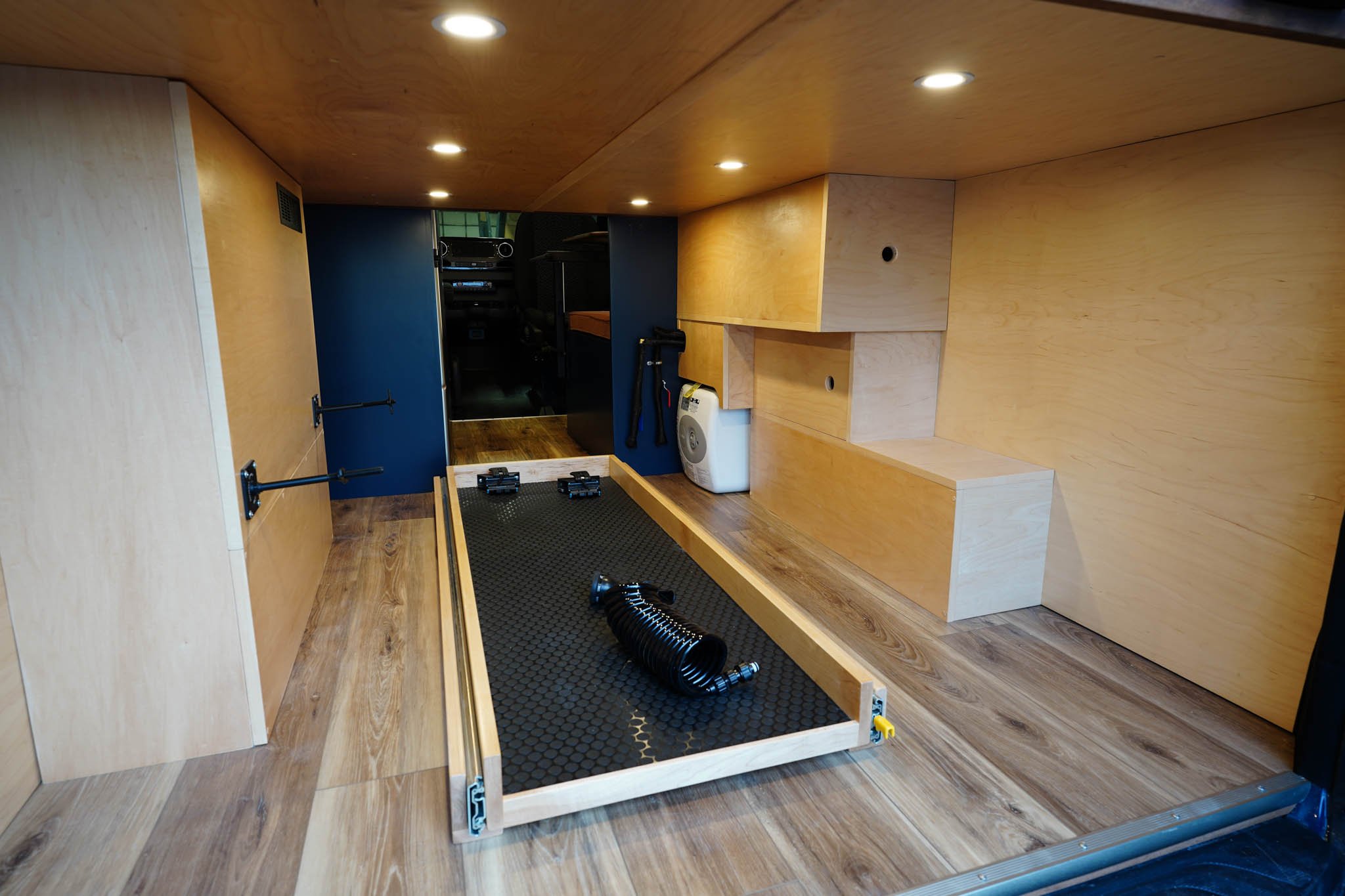

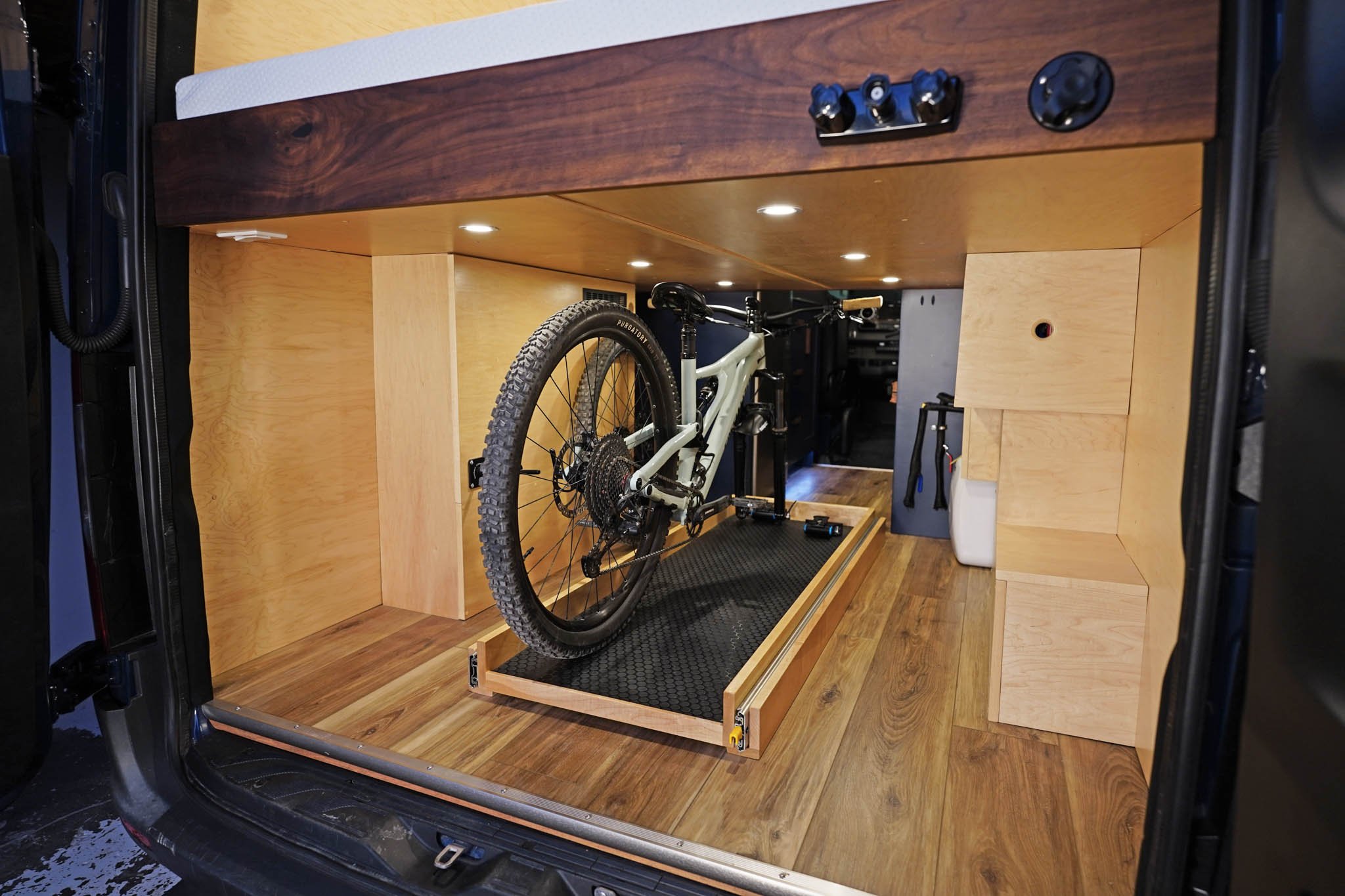

1. 60” Mountain bike slide-out garage drawer with Rockymounts. Locking drawer slides have 500lb capacity. Fits (2) adult-sized mountain bikes.
2. Front-wheel mounts on the side of the electrical box.
3. Fully finished garage with ample storage space (electrical cabinet on driver’s side, plumbing on passenger side). Garage accessible from front of van.

Electrical

1. Renogy 200ah Deep Cycle Lithium Iron Phosphate Battery.
2. Victron 50A DC-DC Charger
3. Renogy Rego 60A Solar Charge Controller
4. Renogy 2000W Inverter
5. 12V Fuse Block
6. Renogy LCD Battery Monitor
7. (2) 200W Renogy Flexible Solar Panels
8. 110V Household Outlets
9. 12V Plugs with USB-C+A
10. Bluetooth Monitoring

Plumbing

1. 20 Gallon interior Fresh Water Tank
2. 10 Gallon Undermount Shower Grey Tank
3. 10 Gallon Undermount Sink Grey Tank
4. Heat pads on undermount tanks
5. Electric Dump valves for all tanks
6. Tank level monitors on all tanks
7. City Water Tank Fill
8. Outdoor Shower Hook-up
9. Moen Extendable Faucet and Soap Dispenser
10. 15”x17”x9” Sink
11. Moen Magnetic Shower Head with Mixing Valve
12. Bosch 4 Gallon Electric Hot Water Heater
13. 12V SEAFLO water pump and accumulator tank

Heating/Cooling:

1. Maxxair Maxxfan Deluxe 7500K with Remote Fan Lid
2. Webasto Airtop 2000 Diesel Heater

Exterior:

1. Electric Sliding Door
2. Passenger and Driver’s side Cabin Running Boards
3. Rear Cargo Door Step
4. LED Headlights
5. Rear door wipers
6. Sliding Door Window
7. Rear Cargo Door Windows
8. Tinted cargo windows, cabin windows, and partial 8” tinted strip on top of windshield

Extras:

1. VanEssential Window Covers for cargo windows, cabin windows, and windshield. Magnetic, Insulated, black out covers. Light gray on inside/black on outside.
