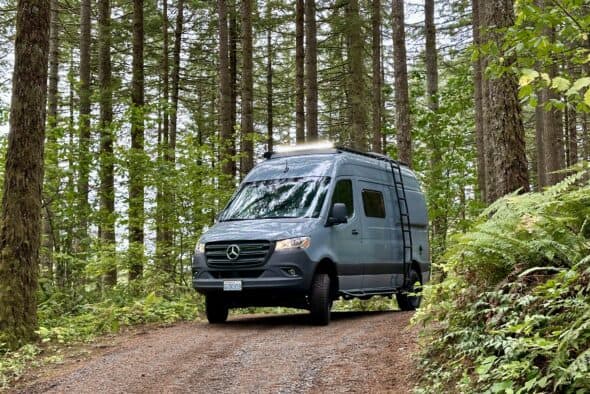

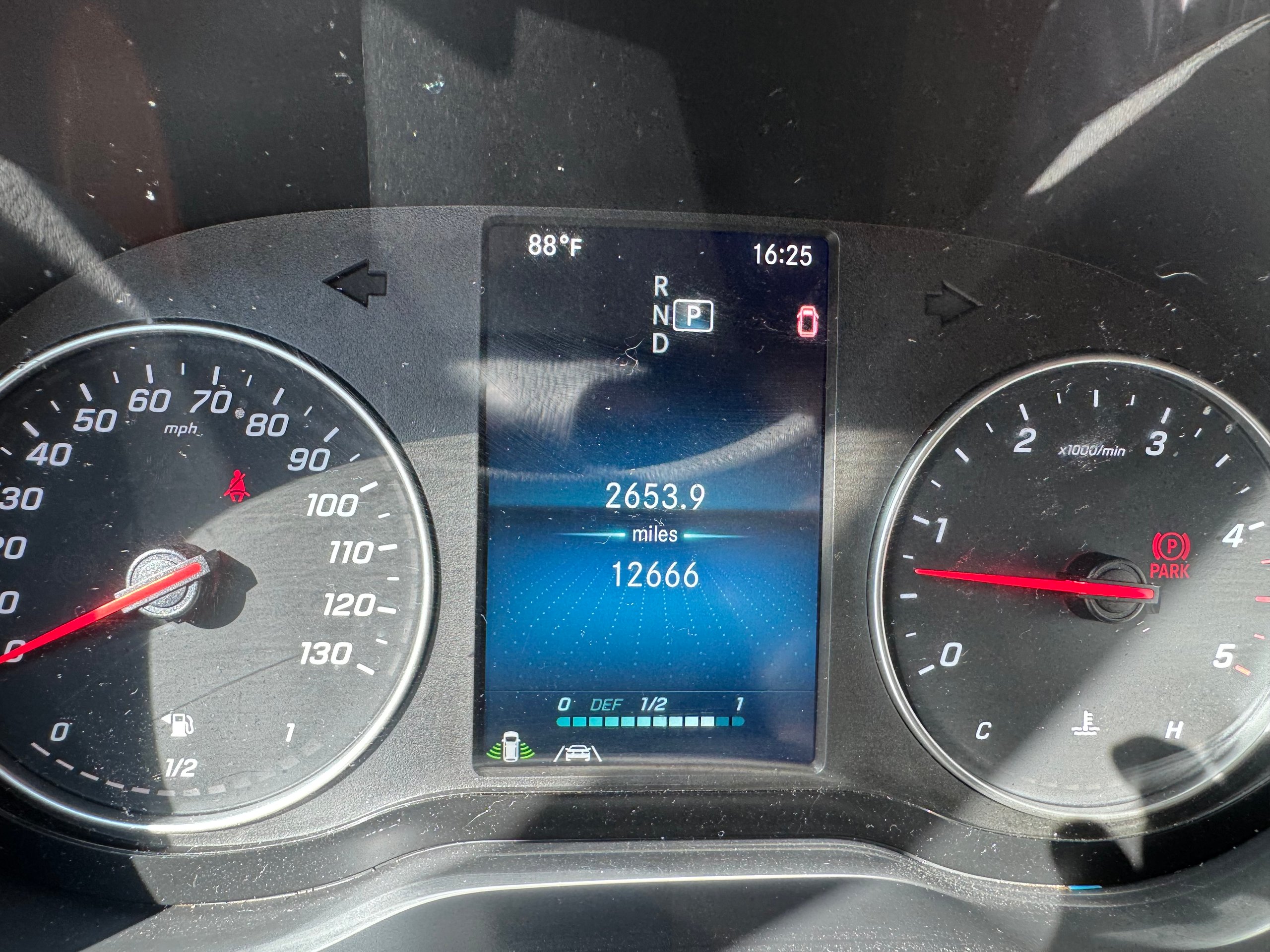

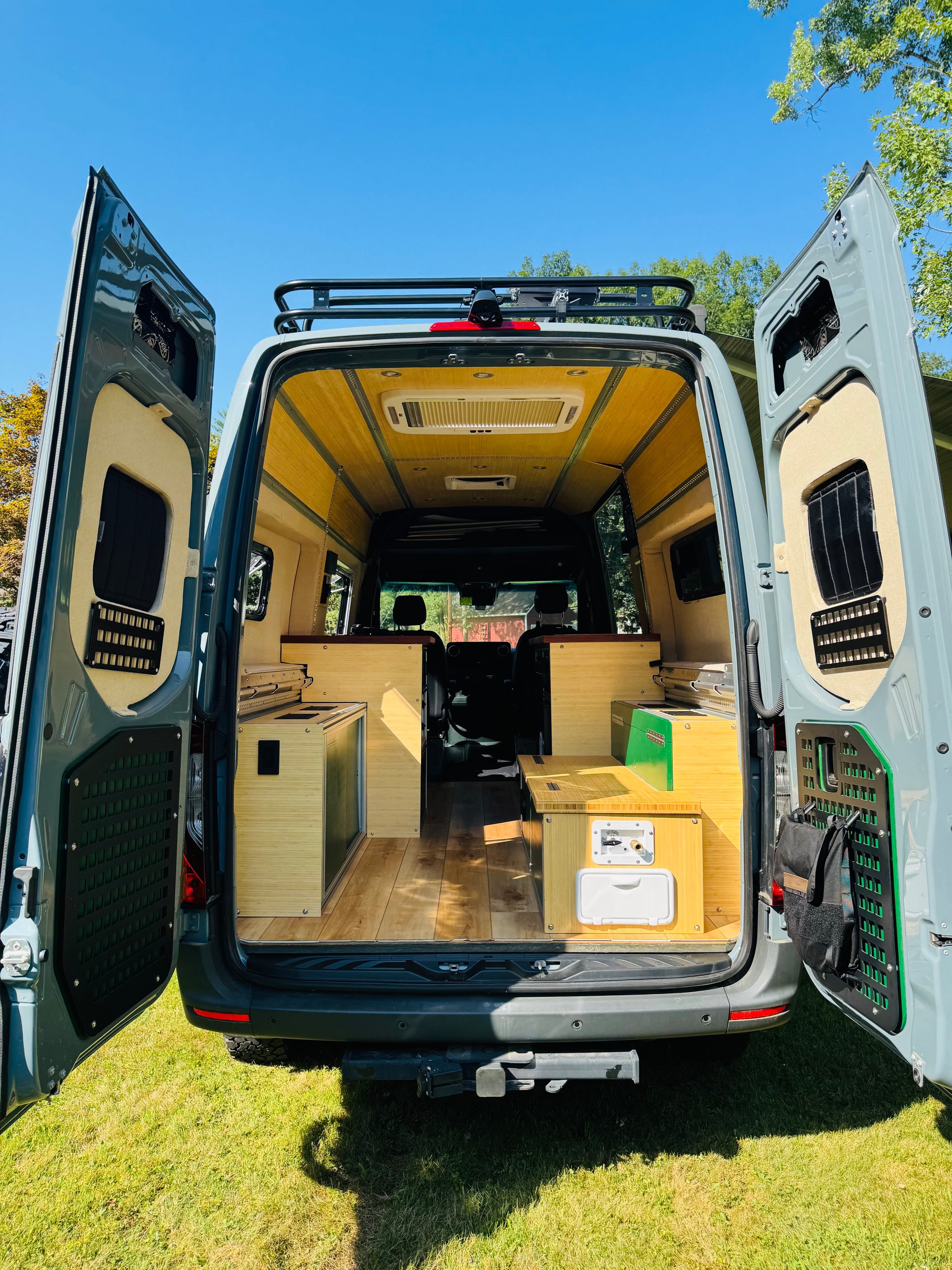

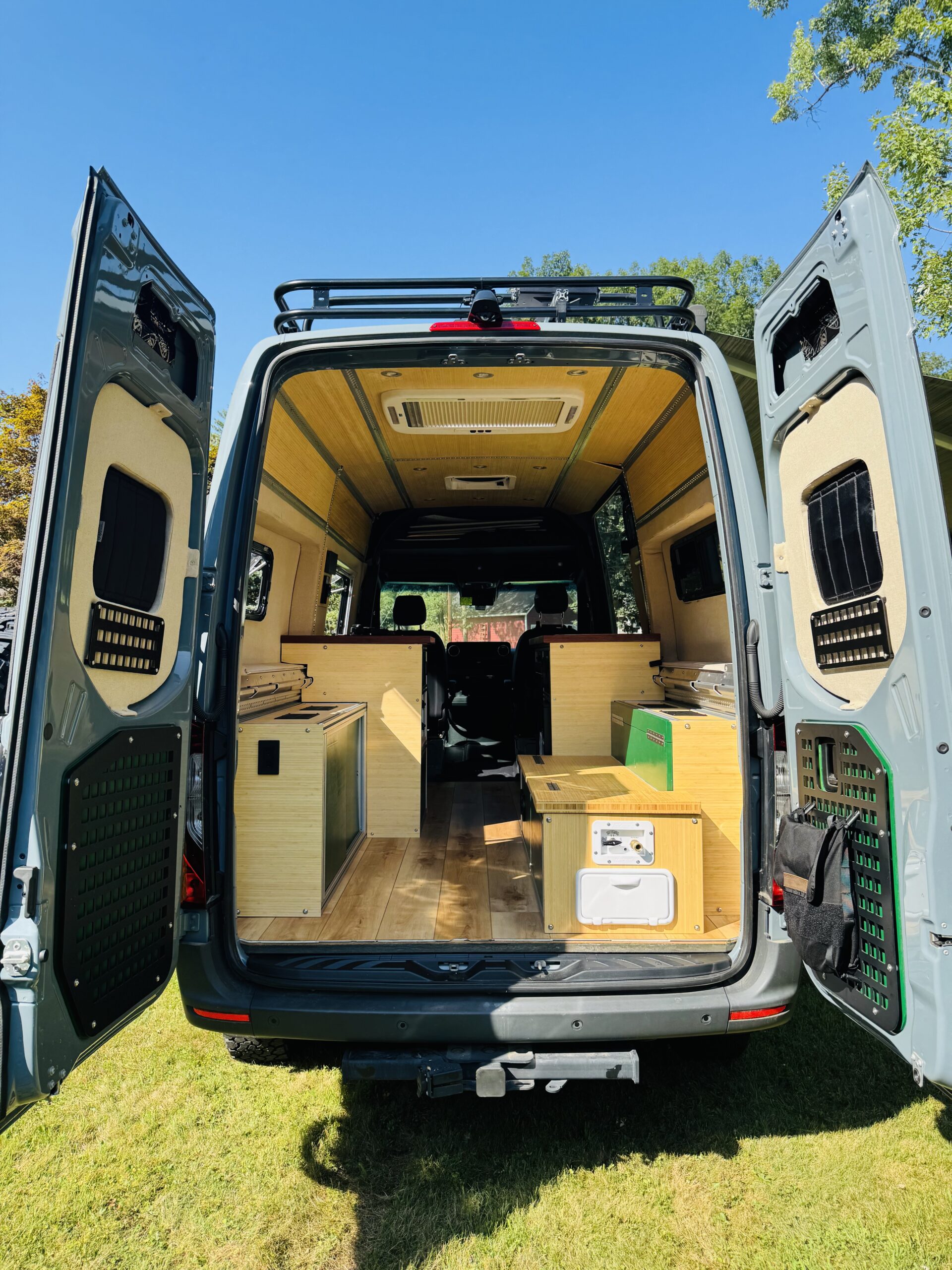

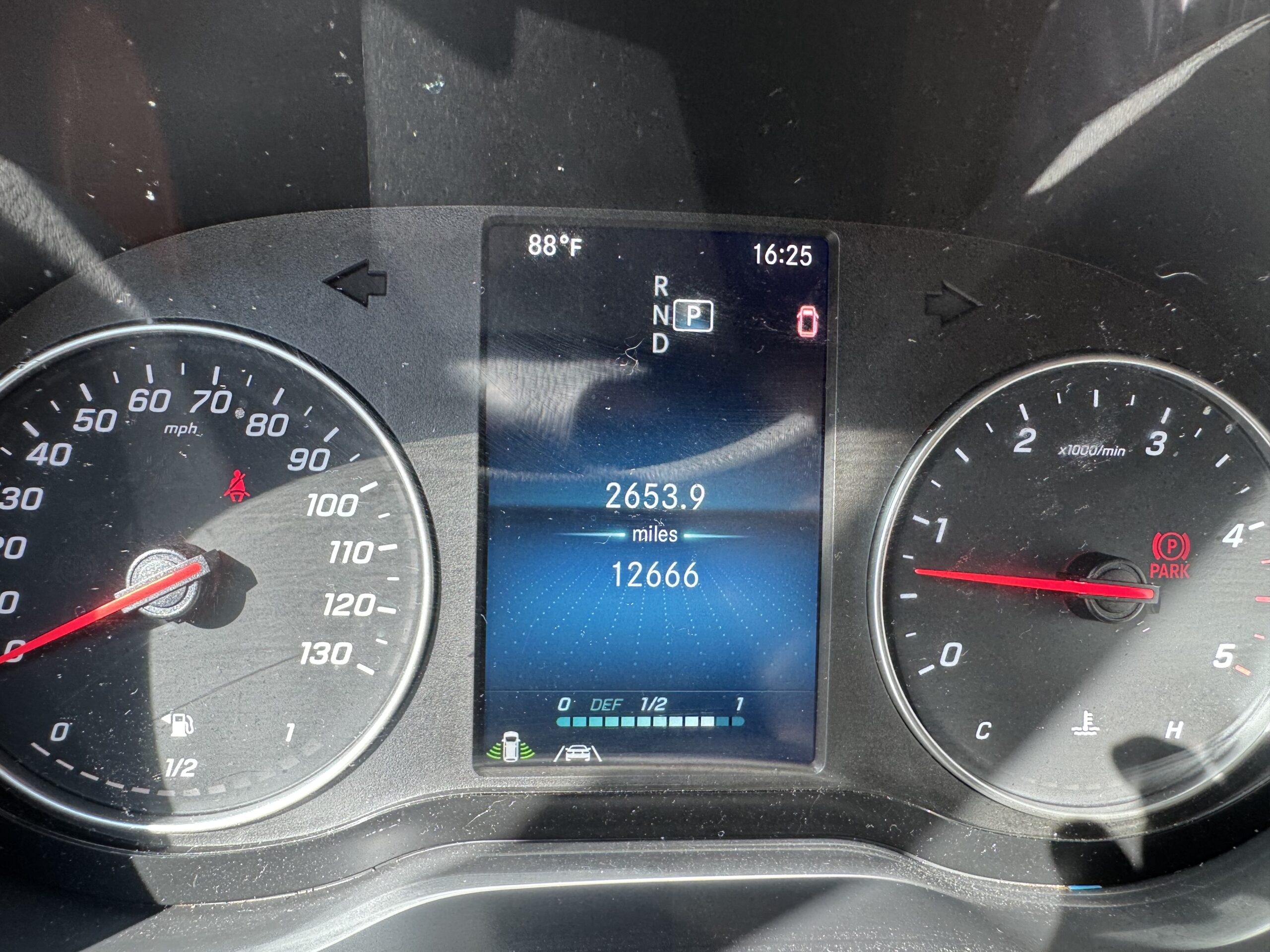

I am selling my custom built 2022 4x4 144 Sprinter Van with a 3.0L Diesel engine and 12,XXX miles. I have pour my heart and soul into designing and building this campervan and spared no expense along the way. I built this vehicle to be self-sufficient, modular and very adaptable to enjoy during all 4 seasons of the year. It can safely seats 4 and can accommodate sleeping 4 with the addition with Luno Van Front Cab Mattress (not included) and a single person sleeping pad on the floor.
The interior construction includes lightweight 1/4 plywood paneling, plenty of L-Track and 8020 extruded aluminum framing. Walls and ceilings are insulated with 3M Thinsulate and reflectix. The floors are insulated with 1.5” Coosa Composite board Bluewater 26, which is normally used for high end marine applications. I also hand routed channels to accommodate a PEX tubing for a radiant heated floor.
By substituting high demand electrical components used for cabin heating, water heating and cooking with a diesel source coupled with an expanded 47 gallon diesel, off grid adventures can last for weeks on the 10,000 Watt hour battery bank with 400watts of solar power and a 60A DC to DC charger. In addition it reduces the number of energy sources - no propane tanks or gasoline for generator needed. The highly robust and efficient Rixen Enterprises MCS-7 system provides heated cabin air, radiant floor heating and instant hot water. The portable EcoFlow Wave 2 with extra battery provides plenty of cooling power and can be removed when not needed. Instead of looking at an ugly, permanently installed roof top mounted air conditioner that you must look at throughout the year, I elected to use EcoFlow’s portable AC unit that can be removed during colder months, and I installed an Arctic Tern Roof Hatch where a roof top AC unit is usually installed to allow for stargazing in bed.
See below for details, I am probably missing a few items. Please reach out if you have any questions.
Thanks,
Jonas

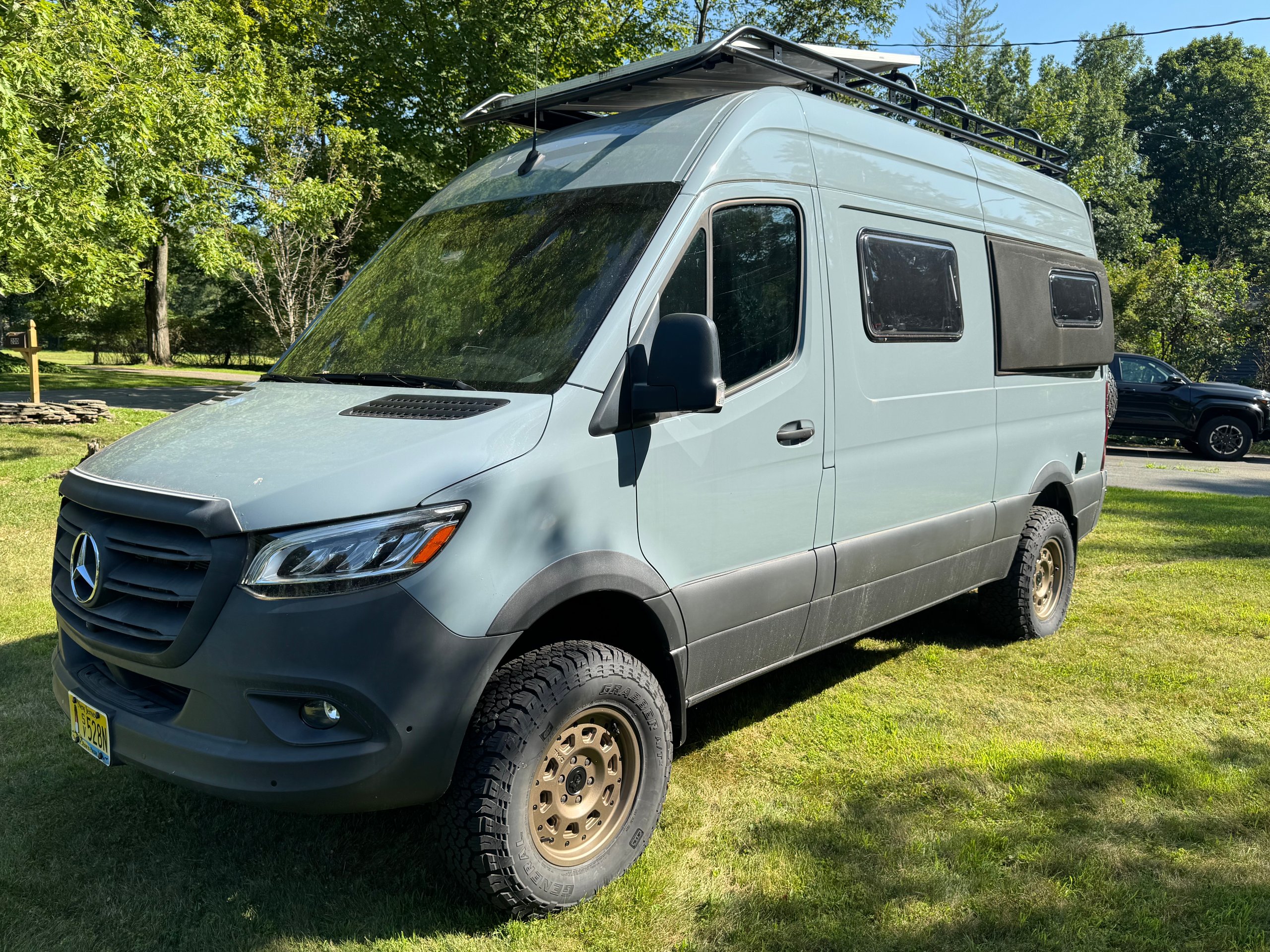

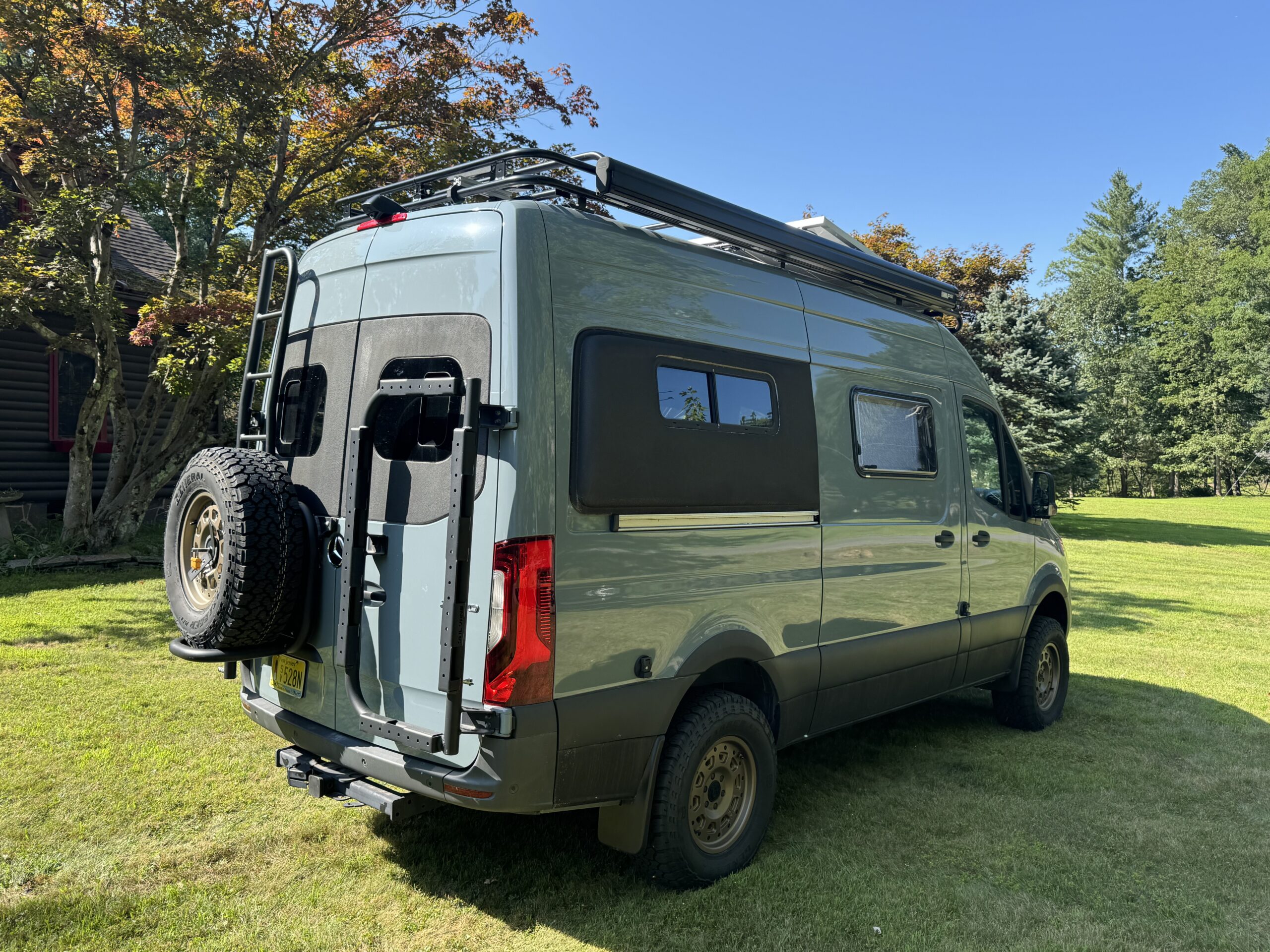

Exterior
Terrawagen Mondo Mudguard Bug Tire Kit
Terrawagen Aero Hood Spoiler
Terrawagen Fender Armor Kit
Agile Offroad Rear Fender expansion
Rhino Lining protected Rocker Panels

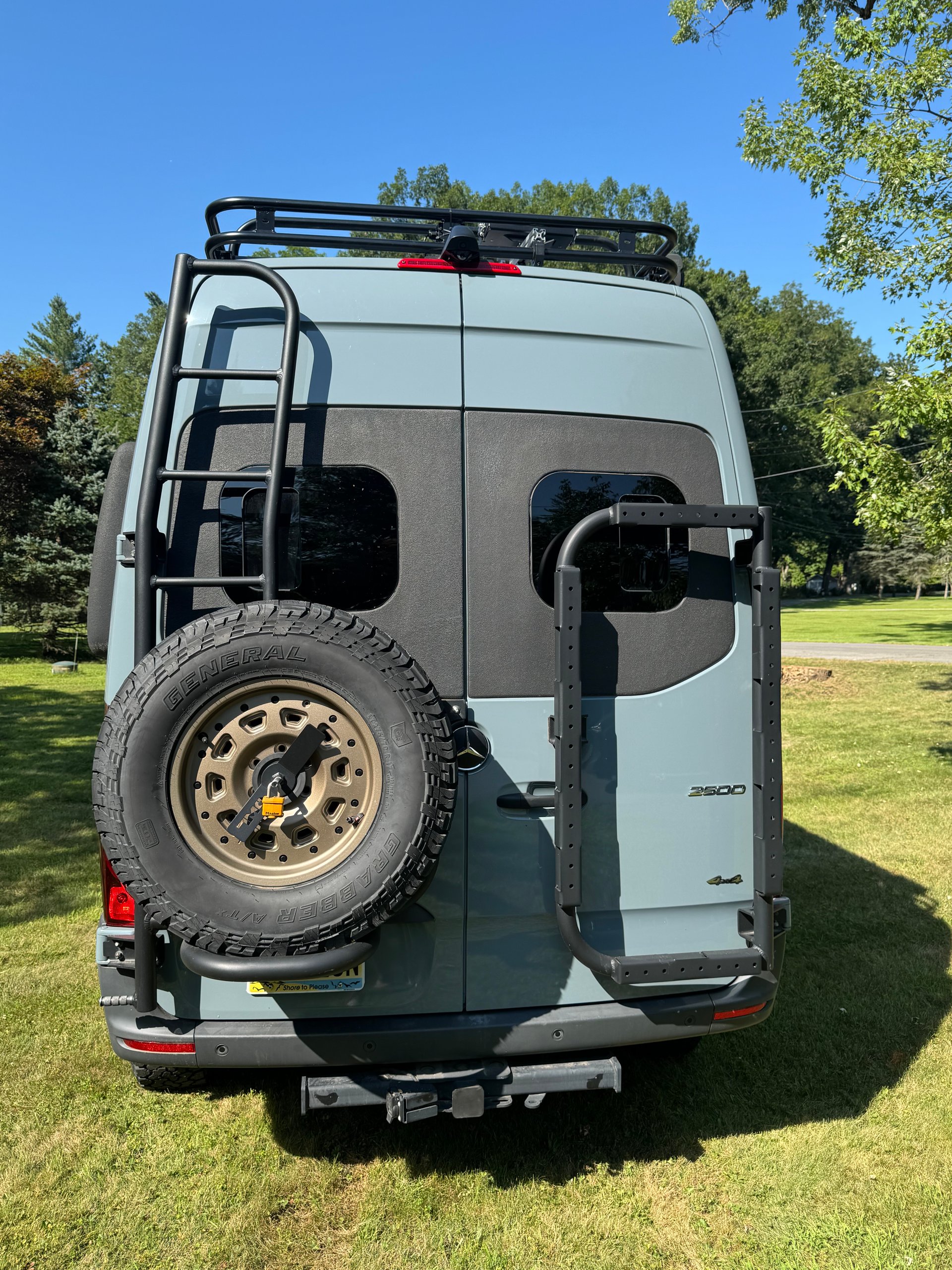

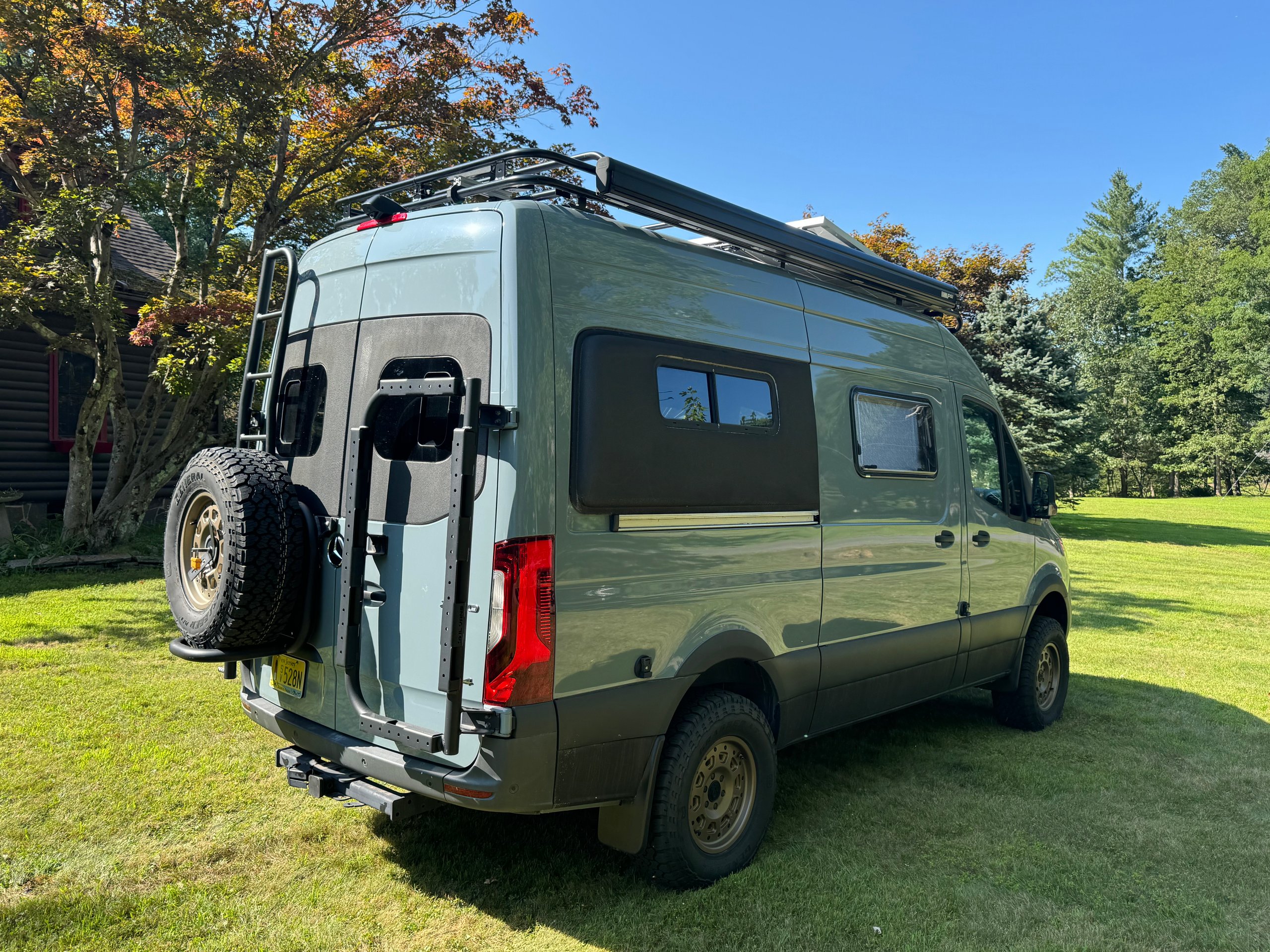

Owl Vans Tire and Ladder Carrier
Owl Vans B2 Classic - Bike carrier
2x Arctic Tern Windows - 450x900mm
Arctic Tern Electric Deluxe Roof Hatch 500x700mm with Remote, Rain Sensor and Roof Spoiler paired with DIYvan Adapter
5x Owl Vans Talon Wheels with Apex Valves and Upgraded Lugbolts
5x 275/70R17 General Grabber A/TX Tires
Major Components
Flarespace Side Flares
Extended Version
Rhino Linings Protected
1x Flarespace Half Slider Window with window cover
1x Arctic Tern Awning Window with window cover
Flarespace Rear Window Vent
2x Rear Windows with window covers
Rhino Linings Protected
Powder Coated Interior with Molle Panel
and matching interior Duramax Fabric

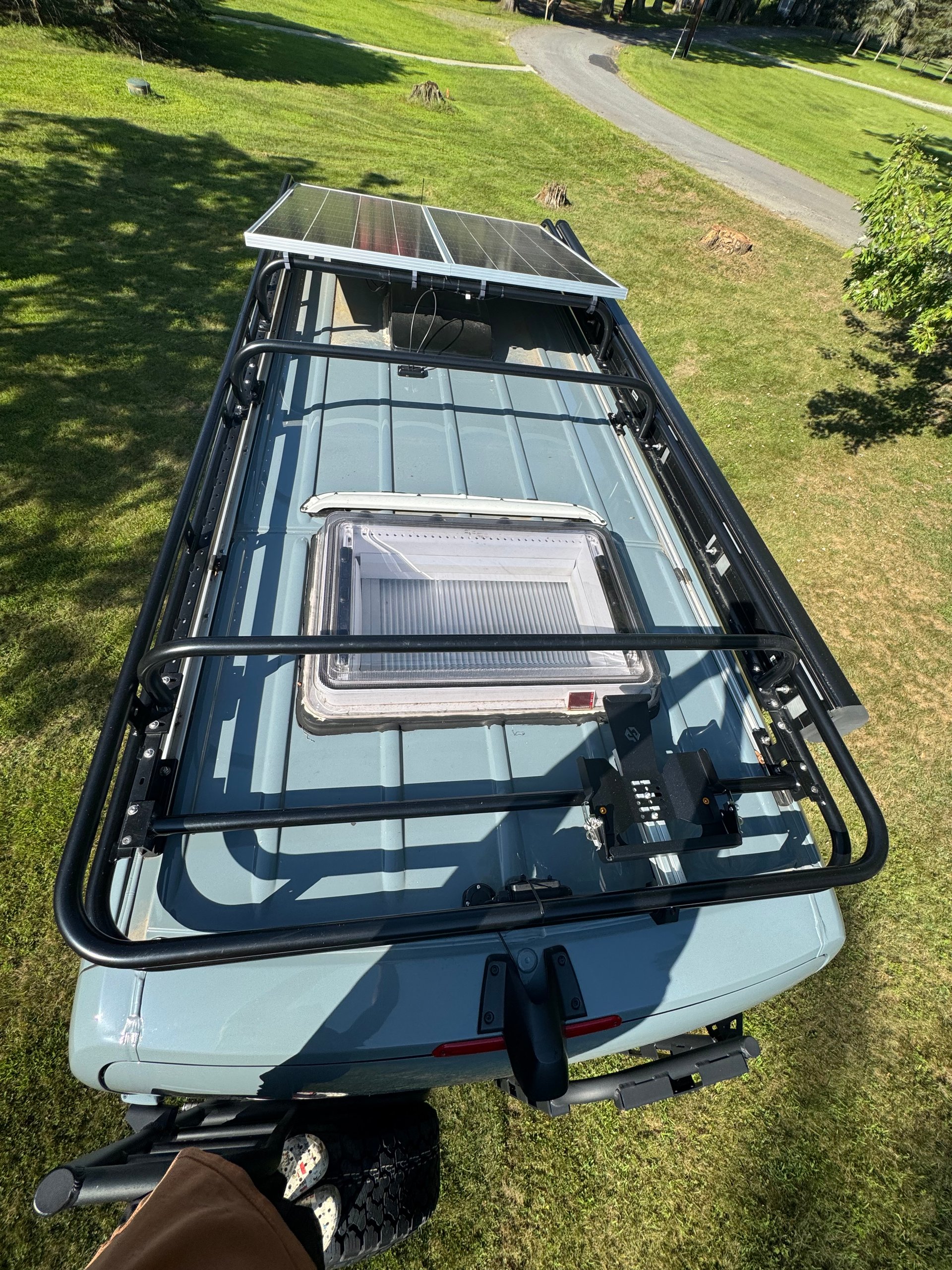

FreedomVanGo Adjustable Roof Rack with 2x Raised Crossbars for additional cargo

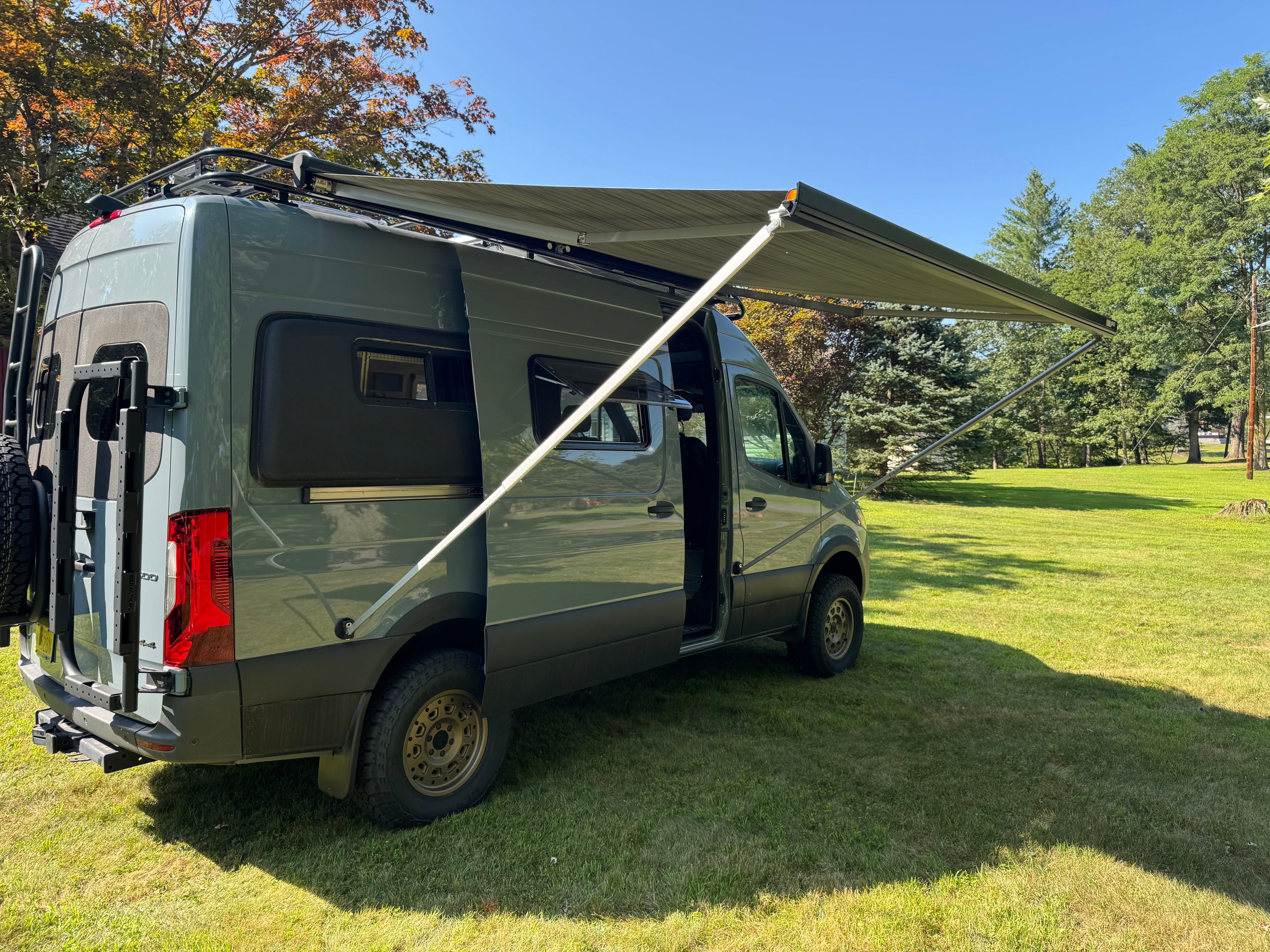

Fiamma F45s 300 Awning with side mounted magnetic base supports
400 Watts solar - 2x Rich 200 Watt 12V Solar Panel
Maxxair Fan Deluxe 7500k Rood Vent - Smoke with DIY Van roof adapter
Arctic Tern Deluxe roof hatch with rain sensor (comes with many spare parts) and DIY Van roof adapter

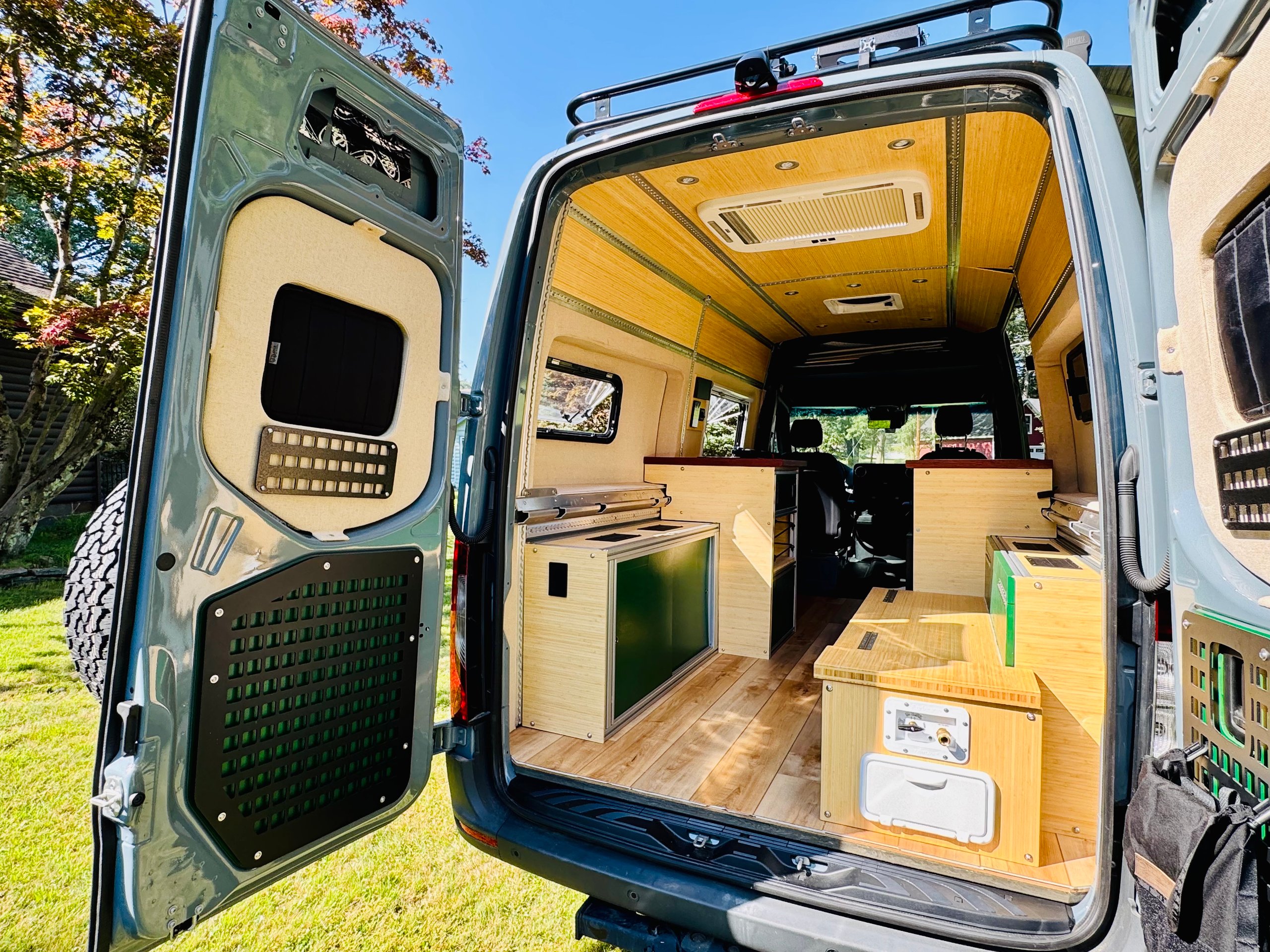

Interior
Japanese Garden inspired interior - Green lower panels, Duramax wrapped mid panels, Bamboo upper
panels and ceiling

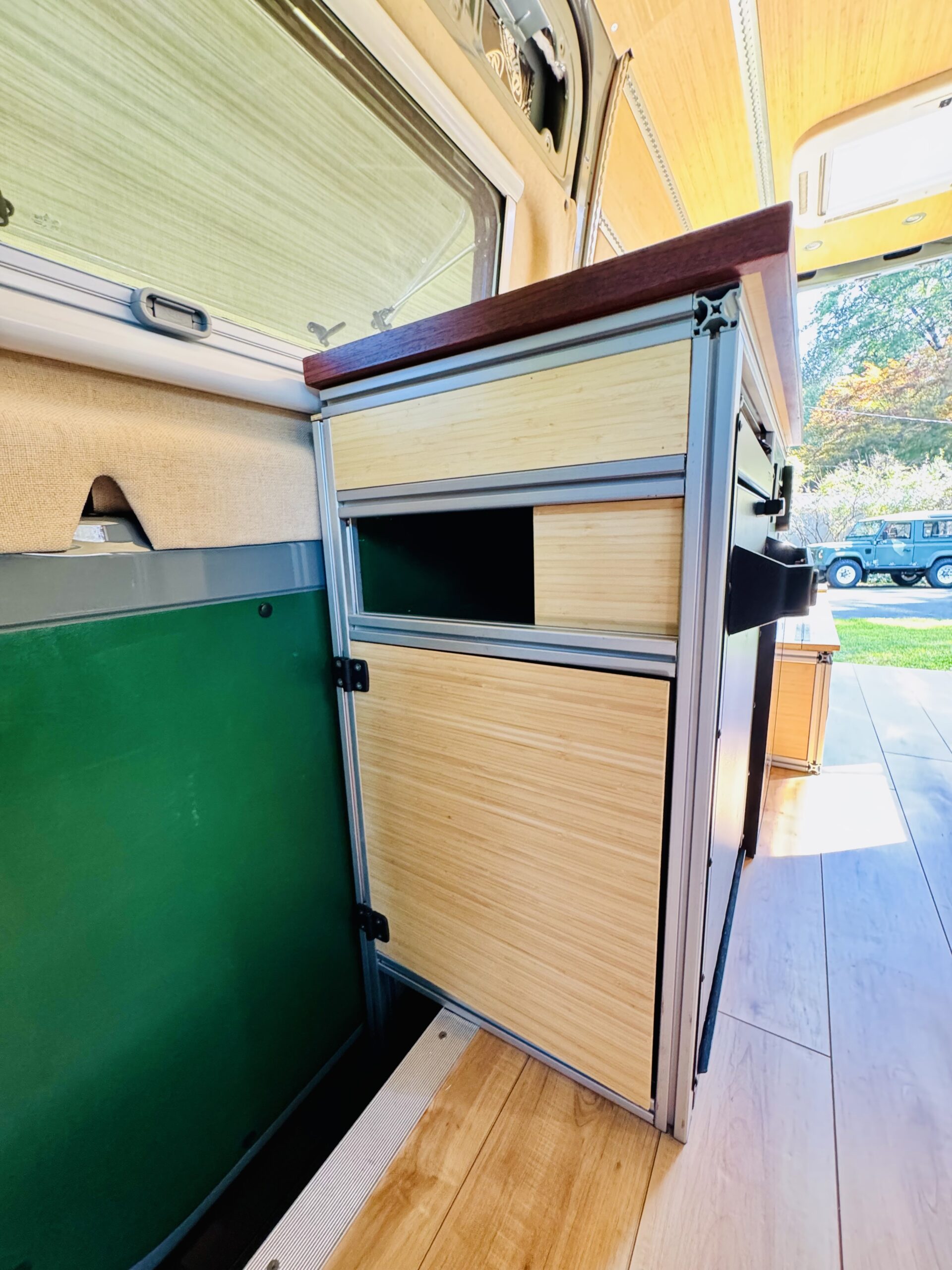

8020 extruded aluminum structure throughout with thermal barriers
L-track integrated throughout cabin construction

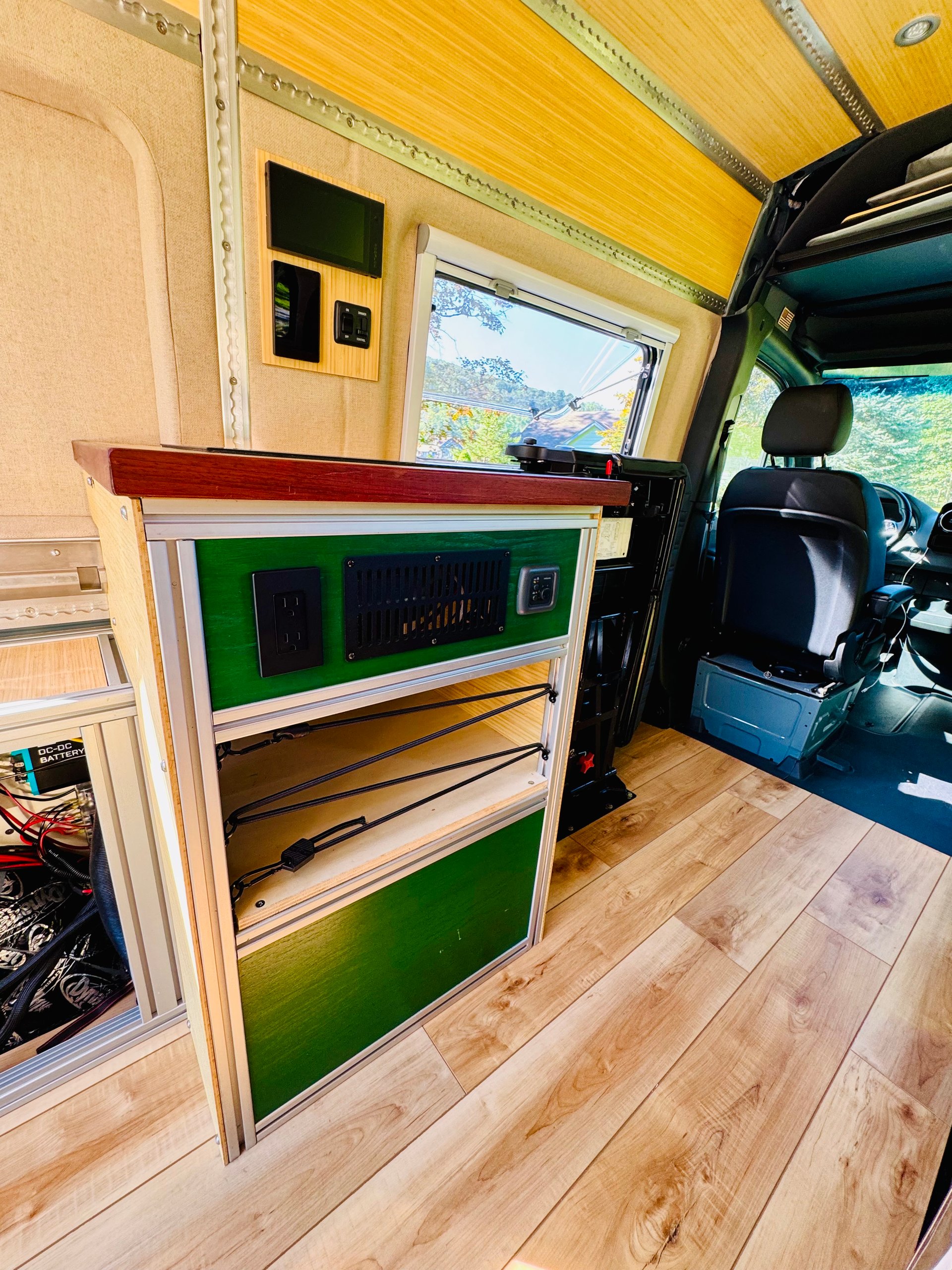

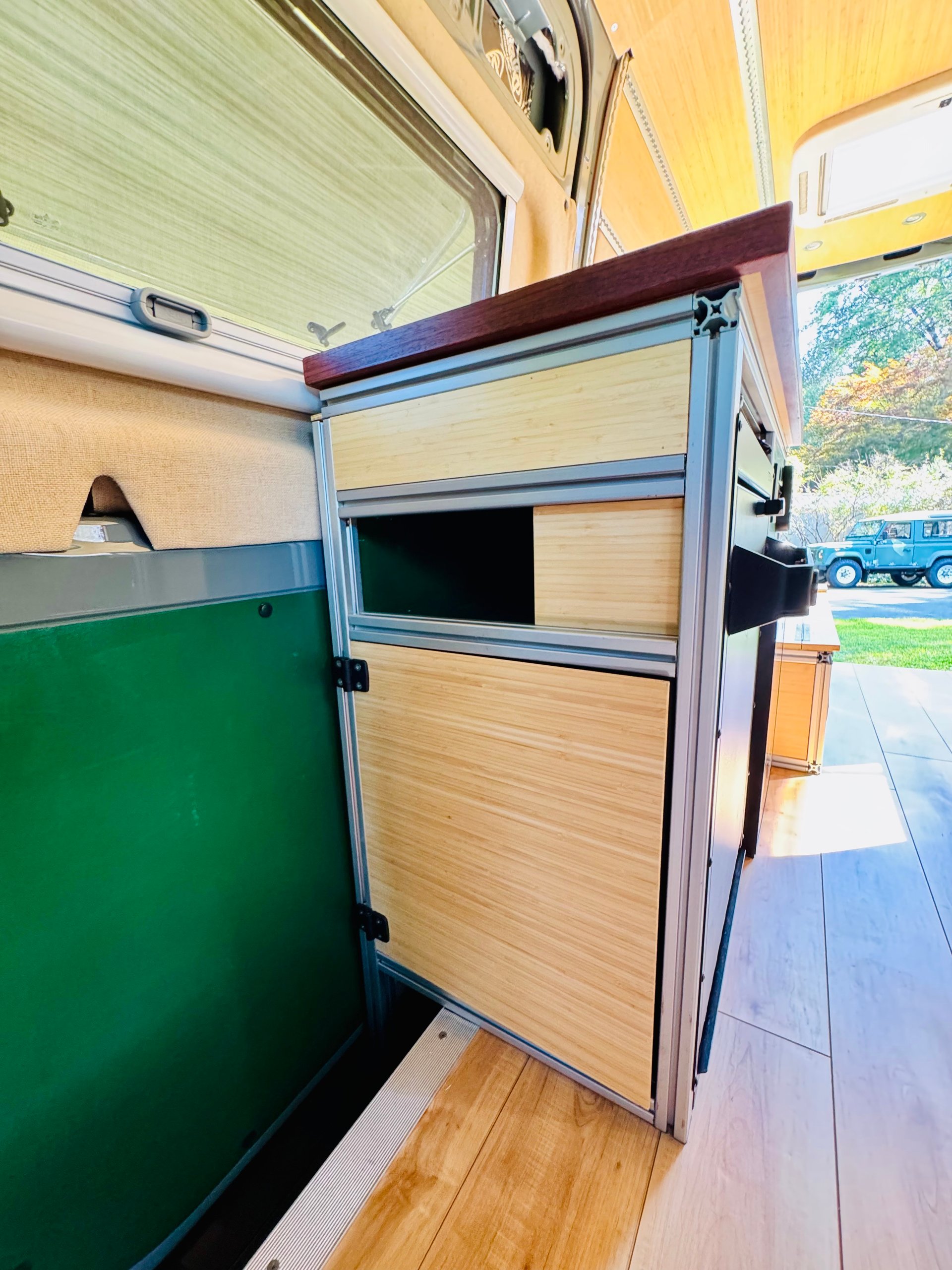

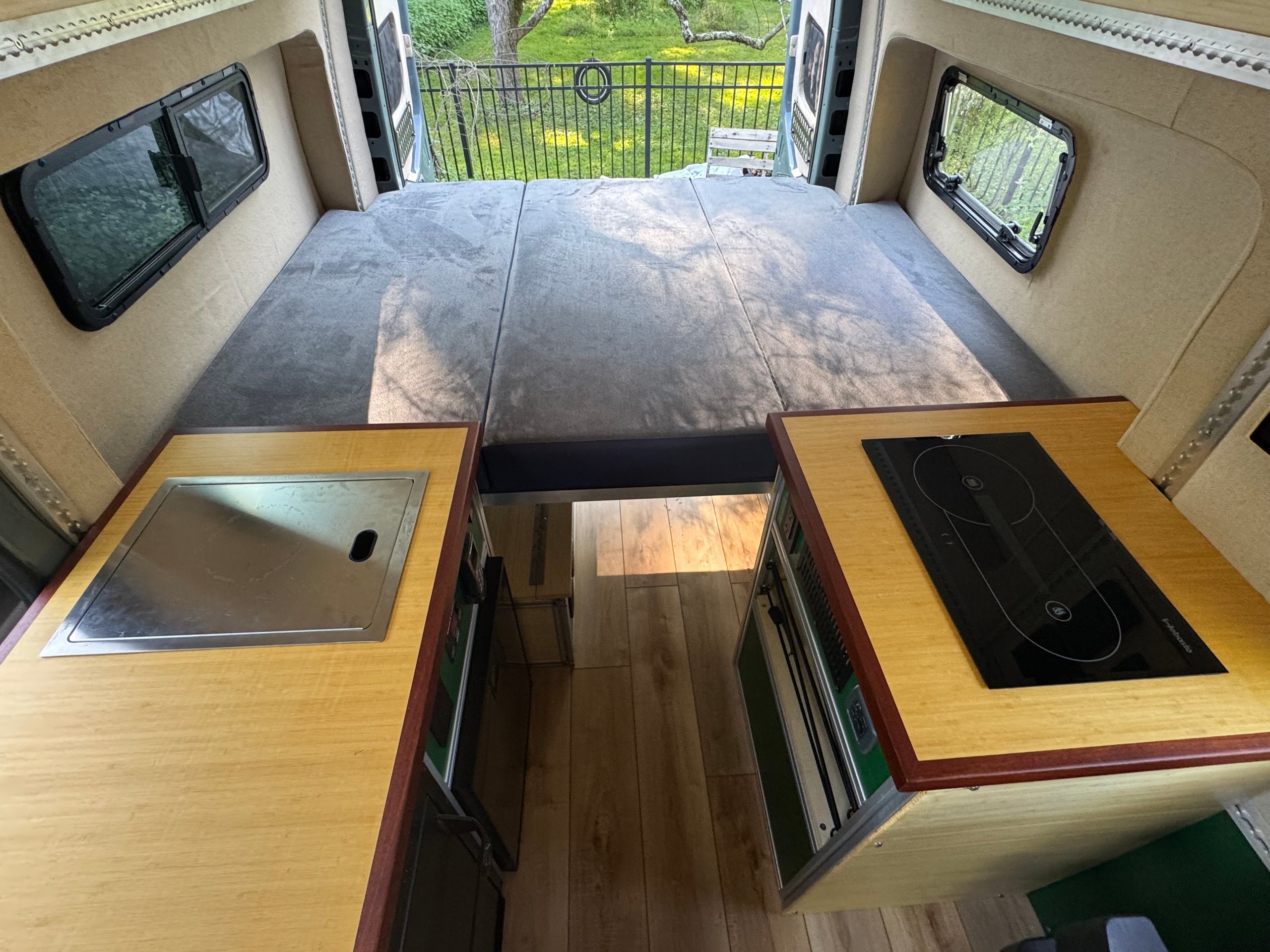

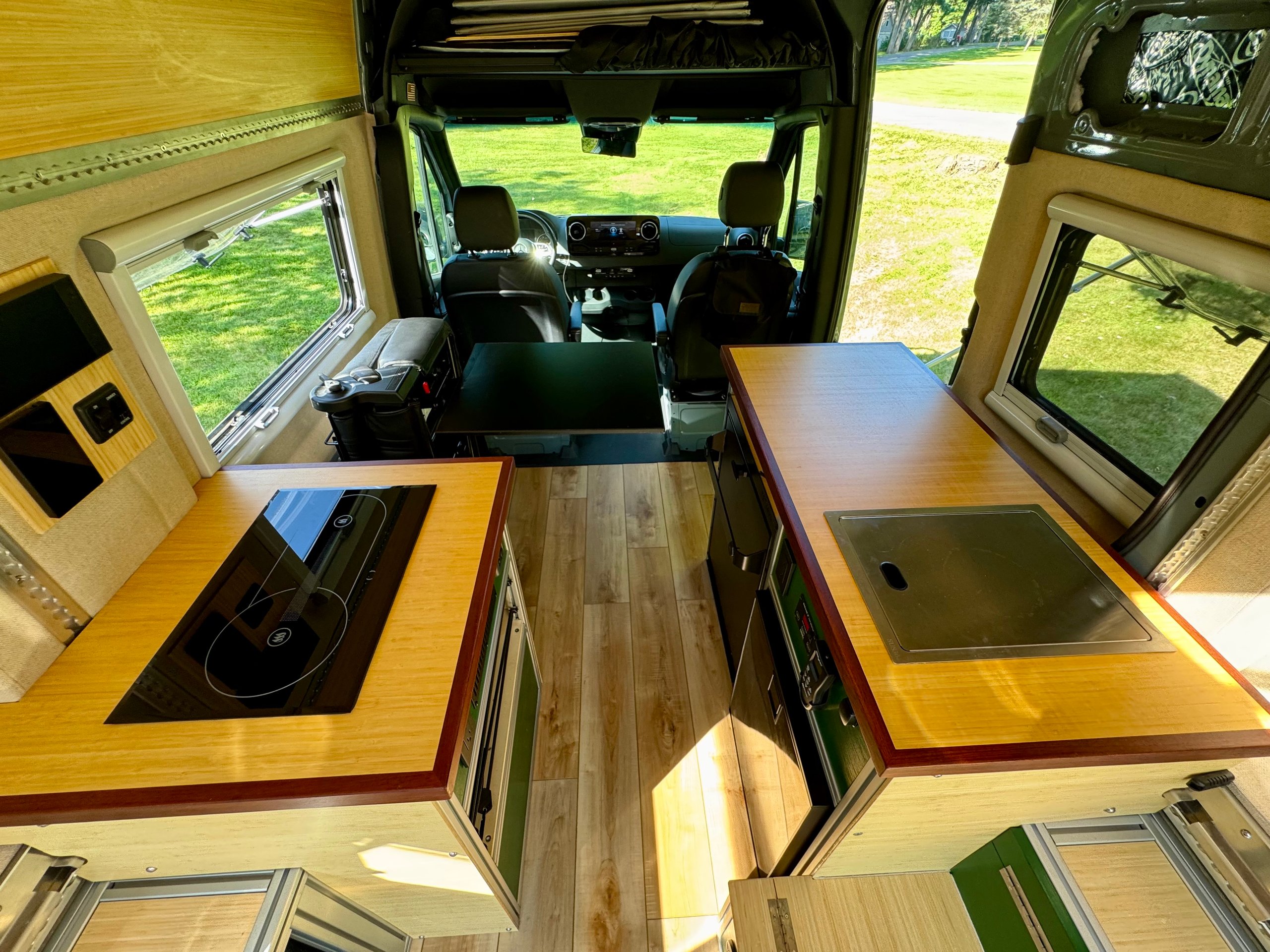

Custom made countertops - 1.5” Bamboo plywood wrapped in Brazilian Cherry and finished with Waterlox (food grade and waterproof finish)
Flooring - mini cell foam, 1.5” Coosa Composite board bluewater 26, 1/4” Hydrotek marine
plywood, Oxygen Barrier PEX tubing with heat transfer plates Coretec Vinyl Flooring
Wall and Ceiling with 3M Thinsulate (SM600L) and Reflectix

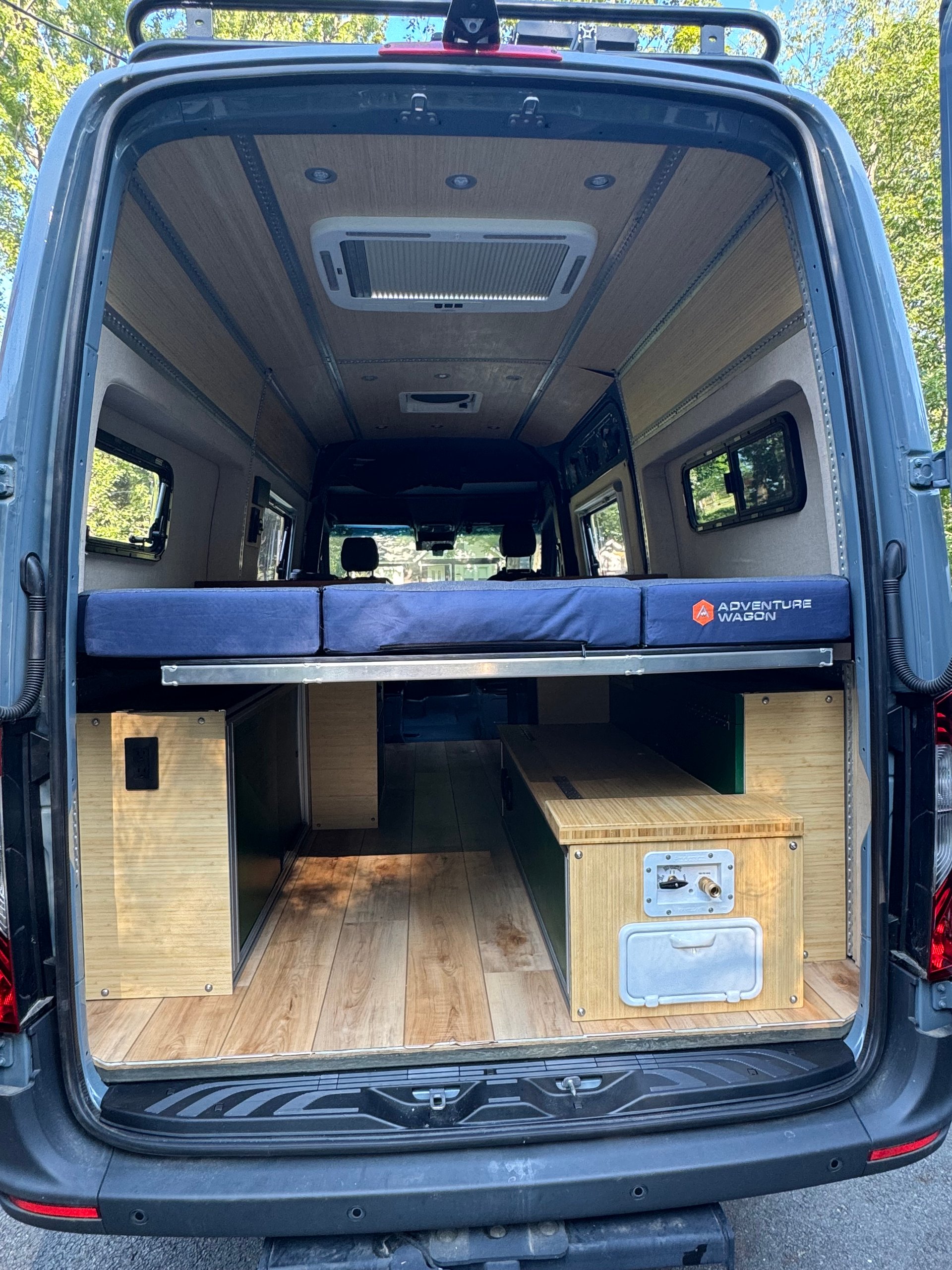

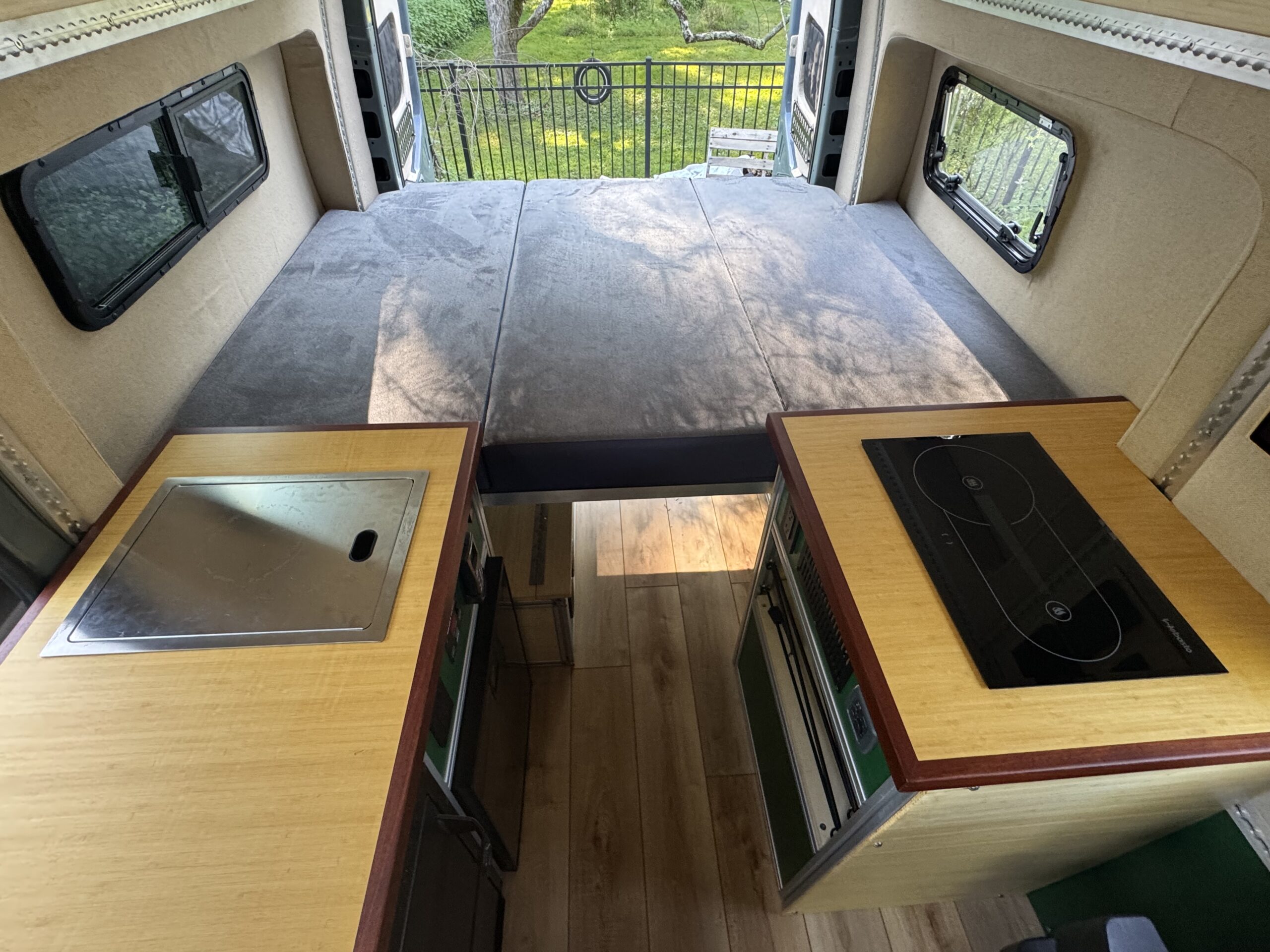

Adventure Wagon MOAB Traverse Bed system and Version 2 Install kit
Adventure Wagon MOAB Traverse Bed Mattress

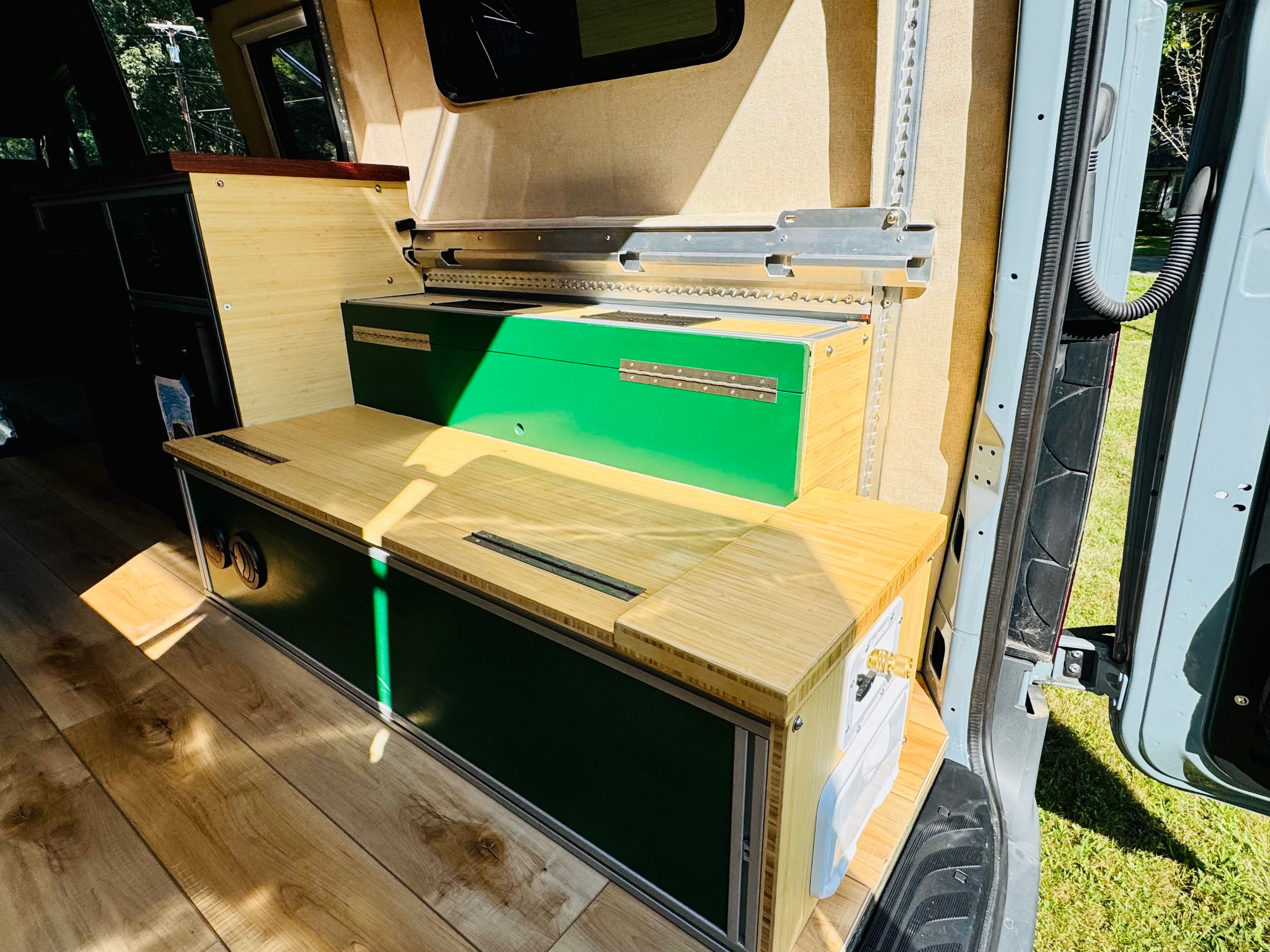

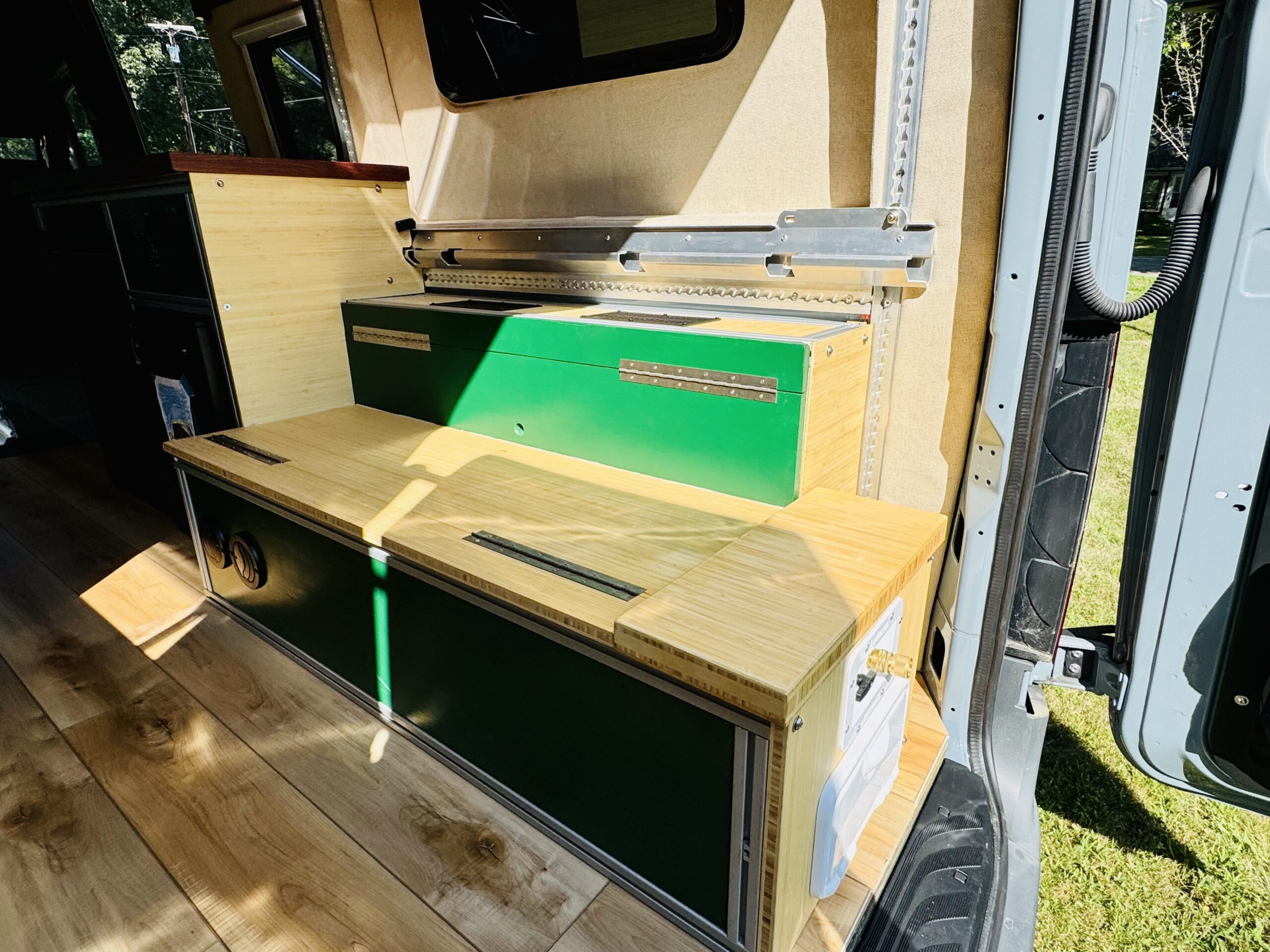

Integrated Bench underneath bed (3” thick cushion with custom cover not pictured)
Molle Panels on lower rear doors with 2x Blue Ridge Overland Molle Bags
Dimmable and adjustable 3000K Cabin LED lighting
Integrated and adjustable 5000K Cabin LED lighting (when doors are open)
Freeman GO-ES foldaway 2 person seat with 3 point seatbelt and integrated table

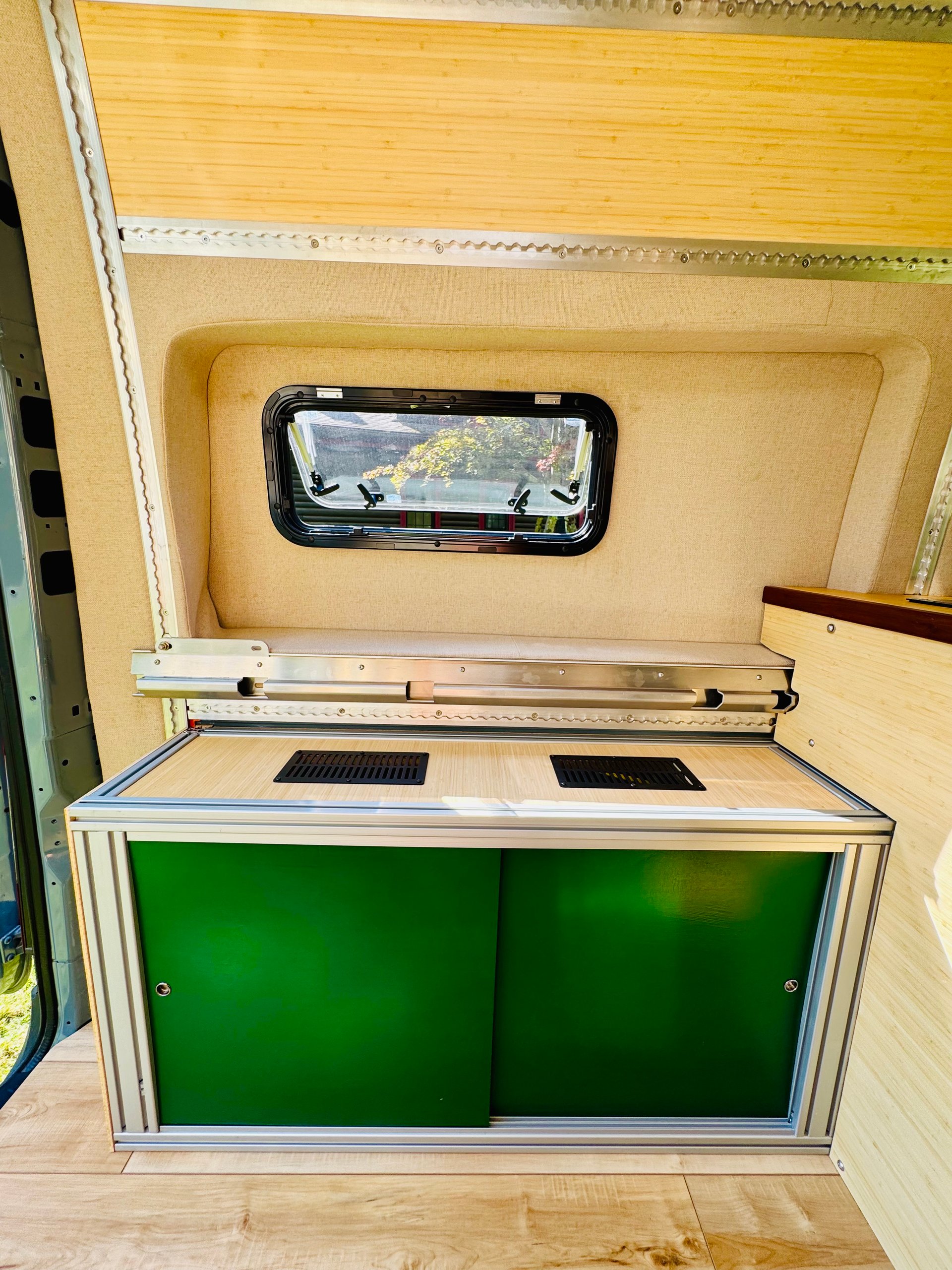

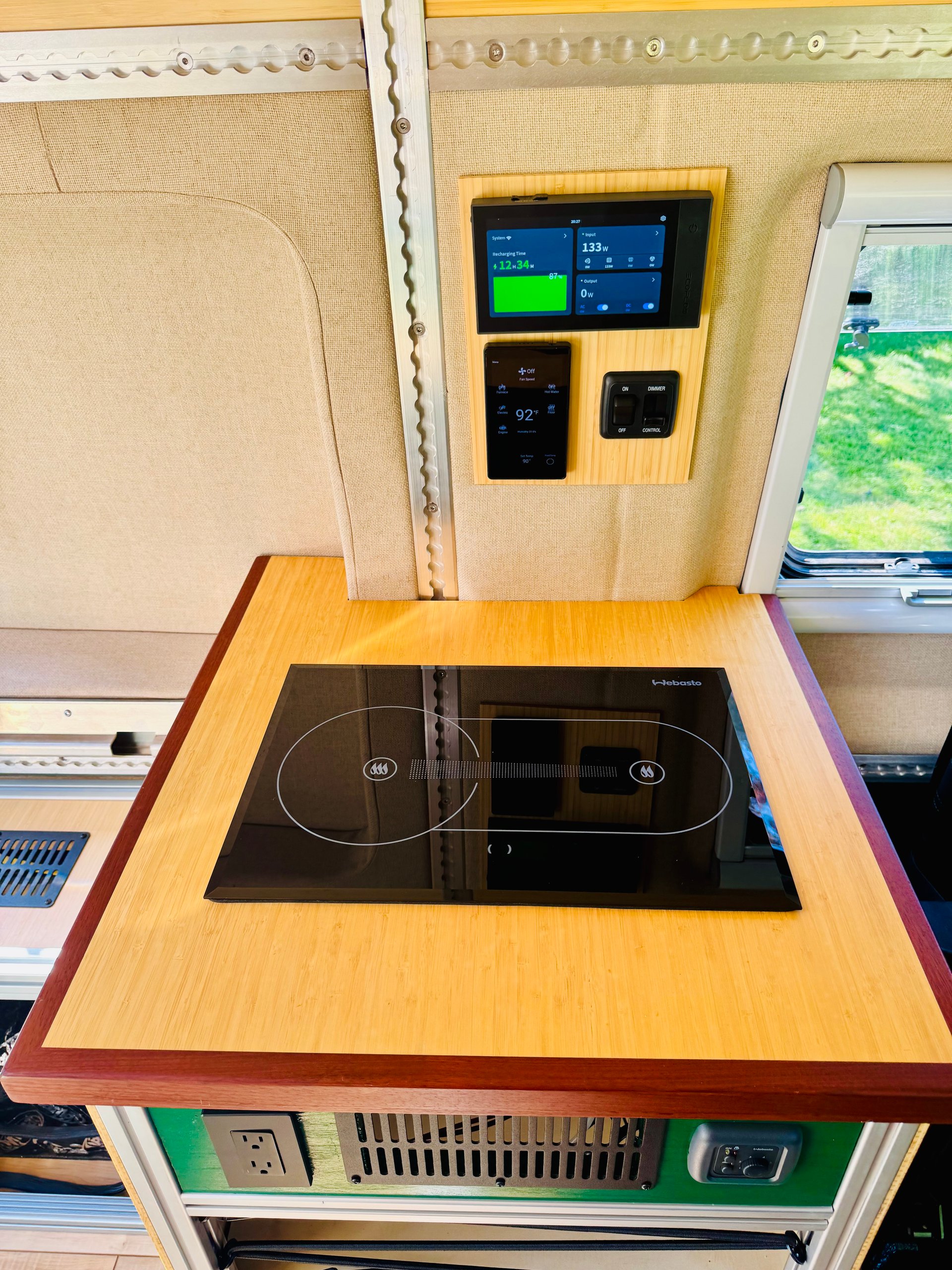

Webasto X100 Diesel Cooktop with ceramic plate

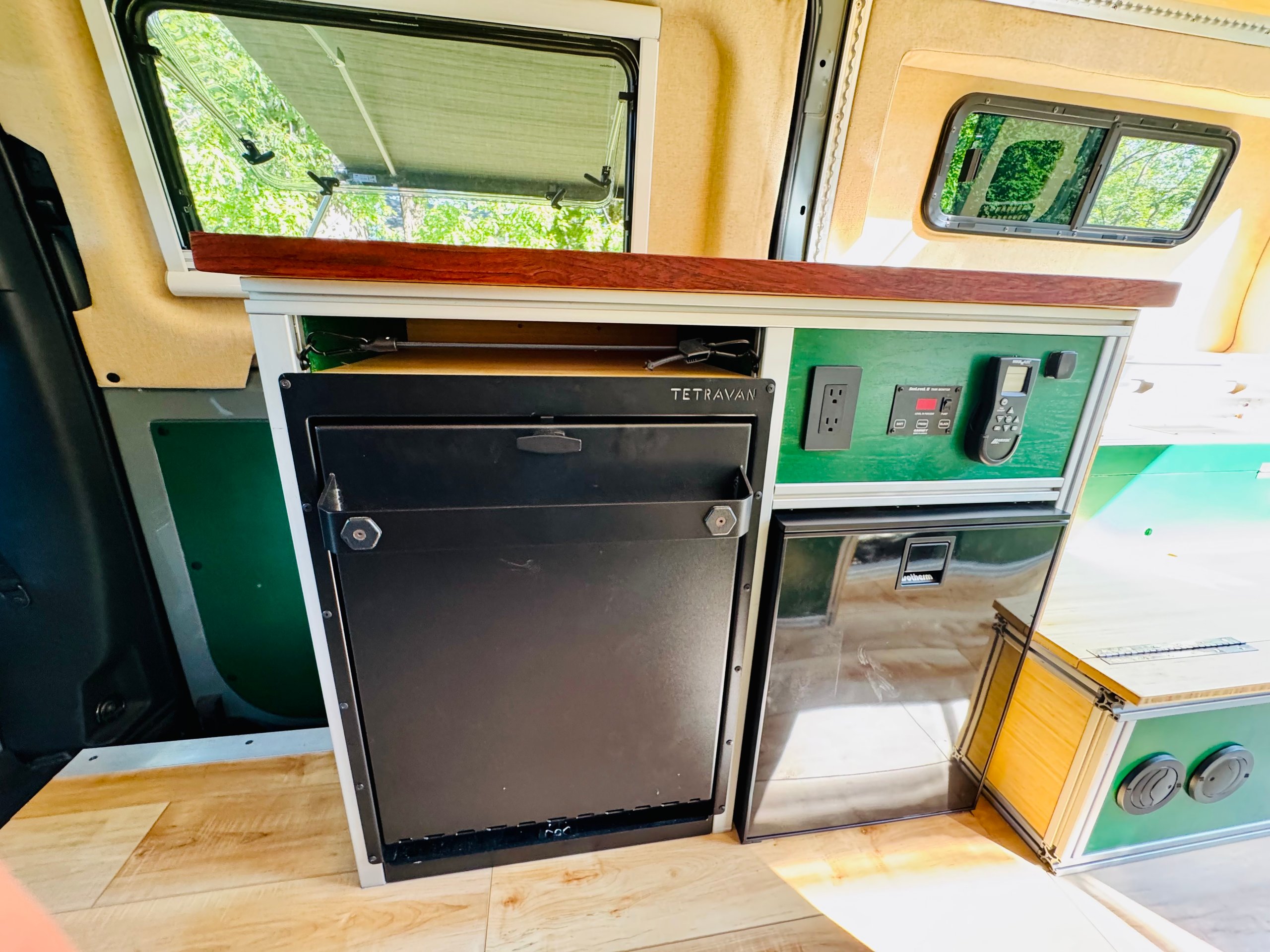

Isotherm Cruise 65 Marine 12V Fridge/Freezer

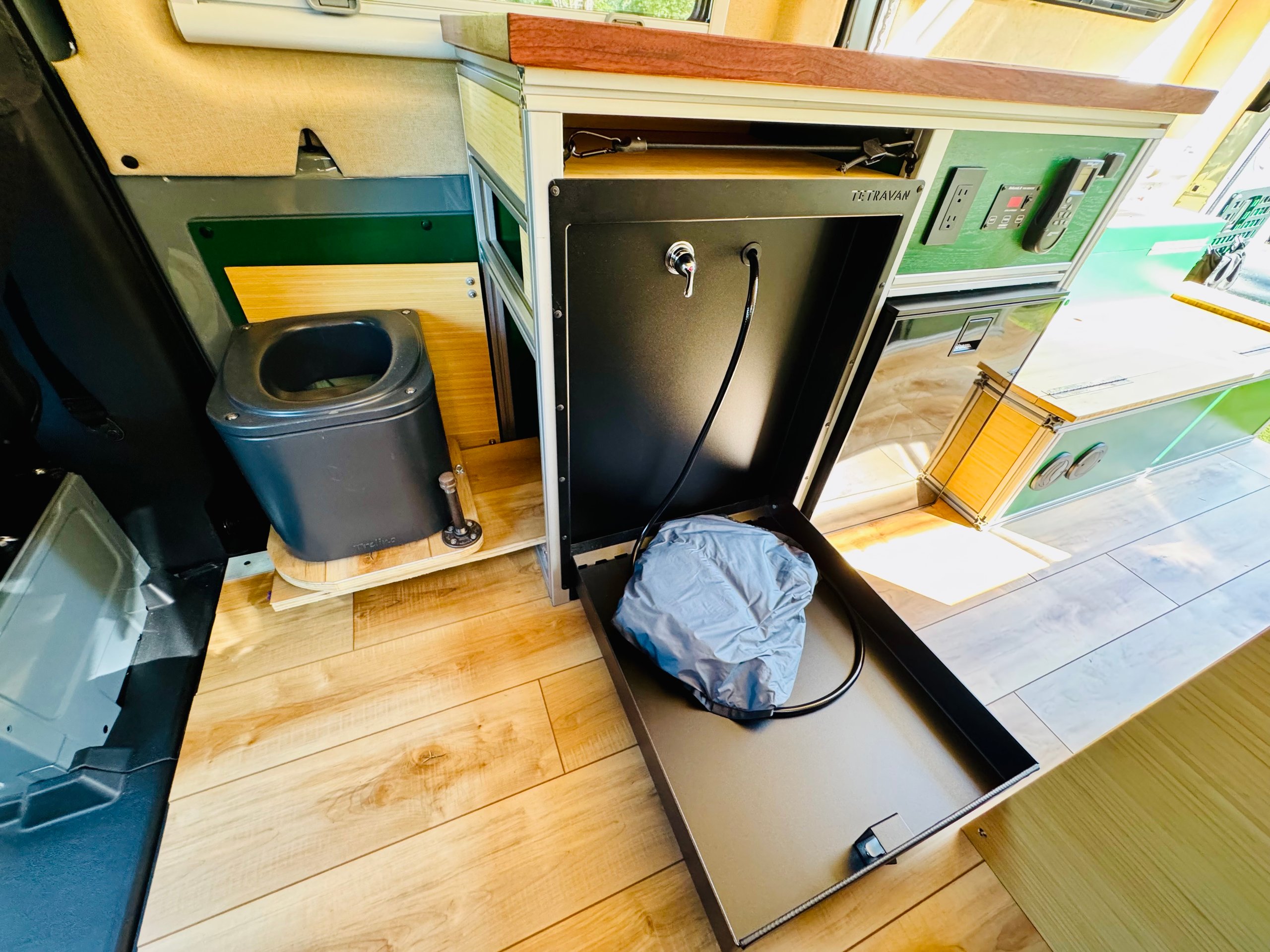

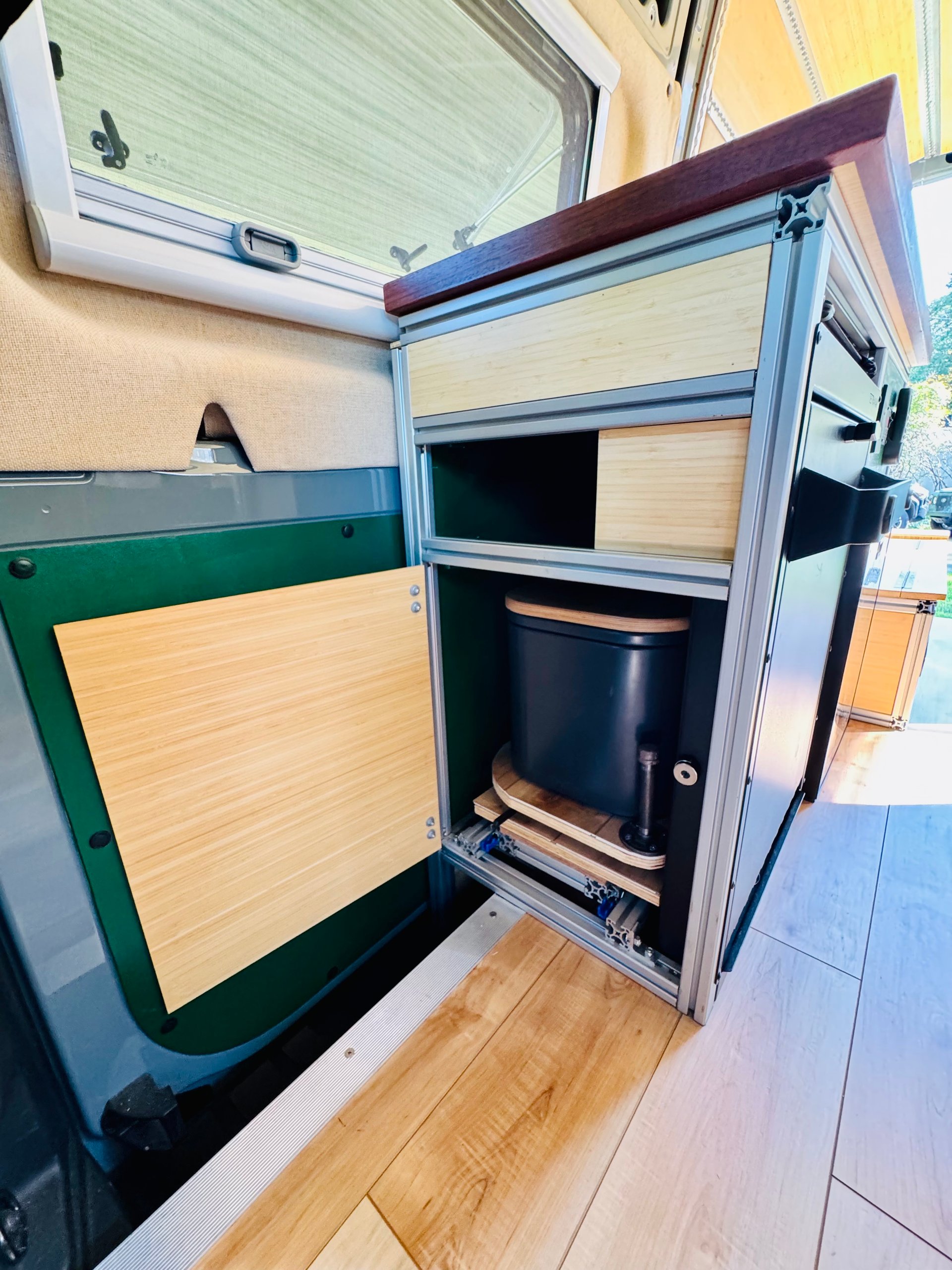

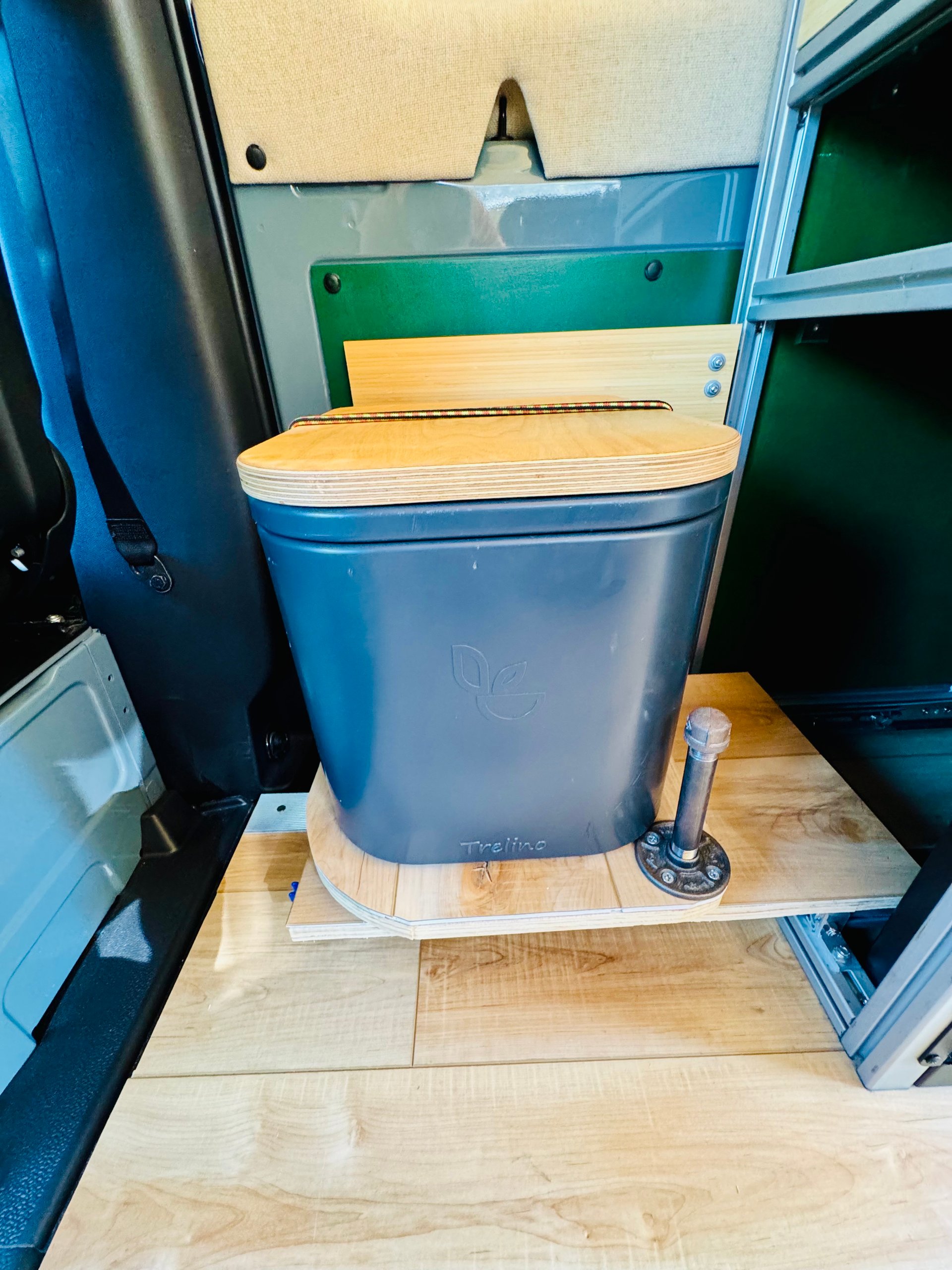

Trevino Origin M Composting toilets with custom built slide out and swivel
HVAC

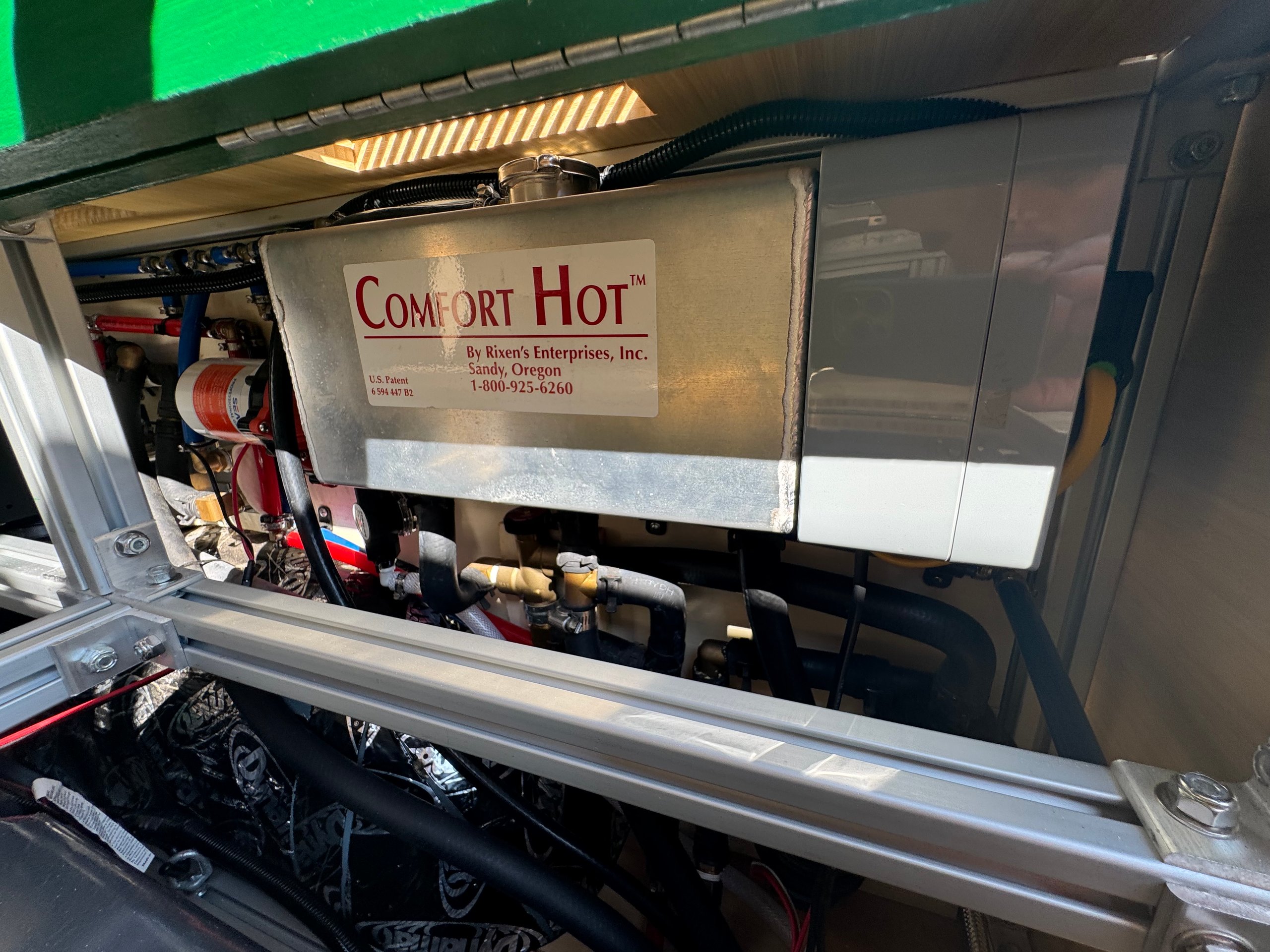

Rixen Enterprises MCS-7 Diesel heating system
- Eberspächer Hydronic Diesel Furnace
- Easy to use control unit
- Instant and unlimited (external hook up needed) hot water
- Cabin air heating
- Radiant floor heating
Normally provides heating using vehicle diesel tank with diesel furnace mounted in engine compartment
Can provide cabin heating electrically with hooked up to shower power
Can provides cabin heating when driving through heat exchanger with engine coolant
EcoFlow Wave 2 portable Air Conditioner with extra battery, custom exhaust panel that attached to roof vent
Plumbing
17.7 Gallon Front Runner water tank
Agile Offroad 11 Gallon Grey Tank
Tetravan interior shower with 360 shower curtain
Scandvik Exterior Vertical Shower Box (SKU: 14126)
Instant hot water provided by Rixen heating system
Seaflo 55 12V water pump with waterproof relay
SeeLevel water and grey tank monitoring system with integrated water pump switch

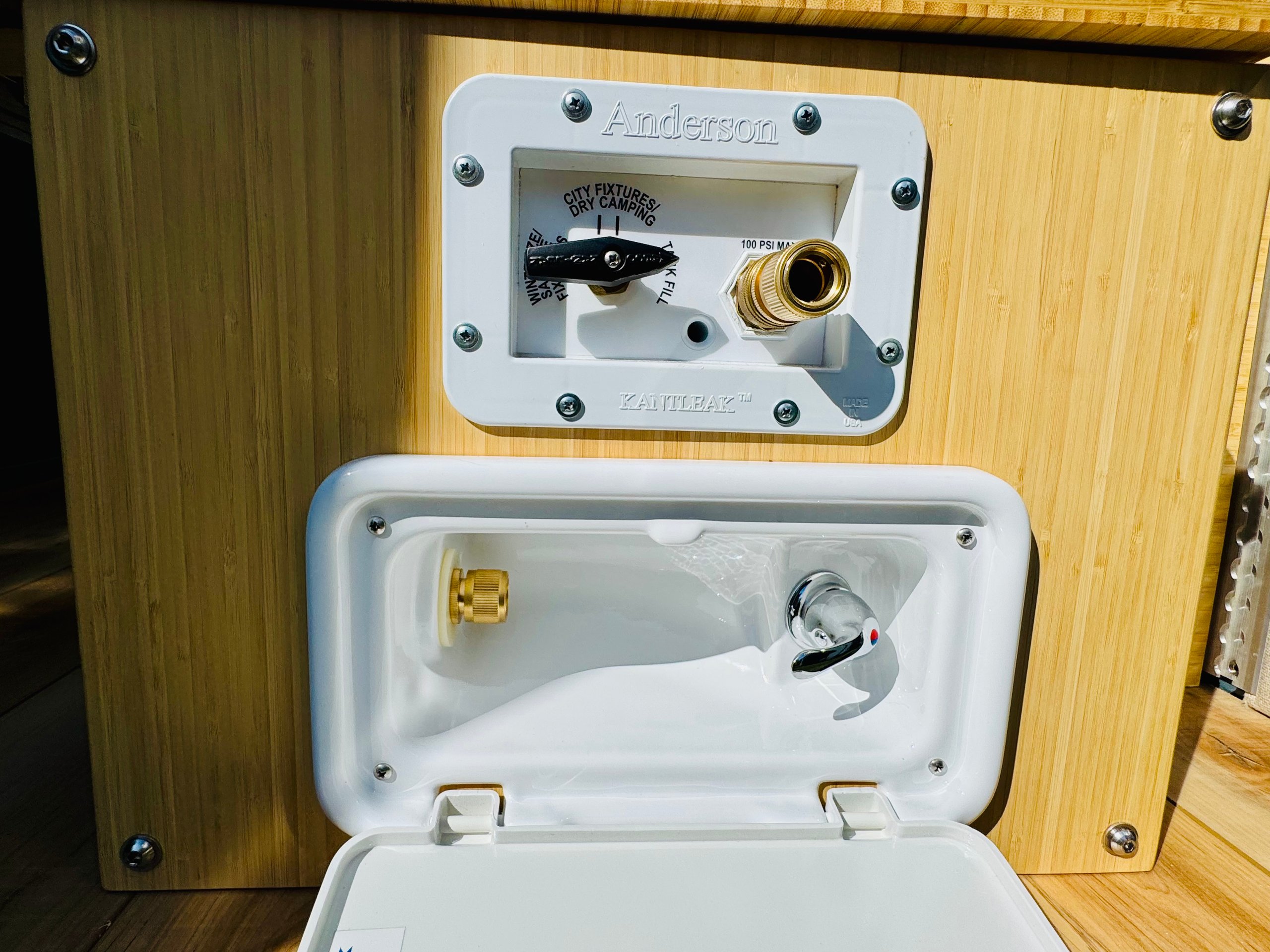

Andersen Brass Company 4 function Water service panel with quick release hose adapter

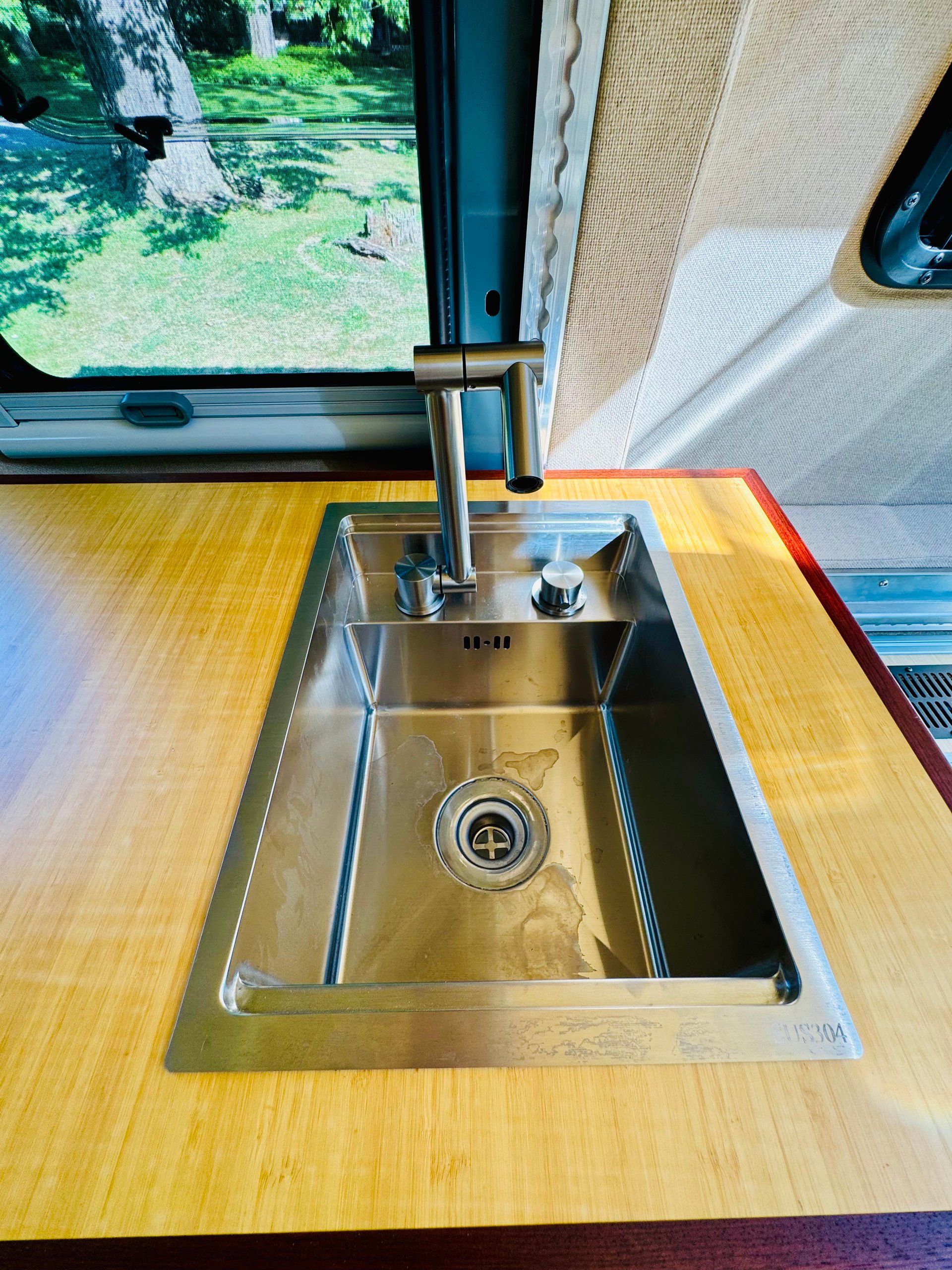

Foldaway Stainless Steel kitchen sink with cover

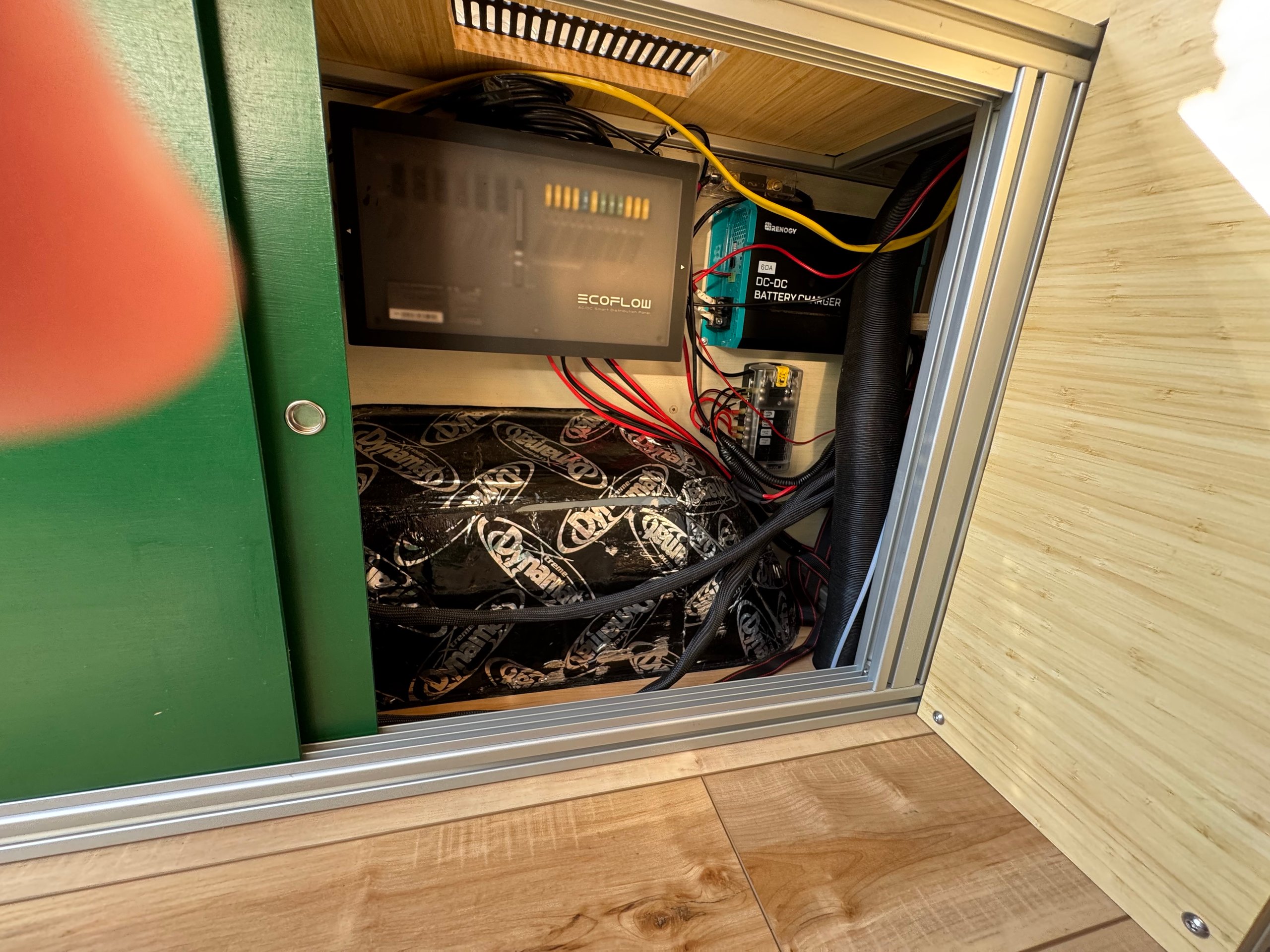

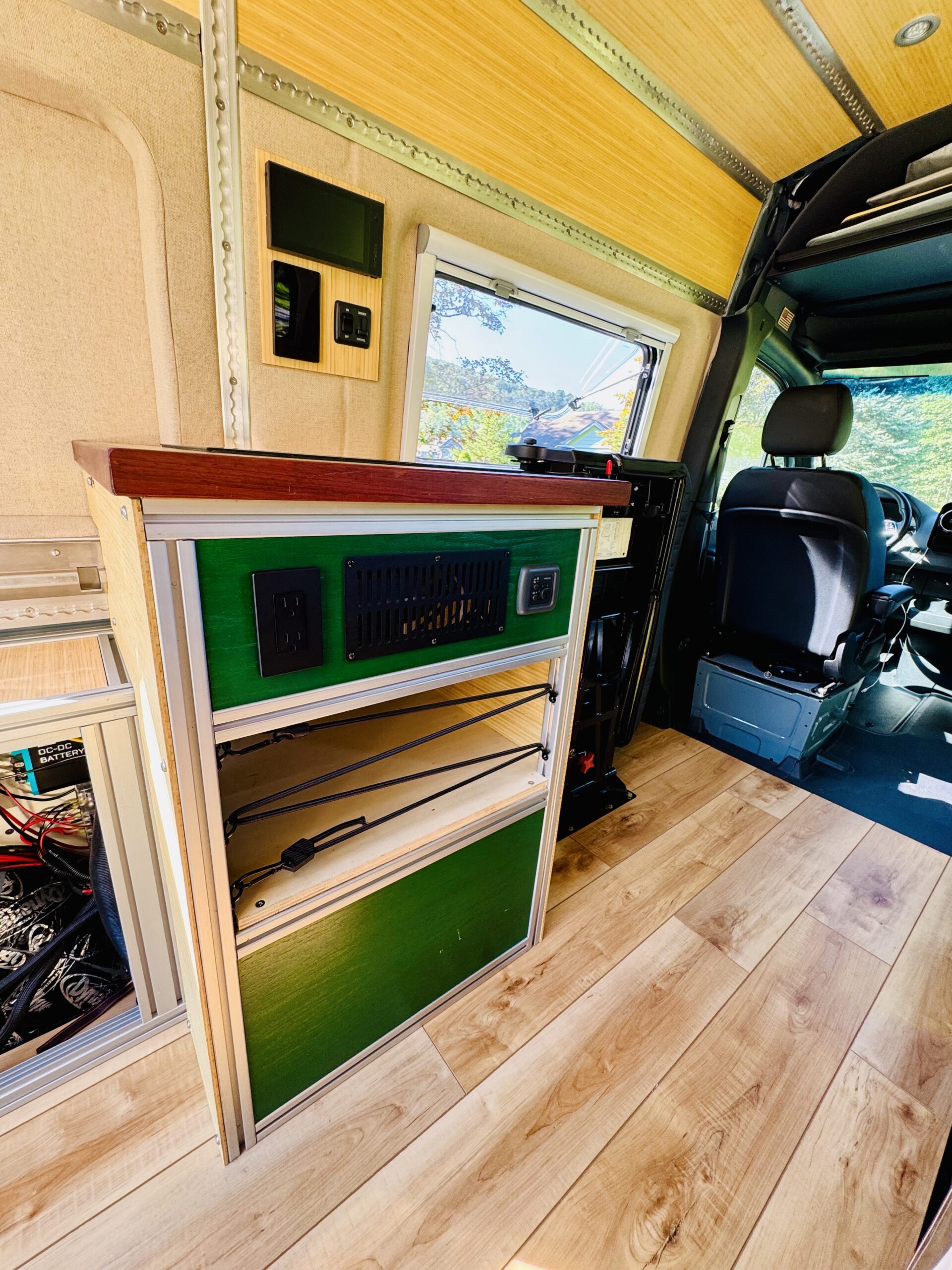

Electrical System
Ecoflow 10k Watt-hour Power Kit
- 10,000 Watt-hour battery bank
- Power hub
- AC/DC Smart Distribution Panel
- Power Kit console
- 6 Smart phone controlled circuits
Renogy 60A DC to DC charger
400 Watts of solar energy - 2x Rich Solar 200 watt panels
Pre-wired for exterior lighting with smart phone controlled switches
Lockable GP Factor Starlink Mini mount with pre-wired remotely controlled power
SmartPlug 30A shore power outlet with 30’ 30A cord and 15/20A pigtail adapter
5x AC outlets throughout cabin
2x USB chargers throughout cabin

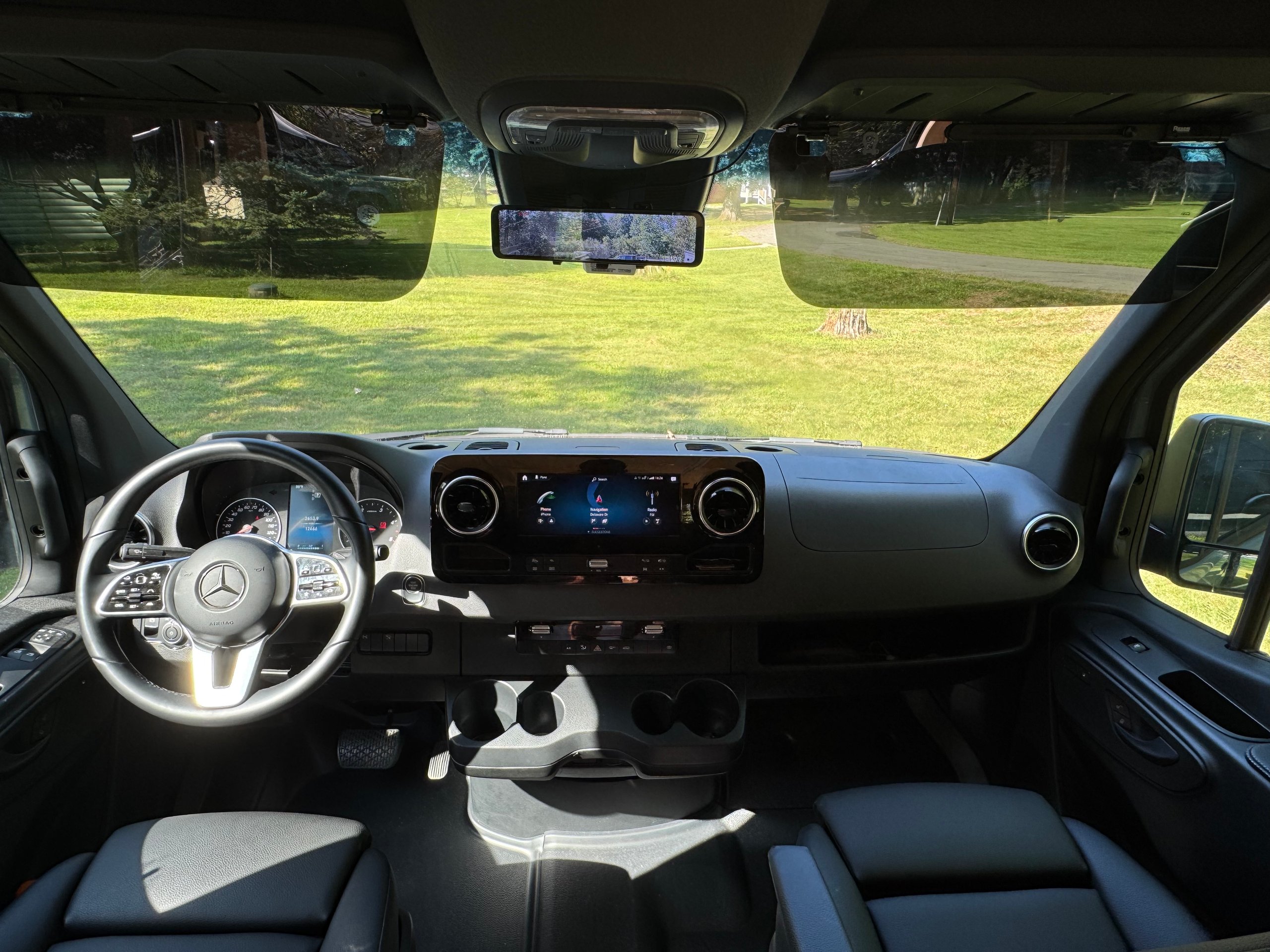

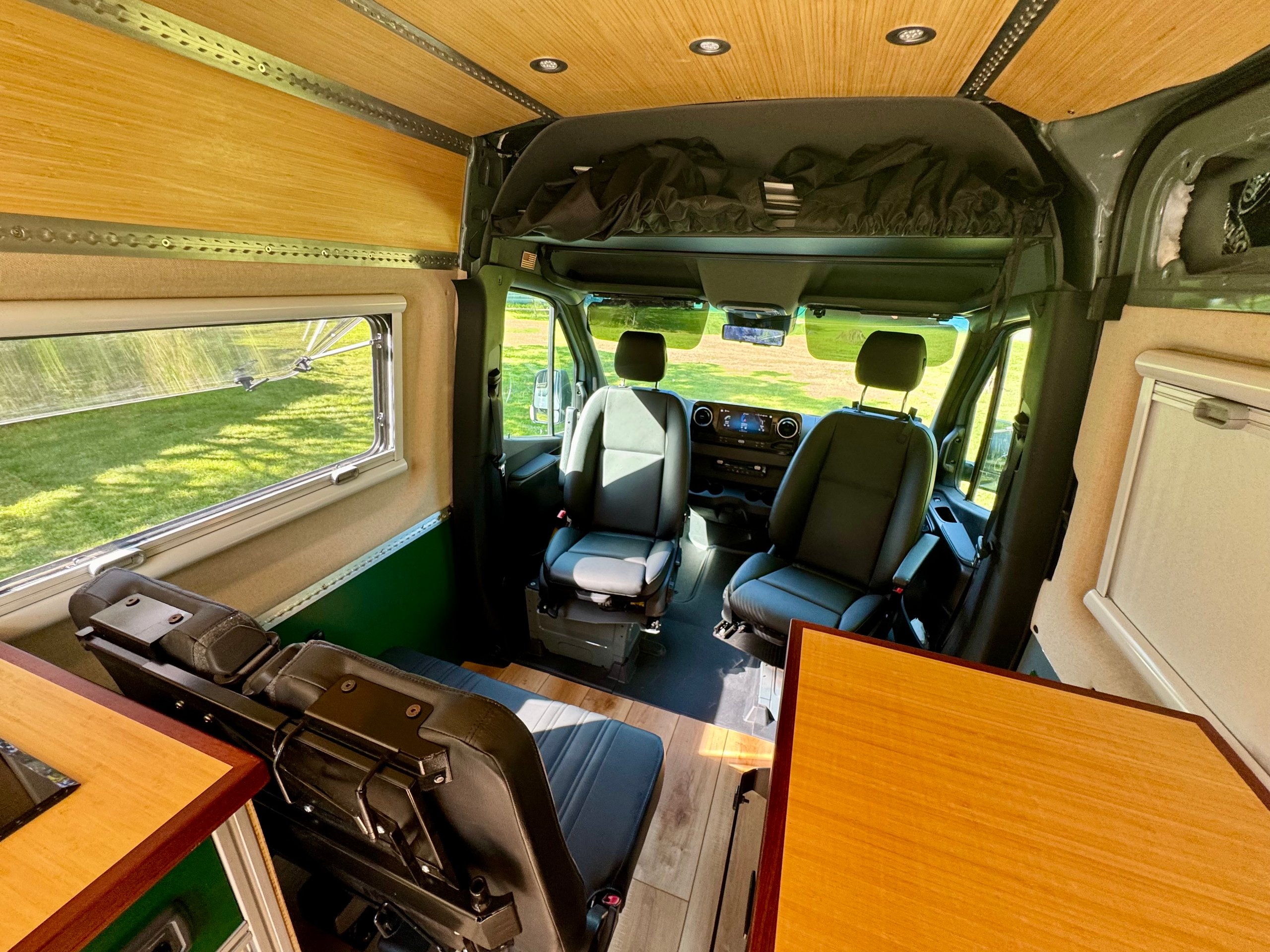

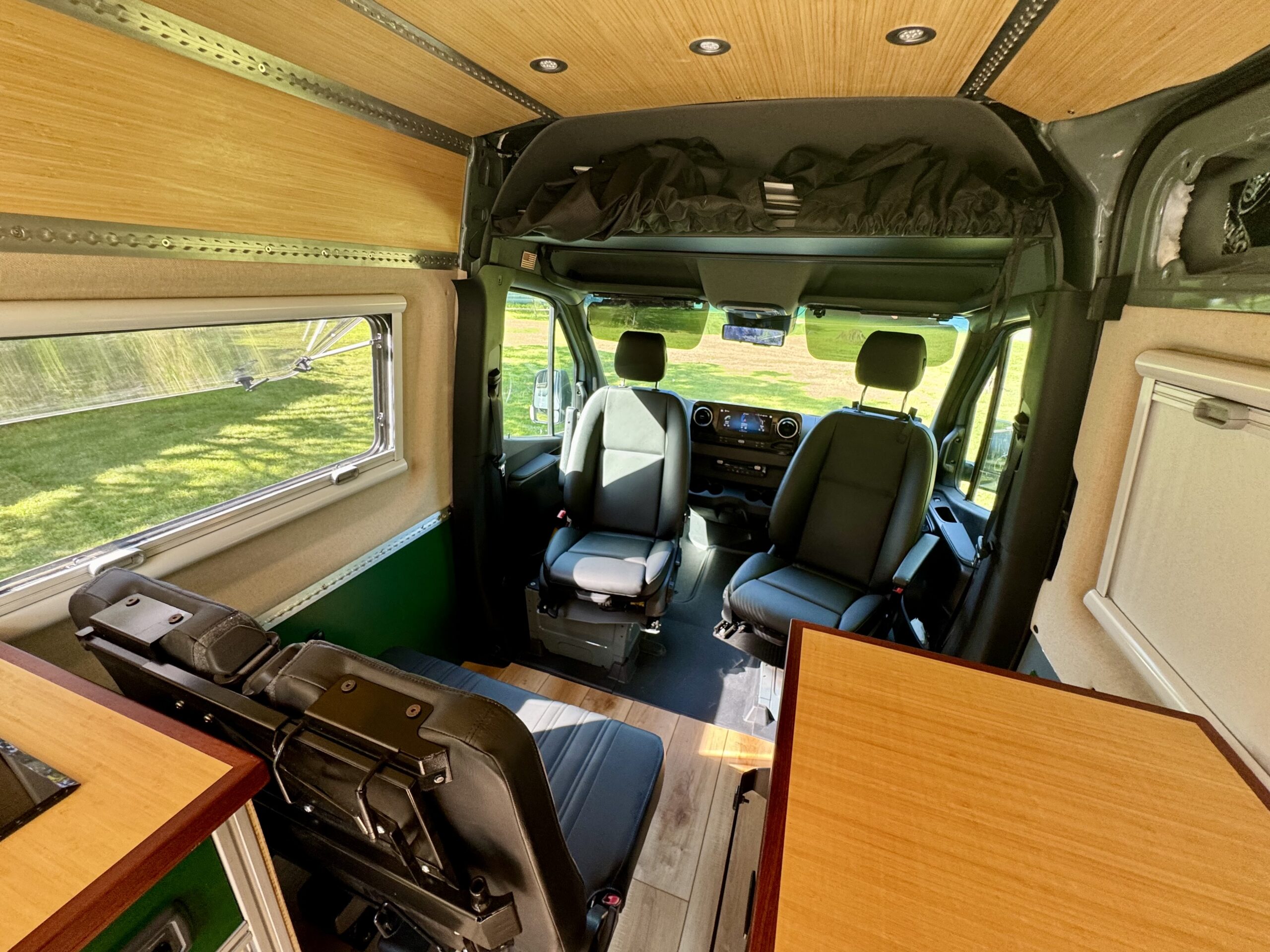

Cockpit
Rosen Aviation Sun Visors
Electronic review mirror, dash cam and cabin cam

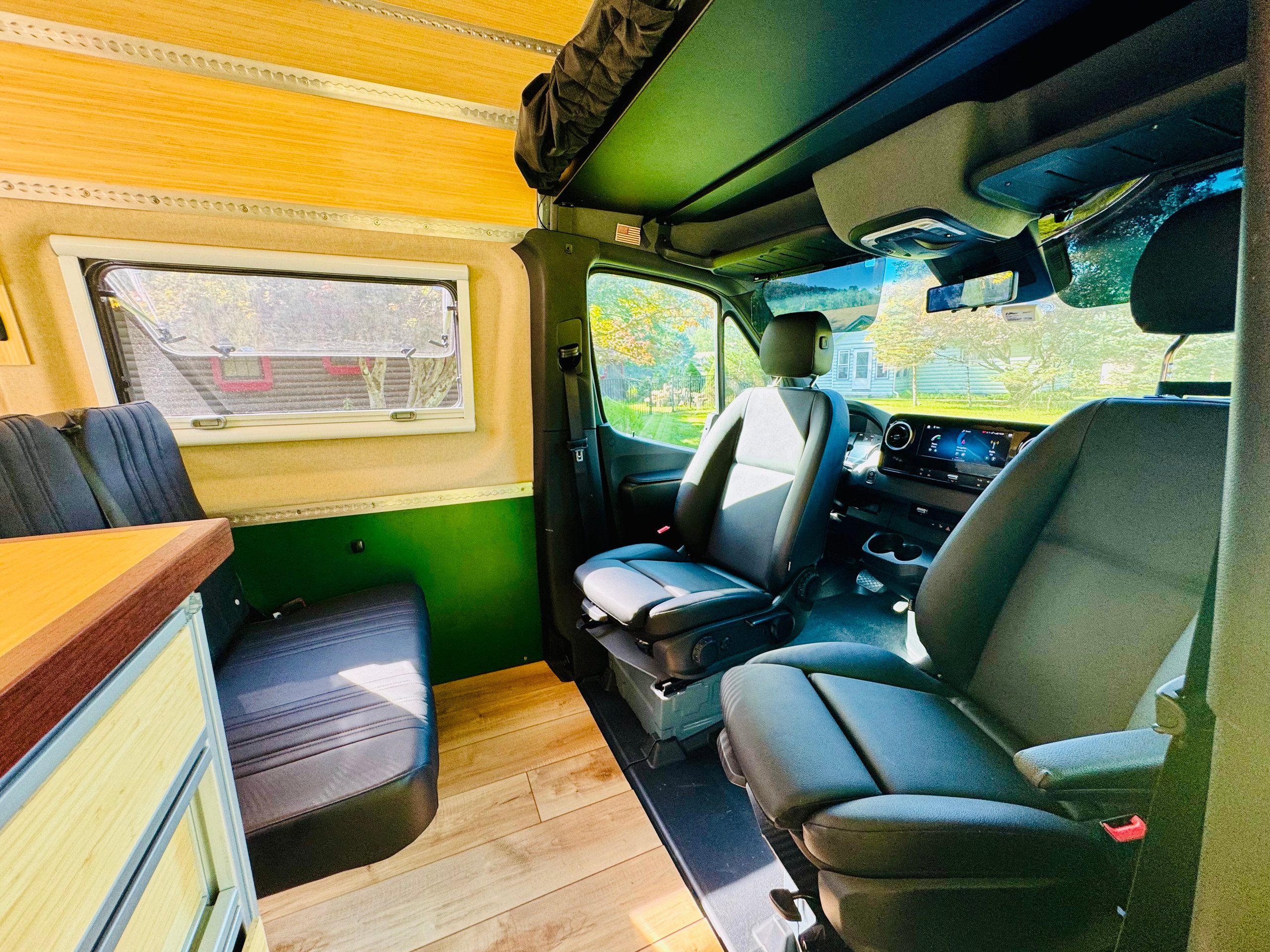

Alpine Mechanisms Swivel Seat Bases - Driver and Passenger
Van Wife Overhead shelf with Van Wife Blackout Curtain
Items not shown
EcoFlow Wave 2 Air Conditioner
Eberspächer Hydronic Diesel Furnace - installed in engine compartment
The Wanderful windscreen, driver and passenger door window shades
Window shades for all cabin windows and MaxxAir vent
Lagun Table Mount with 3/4” Bamboo ply table to be installed in any location
Collapsable Hose with quick release hook up for tank fill and sprayer use
Exterior shower head with quick release hook up
3” cusion with custom cover for bench below bed
Integrated L-track attached to 8020 below bed for cargo tie down
Some finishing elements (rear door sill, small plywood paneling pieces, paint touch ups, clean up of some wiring, etc)
