Overview:
Spacious van that prioritizes daily lounging comfort (for those days when you’re beat from wild adventures). Your friends will want to hang out in this van, which can seat up to six people (cheeky poker anyone?)
Robust electrical system and generous water storage that can keep you off-grid for at least a week.
A huge amount of internal storage space that would suit a remote worker or outdoor enthusiast.
We were full-time climbers who stored an abundance of climbing gear in this van in addition to a kayak and mountaineering gear for the winter.
This van was carefully designed to be lightweight, saving you money on gas.
The design also includes thoughtful touches to keep the vehicle extremely quiet while driving.
High roof, sliding door. Long wheel base.
V6 3.7 Ecoboost 6 speed automatic.
Rear wheel drive (RWD)
16 miles per gallon average fuel economy.
Backup camera
Service History:
Break replacement 38k
All 4 tires replaced at 38k with off-road deep tread tires. 4-season tires (tried and true!!)
Windshield replaced at 40k
Oil changed every 10k
Bed & Living area:

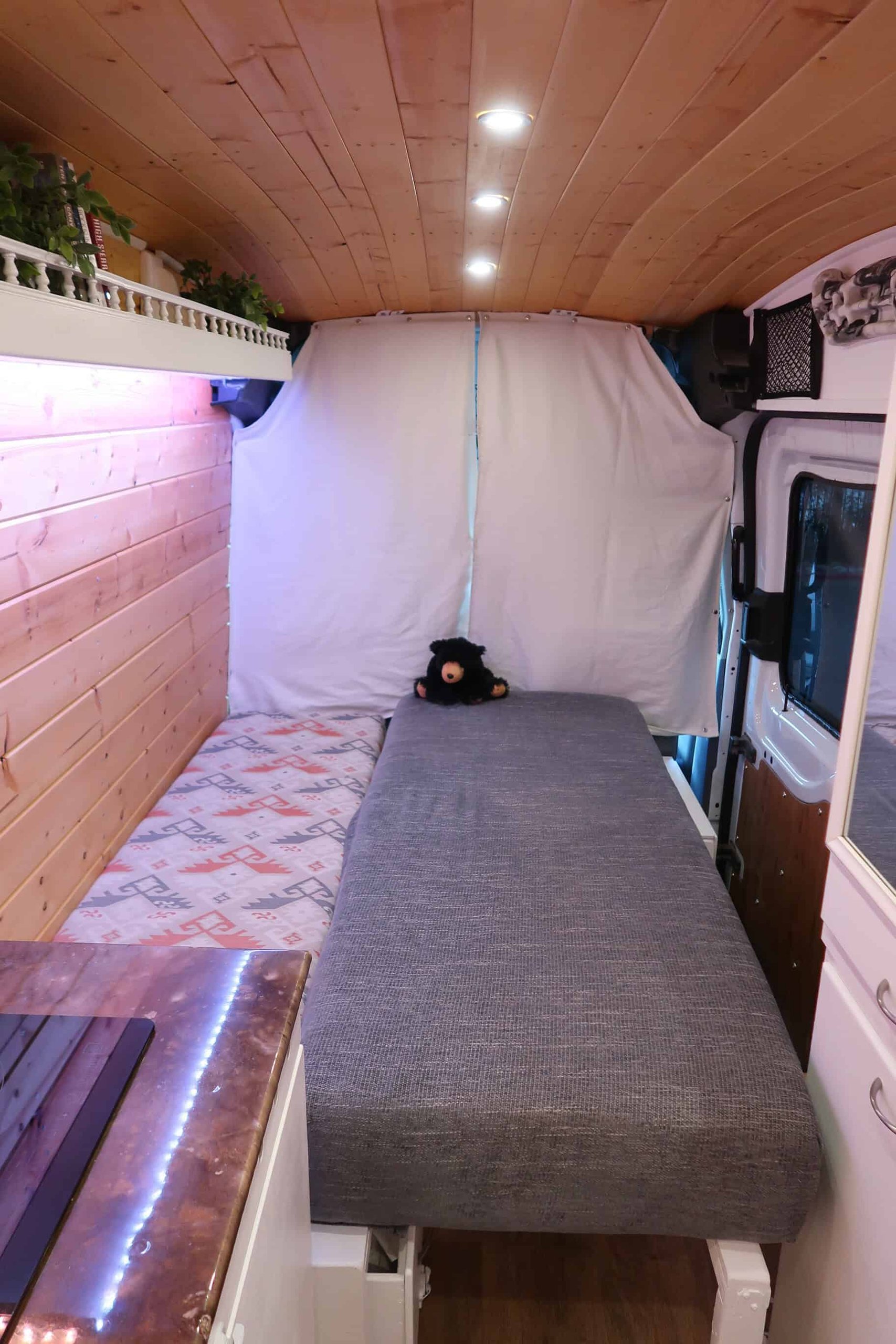

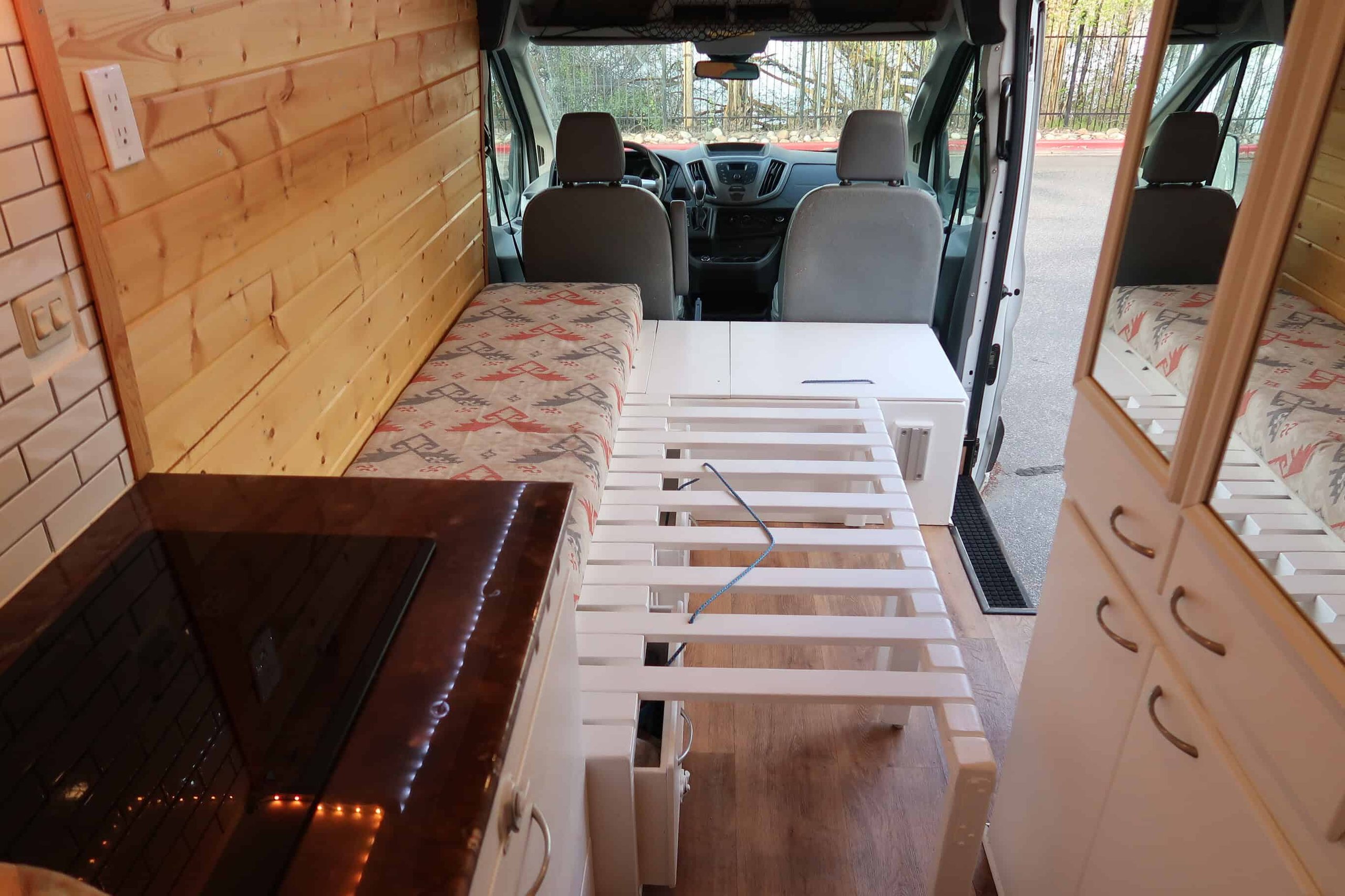

4ft X 6’4ft Queen sized pull out bed that doubles as sofa. Sofa can seat 3-4 people comfortably- more if you’re close friends!
Large pull-out drawer at the sliding door (32 x 13 x 17 in)
Two large under-bed drawers (23 x 28 x 11 in) and (16 x 28 x 11 in)
Overhead bookshelf (8 x 65 in)

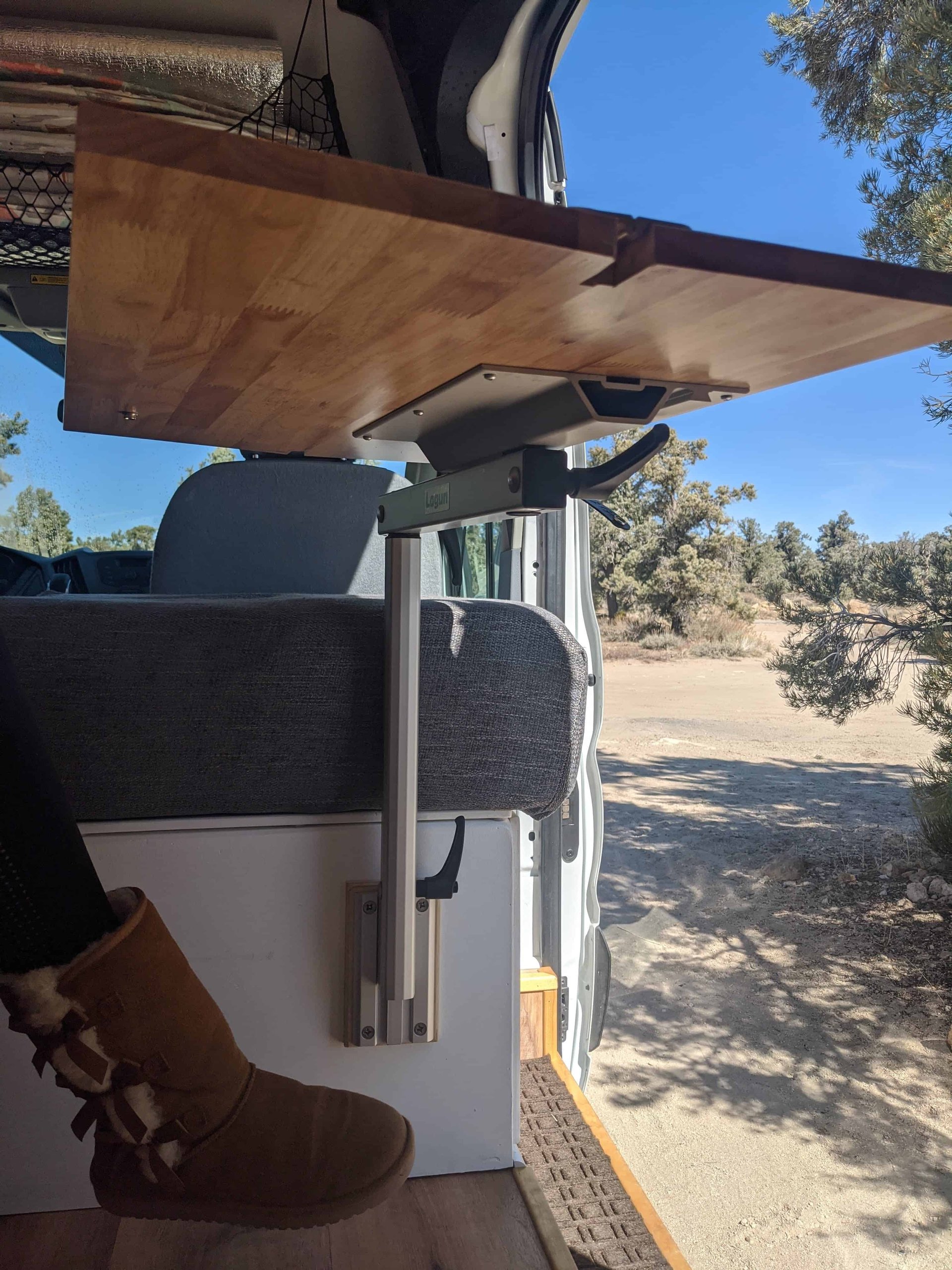

Collapsible lagun mount table.

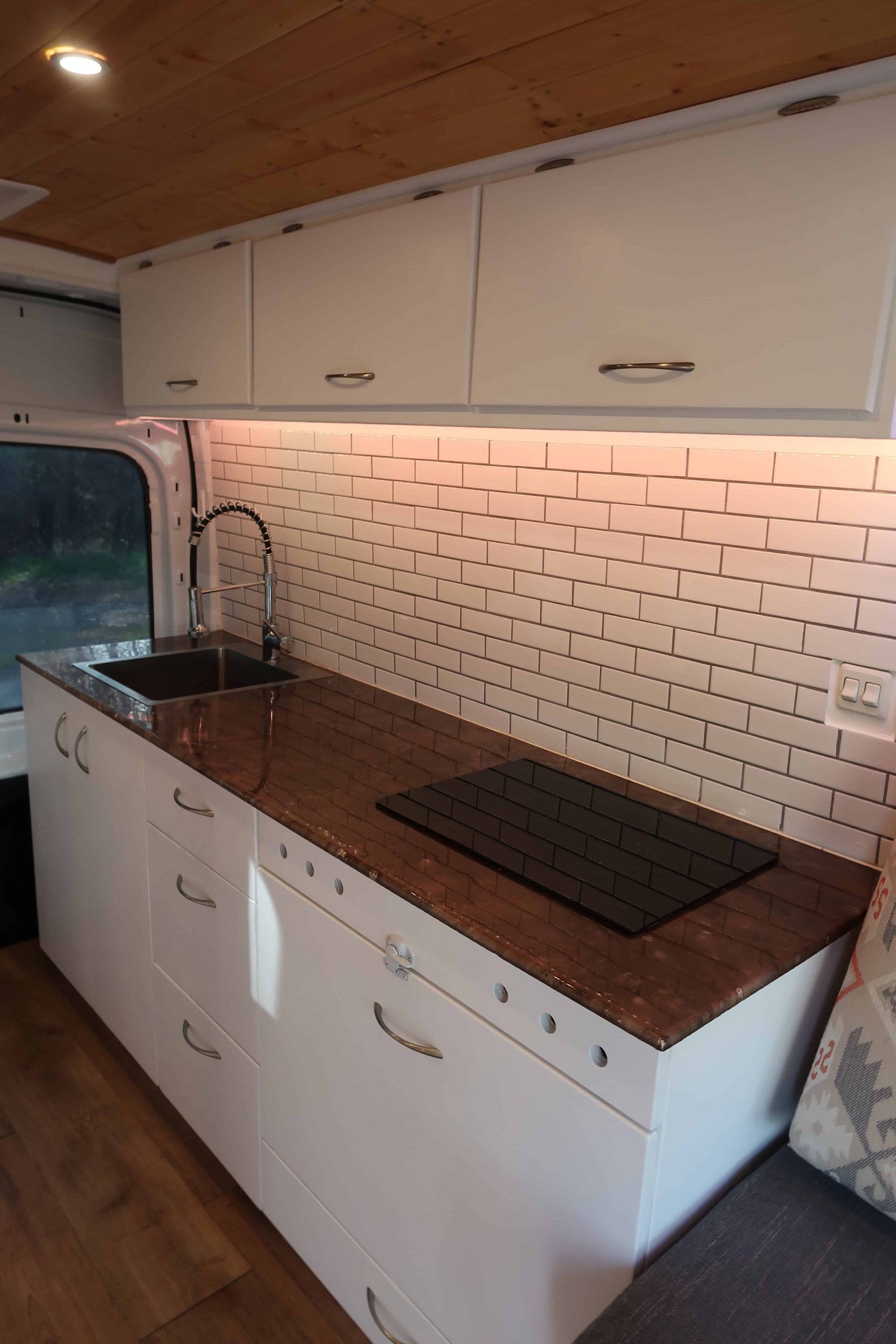

Kitchen:
Wide kitchen walkway, two people can easily pass eachother (28in wide, 85in length)
Custom Granite-like epoxy kitchen counter (23 X 78 in)

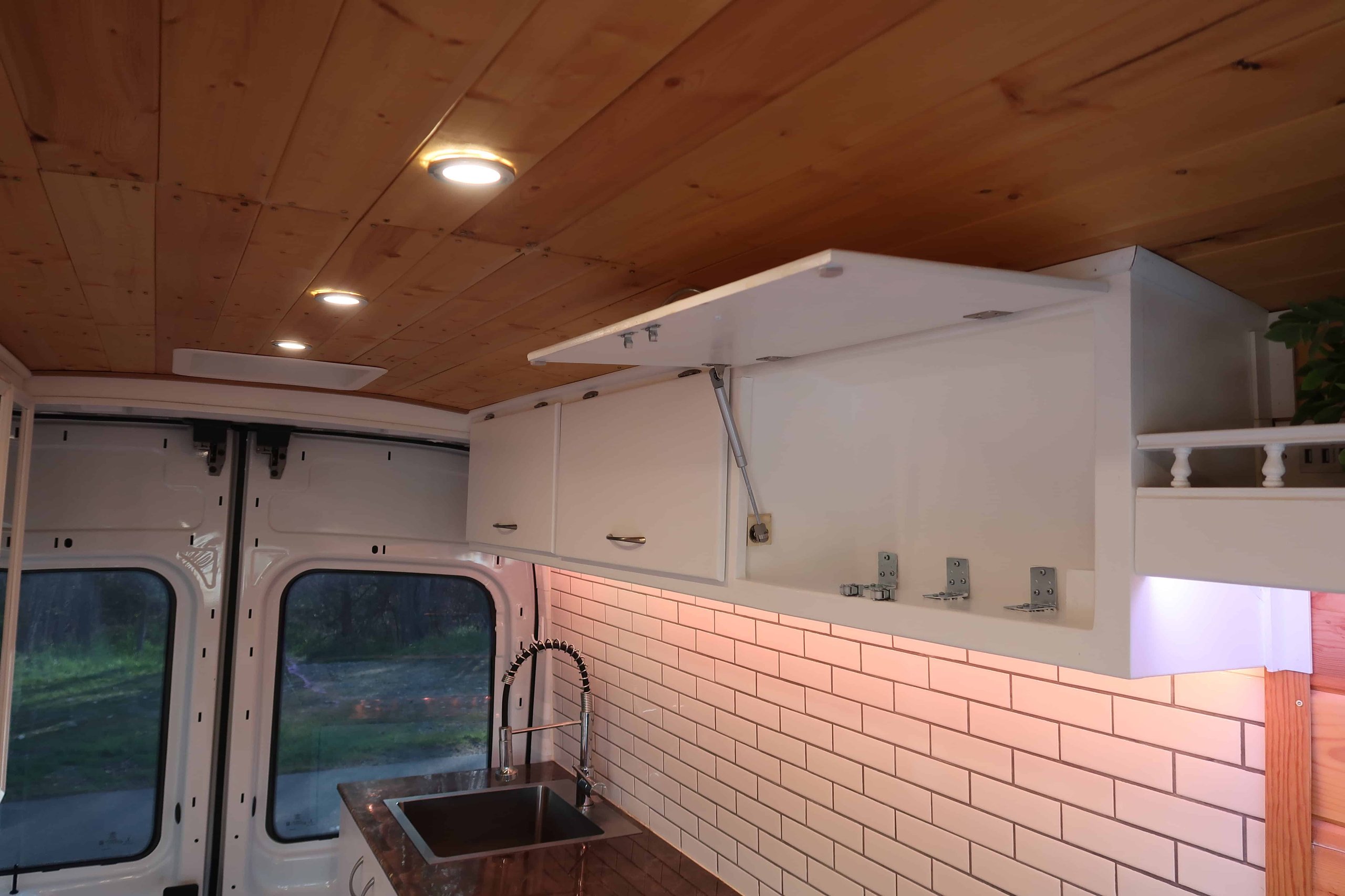

Three overhead cabinets (12 x 28 x 41 in)
2 burner 1800W induction stove

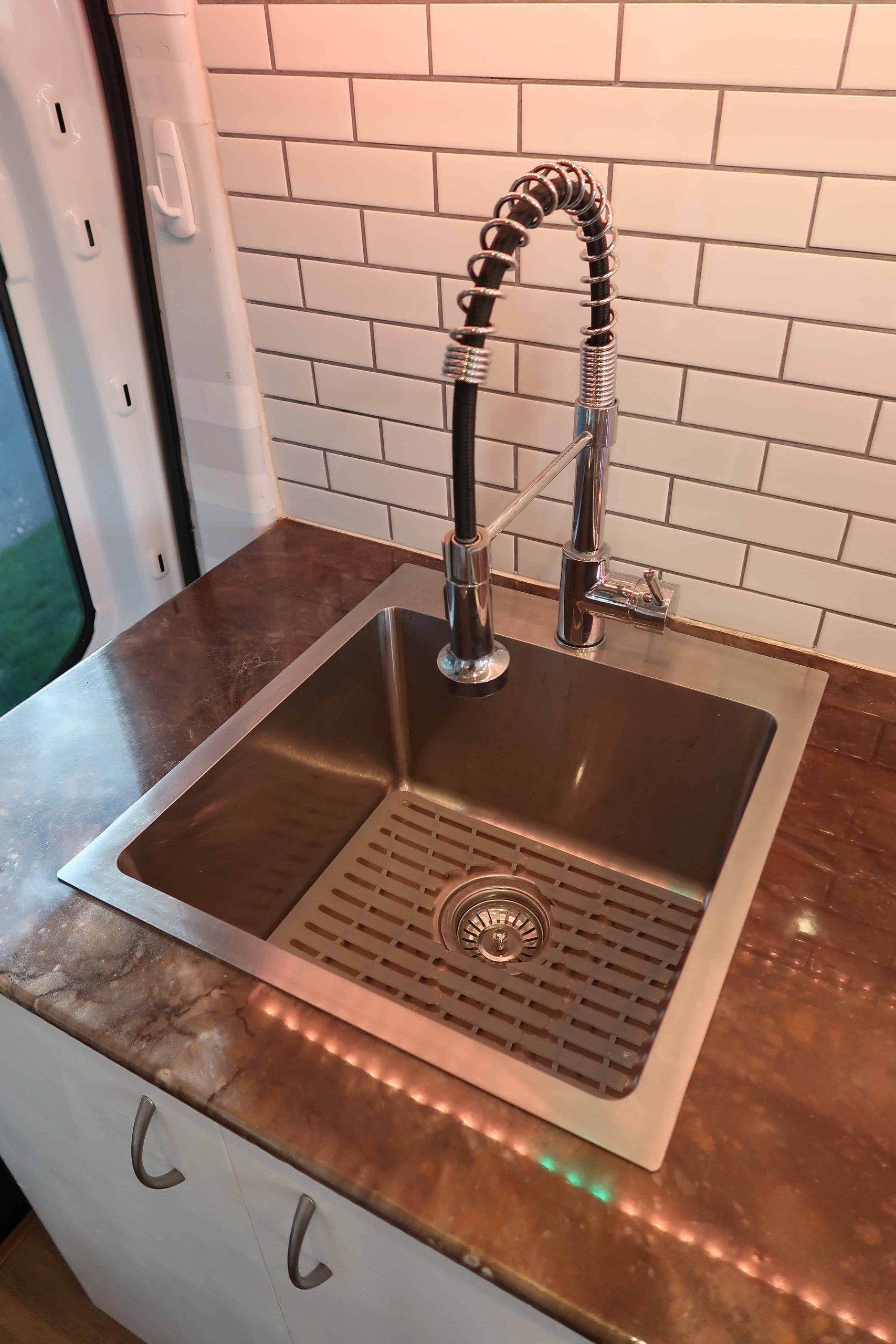

Kitchen sink (15 x 15 x 9 in)
Three kitchen drawers (15 x 21) depths; 5, 10, 10 inches

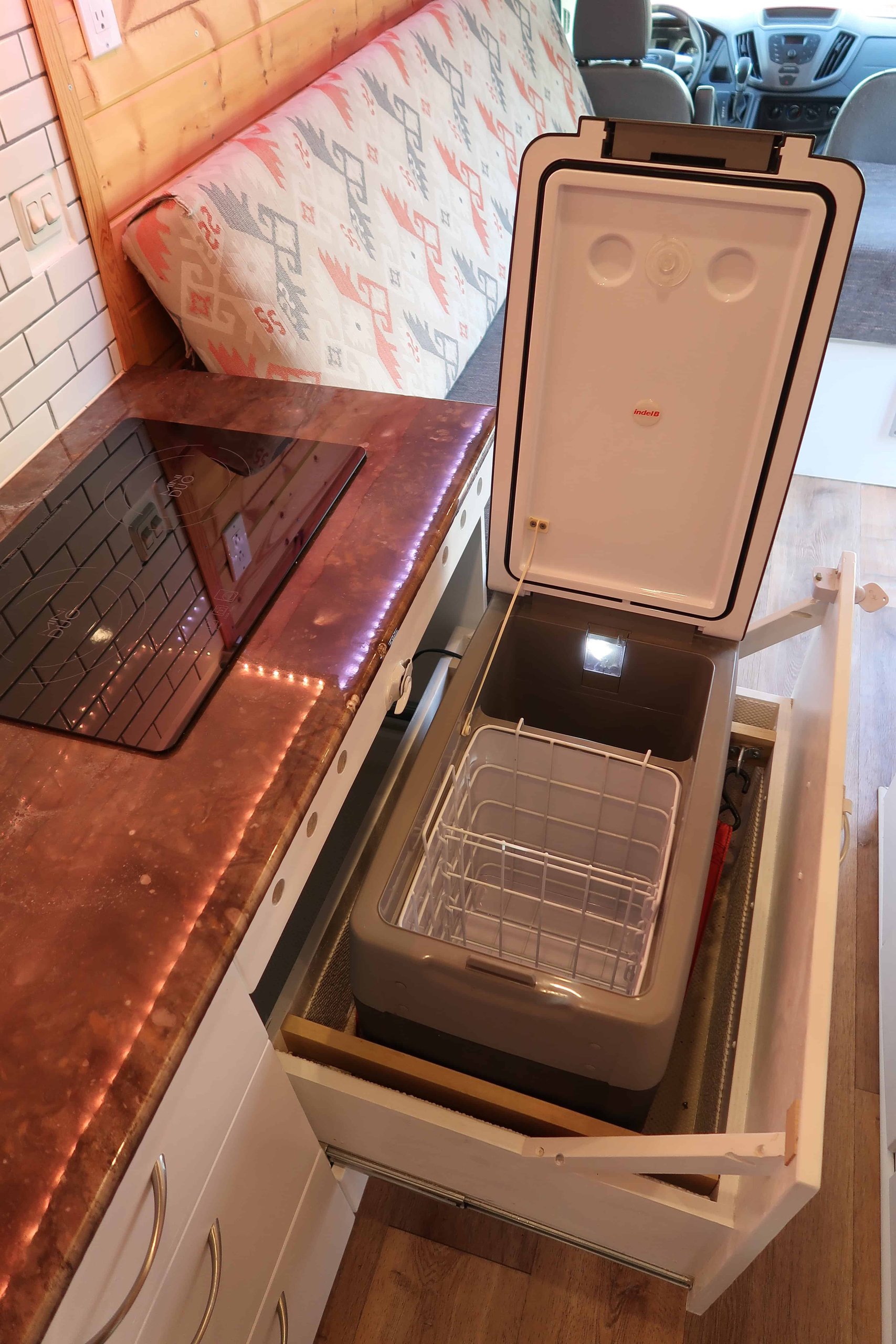

60 litre truck fridge.
Storage:
Three mirrored storage cabinets (23 x 9 x 42 in)
2 recessed trash cans
Water:
18 Gallon freshwater tank
5 Gallon grey water tank
Electric 12v shurflow pump and pressure regulator
Water filter.
No hot water.
Electrical:
Completely off grid– no propane needed!! (We did this for safety)
4 x 100 Watt Renogy solar pannels.
2000w Pure Sine Renogy Inverter
2 x 100Ah Renogy Lithium-Iron-Phosphate Batteries.
Charges in two ways: Solar and/or car alternator. Uses a Renogy DCC50S 12V 50A DC-DC battery charger.
The solar input can even charge the car battery when there is excess solar! No getting stuck out in the wild!
All DC appliances are fused and all AC appliances are on circuit breakers.
All parts of the system can be isolated with breakers based on your needs.
The entire system is grounded to the chassis, most van-lifers never do this!
2 x 120v AC outlets (fused at 15A). These can easily power 2 laptops.
2 x 12v DC USB charging outlets. Each of these has 4 USB connectors. So a total of 8 USB charging points.
Remote-controlled, color-changing recessed lights.
All electronics are thoughtfully sealed off from water threats while allowing air flow.
Misc:
Maxair ventilation fan.
3M Thinsulate insulation on roof and walls.
Underfloor foamular NGX insulation panels.
Oak-like waterproof laminate flooring, over 1/2in plywood sheet.
EZ cool vapour barrier.
Sound deadening panels to prevent vibrations.
Door mounted vacuum cleaner.
Fire extinguisher.
Damage + wear:
2.5 inch shallow dent on rear door.
A few of the laminate floor planks have slight gaps.
One laminate floor planks is slightly ‘clicky’ when stepped on.
