SEE VIDEO BELOW FOR OVERVIEW
Financing options provided for well-qualified serious buyers
……

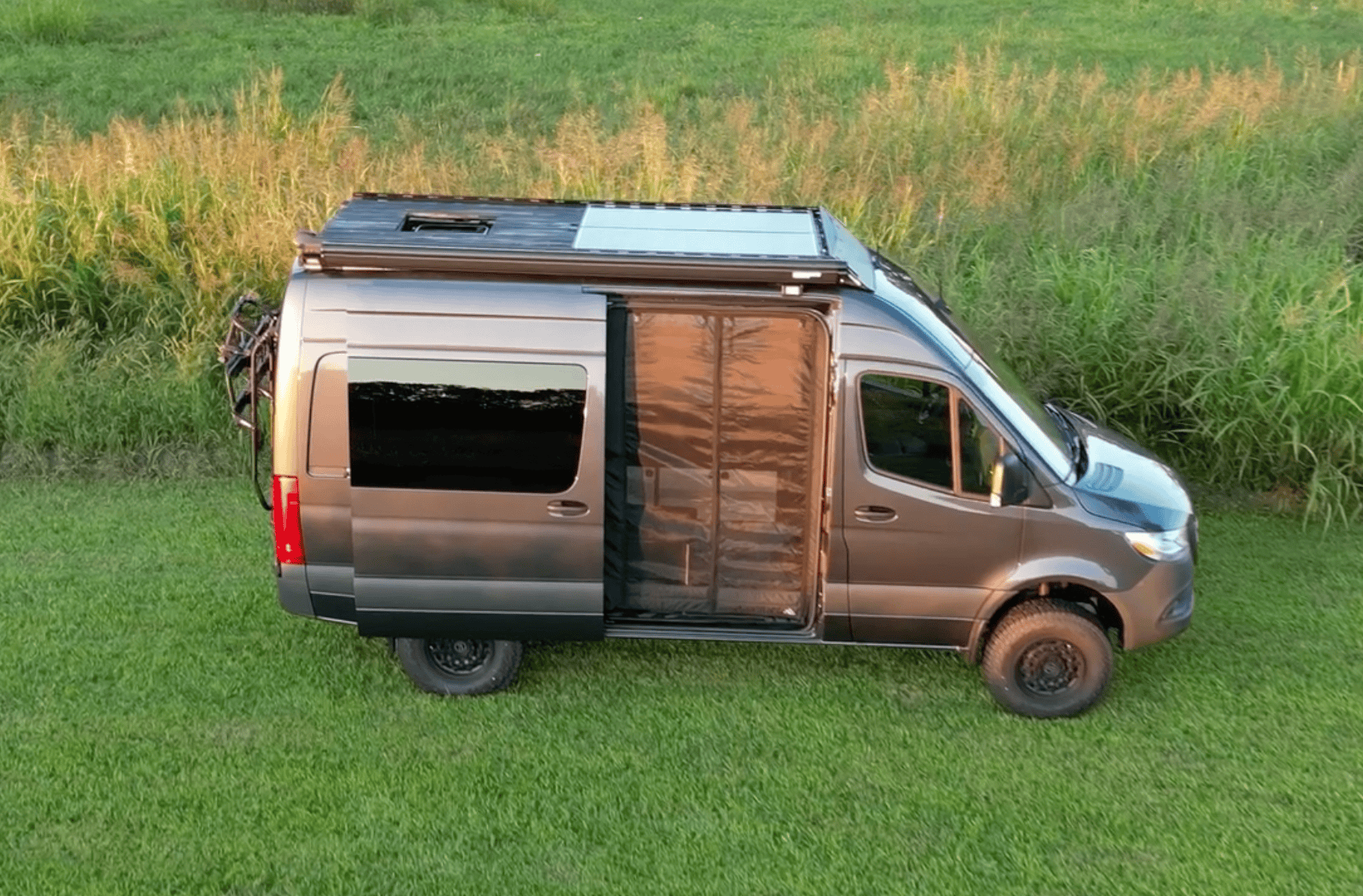

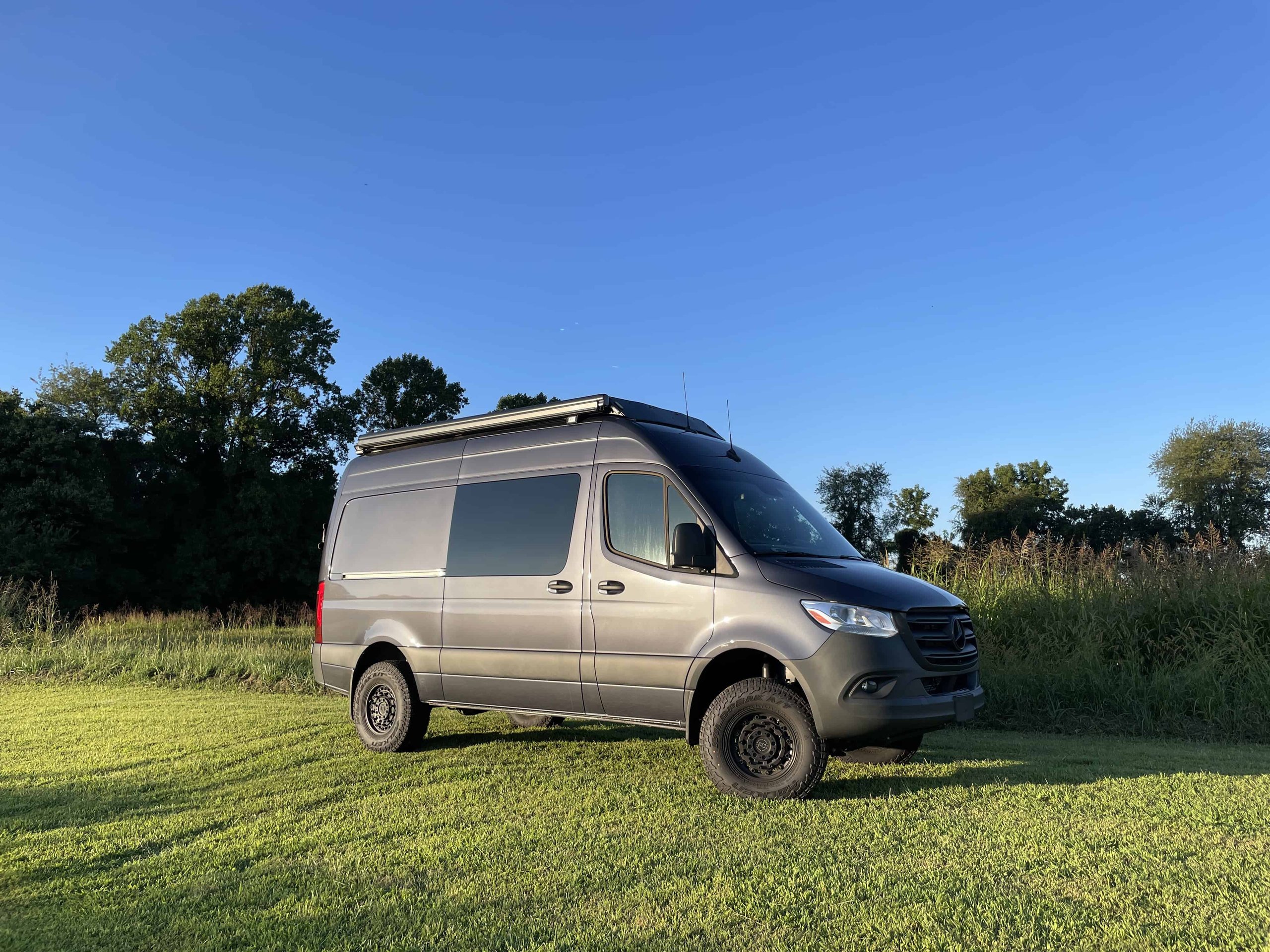

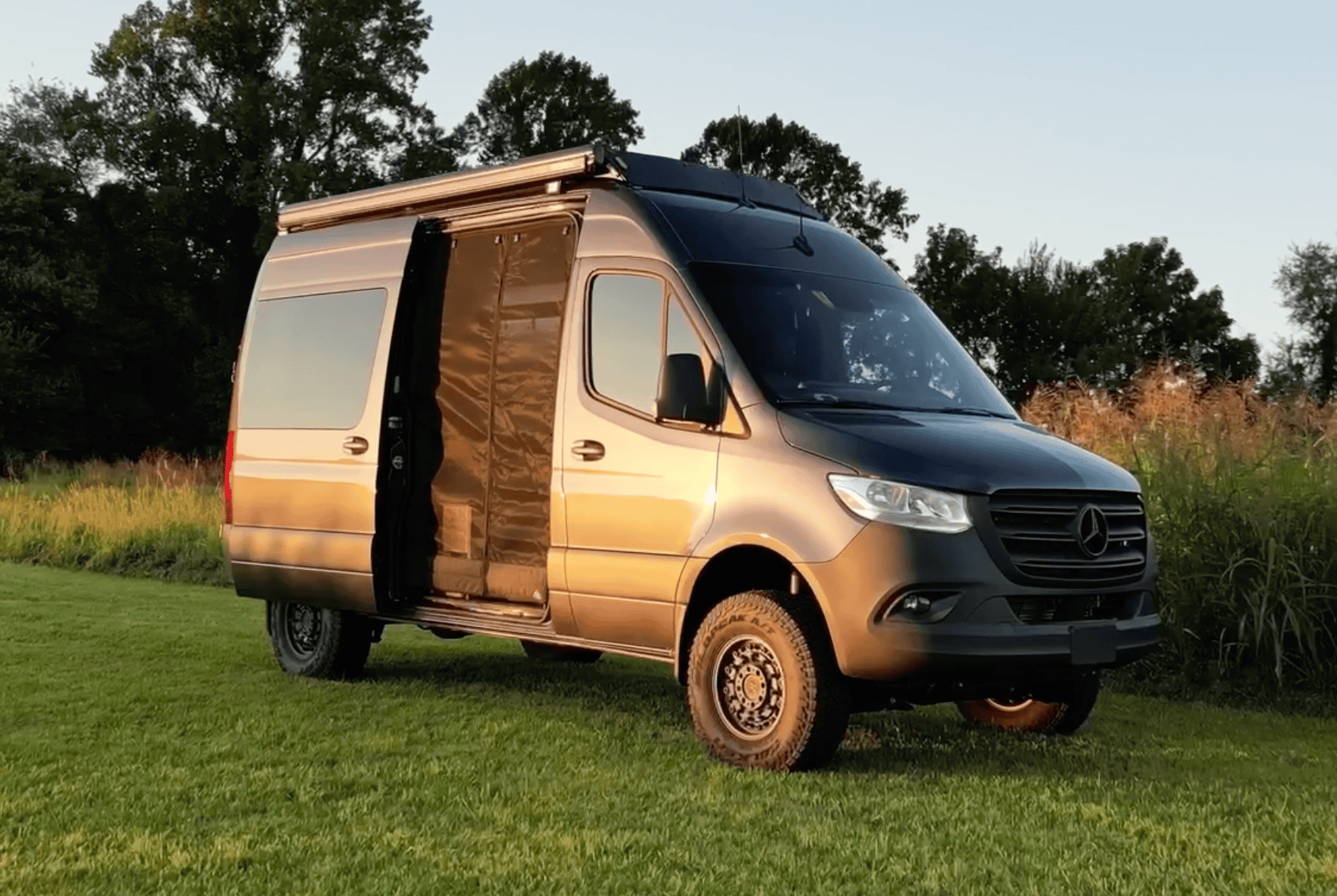

2022 Sprinter 2500 144, 4×4 Diesel – 3000 miles
Off-Grid 4-Season Luxury Camper
4-Wheel Drive w/High/Low Range Transfer Case
Clean title in hand & Ready to Sell – No Liens
…..
Beautiful build with flexible open floor plan, HappiJac electric bed lift, off-grid heat & A/C – ready for your 4 season adventures! This is one of the quietest conversions you will find with extra thought and detail put in to soundproofing. No rattles in this build. Loads of space to stretch out, cozy, easy to drive and very flexible with its spacious, modular layout non-flashy build that won’t jump out to everyone that it is a camper.

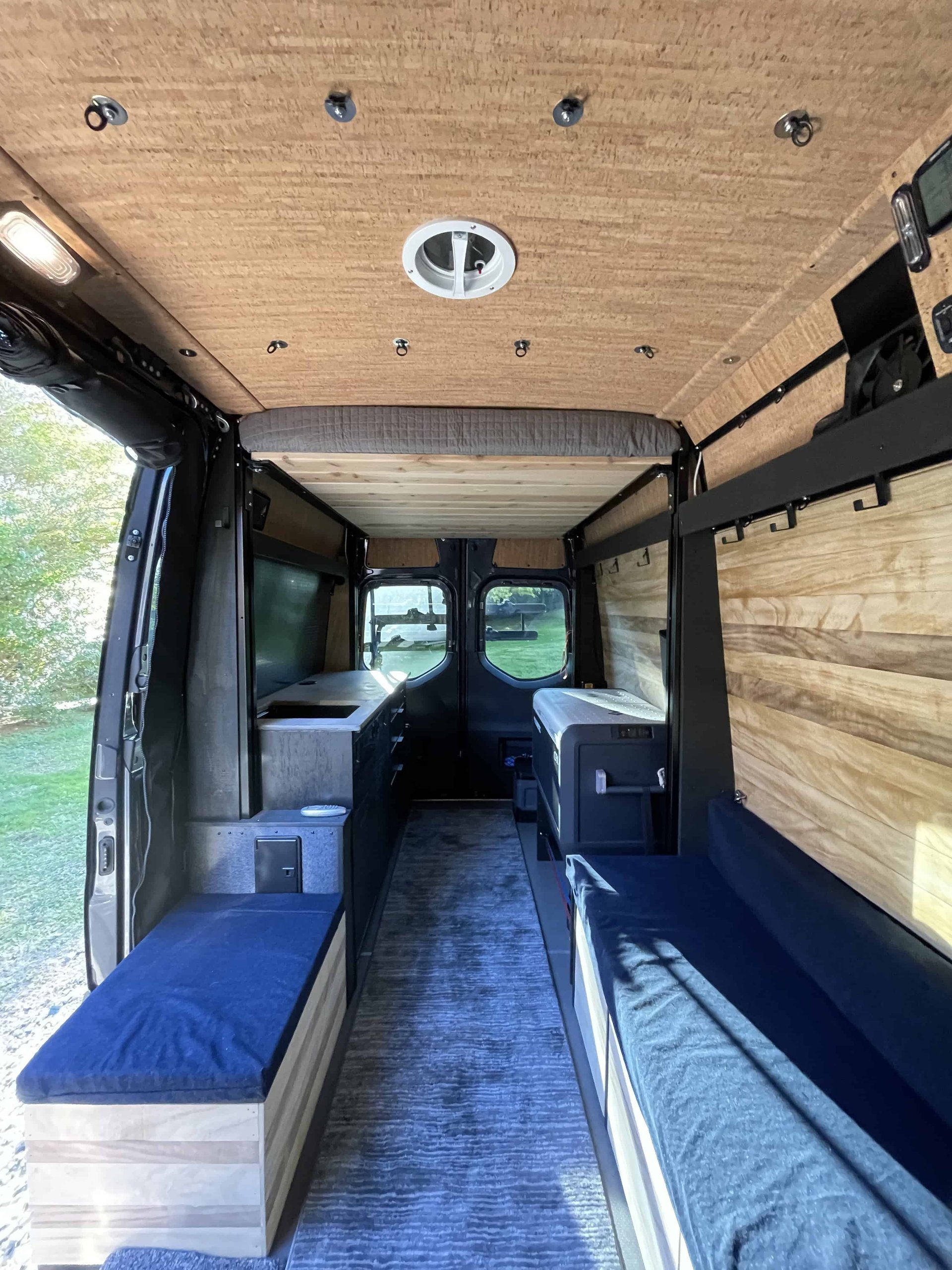

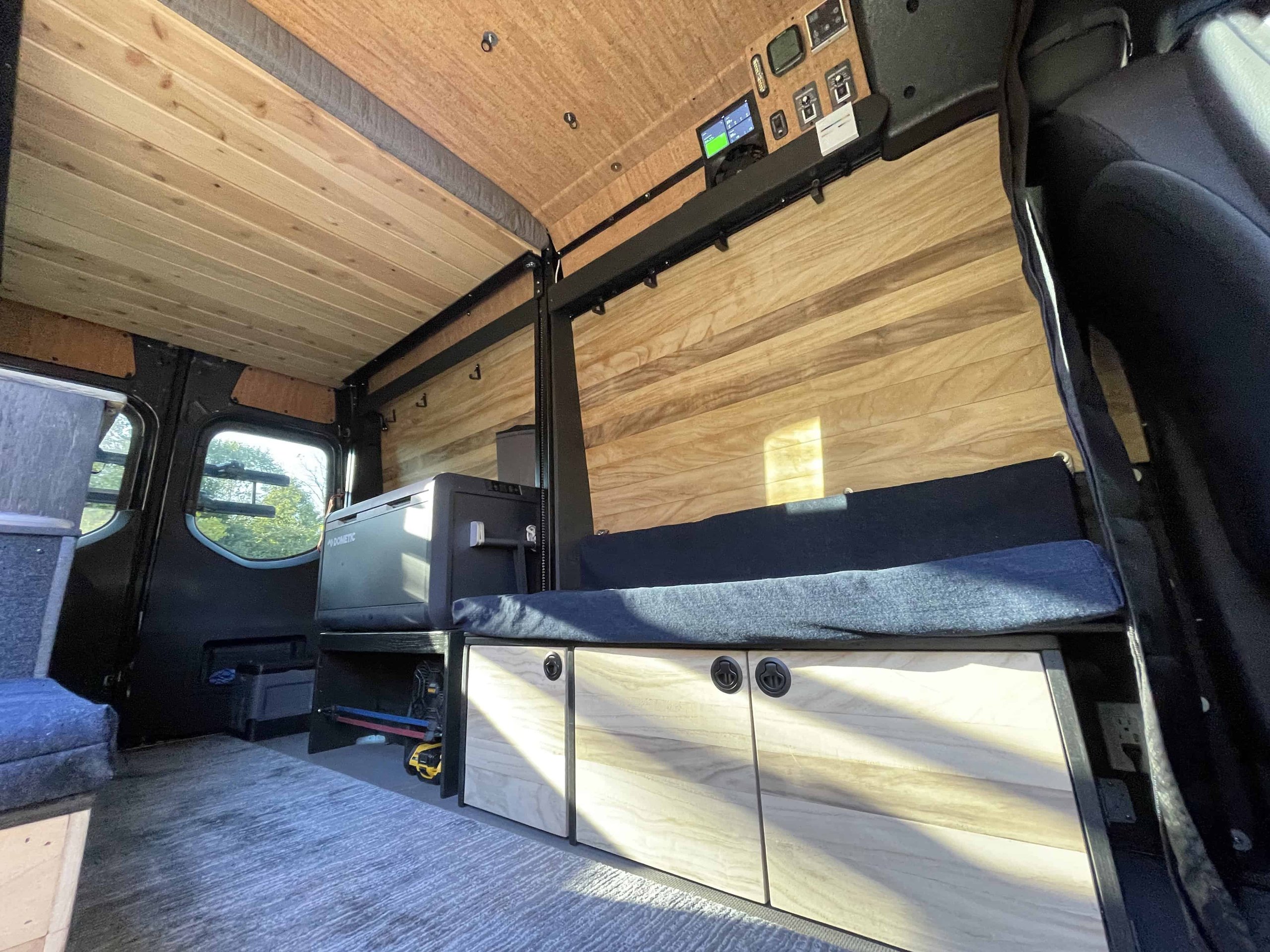

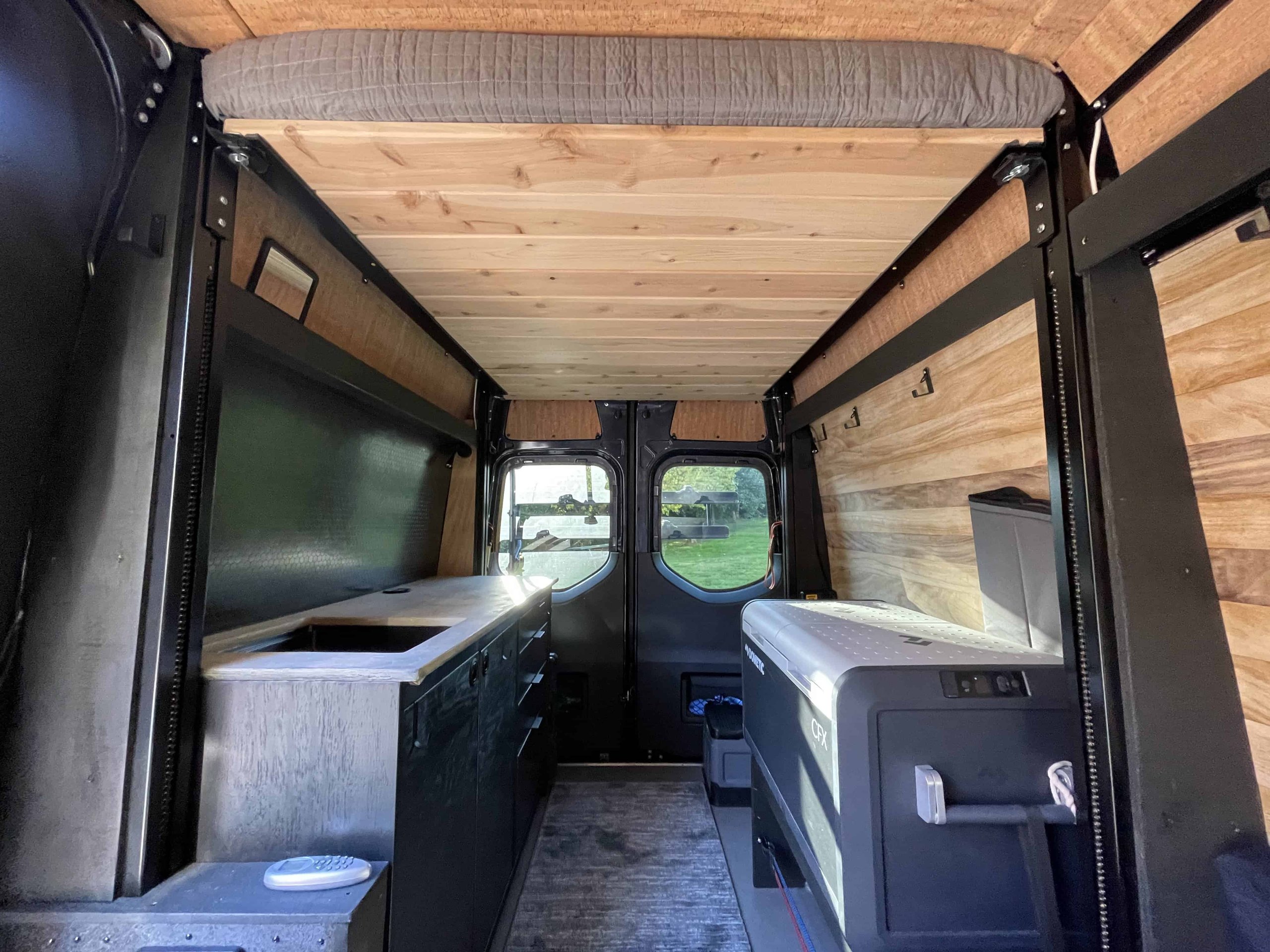

Space optimization includes a 60″ galley kitchen counter doubles as a huge workbench in day mode. There’s a comfortable bench couch for hanging near the sliding door to take in the views, that converts to a second sleeping spot for a guest if needed. A removable hidden shower system inside the sliding door bench, that doubles as a standup sink in the sliding door for outside use and a bench seat. There is an exterior hot/cold water hookup for a shower or hose out the rear doors.

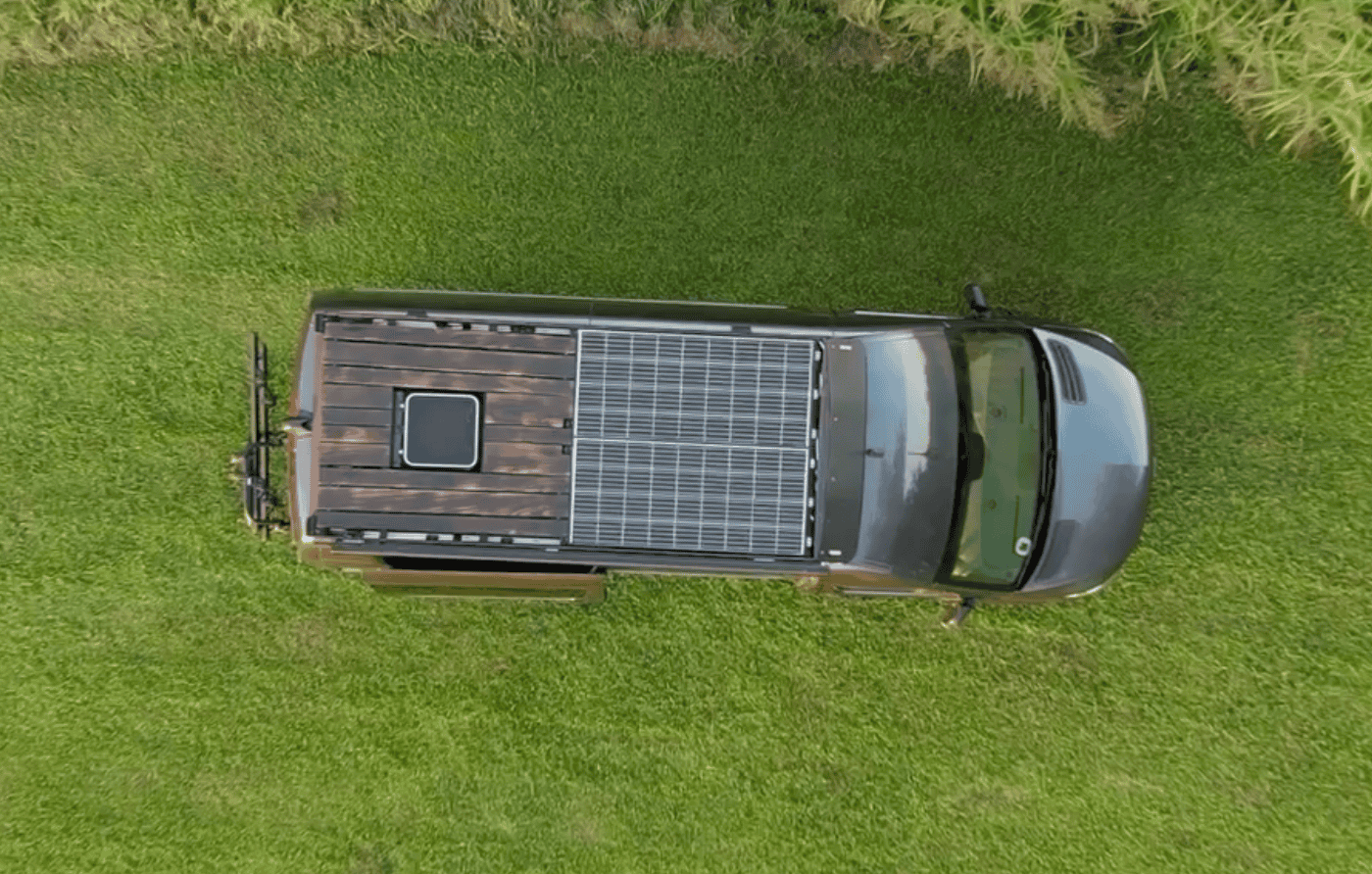

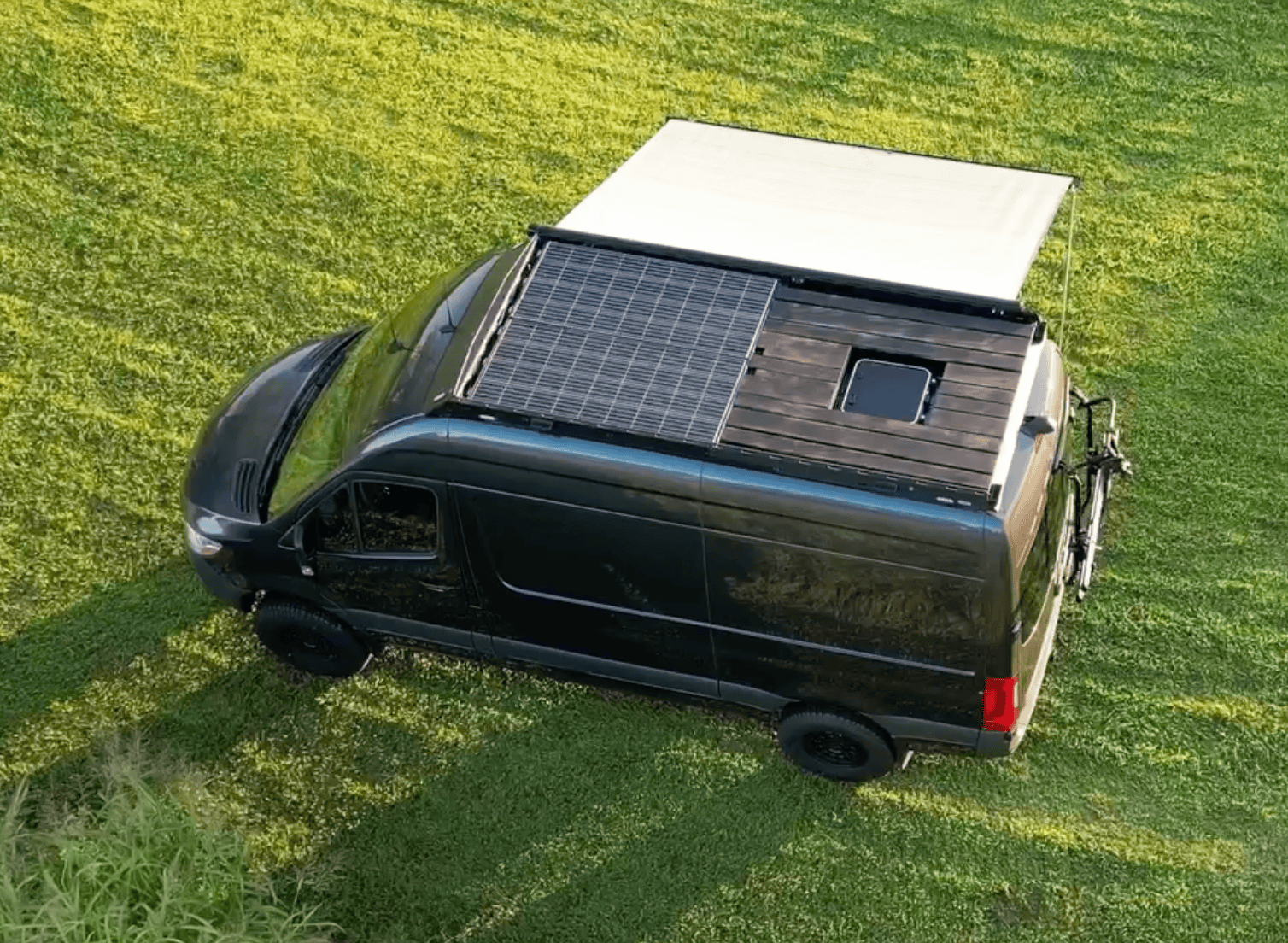

The full size roof rack is maximized for a flat appearance while still having 400 watts of solar that hinge up for extra storage. A flat “shou sugi ban” roof top deck behind the solar panels is accessible from a marine roof hatch and is large enough to sleep on and a Magnus marine deck hatch to access from the interior bed. The entire roof platform is flush so it can still be used to haul gear and the deck can be replaced with two additional 200 watt solar panels if desired.
The van has a 5kw EcoFlow Power Kit universal electrical system with solar, shore power and alternator charging and runs at 48v DC and 12v DC for maximum efficiency. The installed 5kwh lithium battery is equivalent to a 400Ahr 12v system and is plug and play ready for up to two additional 5kw batteries if desired. There are over a dozen 120v outlets inside, 5 interior lighting zones, and exterior flood lights all around and below each individually zoned as well as 360 degree strobe lights outside.
The 9,000 BTU Pioneer Heat Pump provides heat down to 20 degrees and cools efficiently to around 30 degrees below the ambient temperature. An Espar diesel heater provides cabin heat at sub-zero temperatures and will burn ~1 gallon in 24 hours and is set up on a 7-day timer. You could literally keep the van at a very comfortable 75 degrees all winter regardless of outside temps.
This Sprinter was special ordered with a custom spec sheet for this build. The conversion build quality is definitely a few notches above the mass produced, Revels, Thors and others out there and an incredible value at this price.
Specs:
3.0L V6 Turbo Diesel
7-Speed Transmission
GVWR 9,050lbs
PSM (Parametric Special Module)
Axle Ratio 3.923
24.5 Gallon Fuel Tank
Rear Doors 180-Degree Opening
4×4-High Range T-Case with Low Range
Downhill Speed Regulation for 4×4
3rd Generation SCR Emission Control System, DEF
CONVENIENCE:
Keyless Entry
Push Start
Cruise Control
Heated Leather Driver Comfort Seat
Heated Leather Passenger Comfort Seat
Electrically Heated Windshield
SAFETY:
4-Wheel ABS
4-Wheel Disc Brakes
Tire Pressure Monitoring System (TPSM)
Hill Start Assist
Crosswind Assist
Headlight Assistant
Foglights w/cornering lamps
Airbags (Driver & Passenger)
Window Airbags (Driver & Passenger)
Thorax-Pelvis Side Airbags (Driver & Passenger)
Active Brake Assist
MAINTENANCE:
2-Year/up to 20,000 Mile Maintenance Interval
PAINT, UPHOLSTERY, TRIM:
7755 Tennorite Grey Metallic
VF6 Leatherette Black Seats
COMFORT:
Havelock Wool Insulation
Kilmat Sound Dampening in all body panels
MLV (Mass Loaded Vinyl) floor insulation
Second Skin Luxury Liner Soundproofing
Microcell Floor Insulation
Wooden Floor w/removable rugs
Pawlonia Wood Paneling
Cork Headliner & Upper Body Panels
Magnus Roof Hatch 16”x16”

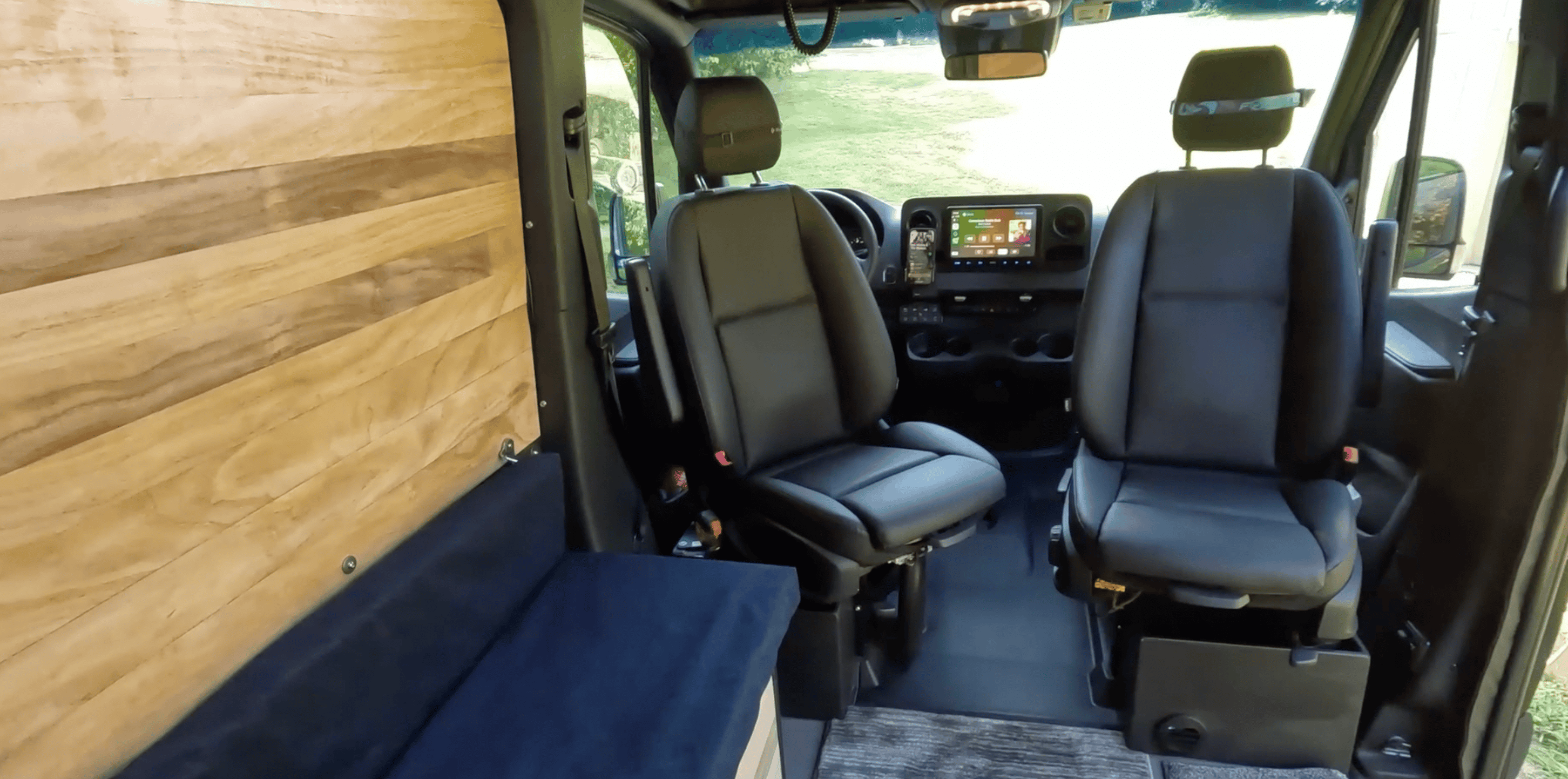

Scopema Swivel Driver’s Seat
Scopema Swivel Passenger Seat
HEATING, AIR CONDIITIONG & VENTILATION
Espar D2S2L Diesel Furnace
7-day timer
Efficiency burns < 1 gal/24 hours
High-altitude kit
Operates in sub-zero temperatures
Pioneer under bench Heatpump/Air Conditioner w/remote
Runs off on-board electrical system
Cools for 6-7 hours on 100% battery charge
Heats down to ~20 degrees
Wireless Remote Control w/sensor
Magnus Marine Roof Hatch (ventilation & roof access)
Removable ventilation fan
Cabin Security Screens
Variable Speed Reversible Vanair Roof Ventilation Fan
Removable Bugout Sliding Door Screen
PLUMBING
Black Stainless Steel Undermount Sink
Fold Flat Faucet
2.5 GPM 12v Shurflo Water Pump w/pressure tank
Winterization blowout valve to clear water lines
20 Gallon Freshwater Tank
10 Gallon Gray Water Tank w/3 position diverter valve
Bosch 120v 2.5 gallon hot water heater (20 min heat time)
PEX Plumbing lines w/Uponer ProPex expansion fittings

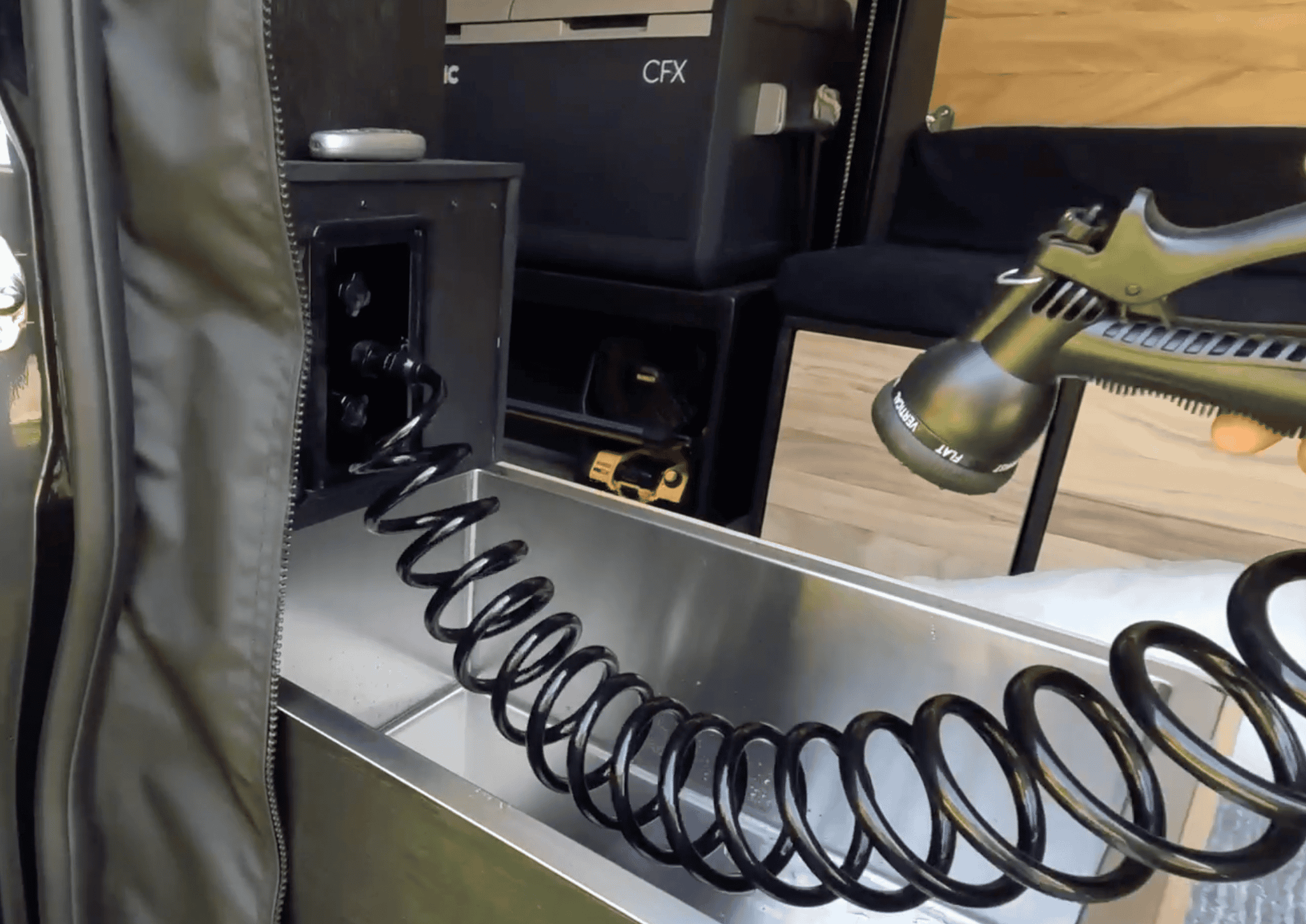

Hidden Stainless Steel Shower
Hidden shower control panel
Removable shower hose
Removable spigot
Doubles as outdoor standing sink @ sliding door
Doubles as storage bench/table w/cushion
Outside Hot Cold Water w/hose & spigot
ELECTRICAL

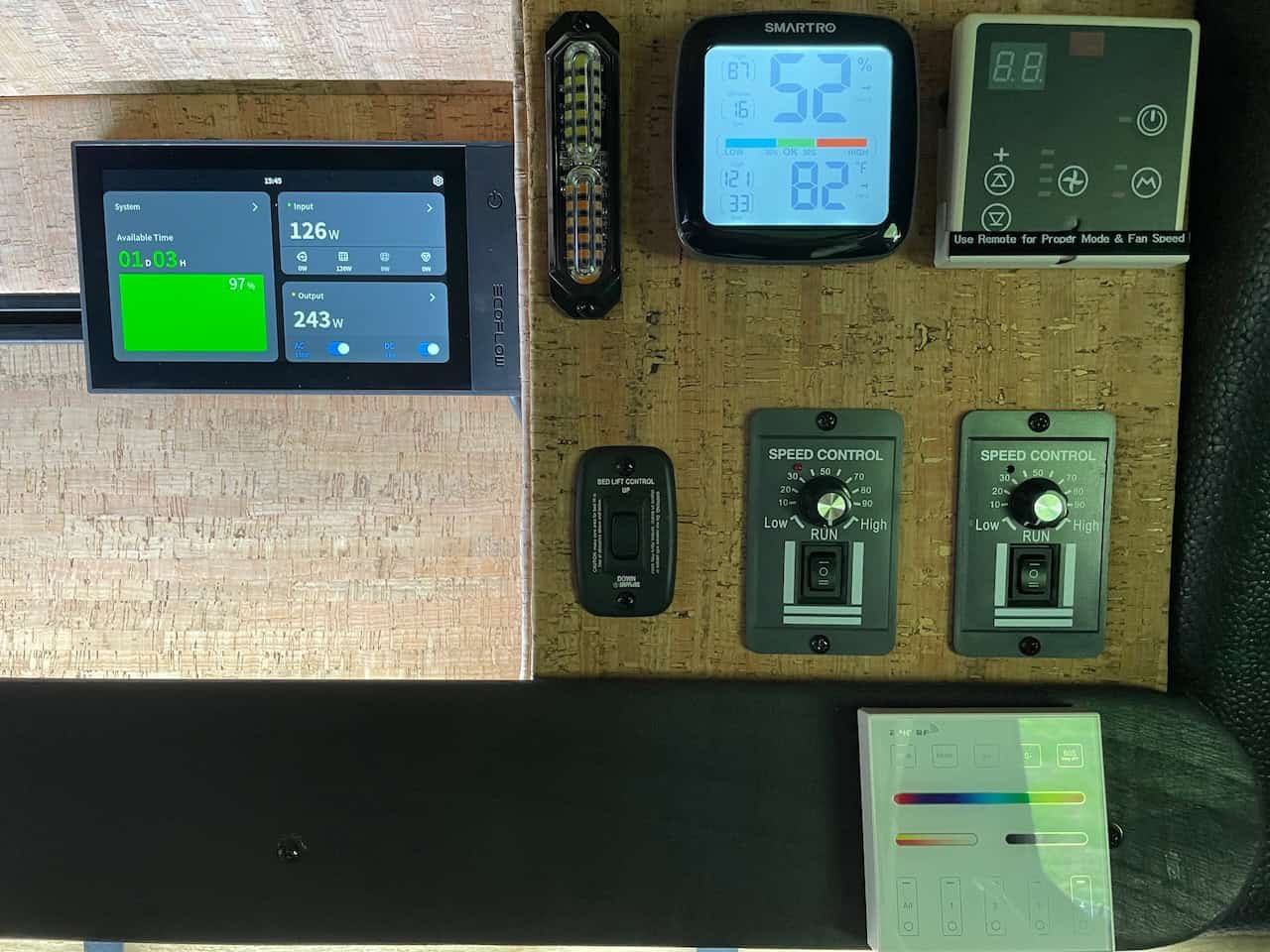

EcoFlow 5kw Power Kit w/console and Bluetooth
All-in-one system charger, 3750 watt inverter (7000 surge), solar charge controller, alternator charging
5,120 Watt battery @48 volts – (400 Amp Hours @ 12v)
Plug and play up to 2 additional 5120 watt hr batteries for over 1200 Amp Hours of Power (~ $5,000/battery)
Expandable to 15kw
400 watts of Rooftop Solar via 2, Bouge RV 200 Watt panels
Expandable to 800 Watts
Shore Power
120 Volt Shore Power w/GFCI red light indication
Exterior 120v Power from Van’s Power System
12+ On-board 120v outlets
16+ On-board USB outlets
Combined DC/AC Fuse/Breaker Box
Starting Battery Maintainer via solar
Selectable battery switch for accessories
Alternator Charging of EcoFlow System

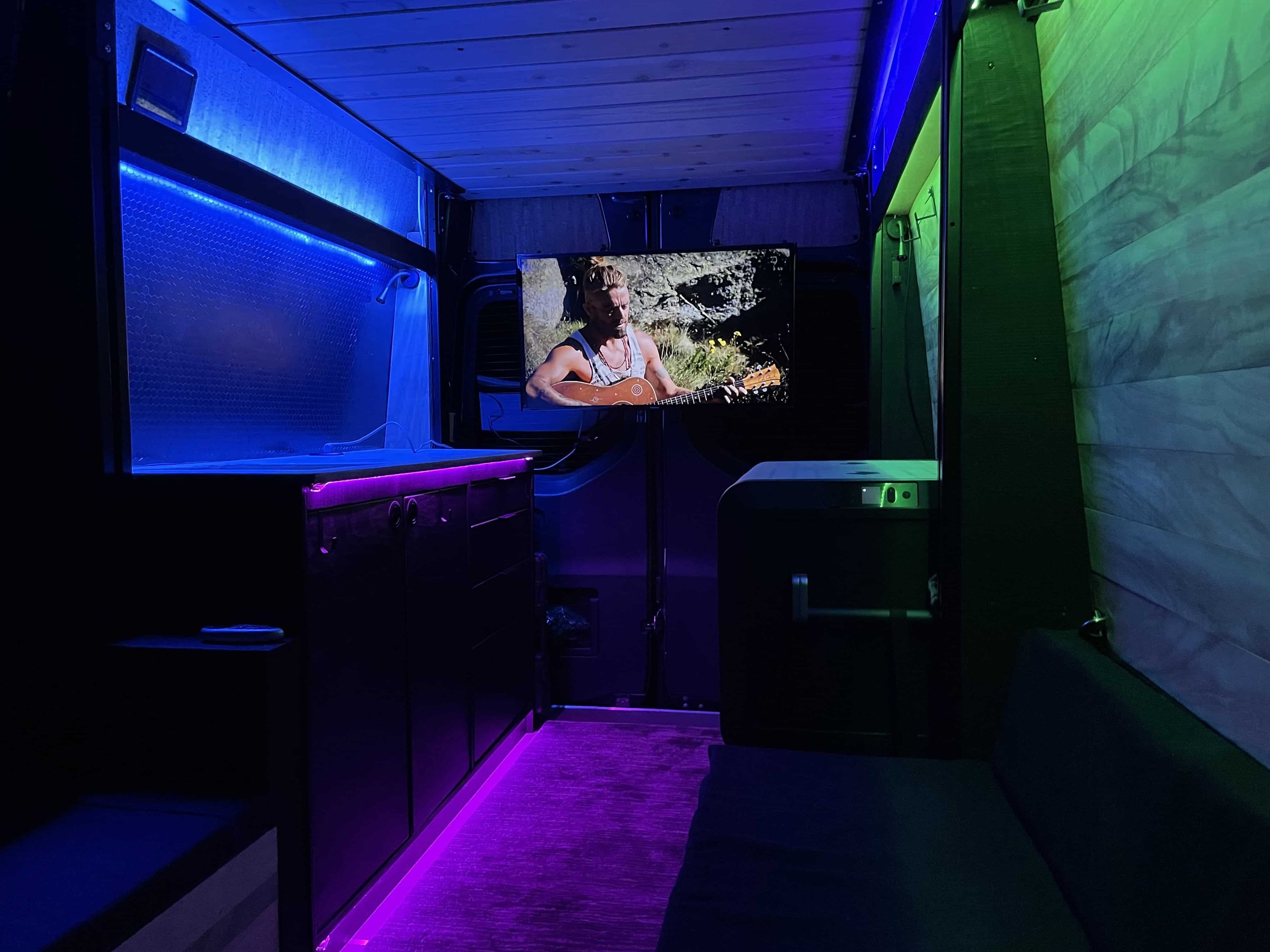

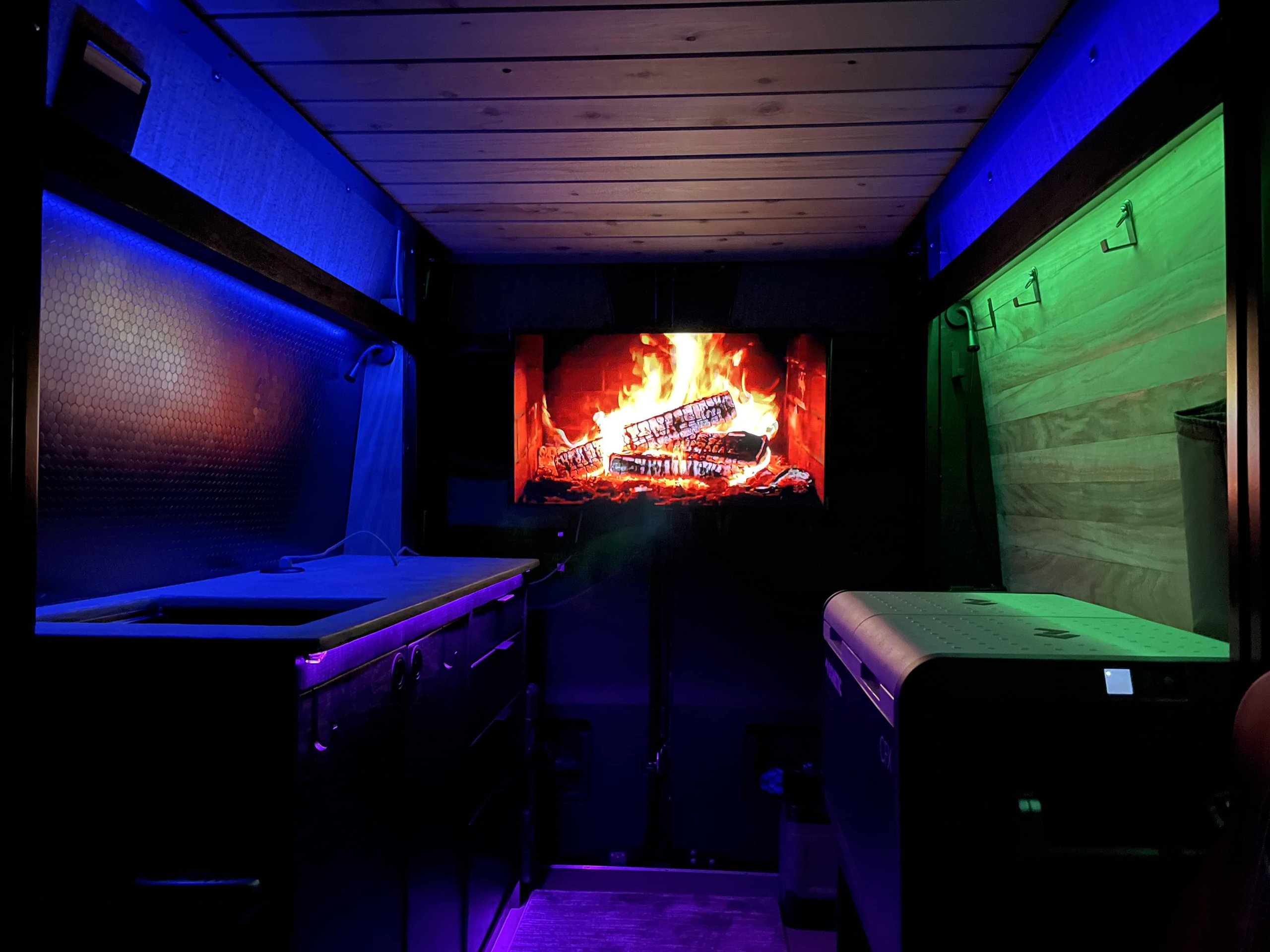

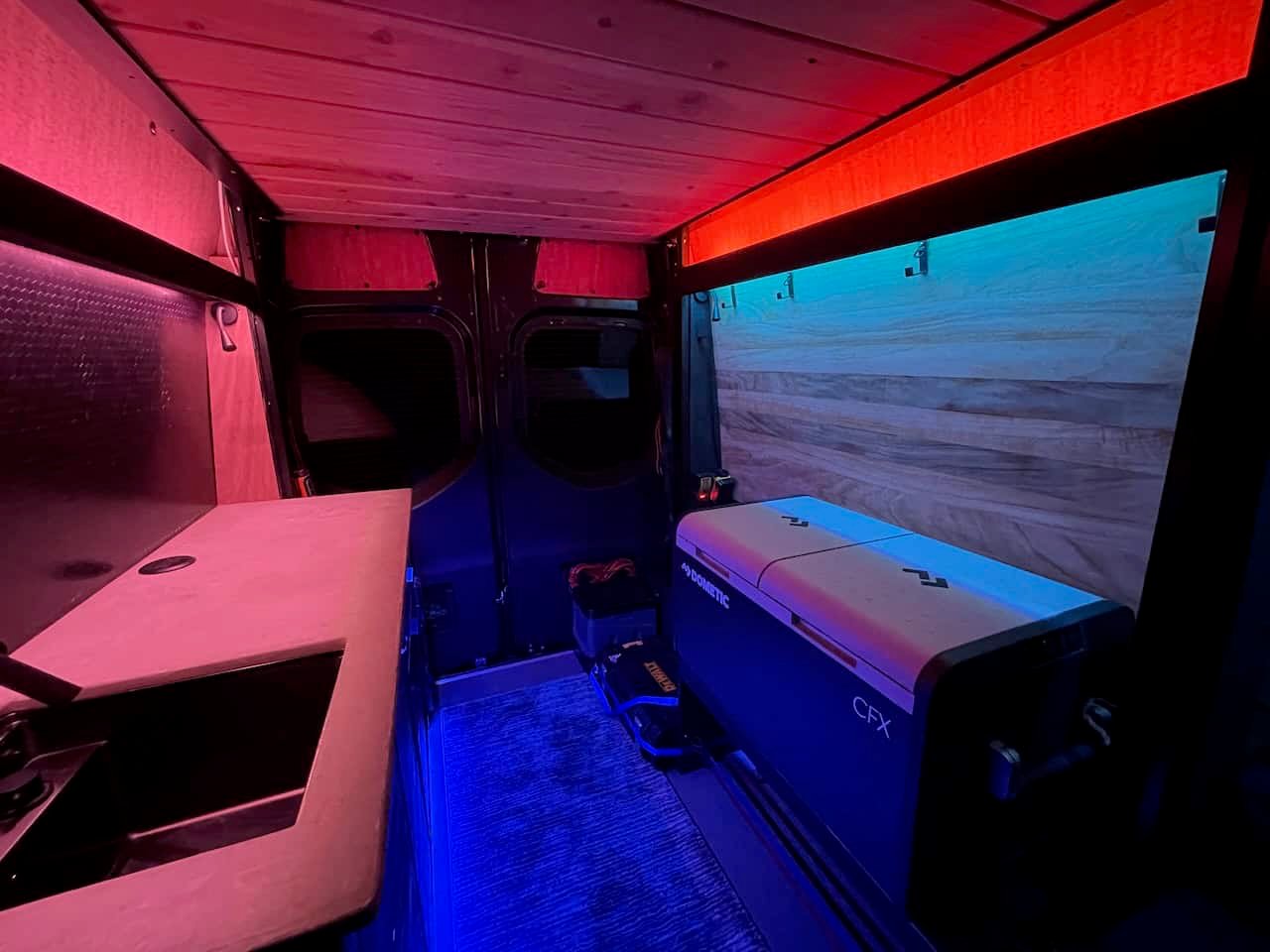

4-Zone LED Lighting w/wireless remote
CAMPING CONVERSION

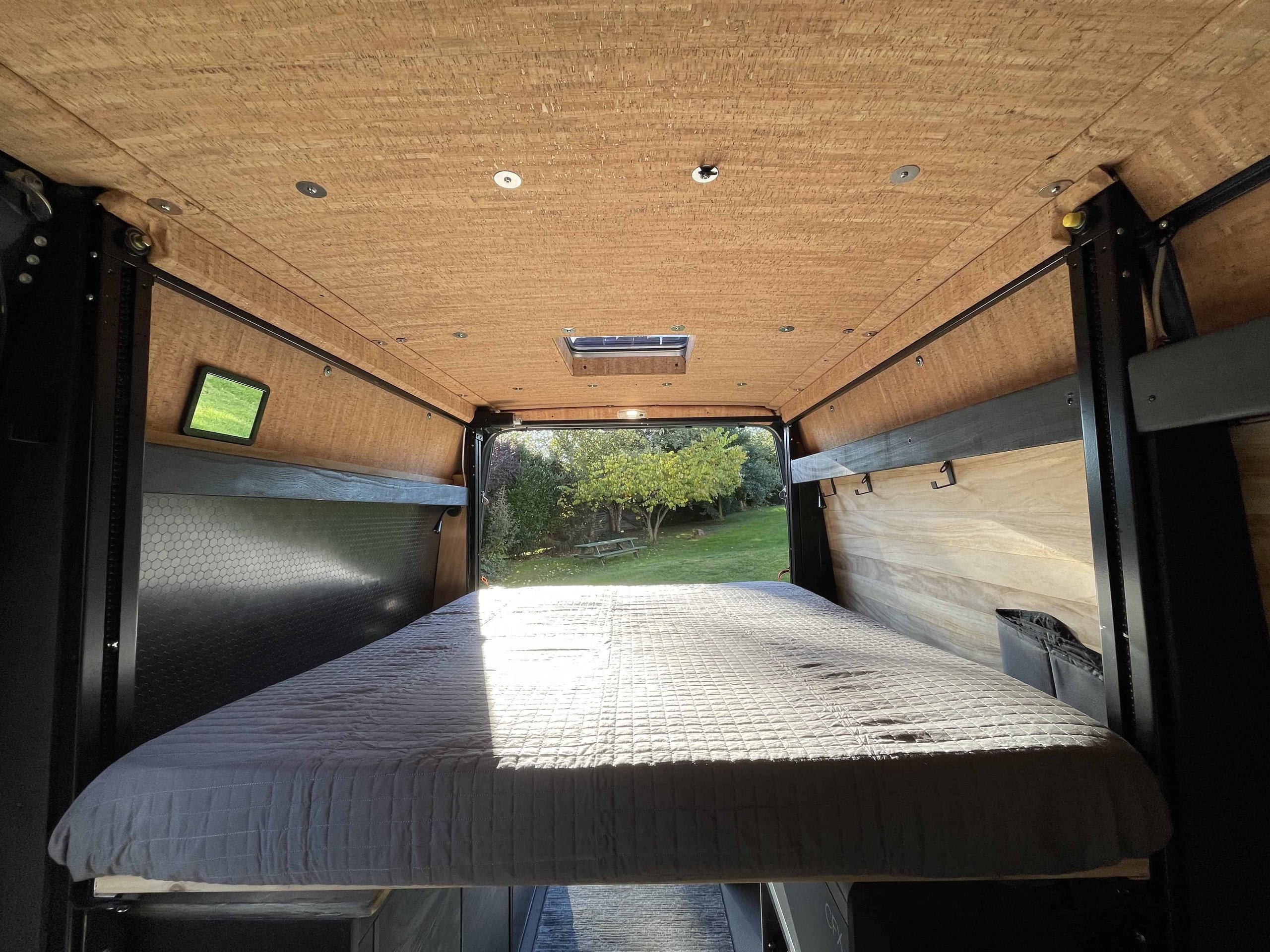

Main Bed

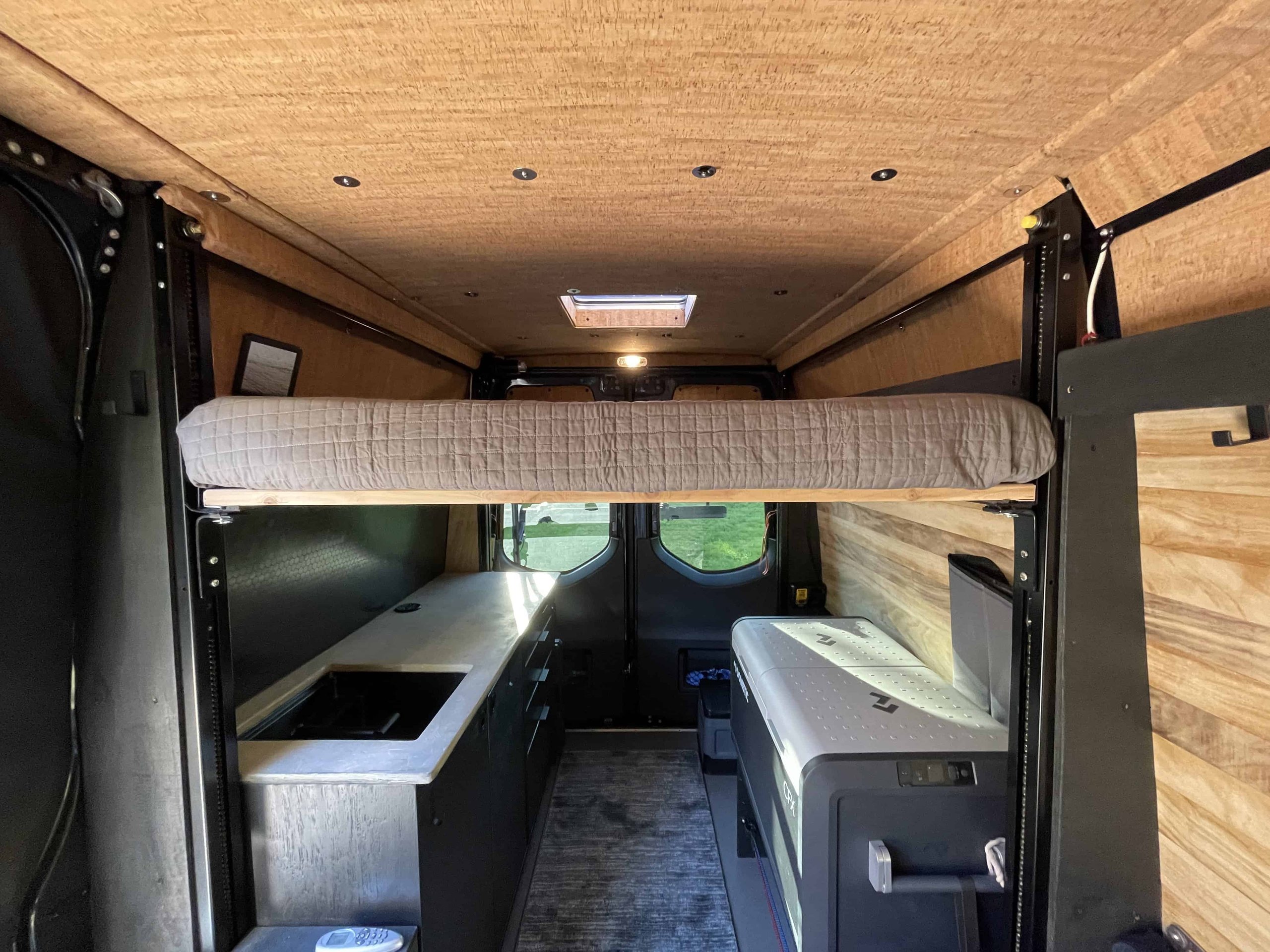

HappiJac BedLift
Organic Latex Mattress

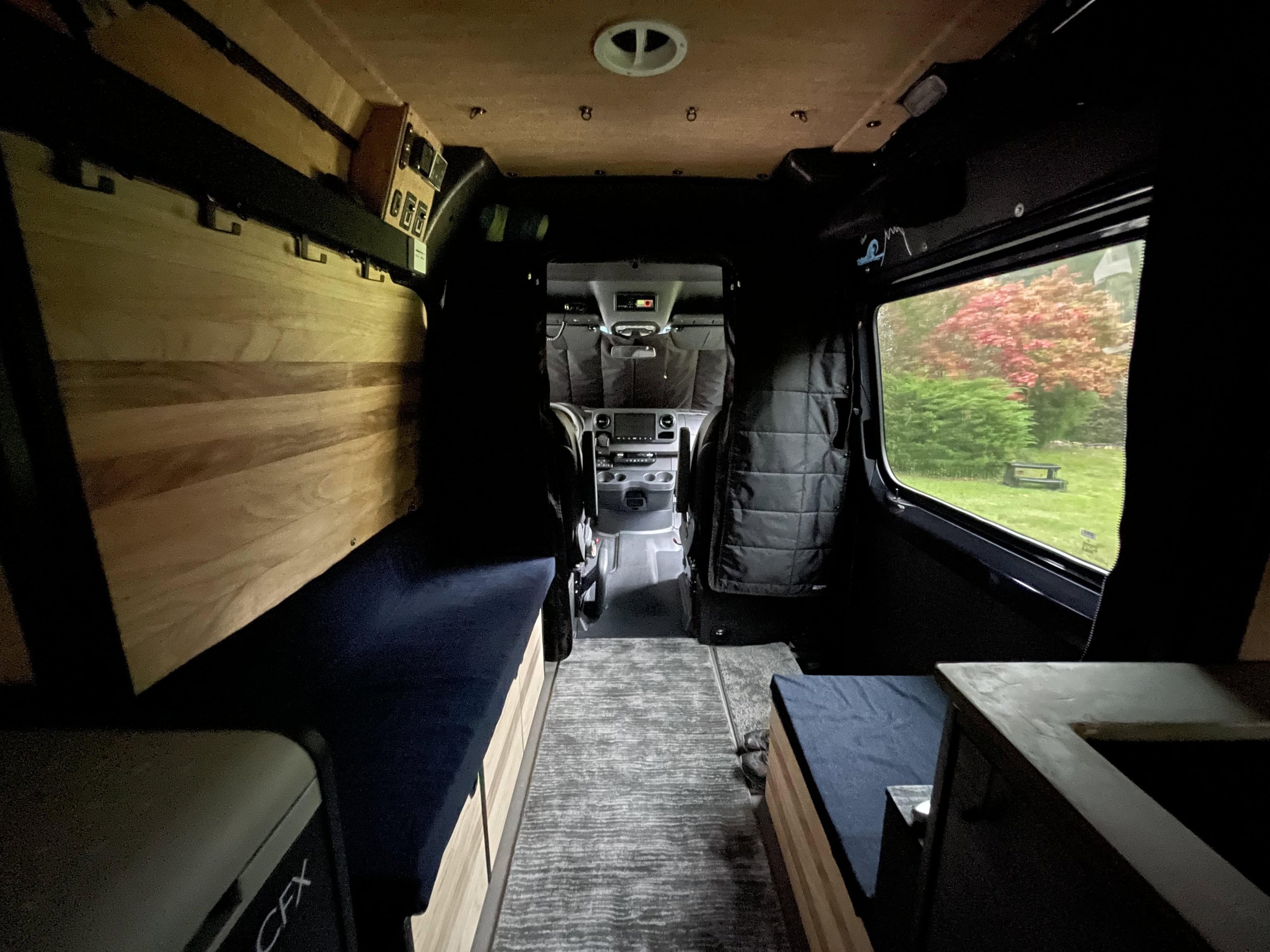

Convertible Couch
Converts to single bed
Organic Latex Mattress
Denim Covered Cushions
Door Seat
Hammock Hangers Main Sliding Door
Insulated Cab Divider
Insulated Window Covers
Rear Cargo Door Awning Windows w/Screens
Full bug screen for sliding door
EXTERIOR
Outdoor Hot/Cold Water
Flatline Van Co Roof Rack
2” Receiver Hitch

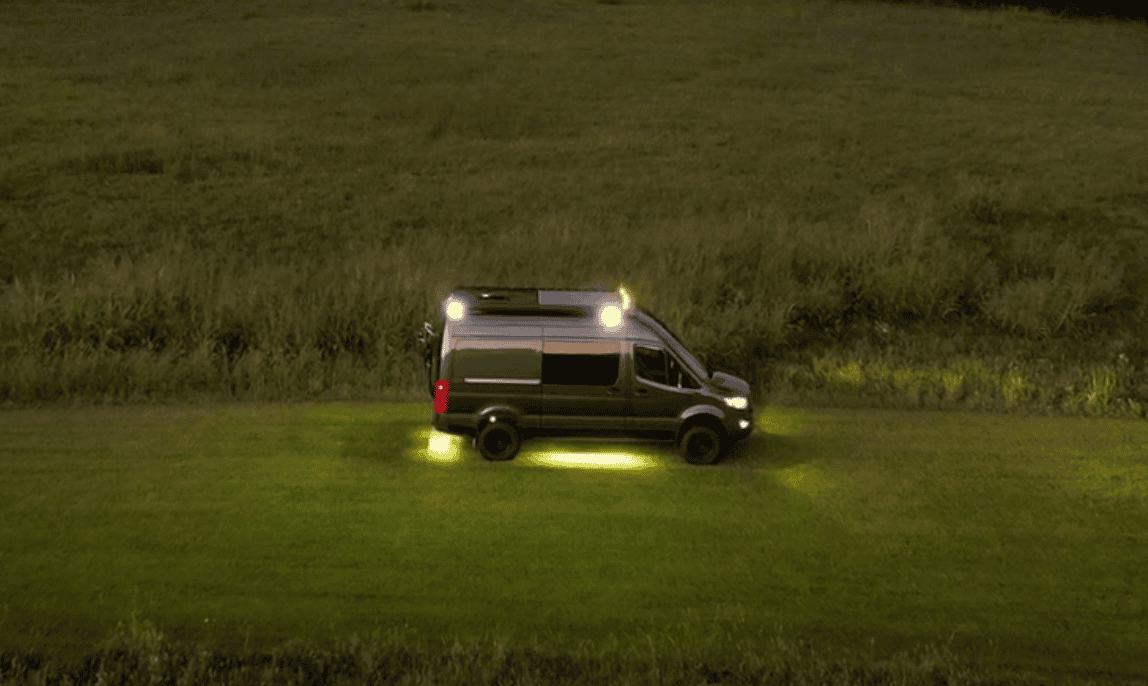

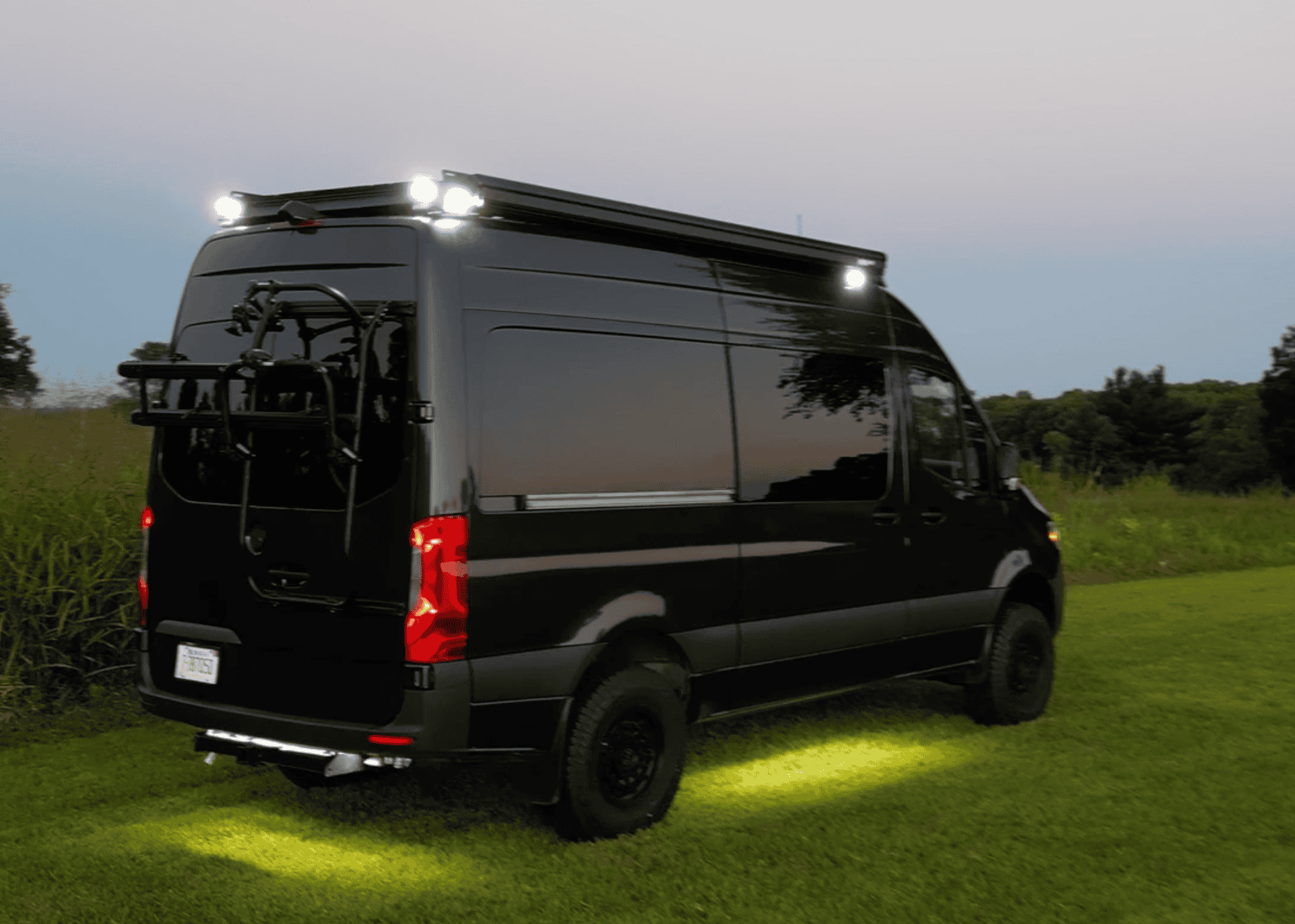

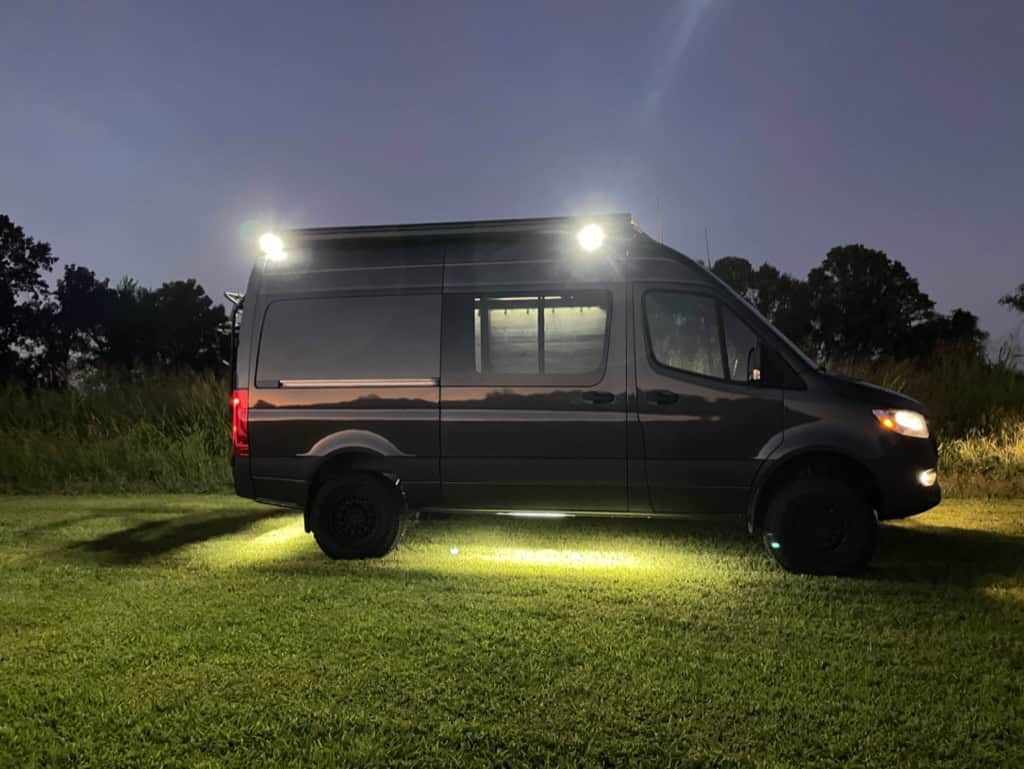

Undercarriage Lighting
Thule Elite Van XT Bike Rack
Exterior Night Lights
Wood Plank Roof Deck
ENTERTAINMENT

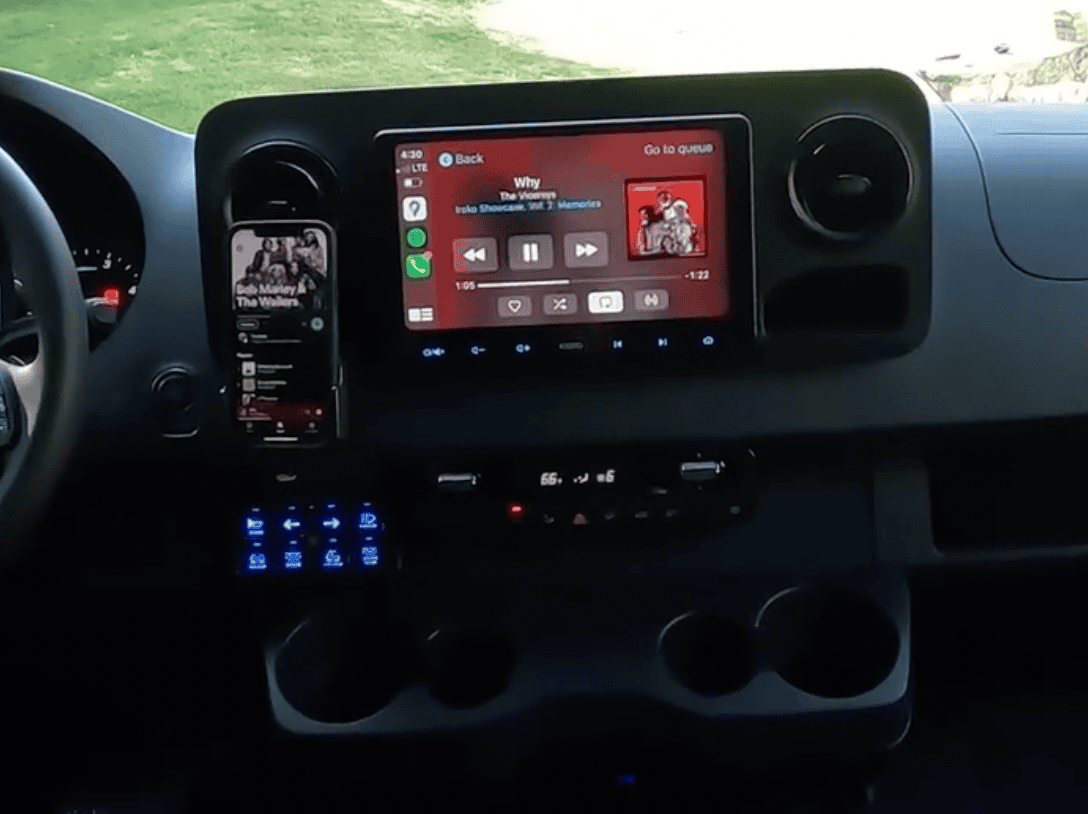

10” Touchscreen – YouTube & Apps anytime
Android Auto
Apple CarPlay (Wired & Wireless)
Navigation
OBD2 Diagnostics
360 Cameras (always on)
ACCESS & SECURITY
Remote Start from Keyfob
Remote Start from App (anywhere in world)
Full Blackout Window Covers
High Idle Kit (adjustable idle speed)
