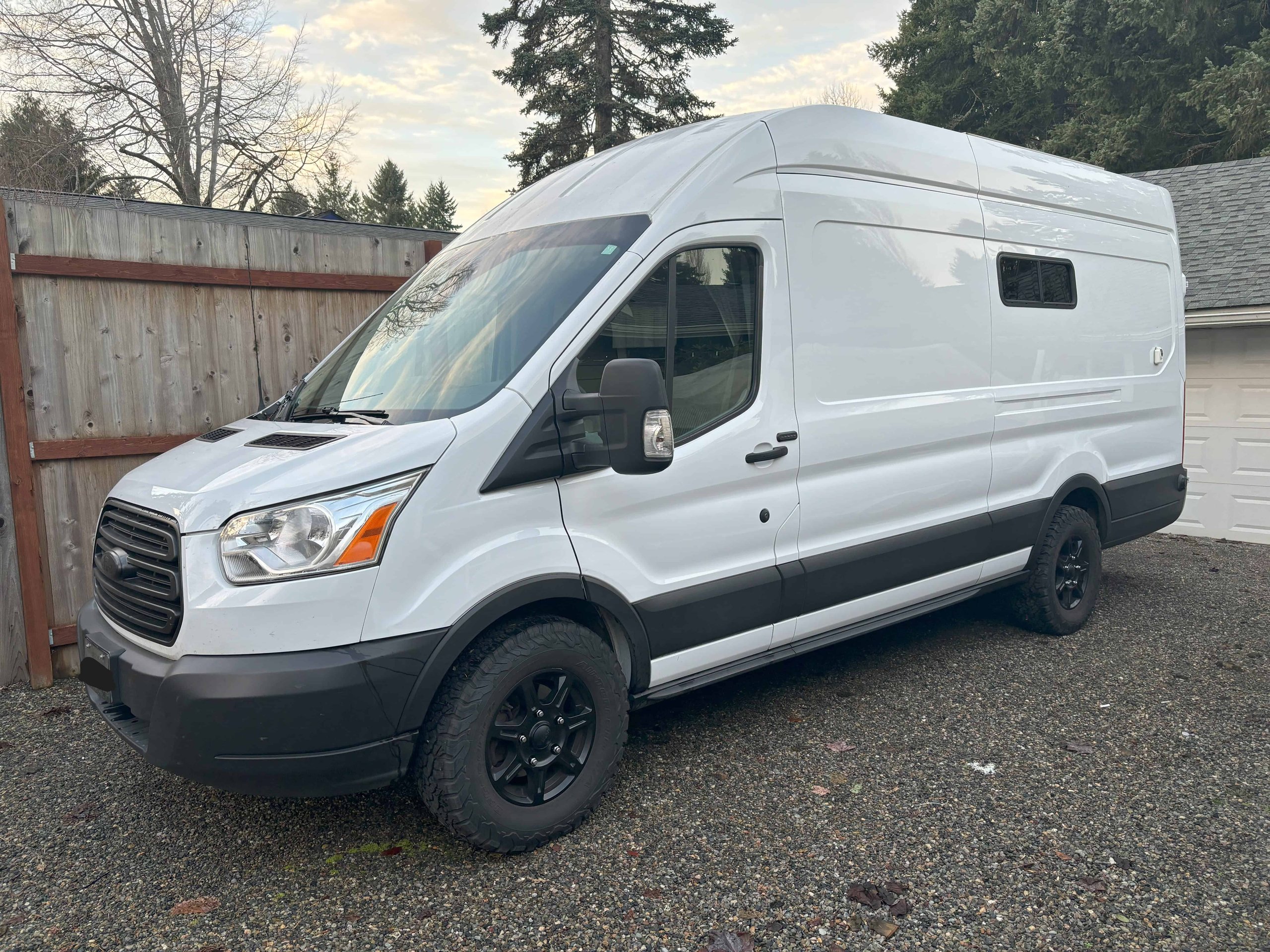

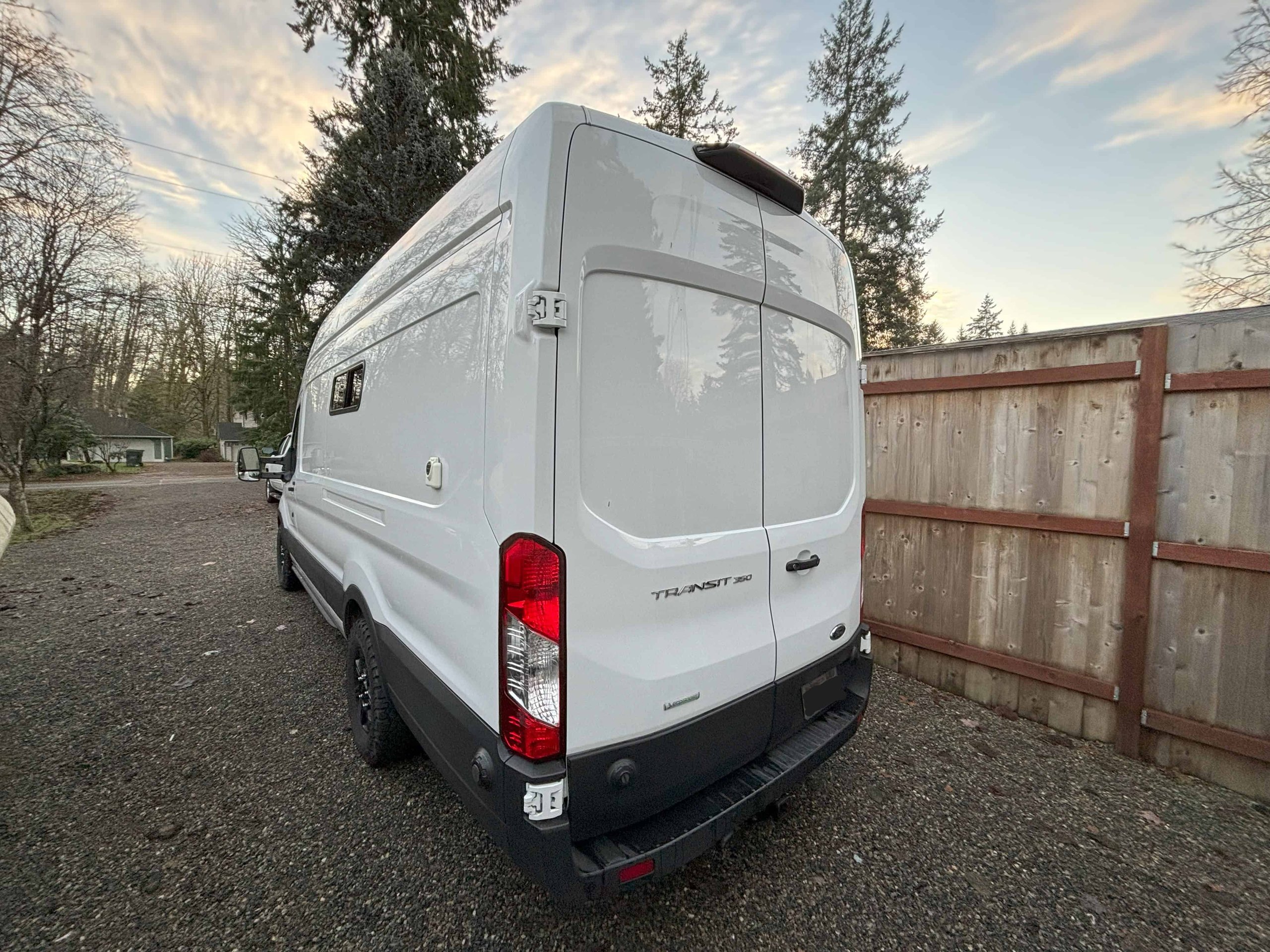

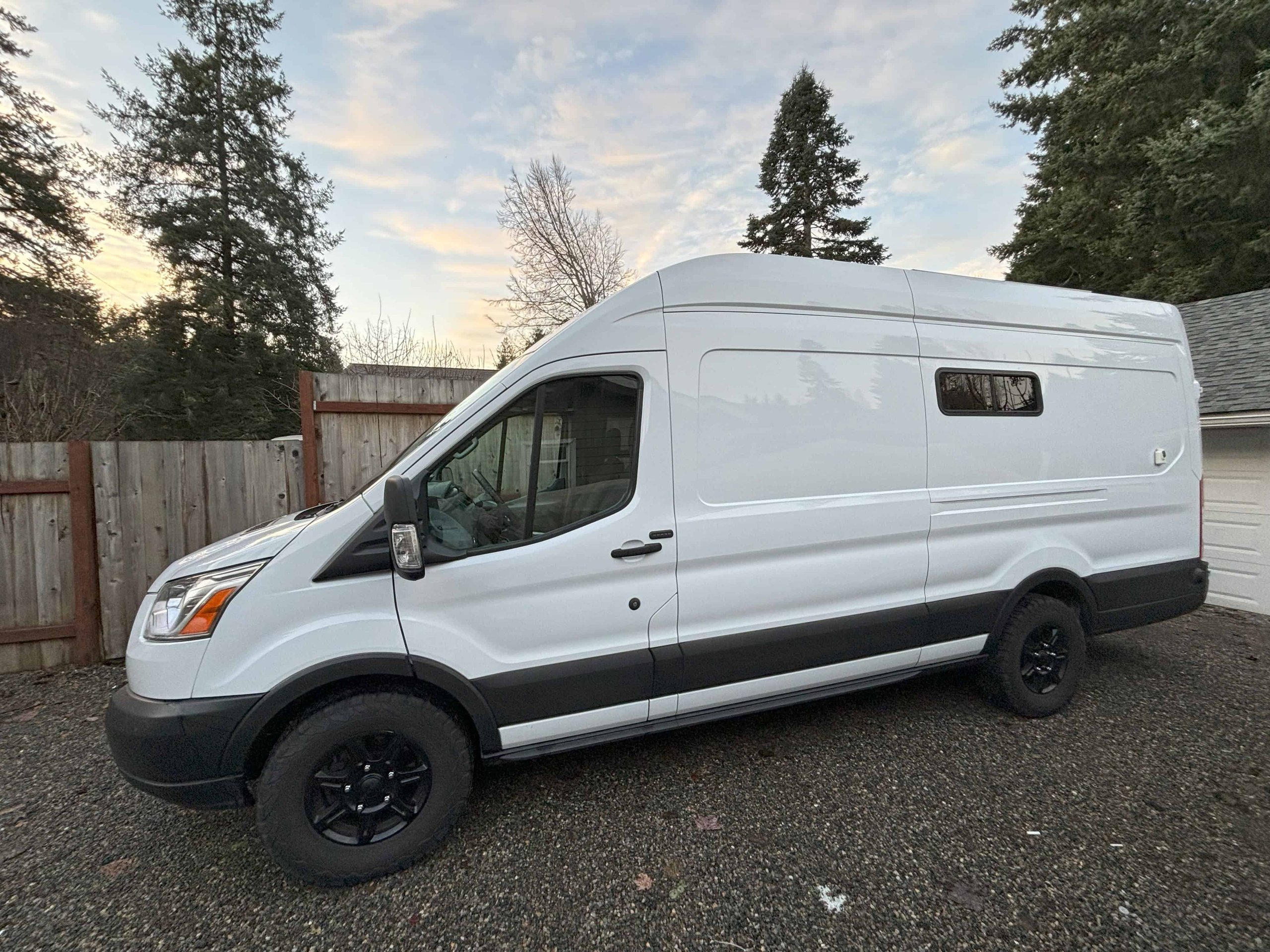

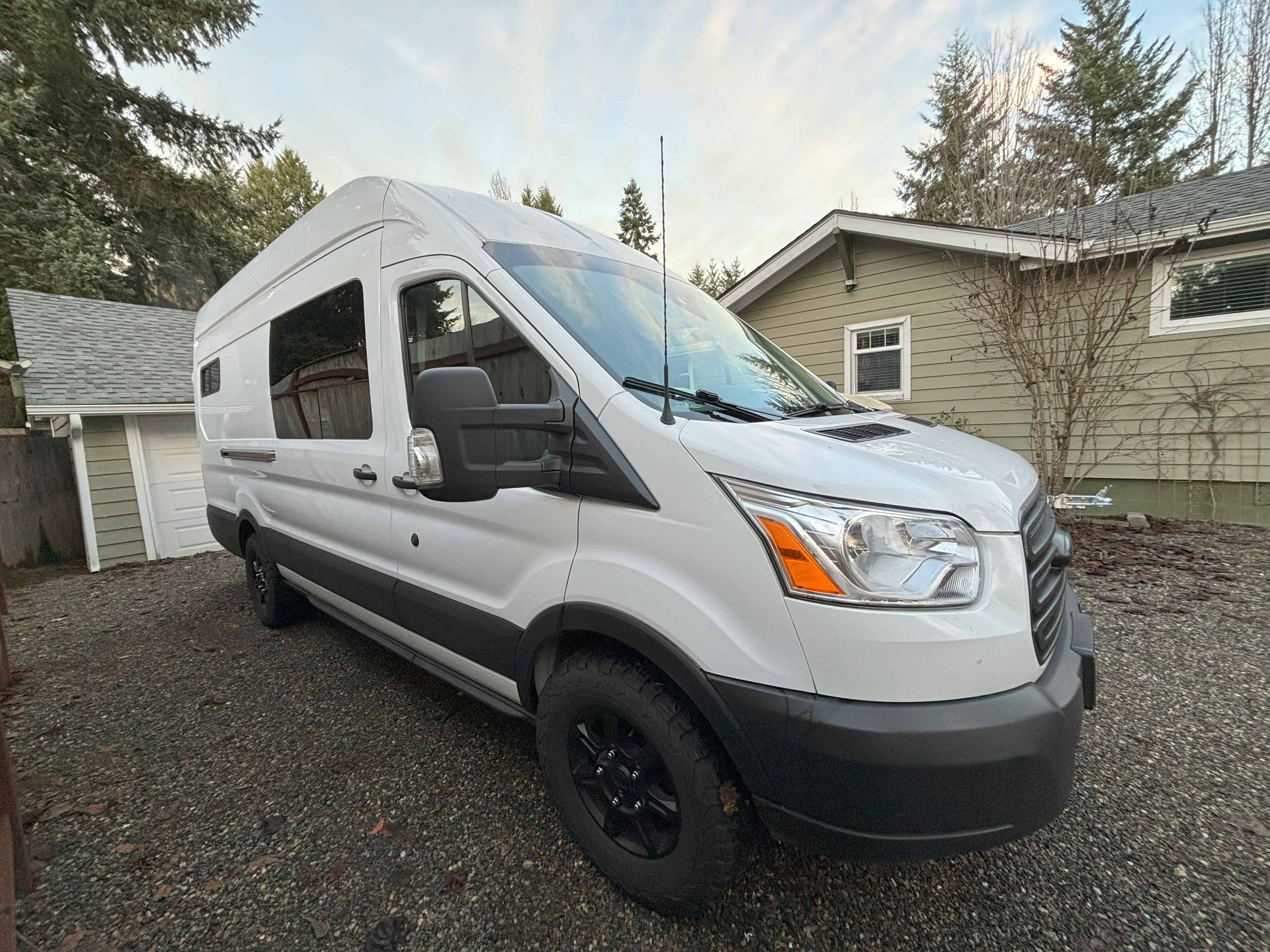

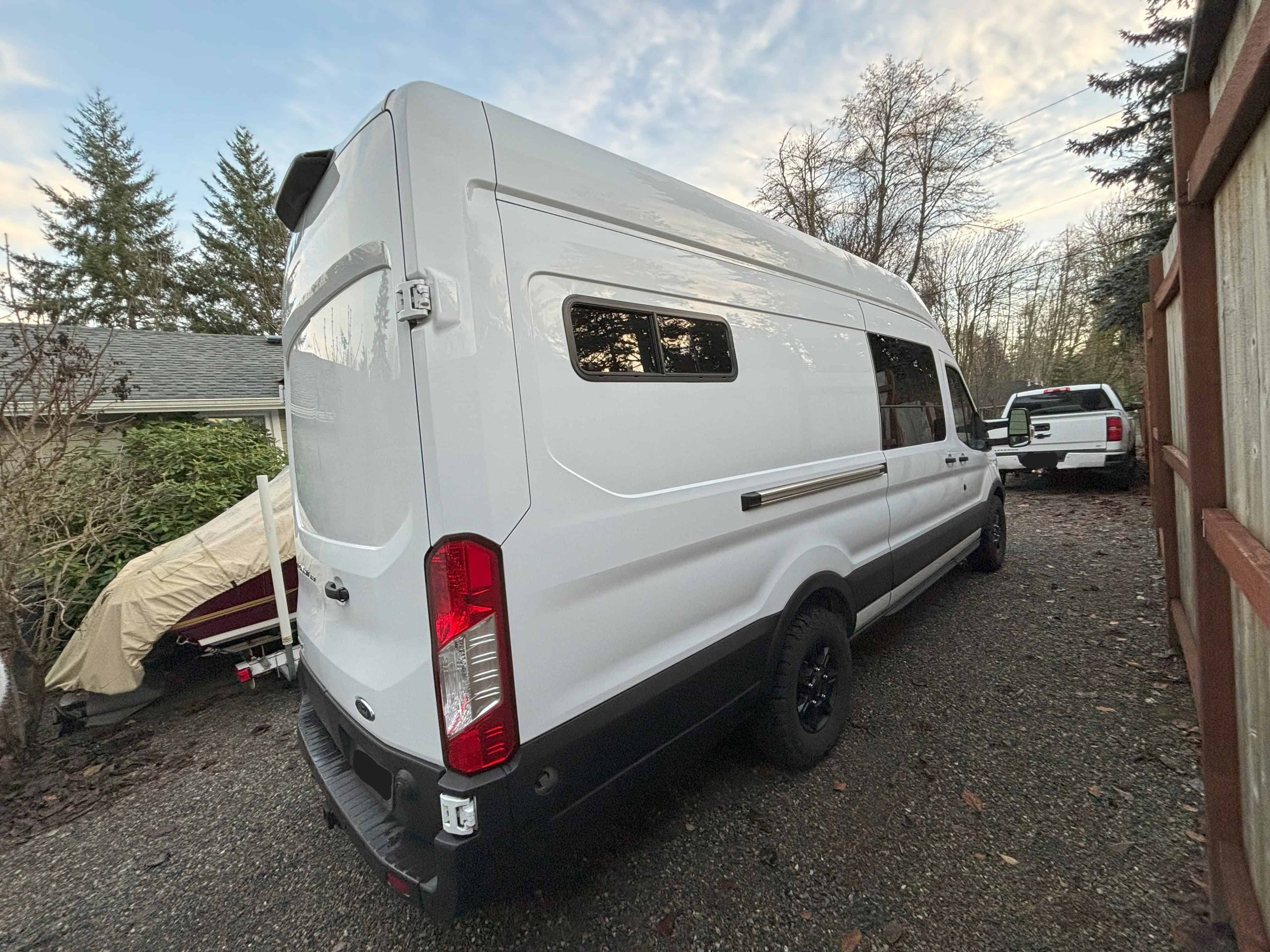

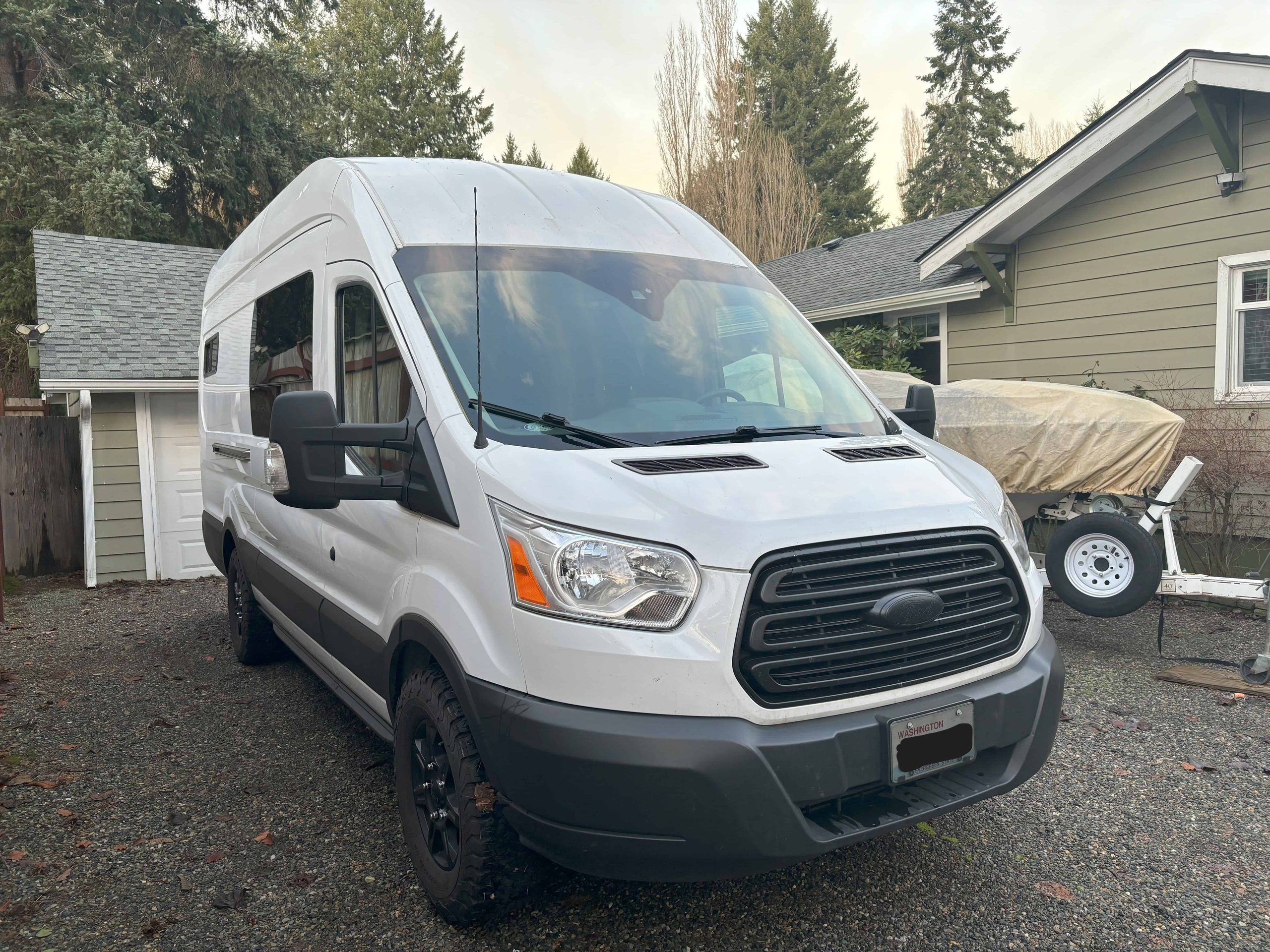

2019 Ford Transit High Roof Extended Body 3.5L Ecoboost thoughtfully planned out and built to be our dream van- all the comforts of a home including kitchen, shower, toilet, and plenty of storage for all your gear. This van is perfect if you plan to be a weekend warrior, venture long-term cross country, or even live/work in it full-time.
We purchased in August of 2020 with 13k miles from the original owner and meticulously built it out using premium materials before our first trip in June 2021. We are at 34k mi now so have averaged about 7k mi per year (we only use this as a weekend warrior or for the occasional 1-2 week vacation). Building out Stan the Van was the best decision we’ve ever made and we have made countless memories we cherish dearly. But, it is time to create new memories as we start a family, and unfortunately must part ways with our beloved Stan.
We are so heartbroken to have to sell it but would love for it to go to new owners that will love it as much as we do! We built this ourselves with lots of experience doing remodels/general contracting so it was built well and with care. The build is closely modeled after Faroutride (I even purchased their plans for reference) with a few things that we wanted to add and a slightly different layout. The electrical is the most similar part, with the addition of a shower etc.
Let us know if you have any questions! We happy to help or give you a tour in person or via FaceTime. We have lots of details about the build, including pictures, for those who want to know/see more. The van is ready to view and could be yours tomorrow!
Factory Options (Custom Order w/ Great Options!):
- 3.5L GTDI V6 Engine
- 3.31 Limited Slip Axle X3l
- Exterior Upgrade Package
- Reverse Park Aid
- Keyless Entry Pad
- 2 Additional Keys (4 total)
- HD Trailer Tow Package
- Trailer Brake Controller
- Long Power/Heater Mirrors
- Locking Glove Box
- Heavy Duty Alternator
- Dual Heavy Duty Batteries (replaced under warranty 4/2021)
- D-Pillar Assist Handles

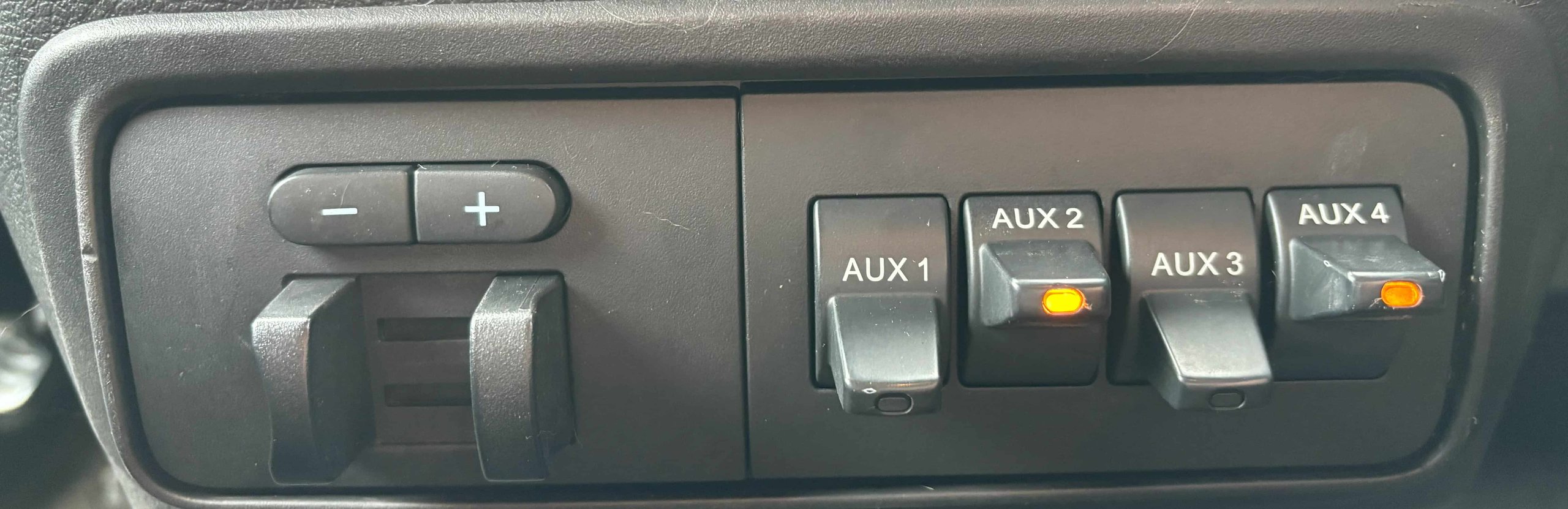

- High Capacity Upfit Switches
- Power Inverter (Factory one in front between seats)
- Interior Up Package Van
- Floor Covering Vinyl Complete (easy cleanup!)
- Am/FM Stereo SGL-CD w/SYNC (Bluetooth SYNC)
- Cruise Control (Somewhat rare with commercial vans)

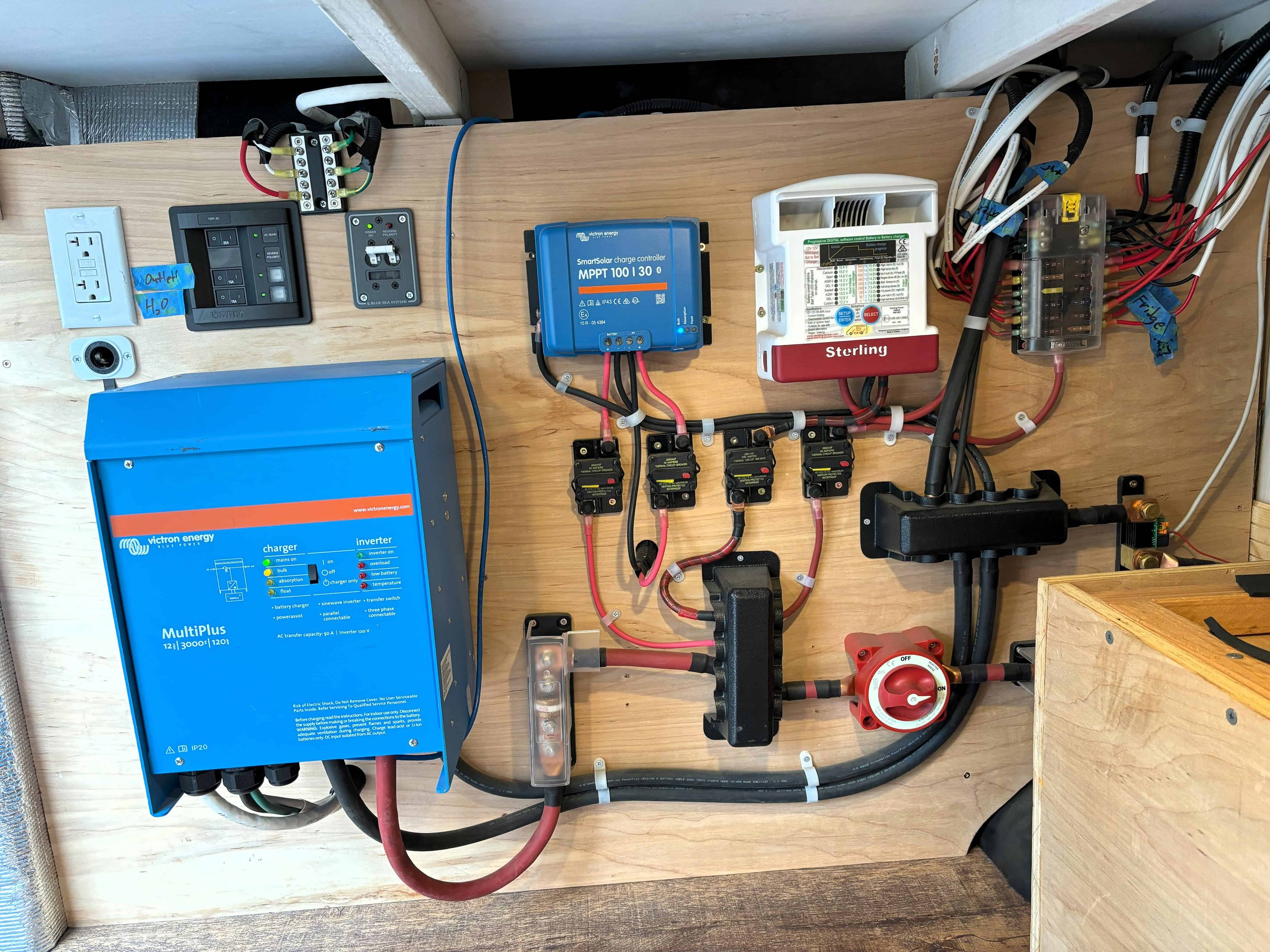

Electrical – This is by far the most expensive/extensive part of the build as I spared no expense for the specs we wanted, and it was a requirement to be very safe – everything is crimped with the correct tool/AWG connectors that are marine grade w/ heat shrink).
- 400 Ah Battleborn batteries (4X100Ah)
- 400 watts Solar (2 X 200W Newpowa Monocrystalline)
- Victron MPPT 100/30 Charge Controller with bluetooth control

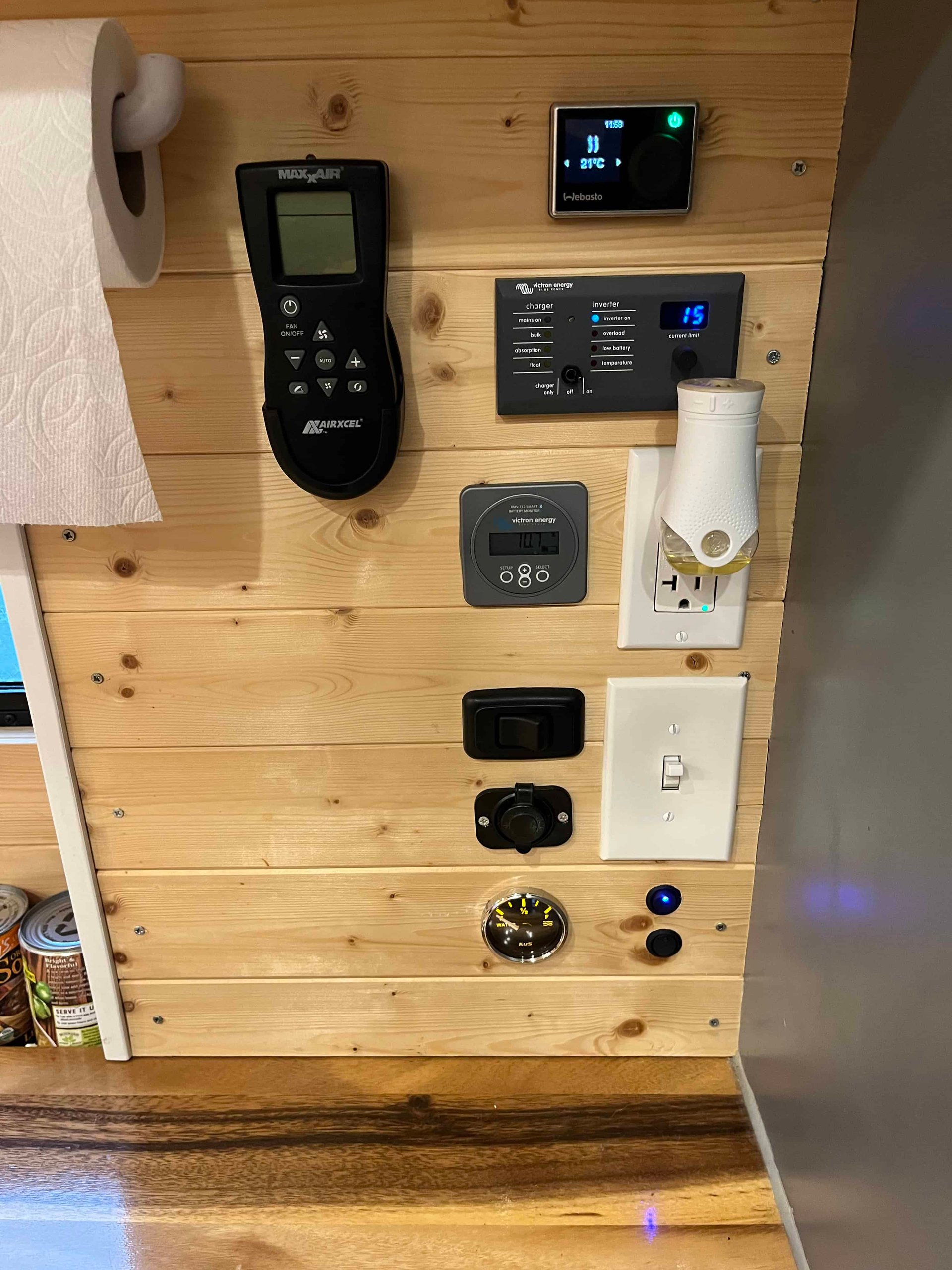

- Victron 200A Digital Multi Control Panel GX
- Victron BMV-712 Smart Battery Monitor
- Victron MultiPlus 3000W 12V Pure Sine Inverter w/ 120A charger
- Sterling 60A Batter-to-battery charger (This van has the upgraded dual batteries & heavy duty alternator so it can handle 60A charging from Alt)
- Multiple 120V outlets and USB/USB-C ports throughout
- Dimmable 3 zone LED light fixtures throughout (2 switches right inside front door controlling front and rear zone, 1 switch at bed for 2 lights directly over bed in rear)
- Rechargeable magnet lights throughout that can be moved & stuck outside/around van
- Fuses, DC block, AC distribution, fuses, circuit breakers, power bars, On/Off, 12V usb sockets and more is all Blue Sea Systems
- Marine grade duplex wiring throughout
- GFCI outlets
- Furrion 30A Shore power inlet

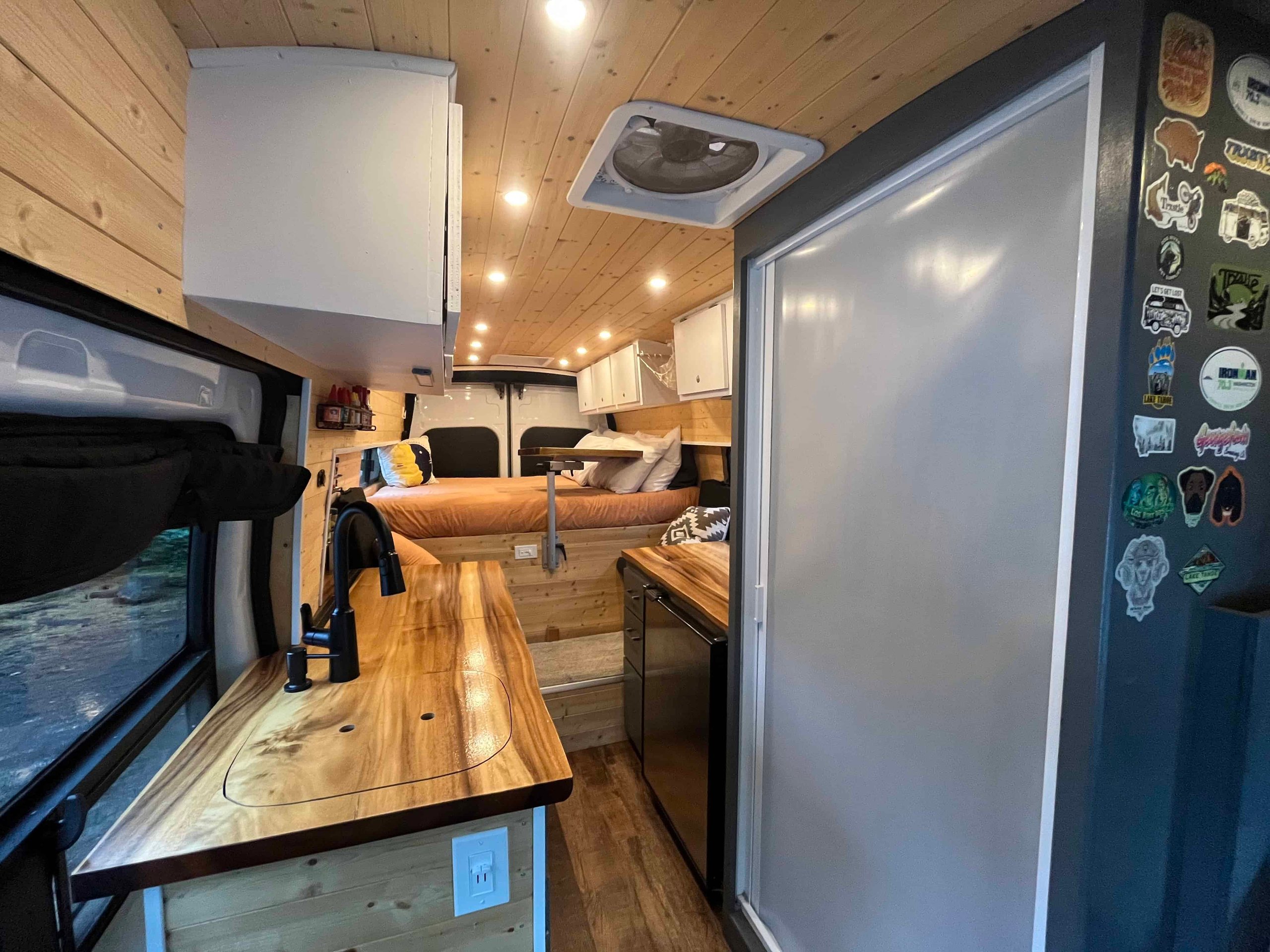

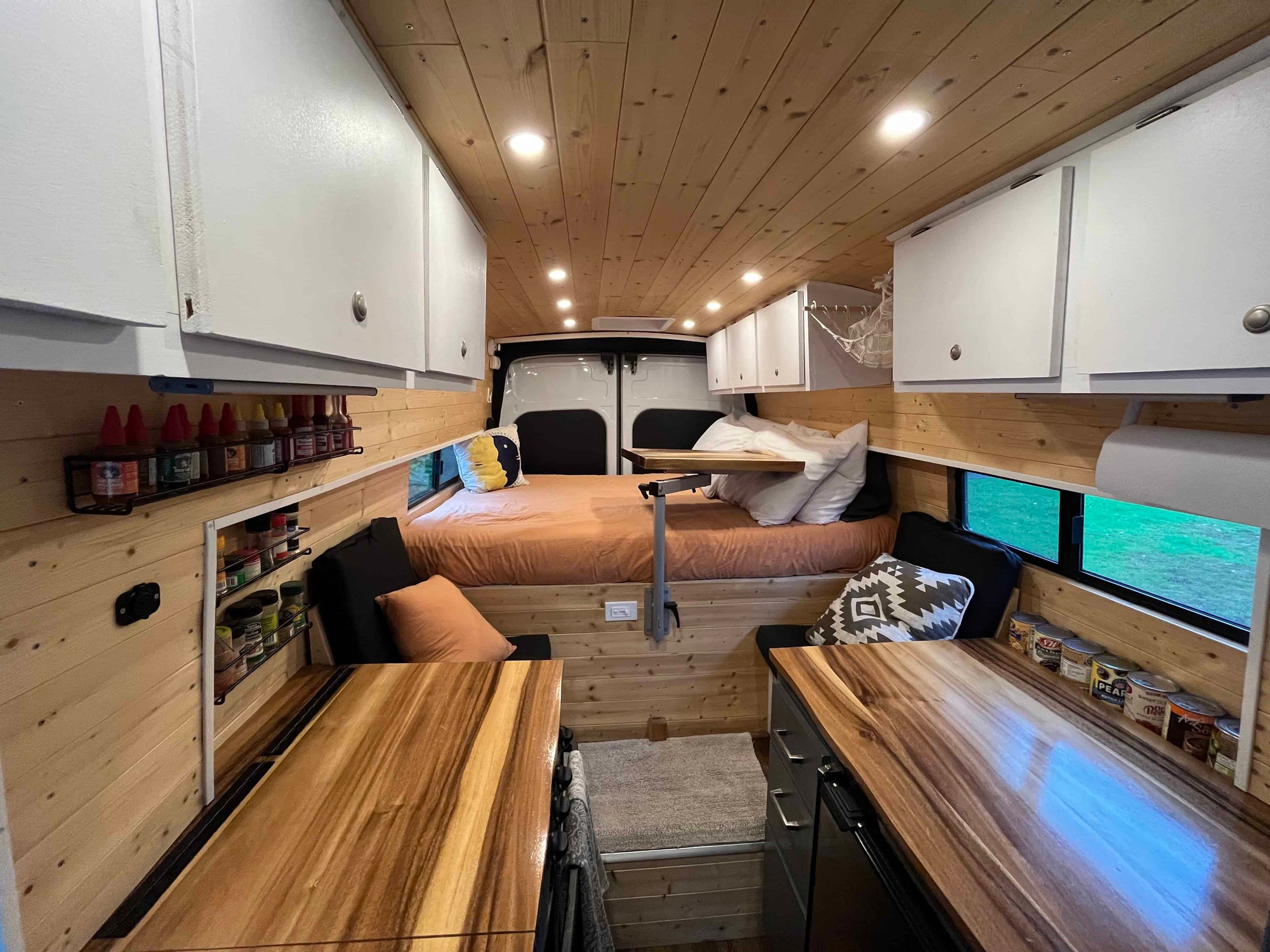

Living – Comfortable year around! Seating area is built on raised platform so it is a step up into the bed, and so that you can slide full length skis or other long things underneath from the garage. With heat & 2 fans it’s comfortable in a variety of temperatures.
- Webasto Airtop STC 2000 gas heater connected to fuel tank (mounted under passenger swivel seat – blows perfectly across kitchen floor) *Installed February 2022*

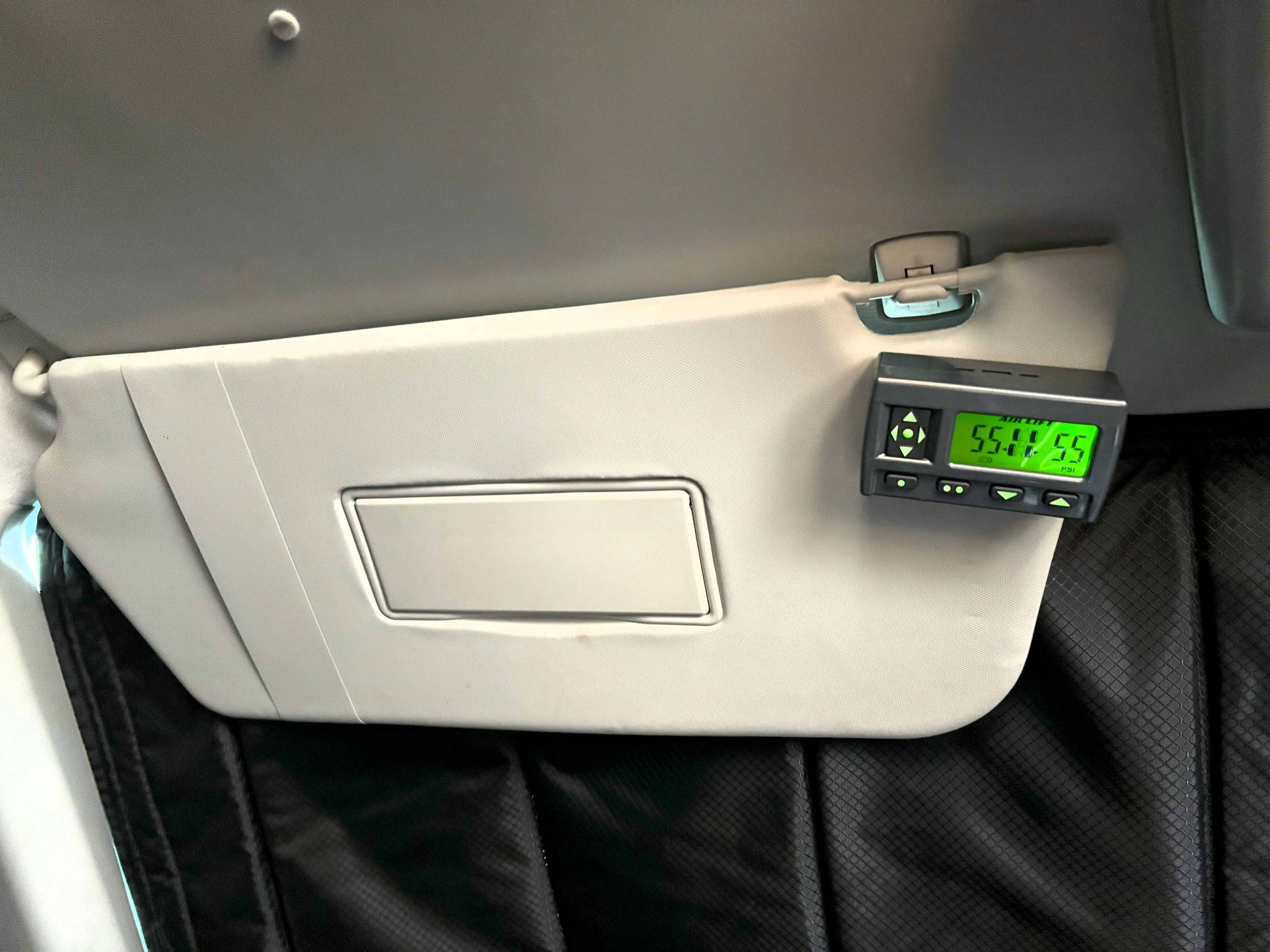

- Webasto Digital Multi Control w/ 7 Day Timer Controller (must have for snow seasons to come on throughout the night)
- Dual facing seats designed to fit standard chair cushions to easily change color options
- Lagun table (matches counters – admittedly a little heavy) that lifts/lowers to be used in seating area or from bed (clears countertops at low level to move around while cooking etc)
- Full size memory foam bed tucked into cutouts (Sleeps ~6ft or less, unless single user sleeps diagonally and can accommodate ~6’2”)
- Passenger seat swivel

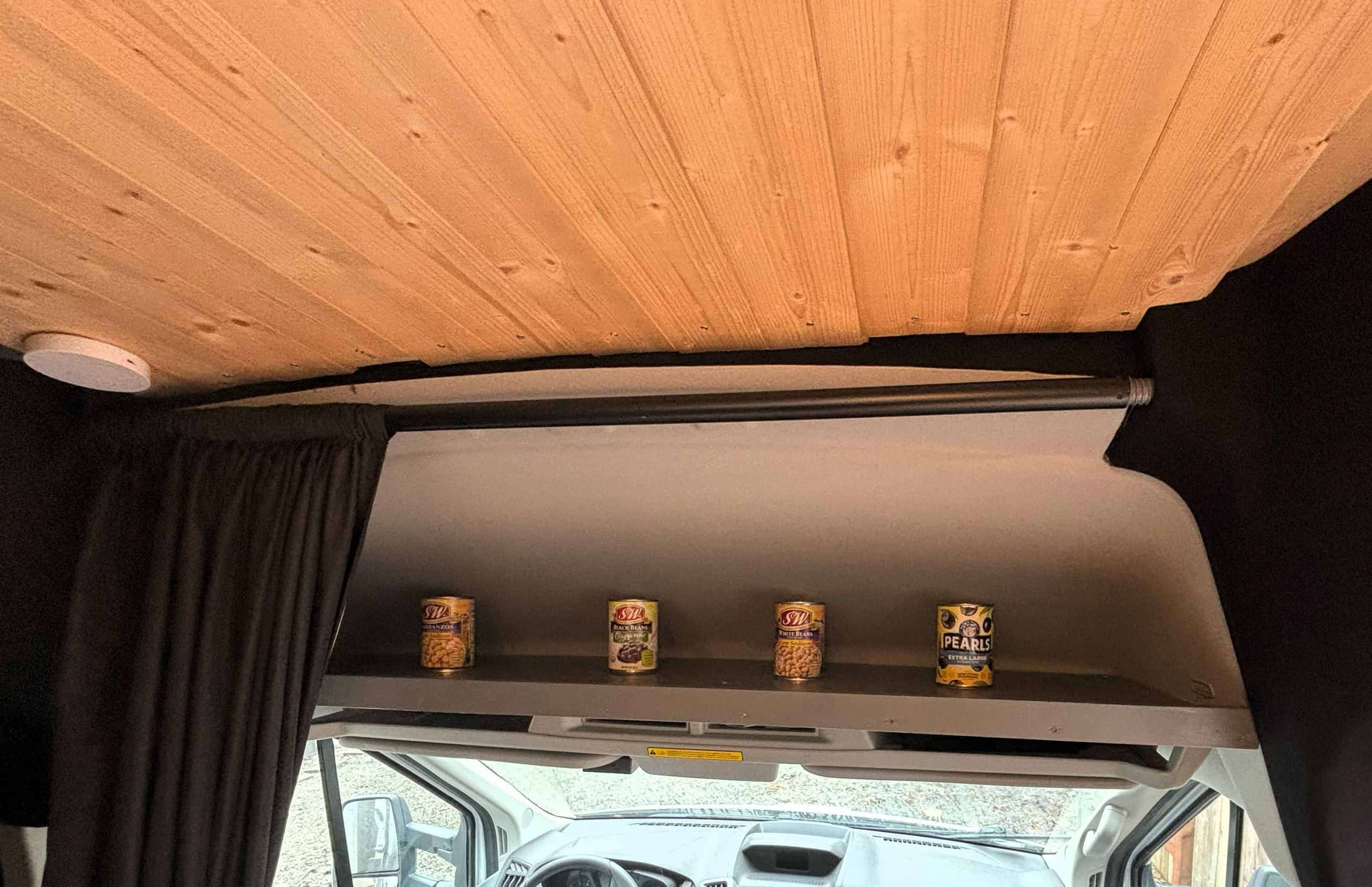

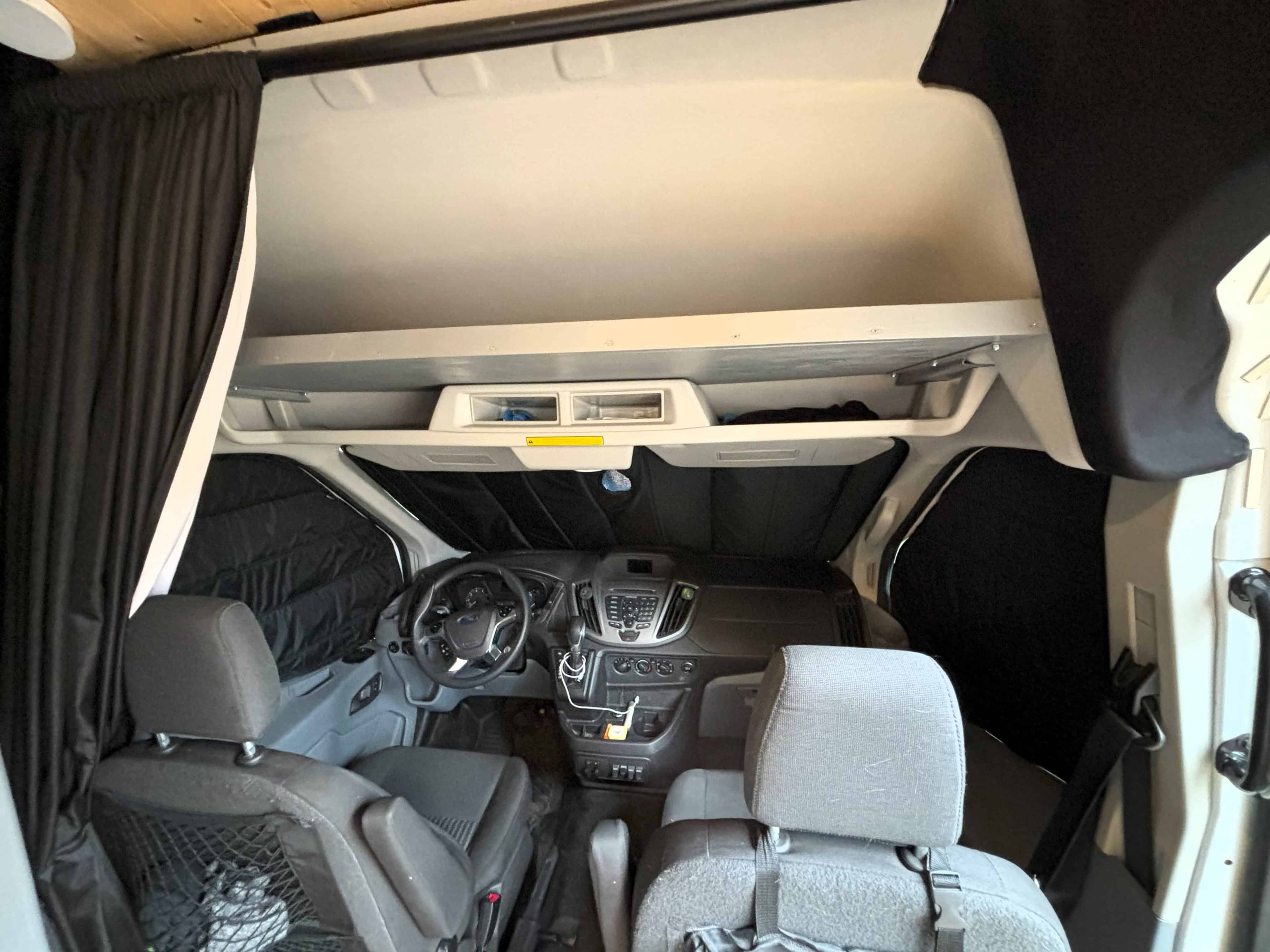

- Overhead shelf installed above driver/passenger seat for added storage
- Ample overhead storage on both sides
- Storage under each chair, beneath sink, stove & beside
- Two (front & back) Maxxair 7000k fans with 2 remotes mounted by bed and living area
- Normal RV grey tank connection or electric ball valve drain for grey water controlled from inside w/ level sensor
- 33 gallon fresh water tank (Class A Customs)
- Shurflo 12V water pump w/ Accumulator & Strainer
- 2 X 7gal Aqua-Tainer stacked in garage with quick connect filler when off grid for longer & need additional water

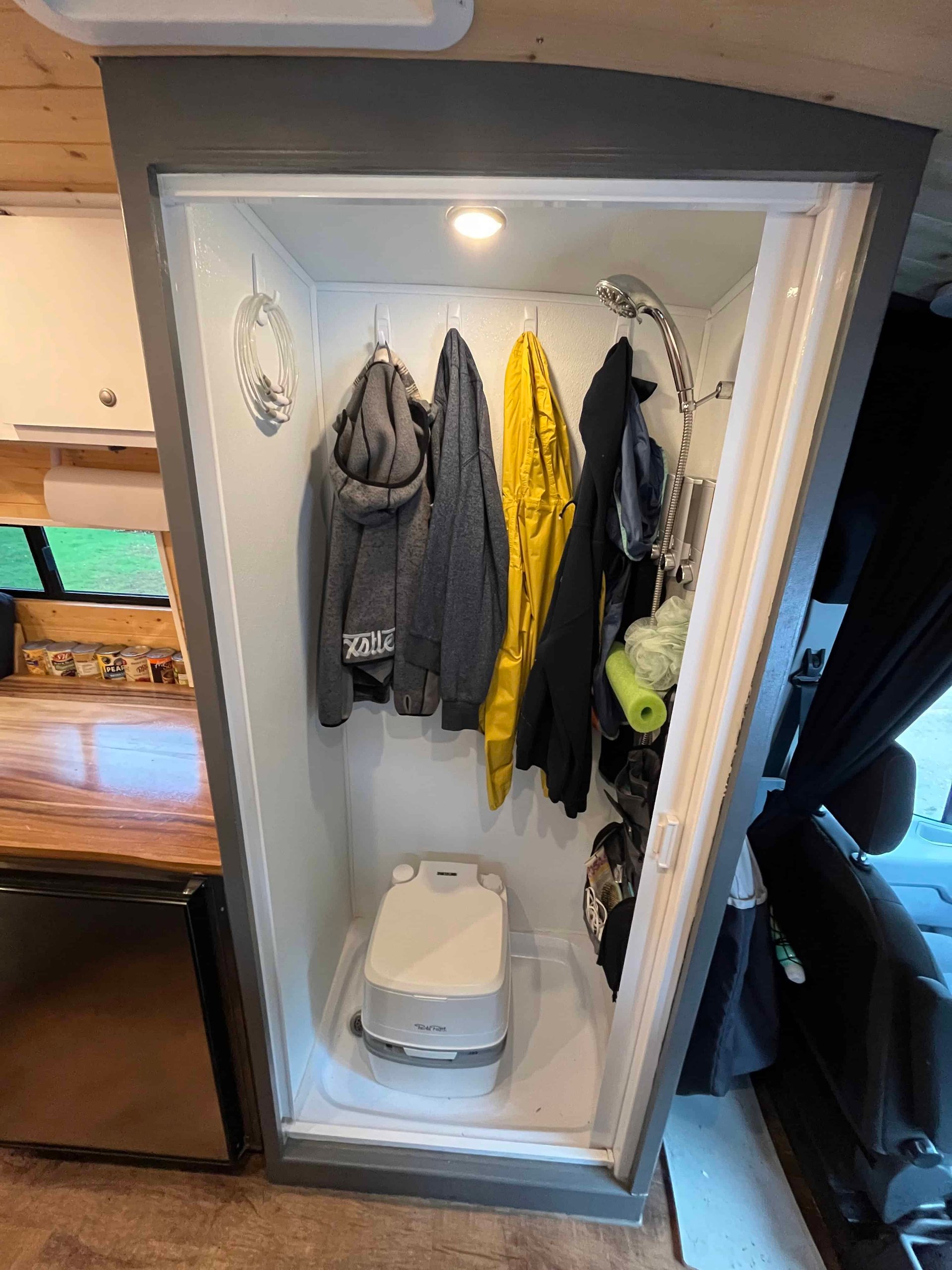

- Thetford Porta Potti 365 w/ Camco Cover

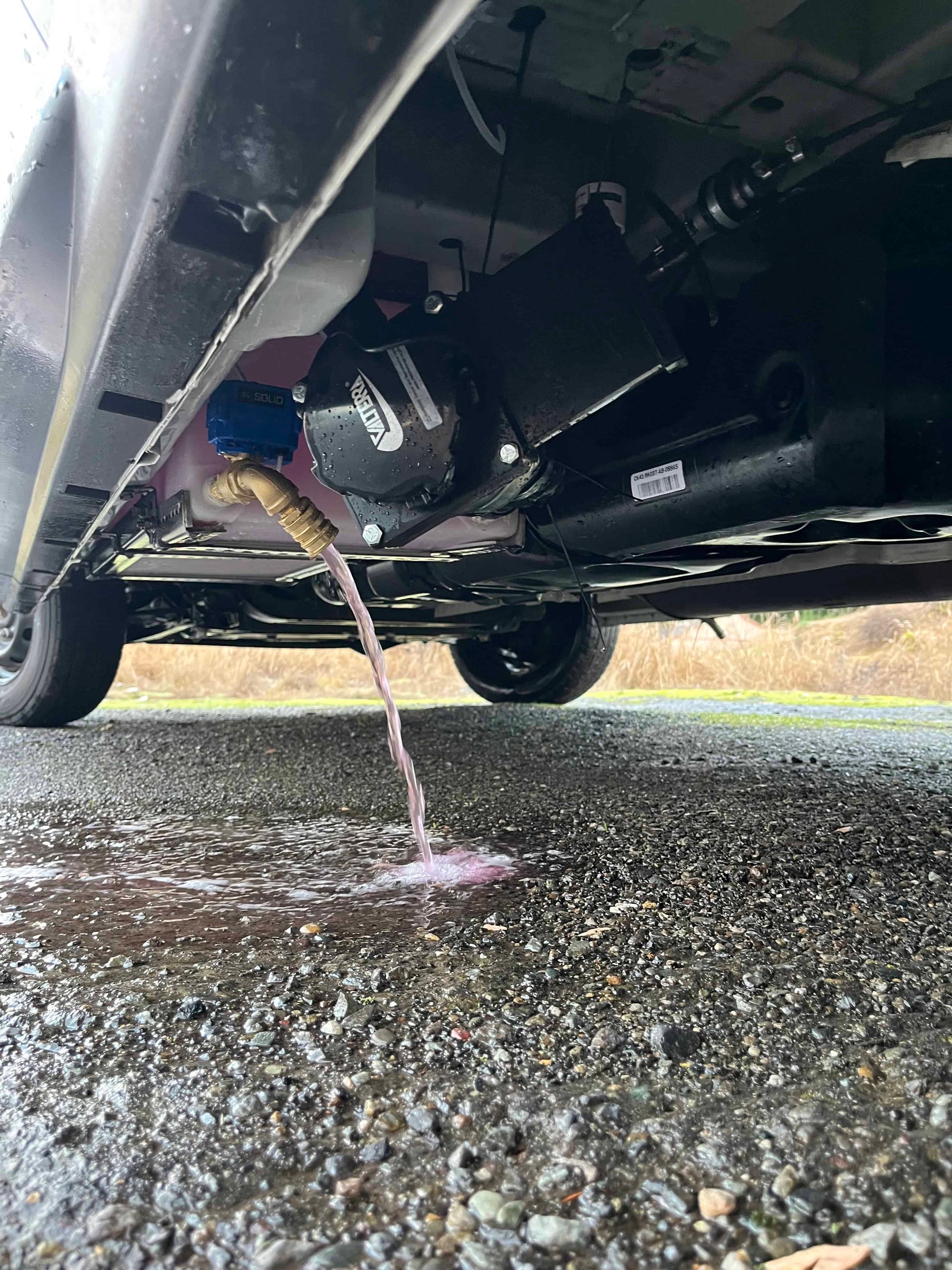

- 15 gallon undermount grey water tank for shower (interior level & drain switch w/ ball valve – Also has RV drain hookup for continuous draining @ RV park)
- 7 gallon under sink grey water tank
- Bosch Electric Water Heater 3000T (ES8)
- Red/Blue (Hot/Cold) Crimped PEX for plumbing w/ standard residential on/offs, drop ears, connections (Vinyl connections near pump for pressure spikes etc)

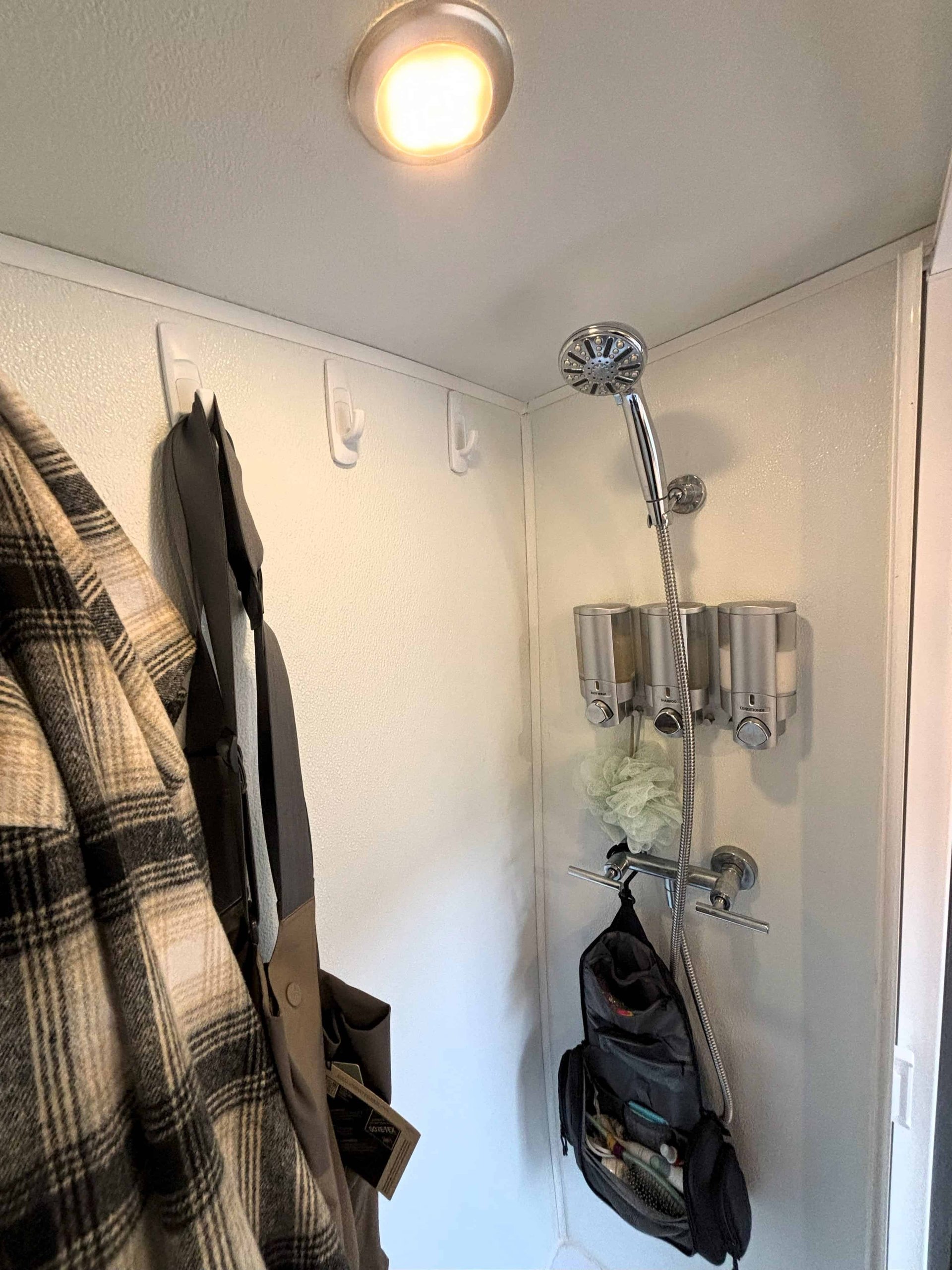

- Lippert Component 24”x32” shower pan
- FRP Shower Walls (Red Guarded walls/floor)

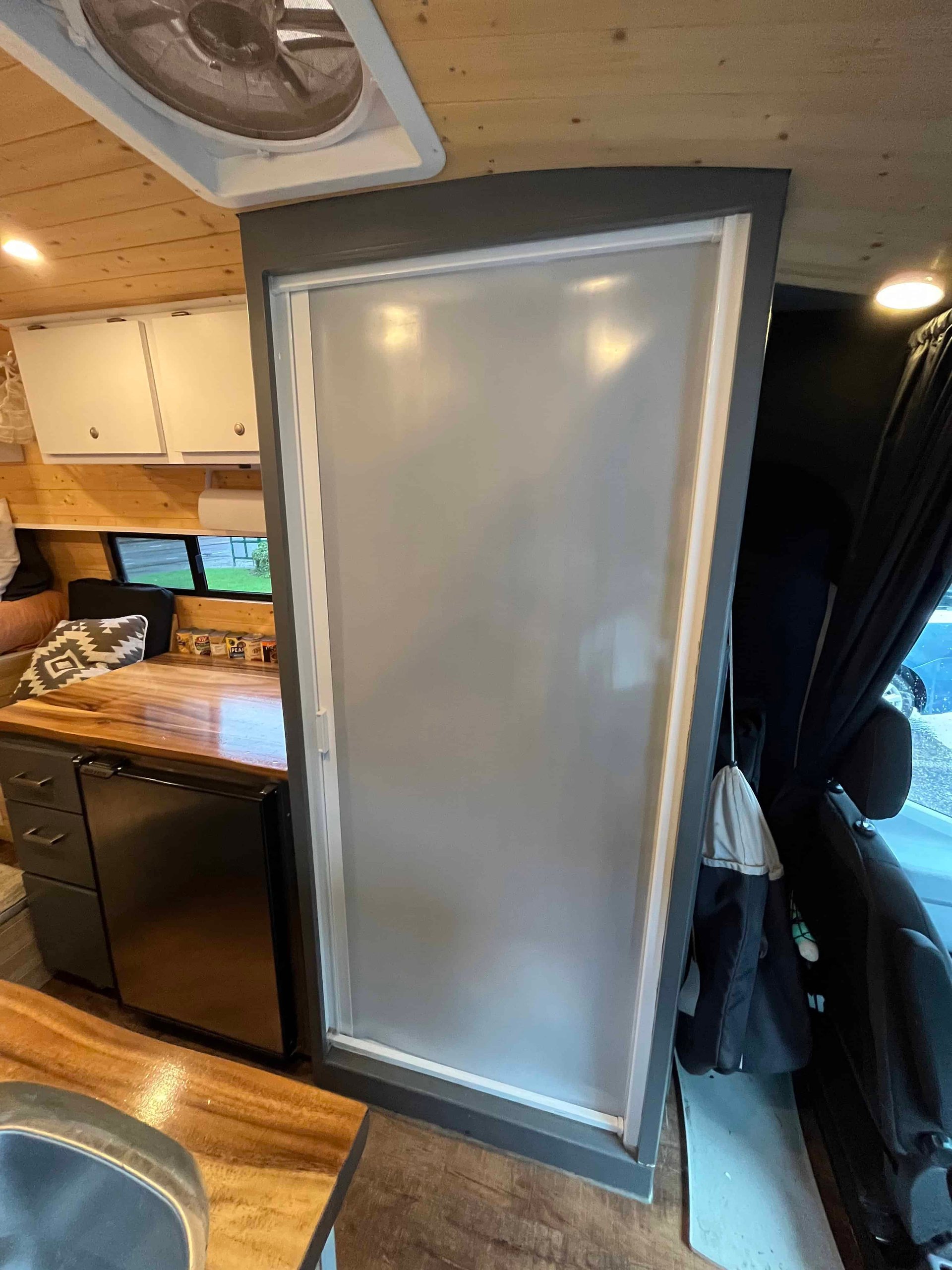

- Nautilus Self Cleaning Shower Door
- Wall Mounted Shampoo/Conditioner/Soap Dispenser
- Dimmable Marine IP67 overhead Shower Light
- Under storage beneath sink, stove, and beside fridge
- 2 X Sliding bunk windows (CR Lawrence) – Opposite sides at bed/seating area
- 1 Sliding Door T Window (CR Lawrence) – Great breeze with all 3 windows & 2 Maxxair fans

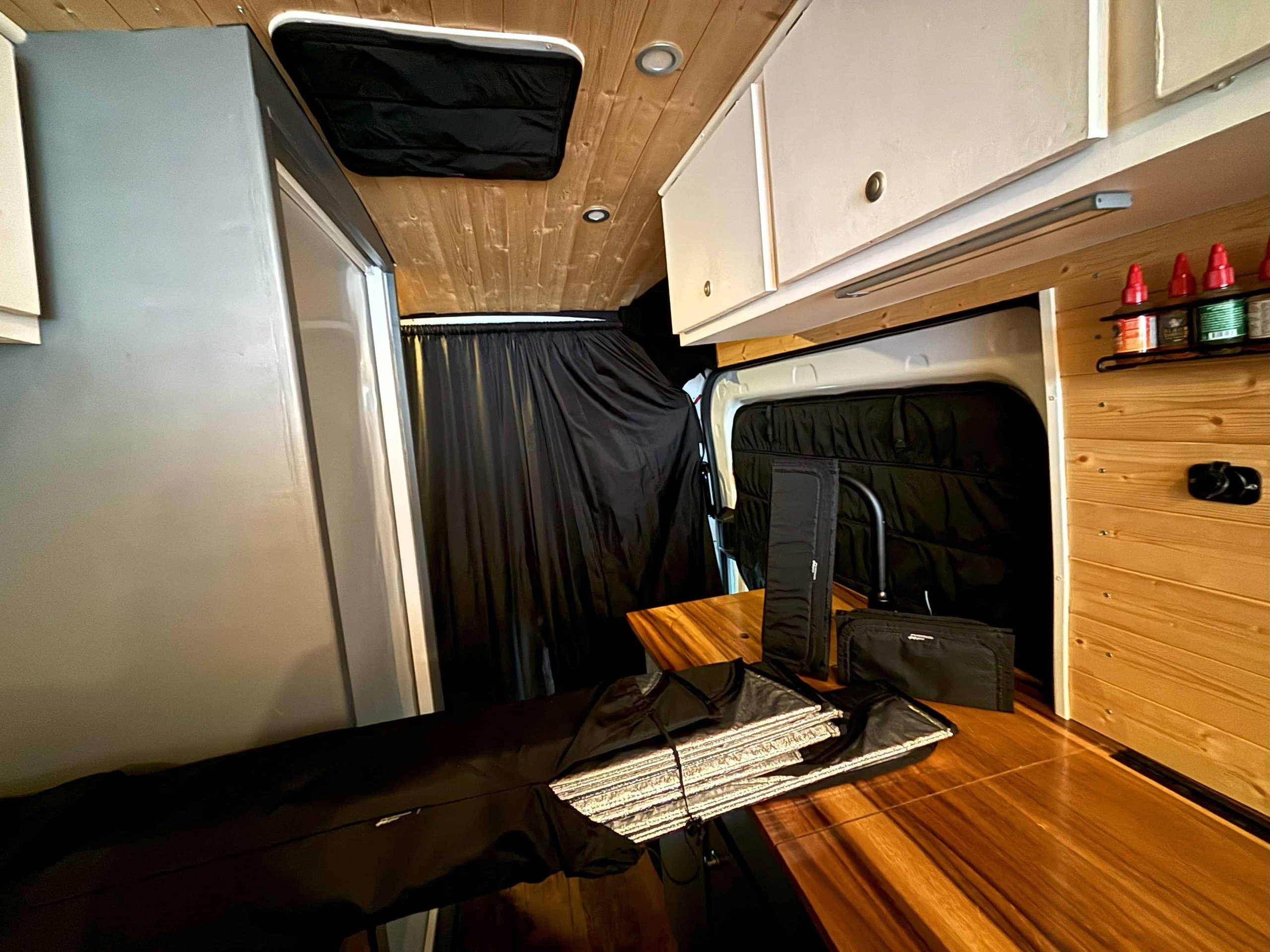

- Full Vanmade Gear window covers for all windows – black w/silver reflective (front windows & windshield, bunk windows, sliding-door window, and both maxxair fans (Have pink foam insulation for bunk windows & fans for colder climates)
- Sink and Shower hoses can just reach outside for occasional spraying things off etc
- Rear doors can swing completely around to the sides of the van

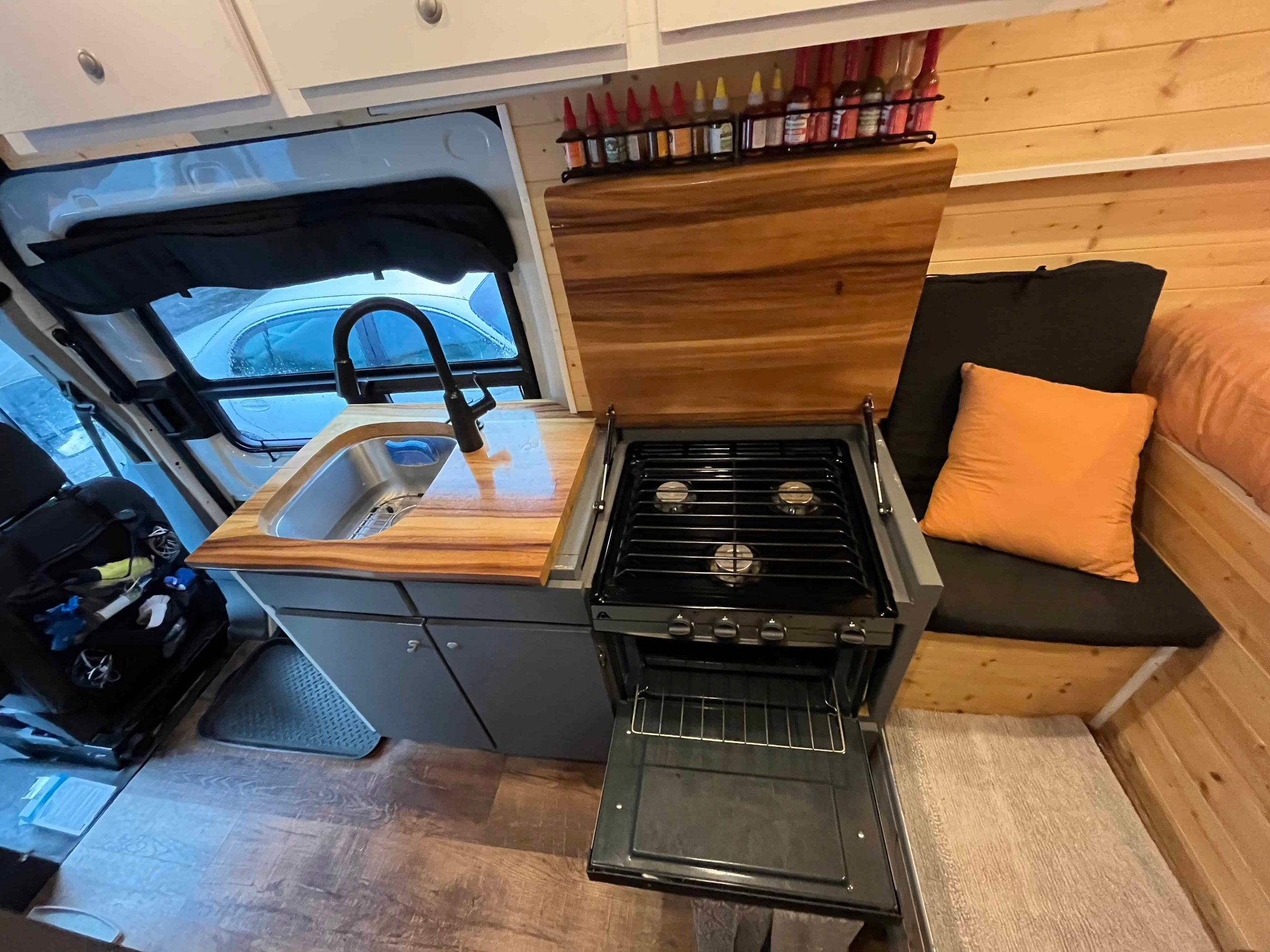

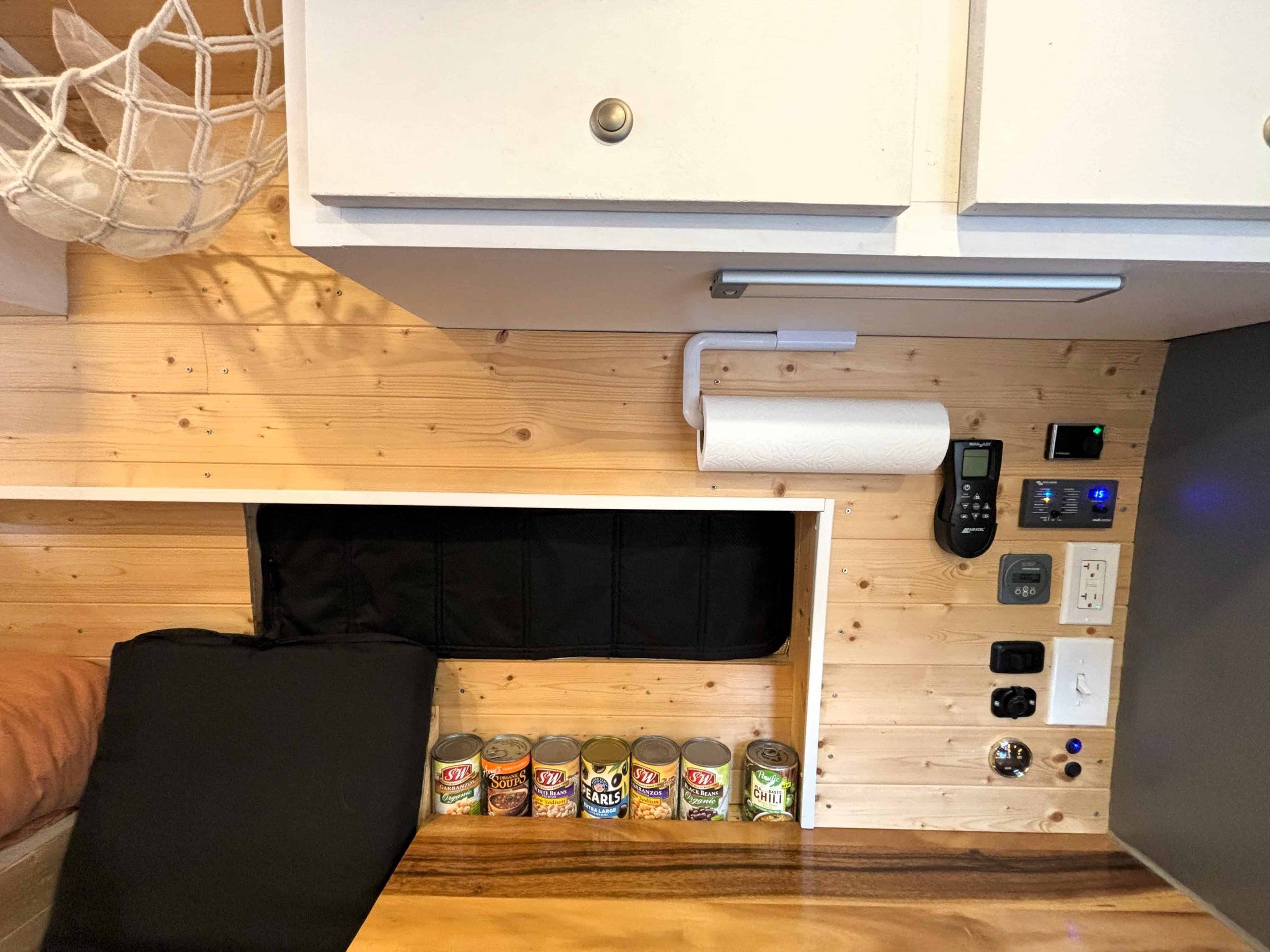

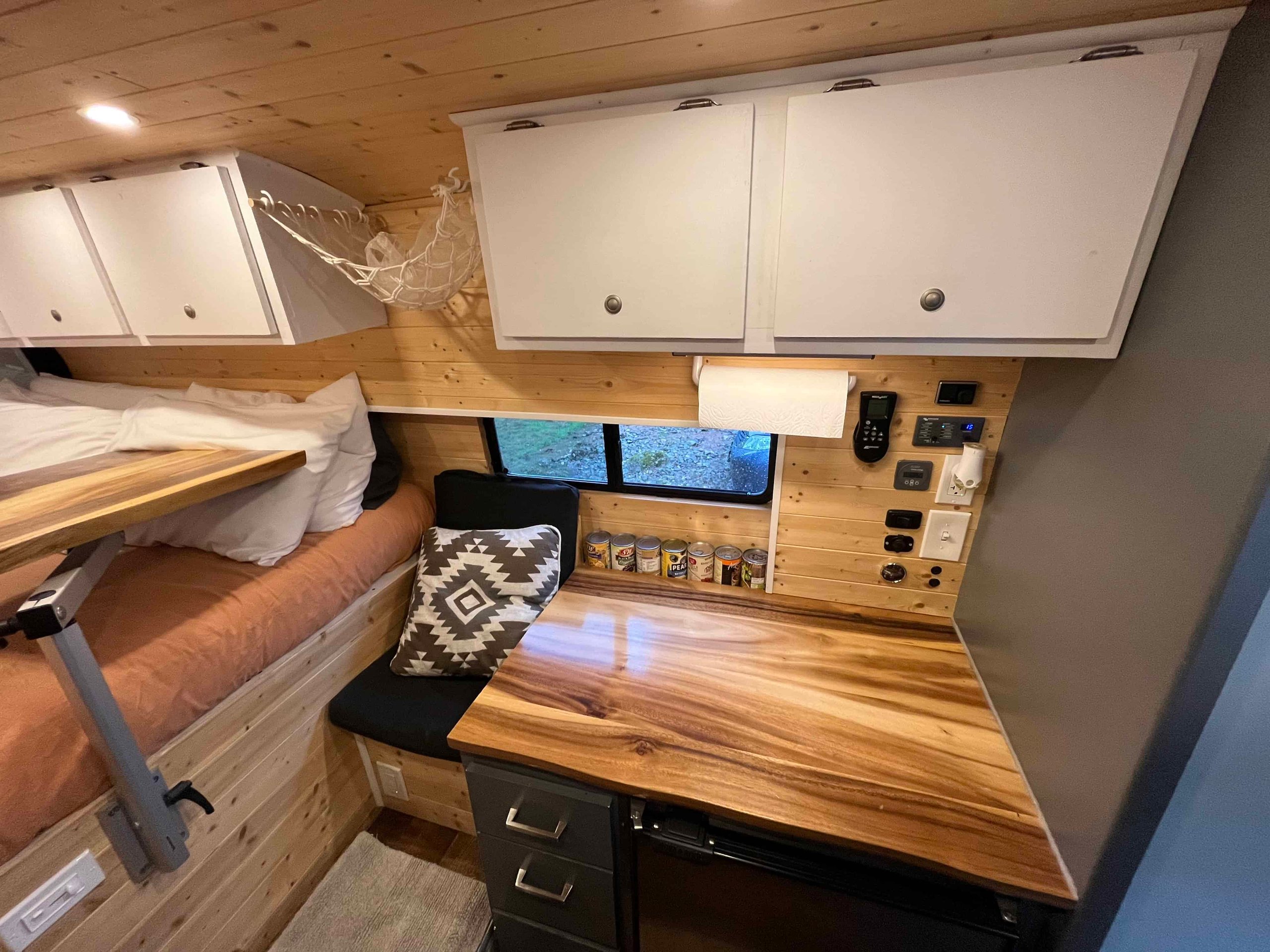

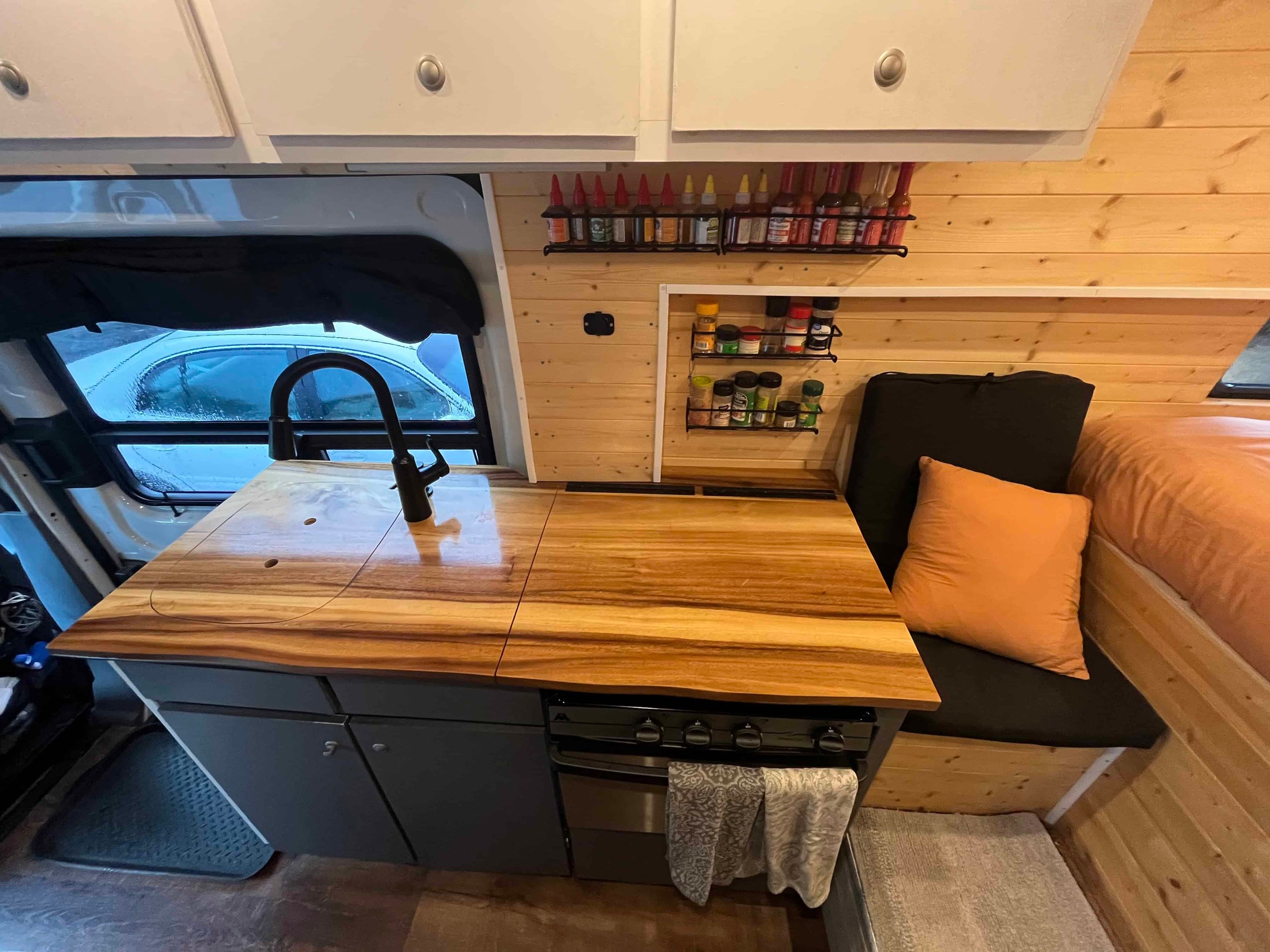

Kitchen:

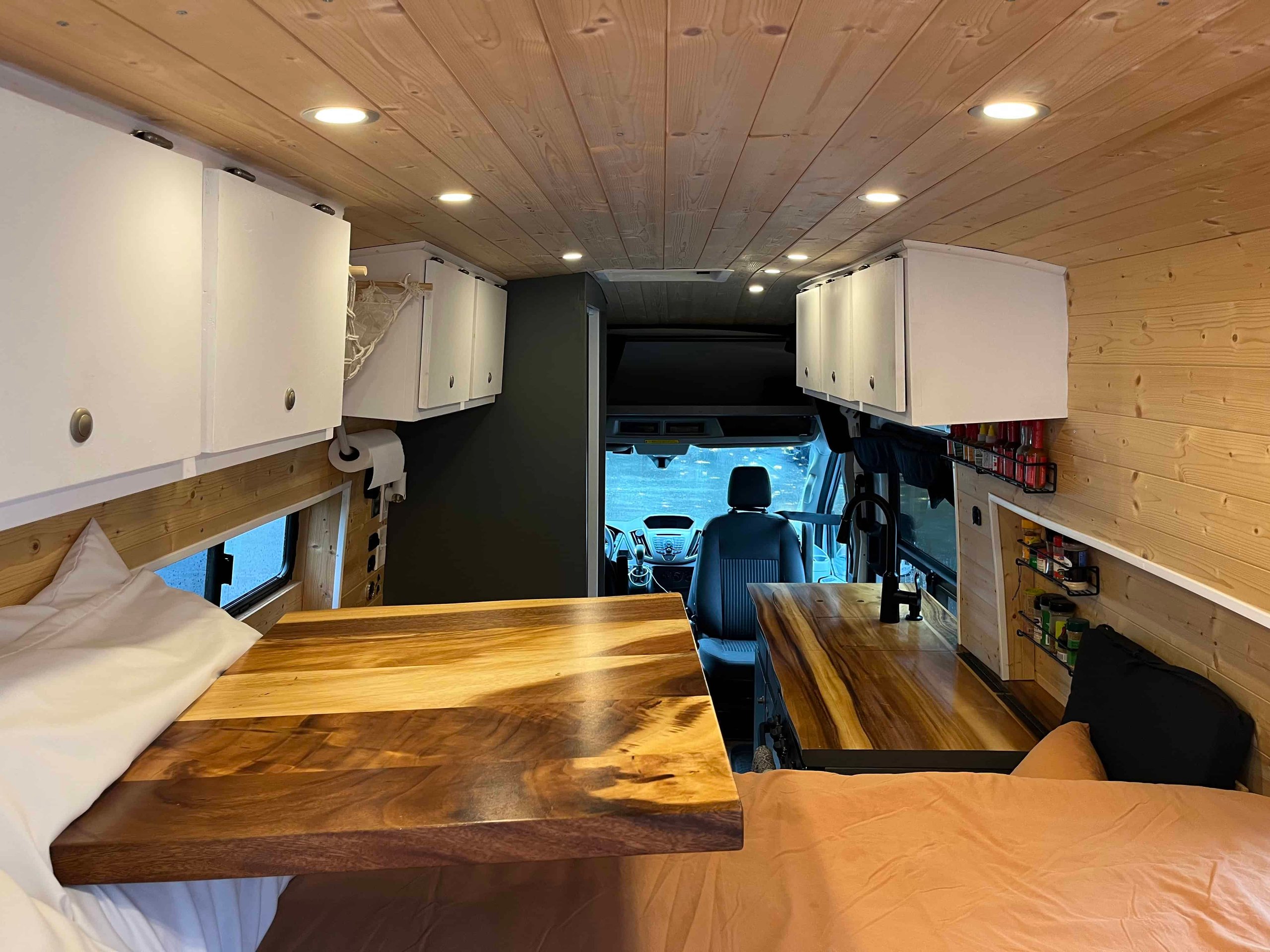

- Custom built live edge wood countertops
- Countertop space for cooking, working and entertaining. Stove counter hinges up/down & sink cutout can be put in for LOTS of counter space
- Undercabinet rechargeable strip lights
- Spice/hot sauce racks on wall and tucked in cubby behind stove lid
- Hanging fruit basket
- 3 Burner propane cooktop complete with Oven (will bake cakes, pizza etc!)
-Dometic Atwood RV Range (3 burner) Oven Cook Top (Propane)
- Ruvati 15×18 undermount sink w/ black pull-out faucet
- Built in soap dispenser

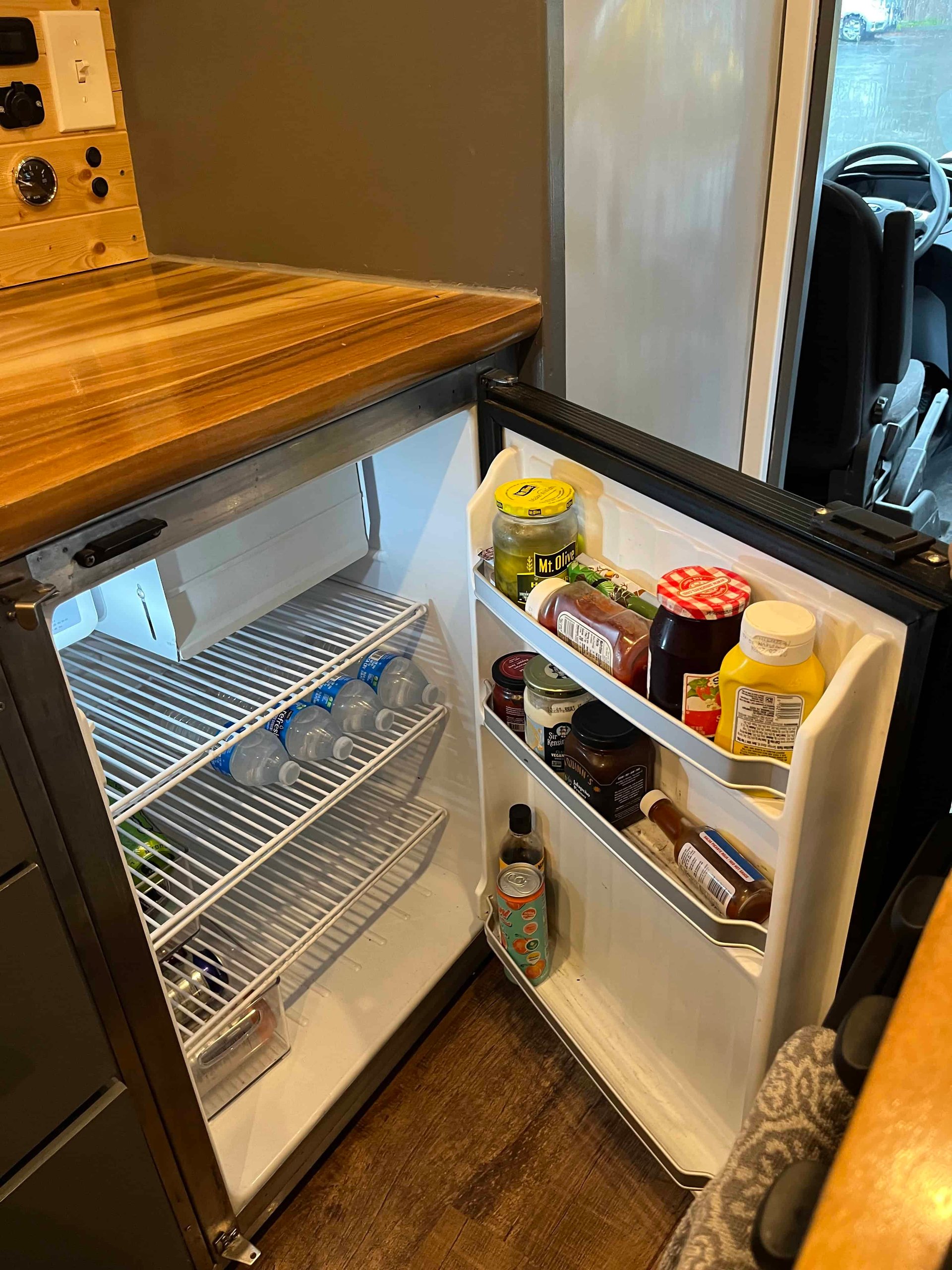

- NovaKool (5.8 cu. ft.) R5810 AC/DC fridge w/ freezer (plugged into DC)

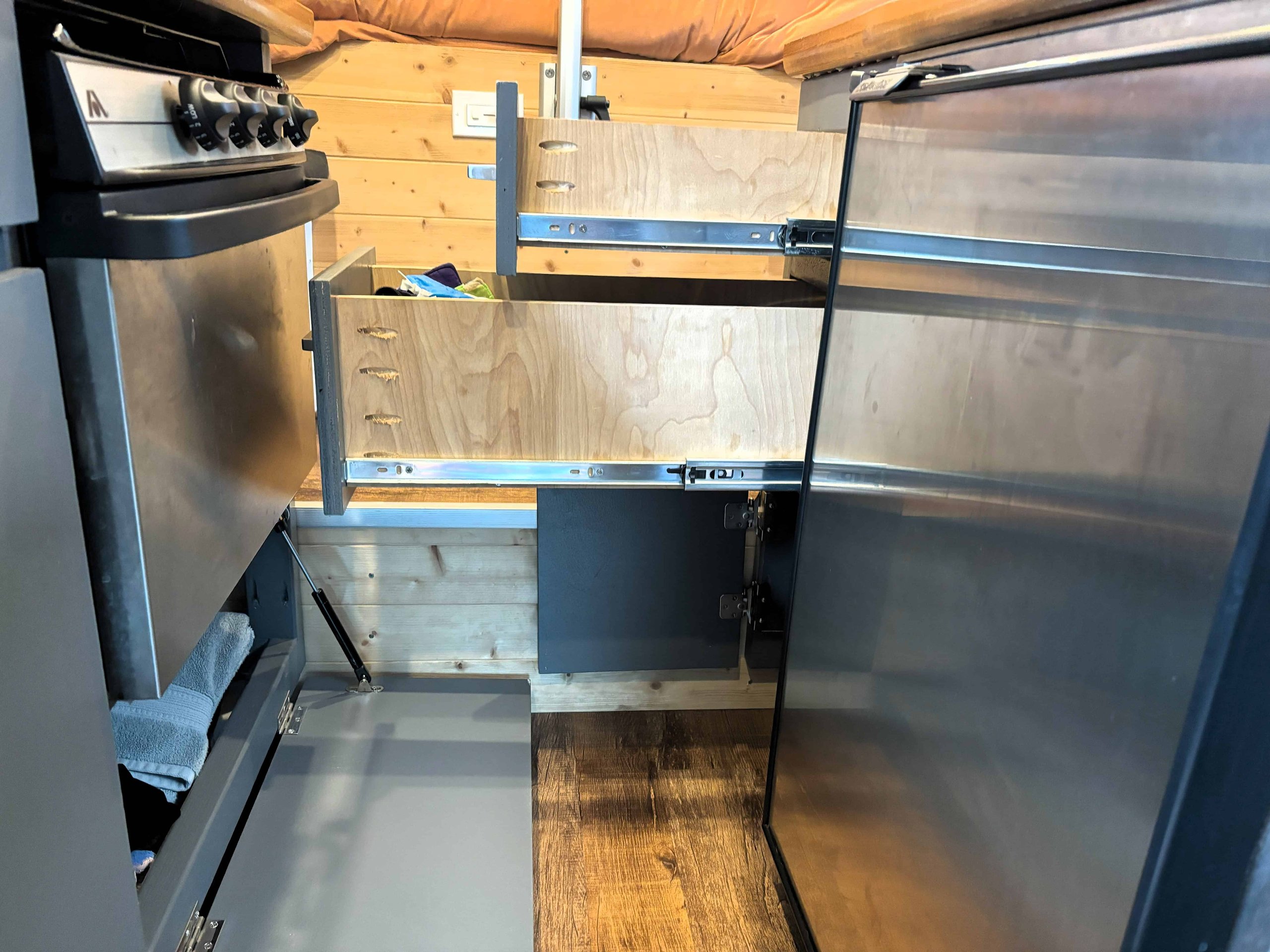

- 1 medium & 1 deep pull out drawer with soft close slides
- Lots of storage – flip down door below stove (we store towels & hair dryer there) small space for cutting boards/baking sheets to right of stove, storage beneath drawers (we store 4-5 board games & a light) & storage under sink (built like a standard kitchen cabinet) w/ grey tank for sink & plenty of room for a vacuum, cleaning supplies, first aid & fire extinguisher!
- Bluetooth tank level for mini propane tank (~11lb) in garage
Interior:
- Plusnuts & threaded attachments only – there are no screws into metal used in the van (almost all components are threaded & removable other than caulking that would need to be stripped in some cases)
- All cut holes in van have been primered/painted/clear coated (3 windows, 2 fans, heater, shower drain, solar wiring, compressor wiring & tank level/switch wiring etc)
- R8 Foam Board Insulation w/cut minicell foam underneath to level & for sound deadening
- 3M Thinsulate on all walls/ceiling
- EZ Cool Insulation bridging all Thinsulate across frame members etc
- Waterproof LVP Flooring (through garage too) w/½” birch sealed sub floor over Foam board
- Tongue and groove ceiling & wall
- Re-used really nice/durable metal steps for slider door & rear door entry (factory upgrade – rear tire bolt cut through floor so you can access)

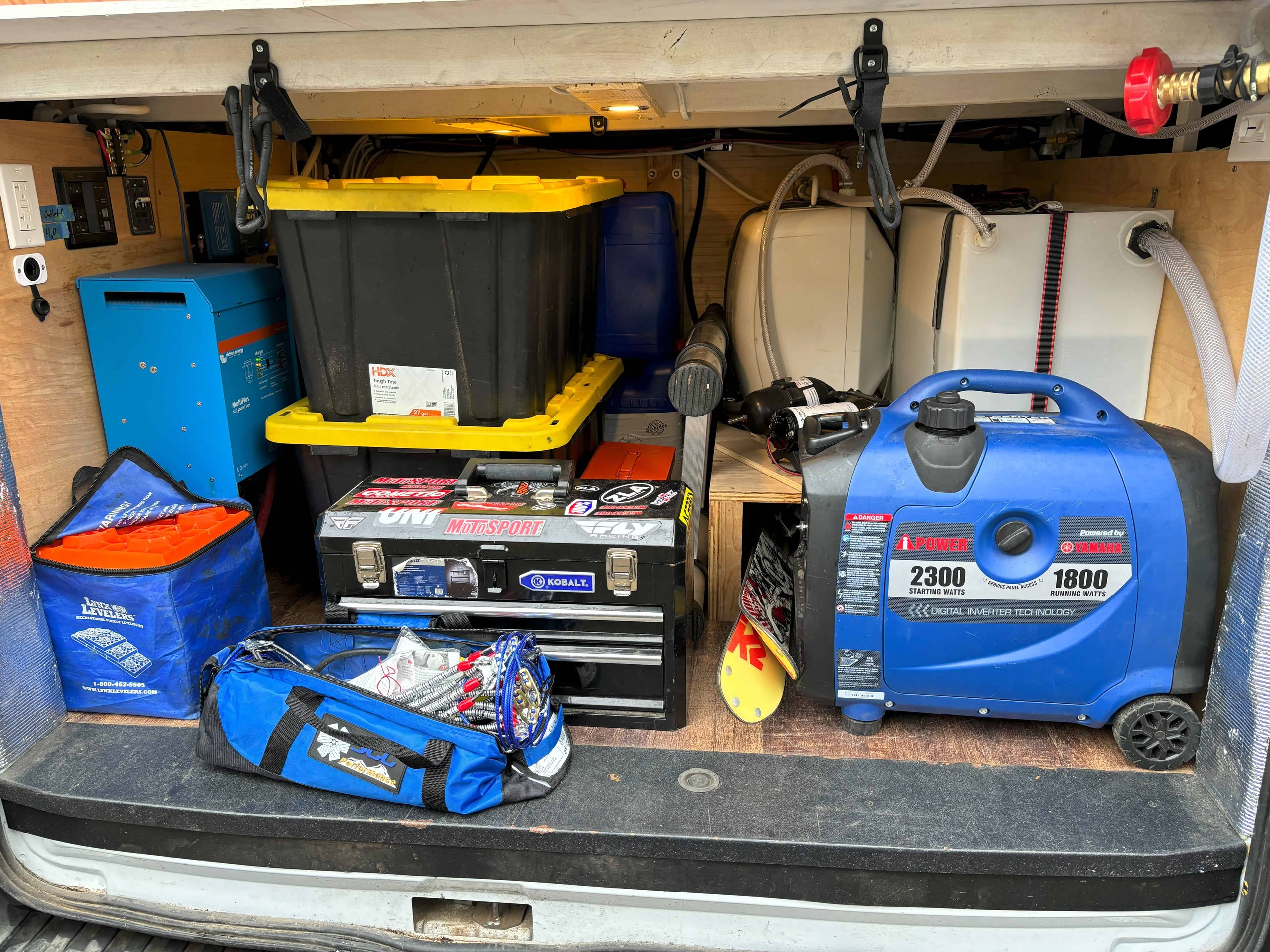

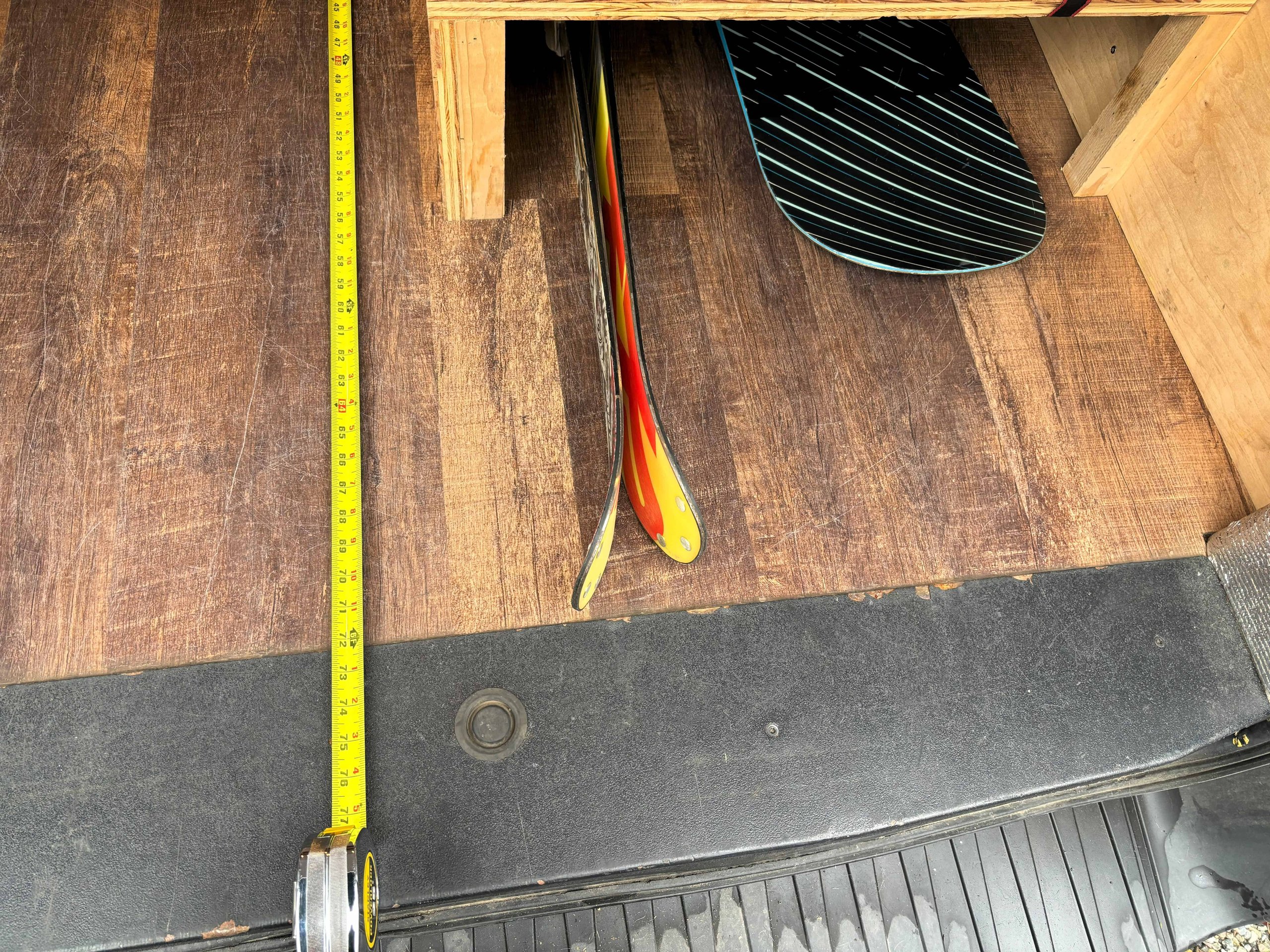

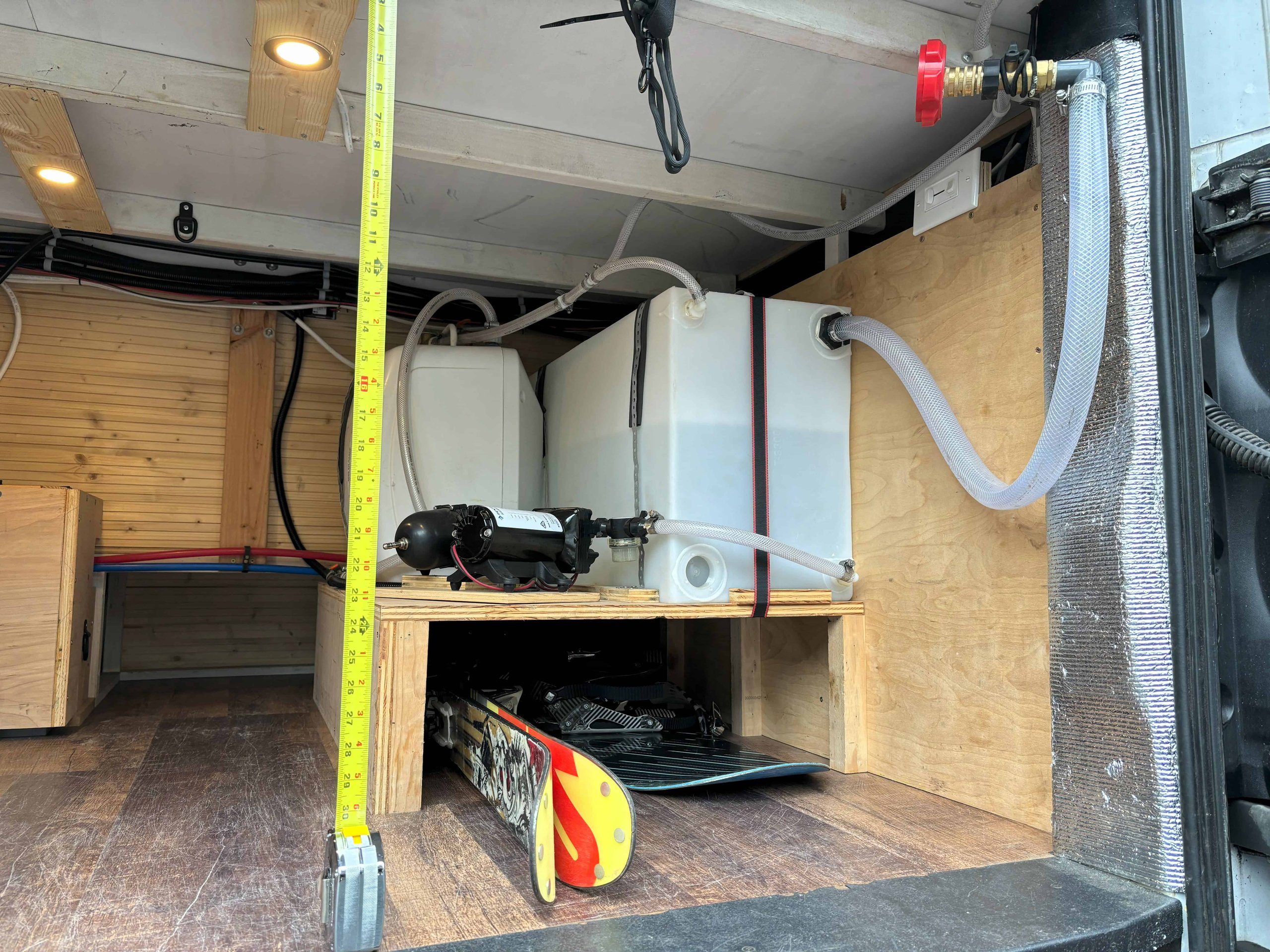

- Garage has storage for full size skis, stackable bins etc (Tall enough to fit bikes if you want to retrofit for that)
- Dimmable lighting in garage (Switch inside door that opens first)

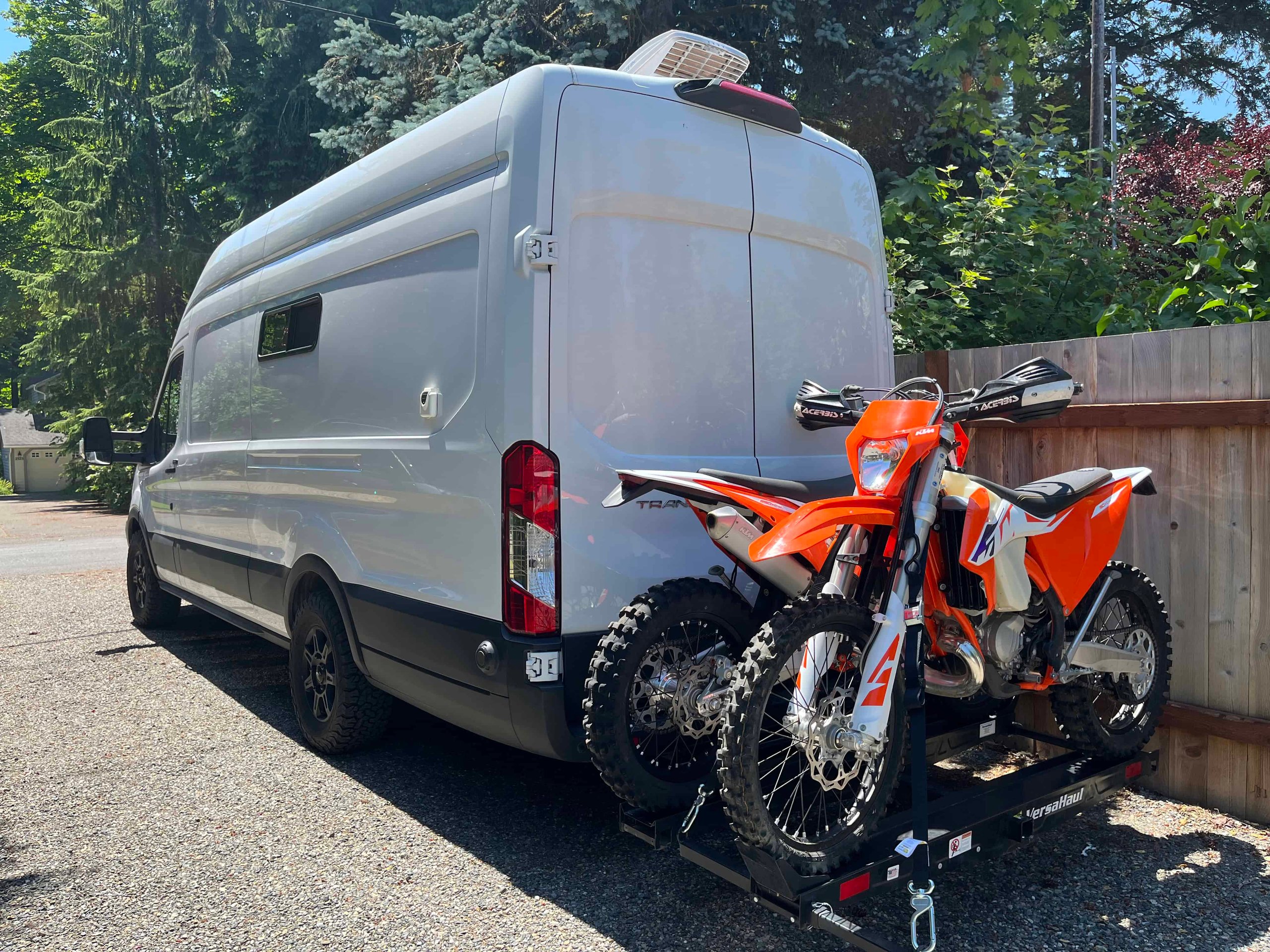

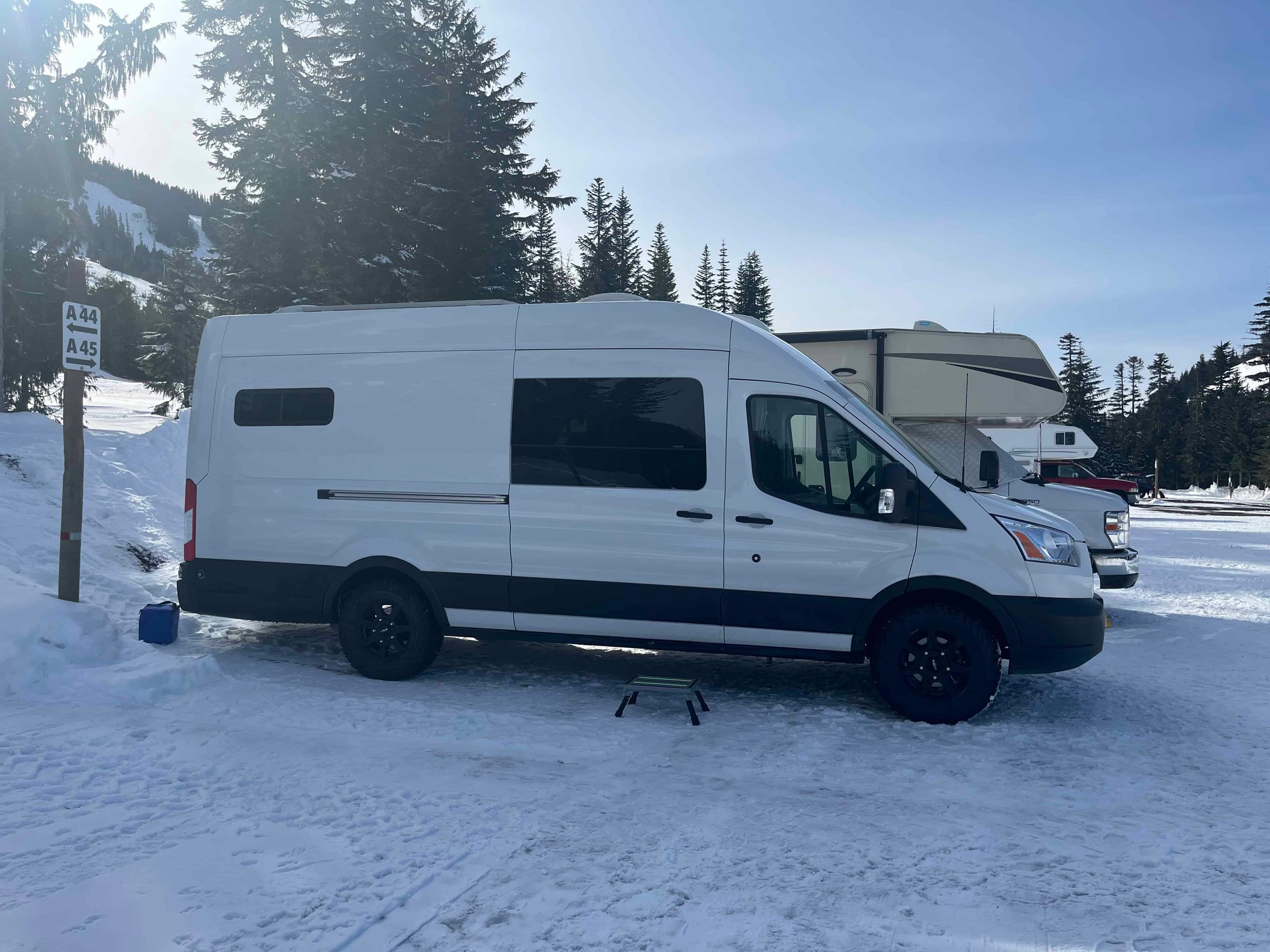

Exterior – Drives great offroad or in the snow. Lots of weight in the rear so has excellent grip – have never had to use chains with snow rated tires! With bluetooth controlled airbags you can raise ride height quite a bit if you have to go over rough terrain to find the perfect camp spot!

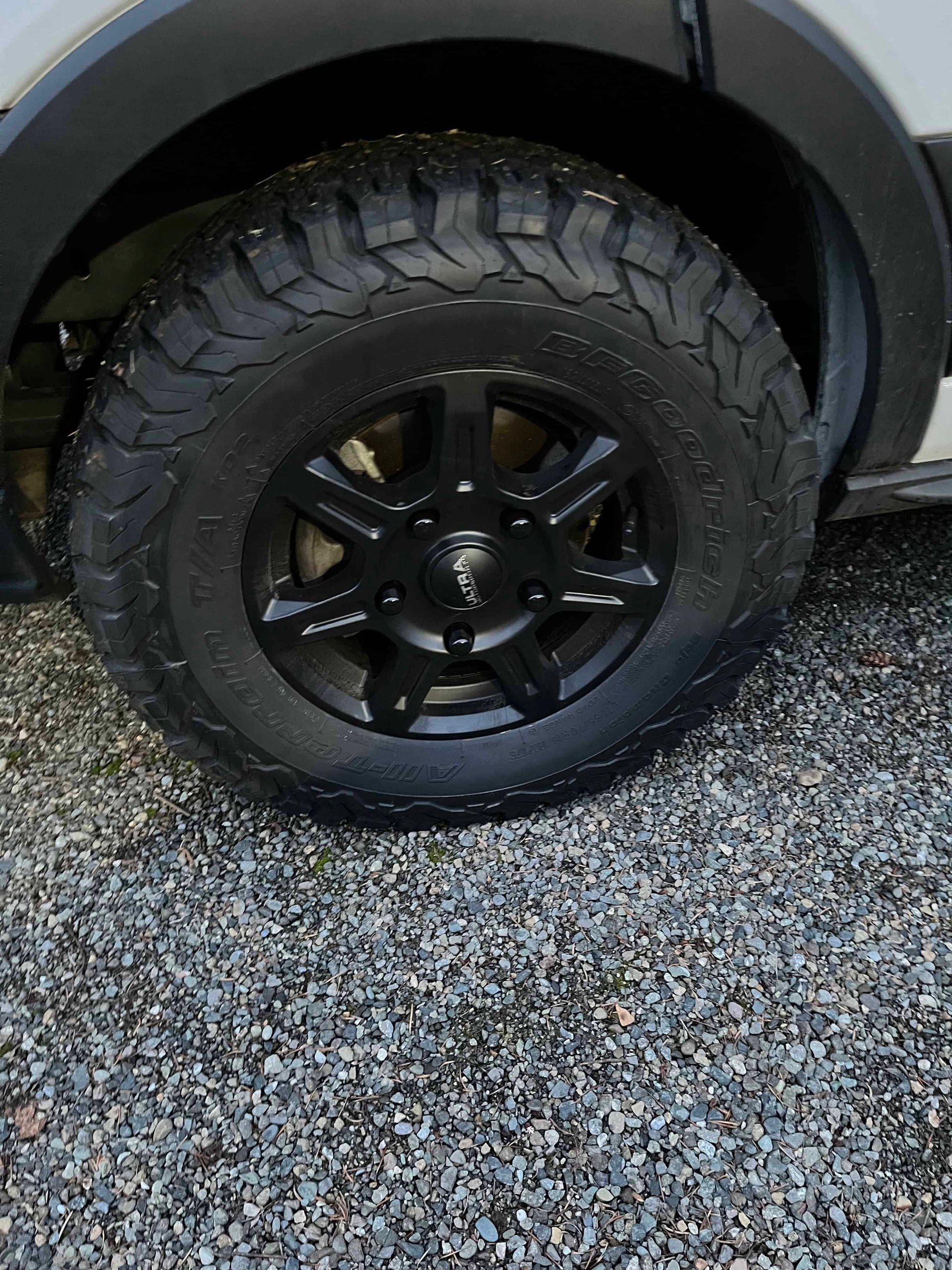

- 16X6.5 Ultra Toil Black Wheels (New 2/22)
- BF Goodrich AT T/A K02 E Rated (LT255/70R-16) – Up a size from stock (New Feb 2022 ~27kmi)
- Snow Chains for 255/70-16 Wheels (Started using for skiing Feb 2022 which is why the heater, snow tires etc was added then)
- Air Lift LoadLifter 5000 Ultimate Air Spring Kit (w/ internal jounce bumper)

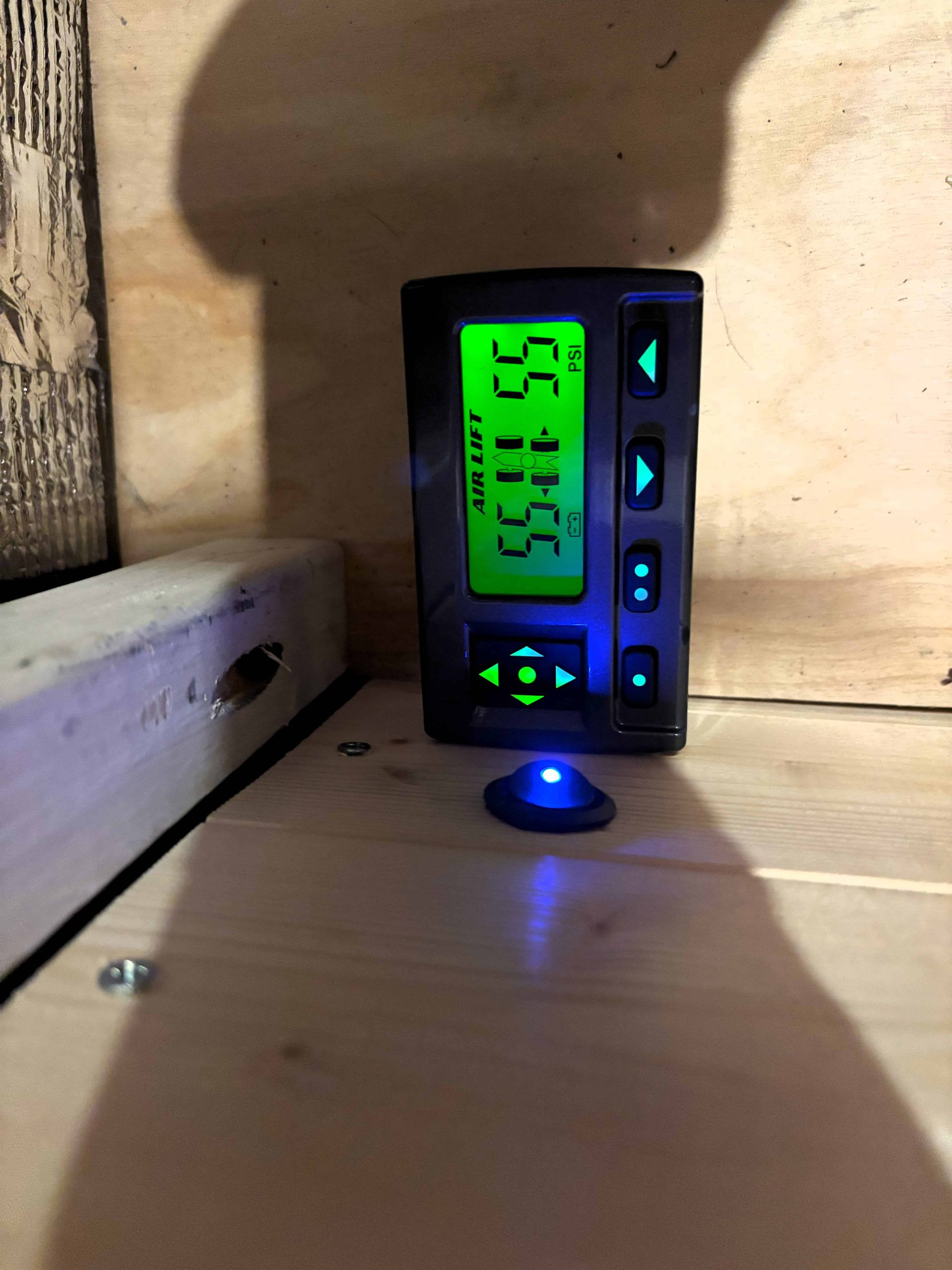

- Air Lift 7200 Wireless Air Leveling Compressor (Bluetooth controller in cab – finally installed controller/compressor February 2022 & it was a game changer! Can level rear for sleeping and adjust ride height on the fly)
- New brakes & rear calipers from Les Schwab (@ 25k mi 8/31/2022) – If the pads go too far you often have to replace calipers too – saved you the hassle! Over 8MM all around – was inspected 12/16 for regular serice
- Serviced December 16, 2023 – Oil/rotation/fluids/standard check @ Ford Dealer
- Have original wheels/tires to go with that have good tread left
Other & Safety Components:
- Fire Extinguisher
- First Aid Kit
- Carbon Monoxide detector
- Smoke Detector
- Propane Detector (hard wired)
- Back-up camera
- Automatic windows & door locks (4 factory keys)
- Factory Key Pad on drivers door for keyless entry

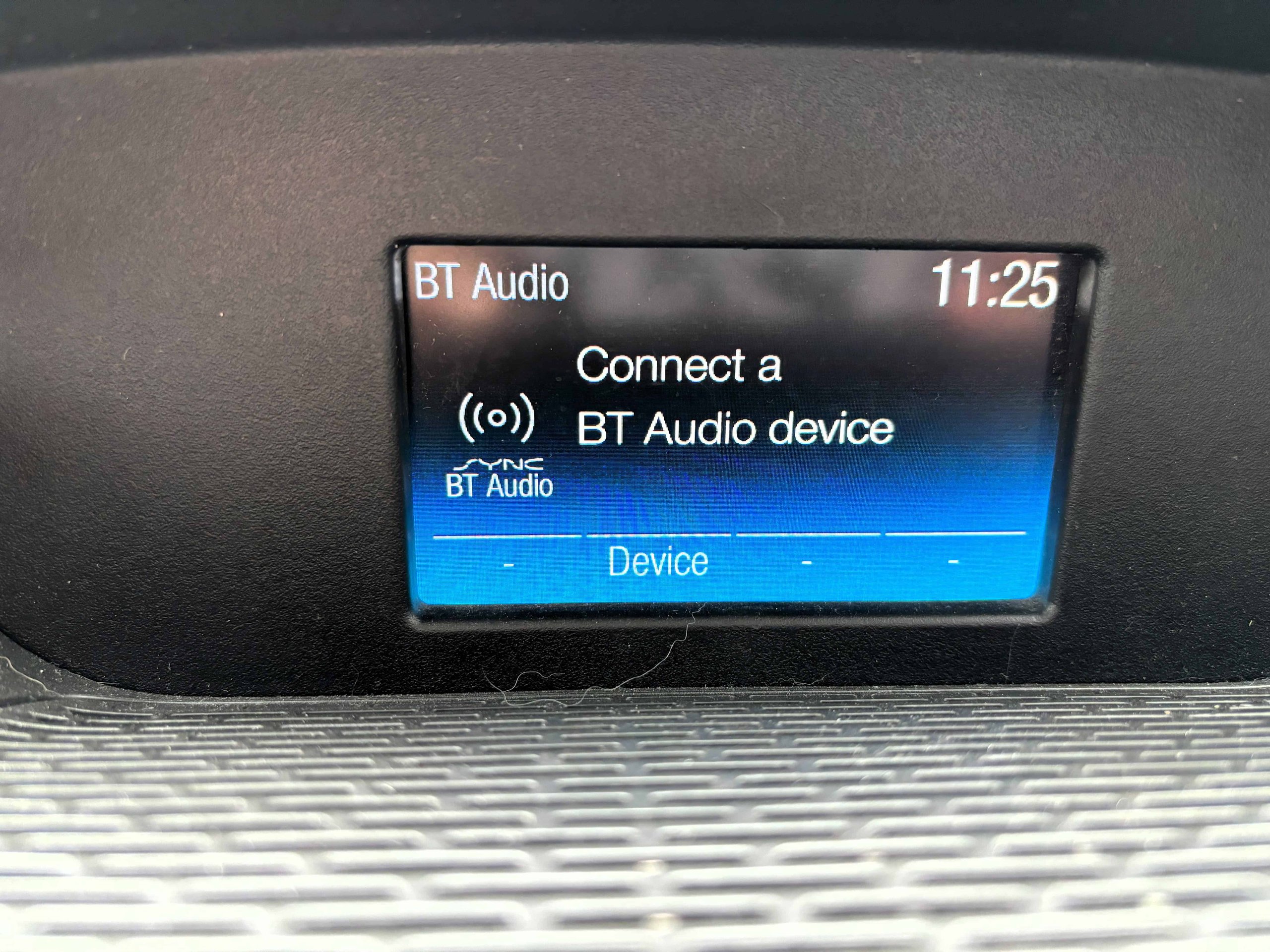

- Bluetooth SYNC Radio
- Cruise control
- Reverse sensing system
And more!
There is a loan and the only way I'd feel comfortable with a transaction of this size is with a 3rd party (I have it listed on KeySavvy), or if we meet in the bank and deposit/payoff to get the affidavit in lieu of title and we go to the DOL together. The KeySavvy link is below.
www.keysavvy.com/pay/ford-ctvxzx
Thanks for looking!
