Low miles 2023 Ram Promaster 2500 159″ Wheelbase High Roof

David Terrie

Date Listed: 01/29/2024

Prescott, Arizona

Basic info

VIN 3C6LRVDG7PE536055

Year 2023

Make Ram

Model Promaster

Mileage 14,000 mi

Transmission Automatic

Fuel Gas

Drivetrain 2WD

Chassis Van

Seats With Seatbelt 2

Sleep 2

Conversion Status Partial Build

Title Lien

Highway Fuel Efficiency (MPG) 17

Roof Hi-Top

Kitchen Feature

Features

Sink
Refrigerator

Hot Water Heater Type

None

Living Space

Features

Vented Windows

Air Conditioning

Battery Powered Off Grid
Shore Power / Generator Powered

Heater

None

Inverter Size

3500 watts

Solar Panel Wattage

400 watts

Ceiling Vents

Fan Vent
Ceiling Vent

Water Storage

None

Battery Type

Lithium

Amp Hours

400ah

Exterior Upgrade

Features

Roof Rack

Vehicle Feature

Features

Backup Camera
Cruise Control

Color

White

Description

This van has only 14,000 miles on it. It is a Promaster 2500 with a 159″ wheelbase and high top. I had to get off the road for health reasons. The build is not finished, but offers a great place to start from. It was purchased new and has a full vehicle protection plan covering all repairs. Priced to sell, well below the cost of what has been built so far.

Exterior:

Nomadic Cooling X3 air conditioner in the back
Maxxfan Deluxe fan in the front
custom low profile 15 series 8020 full length roof rack holding 2×200 watt solar panels. There’s room for a roof deck in the front.
CR Lawrence T-Vent passenger sliding door window
CR Lawrence Half Slider Bunk Windows in the back

The AC, fan and windows were professionally installed.

Interior:

Floor, walls and ceiling painted with insulating paint
Thinsulate insulation on ceiling, walls and doors
Floor comprised of a layer of QuietWalk, 3/4″ birch plywood and high quality padded laminate flooring. It is not glued down, so it can be removed.

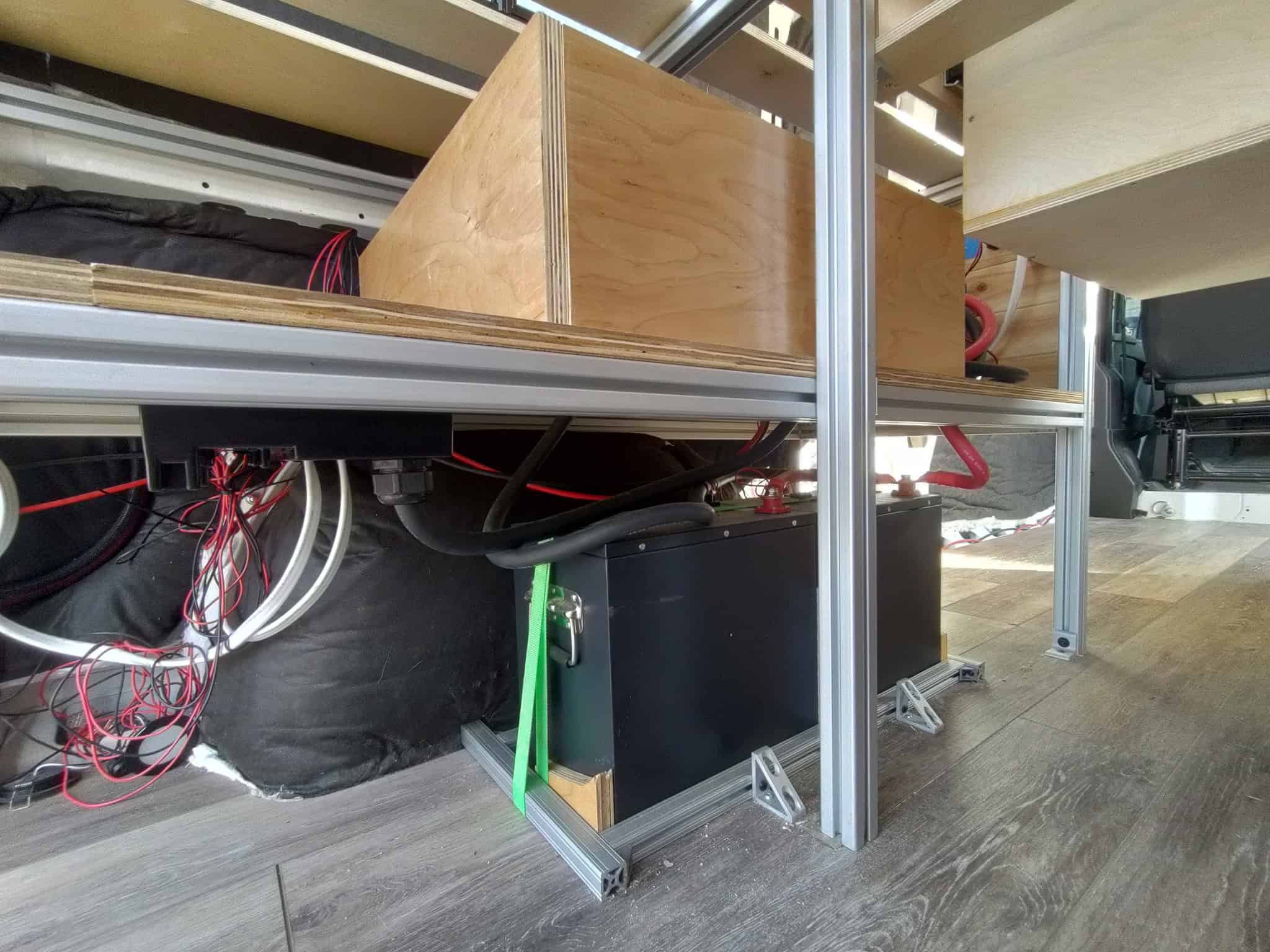

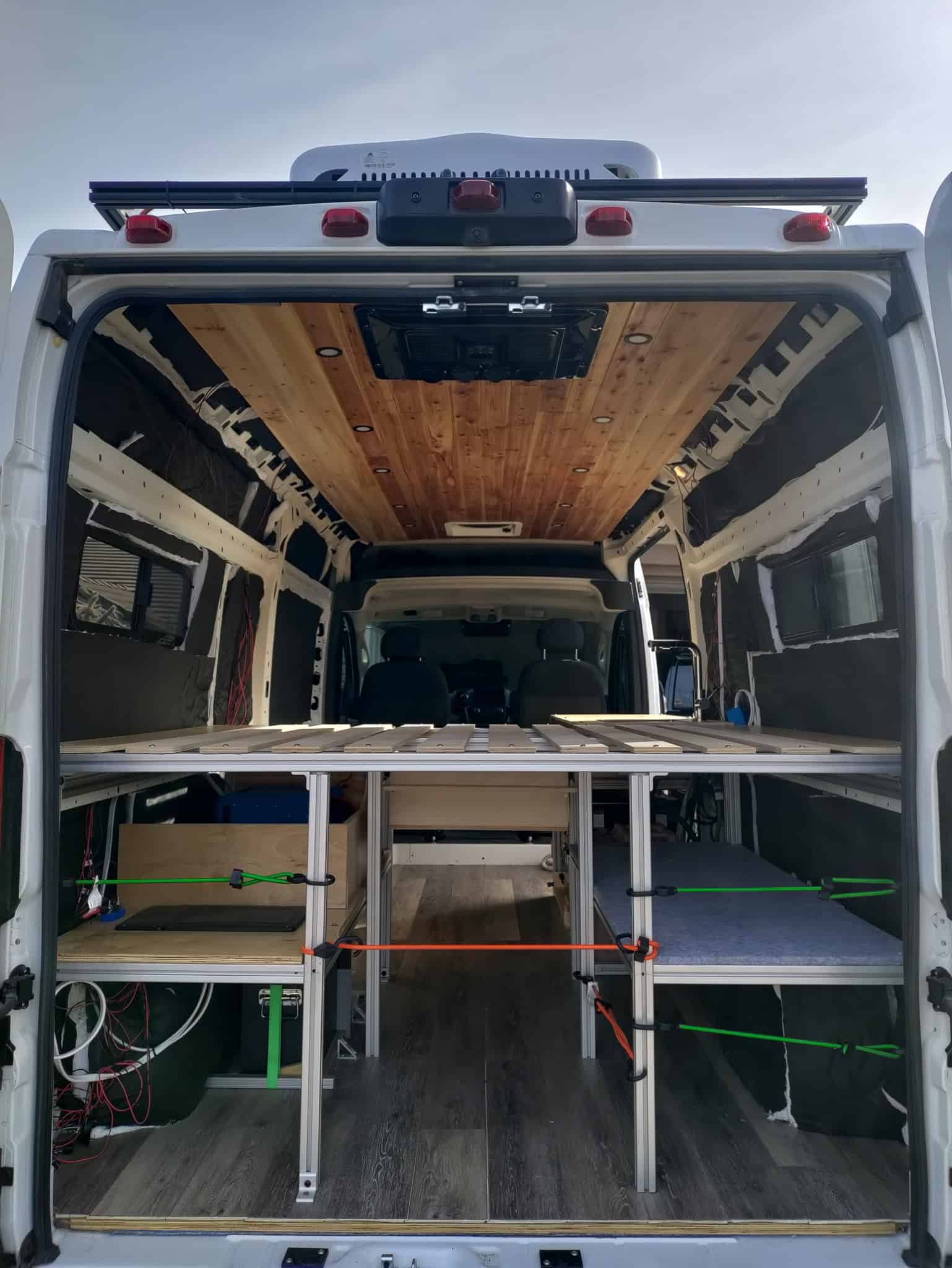

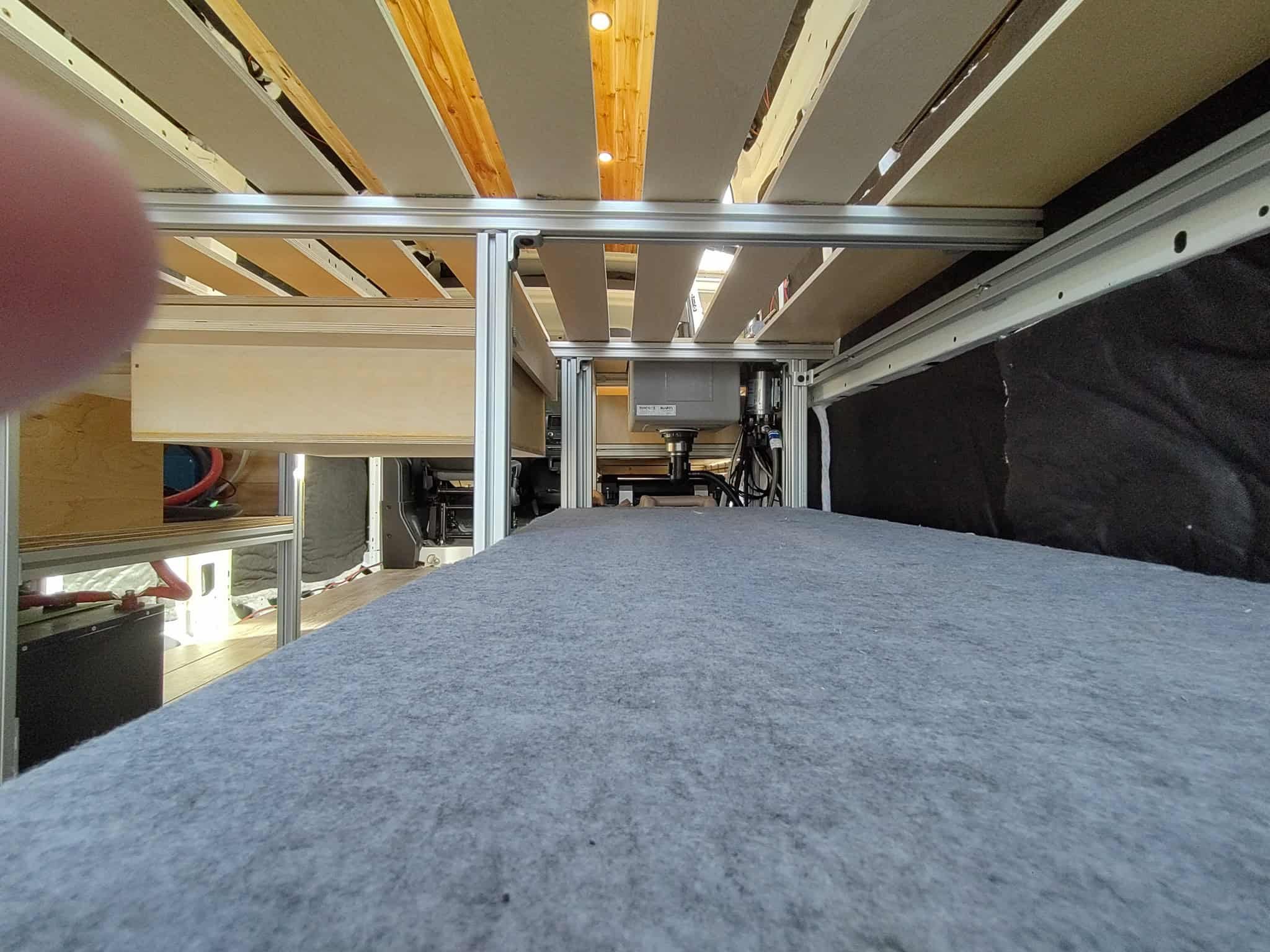

Full size horizonal bed platform made of 15-series 8020 and 1/2″ Baltic Birch slats. Power system underneath on driver side, storage shelf on passenger side. Open in middle, high enough to fit bicycles. With mattress, still room to fully sit up on bed.

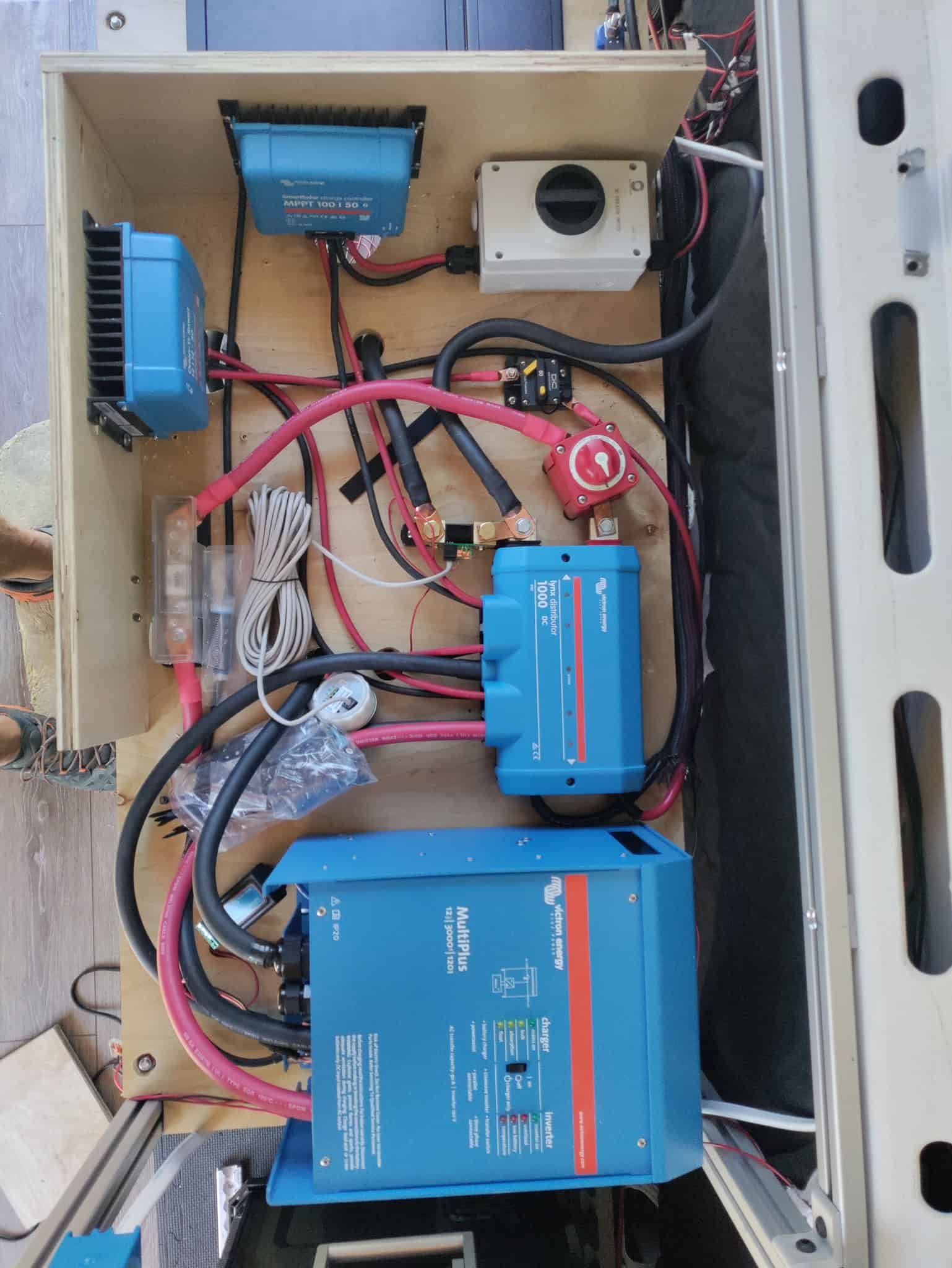

Power system built with components from Explorist.Life kit. All Victron: Multiplus II 3000 watt inverter, Lynx Distributor 1000, SmartSolar MPPT 100 | 50 Charge Controller, Orion 12|50 DC-DC battery charger, cut-off switches for each. Batteries are 2x206ah SOK Lithium

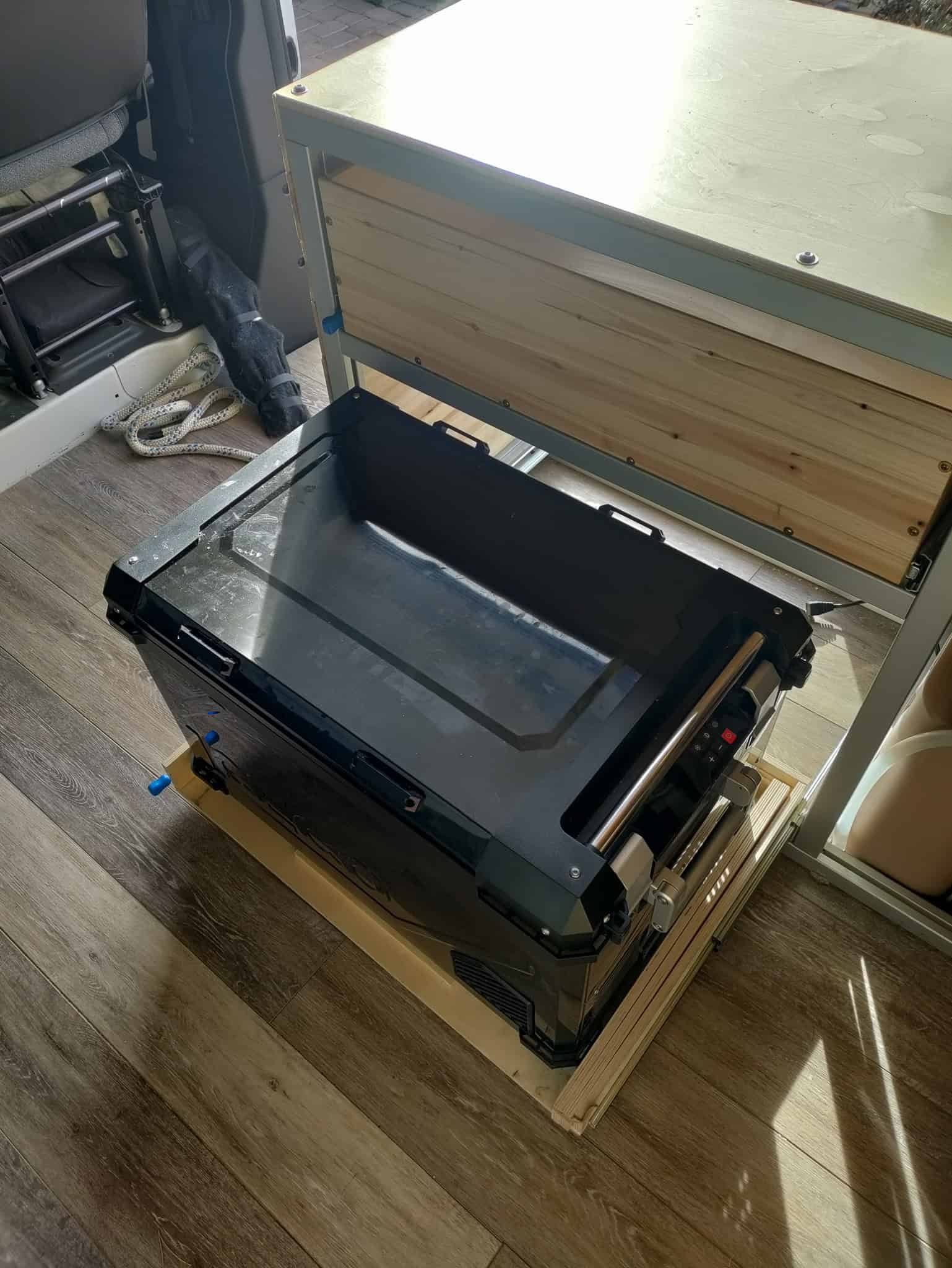

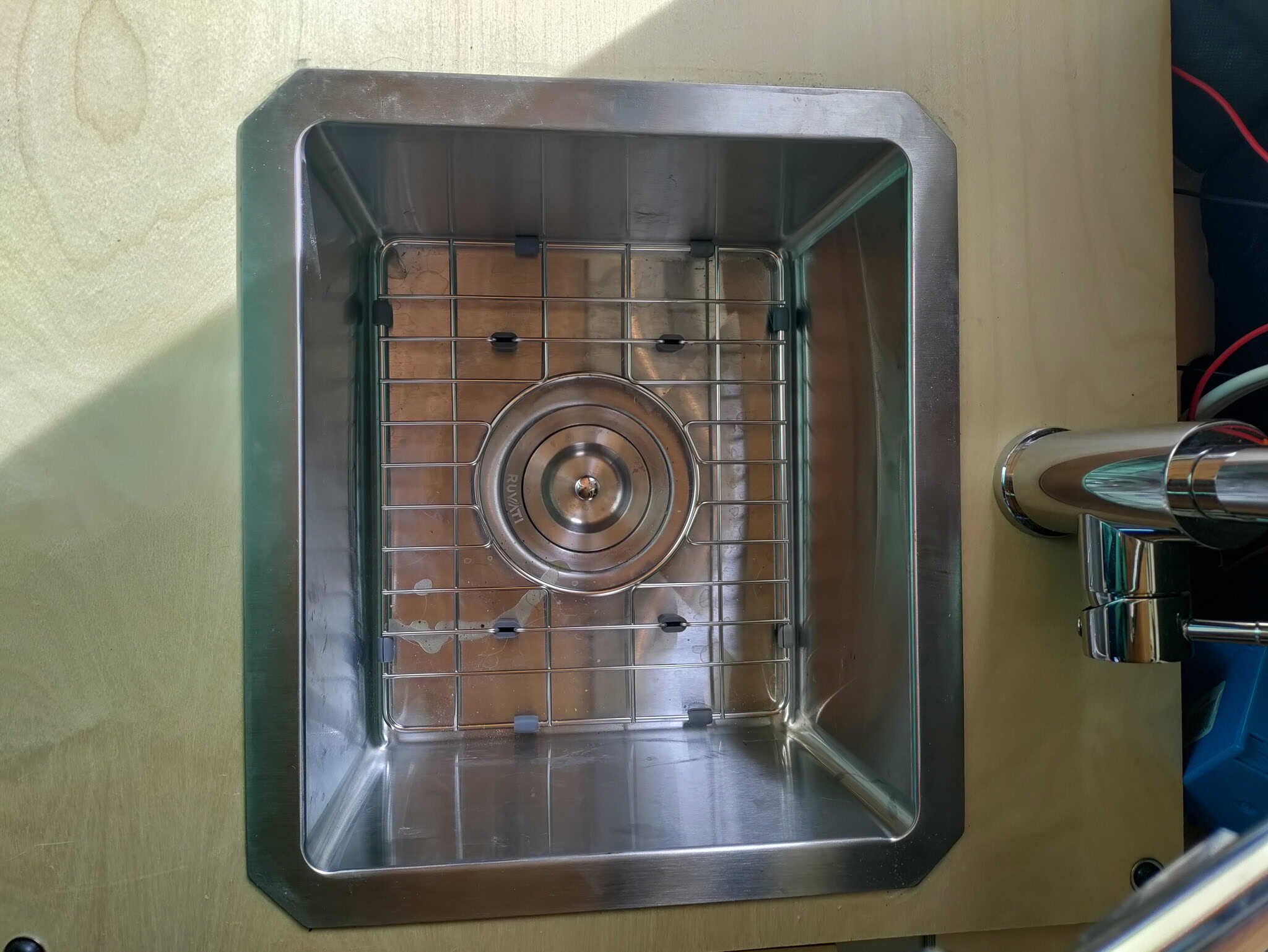

Galley made of 15-series 8020 frame kit designed by OurKaravan.com. Large top storage drawer on locking rails, ICECO APS-55 dual zone refrigerator on bottom on locking slides, bar sink and faucet with two 5 gal jerry cans underneath for gray and fresh water or 10 gal of fresh water if gray water plumbed differently. SureFlo pump.
Both bed frame and galley can be unbolted and removed from 8020 side rails affixed to ribs of van with plus nuts.
Shore power not installed but components included.
Cedar slat ceiling has two zones of puck lights for front and rear over bed.
Wanderful window coverings and magnetic sliding door bug net included.
