Kokopelli Expedition Camper

A design-focused true four season expedition camper built to take you anywhere in comfort.

See full details on our site: https://www.shiro-overland.com

Specifications

Platform

• 2022 Ford F550 cab chassis
• 6.7L Powerstroke Diesel Engine
• 4WD with 4.88 gearing and rear limited slip differential
• Antimatter Blue exterior, Baja Leather interior
• Lariat Package
• 3700 miles

Dimensions & Capacities

• Habitat length: 20′ 6″
• Habitat height: 12′
• Habitat width: 8′

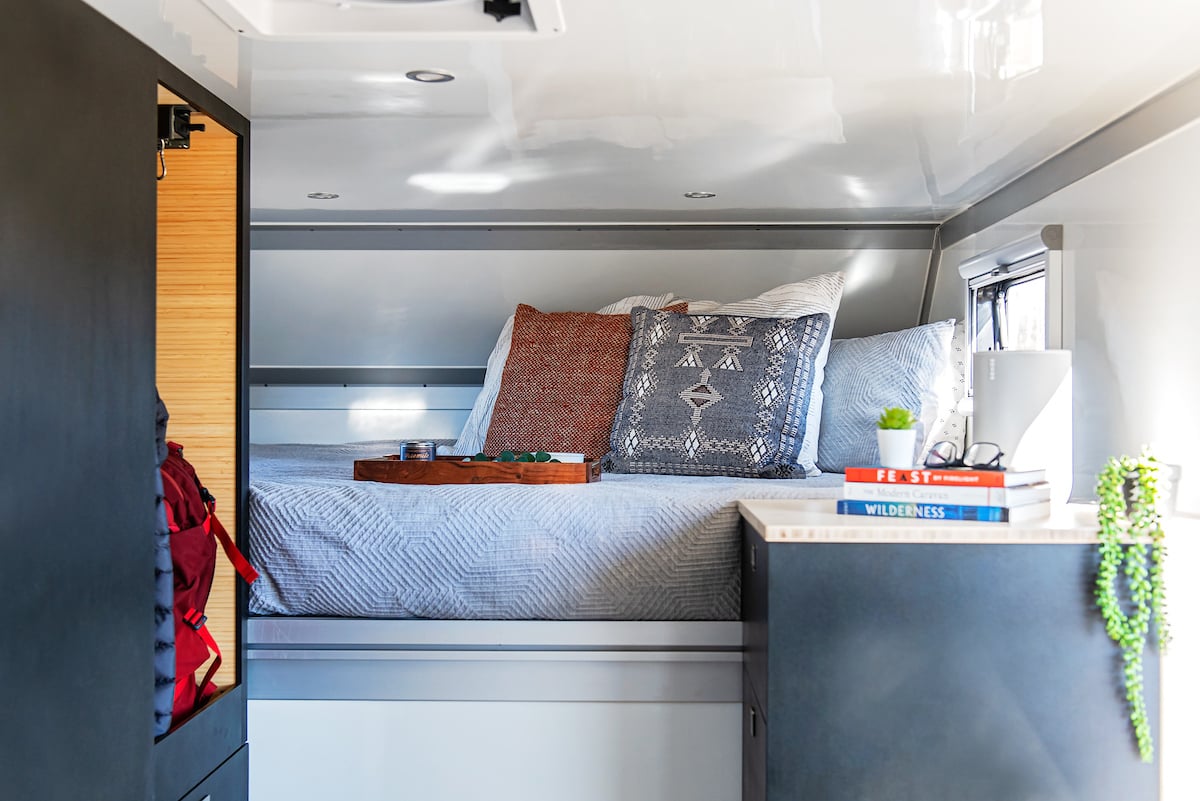

• Interior floor space: 14′ main living area, 6′ cabover sleep quarters
• Dry weight: 15,500 lbs
• GVWR: 19,500 lbs
• Sleeps 4+ (King bed and convertible queen)

Power System

• 1280 watts of solar (4x Renogy 320 watt panels)
• 824 amp hours of lithium (4x SOK 206ah batteries)
• Victron MultiPlus-II 3000 watt 120v inverter
• Victron Smart Solar 100/50 MPPT controller
• Victron Orion 30 amp DC/DC charger
• Simarine Pico monitoring system – solar, power draw, tank levels, temperature, inclinometer
• Shore power plug and cable – 30 amp

Water System

• 90 gallons fresh water
• 33 gallons grey water

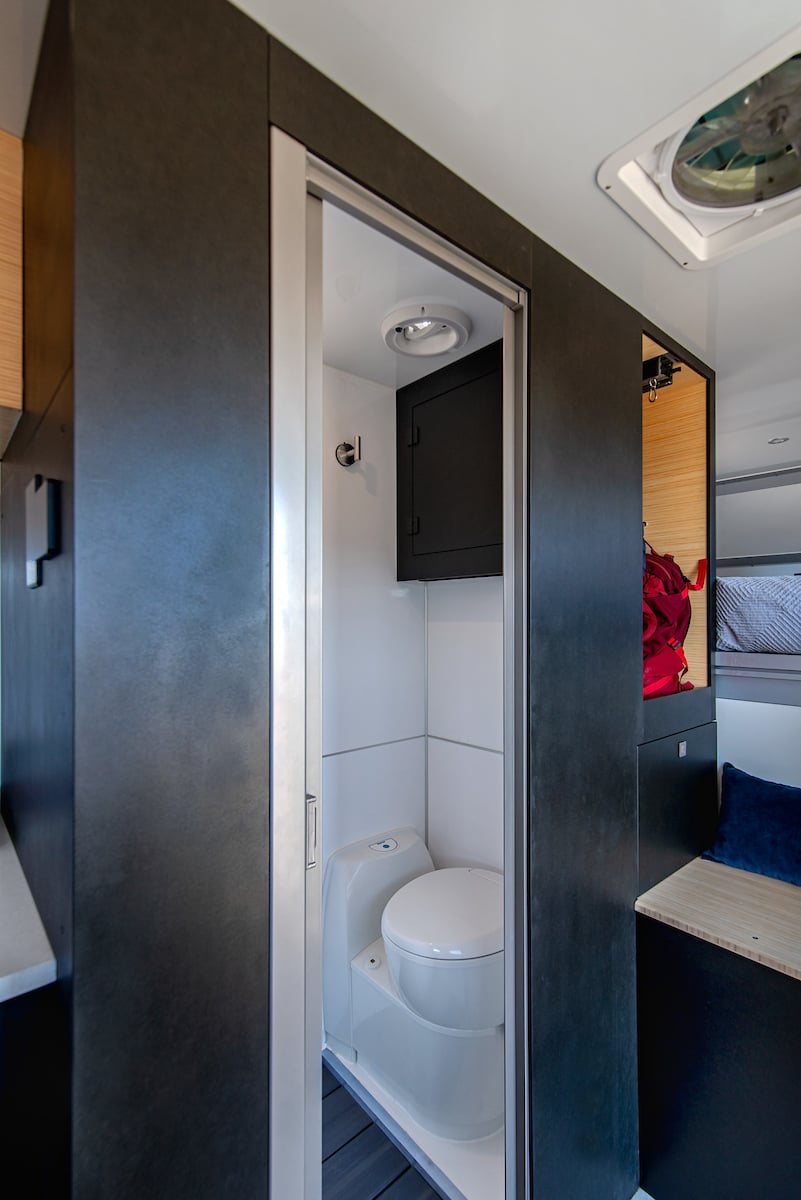

• Thetford cassette toilet w/ 4.75 gallon capacity
• 25″x27″ dedicated shower area with Hai smart bluetooth shower head
• Under sink drinking water filter

Vehicle Enhancements

• A four point zero torsion subframe protects your habitat box from chassis twist and keeps all four wheels on the ground longer
• Lift kit, front bumper modifications and custom fenders to accommodate the large 41″ tires
• Continental MPT 81 – 335/80 R 20 tires on aluminum wheels (5x)
• Custom tuned suspension with Fox 2.5 shocks with remote reservoir and DSC adjusters
• Front recovery winch – Sherpa Steed 17,000lb winch
• ARB twin compressor
• Integrated KC daylighter off road lights

Appliances

• Dometic CRX-1140S stainless steel DC/AC refrigerator – 4.8 cu ft.
• Summit 1800 watt induction stove
• MaxxFan Deluxe 7500K Electric Powered Roof Vent with Remote Control
• MaxxFan Dome, 6″ Bathroom Fan
• Dometic RTX 2000 Air Conditioner
• Sonos Move audio system
• 27″ Samsung smart tv/monitor
• Dimmable integrated overhead LED lighting with dual zones – front/rear
• Aquahot 125 hydronic heating system provides on-demand hot water and two zones of heat. Temperature of the zones (front/rear) can be set independently. System runs off vehicle tank – available for both gas and diesel vehicles.

Exterior Storage

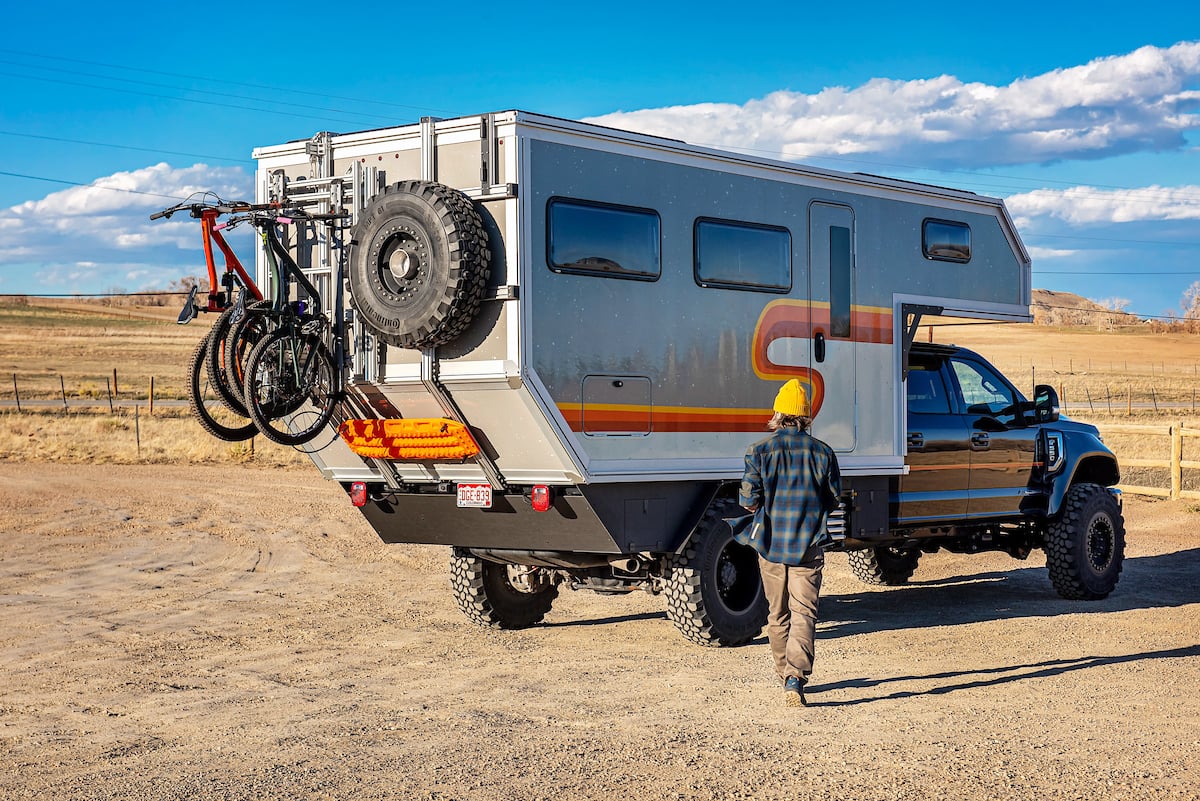

• Modular rear storage system provides power raise/lowering of bikes, ski racks, gear boxes, etc.
• Rear rack accommodates spare tire with electric hoist for tire removal
• Custom locking underbody storage cabinets
• Integrated storage for recovery boards
