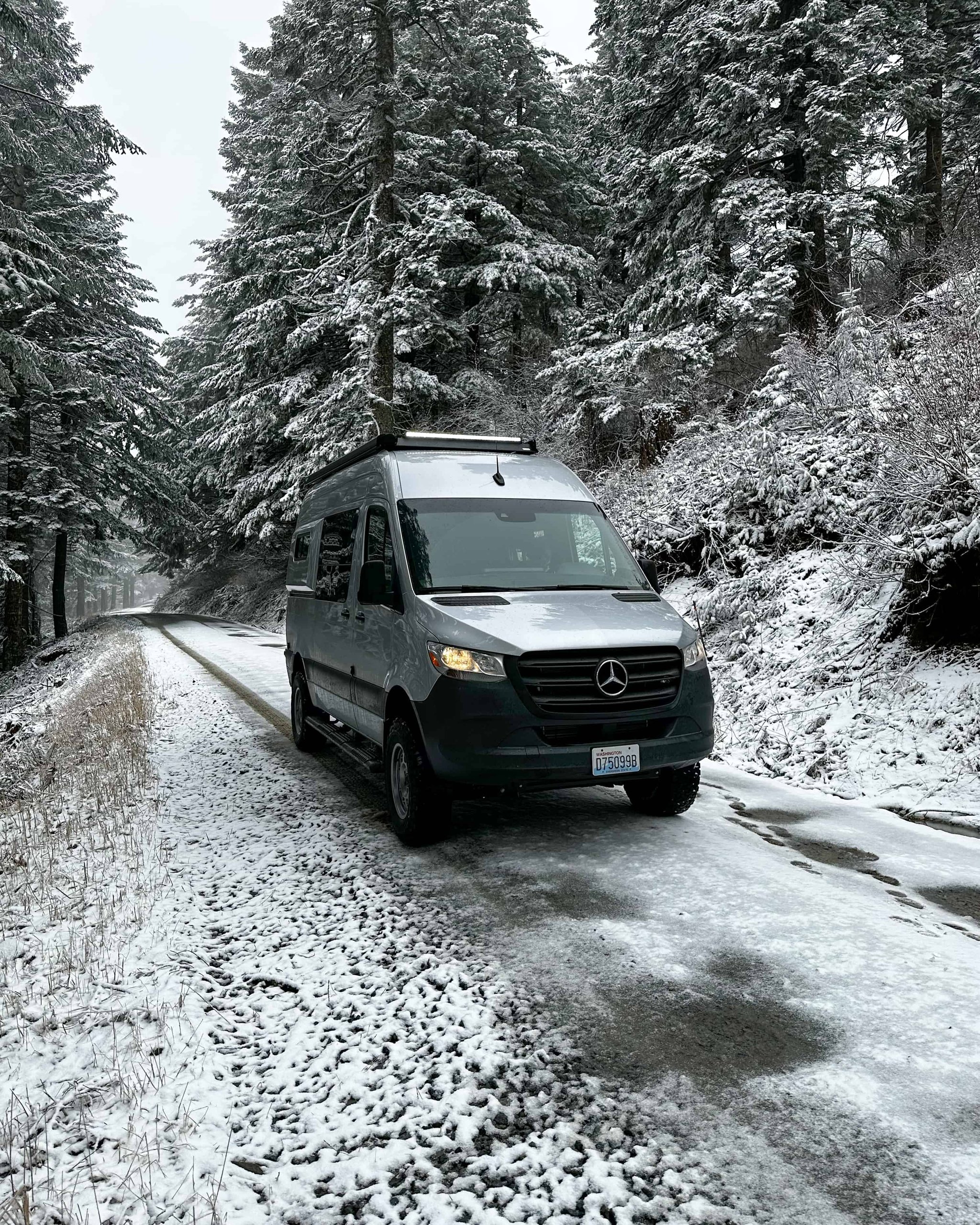

Fully Equipped 4×4 Sprinter Conversion with Video Tour

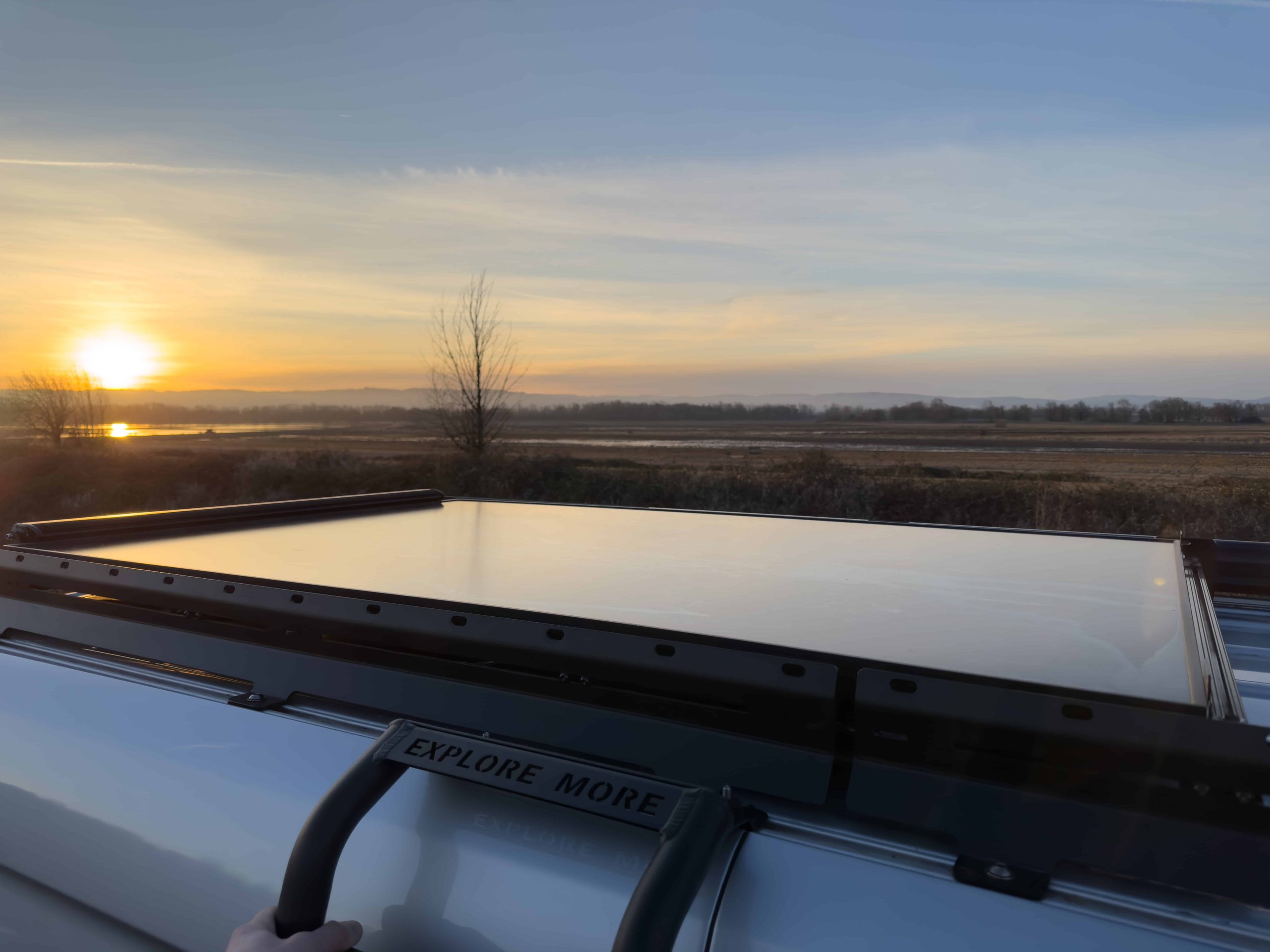

This 4×4 Sprinter is outfitted with everything you need to thrive off-grid. What stands this build apart from others on the market begins with the 24 volt Victron electrical system designed by Just Roam Designs in Portland, OR. This 10k kilowatt hour system (equivalent to 800 ah at 12v) is more robust and efficient than the 12v systems currently being used in most builds. A 24v 150 amp secondary alternator has been fitted in order to charge this massive battery bank up while driving. Additionally, a huge 400 Watt solar panel is affixed to the roof rack to provide supplemental power. Finally, charging can also be achieved through a Smart Plug power port on the driver’s side of the van.

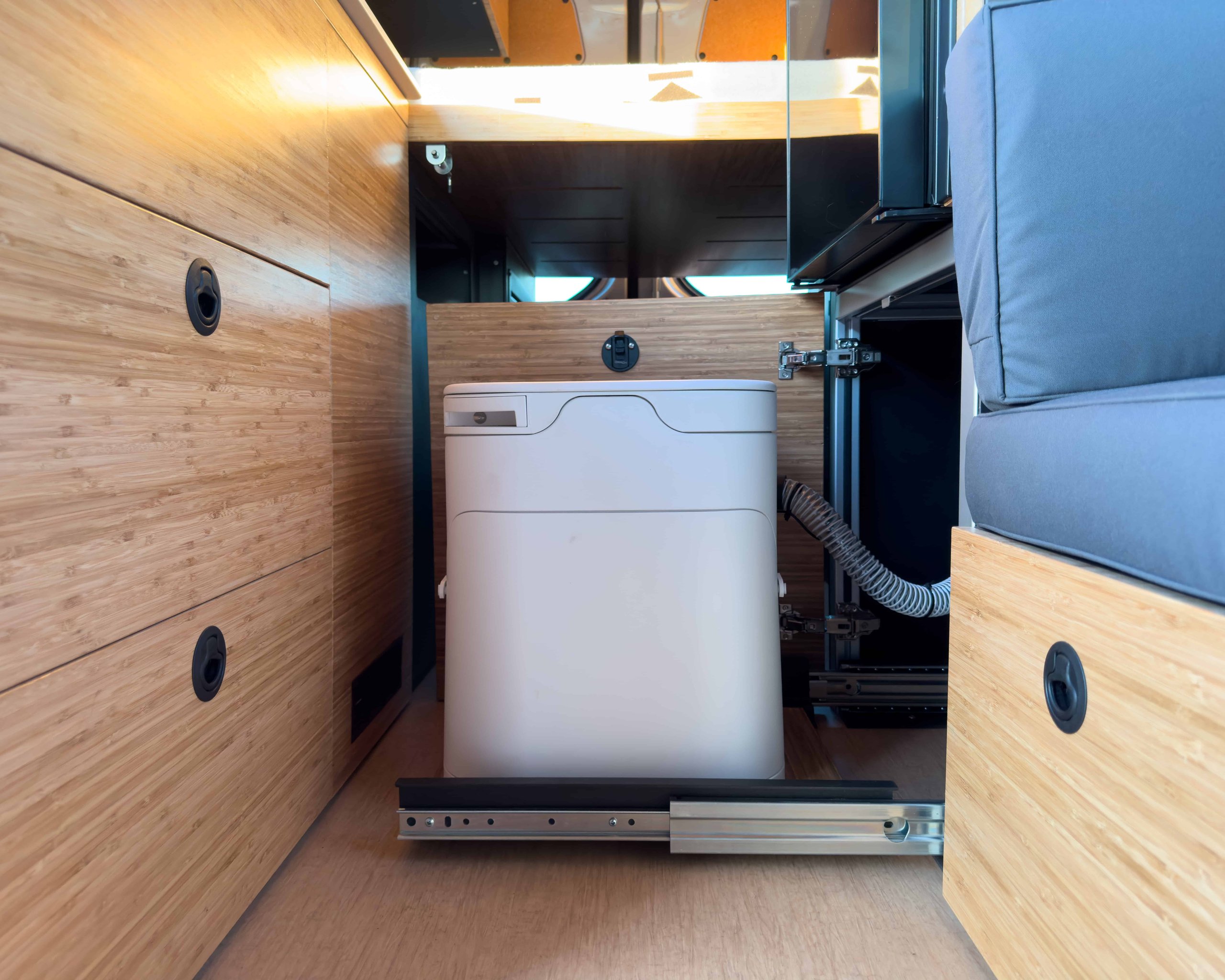

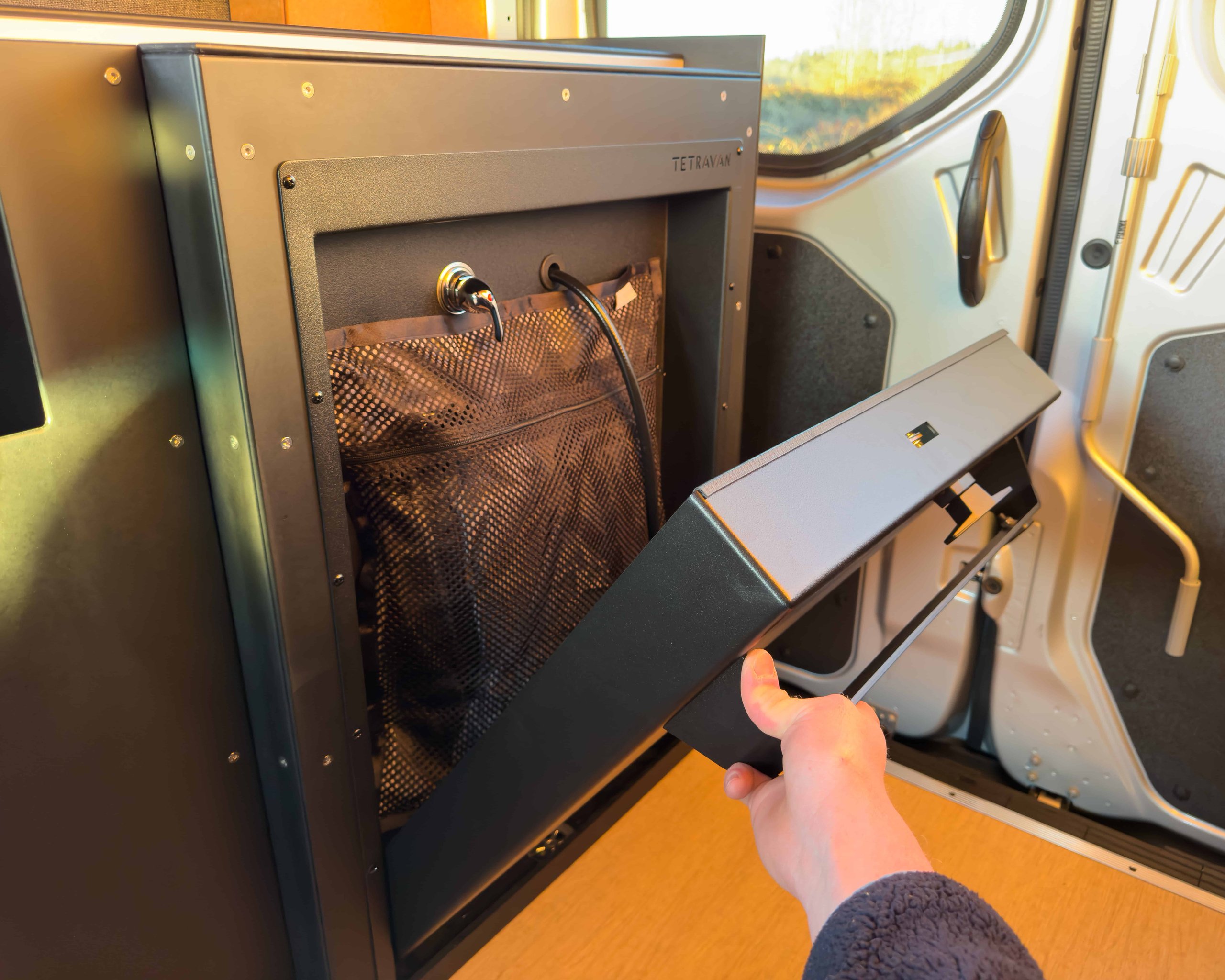

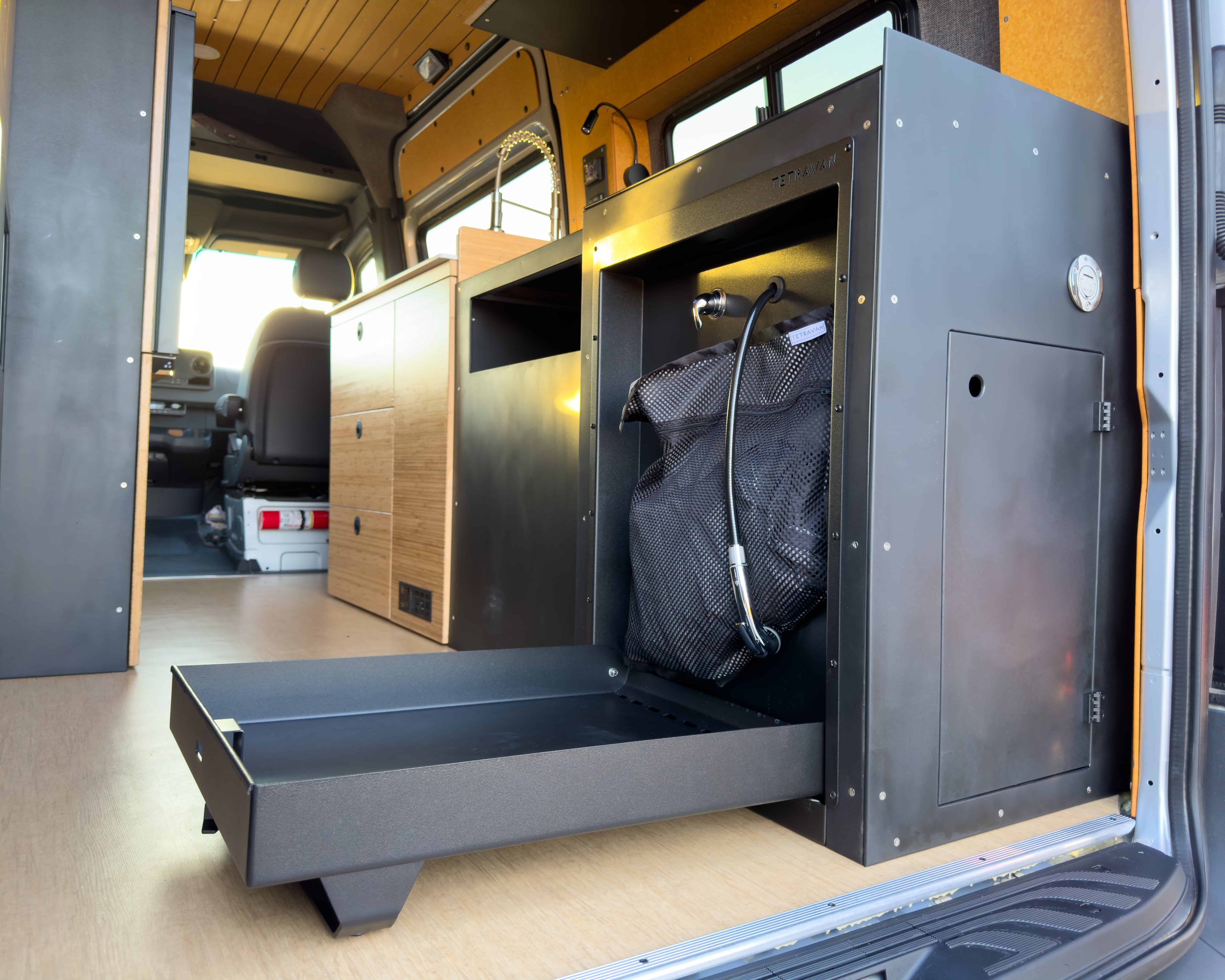

This build also comes with a premium bathroom package which includes the new OGO composting toilet with a push-button agitator as well as the Tetravan Folding Shower 2.0 with Magnetic Curtain. These components are quickly accessible when needed and stored discretely when not in use.

The Timberline Hydronic heater is fuelled by the vehicles diesel tank and provides both hot air and water. This is controlled by an intuitive touch screen located centrally in the van. The roof-mounted Houghton air conditioning system is among the most efficient RV AC’s on the market and can run for hours off the Victron electrical system.

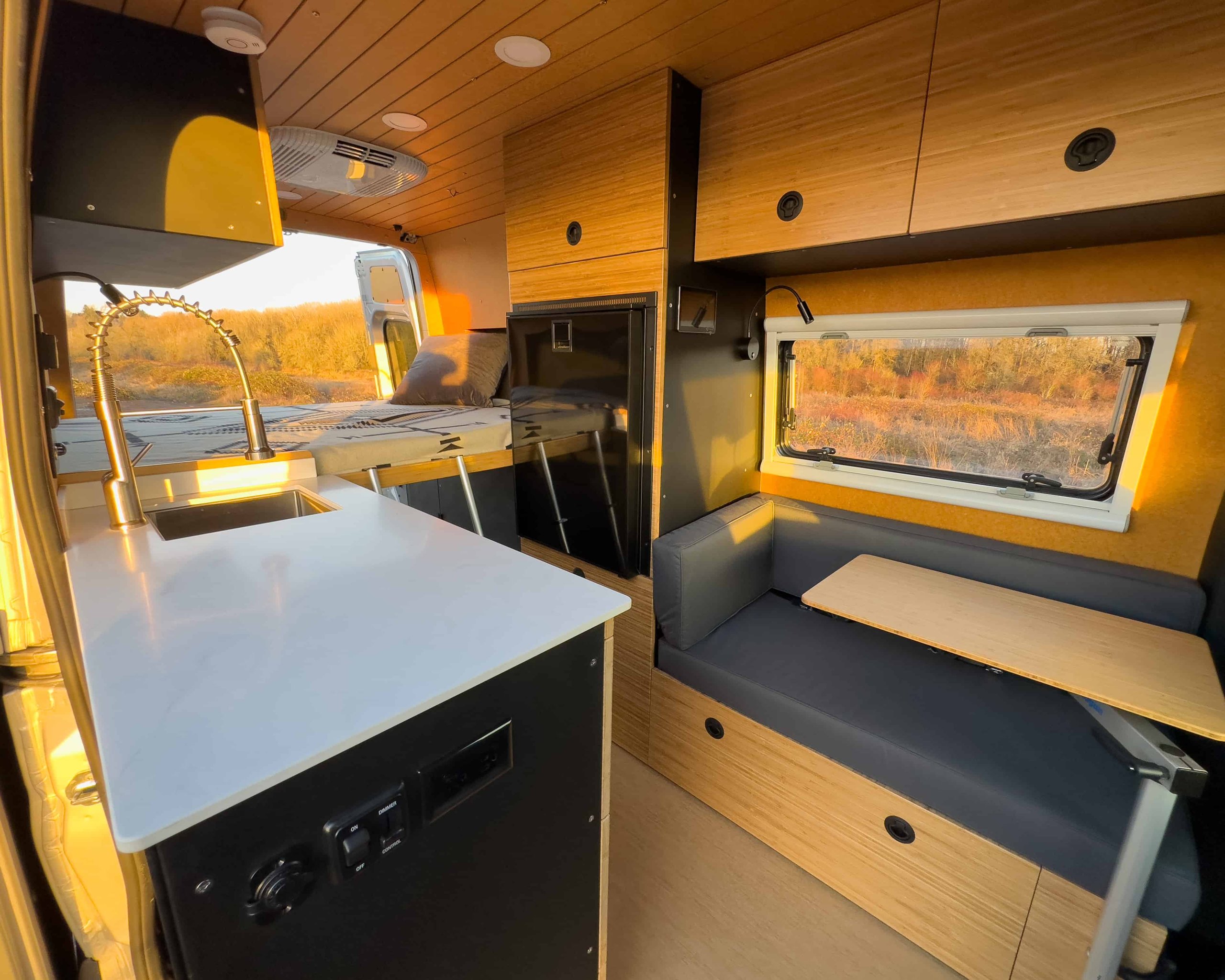

There is plenty of drawer and cupboard space throughout the van. Aluminum extrusion and Richlite panels were used to construct the cabinets. This greatly increases the strength and lifespan of the cabinets. Richlite is made from recycled paper and is much denser and stronger than materials used in common cabinets. The cabinet and drawer faces are made from bamboo plywood which gives the interior a more natural look.

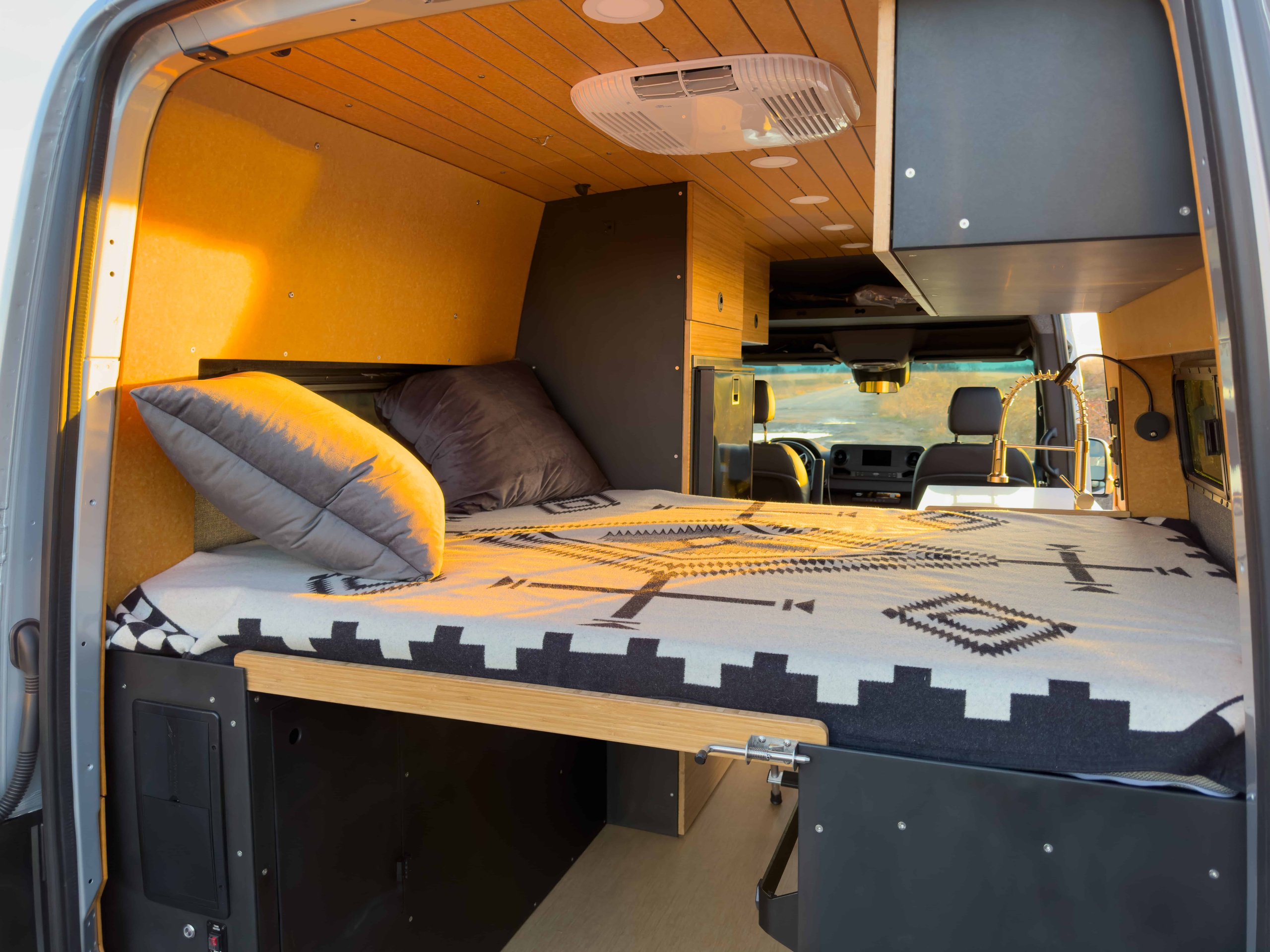

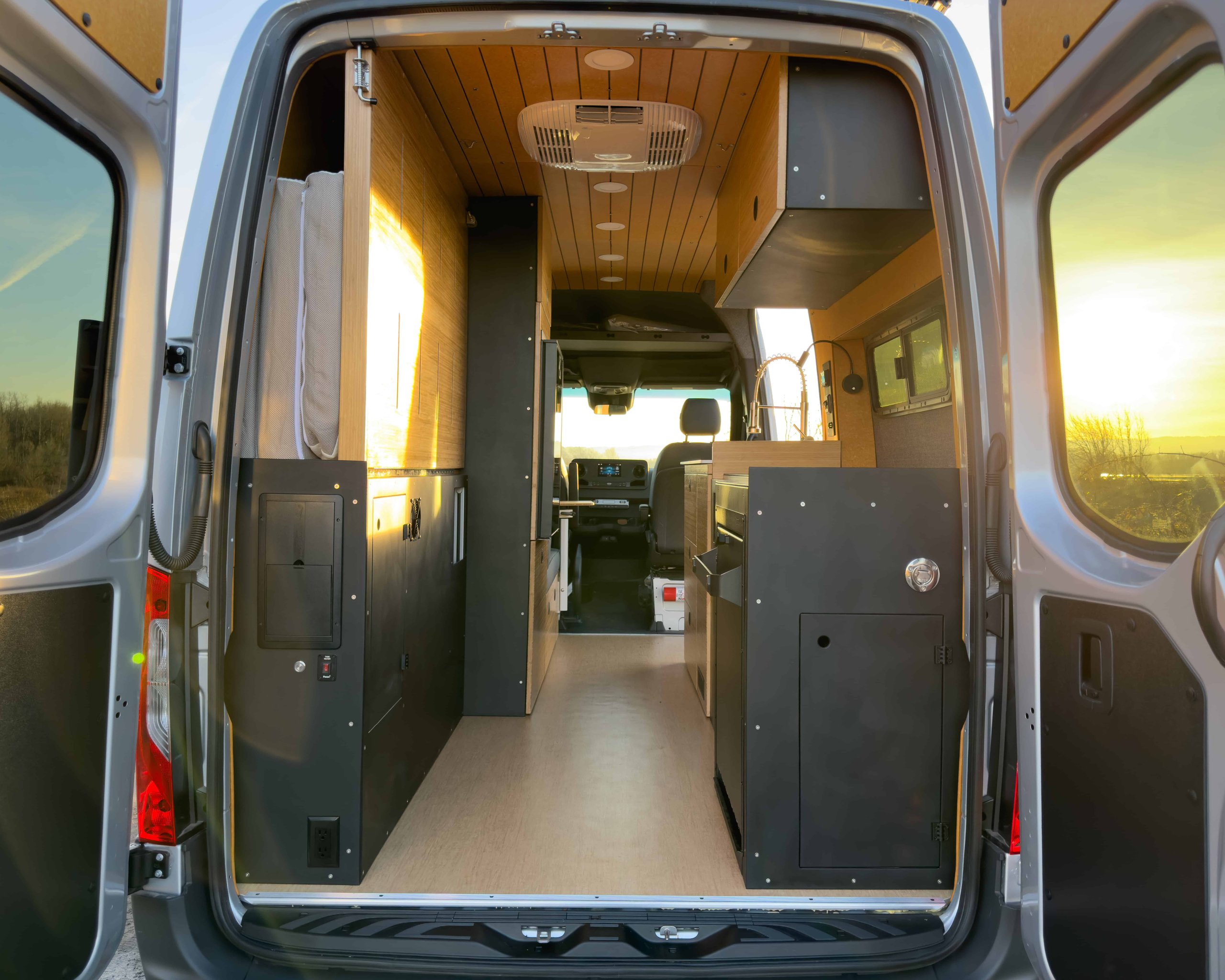

The bed (also made from bamboo) folds up to allow for a clear path through the van. The Lonseal floor is one single piece so there are no cracks that will fill with water or dirt. The wall and ceiling panels are also constructed from Richlite which means they are easy to clean and won’t tear, which is a common problem with upholstered van panels.

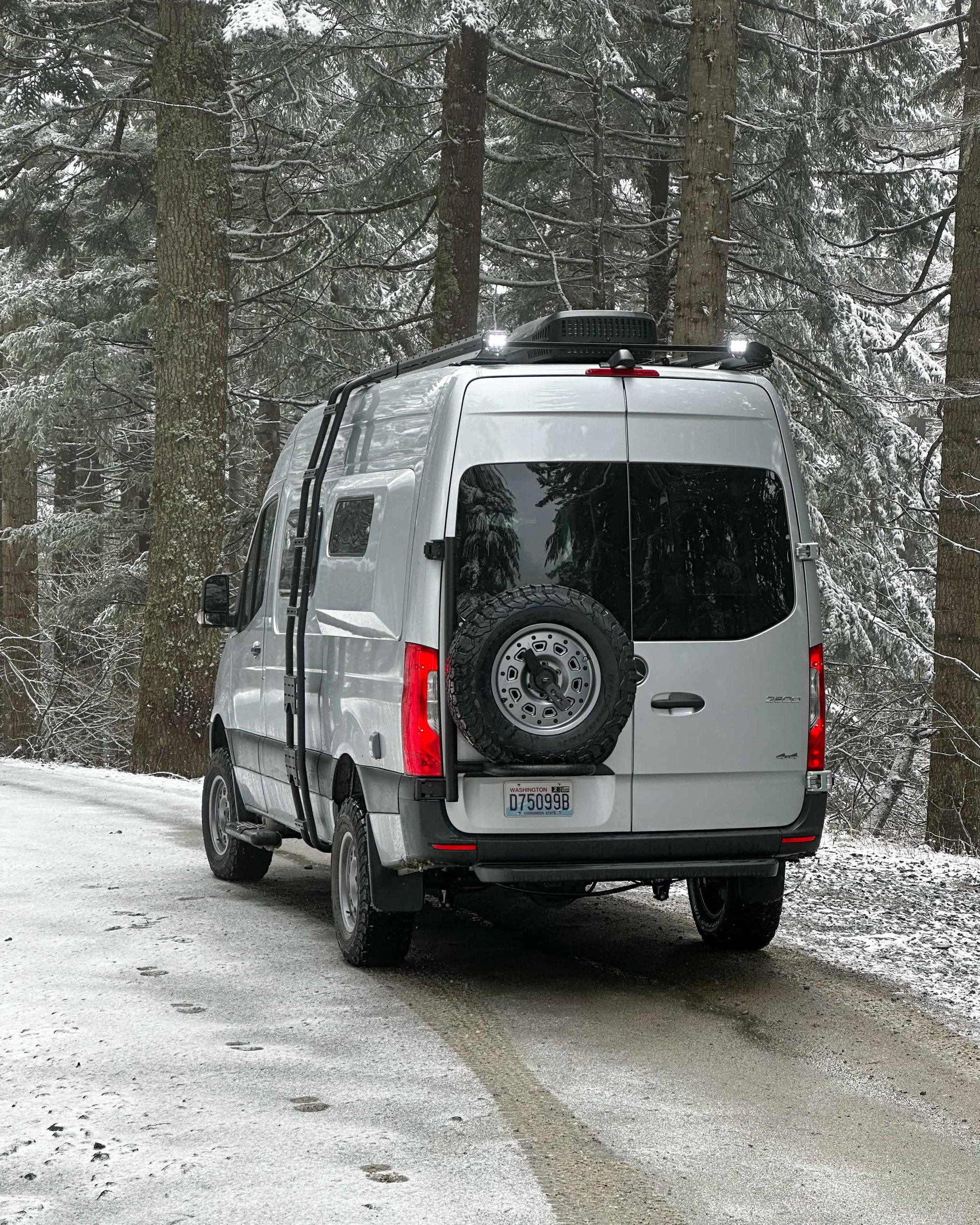

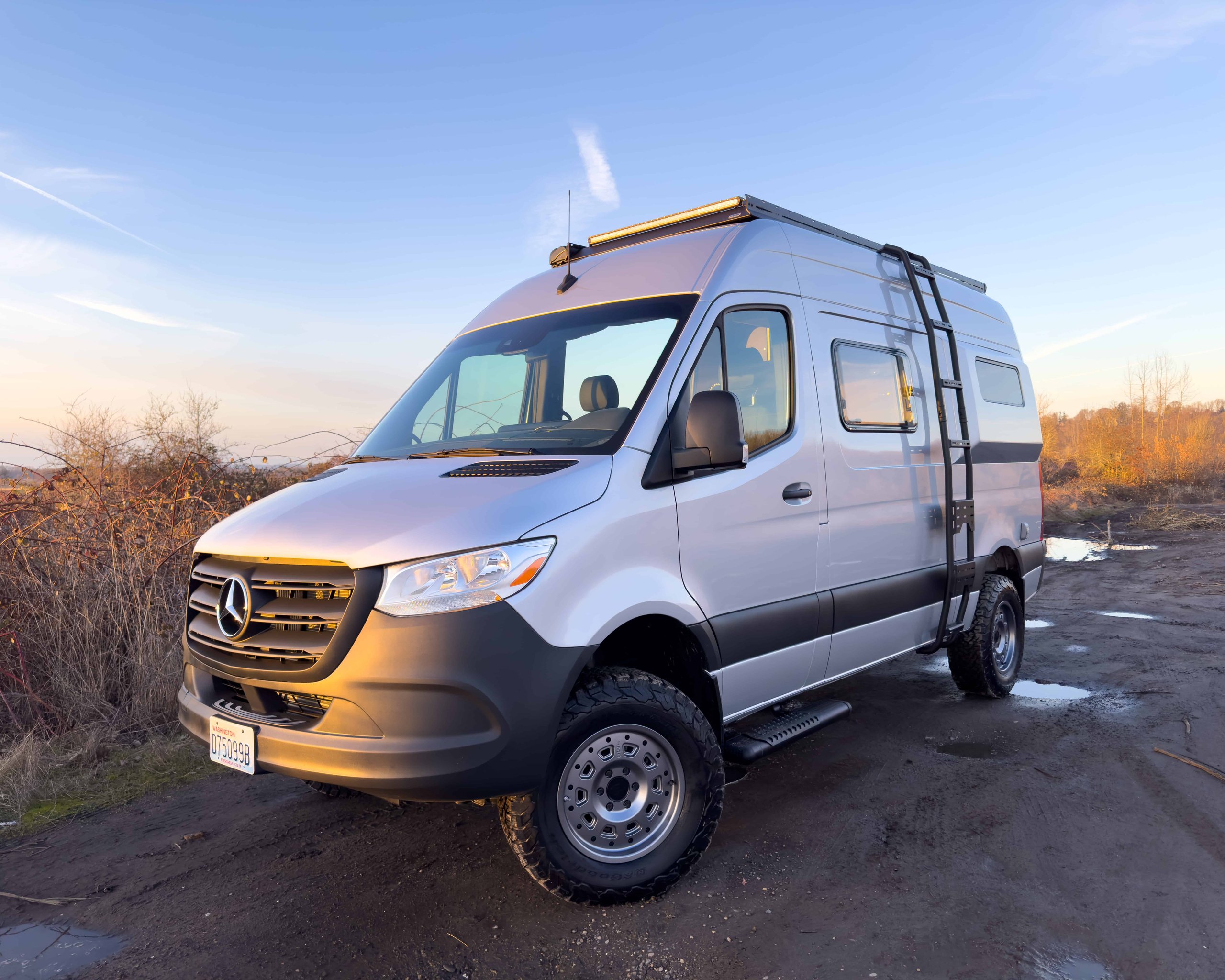

Many upgrades have been made to the Sprinter’s exterior including the Owl Vans Side Ladder, Tire Carrier, and Talon Wheel, the Flatline Van Co Low Pro Roof Rack, The Fiamma F80s Awning, Luvern Side Steps, BFG K02 Tires, Nilight Light Bar and Reverse Lights, and the Van Compass Stage 4.3 Suspension System. This suspension system dramatically improves the vans ride and handling. It can quickly and easily be adjusted via dials on the Falcon shocks to account for different terrain. The total weight of the van is under 8000 lbs dry.

***Additions can be added to the van at retail cost (no charge for labor.) Also, the solar panel can be swapped to accommodate more roof storage. ***

INTERIOR FEATURES

Aluminum Framed Cabinets Enclosed by Richlite and Bamboo

Kitchen Galley Cabinet with 3 Large Soft-Closing Drawers

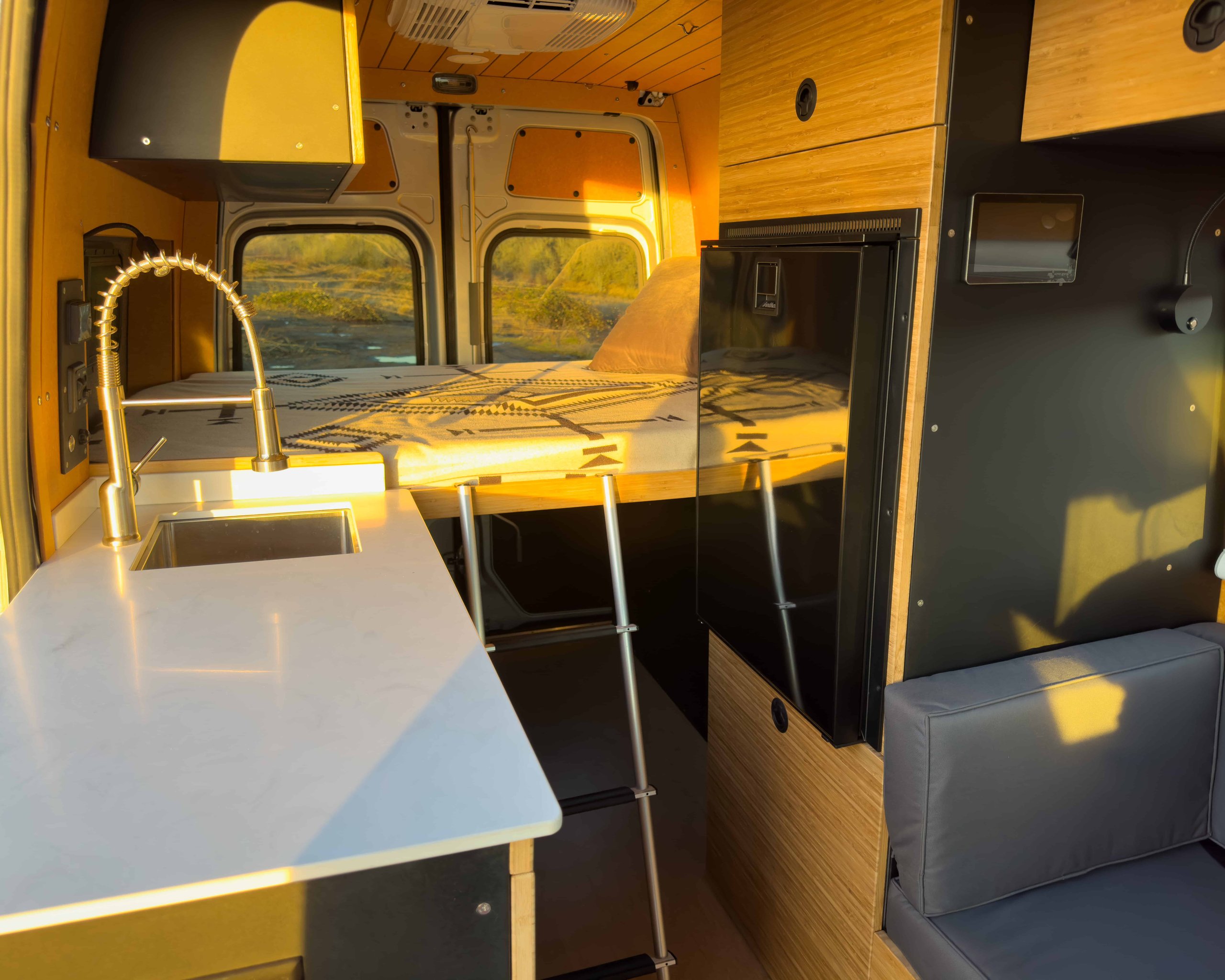

Sleek Hi-Macs Countertop with Stainless Steel Sink

Isotherm CR130 4.6 Cubic-Foot Fridge

Bamboo Murphy Bed

Bench Seat with 2 Lap Belts (note: This belt system is not dot approved or pull tested)

OGO Composting Toilet

Tetravan Folding Shower 2.0 with Magnetic Curtain

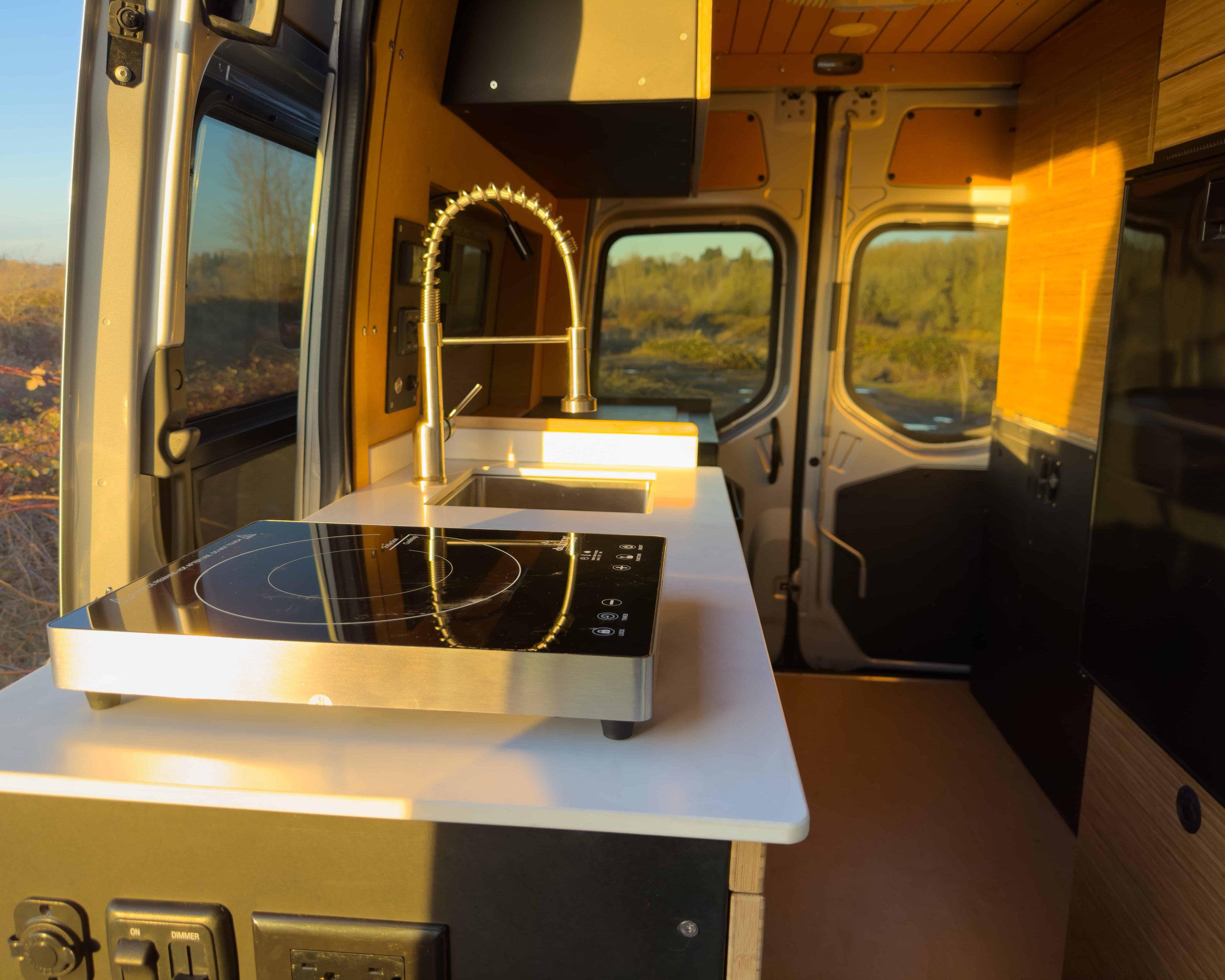

1600W Induction Cooktop

ELECTRICAL/WATER SYSTEM

24V Secondary alternator at 150 amps

Victron Batteries (total 400AH Smart Lithium – 24v system)

Victron Energy Multi-plus 3000 Inverter/Charger

Victron Energy Lynx Power-in

Victron Energy Lynx Distributor

Victron Energy Lynx Shunt

Victron Energy Cerbo GX

Victron Energy Touch 50

Victron Energy MPPT Solar Charge Controller

Victron Energy Smart BMS

400 Watts Solar Panel

2x 30 amp Orion DC/DC Charger

AC / DC Distribution Center

6 120 V Outlets

2 USB Outlets

2 12v Sockets

30 Amp Smart Plug Port

4 Zones of Dimmable Warm LED Lights

30 Gallon Interior Fresh Water Tank

28 Gallon Exterior Mounted and Heated Grey Water Tank

CLIMATE

3m Thinsulate Insulation

Houghton Roof Mounted AC with Soft Start

Timberline Hydronic Heating System by Elwell

Large Dual-Pane Tern Overland Awning Window

Both Awning and Side Windows in the Bed Area

CR Laurence Window with Awning in Sliding Door

All Windows Have Covers including the Cab of the Van

EXTERIOR FEATURES

Flatline Van Co Low Pro Roof Rack

Van Compass 4.3 Suspension System

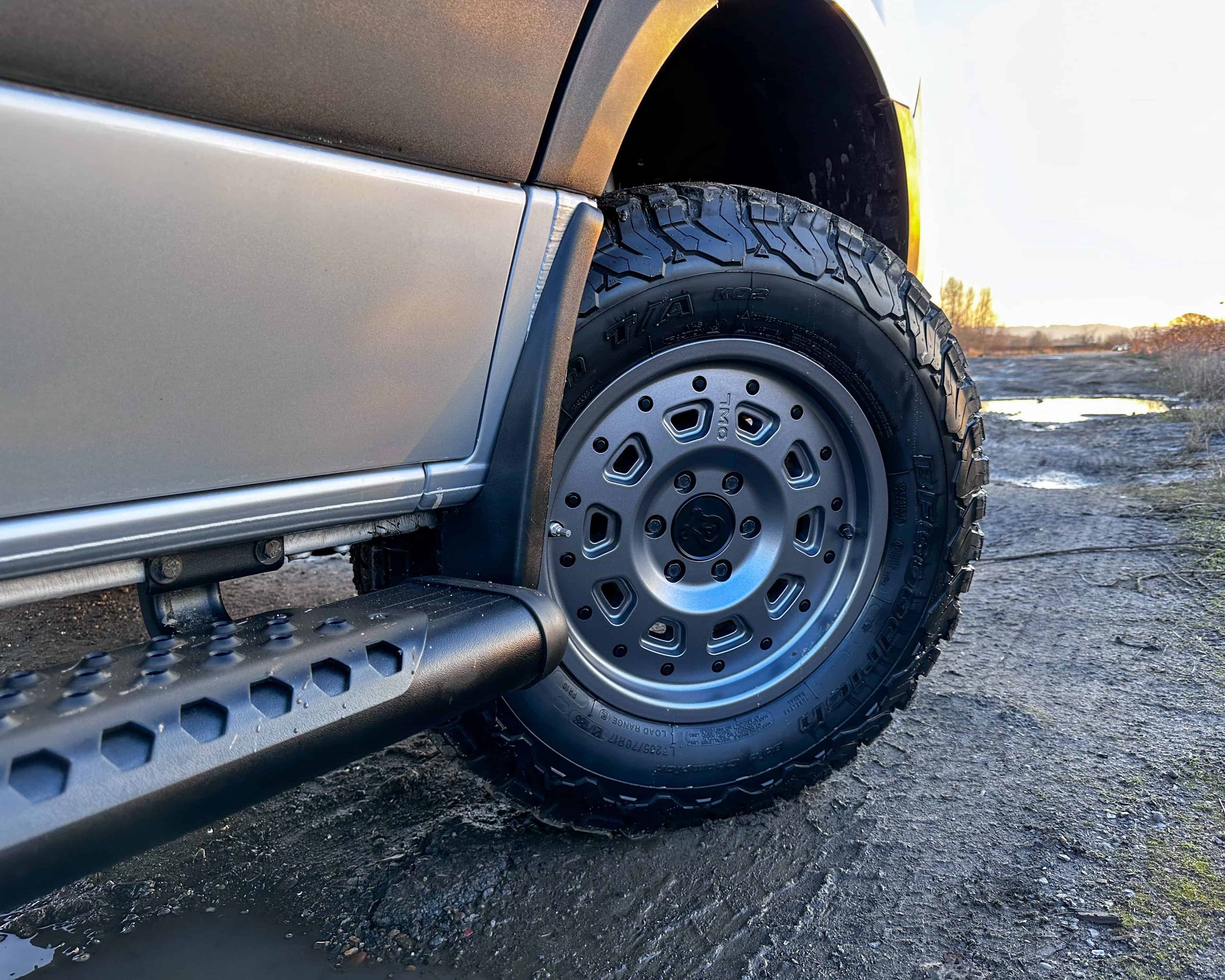

Owl Vans Talon Wheels with 265/70/17 BFG KO2 tires

Owl Vans Tire Carrier

Owl Vans Side Ladder

Luverne Aluminum Side Steps

Nilight Light Bar and Rear Lights

Fiamma 80s Awning

Note: Exterior options can be added at retail price for parts
