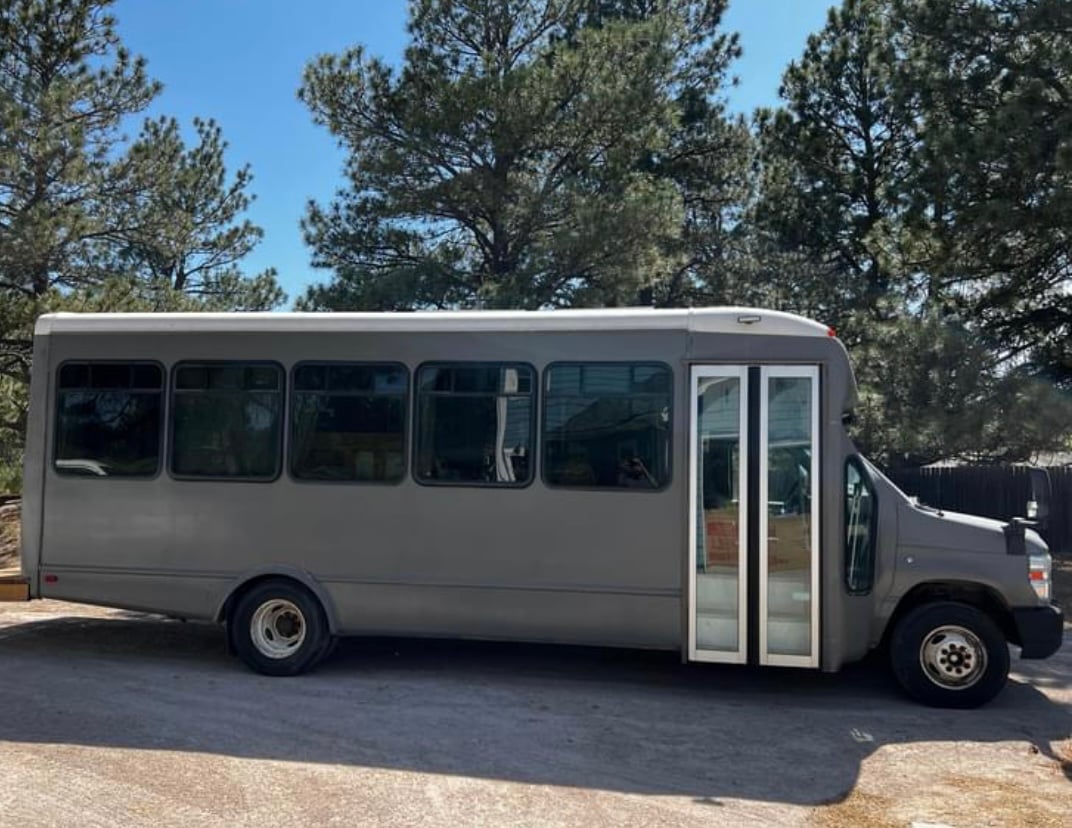

FULLY CONVERTED 2012 Ford E450 Shuttle

Move-In Ready! Liveable in all seasons and climates!

2012 Ford E450 Shuttle Bus Specs:

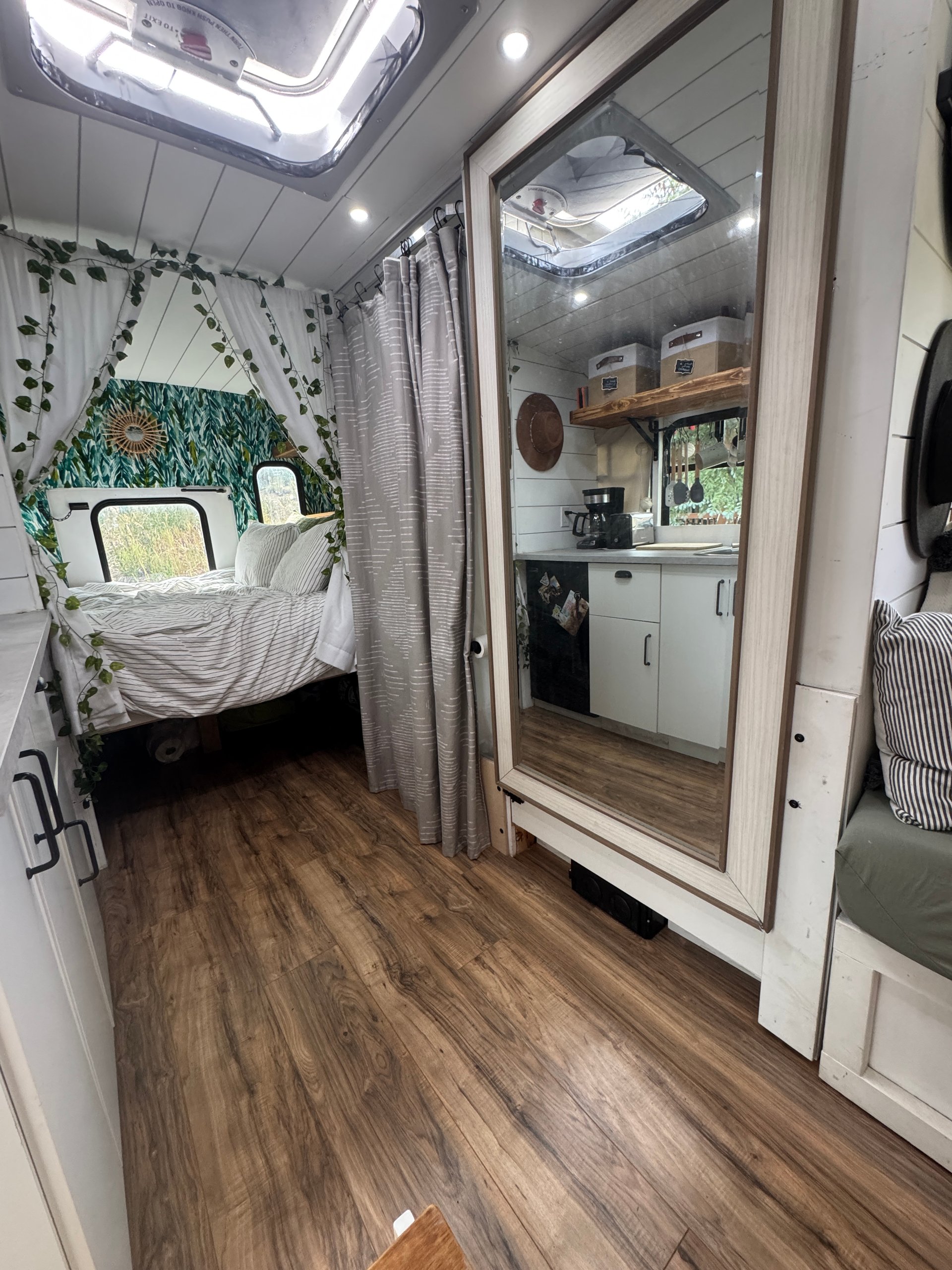

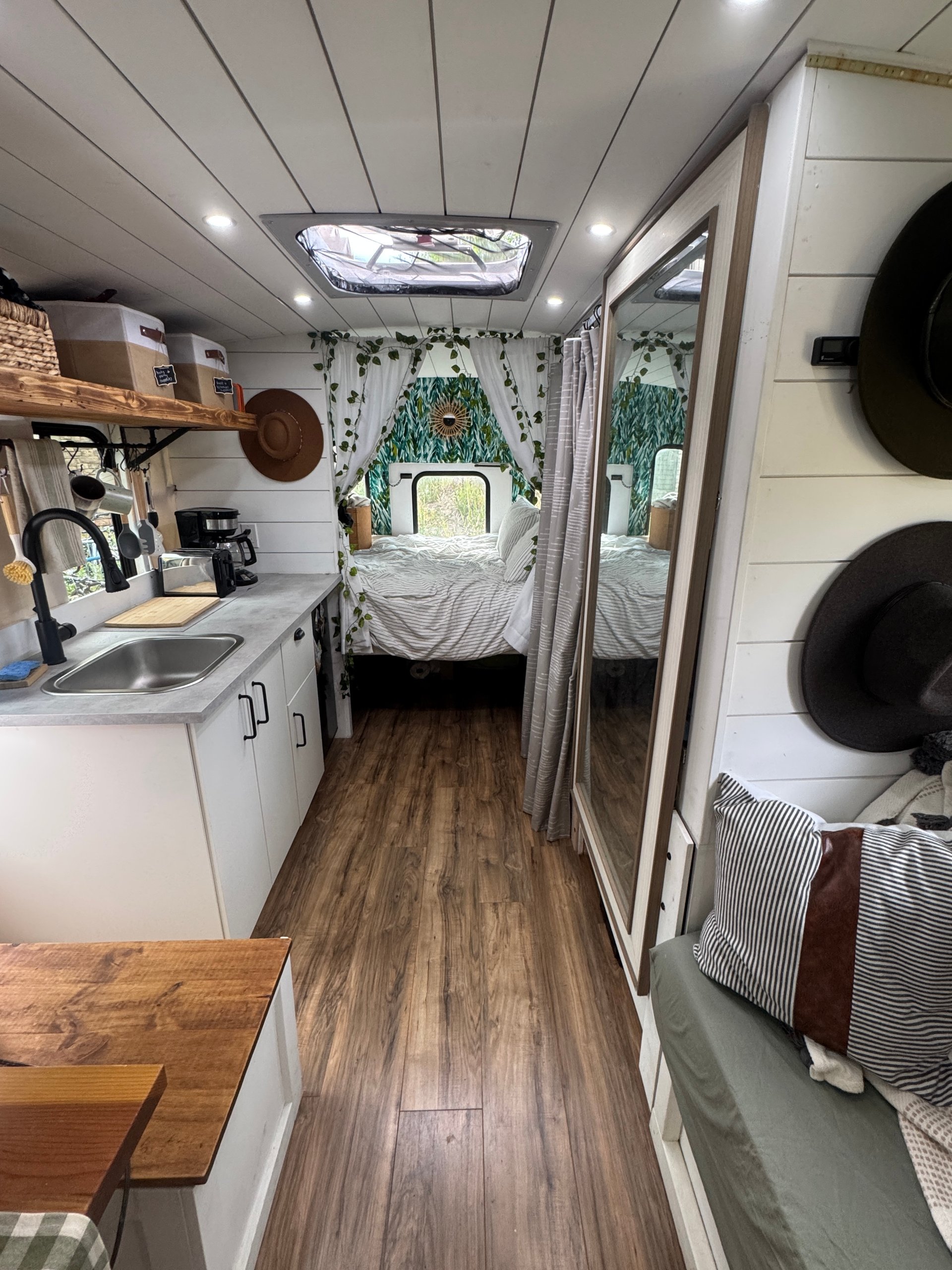

Includes gas-fed heater, hot water shower, rooftop solar, outdoor back deck, backup camera, integrated JBL speakers and navigation system, interior LED lights on switches, exterior light bars, several interior outlets, sink, refrigerator, TV, queen-sized bed and pull out twin bed,composting toilet, wifi capabilities, fire alarm/CO2 detectors located in front and rear, tons of storage, etc. Engine is in great condition and drives wonderfully!

Engine & Mechanical Information:

1.   Engine Type: 6.8L V10 Gasoline Ford Triton (243000 miles – majority of which were highway miles due to it being a former airport shuttle)
2.   Engine Oil: 5W20 Full Synthetic (6 – 7 quarts)
3.   Transmission Fluid Type: Ford Motorcraft Mercon LV ATF
4.   Transmission service interval: every 30,000 miles replace fluid and filter

Bus Conversion Specifications and Information:

1.   Overall interior length of bus: 21 – 22 feet
2.   Interior square footage: 112 square feet

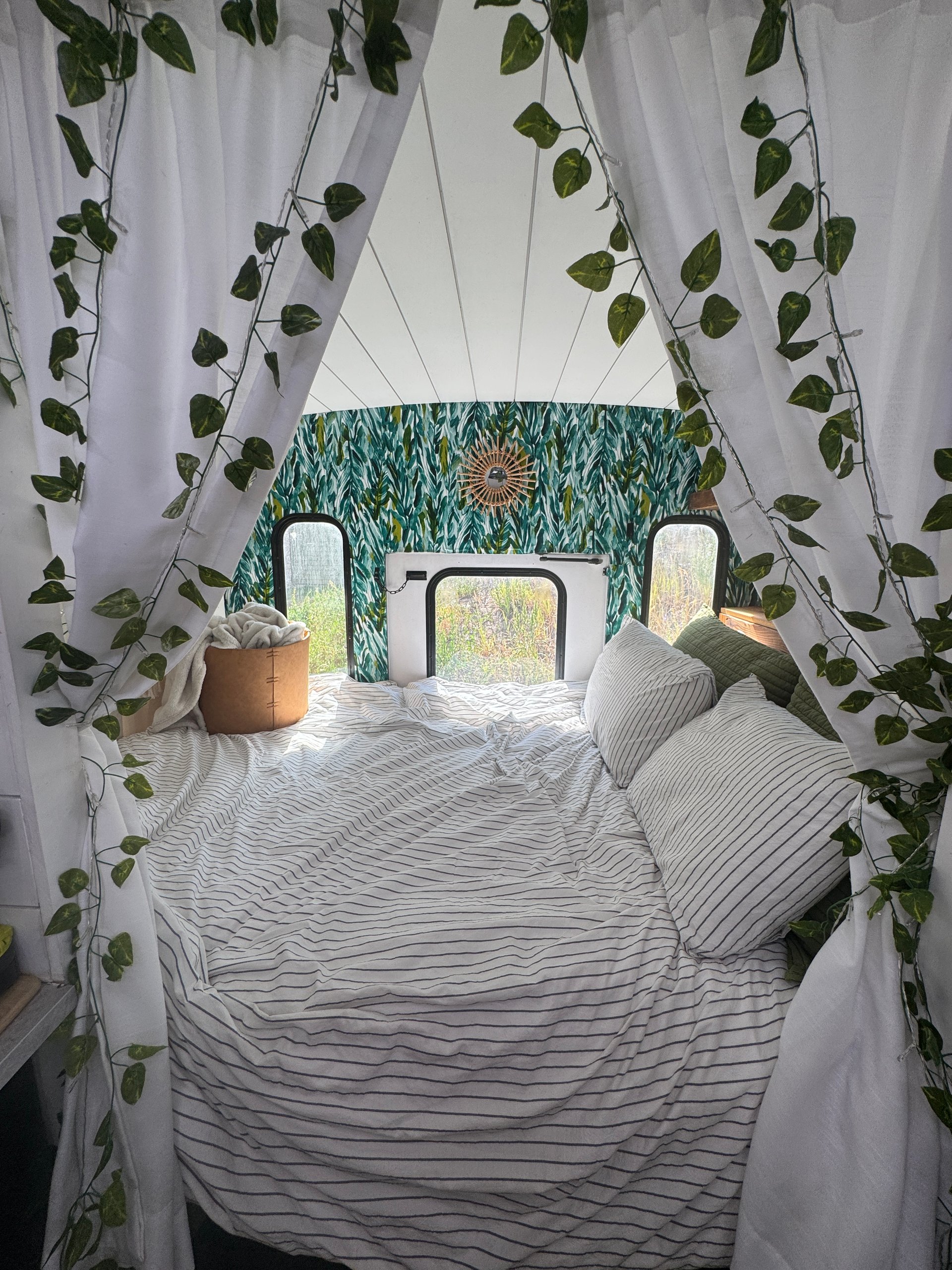

3.   Bed size: Queen

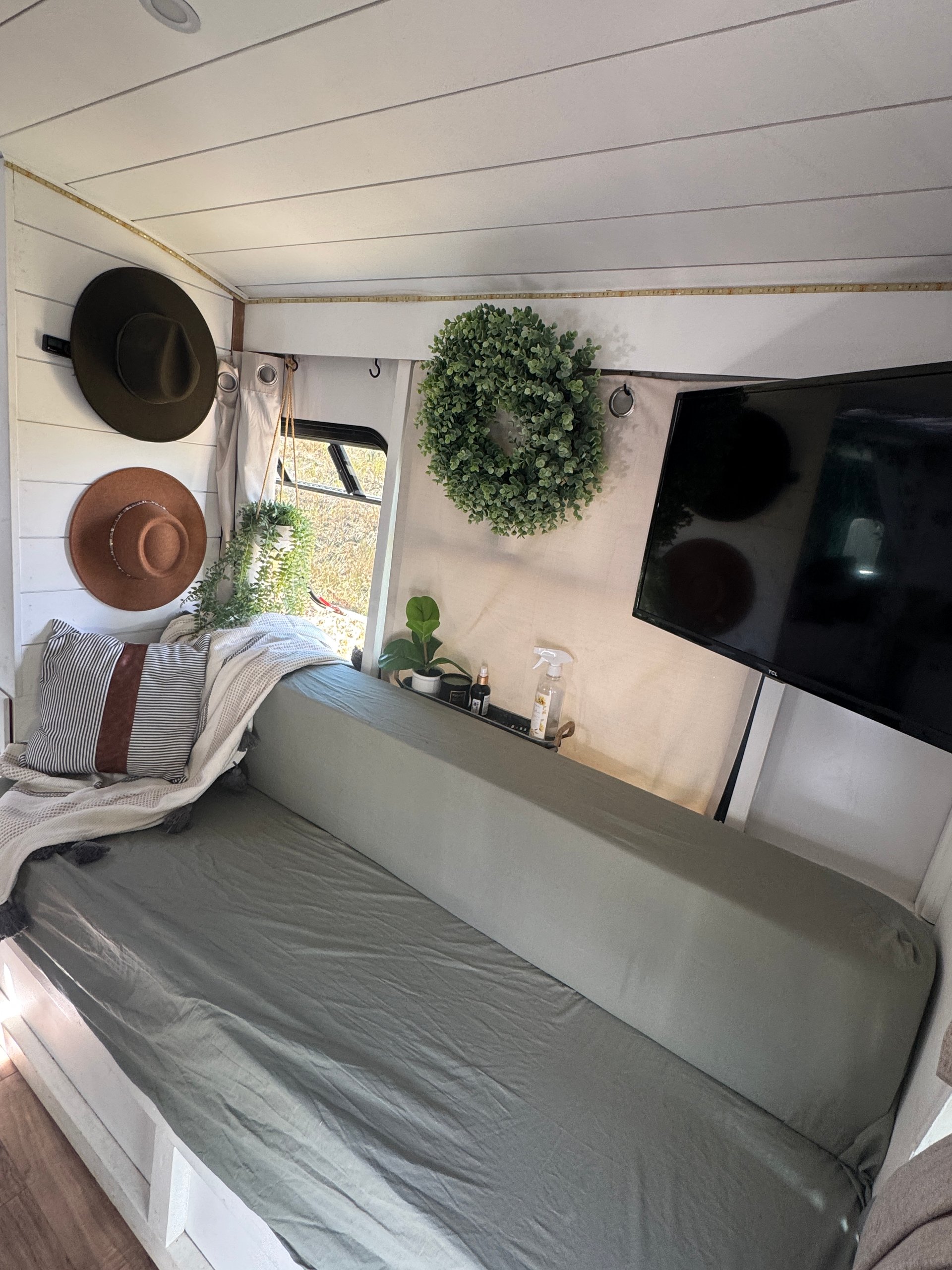

4.   Couch pull-out size: Twin

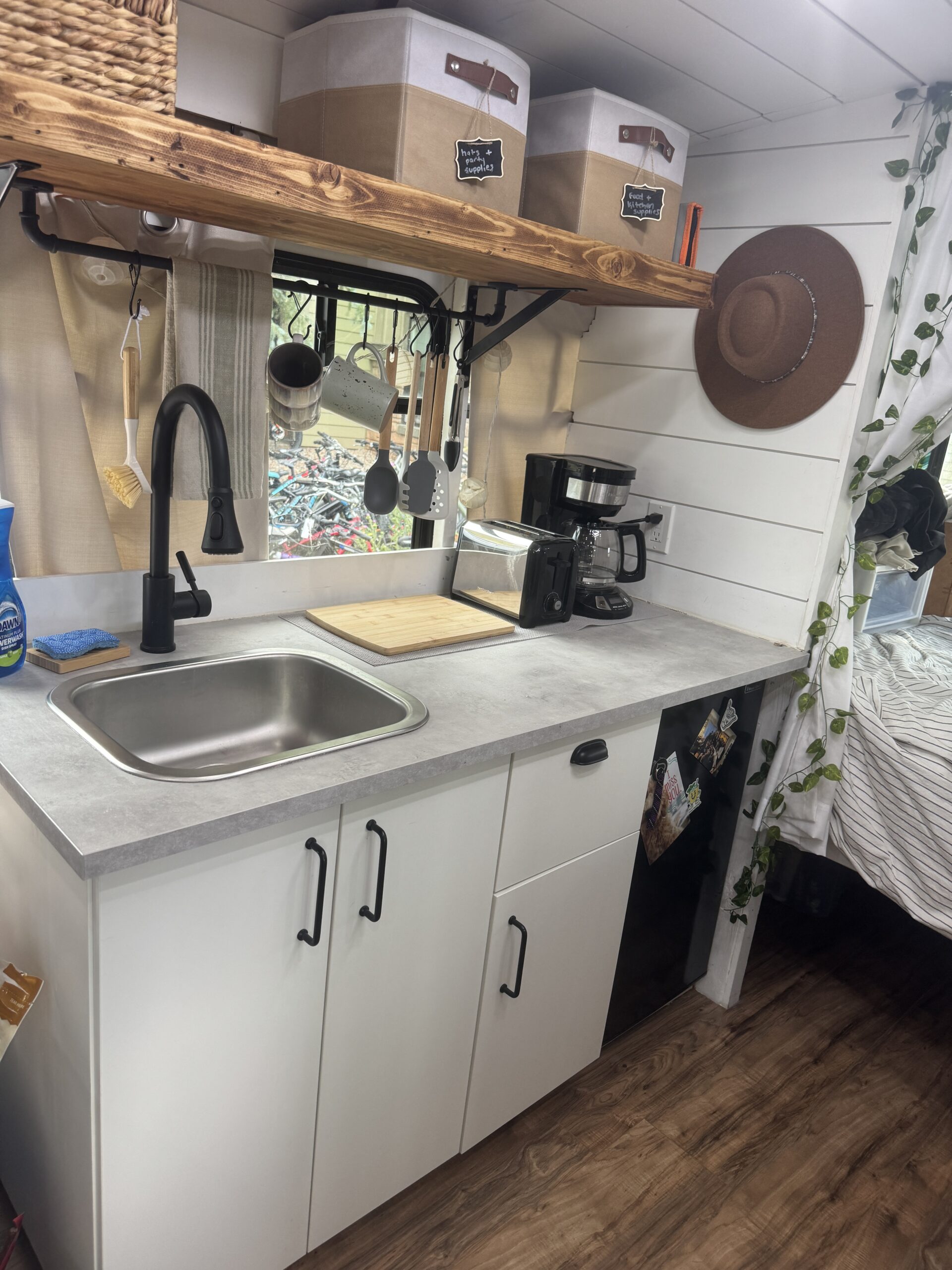

5.   Refrigerator: Mini Fridge with Freezer compartment (household 110v)
6.   Interior Wall Paint Color: Behr Premium Plus Ultra Super White (Red & White Can)
7. (Located at Home Depot on the shelf – no mixing for color from home depot needed)

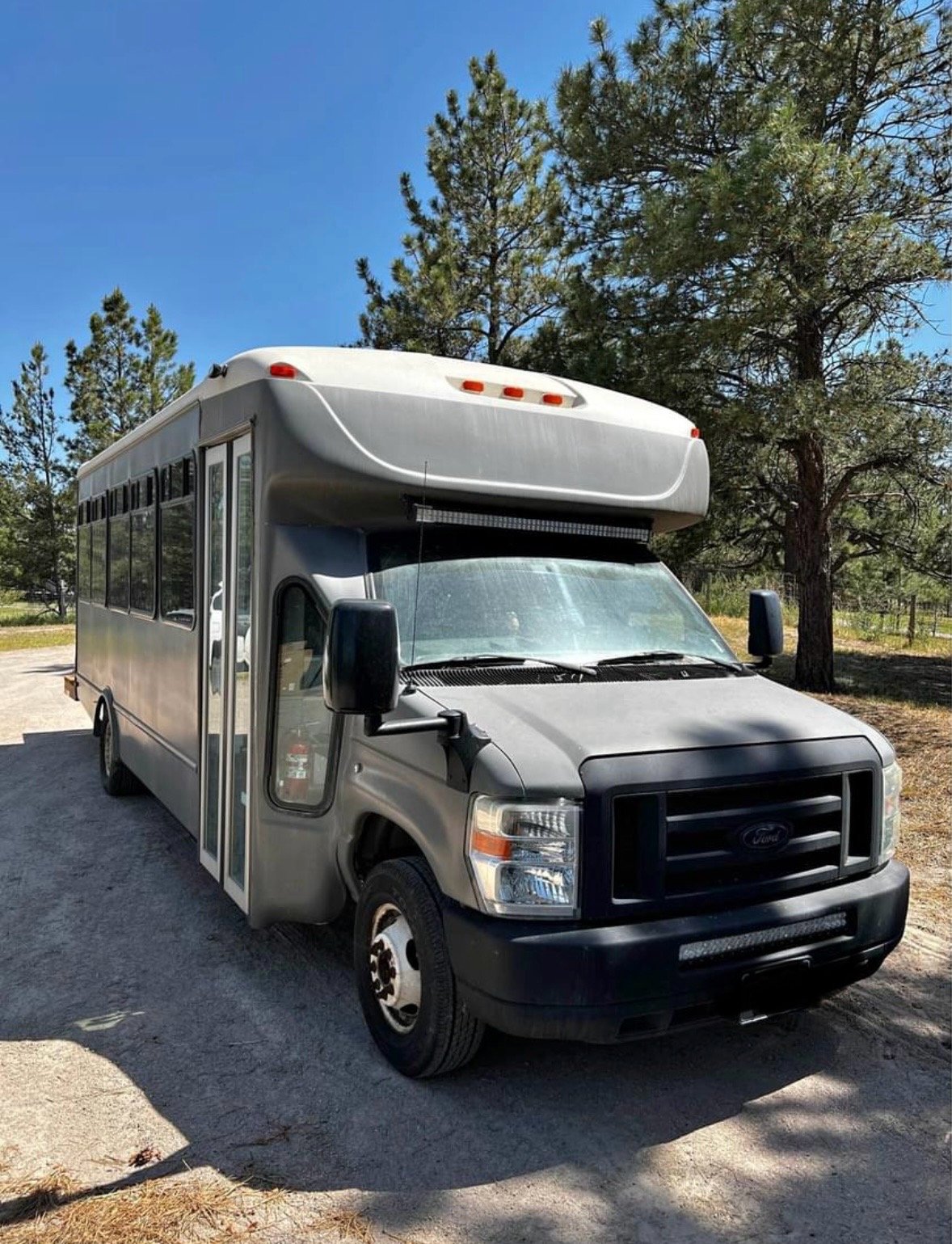

8.   Exterior Paint: Rust-Oleum Farm & Implement tractor paint – Massey Ferguson Gray
9.   Sink Pump: Seaflo 12v DC 1.2 GPM 35 PSI 21-Series Diaphragm Water Pressure Pump
10.   Interior Light Switches Type: JR Products 12005 and 12015 White SPST On-Off Switch with Bezel
11.   Interior Ceiling Lights: Acegoo RV Boat Recessed Ceiling Light Super Slim LED Panel Light
12. DC 12v 3w Cool White

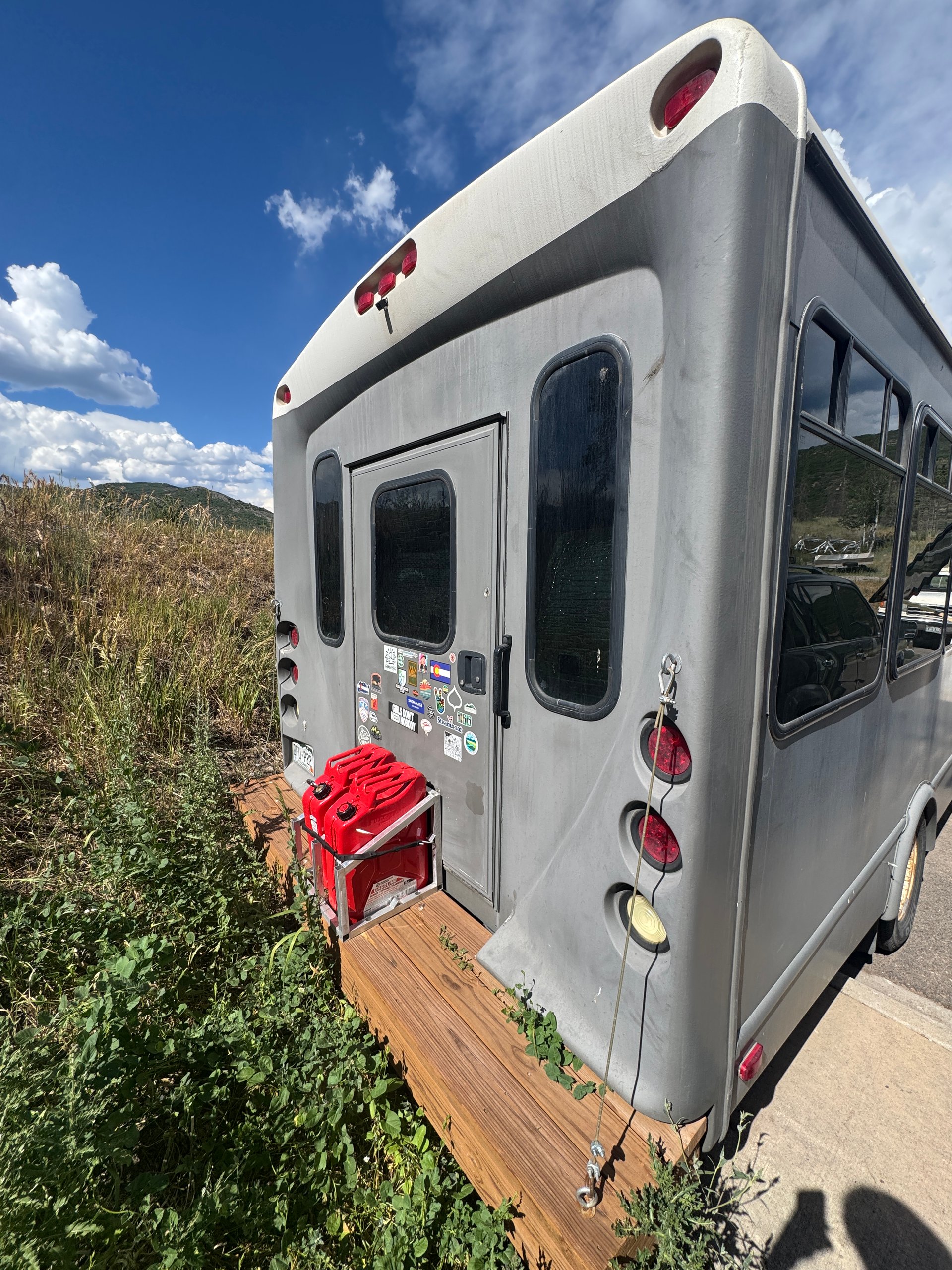

13. Heating System: Espar Gasoline Heater w/ two adjustable blower fans (one under bed and one under closet). Heating system is fed by 2 steel movable gas tanks located on rear deck.

Solar Off-Grid Electrical System Components (Located underneath couch):

1.   Battery Type: Battleborn Gamechanger 3.0 270Ah 12V
2. Inverter Type: GoWise Power PS1003 Pure Sine Wave Inverter 2000w continuous/4000w peak
3.   Charge Controller: Renogy DCC50s 12v 50A DC On-Board Charger with MPPT
4. Mult-Stage Charging
5.   Solar Panel Info: HQST 100 Watt 12 Volt Polycrystalline Solar Panel x 4 (400w)

WiFi/Internet Configuration (Located above driver seat compartment):

1.   Modem: NetGear 4G LTE Broadband Modem LB1120 (Use LTE cellular sim card as primary internet connection) Link to product manual below:
2. https://www.downloads.netgear.com/files/GDC/LB1120/LB112x_UM_EN.pdf
3.   Router: Linksys EA7300-RM AC1750 Dual Band Smart Wireless Router (Link to product manual below)
4. https://downloads.linksys.com/downloads/userguide/EA7300_UG_INTL.pdf

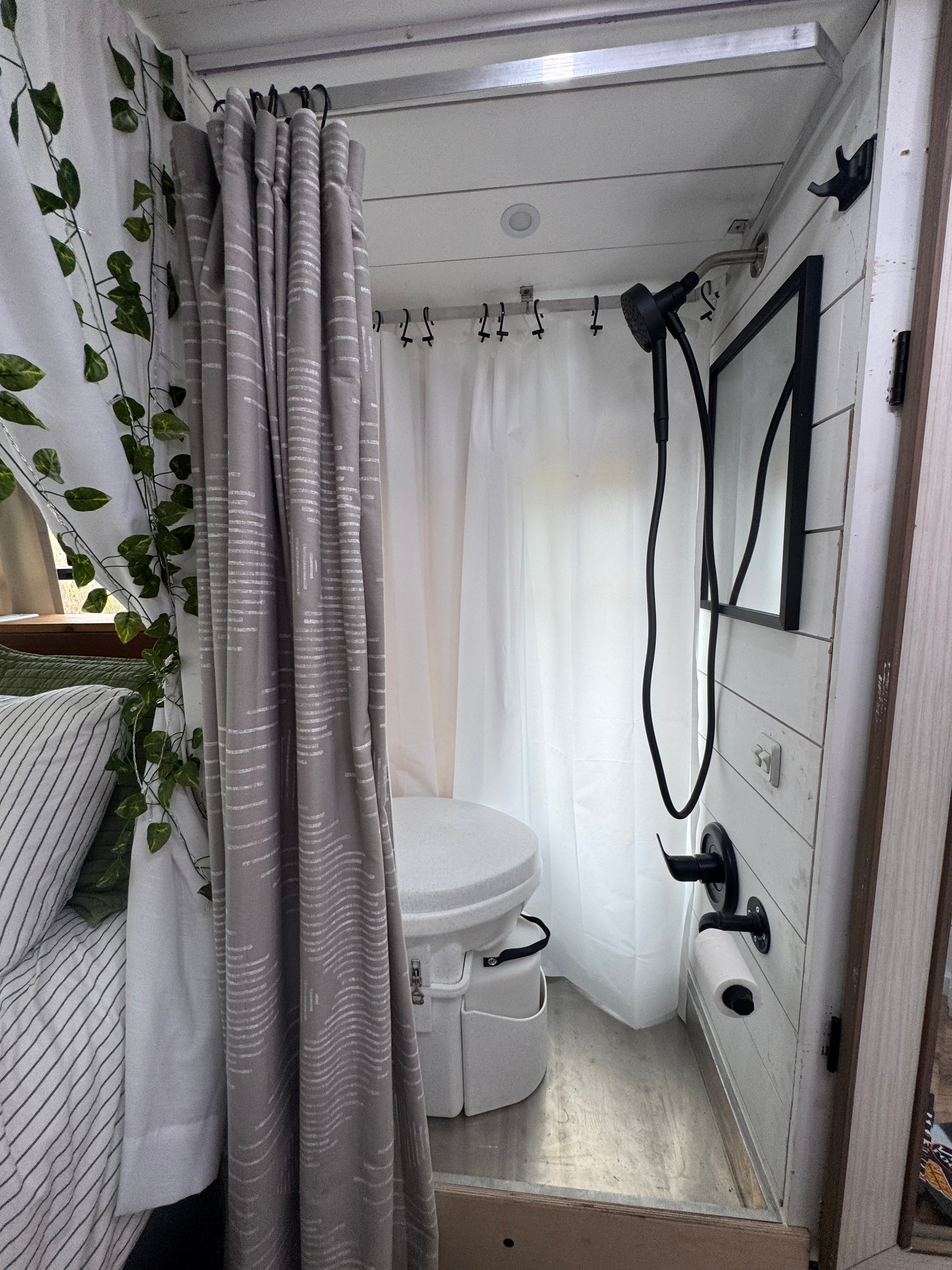

Restroom Components:

1. Composting Toilet Type: Nature’s Head Self Contained Composting Toilet
2. 7 gallon recirculating shower with hot water pump
3. Stainless steel shower pan
