Ford Transit Diesel – Recirculating Shower + 1100Ah Battery + More!

Joseph Abinader

Date Listed: 08/15/2024

Austin, Texas

Basic info

VIN 1FTBW3XV3GKA36578

Year 2016

Make Ford

Model Transit

Mileage 85,500 mi

Transmission Automatic

Fuel Diesel

Drivetrain 2WD

Chassis Van

Seats With Seatbelt 2

Sleep 2

Conversion Status Complete Build

Title Clean

Roof Hi-Top

Kitchen Feature

Features

Sink
Refrigerator
Stovetop
Oven

Hot Water Heater Type

Hydronic

Living Space

Features

Vented Windows

Air Conditioning

Battery Powered Off Grid

Heater

Hydronic Air

Inverter Size

3000 watts

Shower

Outdoor
Built-in

Solar Panel Wattage

700 watts

Toilet

Composting

Ceiling Vents

Fan Vent

Waste Water

Gray Water Tank

Water Storage

40gal

Battery Type

Lithium

Amp Hours

1000ah

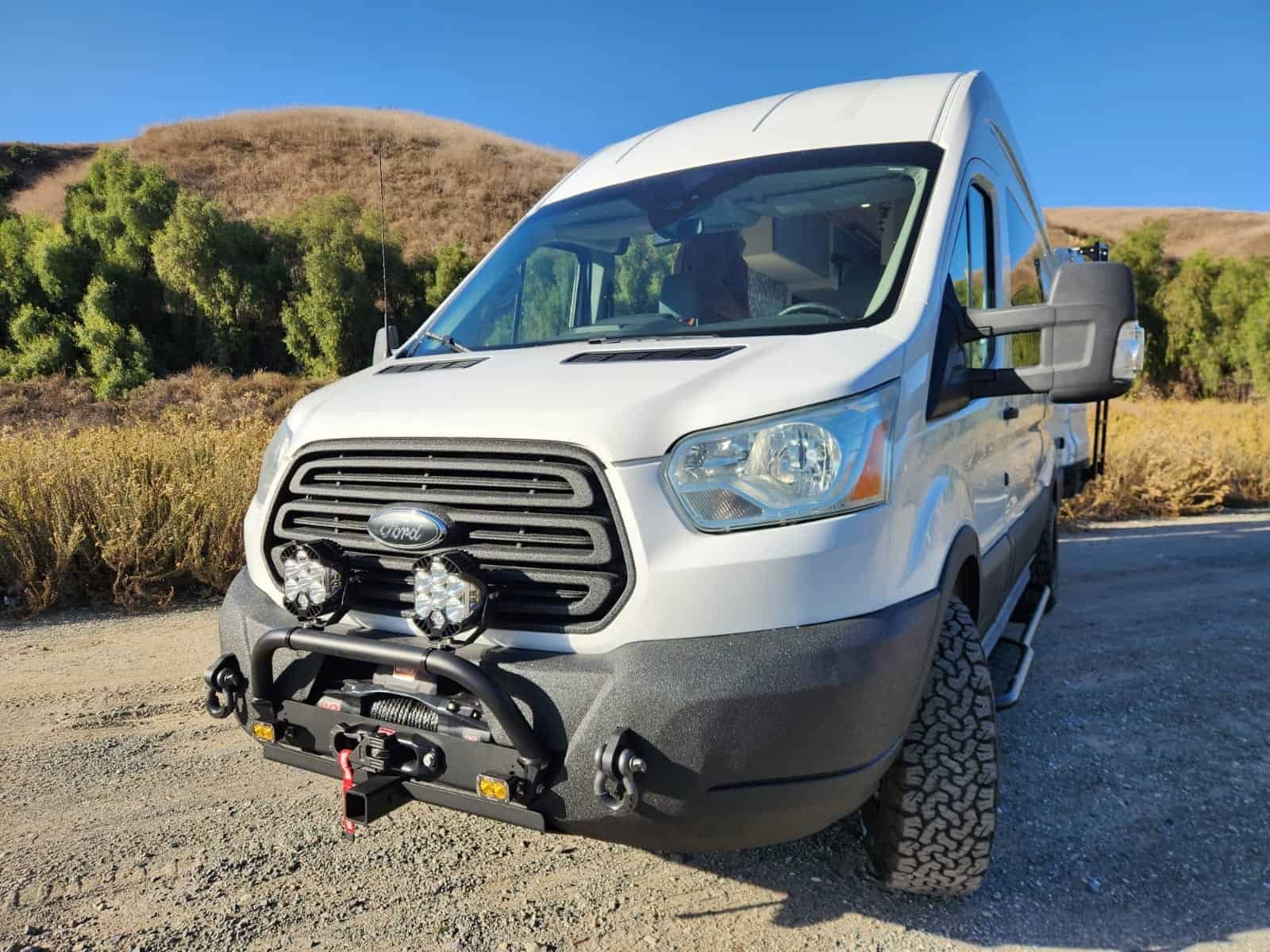

Exterior Upgrade

Features

Aftermarket Suspension
Aftermarket Wheels / Tires
Aftermarket Bumper
Winch
Hitch

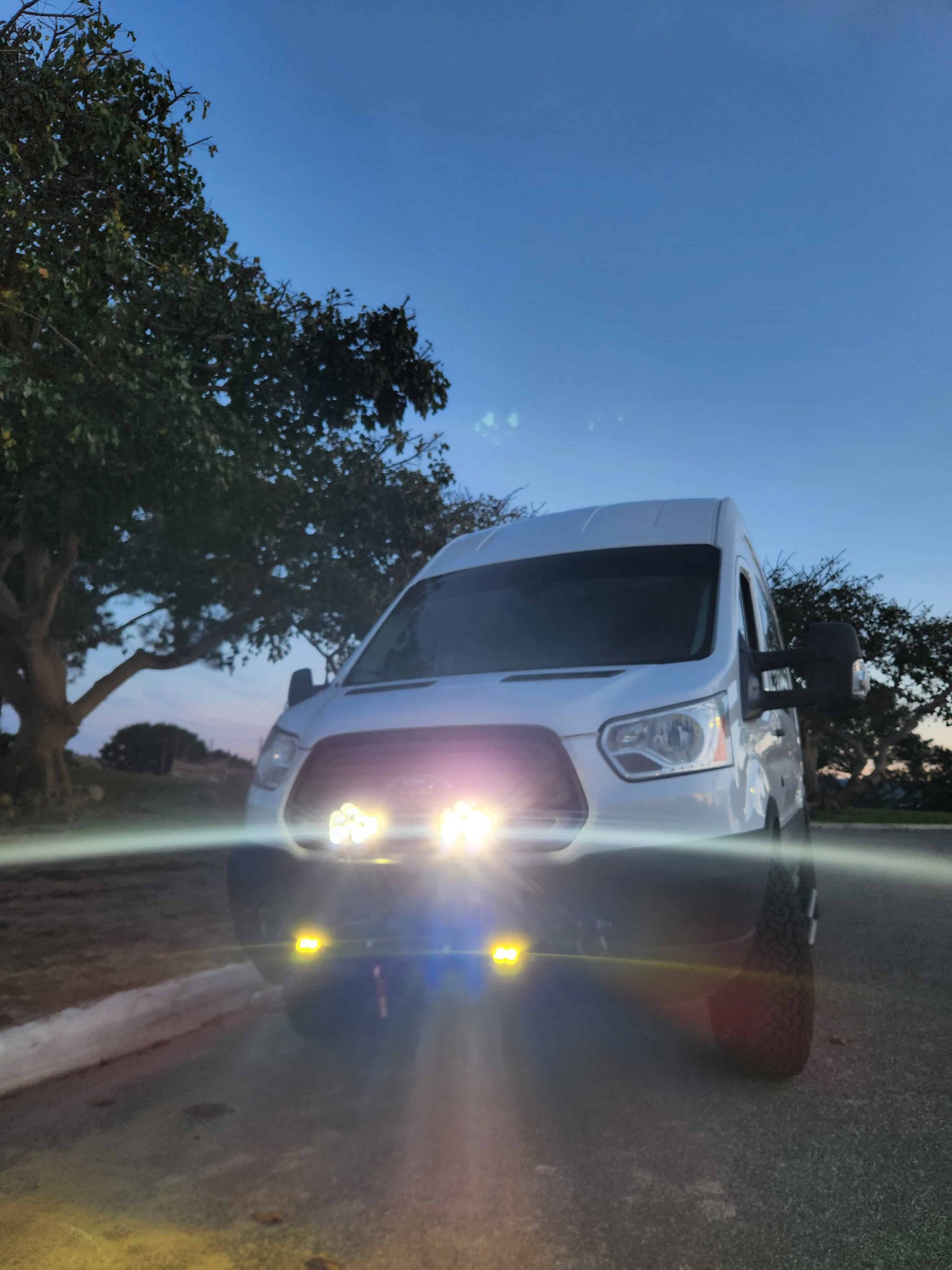

Auxilliary Lighting
Ladder

Vehicle Features

Features

Backup Camera
Upgraded Stereo
Cruise Control

Color

White

Description

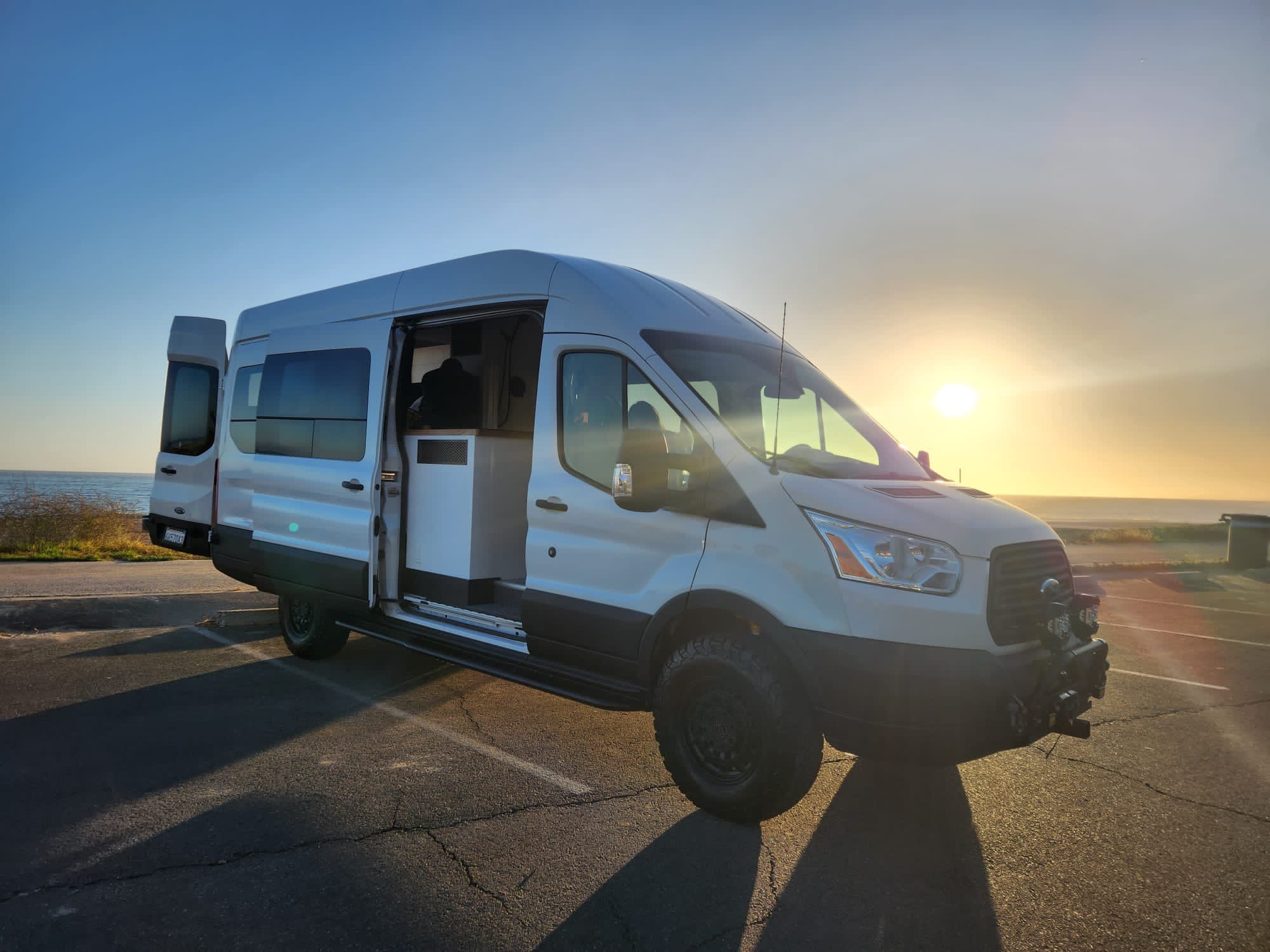

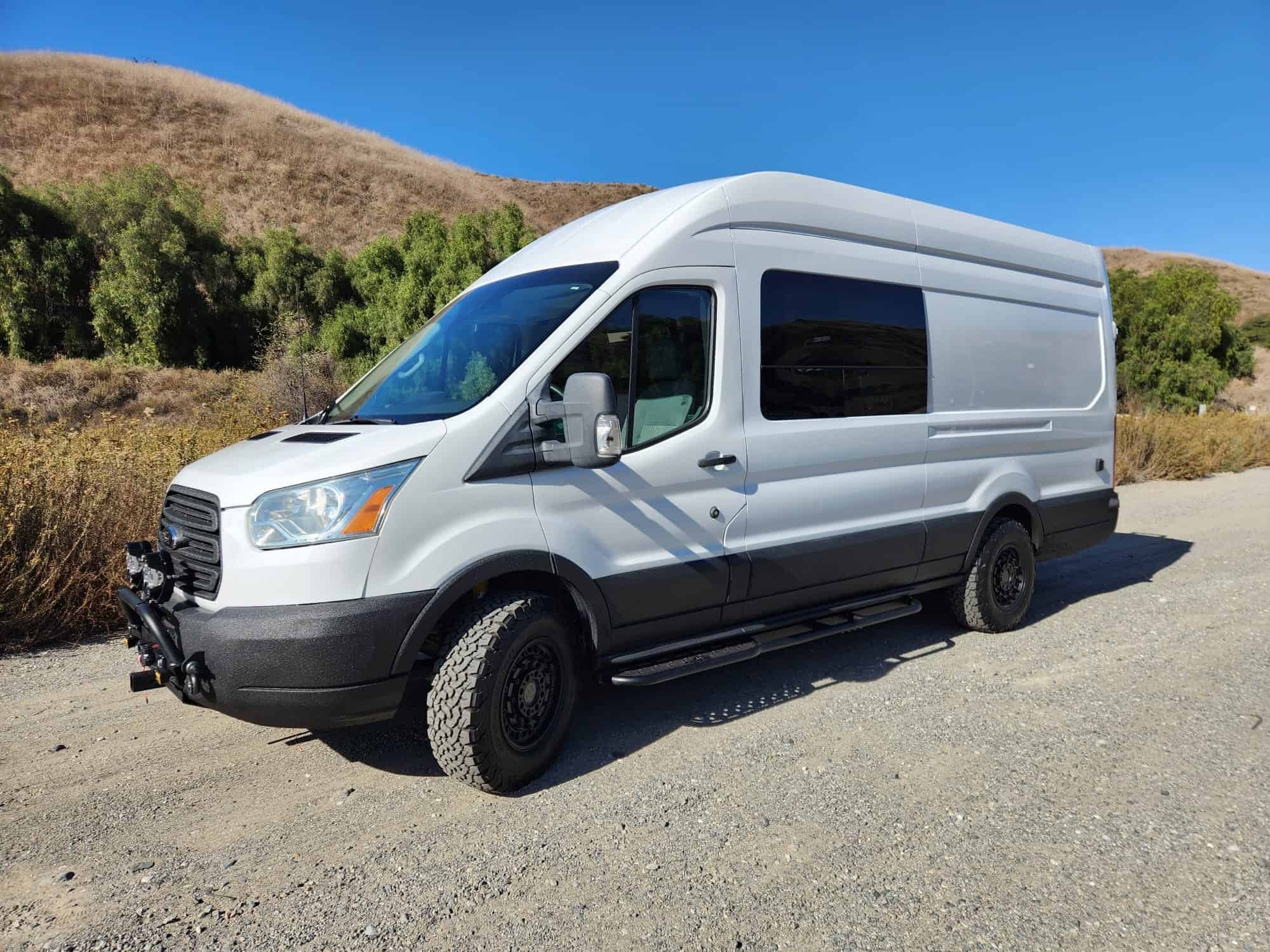

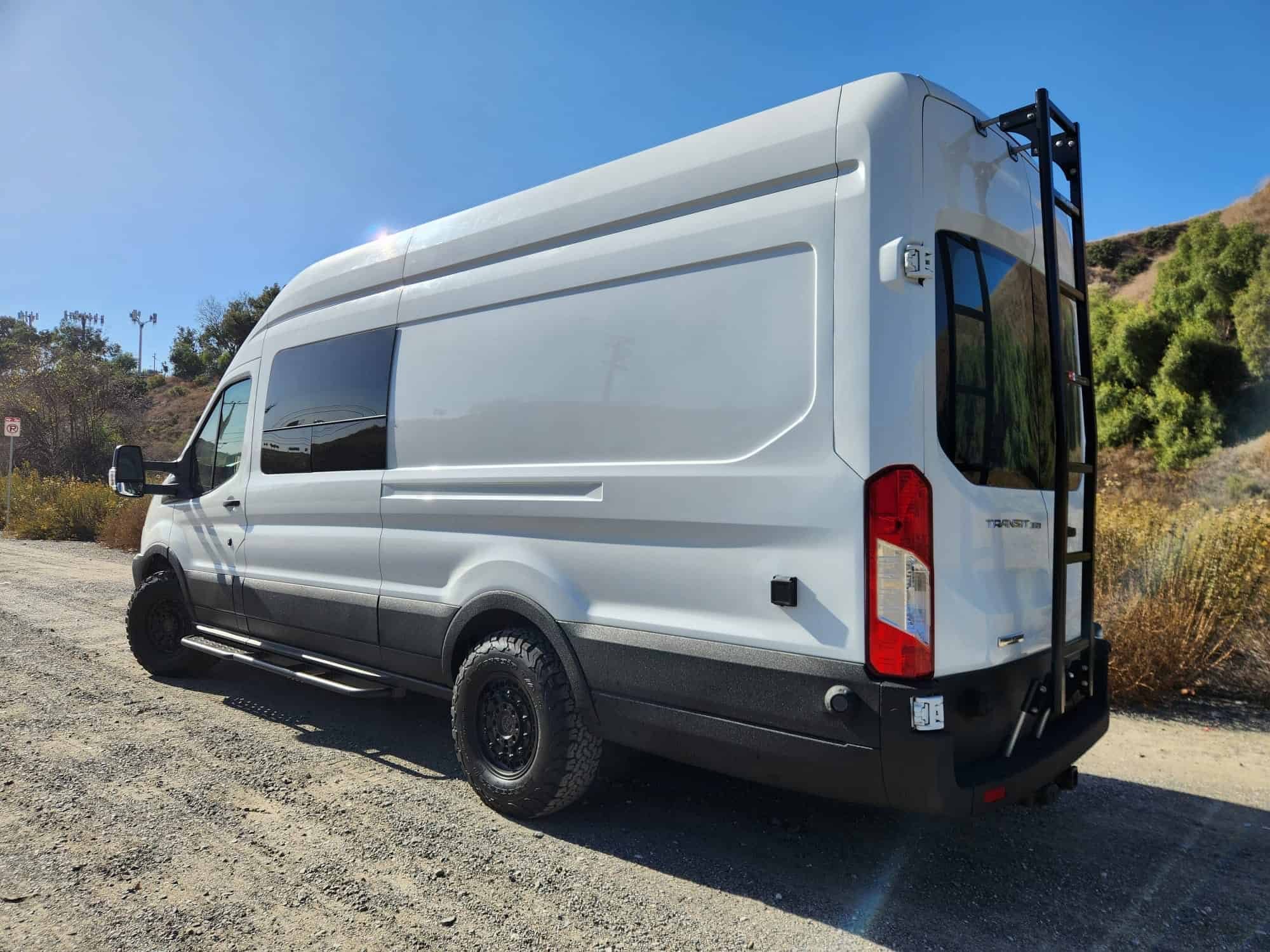

Custom built 2016 Ford Transit Extended Length High Roof camper van, move-in ready.

This van was built with the intention to be a full time living van so a lot of thought was put into the design and utility of the amenities. Everything was designed to run off-grid using power from the house batteries which is why there is a much larger battery system than can be found on any other commercial camper van out there.

You can compare this head-to-head with any $200k+ van that other big van companies sell but it still out specs them and is priced to sell. This van has everything you could need and more!

Please reach out with any questions or if you’d like to schedule a showing and test drive!

Vehicle Details

80,000 miles
Power Stroke Diesel
Rear Wheel Drive (single)
9500 lbs GVWR
Automatic Transmission
148″ Wheel Base
High Roof Extended
Factory Towing Package
Up to date on all maintenance and manufacturer recalls

Interior Amenities

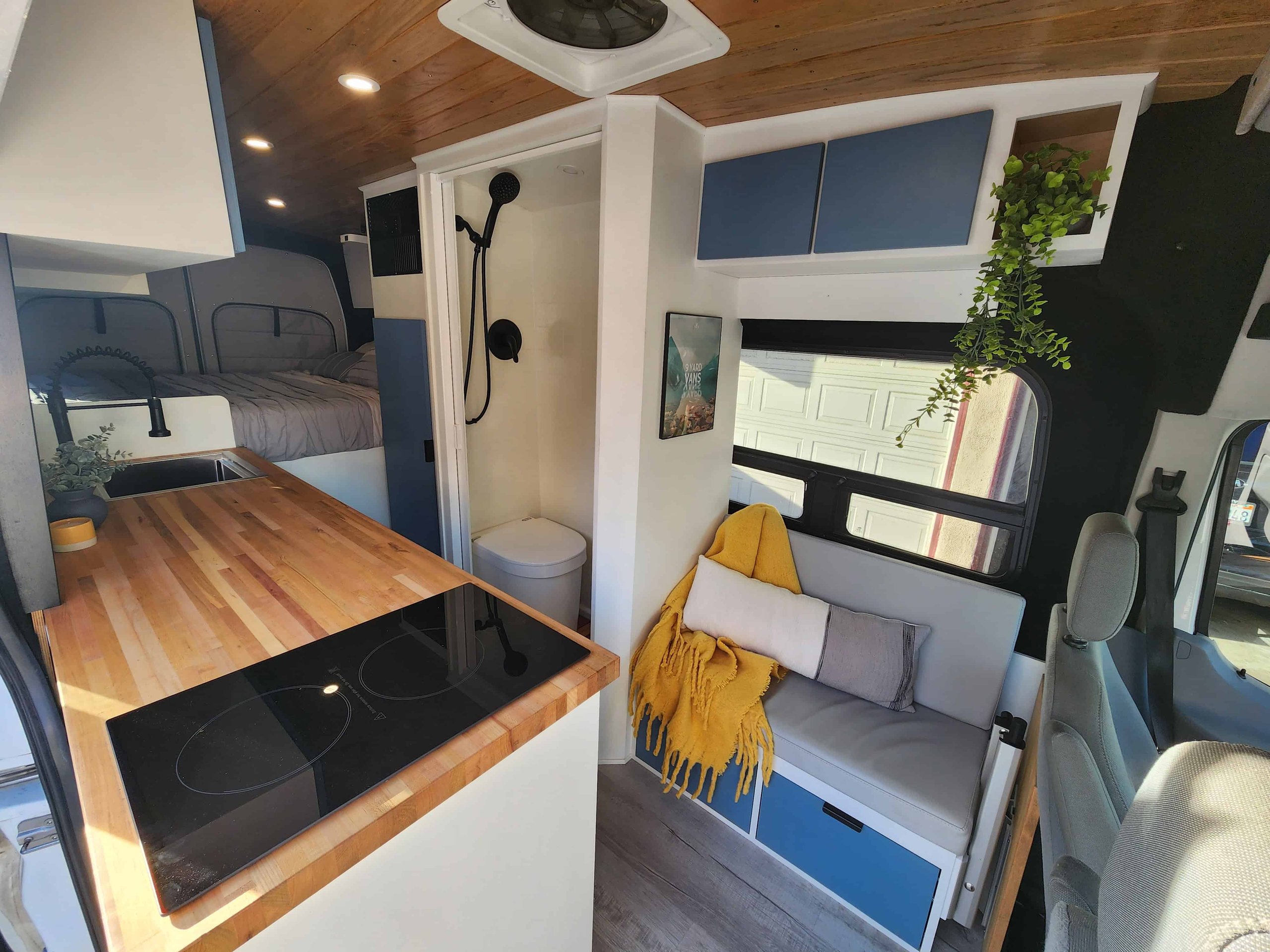

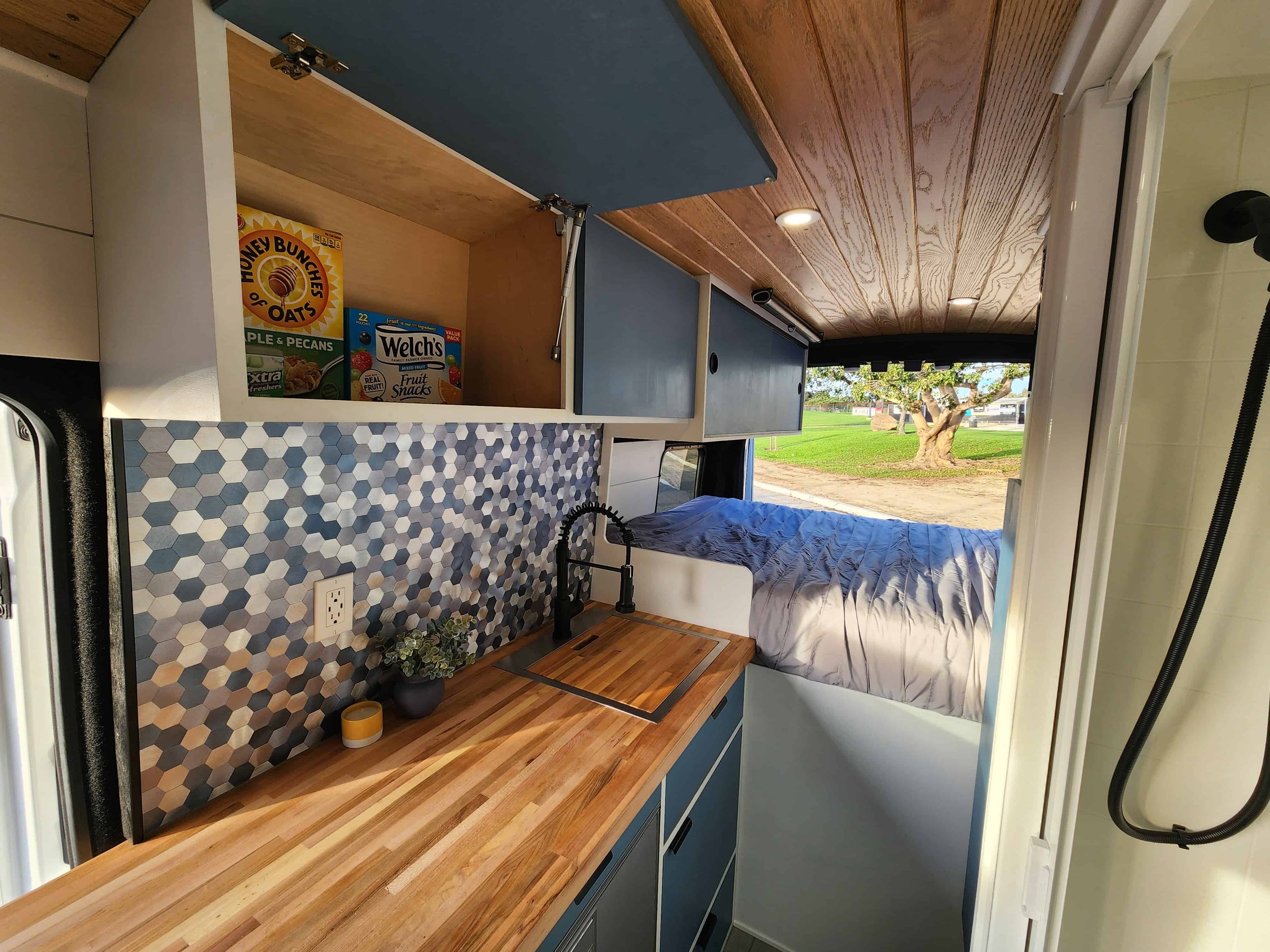

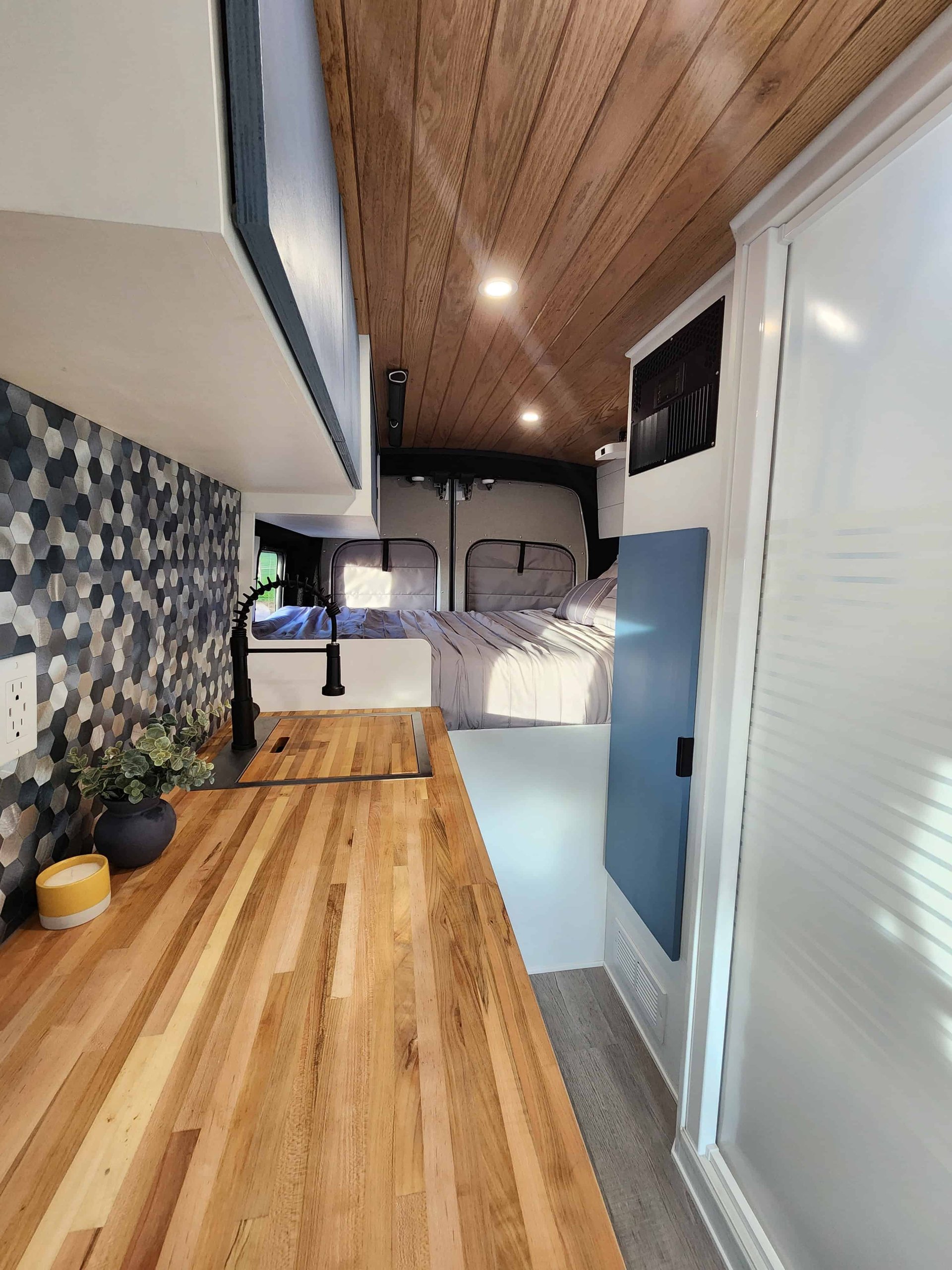

Kitchen/Galley

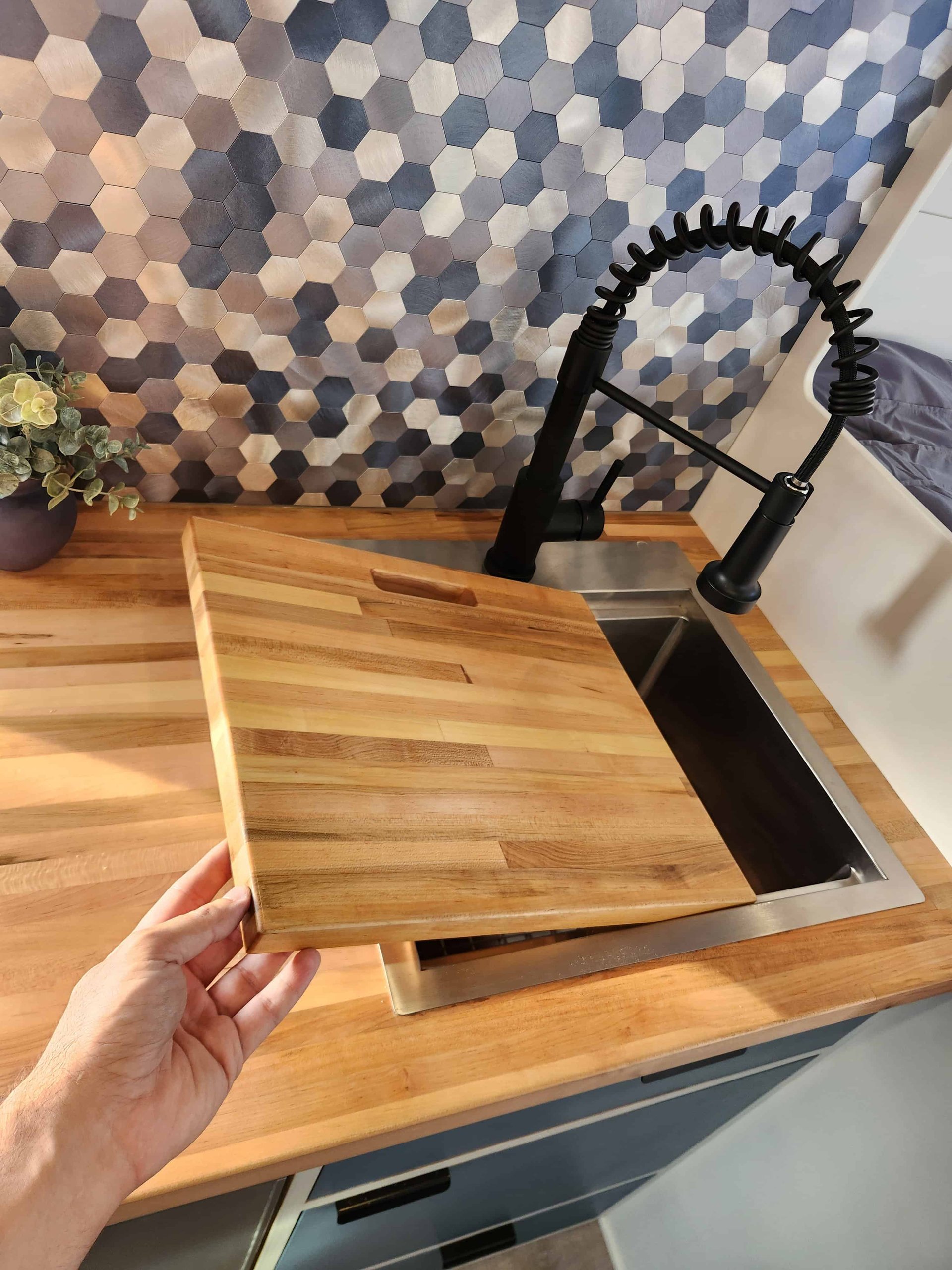

Butcher block countertop with grain matched cutting board

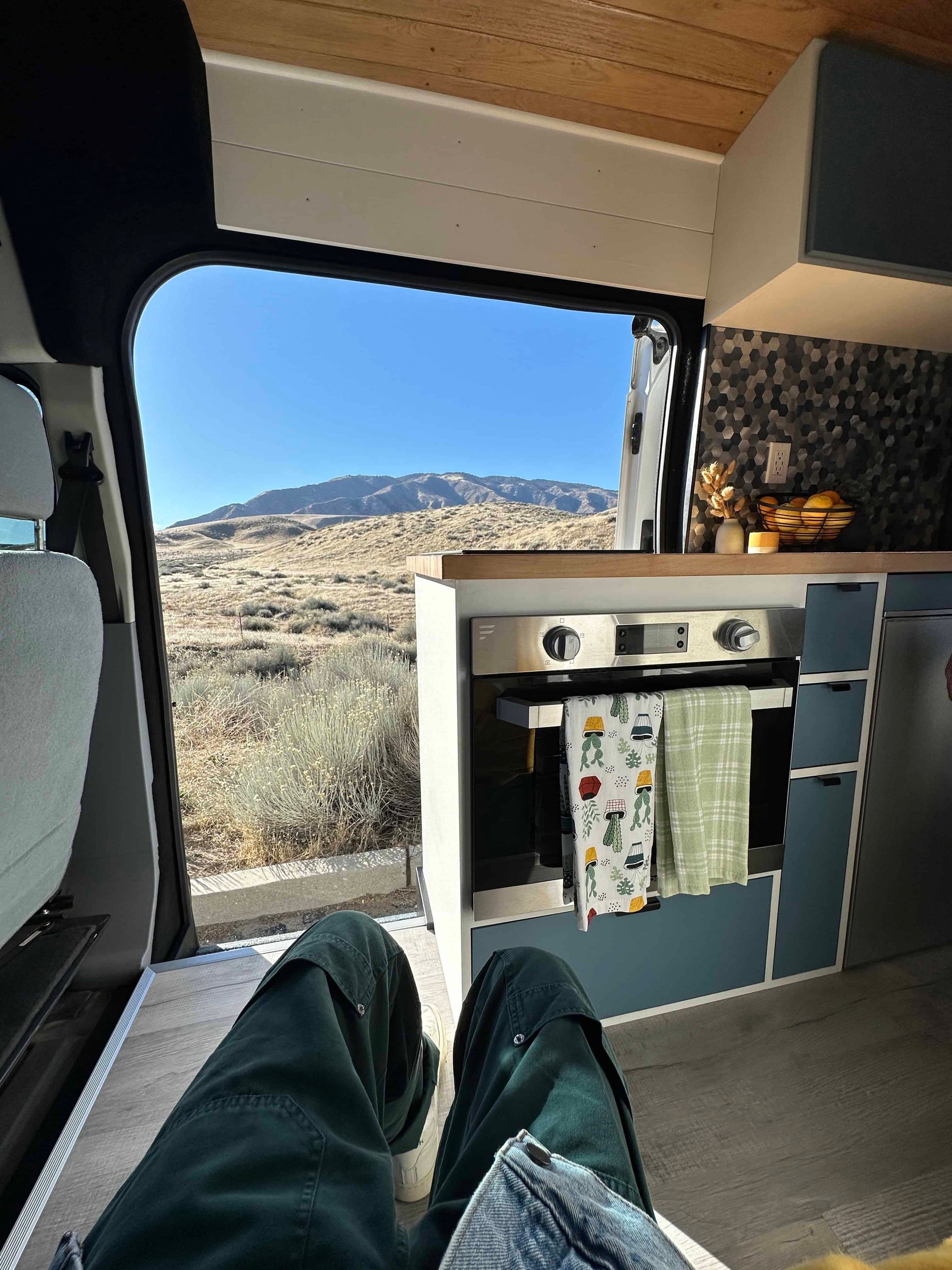

Furion 21” Electric Multi-Function Oven (Model#: FTRD22LA-SS)
Empava 2-Burner induction stove top
Isotherm Cruise 115 Fridge/Freezer

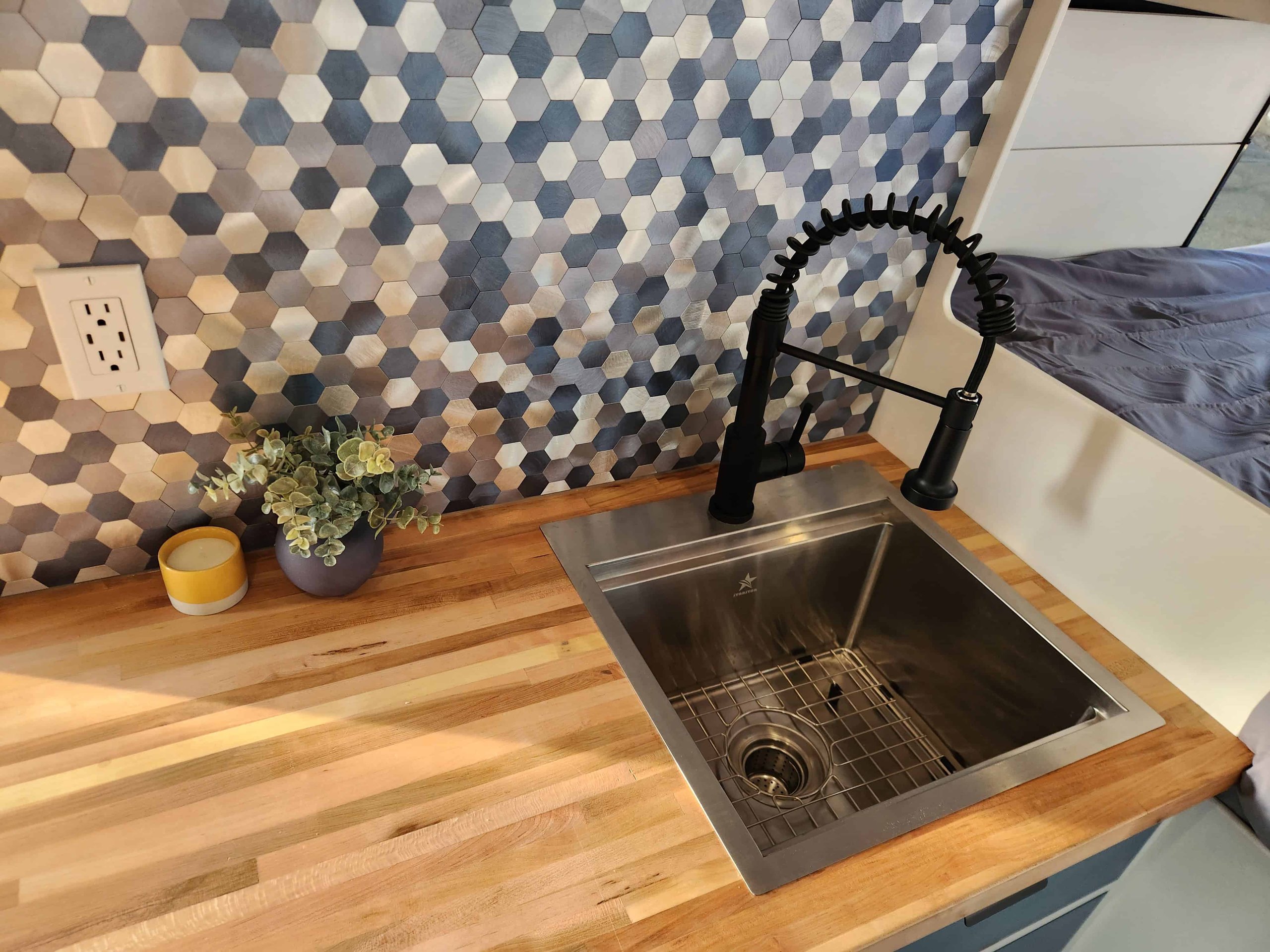

Large stainless steel sink 18”x18”
On-demand hot water (via hydronic heating system)
42 gallon fresh water tank
Waterdrop in-line water filter system with quick change filter
27 gallon gray water tank with electric dump valve
Plenty of cabinet storage below and above counter with in-cabinet lighting and soft close and automatic latching handles

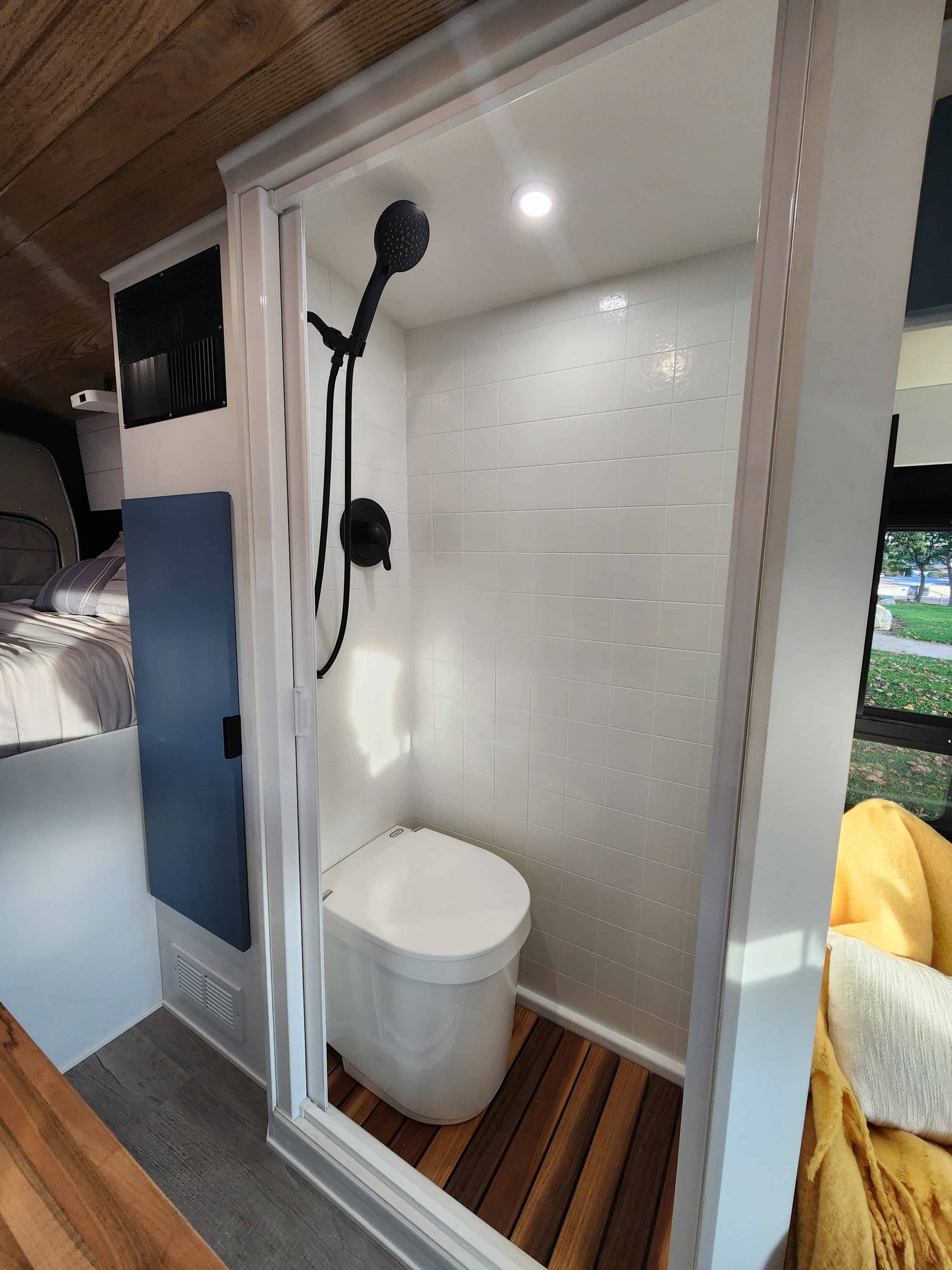

Bathroom
Separett Tiny® waterless diverting toilet
Custom red oak shower floor platform
Standing shower
Runs on dedicated water tank and 6-step filtration system, so showers can be long and water replaced weekly (depending on use)
On-demand hot water (via hydronic heating system)
Nautilus retractable shower door

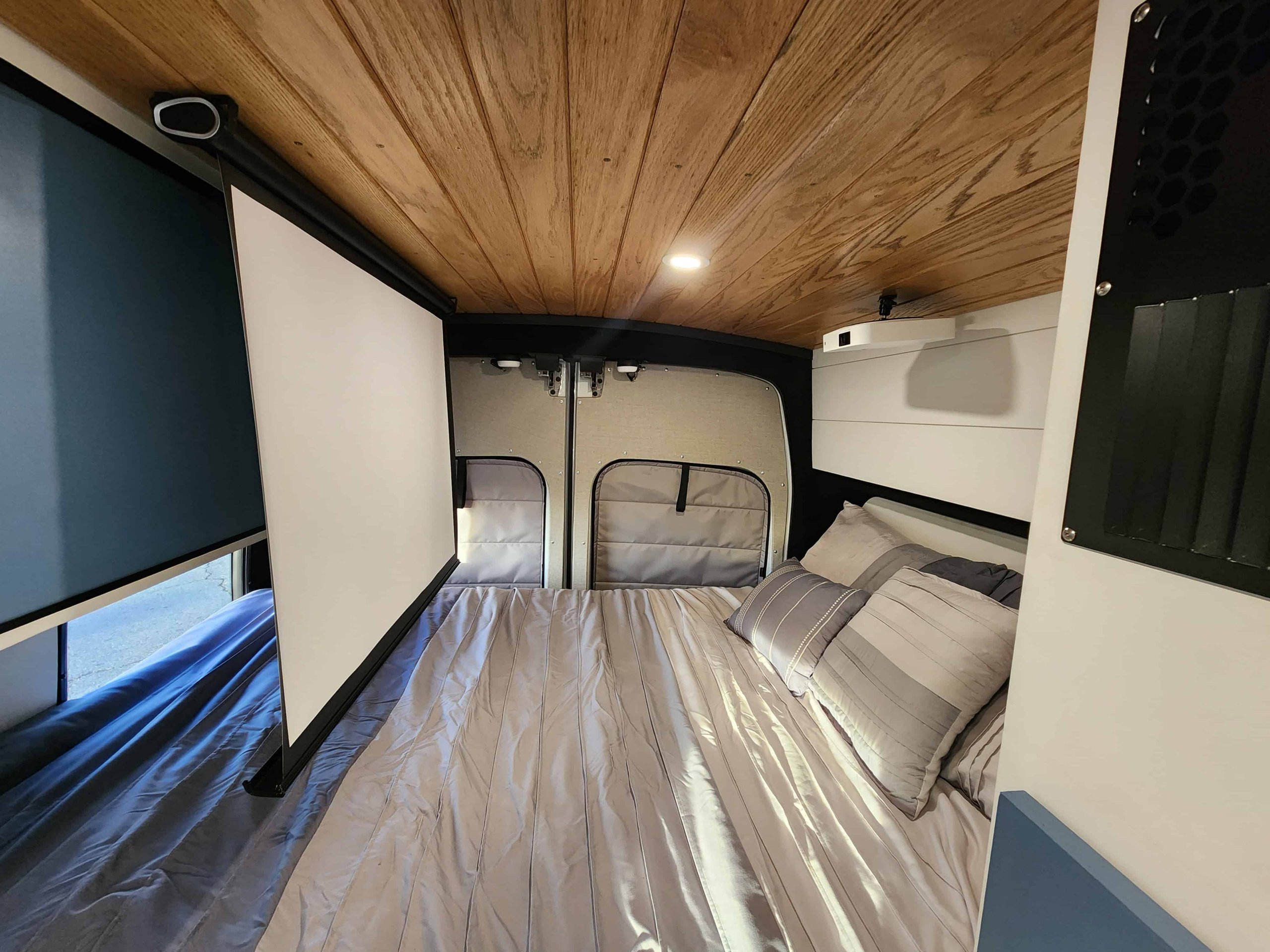

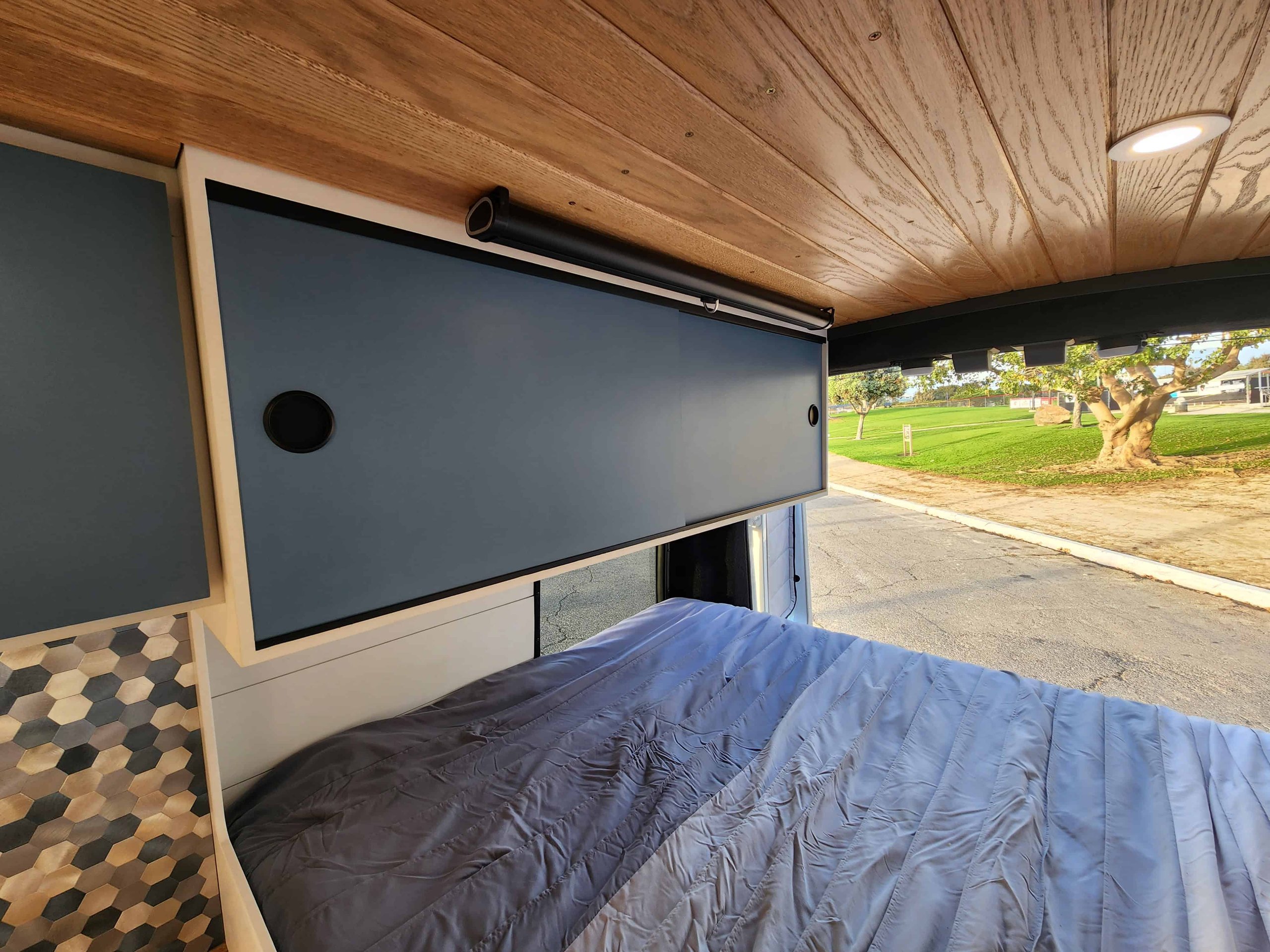

Bedroom
Custom steel full size bed frame with Casper Mattress (74-inch length)

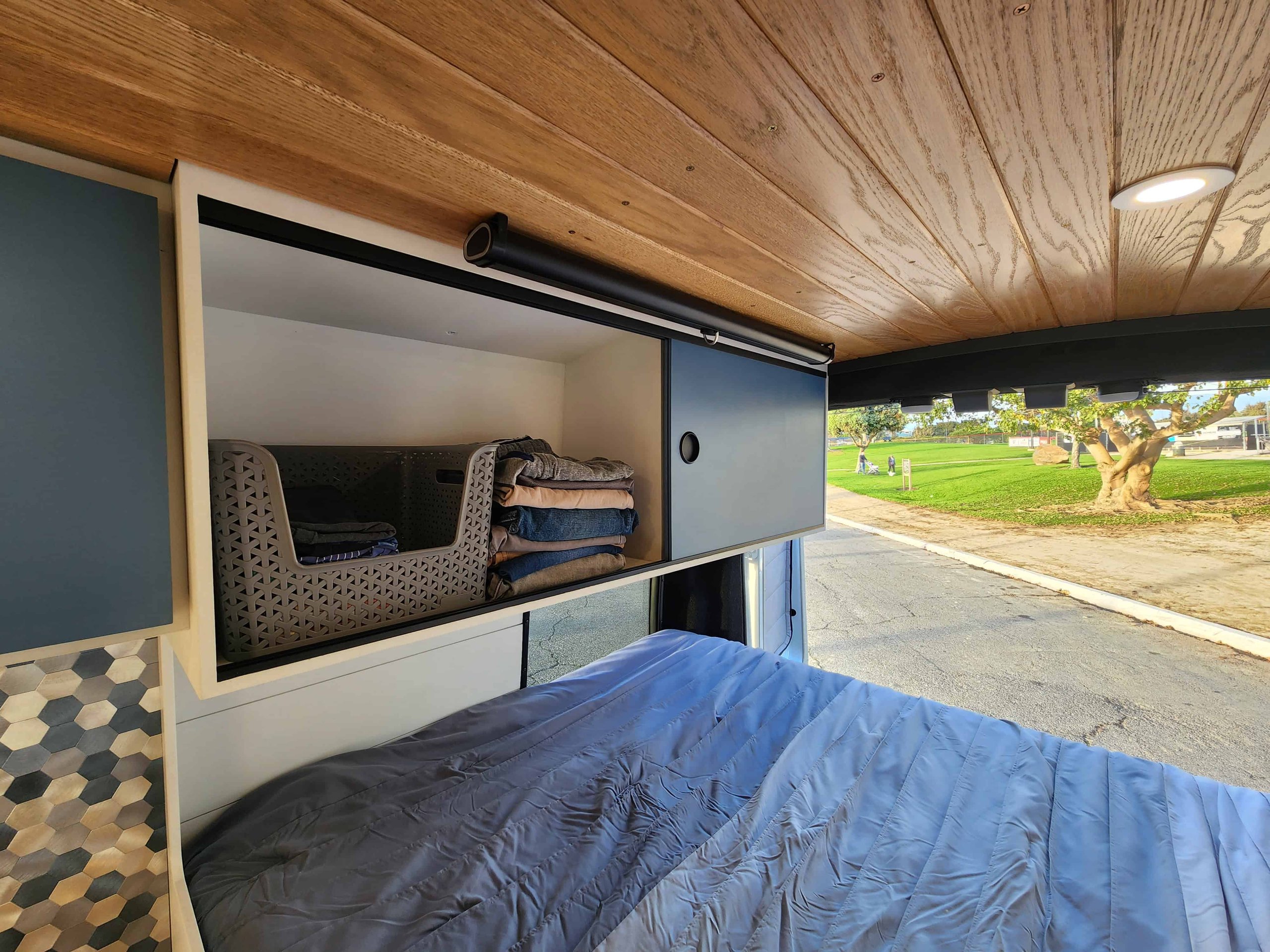

Dual upper cabinet storage with in-cabinet lighting
Closet space for hanging clothes
XGIMI Elfin 1080p 600-lumen projector
Pyle 40-inch retractable projector screen
Carpeted walls and shiplap accents for coziness

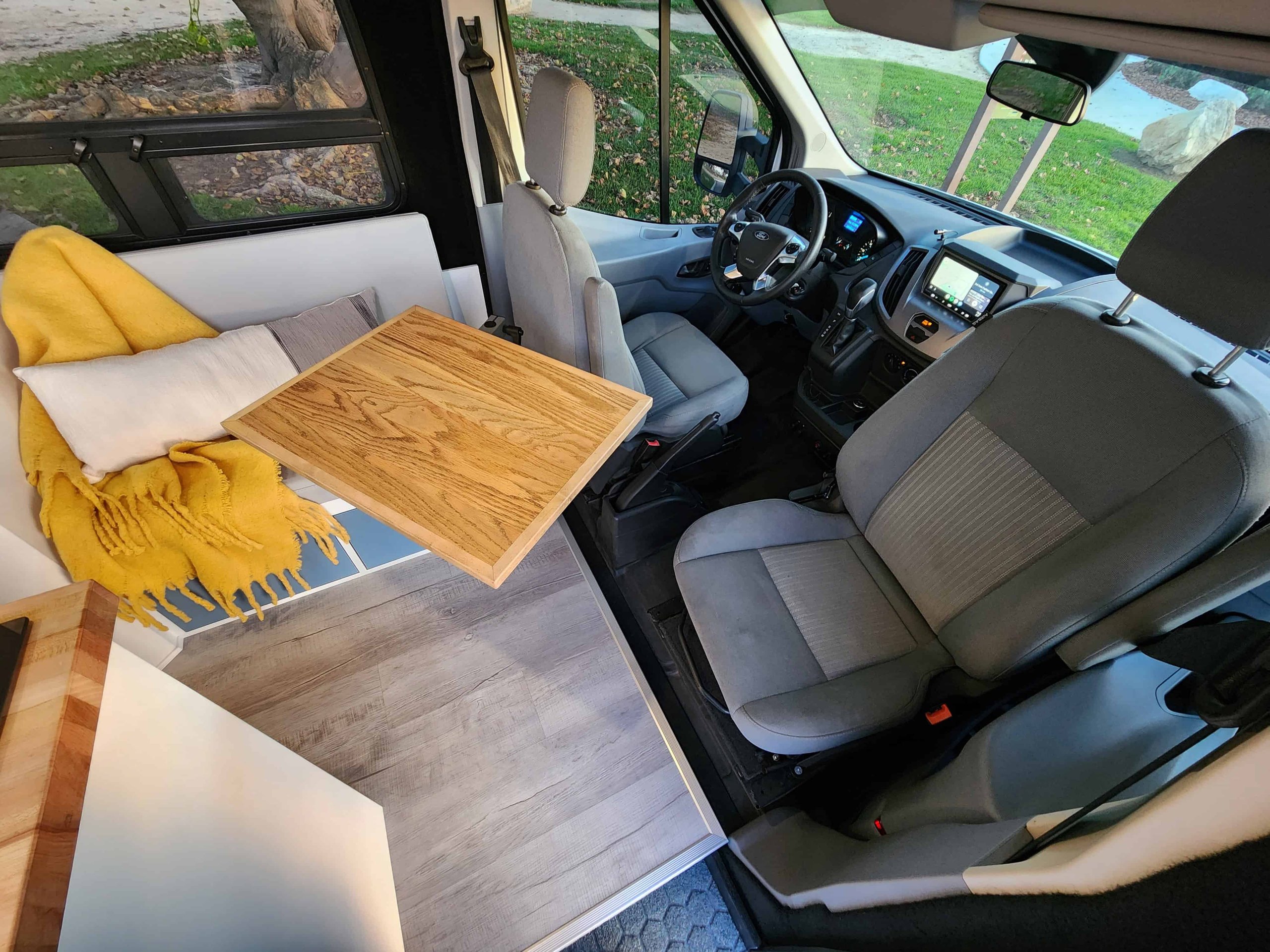

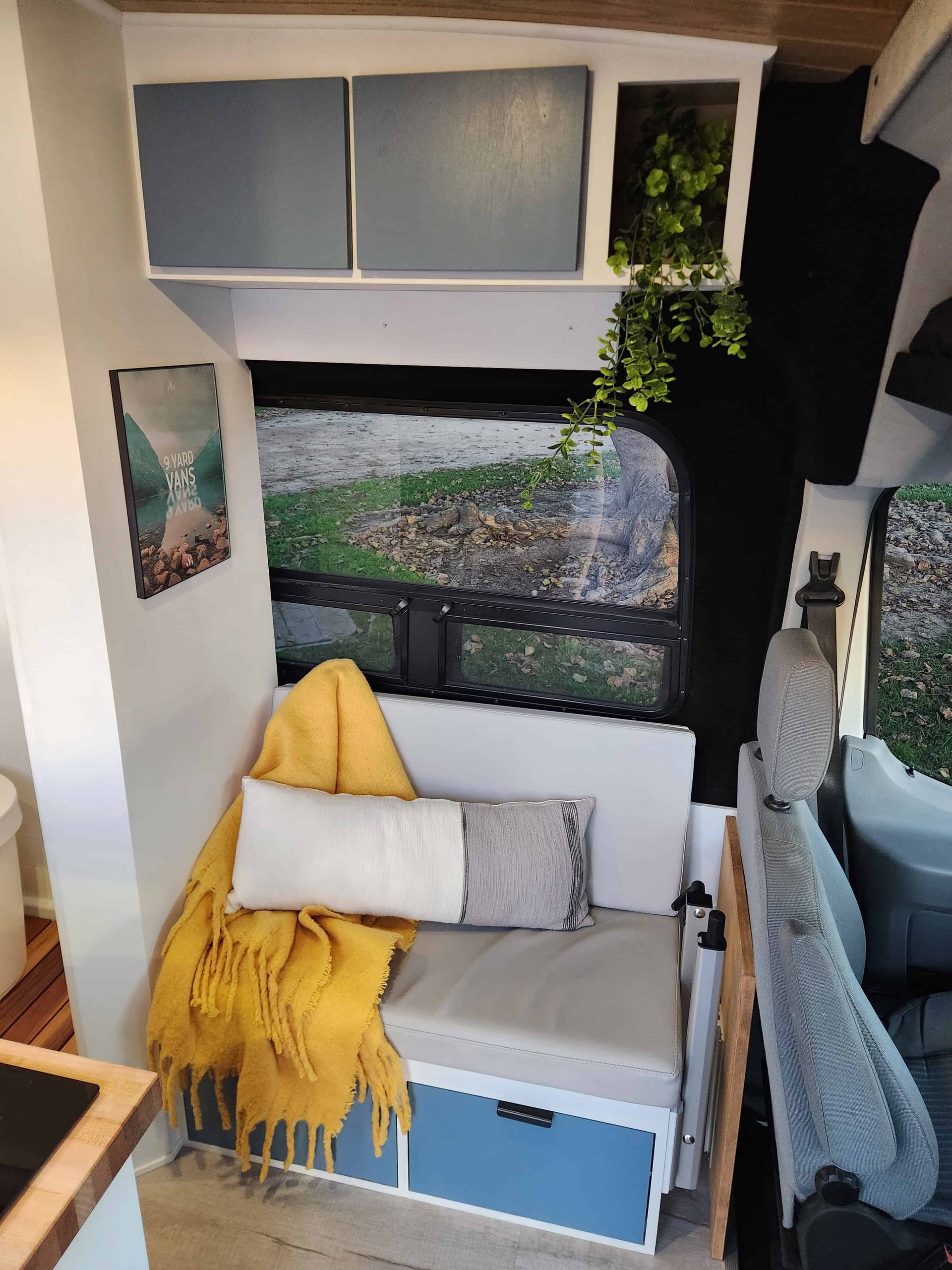

Seating Area
Swivel passenger chair
Bench with custom memory foam cushions and waterproof pleather finish
Laguna swivel table mount and custom hardwood table top (matches ceiling wood)
Under seat storage drawers and upper cabinets
Electrical
1120Ah 12V LiFePO4 Battery Pack (14.3Kw)

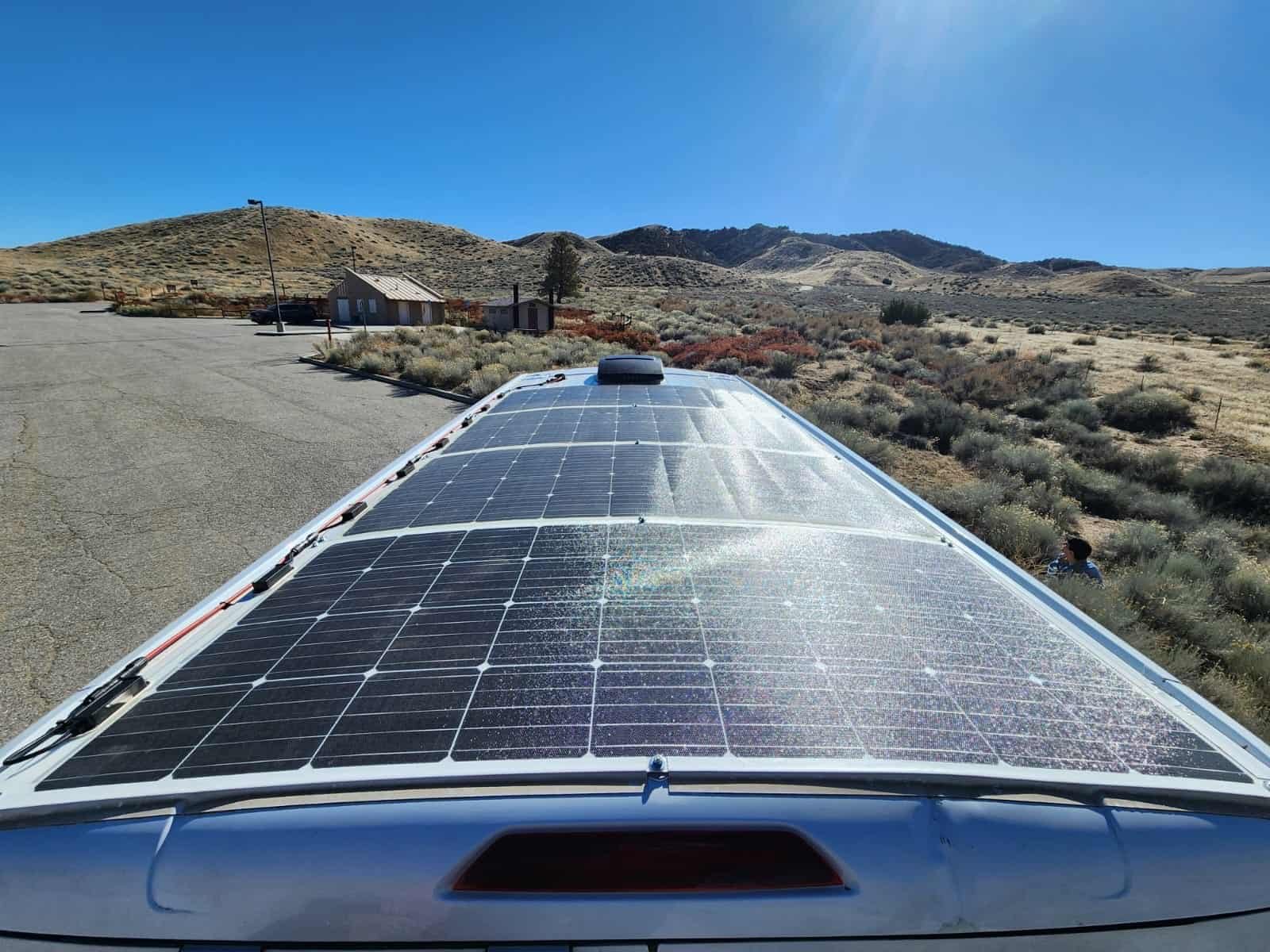

700W Solar Panel Array (4x Renogy 175W Panels)
Victron MultiPlus 3000W Inverter/Charger
Five household 120V outlets
3x Leviton USB-C 30W Power Delivery
2x Leviton GFCI
Victron Orion Smart DC-DC Charger (alternator charging)
Victron SmartSolar MPPT 150/70 Solar Charge Controller
Victron BMV-712 Smart Battery Monitor
Victron Lynx Distributor 1000A Fused Bus Bar
Victron VE.Bus Smart Bluetooth Dongle
ISDT Battery Cell Voltage Monitor/Alarm
All Victron devices can be monitored using an app
Miniature circuit breakers for 120V distribution
Double pole miniature circuit breaker for solar input
Recessed LED puck lighting (4000K)
Blue Sea Systems Custom DC Panel
Digital DC Multimeter
Circuit Breaker Switches (for high draw >10A)
Toggle switches with resettable fuses (low draw <10A)
Illuminated switch labels
AC & Heating
4000 BTU 12V AC system
Mini split, compressor & condenser mounted under chassis
Built-in AC blower & control unit above closet
Low power consumption, runs on battery power
Hydronic Heating System
Espar D5E 12V Diesel Heater
EasyStart PRO Controller
Kalori Compact EVO1 4.3KW Hot Air Blower & Controller
2x Webasto 22 Plate Heat Exchanger with Mixing Valves (one for Kitchen & one for Shower hot water lines)
MaxxAir Fan Deluxe Roof Vent Fan (Smoke Tint)

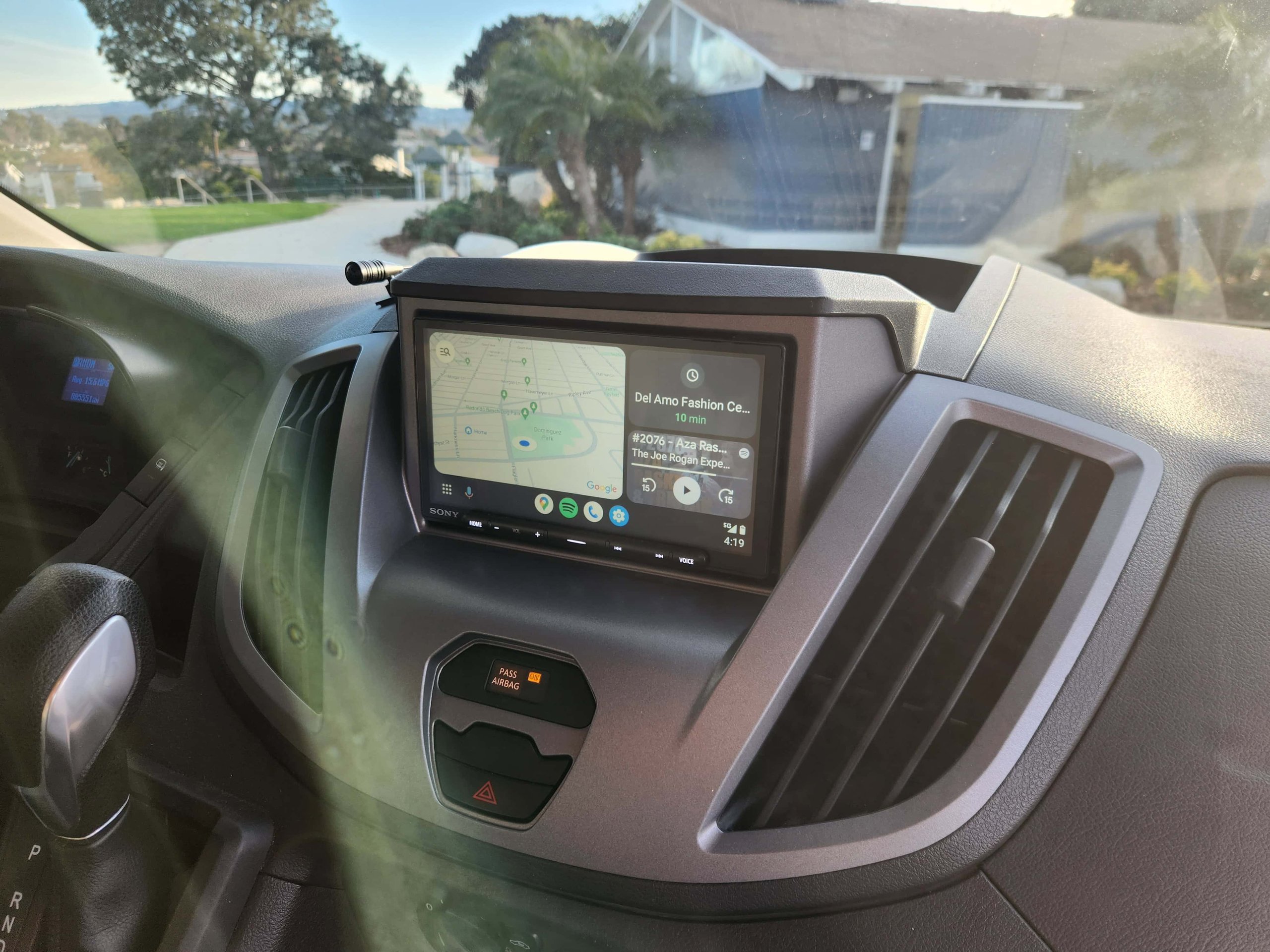

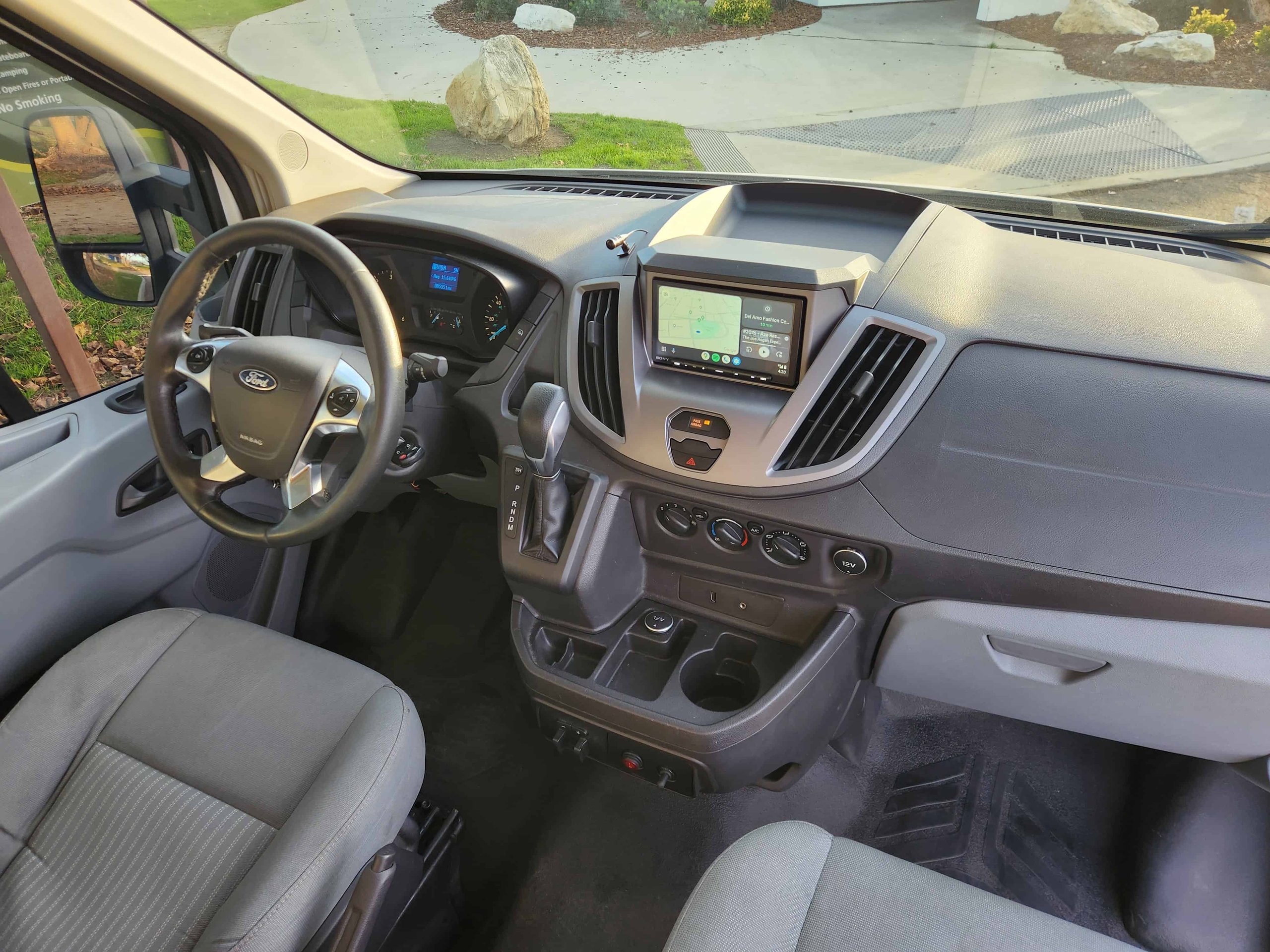

Sony XAV-AX6000 Radio Receiver with wireless Apple CarPlay and Android Auto, backup camera, and more

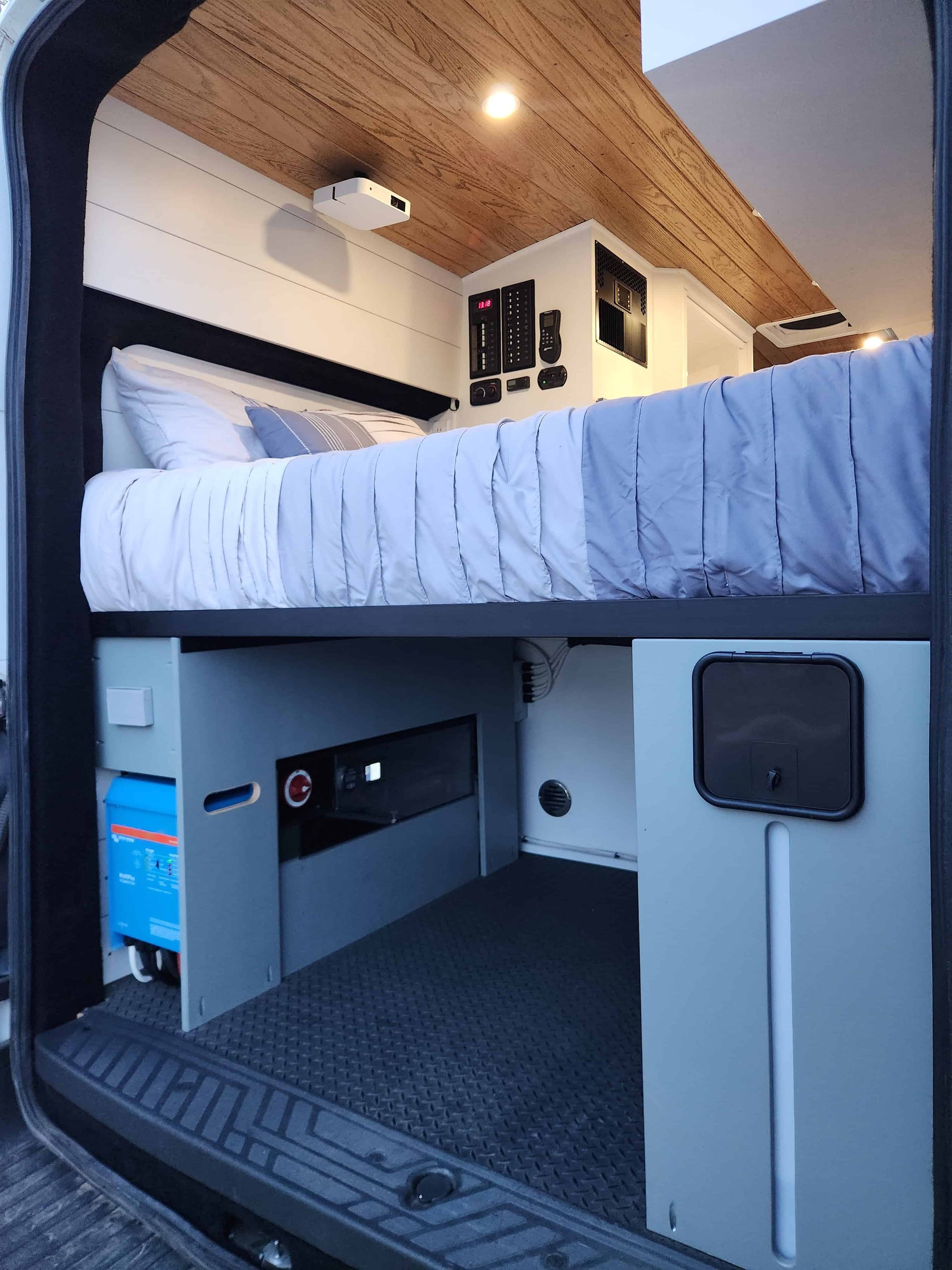

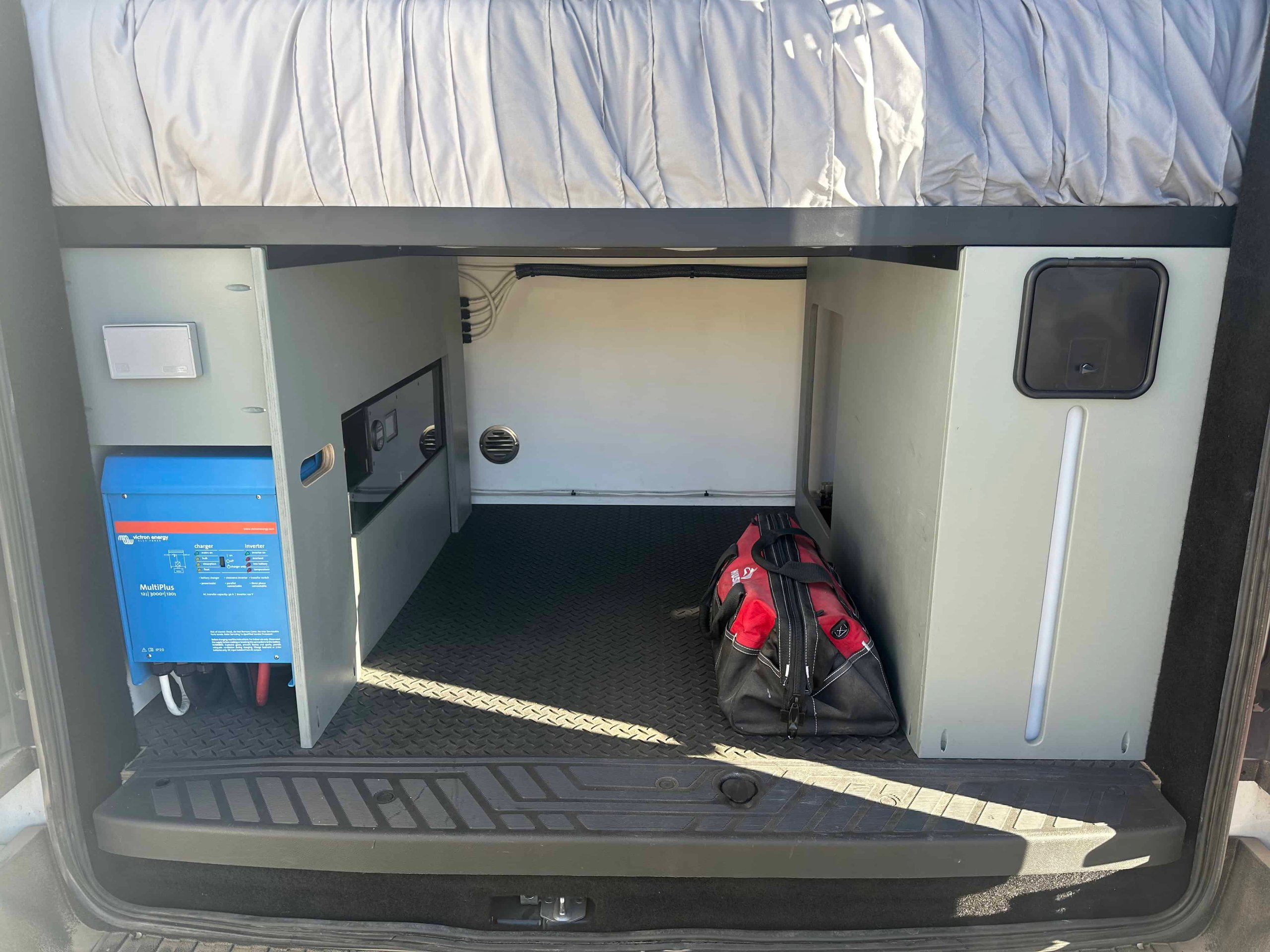

Rear under-bed storage, can fit two bikes with room to spare
Wash down station with stowable hose, can be used as an outdoor shower
Three CRL T-Vent Windows (behind driver, passenger side sliding door & passenger rear)
3M Thinsulate Insulation for walls and ceiling
Owens XPS Foam Board for floor insulation
Waterproof plank flooring, gray wood finish
