I need to sell so please make offers, ask questions and let’s discuss.
Rear cab/living quarters specifications:
This rig was designed and built to be a true off grid, full time living, 4 season, boondocking tiny house. Complete with all the comforts of home including, heat pump cooling and radiant floor heating.
The rear box of this rig originally served as an ambulance. I chose to build my home in an ambulance because of the extremely high build quality and toughness of an emergency service vehicle. The read box is made of welded 2×2” square aluminum tubing covered in seamless 1/8” aluminum sheeting. This makes the rear box extremely rigid and safe, in fact an ambulance box is one of the few rear cabs rated for human occupants to survive a rollover in the event of a crash.
Features of Living Space
Power system
Thanks to the high power density of the Tesla battery modules and the 1340 watts of high efficiency solar, the electrical system will run the mini split heat pump all day in the sun and still charge the batteries! You will be cool even in the hottest weather. You can cook with the induction cook top, use the microwave, charge laptops or play games, electrically make hot water and live a very comfortable life with little compromises.
- 4 Solar Panels 1340 Watts total (high efficiency)

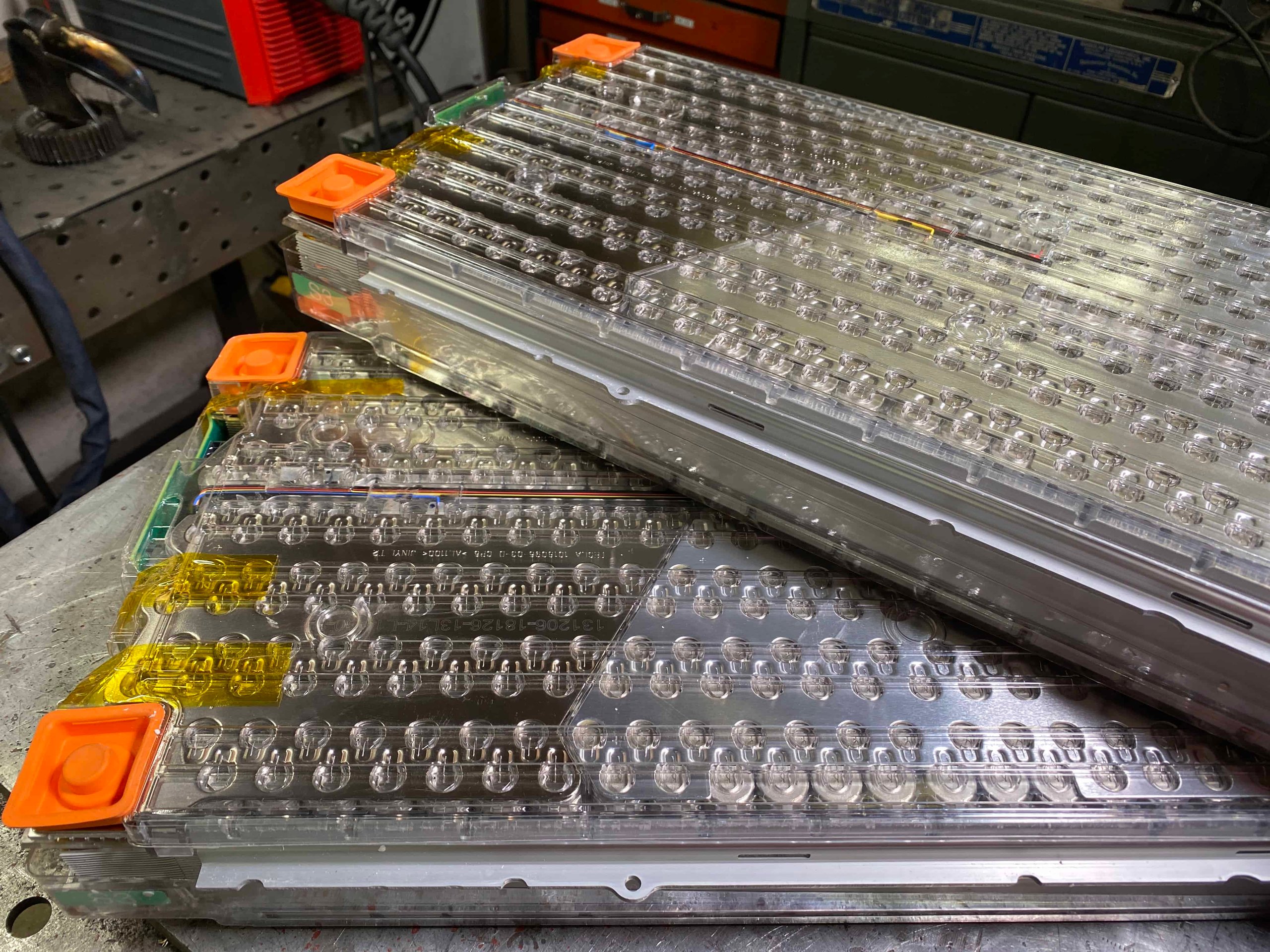

- 2 Tesla Battery Modules at 24v 500Ah 10.4kWh total capacity
- Victron BlueSolar MPPT 150v/ 60 amp Solar charge controller
- Victron MultiuPlus 24v 3000w Pure sign inverter
- Daygreen 100A 24v to 13.8v DC to DC Step Down converter
- Victron Smart Battery Protect 12/24v Smart Shunt
- Victron Color Control GX monitoring panel and controller
- Victron Smart Battery Monitor
- Victron GPS module with geofencing
- Victron Battery Temperature probe
- Victron Bluetooth Connect module
Water
- 55 Gallon Fresh water tank located under kitchen cabinet to prevent freezing
- 6 gallon Hot water heater. You Make hot water with Diesel or electric power
- FloJet 12v Water Pump
- SeaFlo pressure Accumulator Tank
- Pex plumbing throughout build
- 3 Stage Drinking water filter
- 22 Gallon Gray water storage tank
- Stainless Kitchen sink with drinking water spout
- Shower Thermostatic mixing valve for perfect shower temperature
- Efficient low flow high pressure hand held shower head

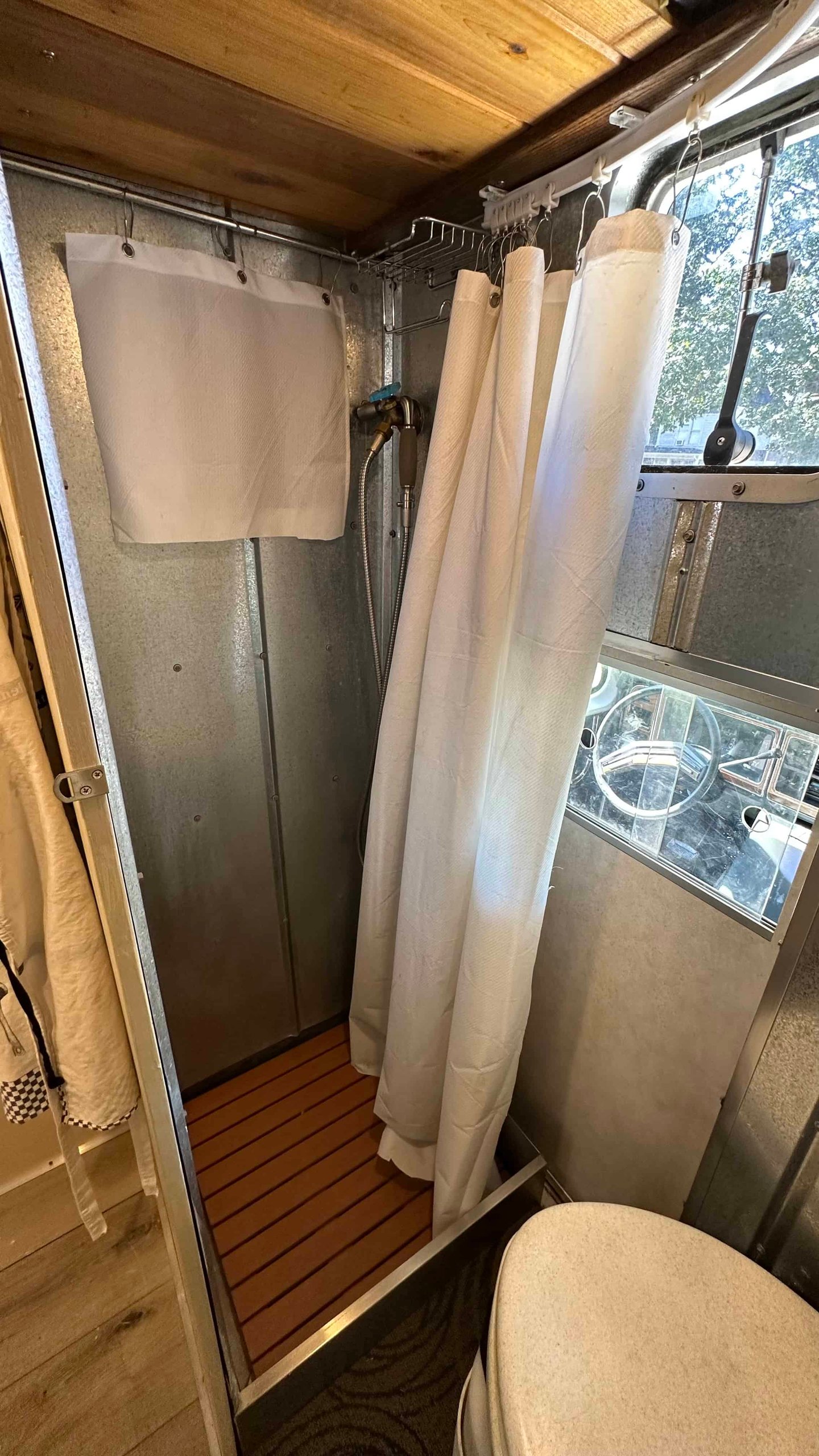

- Stainless Steel Shower tub (2ftx2ft) with 4 drains

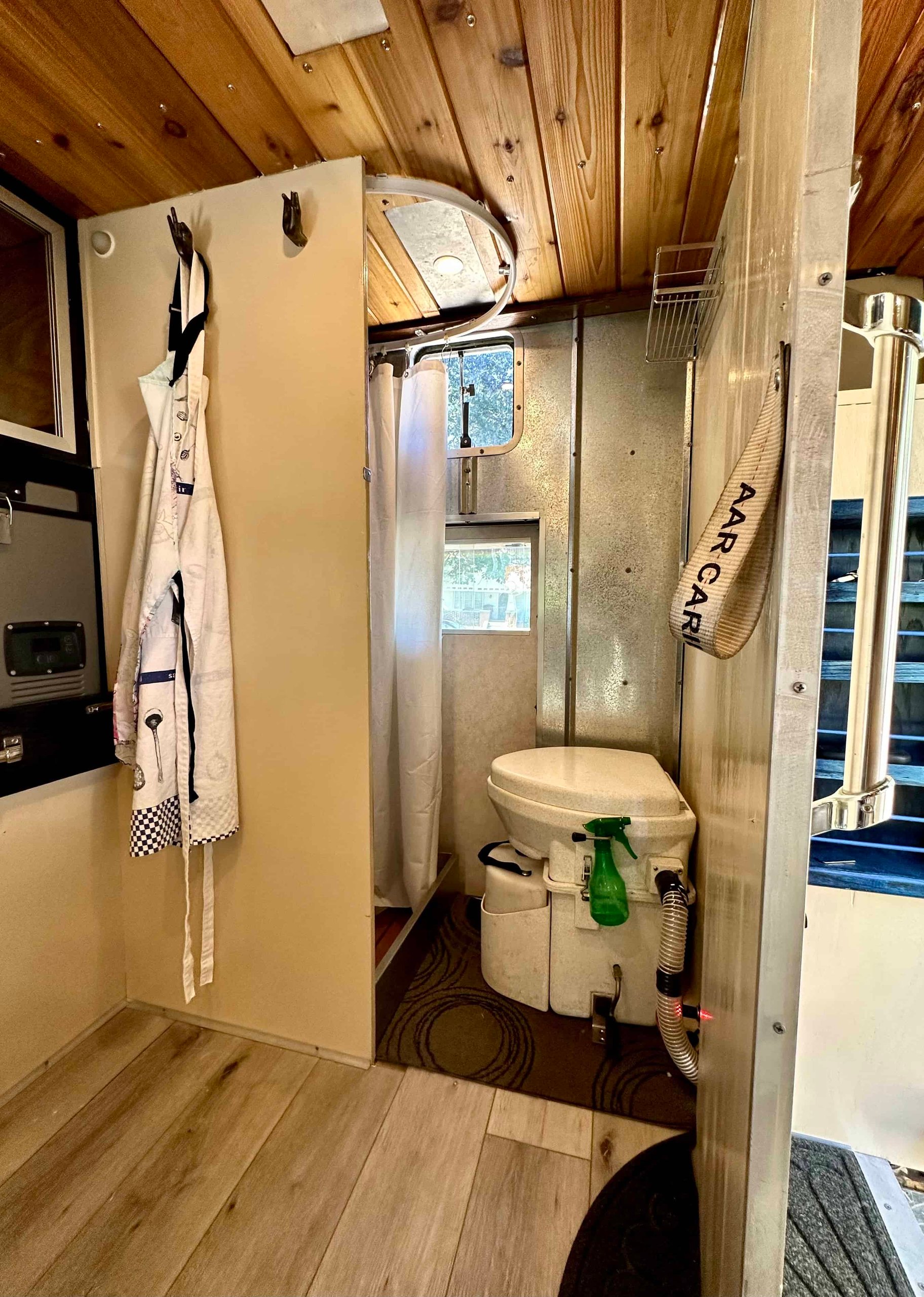

- Natures Head Composting Toilet vented outside so no odors
- Outside Water hookup for city water sources
Warmth and Cooling
I built this rig for sub zero winters and I lived in this rig during the polar vortex where I experienced -34 f wind chills. The diesel air and hydronic heaters kept me and the floor of mat rig warm and comfortable with my only chore of filling the diesel tank every 4 days or so.
In the summer I run the mini-split heat pump off my solar /batteries and chill out in the cool.
- True 4 season, well insulated build for full time living
- 2” polystyrene insulation in floors
- 2” Rockwool fire resistant insulation in walls and ceiling
- Dual pane insulated Rv Windows
- 12v Fan-Tastic Ventilation fan

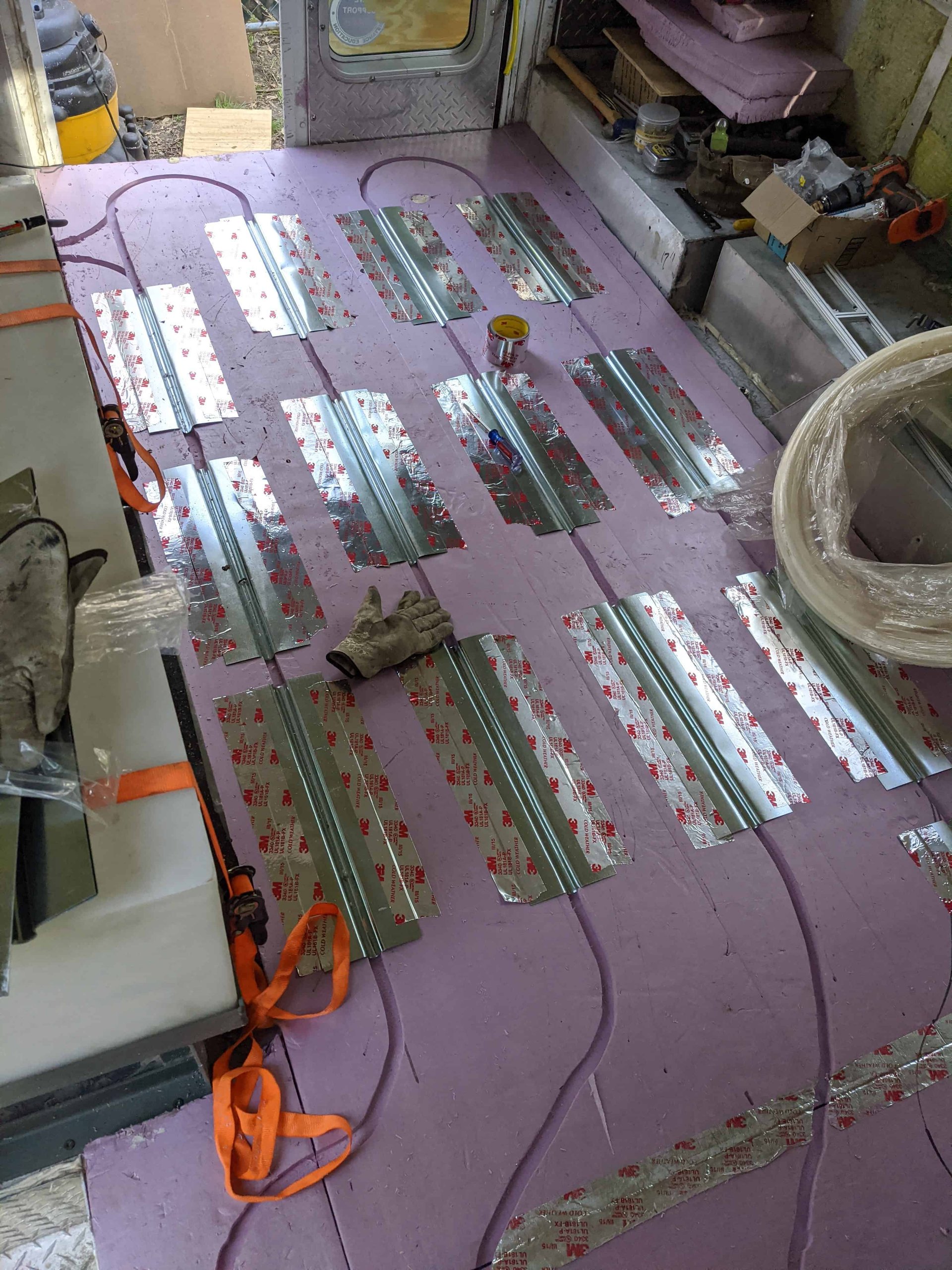

- Hydronic radiant floor heat system with thermostat and forced air (diesel powered)

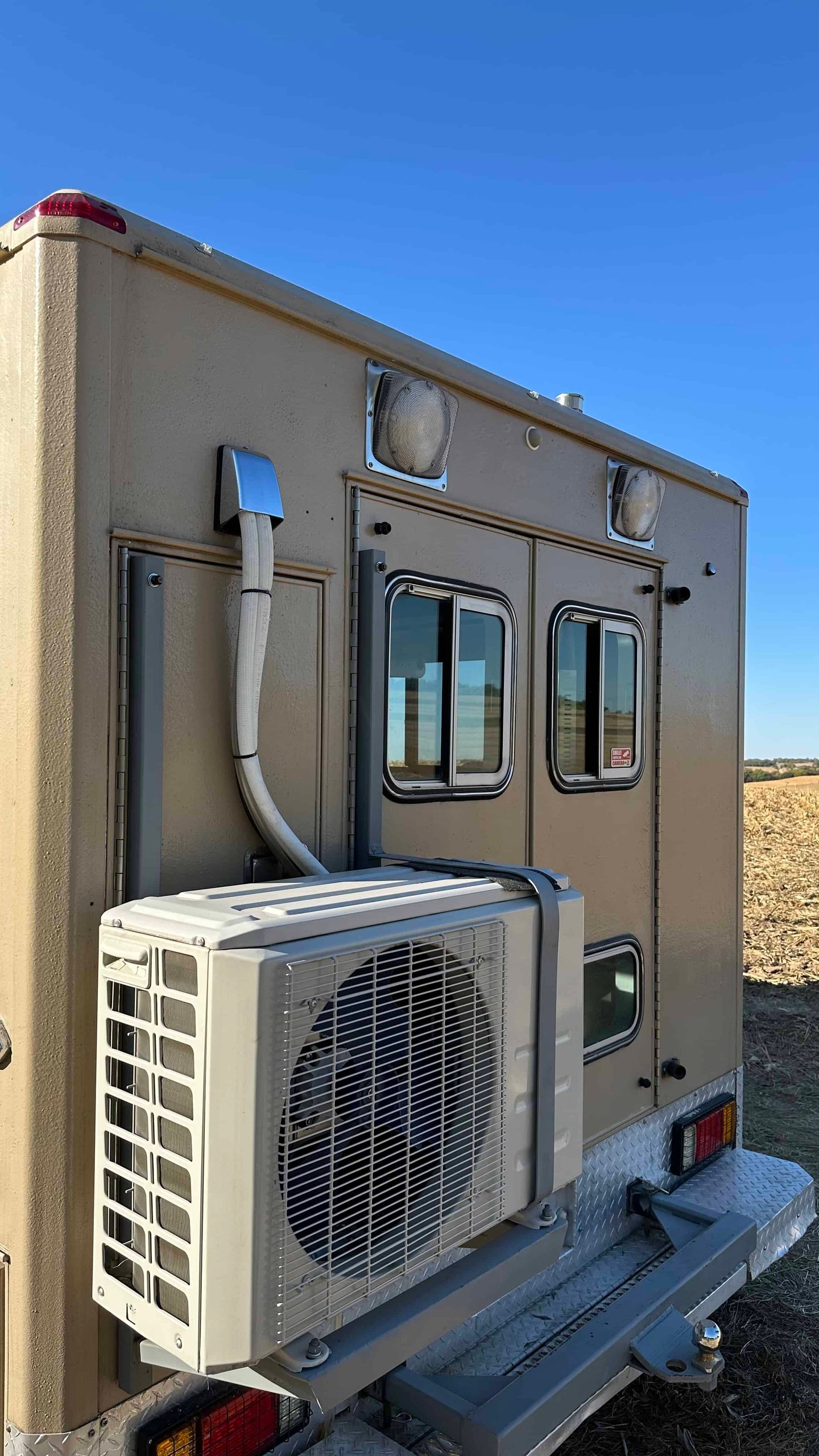

- Mini Split Heat pump (9000 BTU) for cooling and heating backup Runs off Tesla lithium Iron Batteries

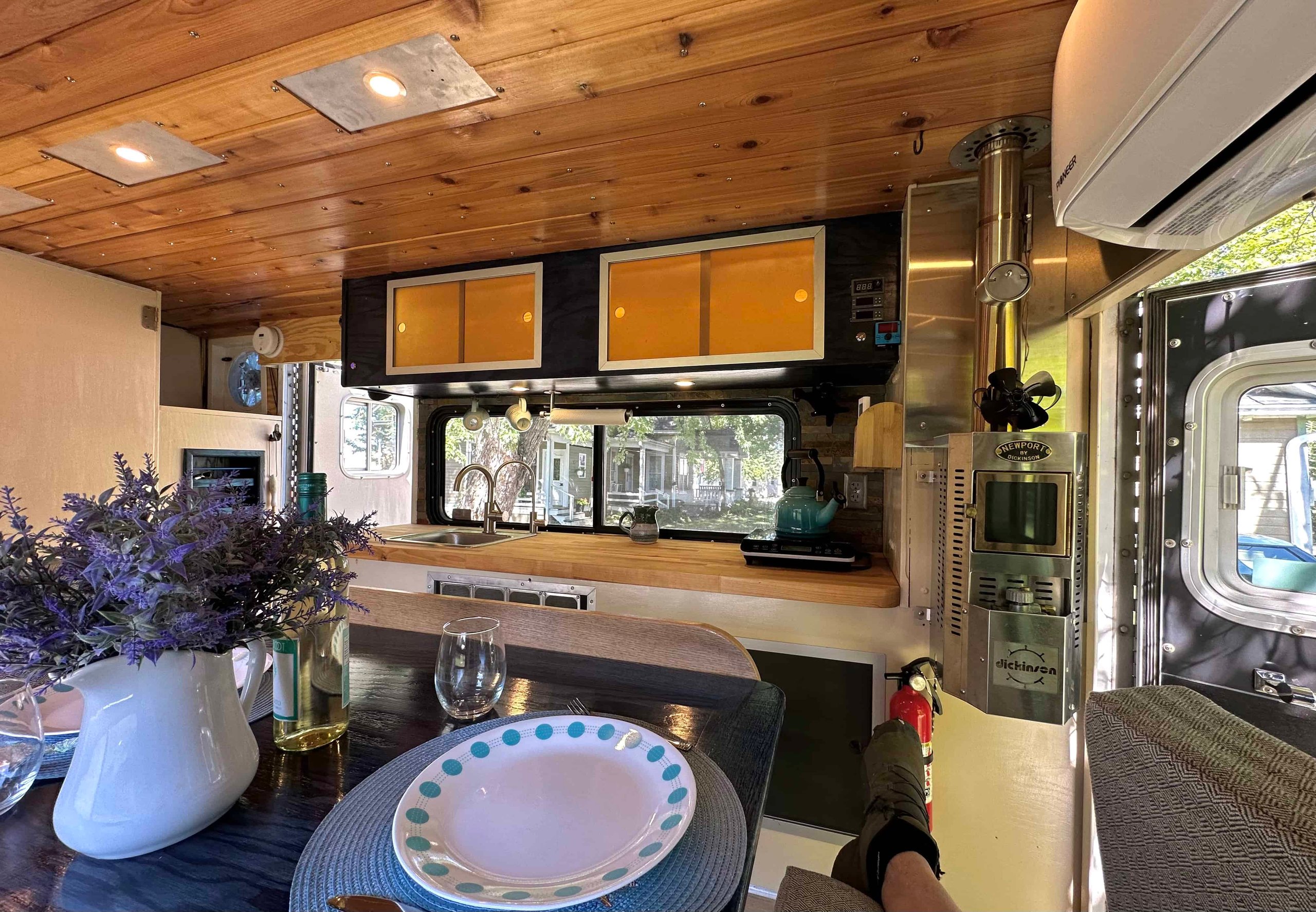

- Dickinson Newport Stainless Diesel Heater with stainless water loop (reliably heats cab and makes hot water)
- 6 gallon stand alone Diesel fuel tank for water and air heaters (prevents your main drive tank from running dry)
Cooking and Appliances
- Induction cooktop
- Microwave

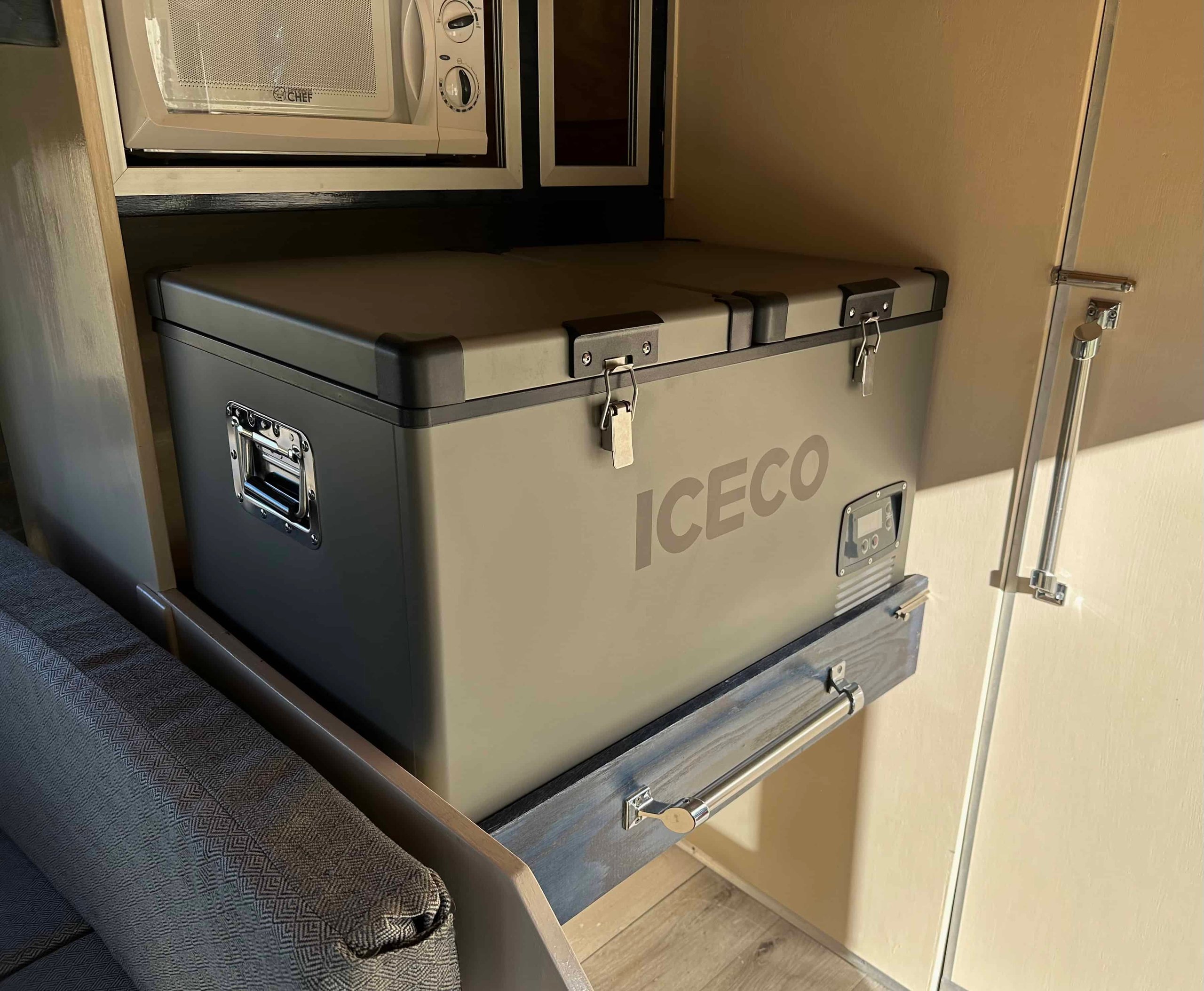

- Brand New pullout rugged fridge freezer combo!

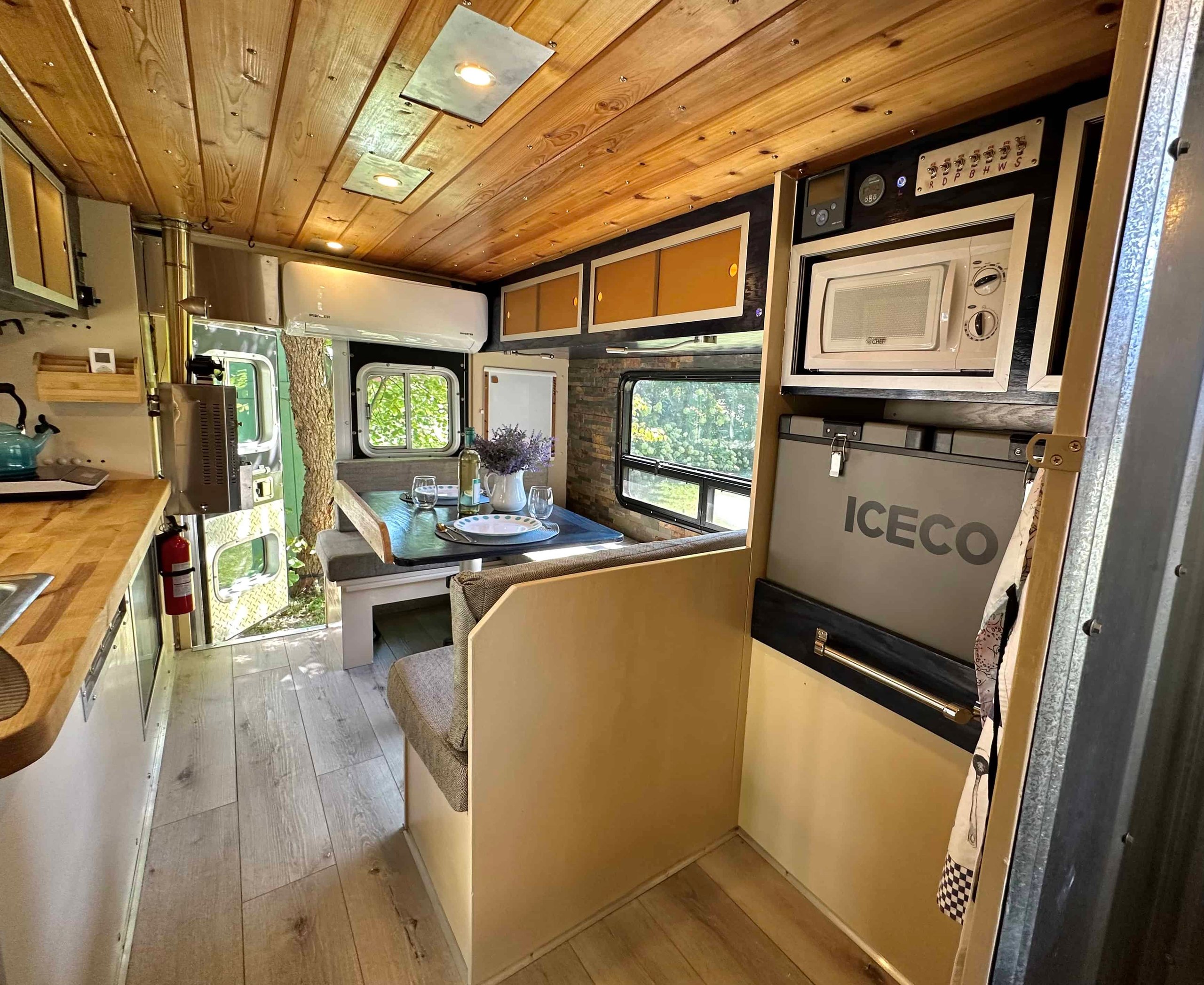

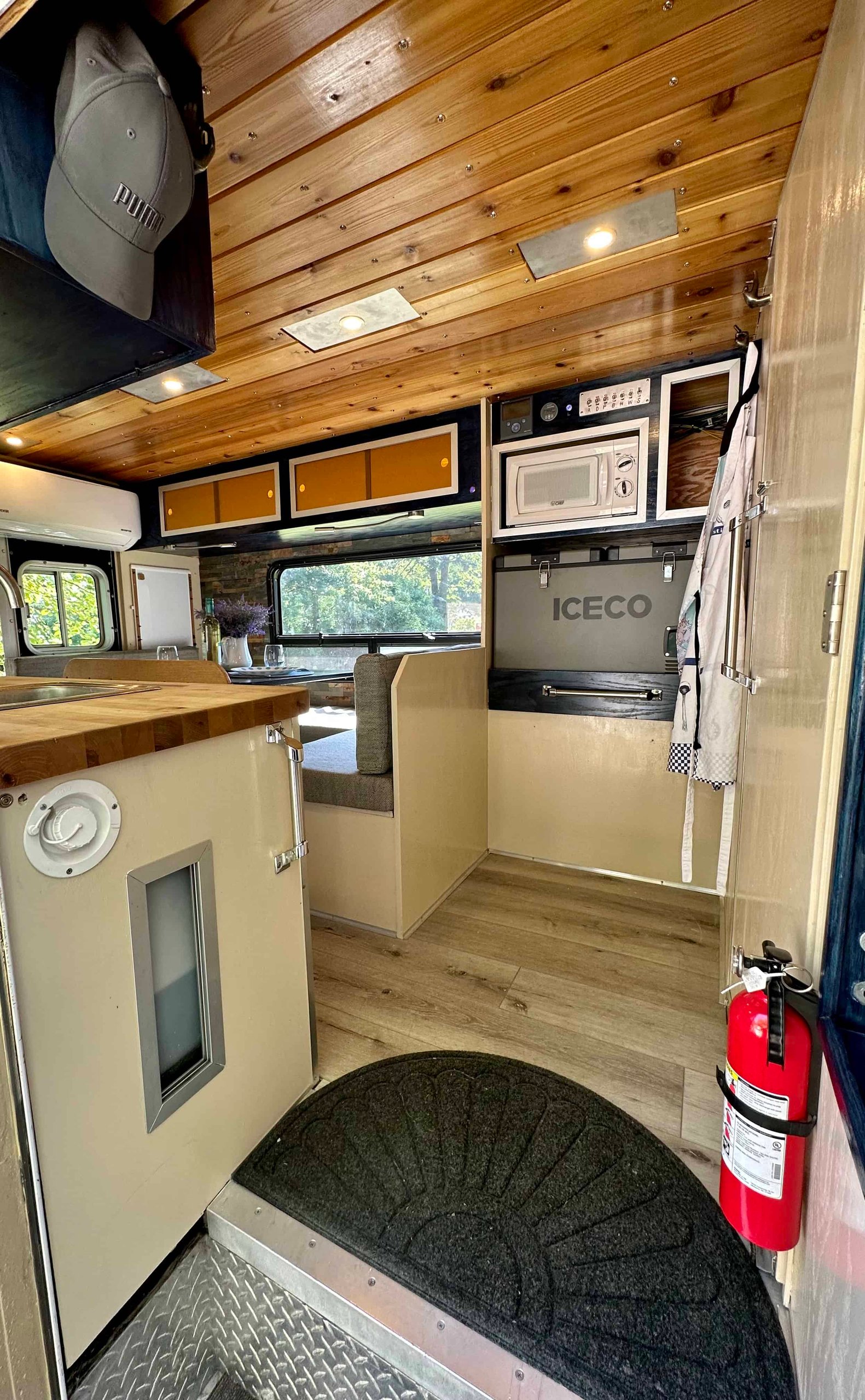

Other Interior Design features

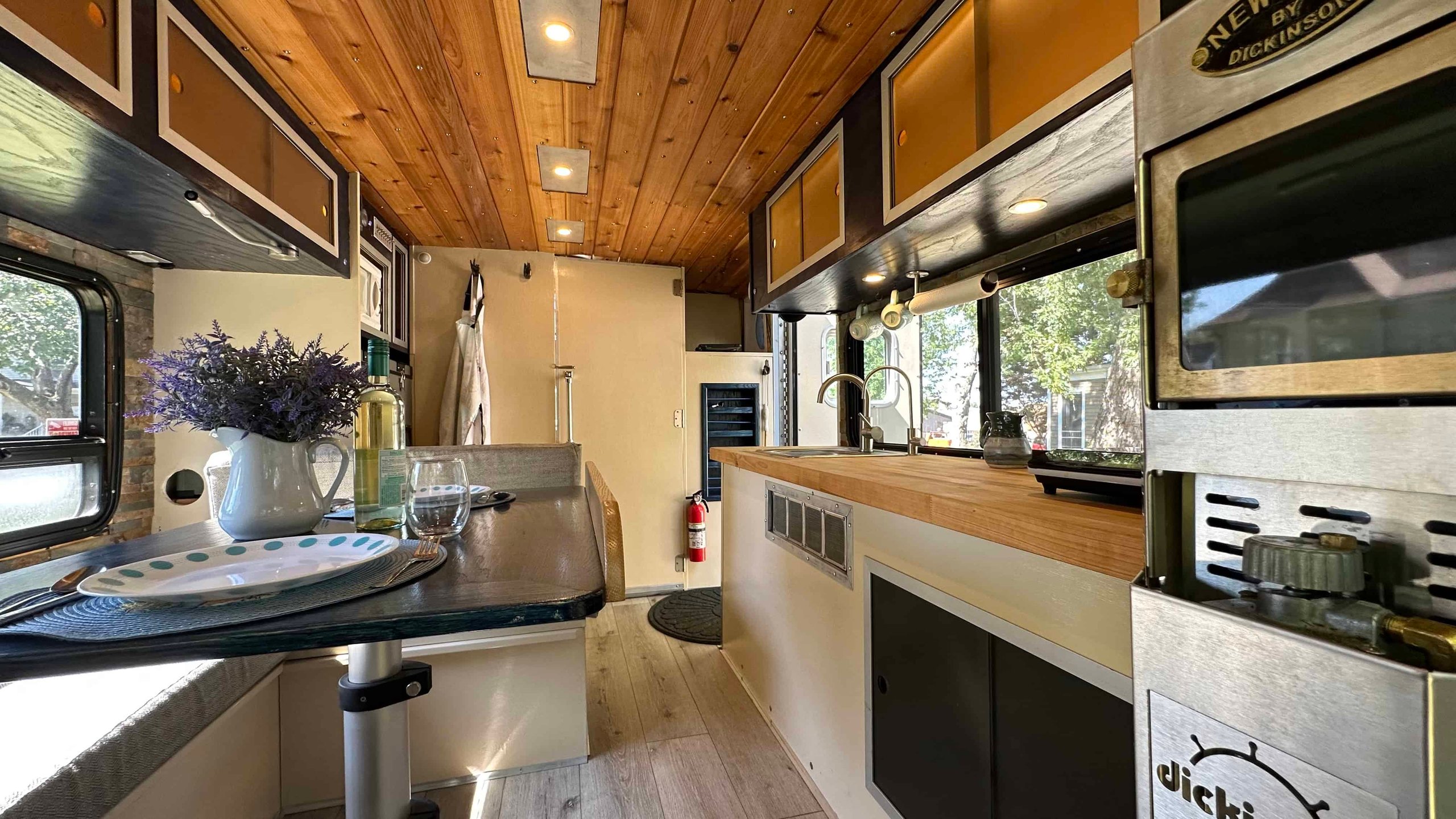

- Cabinet grade solid Oak Ply Construction

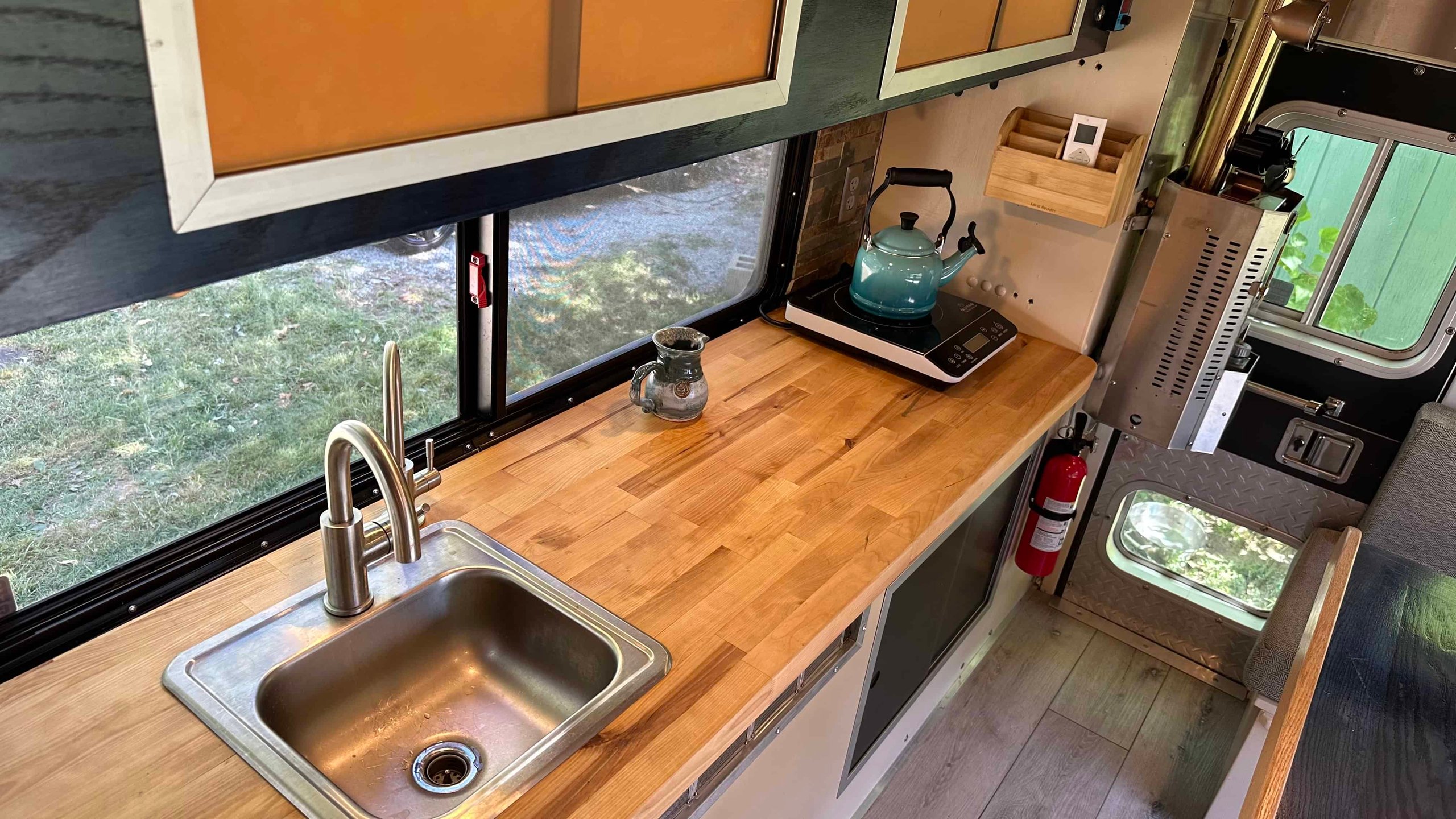

- 1.5 inch solid butcher block kitchen counter top
- Led under cabinet lighting
- Lighting in Pantry and Closet storage
- Dual Led task / reading lights with USB charging ports
- Dimmable main Led room lights
- Separate Shower / bathroom lights
- Solid Core / water proof solid flooring
- Translucent, sliding cabinet doors with aluminum hardware
- Real stone slate back splash and accent wall

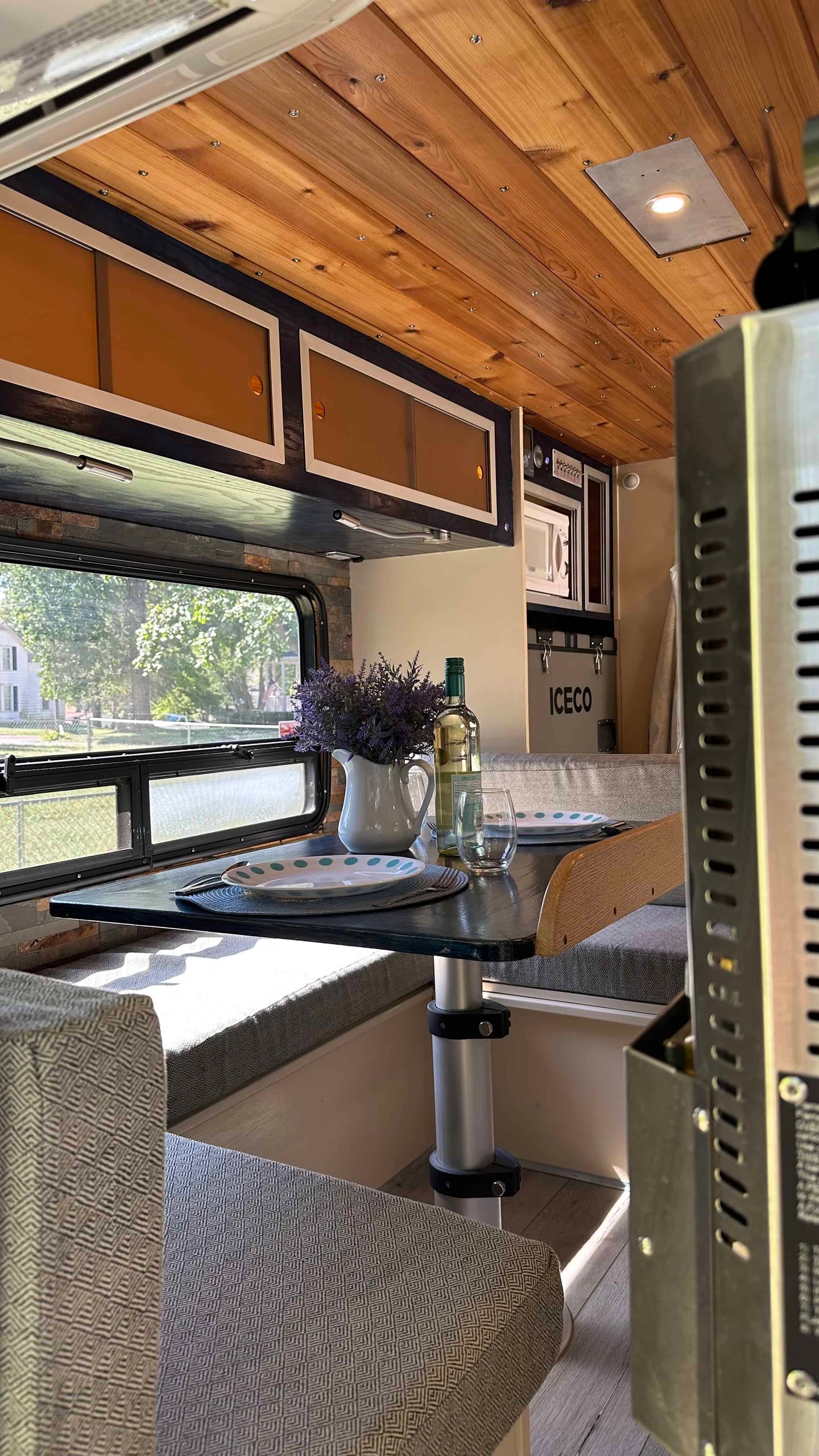

- Booth seating for up to 5 people
- Solid bronze sculpted hands coat hooks arranged in convenient locations

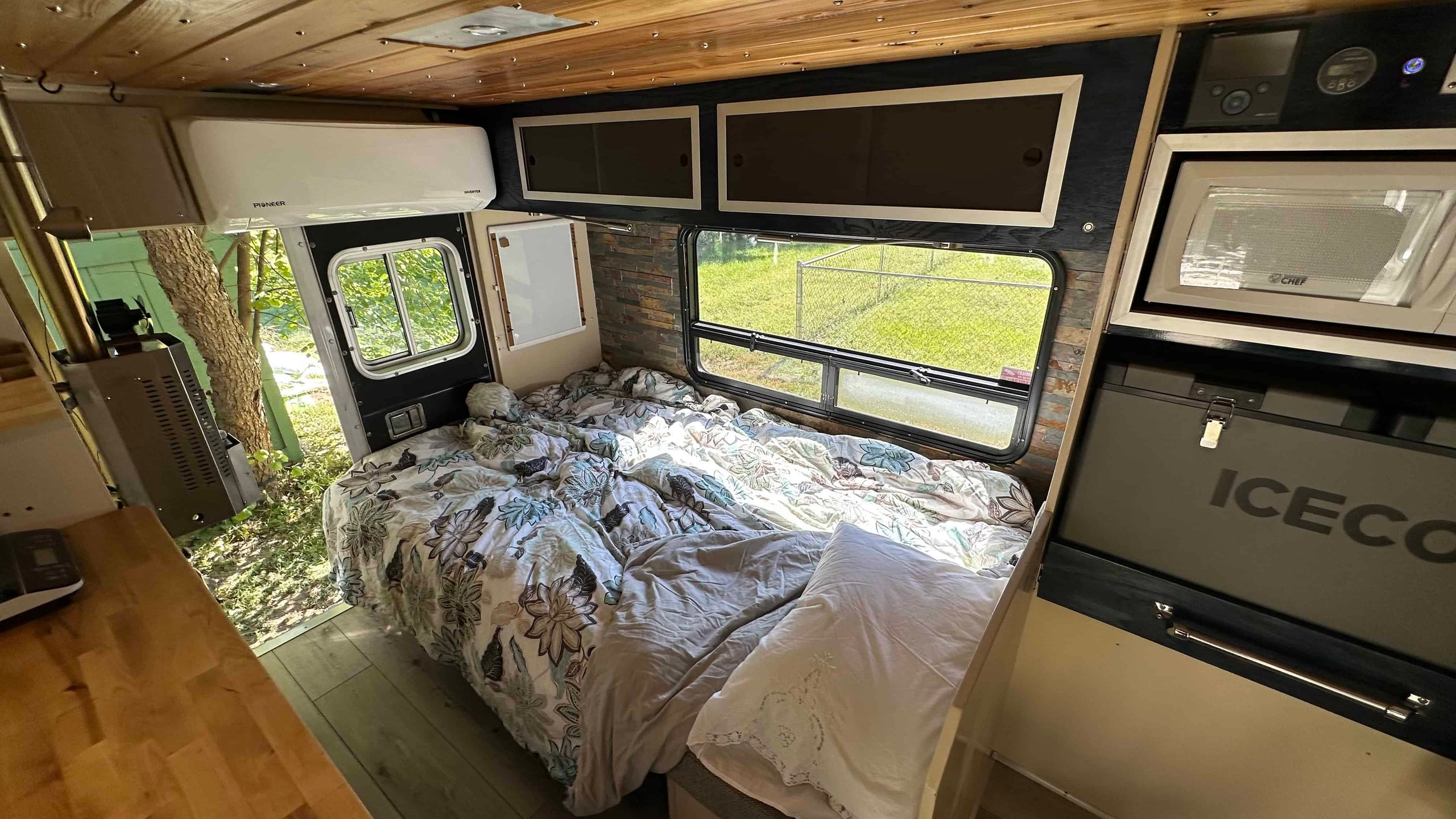

Sleeping

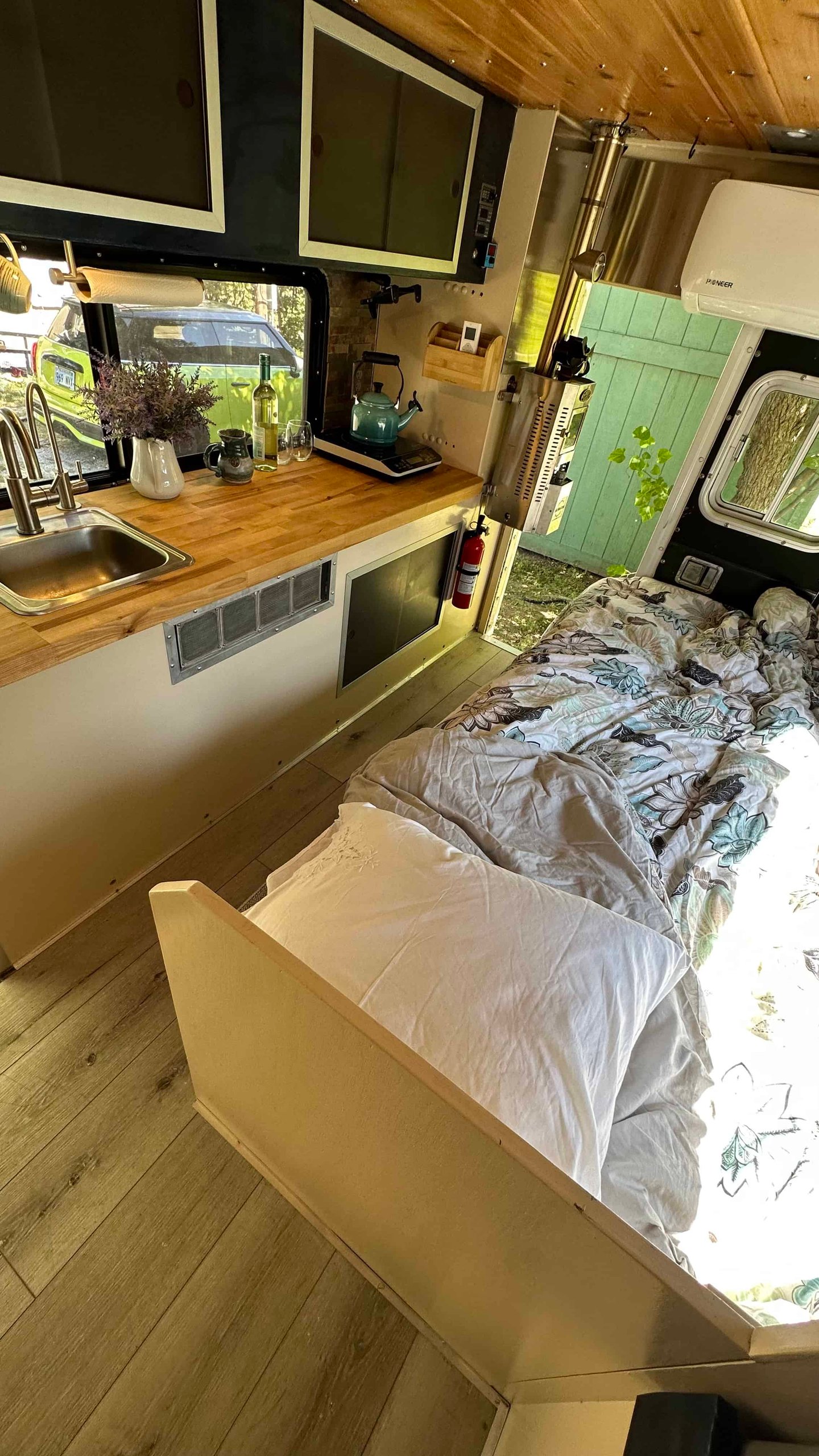

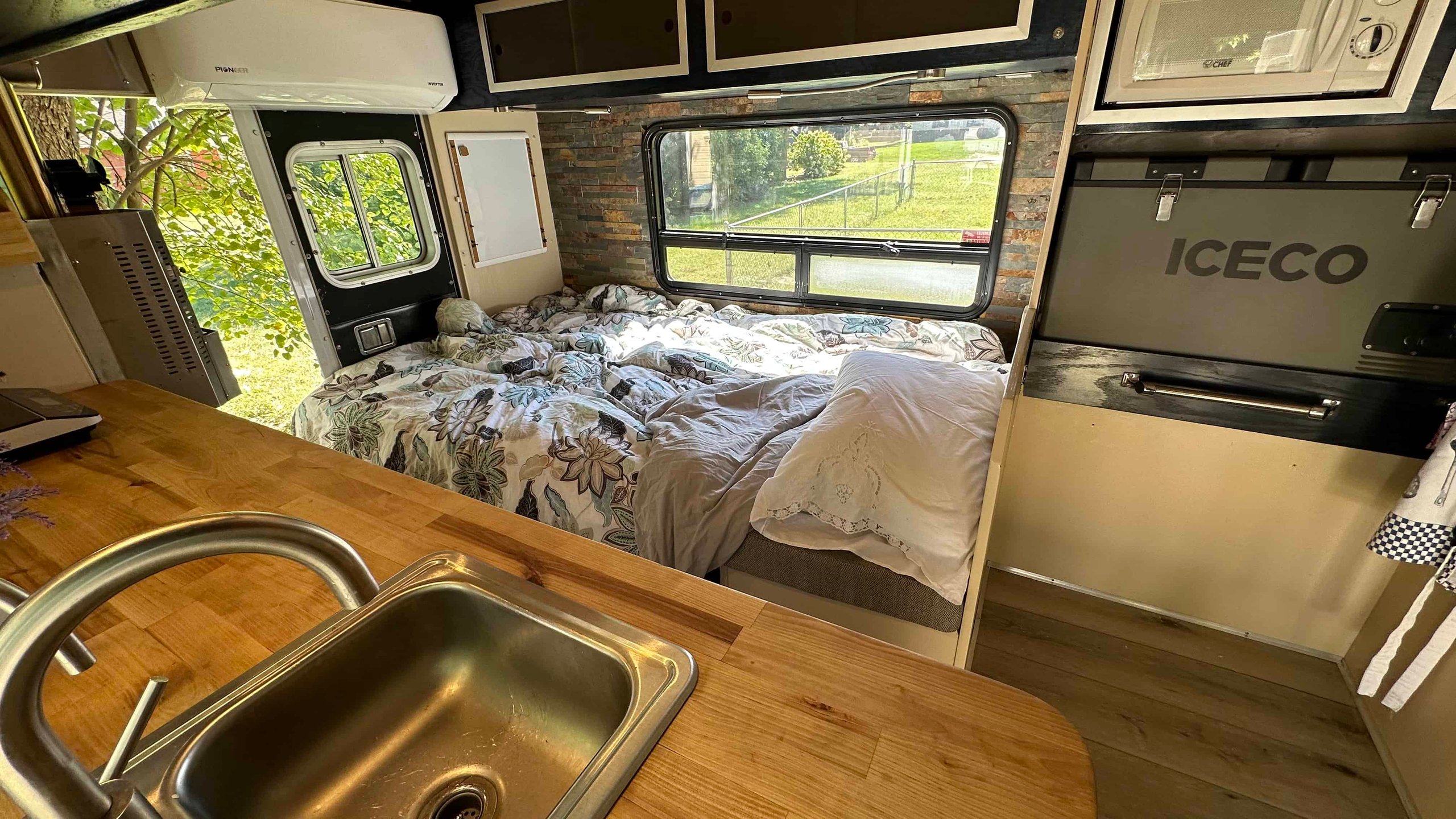

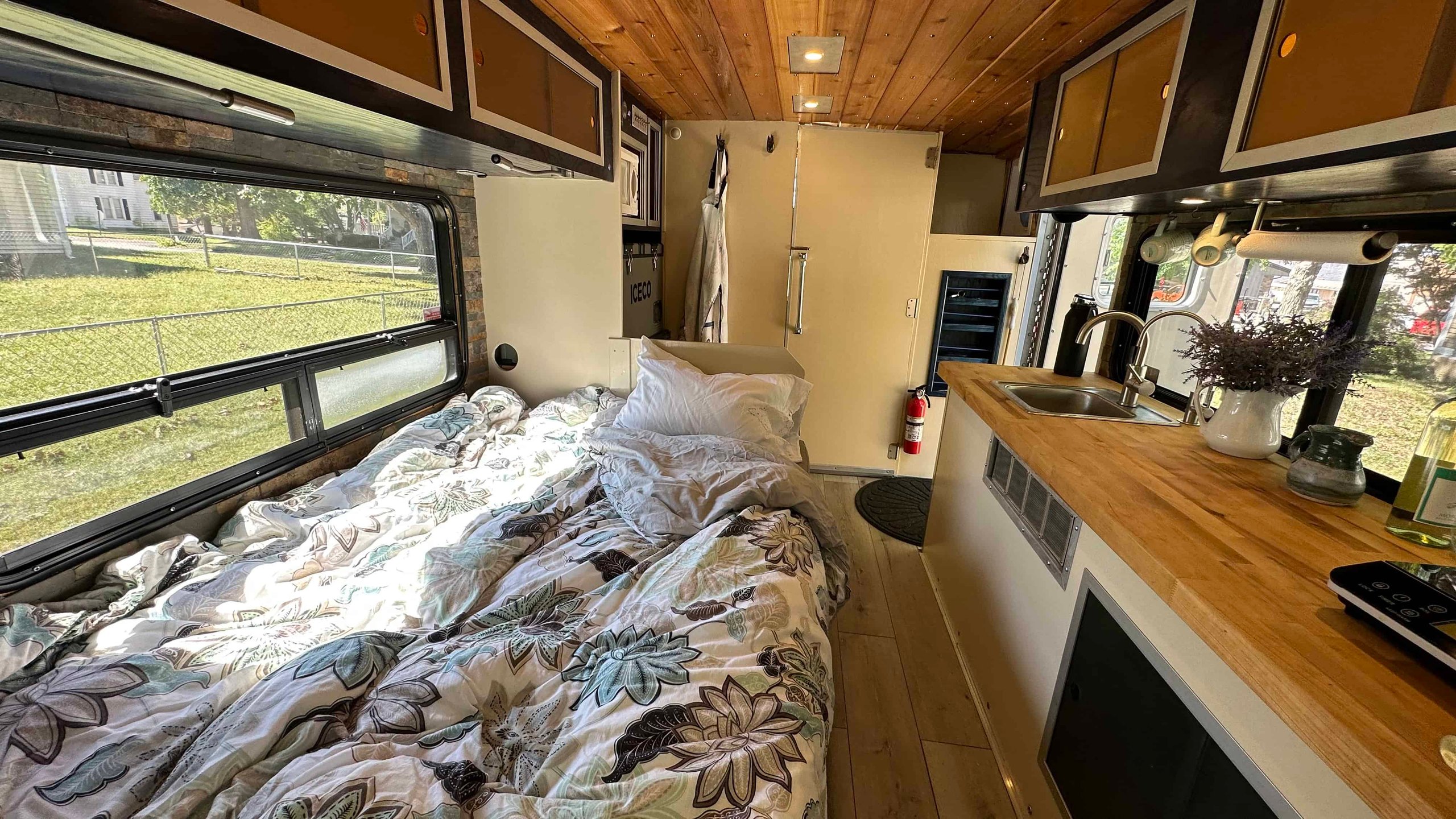

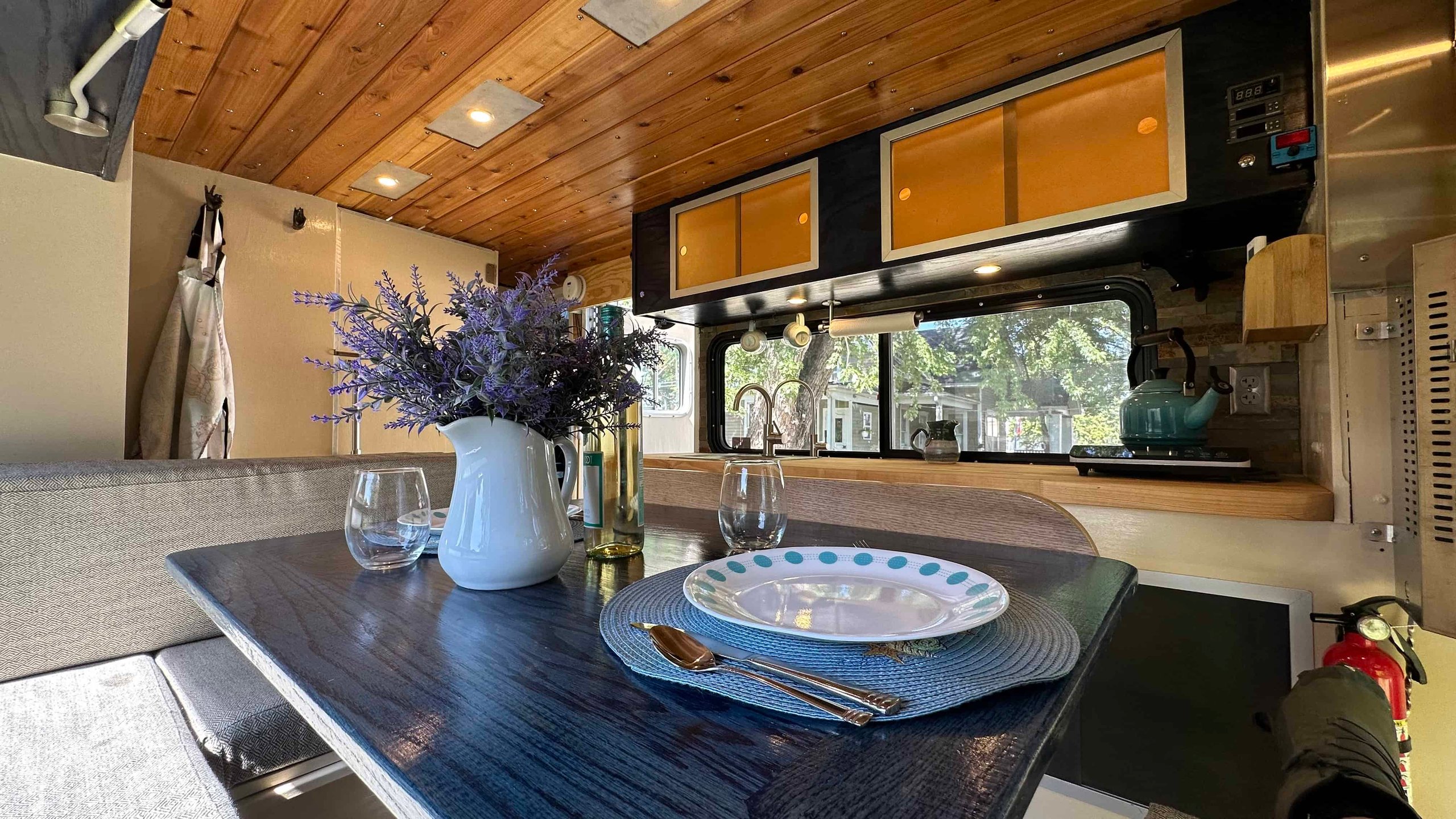

- Kitchen table drops on marine grade pneumatic pedestal to make almost a full sized bed.
- 4 inch custom memory foam mattress.
Storage
- Spacious cabinets over Kitchen counter top
- Pot and pan storage under kitchen counter
- Large cabinet space/wardrobe over boot/ sleeping area
- Lots of linen and bulky storage under seating

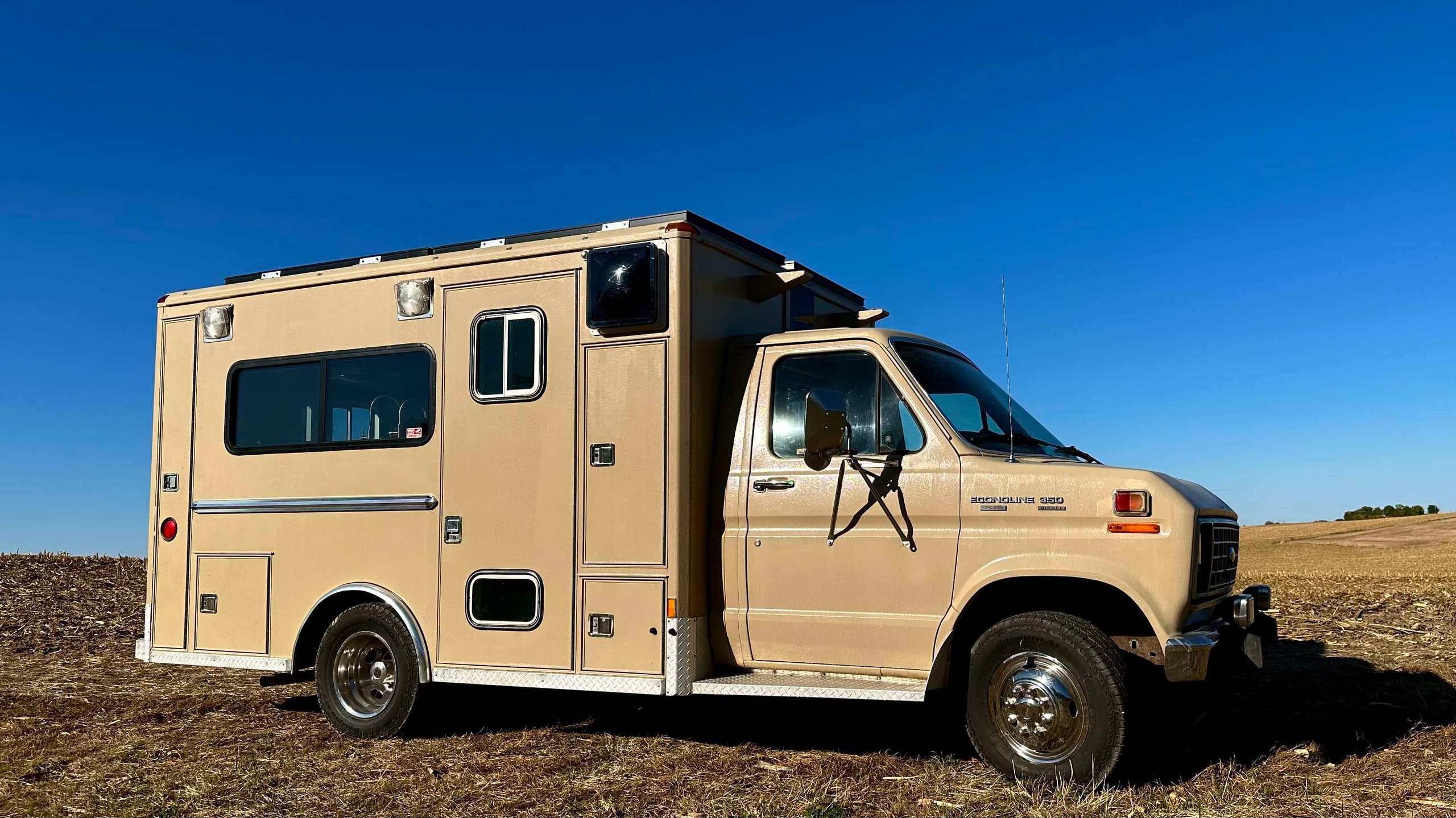

Chassis specs

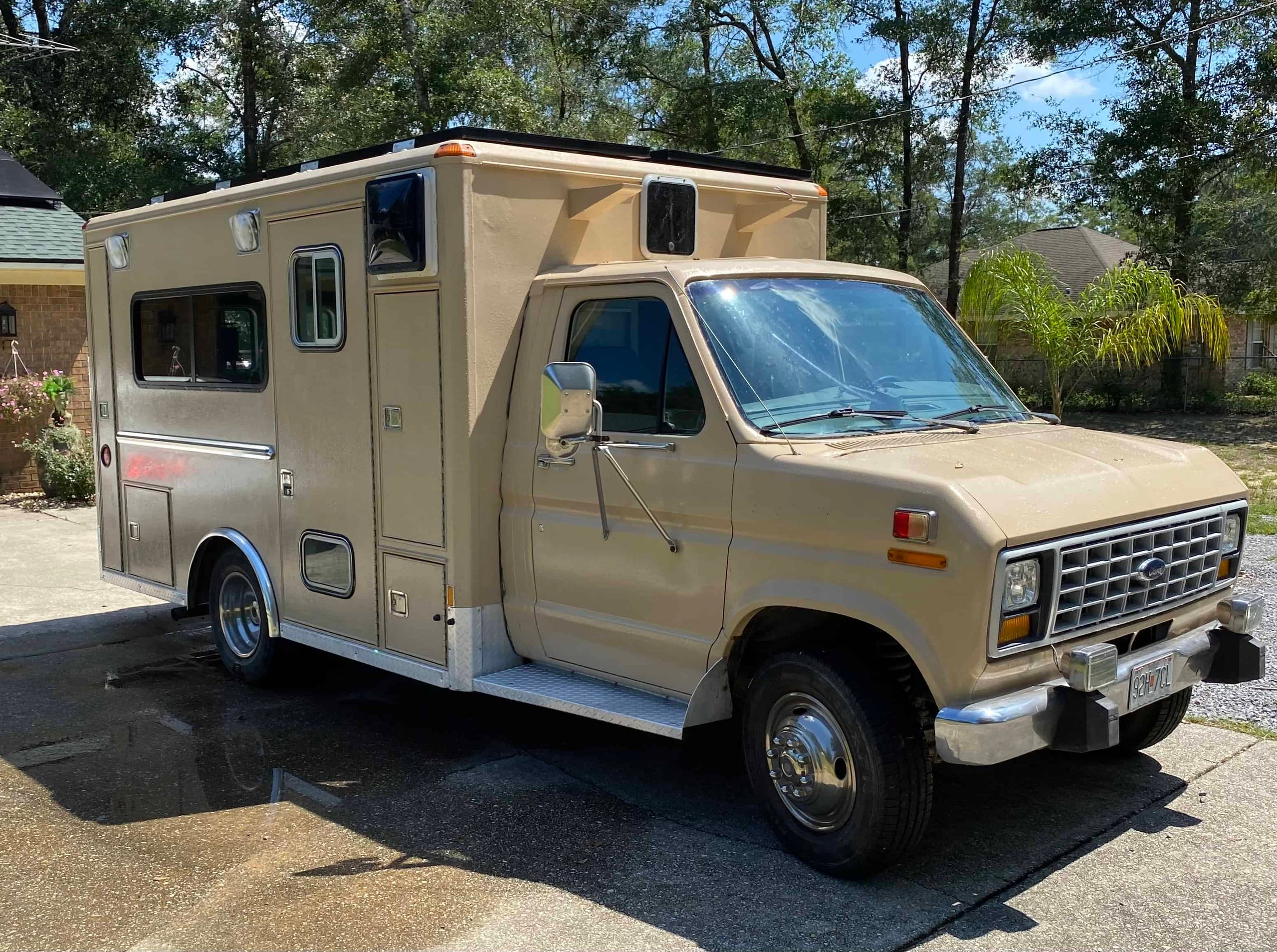

- 1990 Ford E350 1 ton 2WD
- Limited slip Rear differential
- Approximately 82,000 miles showing
- 7.3 international Idi Diesel engine
- high output LED headlights
- led rear brake lights and turn signals
- Trailer brake and hookup
- Brand new Hankook All terrain tires all around including spare
- Bluetooth air ride suspension for load leveling and ground clearance.
- Upgraded radio and cab speakers
- New aftermarket front grille
- Super tough Durabak 18 Bed-liner paint on the exterior surfaces
Recent service:
- New belts hoses, fuel filter, oil and filter changed, coolant flush, air filter change
- Rebuilt rear brakes and emergency brake cables
- Two New Cranking Batteries
- Checked rear differential fluid
- Replaced rear axle seals
