Designer Overlander 2023 AWD Mercedes Sprinter Camper

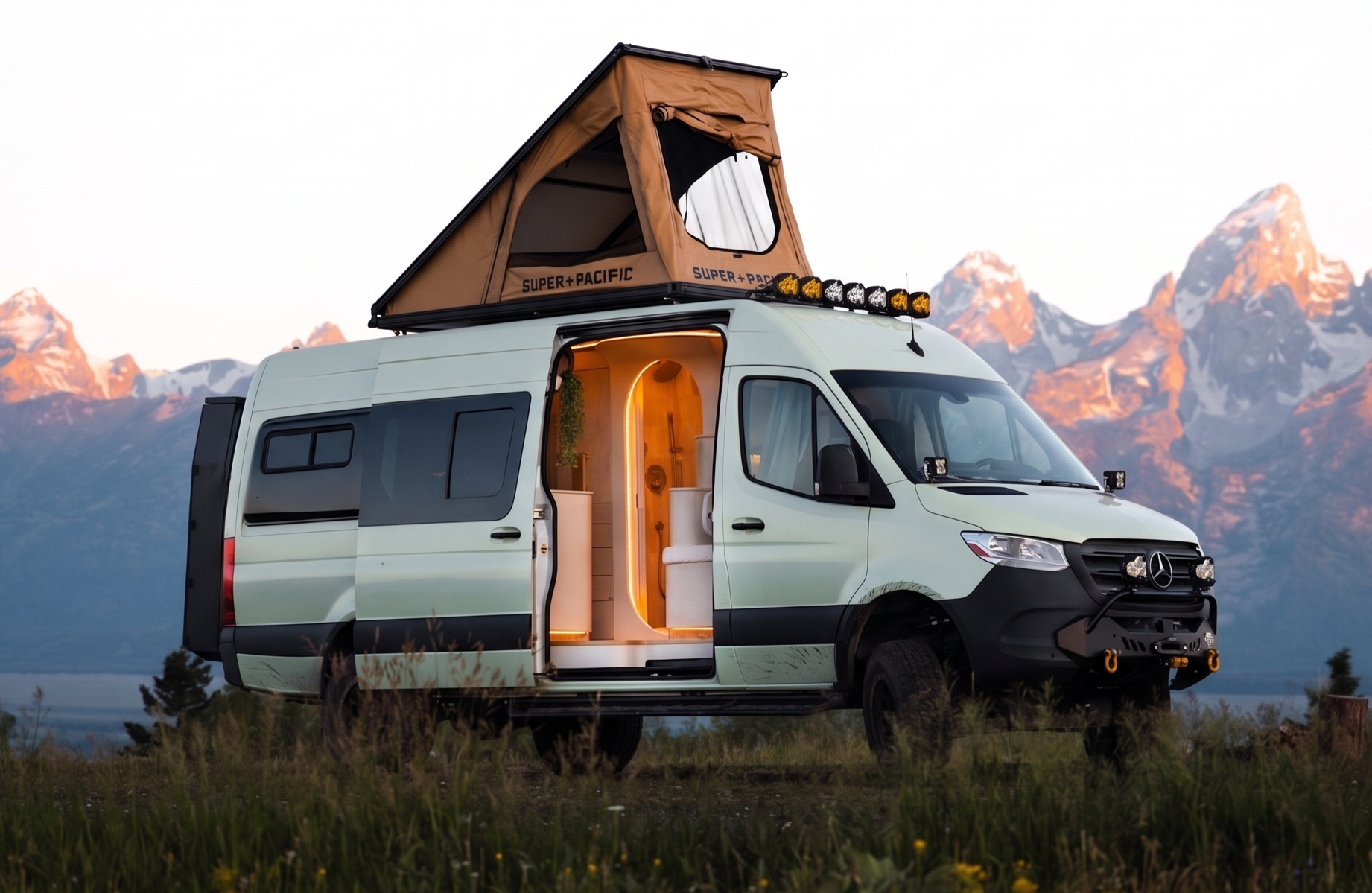

Flow is a one-of-one 2023 AWD 170-inch wheelbase Mercedes-Benz Sprinter, designed and built by Abbe Minor over the course of one year.

The concept behind Flow is simple: blurring the line between nature and a living space, so you feel immersed while traveling.

How?

Create a functional, efficient space that feels organic, open, and breathable. Top-end appliances and an ergonomic layout reduce the friction of living on the road, creating an atmosphere that calms and inspires.

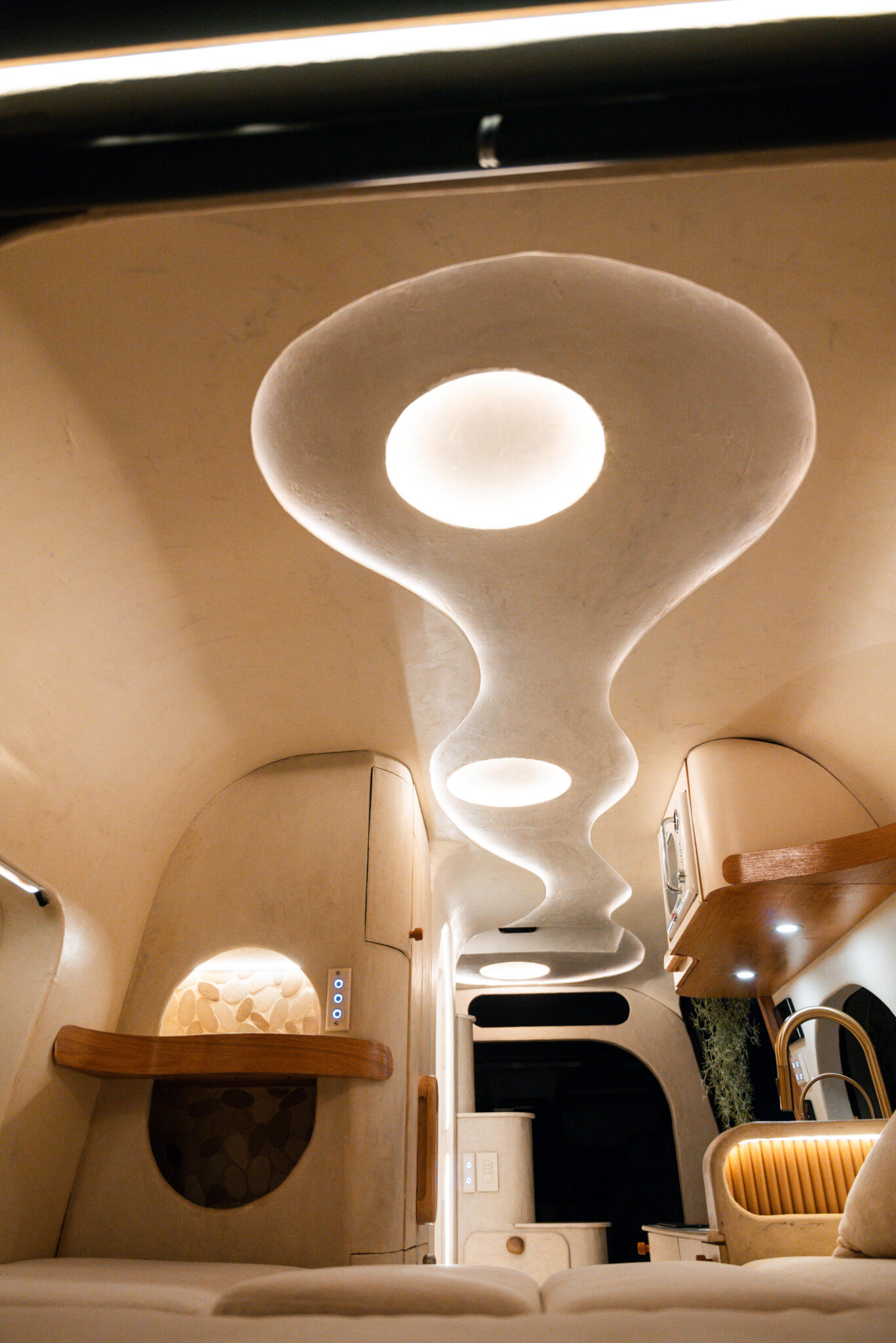

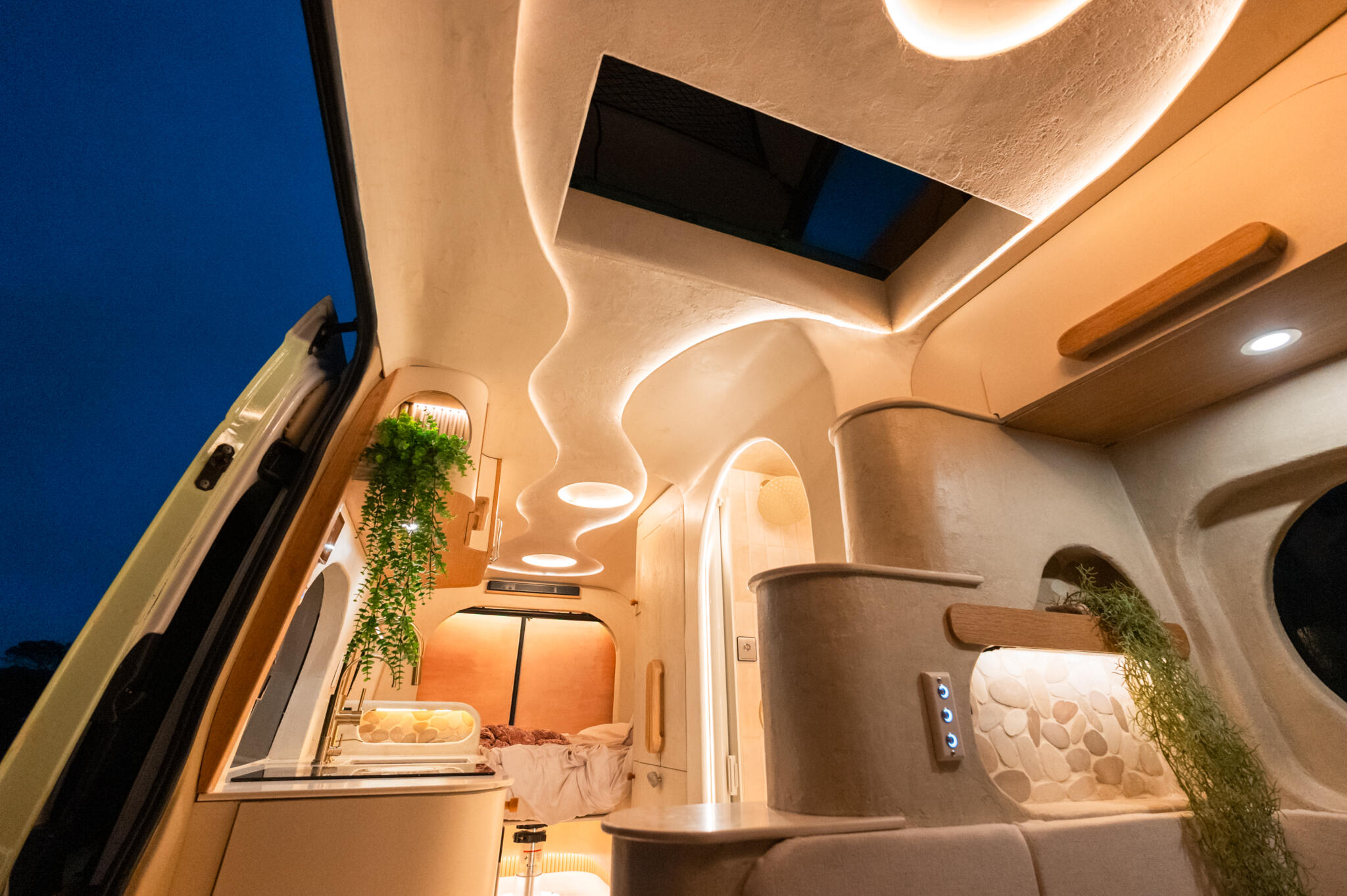

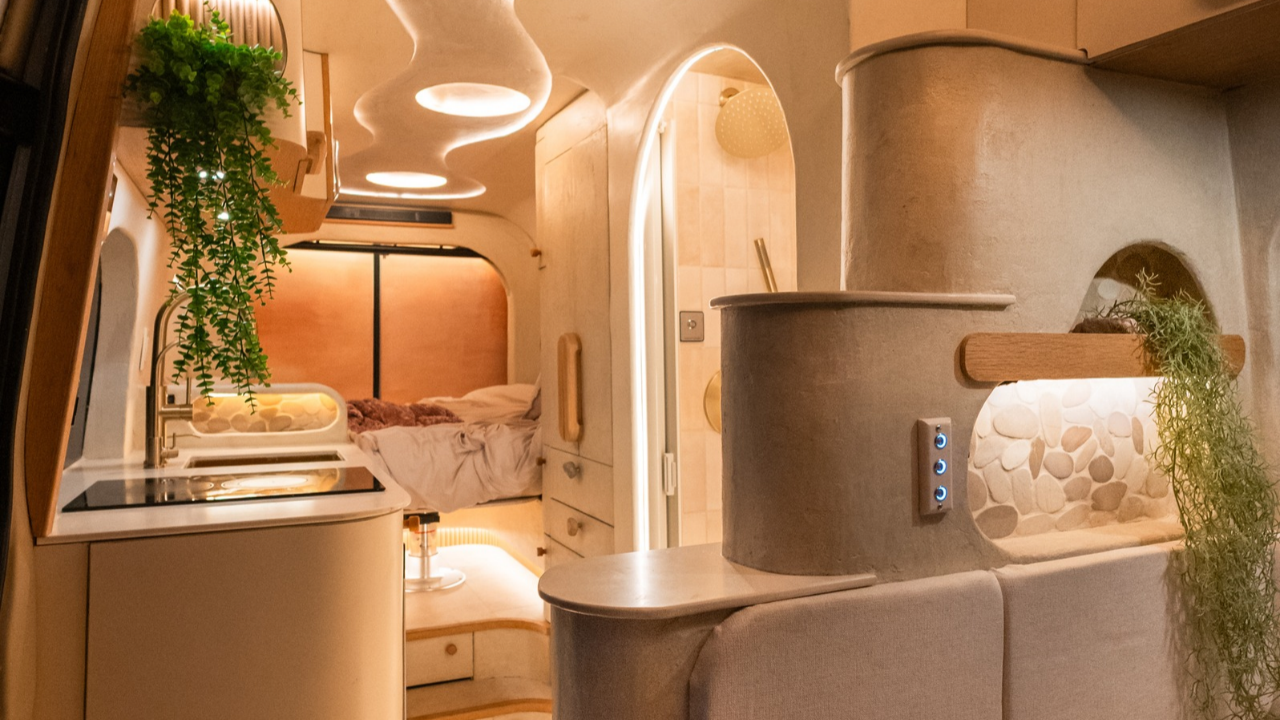

Concretta and Moroccan Clay plaster, white oak accents, curved cabinetry, and a Zellige tile wet bath with pebble mosaic. It sleeps four, seats ten, and is equipped with a full Victron smart system, air conditioning, diesel heat, and a top-tier overland upfitting.

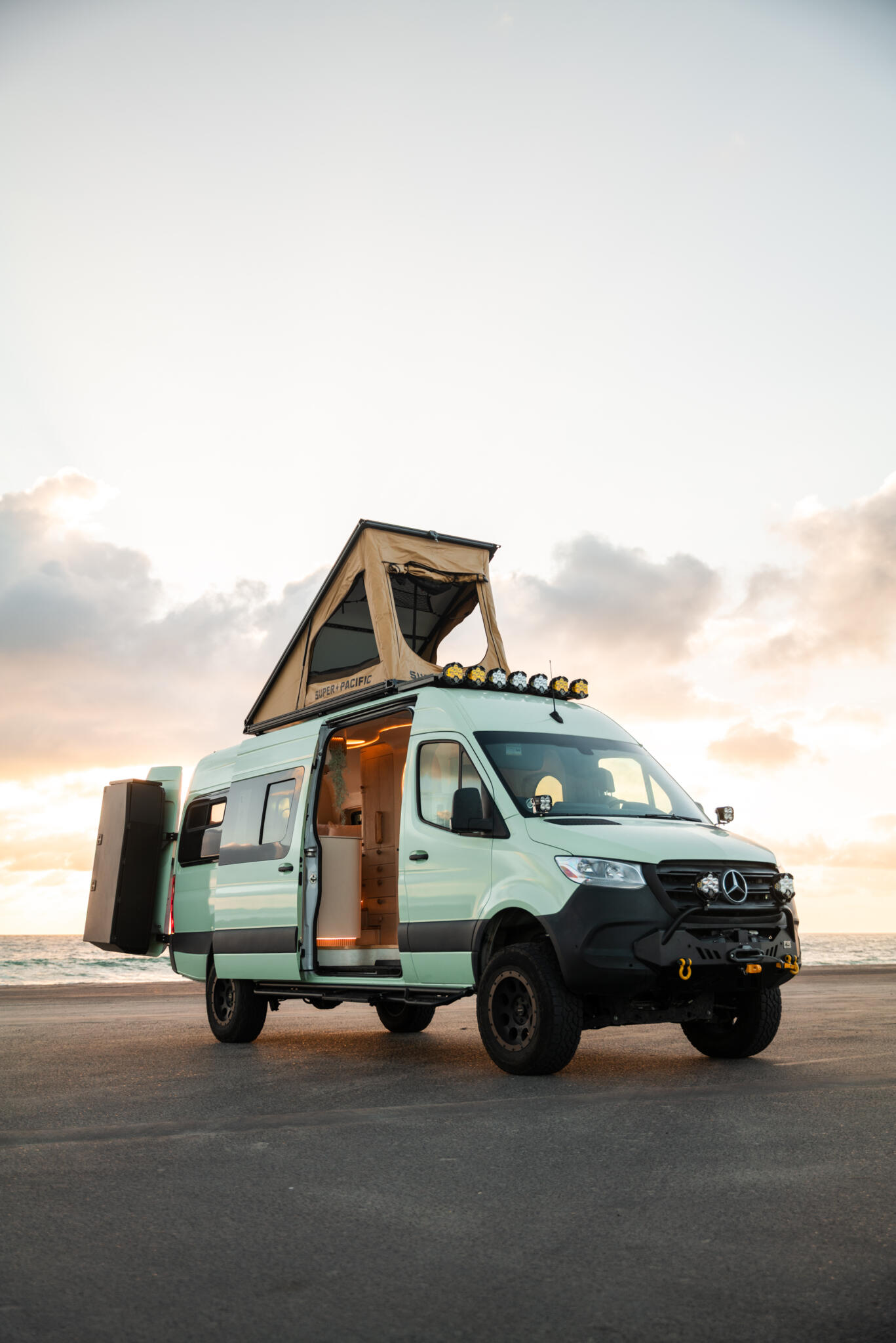

Chassis 2023 Mercedes-Benz Sprinter, AWD, 170-inch wheelbase, approximately 20,000 miles. Pistachio exterior.

Highlights include:

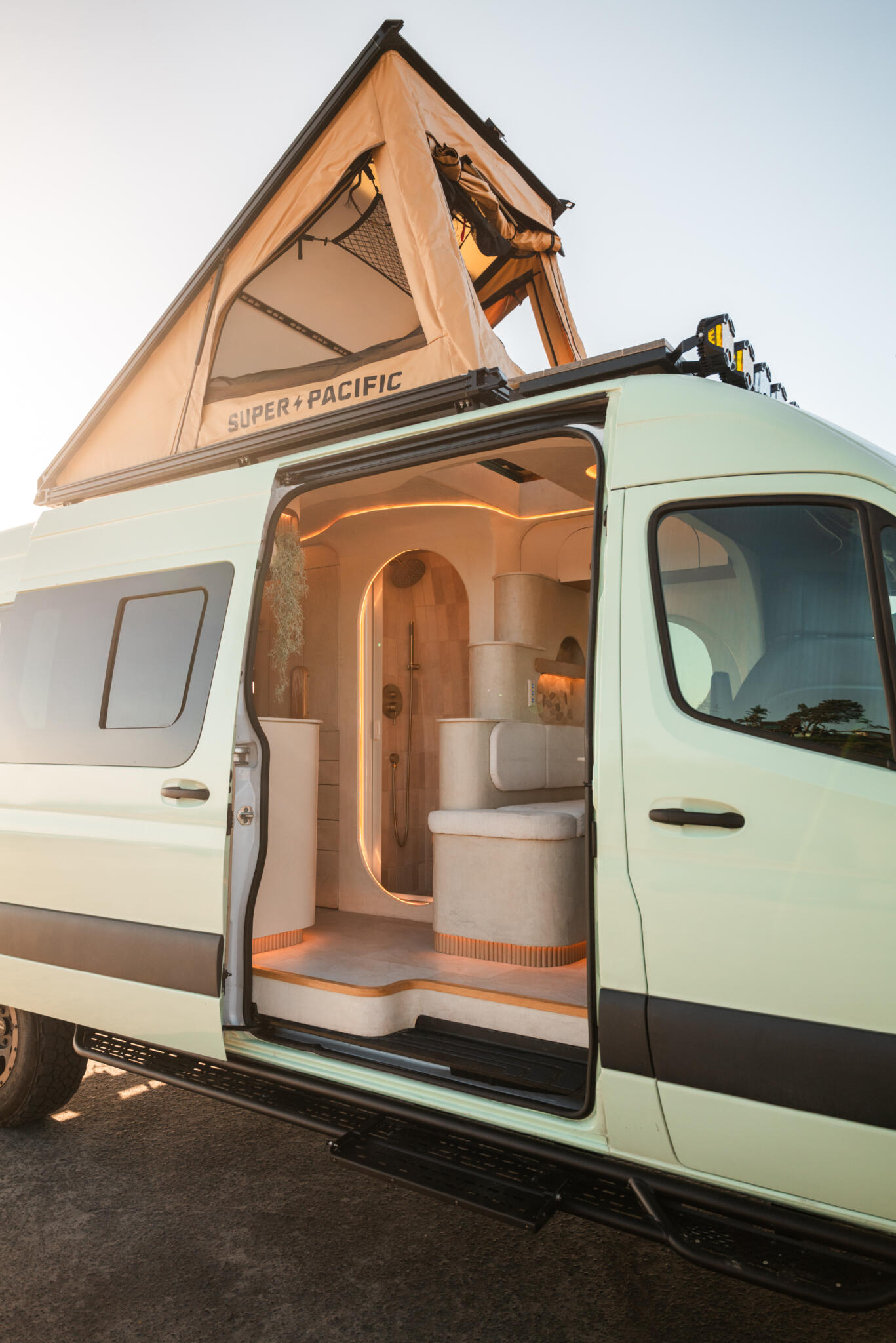

1. Sleeping for four with a queen-size in the rear and Super Pacific CloudCap rooftop tent with interior pass-through
2. Seating for ten with rear and front lounges, swivel seats, and built-in entertainment

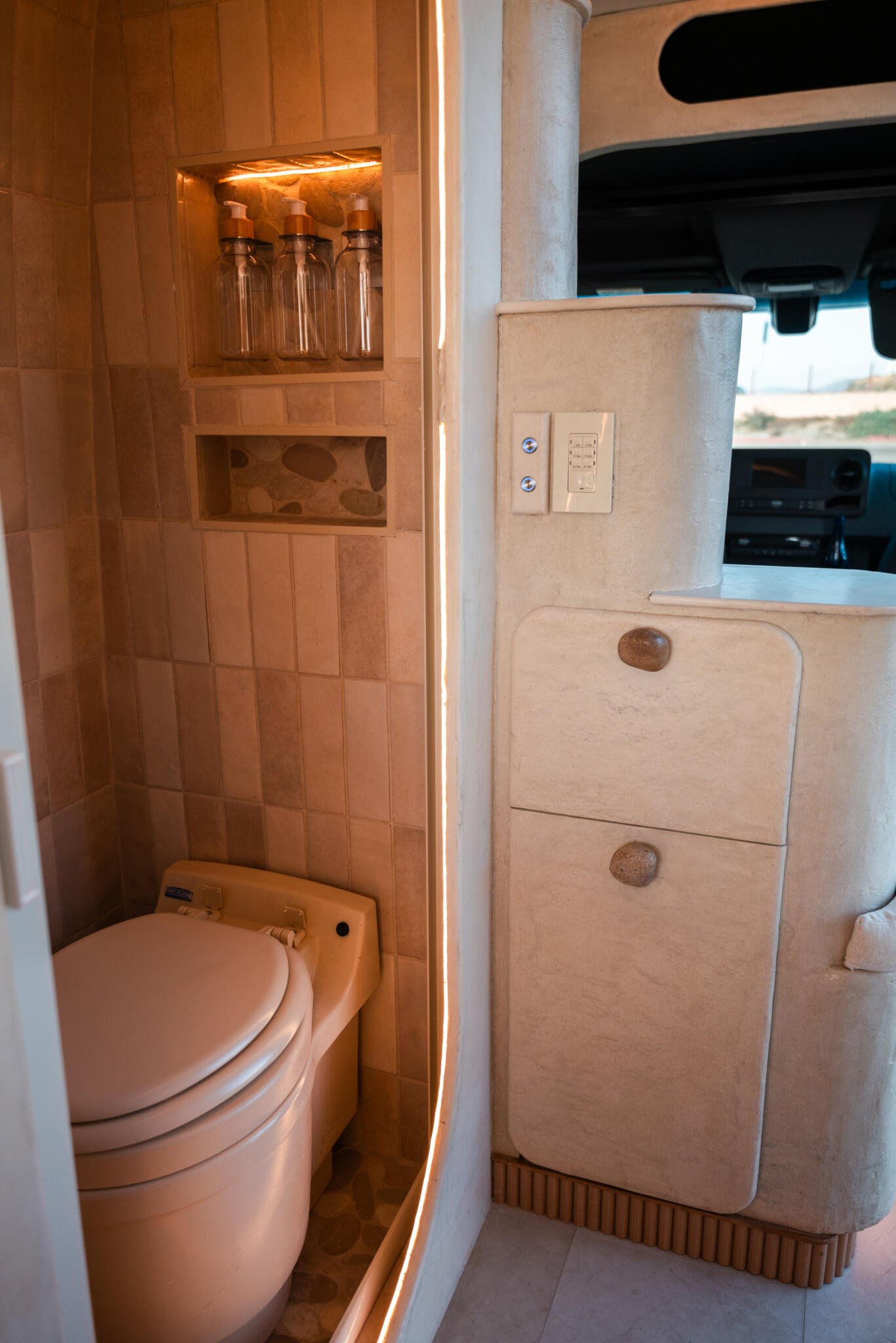

3. Wet bath with Infinity recirculating shower, Laveo dry-flush toilet, and about one gallon per long shower
4. Espar diesel heater with fuel tap
5. Cruise N Comfort VES Icebox 12V air conditioning
6. XBull rear storage system: cargo carriers, spare-tire carrier, large and small ski boxes
7. VanCompass 6.3 suspension with inverted rally struts, Baja brackets, and jounce control

—————————————————

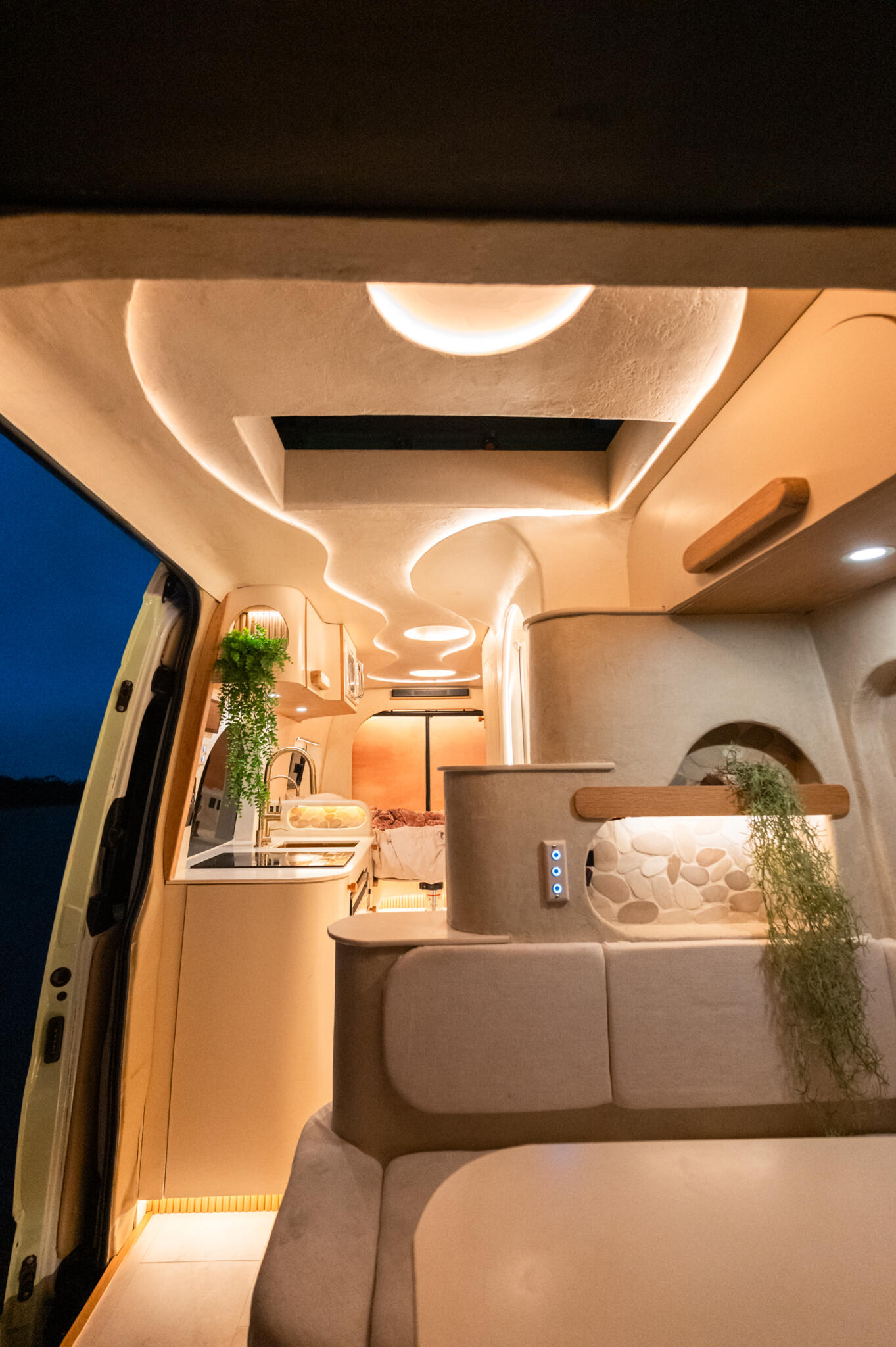

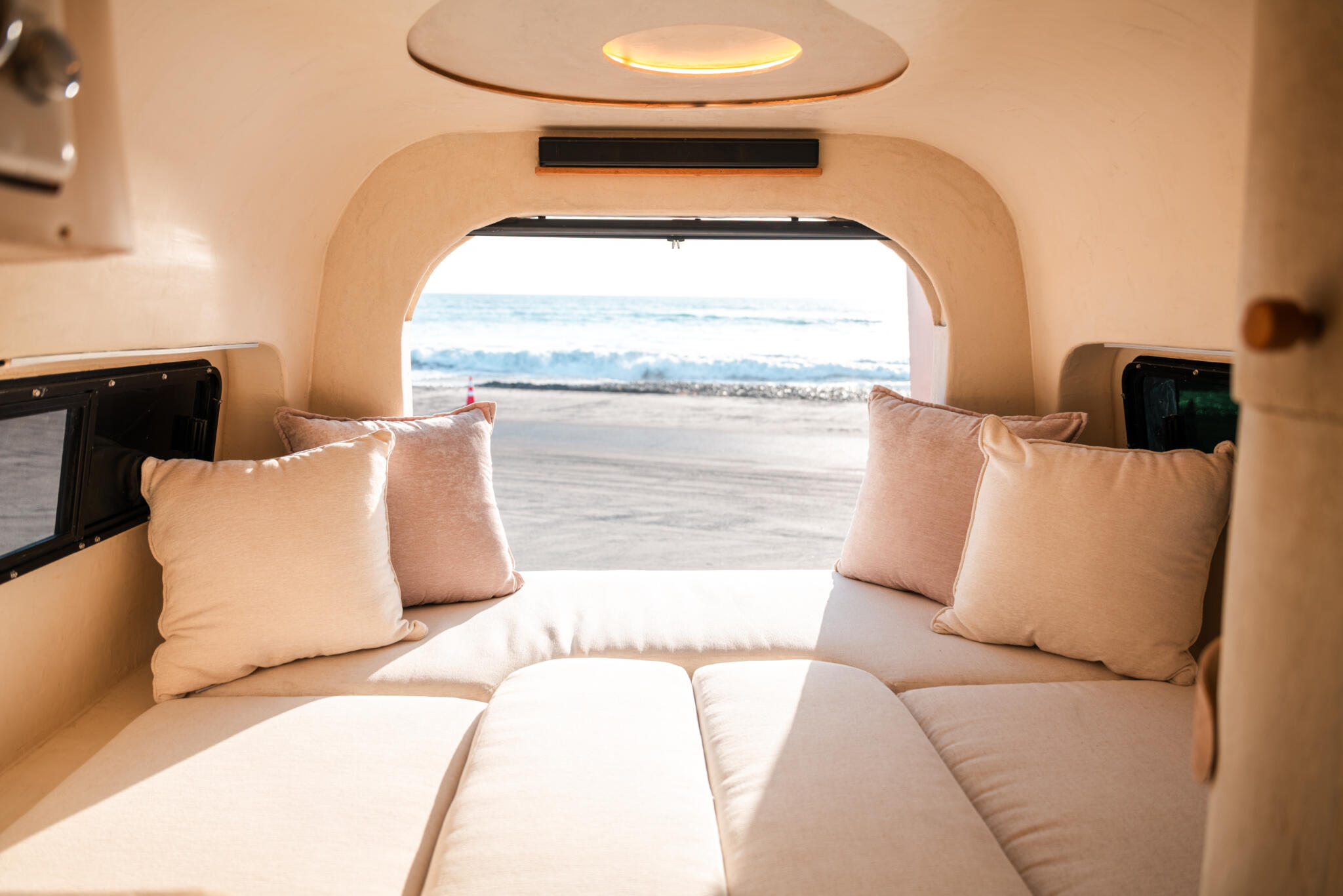

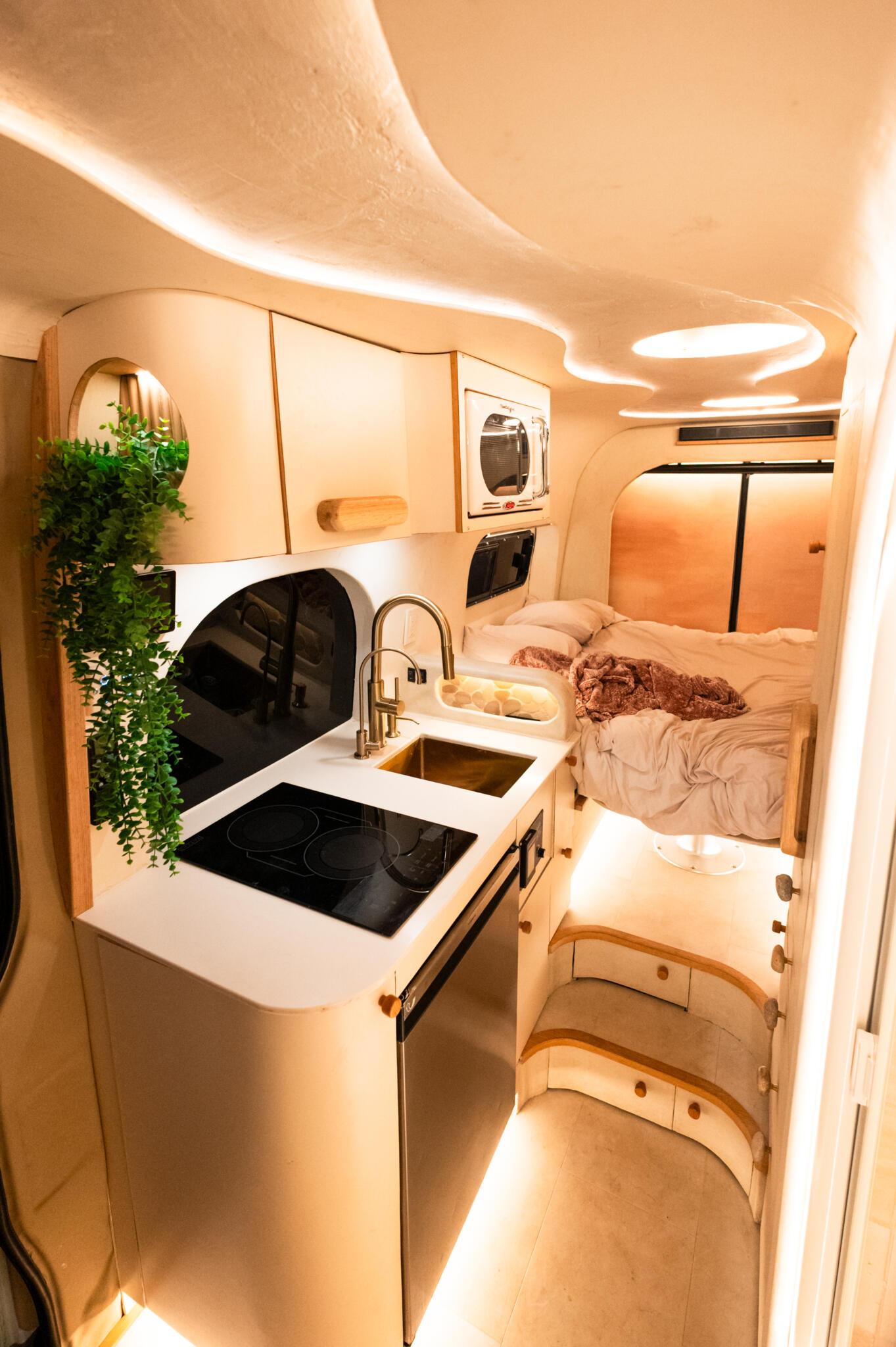

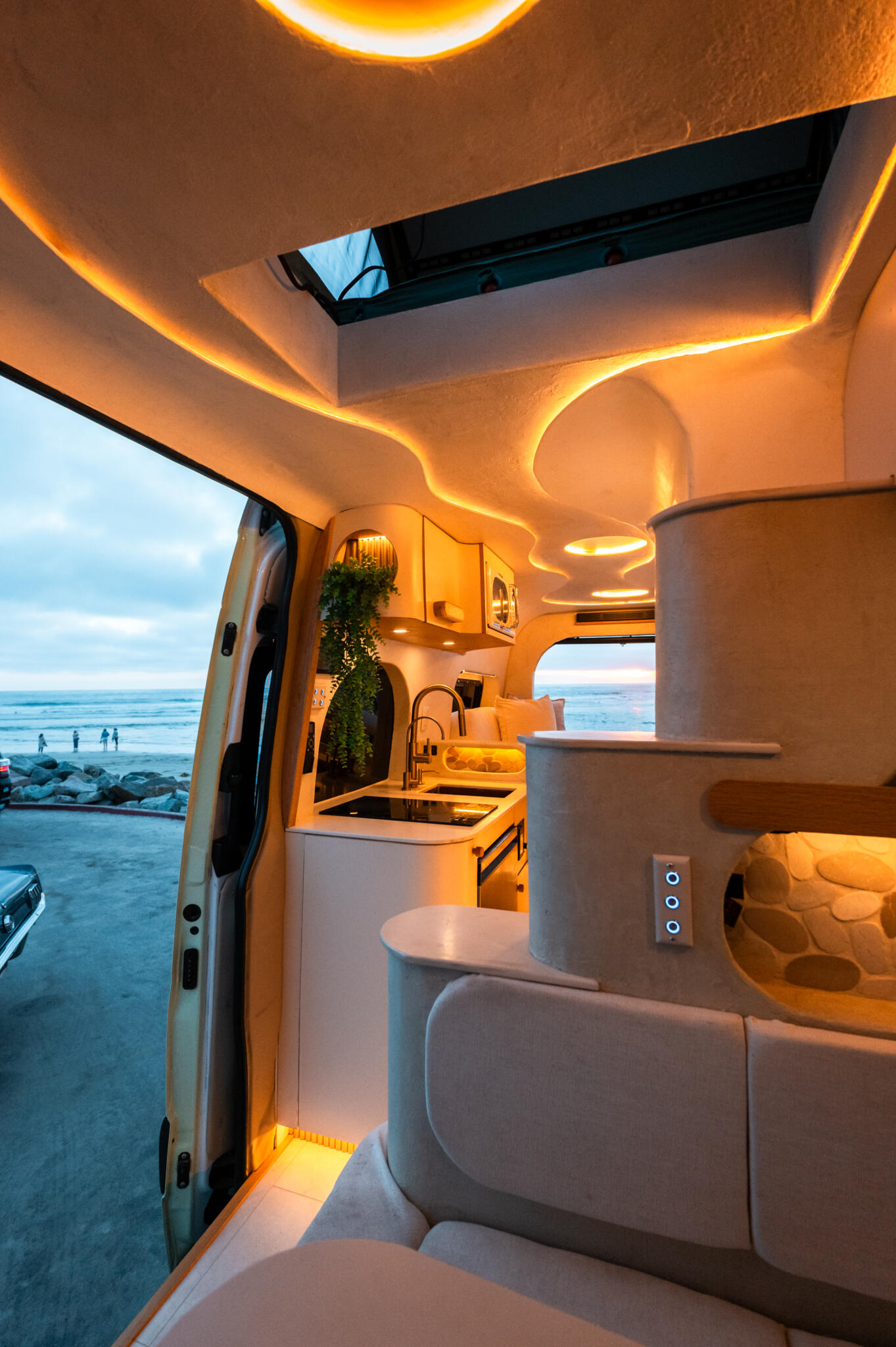

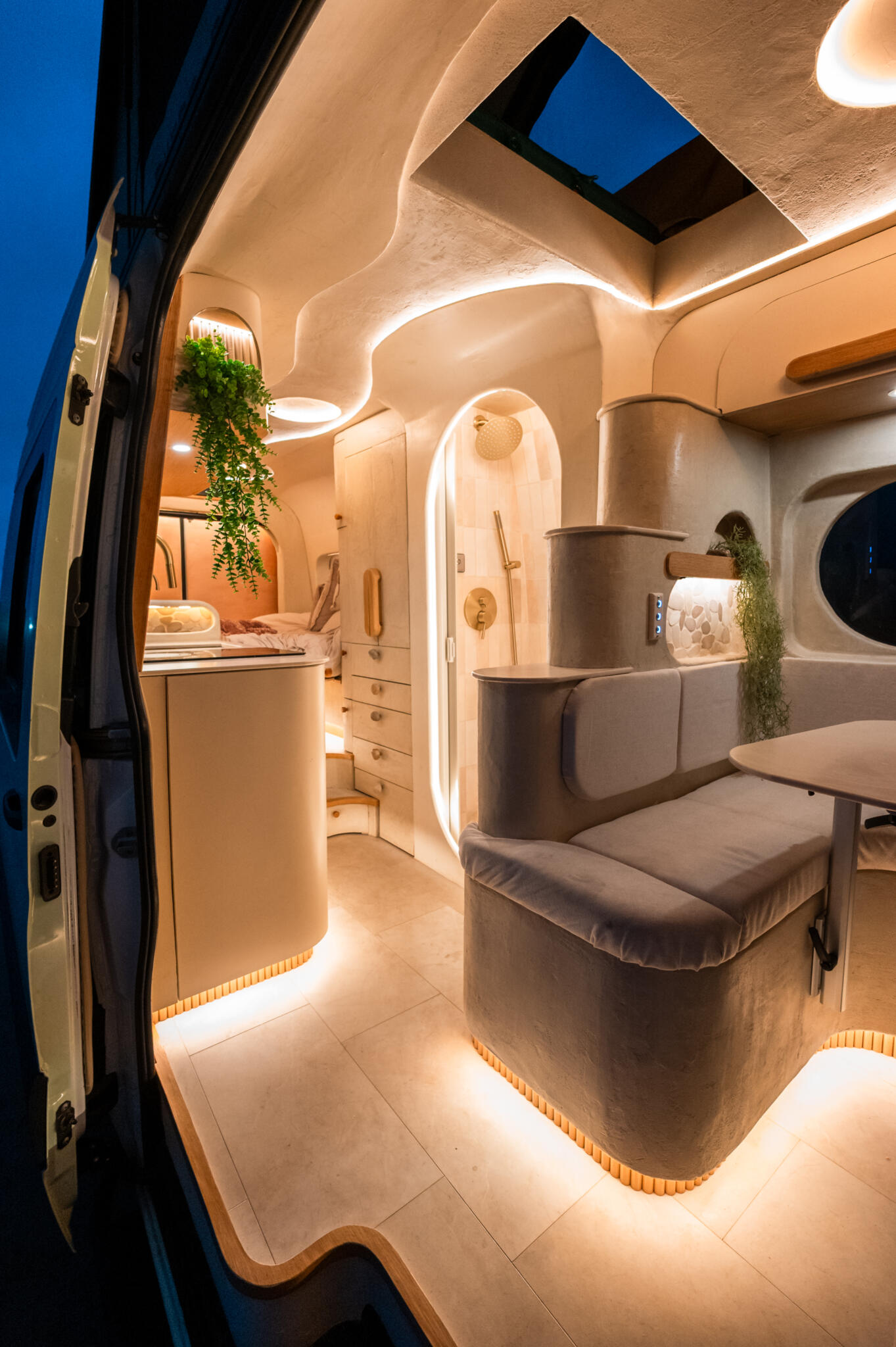

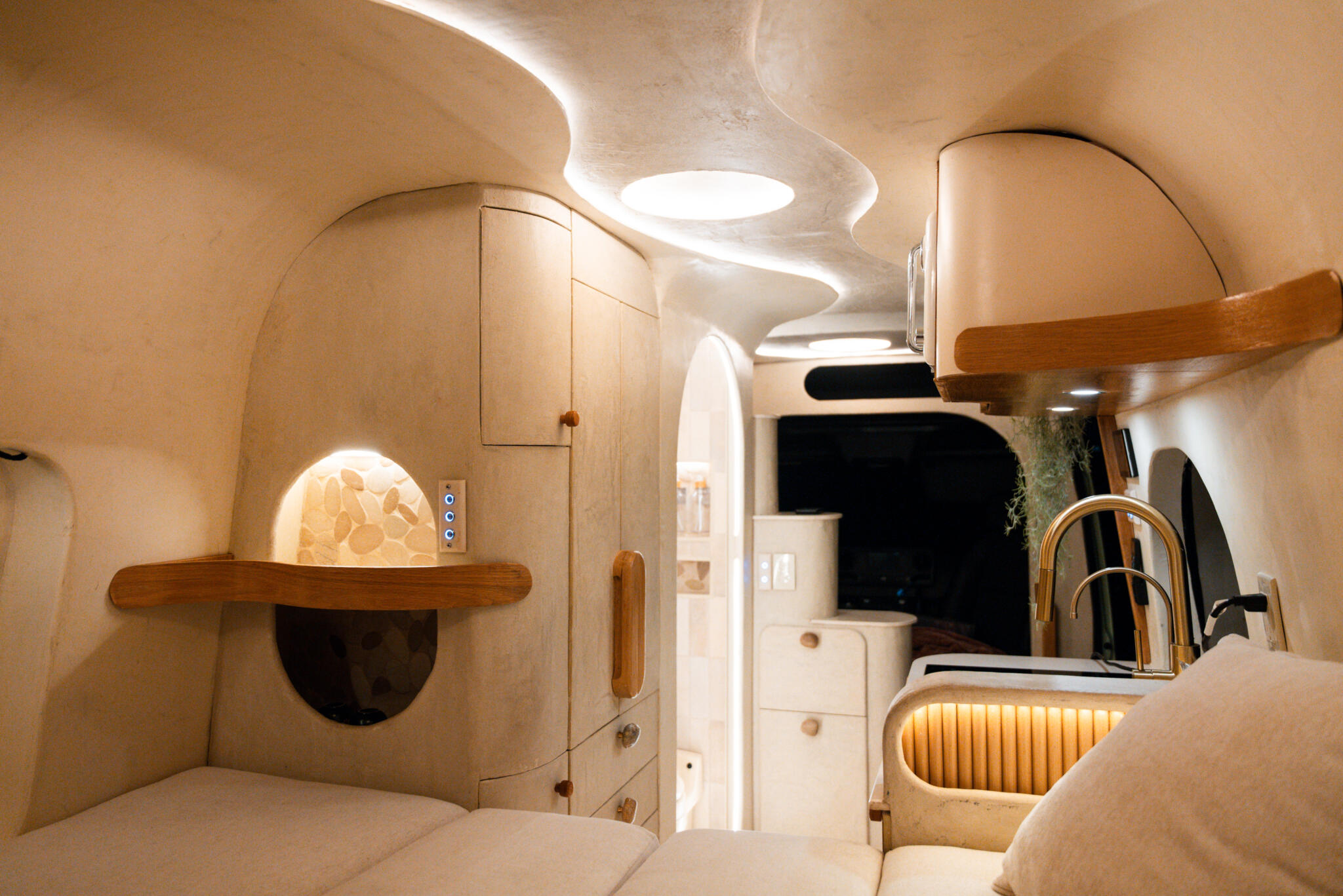

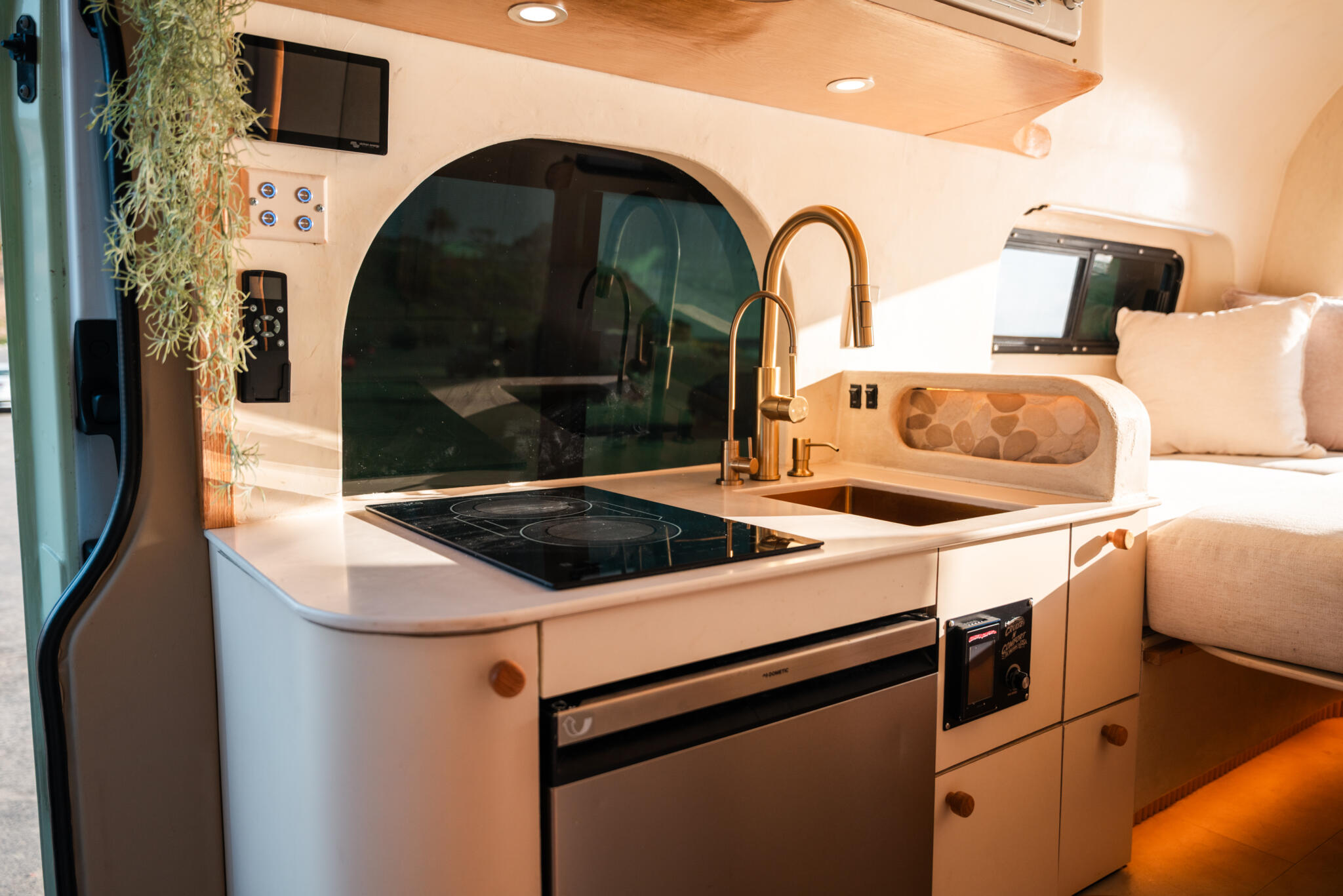

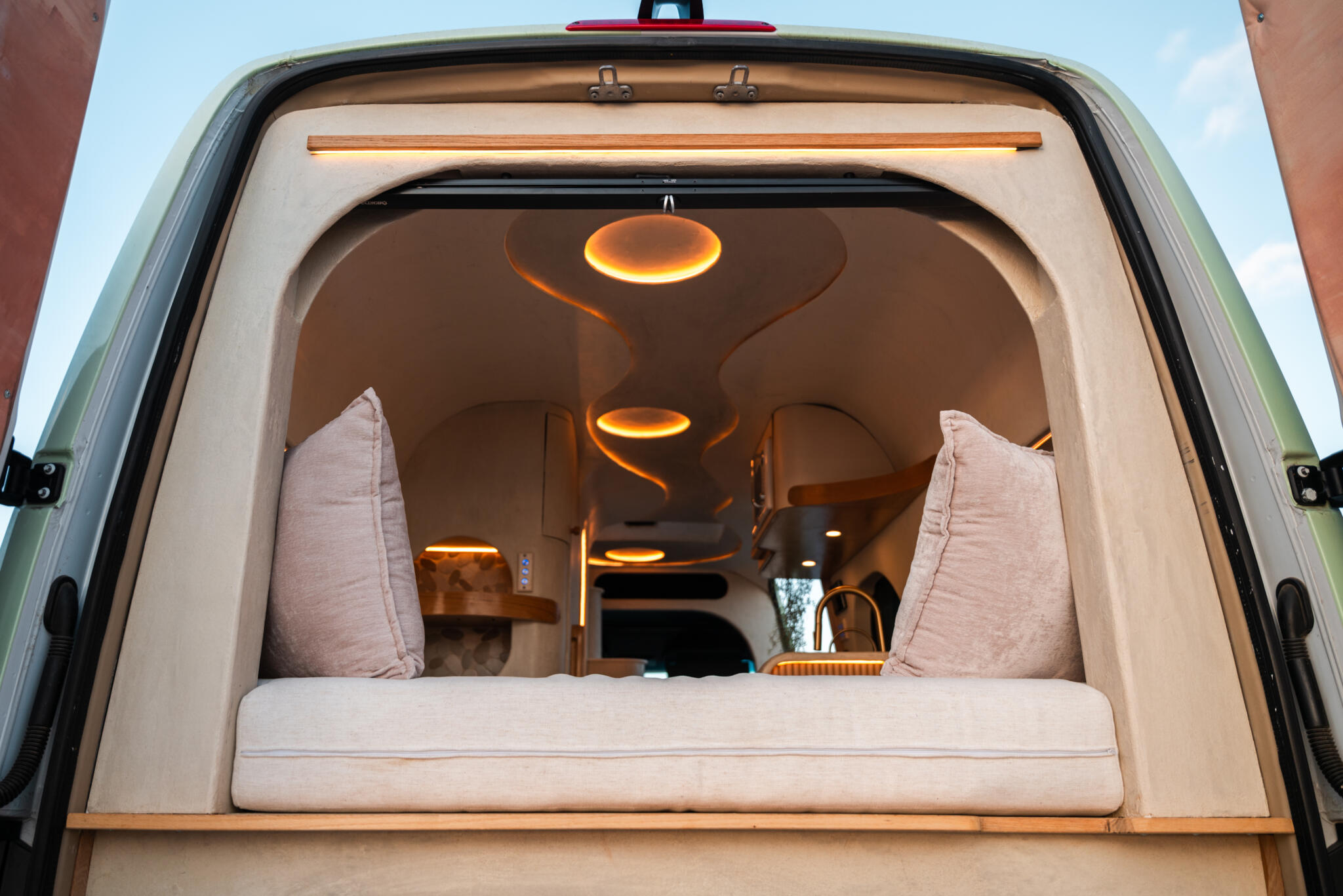

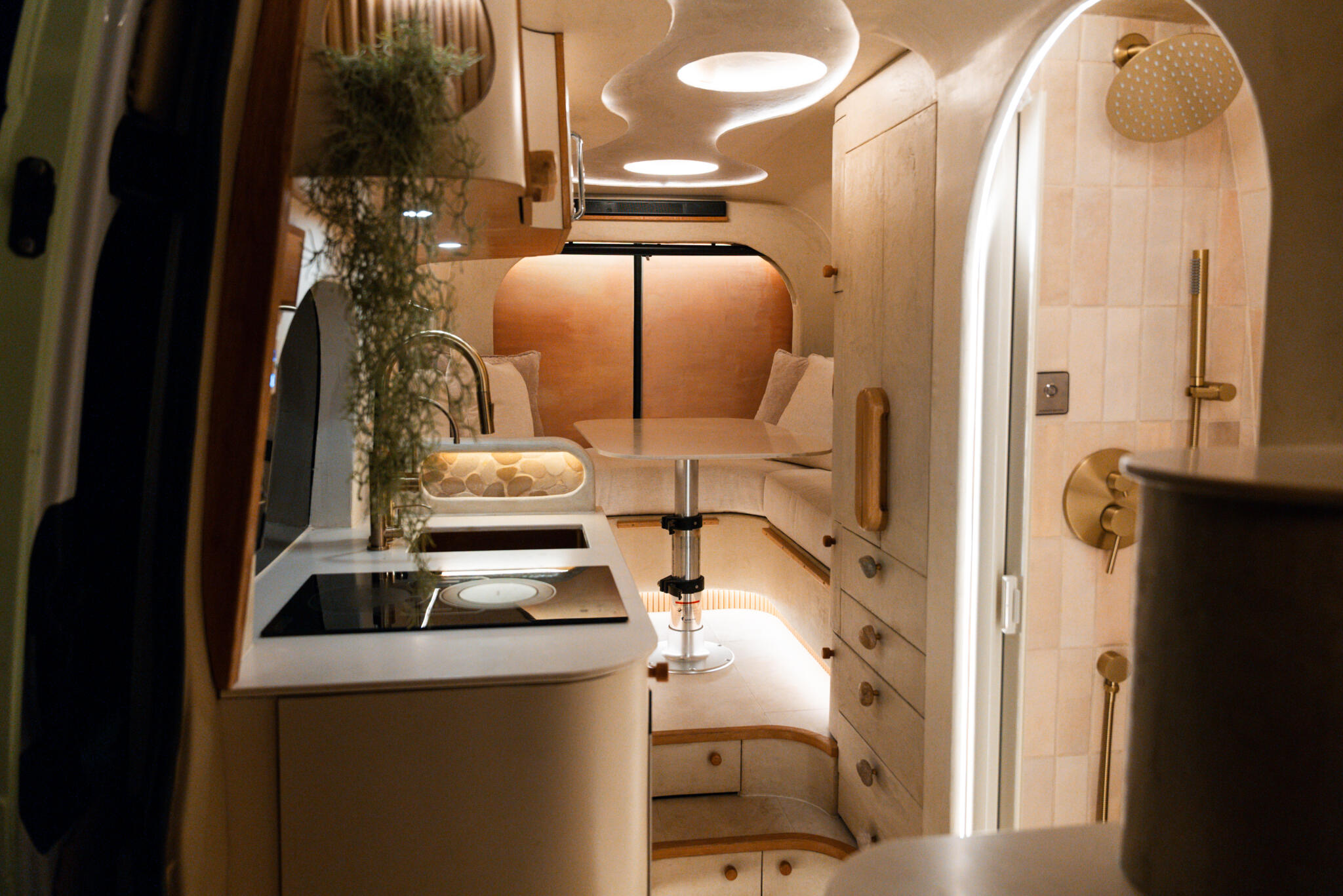

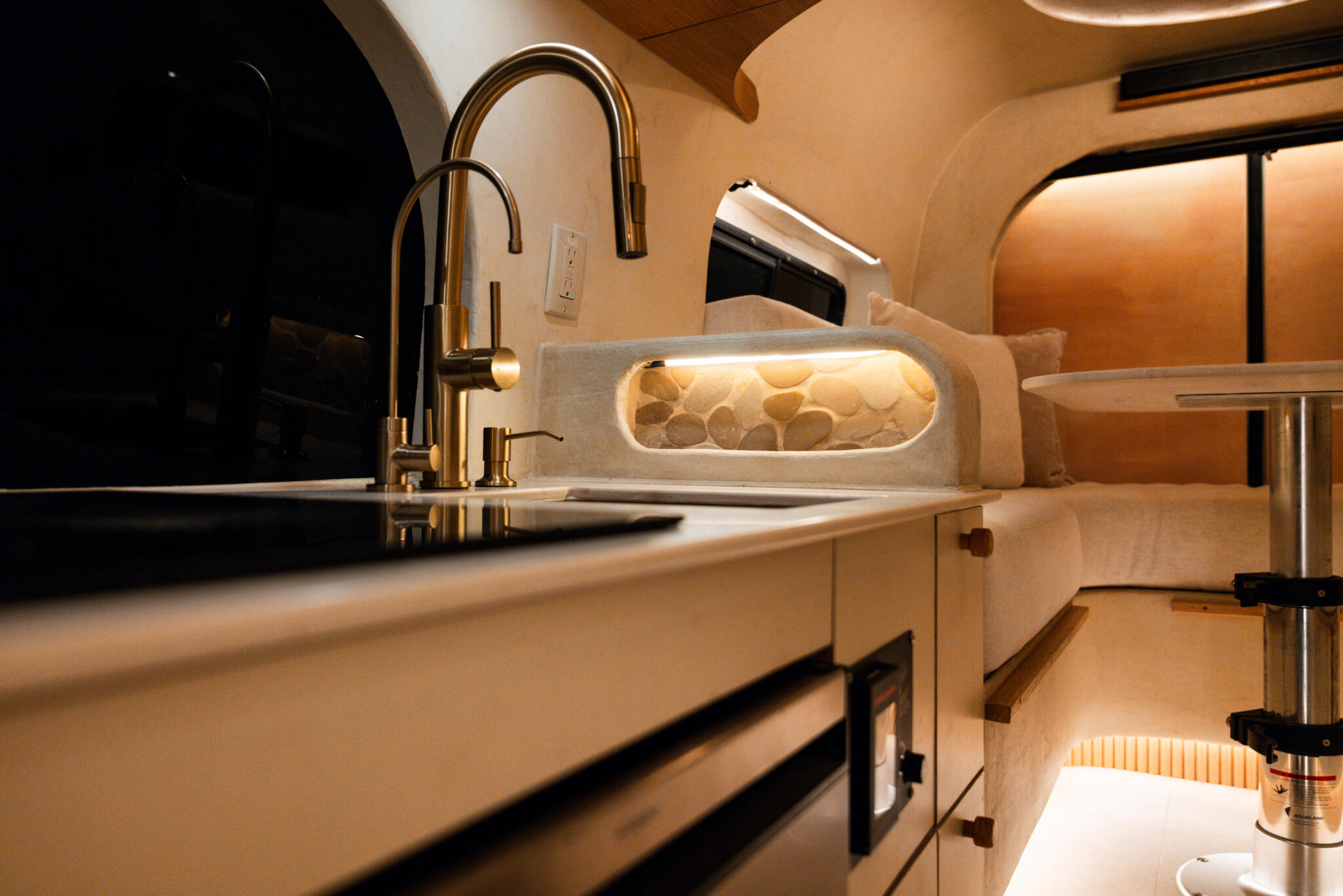

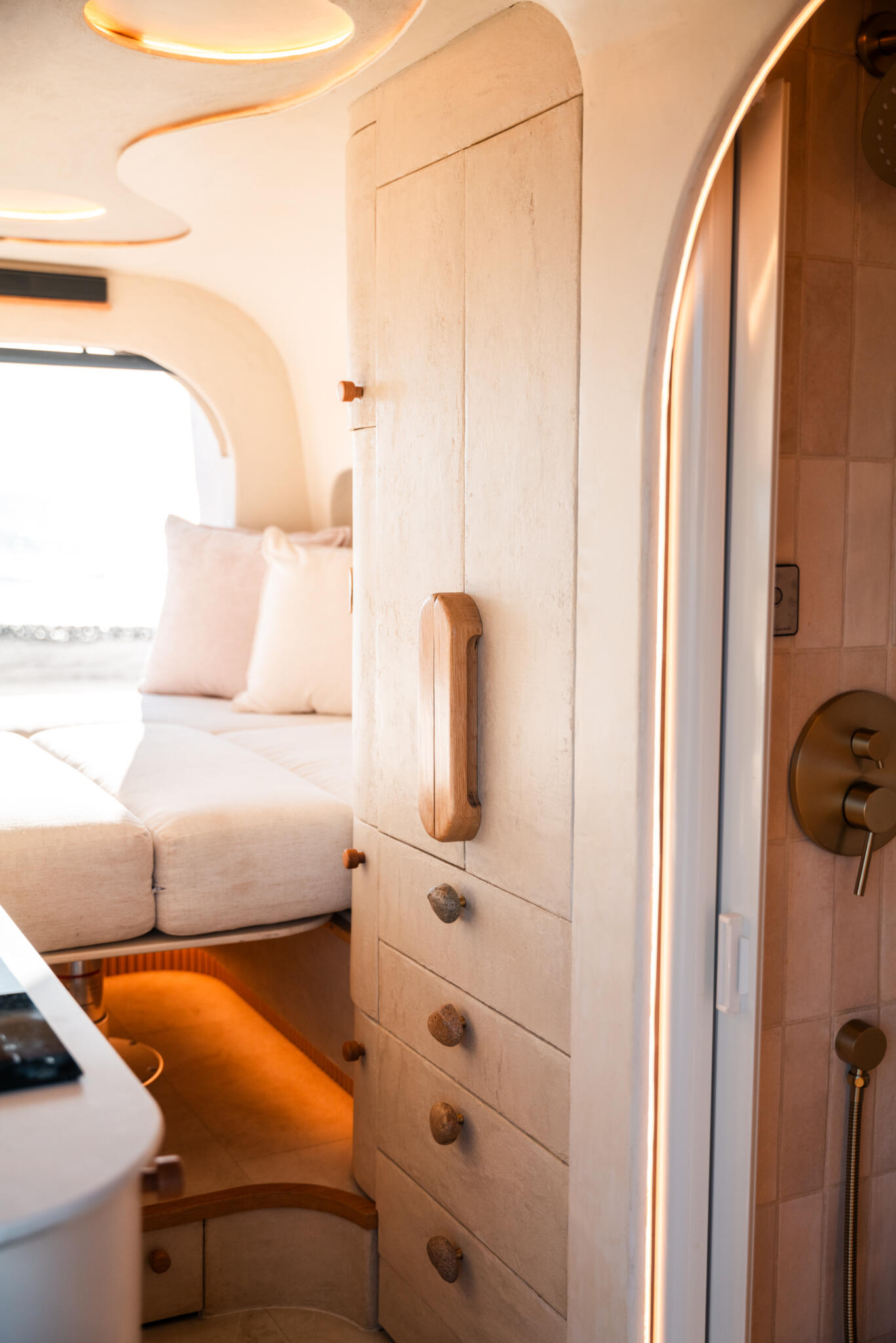

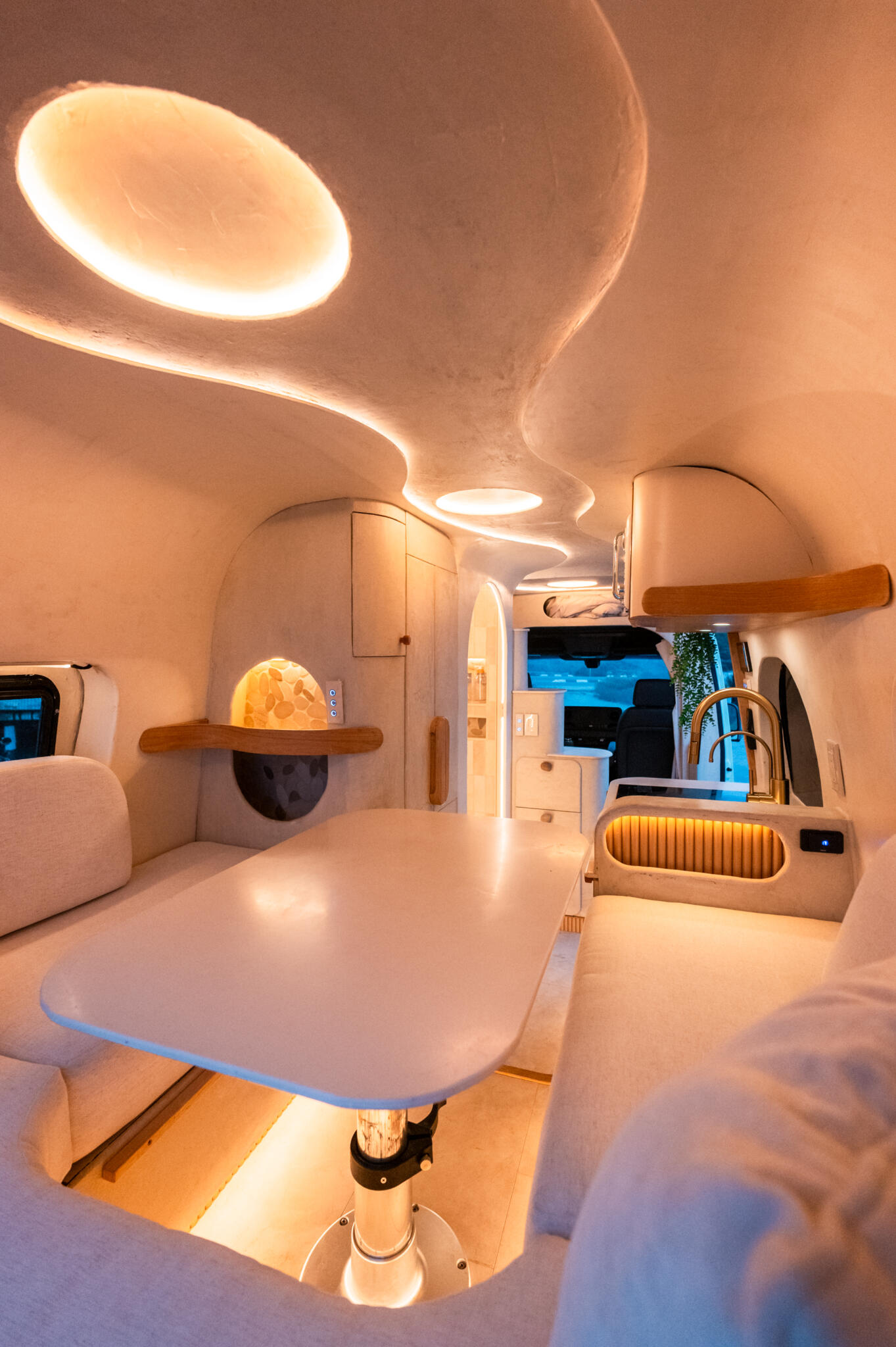

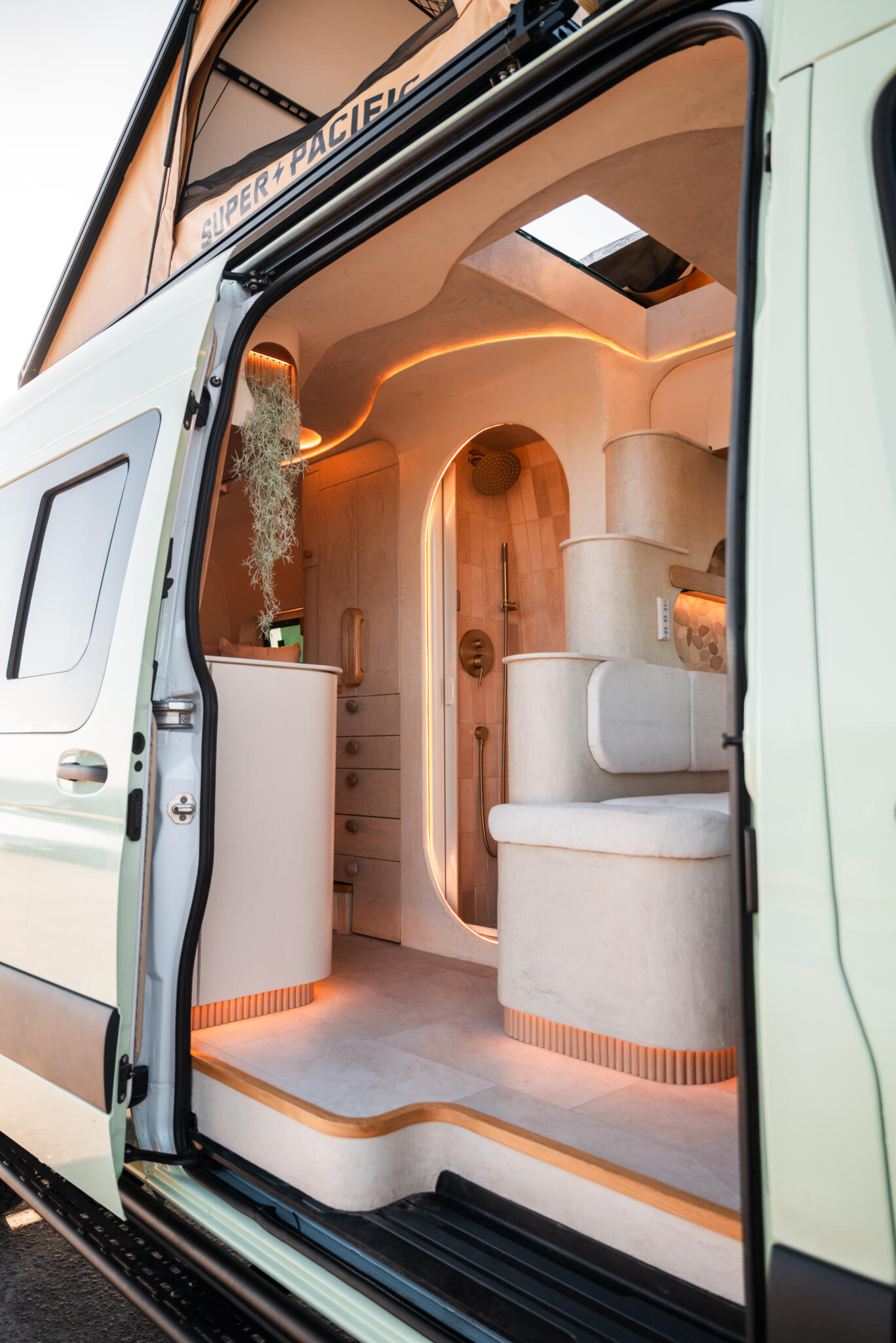

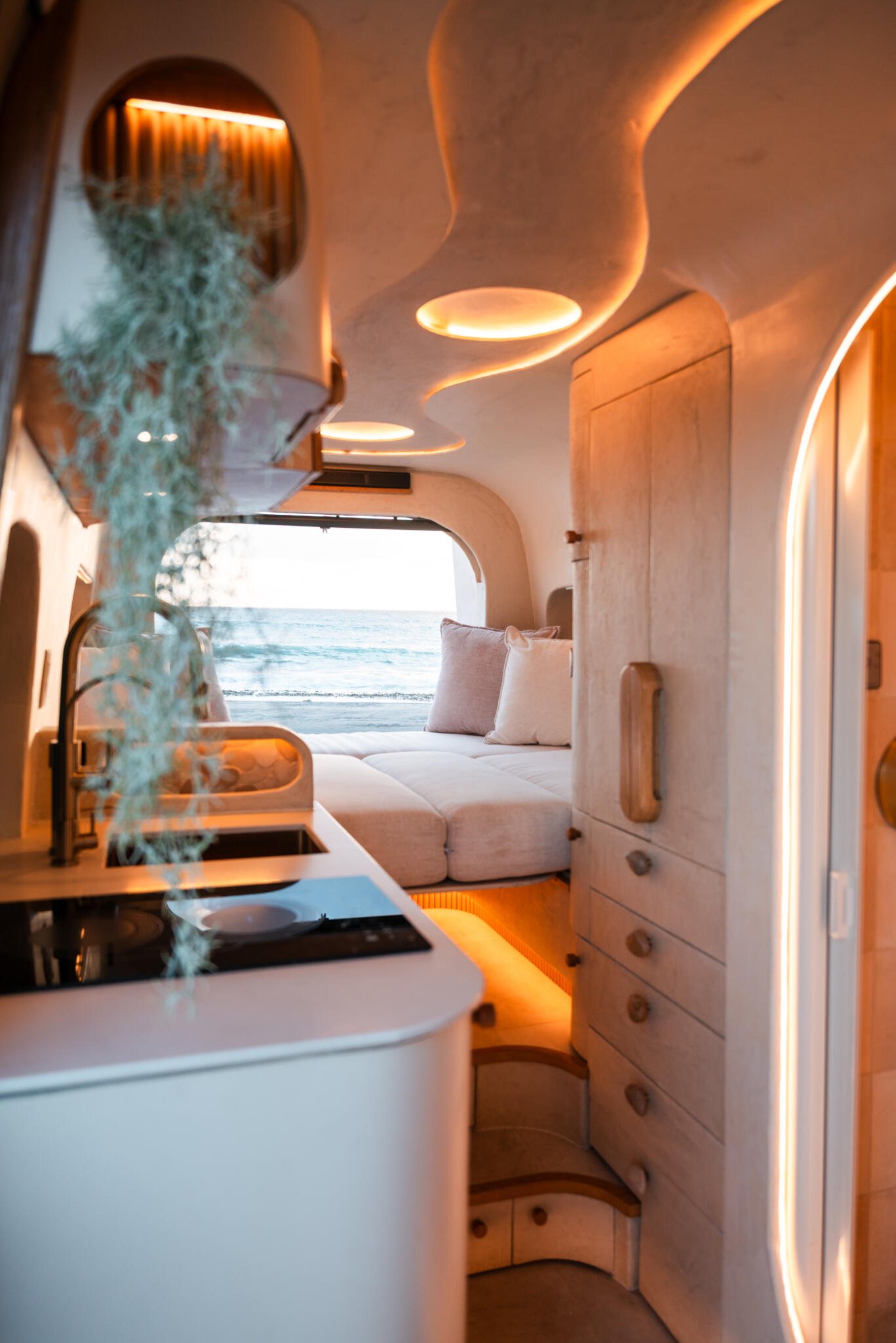

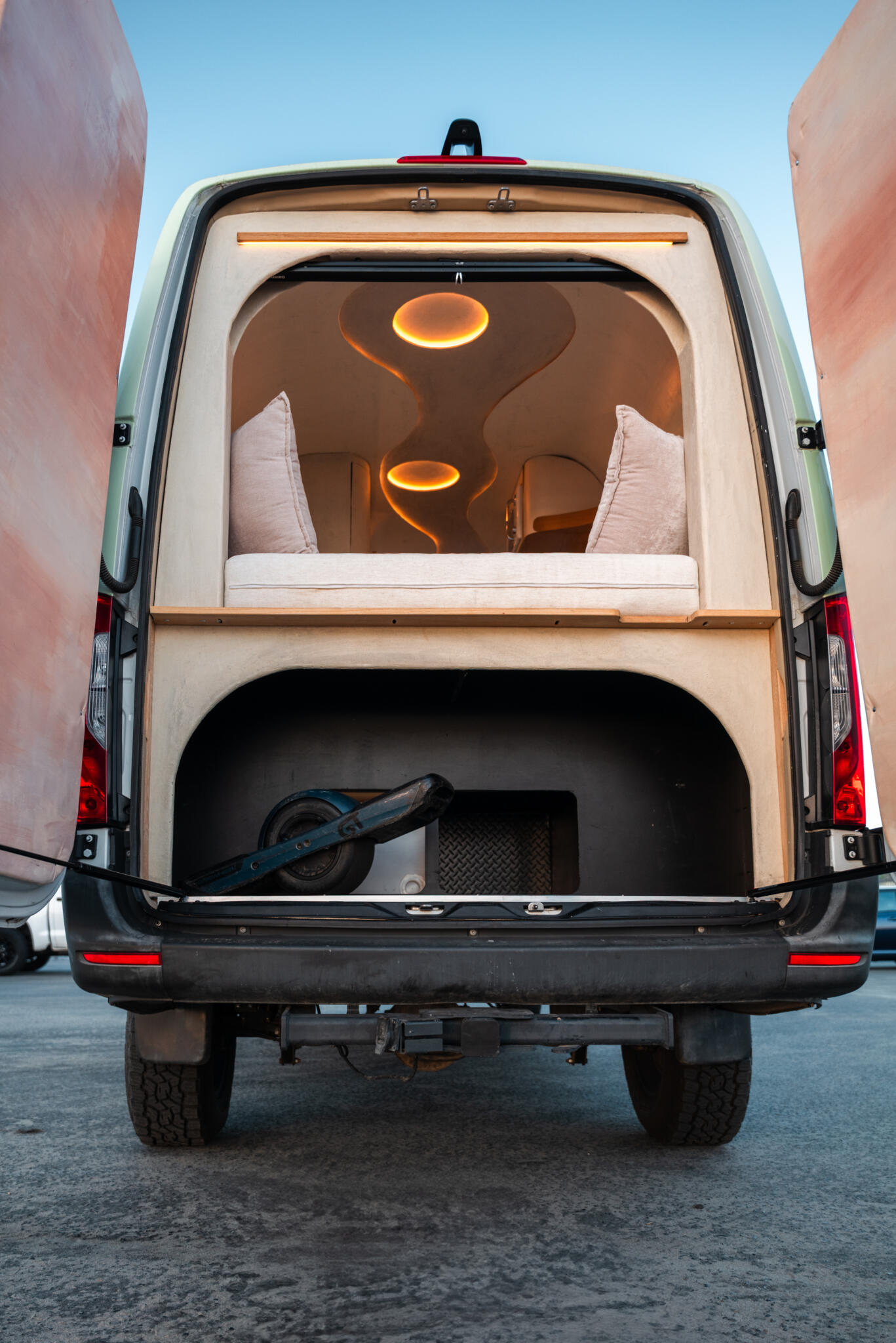

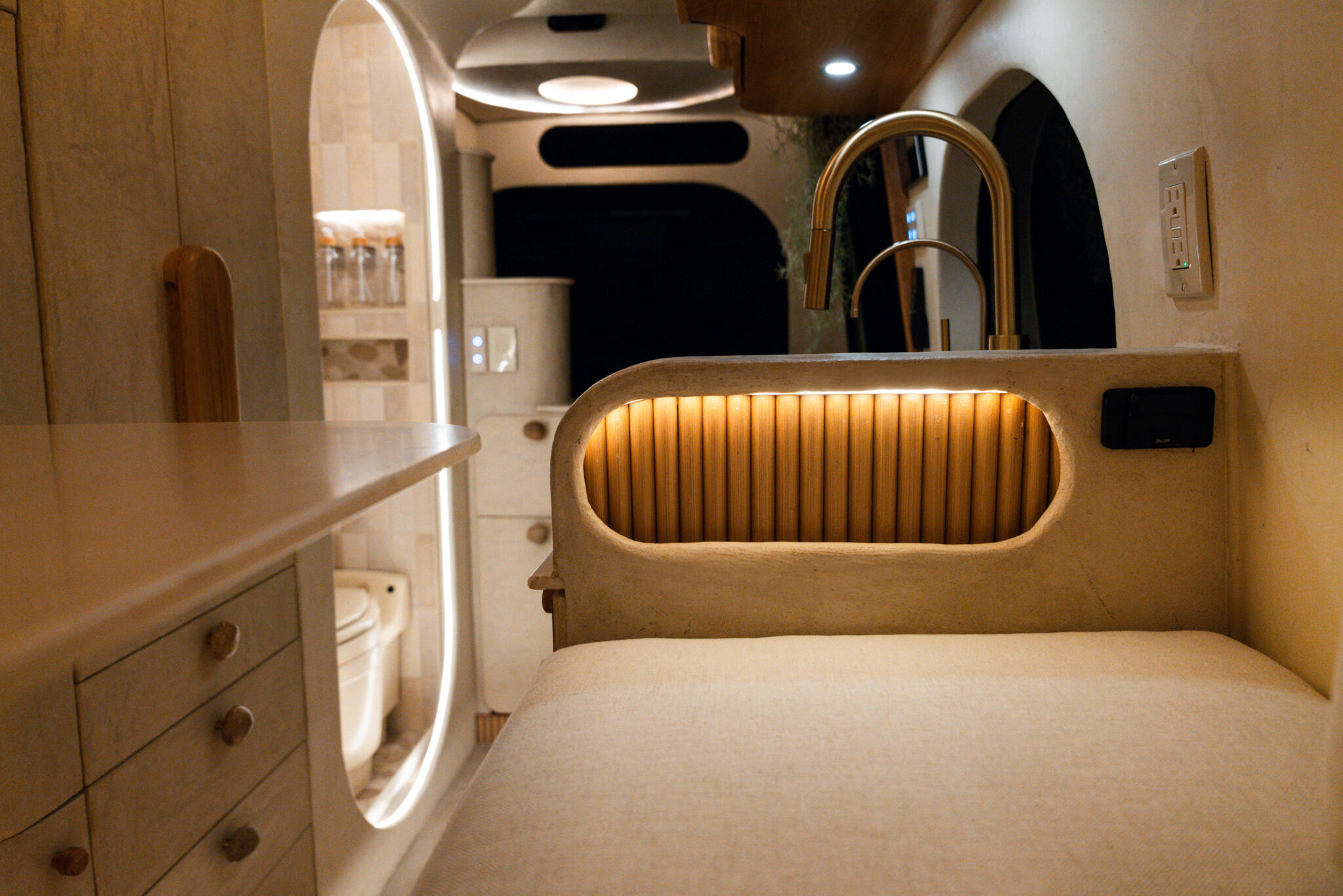

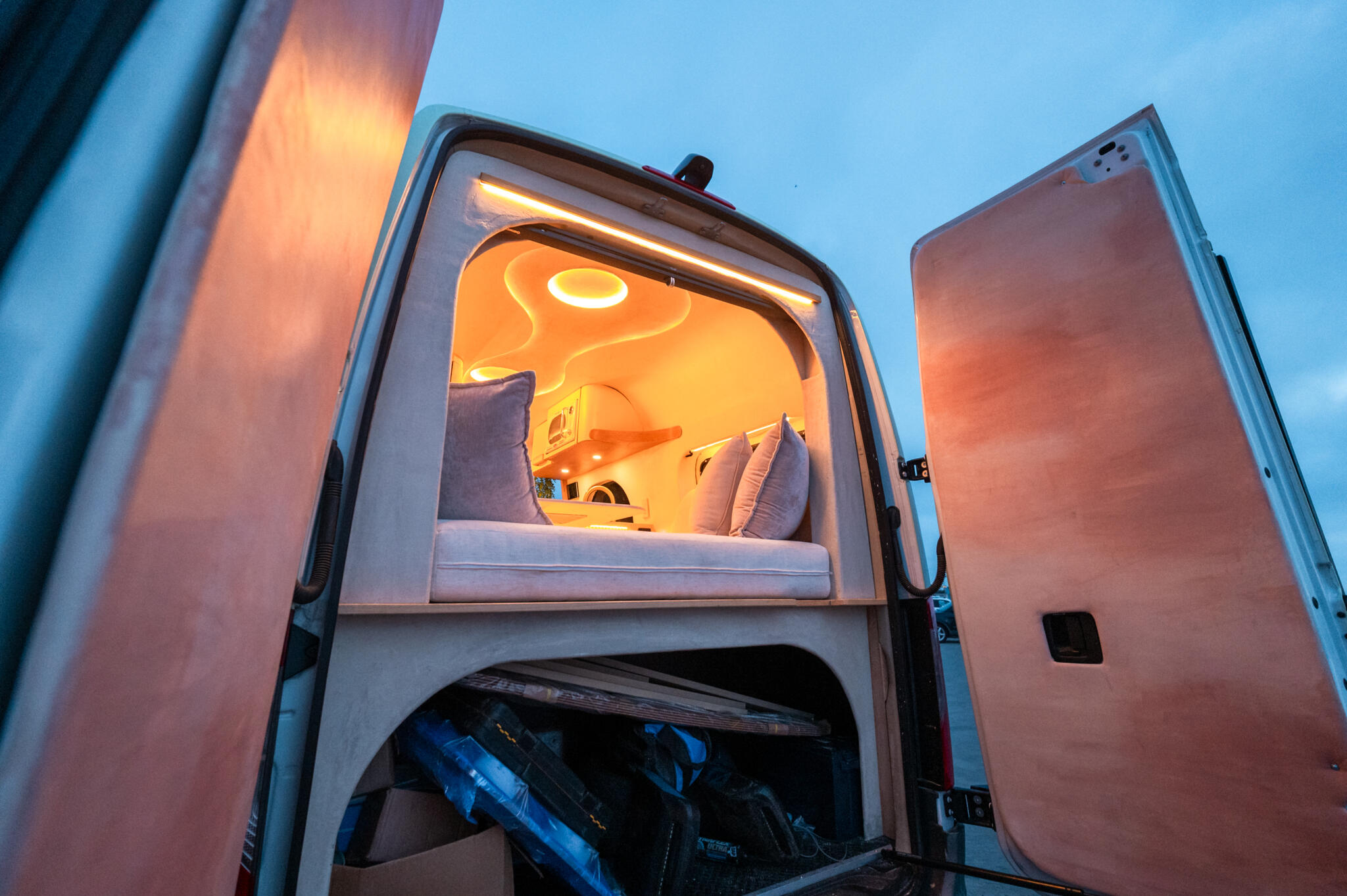

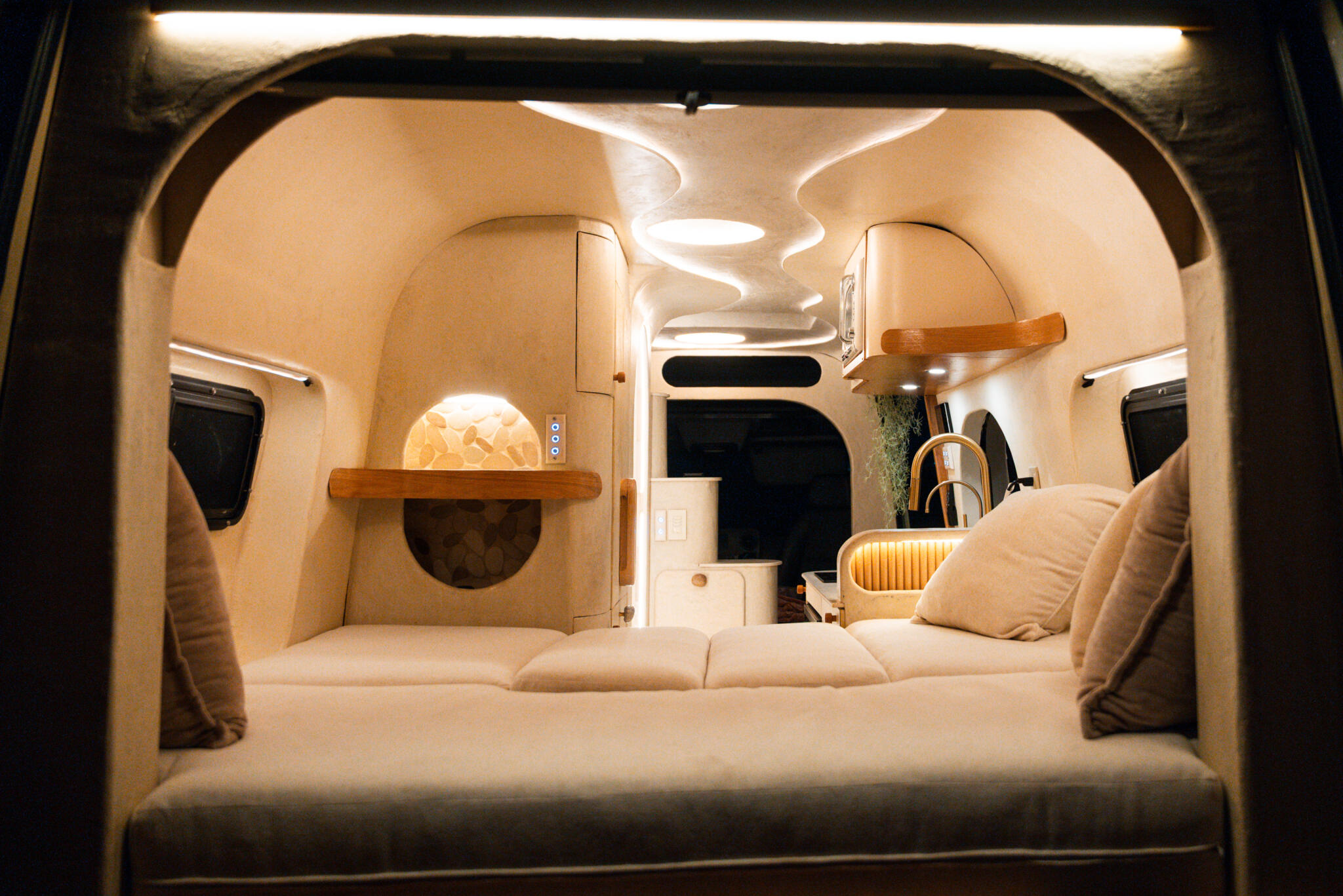

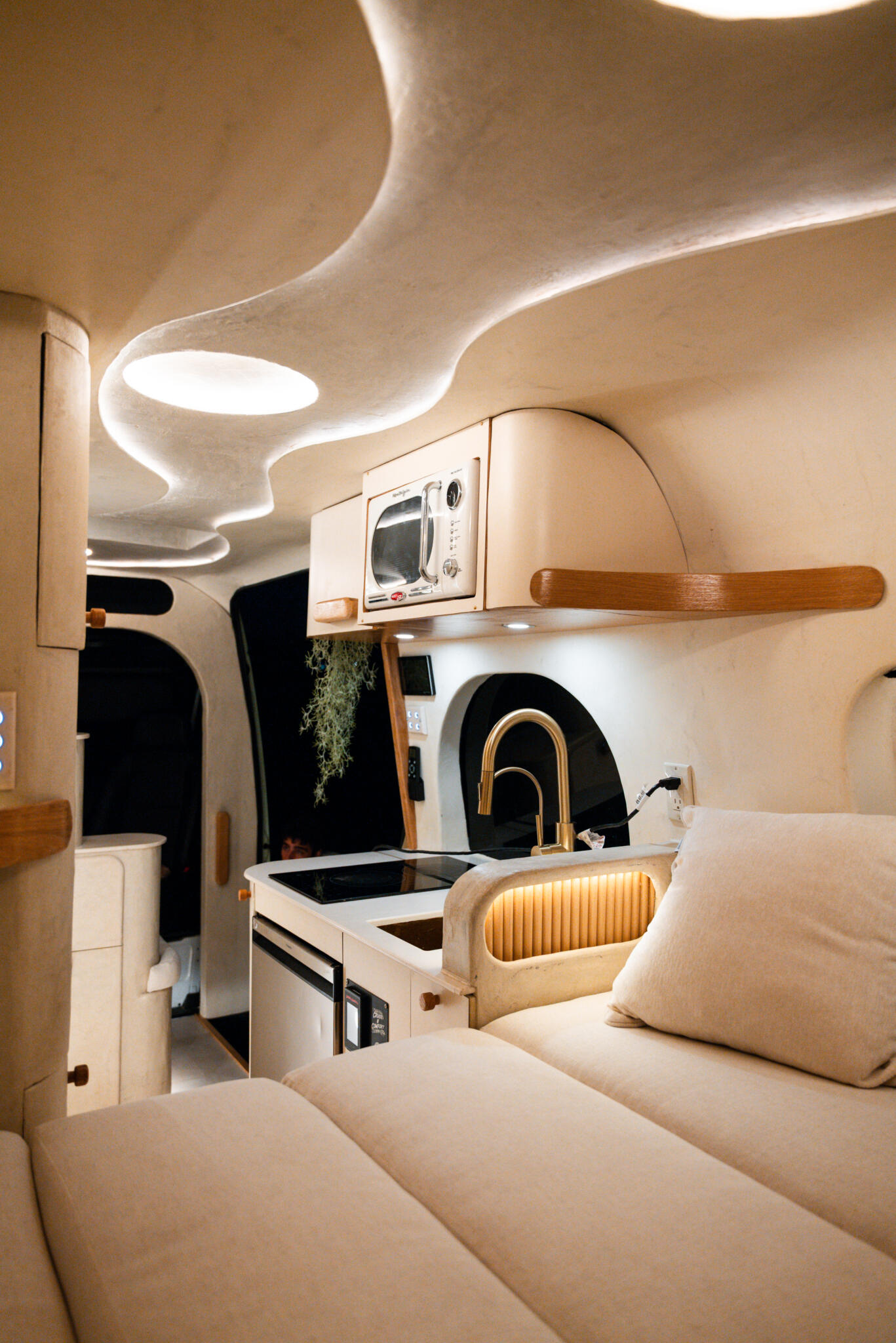

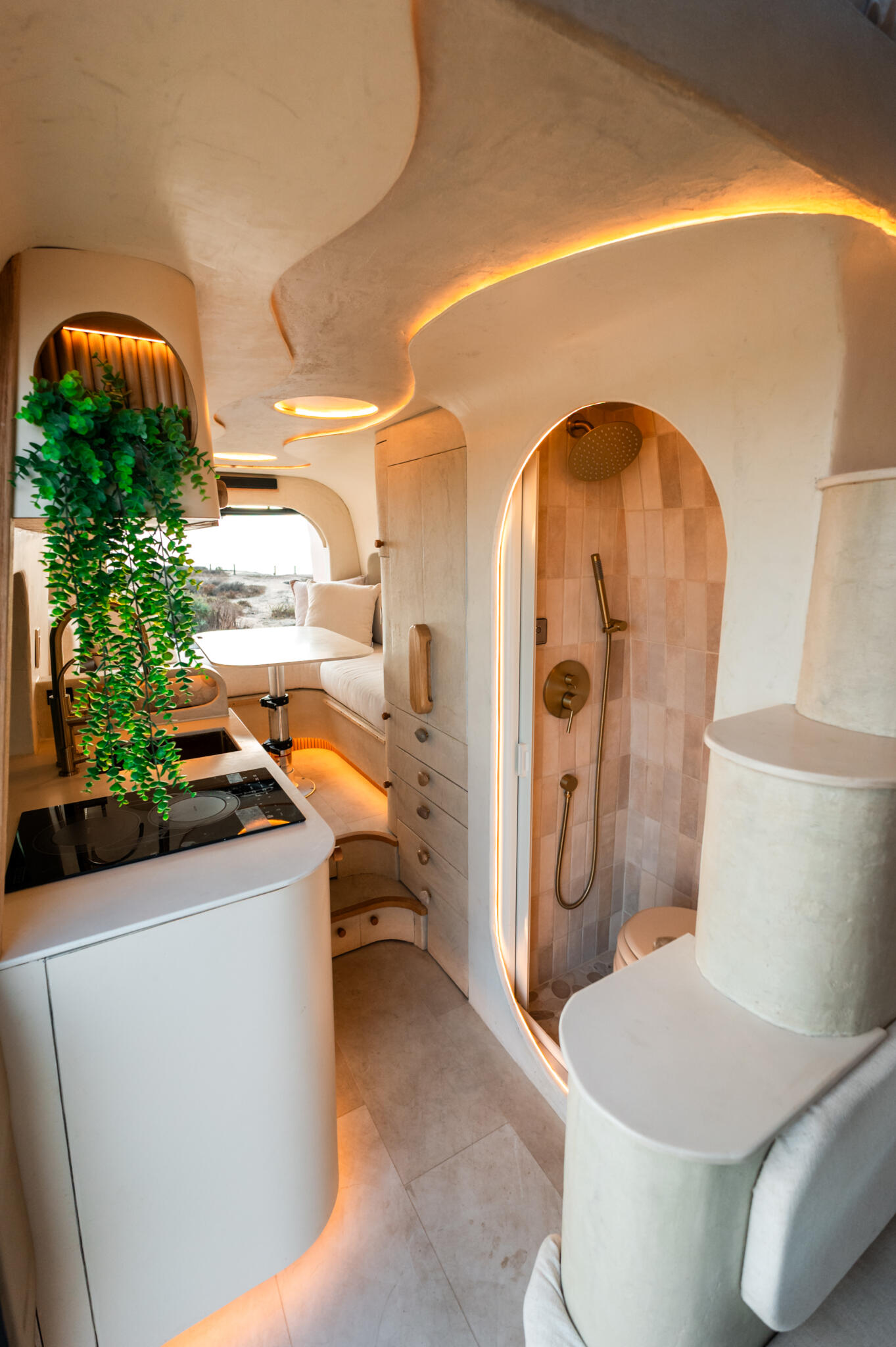

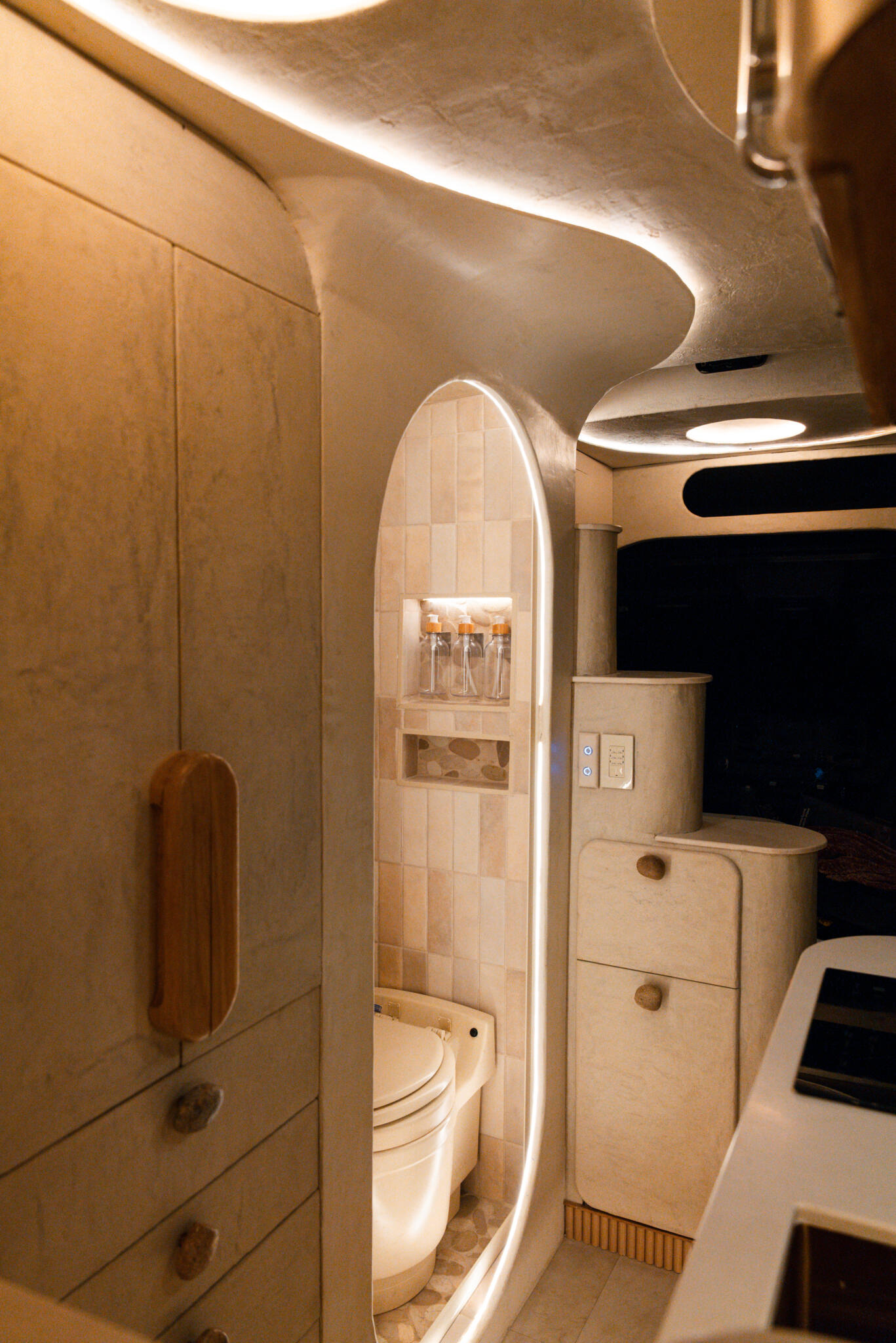

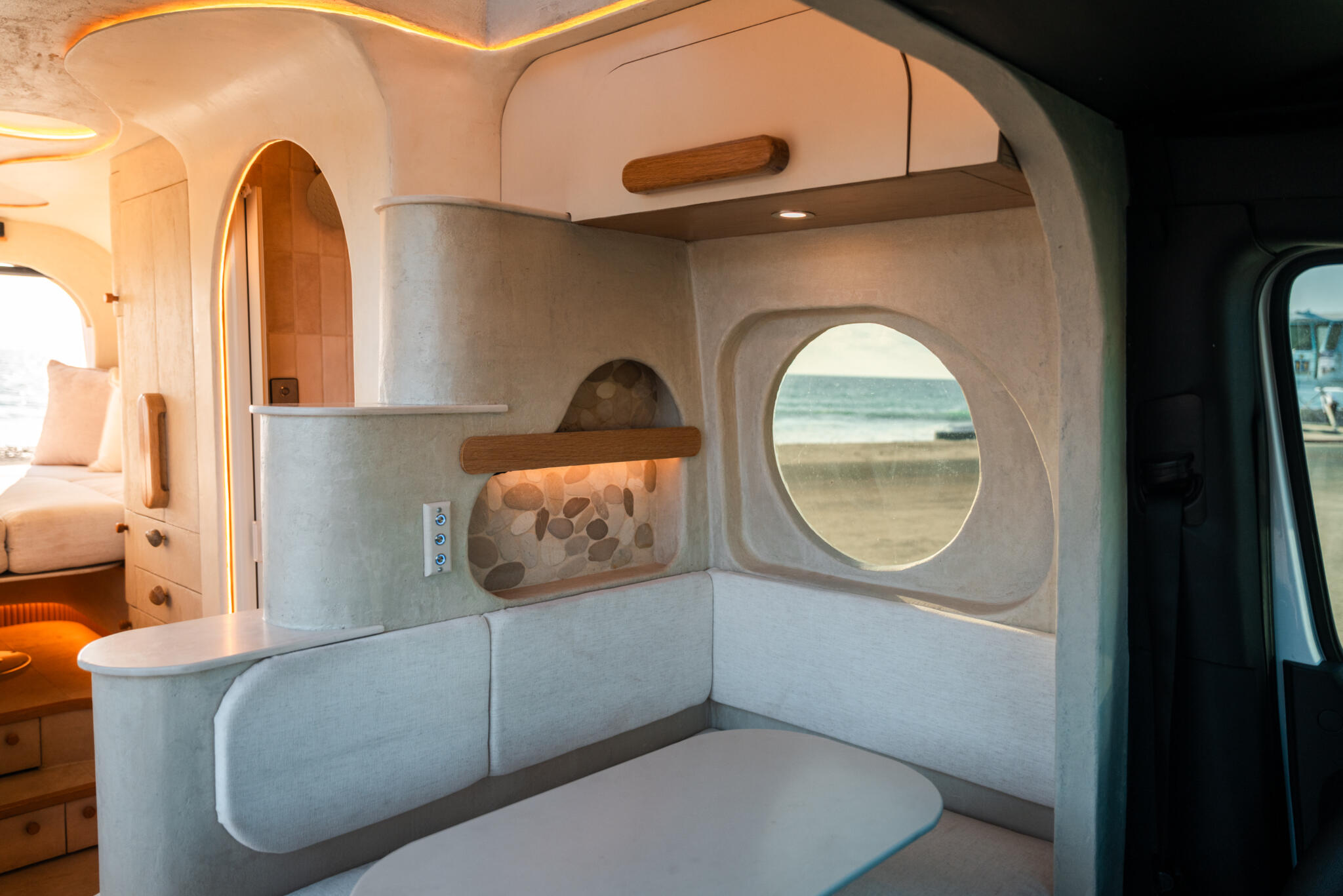

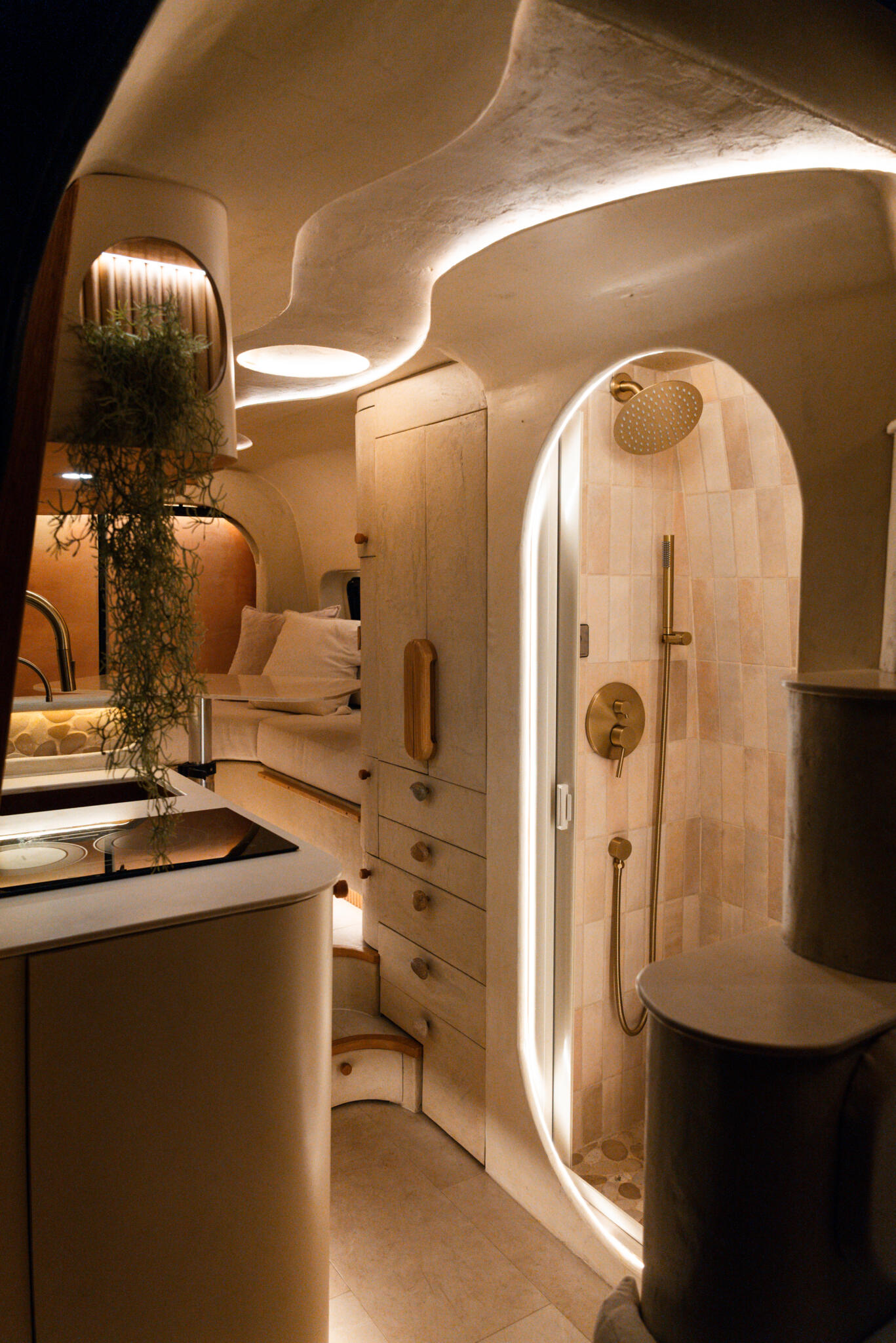

Layout Convertible queen dinette in the rear, 5-inch memory foam. Dual swivel cab seats and a swivel table for four up front. Wet bath with Bedrosians Zellige tile, pebble mosaic floor, Nautilus self-cleaning door, and a Laveo dry-flush toilet. Full kitchen with a two-burner induction cooktop, 700W microwave, brass pull-down faucet, filtered drinking tap, and a Dometic NRX 115S 12V fridge-freezer. Floor-to-ceiling closet, hidden storage, and a large rear garage. Bose soundbar and pull-down projector screen.

Overland and exterior

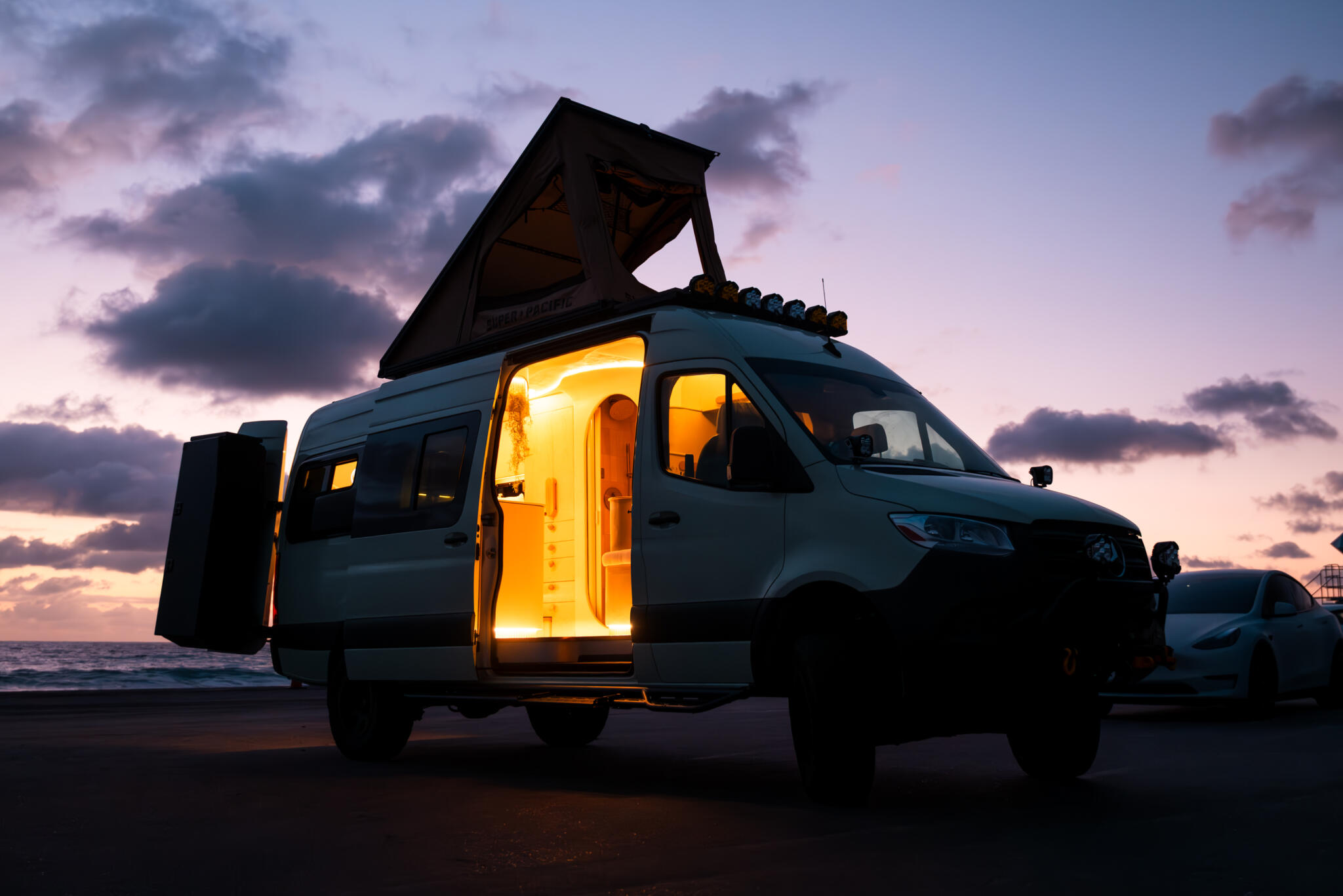

1. Super Pacific CloudCap Rooftent with custom roof deck
2. VanCompass 6.3 suspension with inverted rally struts, Baja brackets, and jounce control
3. XBull rear storage system: cargo carriers, spare-tire carrier, large and small ski boxes
4. Delta 4×4 Klassik_B forged 18-inch wheels
5. Toyo Open Country AT3, 275/70R18
6. CAtuned bullbar and Warn Zeon 12 winch with Factor 55 hook
7. Baja Designs lighting: (7) LP6s on the roof rack, (2) LP6s on the bumper, (2) XL80 A-pillar lights
8. Flarespace bump-outs with opening slider windows
9. Slider-door window with screen
10. Owl Explorer side steps and flip-down step
11. Owl hood strut
12. Canyon Adventure Vans Stop Stays

Electrical

1. WattCycle 12V 640Ah bank
2. Victron MultiPlus 3000W inverter + shore power charger
3. Victron Cerbo GX with touchscreen
4. Victron Lynx Distributor
5. Victron Orion 50Amp DC-DC charger
6. Victron SmartShunt
7. Victron MPPT 100/50
8. 400W Bouge RV flexible solar panels

Water and climate

1. 19-gallon interior fresh tank
2. 28-gallon gray tank with automatic drain
3. Thermomate 4-gallon water heater
4. Shurflo 3 GPM pump
5. Waterdrop three-stage filter
6. Airplus ventilation fan with remote
7. Espar diesel heat
8. Cruise N Comfort air conditioning

Materials

1. Concretta and Moroccan Clay by Meoded
2. White oak accents and veneer
3. Nevamar textured laminate
4. Bedrosians Zellige and pebble mosaic
5. Waterproof rigid-core vinyl
6. Half-inch Baltic birch cabinetry
7. Half-inch acrylic counters and tabletops

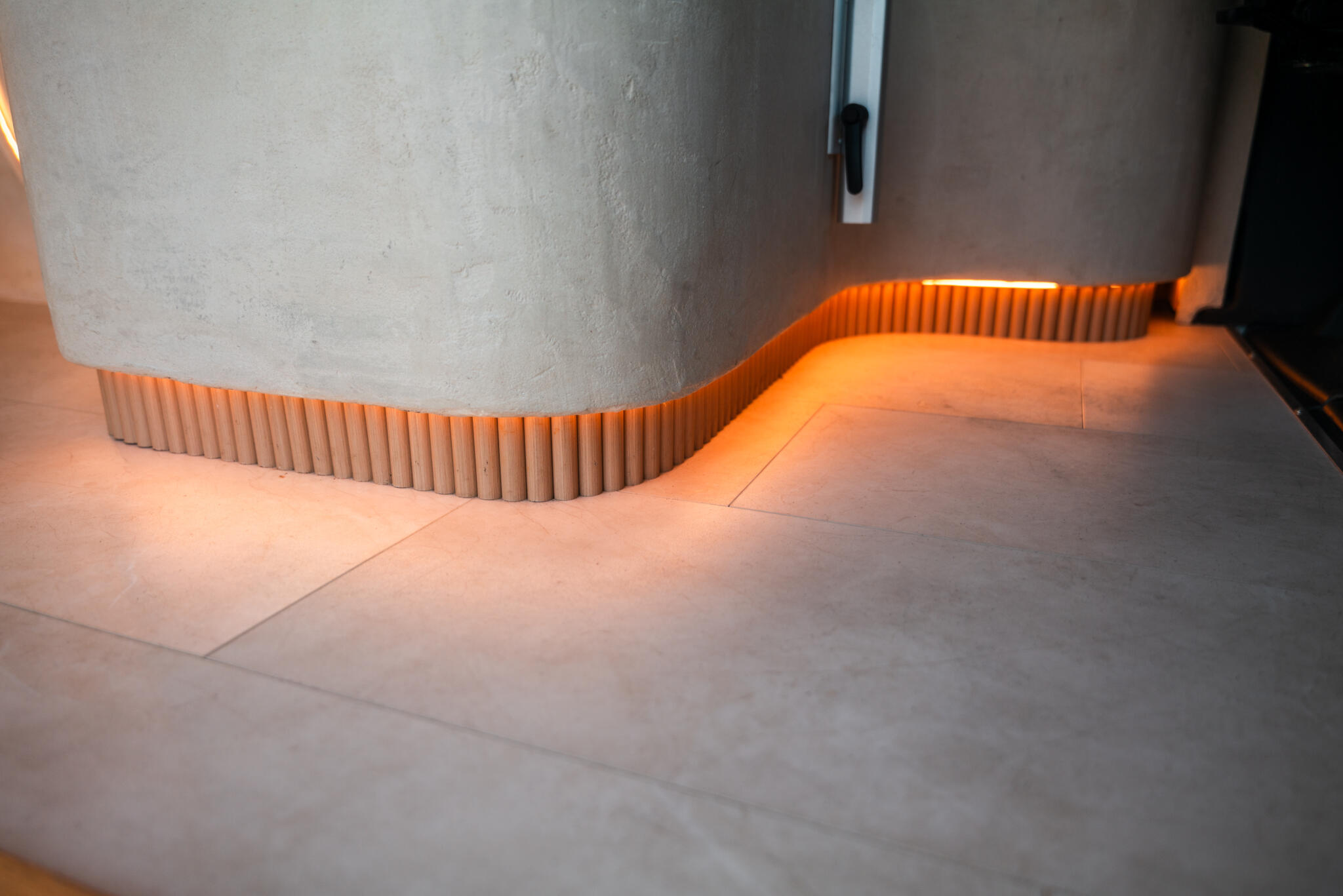

8. Recessed and ambient LED lighting.

Available now. Learn more about Abbe at https://abbeminor.com/
