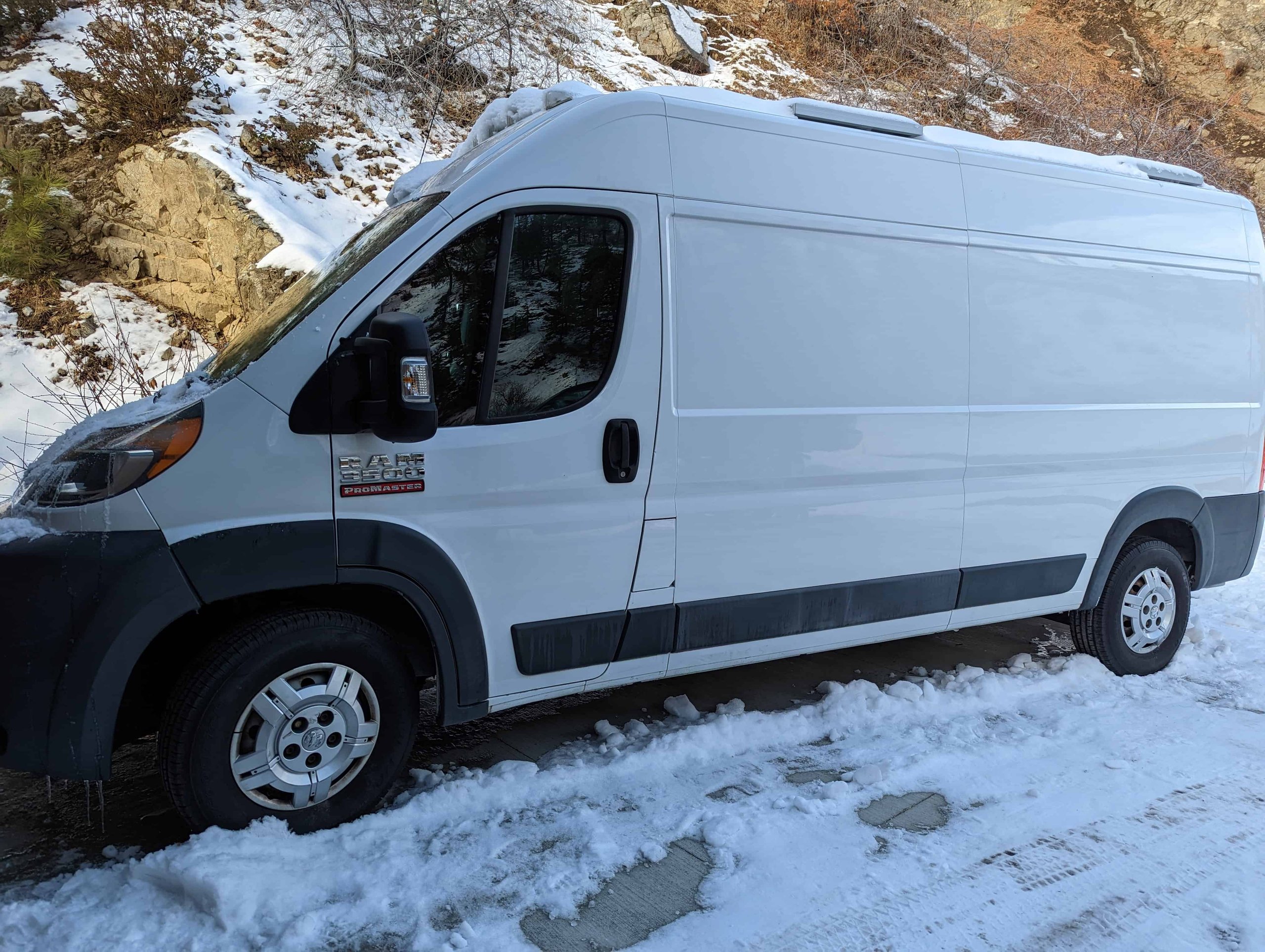

Brand New Build – 2014 Ram Promaster 3500 – 159″

This is a meticulously crafted campervan built with adventure in mind! With only 110,500 miles and a brand new build, this van is sure to take you on countless journeys for years to come. The spacious 159” WB and high roof allow for comfortable living, and the interior has been thoughtfully designed to maximize functionality and aesthetics.

This van is built to last, with custom-built upper cabinetry that maximizes space, all wall attachments secured with crossnuts and bolts, and overbuilt plumbing and electrical systems that are easily accessible for maintenance. The van has recently been taken to mechanics for new parts and system checks, ensuring it is ready for the next owner. Plus, the van comes with spare parts/paint and a detailed manual for all major systems.

Don’t miss out on this opportunity to own a beautifully crafted and carefully maintained campervan!

Comfort

• Maxxair Fan Deluxe 12V Fan

• R-6 foam board insulation (Floor, Walls, and Ceilings)

• Noico acoustic foam (Sound deadening on the lower walls and back wheel areas)

Seating & Sleeping

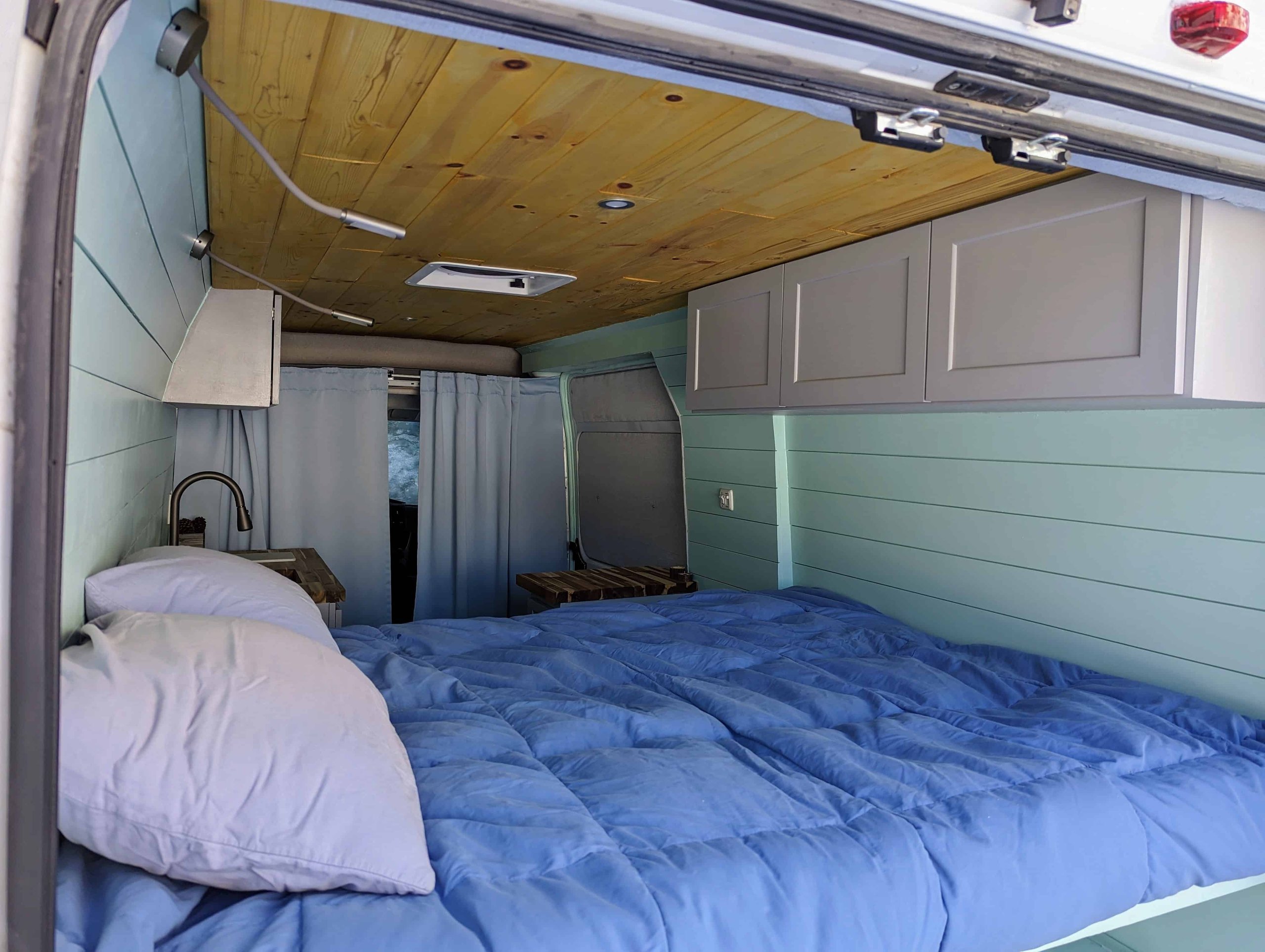

• Brand new, never used 4-inch thick gel queen mattress

• Under-bench seat storage (Can fit a cassette toilet)

• Butcher block pullout table (holds up to 50 lbs)

Electrical & Lighting

• 400W of solar panels

• New Renogy 200AH lithium with Bluetooth

• 3 x 120V electrical outlets

• Lots of interior lighting with dimmers including garage area

• Renogy 50A DC to DC 12v with MPPT (charges while you drive too!)

Living

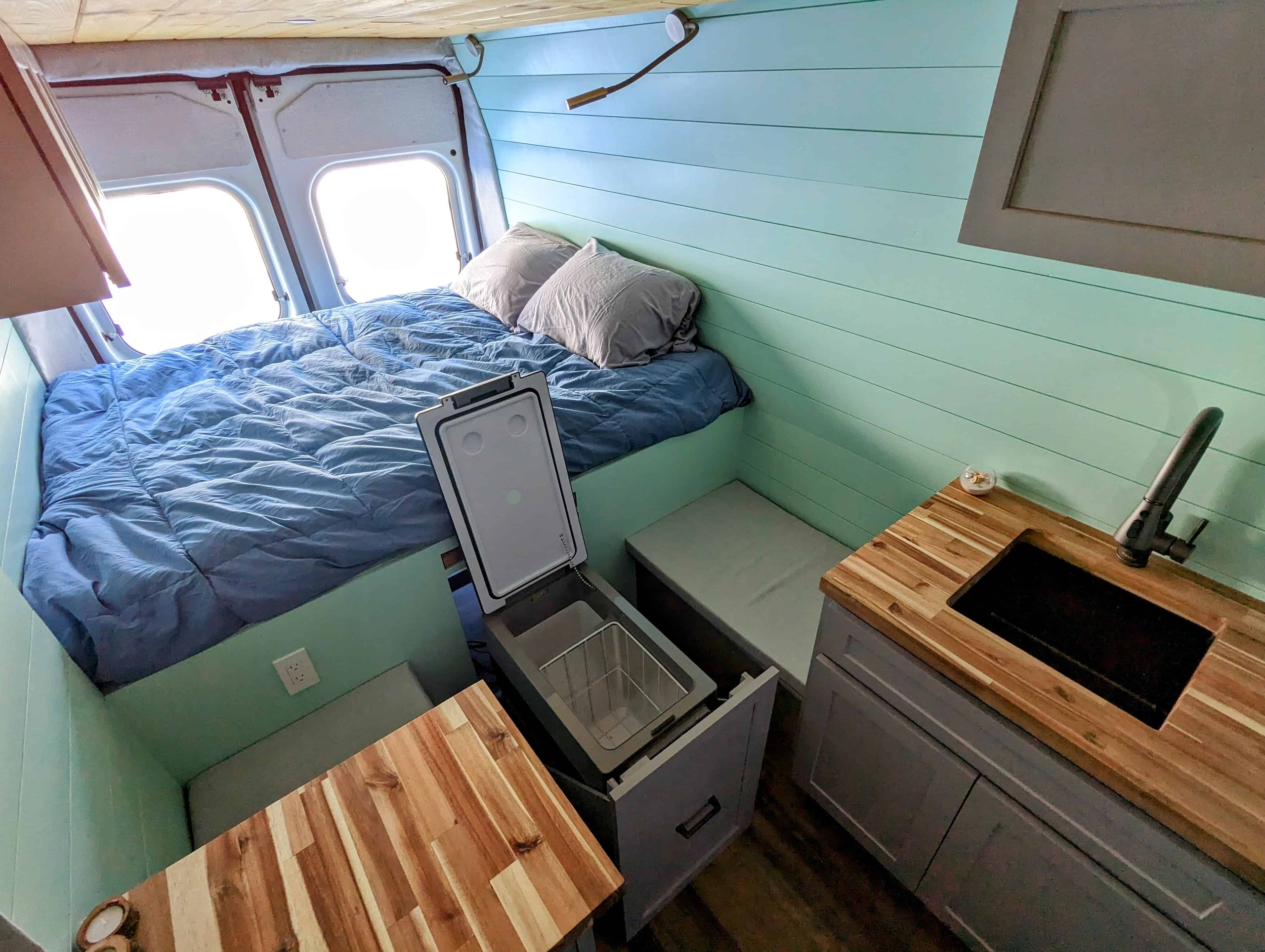

• Euhomy 55-liter DC refrigerator/freezer with Bluetooth (underbed drawer pullout)

• Acacia butcher block countertops

• Upper cabinets have 10lb RV latches that stay secure while driving

• Outlet behind small countertop area for cooktop plugin

• Soft close doors and drawers

Water

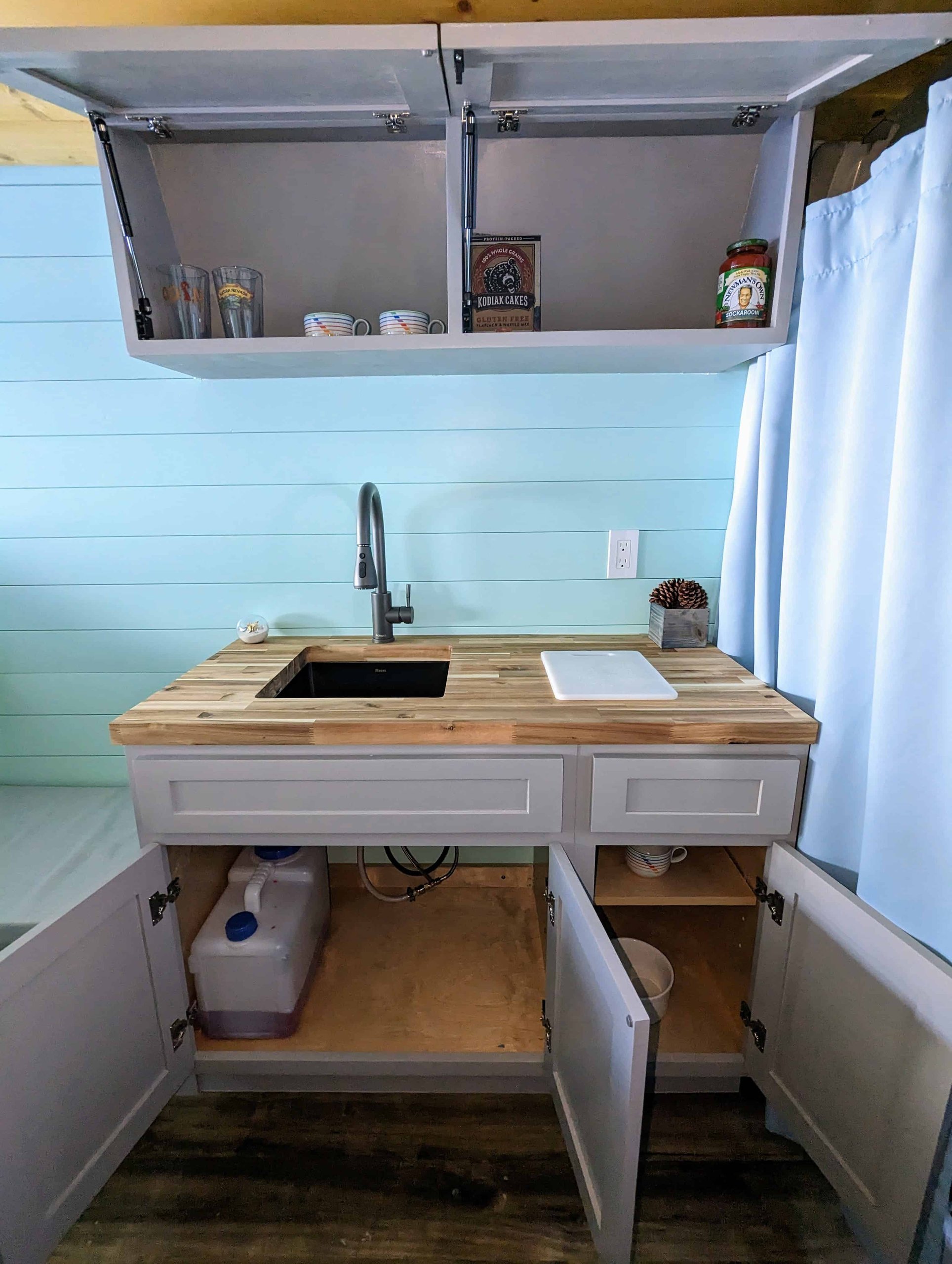

• 15-inch-deep kitchen sink

• 25-gallon freshwater tank

• 4-gallon removable tank under sink

• Showerhead at the rear of van for outside cleaning

Van

• New all-weather tires with less than 500 miles

• New catalytic converter (April 23)

• New ball joints and tie rods (March 23)

• New serpentine belt (March 23)

• New O2 sensors on catalytic converters (March 23)

• Fuel and induction system service (March 23)

• Brake system flush (March 23)

• Recent oil and transmission fluid changes

• New van battery

• Backup camera

• Hitch

Parts List

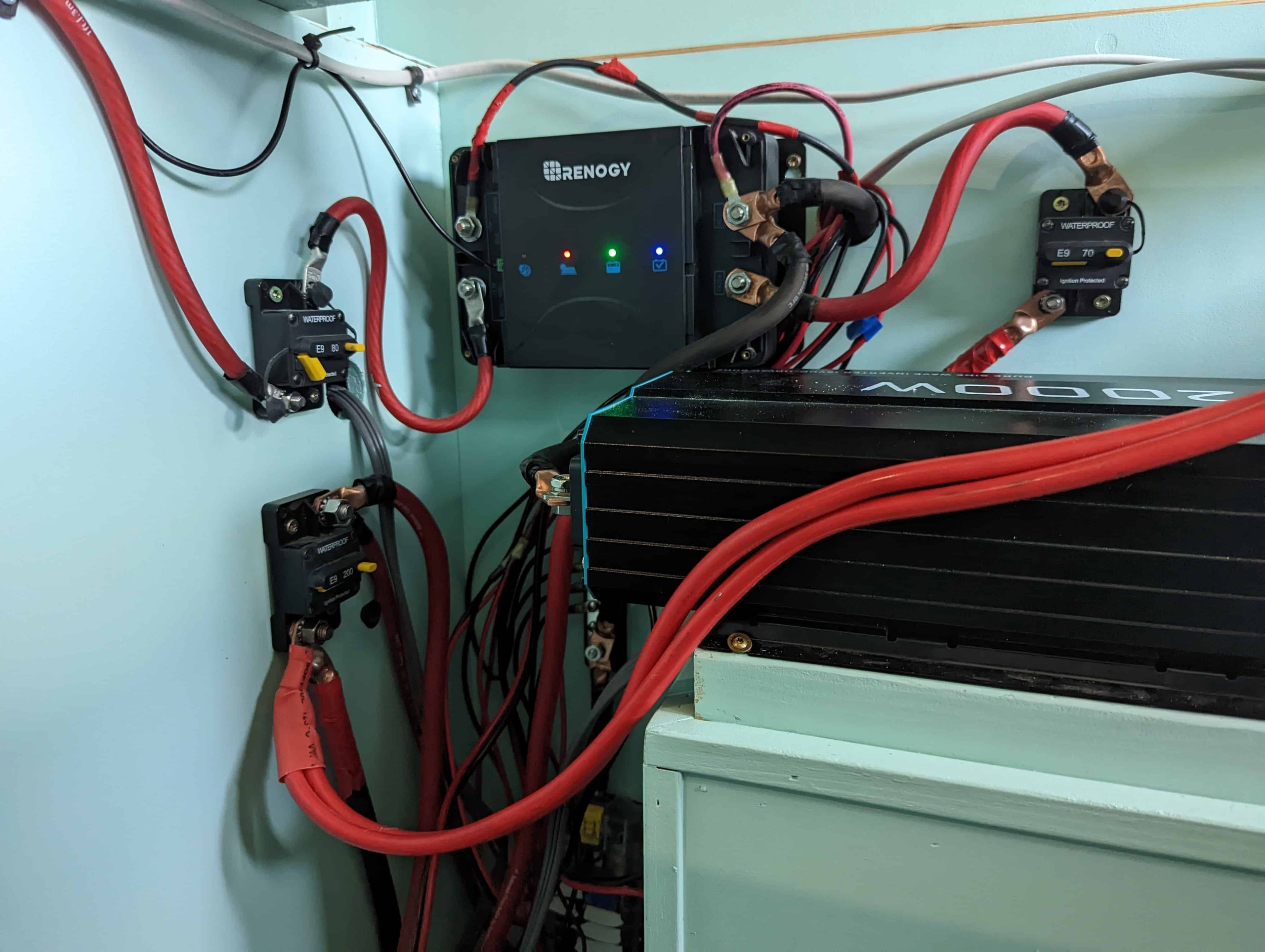

Electrical System Parts:

• Renogy Solar Panel Roof Mounting Brackets

• Renogy 2000W Pure Sine Wave Inverter w/USB and 3 AC Plugins

• Renogy 50A DC to DC 12v with MPPT

• 2 – 200W 12 Volt Solar Panels: 400 Watts total (made in USA)

• 12-gauge wire for all 12V wiring

• 80 Amp Circuit Breaker T-Tocas

• 70 Amp Circuit Breaker T-Tocas

• Blue Seas System Busbar

• Blue Sea 5026 ST Blade DC Fuse Block 12 Circuits

• acegoo RV, Dimmable Flexible Gooseneck Wall Lamp, in-Base USB Charger, and LED Head Touch Control Switch x 2

• 12v LED recessed ceiling lights x2 on dimmer switch (main area)

• 12v LED recessed ceiling lights x2 on dimmer switch (storage area)

• Euhomy 55 Liter DC refrigerator with Bluetooth

• KnuKonceptz Flex 1/0 Gauge Copper Wire fine stranded Tinned Oxygen Free Copper with a Max Load of 375A @ 20 Feet

• Maxxair Fan Deluxe 12V Fan

Water System Parts:

• 15-inch-deep gunmetal sink

• Gunmetal adjustable sprayer (cold only)

• Flojet Triplex Diaphragm Water Automatic Water Pump (2.9 GPM, 50 PSI)

• SHURFLO 182-200 Pre-Pressurized Accumulator Tank

• SHURFLO (255-313) 1/2″ Twist-On Pipe Strainer

• 4-gallon grey water tank

• 25-gallon freshwater tank

Other Parts Used:

• R-6 Insulation Foam Board
