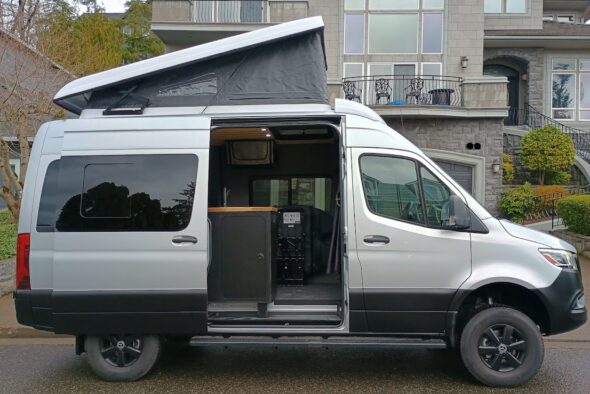

This van was built with a purpose, to get you anywhere you want to explore while supplying you with indefinite clean purified water and energy. Easily transforms between a 3-2 person rig with its unique folding cot in the garage area and removable captains seat. With the primary bed being a Murphy style, when folded up there is a 11 feet of usable counter space for computer work, cooking, etc.. The unseen “heart” of the build consists of a professionally designed/built 400ah Victron electrical system, charged from a high amp secondary alternator AND 250w solar for boondocking.
Everyone that has stepped foot in this build has mentioned “it feel so spacious” and the build quality is above everything else they have seen in the industry. If it is catching your eye through a computer screen then you’ll be in awe when you see it in person.
CHECK OUT THE SPECS BELOW!
(or please reach out, I can send you the spec sheet and answer any questions 970-222-7908-Travis)
Rig Wright builds are known for their durability and finish quality, you could say they set their own standard. 100% fabricated in-house! Everything from off-grid electrical systems, TIG welded aluminum roofracks, tailored waterproof cushions and everything in between.
email- [email protected]
insta- @rig.wright
call/text Travis- 970-222-7908
***SPECS ON THIS BUILD***
OFF-GRID ELECTRICAL SYSTEM
-400 Ah Batteries charged from Solar and Alternator
-250 watts of solar (2) 100w slim Rich panels
(1) 50w NewPowa panel
-280 Amp Nations Secondary Alternator***
-Victron Battery System
Lynx BMS
3kVA Inverter/Charger
GX Touch 50
Advanced Monitoring and Control
-Outlets (16)USB/USBC outlets, (5)110v
WATER SYSTEM
-41 Gallons Fresh Water
-Guzzle H2O Water Filtration System
w/ Designated Water Fixture
-Isotemp Water Heater
-Rear Door Water no-leak Quick Connect/Shower
-Dual Sprayer Sink Fixture (Side of Van Shower)
-Black Stainless Sink
COMFORT
-Isotherm fridge w/ ice box (vinyl wrapped flat black)
-Espar Airtronic AS3 D2L Diesel Heater w/ EasyStart Controller
-MAXXFAN Deluxe Roof Vent
-24” Smart TV w/ swivel wall mount (swivels to exterior)
-Custom RW Insulated Window Shades
-Slider Door Roll-up Bug Screen
-Induction cooktop would be used(stored in drawer)
PERFORMANCE
-Van Compass Stage 6.3 Suspension w/ 2” Lift
-Van Compass Mud Flap Kit
-Wheels~Black Rhino Outback
-Tires~Nitto Ridge Grapplers 285/70R17
EXTERIOR
-Custom Aluminum RW Roof Rack (9’x3.5’ Walkable)
-(6) Roadshock 6-LED Off-Road Spot/Flood Combo Lights
-Custom Aluminum RW Side Ladder
-(2) Rigid Scene Lights
-Flarespace Flares, Passenger Side Bunk Window
-Slider Crew Windows Driver and Passenger
-250 Watts of Solar
CABINETRY
Lowers – Premium Exoskeleton Cabs.
w/ Corian Tops Spanning Full Length of Van
Garage – DuraSkin Cabs. w/ Corian Top
Uppers – *NEW* Ultramatte Rig Wright Cabs.
w/ Control Panel & Stash Shelf
LIGHTING
-Slider & Rear Door Step Lighting
-Under Van Dimmable Lighting
-LED Puck Lights (6)
-Under Cabinet Lighting
-Upper Cabinet Interior Lighting
-Under Bed Garage Lighting
-Cubby Storage Lighting
-Exterior Rigid Scene Lights (2)
SLEEPING / SEATS
-Flarespace Flares, Insulated!!!
-Murphy Bed System
w/ 4” Dual Layer Mattress (3 panel)
-*NEW* 75”x25” Folding Cot (removable)
-Rear Captains Seat~Smartseat Easy XL
w/ Smartleg Quick Release
-Front 2 Seats equipped w/ oem swivels
SOFTGOODS
-(2) Insulated Crew Window Shades
-(1) Insulated Bunk Window Shades
-(2) Driver/Passenger Insulated Cab Window Shades
-(1) Windshield Insulated Window Shade
-Bench Soft Front Access Door
-Shower hose storage bag
STORAGE
-Galley (3)drawer, (2) door, (2) cubby
-Over cab shelf
-(3) Upper cabs
-Over Bed Low Profile Stash Cab
-(3) Garage Stash Cubbies
-Slider door cubby
-Single Seat Bench w/ casset toilet storage
