2026 THOR FOUR WINDS 21Z
6” WELDTEC LIFT • FOX SUSPENSION • 1380Ah LITHIUM • 600W SOLAR • CUSTOM INTERIOR
THIS IS NOT YOUR GRANDPA’S RV.
This nearly new 2026 Thor Four Winds 21Z has been transformed from a standard Class C into a lifted, solar-powered adventure rig built for extended travel, boondocking and remote work. It combines the comfort of a modern tiny home with an aggressive expedition-style stance.
Highlights include a 6-inch WeldTec lift, FOX suspension, Toyo all-terrain tires, a professionally organized 1380Ah heated lithium system, 600W of rooftop solar, Starlink Mini and a fully customized interior. The RV comes stocked with linens, pots, pans, flatware, bowls, plates and other essentials.
LIFT, SUSPENSION & TIRES

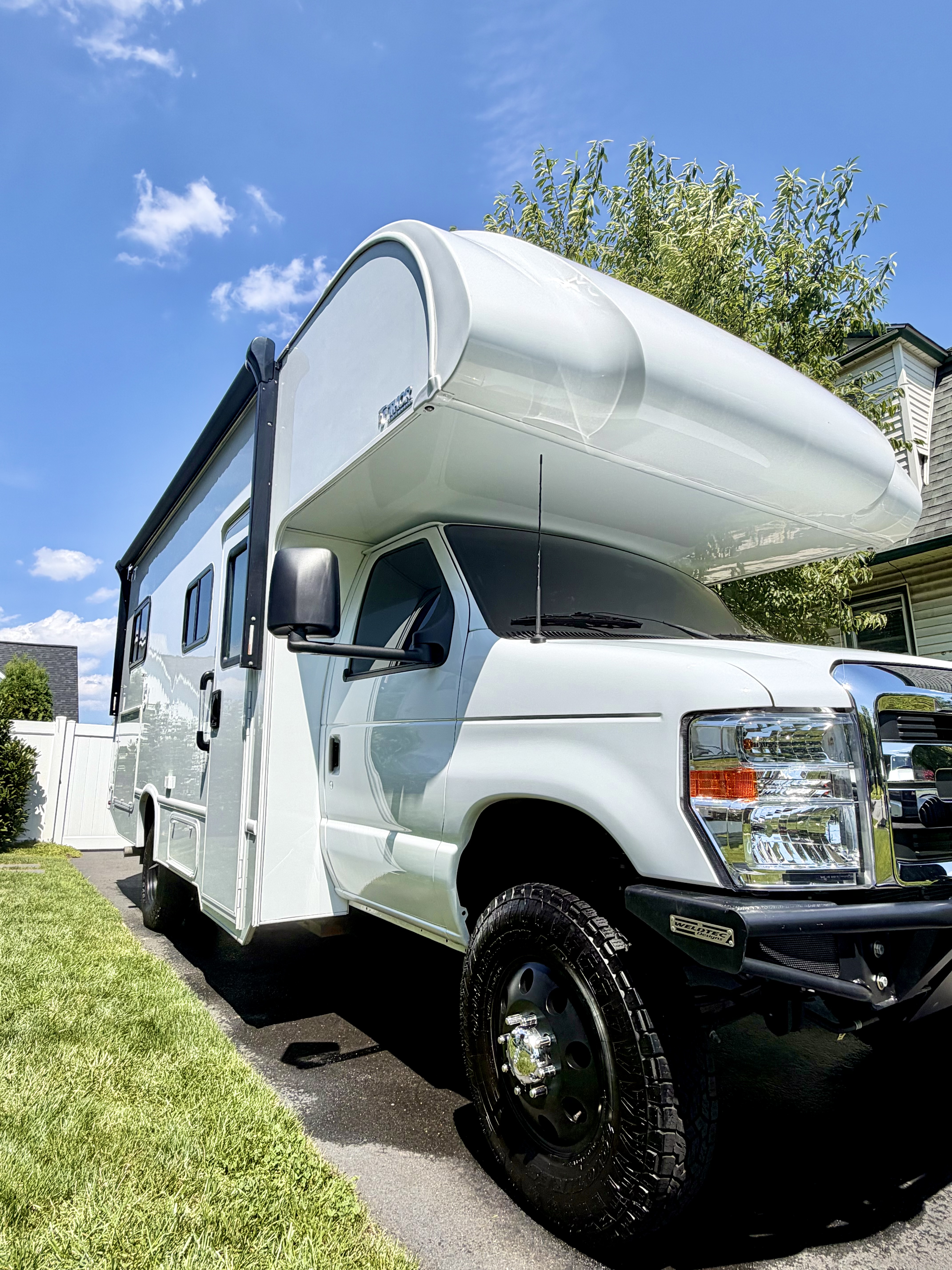

• WeldTec 6-inch suspension lift
• FOX shocks and steering stabilizer
• Carrier-bearing drop
• Toyo Open Country A/T III 285/70R17 tires on all six wheels
• Spline-drive lug kit
• Ford E-Series rear-wheel-drive dually chassis

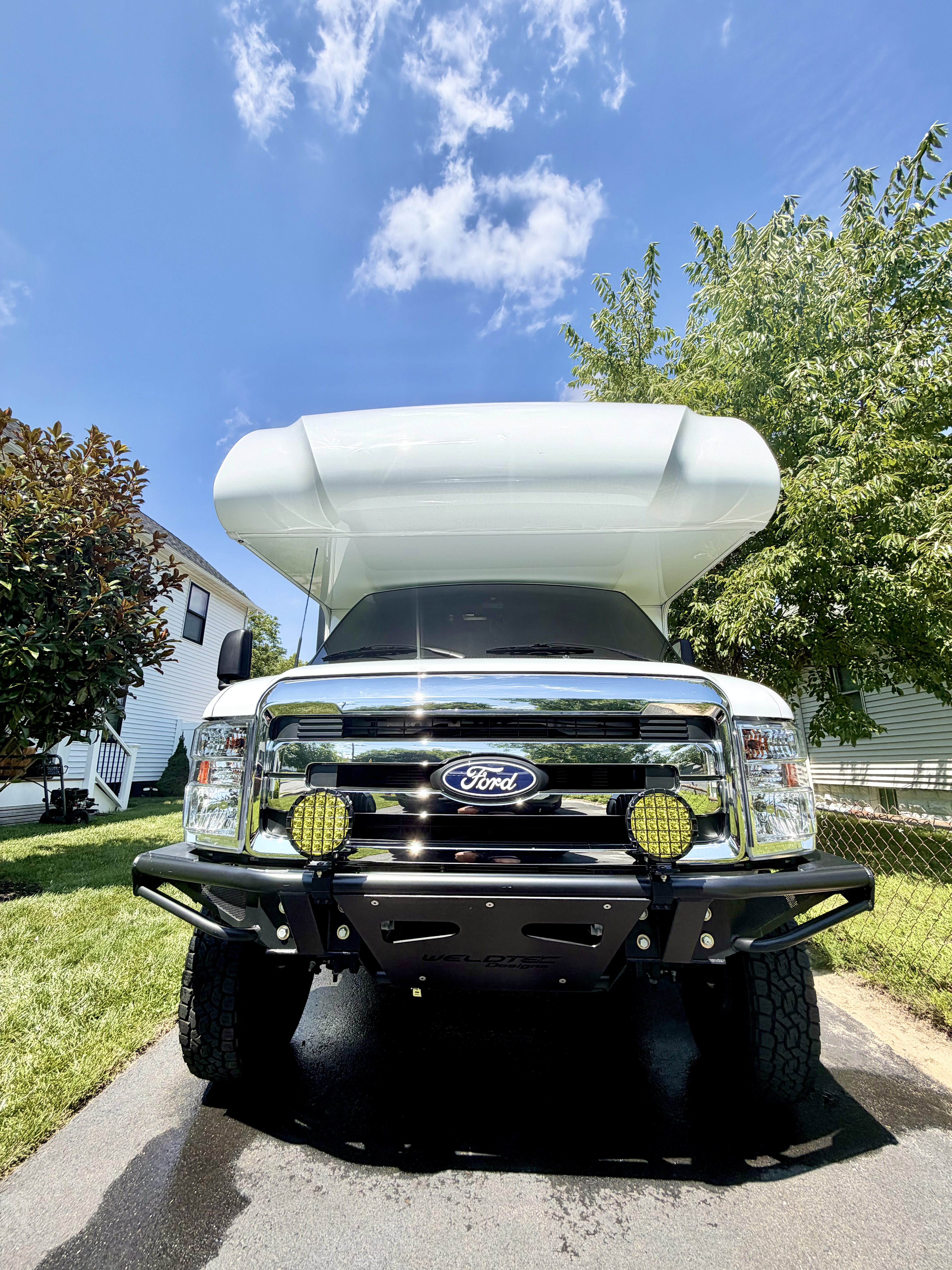

• Added fog lights with interior control switch
• Professionally tinted front windows
These upgrades give the RV a taller, more aggressive stance and set it apart from virtually every stock Four Winds on the road.
HIGH-CAPACITY OFF-GRID POWER
This is far beyond a basic dealer-installed solar package. The professionally organized system is designed to support extended off-grid use while dramatically reducing generator time.
• 1380Ah total lithium capacity (approx. 17.7kWh nominal)
• Three 460Ah Epoch Essential heated lithium batteries
• Victron MultiPlus-II 12/3000 inverter/charger with 3000W output
• 600W rooftop solar: three 200W flexible panels
• Victron SmartSolar MPPT 250/75 controller with up to 70A regulated solar charging
• Two Victron Orion XS 50A DC-to-DC chargers providing up to 100A of managed alternator charging while driving
• Shore-power, alternator and solar charging
• Victron Cerbo GX MK2, GX Touch 70 display and SmartShunt battery monitor
• Bluetooth monitoring with real-time battery, charging and consumption data

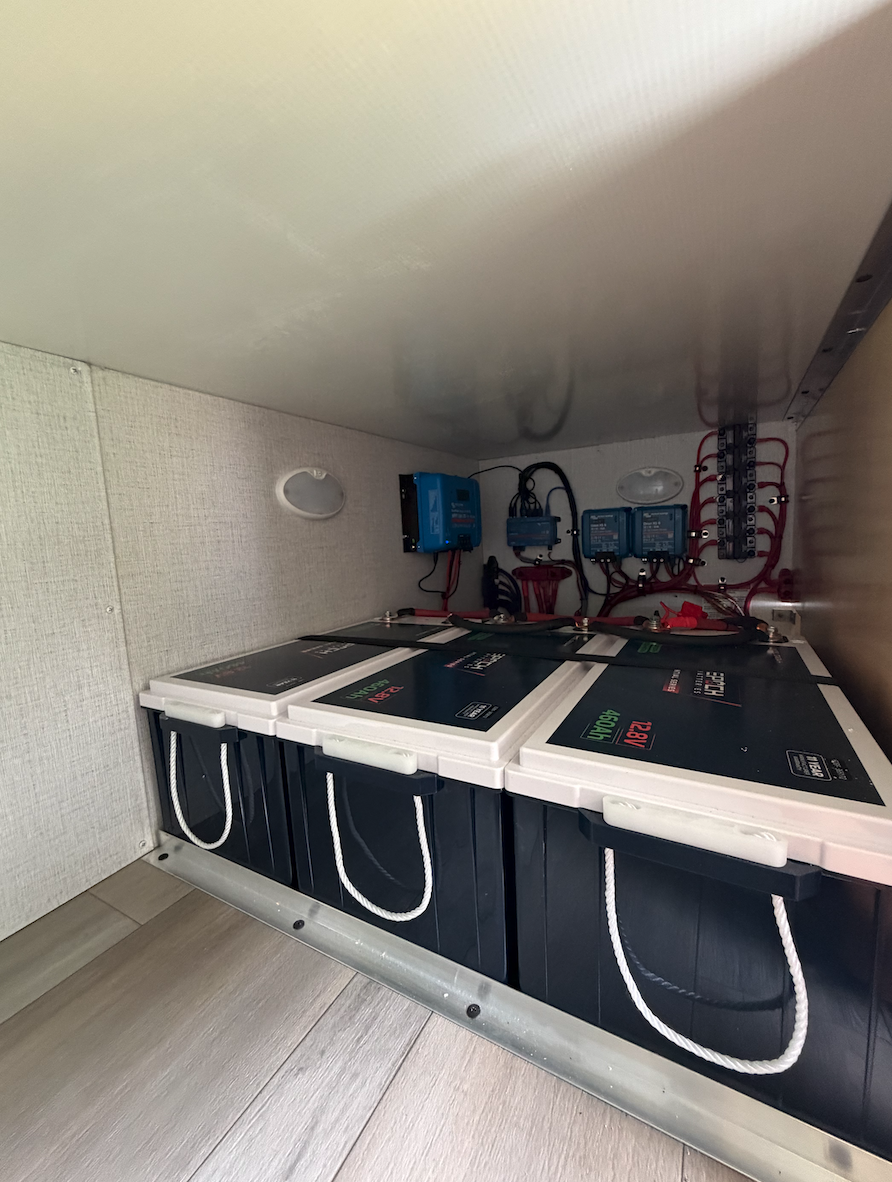

The system can power standard 120V outlets and appliances from the battery bank. Major components and wiring are protected inside a ventilated, serviceable custom enclosure in the rear storage compartment, with everything cleanly organized and labeled.
The original 4.0kW onboard generator remains fully operational as a backup for high demand, poor weather or extended use. A Starlink Mini has also been added for connectivity while traveling or working remotely.
CUSTOM INTERIOR
The generic factory-RV look has been replaced with a warm, residential feel:

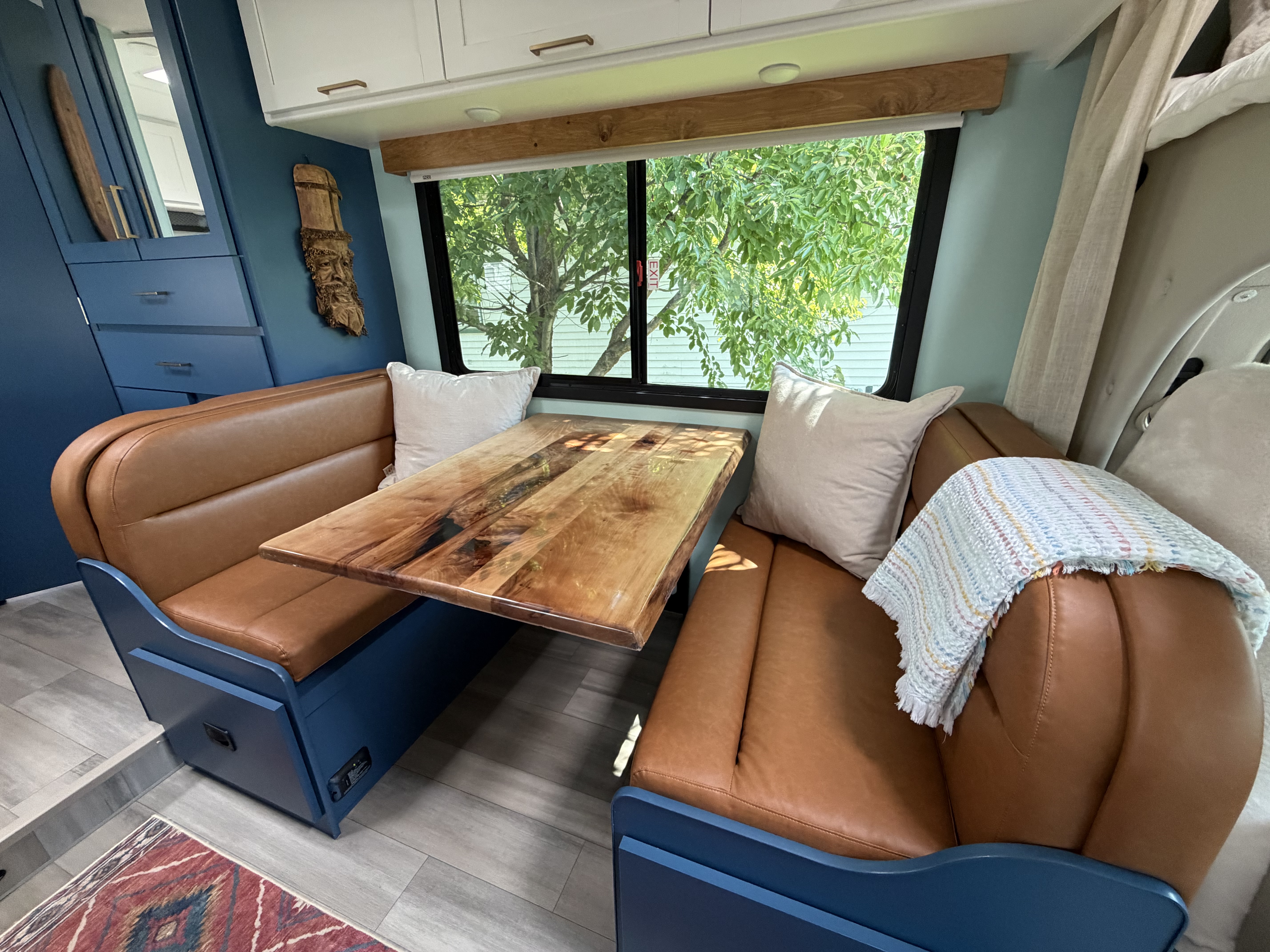

• Custom solid-walnut slab dinette table with hand-finished epoxy top
• Brown leatherette dinette seating
• Blue refinished cabinetry
• Custom wood window valances
• Updated finishes and bathroom accent wall
• Custom-matched electrical switch and control panels

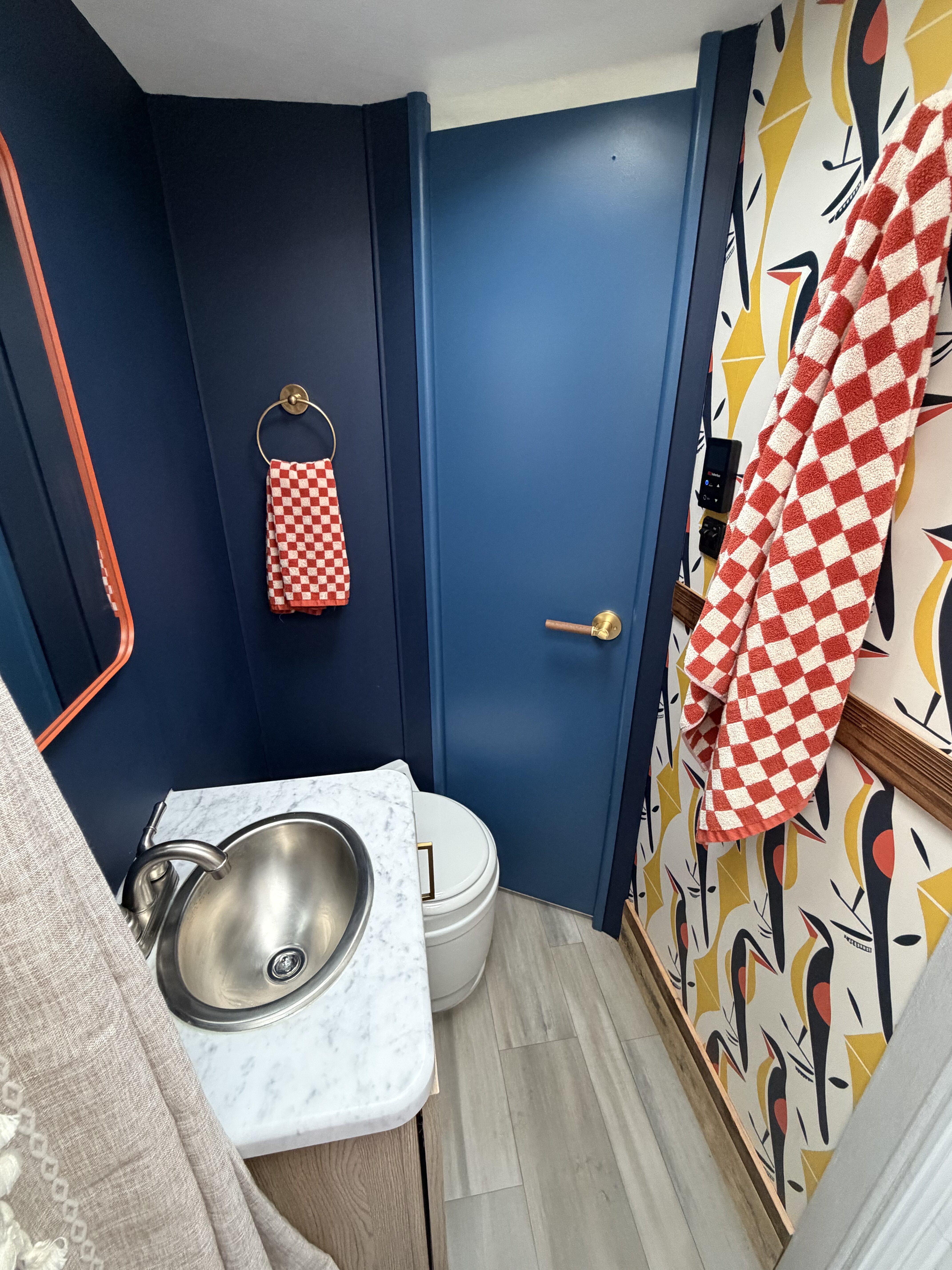

• Laveo Dry-Flush toilet
The original toilet was replaced with a self-contained Laveo Dry-Flush system, which seals waste in disposable barrier material to reduce odor and eliminate regular sewer hookups. It is especially convenient for boondocking, cold-weather travel and faster departures. The original factory waste tank remains installed.
COMPACT, NO-SLIDE LAYOUT

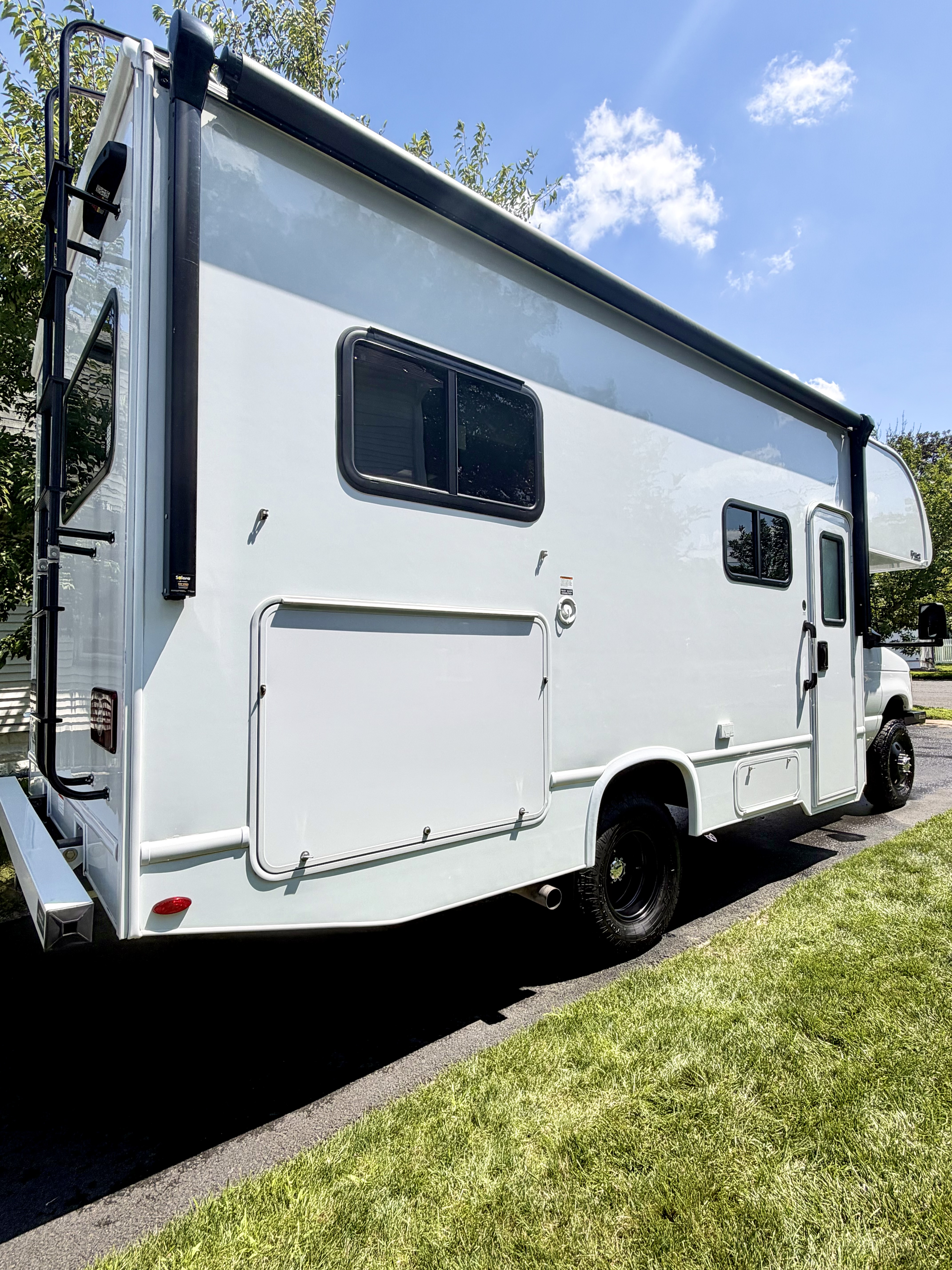

At approximately 24 feet long, the 21Z is easier to drive, park and maneuver than a large Class A or oversized Class C. With no slide-outs, there are no slide motors, seals or mechanisms to maintain, and the entire interior stays accessible while closed.

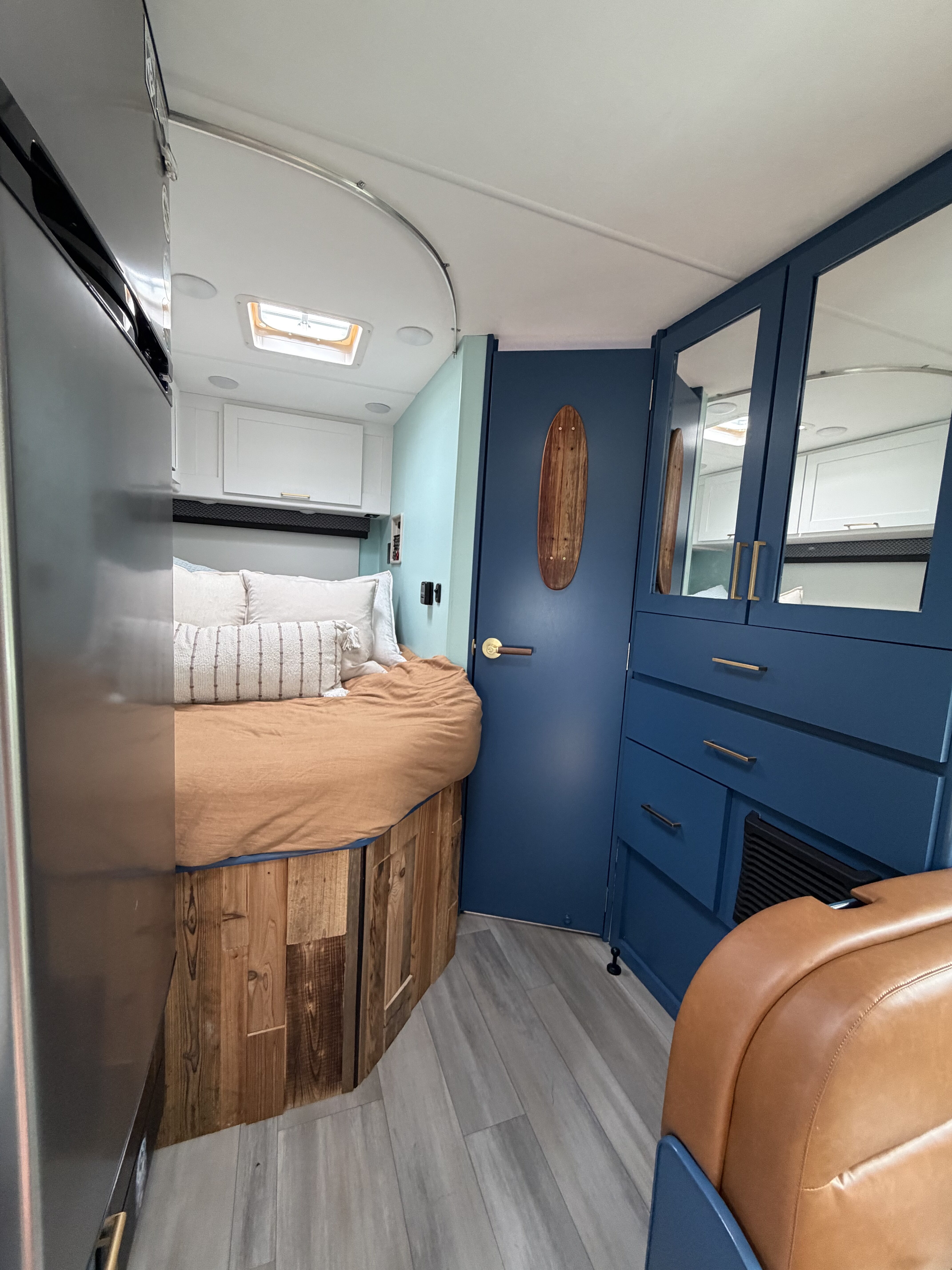

• Permanent rear bed
• Cab-over sleeping area
• Convertible Dream Dinette bed
• Full bathroom and kitchen
• Interior and exterior storage
• Factory-rated seating and seat belts for up to five
FORD POWERTRAIN & CHASSIS
• Ford E-Series chassis with 7.3L gasoline V8
• Approx. 325 hp and 450 lb-ft of torque
• Automatic transmission
• Rear-wheel-drive dually
• 55-gallon fuel capacity
• Factory-rated 8,000-lb hitch
• 12,500-lb GVWR / 18,500-lb GCWR
DIMENSIONS & CAPACITIES
• Length: approx. 24′ 1″
• Width without mirrors: approx. 8′ 3″
• Interior ceiling height: approx. 7′
• Fresh water: approx. 40 gallons
• Gray water: approx. 35 gallons
• Factory waste tank: approx. 24 gallons
• Exterior storage: approx. 51 cu. ft.

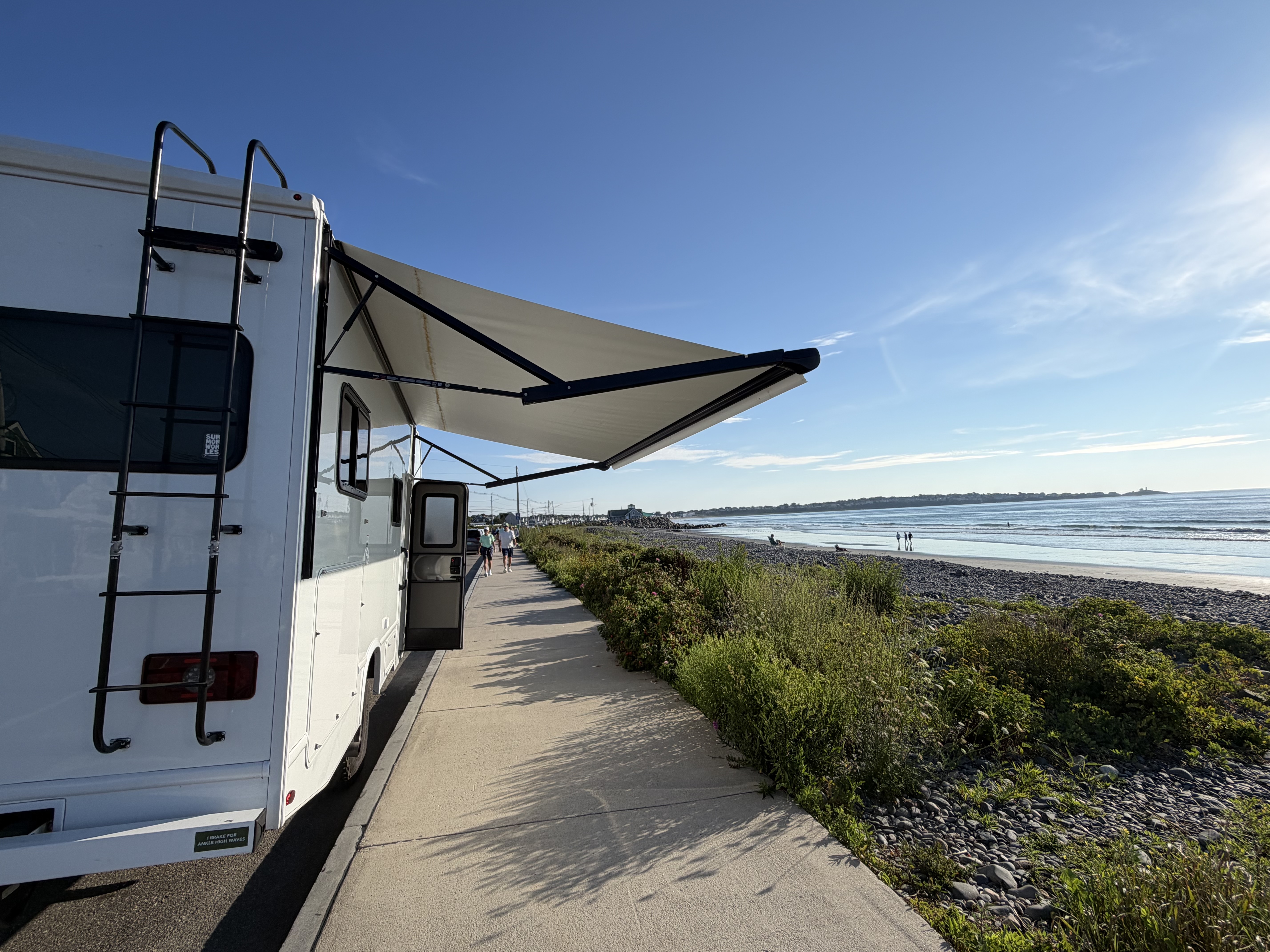

• Power patio awning: approx. 15′
• Tankless water heater
• Current measured exterior clearance: [INSERT MEASURED HEIGHT]
ADDITIONAL FEATURES
• 13,500-BTU roof A/C
• 30A shore power with automatic generator/shore transfer

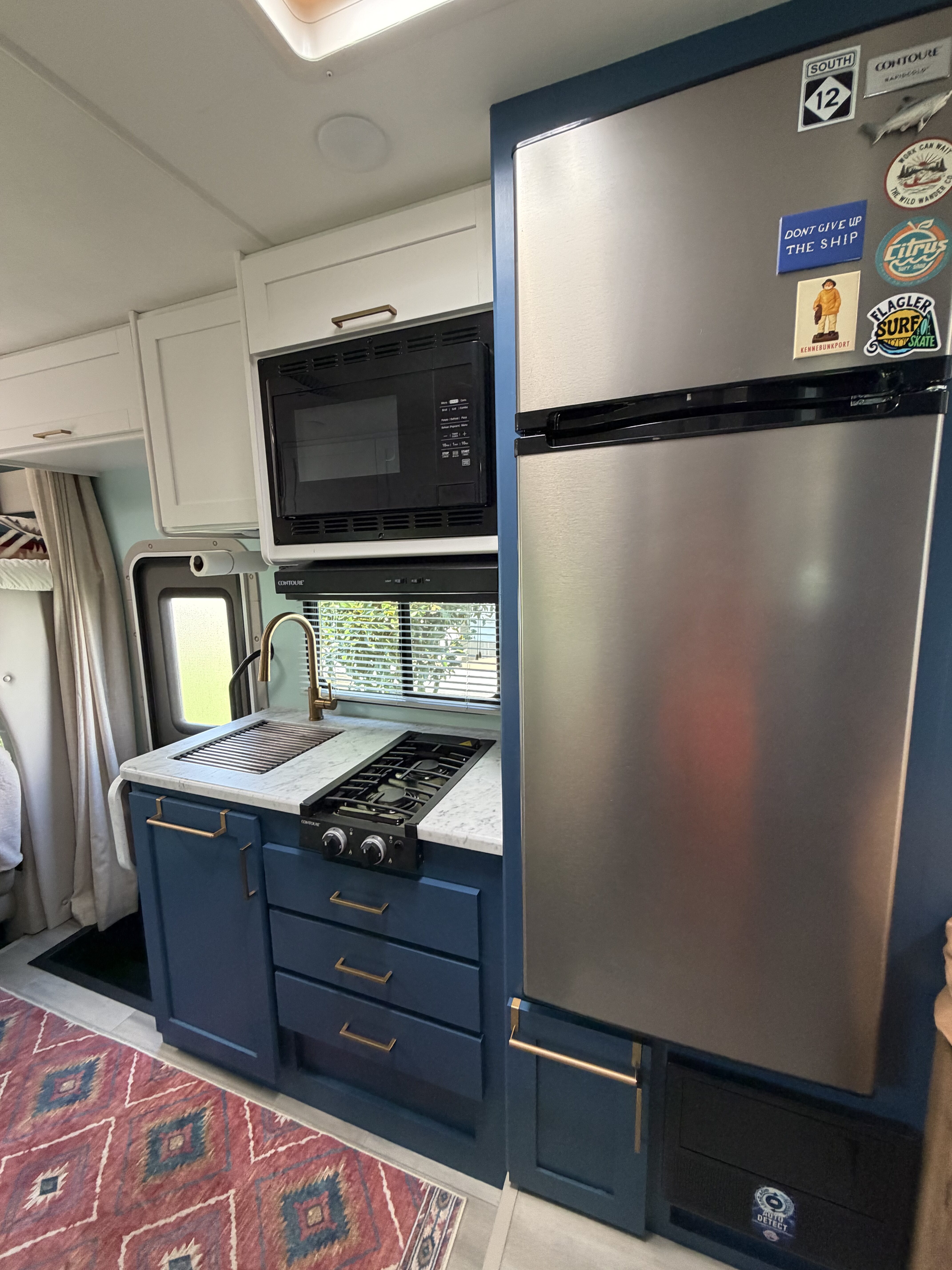

• 12V refrigerator
• Two-burner LP cooktop
• Convection microwave with air-fryer function
• Stainless-steel sink and flip-up counter extension
• Smart TV
• Touchscreen dash radio
• Apple CarPlay, Android Auto and Bluetooth
• Backup camera, cruise control and keyless entry
• Power windows, locks and patio awning
• Integrated exterior awning lighting
VEHICLE INFORMATION
• Mileage: 4,345
• Purchased new in February; still under factory warranty
• Located in New Jersey
• Asking price: [INSERT PRICE]
• Starlink subscription/hardware included: [INSERT DETAILS]
This RV is for someone who understands the value of a completed, thoughtfully designed build. Serious inquiries only.
