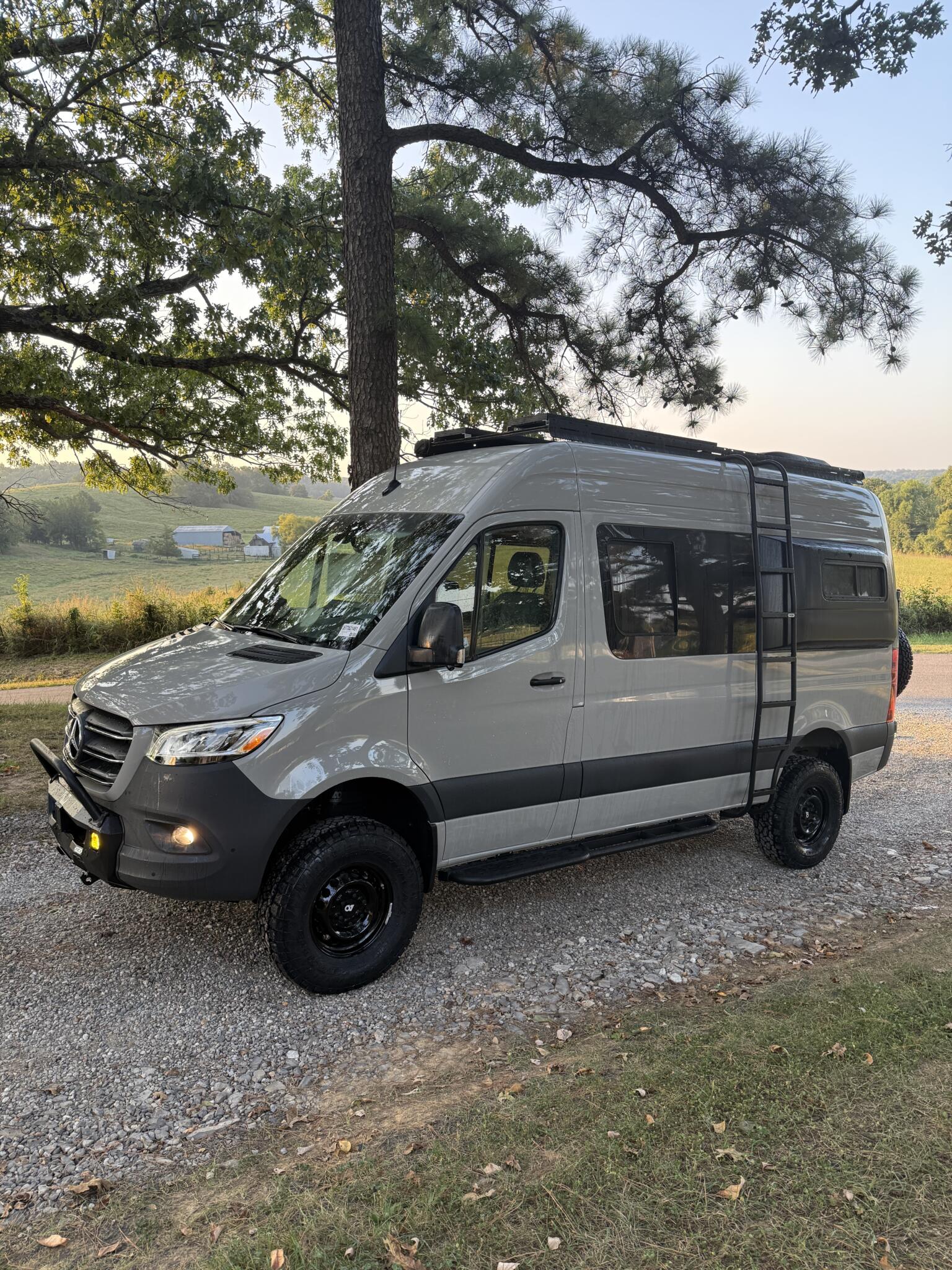

2026 Mercedes Sprinter AWD

This professionally built camper van combines a massive off-grid electrical system, four-season climate control, premium cabinetry, and a highly functional interior layout. Designed for extended travel and comfortable full-time use, the build features quality components from Victron, Epoch, FVC, Flarespace, Fiamma, Maxxair, and more.

At the heart of the van is an impressive 11.7 kWh lithium battery bank utilizing dual 24V Epoch heated batteries with Victron communications. The system is built around a 3000W Victron MultiPlus-II inverter/charger, Victron 50A Orion DC/DC charger, Victron 100/50 MPPT solar controller, and 300 watts of rooftop solar.

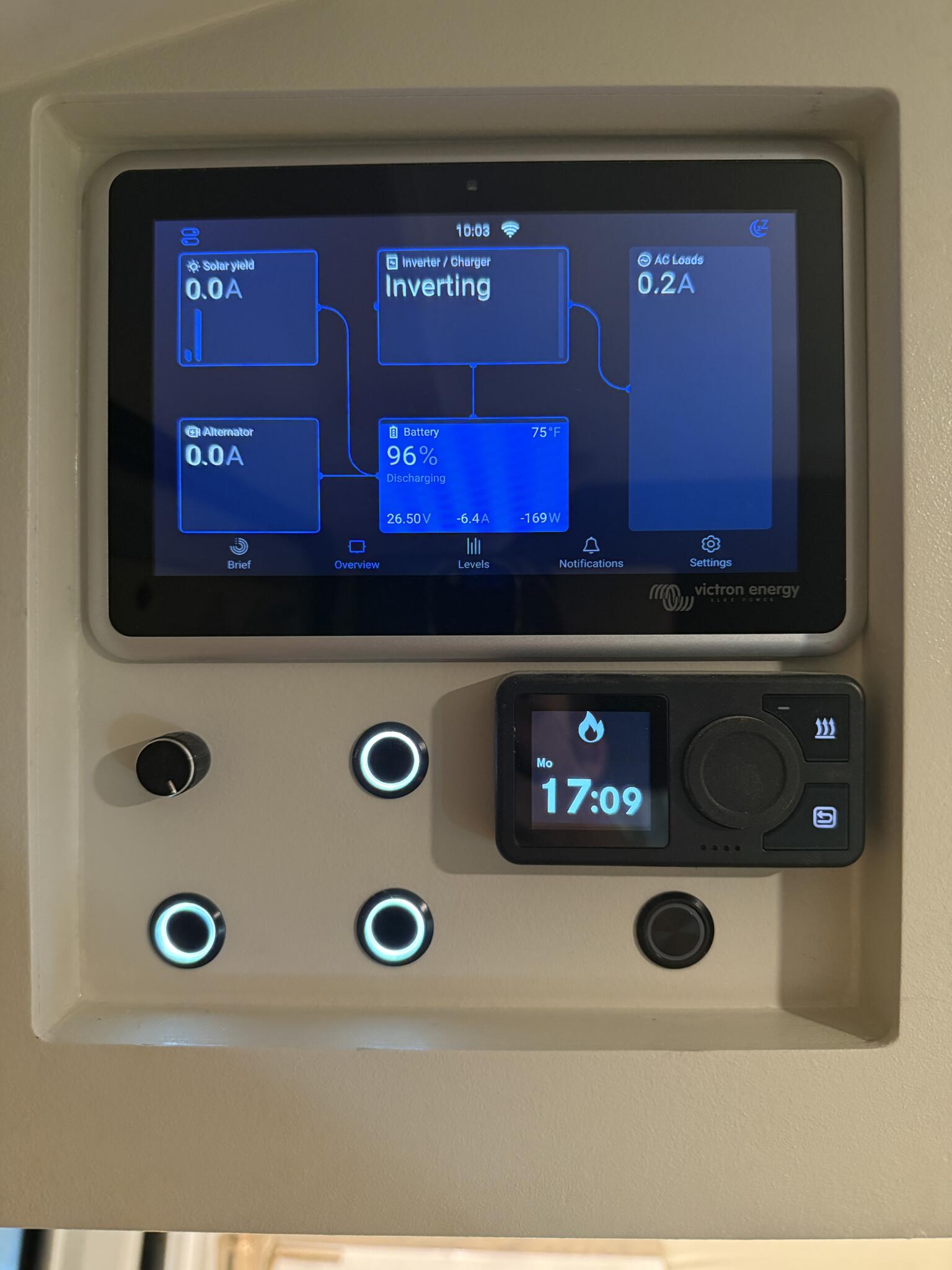

A Victron Ekrano GX touchscreen provides convenient system monitoring and control. The van also features 30A shore power, a separate 15A connection, marine-grade wiring, five 120V outlets, six USB/USB-C charging ports, and pre-wiring for Starlink and a cell booster.

Built for comfortable travel throughout the year, the van features a Velit 3000R 24V air conditioner with remote and Bluetooth control.

An HLN hydronic heating system provides radiant floor heat, instant hot water, and furnace heat. A Maxxair Deluxe fan, ½-inch foam sound deadening, and 2 inches of R15 Rockwool insulation further improve comfort and efficiency. An Isotemp Freeline 70 refrigerator completes the climate-controlled living space.

The plumbing system includes a 35-gallon fresh water tank and 36-gallon gray water tank, both with monitoring. The gray tank includes an electric dump valve with a manual backup.

Additional features include an outdoor shower with quick-connect hose, retractable kitchen faucet, handheld shower faucet, PEX plumbing with brass fittings, exterior city-water/fresh-tank fill connection, and a Laveo Dry Flush toilet.

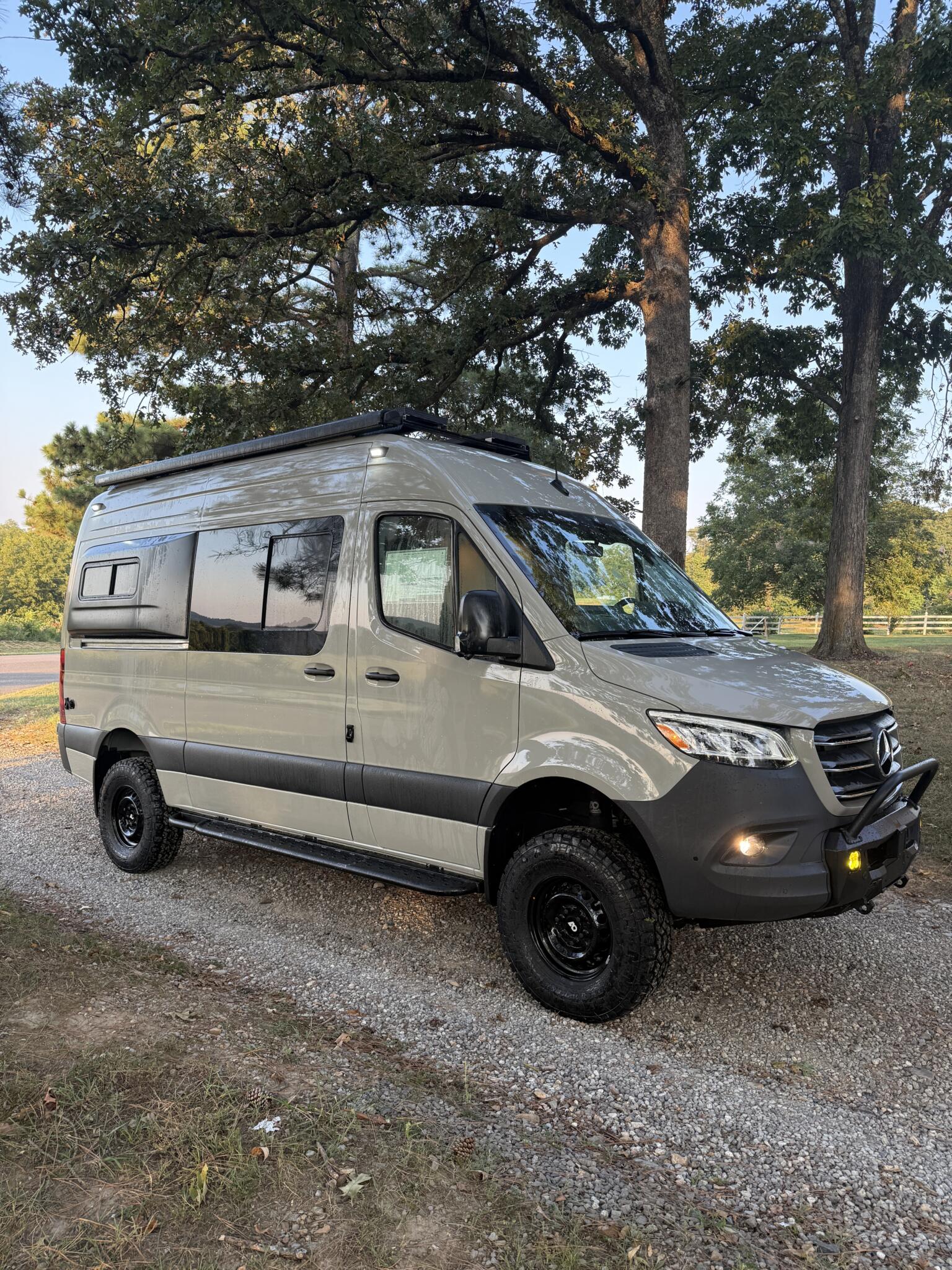

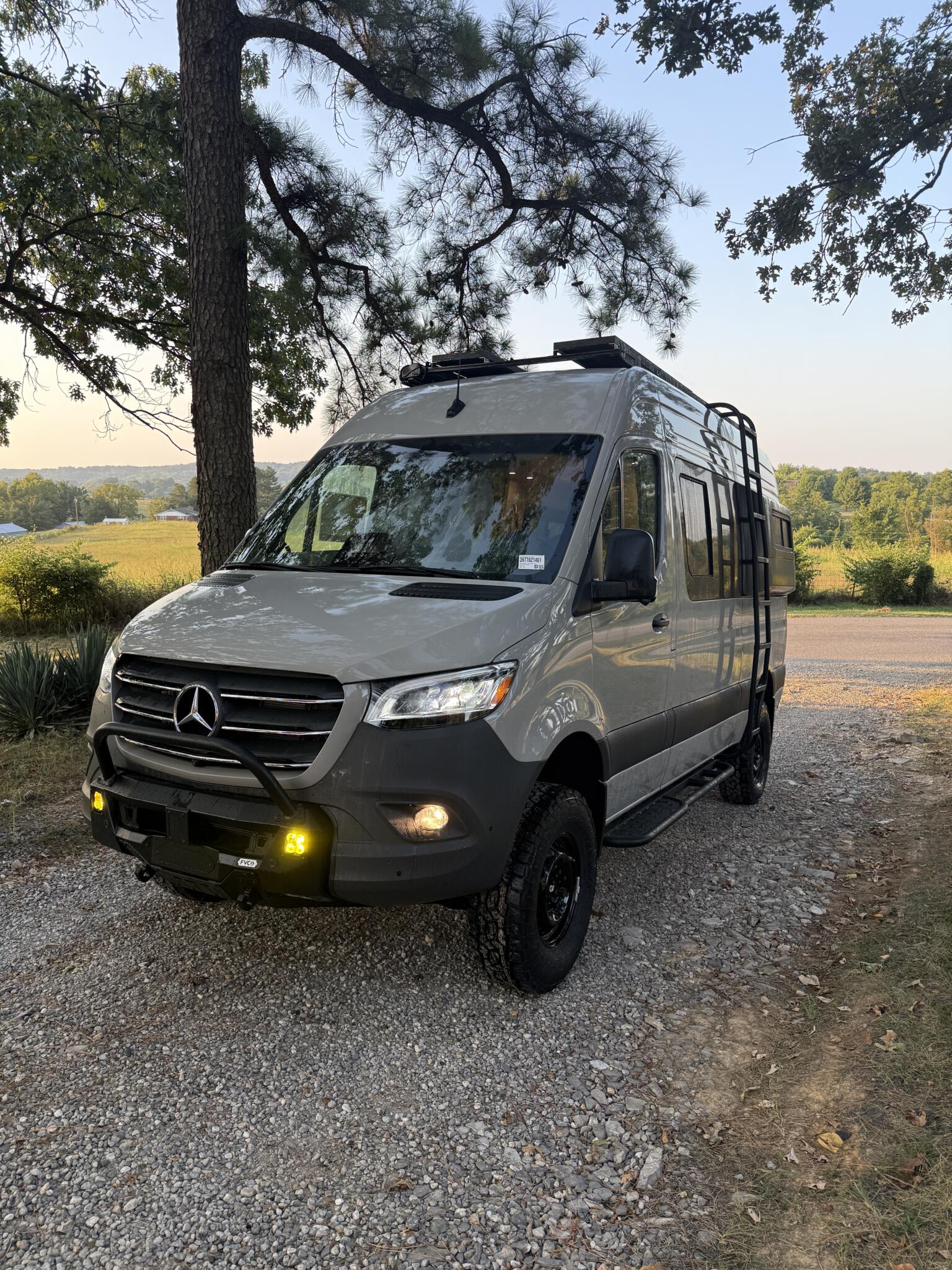

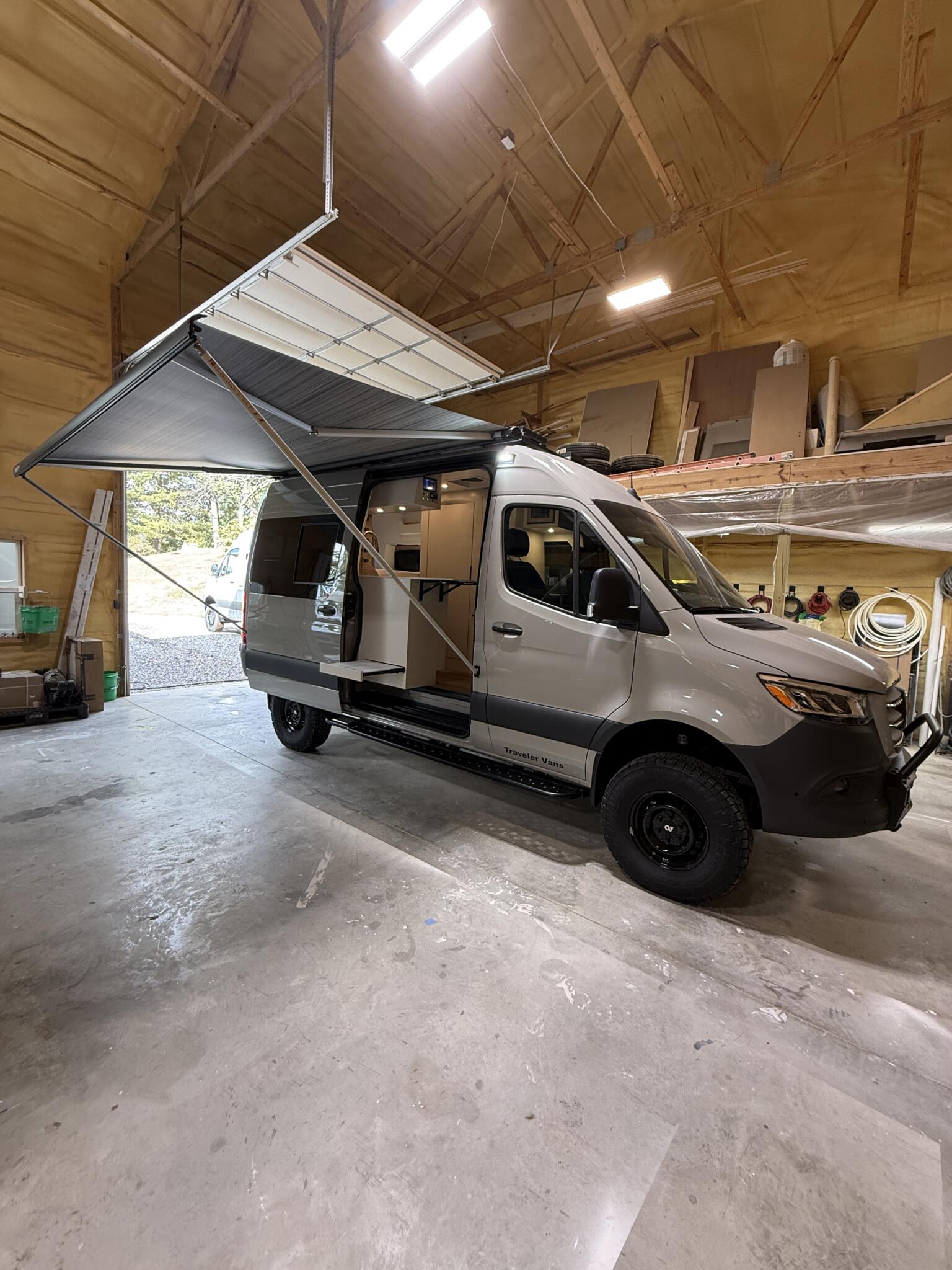

The exterior is outfitted for serious travel with Flarespace flares with windows, a sliding-door vented window, driver-side vented window with shade and screen, FVC low-profile roof rack, and a Fiamma F80S manual awning.

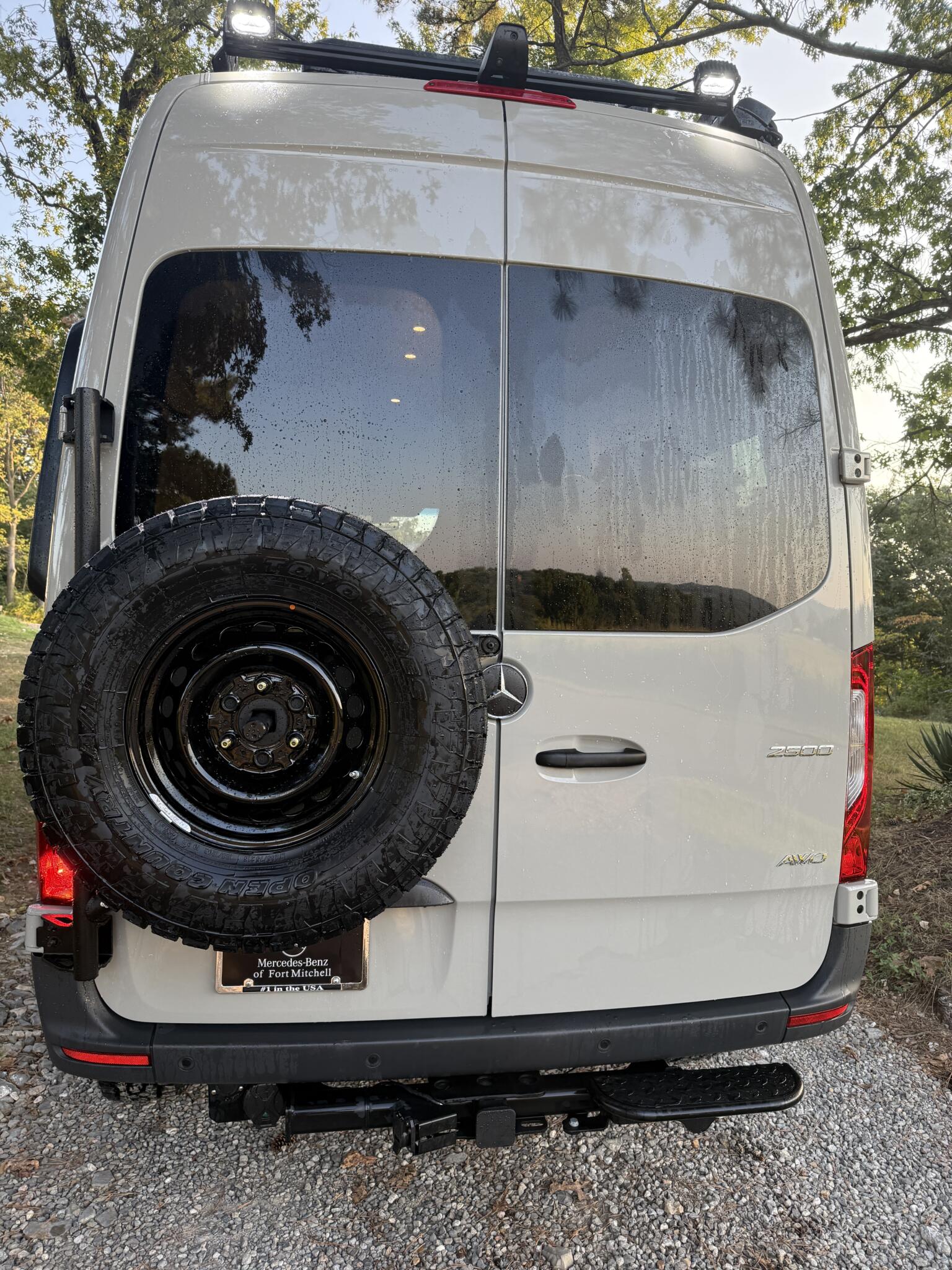

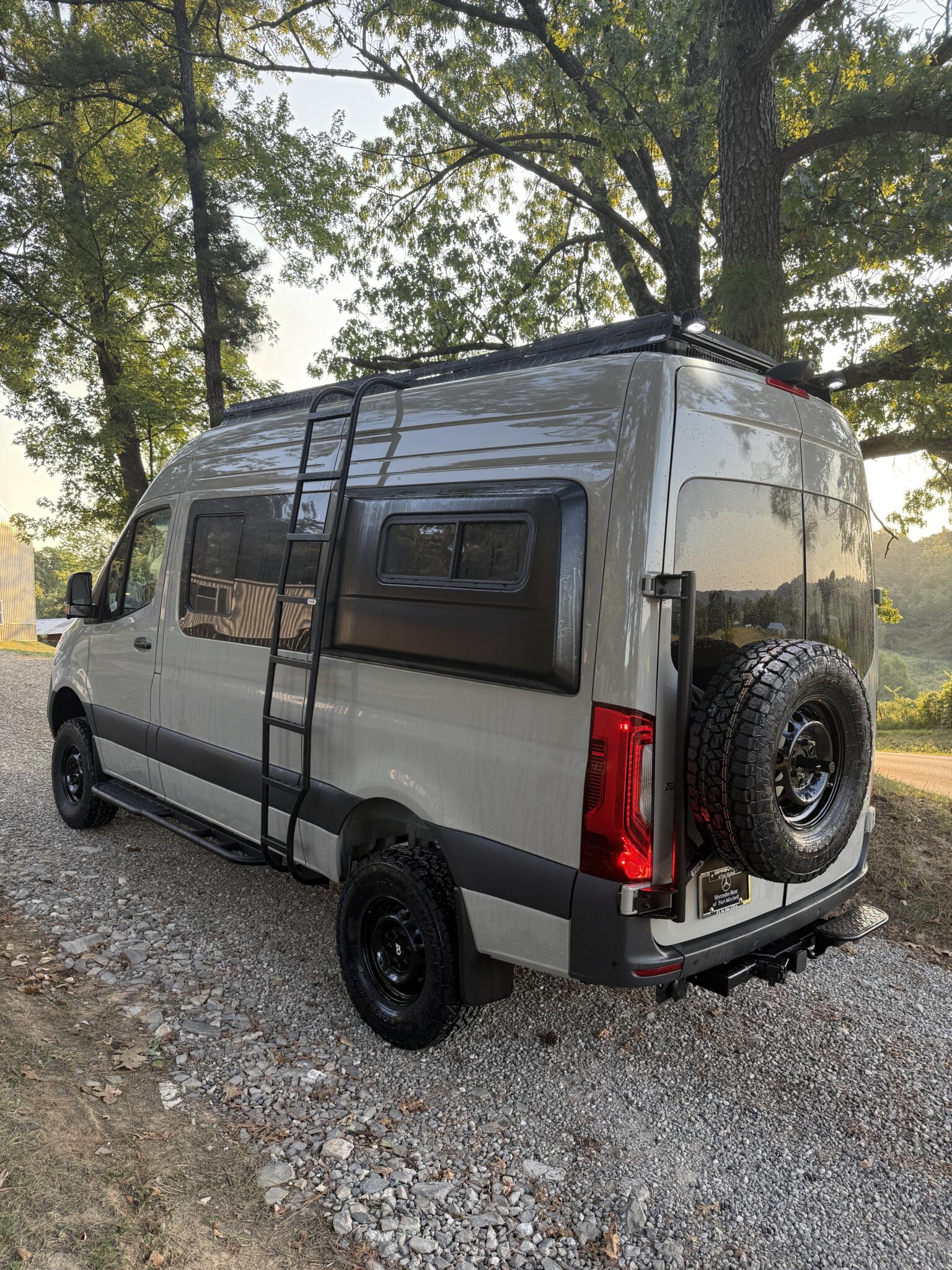

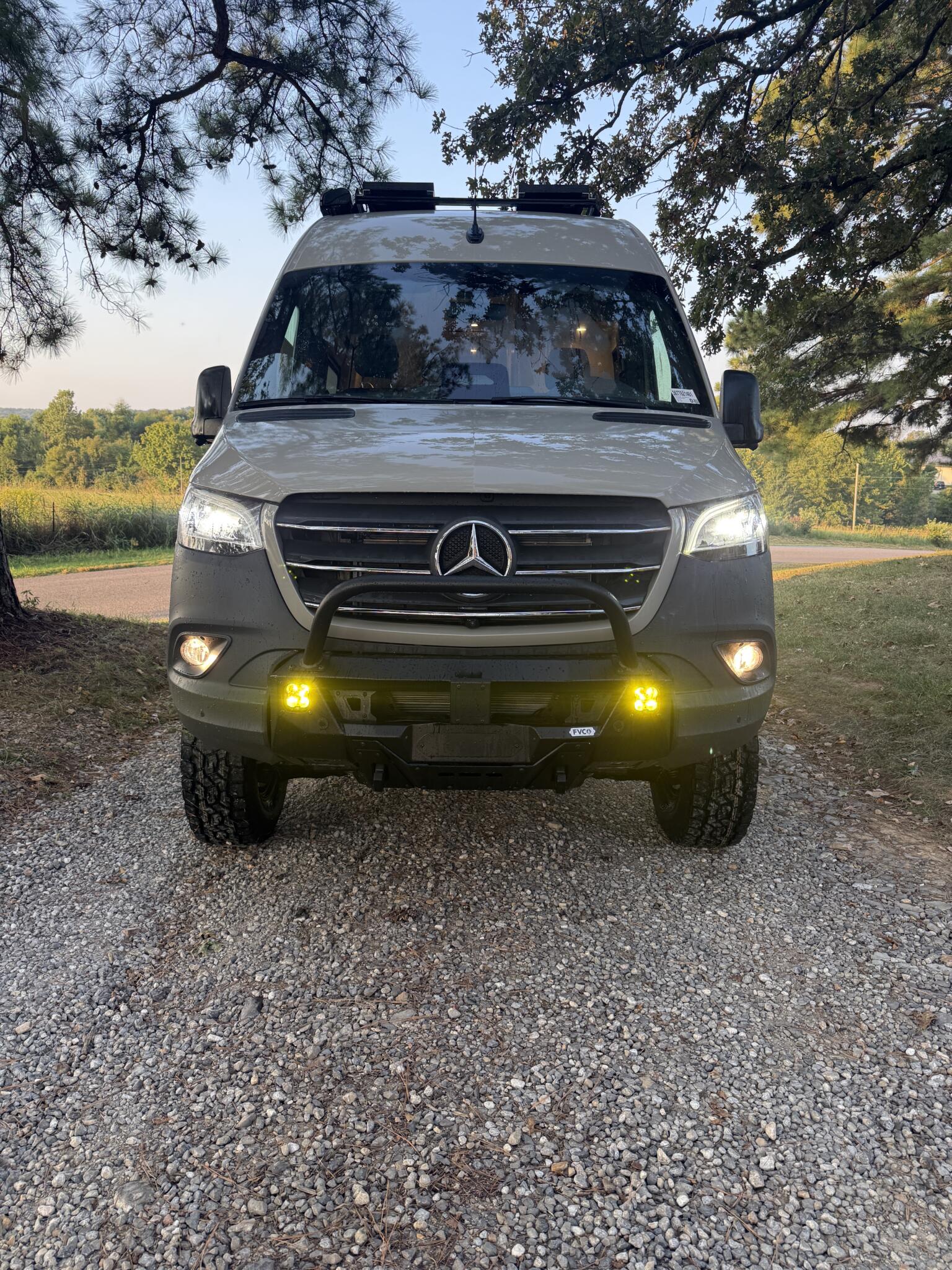

Additional upgrades include an FVC rear tire carrier, FVC running boards, FVC side ladder with wheel-wrap ladder, FVC Core front bumper, Agile Offroad Standard RIP Kit, over-cab shelf, fixed-glass rear-door windows, and water filtration.

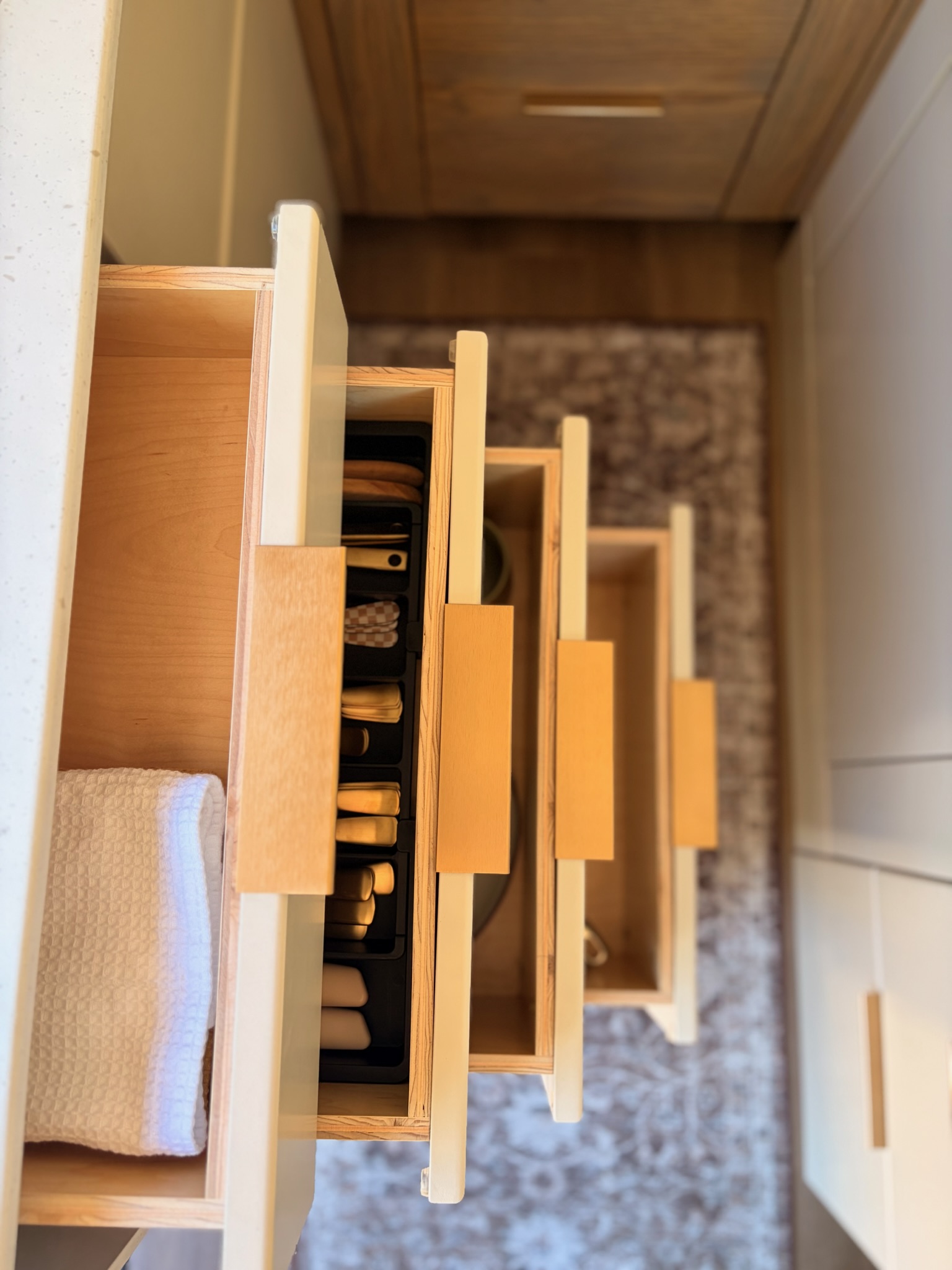

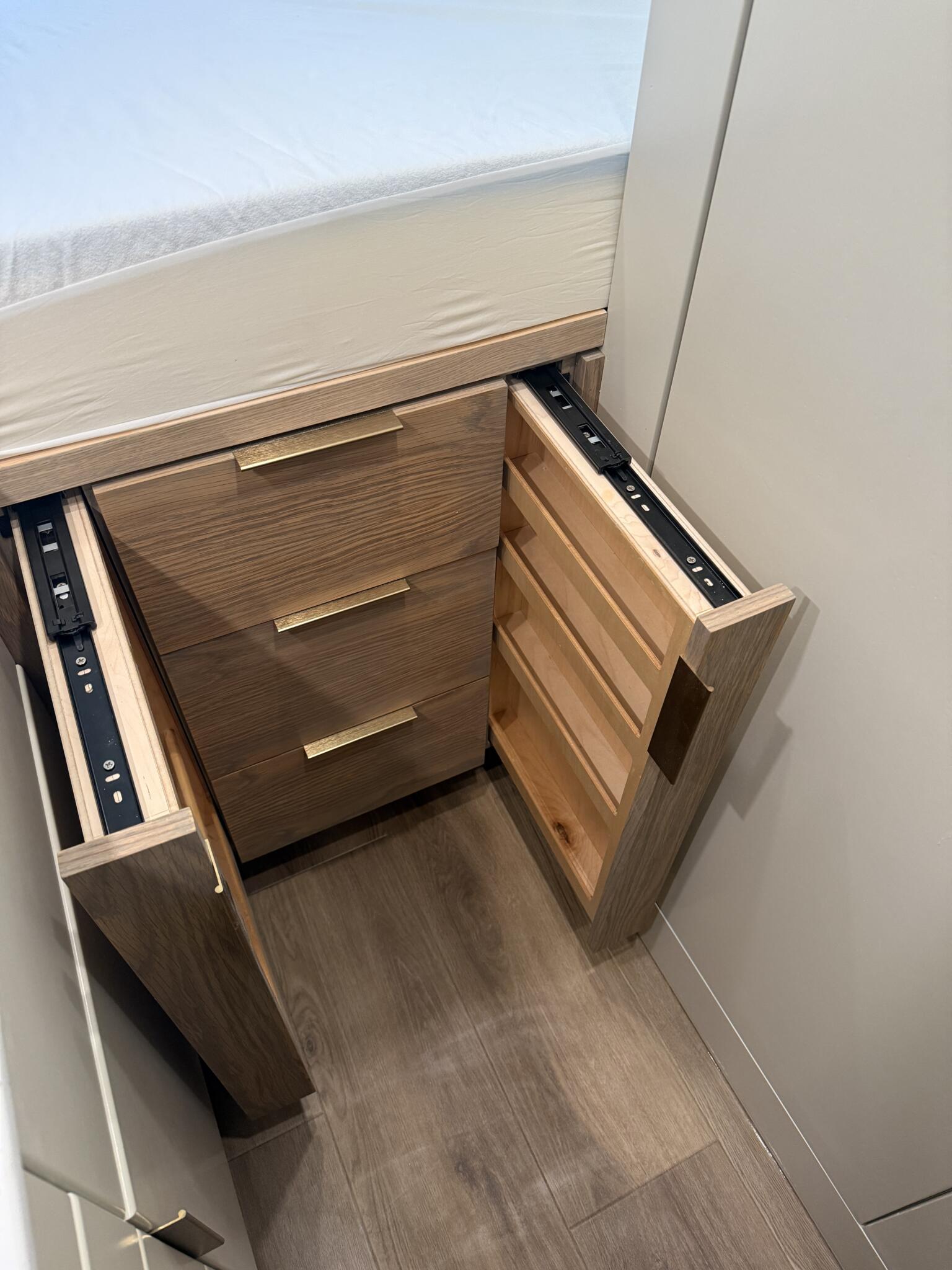

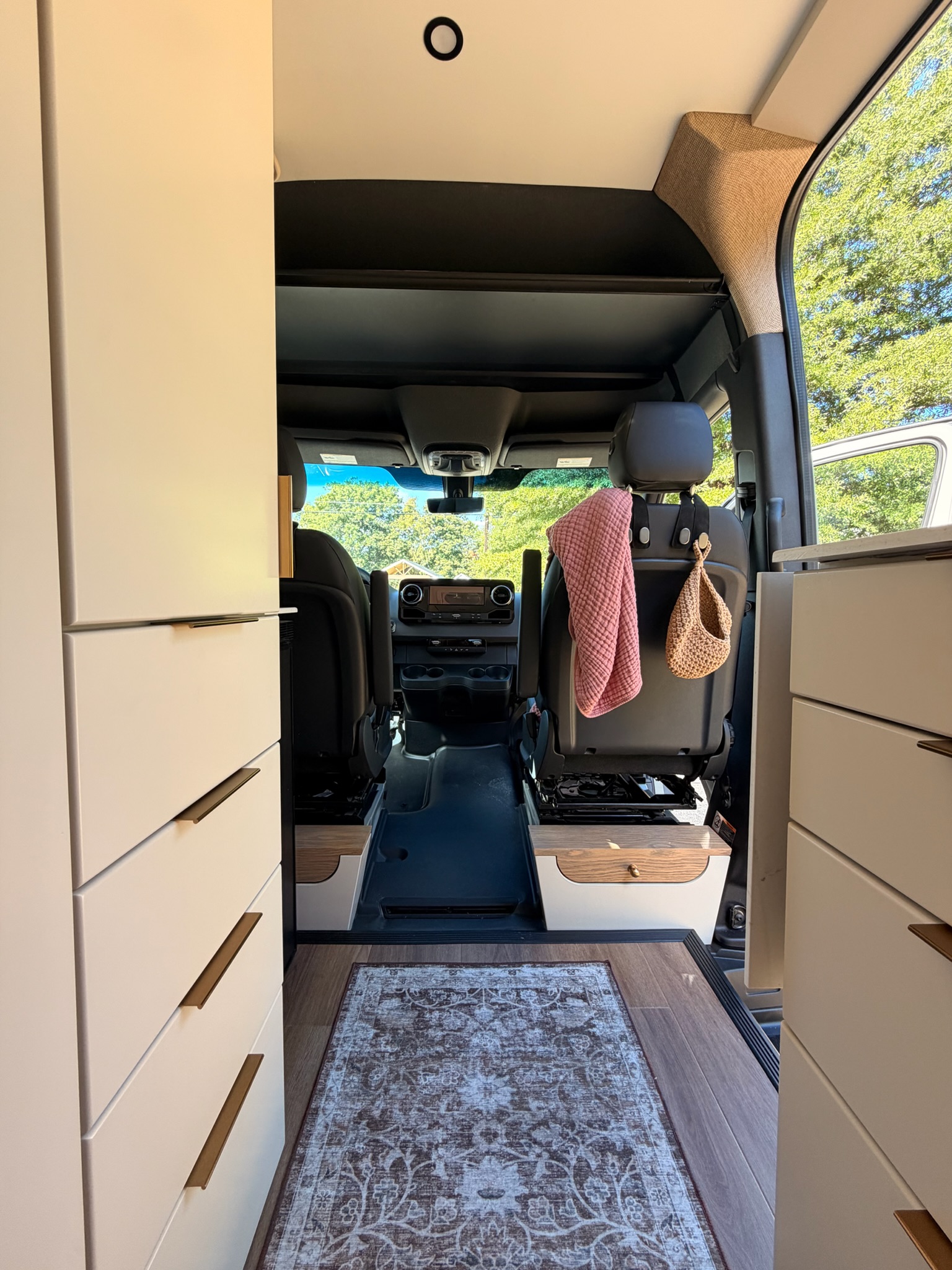

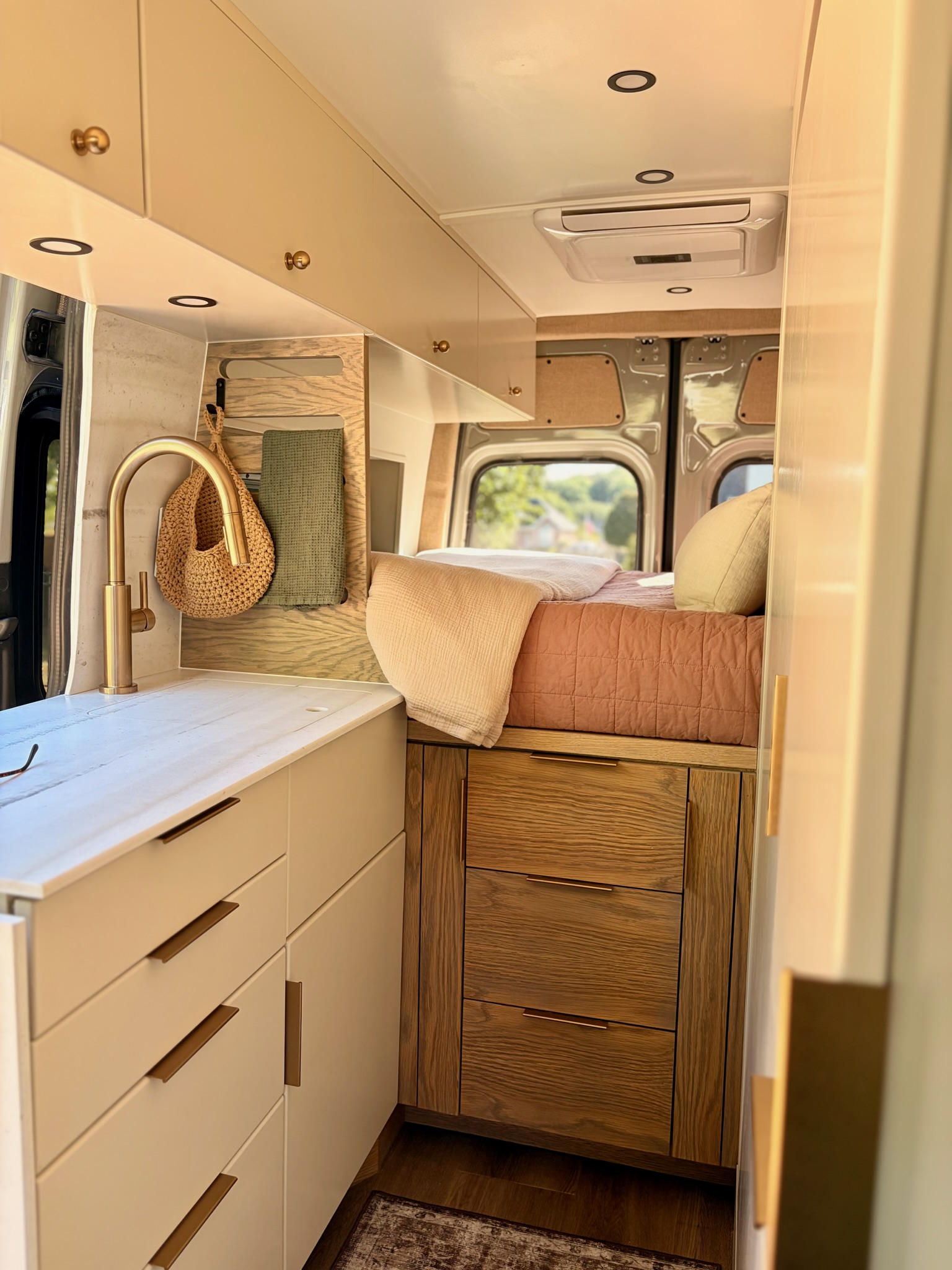

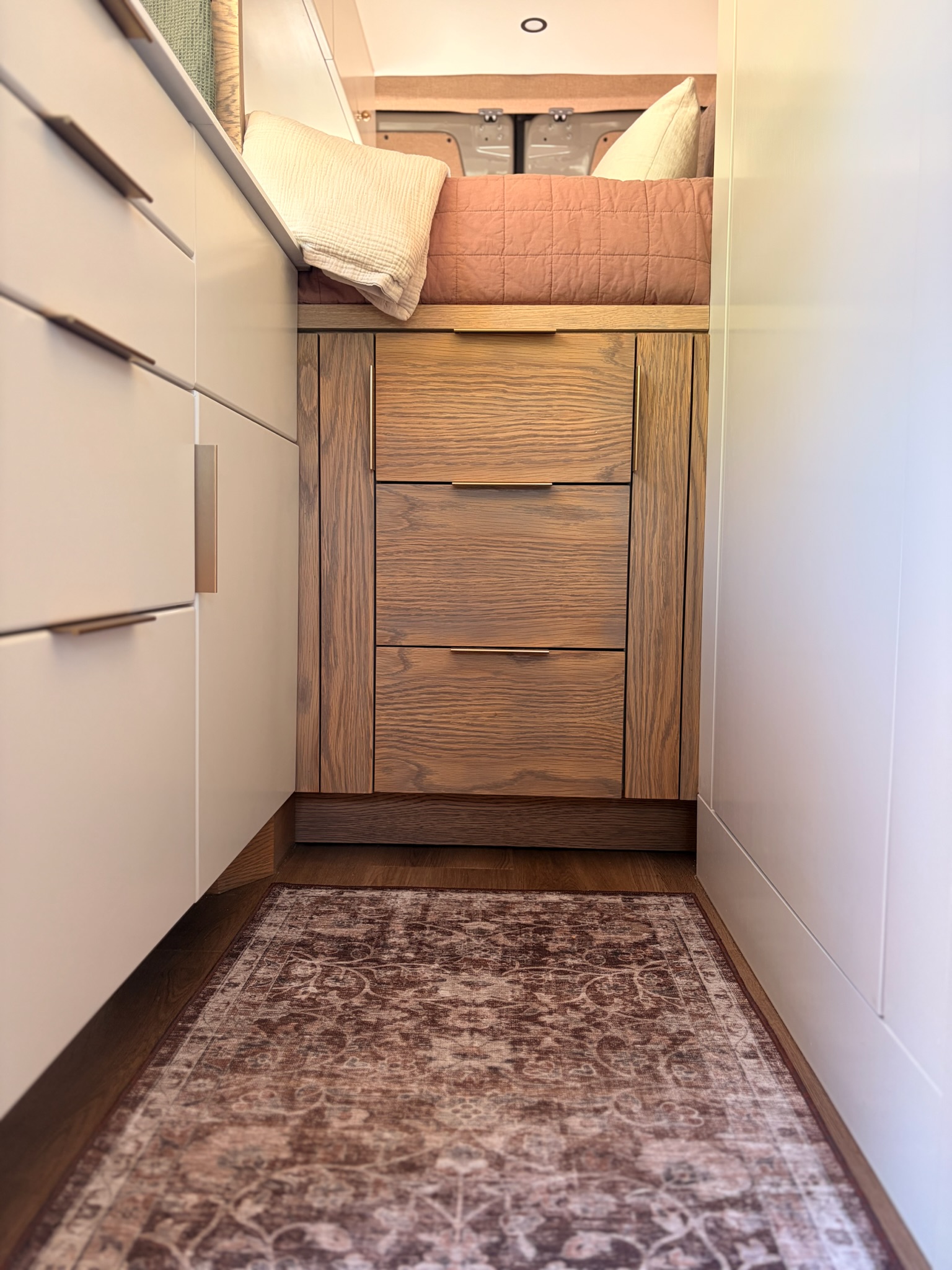

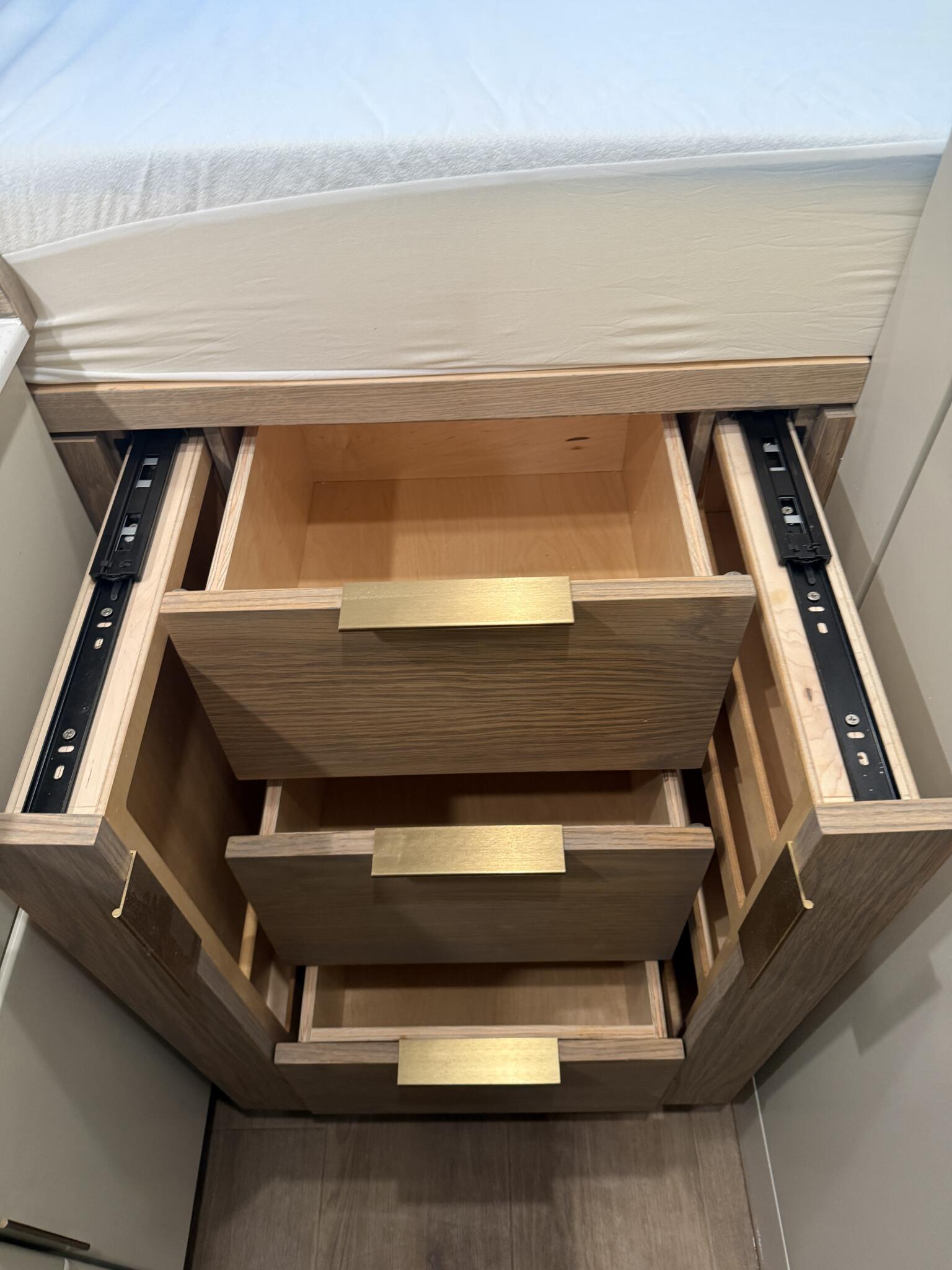

The interior is constructed around a bolted-in wood-framed structure with maple walls and UV-finished maple cabinetry featuring quality lifts and latches.

The layout includes:

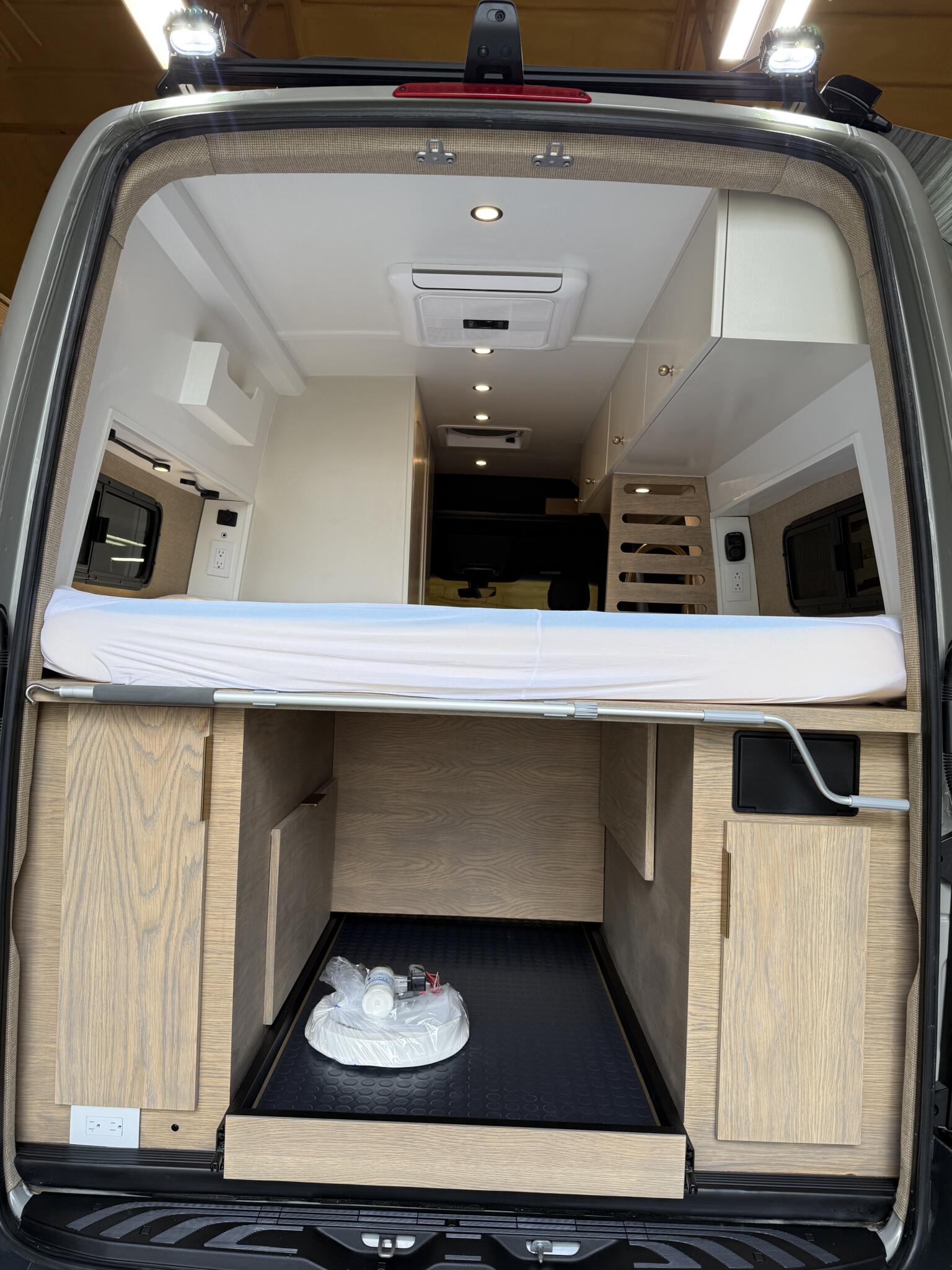

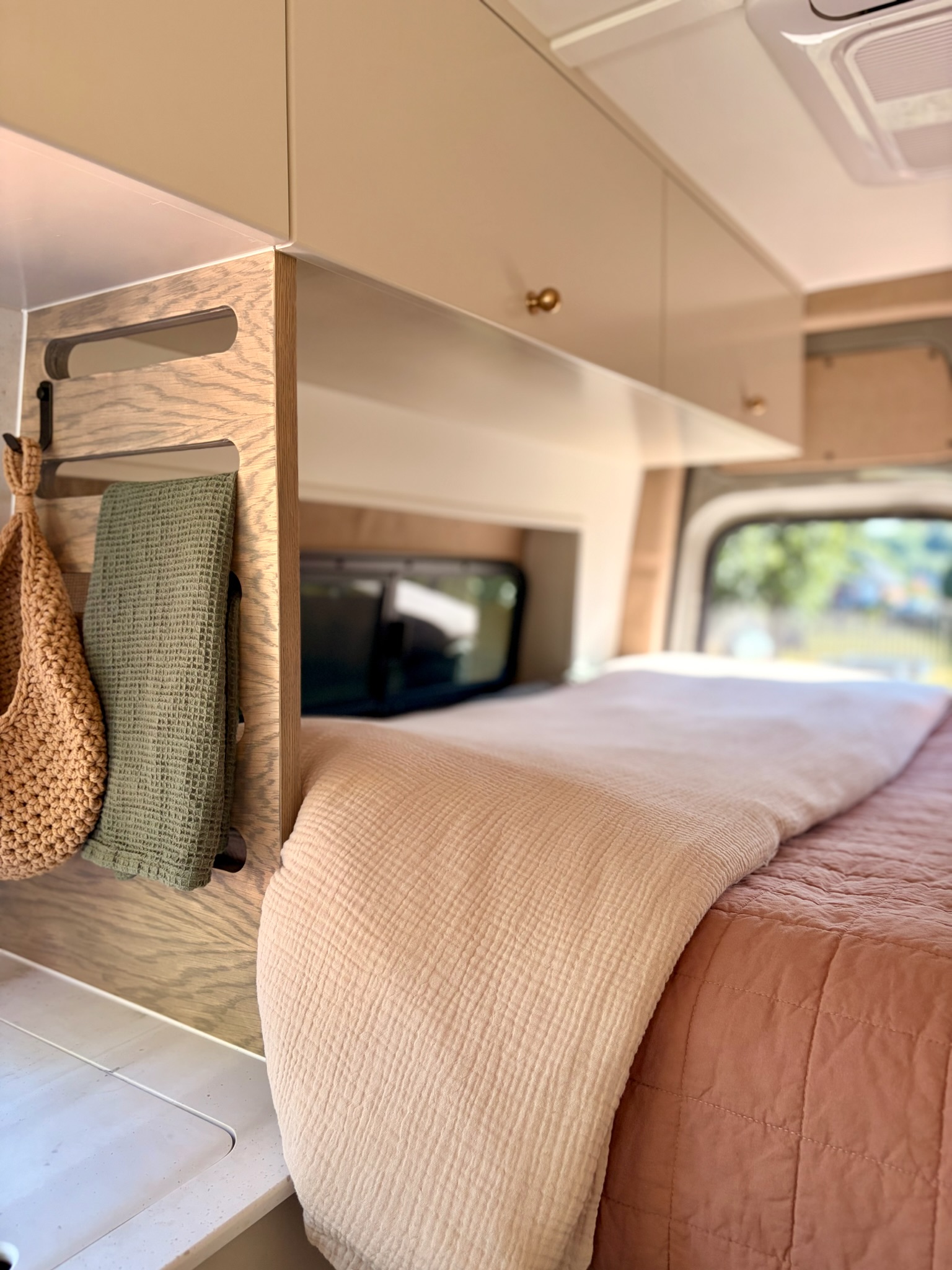

1. Queen-size bed with mattress

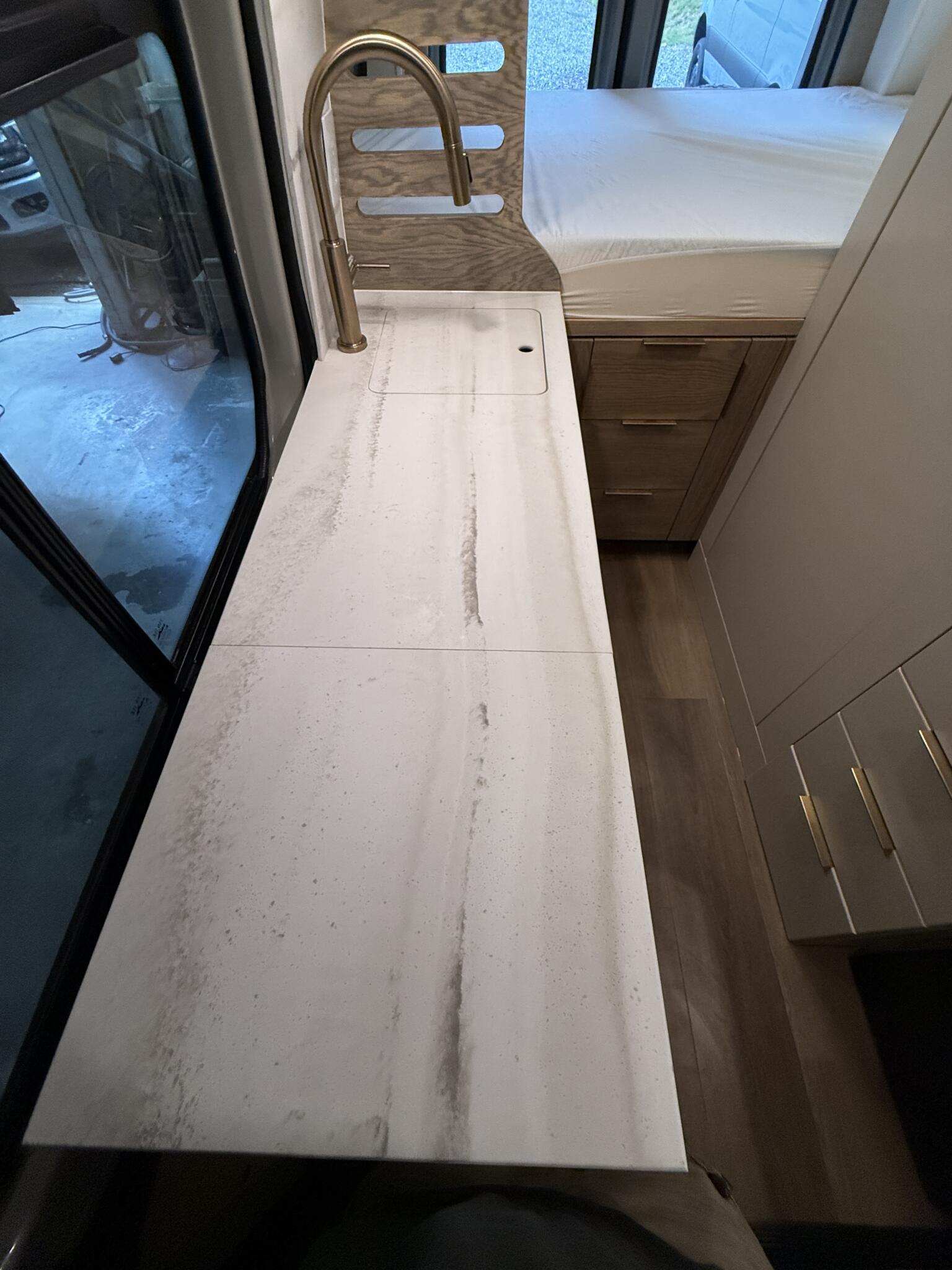

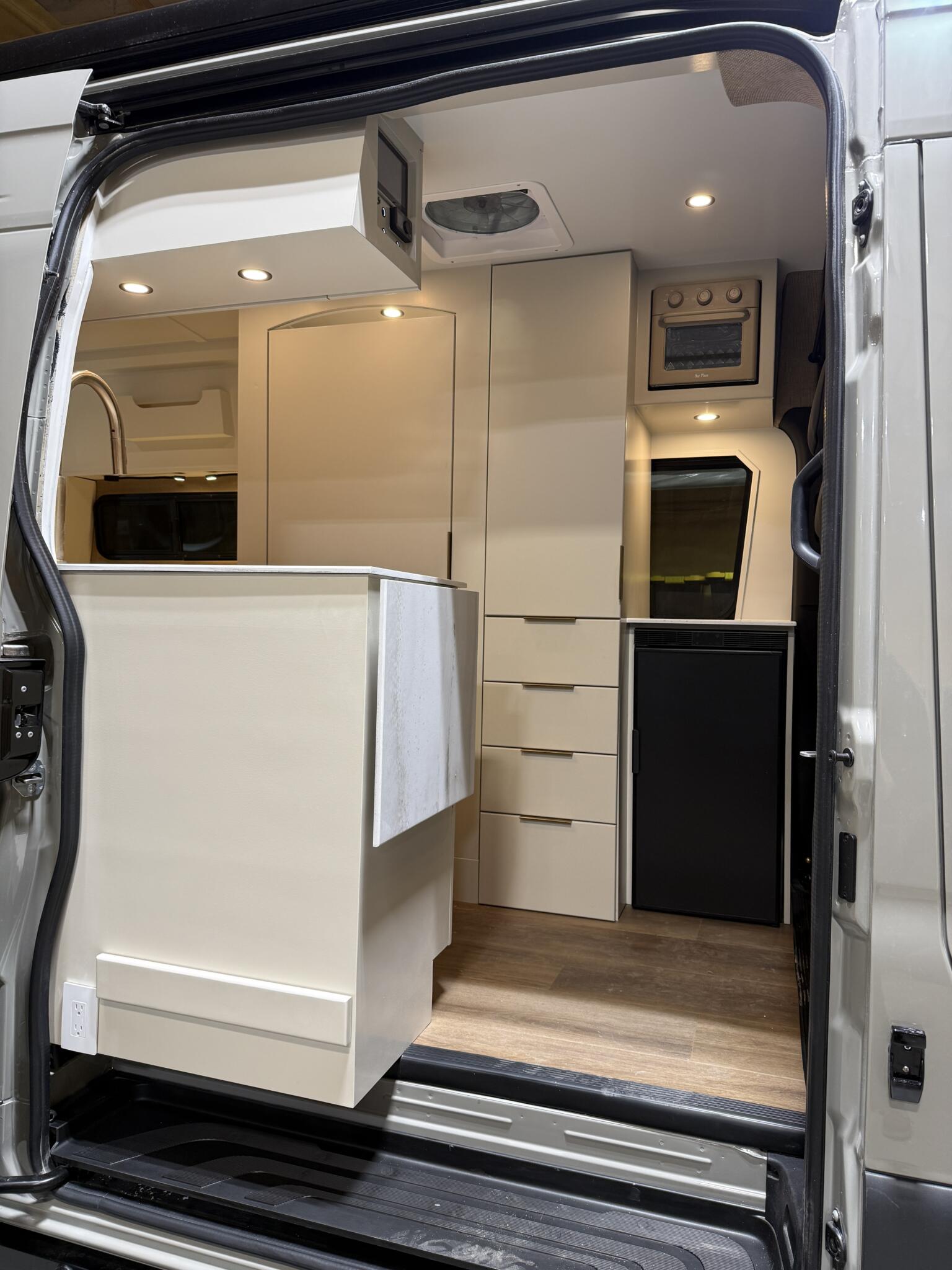

2. 42-inch galley
3. Pantry

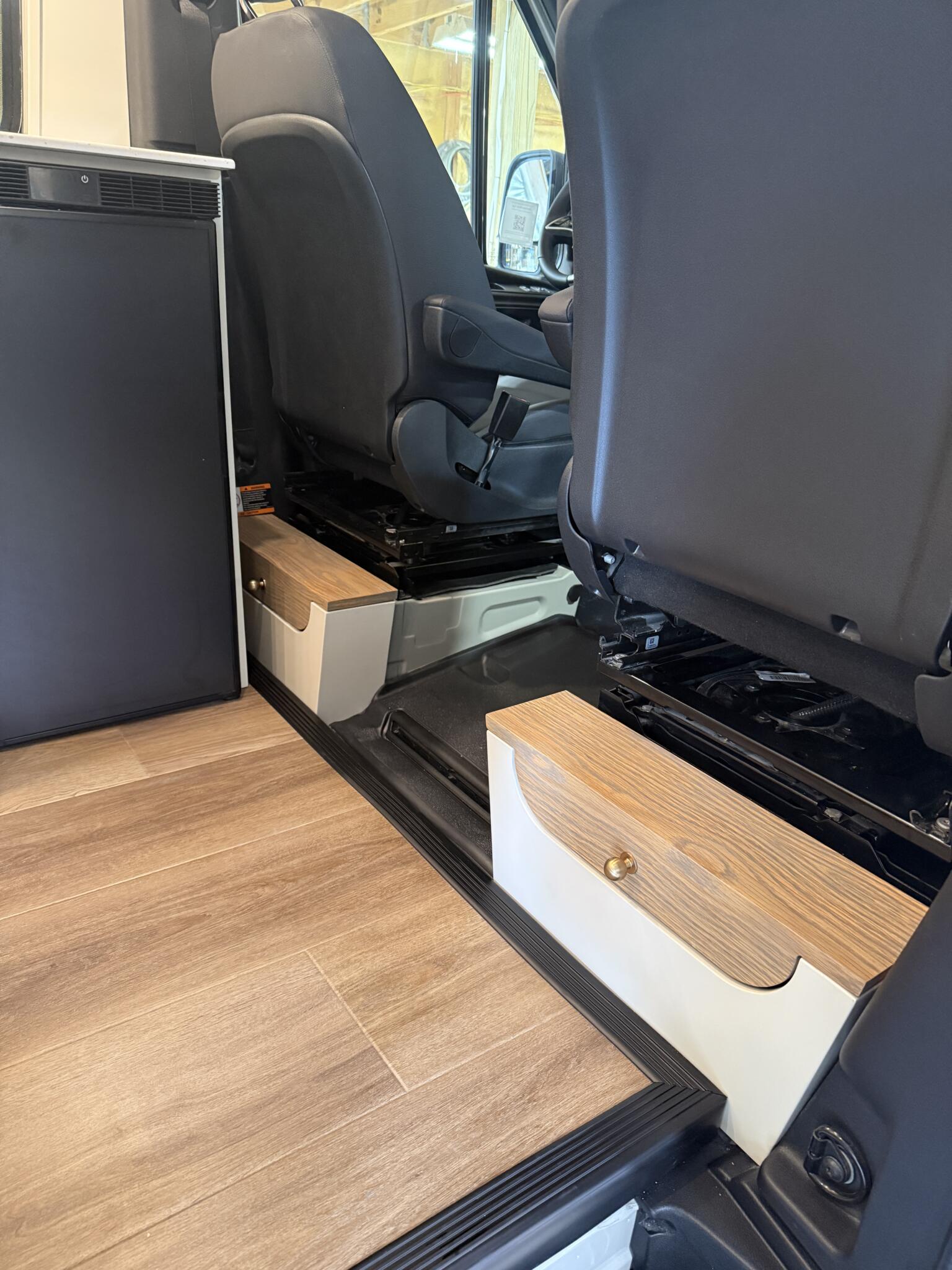

4. 32-inch bench seat with integrated storage

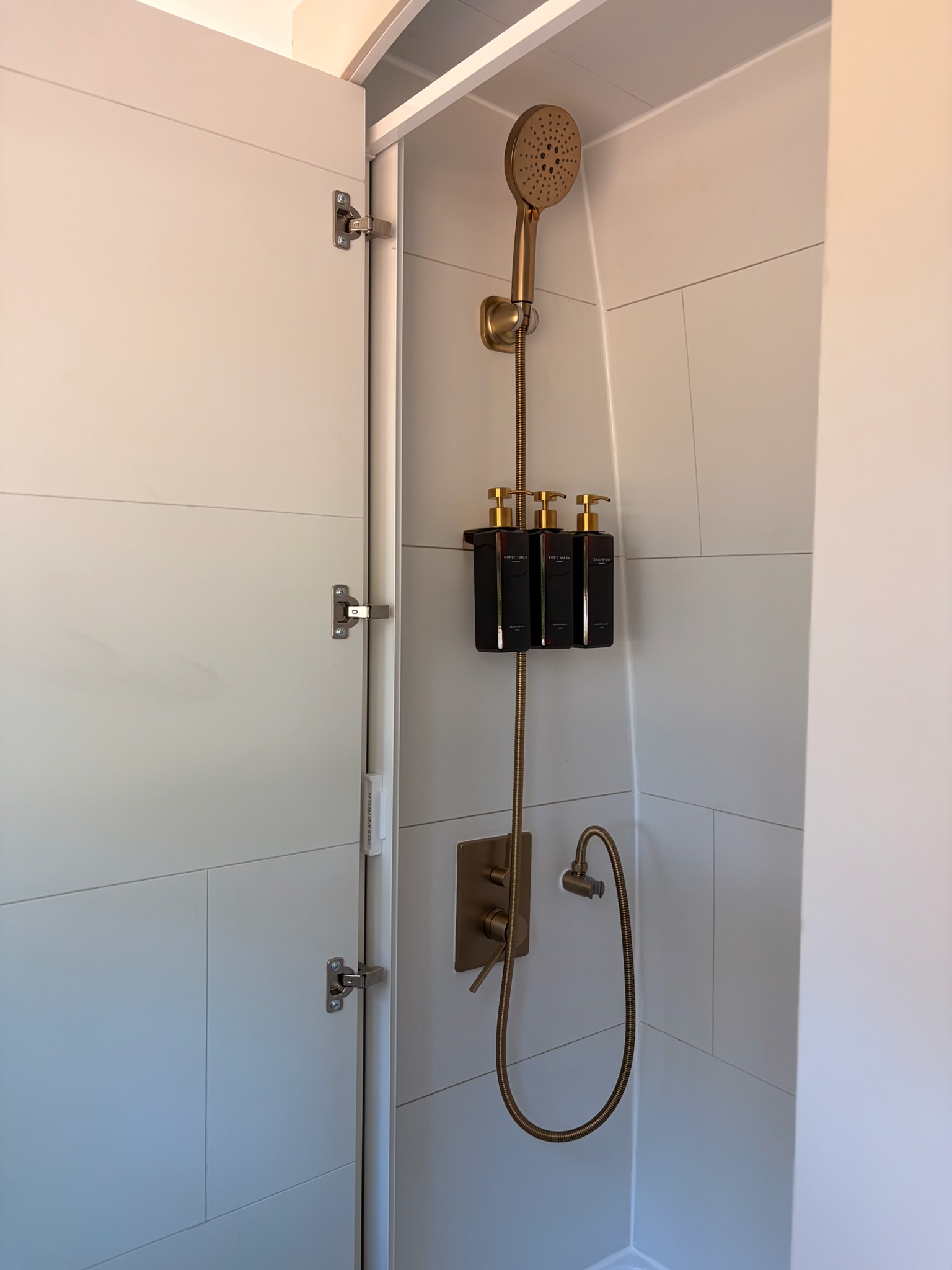

5. 24" × 32" shower
6. Upper cabinetry

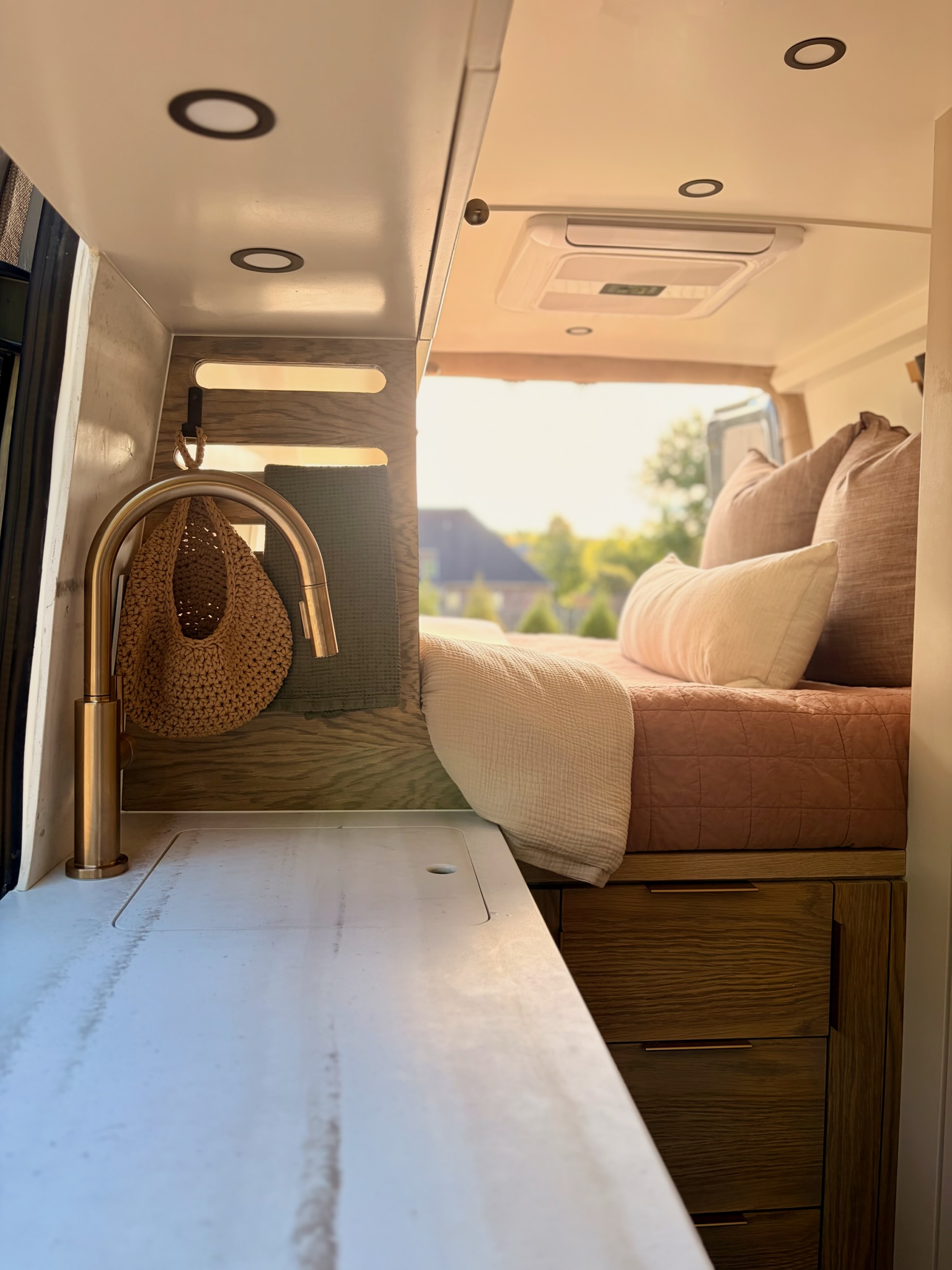

7. Hardwood countertops
8. Vinyl plank flooring
9. Lagun table

The combination of real wood finishes, thoughtfully designed storage, and a practical floor plan gives the van a clean residential feel while maximizing usable space.

This isn't a basic weekend conversion. It's a thoughtfully equipped camper designed around off-grid capability, four-season comfort, storage, and long-term usability.

With nearly 12 kWh of lithium power, hydronic radiant-floor heating, air conditioning, hot water, a full shower, large fresh-water capacity, premium Victron electrical equipment, and extensive exterior upgrades, this van is ready for everything from weekend trips to extended off-grid travel.
