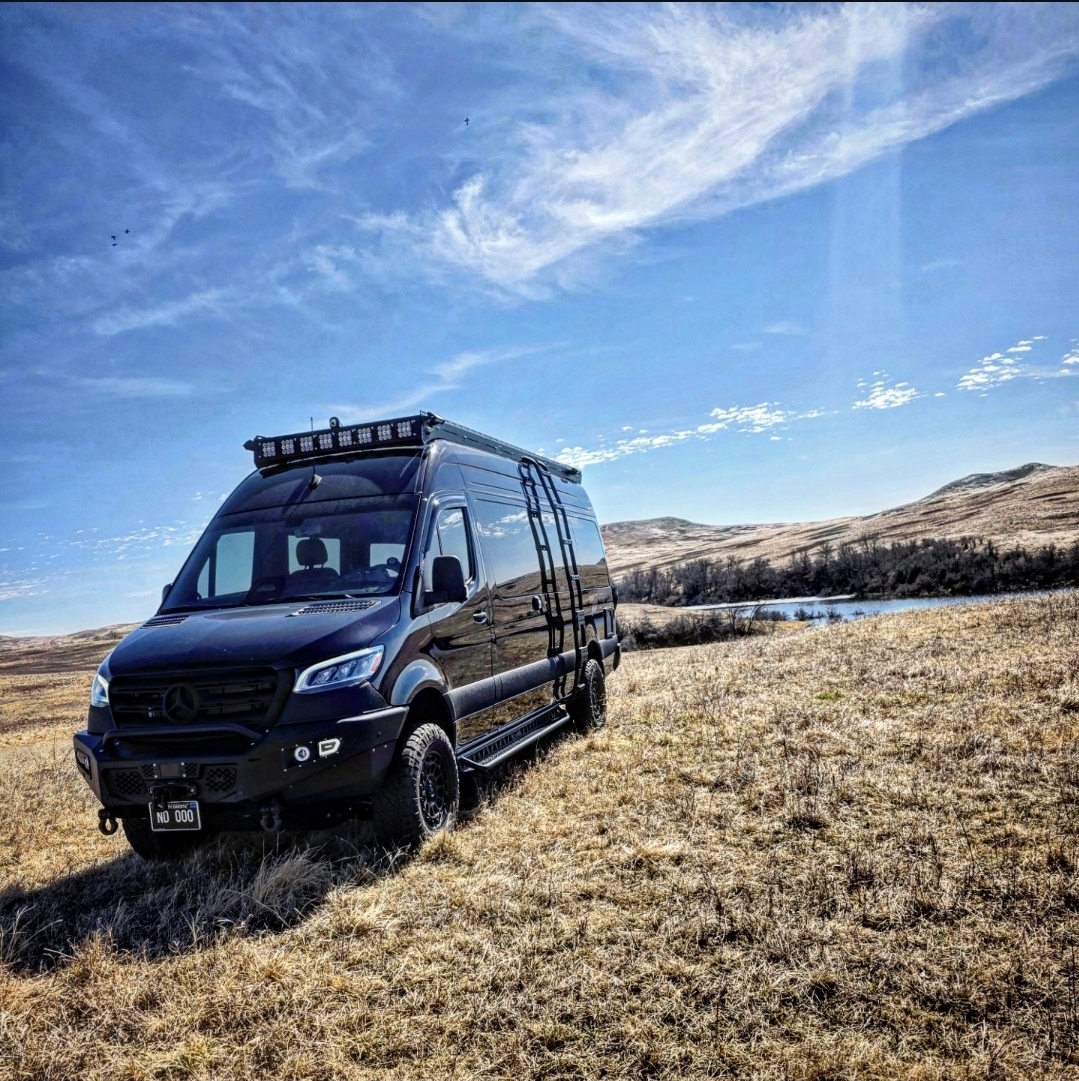

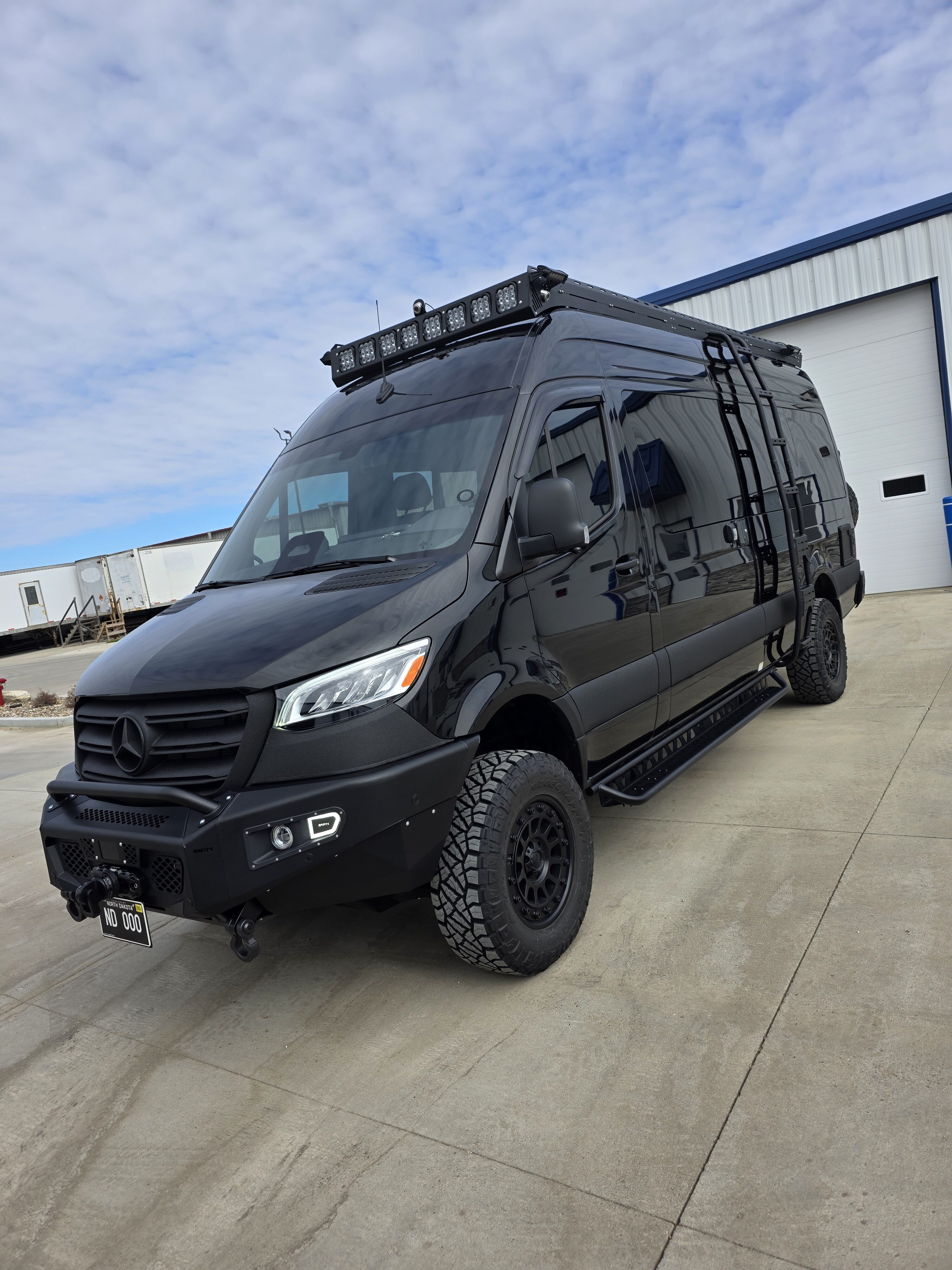

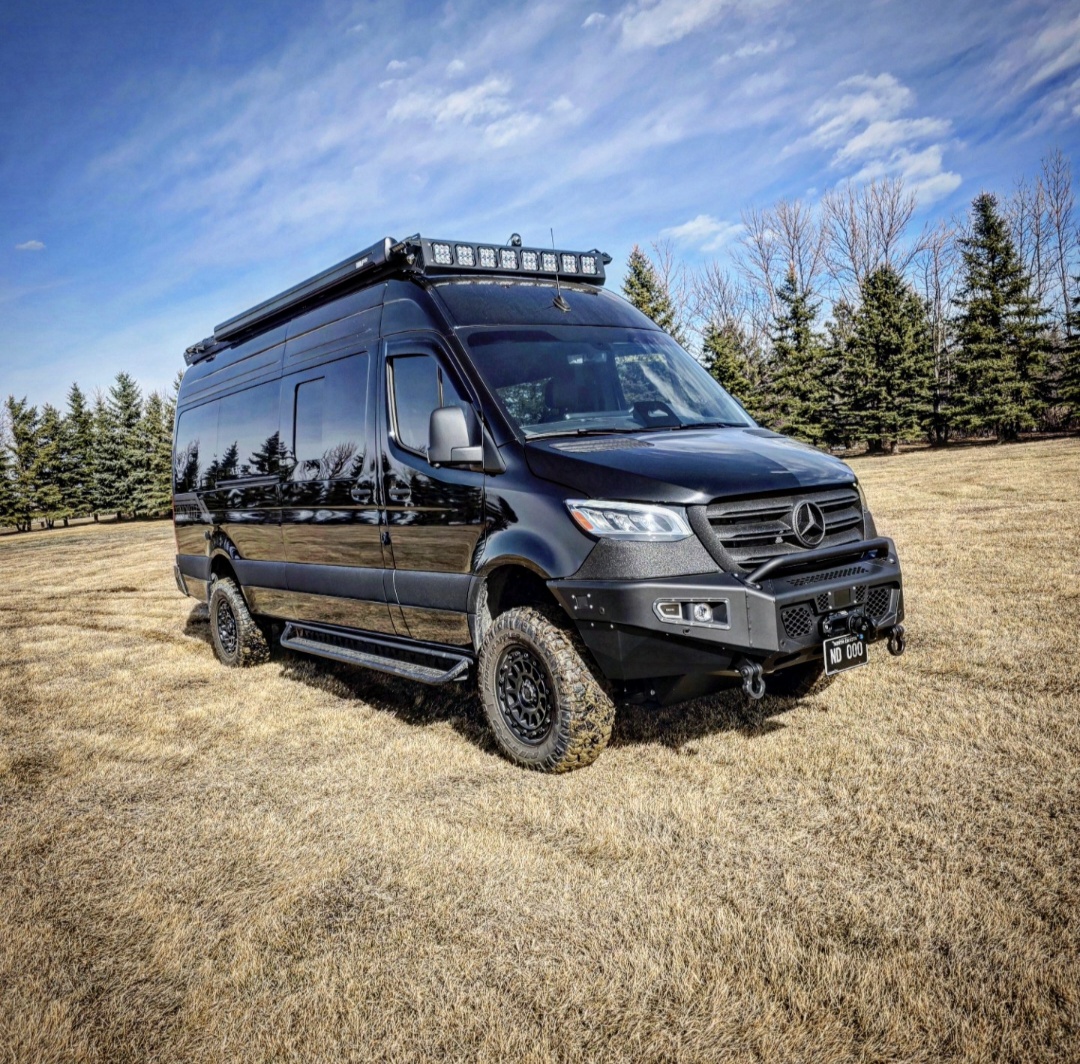

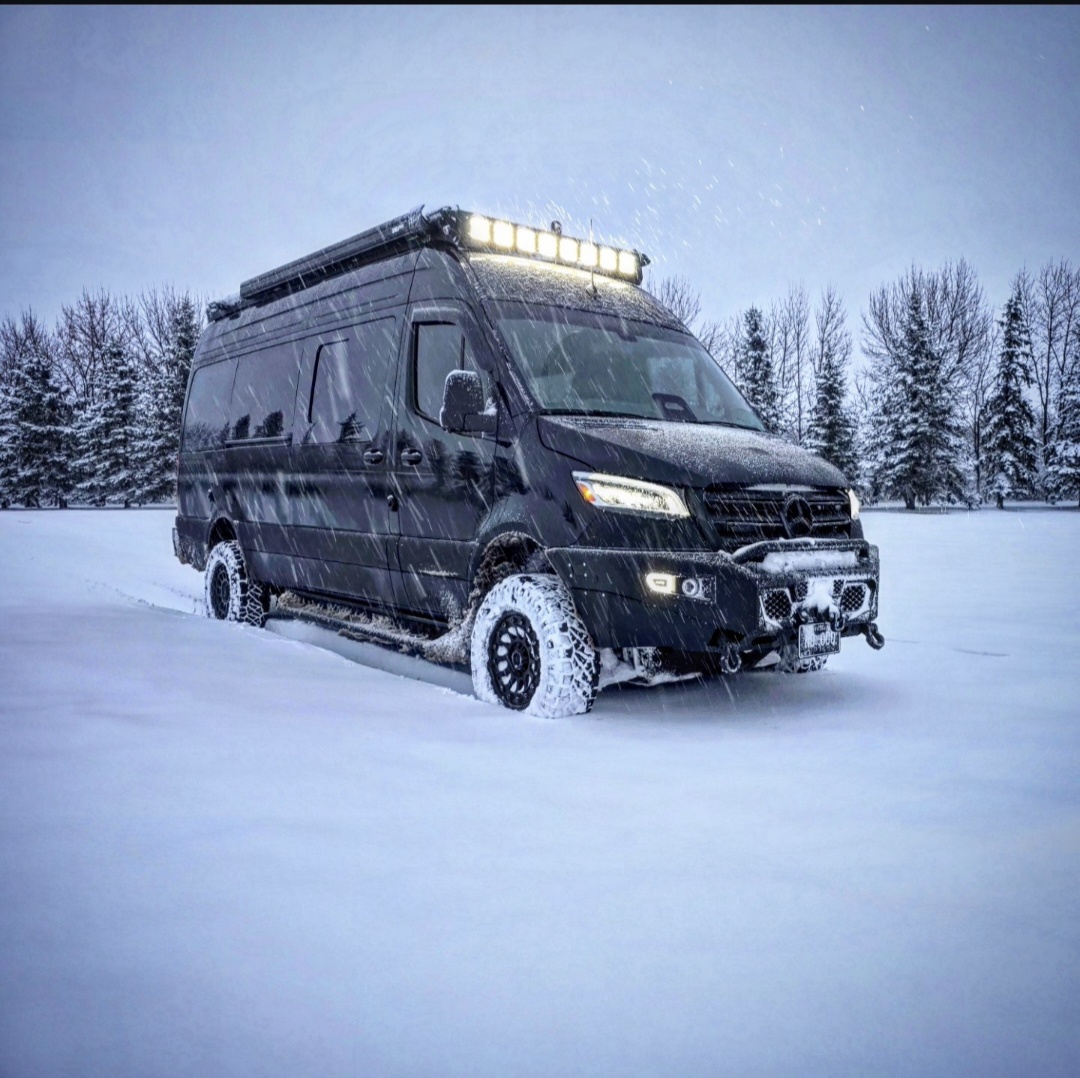

2025 27NORTH VT Badlands Edition Adventure Van
MSRP: $345,500
CHASSIS
2025 Mercedes-Benz Sprinter 2500 AWD
170″ Wheelbase High Roof
4-Cylinder High Output Diesel
Automatic Transmission
Mercedes-Benz Warranty:
3 Years / 36,000 Miles Limited Warranty
5 Years / 60,000 Miles Powertrain Warranty

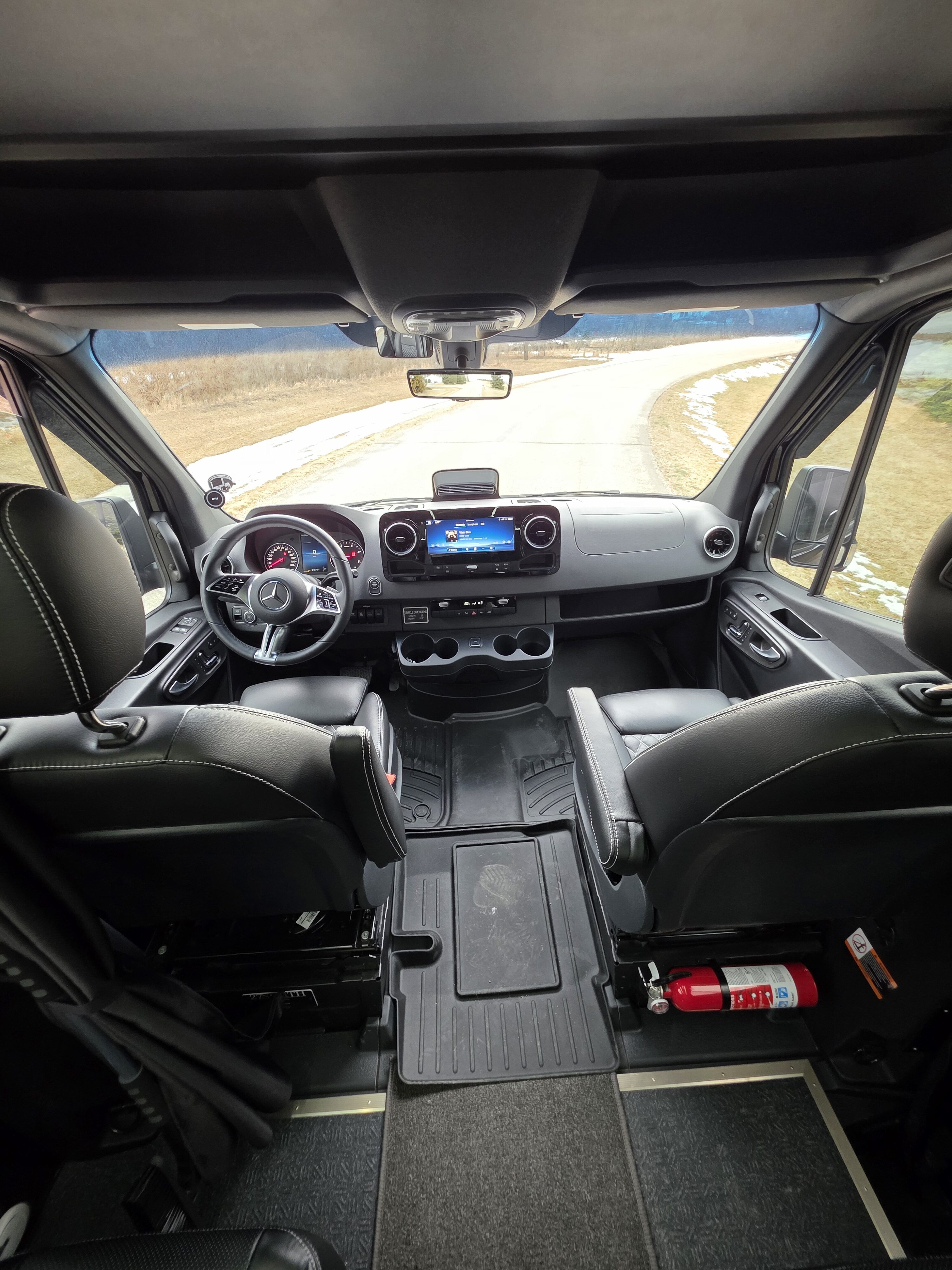

ULTIMATE CAB FEATURES
MBUX Multimedia System
Touchscreen Display
Intelligent Navigation
Swivel Driver & Passenger Seats
High Beam Assist
Wet Wiper System
Acoustic Package
Active Brake Assist
Crosswind Assist
Hill Start Assist
360° Camera System
Premium Leather Interior

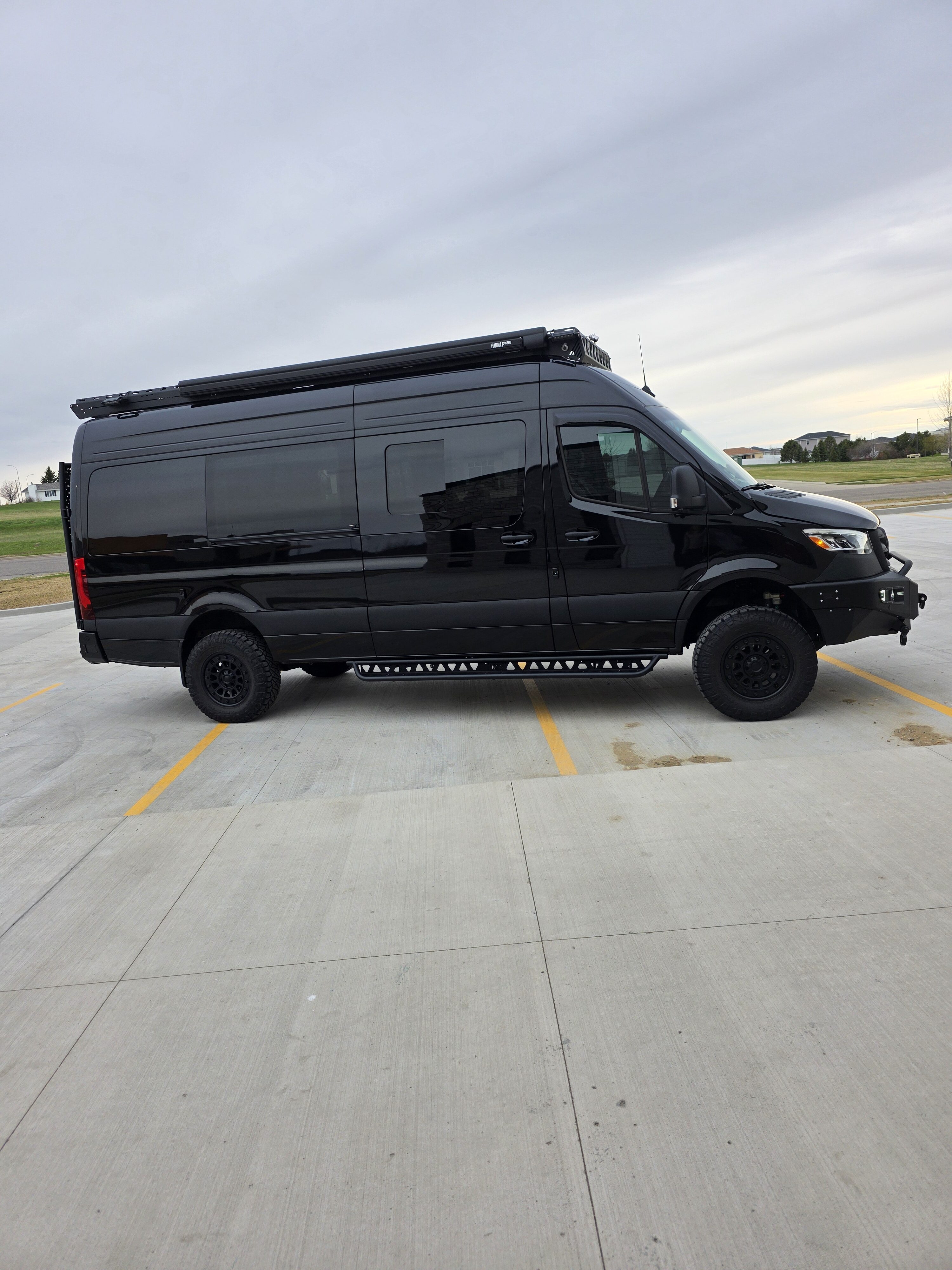

EXTERIOR
Suspension & Wheels

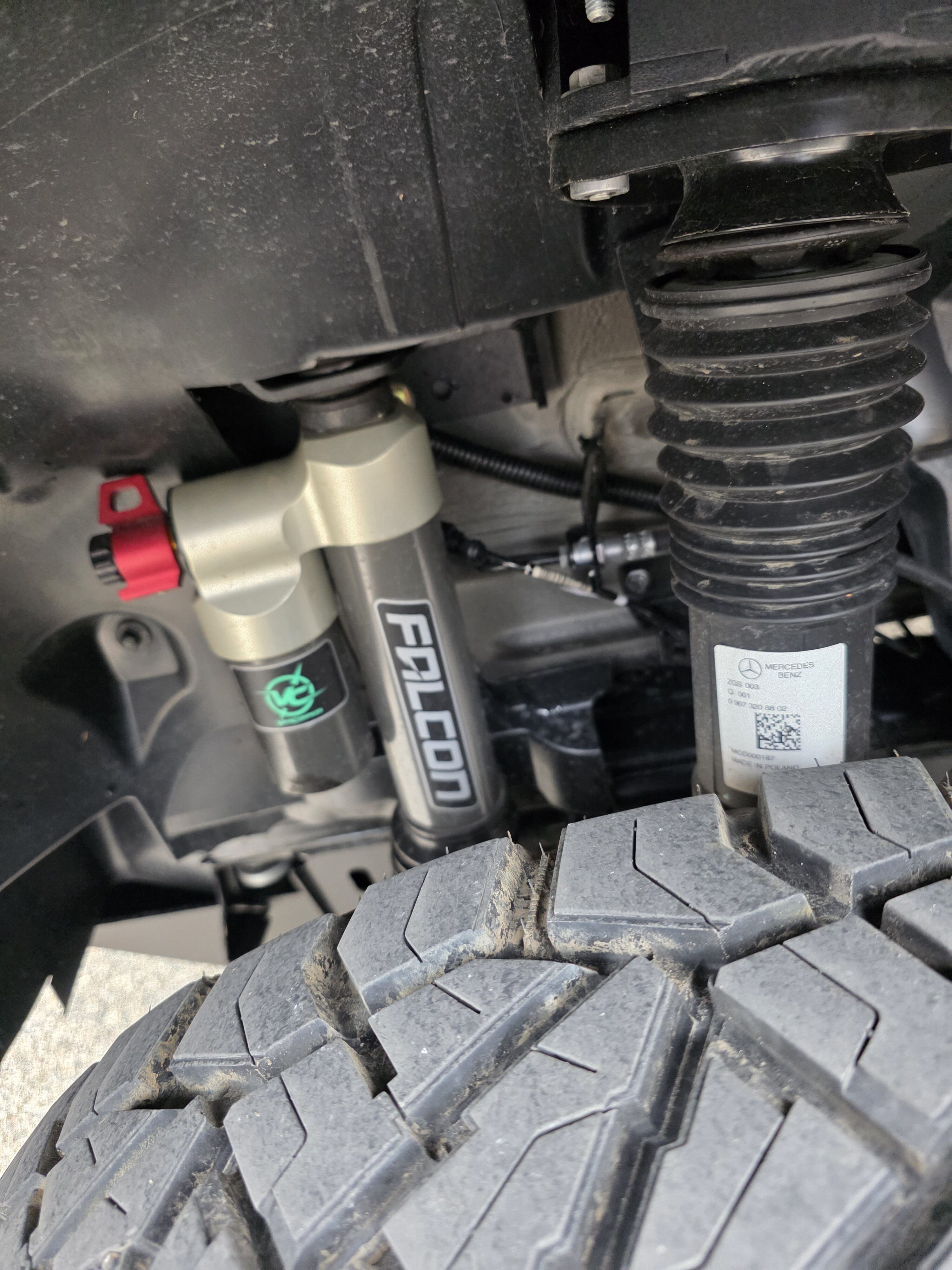

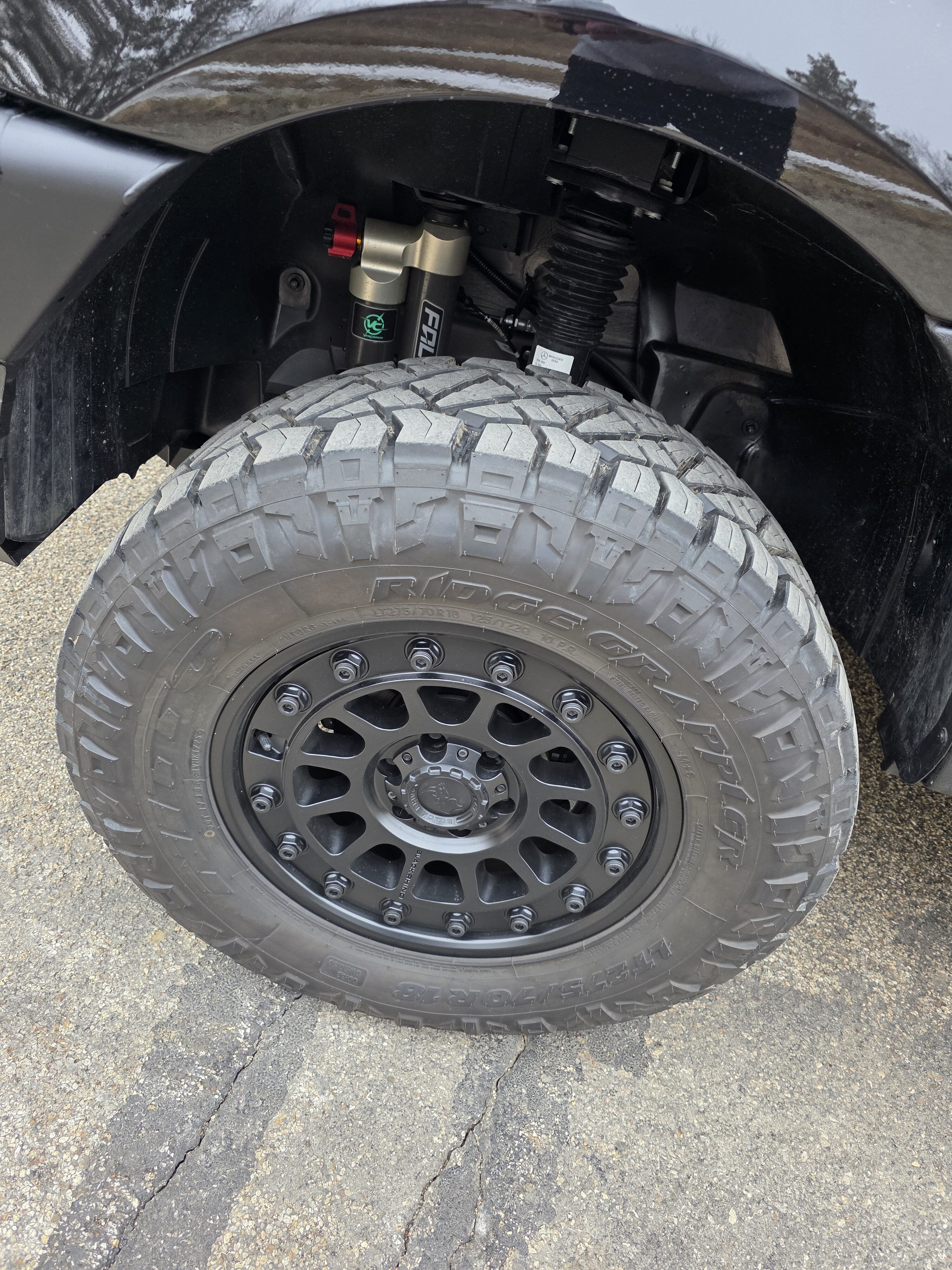

Van Compass Stage 6.3 Suspension System with 2″ Lift
Black Rhino Outback BR012 Matte Black Wheels - 18×8 - 32mm Offset 6×130 Bolt Pattern
Nitto Ridge Grappler Tires LT275/70R18 - Load Range E - Approx. 33.2″ x 11″
Armor & Recovery

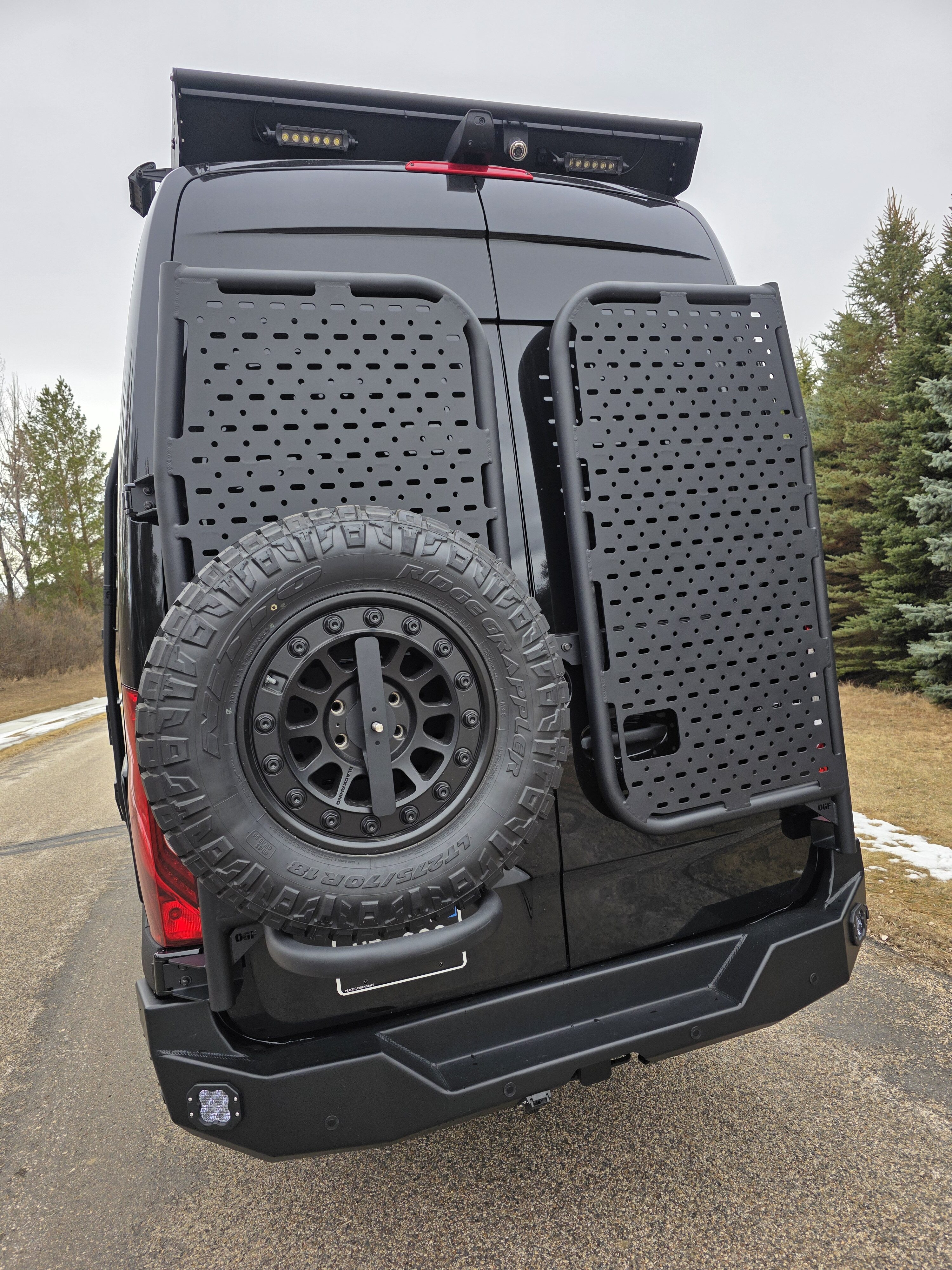

ROAMBUILT Rear Bumper with Diode Dynamics 3″ Pod Lights

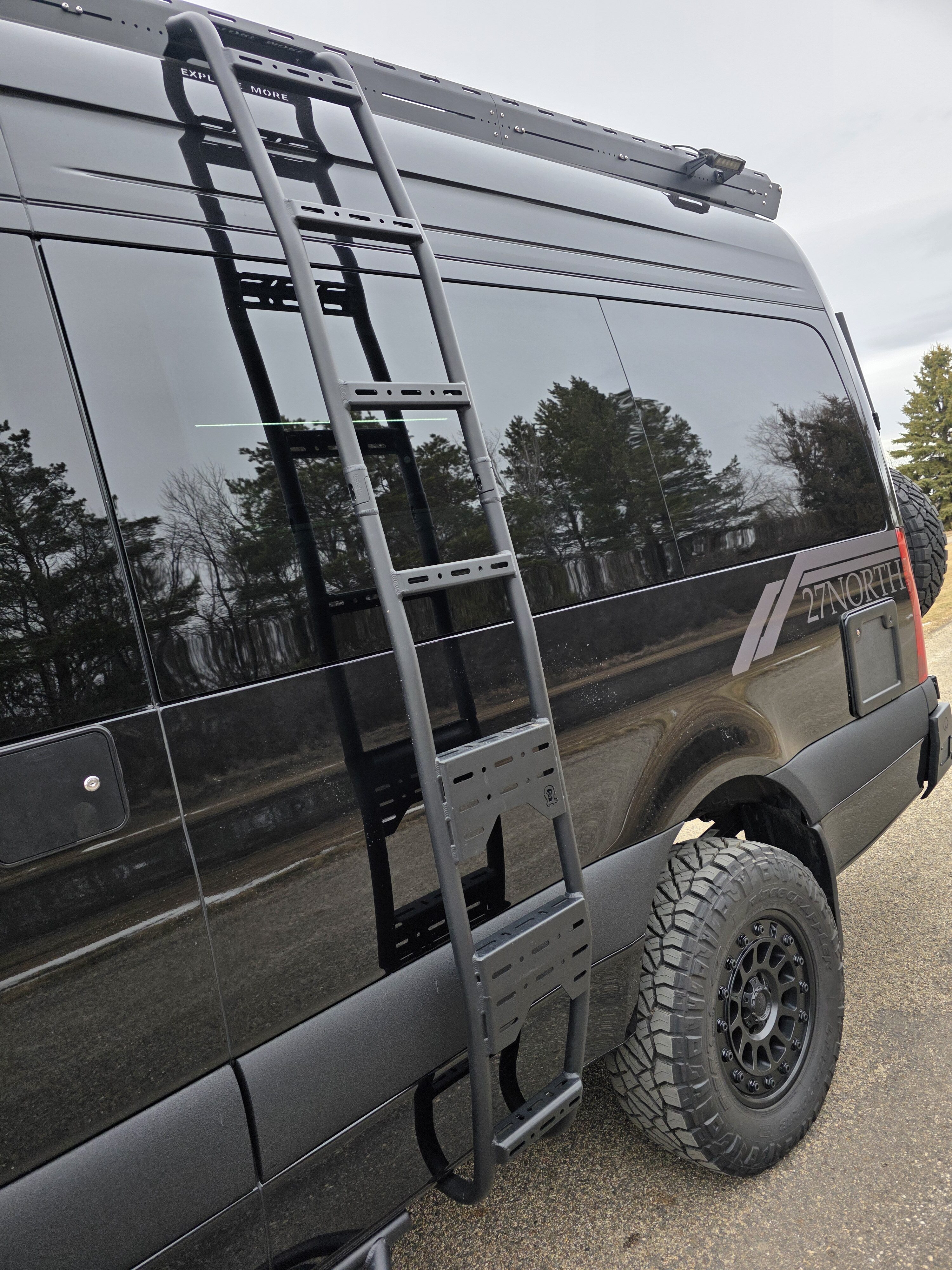

OWL Vans Sprinter Ladder & Tire Carrier

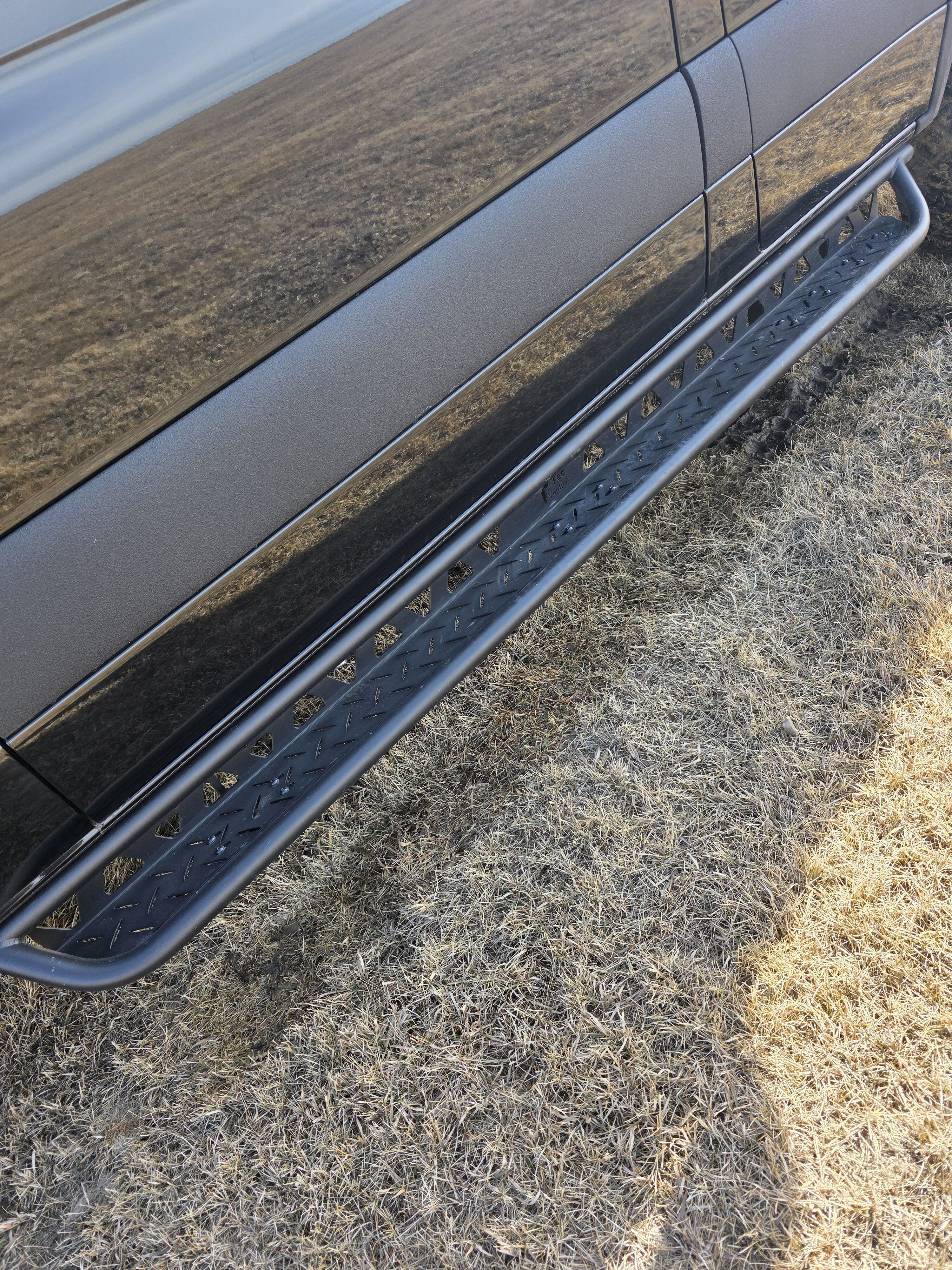

TEC Vanlife Full-Length Running Boards

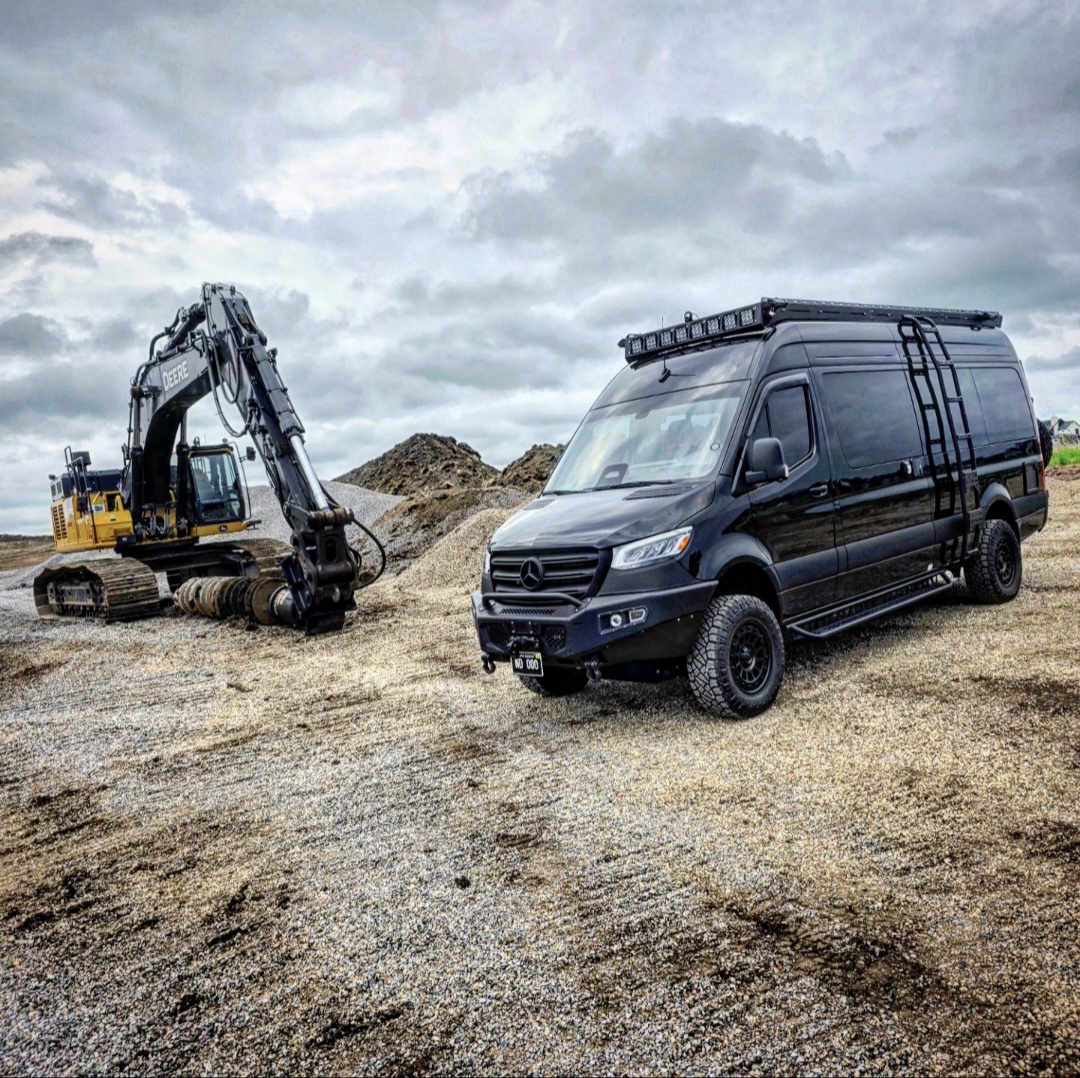

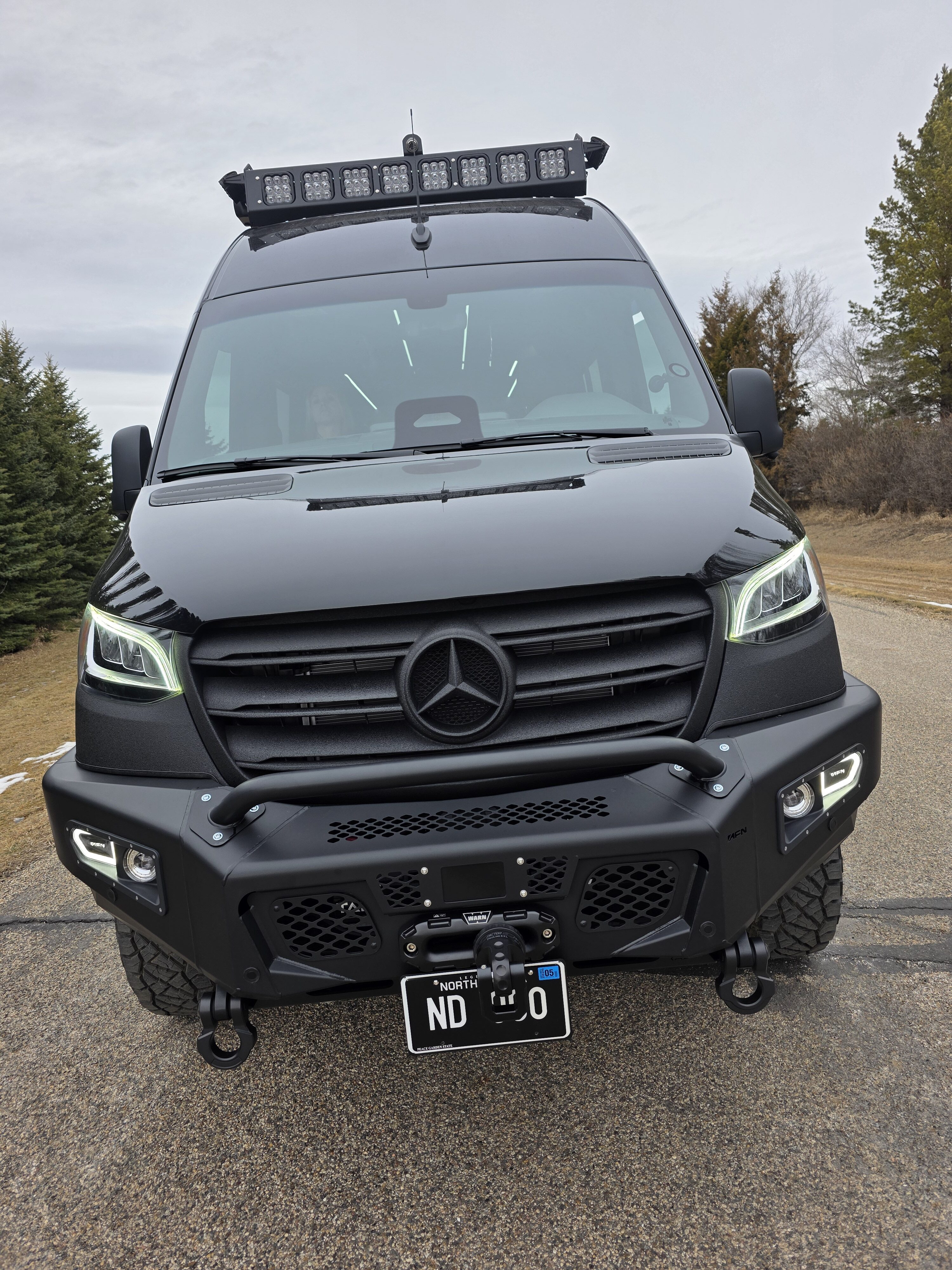

OWL Vans / AFN Ridgeline PreRunner Front Bumper w/ Integrated Skid Plates and Running Lights
RENO 3/4″ D-Ring Shackles 68,000 lb Breaking Strength
RUGCEL 12,000 lb Winch
Roof & Lighting

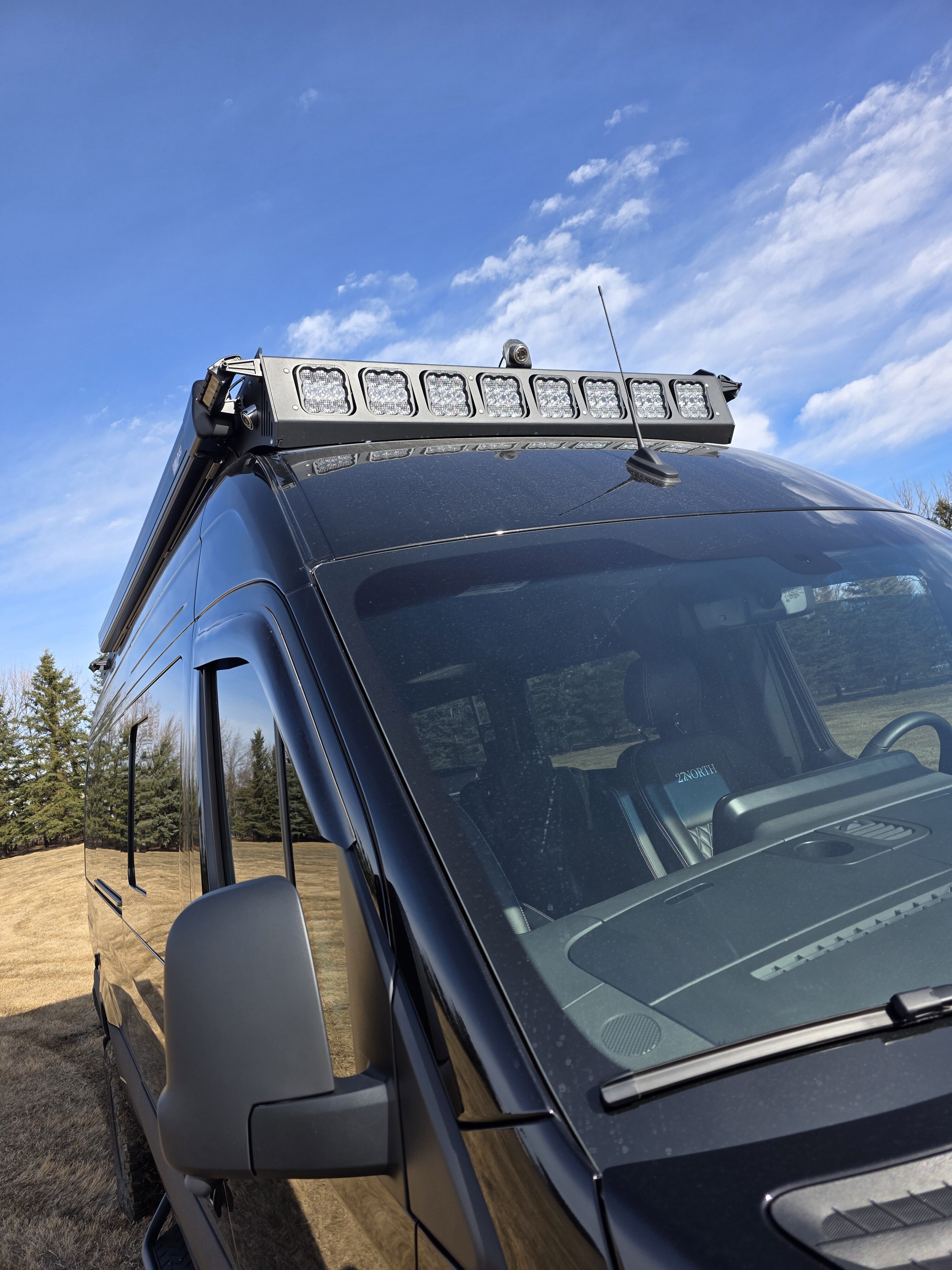

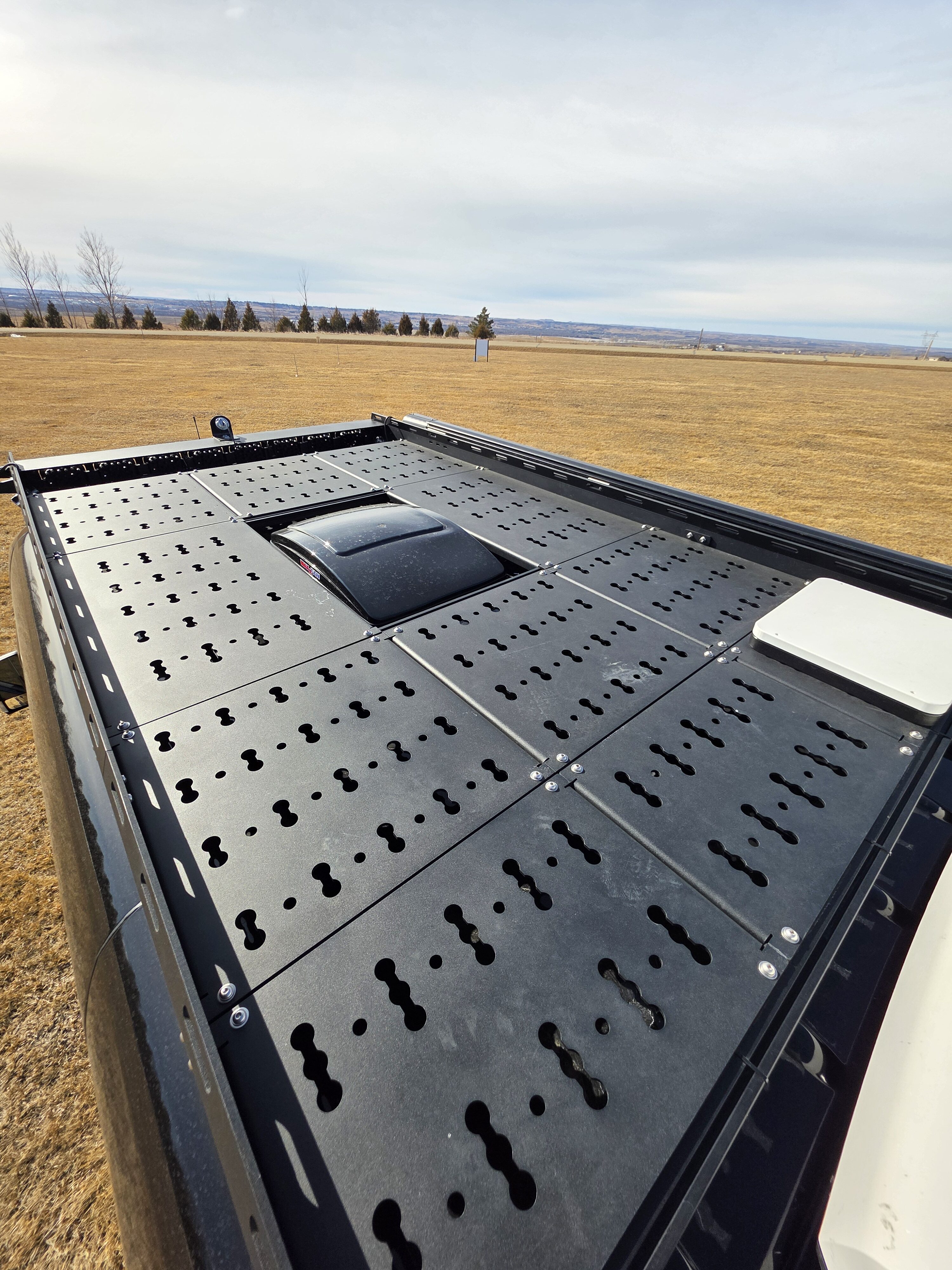

OFFGRID Fabrications SV170 RR Roof Rack w/ Walkable Decking - 8-Pod Fairing - Diode Dynamics SS5 Pro Combo Optic Lights
Fiamma F45s 10′ Powered Awning
RGB Bluetooth-Controlled Underbody Rock Lights
Security & Surveillance
GOST Watch HD Surveillance System
XVR 8-Camera Recording System
4TB Hard Drive - Up to 3 Months Recording Storage
Supports HD Analog & ONVIF IP Cameras
(4) Stainless Steel Waterproof HD Cameras - 154° Wide-Angle Lens
Night Vision and Infrared
Utility
Lockable Water Fill
ALL-TOP 12V Portable Air Compressor - 7.06 CFM - 150 PSI Maximum Output

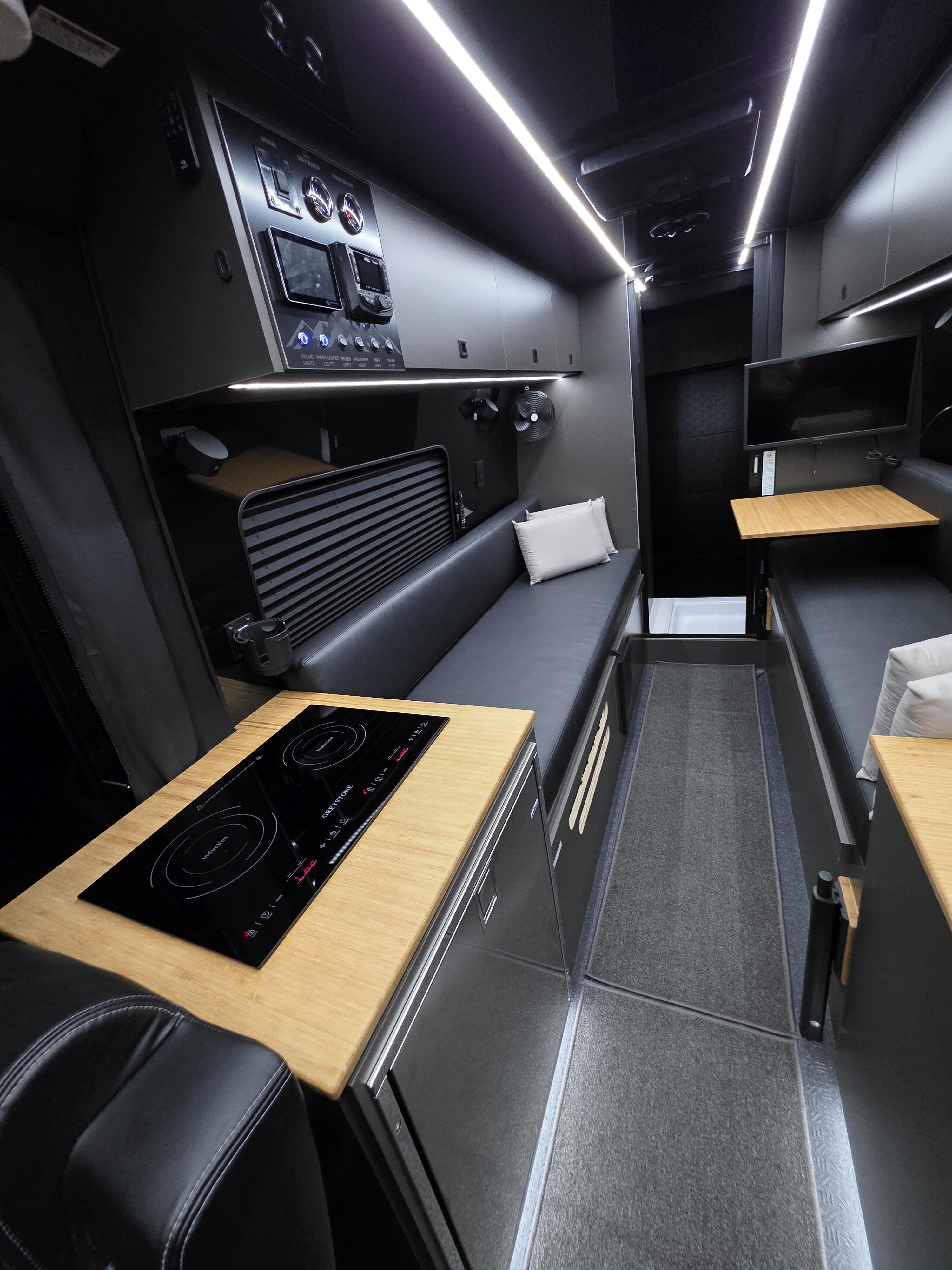

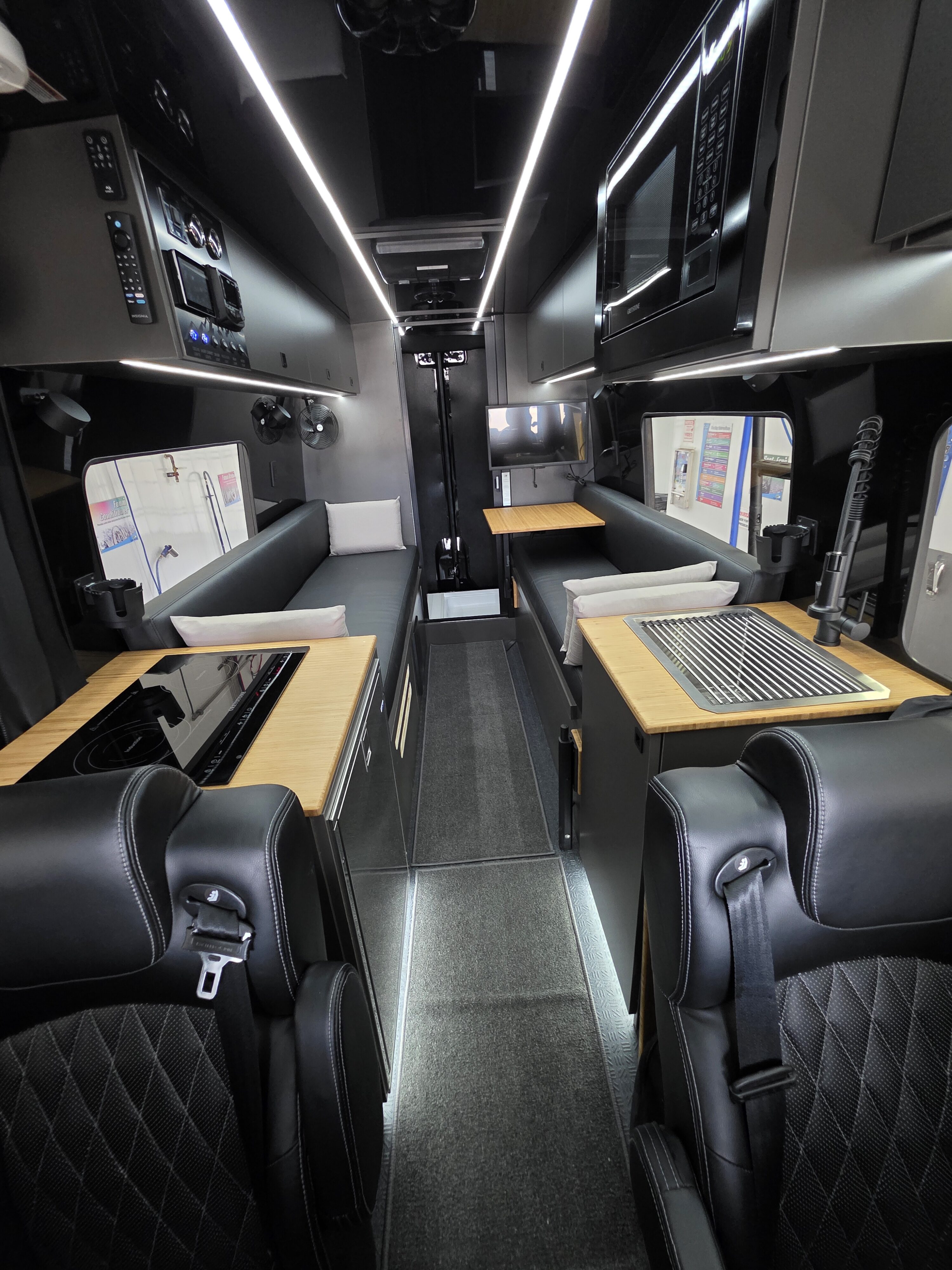

INTERIOR
Seating & Living

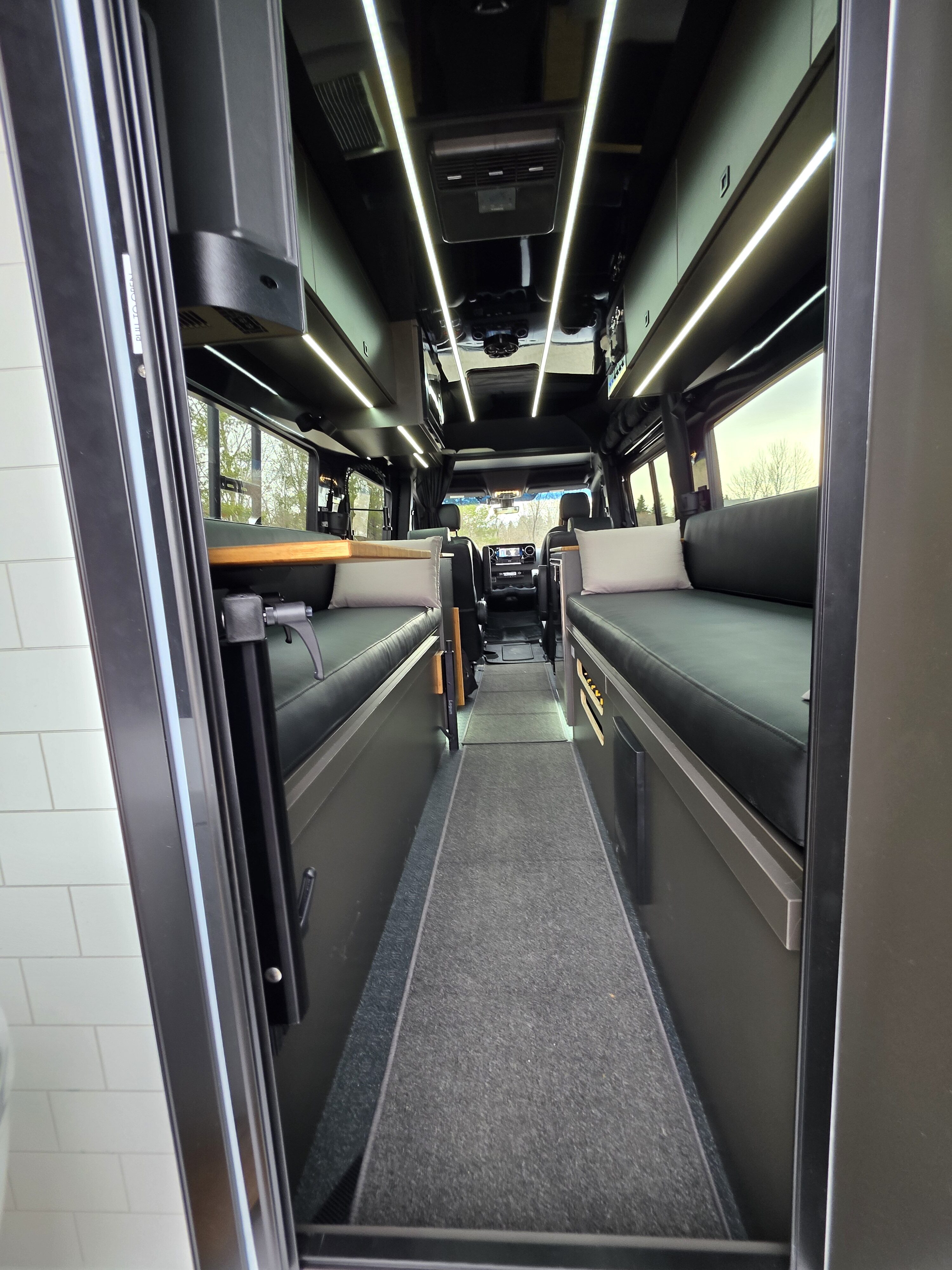

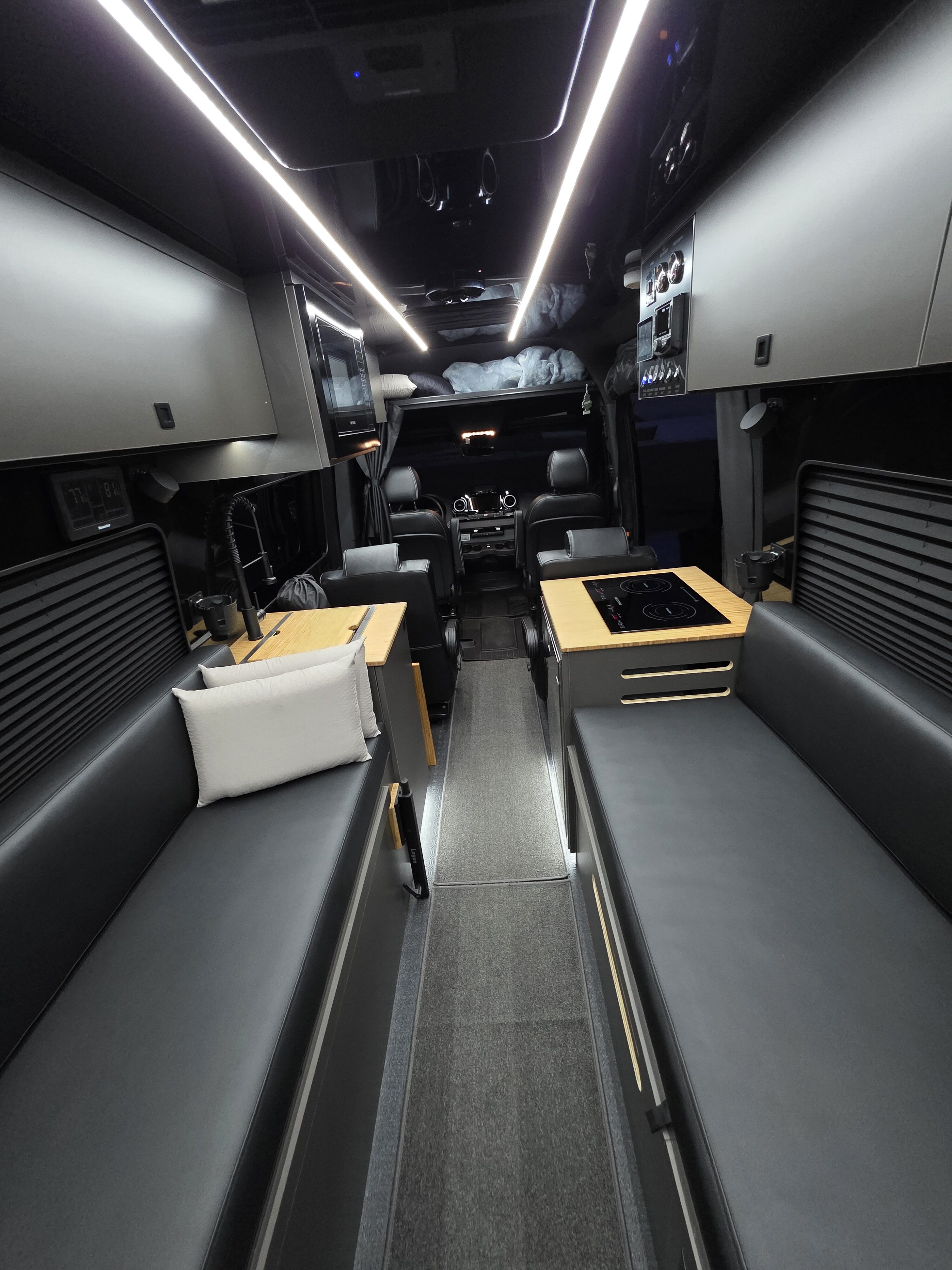

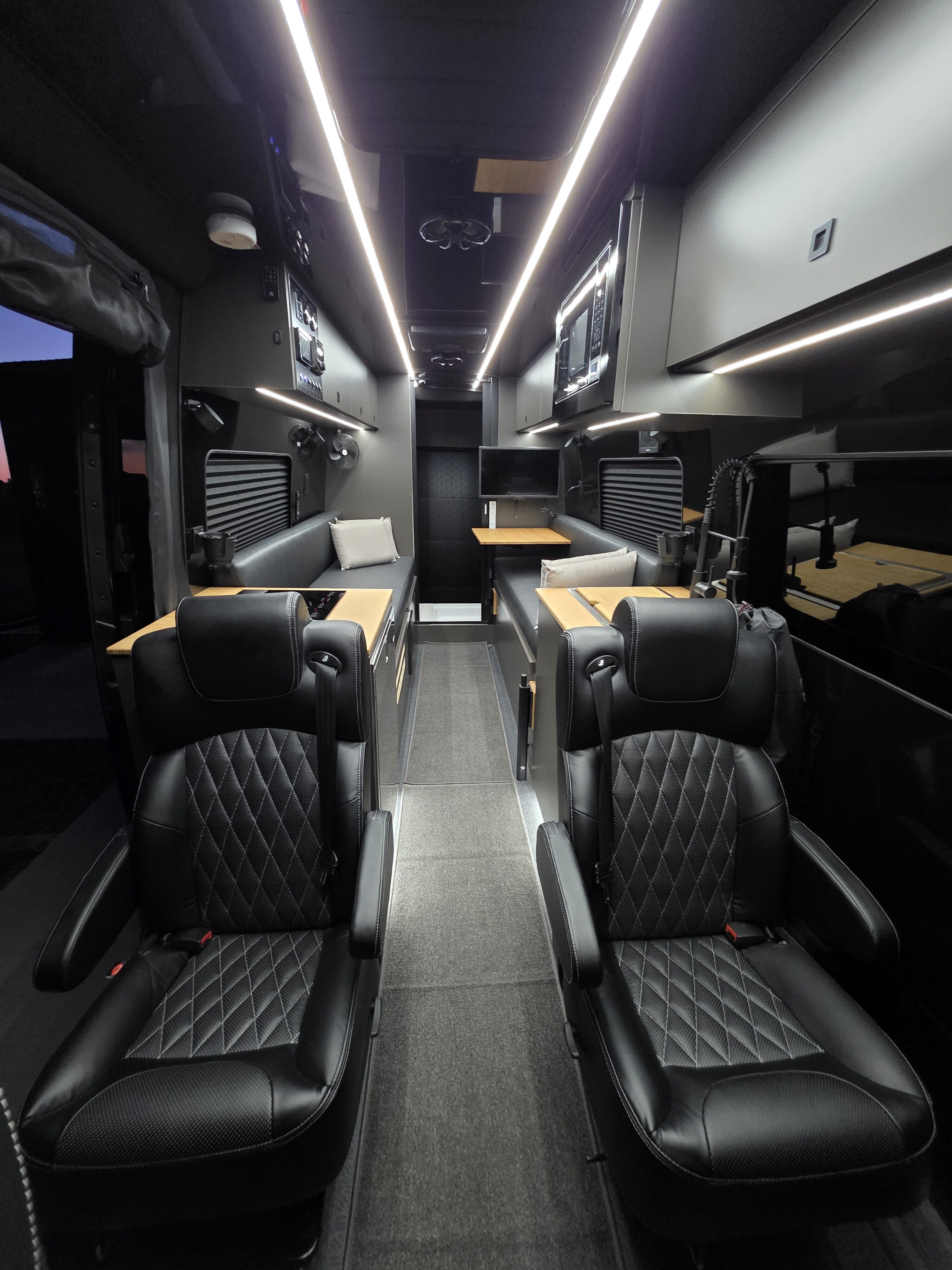

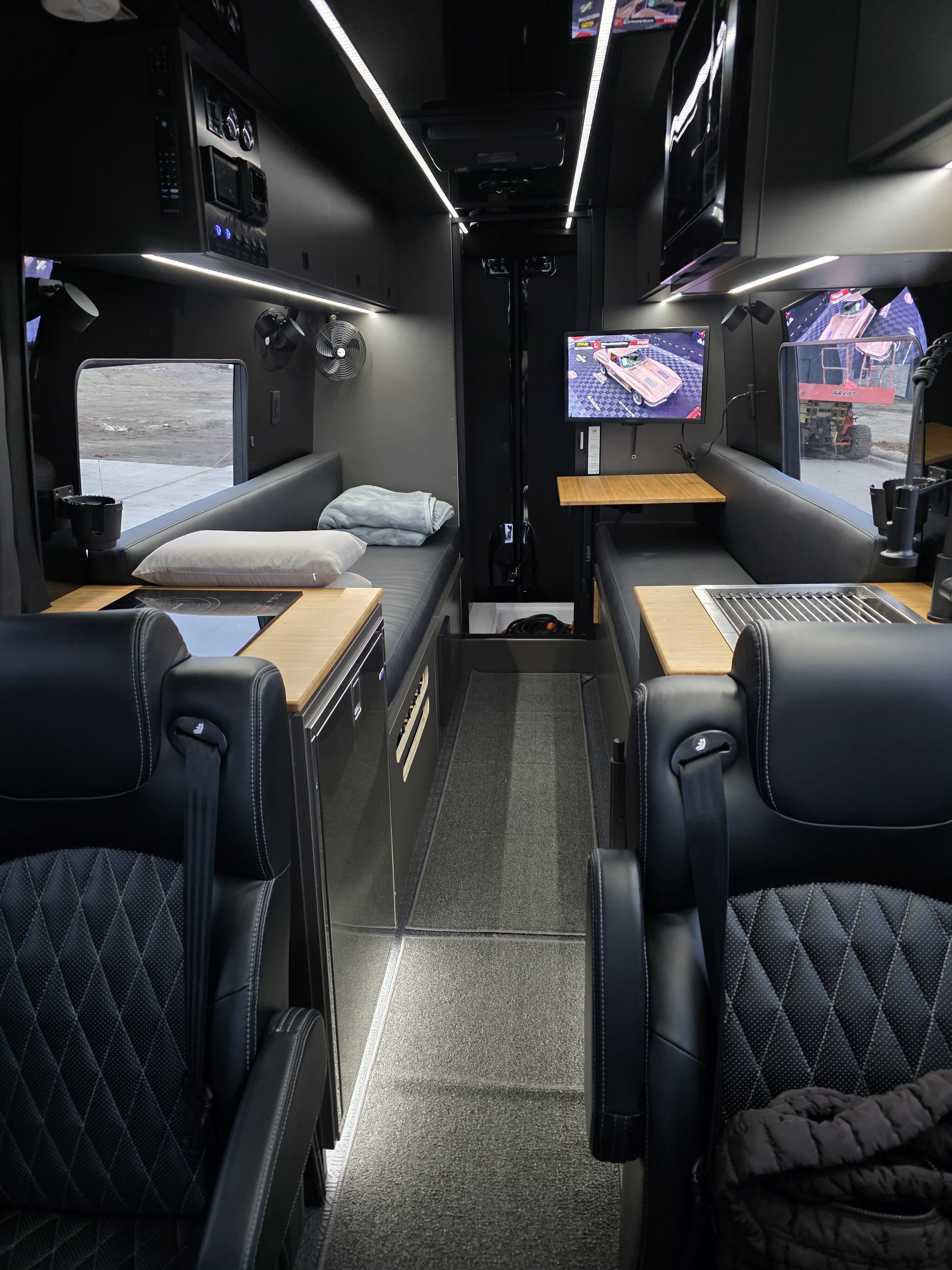

Quad Captain Seating Layout
(2) 20″ VIP Diamond Captain Chairs - Black Leather - Swivel Bases
Dinette Converts to Bed - RV KING 74″ x 70″
Construction
Lonseal Lonridge Flooring
ACM Black Aluminum Wall Panels
3M Thinsulate Insulation
Premium Birch Cabinetry
Solid Wood Upper Cabinet Doors
Interior Cargo Nets
Headliner Shelf
Driver/Passenger Divider Curtain
Window Covers
Wanderful Blackout Window Cover Package
Wanderful Hideaway Headliner Cover
Lighting
Dimmable Toe-Kick Lighting
Dimmable Under-Cabinet Lighting
Dimmable LED Ceiling Lights
Automatic Motion-Activated Cabinet Lighting
(4) Lightess RGB Smart Wall Sconces - Rechargeable - App Controlled
Climate Control
Dometic 12V Air Conditioner
VELIT Diesel Air Heater - 14,000 BTU/4,000W - Connected to Main Fuel Supply
Entertainment
Wet Sounds Bluetooth Stereo
(2) Wet Sounds 6.5″ Speakers
Insignia 24″ F20 Series Smart Fire TV
Alexa Voice Remote
Maxxair Maxxfan
Bug Wall Insect Screen
Multiple Cup Holders
Shower
Nautilus Retractable Shower Door - Self-Cleaning - Antimicrobial Material - Mold & Mildew Resistant
WATER SYSTEMS
Plumbing

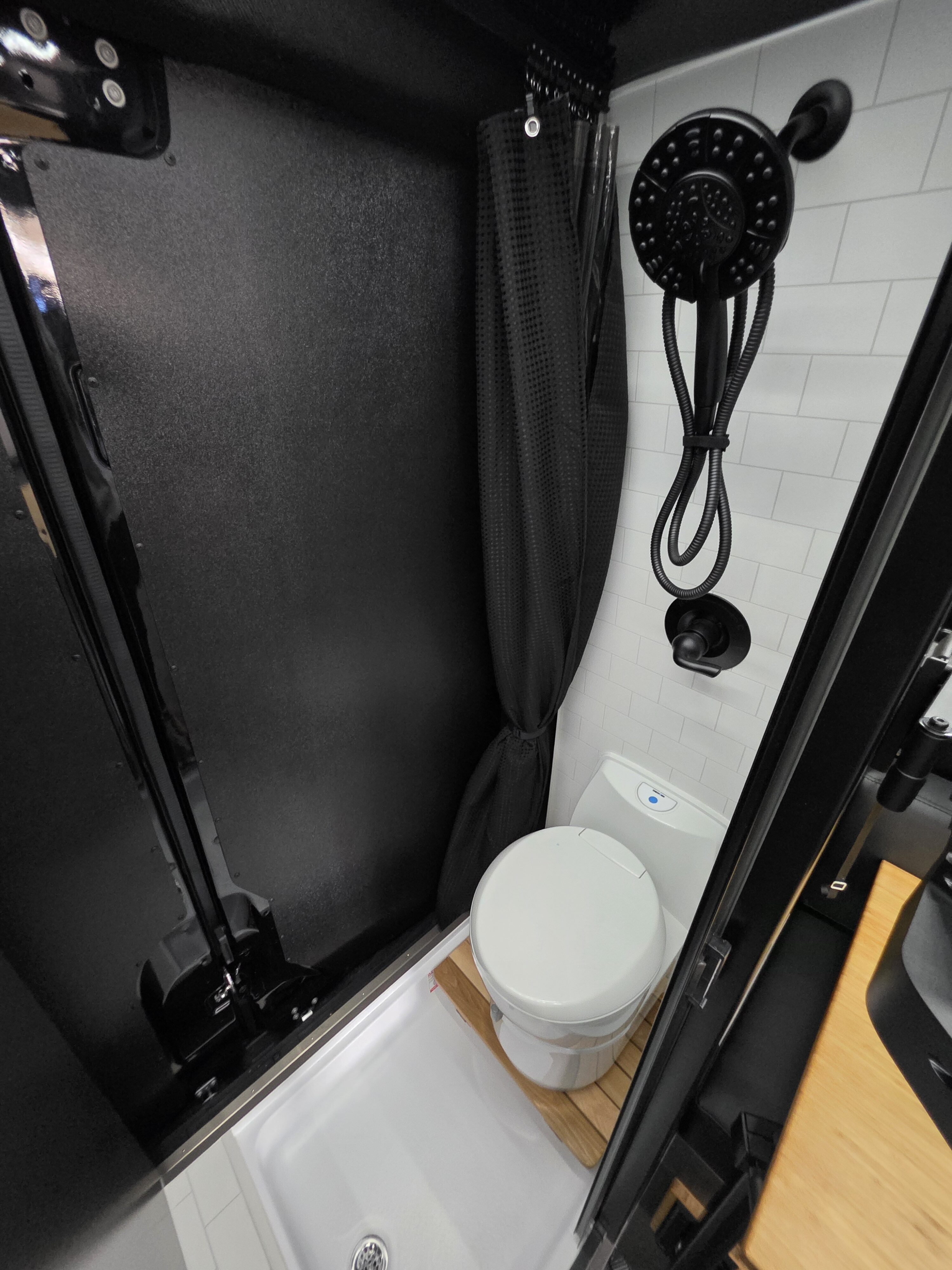

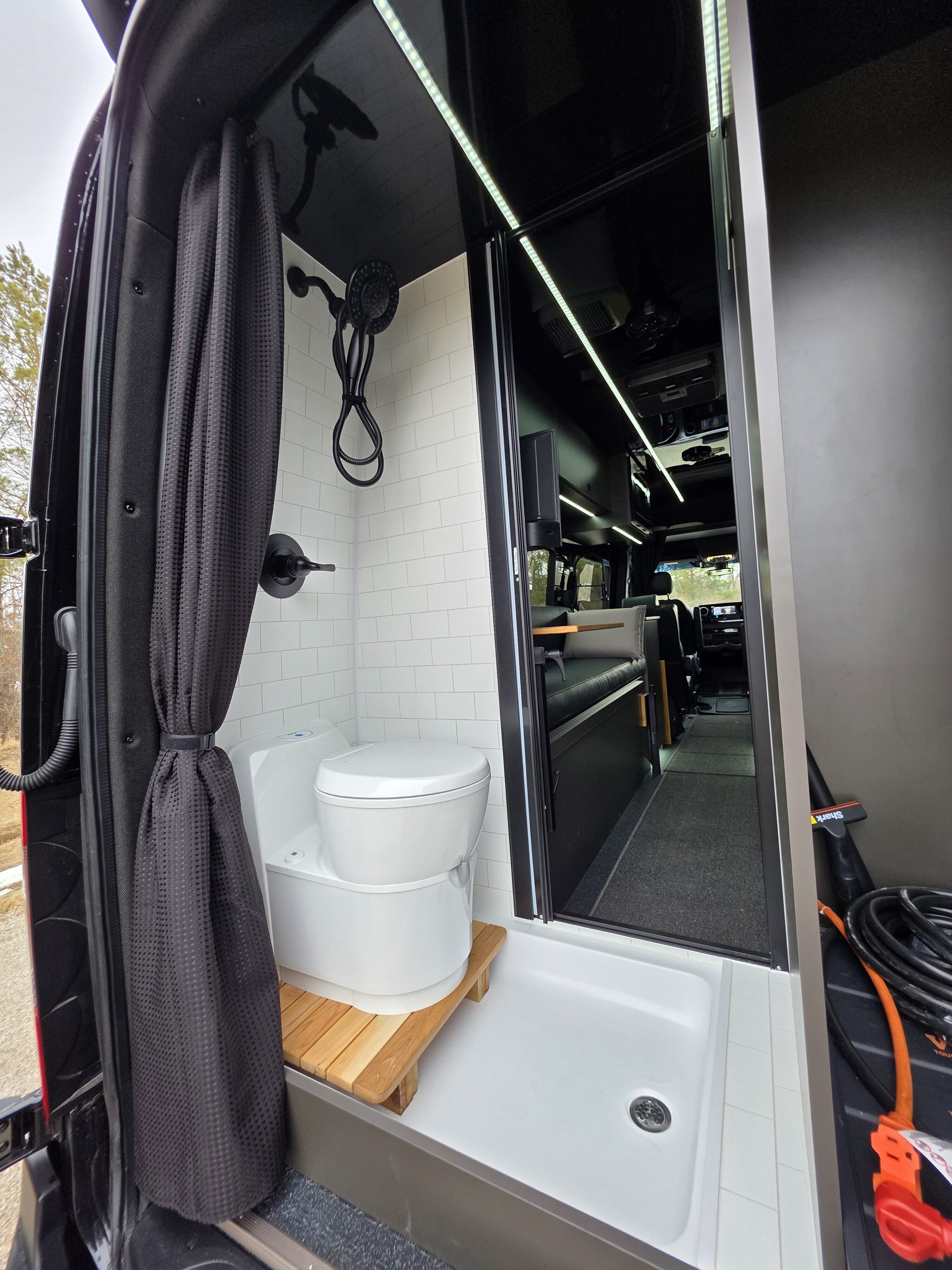

Full Interior Shower
Delta Shower Fixtures
Water Heating
Bosch 2.5-Gallon Water Heater
1440 Watts
120 Volts (12A)
Adjustable 65°F–145°F
Tanks
30-Gallon Fresh Water Tank - Not Heated - Located in conditioned space
20-Gallon Gray Water Tank - Heated
Switch-Activated Gray Water Dump Valve
Toilet

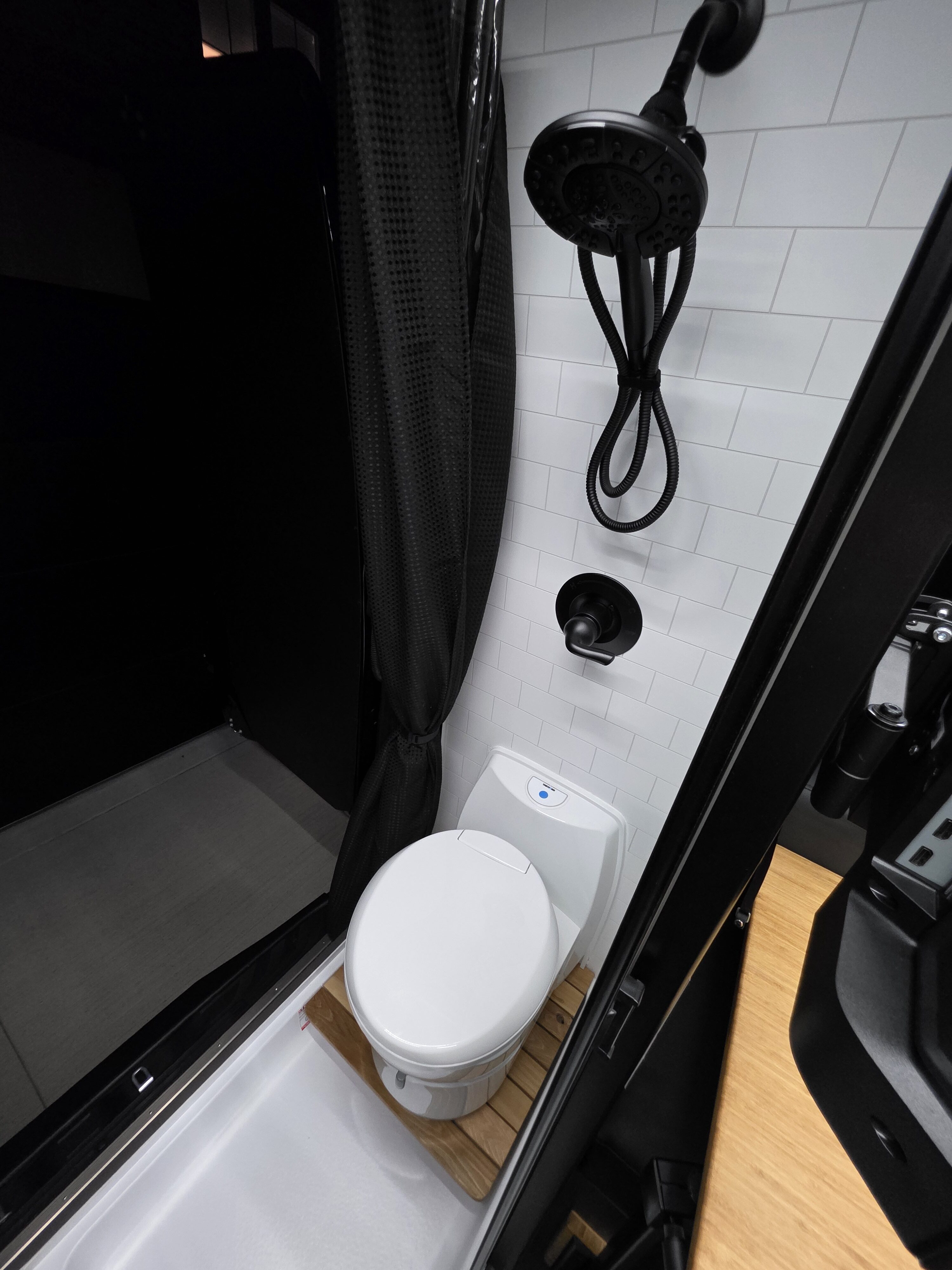

Thetford C223CS Cassette Toilet
Electric Flush
Exterior Lockable Cassette Access
Water Delivery
SEAFLO 42 Series Water Pump | 12V | 3.0 GPM | 55 PSI

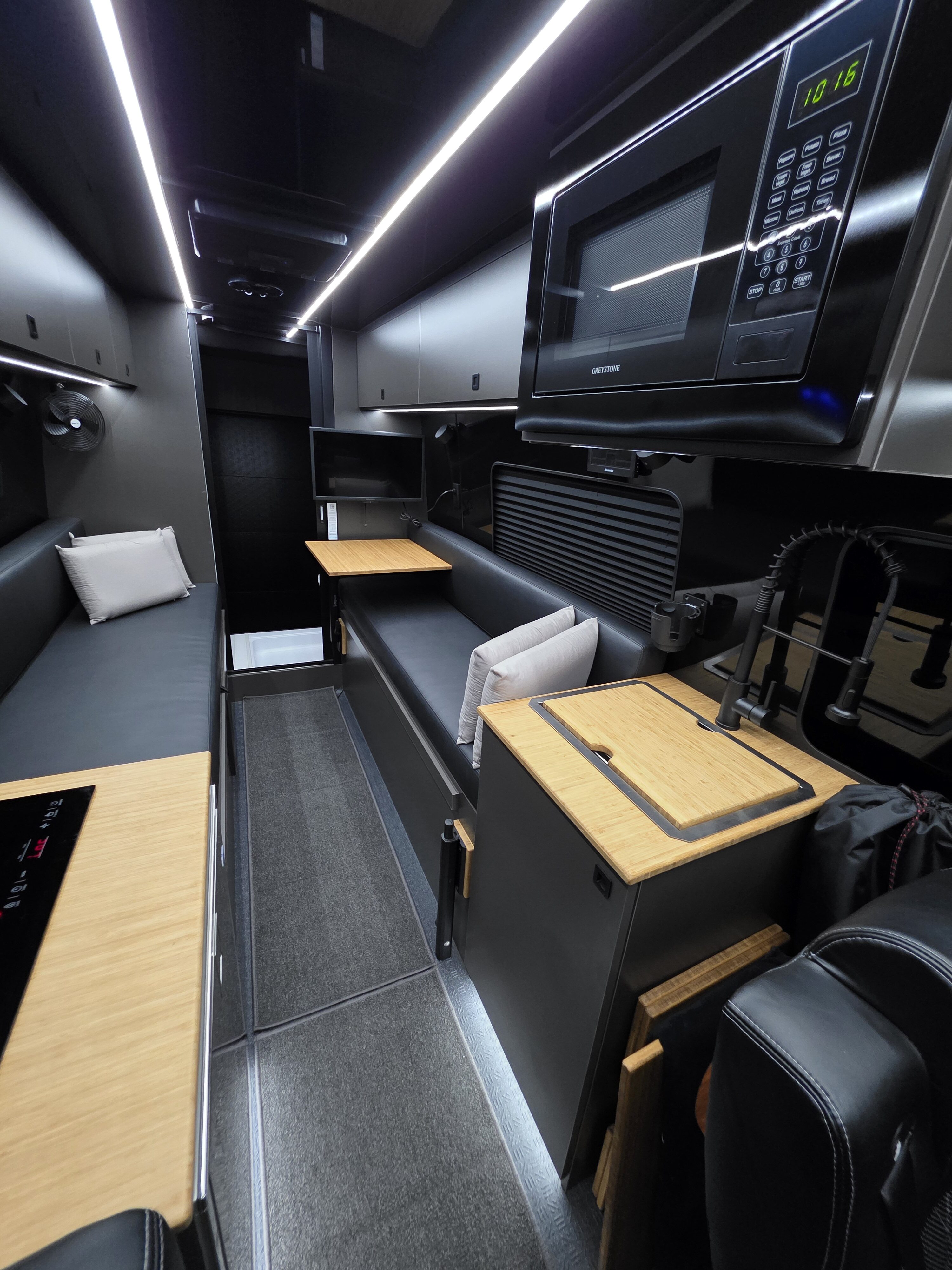

Kitchen

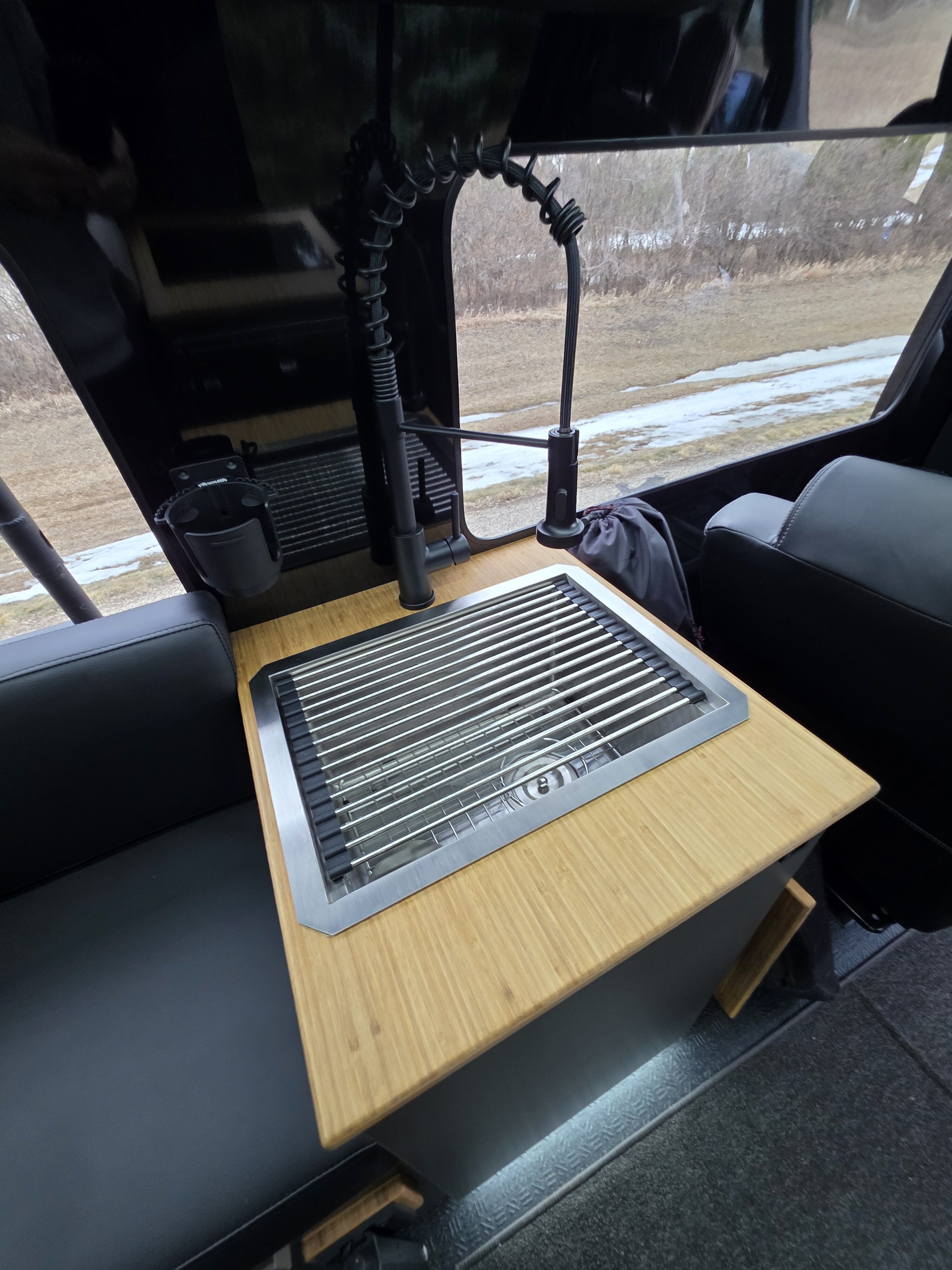

Full-Size Stainless Steel Sink
WEWE Pull-Down Spray Faucet
Dish Drying Rack
Sink Drain Stopper
Filtration
Frizzlife Under-Sink Water Filtration System
NSF/ANSI 42 & 53 Certified
0.5 Micron Filtration
Reduces Lead, Chlorine, Odor & Taste

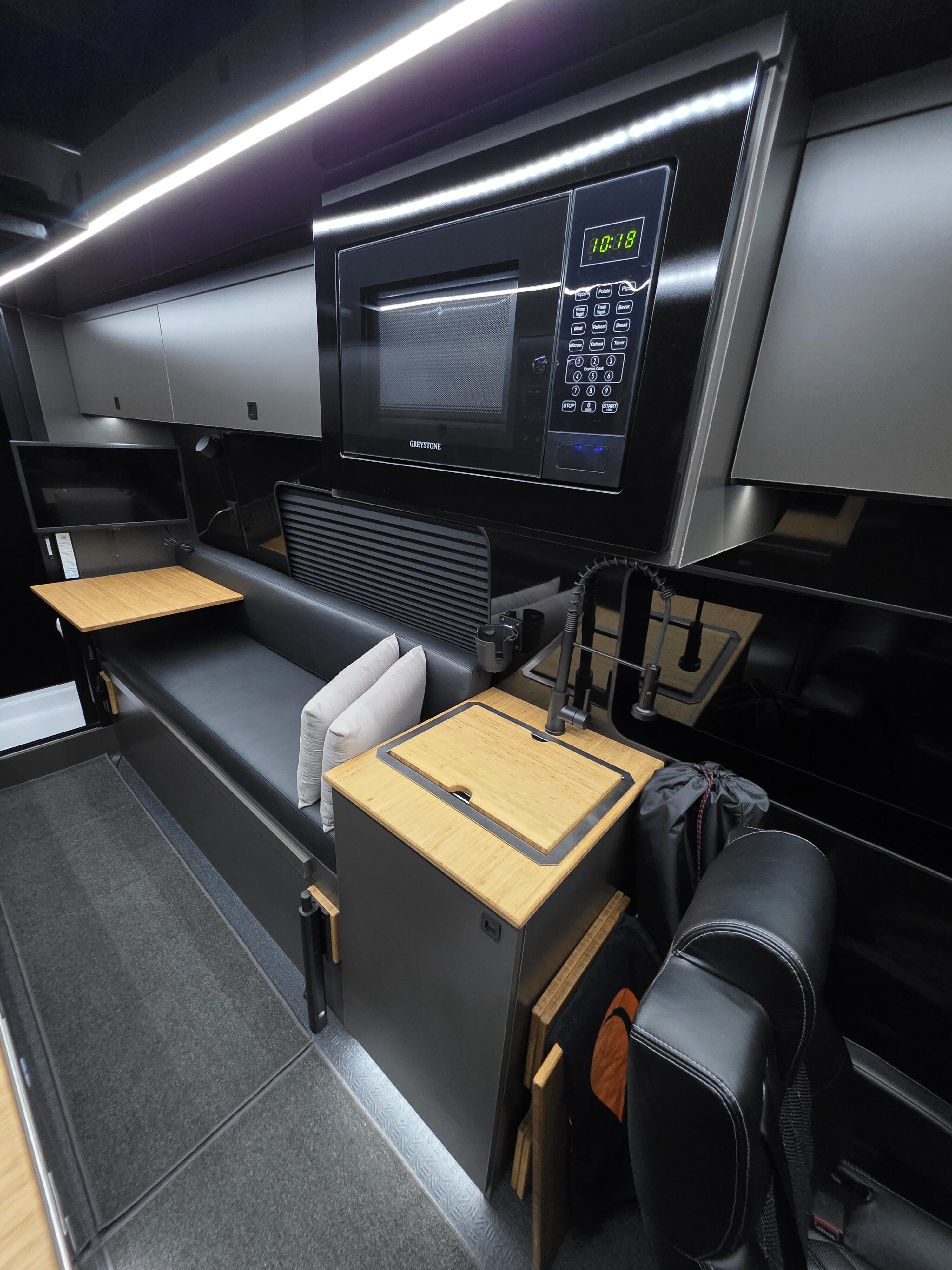

GALLEY
Appliances

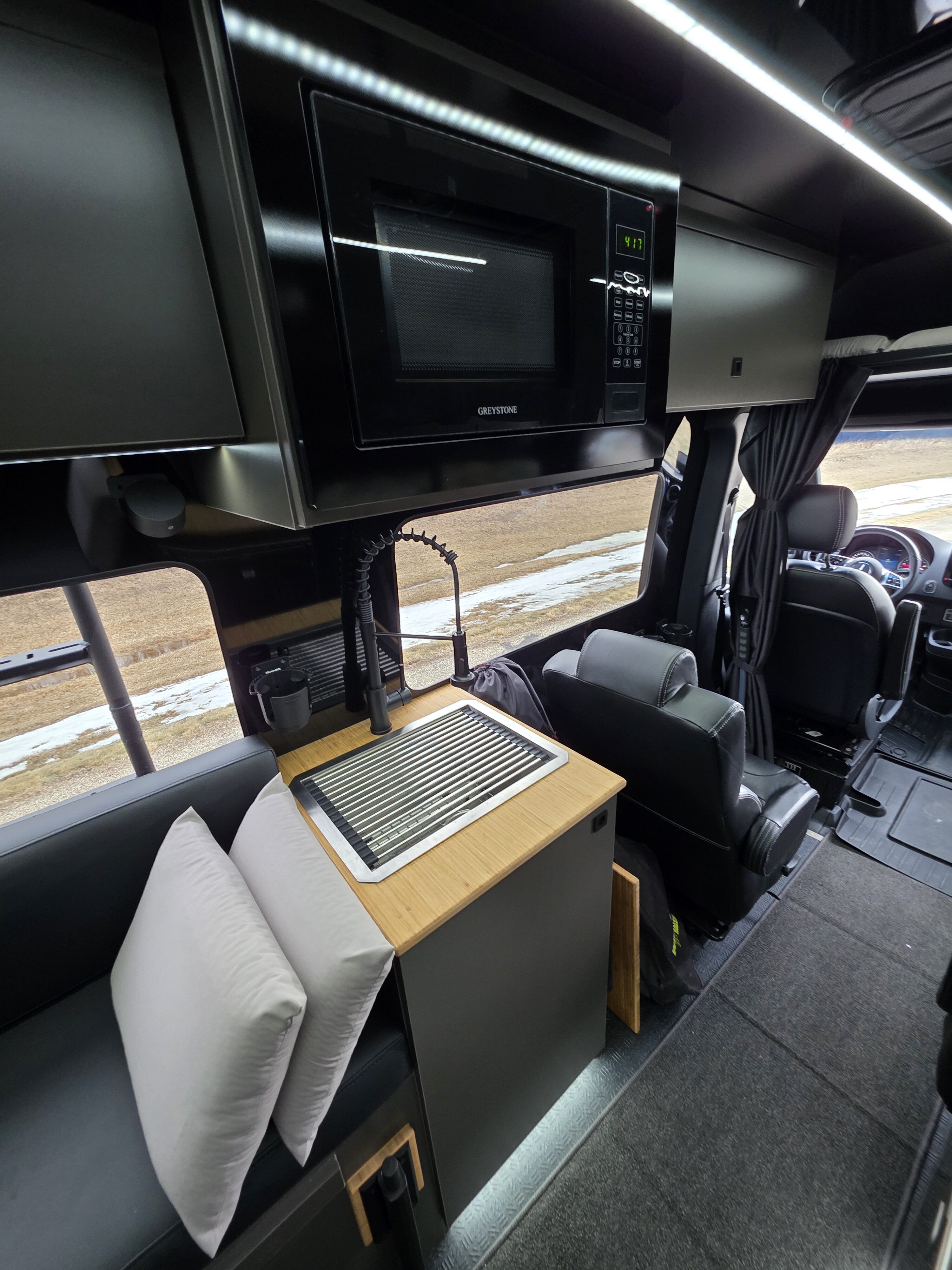

Furrion Greystone Microwave - 0.9 Cubic Foot - 900W Output - 10 Power Levels - 120V AC
Isotherm Stainless Drawer Refrigerator / Freezer

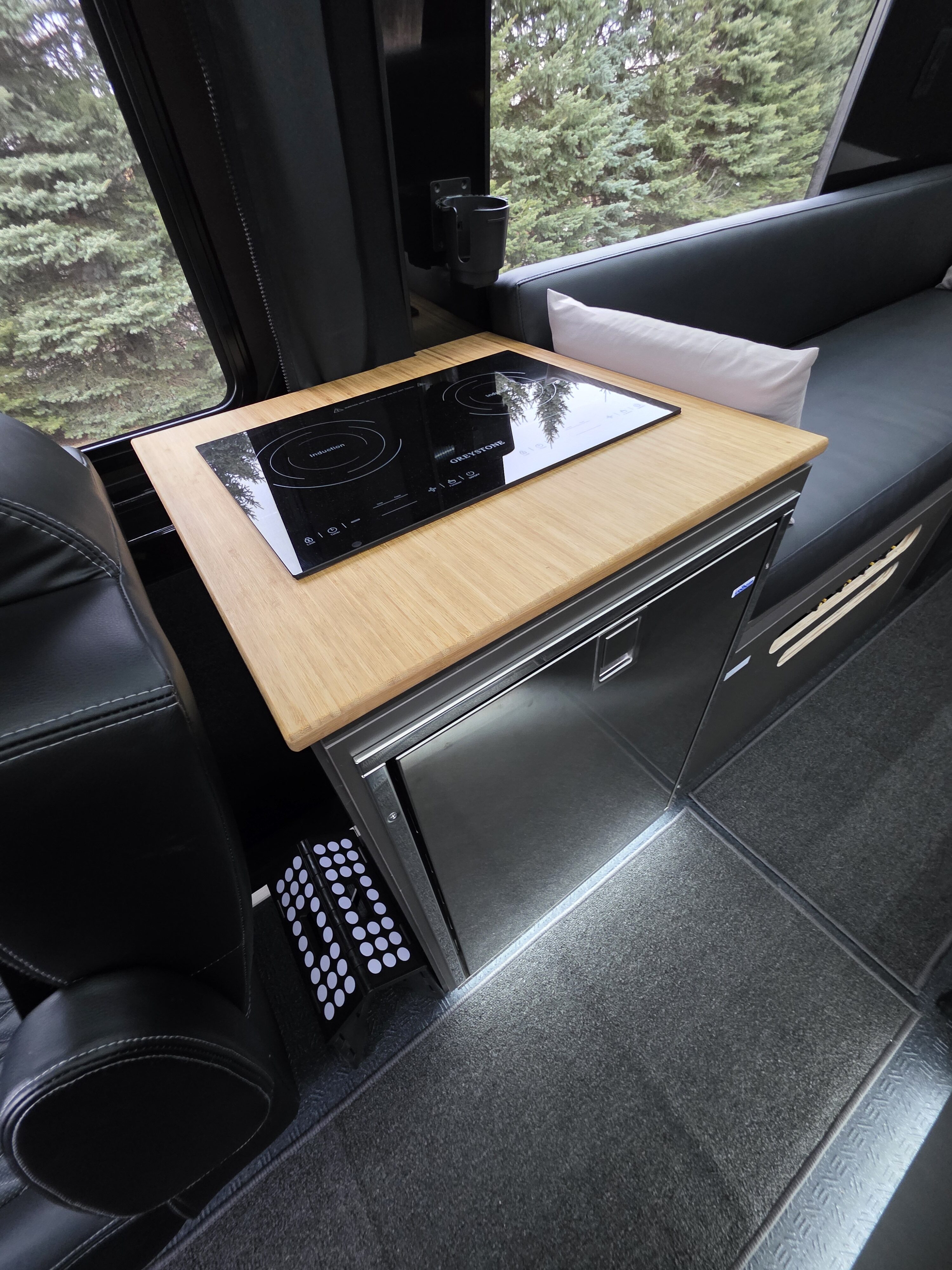

Furrion Greystone Dual Burner - 21″ RV Induction Cooktop
Tables & Countertops

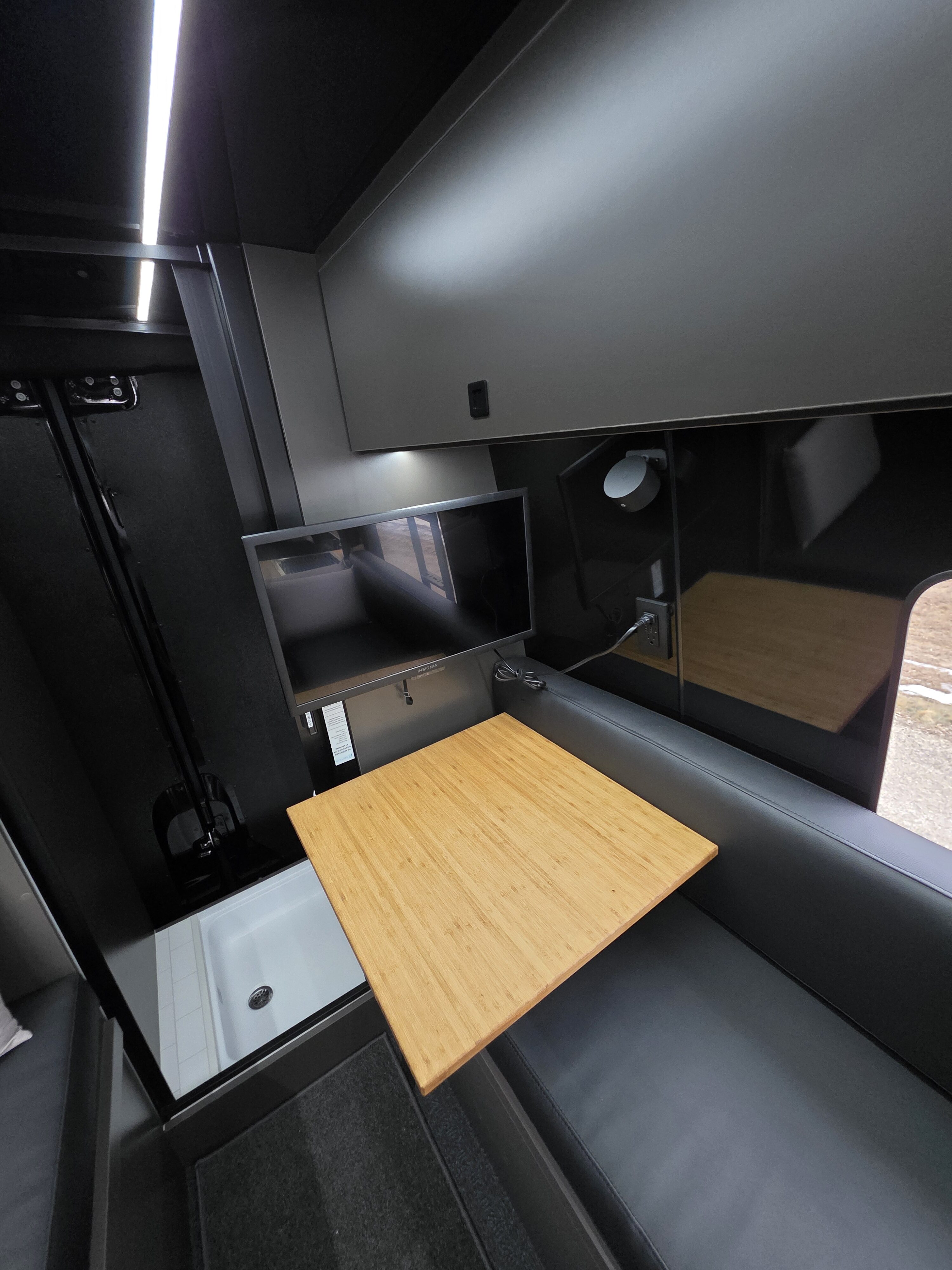

(2) Lagun Tables - 22″ x 23.5″ - Plyboo Countertops at Sink Area and Refrigerator Area
ELECTRICAL
Connectivity
Starlink Mini (Roof Mounted)
Battery System
(2) Lithionics 12V 310Ah LiFePO4 Batteries - Total Capacity: 620Ah
Inverter / Charging
Victron MultiPlus-II 12/3000/120-50 - 3000W Inverter/Charger
Victron SmartSolar MPPT Controller - 100V / 50A - Bluetooth Enabled
Victron Buck-Boost DC-DC Converter
100A Alternator Charging
Solar

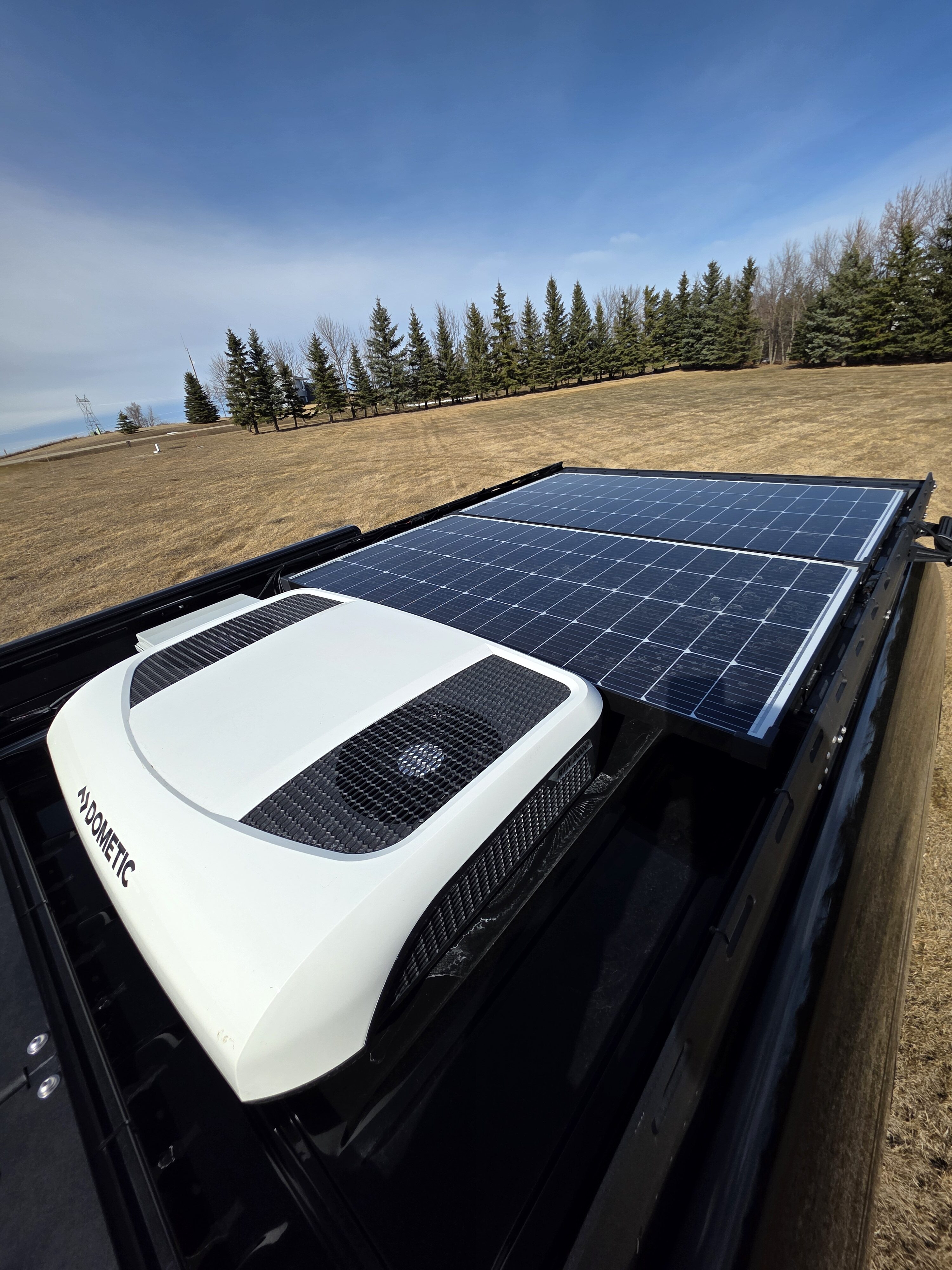

(2) ACOPOWER 175W Monocrystalline Solar Panels
Total Solar Capacity: 350 Watts
Distribution
High-Grade UL Rated Copper Wiring
Marine Grade Waterproof Breakers
Premium Alloy Fuses
Heavy-Duty Bus Bars

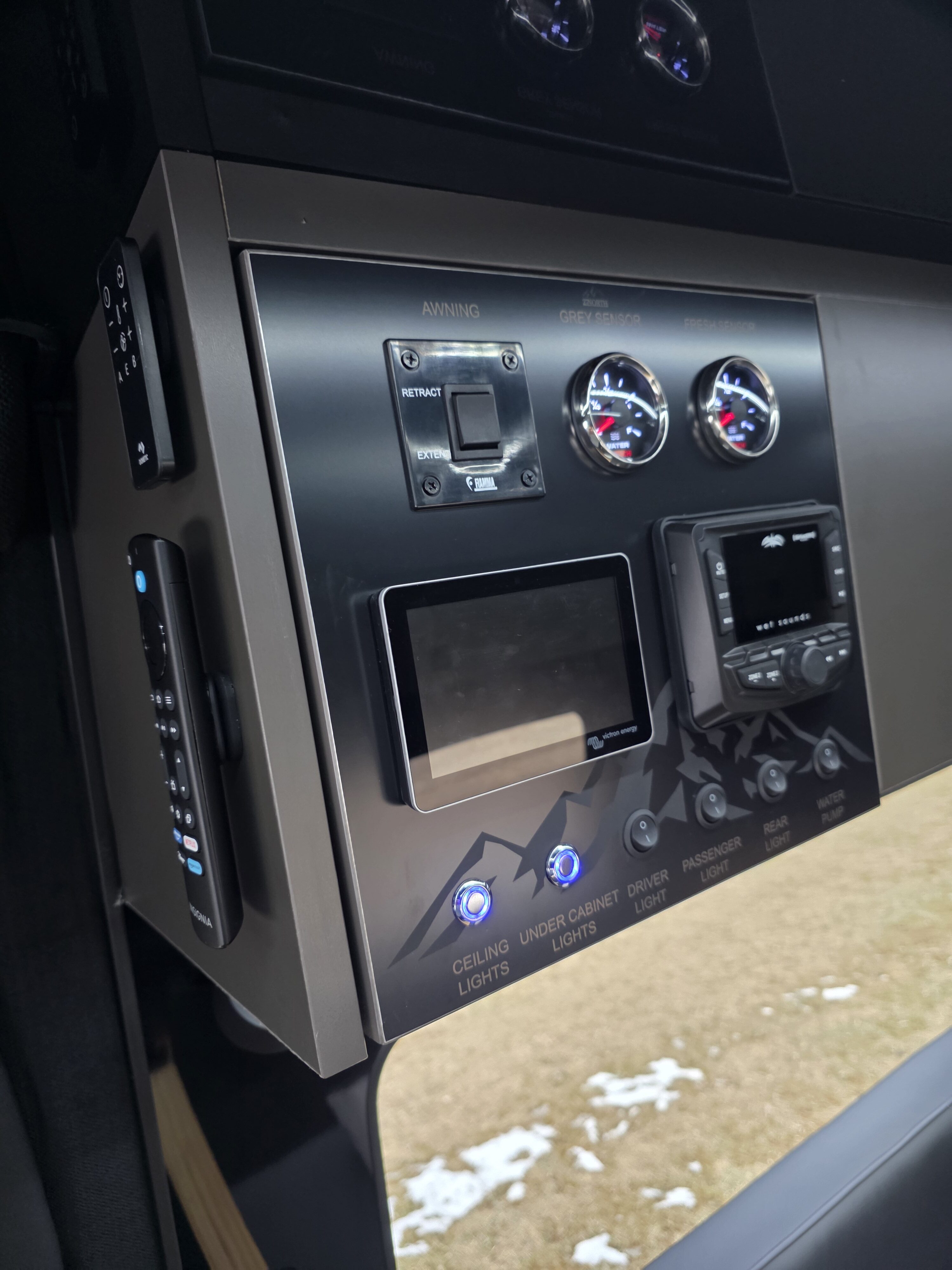

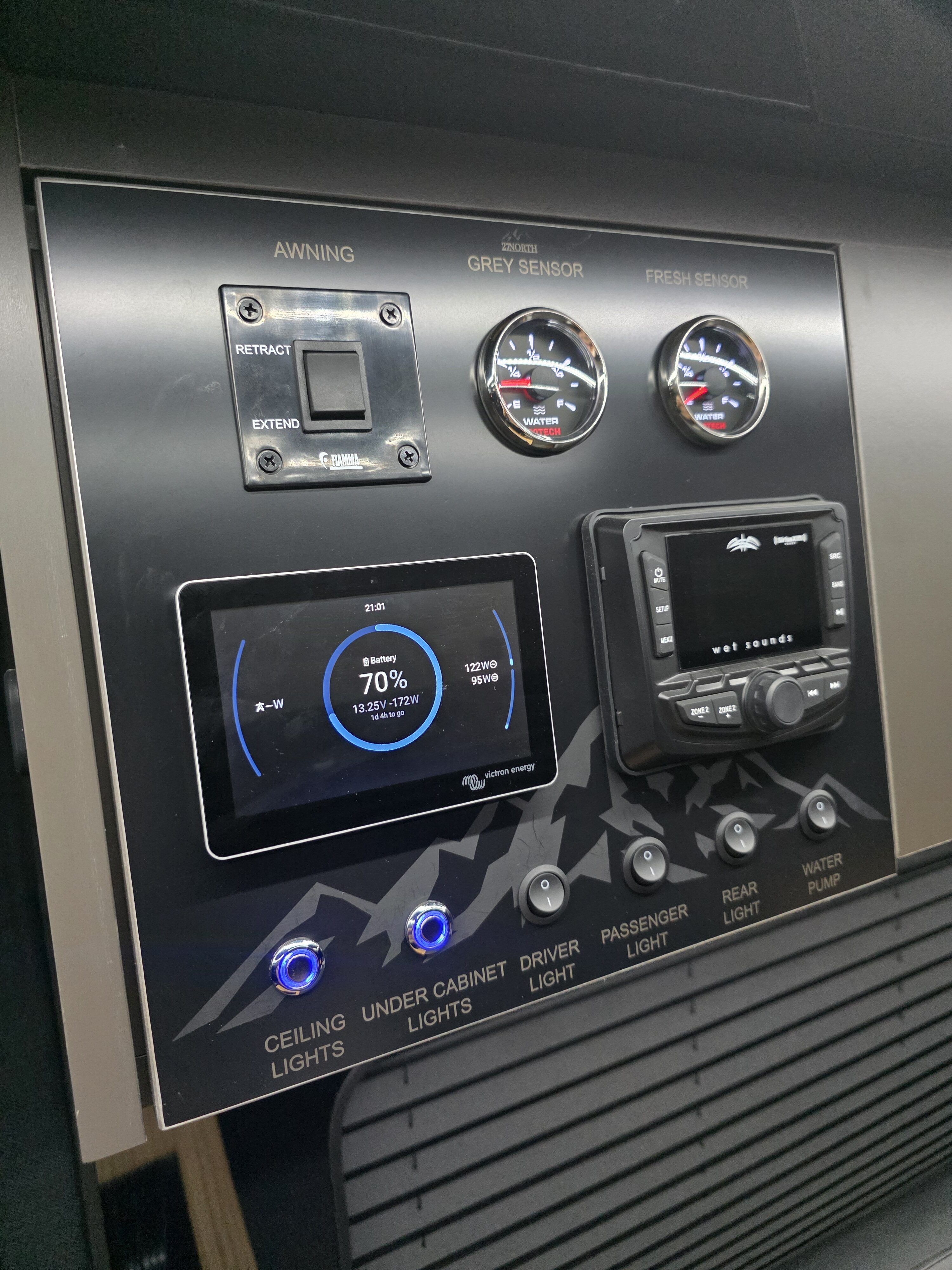

Power Distribution Center
Multiple 110V Outlets
USB Charging Ports
USB-C Charging Ports
SAFETY & SECURITY
Fire Extinguisher
Smoke Detector
CO / LP Detector
GFCI Protection
GOST 8-Camera Surveillance System
WARRANTY
27North 1.5-Year Full Builder Warranty
