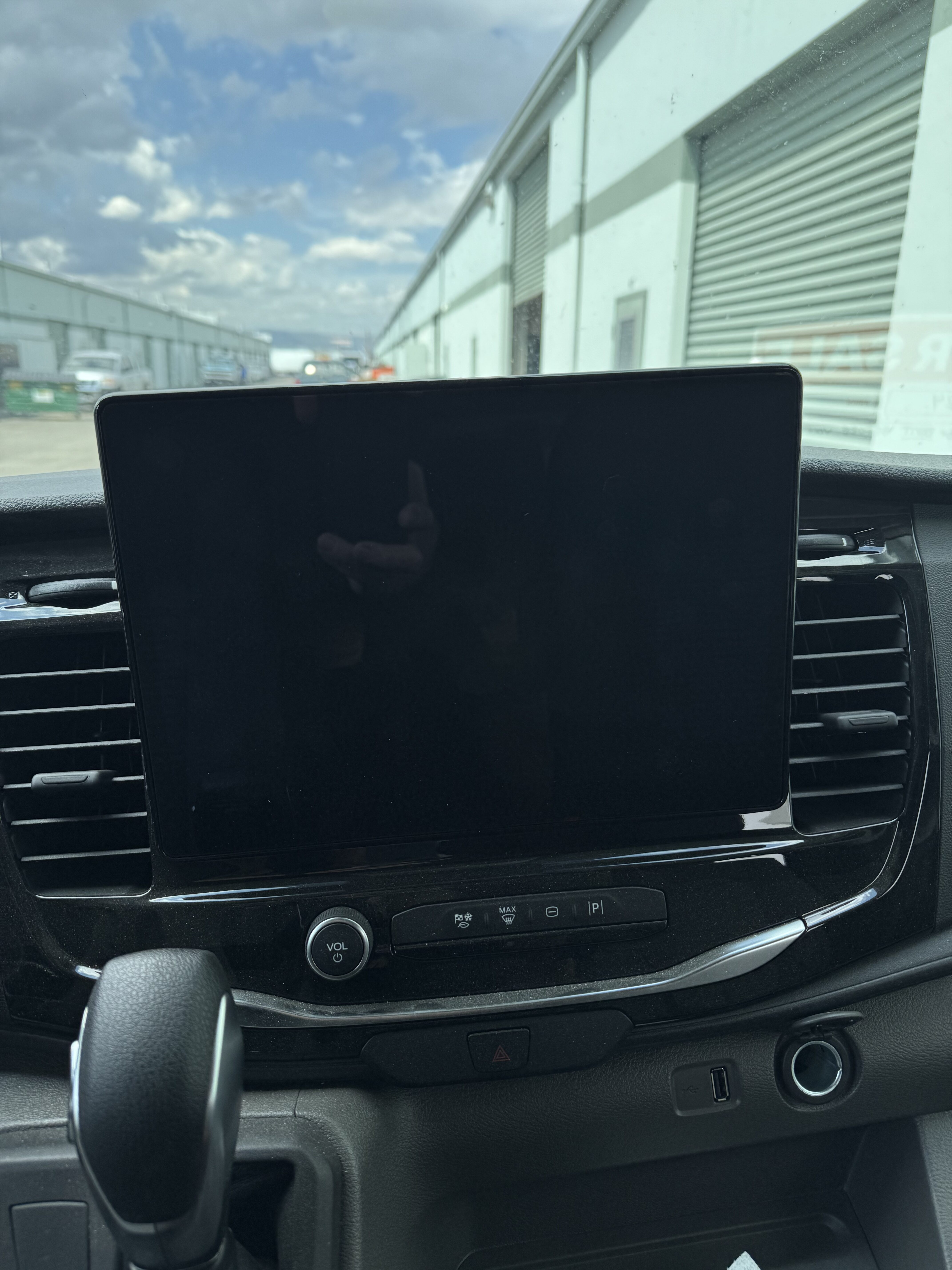

We sold the last of our existing demo vans, and are now building two demo/rental Transits. One is a a 2024 Carbonized Gray Transit AWD MR that was one of the vans Ford “de-trailed”. Loaded with features like EcoBoost, dual batteries and dual alternators, HD Tow package with trailer brake controller, Upfitter package, Fog lights and Black HID Headlamps, Privacy glass with rear door and passenger door glass, Swivel seats, Sync 4, blind spot assist, keyless entry, blind spot assist, side sensing system, hi-se rear view camera. LOADED!
IronVan 3 — 2024 Ford Transit EcoBoost AWD Demo Rig by FunTrail West -Try-Before-You-Buy Incentive: Experience IronVan 3 in the wild before committing! Rent this van to test the layout, and 100% of your rental price will be applied directly toward the purchase price.
Note: this van is our demo van, and is currently undergoing some minor modifications including converting the bed to a foldable Murphy-style bed. Various trim items, like the drawer front and galley cabinet just need some finishing touches. Otherwise, ready to go, and will be finished in the next couple of weeks. As builder, we always put our customers' build first, and we are currently finishing two other Transits.
The Story Behind IronVan 3. Crafted by FunTrail West as an official builder demo, IronVan 3 represents the perfect balance between trail-ready factory performance and intelligent, modular interior engineering. Originally destined to be a Transit Trail, this vehicle comes equipped with Ford’s most desirable factory performance features—including the powerful 3.5L EcoBoost twin-turbo engine, Intelligent AWD, factory Trailer Tow Package with Heavy-Duty Controls, and Auxiliary Upfitter Switches ready for custom exterior lights or gear expansion. By opting for aftermarket running boards rather than factory plastic trim, this build keeps a sleek profile while maximizing ground clearance and trail capability. Inside, IronVan 3 is built for modern adventurers who refuse to choose between rugged functionality and home comfort. Powered by a cutting-edge 48V Bluetti system, it provides massive off-grid energy without complex control panels. Designed around maximum spatial efficiency, it features custom Flarespace pods so you can sleep comfortably width-wise, a slide-out stainless steel ladder, custom overhead canvas storage, an integrated shower port system, and a massive rear garage equipped with a heavy-duty Flatline Van Co. slide-out tray to haul bikes, gear, and supplies with zero hassle. Whether you're looking for a turn-key backcountry adventure rig, a remote office with a view, or a high-end rental vehicle, IronVan 3 is field-tested, professionally crafted, and ready to go anywhere. Built for the Deep Freeze Many vans claim to be "off-grid," but IronVan 3 is engineered specifically for deep-winter powder days, mountain passes, and desert summer heat. Built by FunTrail West as an official demo vehicle, every square inch of this rig is optimized for thermal efficiency, noise reduction, and extreme-weather self-sufficiency. At the core of its winter setup is the high-efficiency Vellit Gasoline Heater, tapped directly into the Transit’s main fuel tank so you never have to carry auxiliary fuel or worry about propane running dry at sub-zero temperatures. To trap heat in winter and keep the interior cool in mid-summer, IronVan 3 features a multi-layer insulation stack: 3M™ Thinsulate™ Insulation throughout the walls, ceiling, and cavities for thermal protection and moisture resistance. A Legend Fleet Interior Kit providing an added layer of thermal barrier and heavy-duty structural interior protection. A Bedrug subfloor layer underneath the Legend flooring, deadening highway noise while isolating your feet from sub-zero road temperatures. Internalized Plumbing: Fresh water tanks, hot water boilers, and lines stay safely inside the insulated cabin to prevent freeze-ups. Combined with Ford’s Intelligent AWD, high-spec factory towing controls, and 5.12 kWh of Bluetti 48V power, IronVan 3 gives you complete freedom 365 days a year.
Complete 4-Season & Vehicle Specifications 1. Climate Control & Thermal Insulation Stack Primary Heat: Vellit Gasoline Heater (Tapped directly to the vehicle’s main gas tank) Wall & Ceiling Insulation: Premium 3M™ Thinsulate™ thermal & acoustic insulation Interior Wall/Ceiling System: Legend Fleet Interior Kit for thermal efficiency & durability Subfloor Insulation & Soundproofing: Bedrug underlayment beneath Legend flooring for acoustic dampening and thermal floor insulation Window Thermal Protection: Full set of Van Essential insulated magnetic window covers (windshield, cab doors, sliding door, and rear doors) Ventilation: ProBreeze roof vent fan for rapid heat dispersion and condensation management

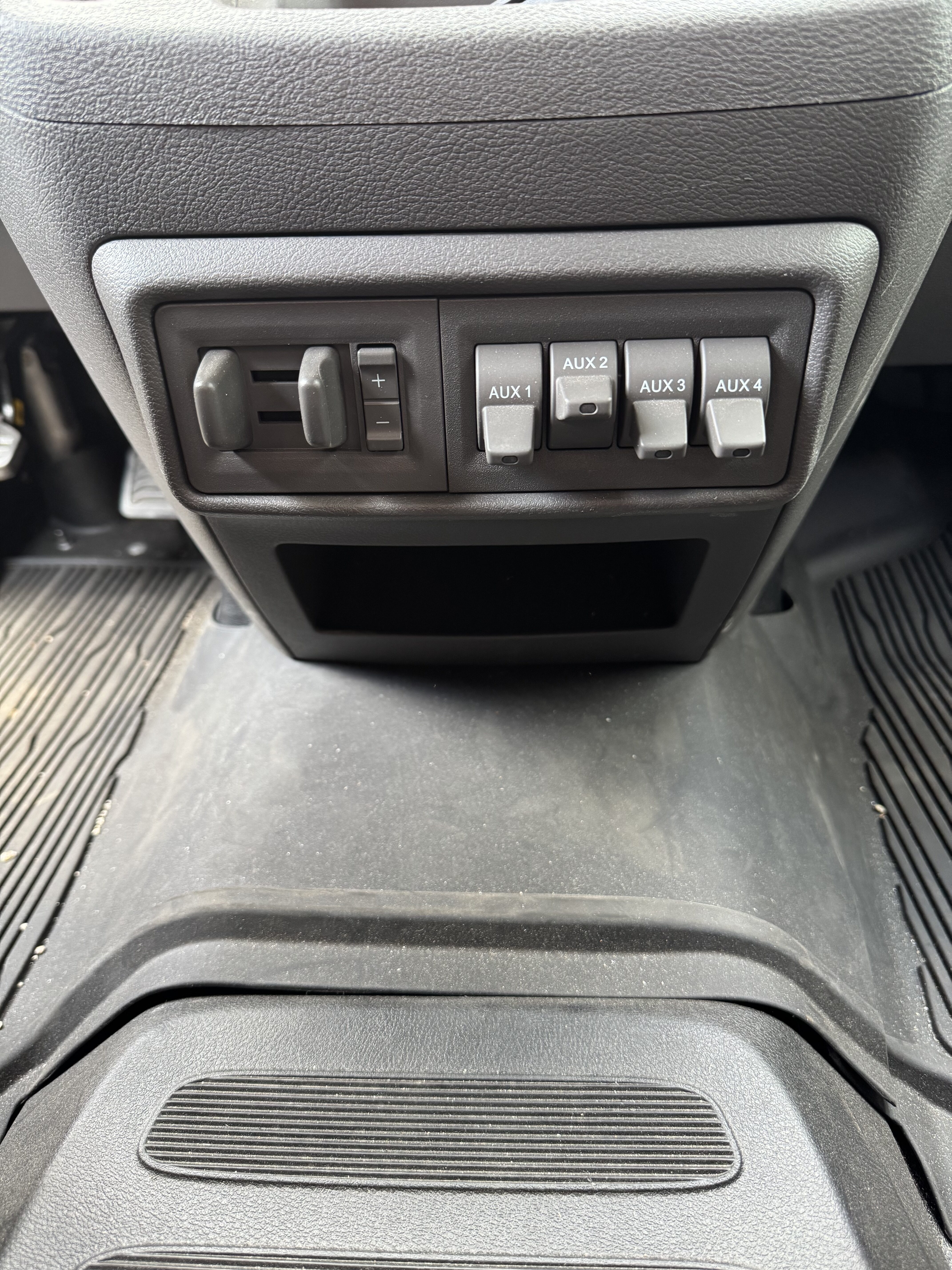

2. Base Vehicle, Mechanical & Exterior Builder: FunTrail West (Official Demo Rig) Chassis: 2024 Ford Transit 350 High Roof / Medium-Extended Engine: 3.5L EcoBoost® V6 Twin-Turbocharged Drivetrain: Intelligent AWD (All-Wheel Drive) Towing & Expansion: Factory Heavy-Duty Trailer Tow Package with HD Controls Factory High-Spec Auxiliary Upfitter Switches (pre-wired for light bars/accessories)

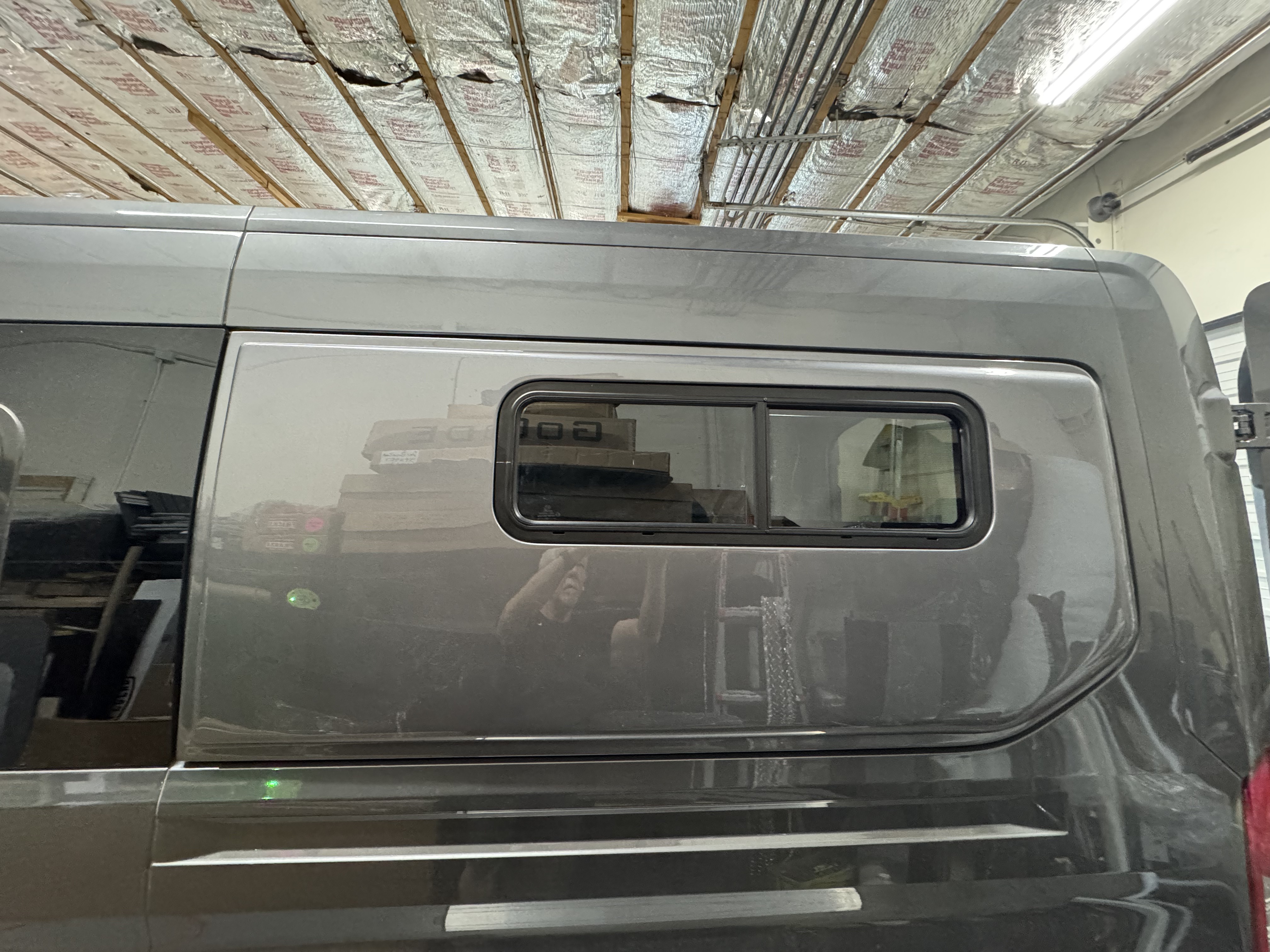

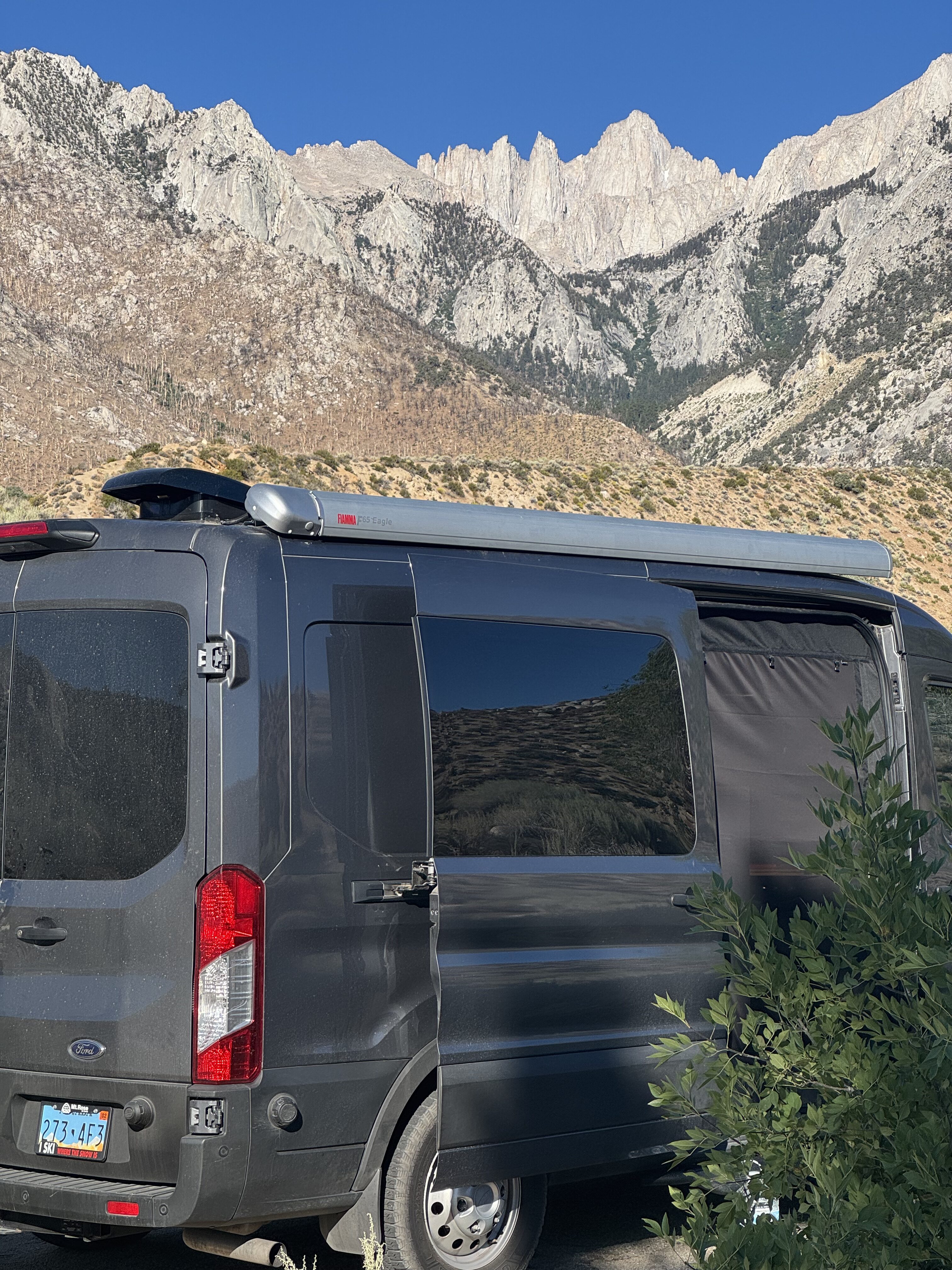

Exterior Upgrades: Aftermarket heavy-duty running boards. Driver-side sliding window with built-in bug screen and privacy shade. Flarespace bump-out pod (Driver Side) with color-matched interior trim and flare GoCode "Innie" window capsule (Passenger Side) Roof-mounted Fiamma Eagle 65s electric awning.

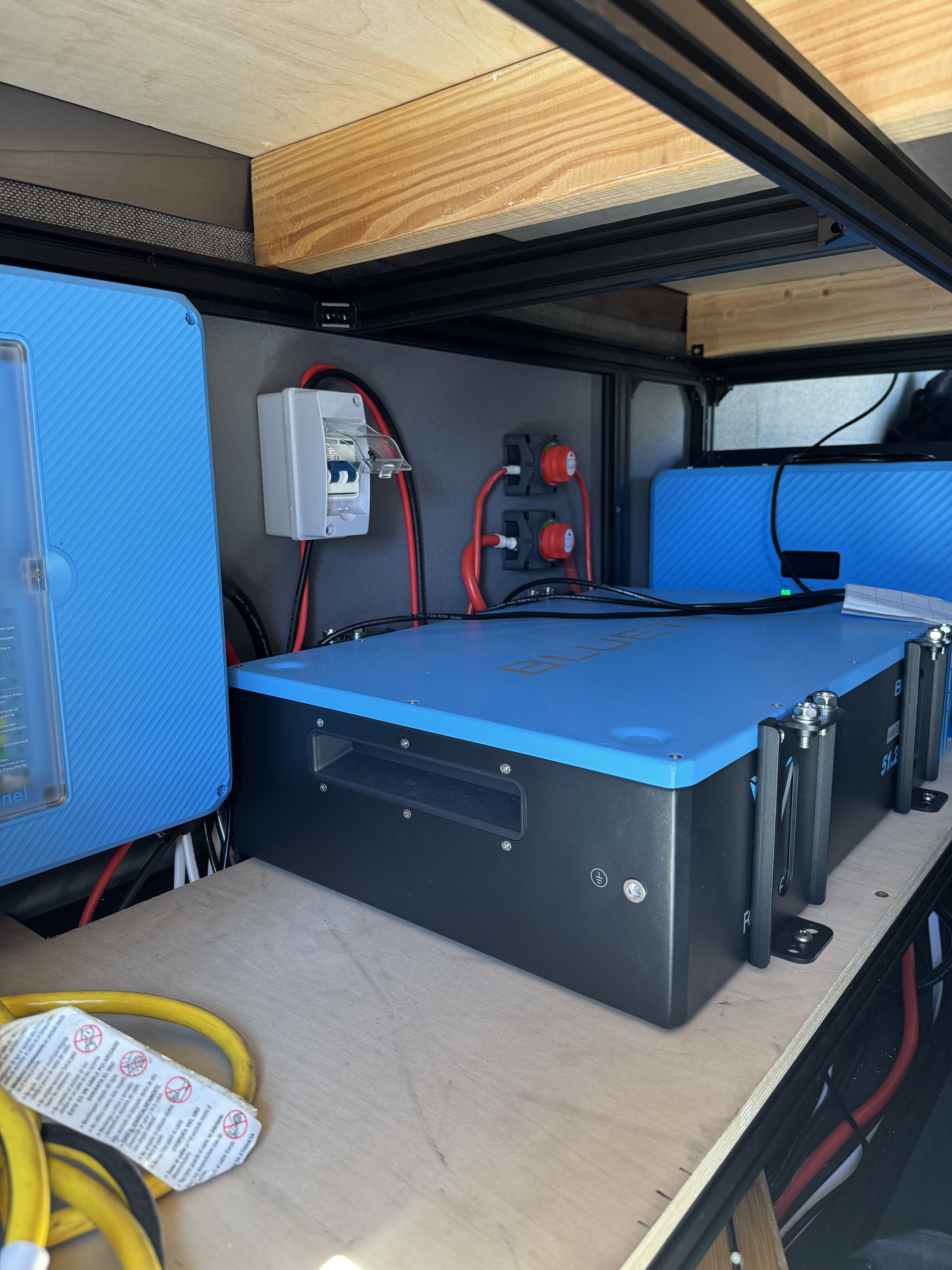

3. Off-Grid Electrical System Power Architecture: Bluetti RV5 Power System (48V High-Efficiency) Battery: Bluetti B4810 LiFePO4 Lithium Battery (5.12 kWh capacity) Control: Bluetti Smart Epanel & Epad Touchscreen Display Solar Power: 400 Watts of roof-mounted solar panels Charging: Multi-input charging via Alternator DC-DC, Solar, and Shore Power
4. Freeze-Protected Water & Plumbing Systems Fresh Water: 22-Gallon internal fresh water tank (safe from sub-zero exterior temperatures) Gray Water: 11-Gallon underslung gray tank equipped with an internal Solenoid-Operated Automatic Drain for fast dump cycles Hot Water: Portmann 6-Liter Tankless Water Boiler Shower: Tetravan Stainless Steel RV & Marine Shower Port System (Indoor/Outdoor capable) Kitchen Sink: Tecvan Stainless Steel Sink with dedicated plumbing. Toilet: Dometic Porta Potti on a smooth slide-out tray inside a custom cabinet.

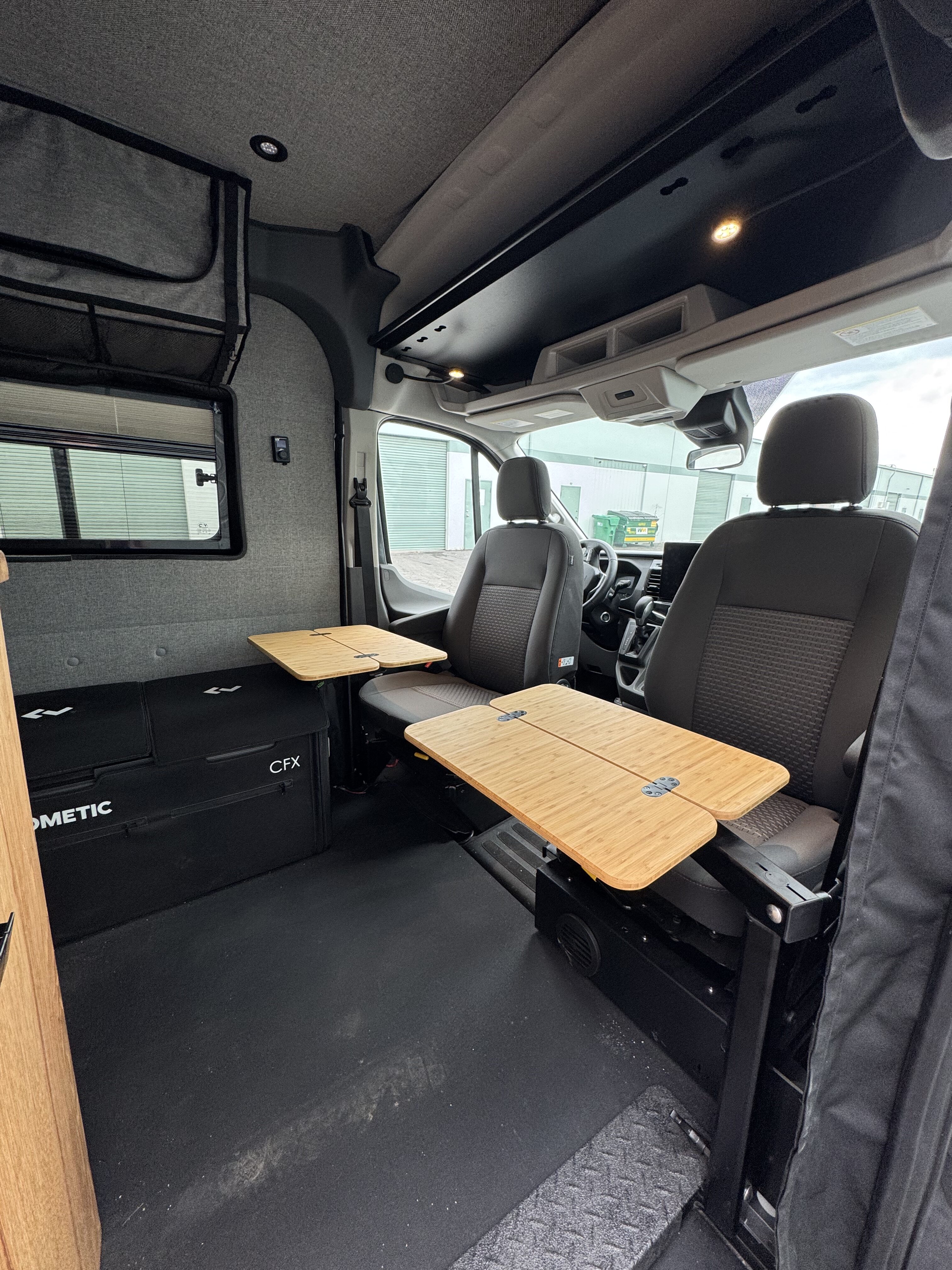

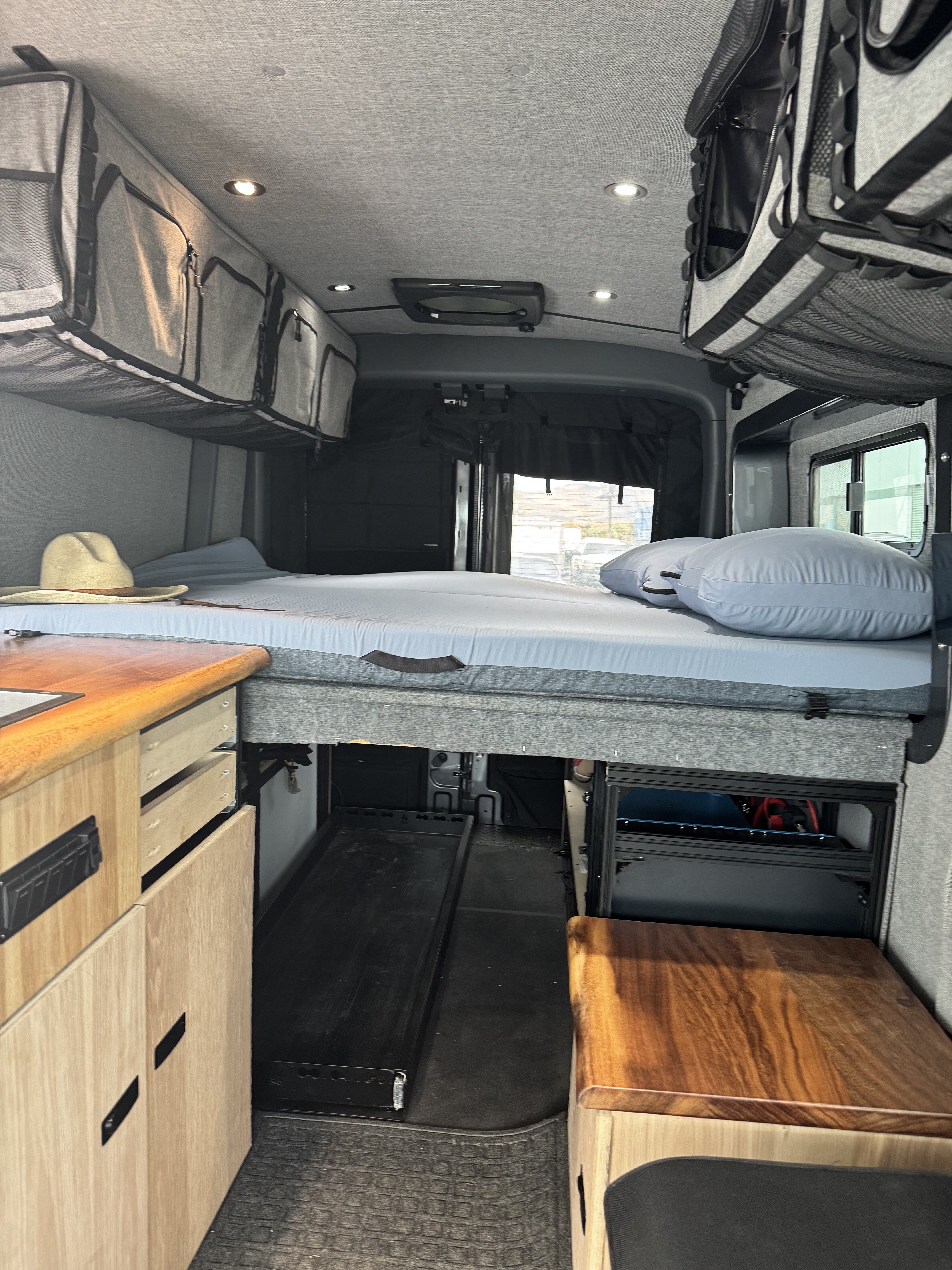

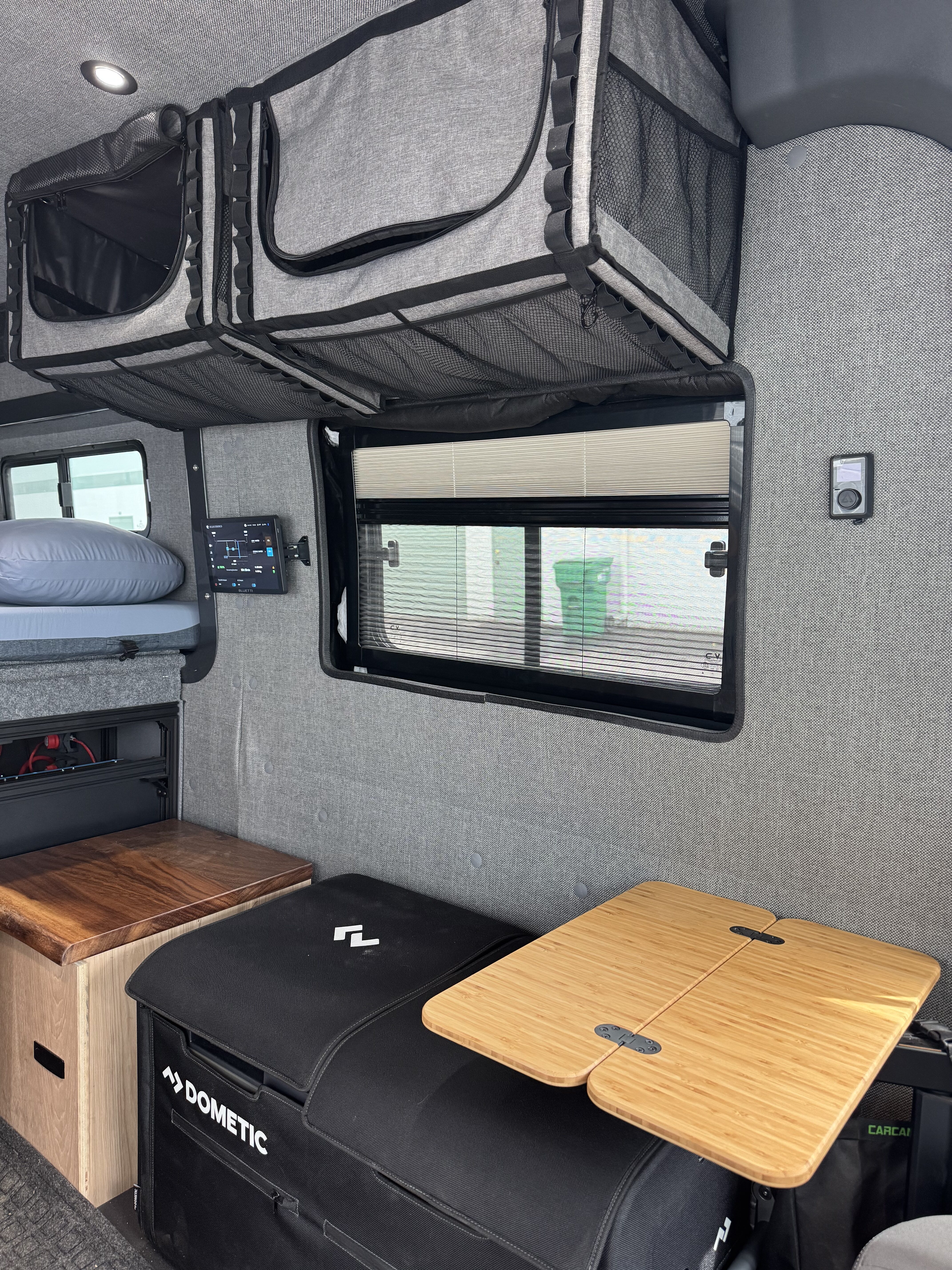

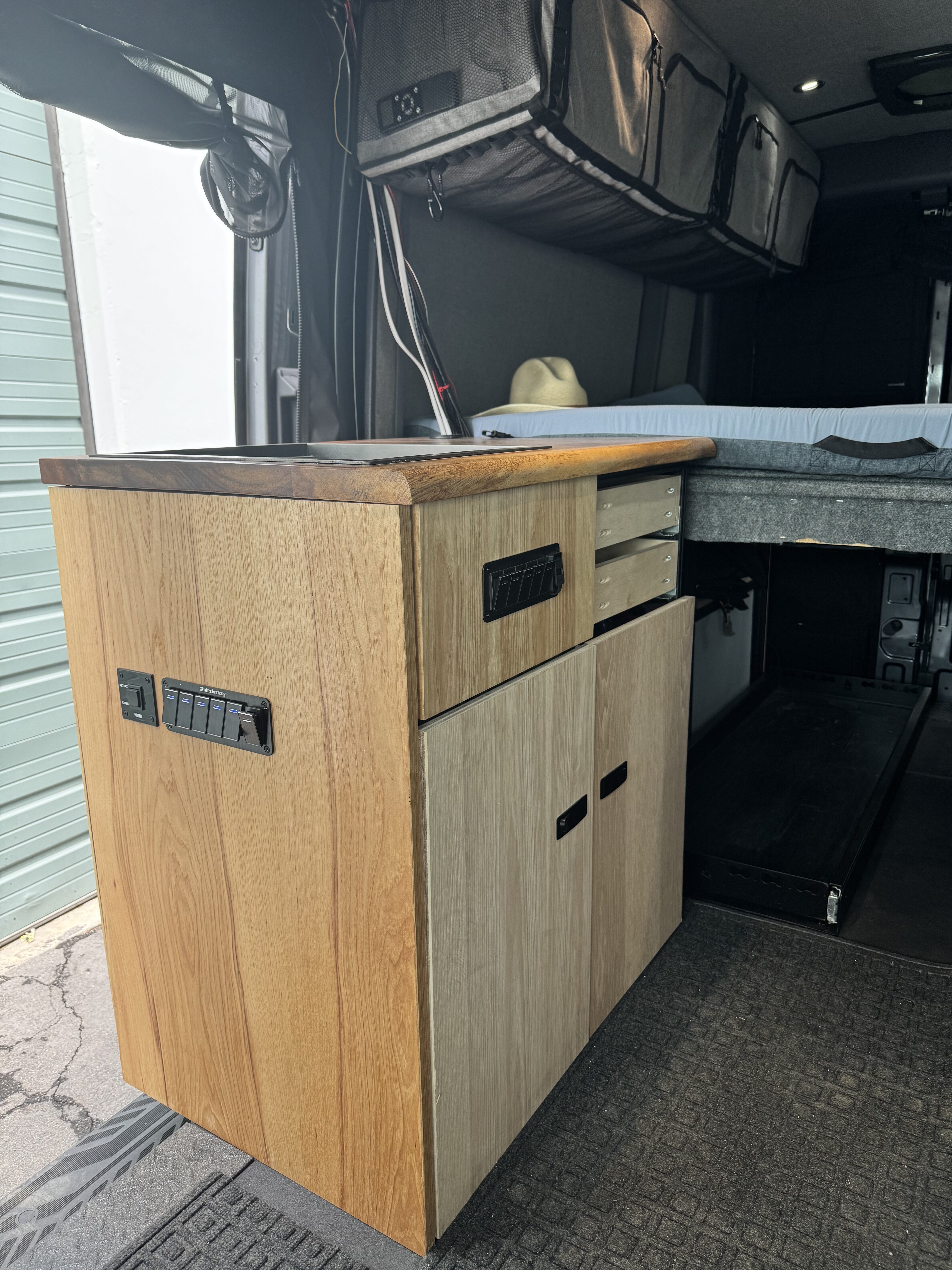

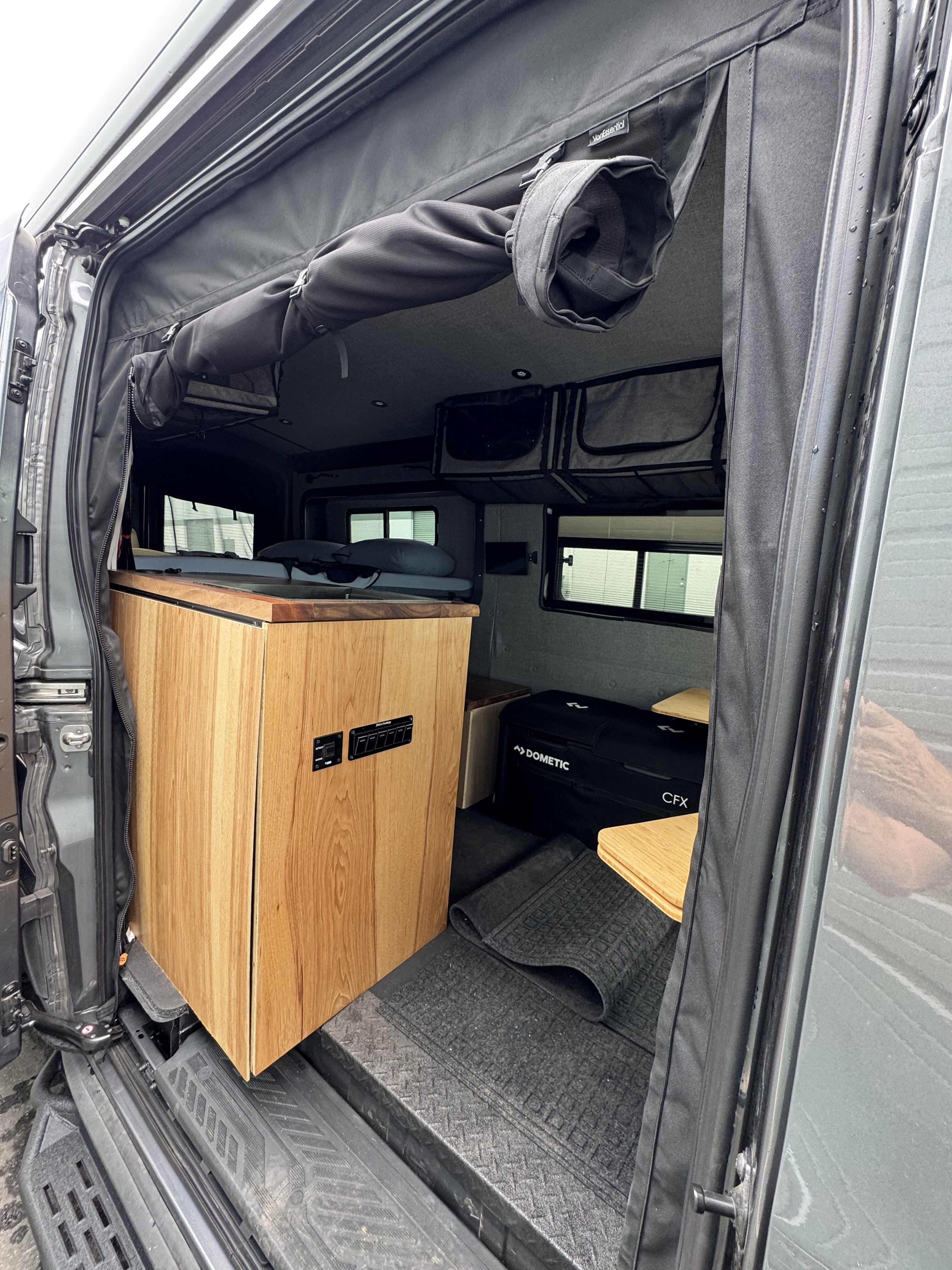

5. Interior Living & Storage Sleeping Setup: Galley with sink and countertop portable induction burner. Hest RV Queen Mattress and Hest Pillows (maximizes width-wise space via Flarespace pod) Custom slide-out stainless steel ladder for easy bed access. Rear Storage Garage: Heavy-duty Flatline Van Co. full-extension slide-out tray for ski gear, snowboards, or bikes. Cabin Storage: Van Essential Overhead Cab Storage Tray + rattle-free Overhead Canvas Storage Bags throughout Seating & Dining: Factory front swivel seats with dual mounting points for pivoting Lagun-style table mounts Lighting: Dimmable LED ceiling and cabinet lights + dedicated reading/map lights over the cab and bed area
