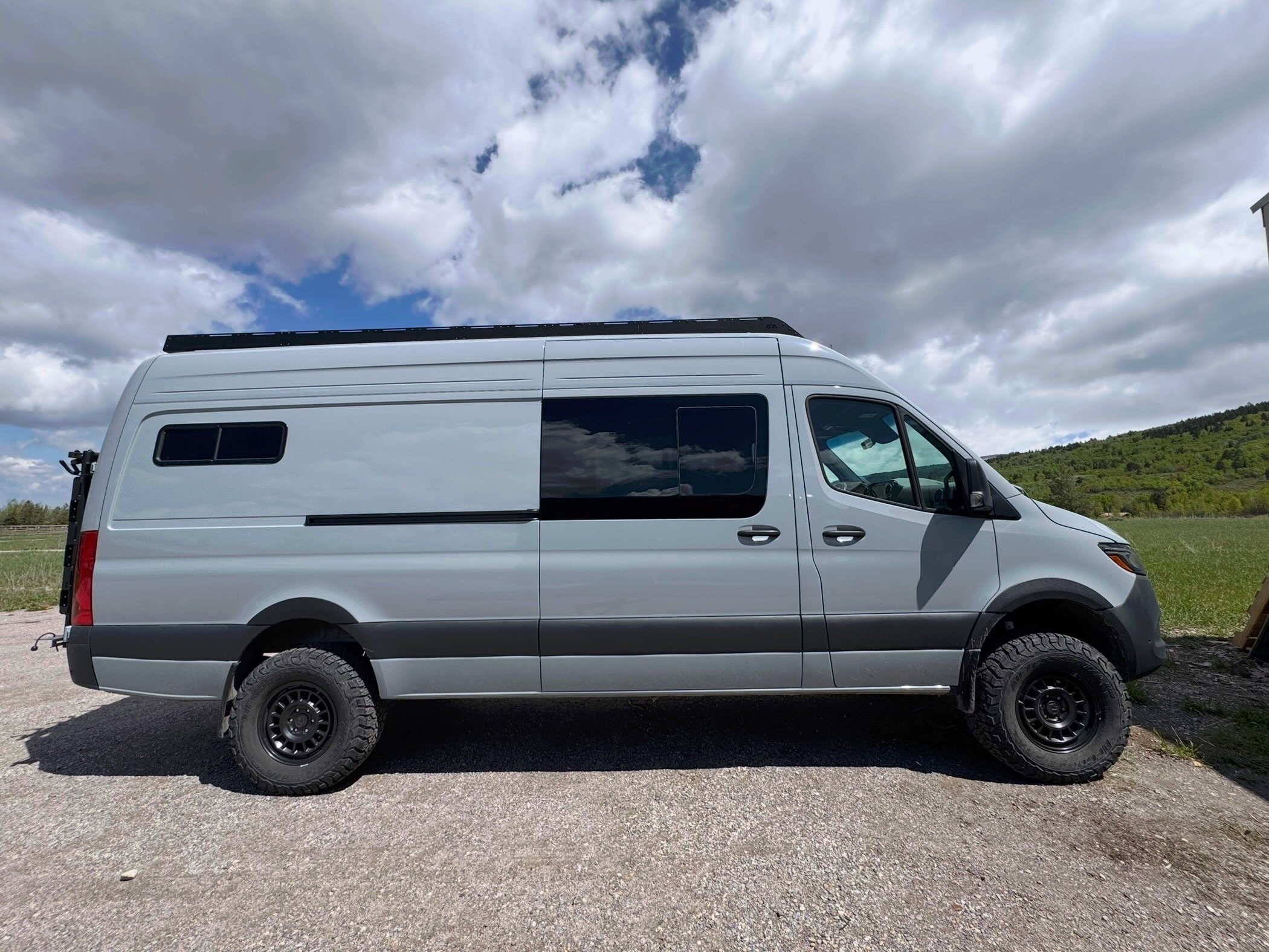

This Professionally Built Family Ready 2024 170 AWD Sprinter Seats 4 and Sleeps 4-5 comfortably…It currently has just over 13k miles and will go up slightly.
This exceptional van was built for all weather comfort for our family of 4 by Inspired Van based just outside of Jackson, WY. This was our 2024/2025 Demo Marketing vehicle and was built to Showcase our key vendors, concepts and our vision of a true Family ready Adventure Rig. To date we have built over 95 Sprinters and Transits since we started back in 2017, and have upgraded countless others.
Seats 4 / Sleeps 4-5 The rear captain seats are custom Leather Scheelmann seats mounted on DOT Approved/Tested JMG Systems Swivel bases for maximum comfort and safety (this seat setup runs just over 4k apiece!). The Front seats are Factory Heated Swivel seats from Mercedes.
The Rear Sleeping arrangement consists of the versatile MOAB Platform Bed from AdventureWagon with their super comfy custom Mattress. Lower is fold out Dinette Sleeper from RB Components which are 2 comfy couches during the day and fold into a lower queen sized bed in seconds. They are mounted on custom aluminum storage benches with the Pass side box being100% gear storage – the Drivers side houses the Electrical and plumbing components and has a small amount of gear storage.
Interior is based on the highly acclaimed and versatile and modular AdventureWagon interior system with L-Track on Walls/Ceiling for maximum cargo/gear management and safe/secure Cabinet/bed mounting. Double layered Thinsulate insulation keeps you toasty warm in the winter or nice and cool in the summer.
This particular van has a massive 460ah EPOCH Heated Lithium battery and Victron Charging hardware (alternator and Solar). 190w Zamp Solar panles (2x95w) For a minimal upcharge we can incorporate a 2000W inverter with a few 110 outlets if needed.
28gal Fresh Water tank is mounted underneath (cold water only). The aluminum Drivers Side Galley from RB has an IsoTherm Cruise 85 stainless marine fridge, Dometic sink and tons of drawers for maximum storage and organization. For cooking in the van we prefer to use a small portable butane cooktop.
Upper Cabinetry is from AdventureWagon with their innovative soft MULE 2.0 Storage system. Tons of Capacity, light weight and tons of pockets for organizing all of your things. Can easily add 1 or 2 more on the Passenger side if you’d like or even swap out for rigid aluminum cabinets for a small upcharge. Van has a front headliner Shelf from Shuksan Van which is upholstered to match and holds the included set of VanEssential insulated window shades.
A Custom built Porta-potty cabinet/storage bench from SergSupply provides additional hangout/seating space seating while hiding the Dometic Cassette toilet for that middle of the night call of nature….
Heating is provided by the massive Espar AM3-D4L diesel furnace which puts out ~14000 BTUs to insure you and your family stays toasty warm no matter how cold it is outside.

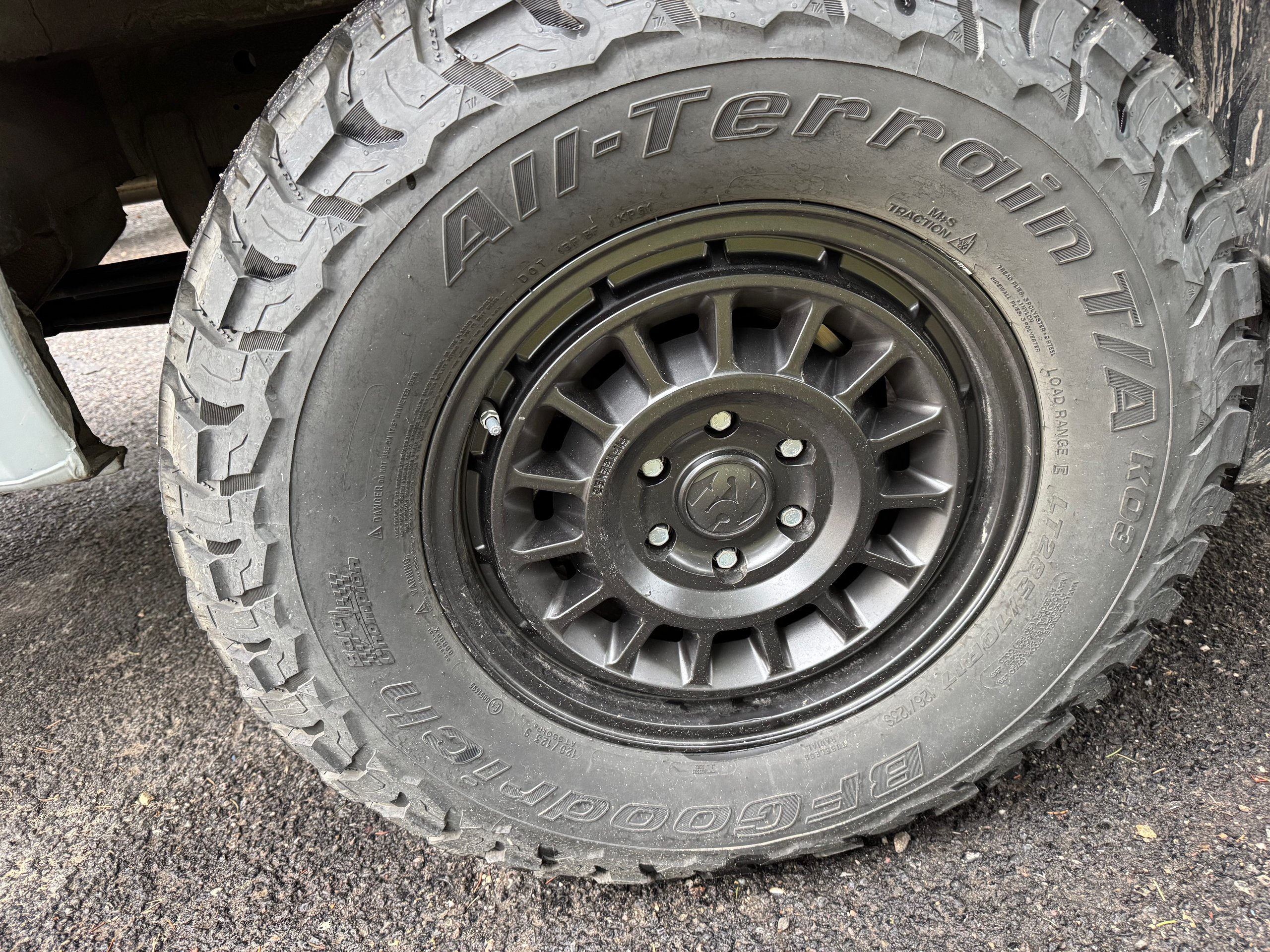

Upgraded suspension consists of the VanCompass adjustable Falcon rear shocks, their adjustable Rally Struts up front and upgraded rear Leaf Springs. Van rolls on Fifteen52 rims with 285/70/17 BFG KO3 tires.
Exterior Cargo gear and toy management is courtesy the Backwoods Adventure Mods (now under the RoamBuilt name) roof rack, OWL Van B2 Classic w/ Lolo Racks 3 bike setup on the Passenger door and a matching OWL Van Explorer Tire/Ladder rack on the driver’s side.
To replicate this exact buildout on a 2025 Sprinter would run north of 179k, we are Asking 127.5k for this exceptionally dialed, professionally built and lightly used road trip ready rig. We will consider any Reasonable Offers but please no low balls – this is not a cobbled together DIY build. You are getting a professionally built van that is ready for all that you can throw at plus some.
Please reach out with any questions – I have some additional photos, along with a complete itemized Build sheet on the van itself plus full buildout details.
We welcome any required modifications or upgrades for your family, please just ask….. Thanks for Looking!
