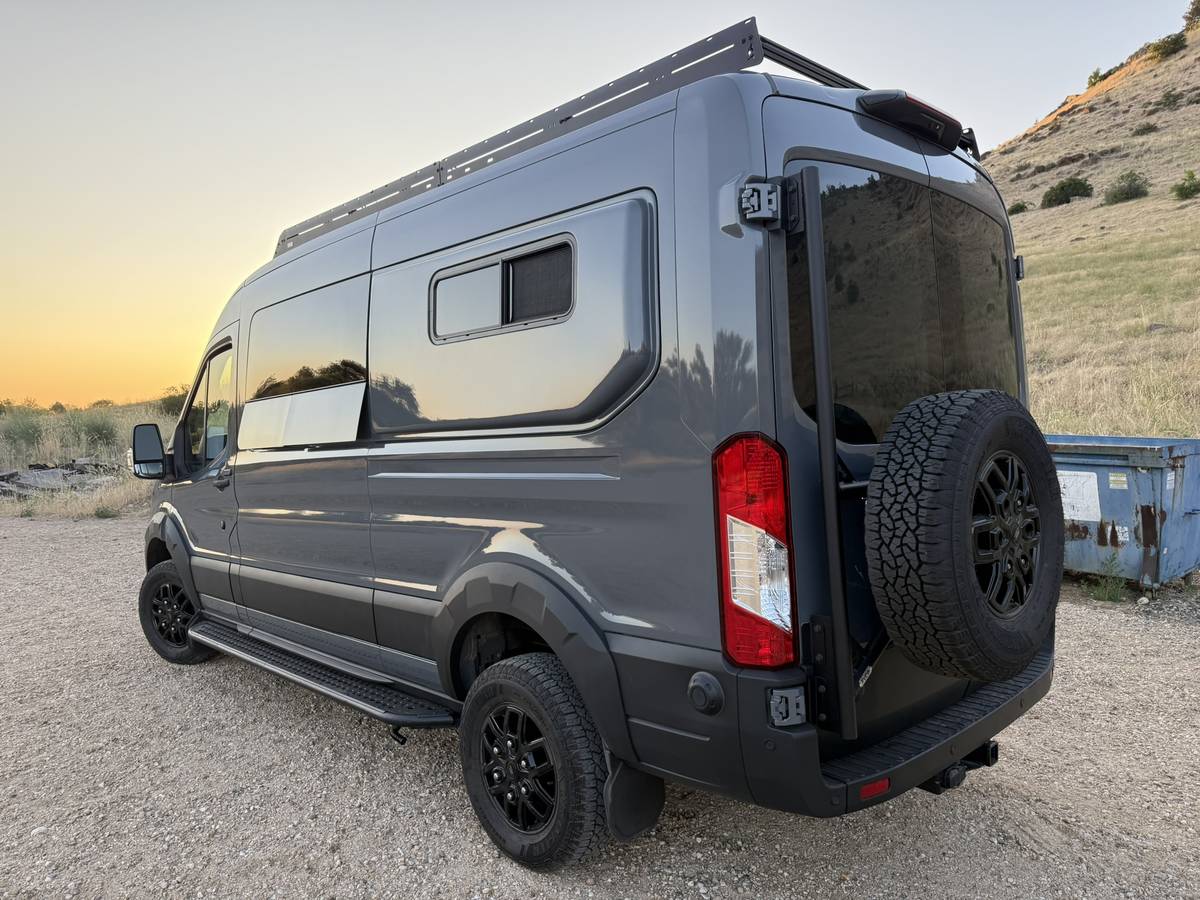

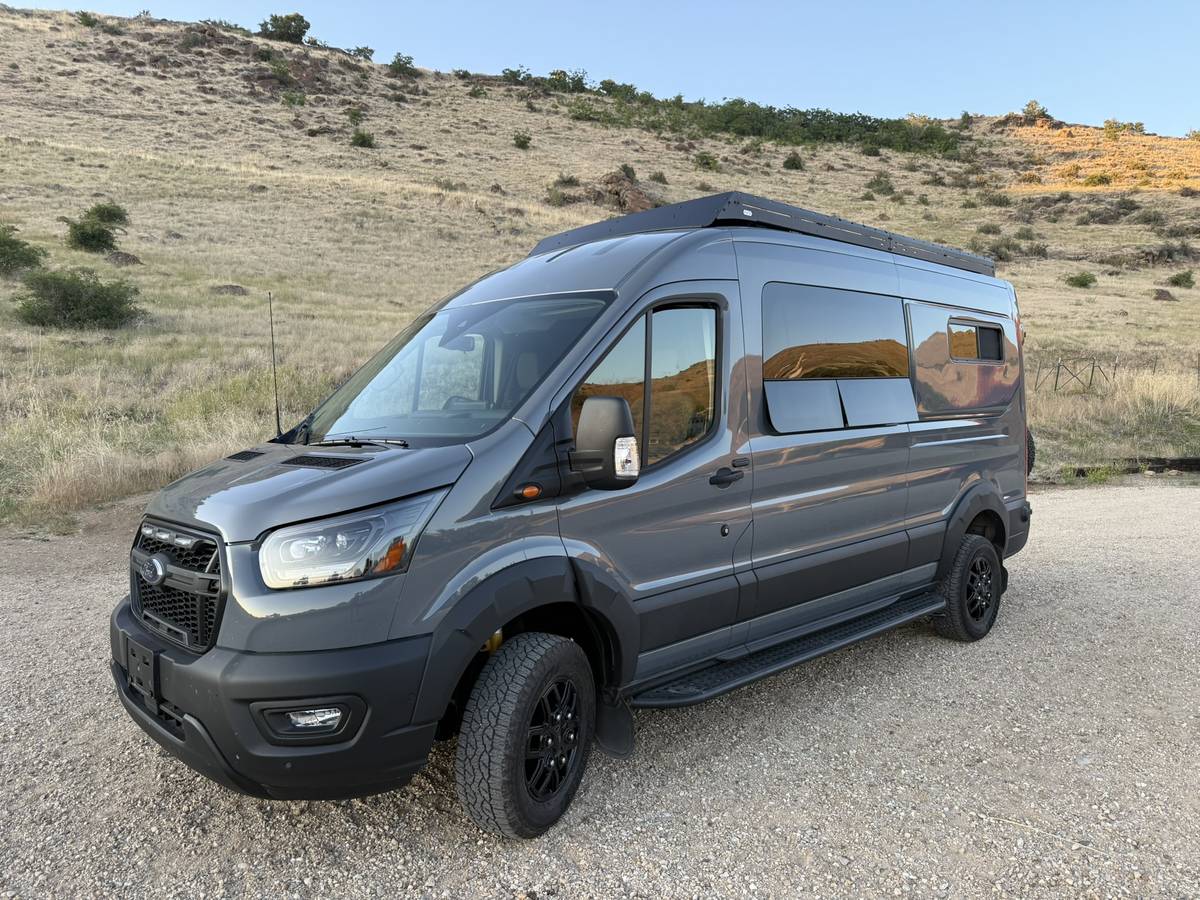

2024 Ford Transit Trail 350 AWD- Medium roof 148” WB Rare Transit Trail model with factory body lift, Trail aluminum wheels, Raptor style grill, side steps and fender flares, Ecoboost motor, 4 way swivel seats, passive entry/start, high res rear view camera, extended range fuel tank and Abyss Grey paint, this van really looks sharp. See attached window sticker for all factory options.

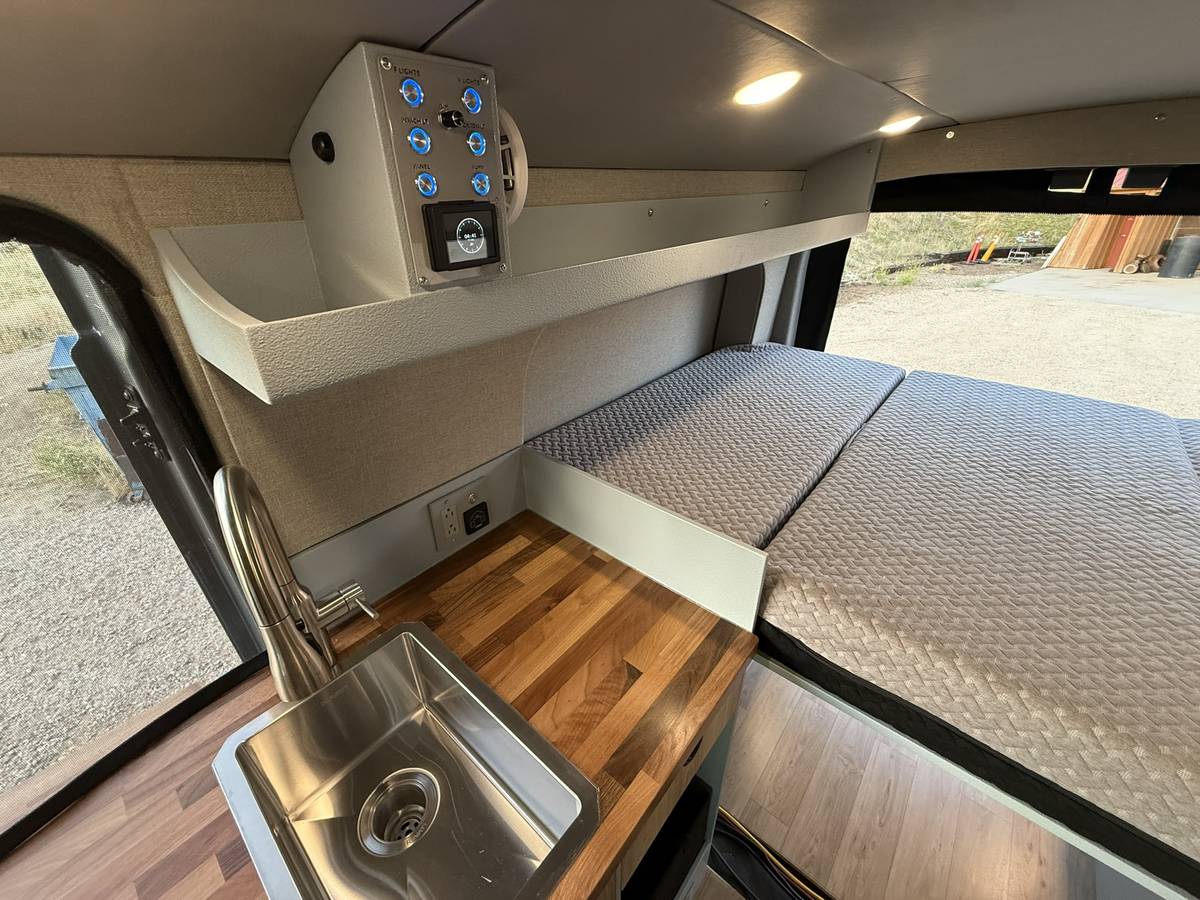

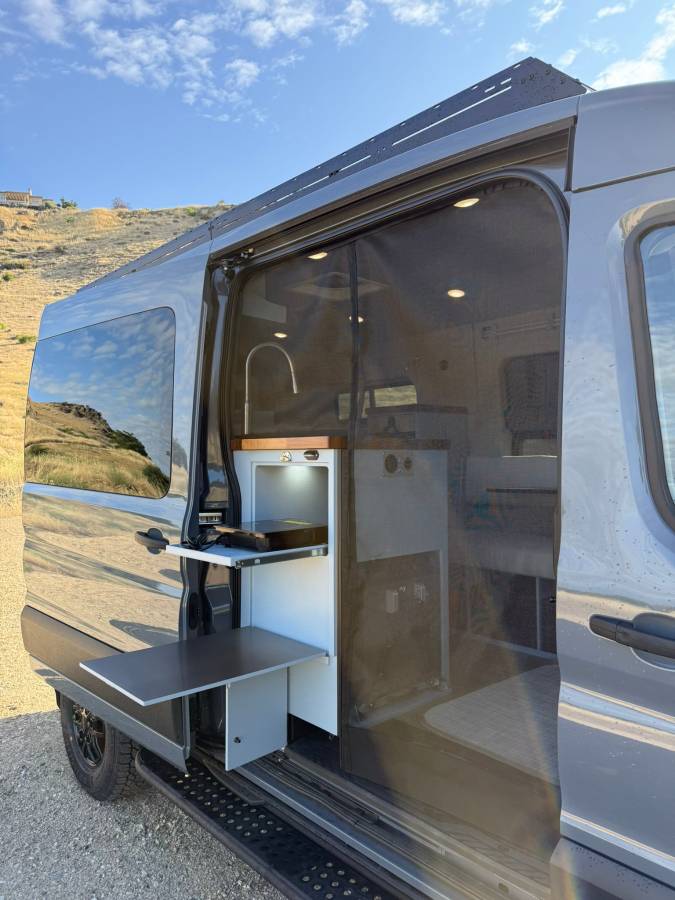

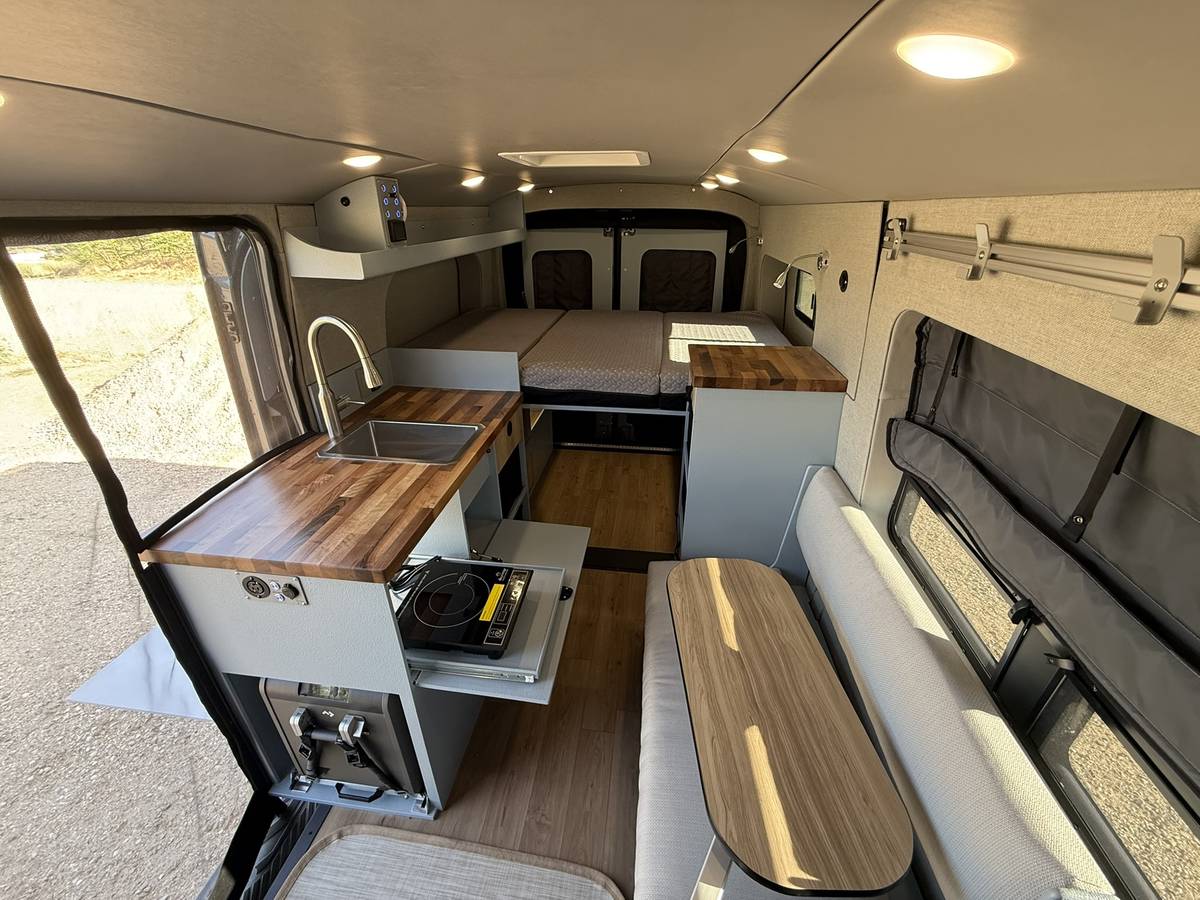

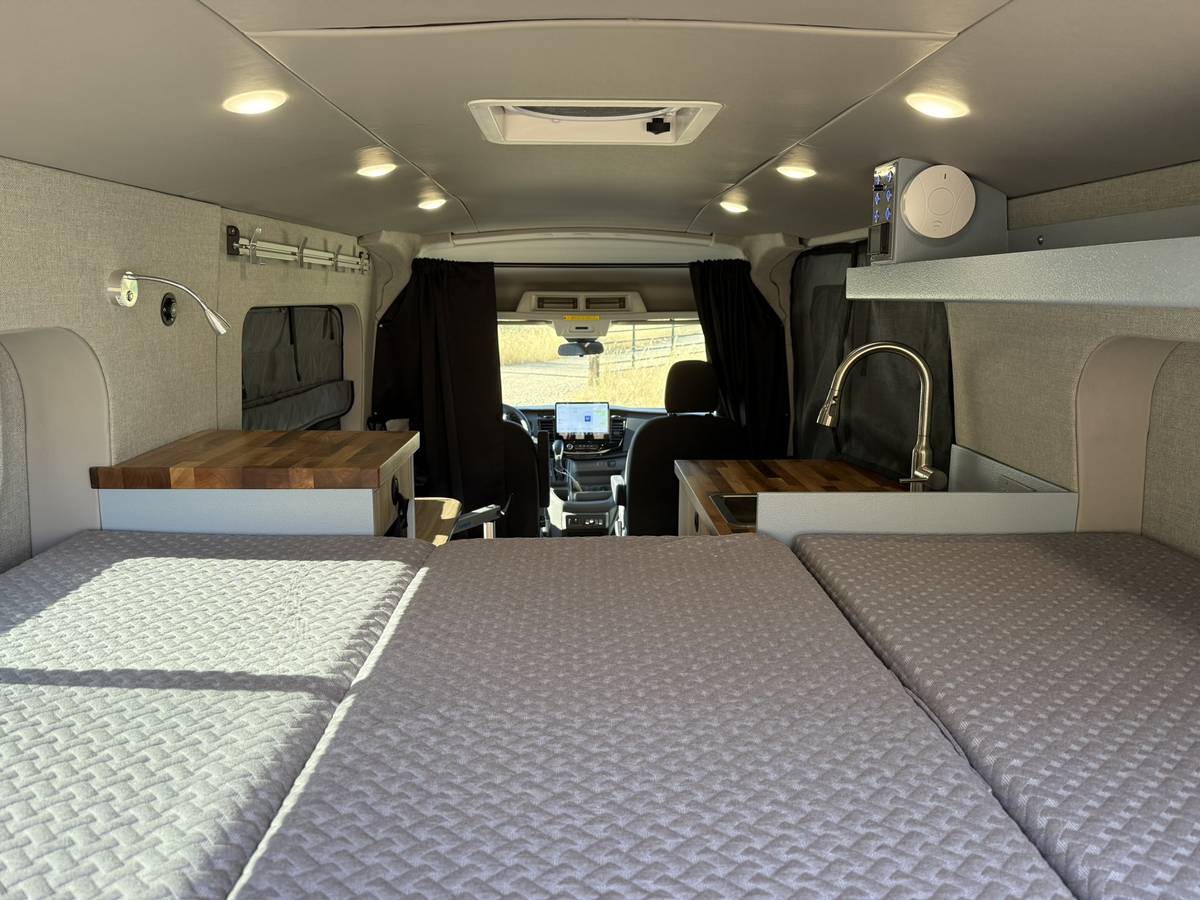

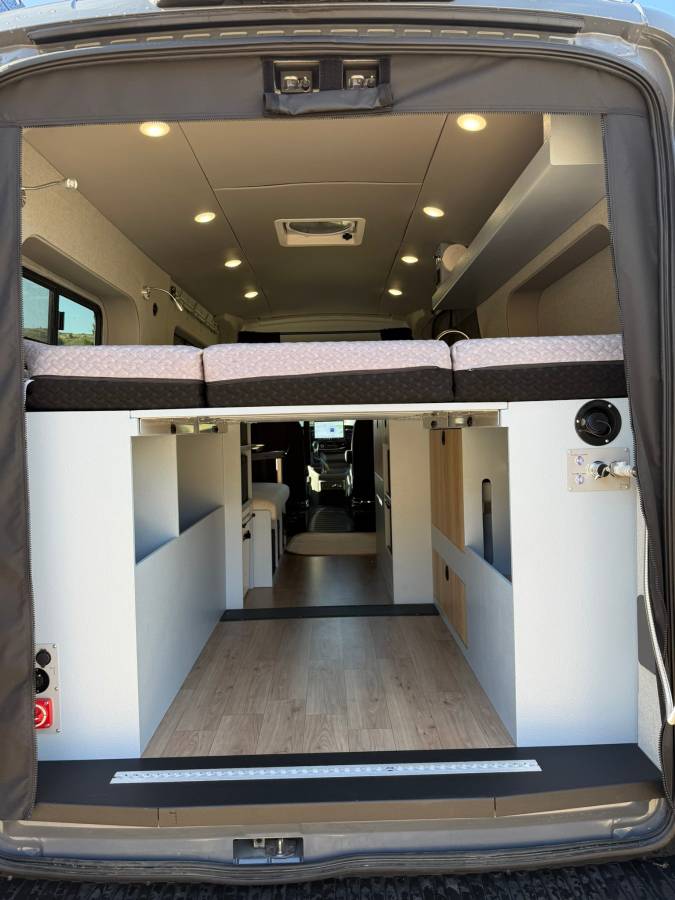

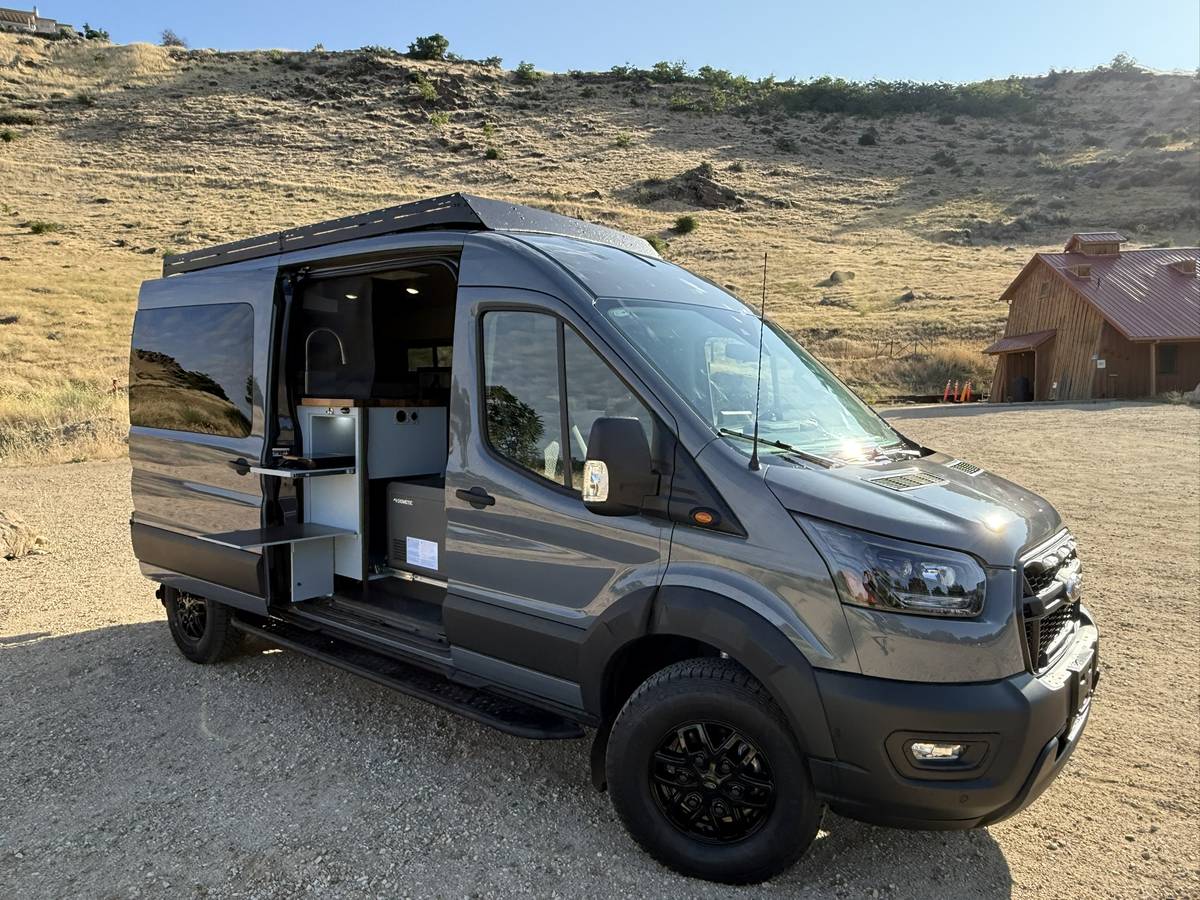

Our classic Kestrel layout includes an indoor/outdoor kitchen in the slider door with hot and cold water, a drawer and removable storage bins, 45L refrigerator and a walnut butcher block countertop. Full size loft bed in the rear with Flarespace flares to allow “east-west” sleeping and a 79” length bed space. There is an awning window and adjustable reading lights at the head of the bed. Ample gear storage underneath and in the side pod cubbies. The rear threshold plate with integrated L-track allows for bicycle fork mounts.

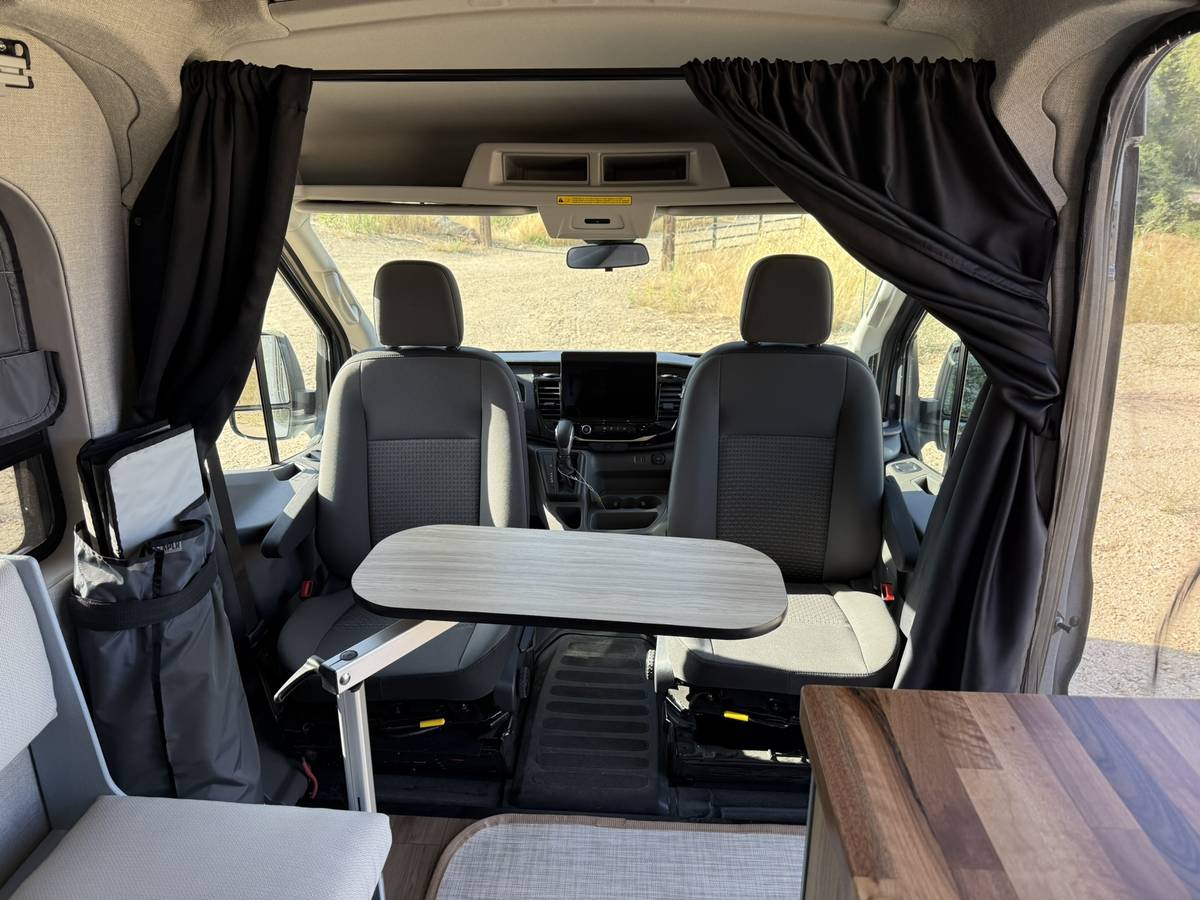

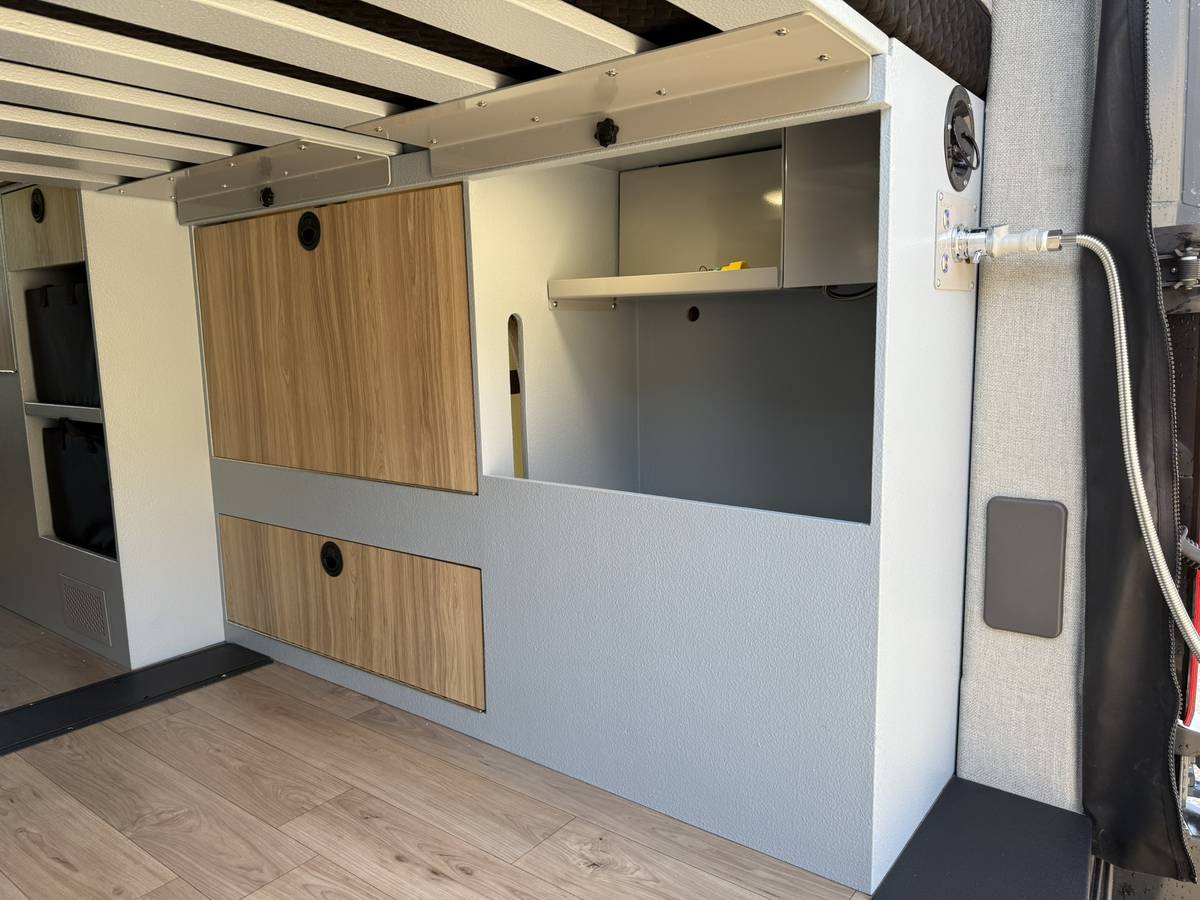

The bedside nightstand also has removable storage crates, a drawer, and a separating toilet which glides out from below. The crates are great for taking inside when loading or unloading, laundromats, grocery stores, etc. whether its clothes, food, or gear, they are super convenient, take up less space and lighter than drawers. The drivers side bench seat has even more storage options below. You can set up the swiveling table at the bench seat or at the factory swivel seats via the Lagun swiveling table mount.
This van includes a roof fan, and opening windows for ventilation, a gasoline (on board fuel tank) powered air and hot water heater, and a full set of insulated window shades, and door screens. The Havelock wool insulation is very extensive and does a great job at keeping out the cold as well as keeping out the hot in the summer.

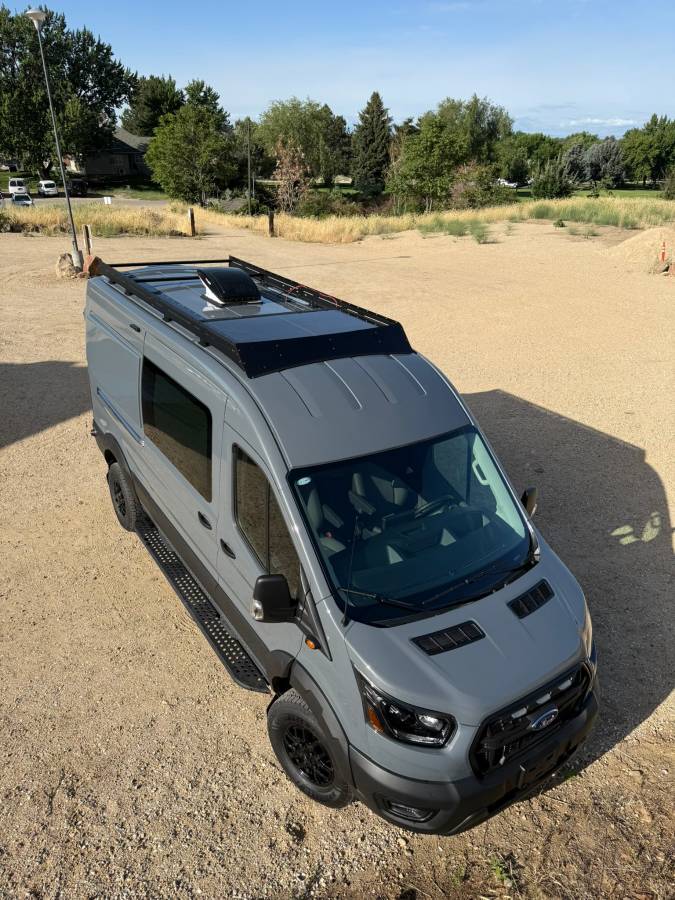

Exterior goodies include a Flatline spare tire rack, roof rack with 200watt solar panel, Trail lift with added Bilstein front/Falcon rear shocks.
The van weighs 7250lbs with a 9500lbs. gvw. 2250lbs capacity for occupants and gear.
Van currently has less than 500 miles from delivery and testing of systems.
This van has had all Trail recalls performed.
This van is ready to go. Located in Boise, Idaho (10 min from BOI airport) Clean title.
Van is being sold by Pinnacle Campers LLC
Let your adventures begin!
$138,500
Upfit:
CRLaurence Driver side forward awning window. Flarespace bunk slider window
Flooring: Lonseal Madera “Portabello”
Havelock wool, roof, walls, rear and slider doors
Custom interior headliner wall panels and coverings. Grey mix automotive tweed, Warm grey vinyl
Custom Interior Cabinets-
Pinnacle Campers kitchen cabinet with exterior drop down table, 2 way sliding storage tray, and upper drawer, and two large removable crates. Walnut butcher block top.

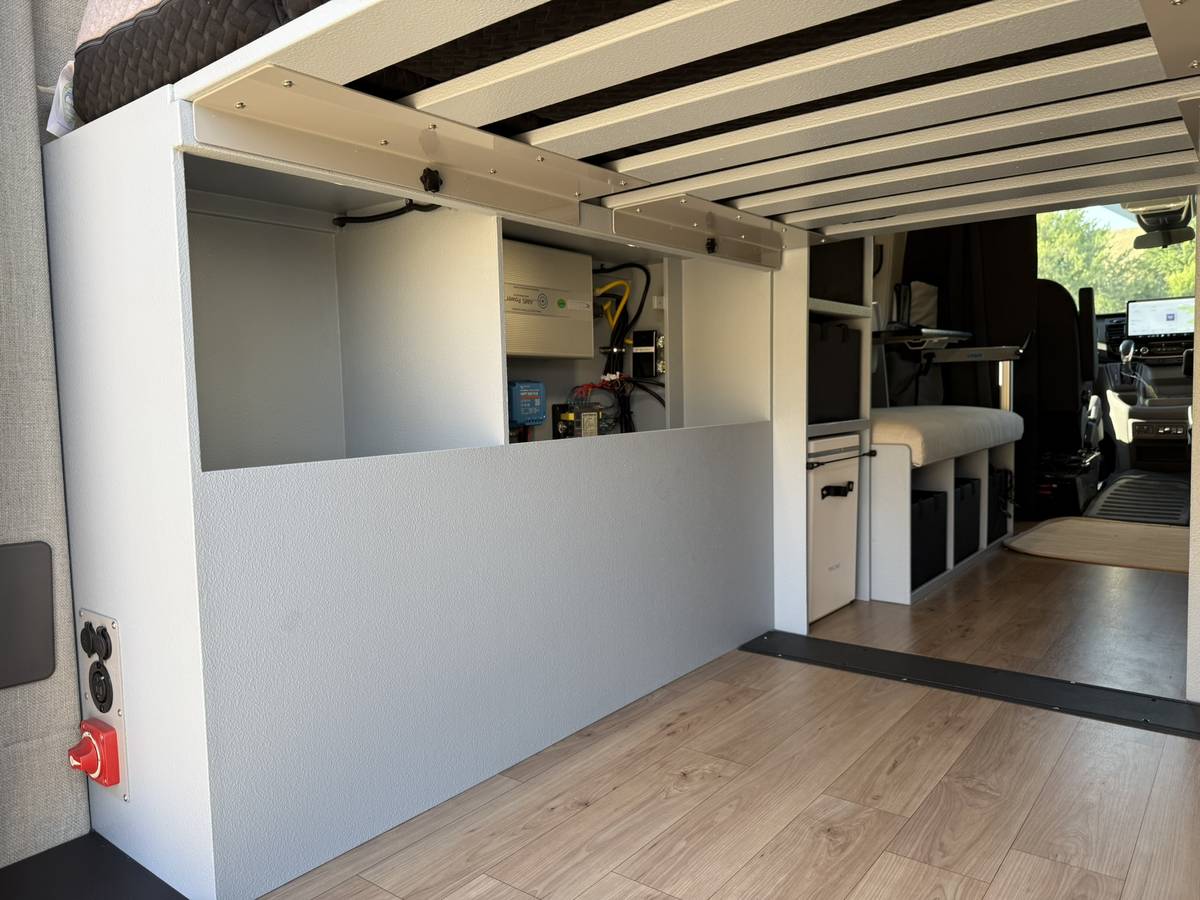

Pinnacle Campers bed kit set up for E/W sleeping. Wheel well storage cubbies, powerwall/integrated batteries, removable platform slat panels.
Crate cabinet with bedside walnut countertop.
Bench seat 46″, foam/cloth upholstered backrest and cushion with Outdura Reflections (smoke) fabric, 3x removable bin storage under.

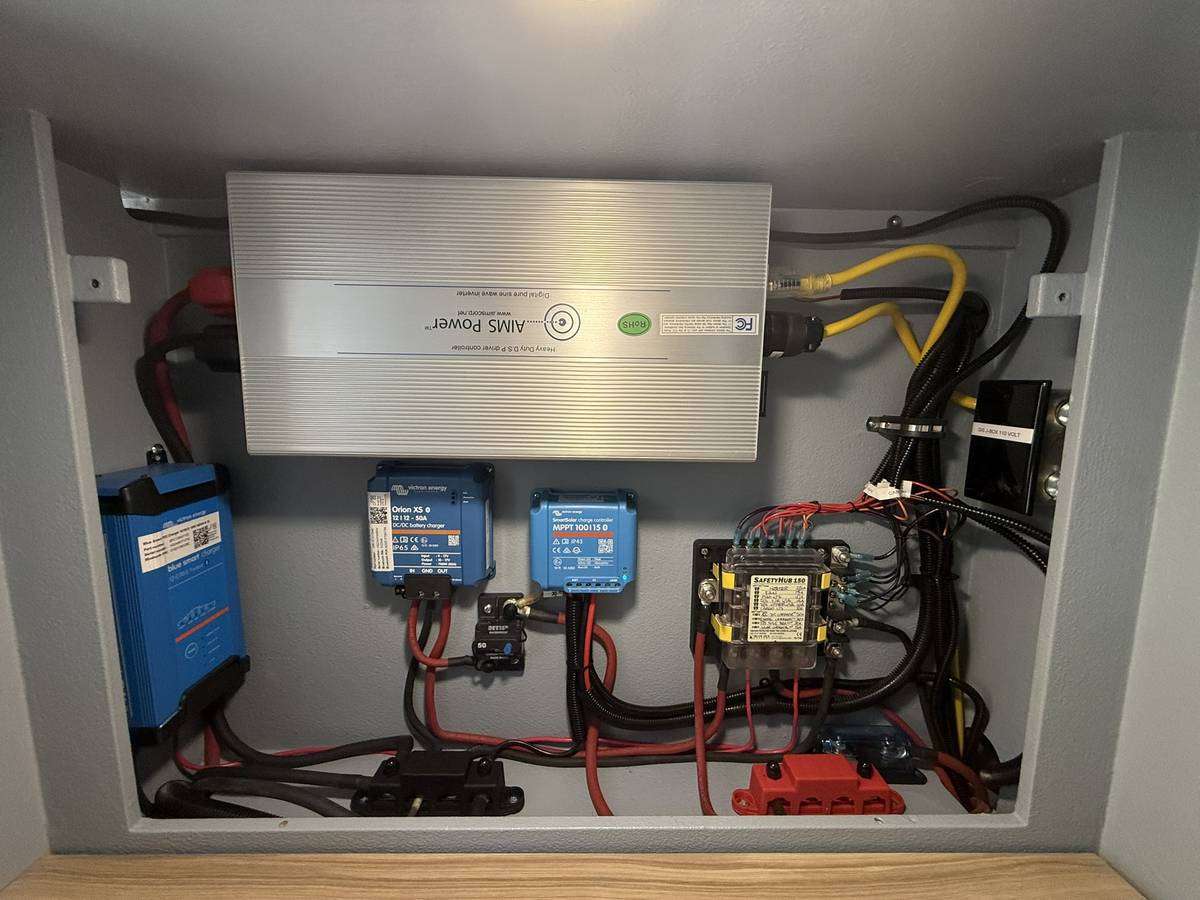

Electrical: Capacities: 300ah storage, 200w solar, 50 amp engine charging, 30 amp AC Charging, 2500w AC inverter
300ah Epoch Essential series Lithium batteries with internal heater, bluetooth monitor
Aims Power 2500w inverter
Victron OrionXS smart DCDC Charger 12/12 50a
Victron Smartsolar MPPT 100/15
Solar panel, 200w/24volt
Blue Sea fuse blocks on driver and passenger side
6 LED ceiling lights with dimmer, 2 zones, switched at two locations. Exterior porch, and kitchen light
Cargo lighting, switched at two locations
USB @ 6+ locations
2 multimode reading lights with USB
VanCentric control/outlet panels
Water system: 21g fresh, 12g grey
Stainless sink and faucet with pull out sprayer
Pump Shurflo 3gpm
Fresh tank 21 gallon interior mount, rear door area fill
Grey tank 12 gallon under mount (DS), manual dump valve, vent/over flow, heated
Aqua Crest 10K water filter (assumes clean water in tank)

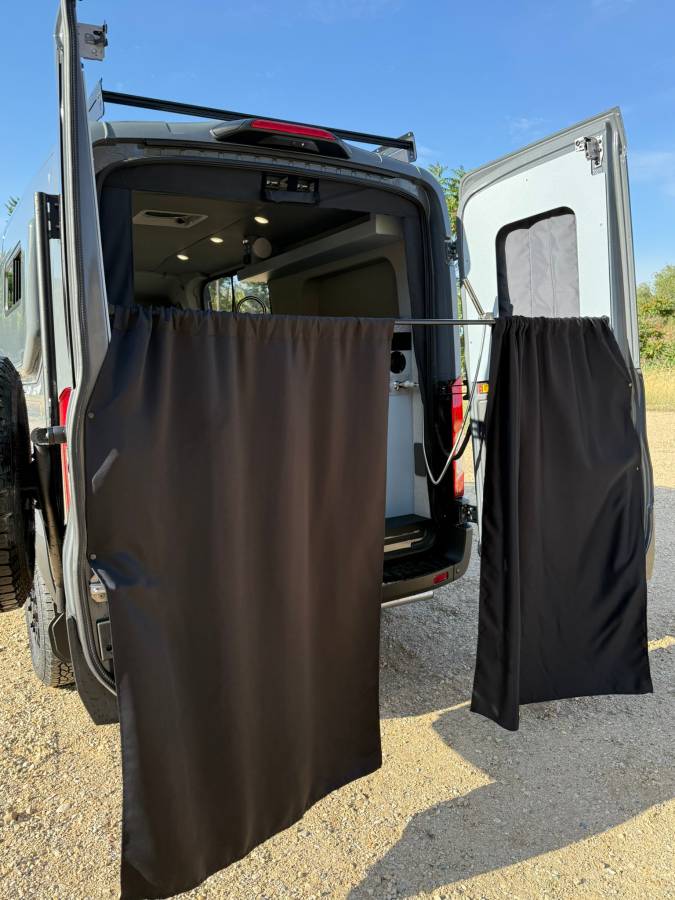

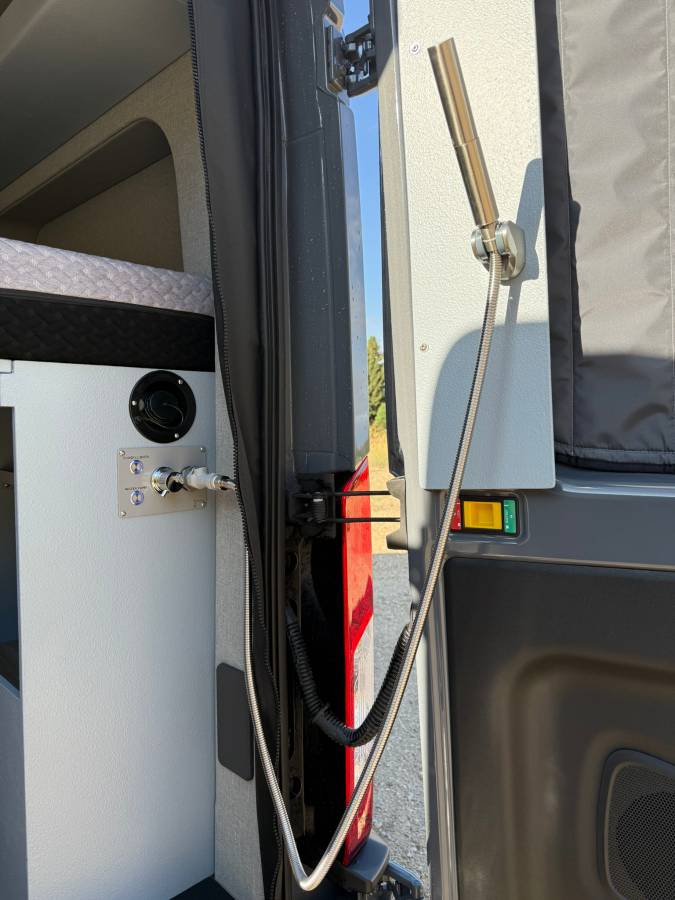

Rear shower quick connect port and handheld sprayer with shut off
Appliances/Accessories:
Elwell Timberline Heat and instant hot water system
Lagun table leg with laminated table

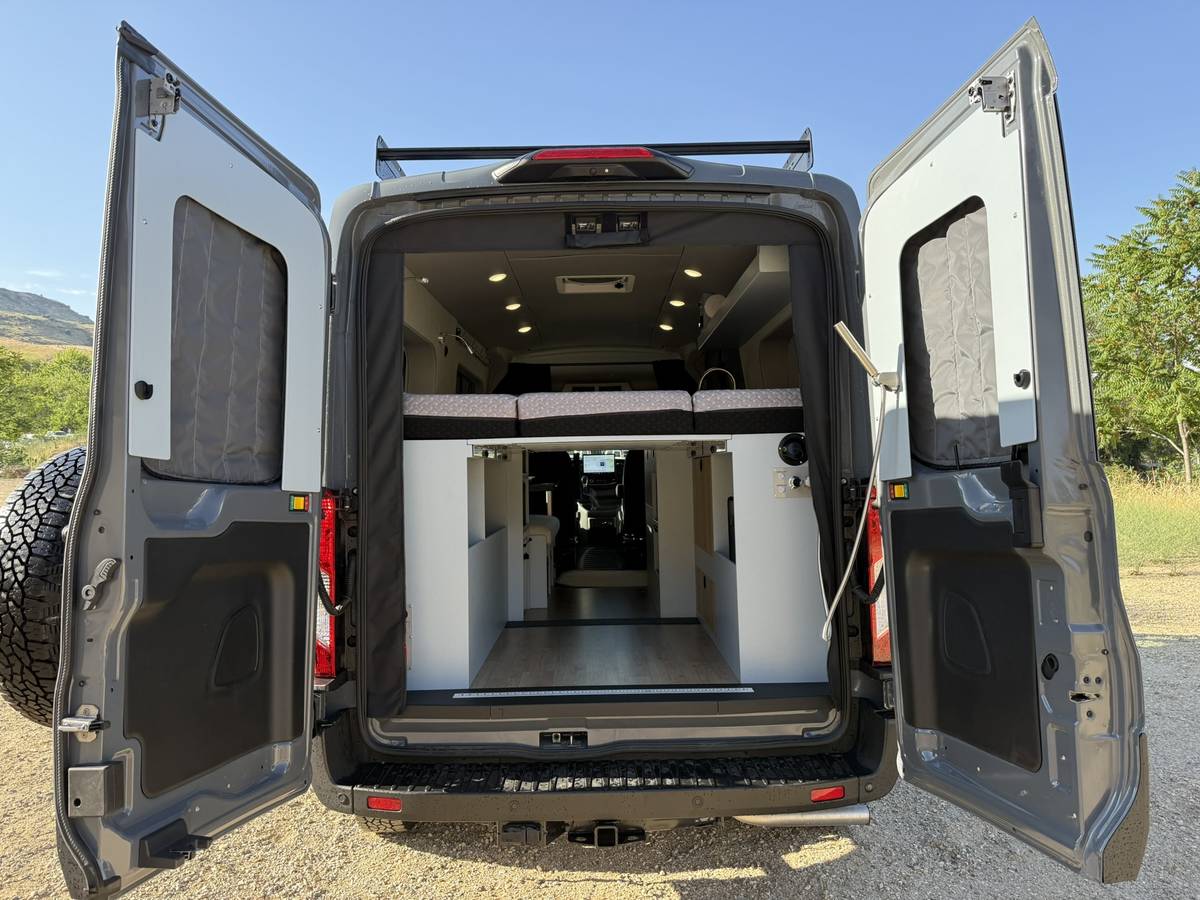

VanCentric rear threshold with L-track kit
Xplr Outfitters shades for windshield and cab doors, driver and passenger side forward window, bunk window and rear doors.
Mattress: Memory foam tri fold 6”, 52 x 75
Dometic CFX45L refrigerator on DFG offroad aluminum slide
Duxtop 1800w induction cooktop
Maxxair 6200K roof fan, black lid
Trelino Separating toilet Large
Bug screen kit, Pinnacle Campers, slider
Bug screen kit, Bug Wall rear garage
Exterior:
Flatline Van Co. roof rack

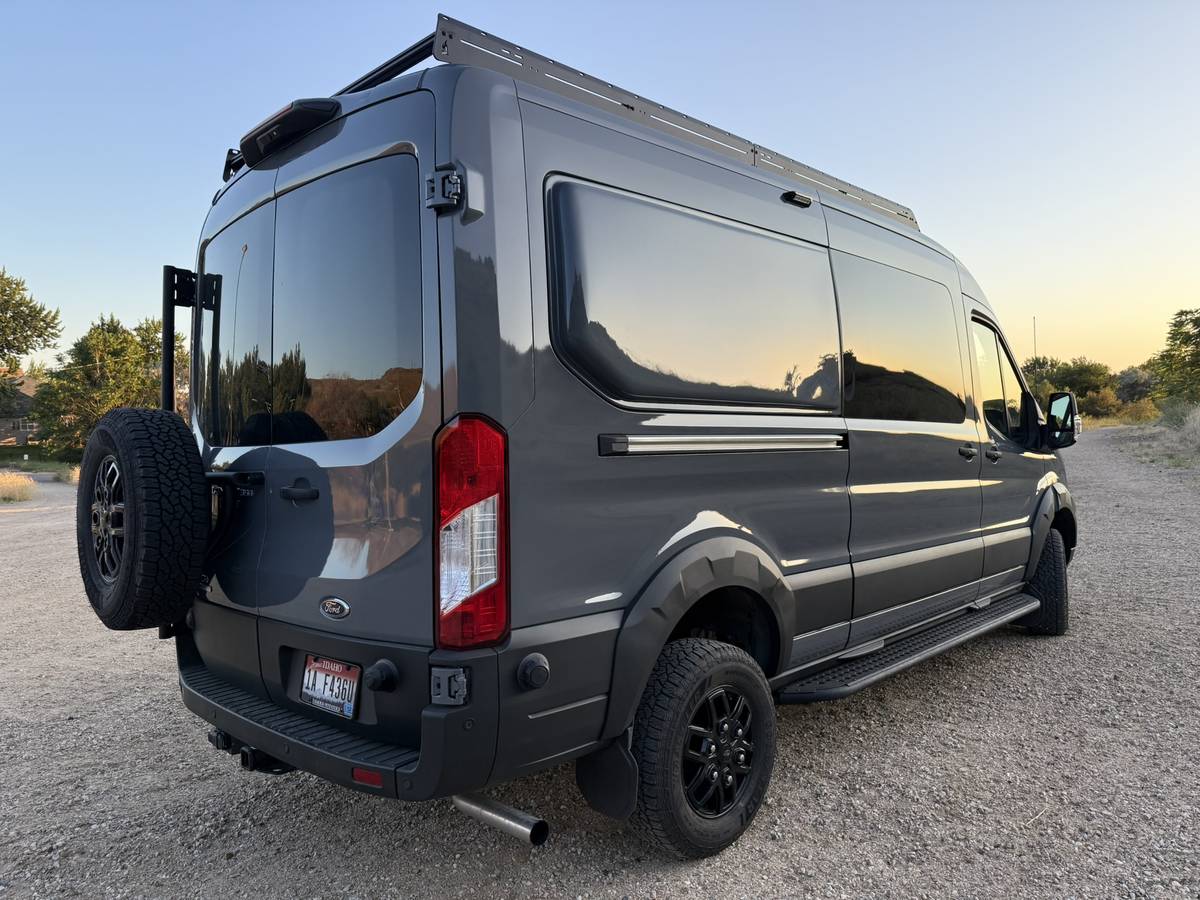

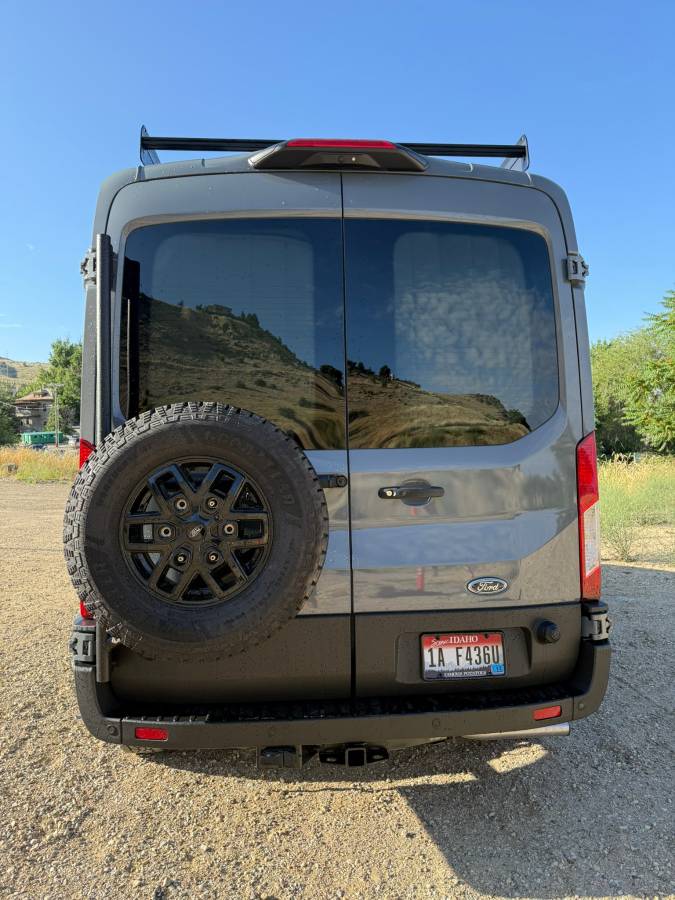

Flatline Van Co. spare tire rack with 5th Trail wheel and TPMS sensor
Powerbuilt 2 ton hydraulic jackstand, the stock jack is still in the van, though not quite adequate for the lift.
Van Compass rear shock tower extension brackets, Bilstein shocks (front) Falcon shocks rear, Installed with Alignment
Goodyear Workhorse AT 245/75/16 x5
