TRU-Earth self leveling system installed on liquid springs.
Full 4 season go anywhere expedition vehicle ready to go!
Secured with KeySavvy: www.keysavvy.com/pay/ram-kjznem
Free and clear title. Nearly Brand new – but fully tested.
Professionally built – (not diy)
Over $430,000 LESS than the Earthroamer LTX. $150,000 less than Storyteller Hilt with many of the perks included in this truck – from the suspension, tires, heated floors, undercount AC & heat that has been tested in the arctic. - All Off-grid via Battery & 1200w of solar.
I am selling because this builder took over a year in building this, and by the time it was complete I had moved on to other projects and my time to travel became very limited. Selling at a big loss.
My loss your gain.

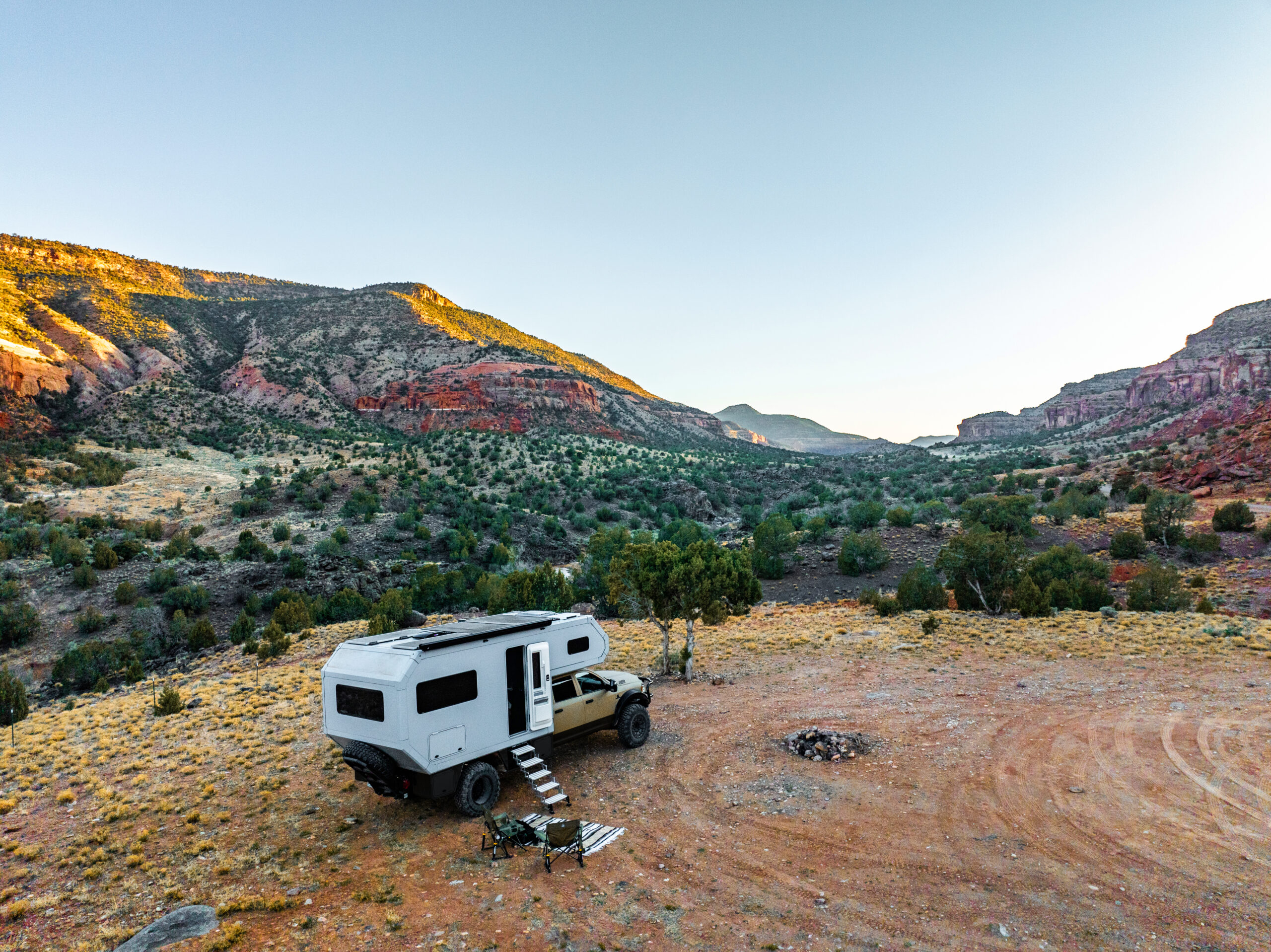

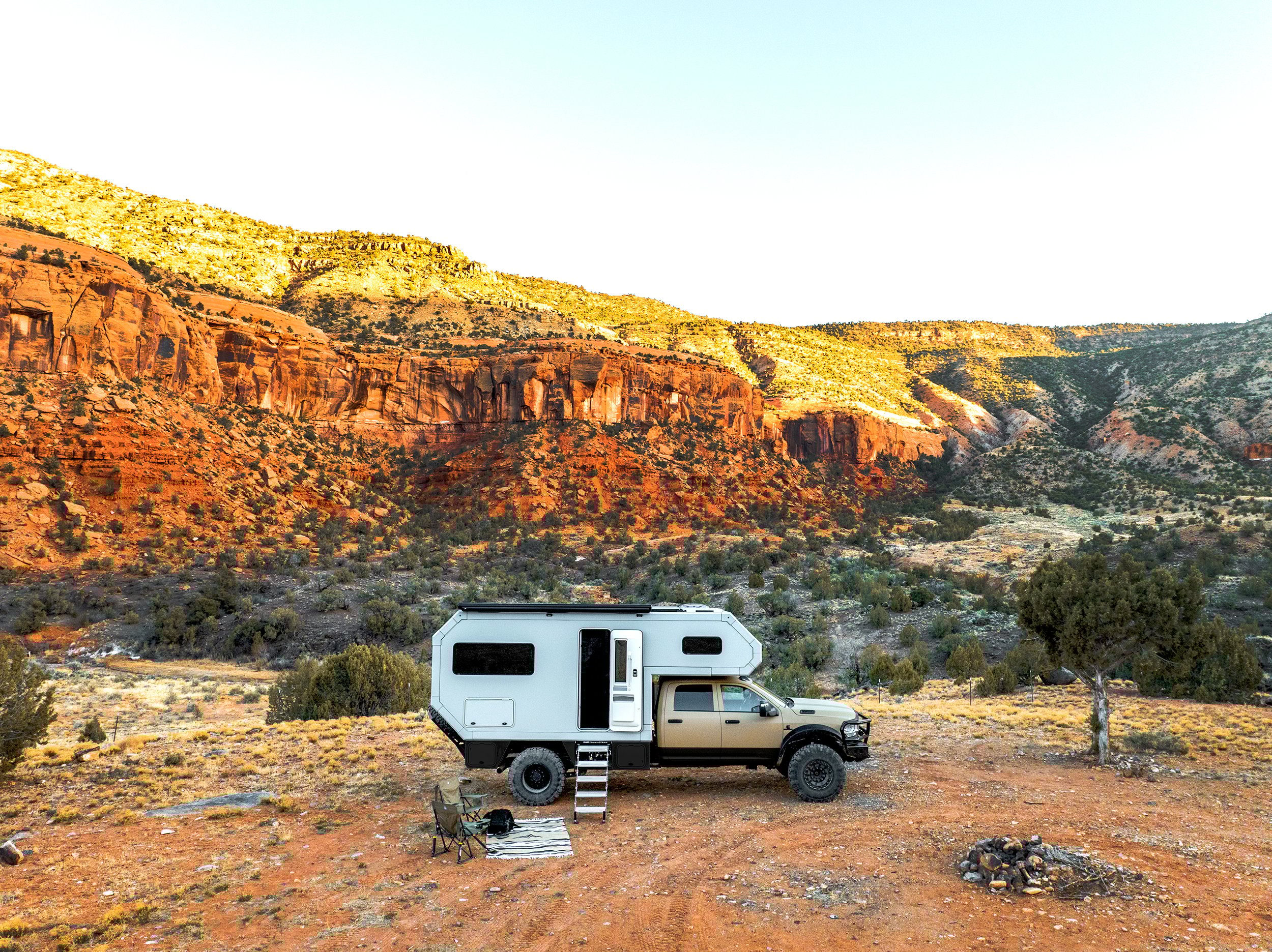

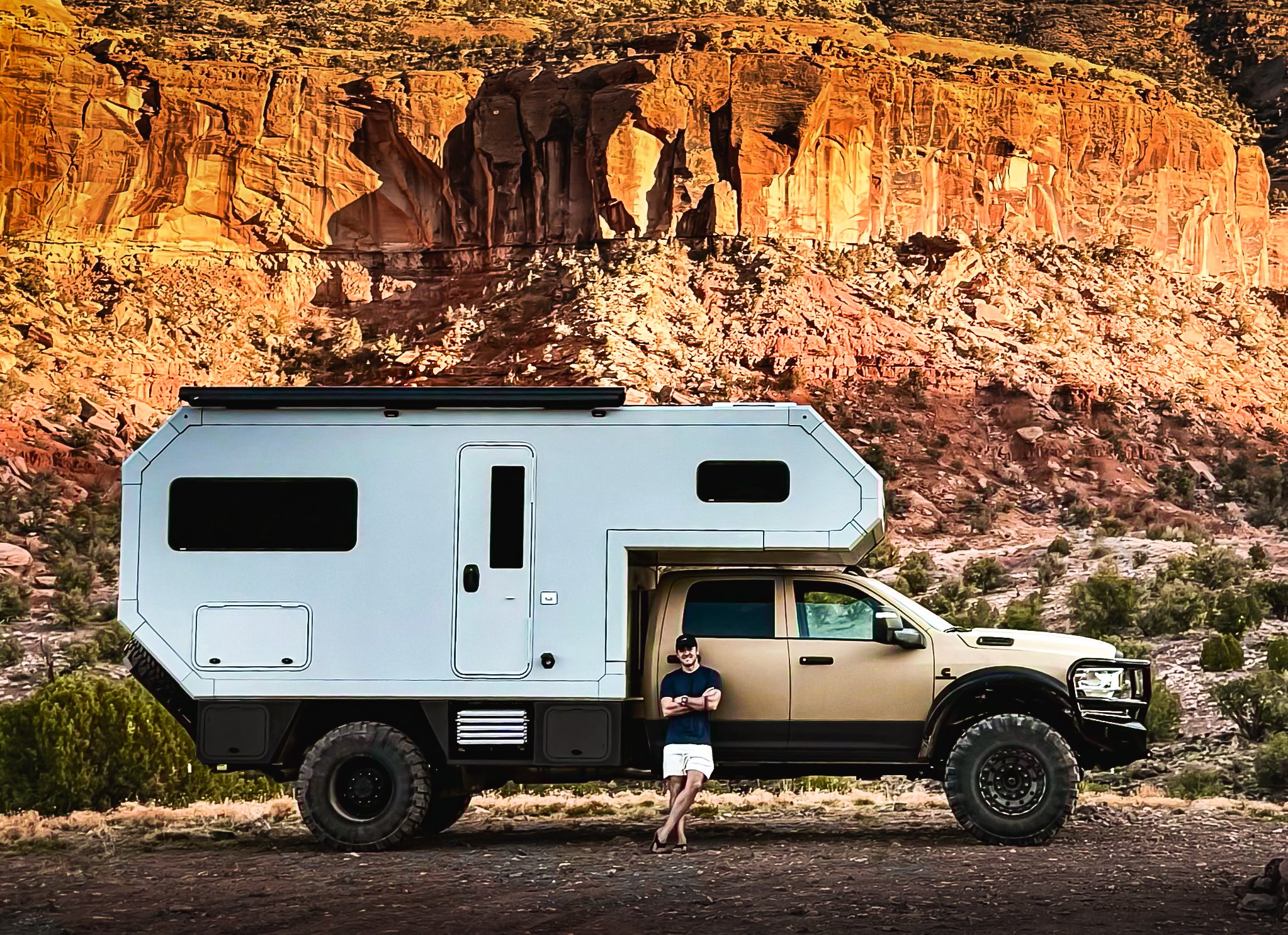

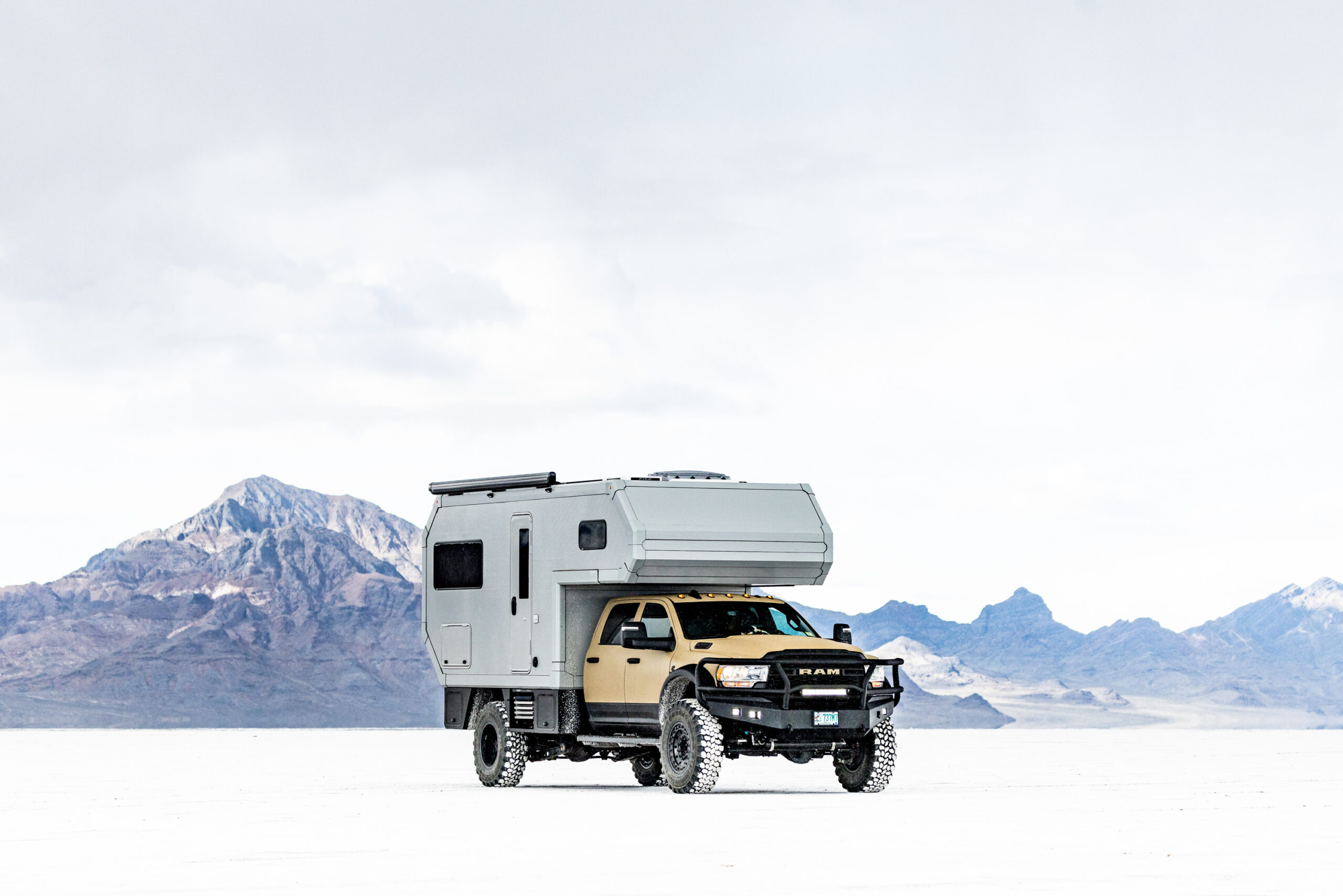

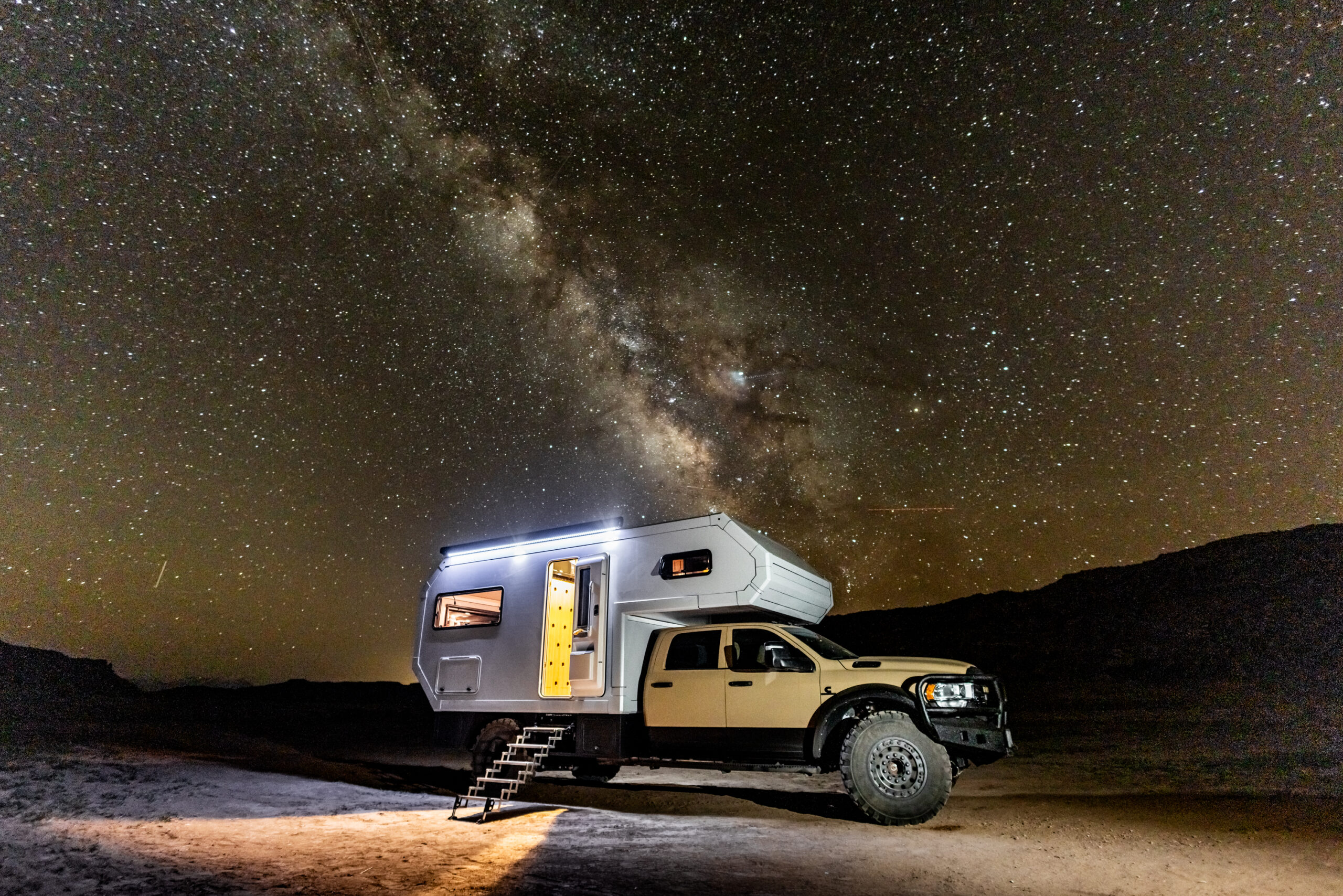

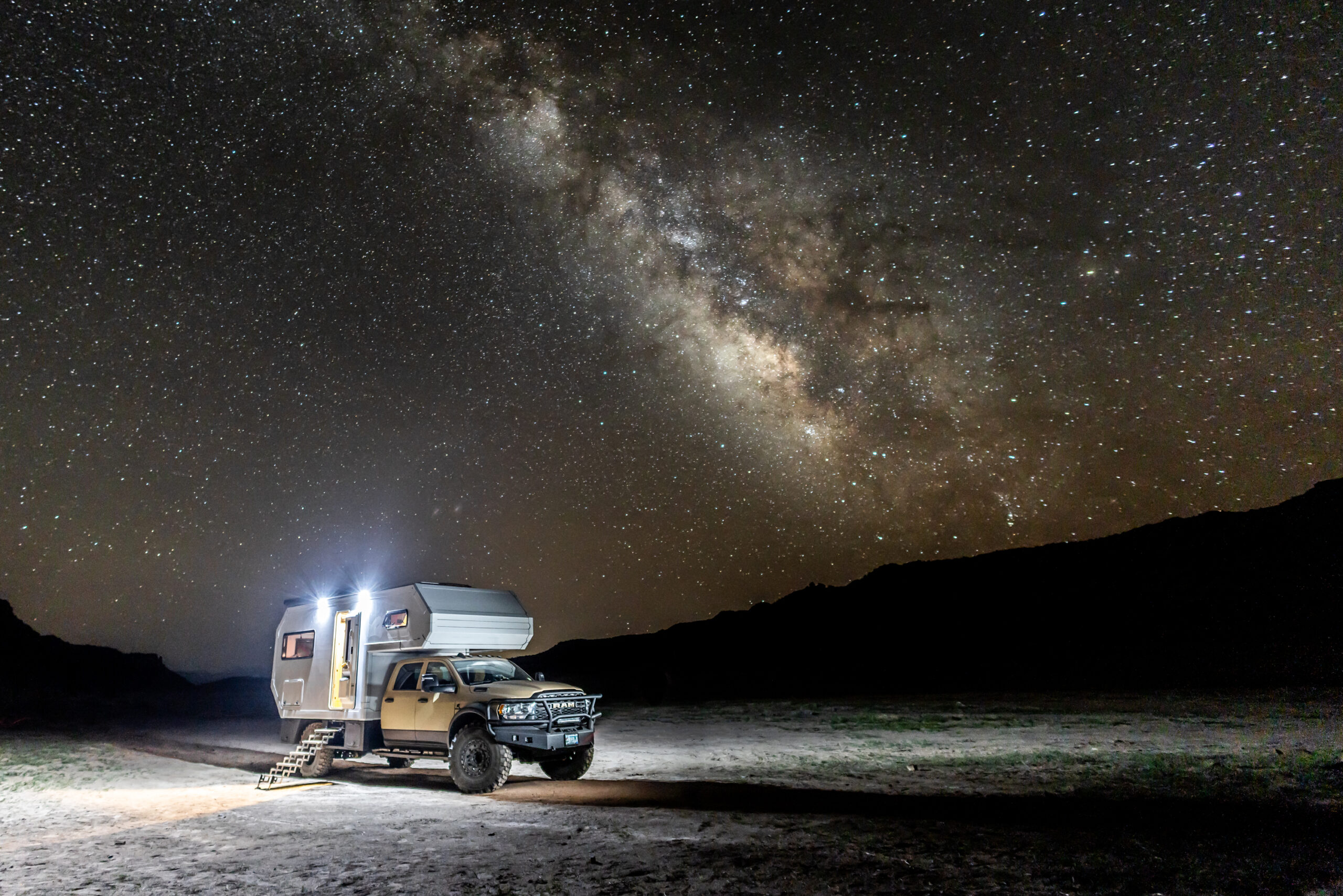

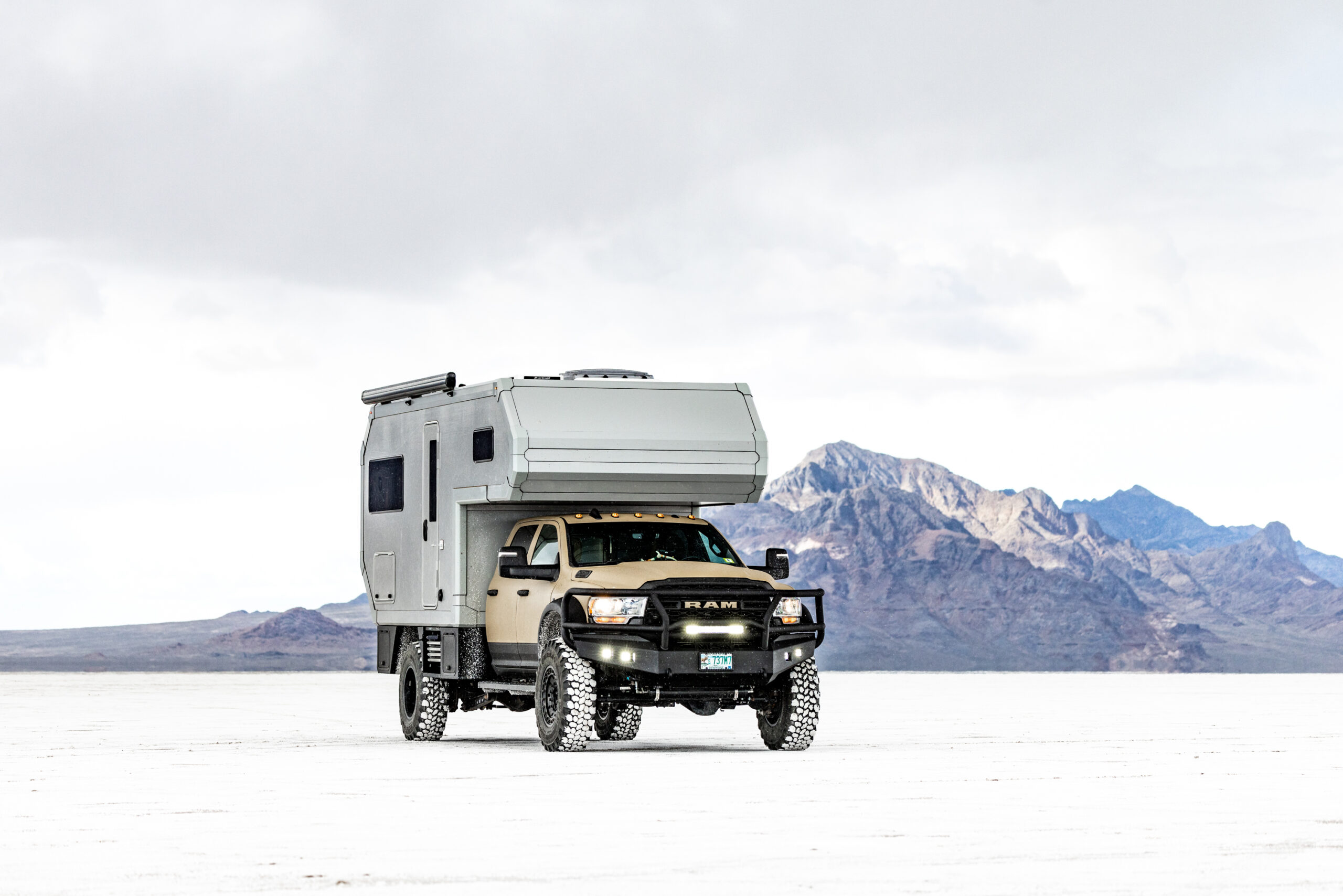

4×4 Ram 5500 Crew Cab Off-grid overland Camper.
This high-end ‘Earthroamer-like’ overland truck camper is fully equipped with everything you need to live remotely, and go where the average RV cannot.
Fully stocked, Everything included – TV, Camp chairs, pots pans, glasses plates, bowls, power tools, bedding, - everything so that you can start a long trip right away, or enjoy a trip on your way home.
The Truck can be delivered if purchased.
About the crew cab Ram truck:
14,820 lbs Dry weight (over 4,000 lbs under max weight!)
Total height – 11′ 6″
Length of habitat: 13′
Total length: 26′ with spare tire.
- Ram 5500 Crew Cab tradesman with 6.7L Cummins diesel engine with upgrades like nav screen, tow package, snow prep package.

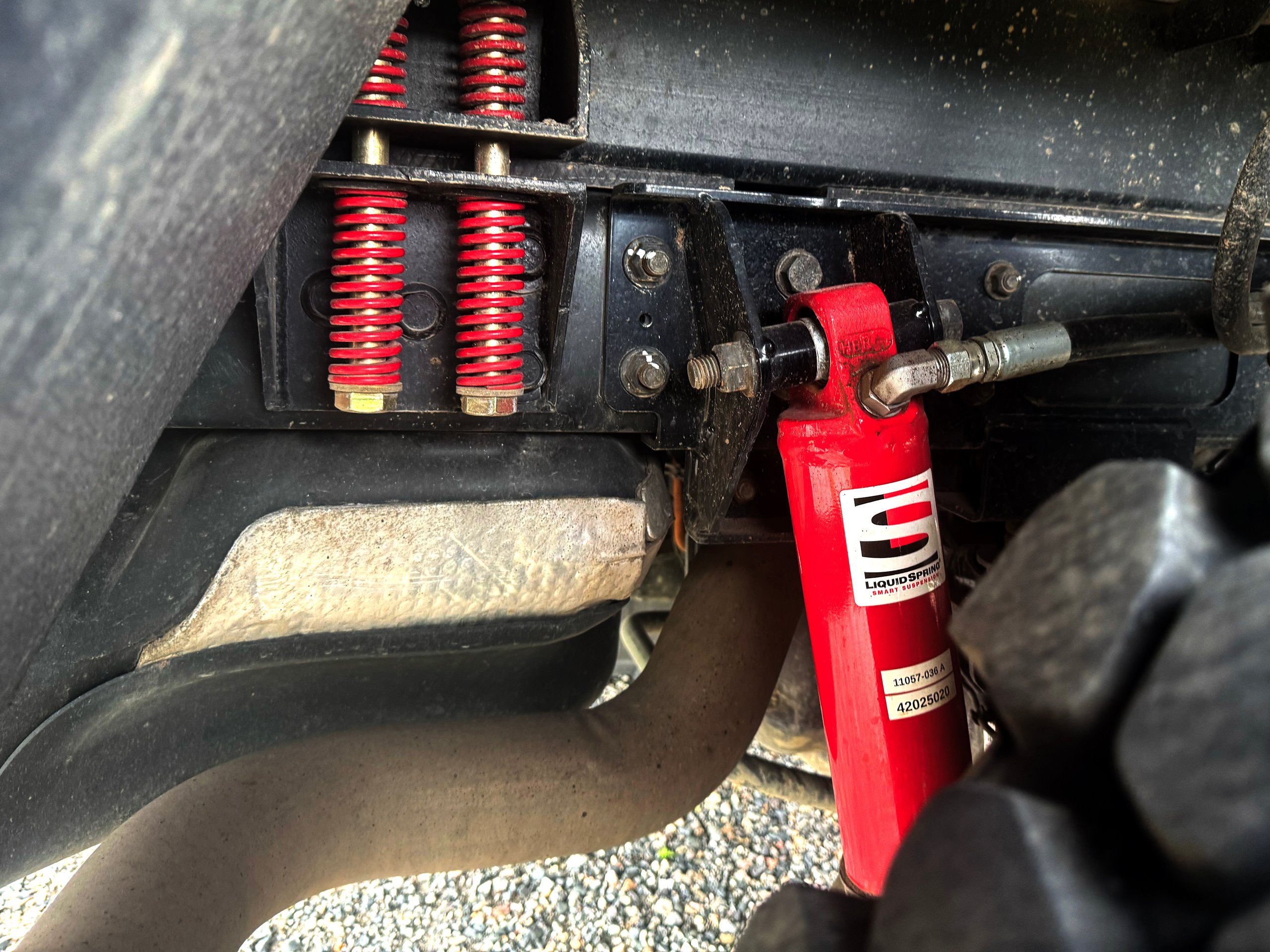

– Liquid spring suspension and DBL super single tire conversion. Rear full size spare tire with carrier that pivots to assist with removal.
– Approx. 11′ long HEAVY DUTY steel
subframe with incorporated “rail on rail” captive spring mounting system and fixed points in the front. This system ensures there are no pressure points or abnormal stress applied to the habitat yet allows maximum flex to utilize vehicle off road capabilities to the full potential.
- Custom Army tan paint job in rugged Bed liner paint. Black Line-X paint for front grill storage lockers, rockers, & fenders

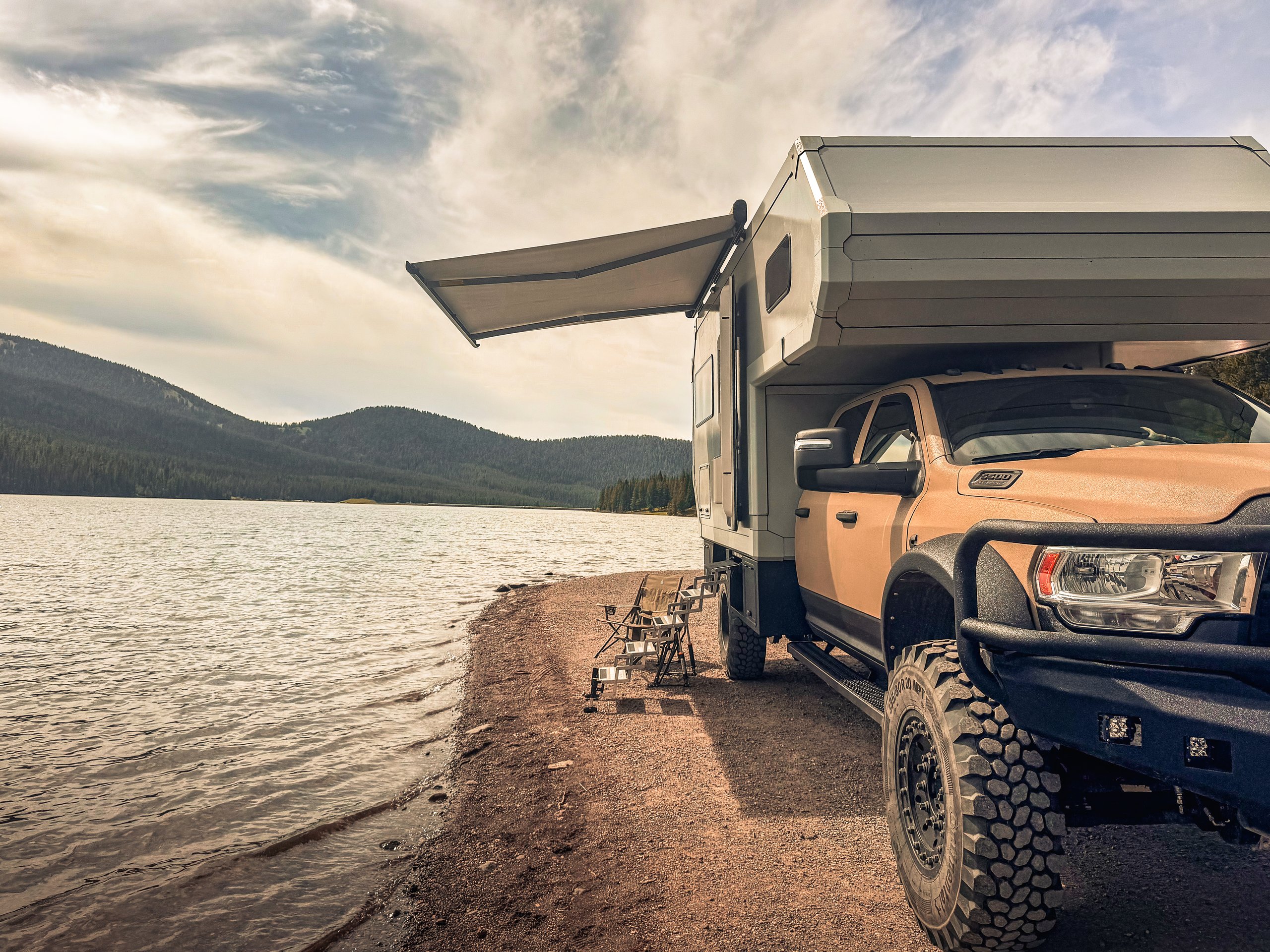

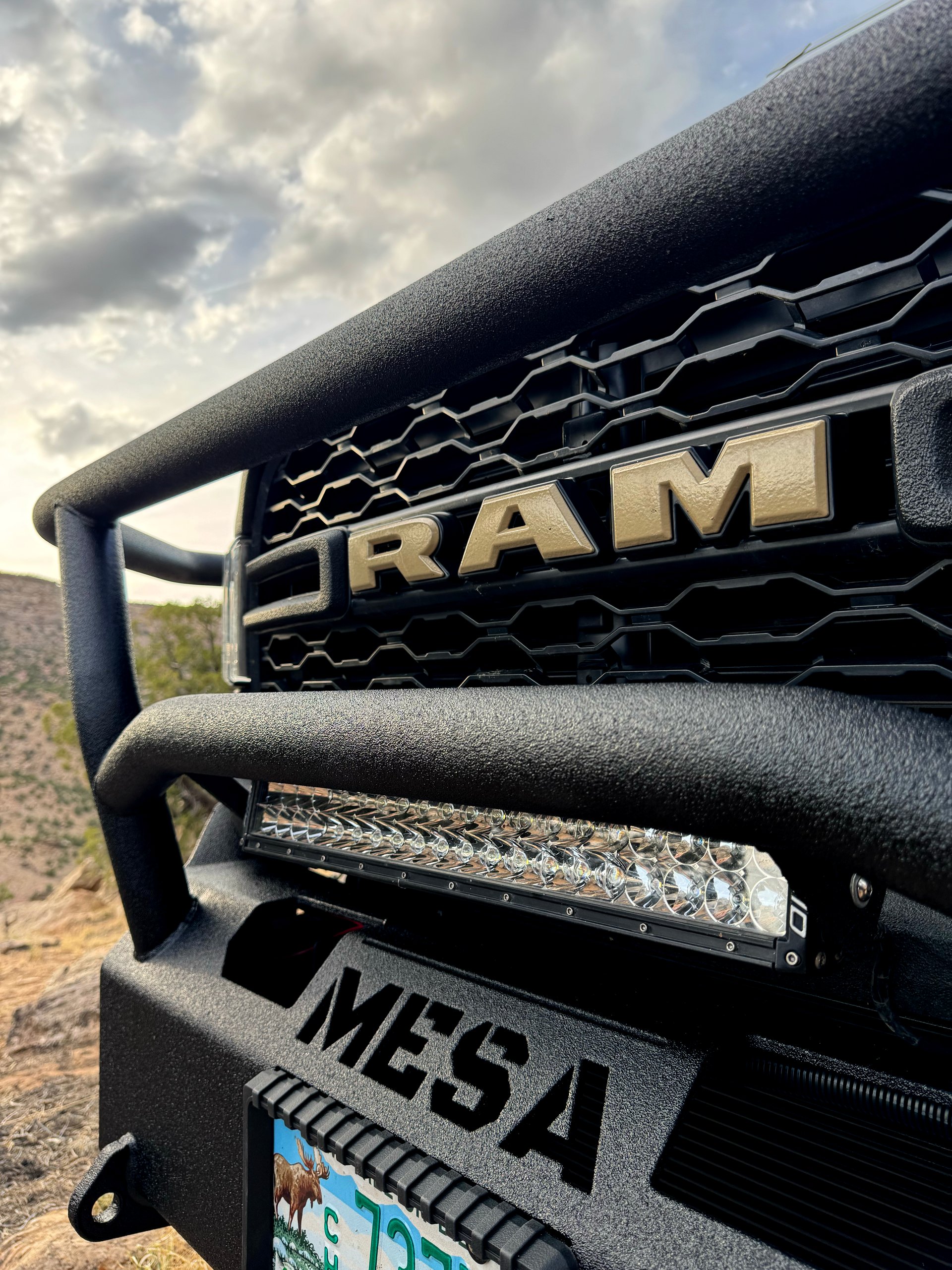

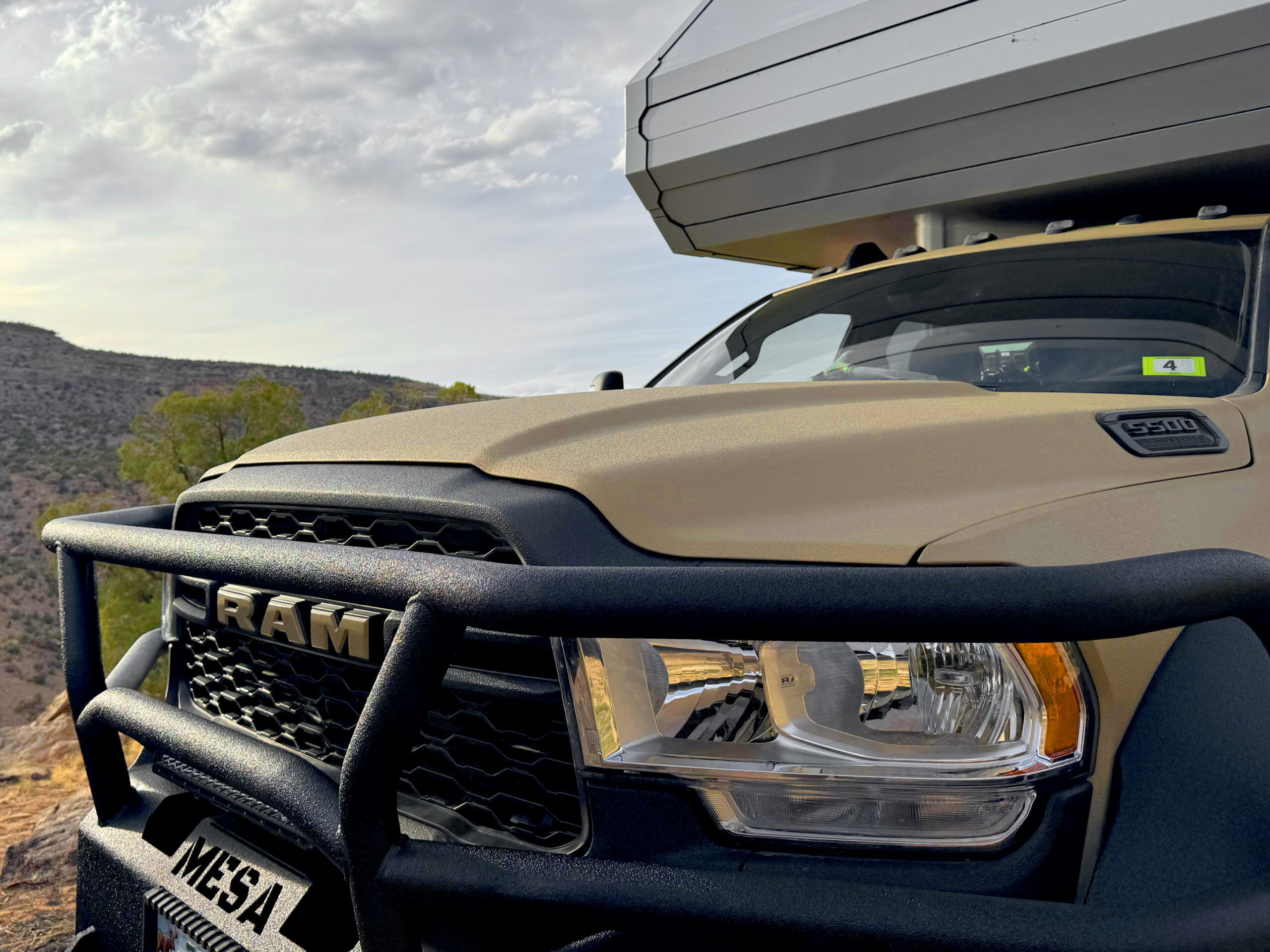

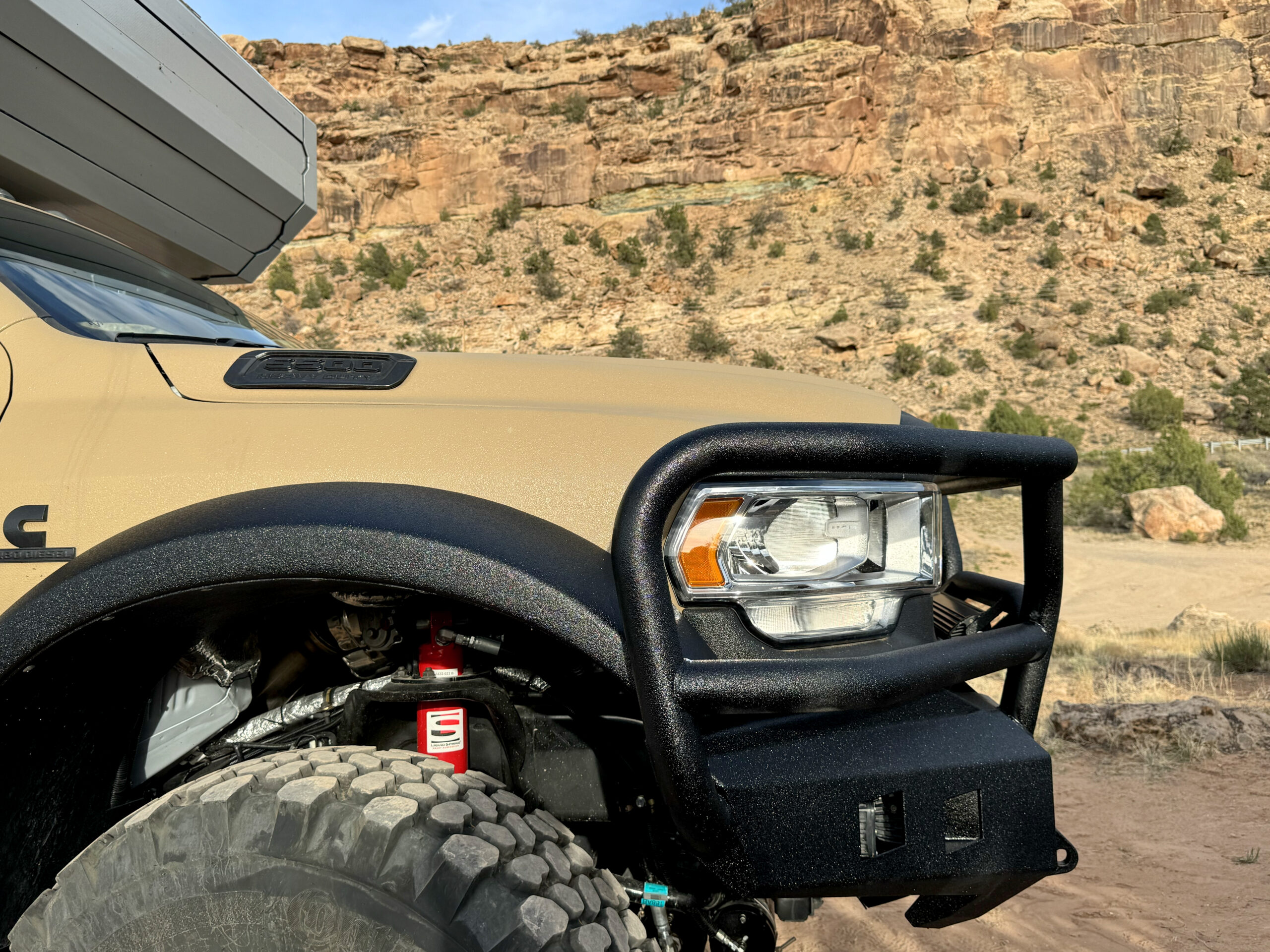

– Full size custom front bumper brush guard (to protect the entire front and not just the bottom) Winch hookup cut out (no winch), 20” rigid light bar and 4 ridged fog spot lights (all individually wired in pairs for lots of light, tons of light and… blind everything light)
– Max tow package – 4.89 axel group. Skid plate shield (snow prep package)
– Radio Upgrade

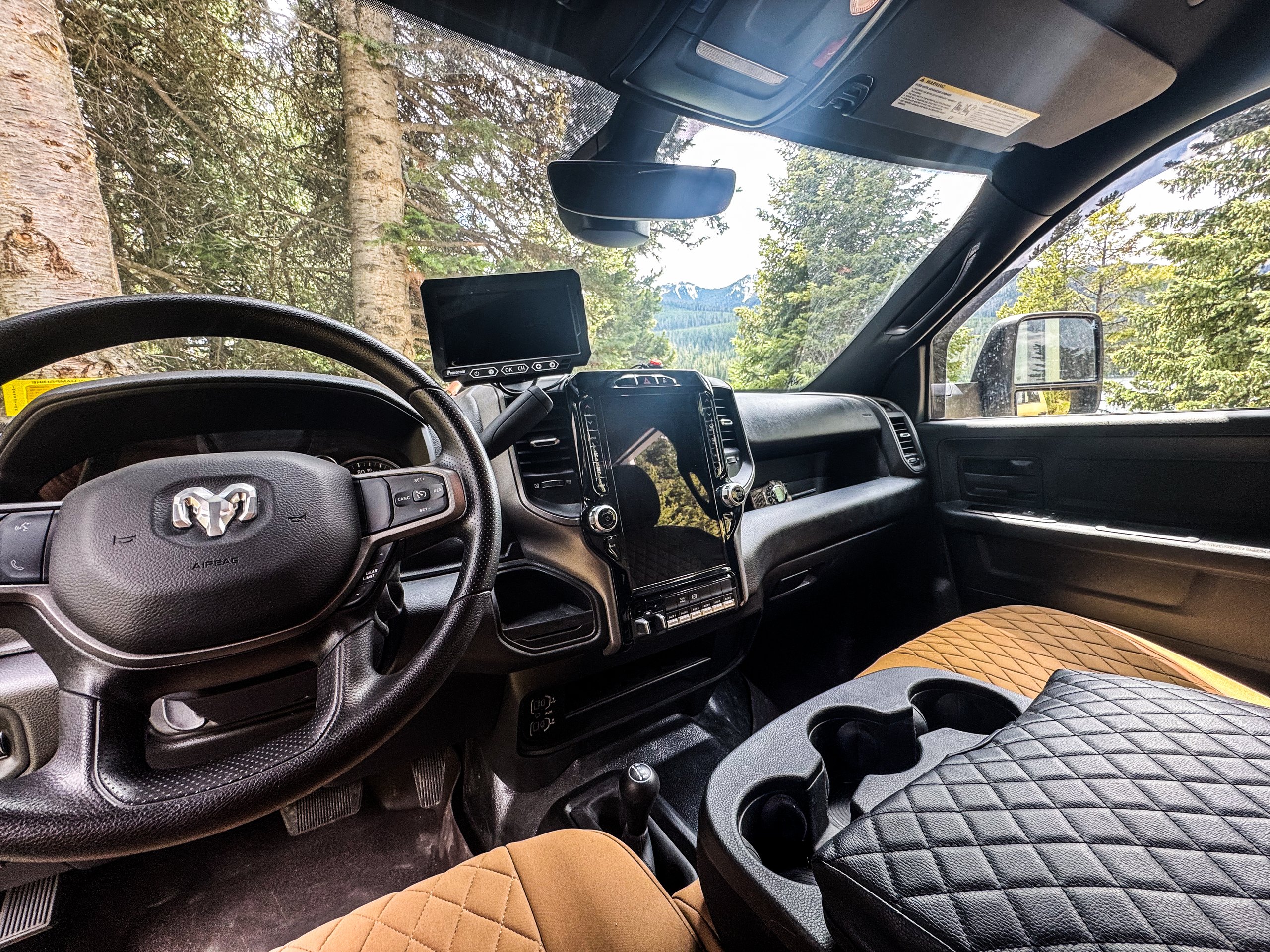

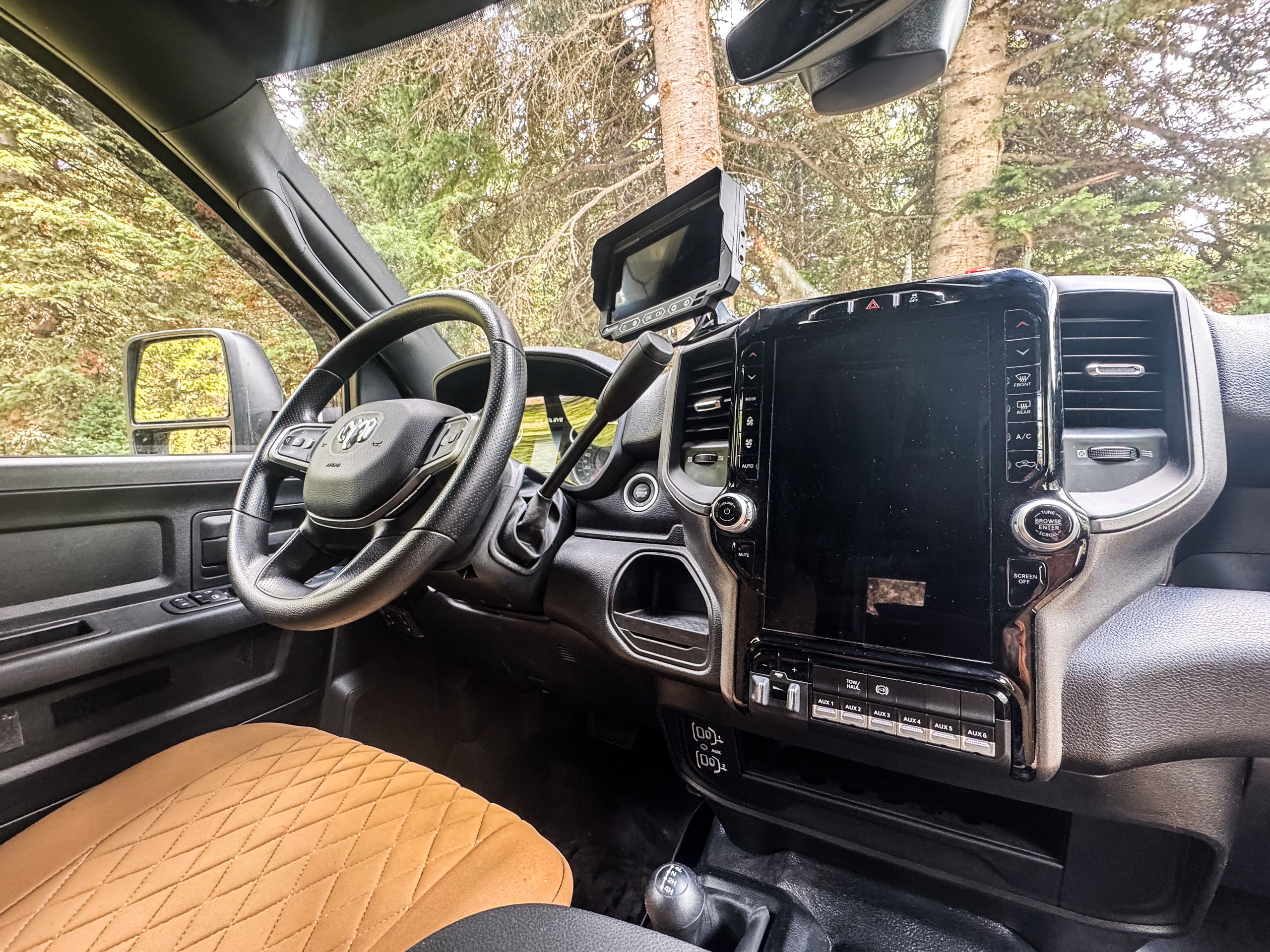

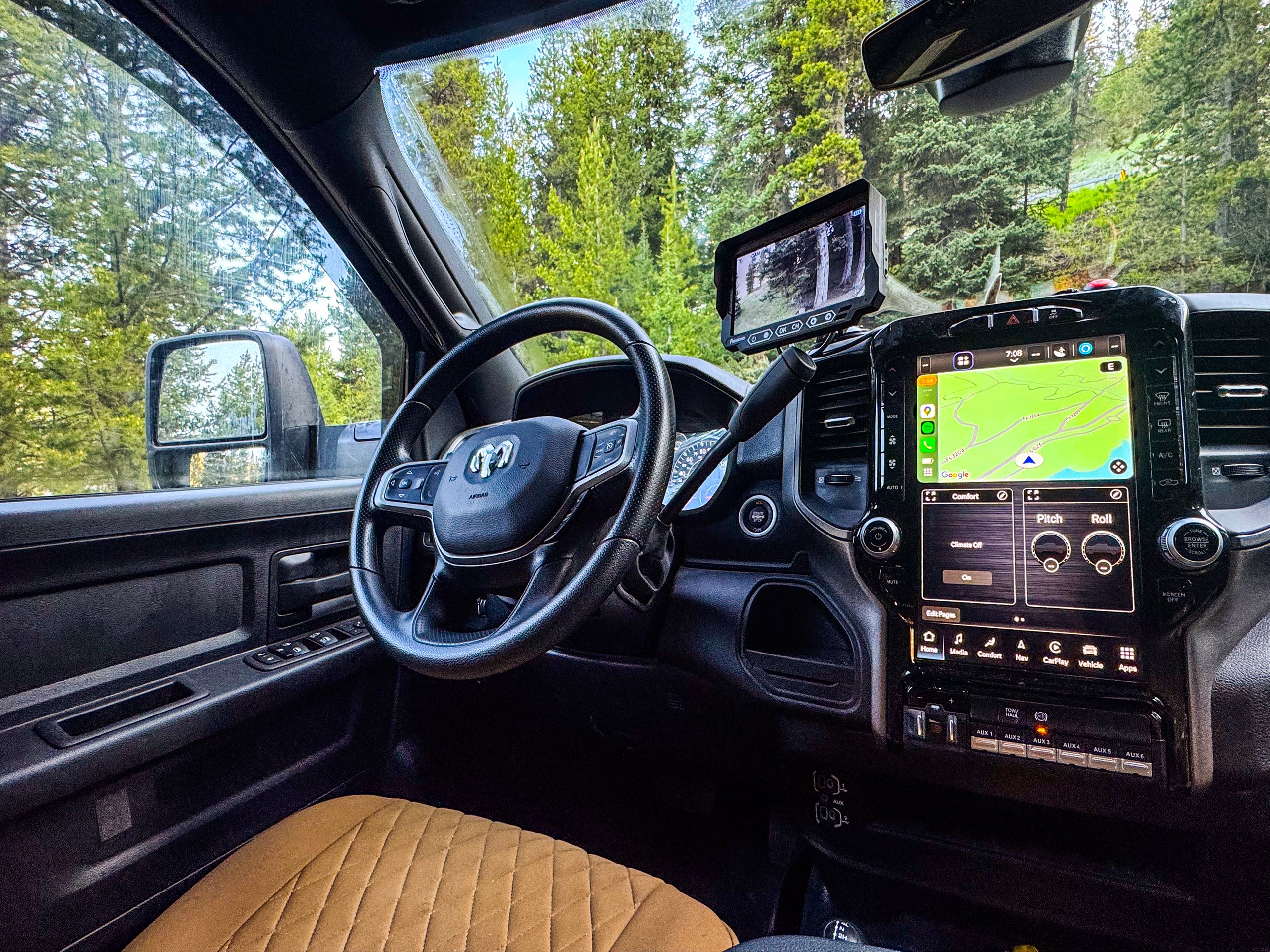

U-CONNECT 5 NAV With 12.0″ DISPLAY
Google Android Auto, Off-Road Information Pages, Trailer Tow Pages, Disassociated Touchscreen Display, HD Radio, Connectivity – US/Canada, 12.0″ Touchscreen Display, GPS Navigation, 4G LTE Wi-Fi Hot Spot, SiriusXM w/360L, All Radio Equipped Vehicles, Connected Travel & Traffic Services, All R1 High Radios, Alexa Built-In & Apple CarPlay.
Side steps – rugged black painted side steps for access into the cab.

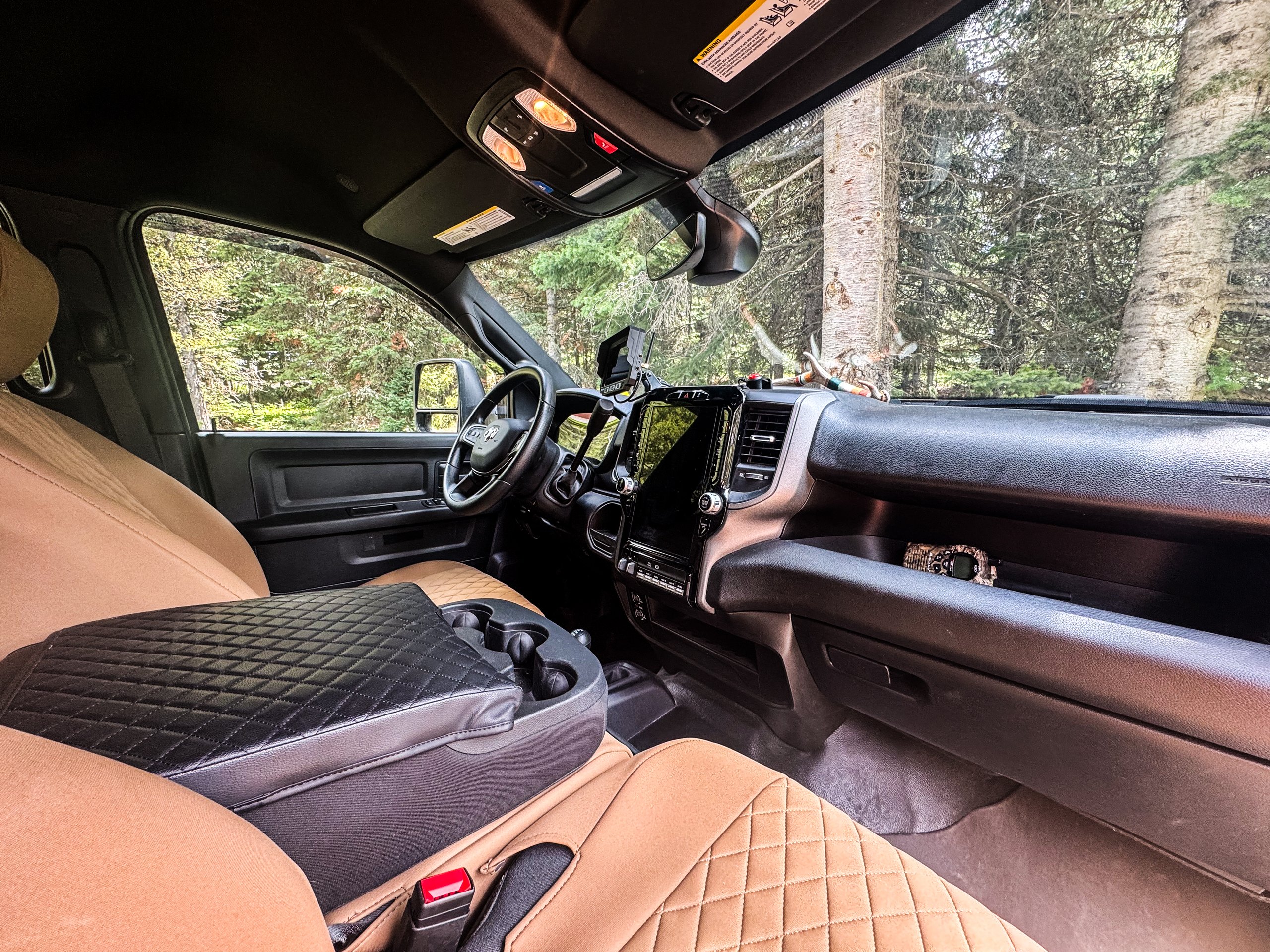

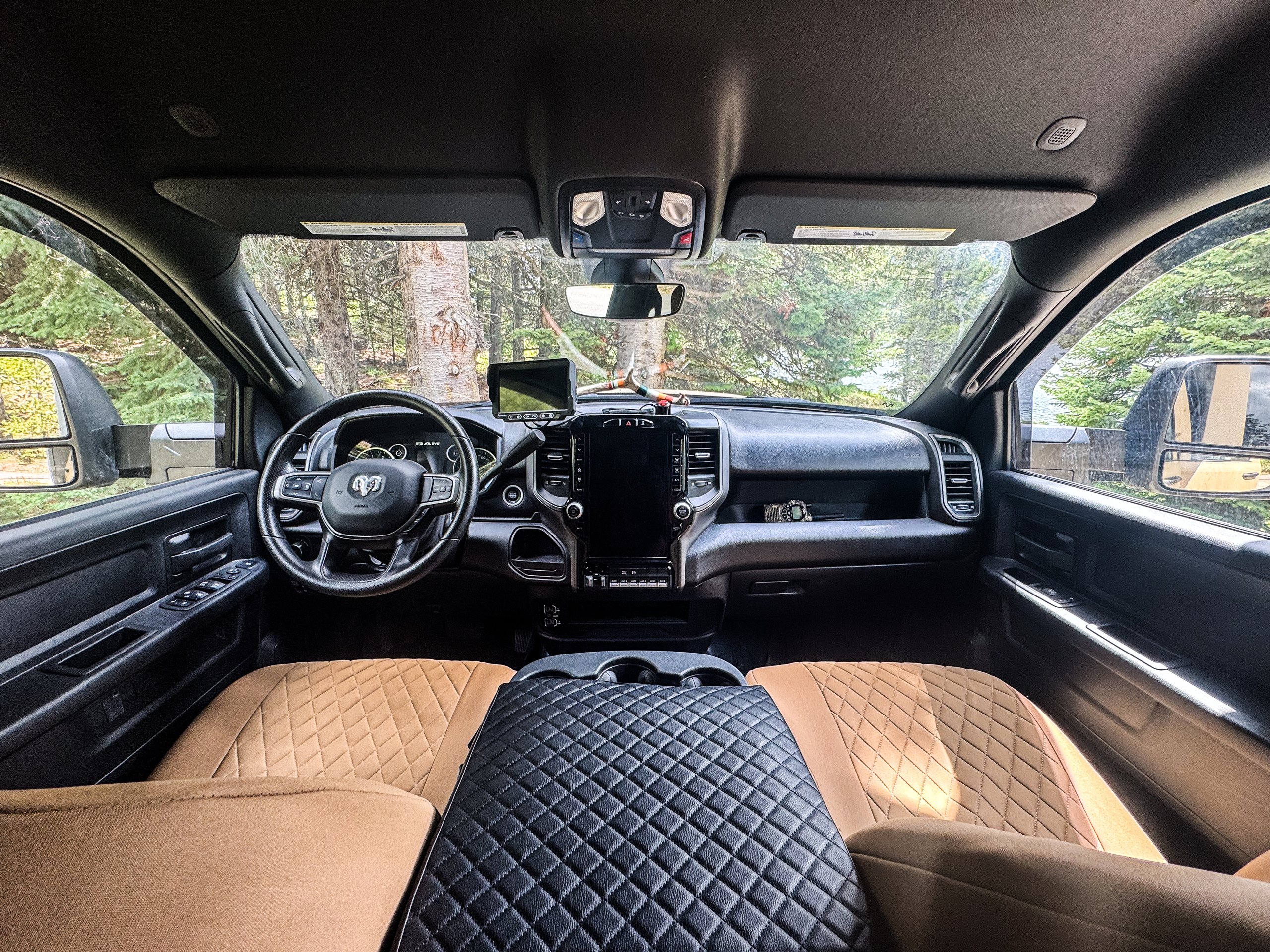

– Custom polyurethane saddle brown seat covers, Front seat can convert to a 3 person bench seat. Weather tech floor mats and weather tech window shades for all 5 windows + weather tech dog door protectors. (We do not have a dog but it was planned incase we got one) Small plug in inverter for the front seat incase passenger is working and needs to charge a laptop or other accessories.
– Wireless, solar charging back up camera with 7 inch screen.

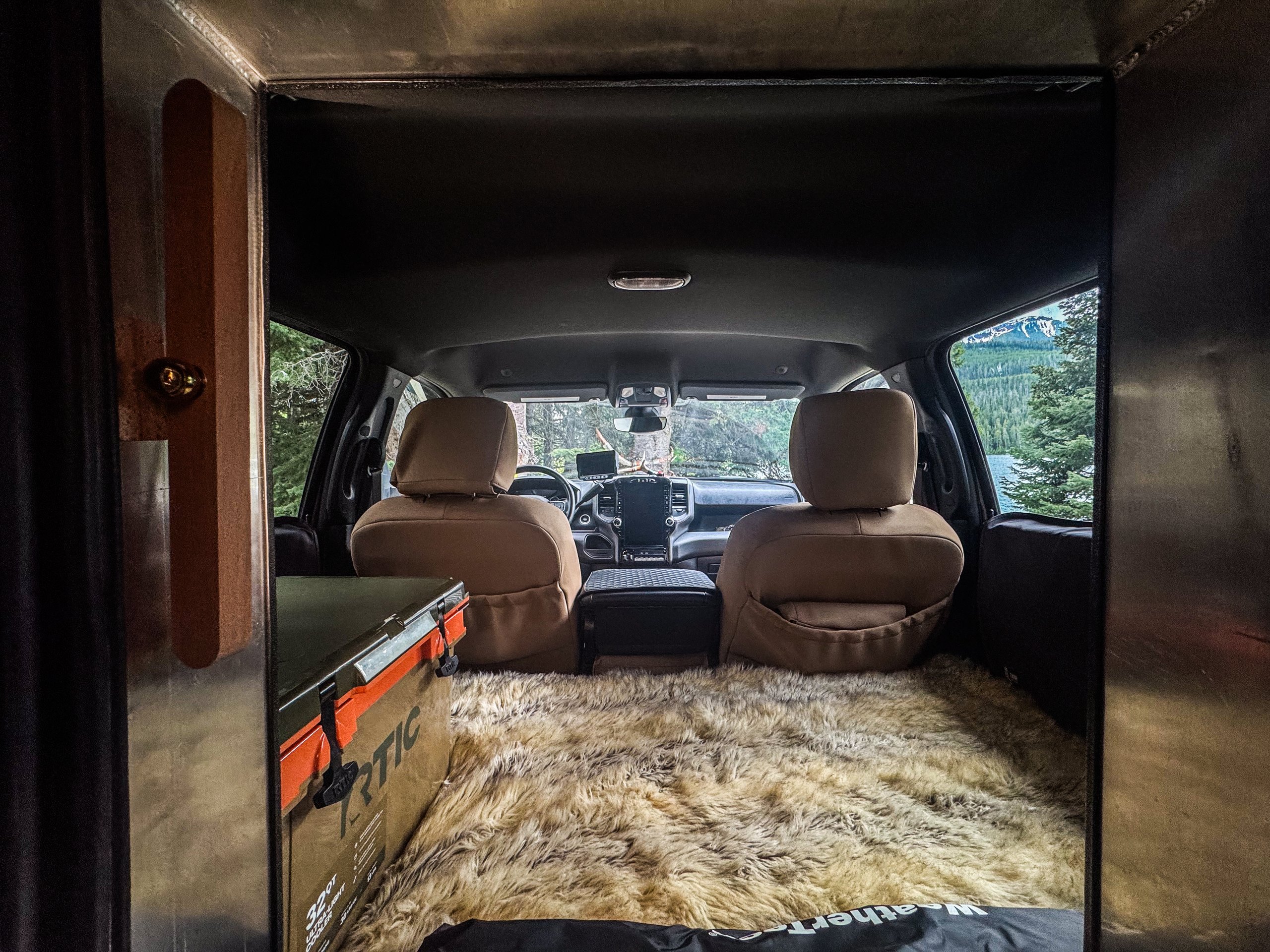

– Full back seat platform with access below for storage and 5” memory foam mattress for small guests or pets (big dog or dogs) Ability to remove section of the platform behind Driver seat – so that a Captain chair could be added for 3rd passenger – or entire platform for 2 passenger captain chairs.
Locking door for direct access into the camper.
About the Off-Grid Overland habitat:
Windows and Doors
6 Arctic Tern awning style windows with build in screens and black out curtain shades. sizes – 3 X-large 21.6″ high – 57″ wide! 1 medium, 2 bunk.
1 door with key lock, window, window shade and built in full door screen.

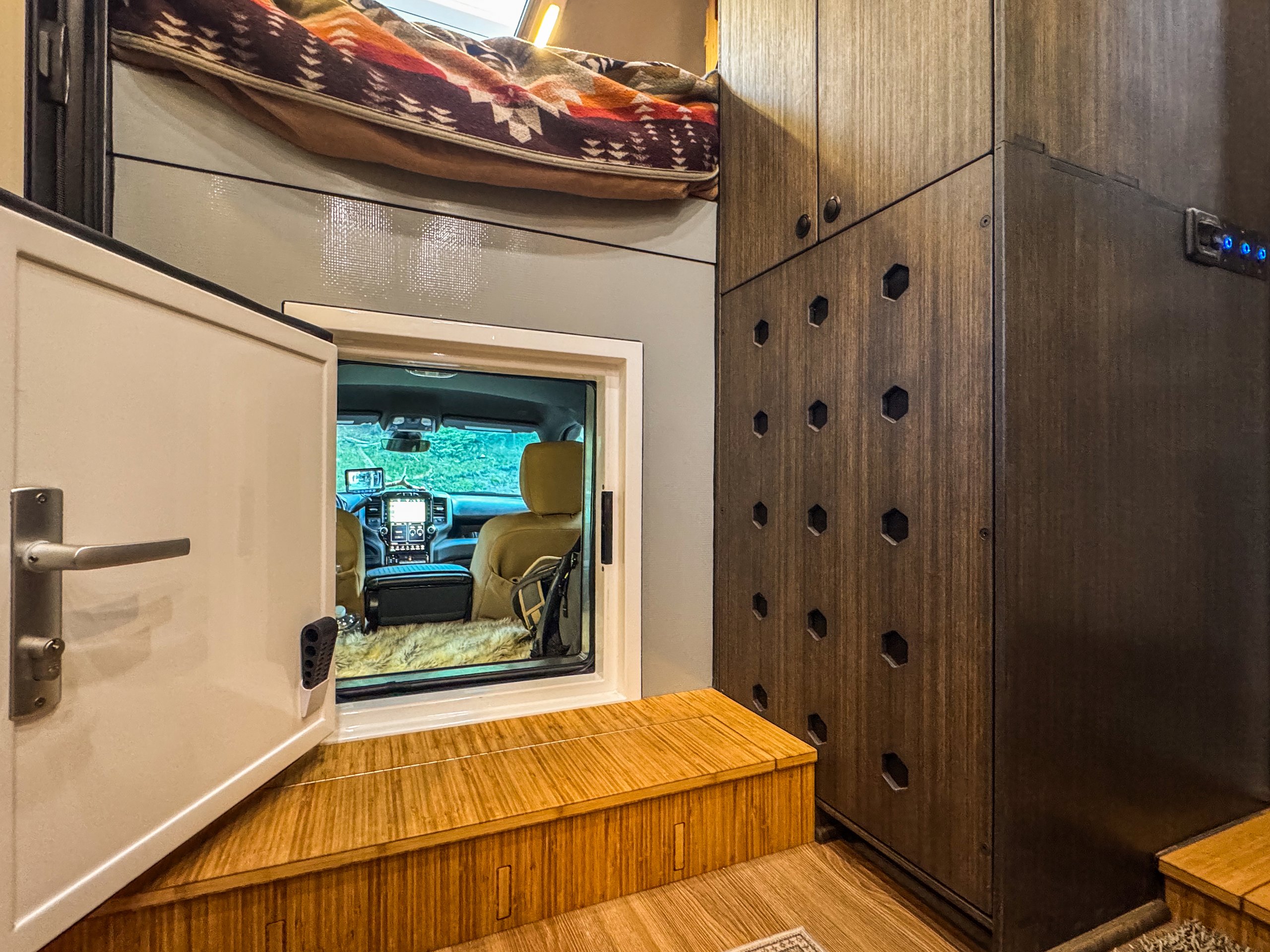

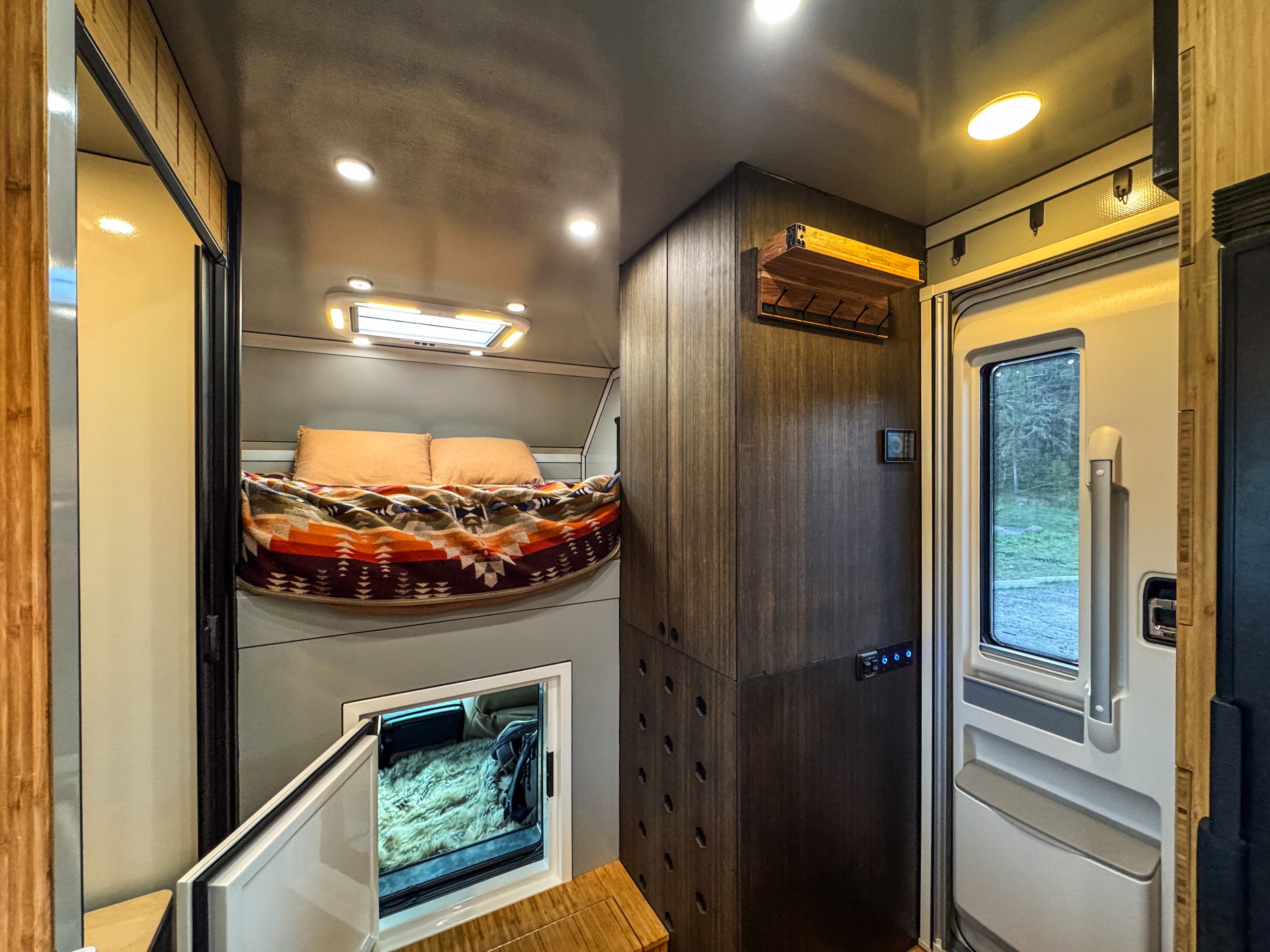

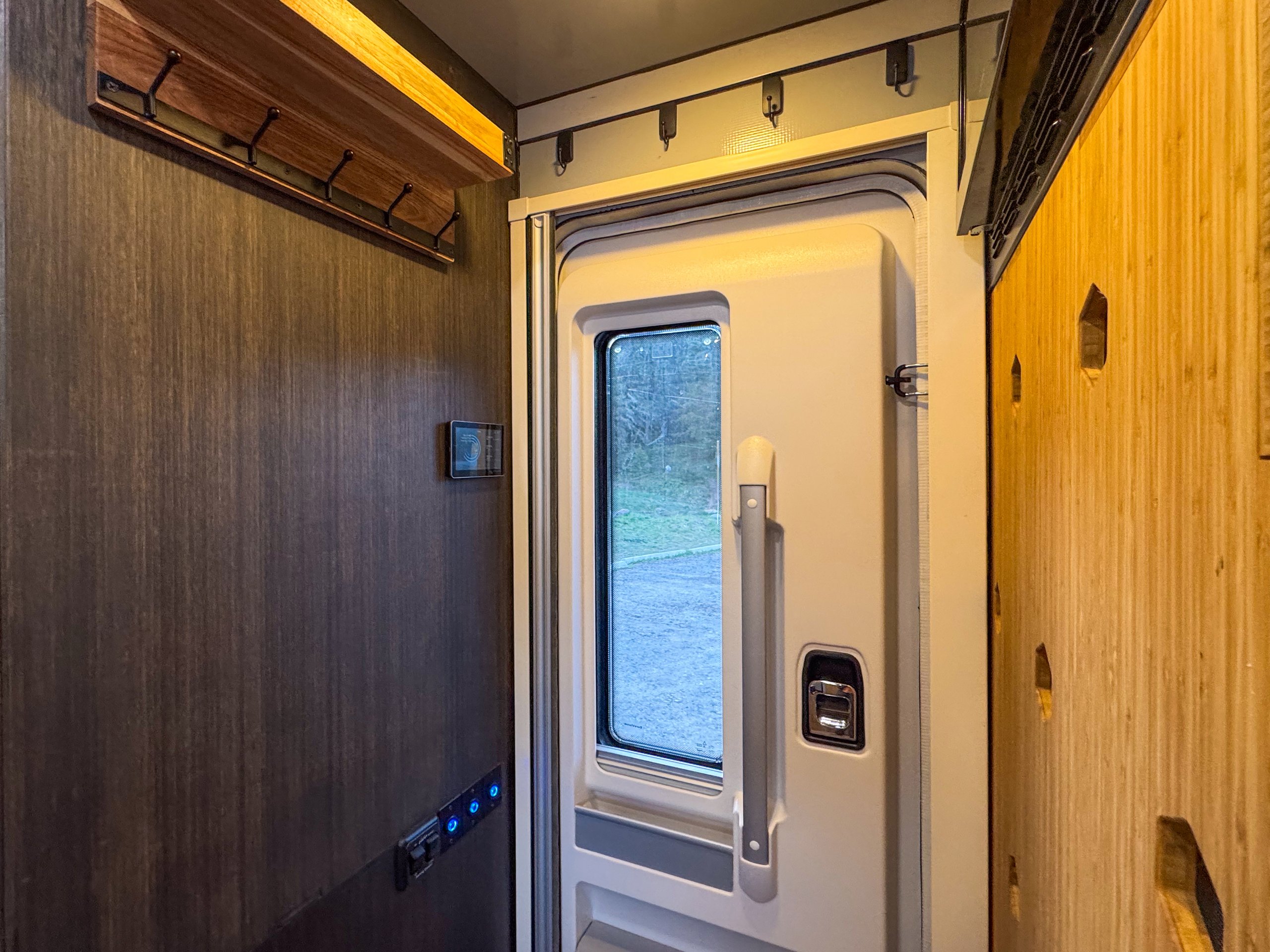

1 24” door to access crew cab through the habitat.
6 Waterproof locking doors for under lockers and exterior/interior lockers. 4 for storage, 1 interior locker for water tank, outdoor shower and access to hot water temp adjustment. 1 under exterior locker for gray tank and access to drainage.
1 Ceiling fan with remote.
1 opening (with remote) sky light with light, screen and sun shade.
Habitat construction
Lightweight, High impact, Thermal transfer free – UV Stable, FRP Skins.
Laminated high density EPS thick foam walls and ceiling R15 and R12 high density insulated floors with honeycomb core (high strength with no wood) Water and freeze proof. This rig stays warm!
– Aluminum storage boxes on either side of wheels with stairs incorporated inside of the box underneath the door.
Electrical
All your electrical – Solar, battery %, input, output, water tank %, Gray tank %, water and gray water temperatures can be seen on your monitor inside the habitat.
If traveling away from the Camper – You can also access it remotely online to keep an eye on your battery % and water temps as long as the starlink has access to the sky.

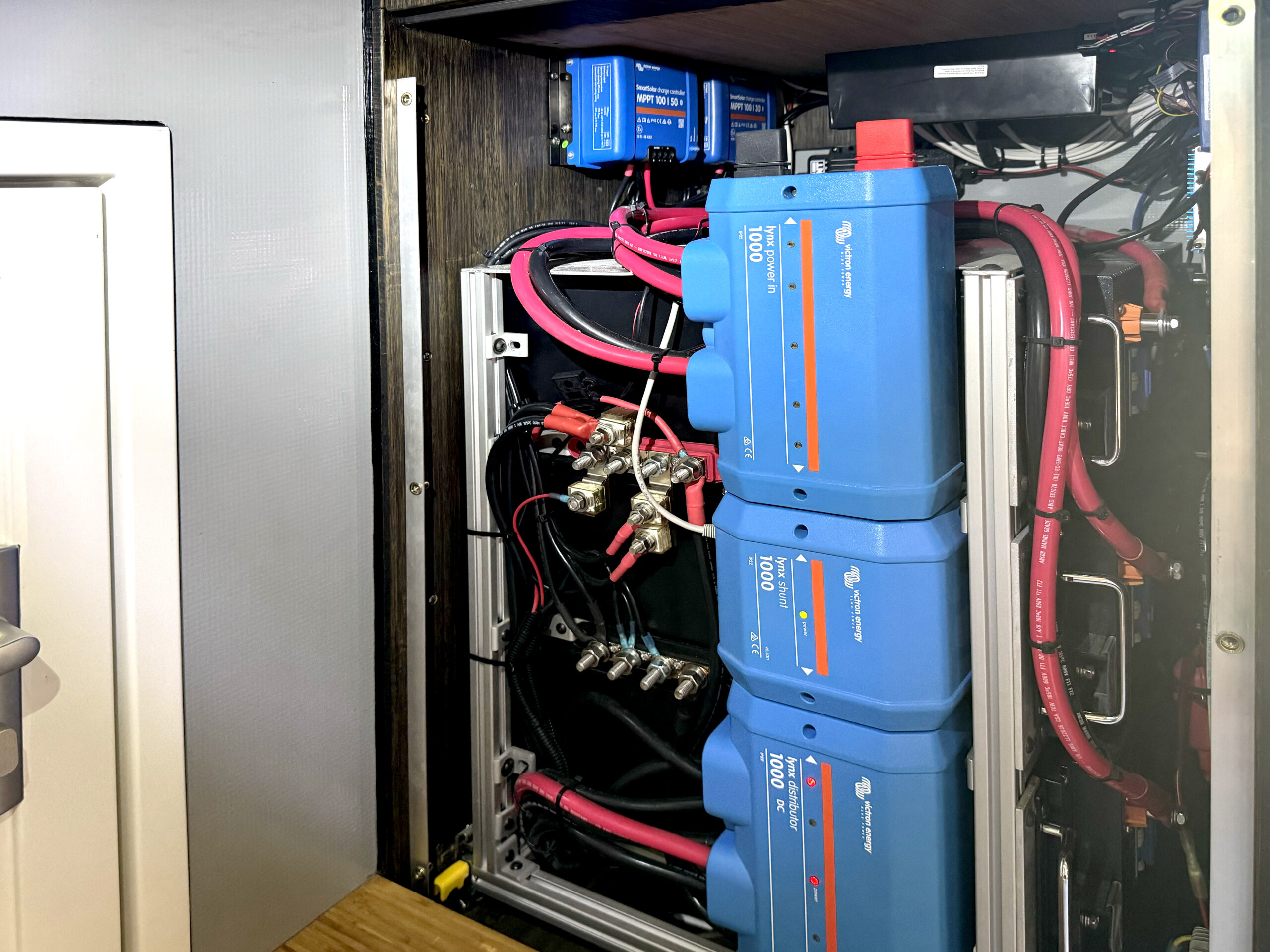

600ah EG4 24v LiFePO4 batteries, 19,200Wh (equivalent to 1600 ah @12v)Victron Energy MultiPlus-II 2X 120V,
3000VA 24-Volt Pure Sine Wave Inverter and 70 amp Battery Charger Victron Energy Phoenix 800VA 24-Volt
120V AC Pure Sine Wave Inverter – Dedicated to Small appliances & Starlink

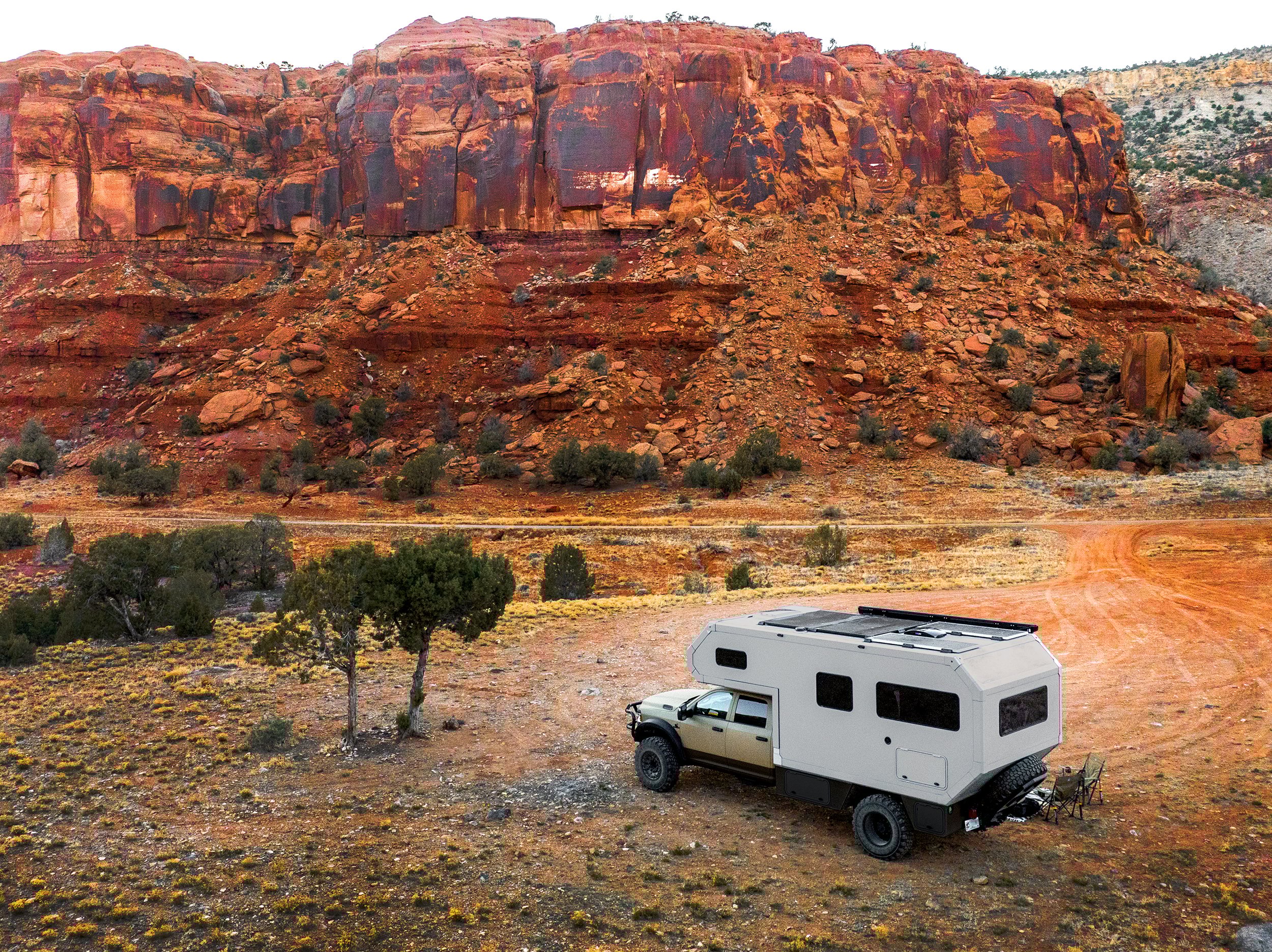

1200w/1500w (Hyperion 400W Bifacial Solar Panel (Black) | Up to 500W with Bifacial Gain)
Victron Smartsolar MPPT 150/60-TR Solar Charge Controller – VE.Can – UL Approved

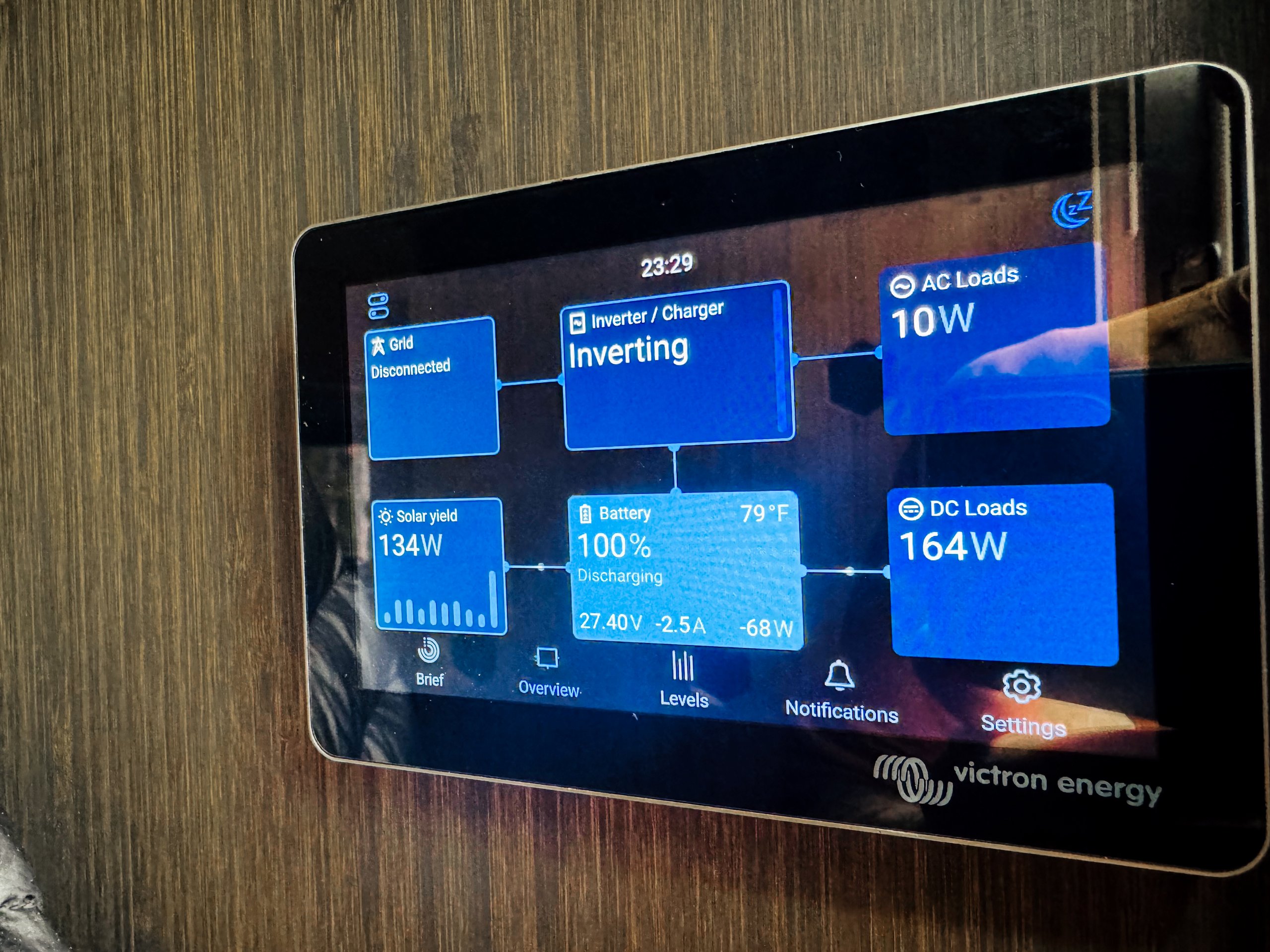

Victron CerboGX with GX touch 50 monitor Victron Lynx Shunt, x1 Lynx power in, x2 Lynx distributor
100 amp Victron Buck Boost Charging via alternator (x2 50a) Victron Energy Orion IP67 DC-DC Converter 24VDC to 12V 100AMP
“Misc Blue sea, Victron, Anchor and various other components Marine grade wiring & components used throughout

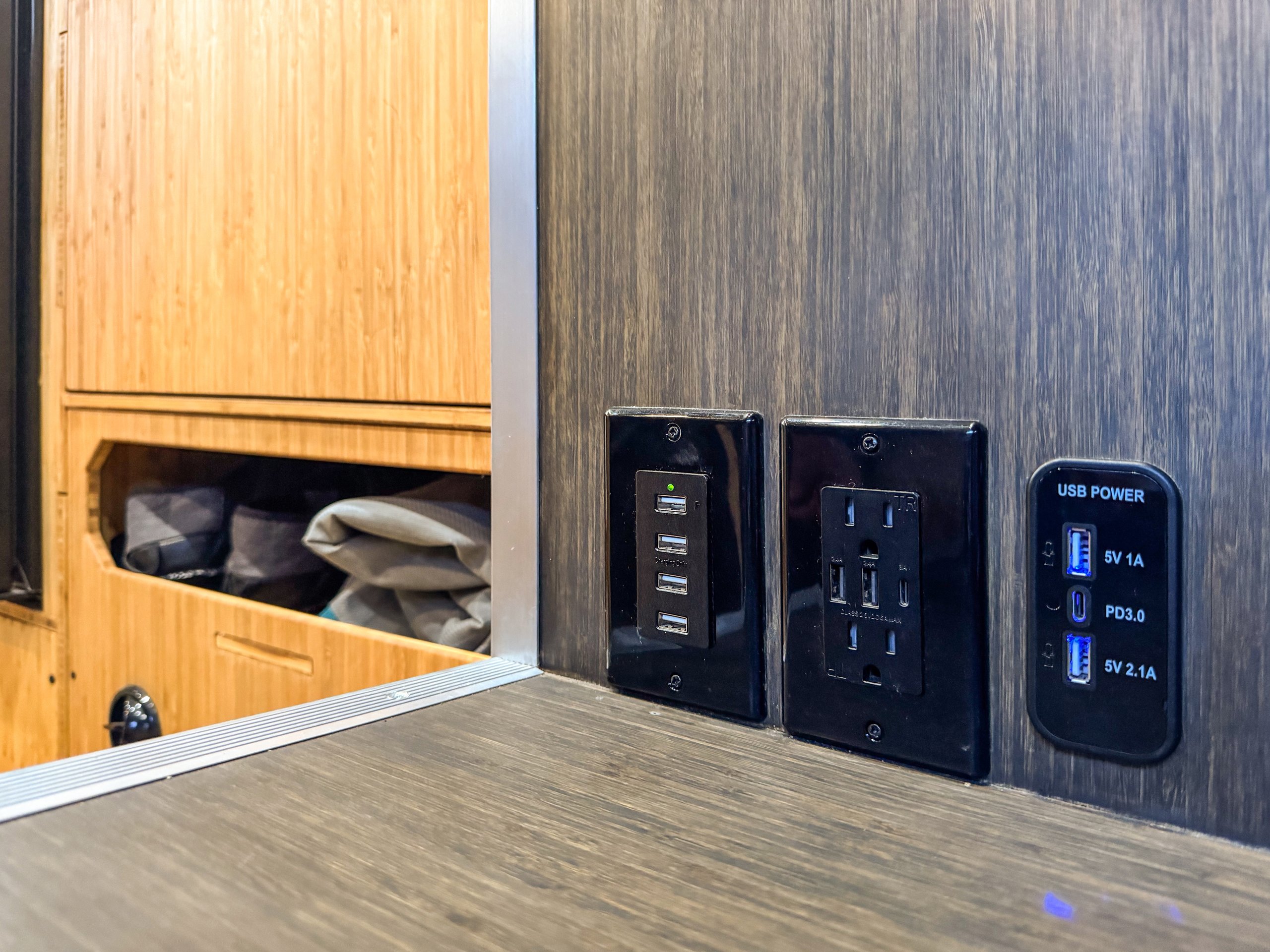

120V AC outlets throughout, including one in gear garage & overhead storage cabinet 12V DC USB ports with 2 standard DCs.
What all your levels on the monitor – Electrical incoming and outgoing, Current wattages, water levels, water temps, – as well as you have the ability to log in and view the levels remotely as the truck auto turns on heating to prevent water tanks from freezing.
Lighting Exterior and Interior
Interior: Dimmable LED ceiling, Dimmable LED task lighting under cabinets, LED reading lights over dinette areas, Over Bunk – 4 lights + 2 remote controlled led color changing rechargeable lights + skylight light with remote. Exterior: LED marker DOT lights surrounding the vehicle; two LED patio light near main door and two on driver side – dimmable and controlled by switch inside + switch for awning light.

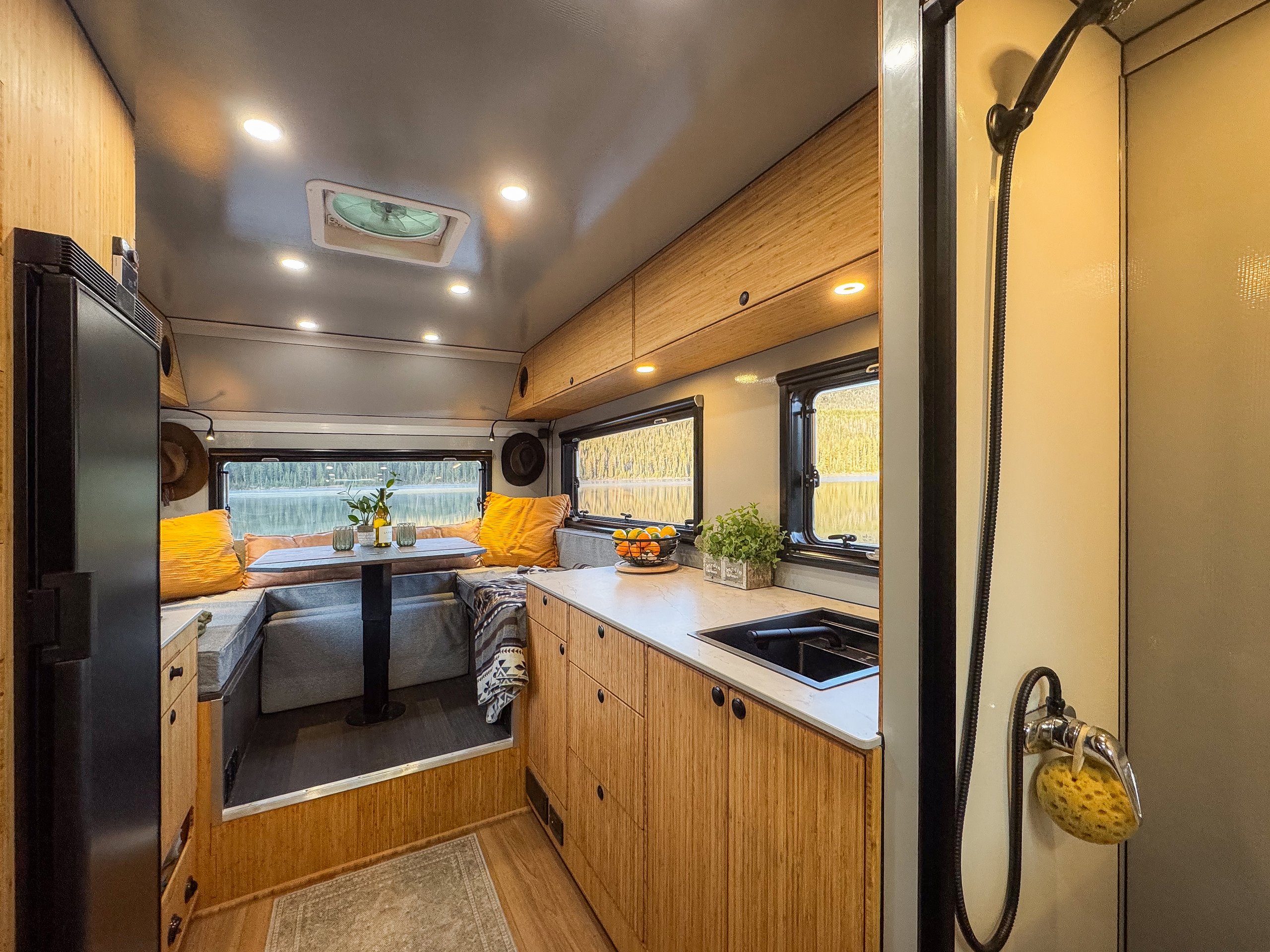

Bathroom & Shower

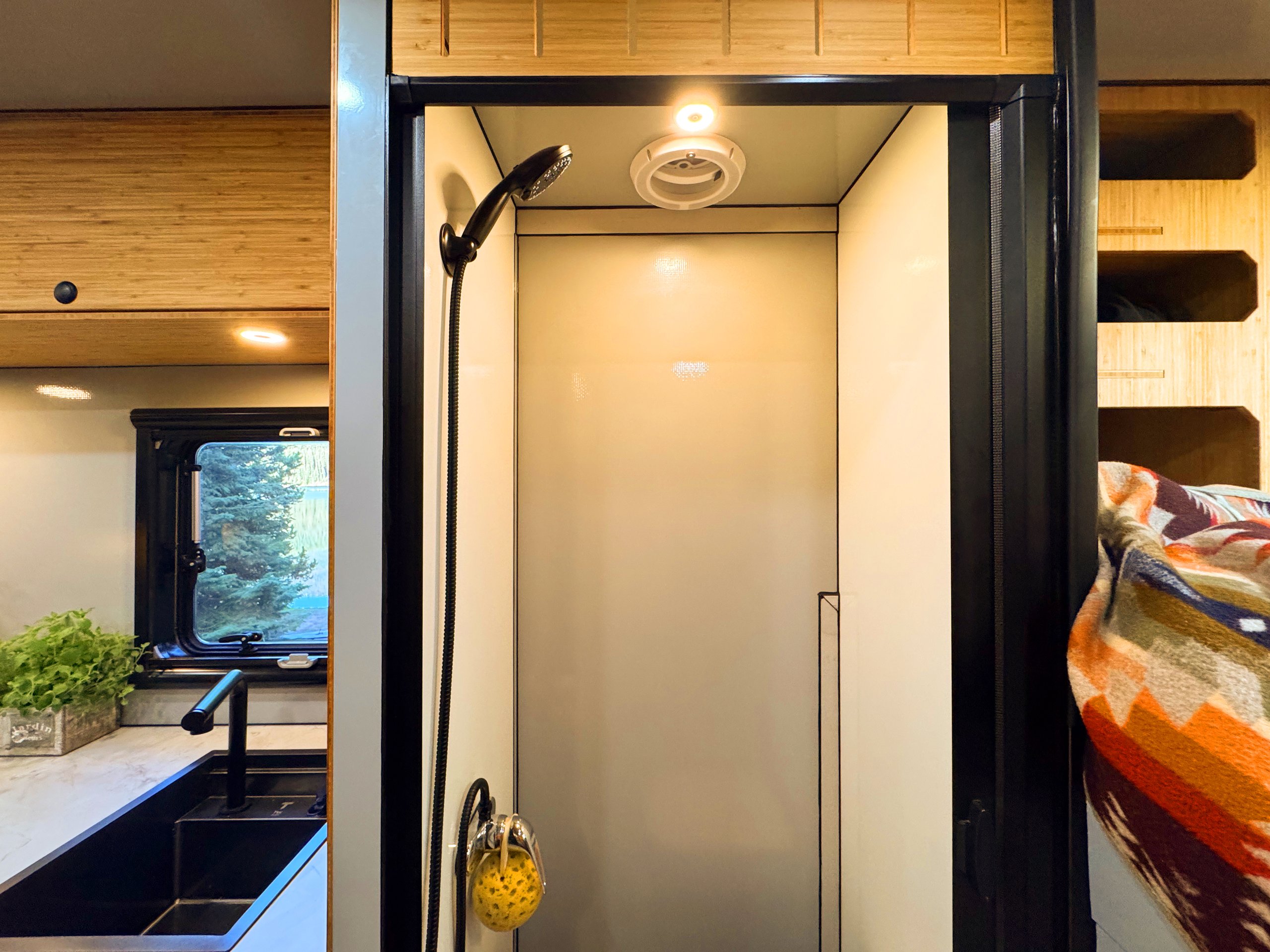

30” shower and composting toilet, Full height standing shower that drains to the gray tank. 22 Gallon grey water tank servicing sink and shower.
Plumbing:
66 gallon High capacity, BPA free fresh water holding tank mounted inside for freeze protection. Grey Water Tank Size- 22 gal.

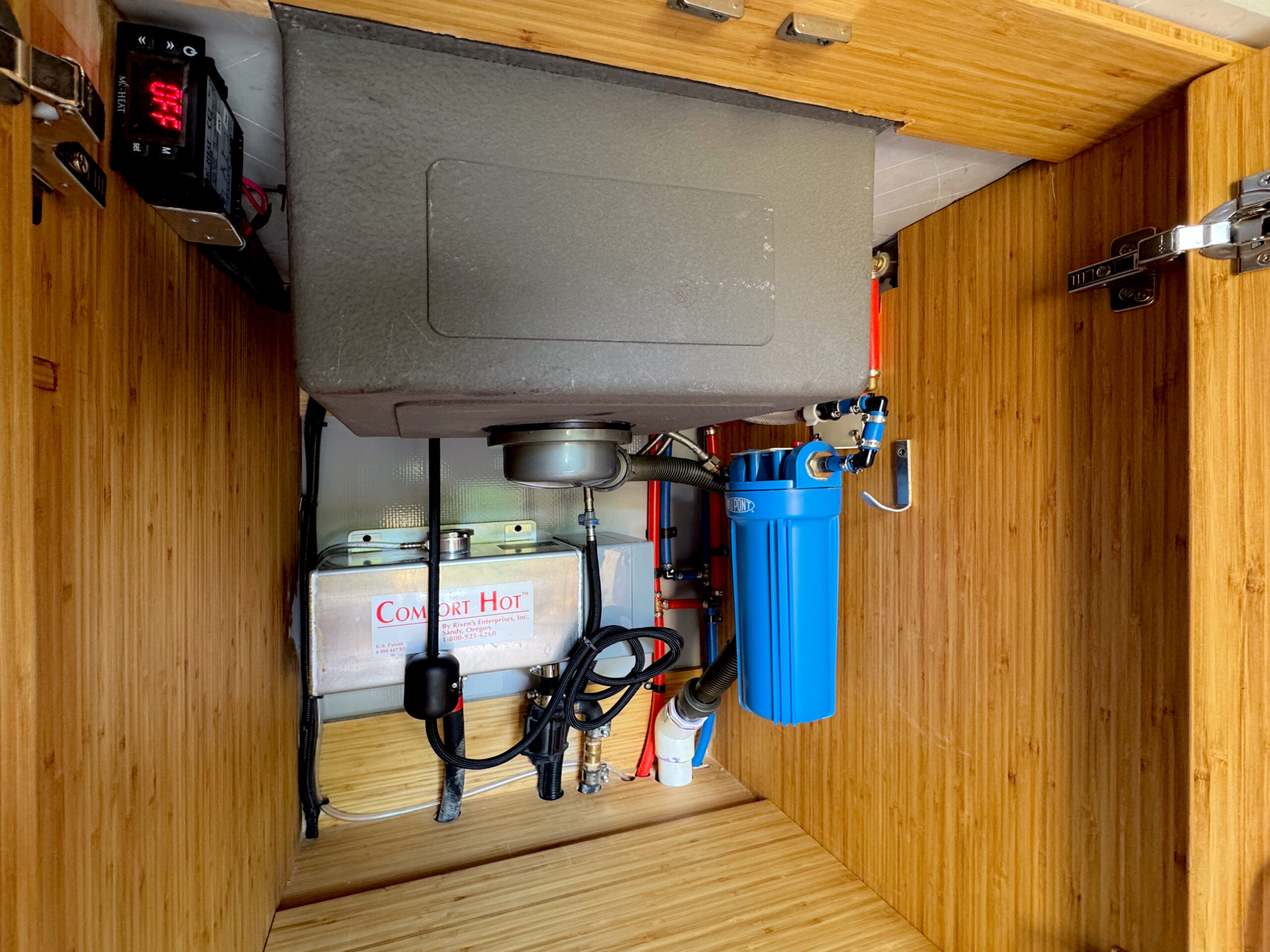

Additional Plumbing Features include
- Premium water pump with accumulator and silencing kit.

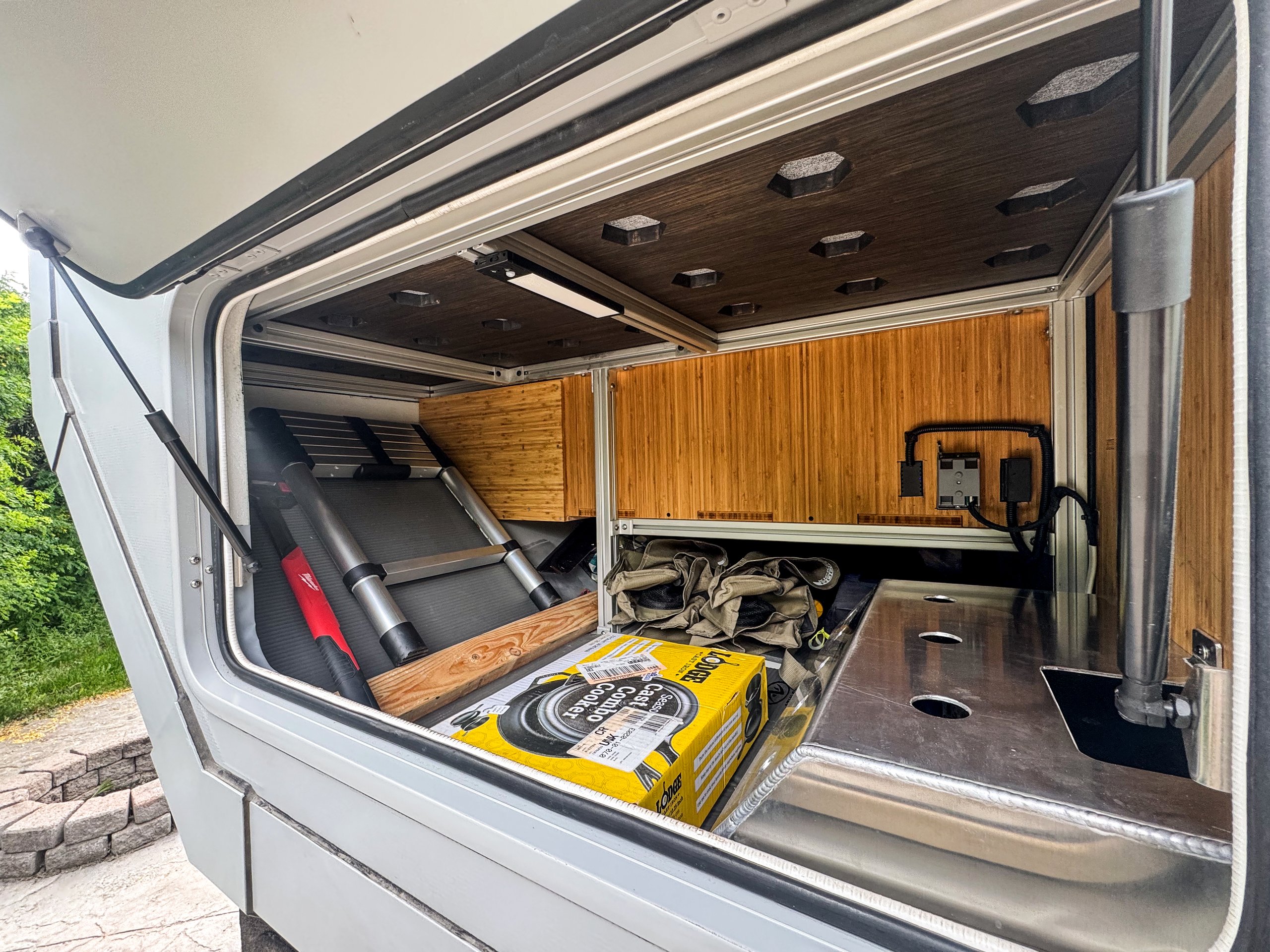

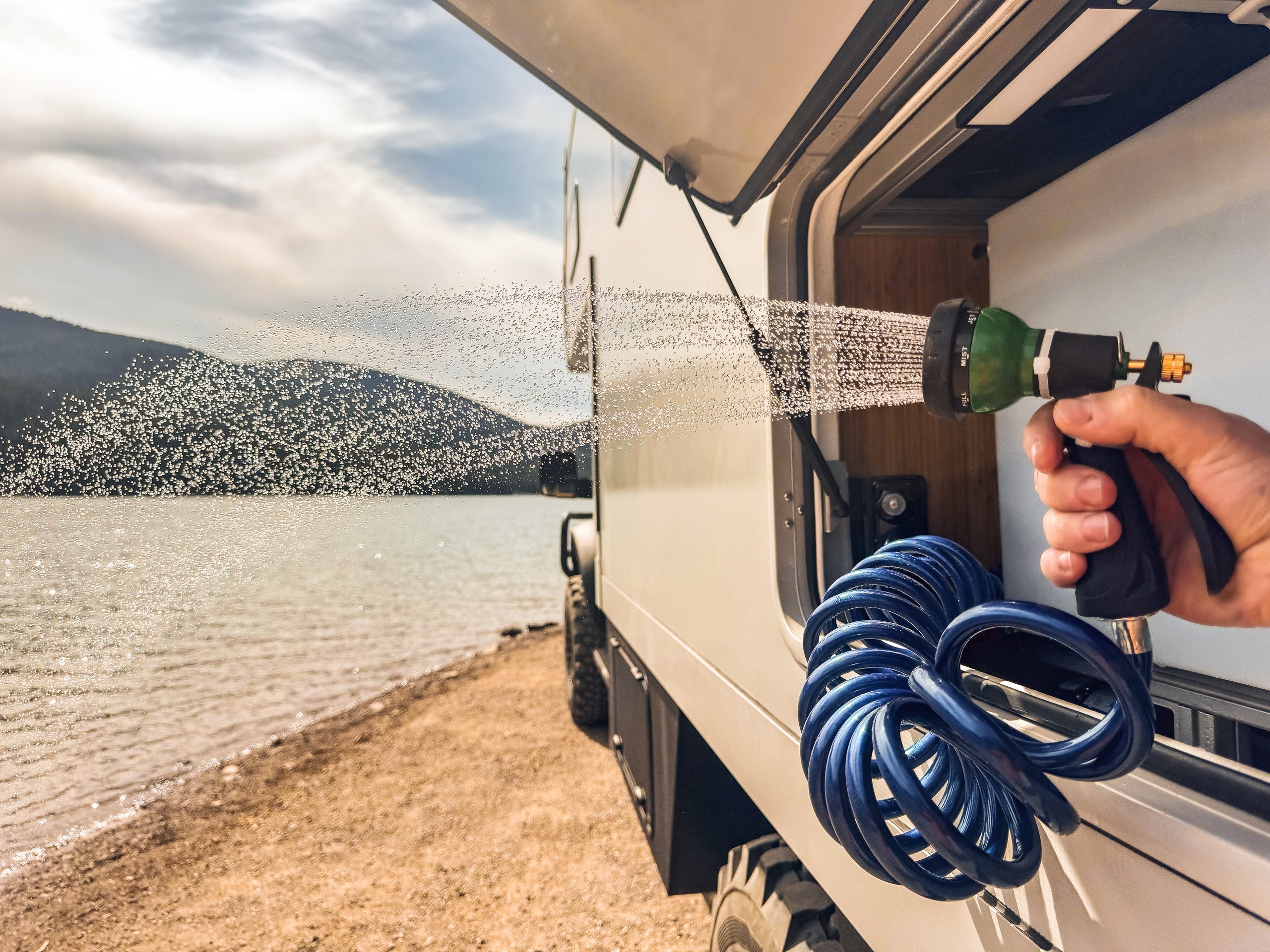

- Cold/hot water port in gear garage (outdoor shower)
– Endless hot water system via hydronic heat and electric element (can control water temp – if you want, it can get burning hot!)
Heating & Cooling/Kitchen & Appliances:
Air Conditioner – UndermountAC® 24v 16k with integrated HVAC ducting
Espar hydronic heater
Integrated Infrared Electric Heated Floor System (Miheat)

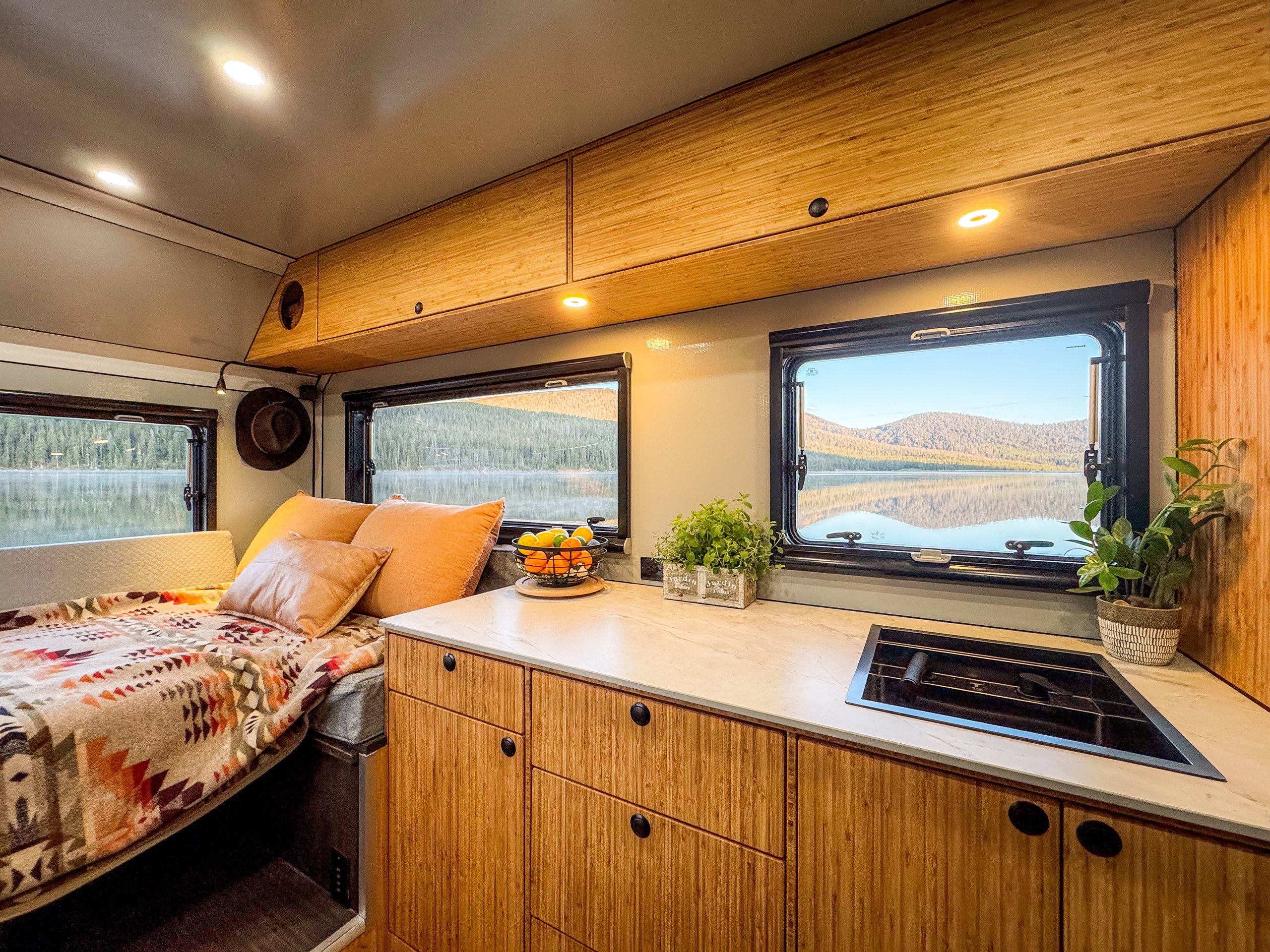

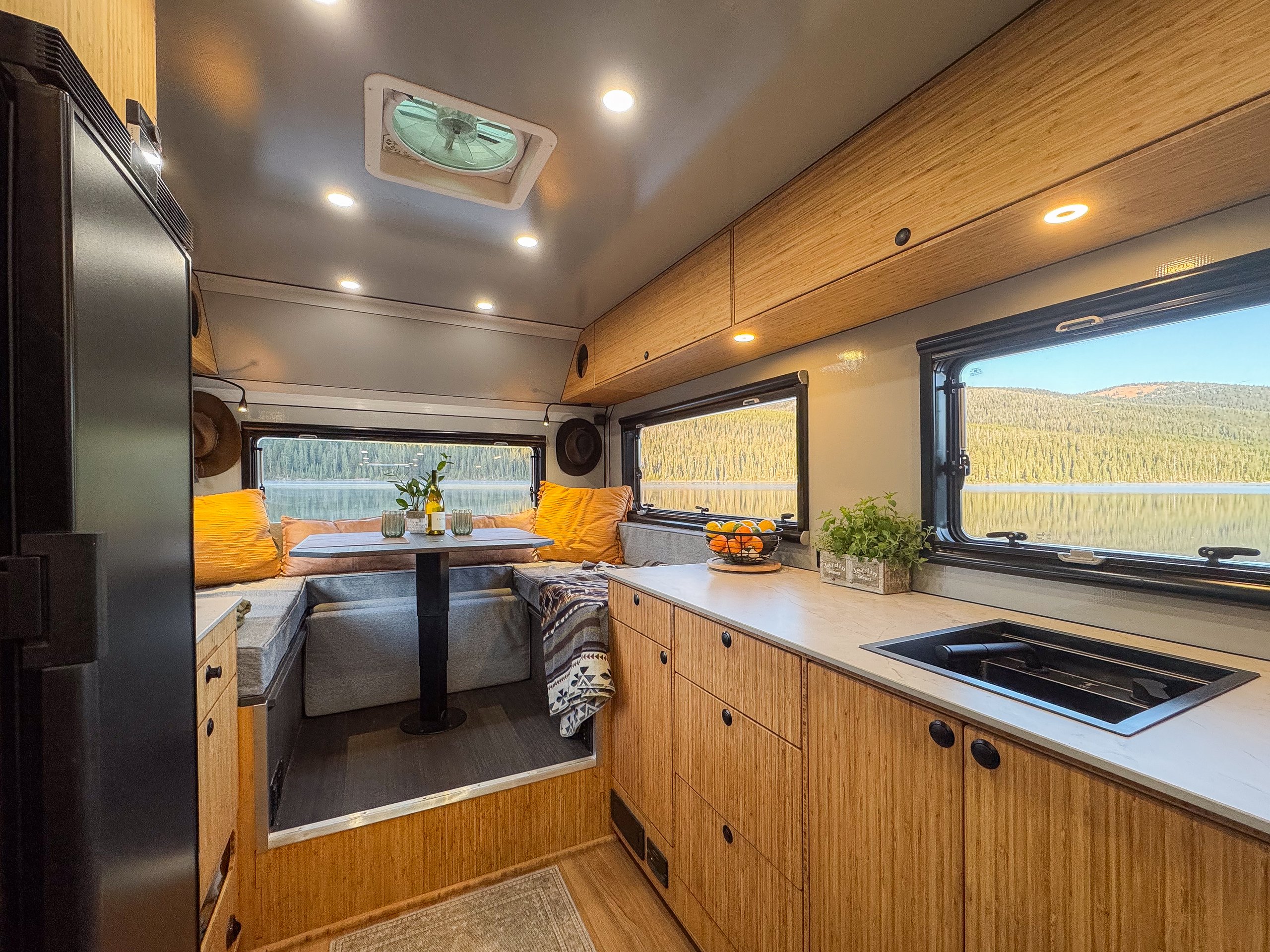

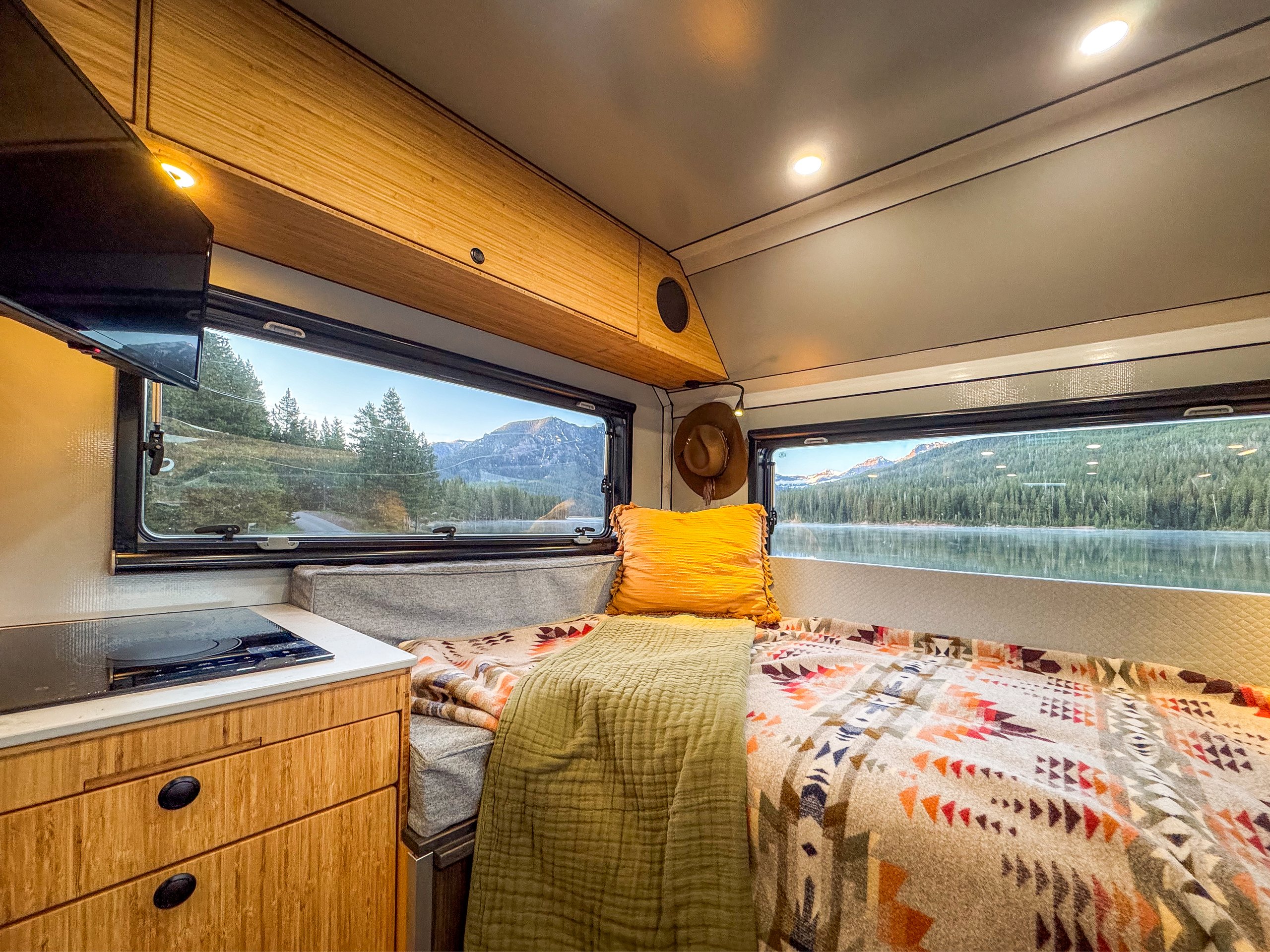

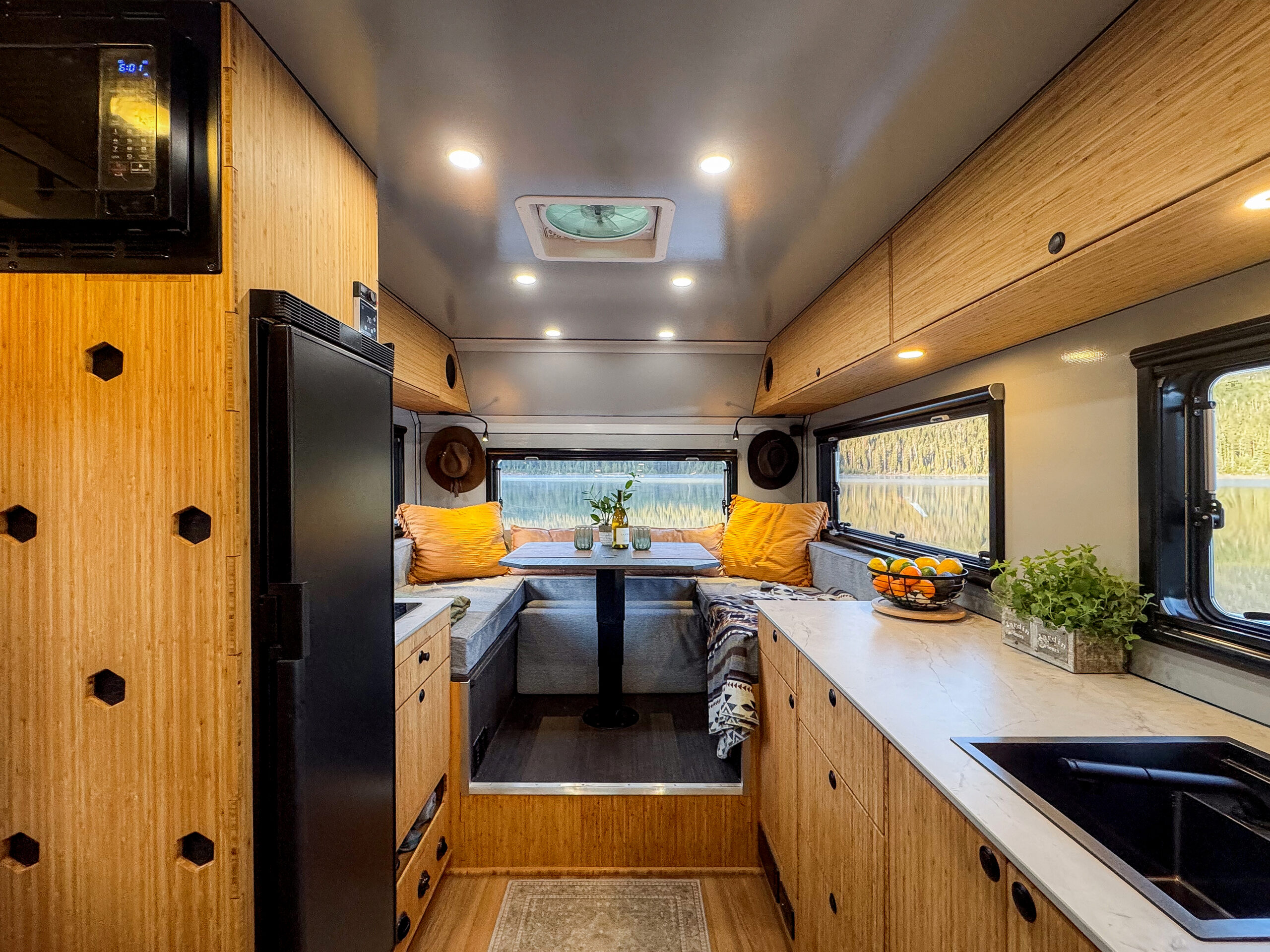

CONTOURE microwave air fryer combo, Furrion 2-Burner 21″ RV Induction Cooktop (Black) isotherm slim 140 Refrigerator with freezer top storage

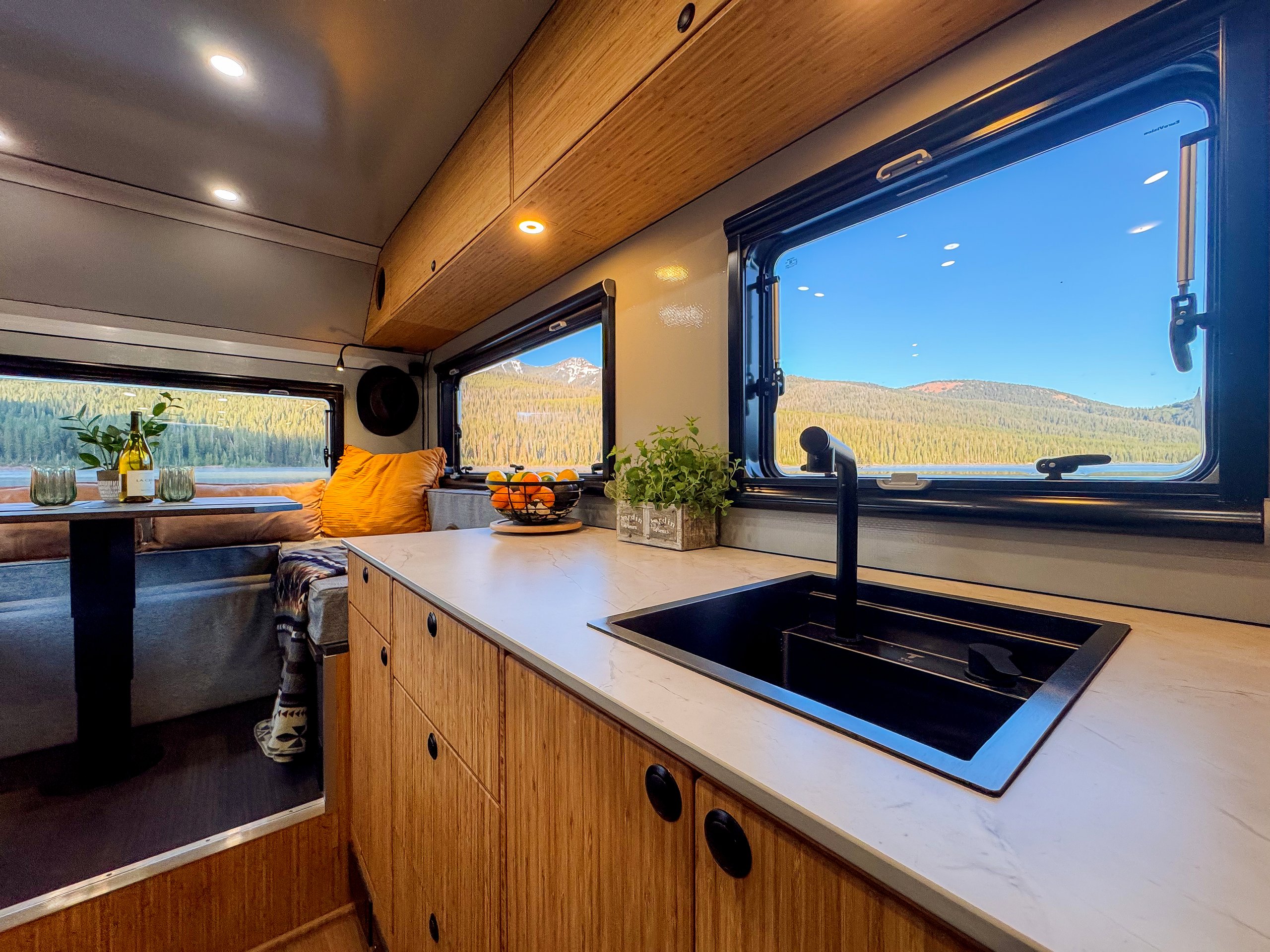

Matte Black van life tech Folding Faucet with extra long sprayer & Stainless Steel Nanotech Galley Sink
Black and decker fast 1200w toaster and Nutri-blend blender (both fit in their box conveniently in one overhead cabinet with room to spare.
Heating, AC, Fan and temperatures can be controlled through your hard wired screen inside the habitat. Switching from AC to Heat is set up manually to avoid issues with heat values (but a heat value can be added) It is a simple turn of the nob inside the storage compartment.

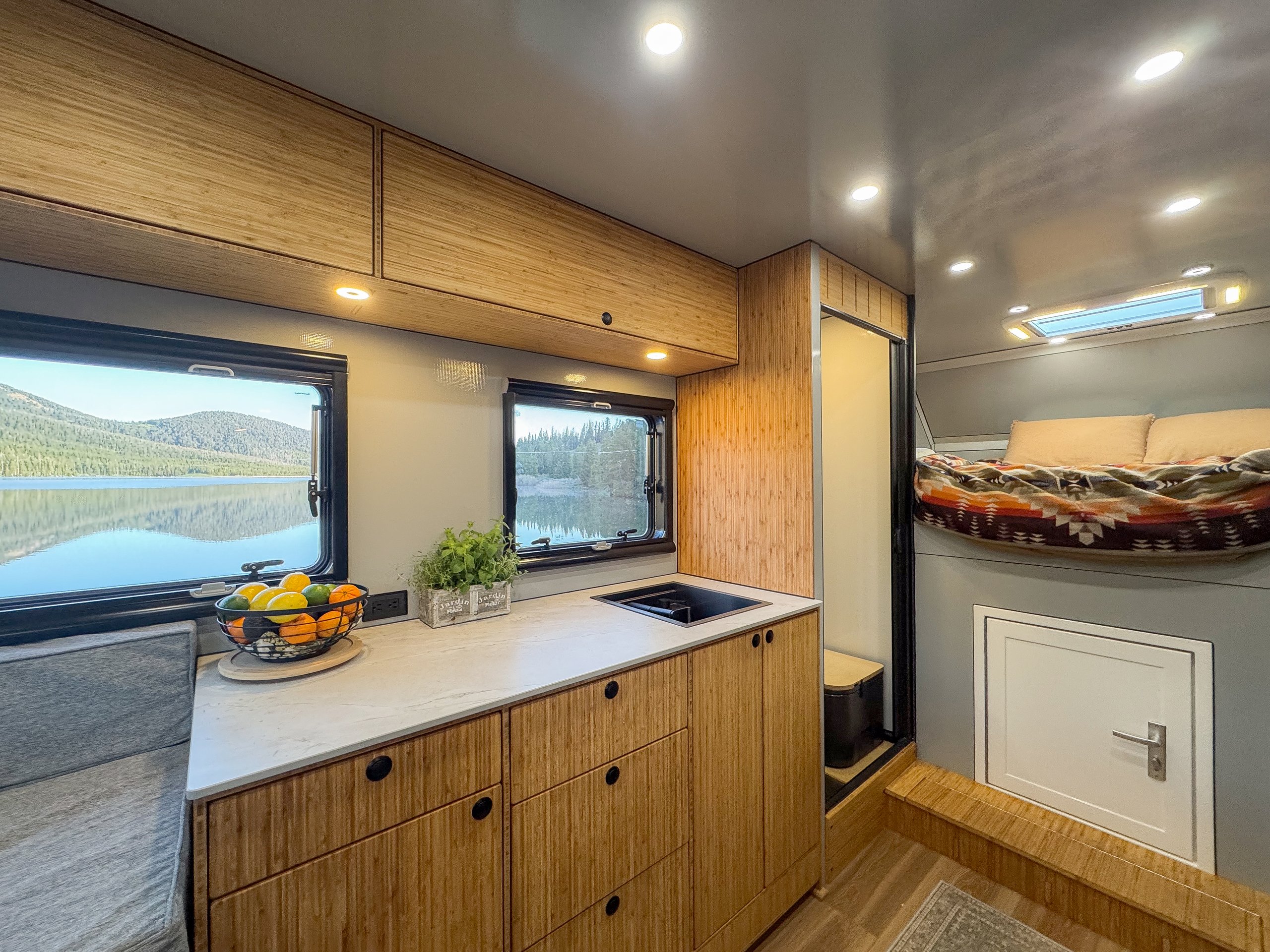

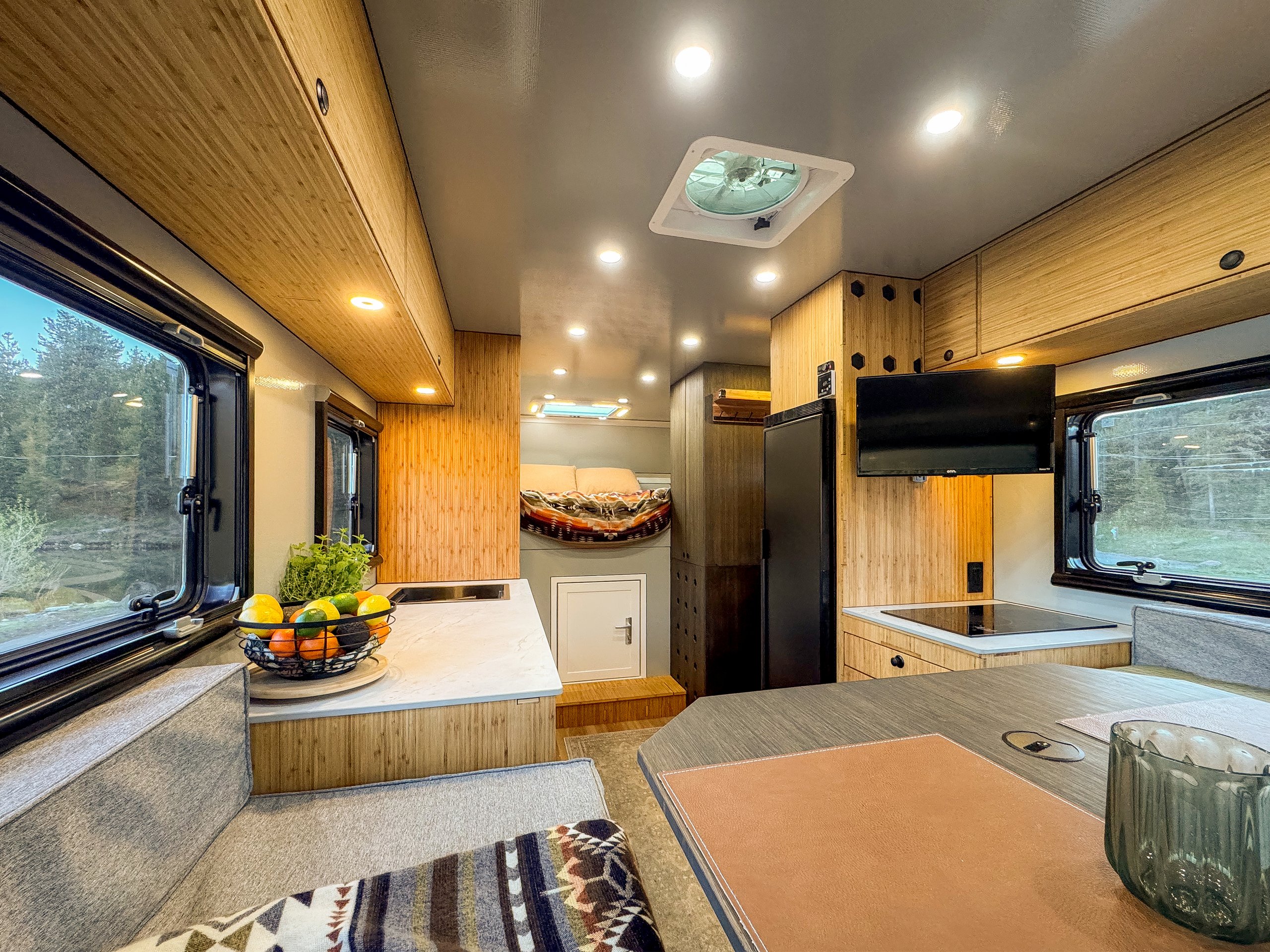

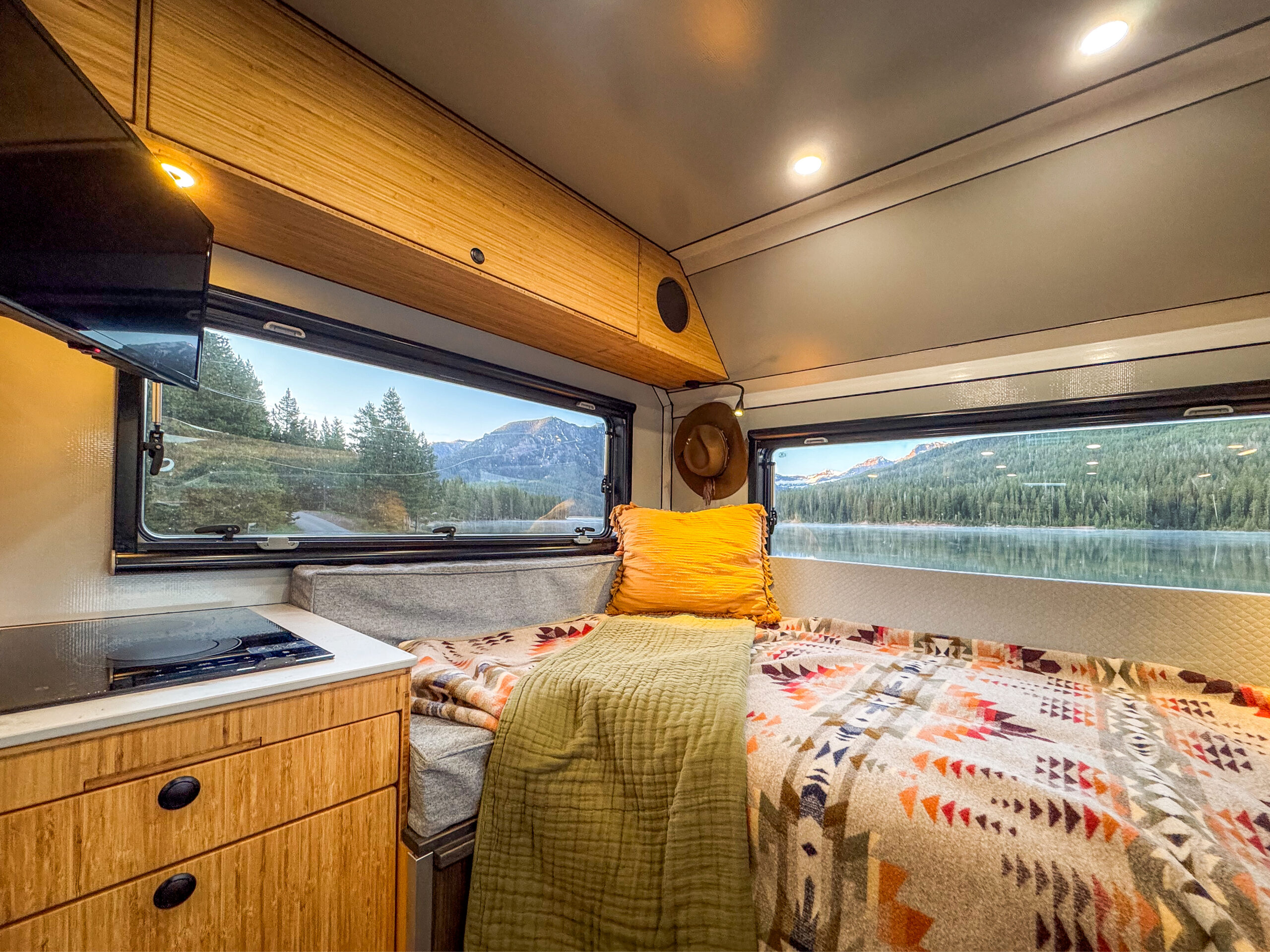

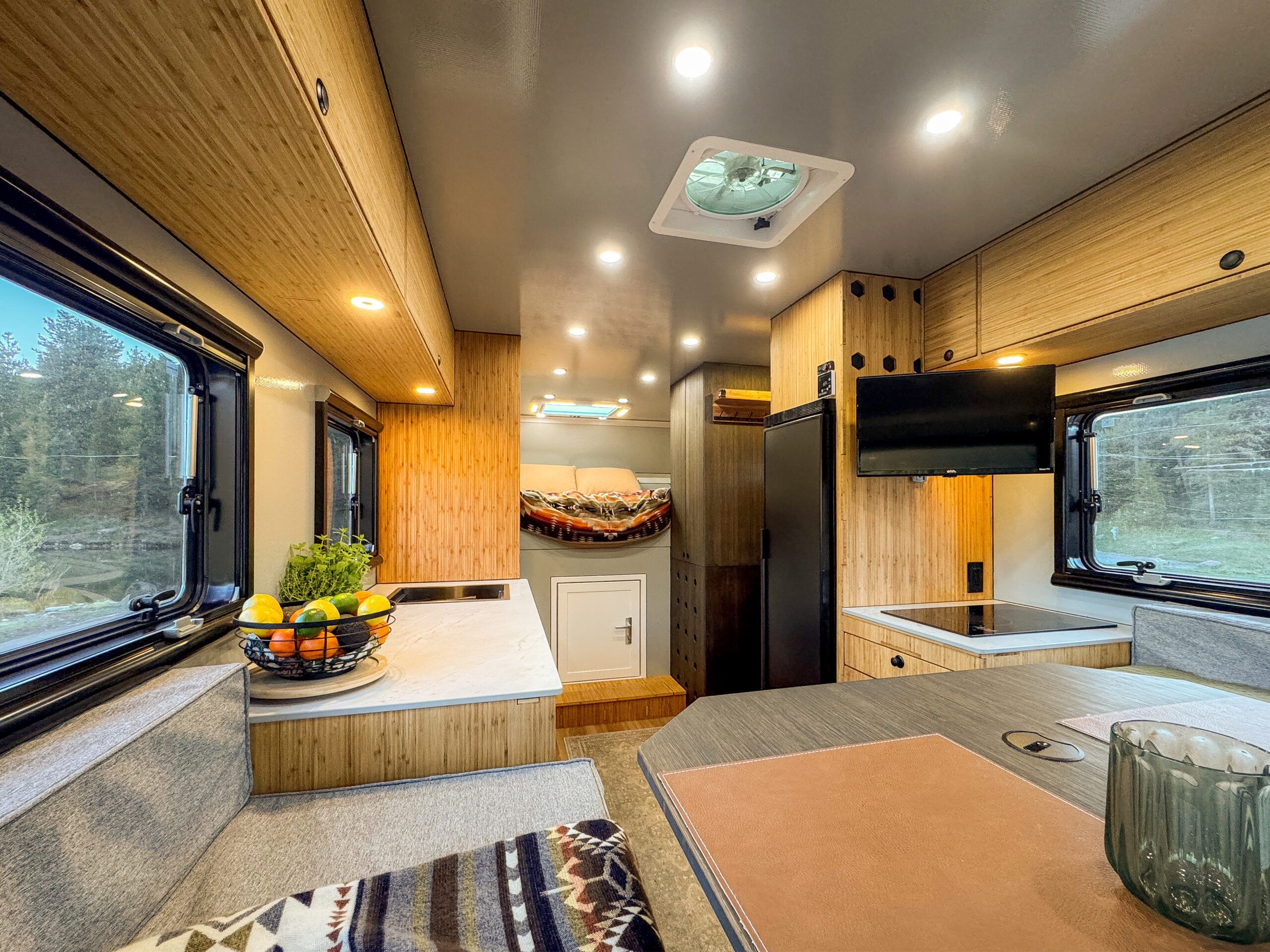

Flooring and Cabinets / Furniture and Countertops
High quality Durasein white/light gray Carrera marble like countertops
Premium synthetic plank flooring

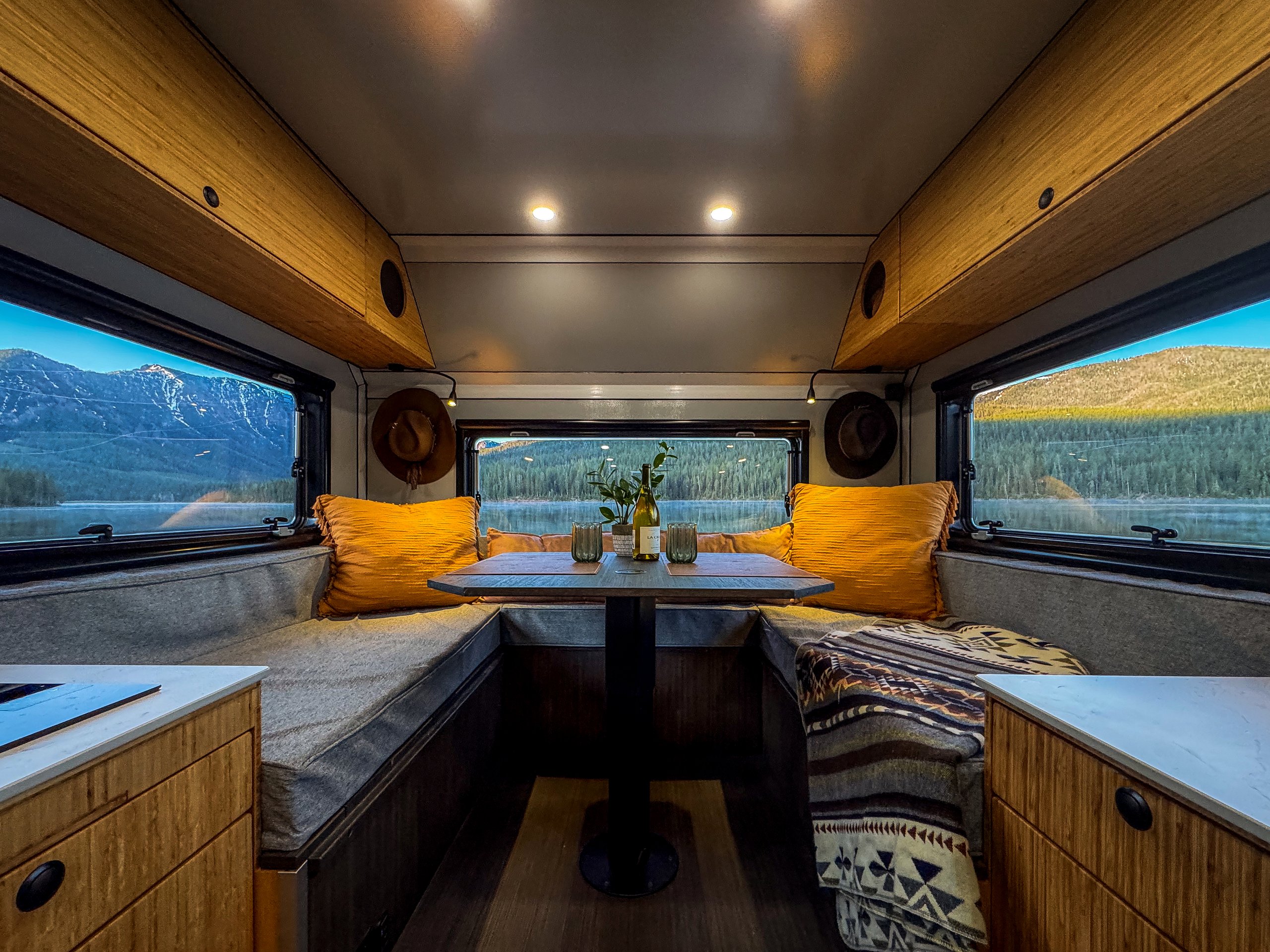

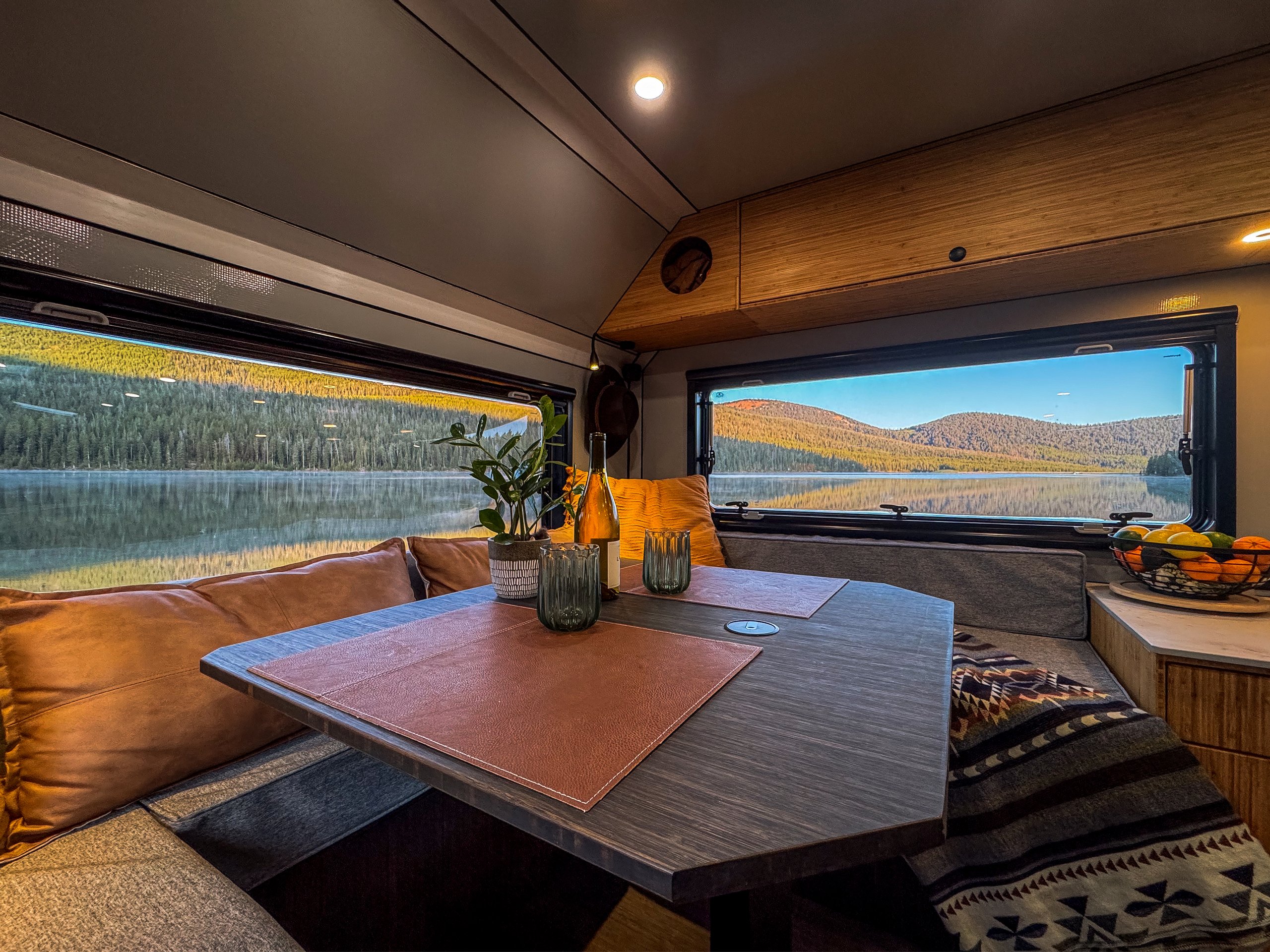

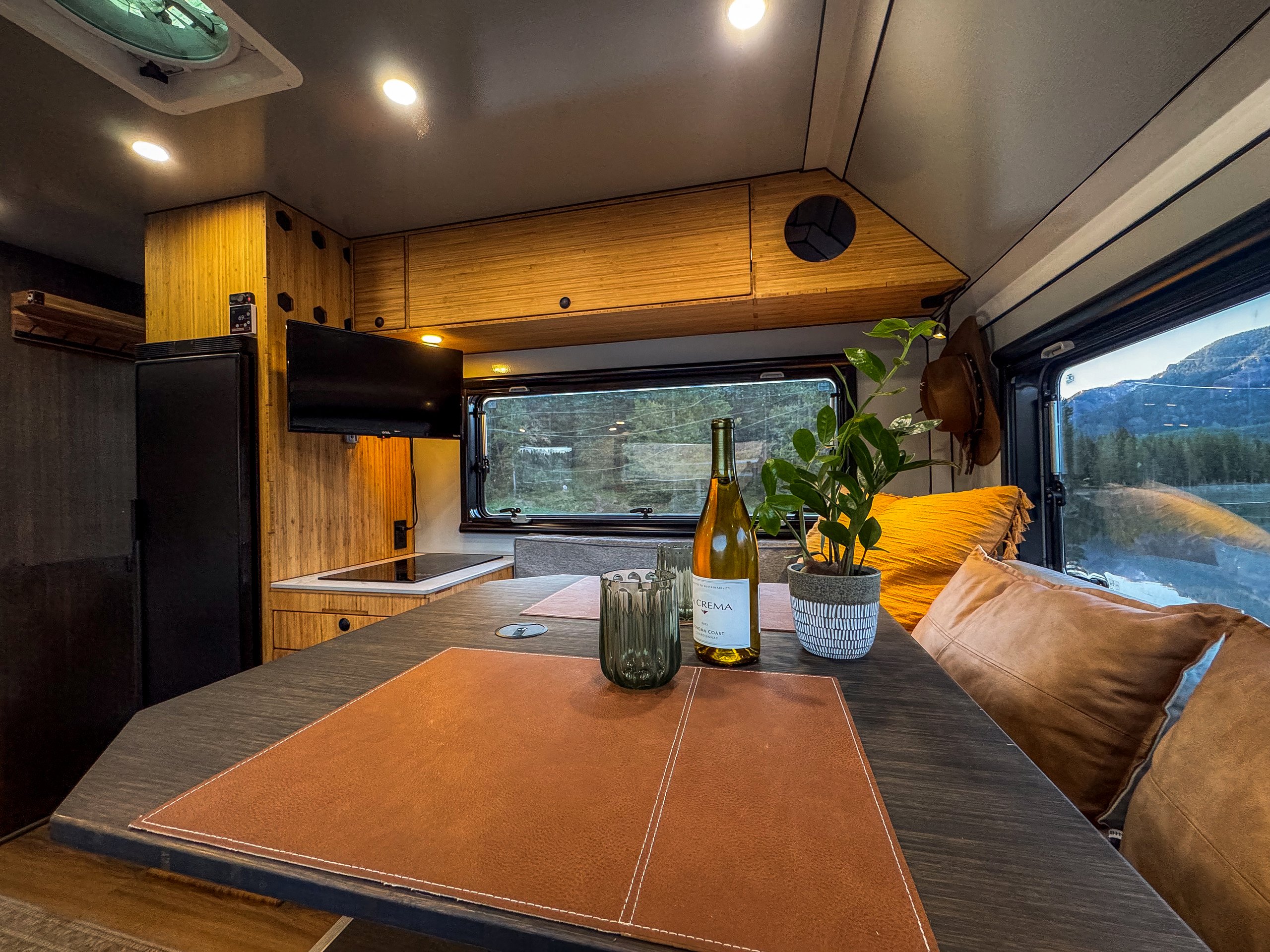

Dining Table with large U shaped convertible couch to guest bed and 5” foam Cushions.
Cabinets: ZERO wood construction using primarily PlyBoo.
pull-out storage drawers with soft close hardware
High Quality Latches throughout in black.

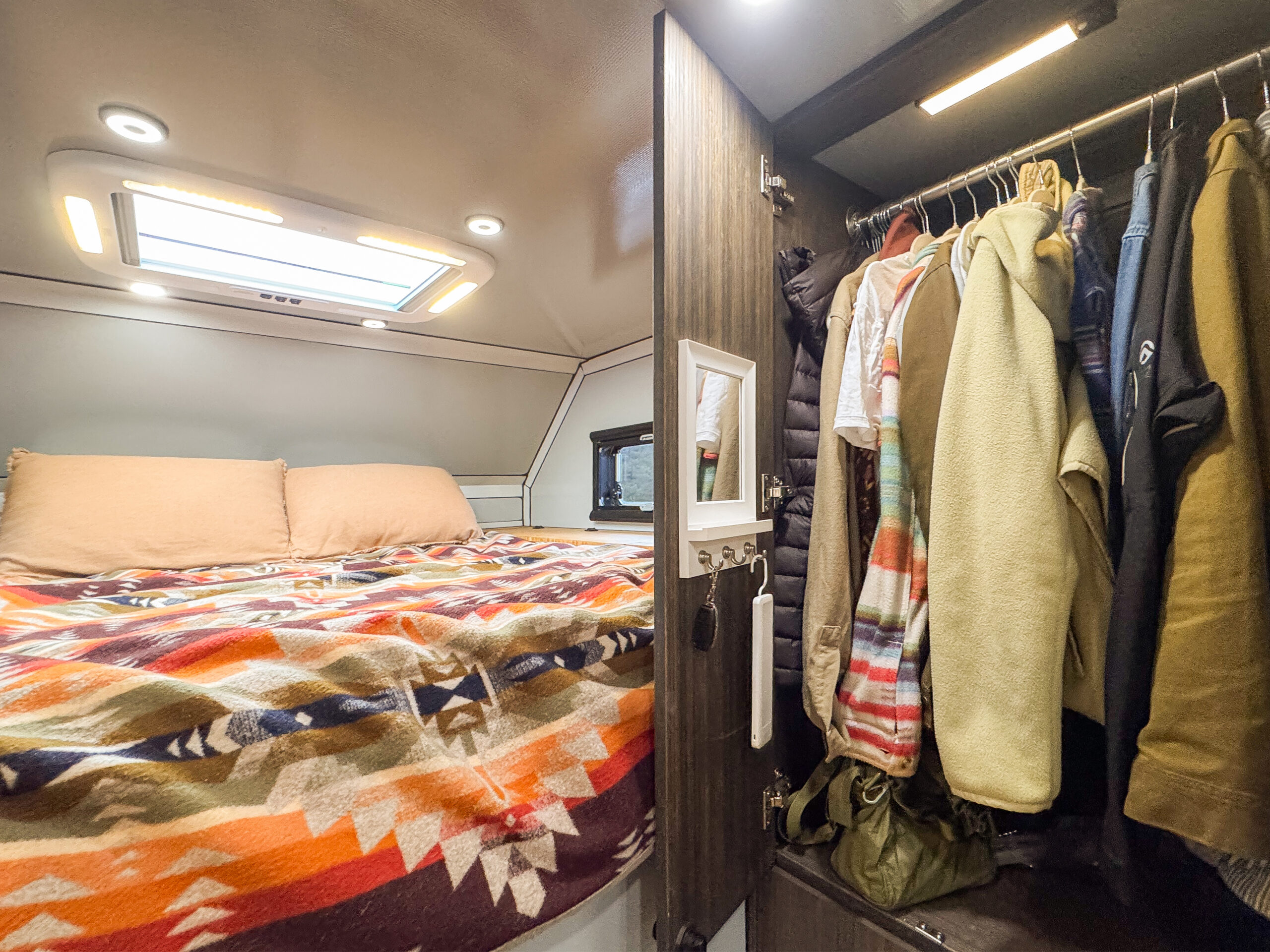

Wardrobe closet – hanging

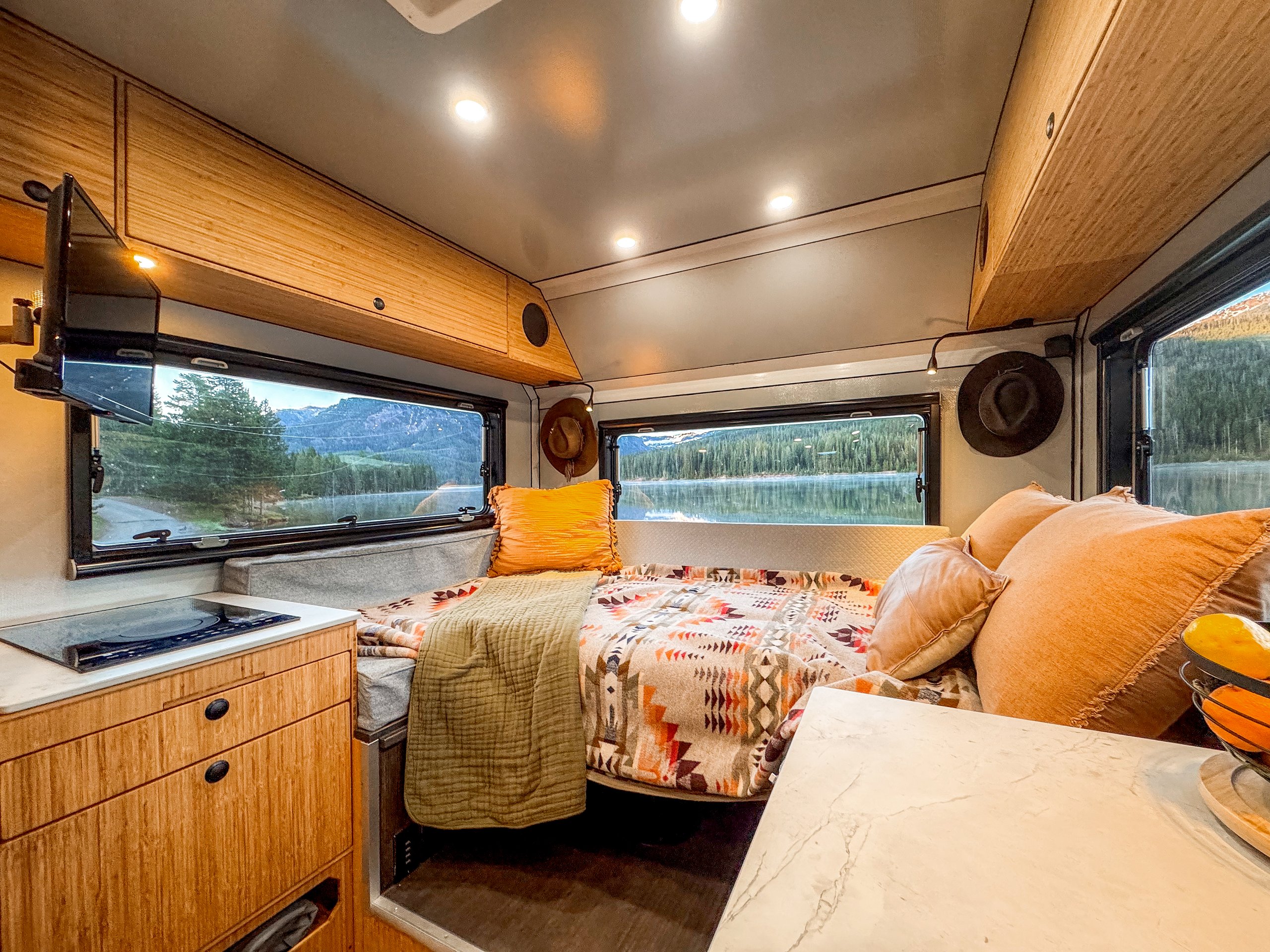

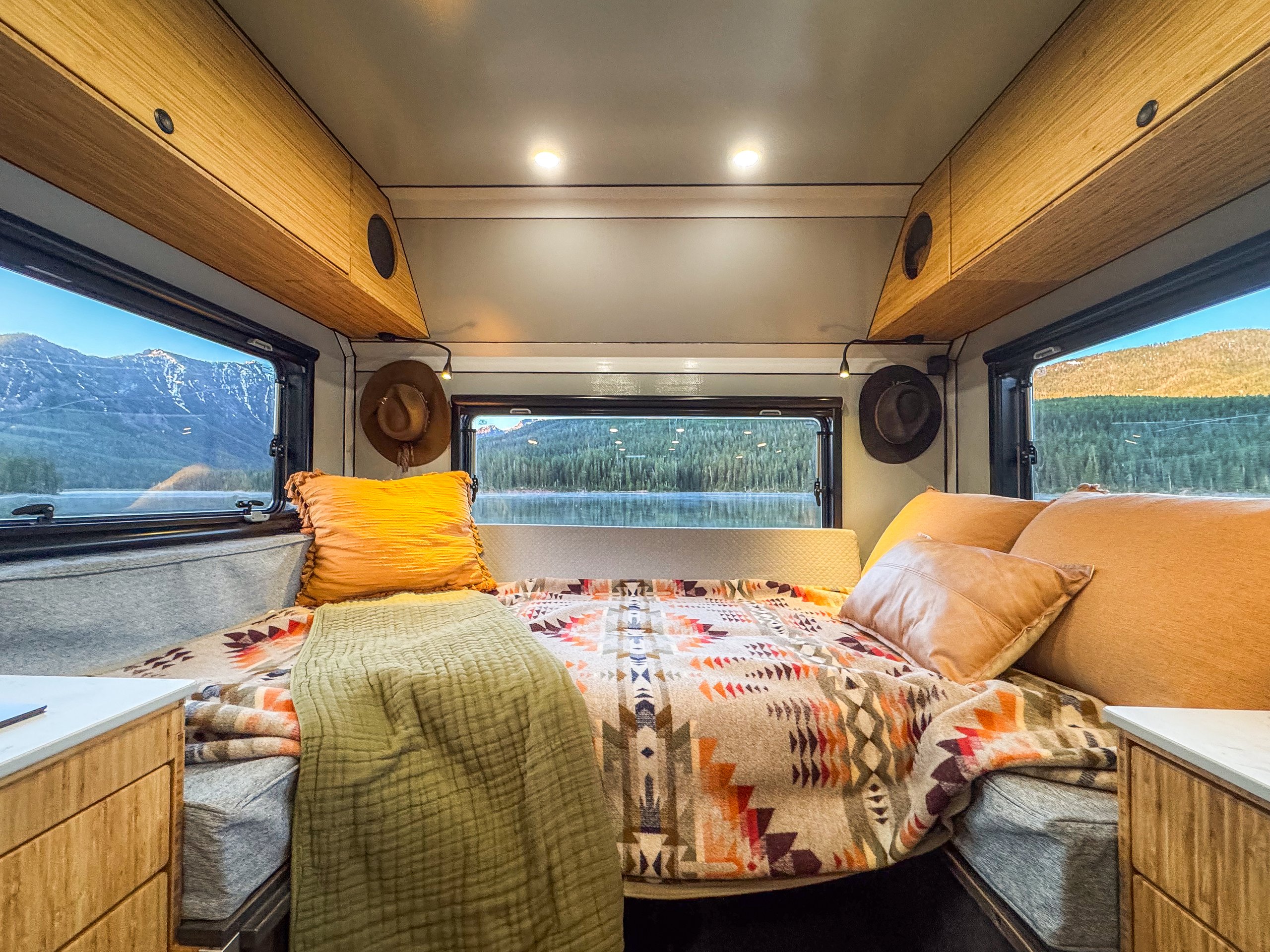

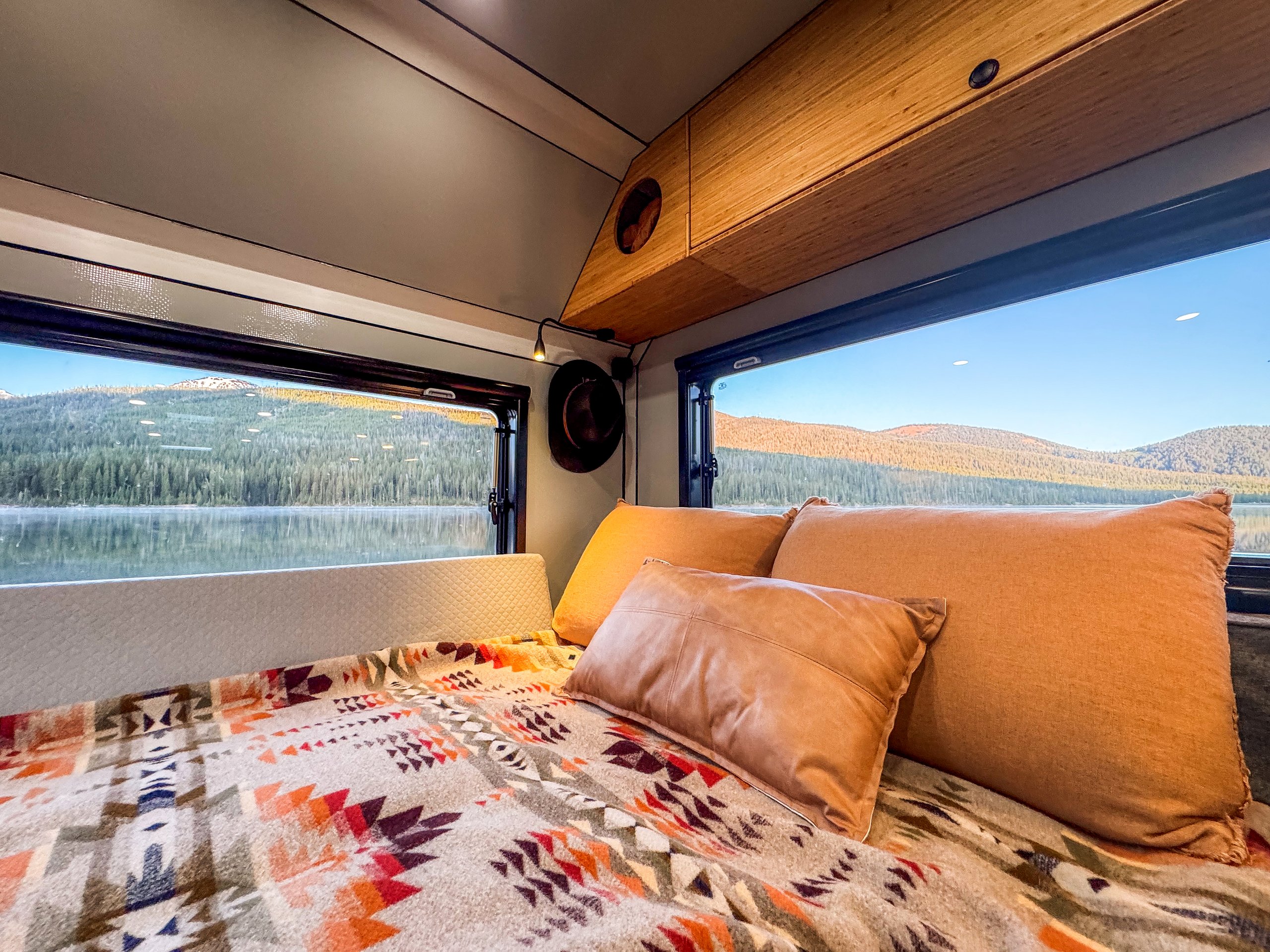

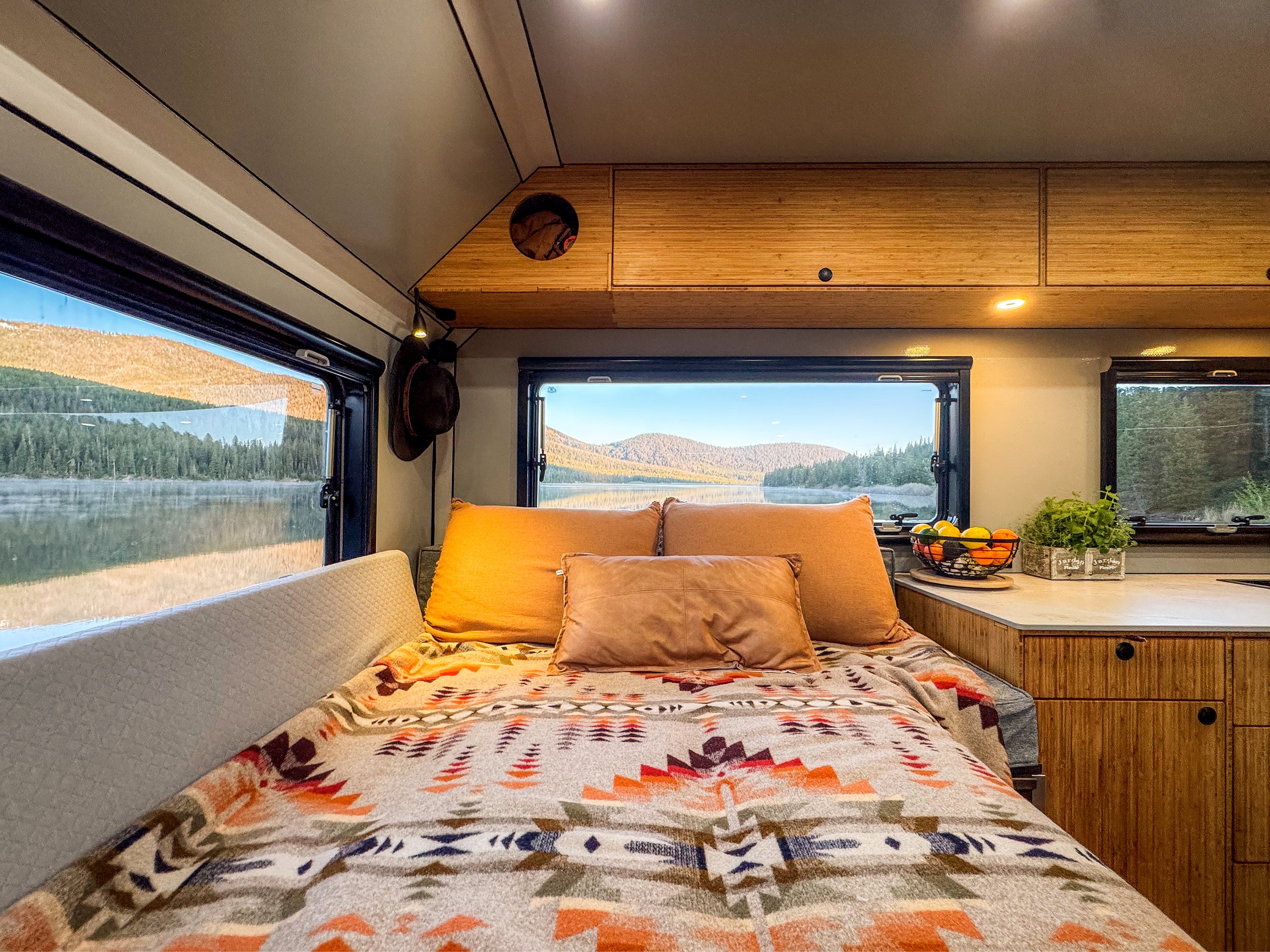

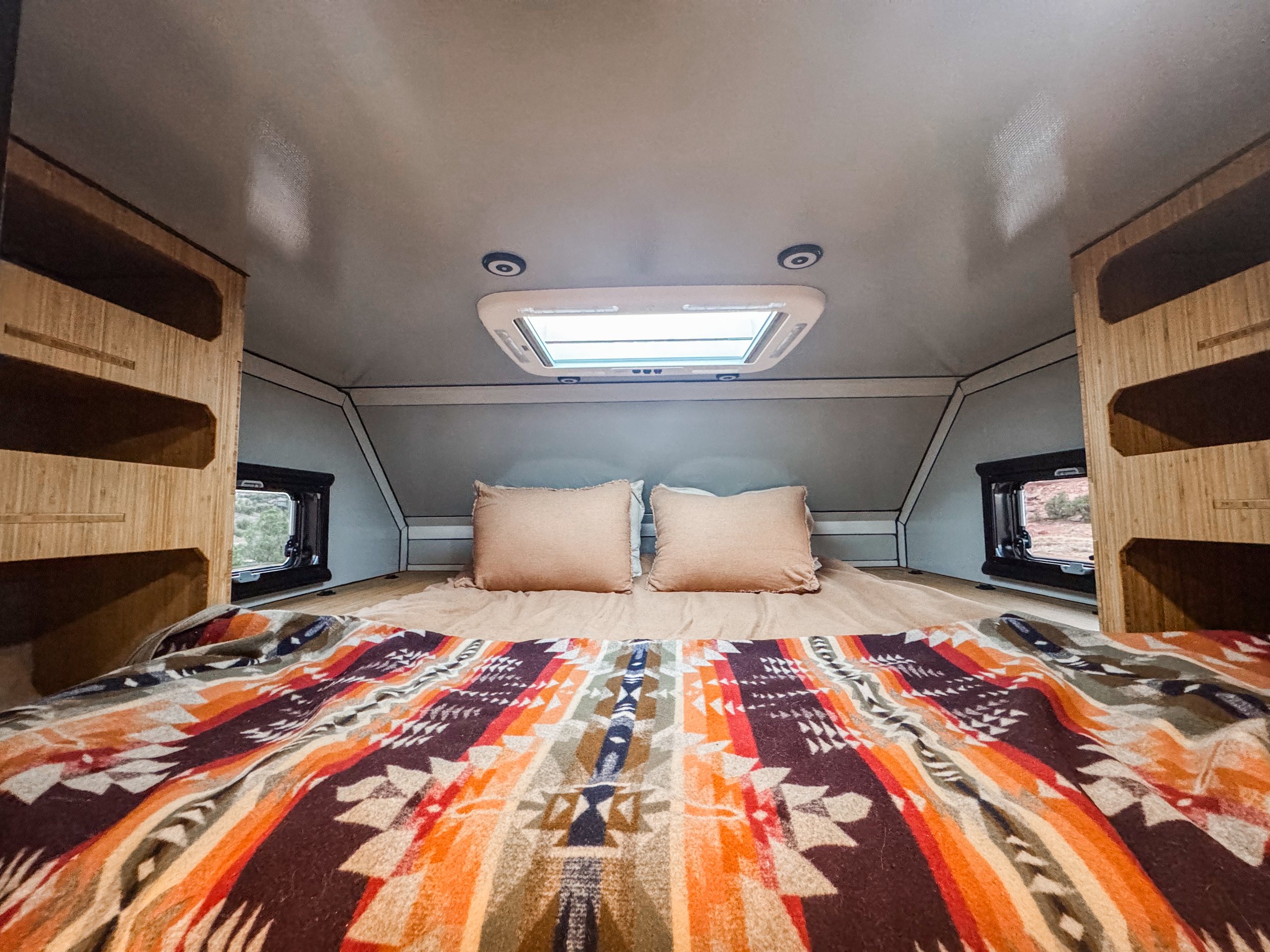

Premium Queen size Residential Memory Foam Mattress ; Froli under mattress system
Bedside storage, bedside floor cabinets and side wall open storage for easy access.
TV / Movies

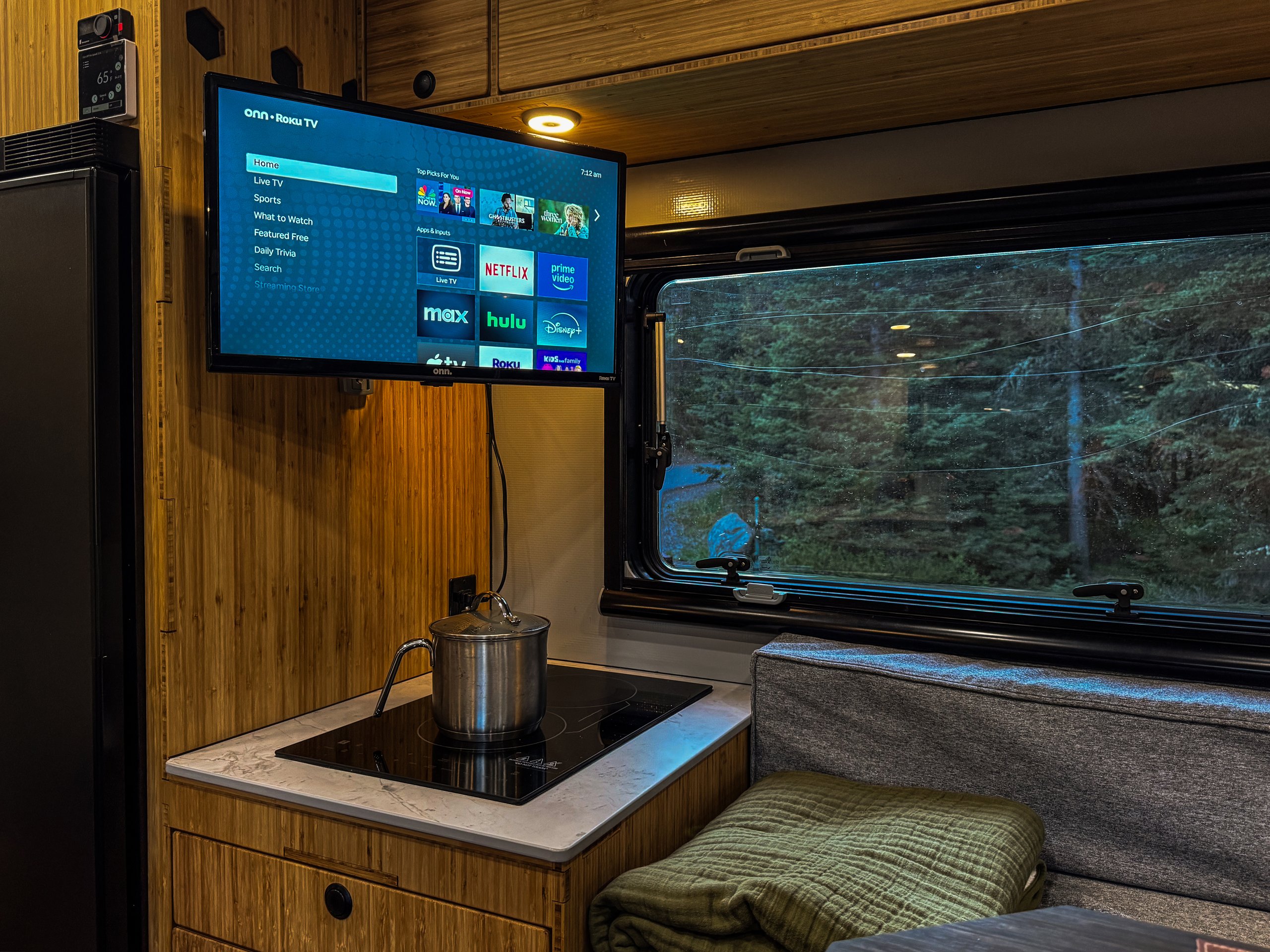

24” 1080 Smart TV with indoor and outdoor full motion locking RV mount + additional mount (unmounted) TV can be placed outdoors to watch your favorite movie while camping.
VOPLLS Movie Projector – 360°Adjustable Stand & Auto Focus/Keystone – with WiFi and Bluetooth, 550ANSI Native 1080P. HDMI/USB/Phone/PC (Black)
150 Inch anti-crease washable outdoor projector screen.
Starlink
Starmount mounting system with quick release to take your Starlink home when Camper is not in use, starlink router included, starlink dish included and account can be transferred.
Fully stocked, Ready to Camp – all included. We’ve lived in it, tested it, tried to make any small changes or minor fixes do you don’t have to. We have also tried to acquire everything you might want or need. Driving around cities and stores isn’t that much fun in a big rig… especially if youre picking it up and want to hit the road right away. We hope to take the inconvenience of doing it yourself out of the equation.
Everything Included is not part of the price (just included for free)
Security
Blink wireless motion camera system – 1 interior camera and 2 additional cameras (newest models) for outdoor or indoor placement. Keys for main door and all locker storage compartments, separate key for pass through, key lock for main truck cab with key fob for push to start and alarm notice – (unable to accidentally lock keys inside truck when leaving) + Ram Truck alarm system.
