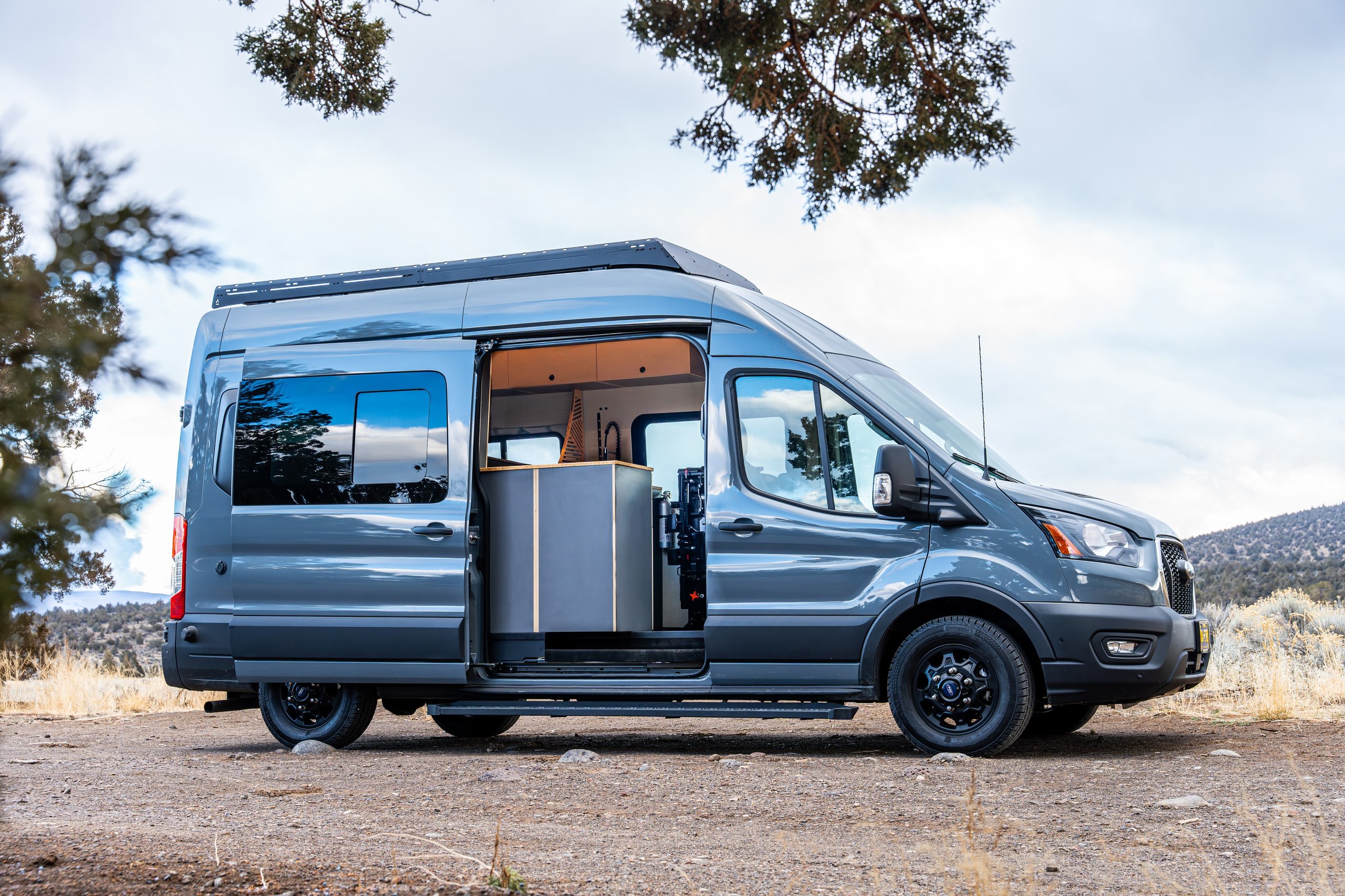

Your newest four-season, all-terrain, home on wheels. This AWD Transit is fitted with a full premium build, including a robust electrical and plumbing system for full off-grid capability.
Get in touch to snag this kick-ass van for yourself. (email@example.com)
Arroyo is designed as the perfect off-grid retreat for those looking to venture the rugged outdoors and reprieve in comfort whether you’re a part-time traveler or full time van-lifer.
This van is turn-key ready, complete with all of the accessories that make traveling anywhere easy.
Why our builds offer the best price-performance value on the market today:
- Superior Quality | Materials, components, and finishes are purposefully chosen – each has been tested thoroughly.
- Better Value | Because of our process and standardized layouts we offer a better value than other builders. Our builds are at the “sweet spot” intersection of value and quality.
- Digitally Designed | Our builds are designed in 3D for exact fitment and a highly tailored end-result that has been considered from every angle. CNC equipment helps us produce high precision every time.
- Built with Care | Built by a team of veteran van builders with numerous builds and experience in Bend, OR.
- Local Ingredients | A large majority of products were purchased locally or produced in the state of Oregon. All materials and finishes are low or no VOC – no off-gassing or harmful chemicals used.
- Turn-Key | Our builds are truly capable conversions that will work for full-time or part-time travelers with systems that are easy to manage.
VEHICLE (Full list of included products available)
3.5L V6, 10-Speed Transmission
All Wheel Drive
Vehicle is well optioned with premium packages. (Cruise control, 12" touchscreen, 360 camera, heated seats, etc. – see window sticker)
Climate Control/ Heating:
Bison 2200A gasoline heater with digital controller and thermostat
Maxxair Deluxe fan with remote
Fully sound dampened with Kilmat 80 mil
Fully insulated with 3M Thinsulate (1.5”) in all van cavities
Floor insulated with 1” Polyiso foam board (R 6.6)
- Flooring is durable and eco-friendly Marmoleum (Lakeland Shale)
A full set of insulated, magnetic window covers made by VanMadeGear

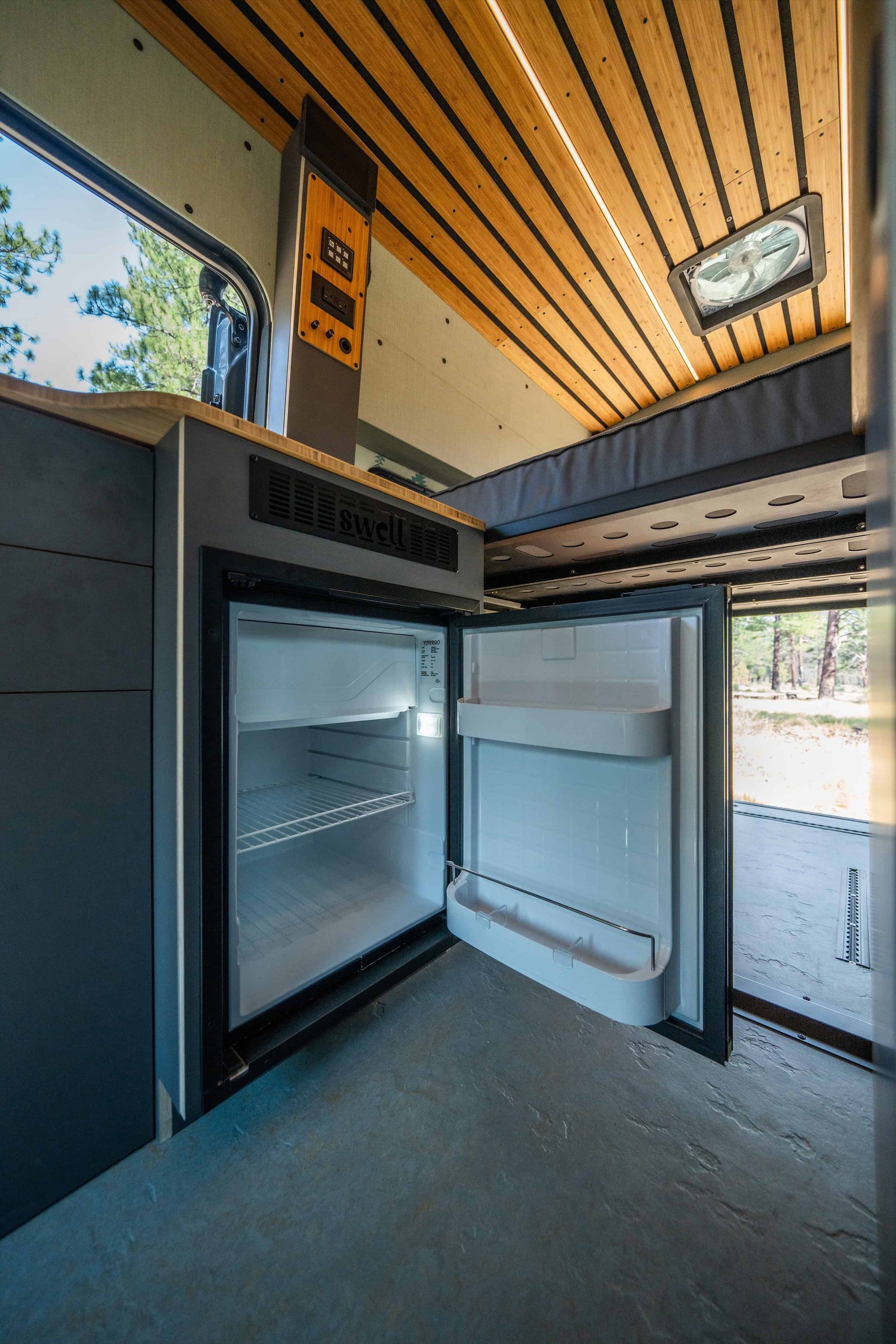

Vitrifrigo 90L Fridge + highly efficient 12v compressor

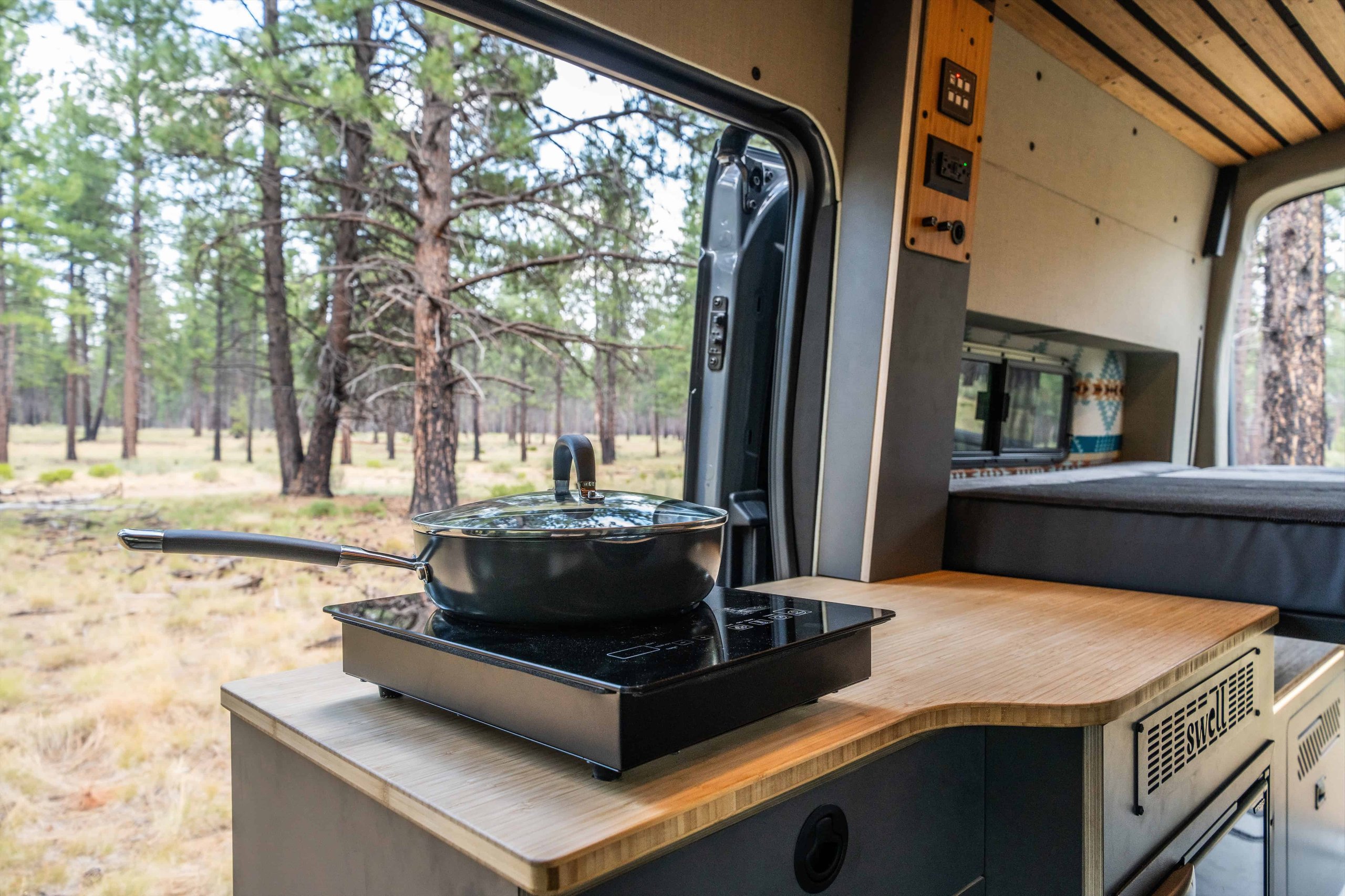

Single burner 1800w induction cooktop

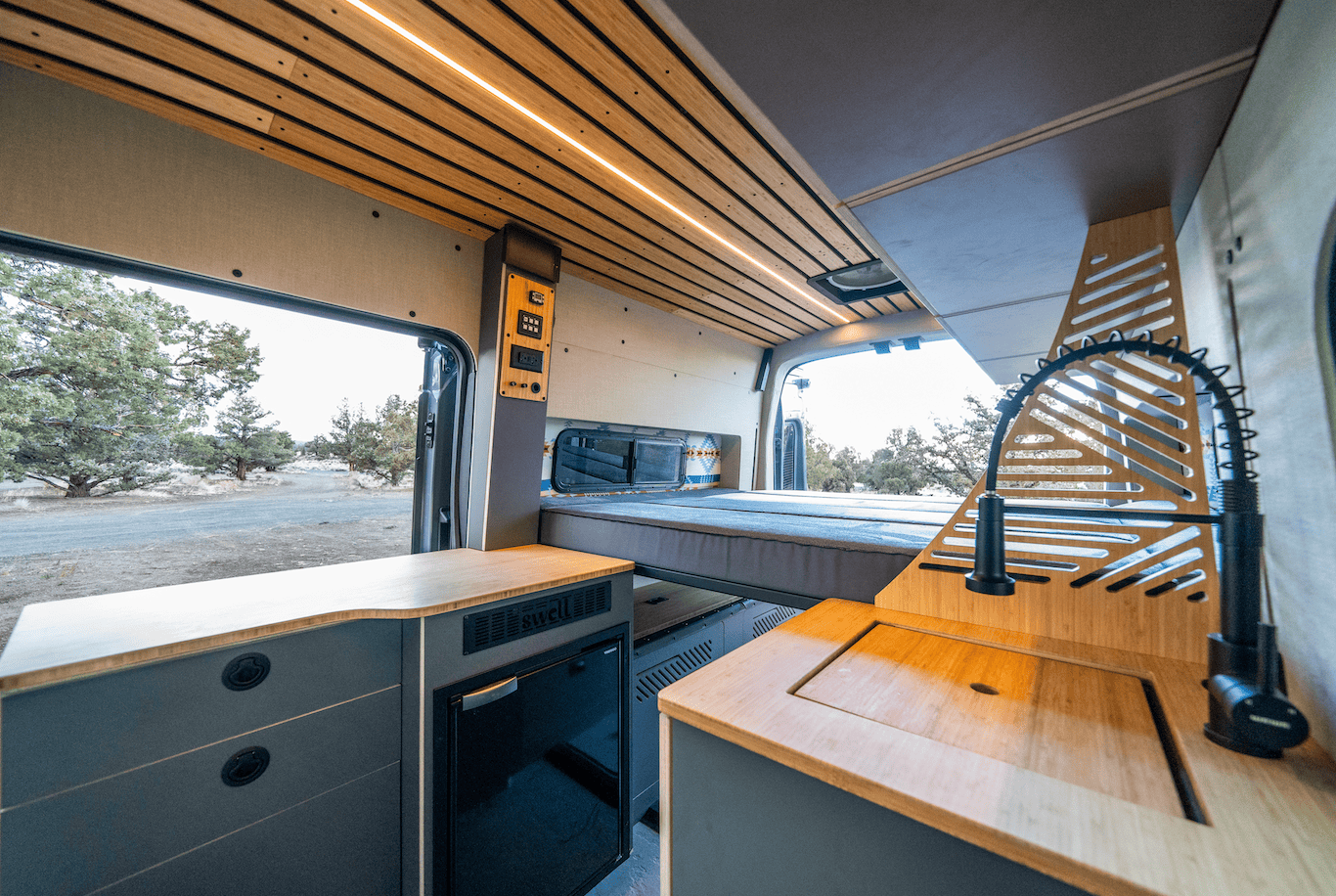

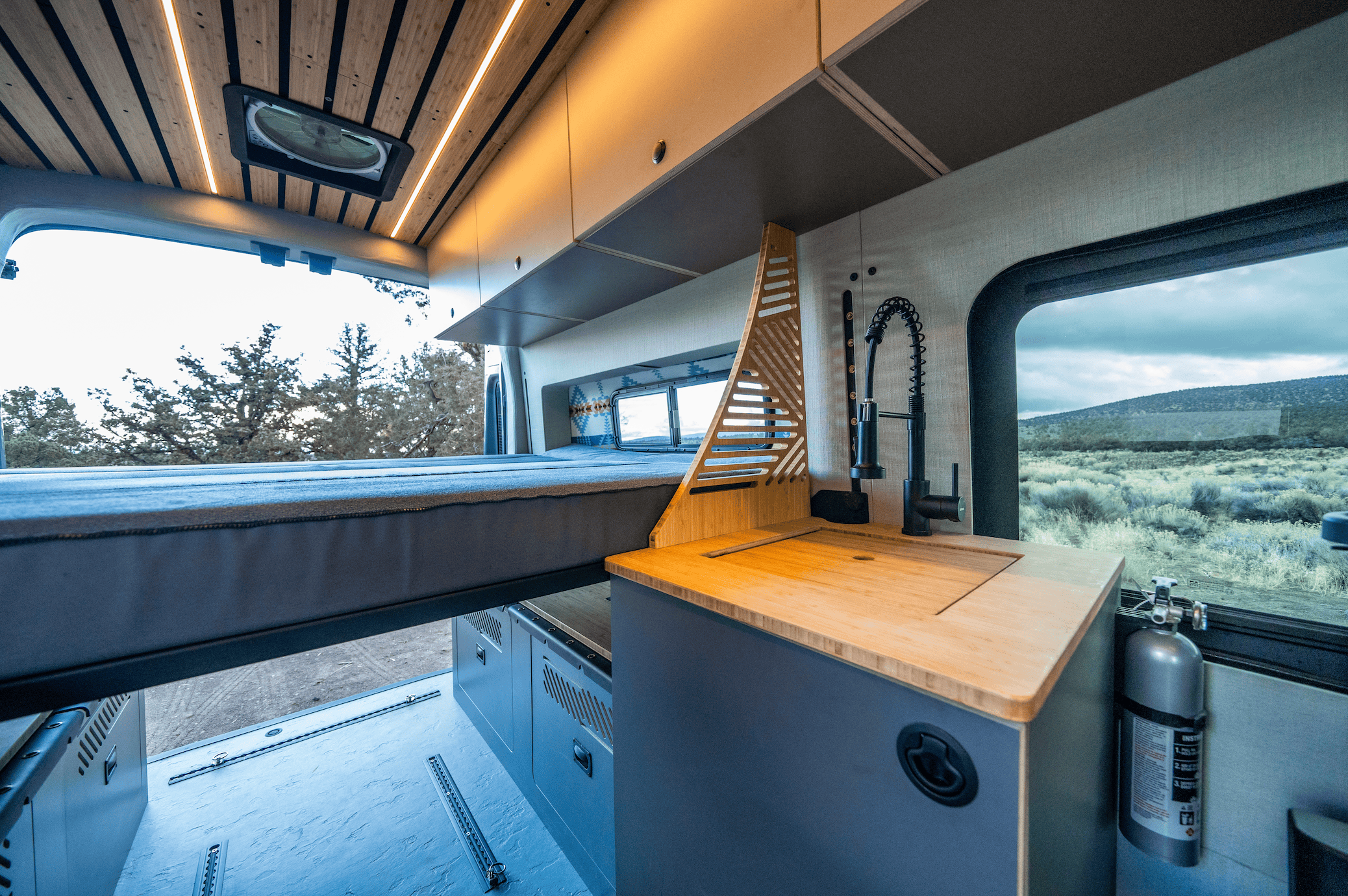

Matte black composite sink (Elkay) with matching faucet

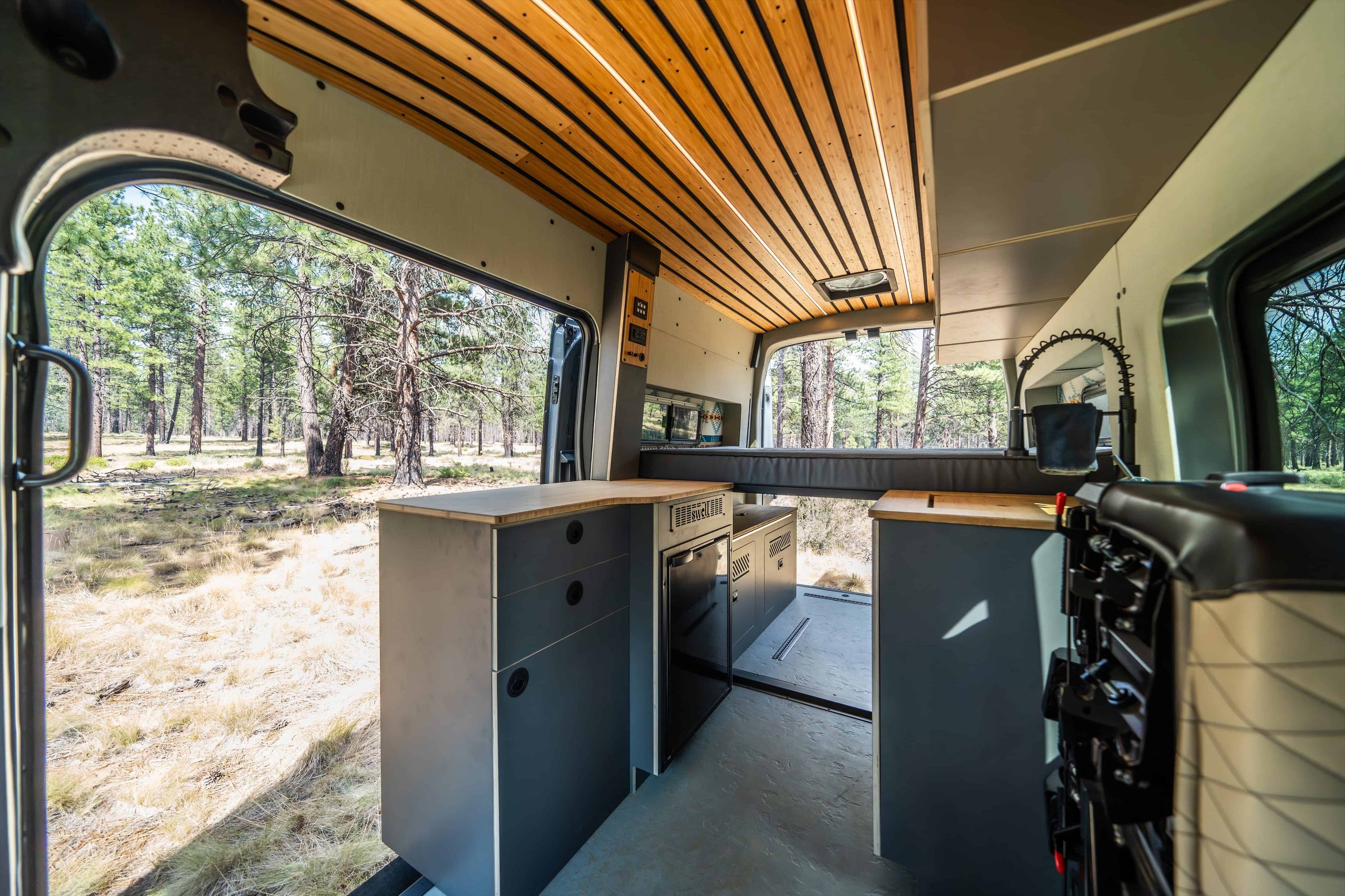

Toe-kick cabinets with LED Lighting
Plumbing: (Full list available)

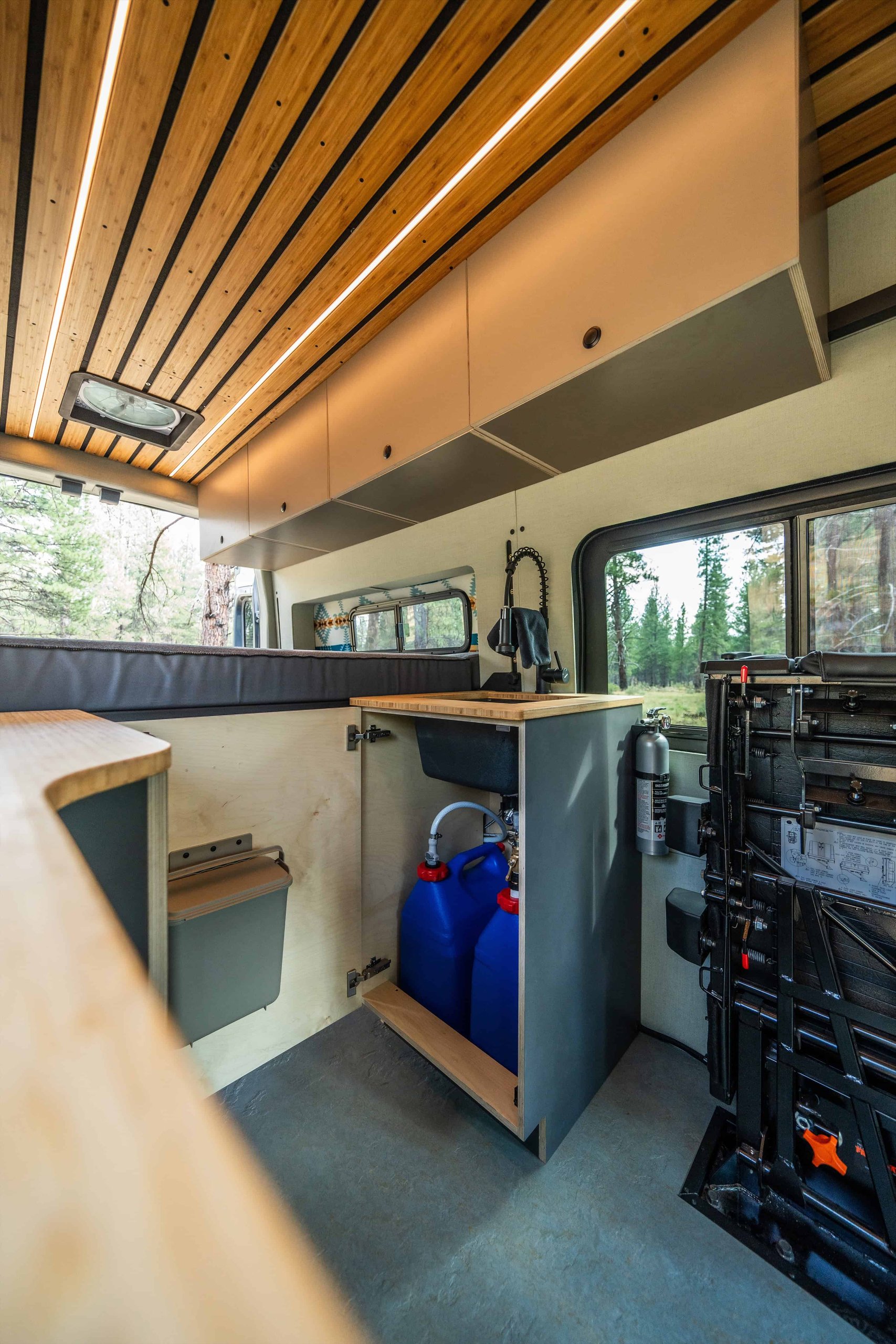

6 Gallon freshwater canister, 6 gallon grey water canister
Easily winterized system with Primary storage in jerry cans
12v Heating wire and pipe insulation added to all plumbing for controllable freeze protection
Valves for easily replacing/dumping canisters
12v Shurflo Water pump and accumulator
Freeze resistant plumbing with valve and drains for easily winterizing
Outdoor shower/spray down
Electrical: (Full list available)
Robust electrical system with three convenient ways of charging:
-400W Solar via All-Black Solaria high-efficiency panel
-60Amp Alternator charging
-15Amp (120v) Shore Power plug

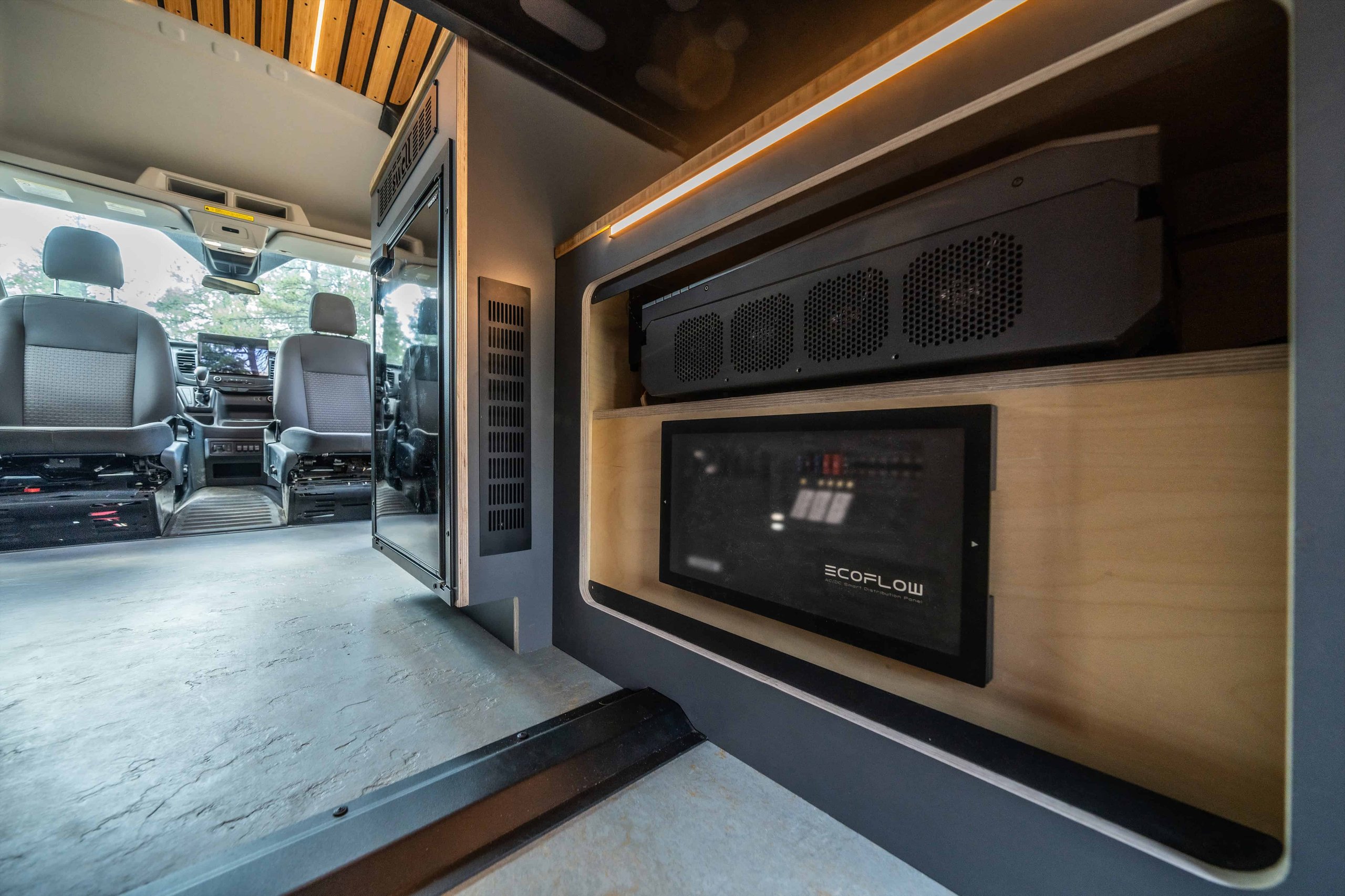

EcoFlow Independence Power Kit with 5kWh Battery Bank

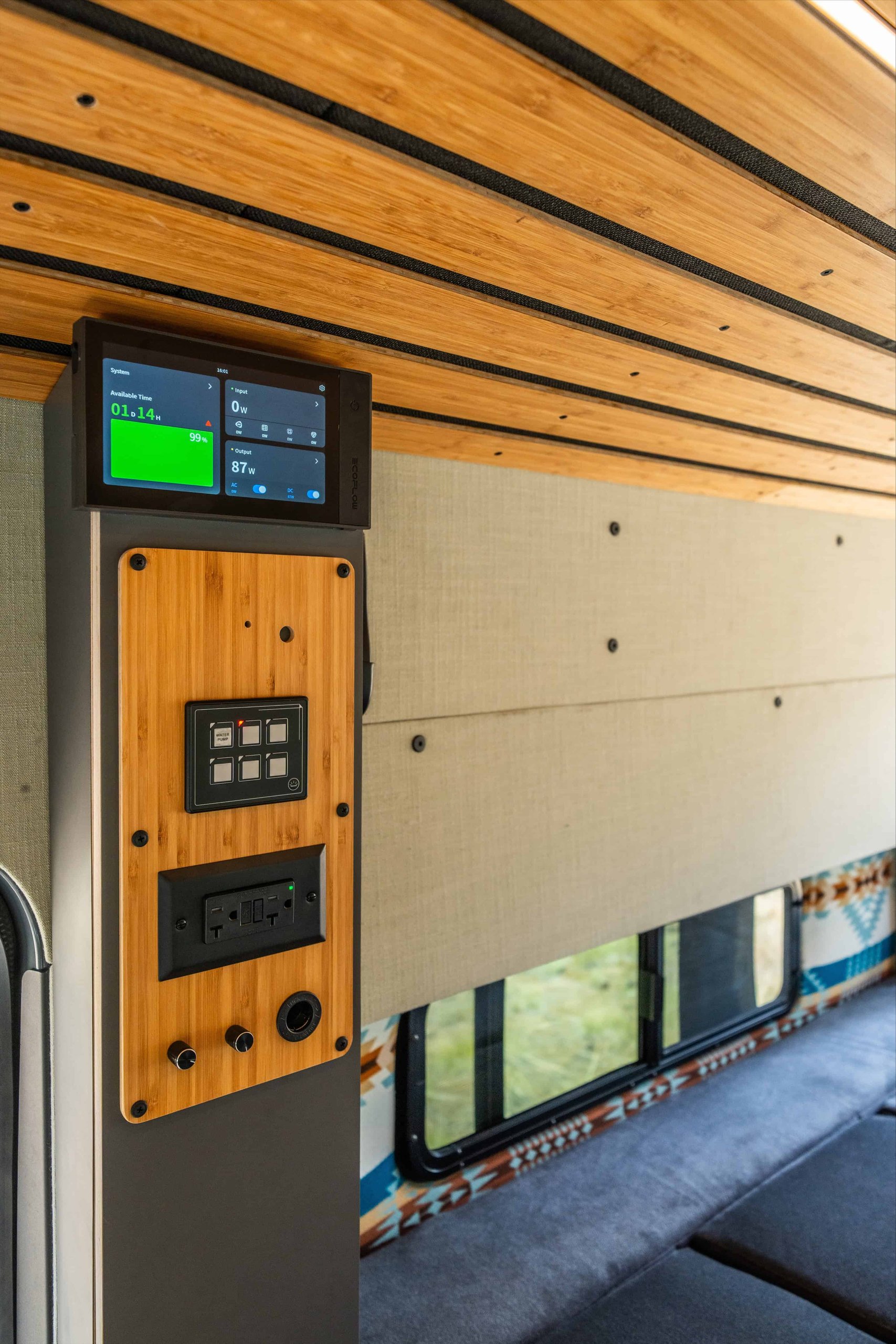

8″ Touchscreen for monitoring system
120v outlets and 12v socket
Continuous cob LED strip lights on a dimmer switch
Almost no wiring in the walls – wiring is accessible within cabinets and easily modified.
Electrical column with system controls is removable for central electrical routing.

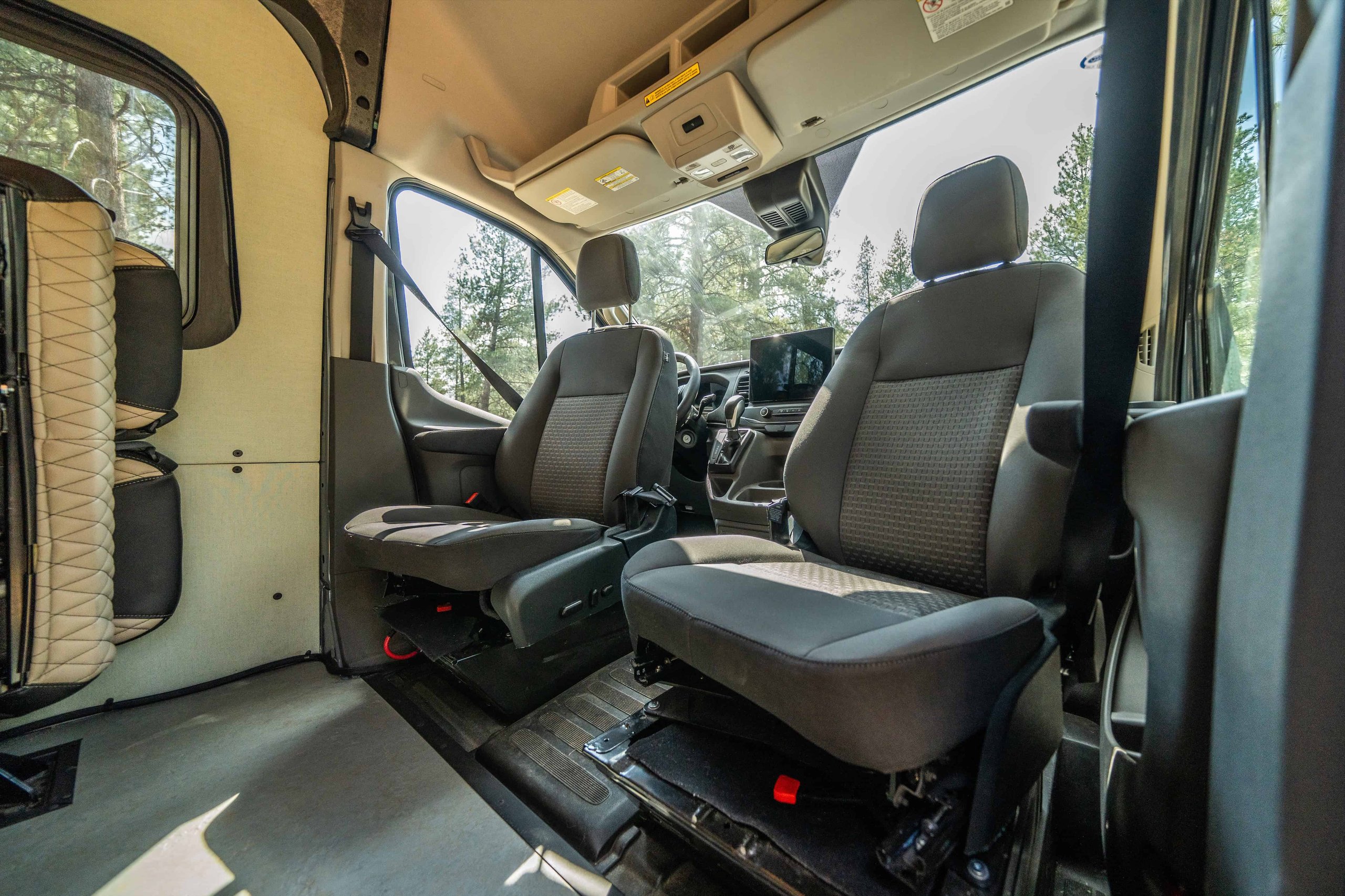

Aftermarket Scopema swivels on both seats
Heated and power seats

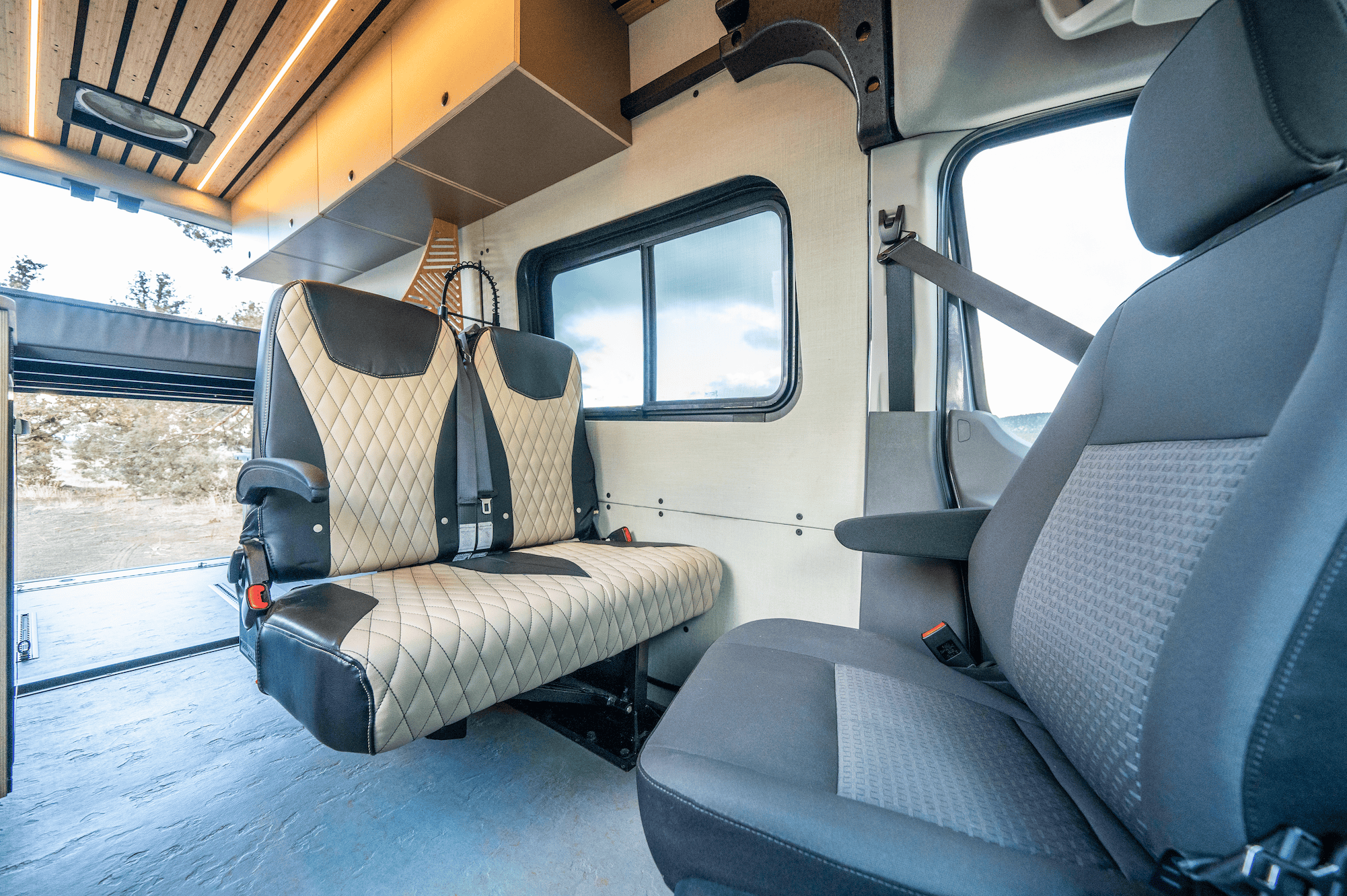

Freeman Stowaway "Palermo" Leather Double Seat (Seats 2) with seatbelts securely bolted with DOT-approved Fenton Mobility mounting plate

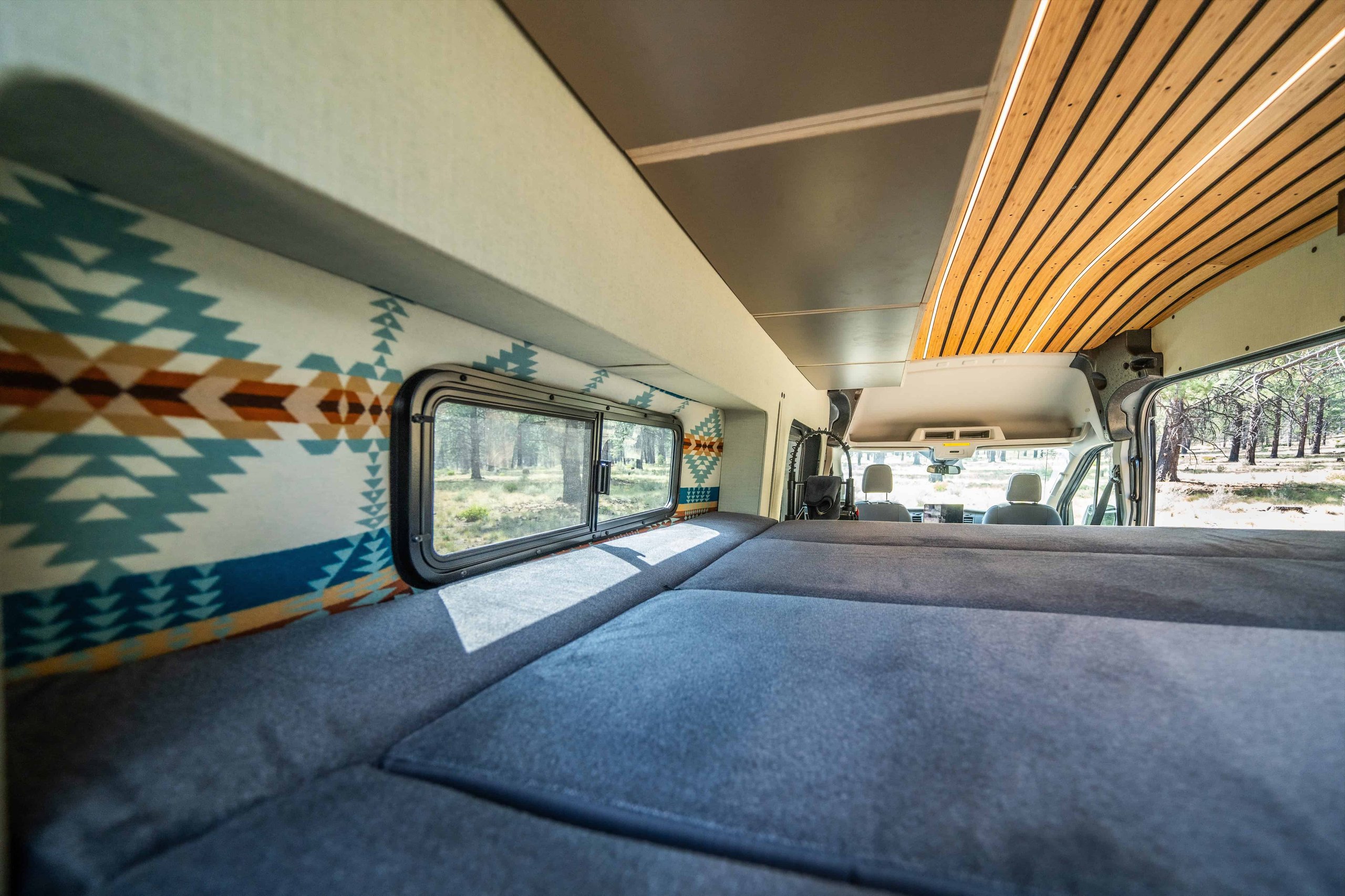

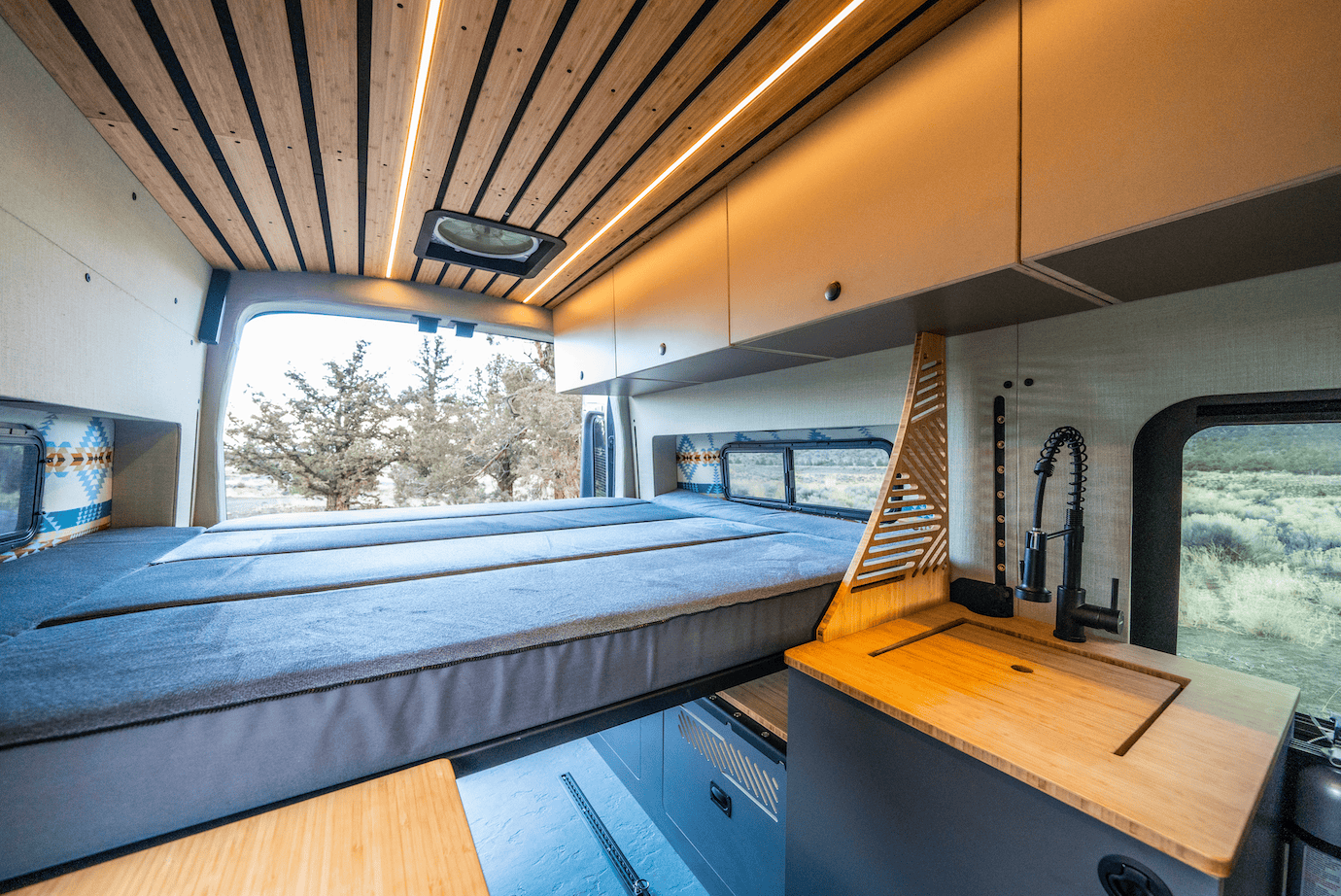

Vanspeed Capsules for 83″ of sleeping space East to West
RoamRest 5″ memory foam quad-fold mattress with 6" zip-on extensions
Removable and adjustable metal bed platform with 9 adjustable positions

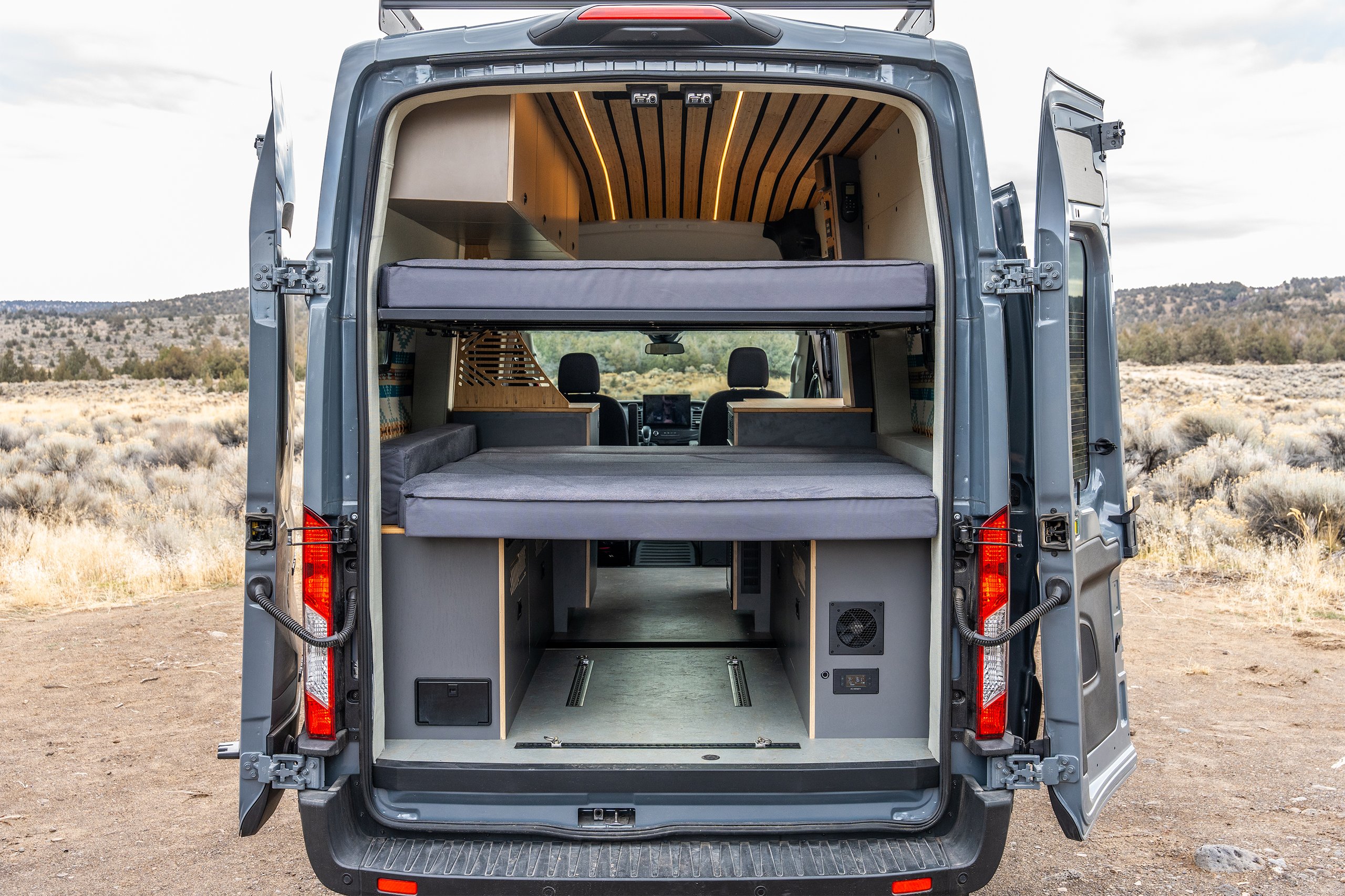

Removable bamboo lower bed platform for two bunk beds sleeping arrangement, large enough for two kids

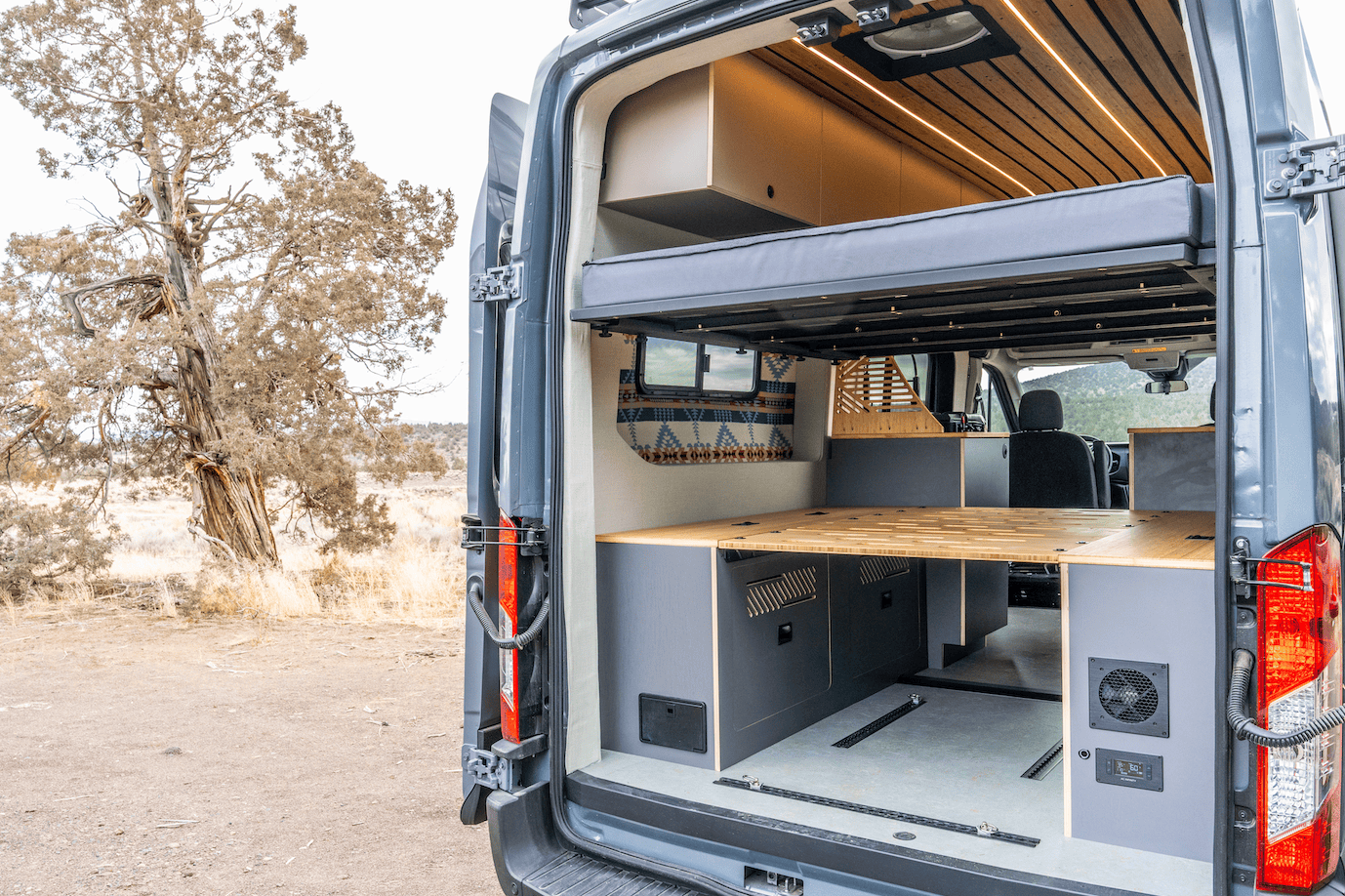

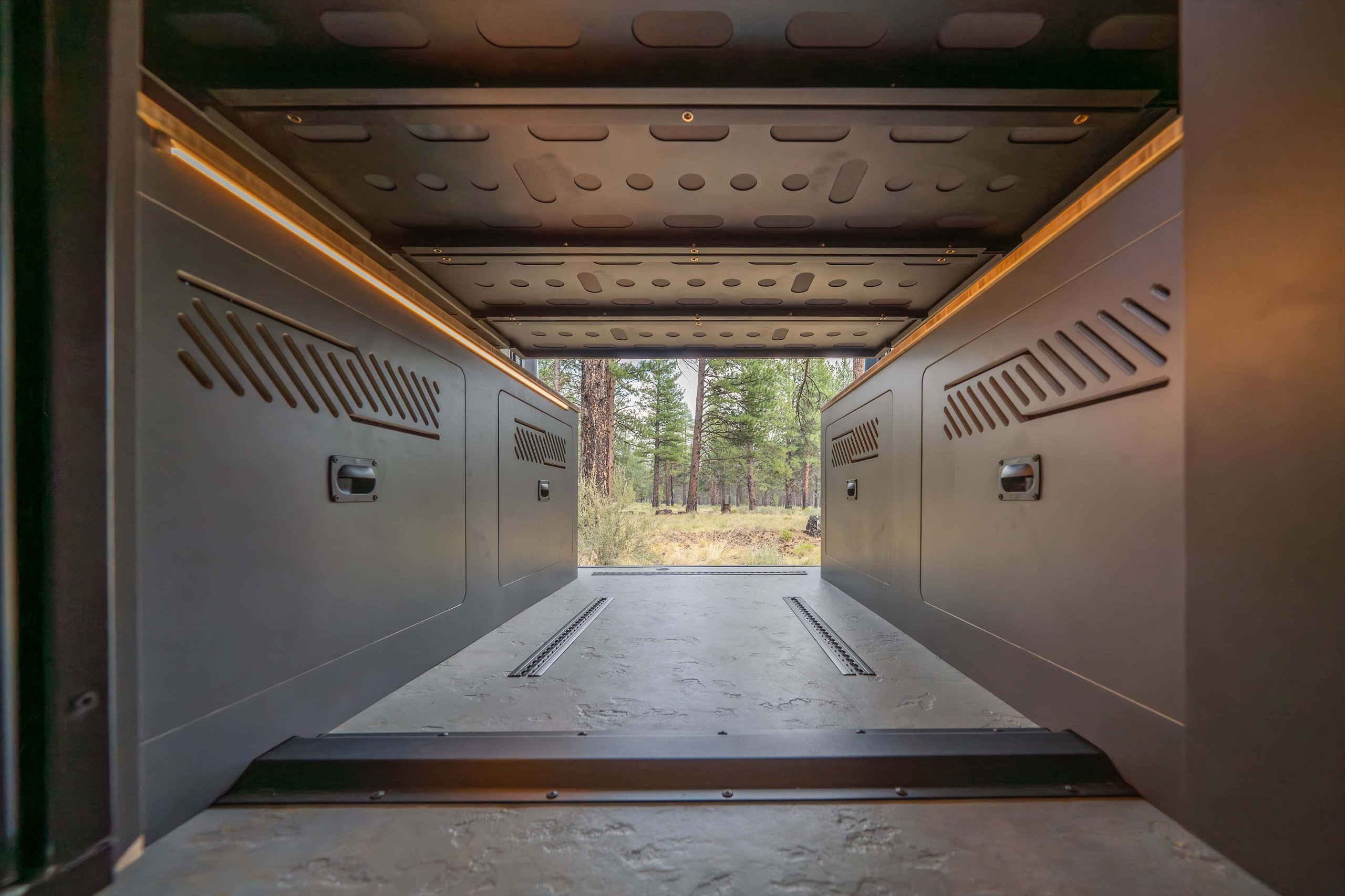

L-Track in Garage floor for MTB’s/Motorcycle (bolted through floor)
4 Upper cabinets run the length of van
2 Baltic Birch drawers with soft-close drawer slides and marine latches
Designated toilet cabinet or additional storage
2 Dedicated systems cabinets for electrical and water systems on magnetic hatch doors
Materials/ Finishes/ Hardware:
1/4″ Baltic Birch wall panels finished with marine grade light blue fabric (Nassimi – Swedish Blue)
Capsules upholstered with custom Pendleton fabric
1/4″ Bamboo slatted ceiling with upholstered panels underneath
All cabinets constructed with premium 5/8″ Baltic Birch plywood
Lower cabinets with durable Wilsonart Laminate in color “Graphite”
Upper cabinets with durable Wilsonart Laminate in color “Shadow”
3/4″ Bamboo Countertop with food-safe Osmo Top-Oil
Lakeland Shale Marine-grade durable Marmoleum flooring
All latches are marine-grade by SouthCo
Aftermarket running boards on driver and passenger sides
Flatline Van Co. Low Pro roof rack with fairing
