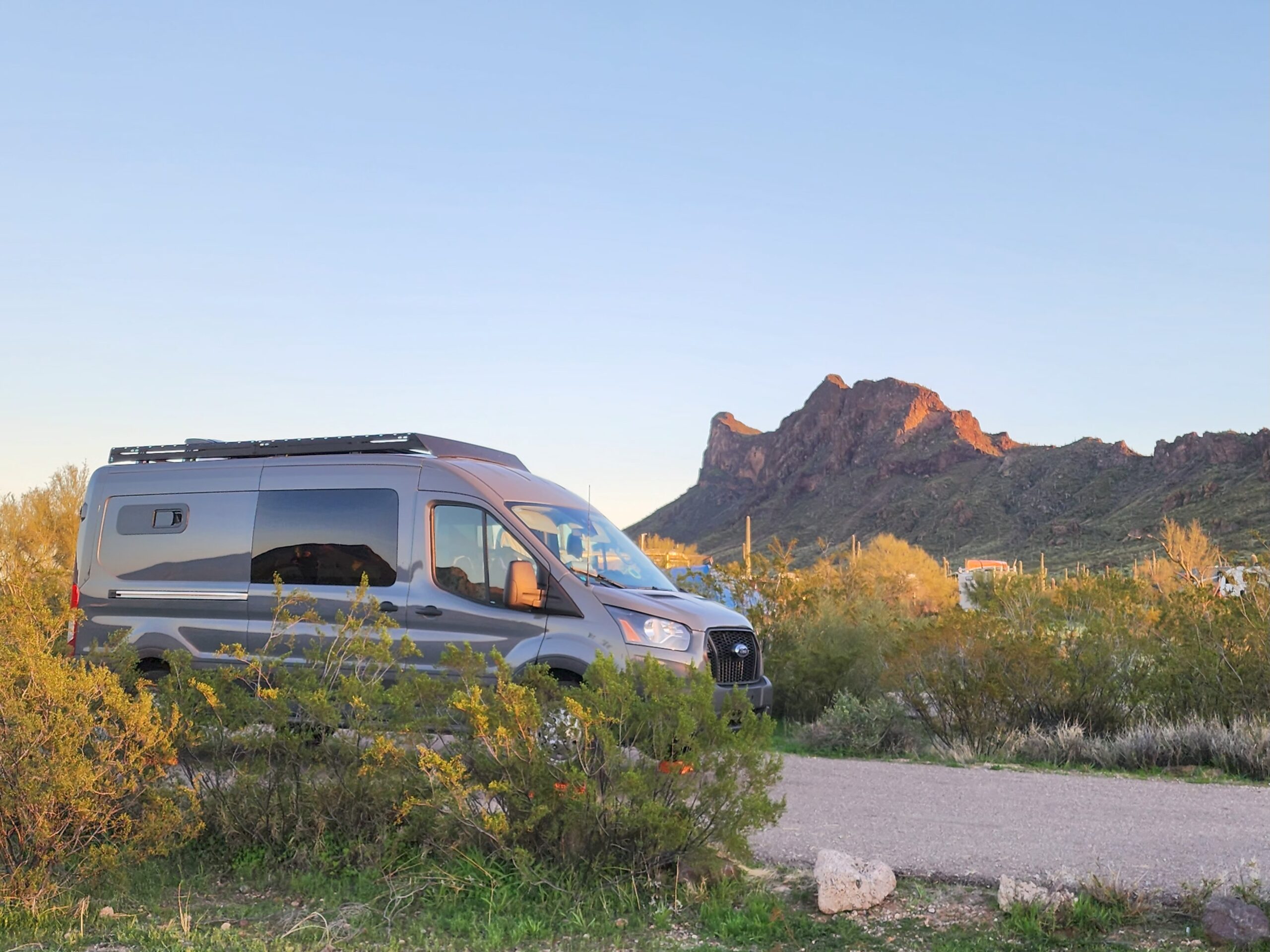

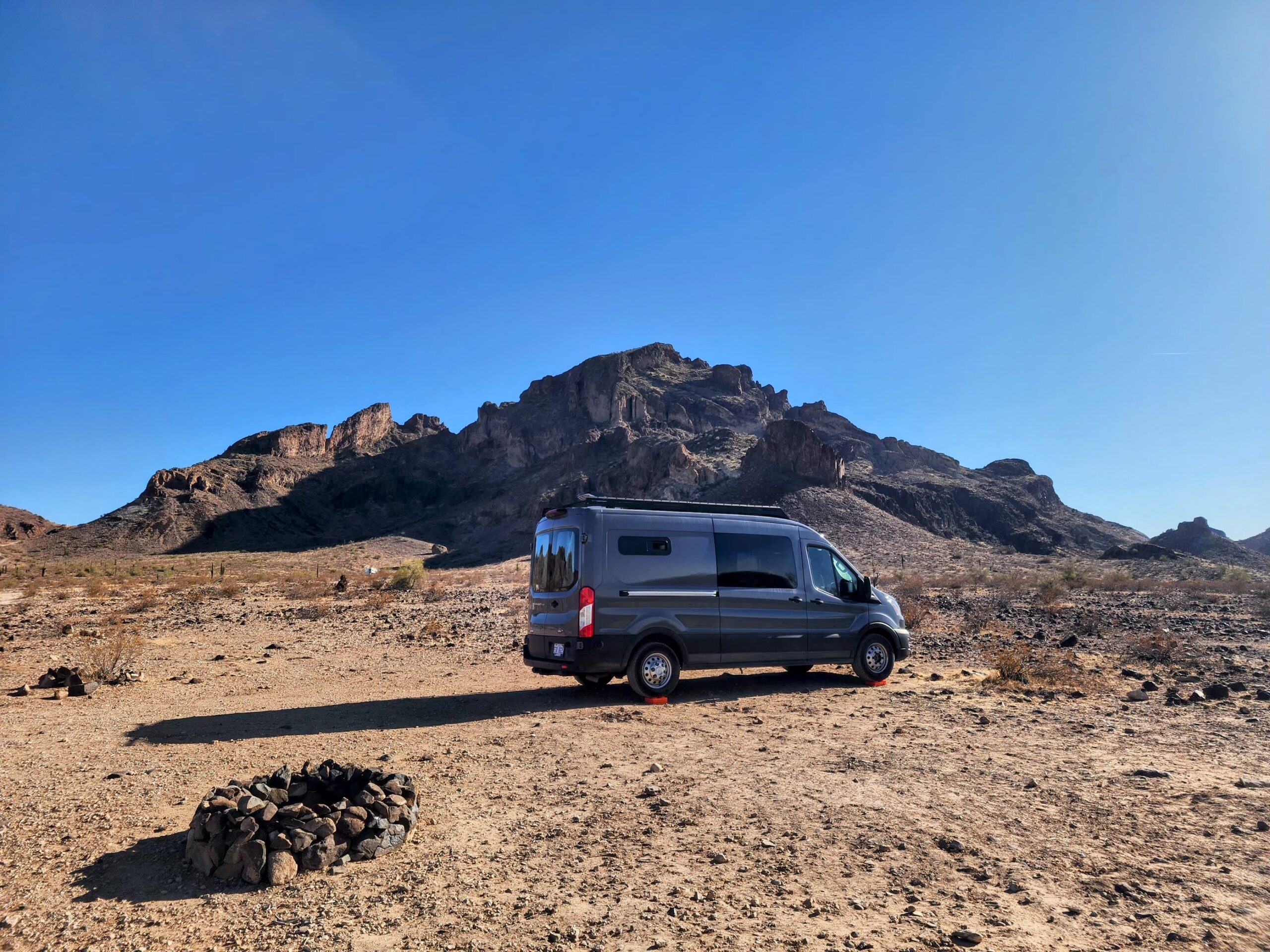

2023 Ford Transit AWD Campervan, T-250, Medium Roof, 148” WB

Custom built off-grid camper van with 274AHs of battery power, 400 watts of solar, 20 gallons of fresh water and a gas heater allow you to hit the back country for days at a time. The AWD capability along with the medium roof height and shorter, 20 foot length are perfect for getting back into those tight, hard to reach places.

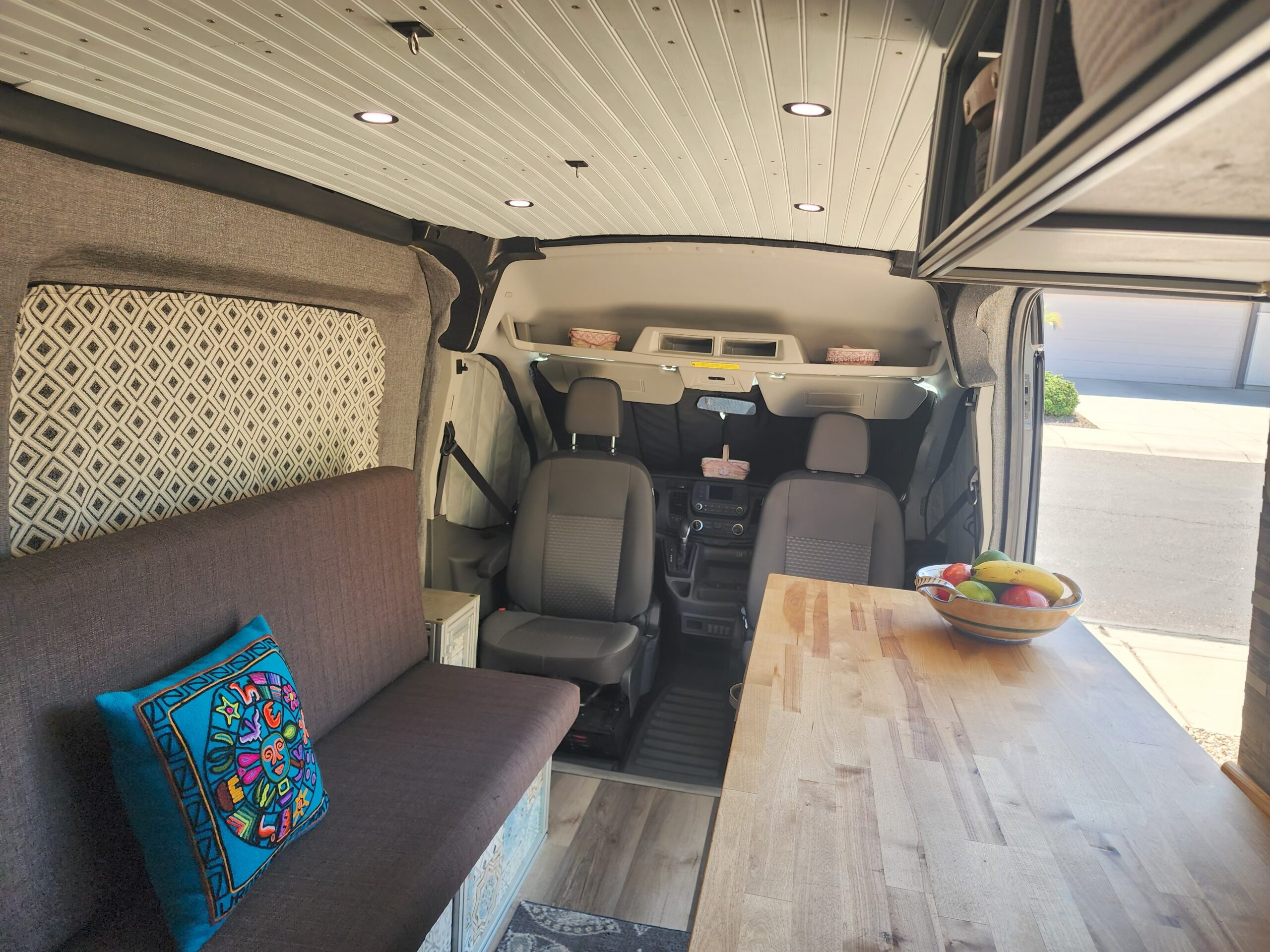

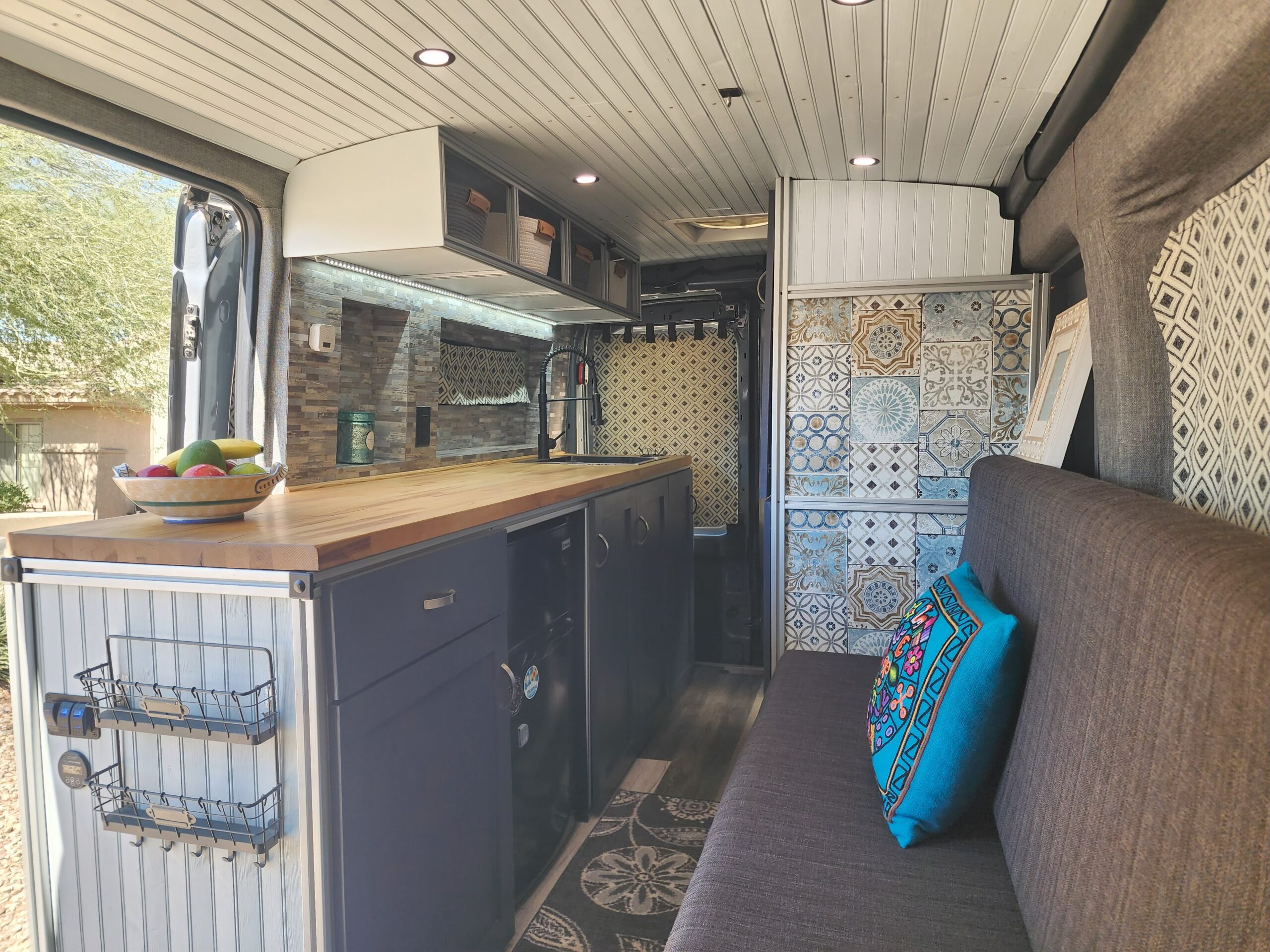

The open layout allows for a living room feel with large windows for viewing nature and a big couch for stretching out or entertaining friends. The 8 foot butcher block counter provides a great space to prepare dinner after a long day of exploring the wilderness. When you are ready to call it a night, the large couch converts into a space saving bunk bed system.

Vehicle Specifications:

T-250, Medium Roof, 148” wheel base (non extended)

3.5L ECO Boost Engine

All Wheel Drive, AWD with 10 speed transmission

3.7L limited slip A\axle

9070 LBS GVWR

Exterior Color: Abyss Gray

Interior Color: Dark Palazzo Gray Cloth

253 degree opening rear doors

Front Overhead Shelf

Factory installed Auxiliary Fuel Port

Extended Fuel Tank (31 Gal)

Upfitter Package:

– Modified vehicle wiring system

– Dual starting batteries (70 amp-hr)

– Large center console.

– Auxiliary fuse panel

Van Build:

Exterior:

Flatline Van Company Roof Rack

Flatline Van Company Ladder

400 watts solar from Newpower

MaxAir Fan

Interior:

All Structures constructed with 80-20 aluminum

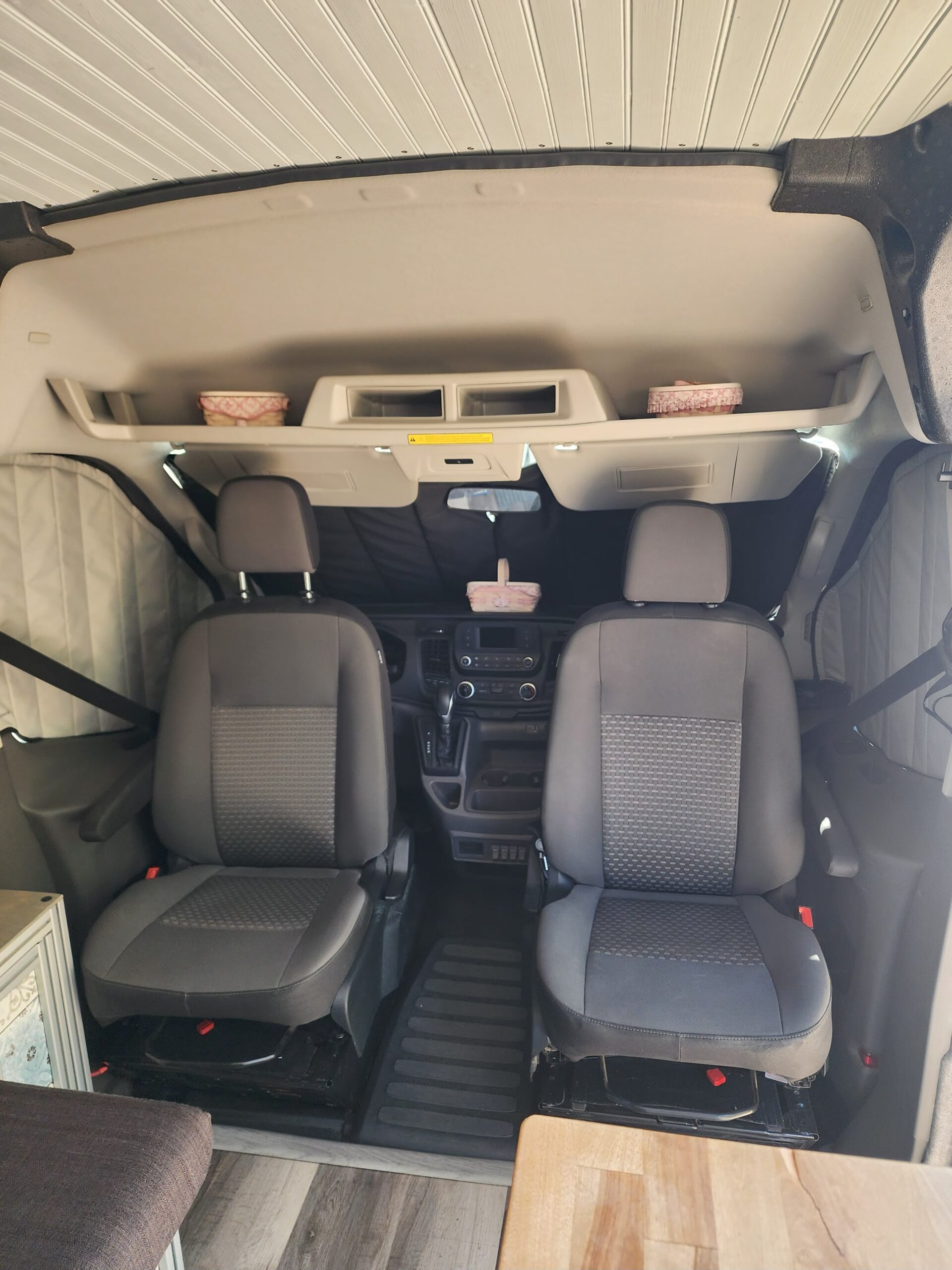

Scopema swivel seats for both passenger and driver seats

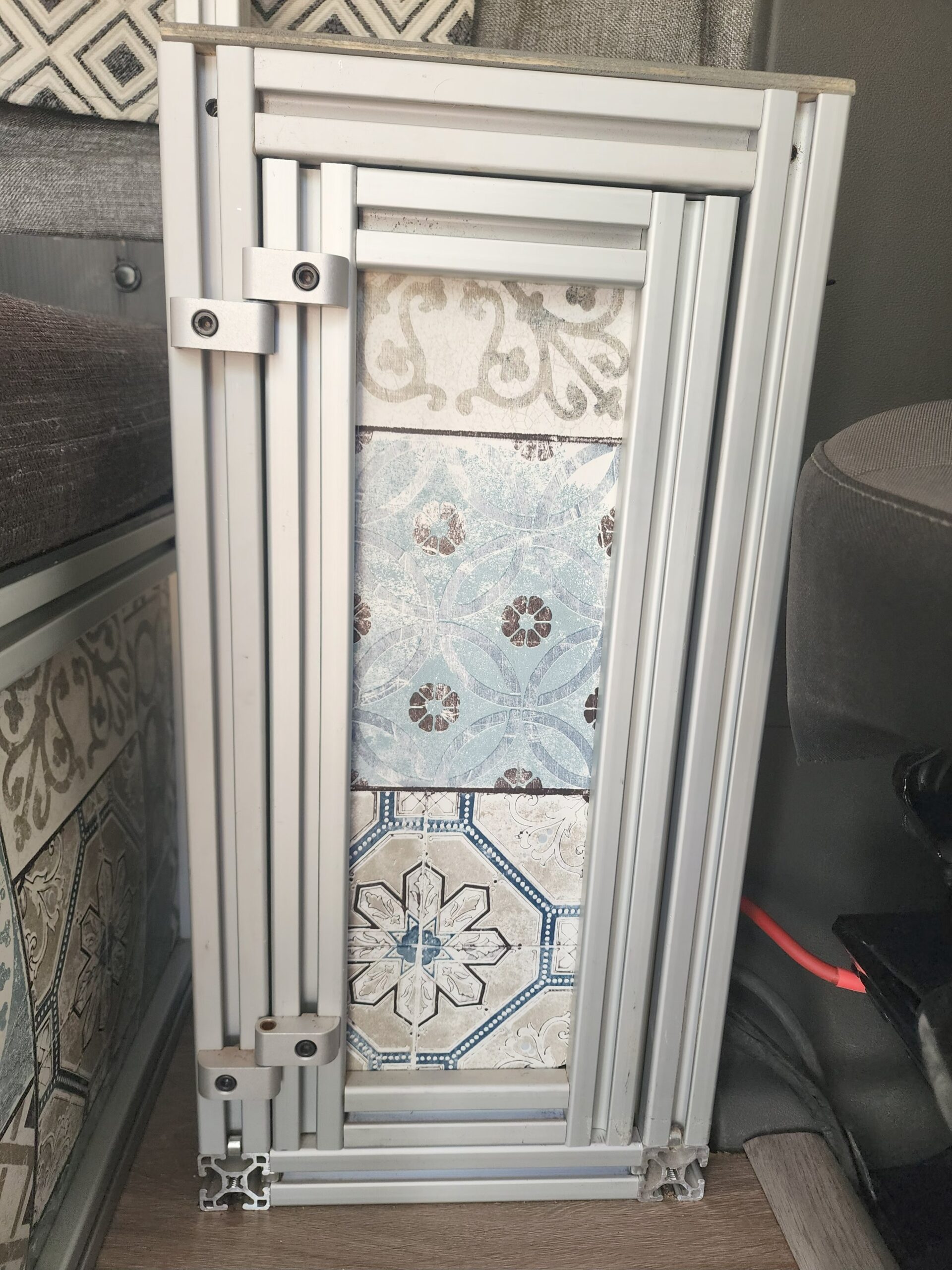

End table with storage

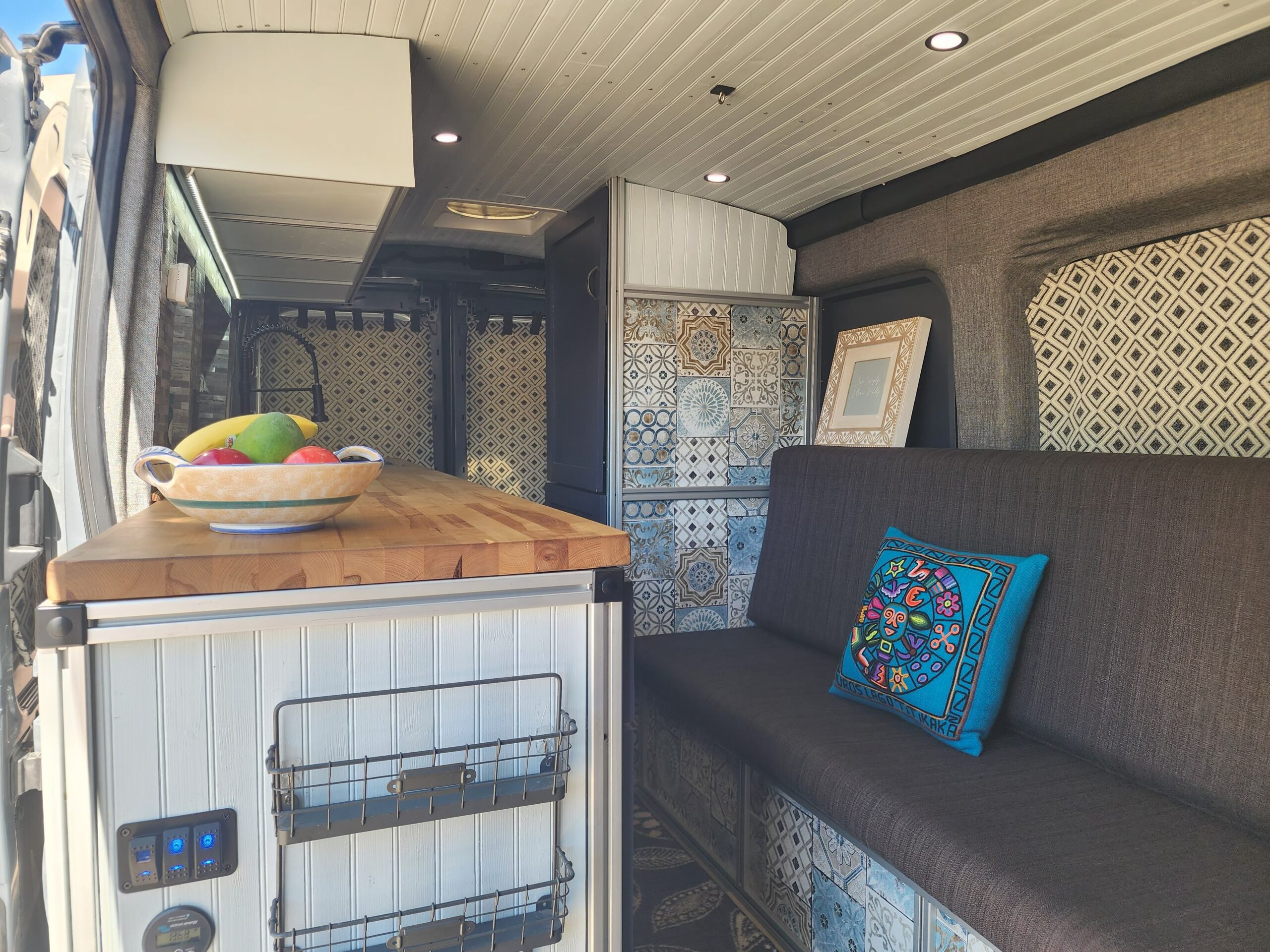

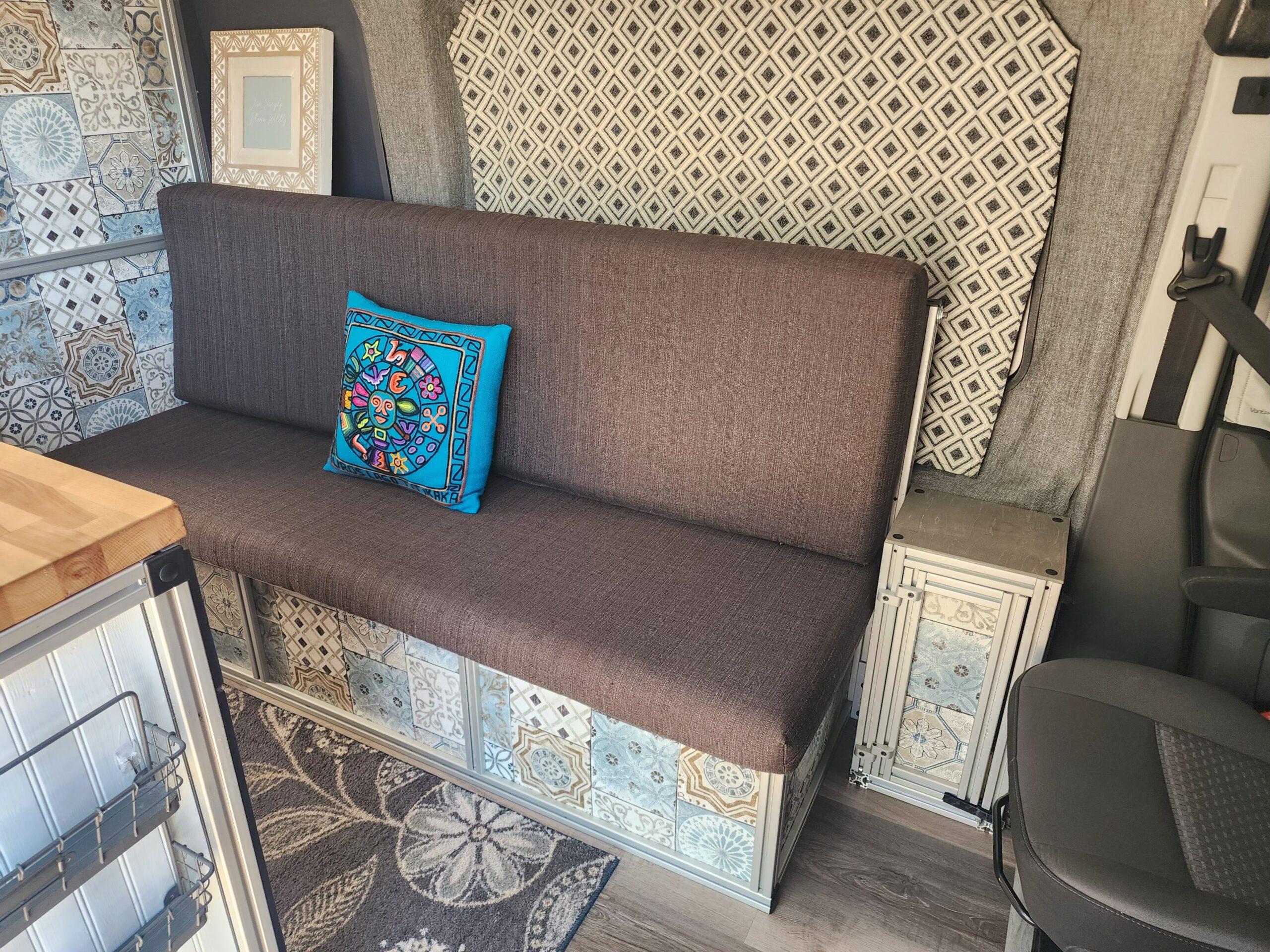

Large couch

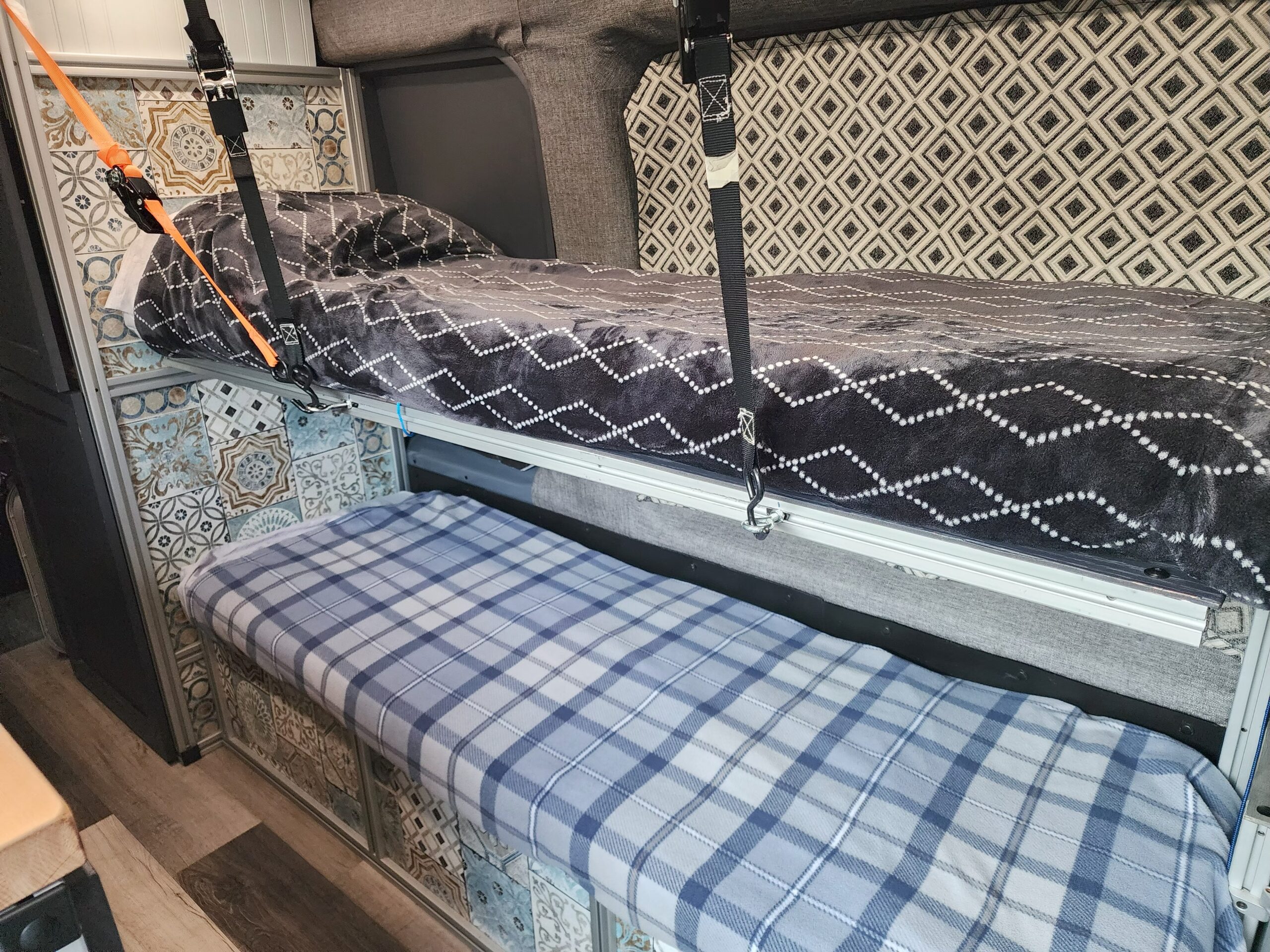

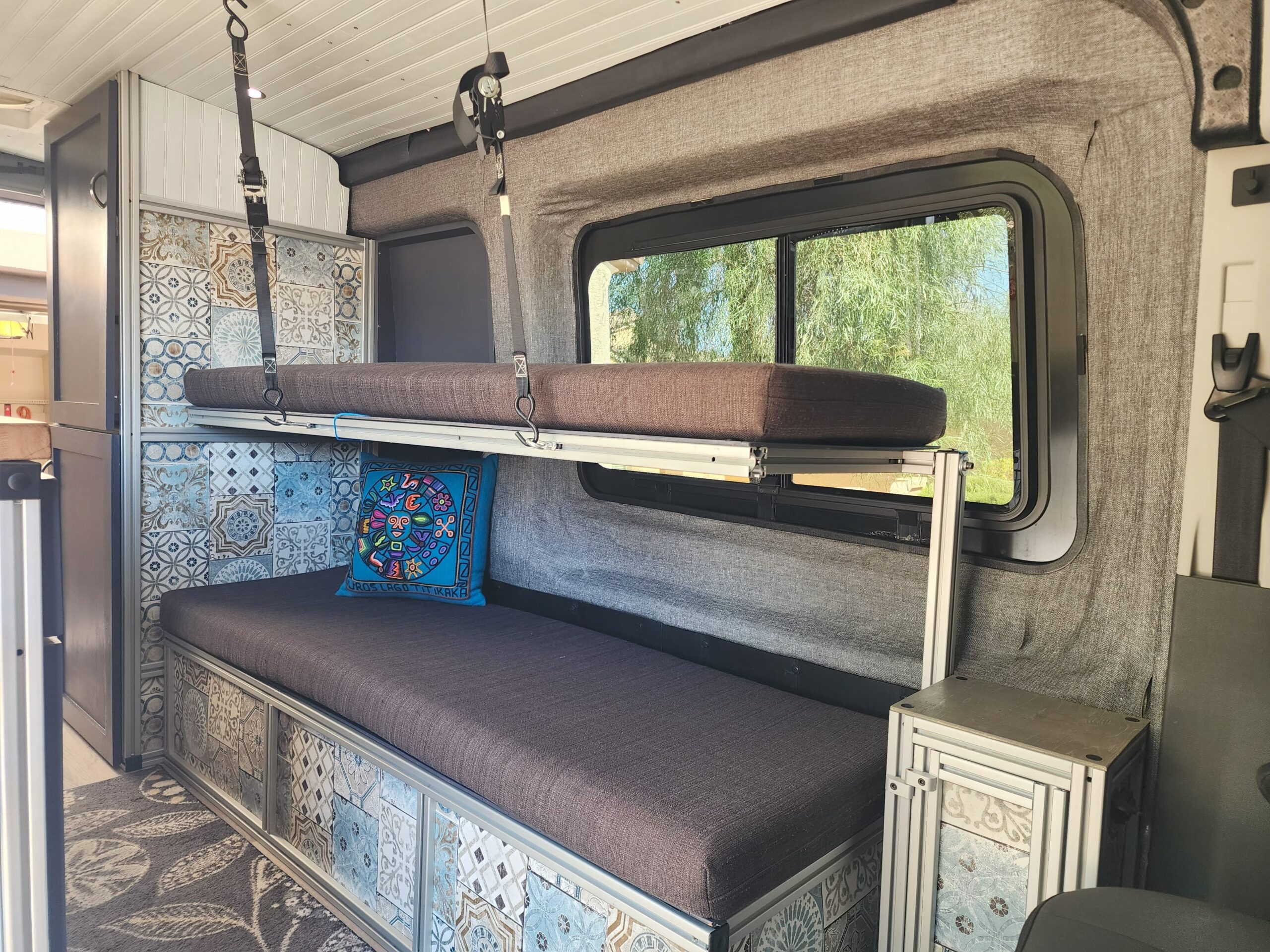

Couch converts to a space saving bunk bed system

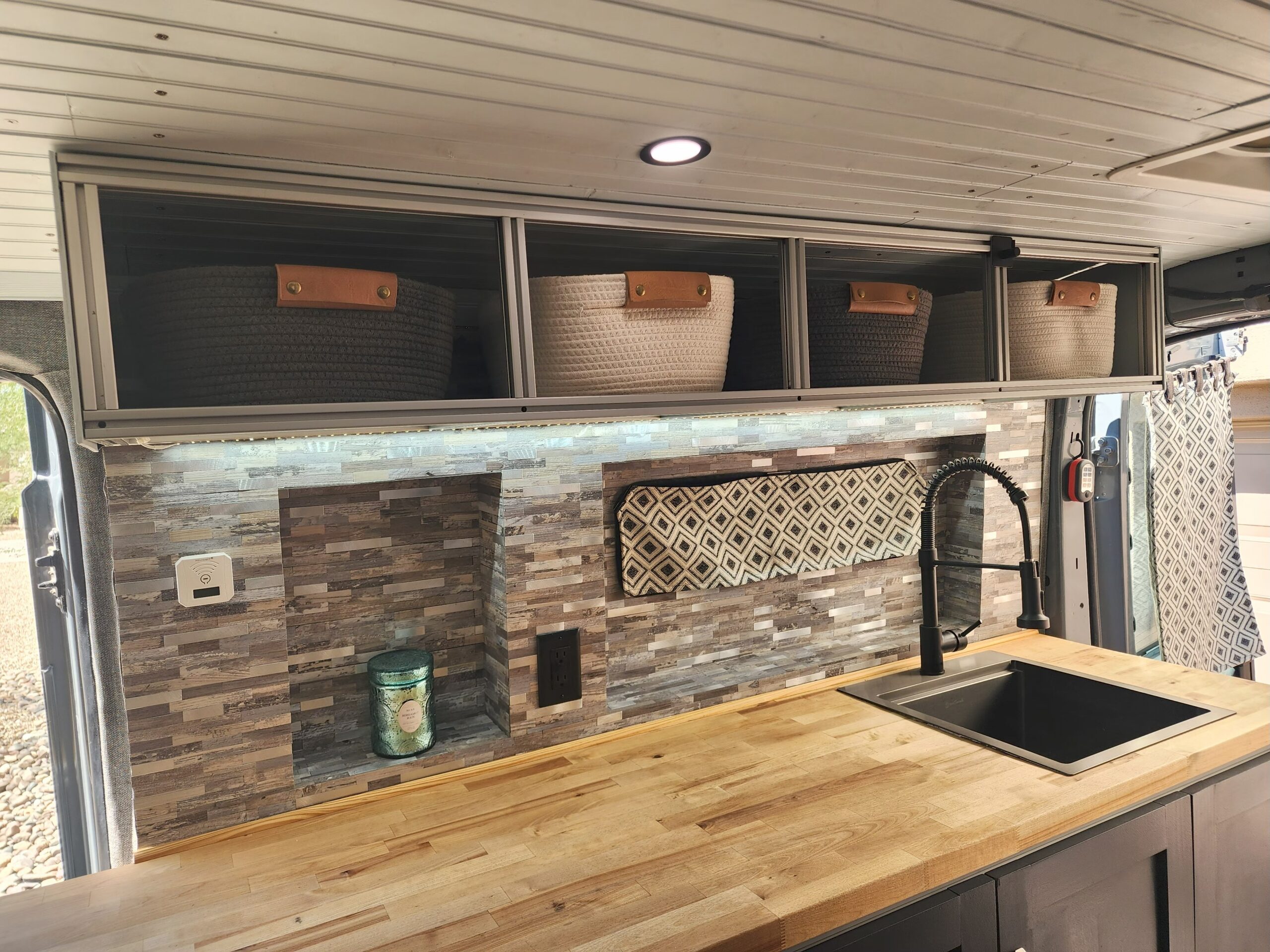

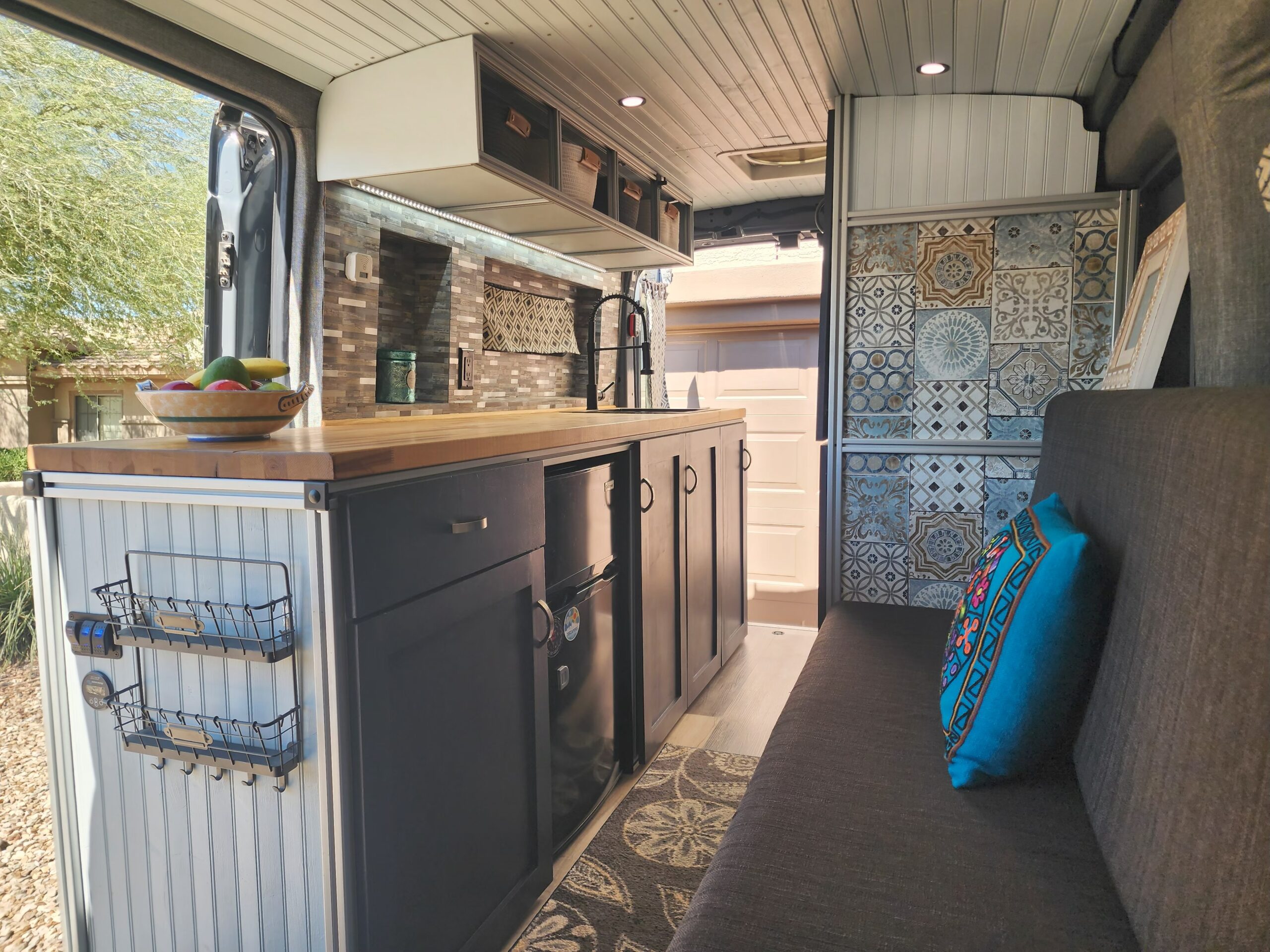

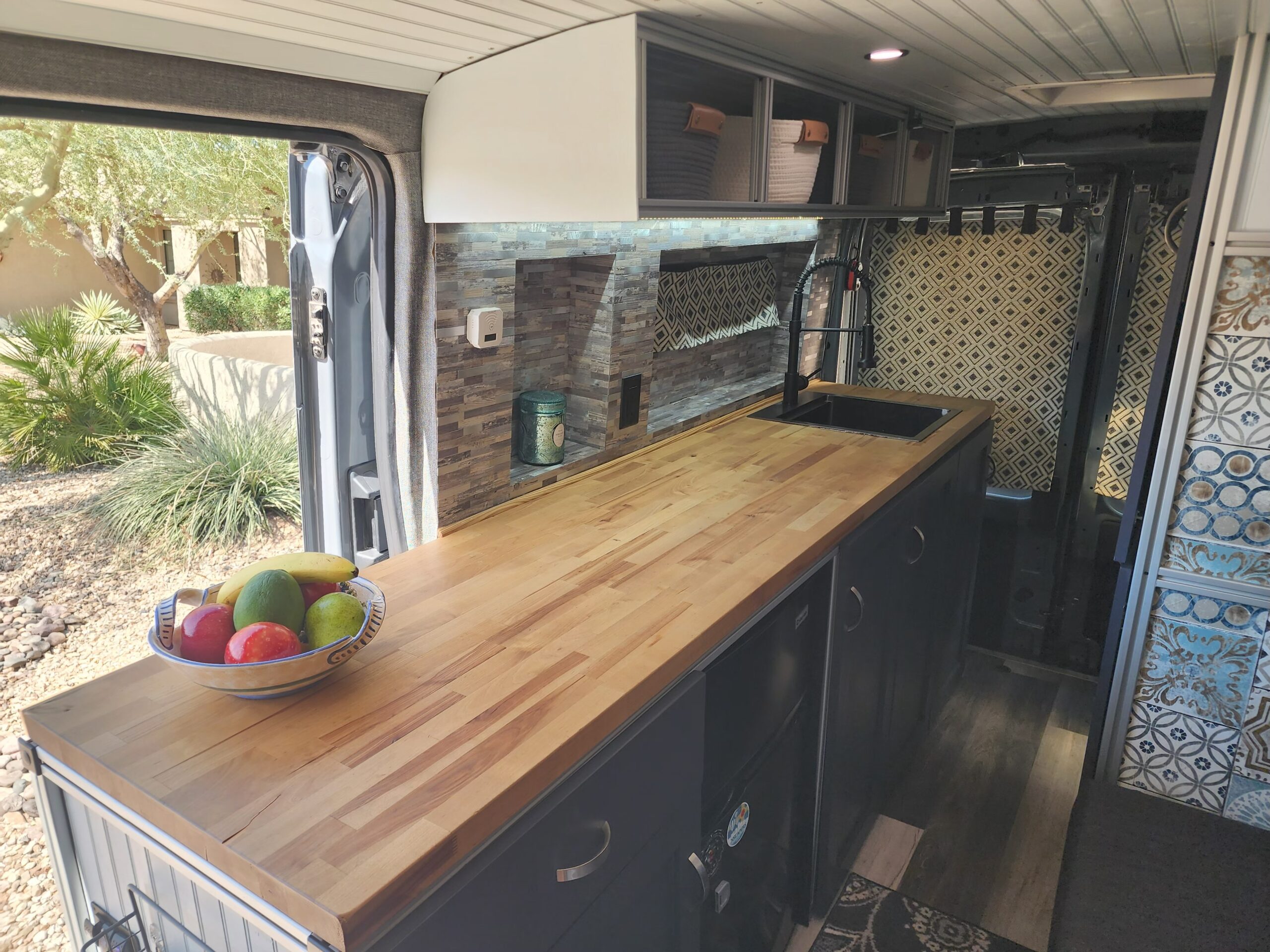

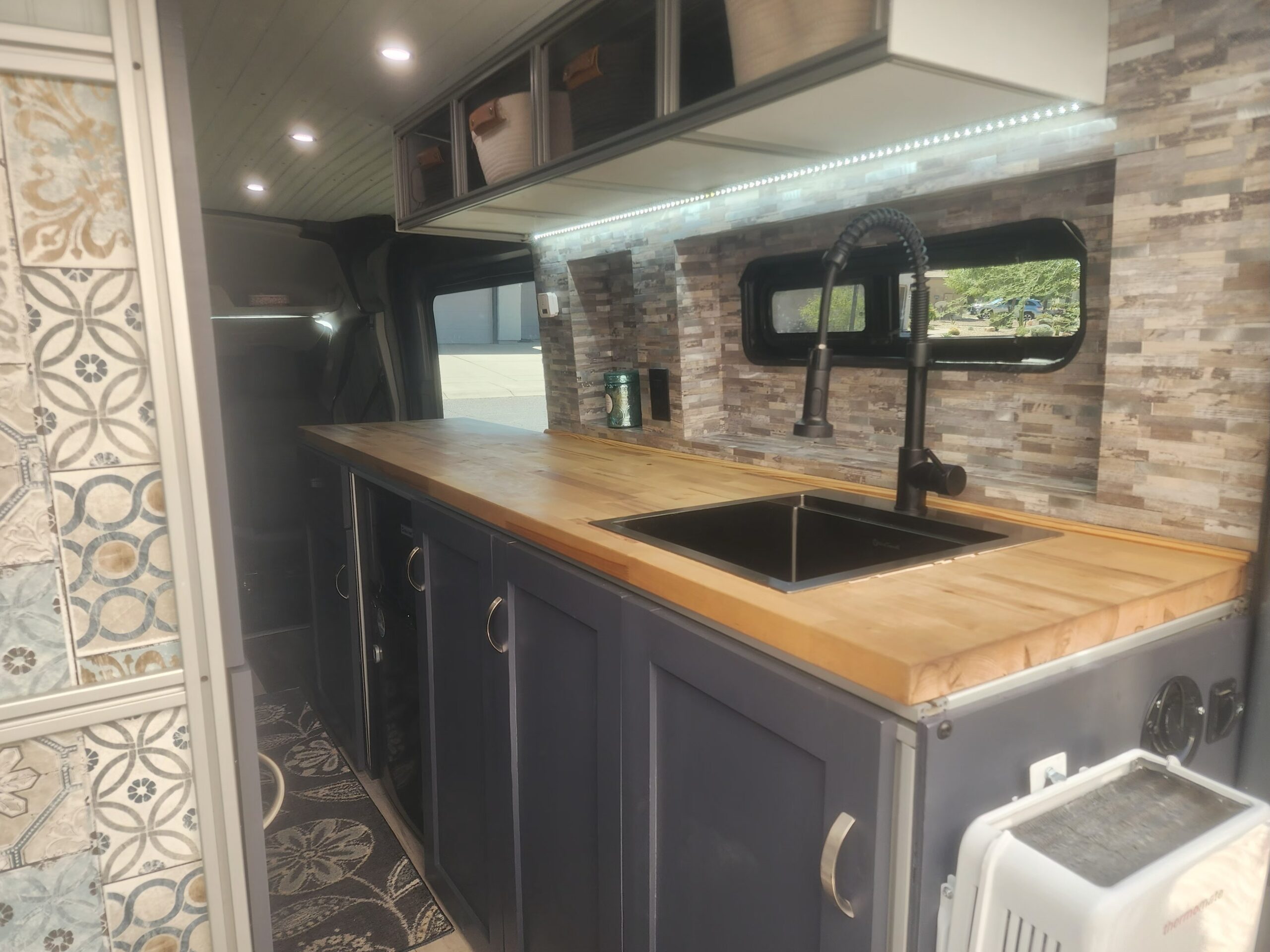

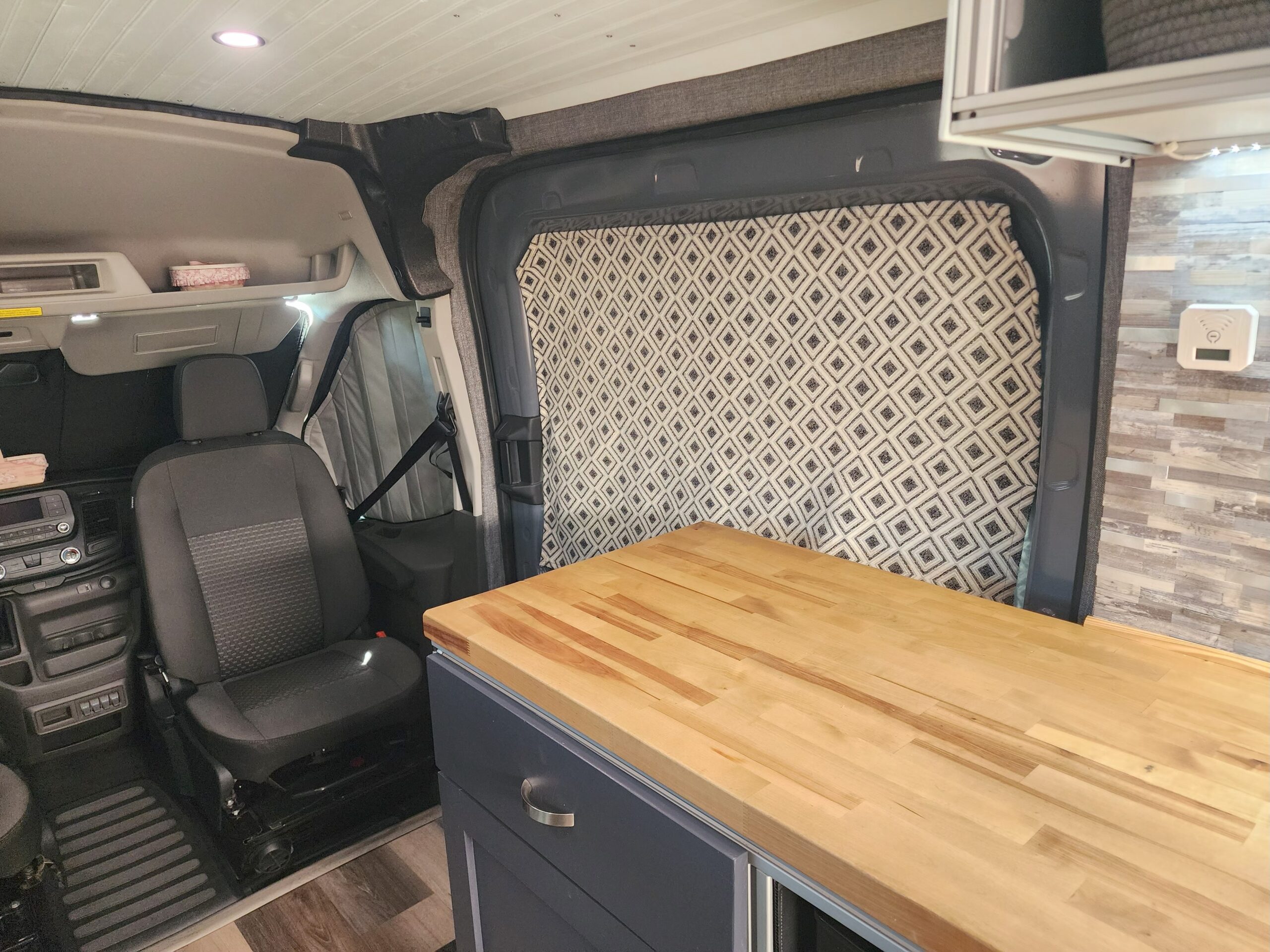

8 foot butcher block counter top with a deep sink

Overhead cabinet space

Closet space

Easy access electrical cabinet

Lots of storage underneath counter top and couch

Quick release/connect cabinet hinges for easy access

3M Thinsulate and Low-E insulation

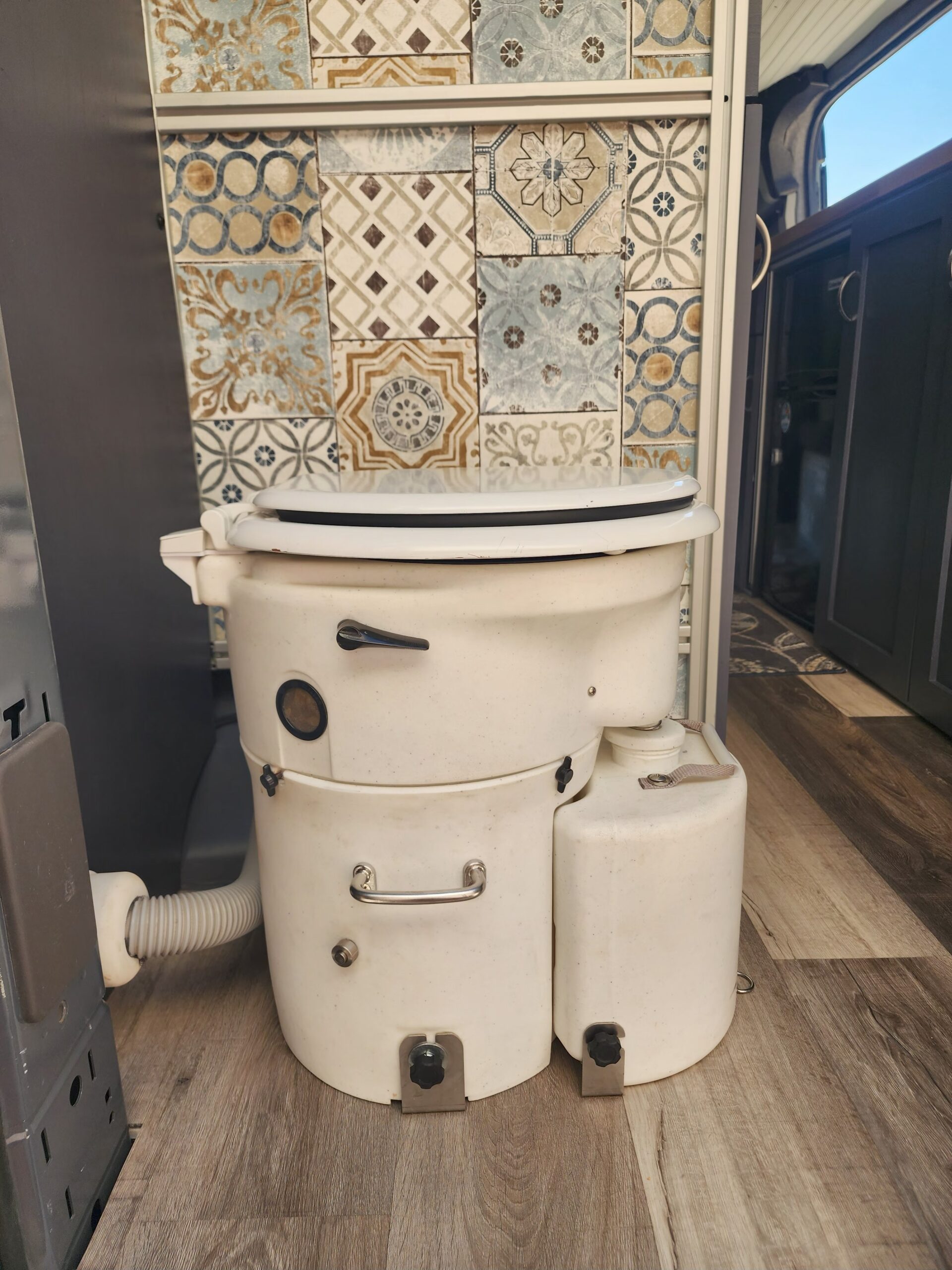

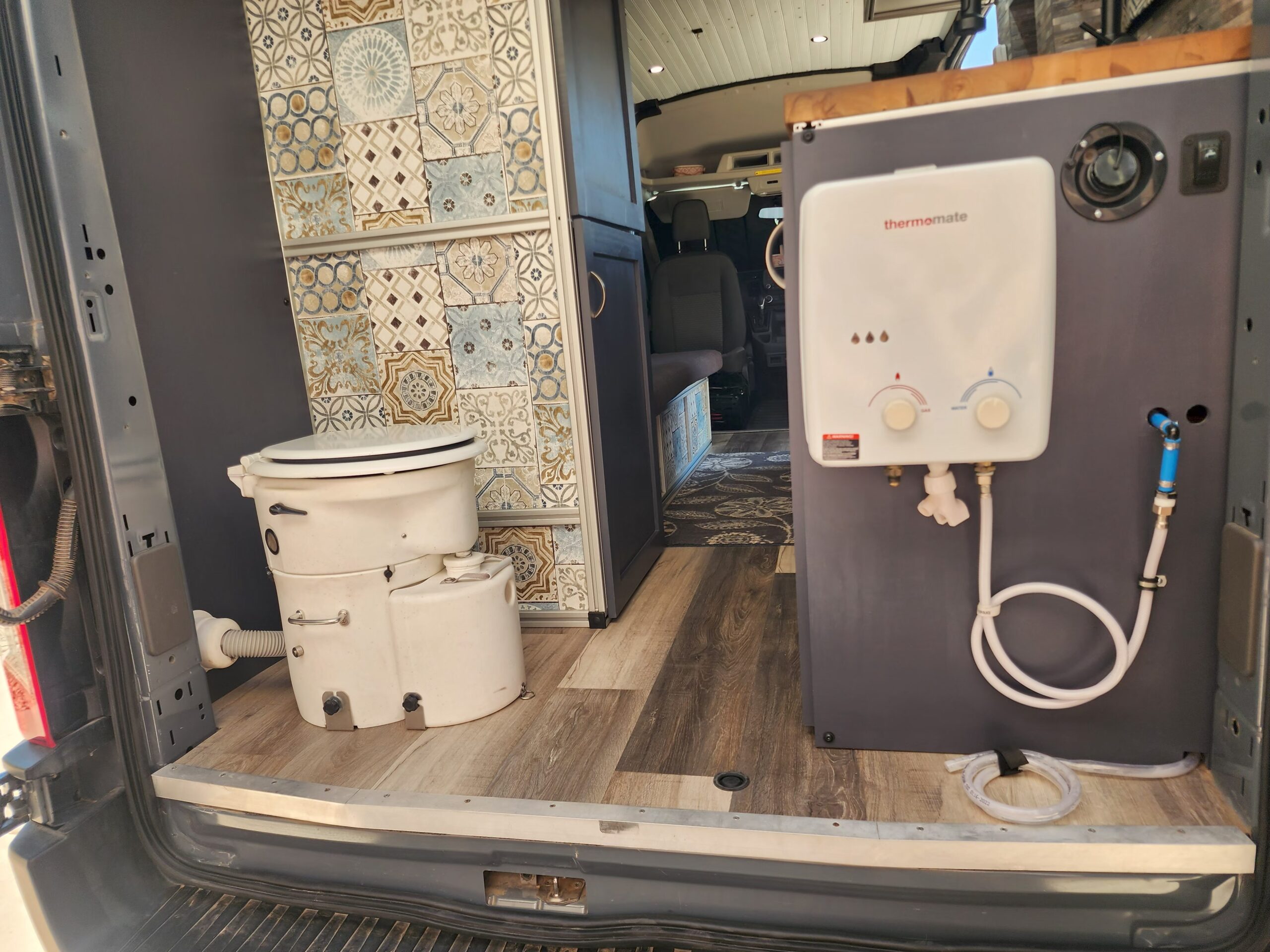

Airhead compostable toilet with the larger 2 gallon urine tank.

Standing Height: 5FT, 9 inches

Water System:

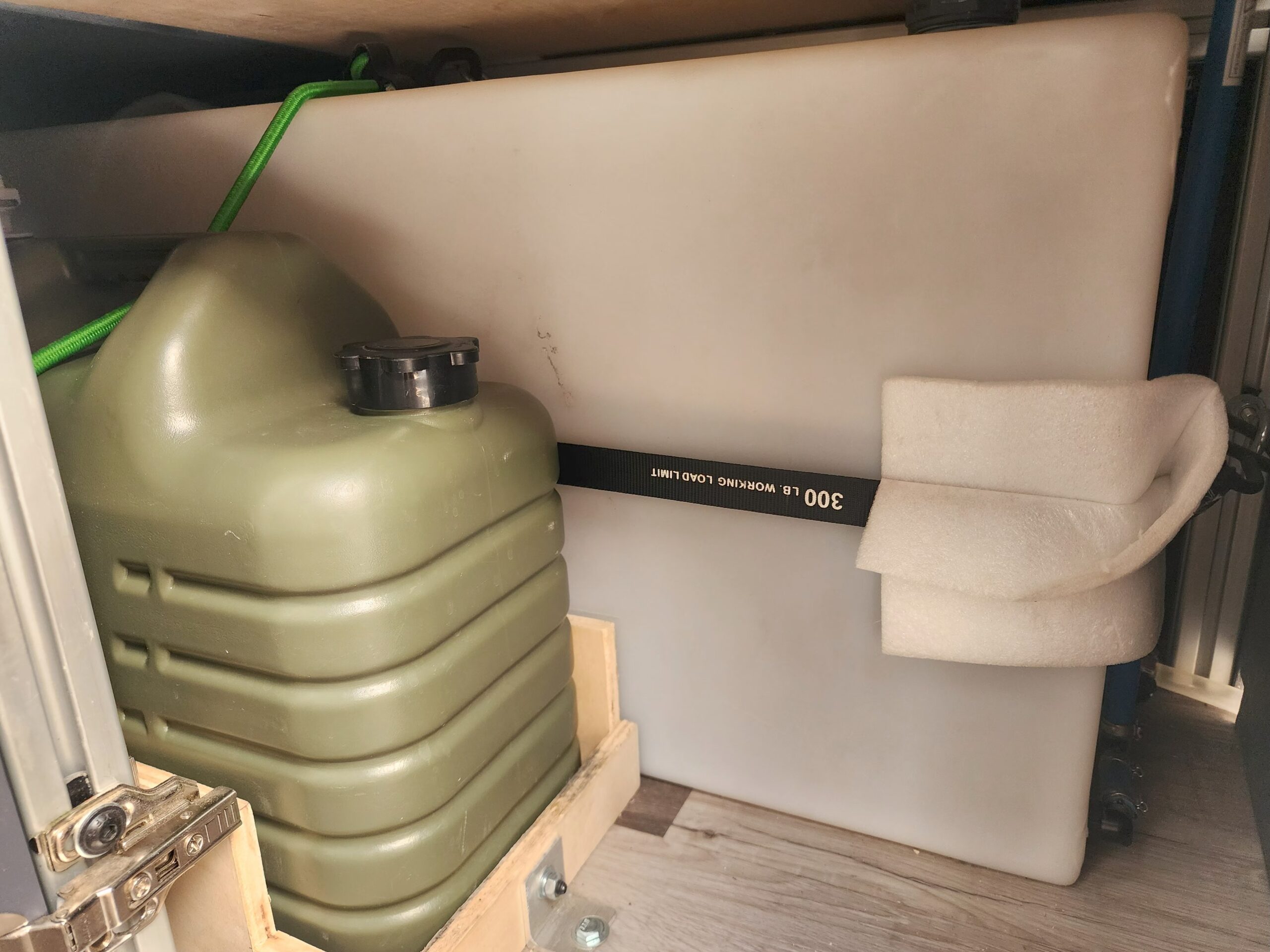

20 gallon fresh water saddle tank from Northwest Conversions

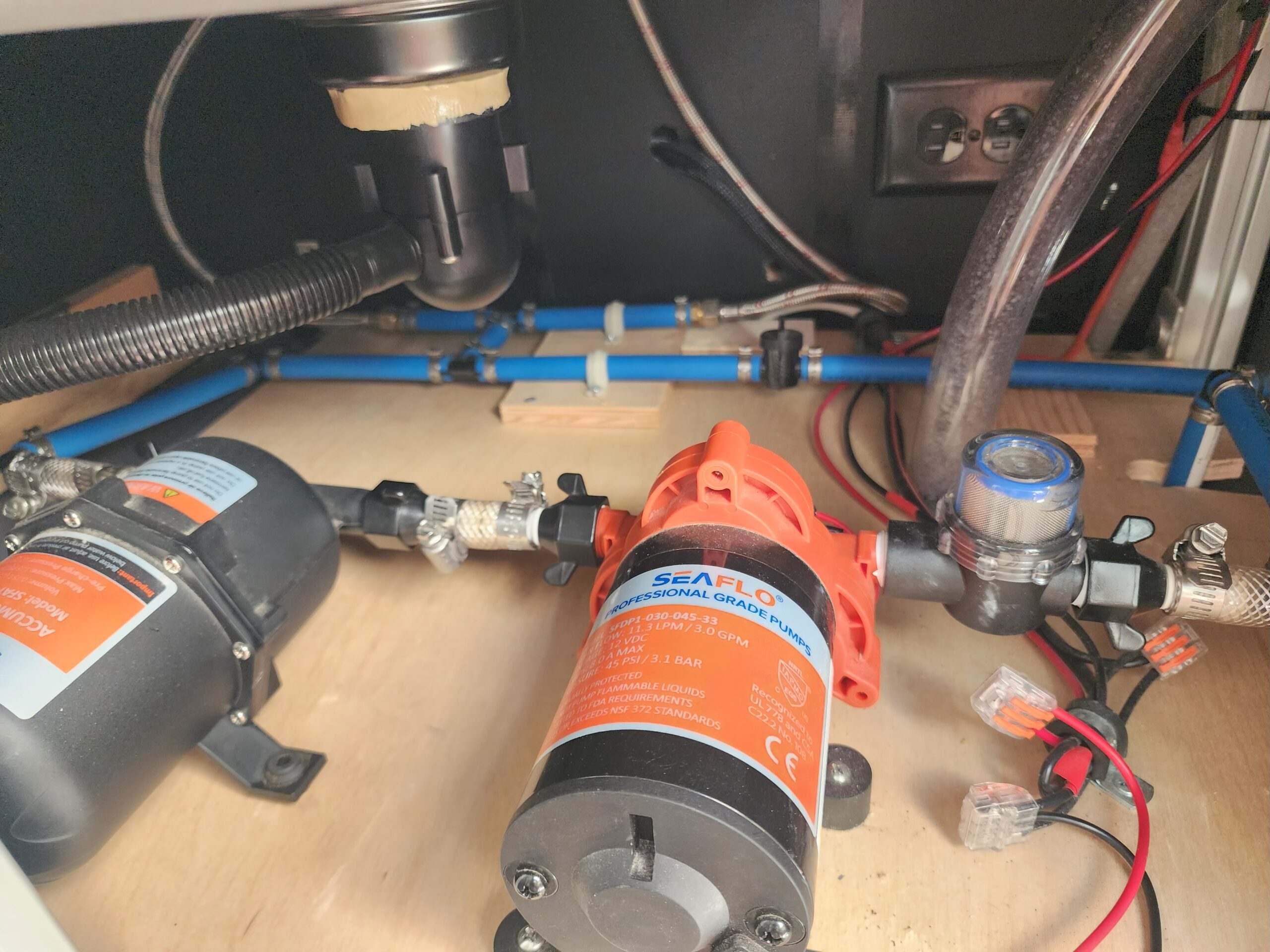

PEX water lines

High flow Seaflo water pump.

Seaflo accumulator

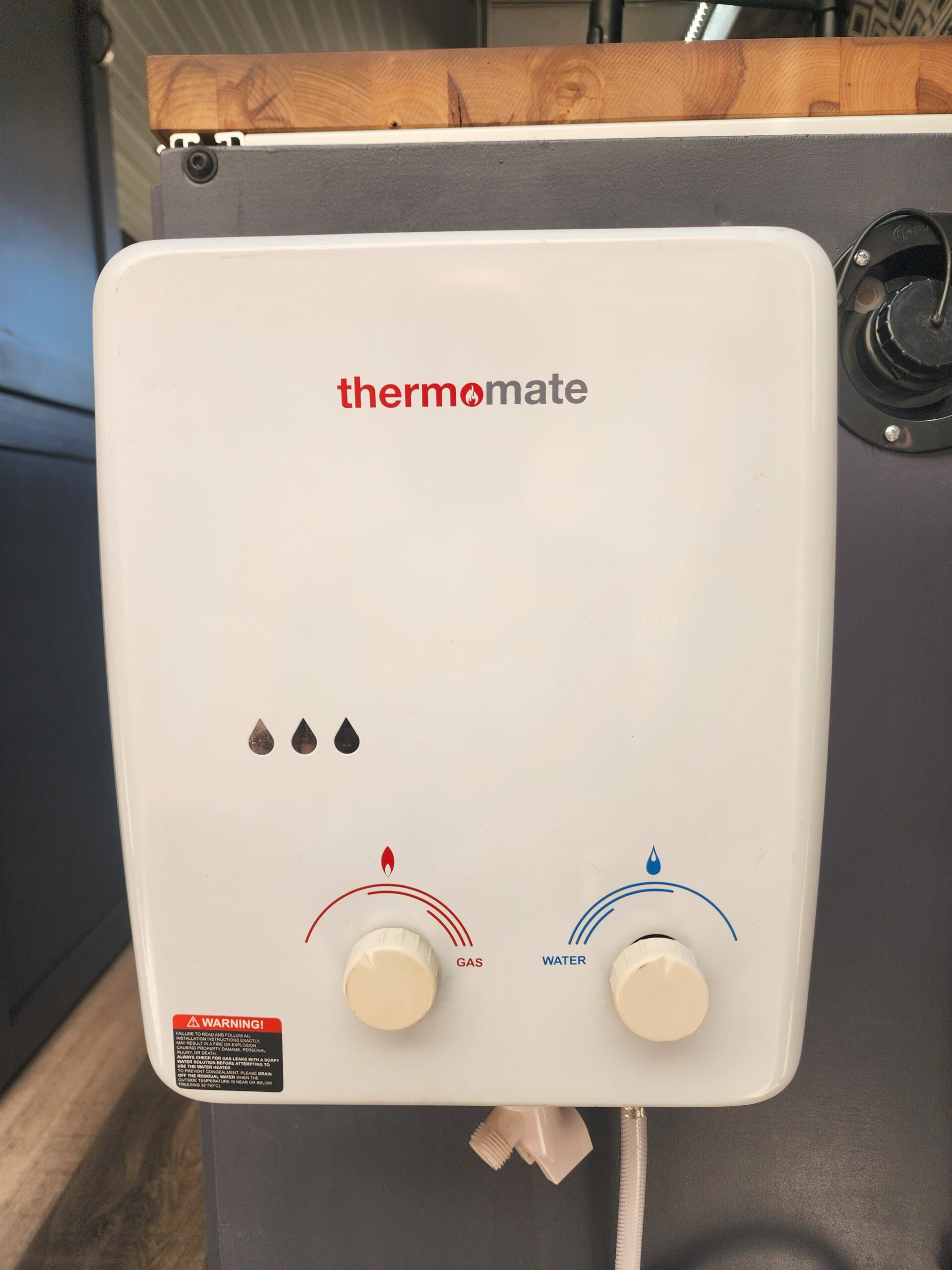

Thermomate, propane on-demand hot water heater for shower

2.5 gallon easy access with quick release sink drain tank

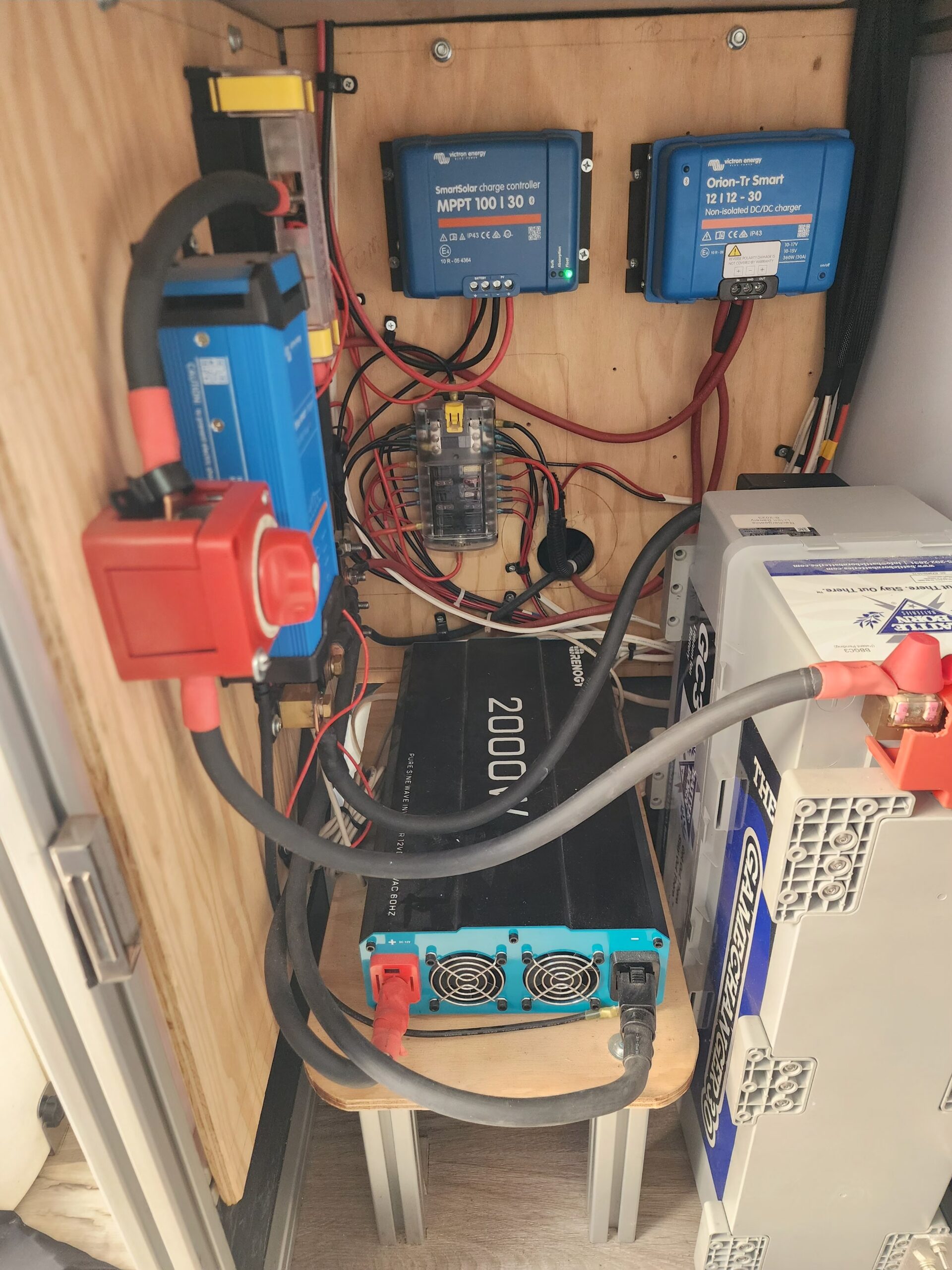

Electrical:

270 AH Battleborn GC3 Lithium Battery

400 Watts of solar. Two, 200 Watt NewPower solar panels.

Victron Energy 30 Amp MPPT Solar Controller

Victron 30 Amp DC-DC converter to charge from Alternator

Victron Energy Blue Smart IP22 12-Volt 30 amp Shore Power Charger

Renogy 2000W Pure Sine Wave Inverter

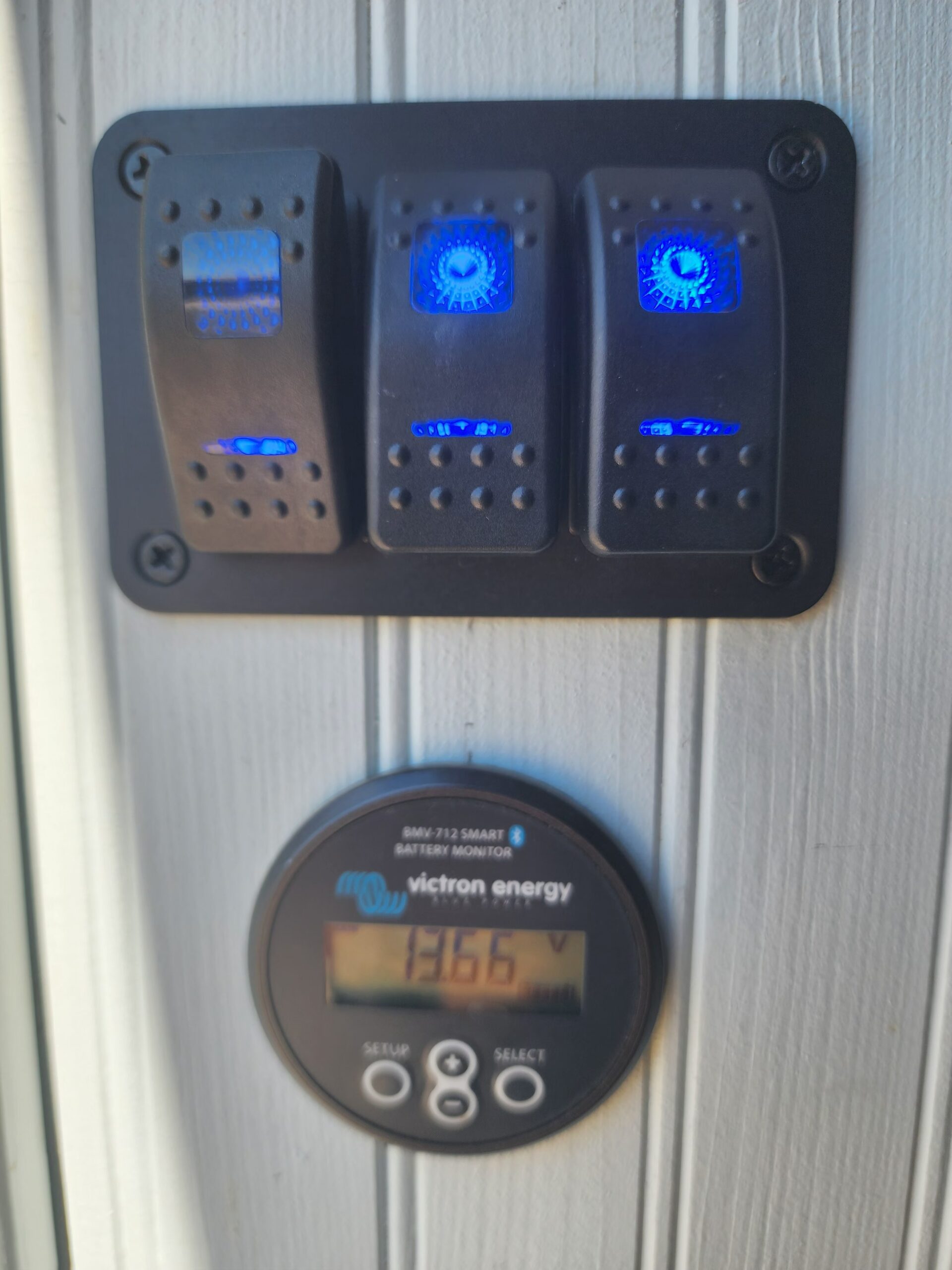

Victron Energy Battery Monitor

All high current circuits are protected with switchable circuit breakers.

All low current circuits are protected with easy access fuse panel

Main battery line protected with an appropriately sized catastrophic fuse

Heating/cooling:

Webasto Air Top 2000 STC Gas Heater, mounted under passenger seat

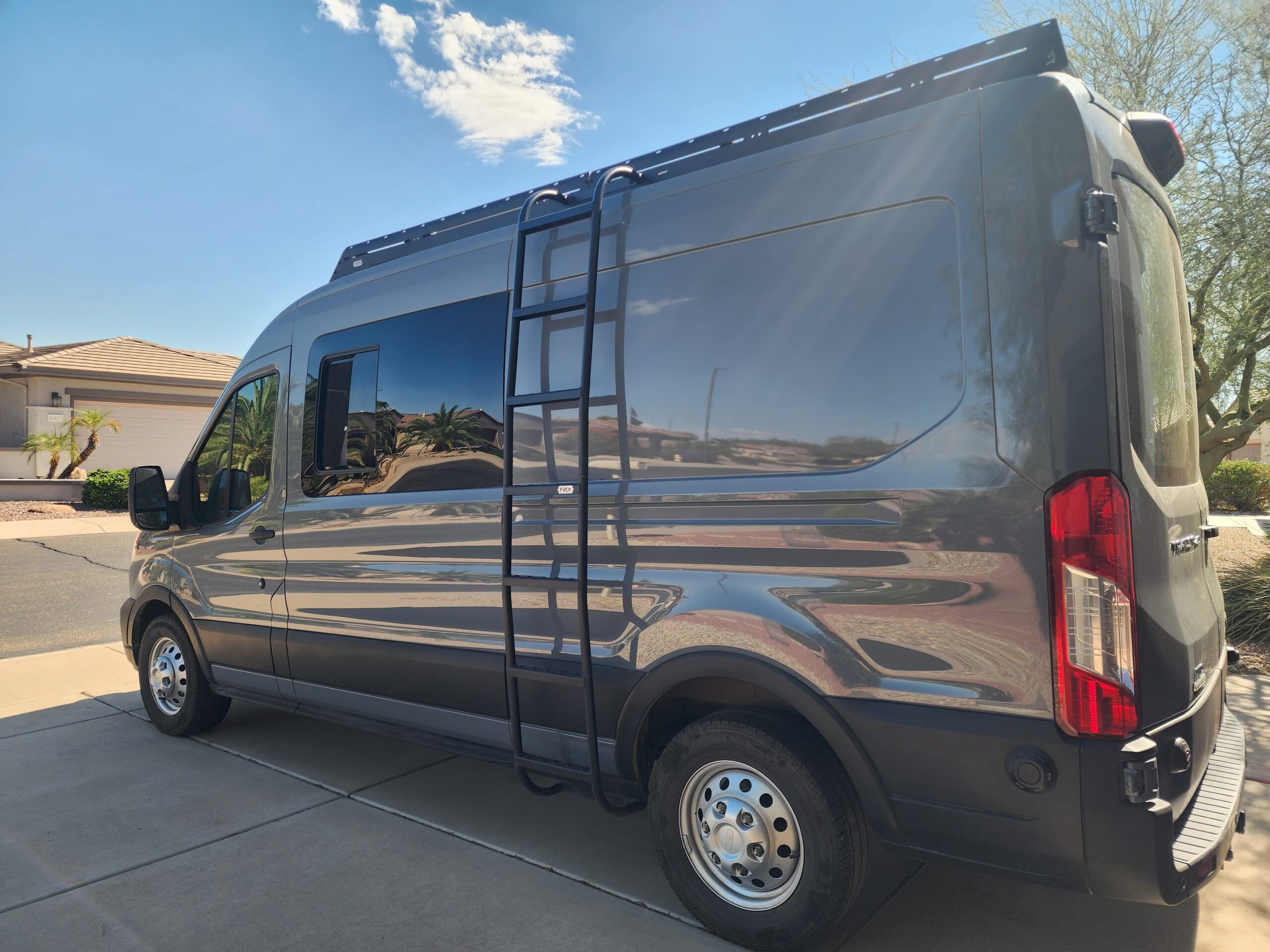

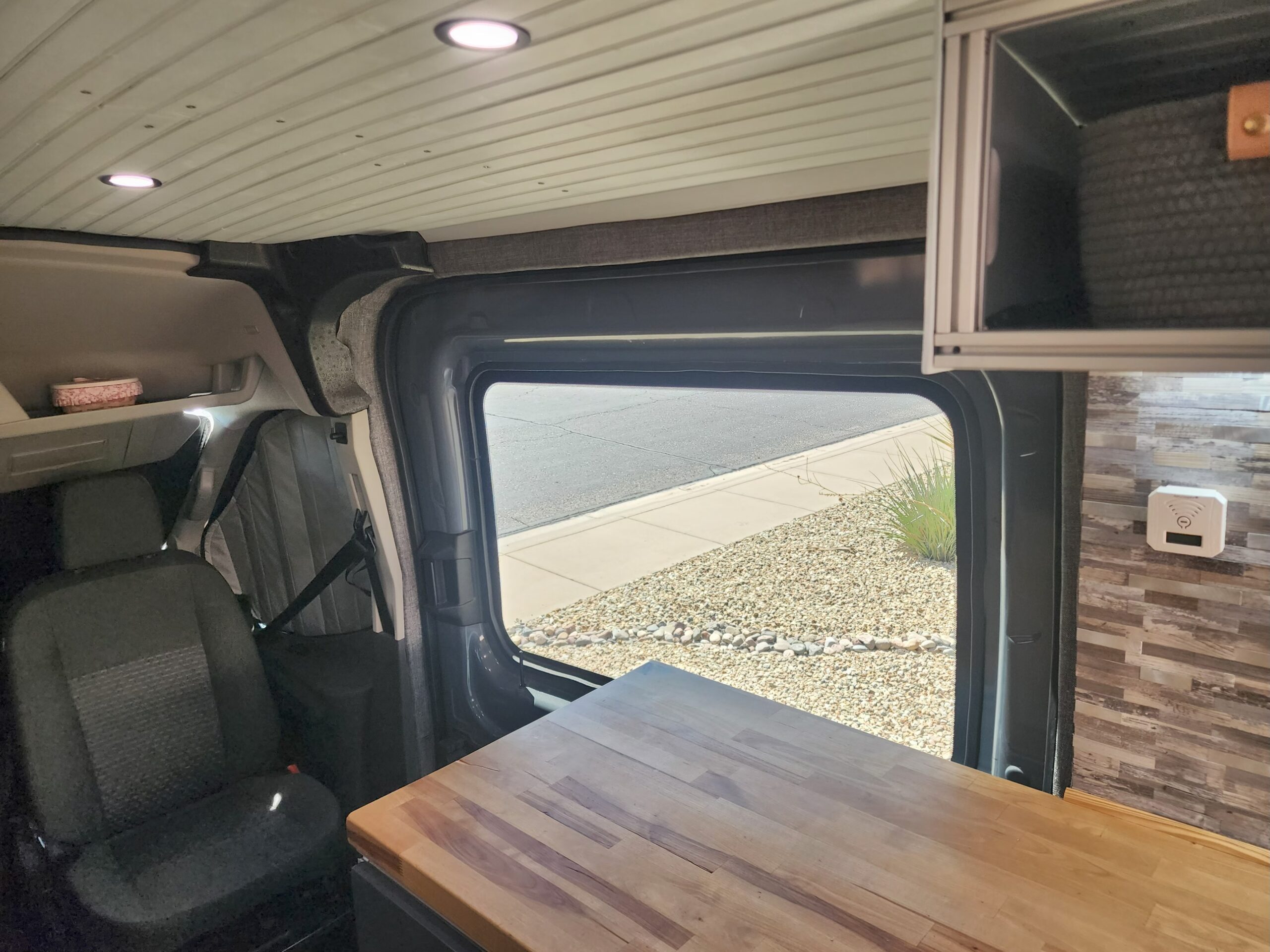

Large sliding tinted window on the driver’s side from VWD.

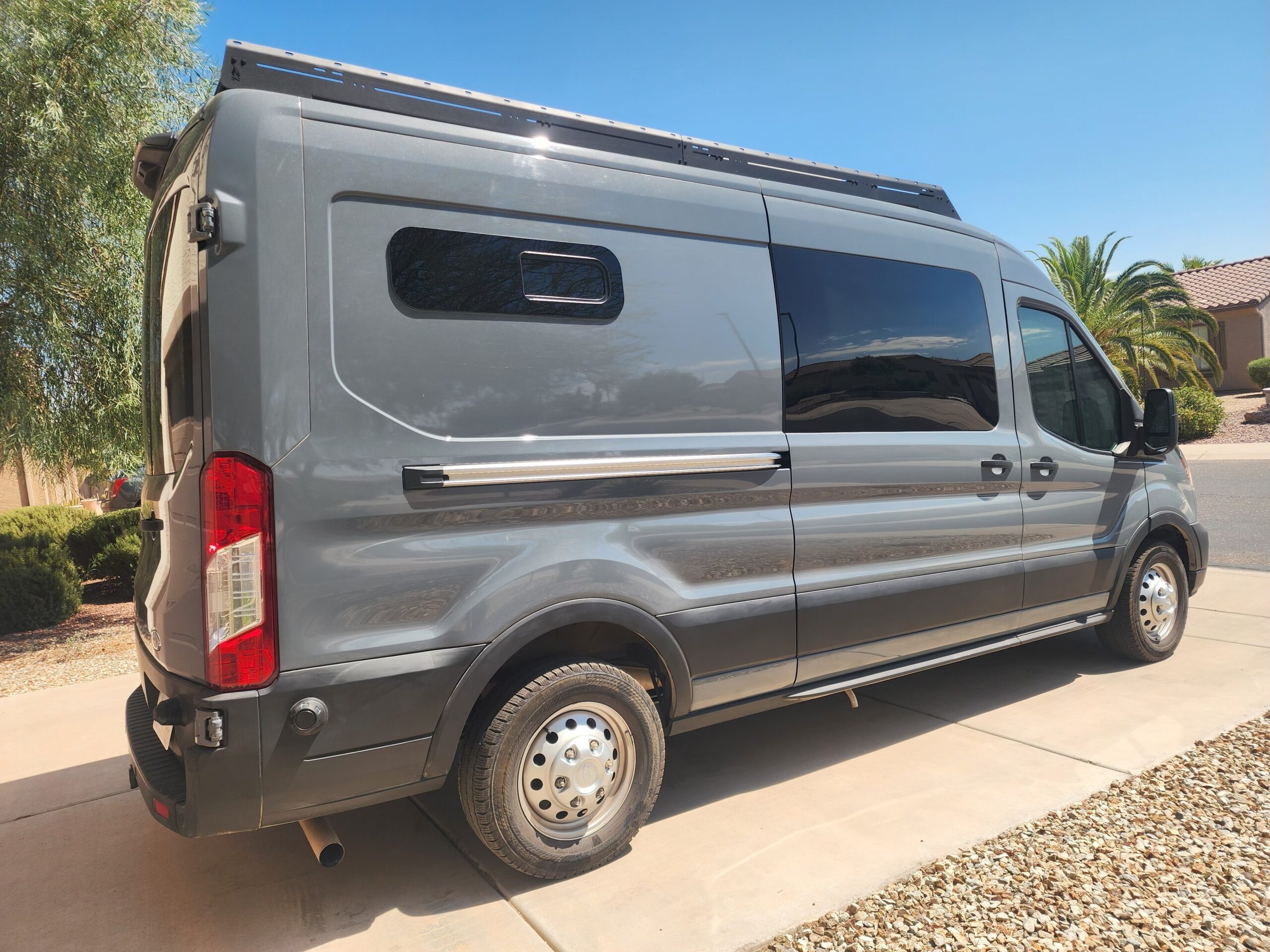

Large tinted window in sliding door from VWD

Slider on bunk window from VWD

MaxAir Fan, 10 speed, can remain open when raining as well as when driving.

Van Essential Window covers for windshield and driver/passenger windows for privacy and sun block

Portable butane stove top with carrying case
