2022 Sprinter 2500 4×4 | 600Ah Lithium + Solar + AC

$98,000 | 48,179 miles | Las Vegas, Nevada

144-inch wheelbase • High roof • One owner • Clean title in hand

I bought this Sprinter brand new and built it into my traveling home base and office as a nature photographer. It has taken me throughout the West—from Colorado and the Tetons to Oregon, Utah, and Death Valley—and has been a big part of building my career.

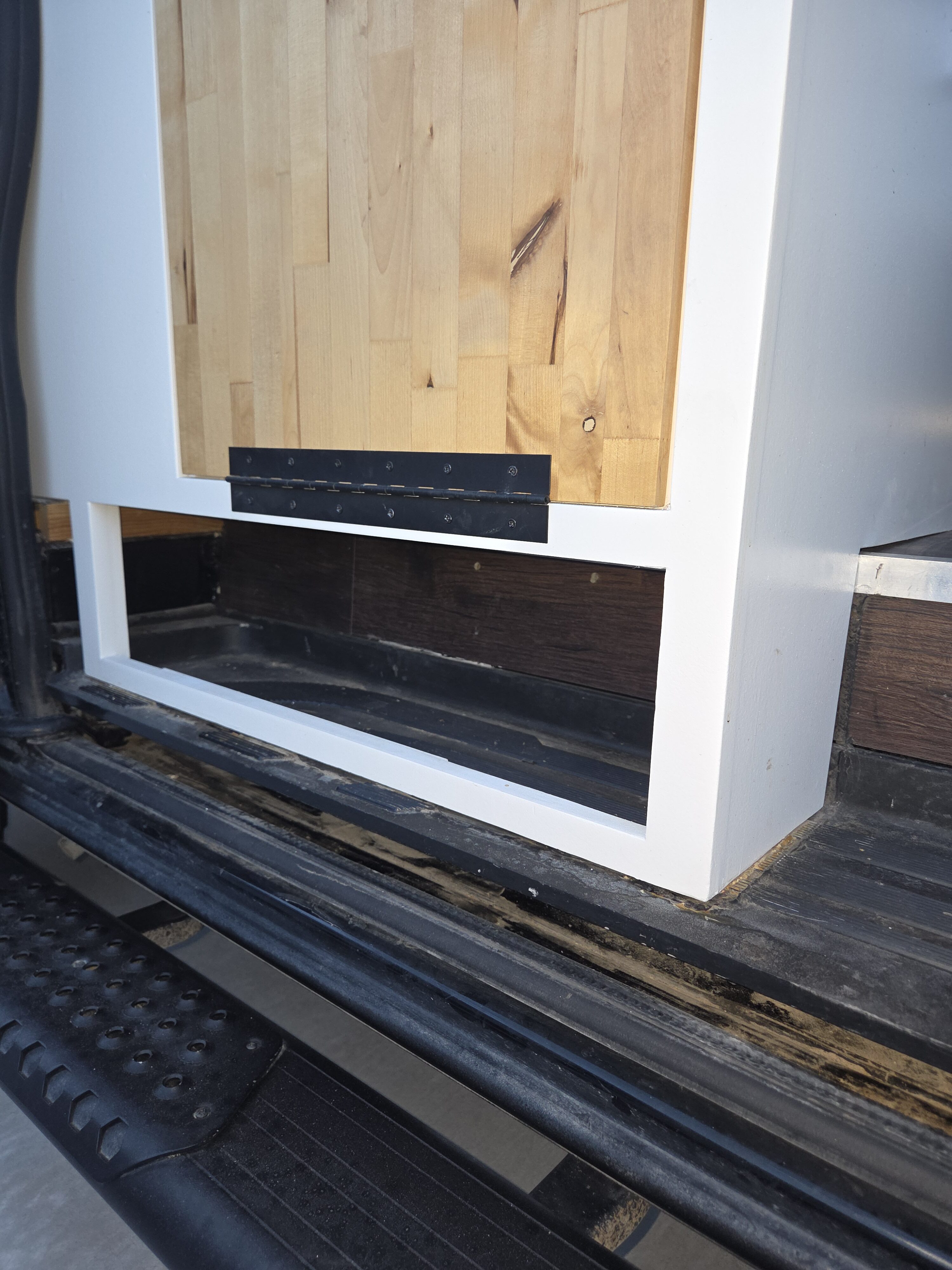

I personally completed the original conversion in 2022–2023, remodeled the interior in 2024, and recently refreshed it again with new countertops, new cabinet latches, repainted cabinetry, and rebuilt rear cabinets to improve the garage storage.

VEHICLE & ADVENTURE EQUIPMENT

• 2022 Mercedes-Benz Sprinter 2500 4×4, 144-inch wheelbase, high roof

• 48,179 miles

• Purchased new; one owner

• No vehicle accidents or body damage

• Clean title in hand

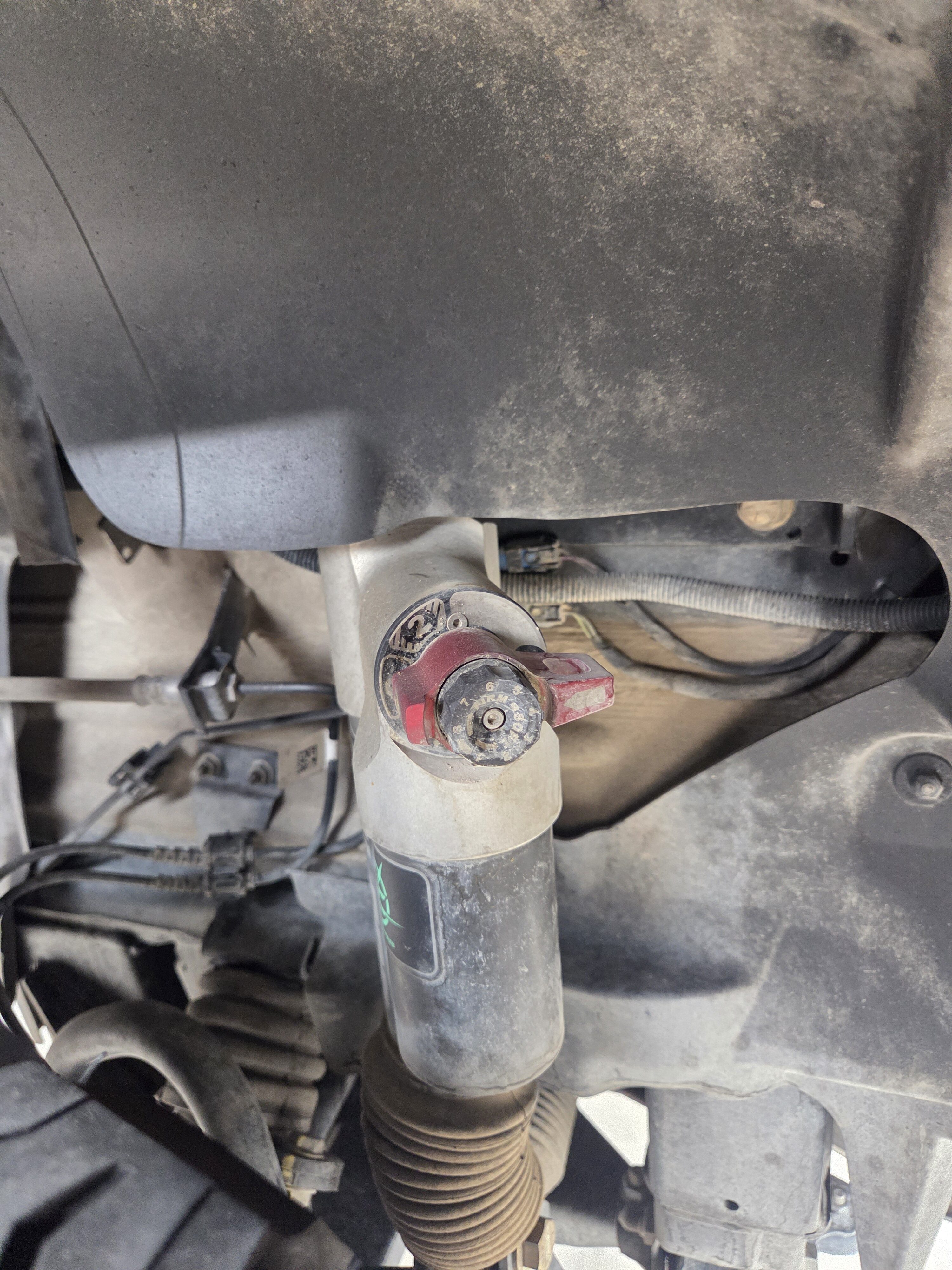

• Van Compass Stage 4.3 suspension

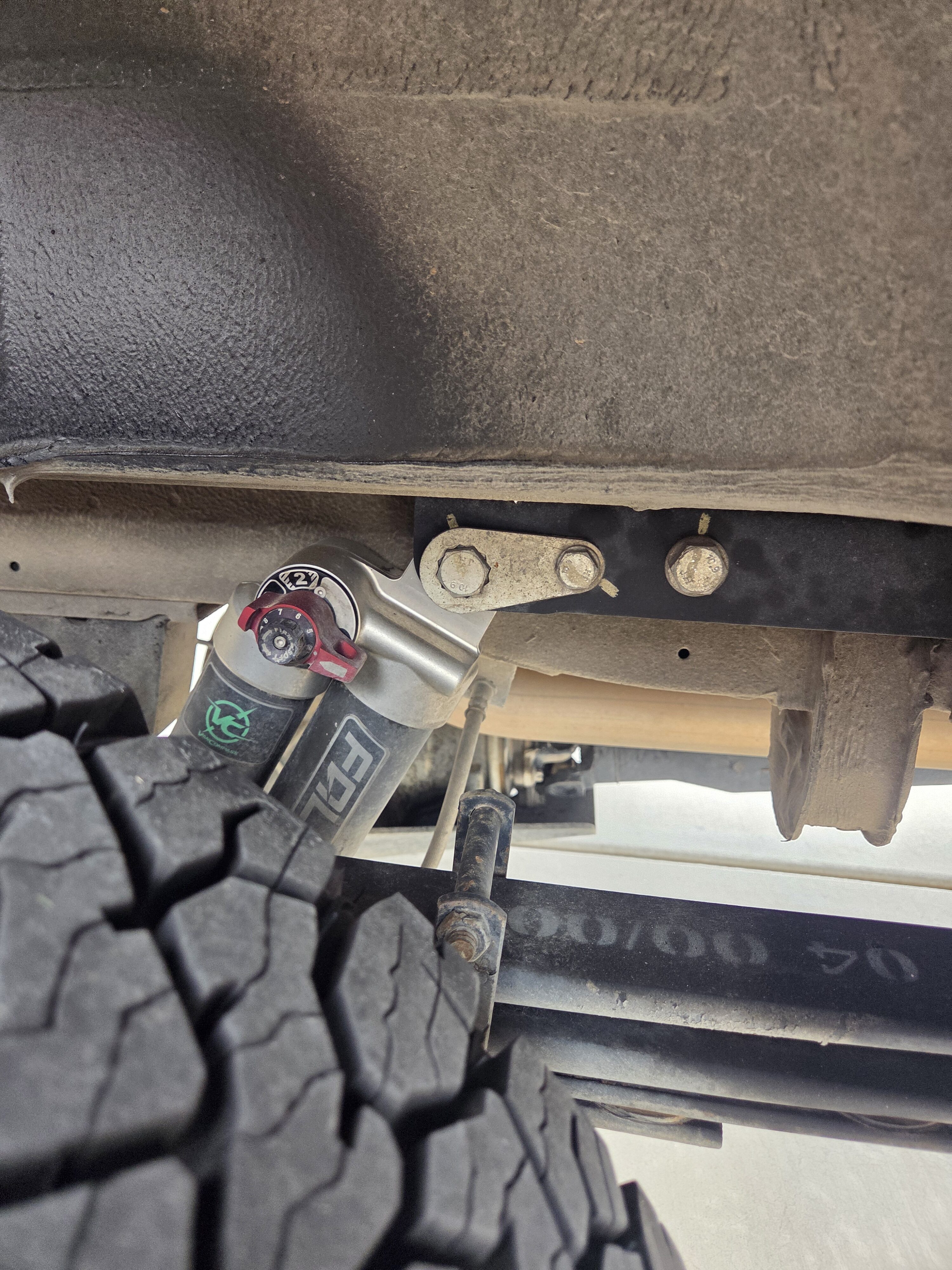

• Upgraded rear shock-mount brackets

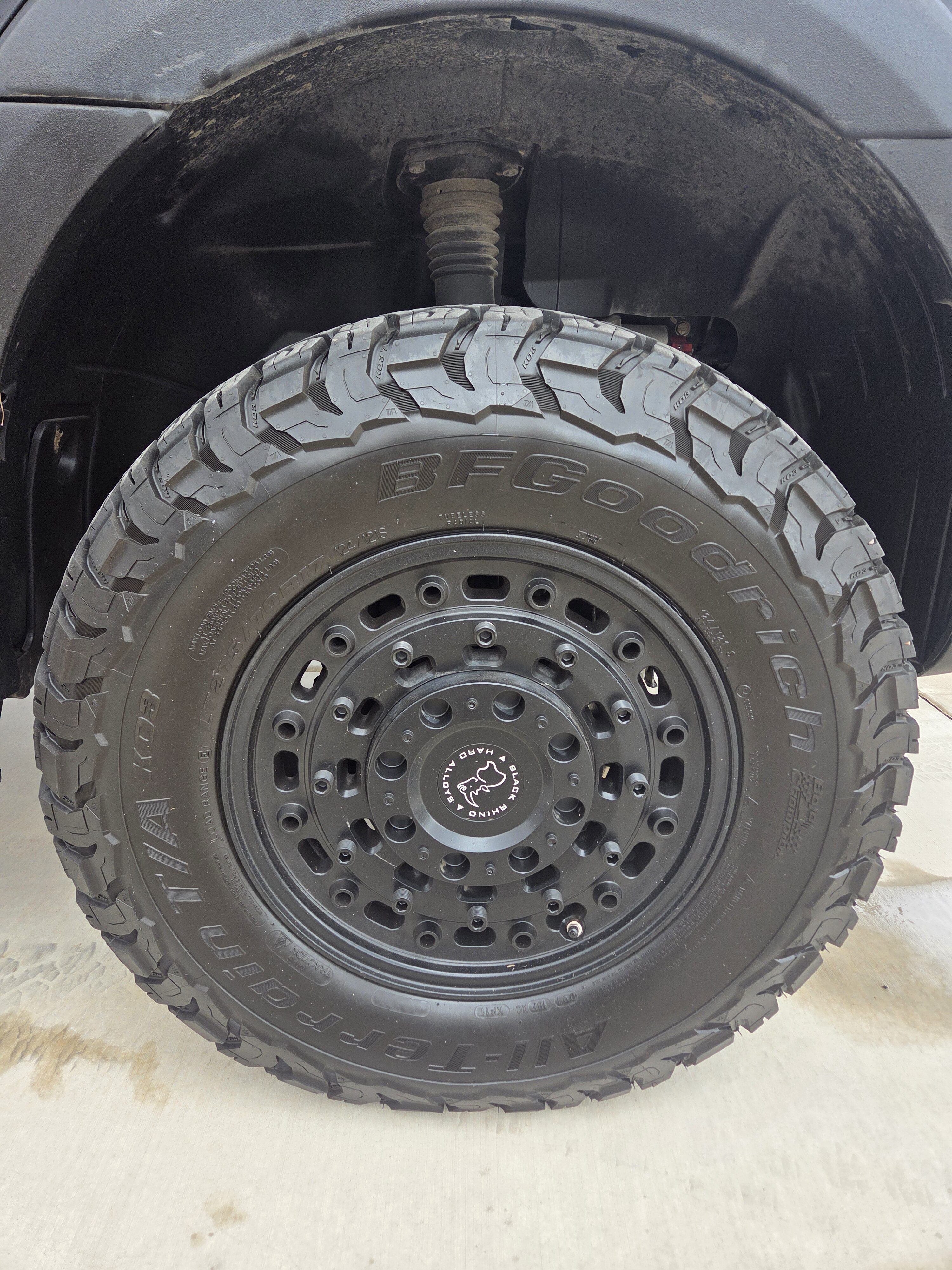

• 33-inch BFGoodrich KO3 tires on Black Rhino Arsenal wheels

• Full-size spare on a matching Black Rhino wheel

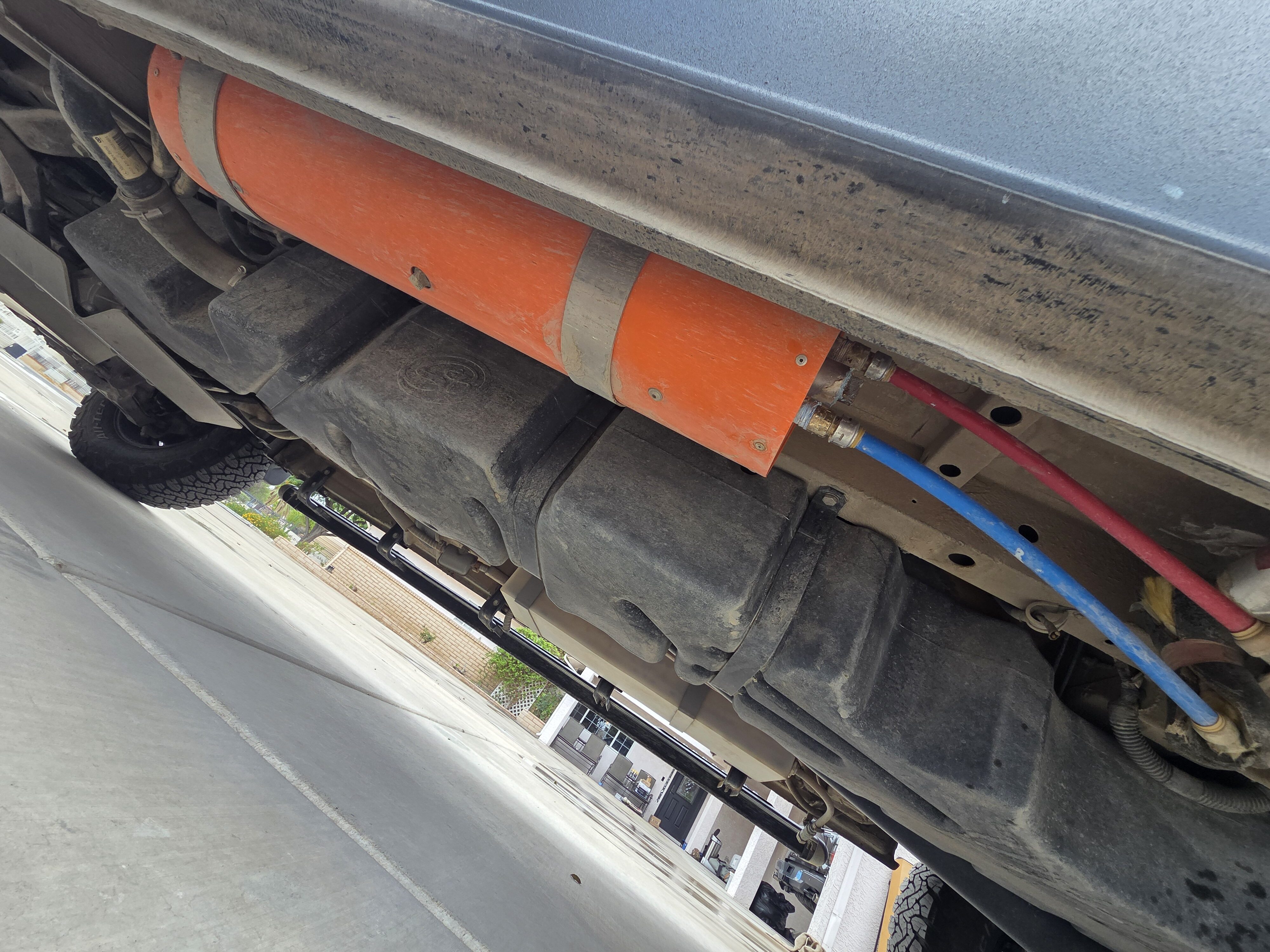

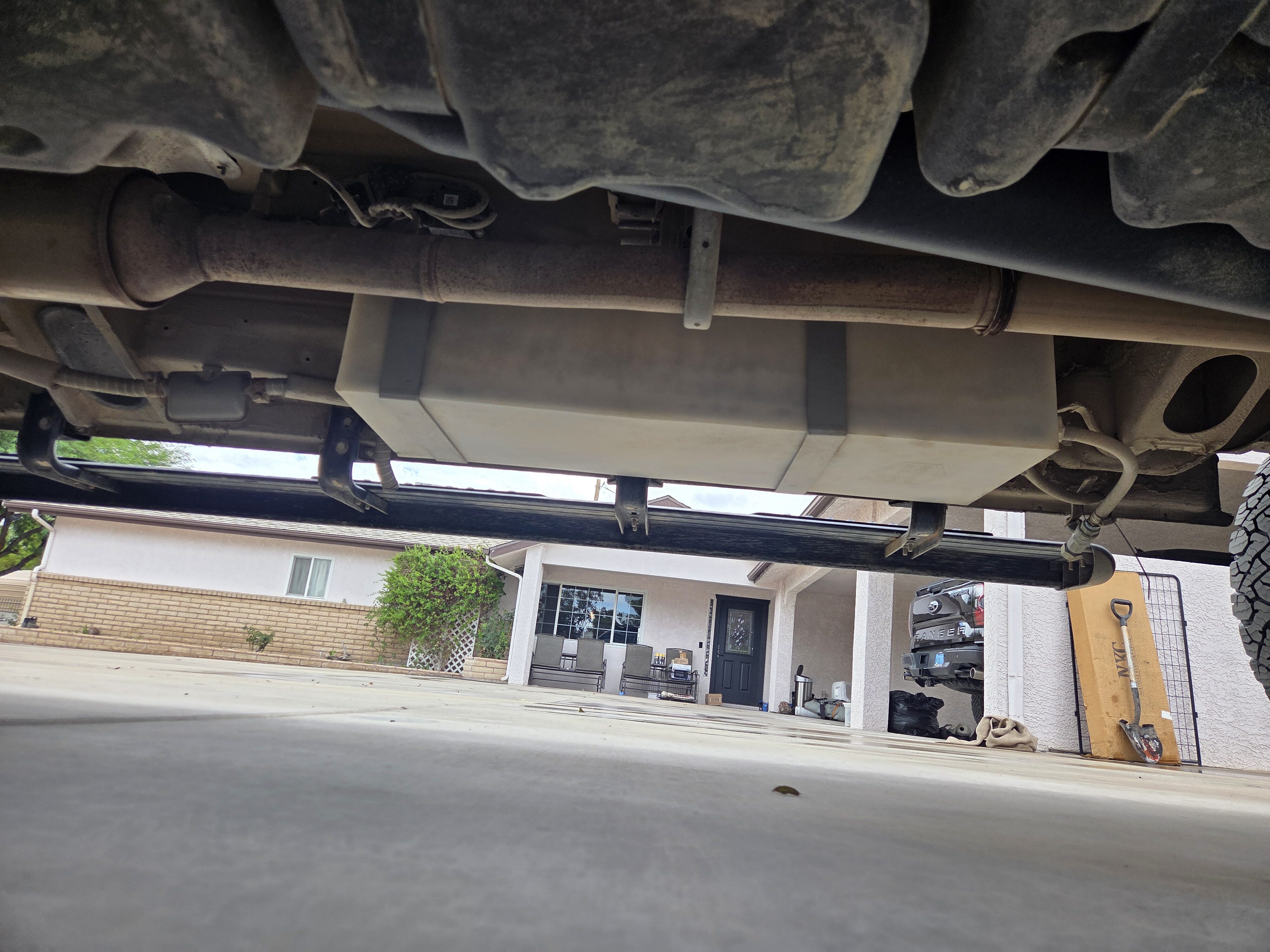

• 47-gallon aftermarket diesel tank

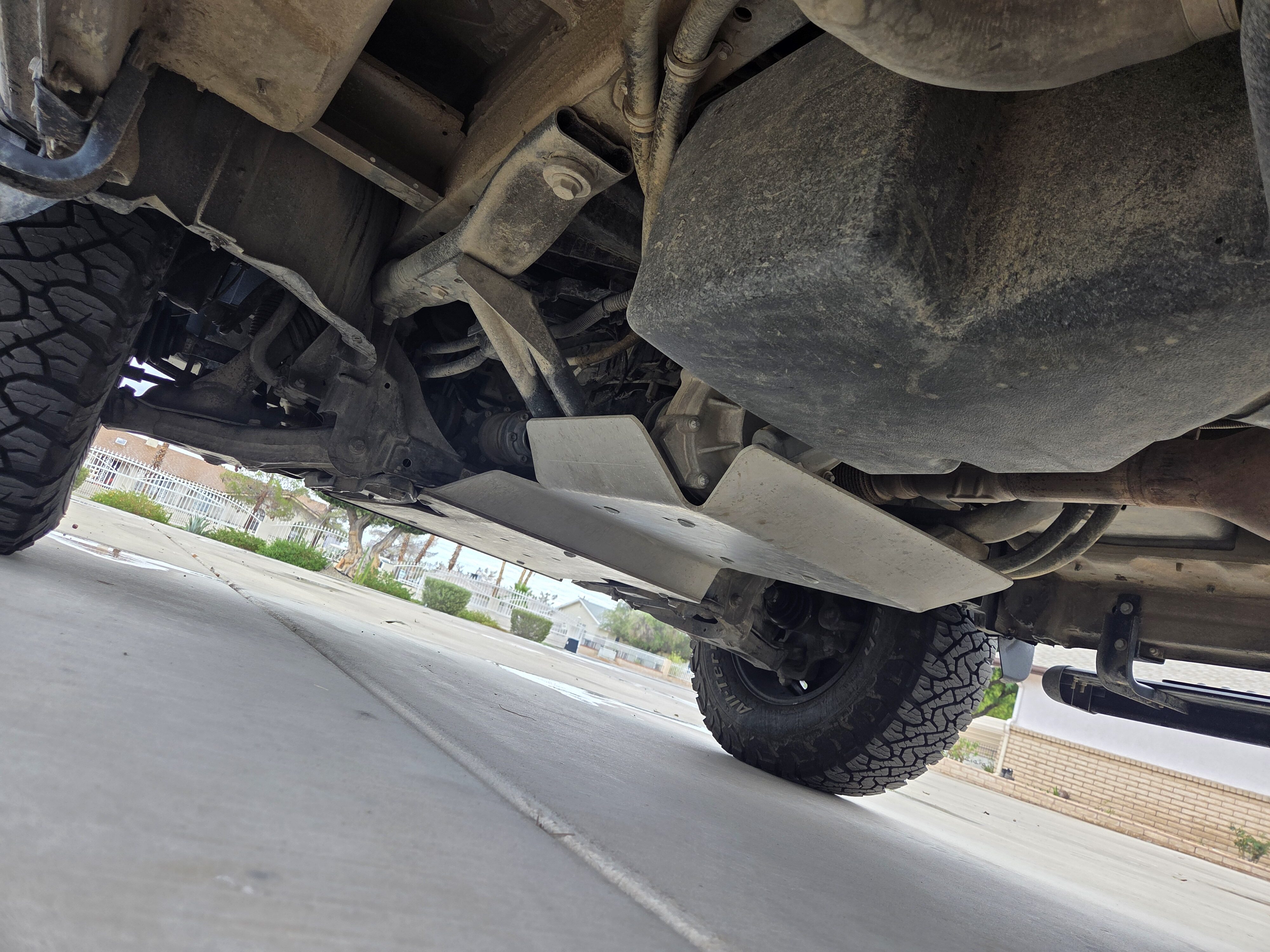

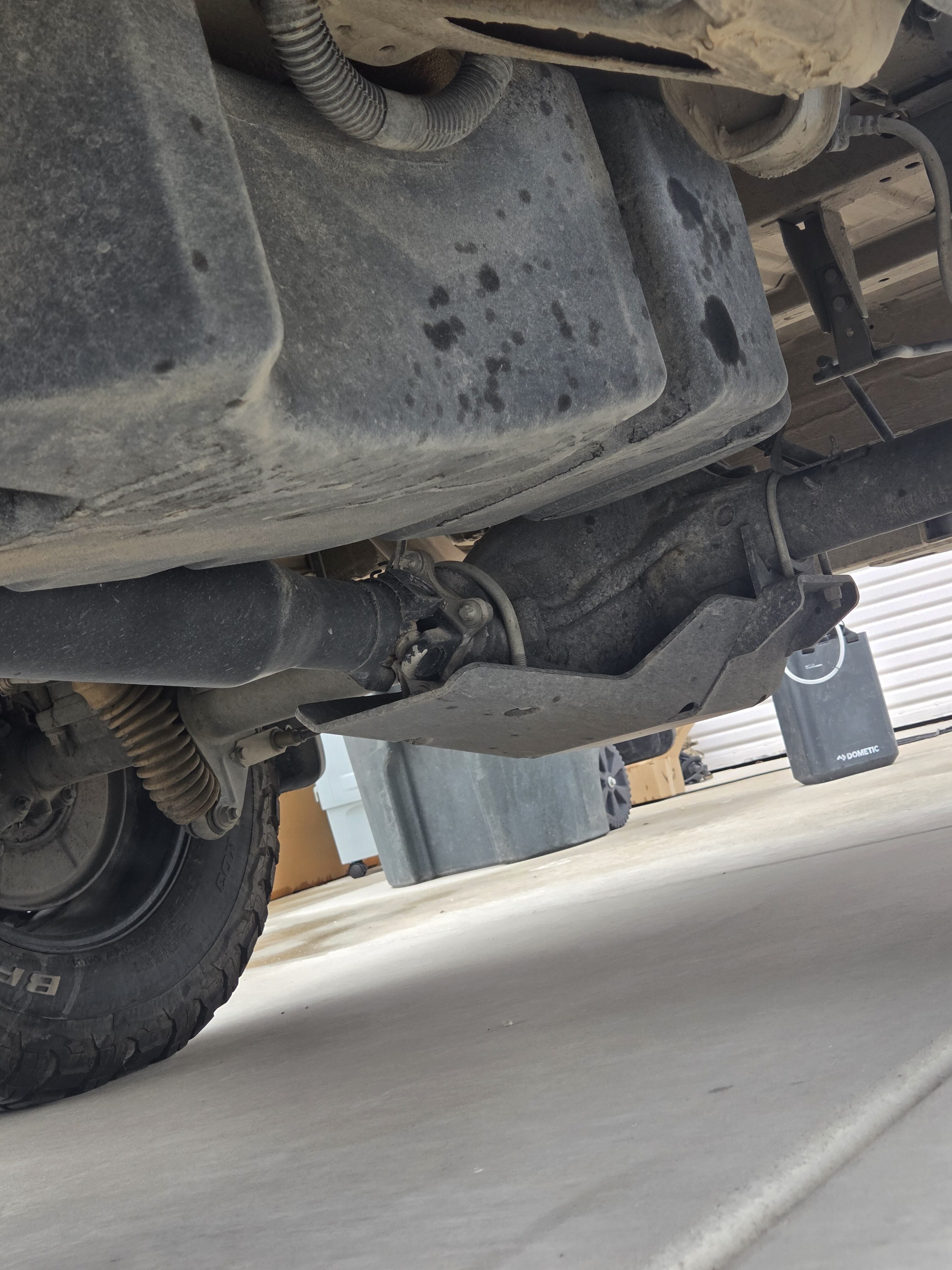

• Engine and differential skid plates

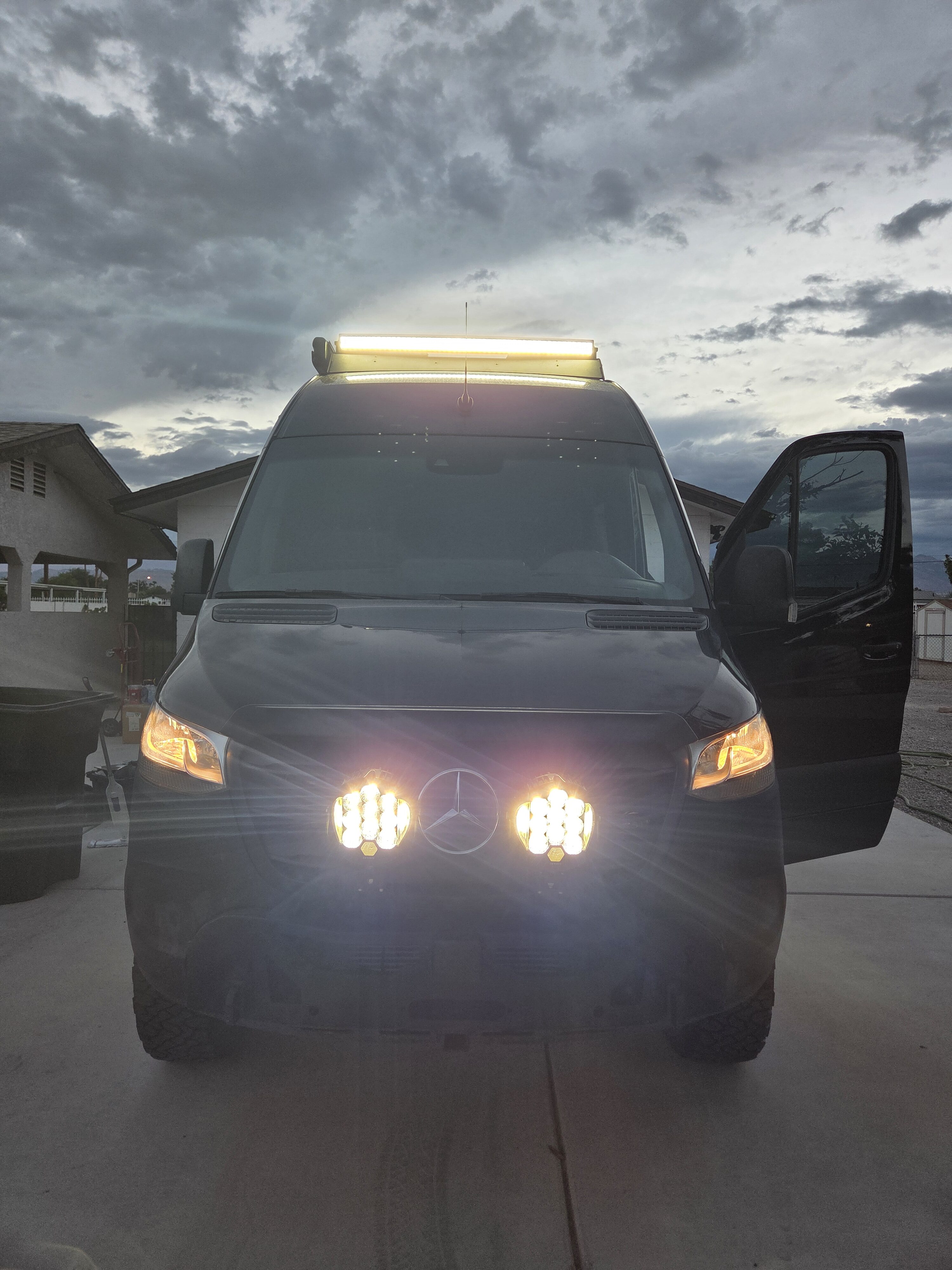

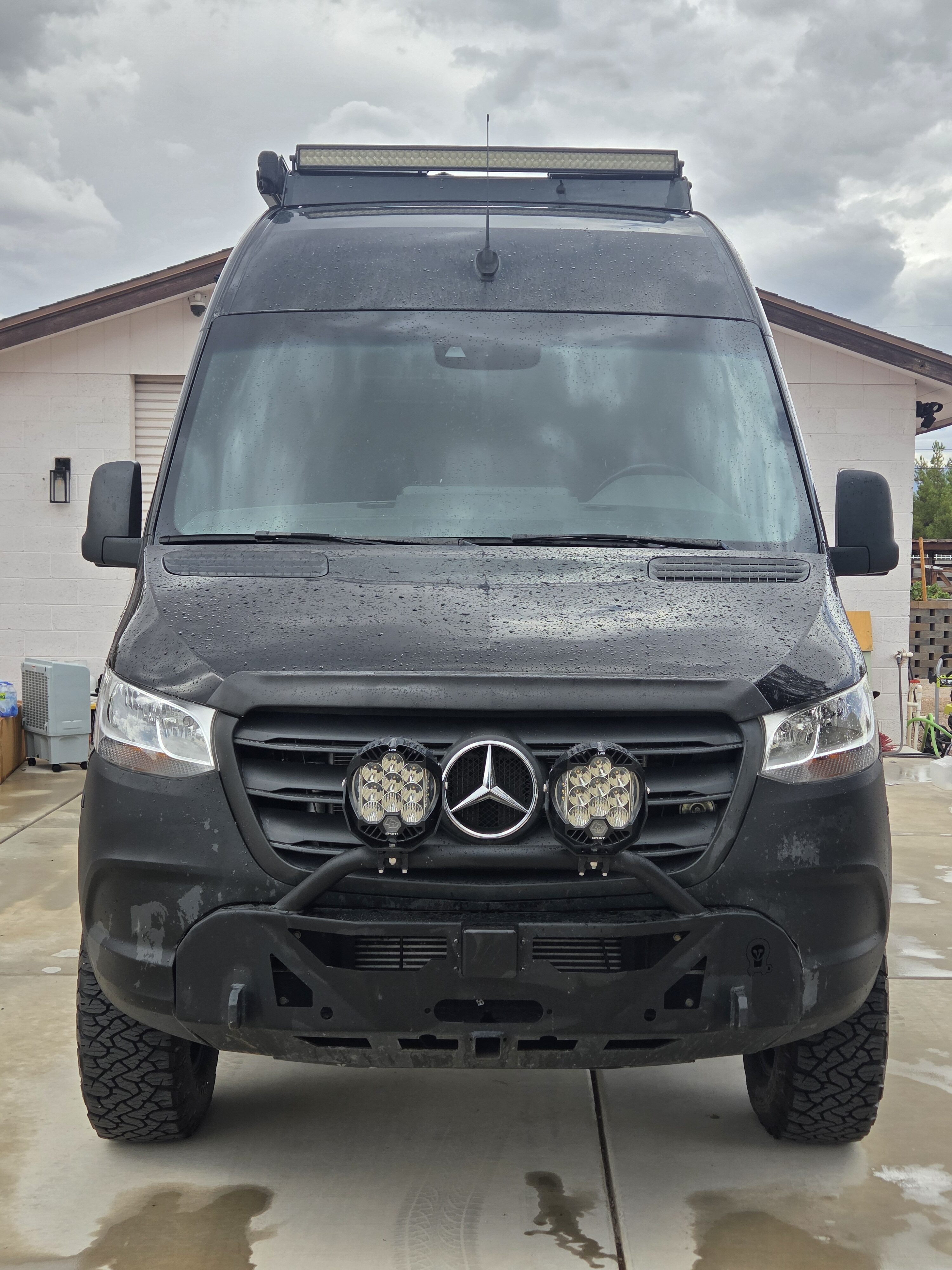

• Owl Pismo front bumper with two LP9 Pro lights

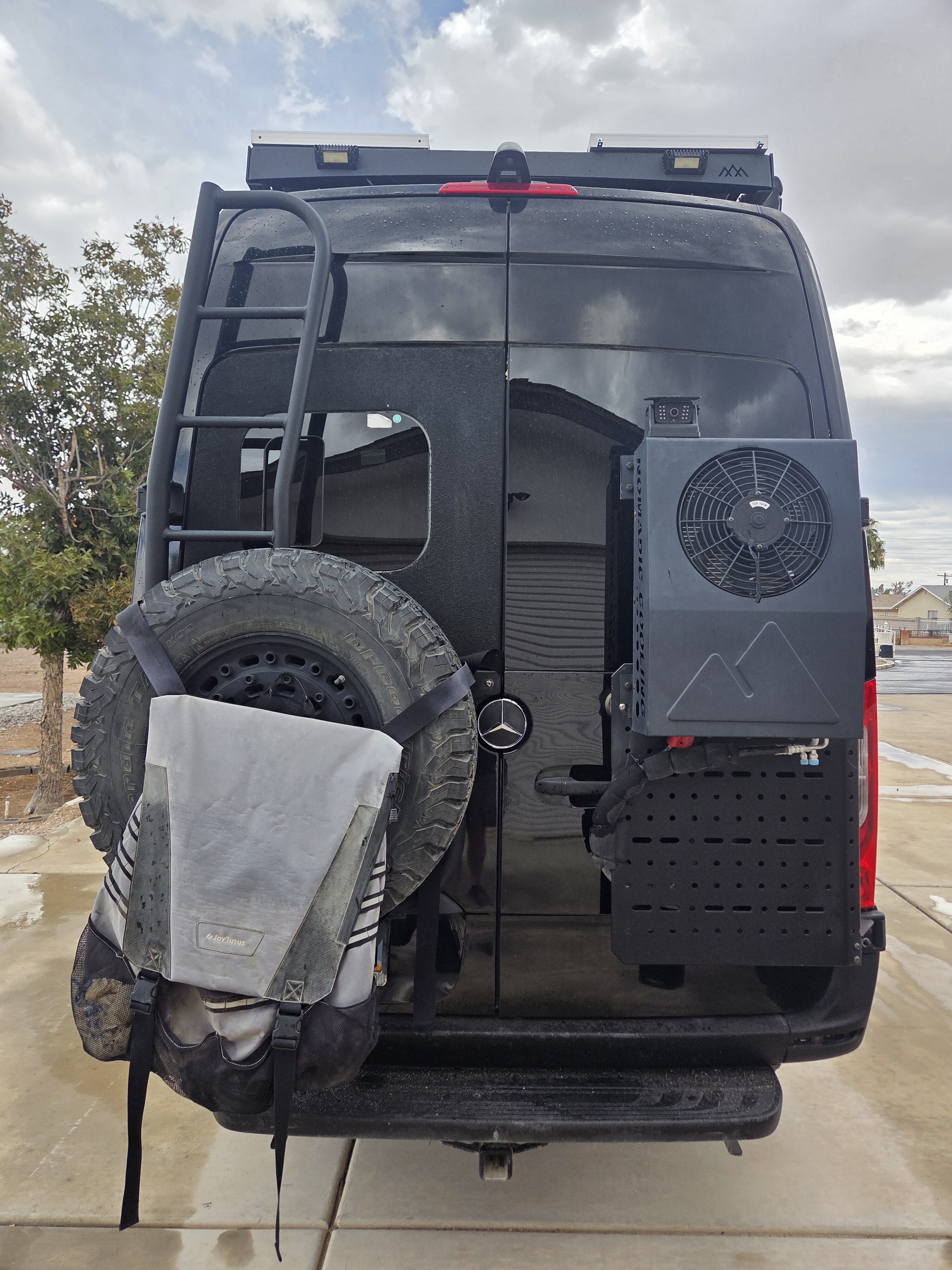

• Rear-door ladder and Sherpa carrier

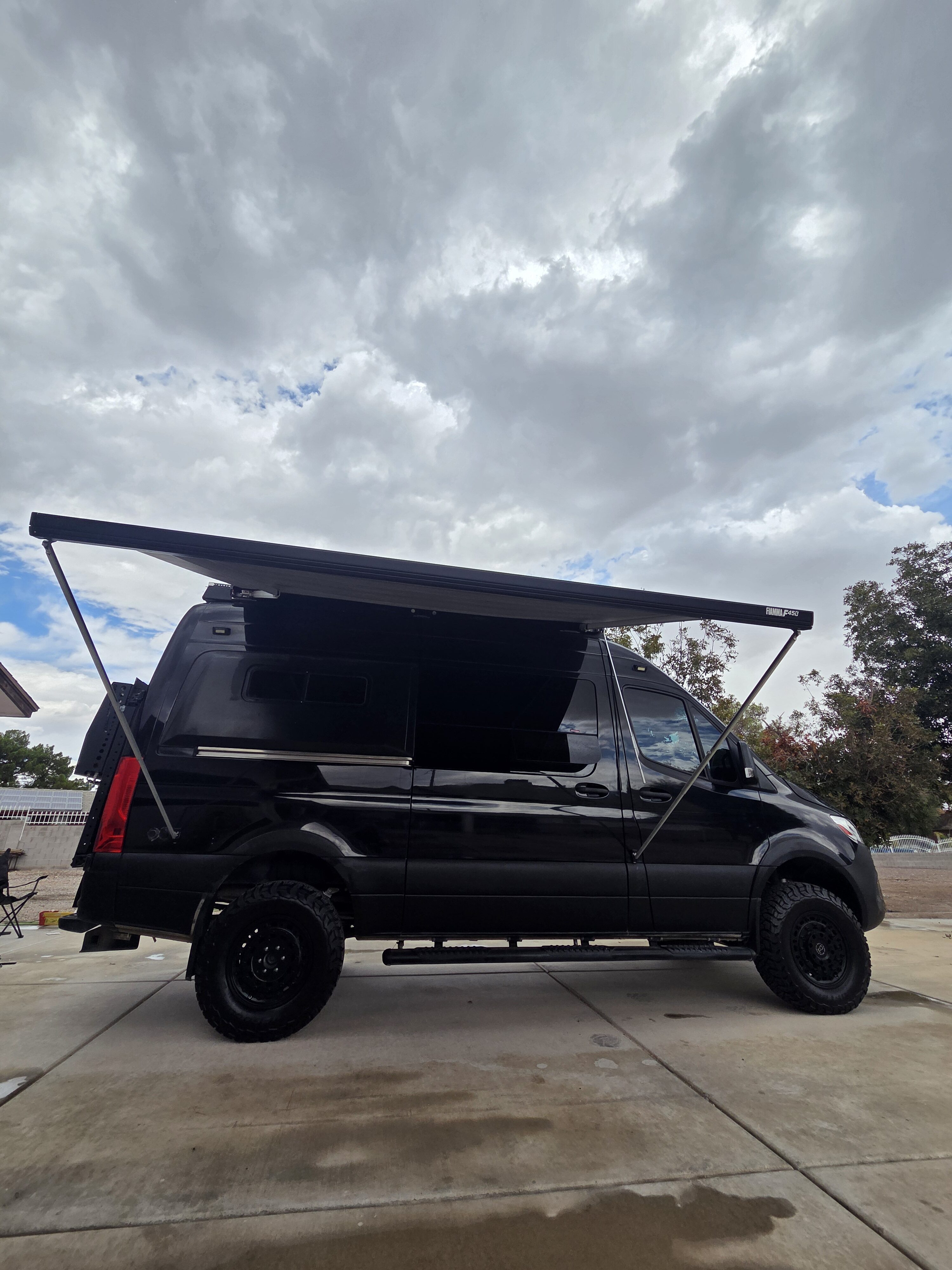

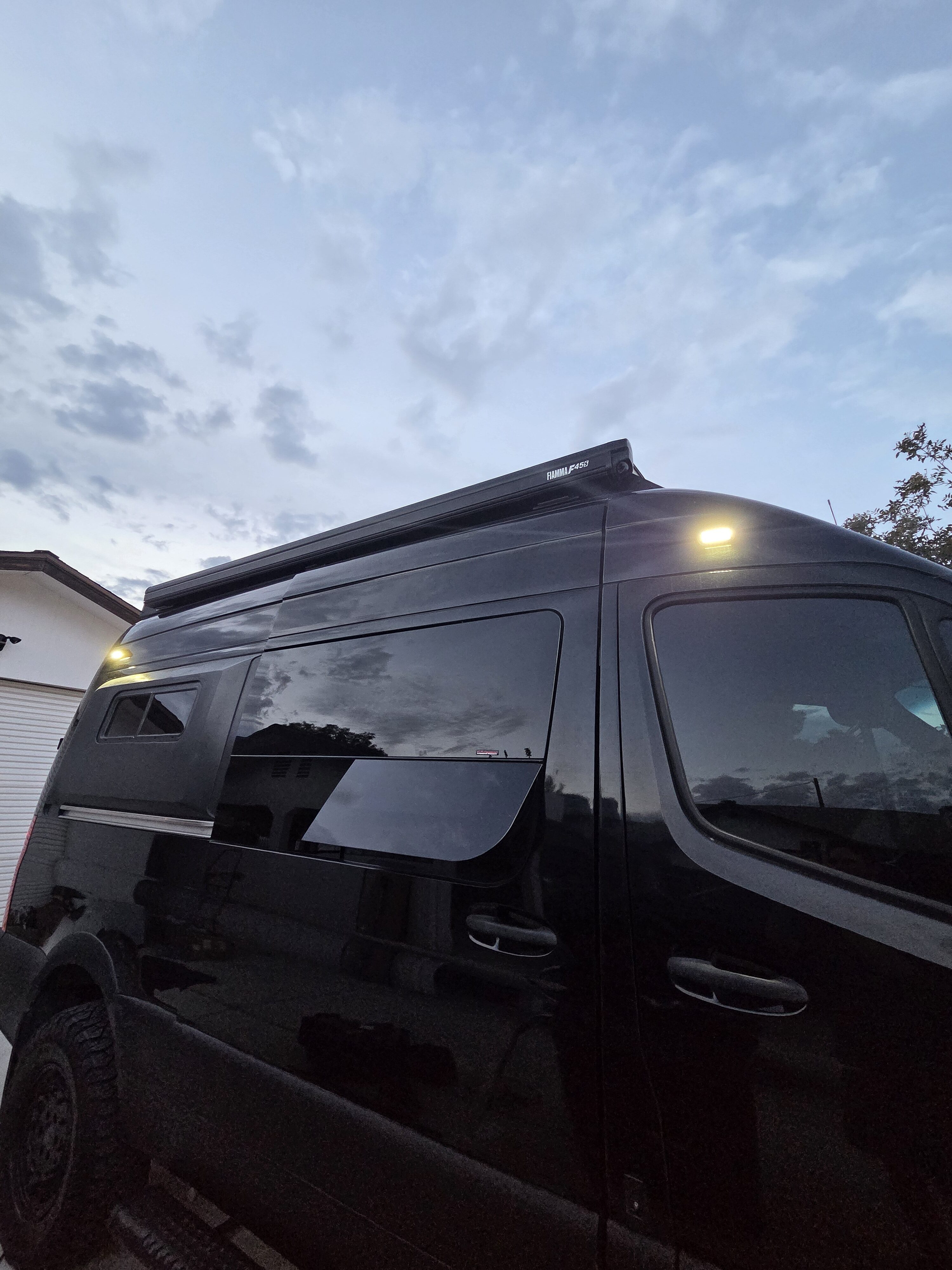

• Fiamma F45s awning

• Added rear-view camera providing a continuous view while the vehicle is on

POWER & CONNECTIVITY

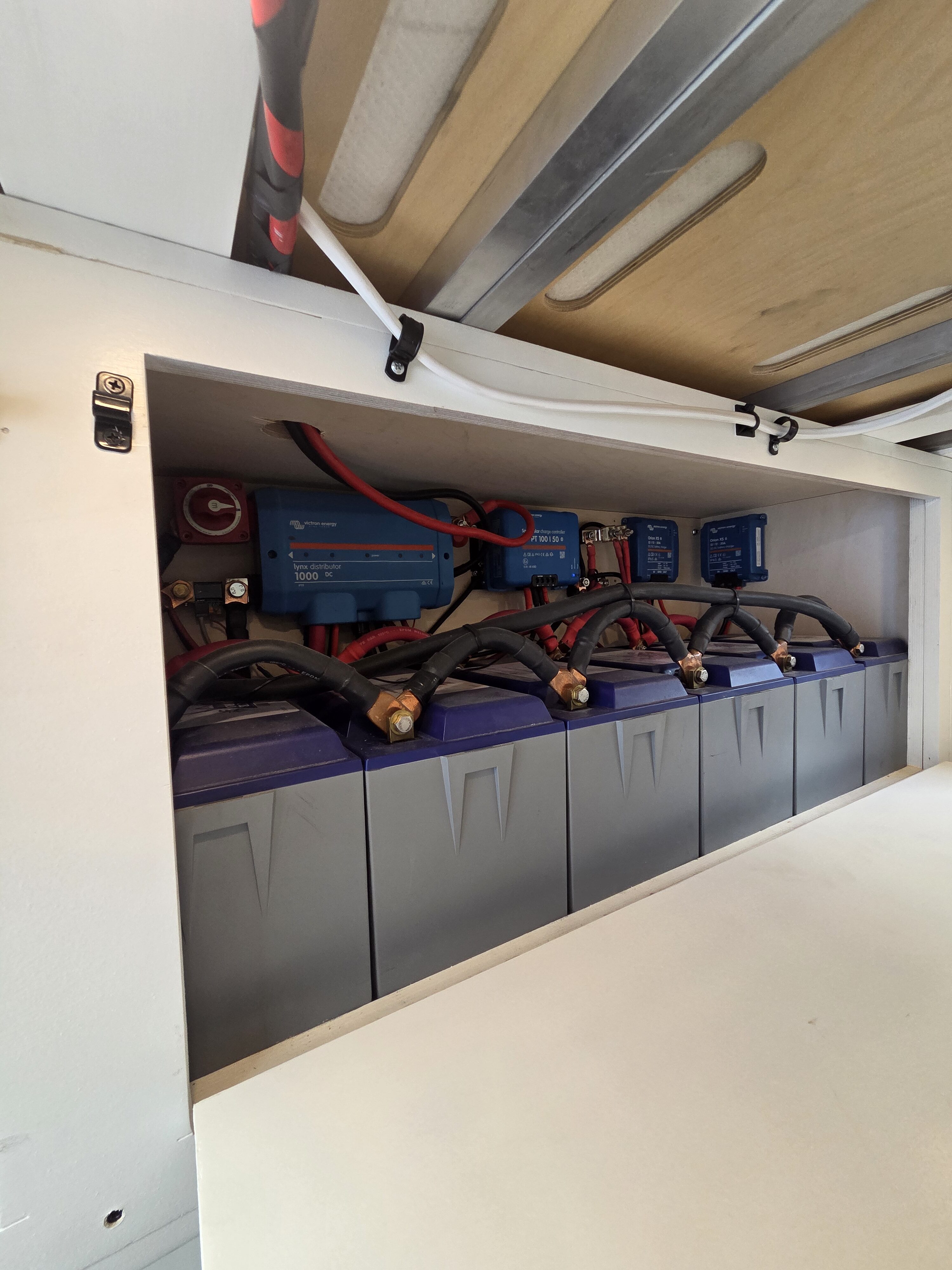

• Six installed 100Ah Battle Born lithium batteries: 600Ah total

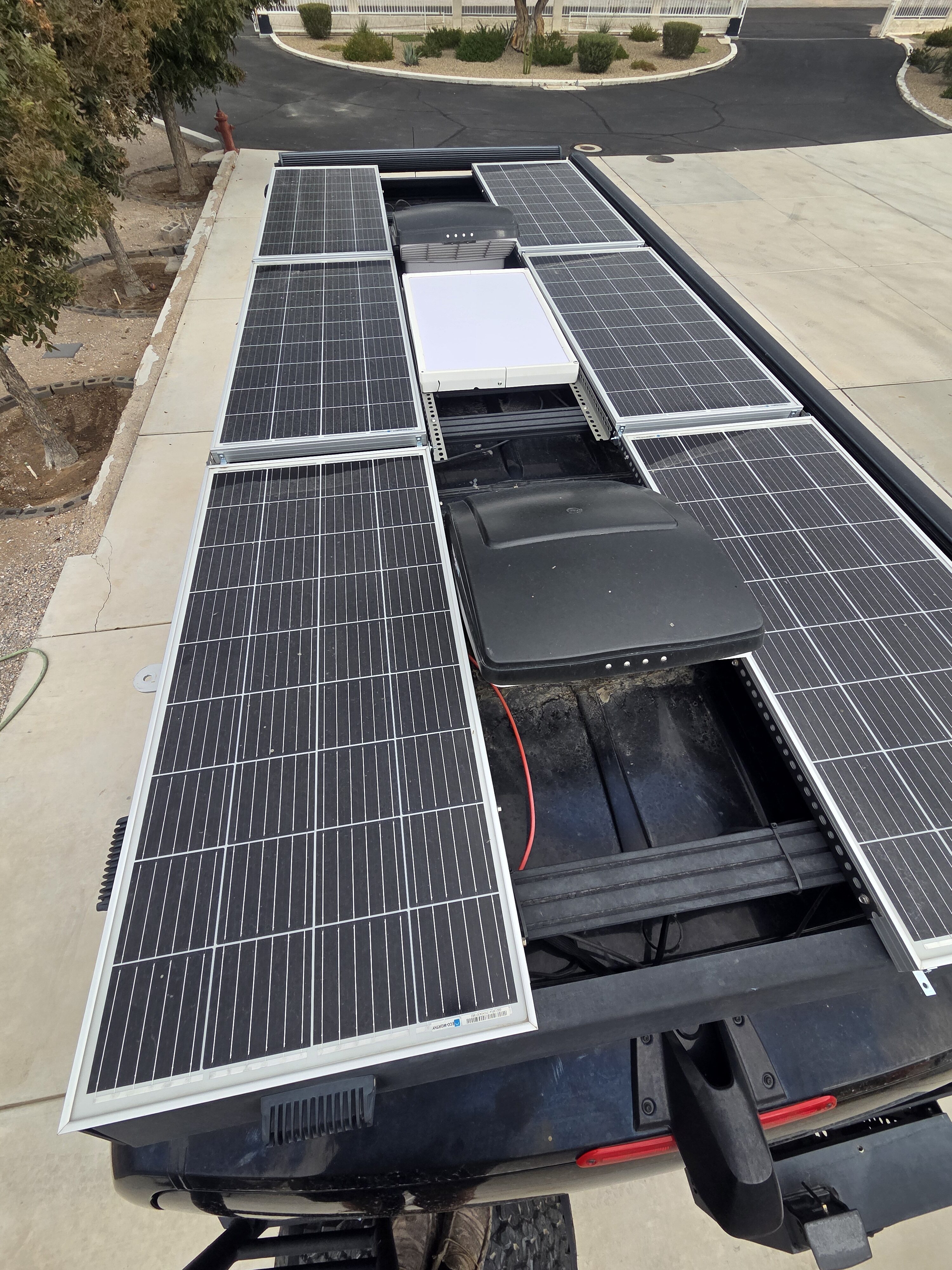

• 600W rooftop solar, wired in series-parallel

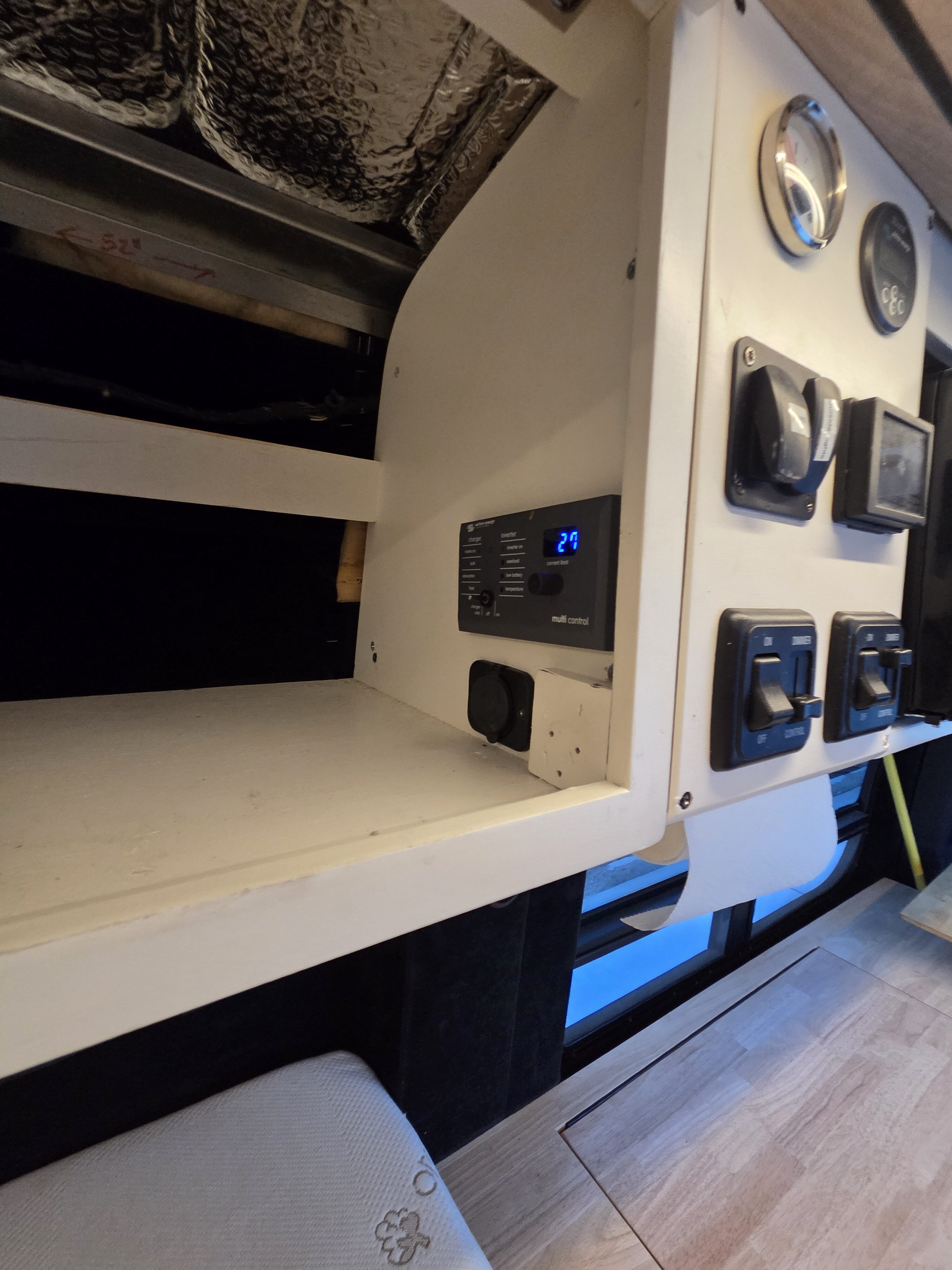

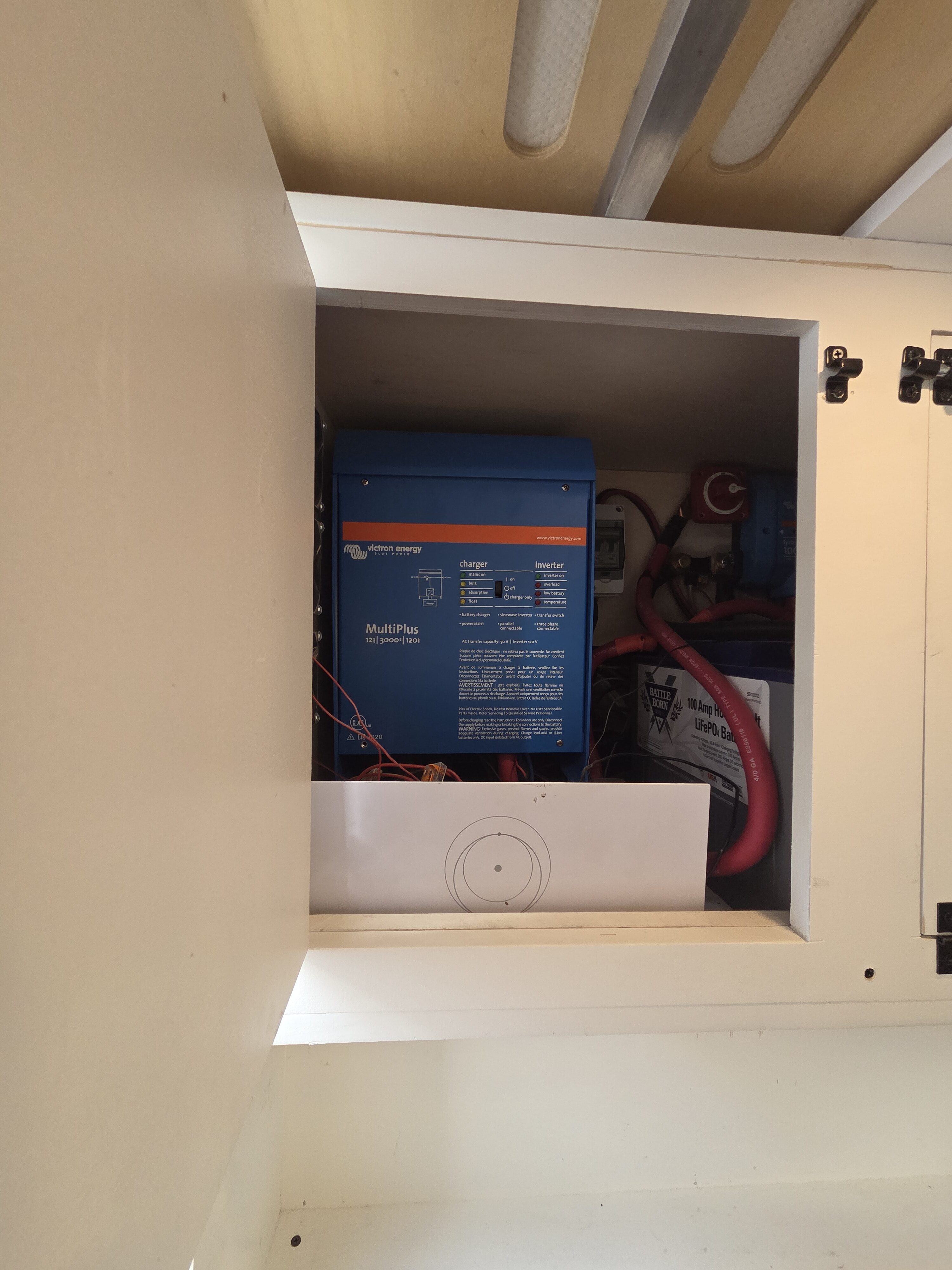

• Newly replaced Victron MultiPlus 12/3000 inverter/charger

• Two Victron Orion XS 50A DC-to-DC chargers: 100A combined alternator charging capacity

• Victron SmartSolar MPPT 100/50 controller

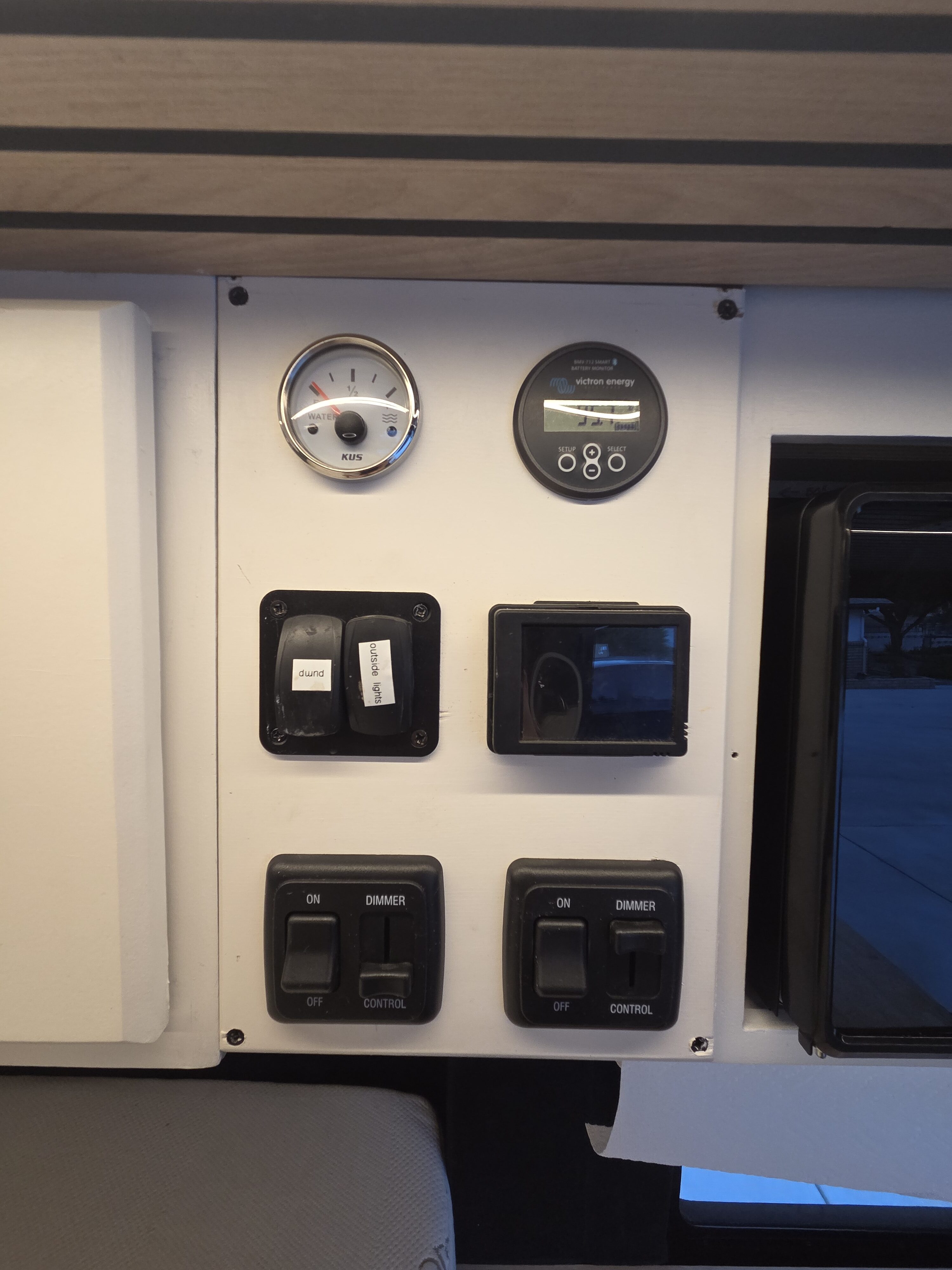

• Victron Lynx Distributor and BMV-712 battery monitor

• 30A shore-power connection

• Thermostatically controlled ventilation for the electrical compartment

• Maintenance access hatches

• Starlink Gen 3 dish, router, and 12V power conversion included; service subscription separate

Much of the electrical installation uses EXPLORIST.life wiring kits and designs.

HEATING, COOLING & INSULATION

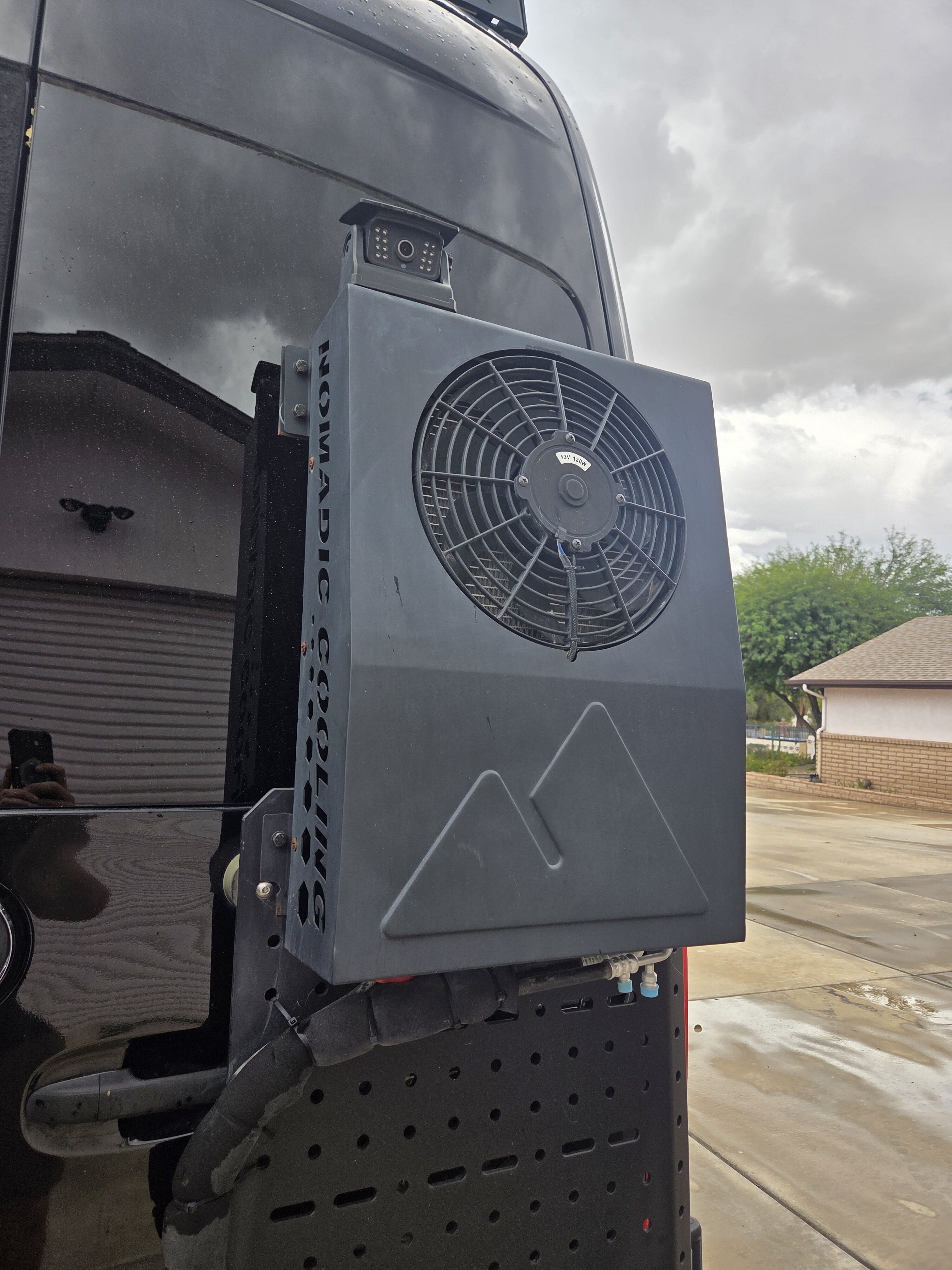

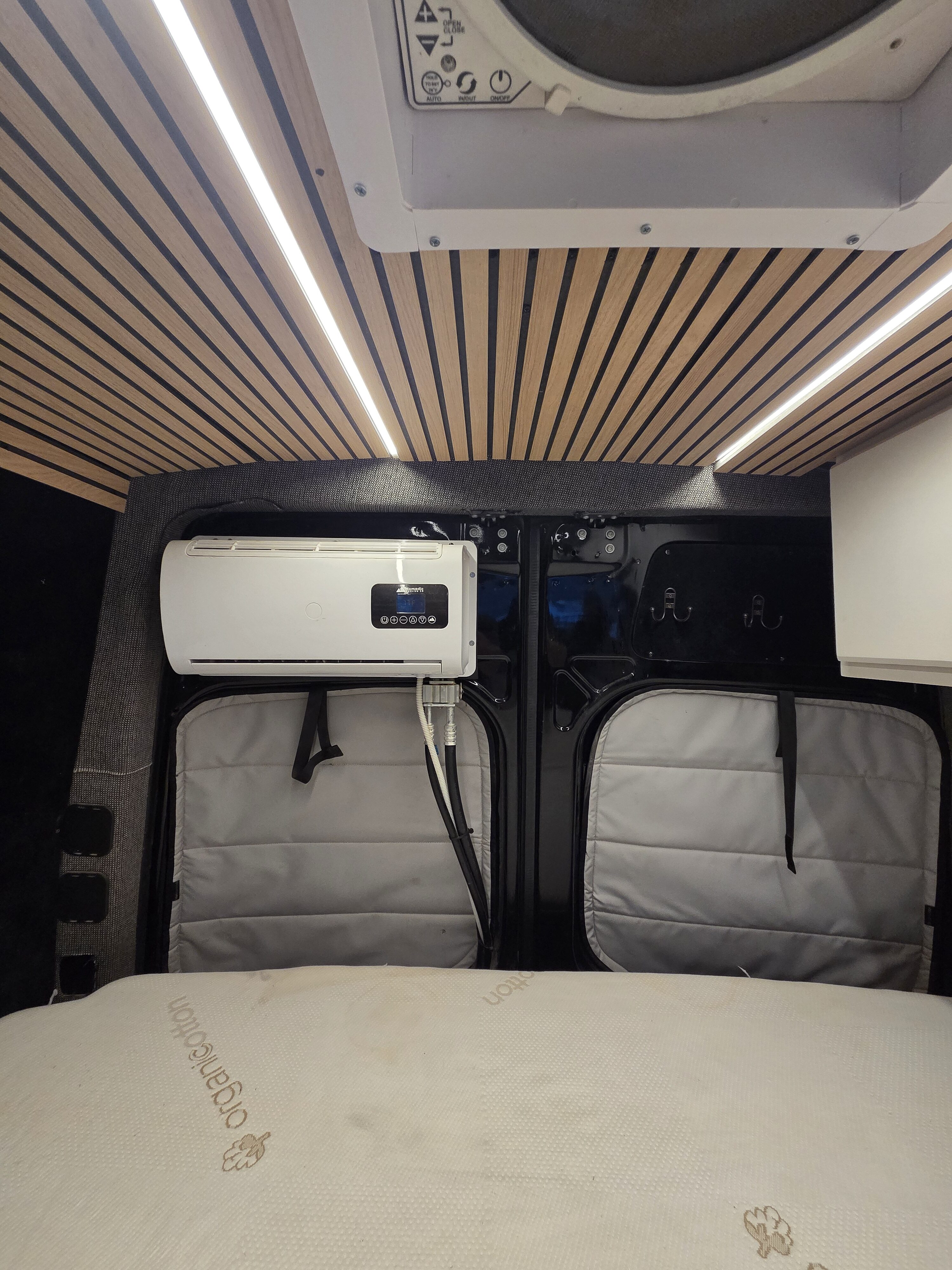

• Nomadic S1 split air conditioner

• Autoterm Air 2D diesel heater supplied by the main fuel tank

• Two MaxxAir MaxxFans

• 3M Thinsulate and Havelock Wool insulation

• Complete insulated window-cover set for the windshield, front doors, mid-cabin, rear, and bunk windows

The AC can run from the house battery bank. Runtime varies with outdoor temperature, operating mode, and other electrical use.

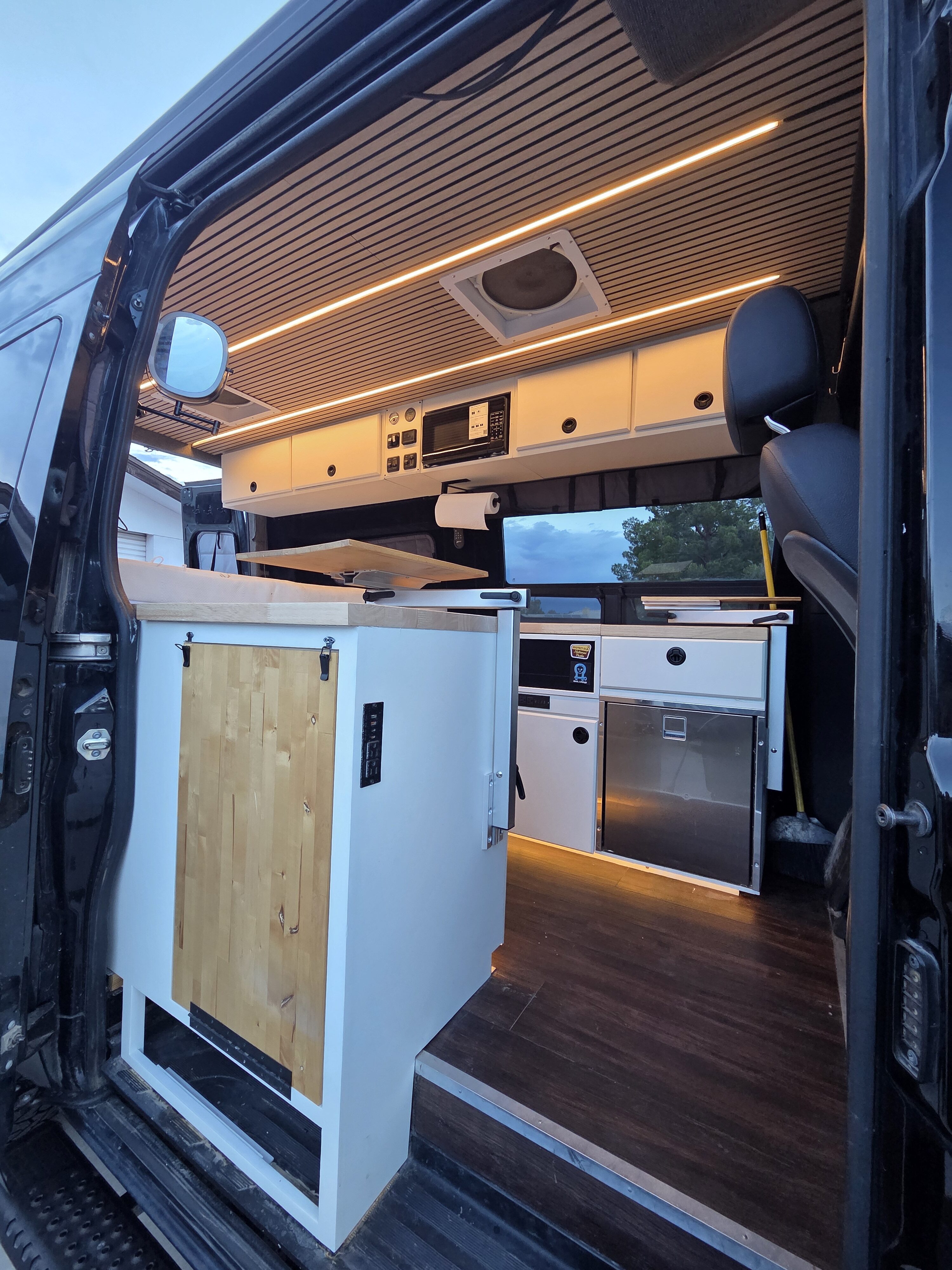

INTERIOR & SLEEPING

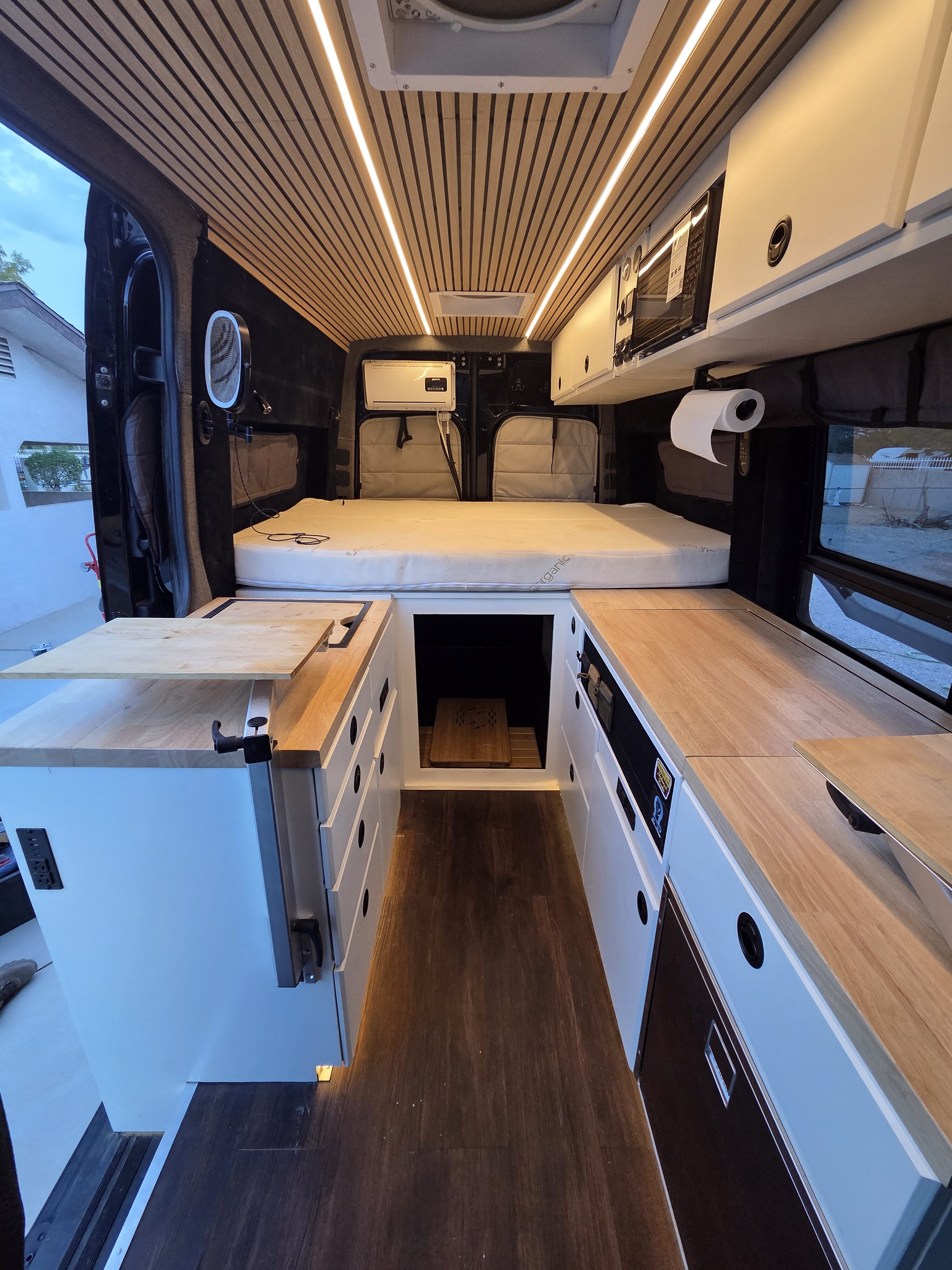

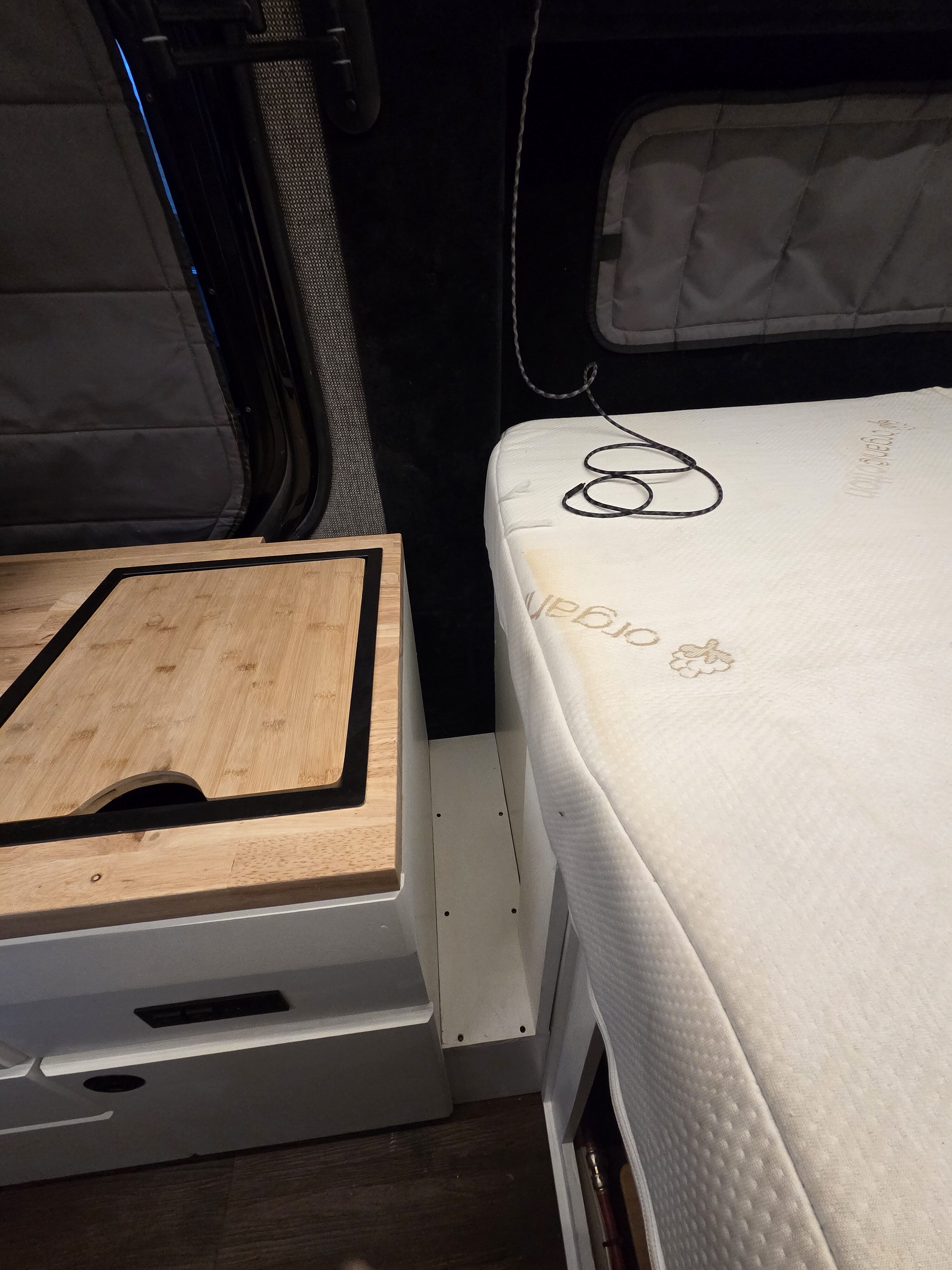

• Fixed, approximately queen-size bed with Flarespace mattress

• Vanspeed side capsules for additional sleeping space

• Bedding included

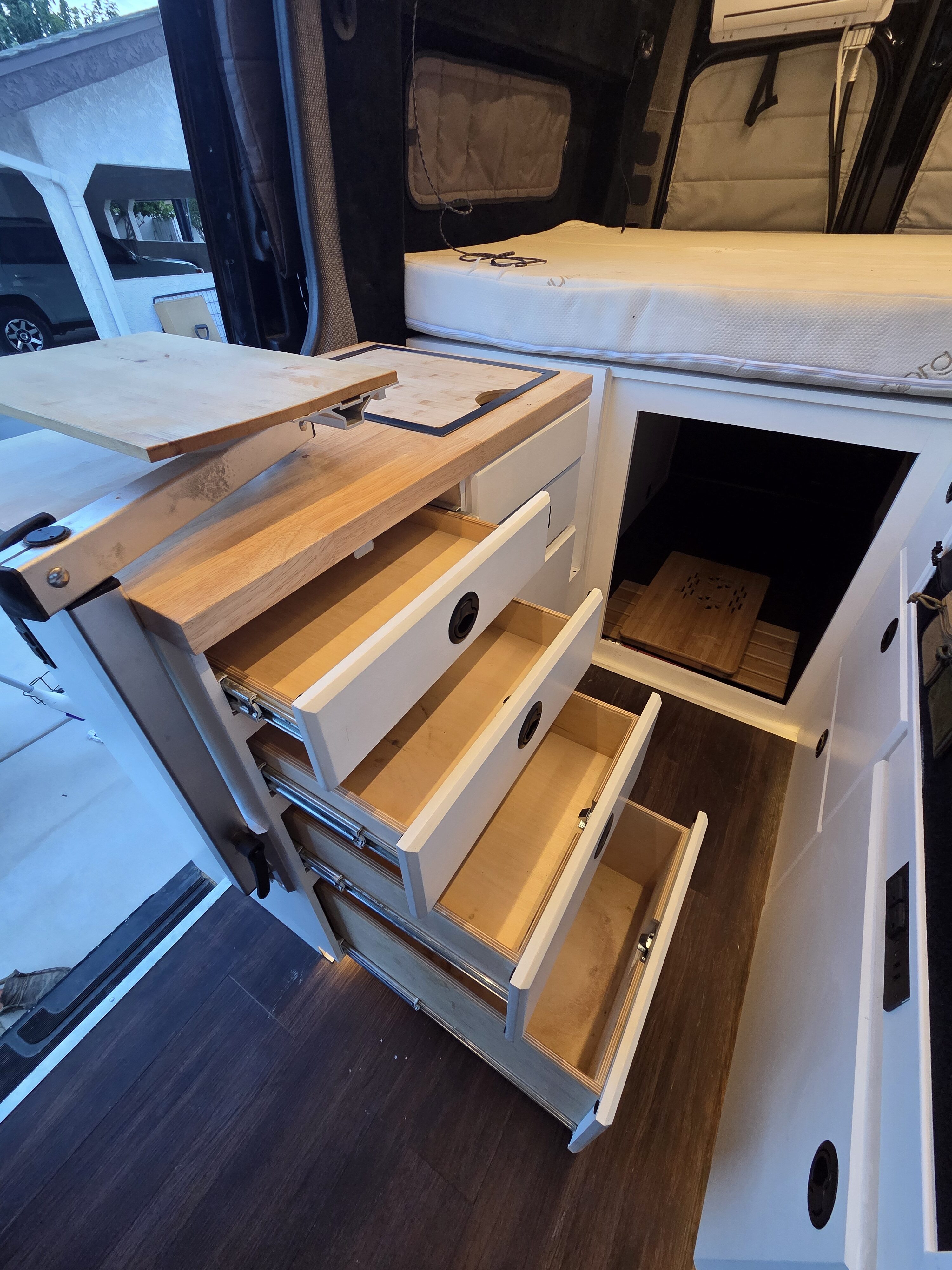

• Baltic birch plywood cabinetry

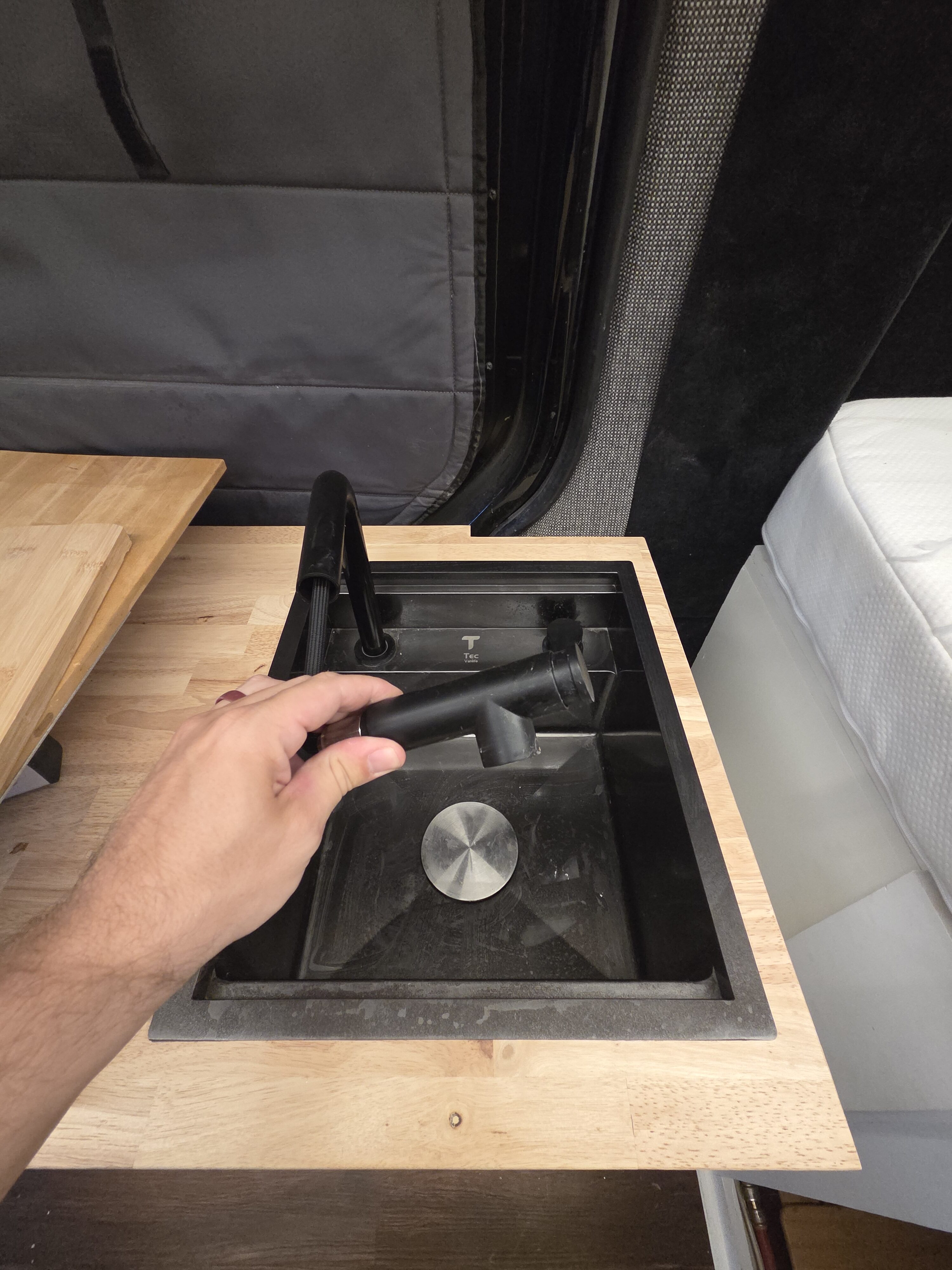

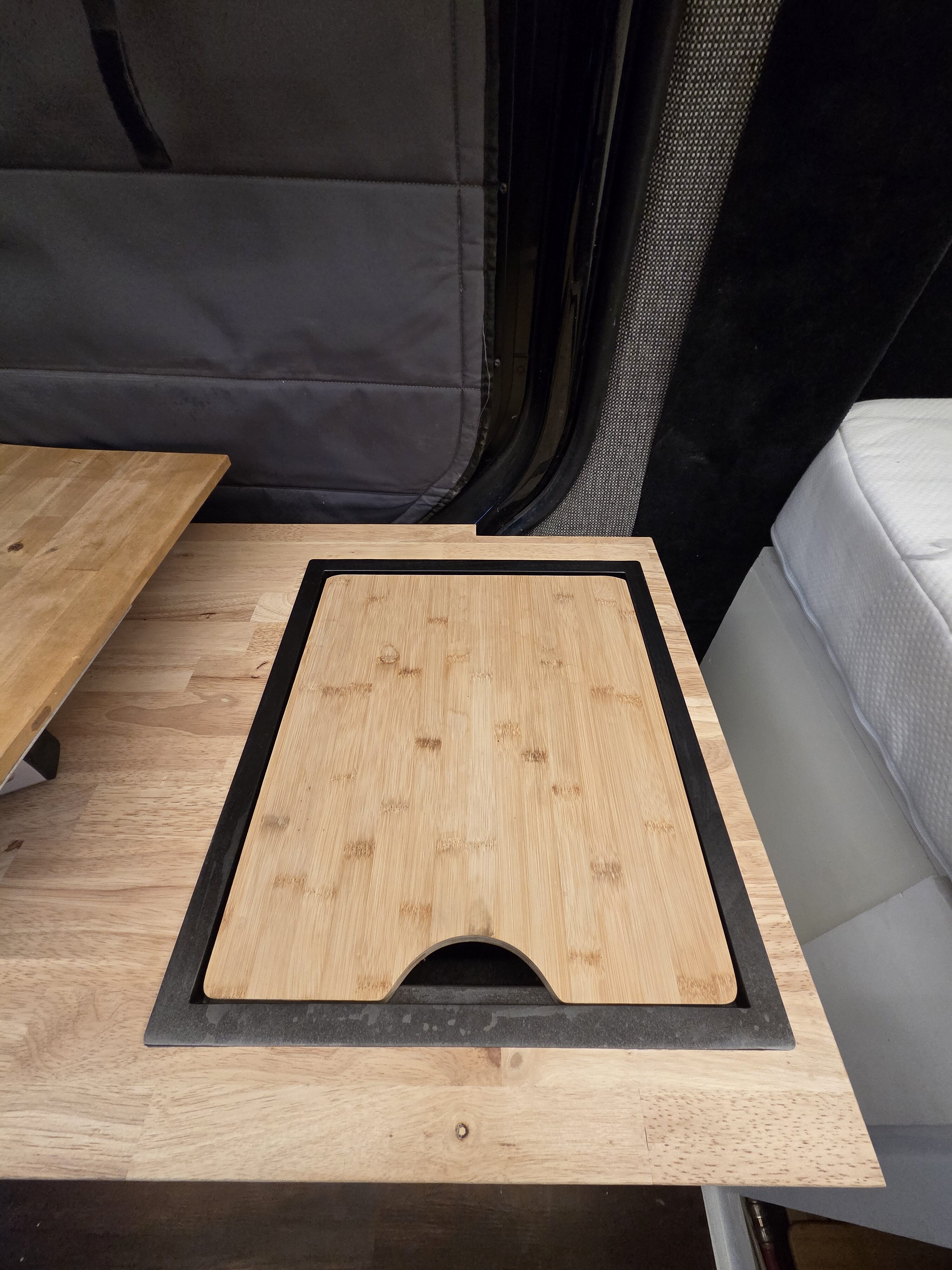

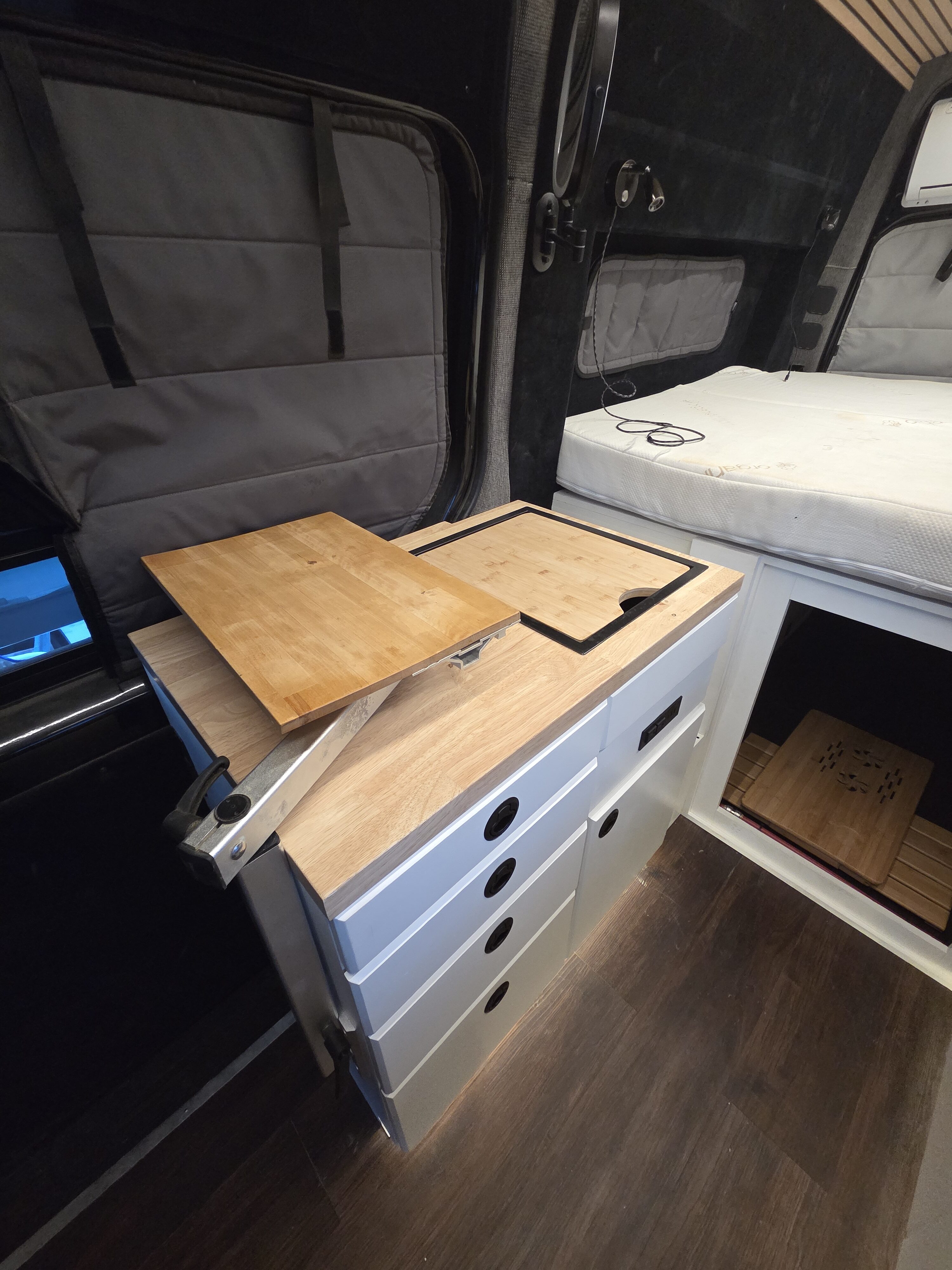

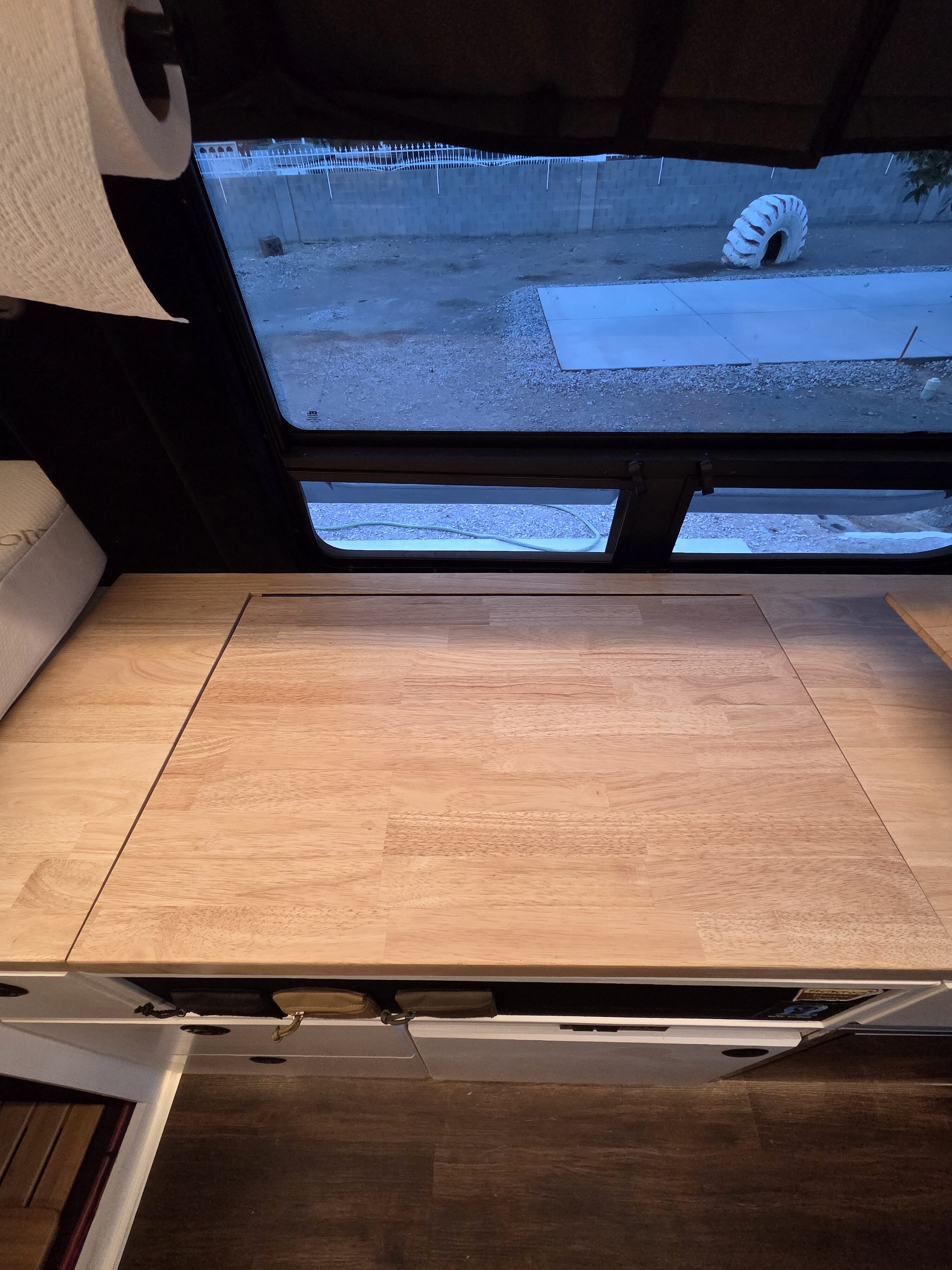

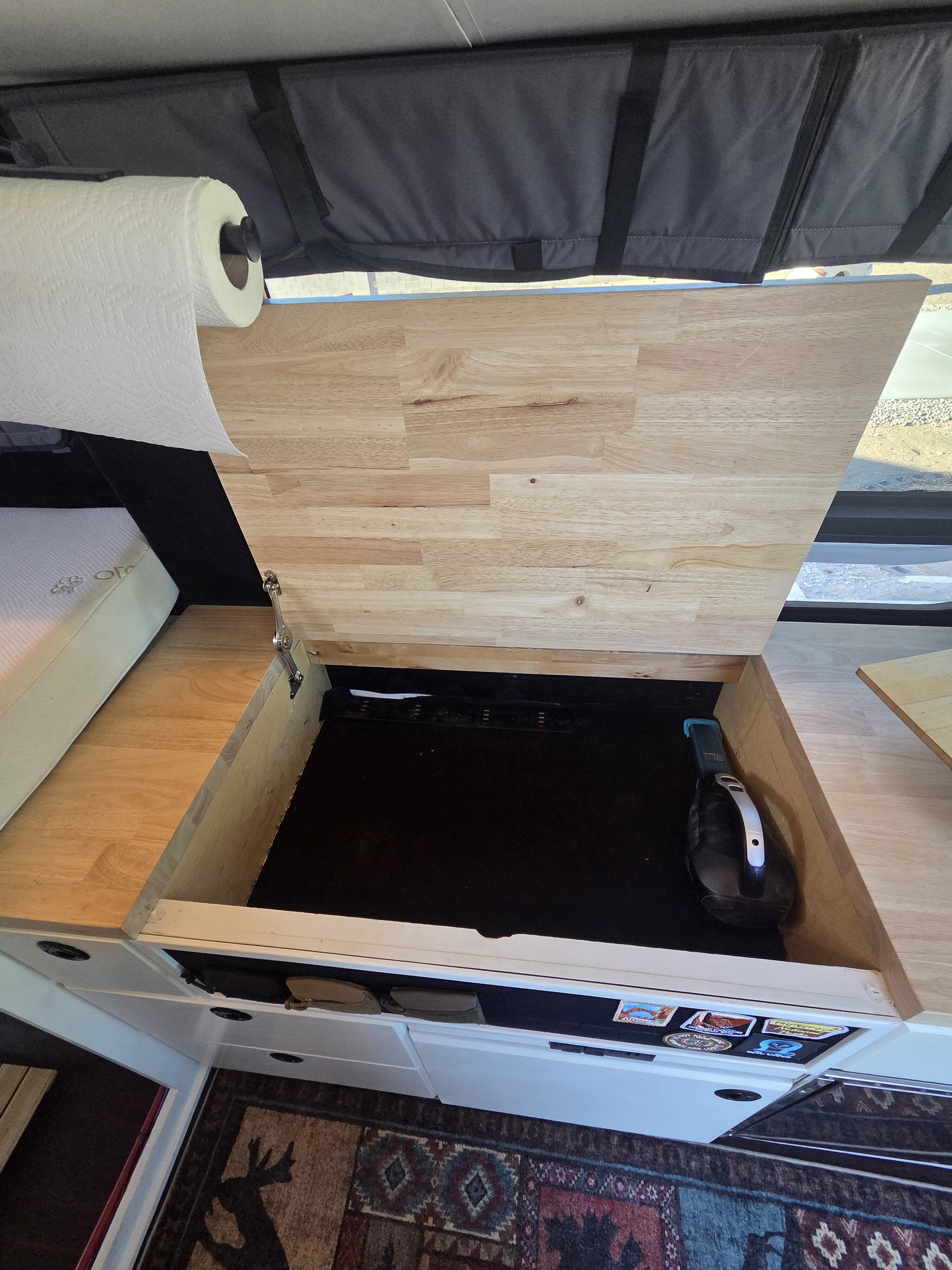

• Recently installed countertops and cabinet latches

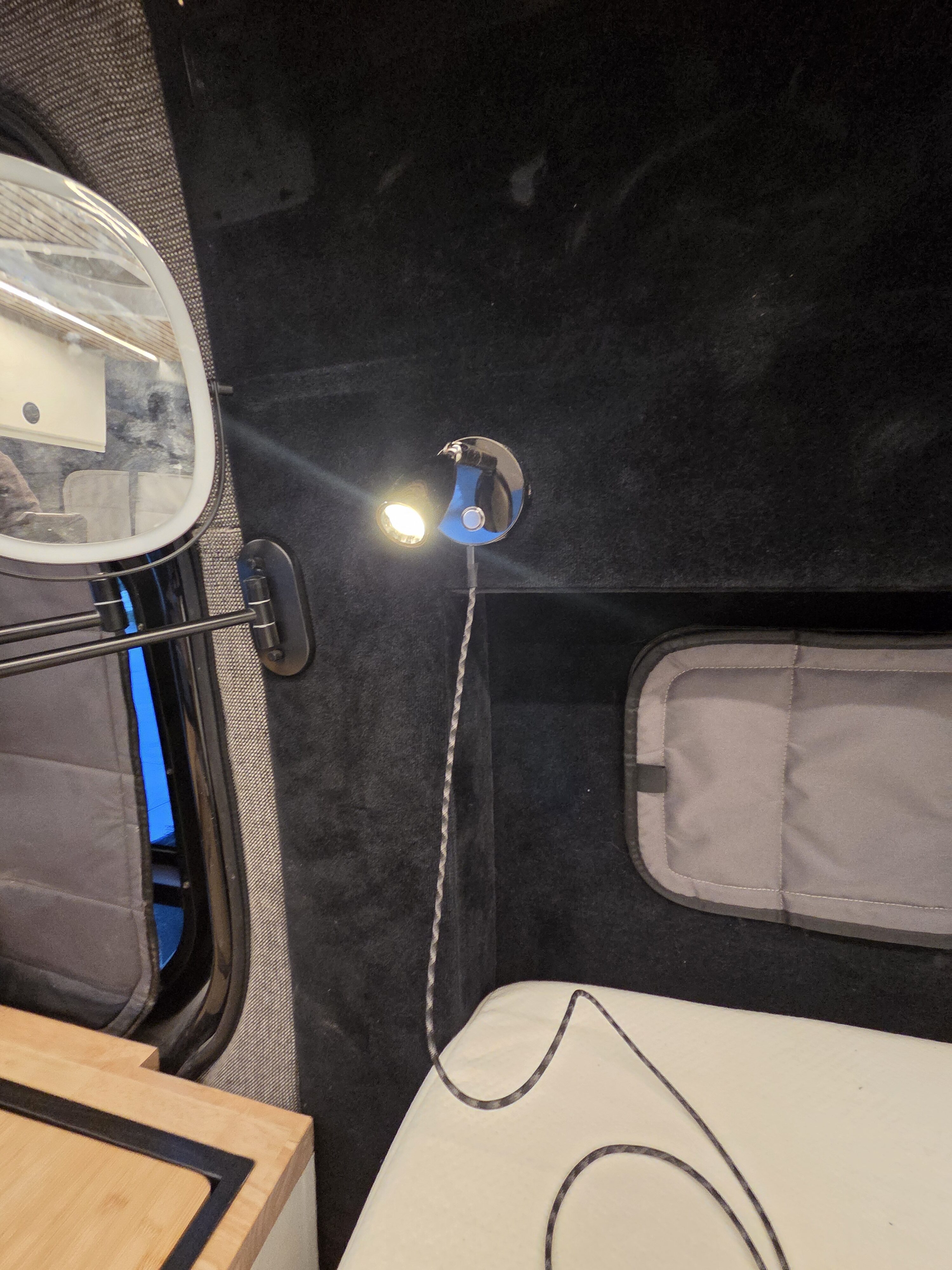

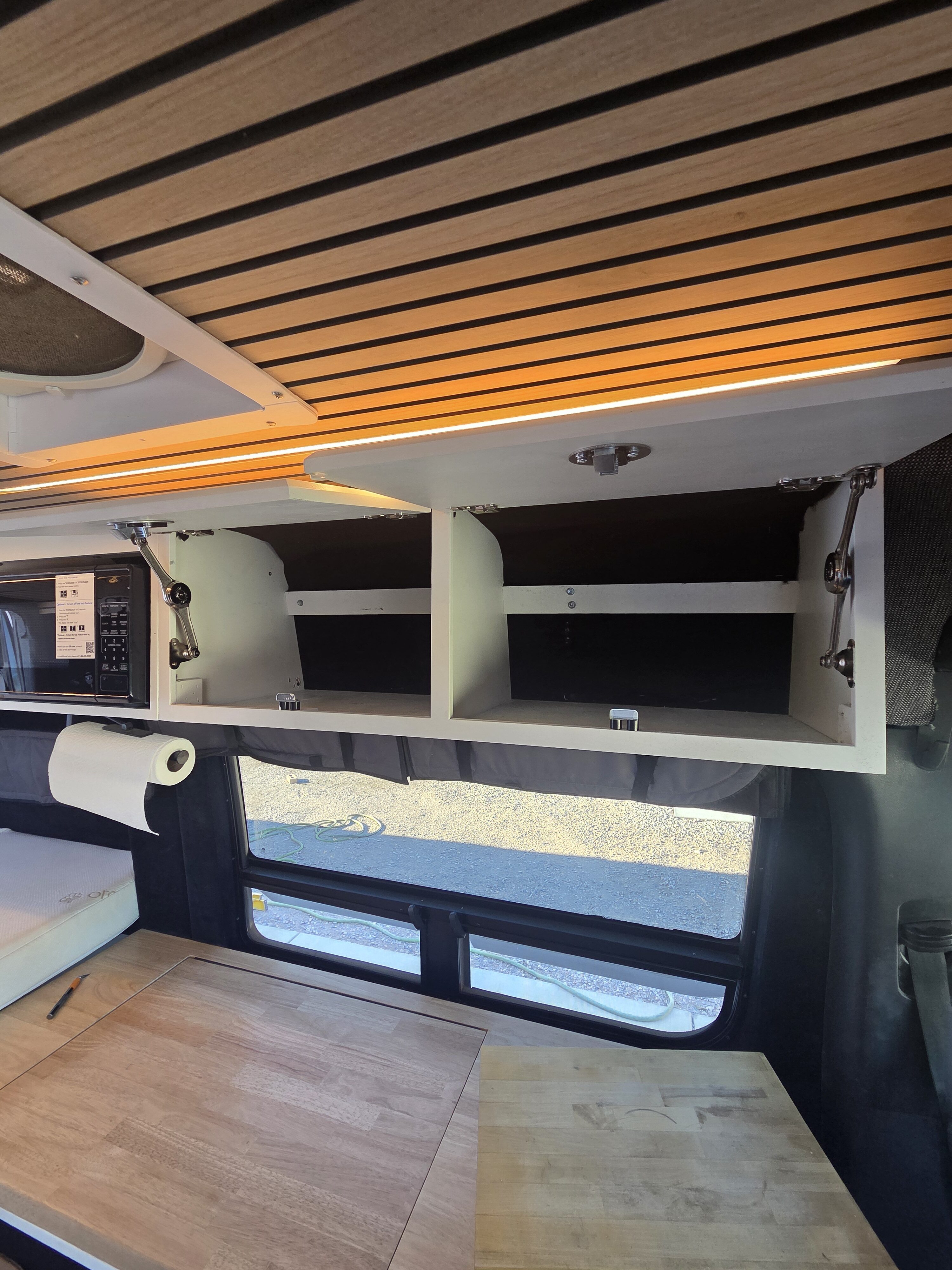

• Slatted ceiling with warm integrated lighting

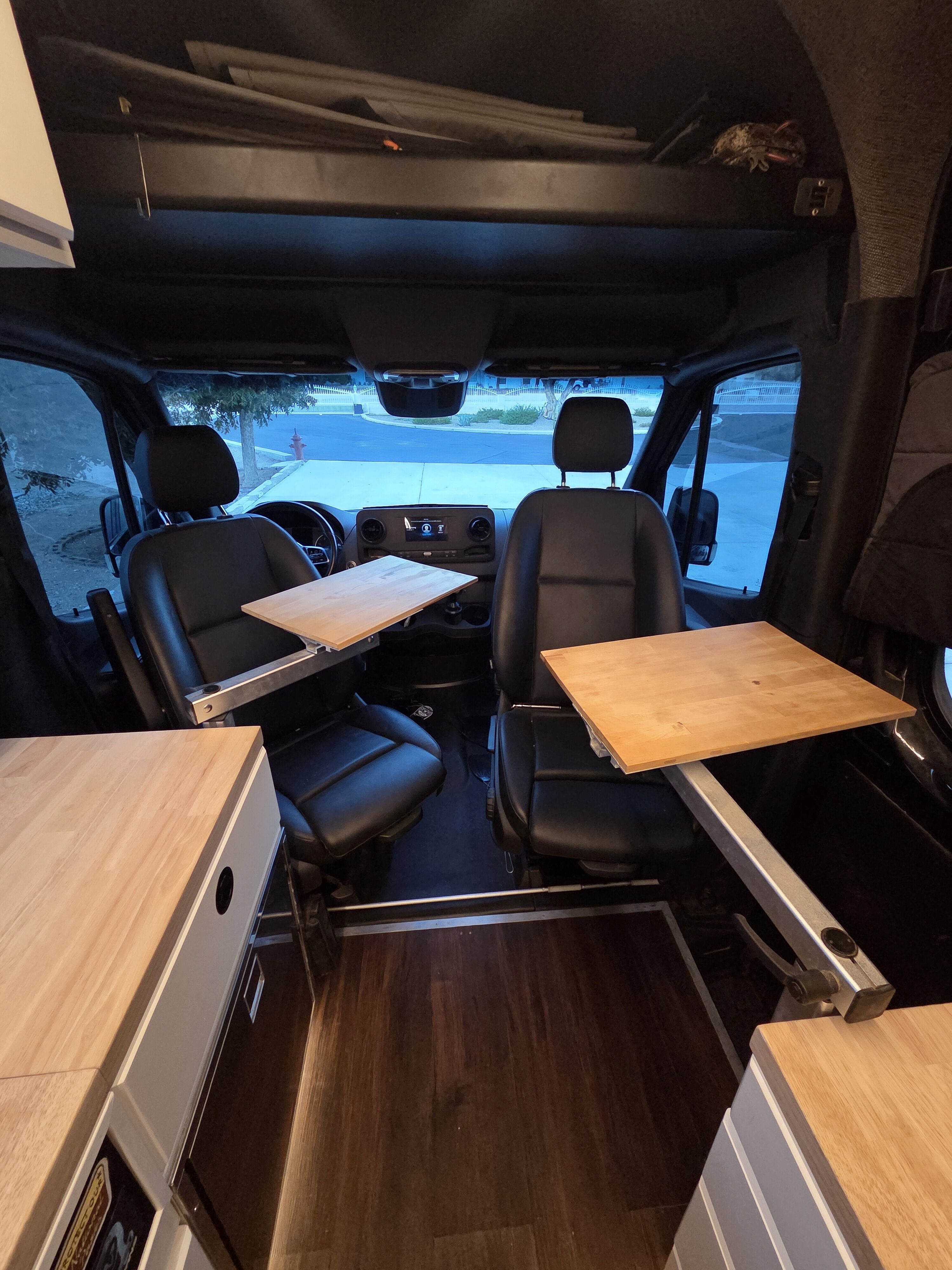

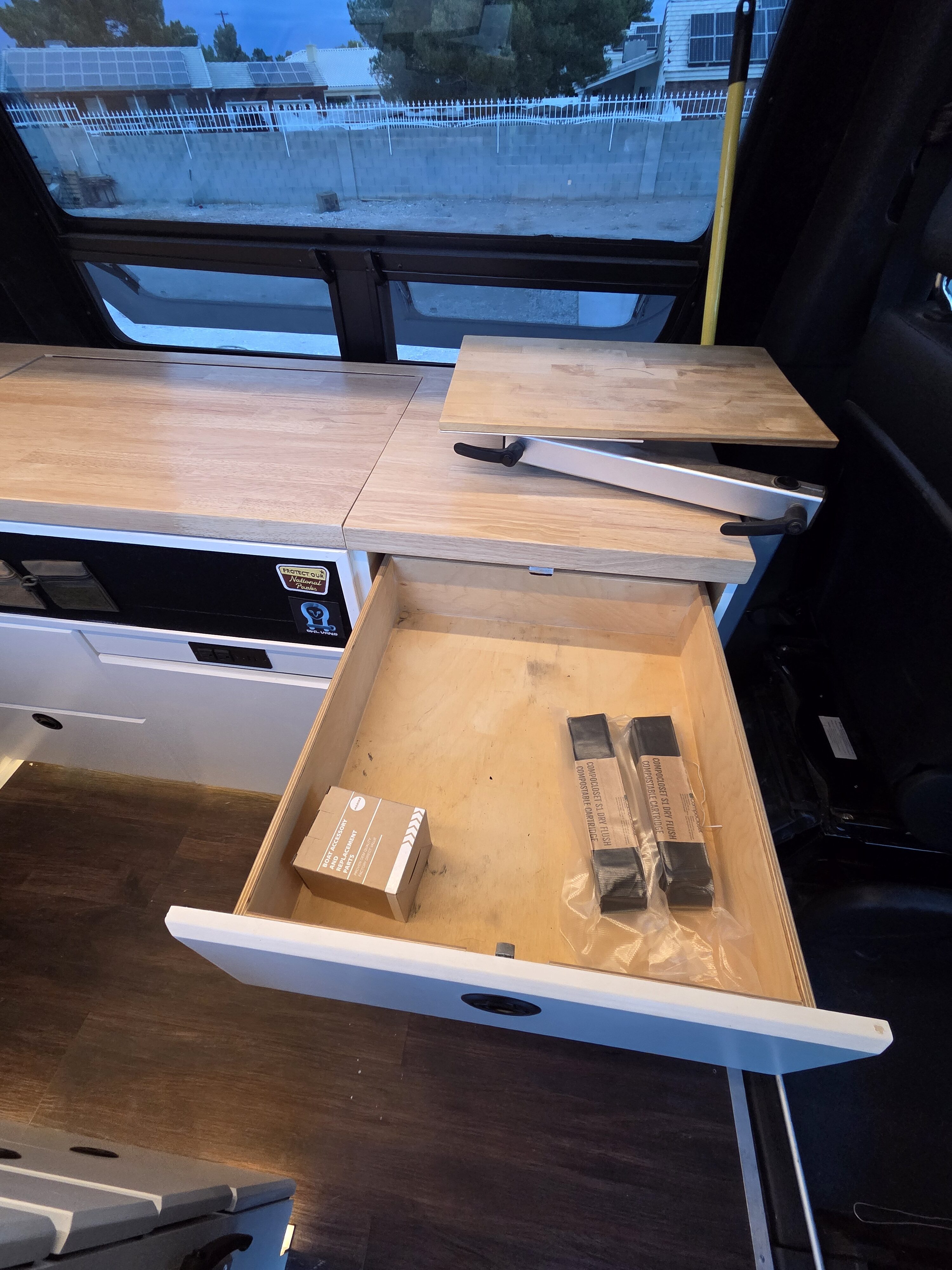

• Both front seats swivel, with individual adjustable tables for working or dining

• Two belted travel seats

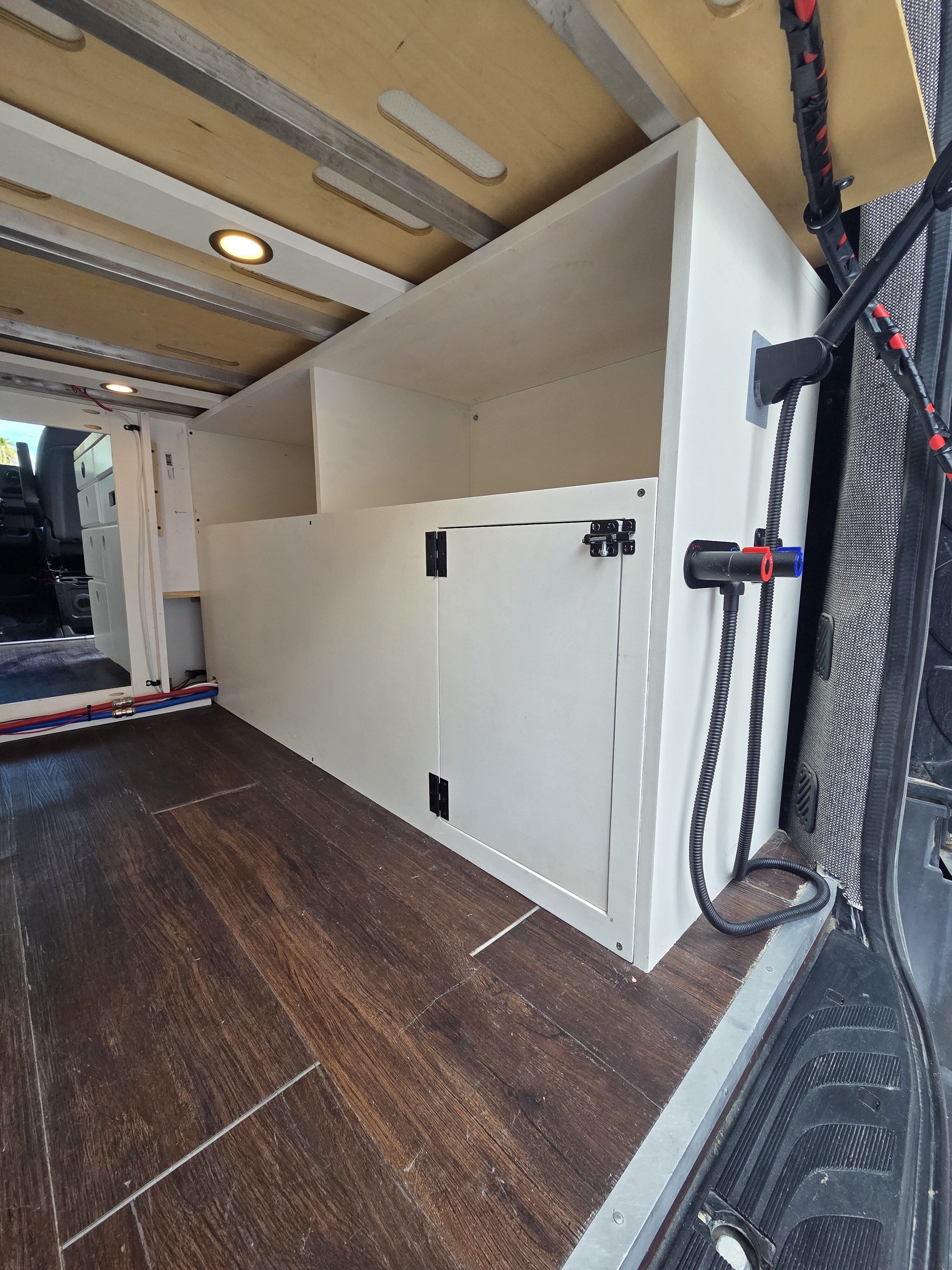

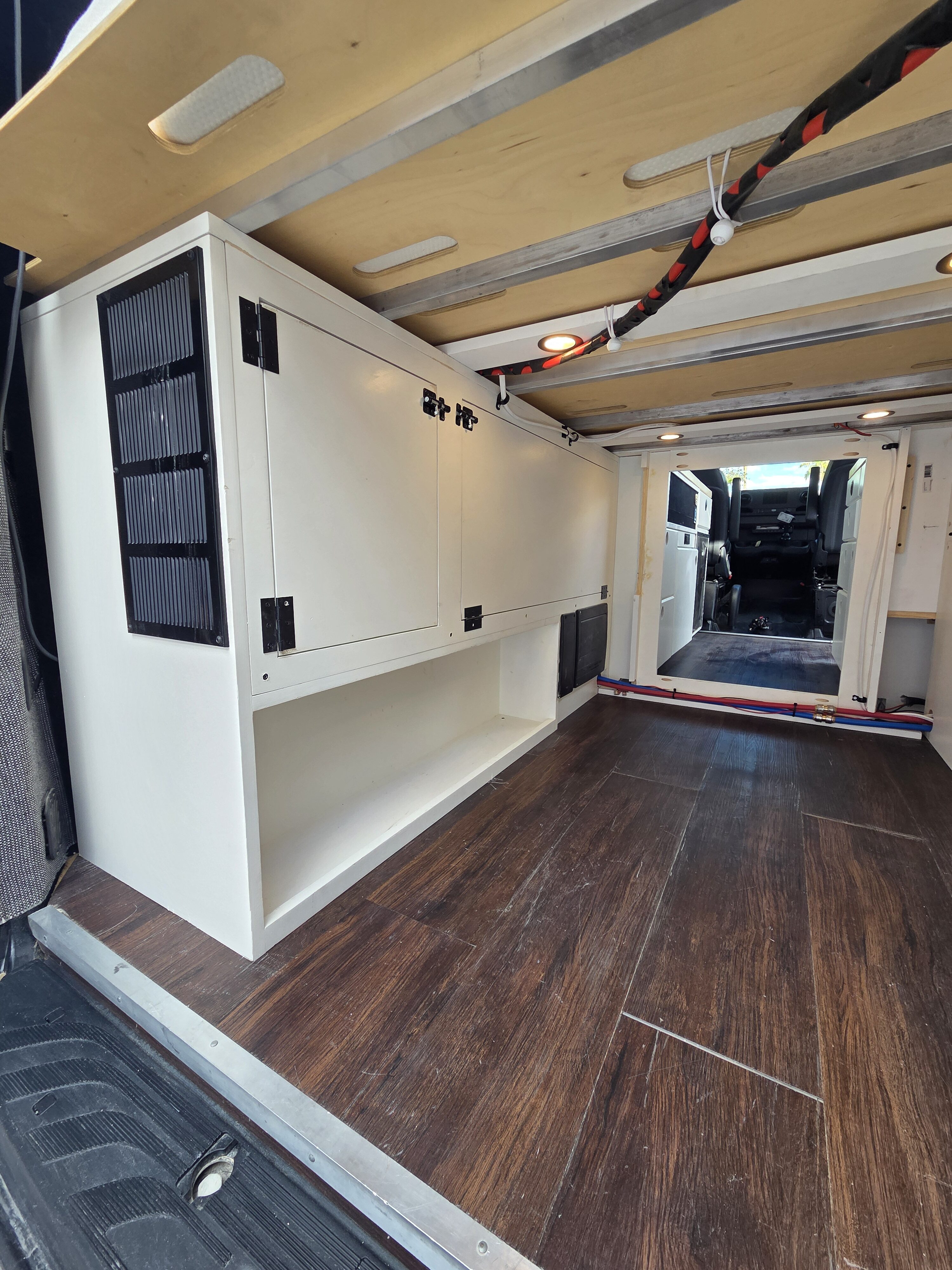

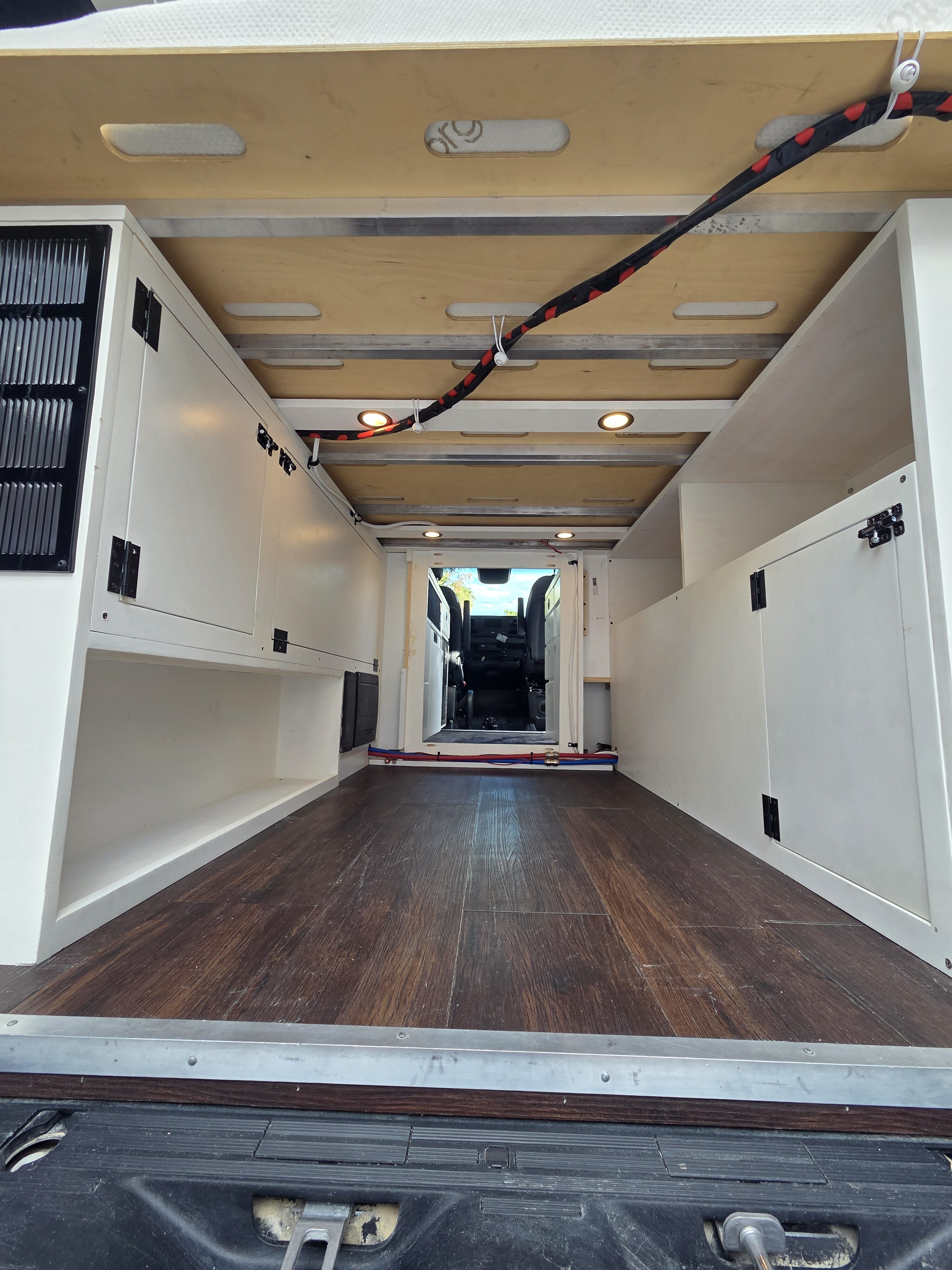

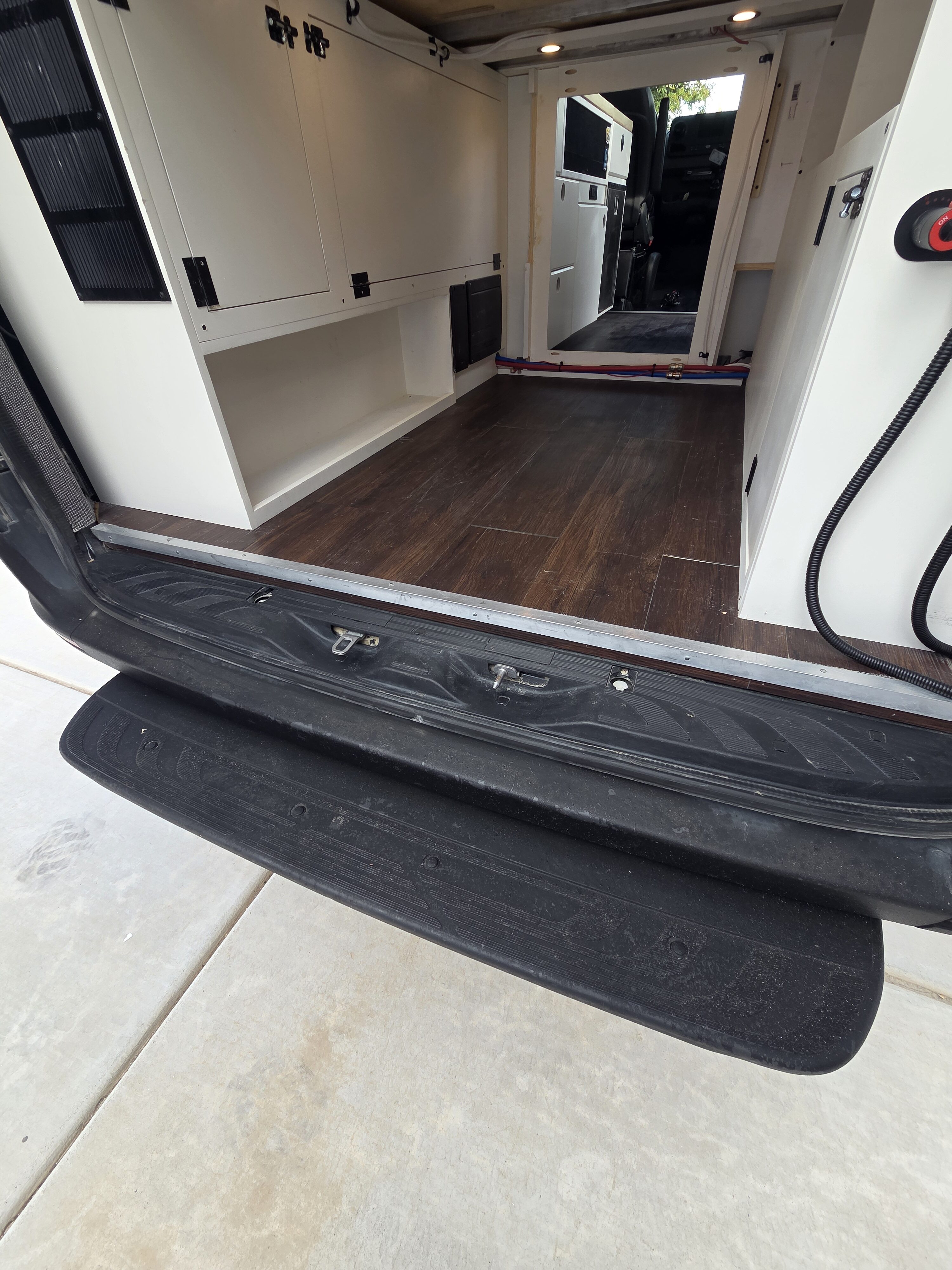

• Large garage beneath the raised bed

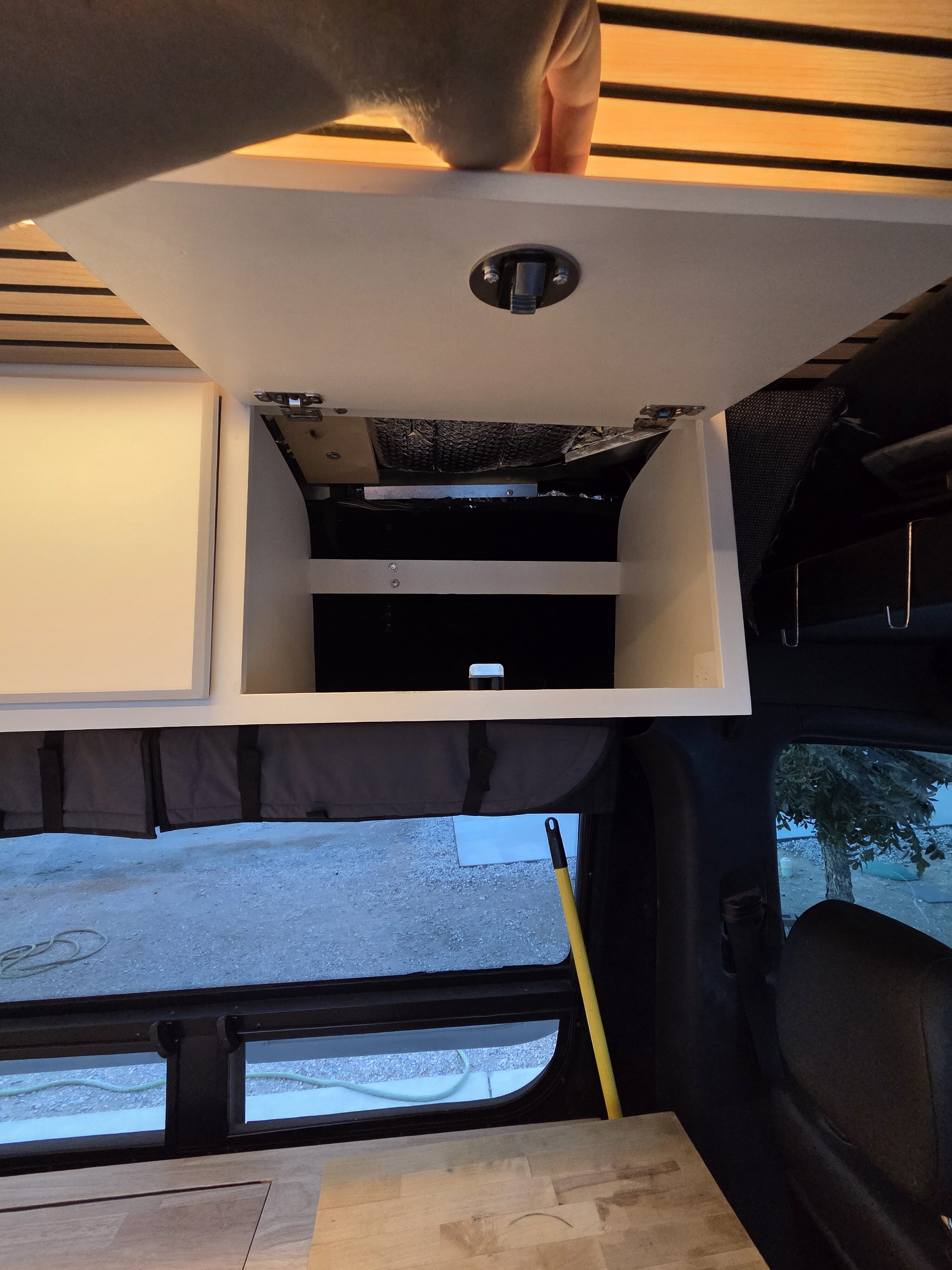

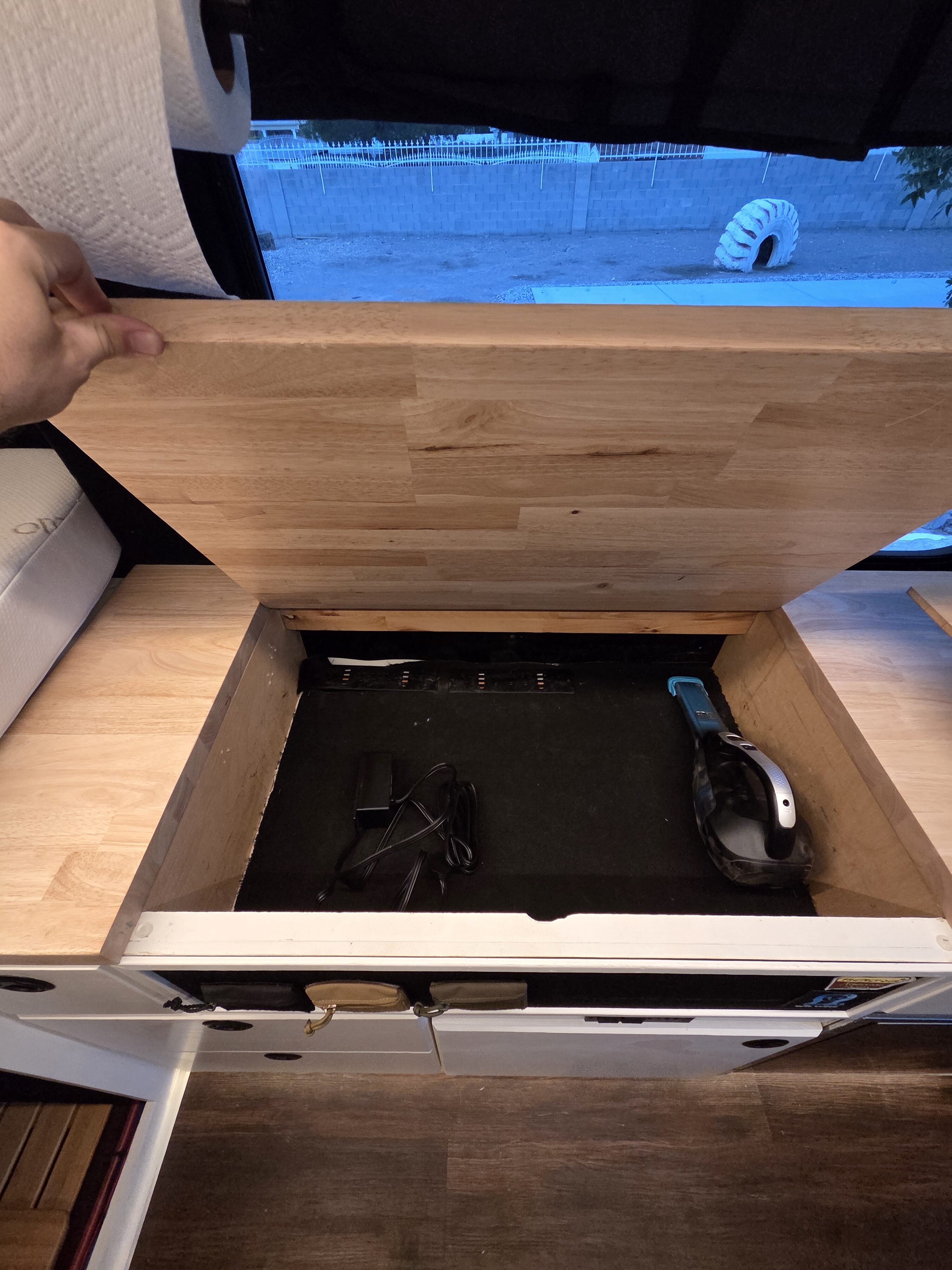

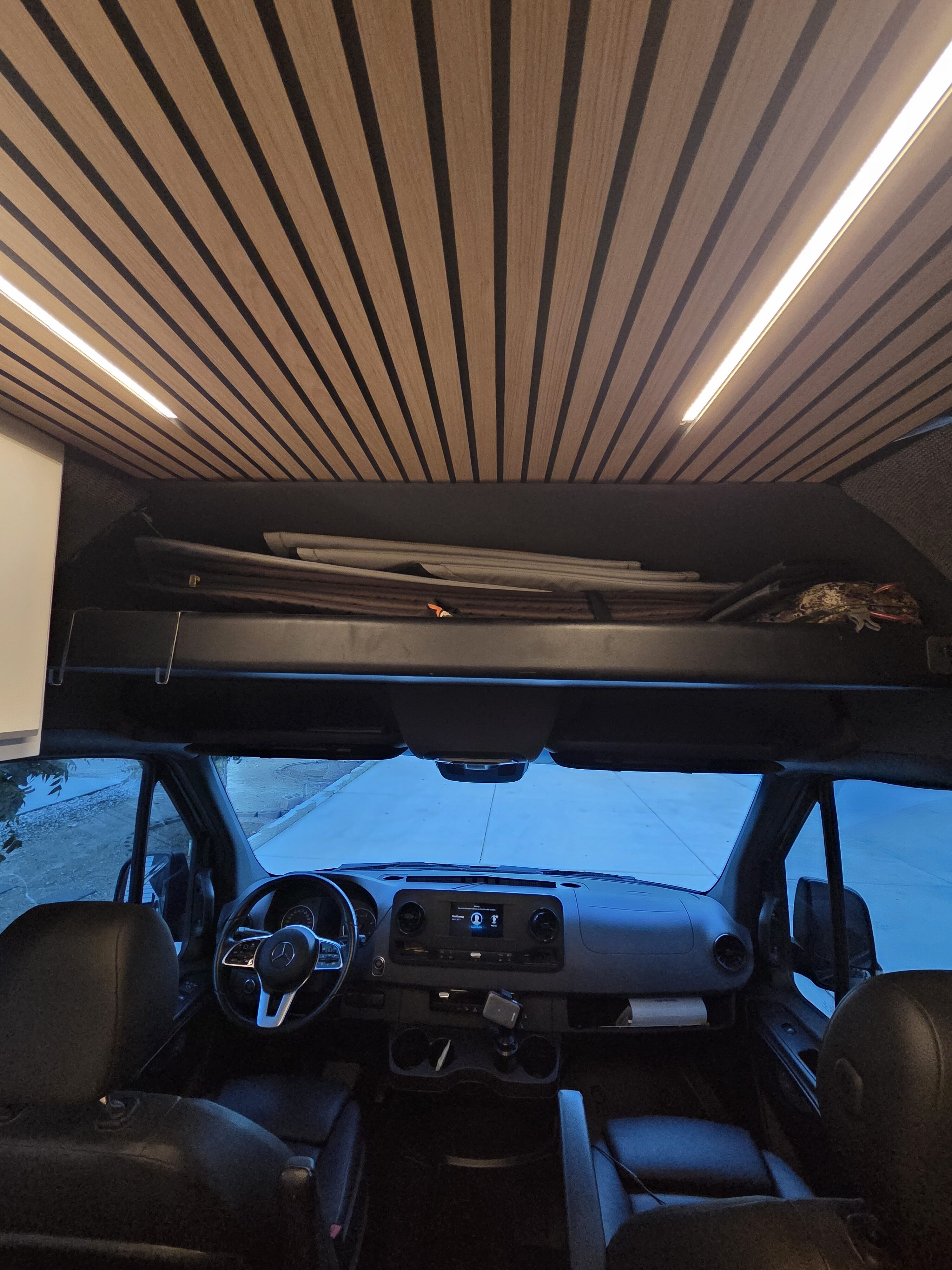

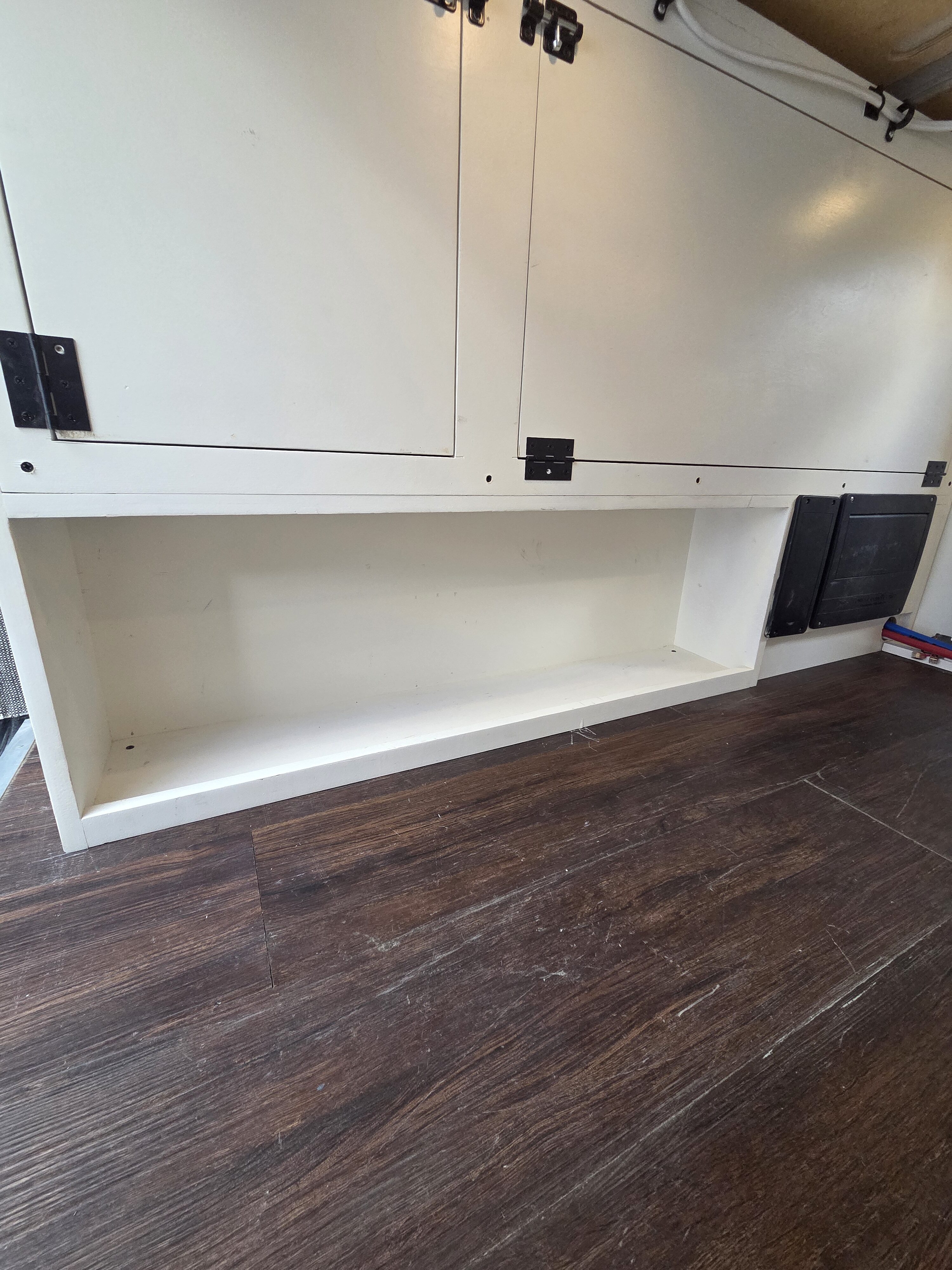

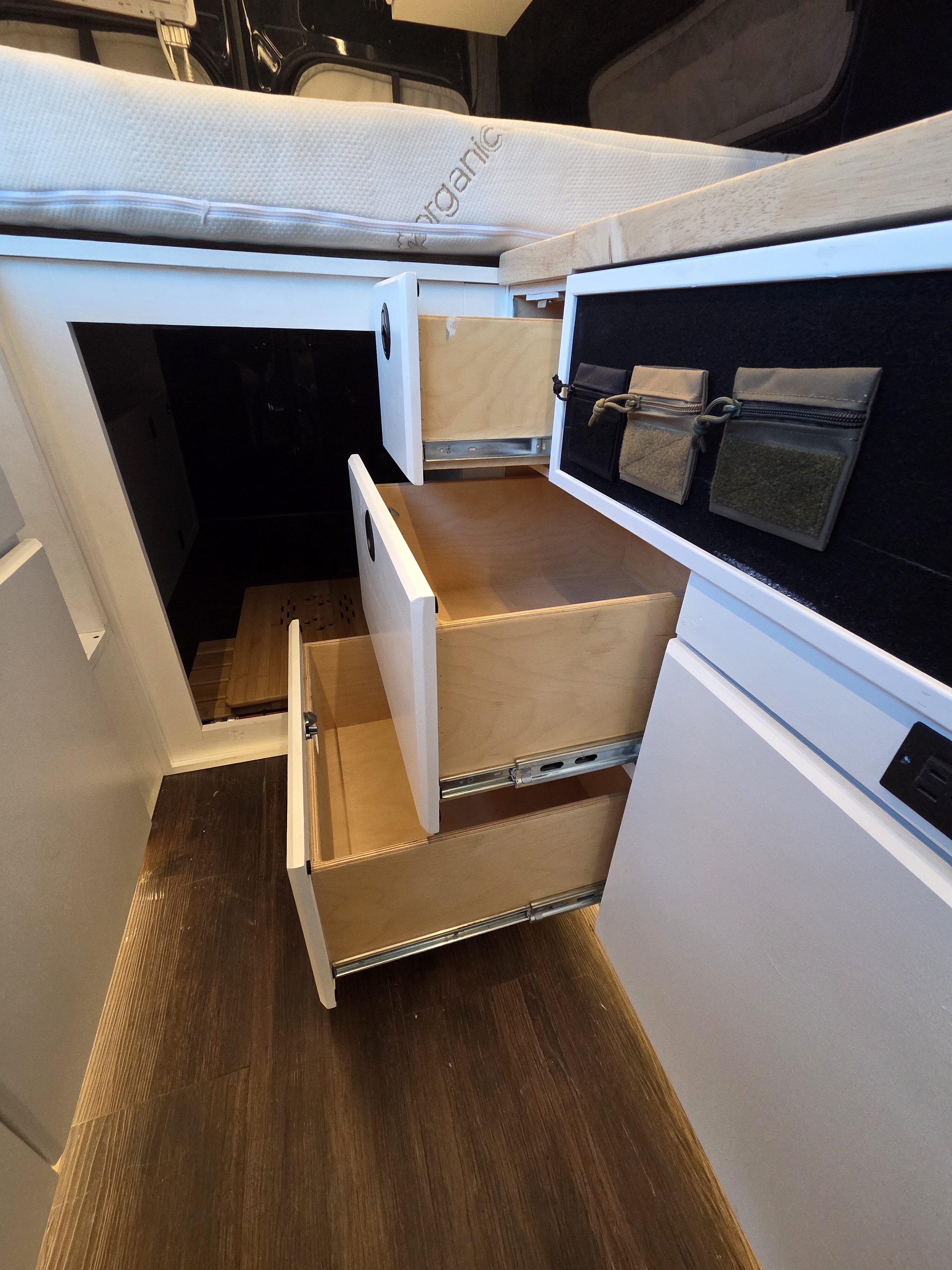

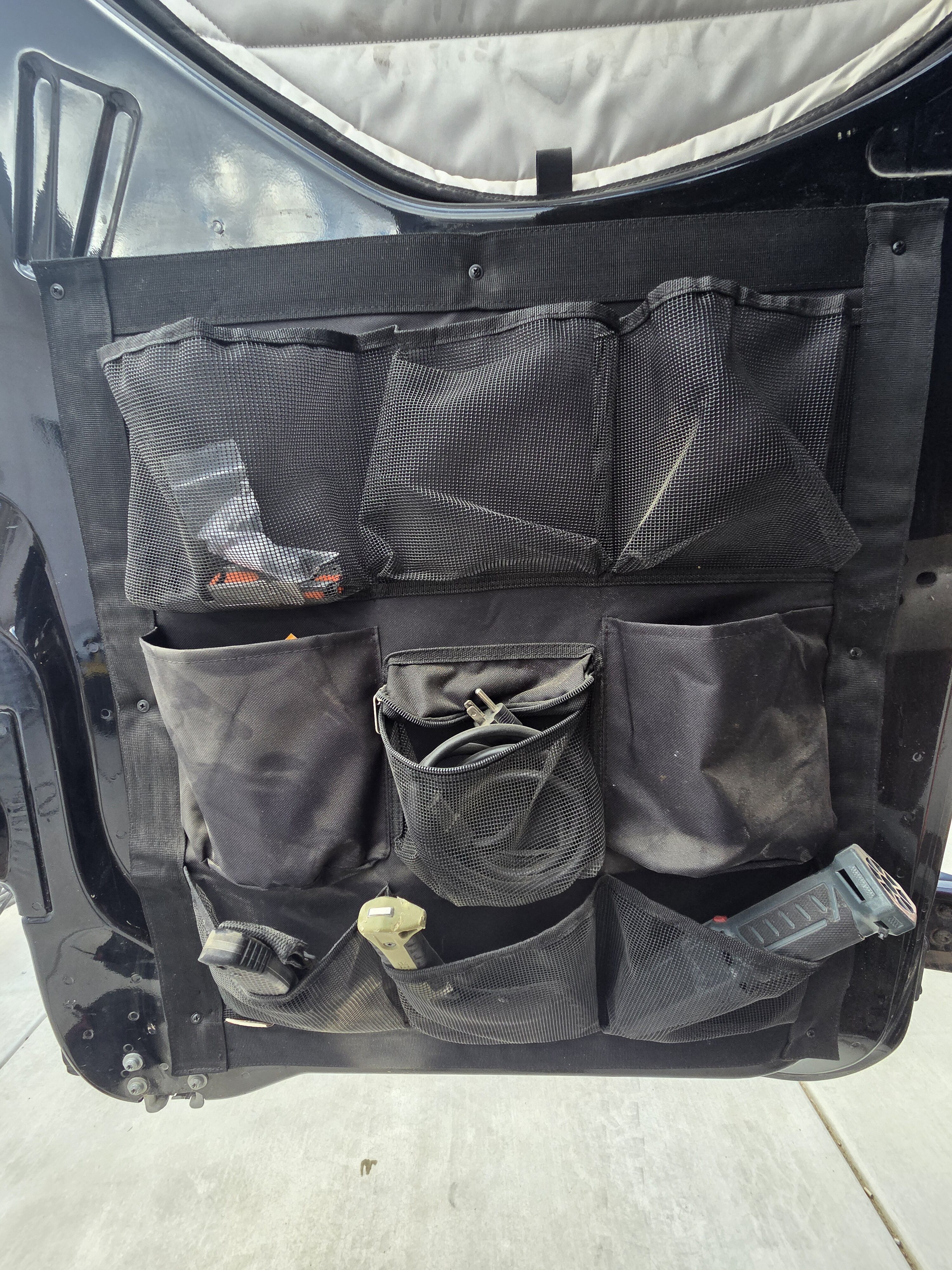

• Over-cab shelf, interior rear-door storage, and additional storage throughout

• Patch wall for compatible pouches and accessories

KITCHEN, WATER & BATHROOM

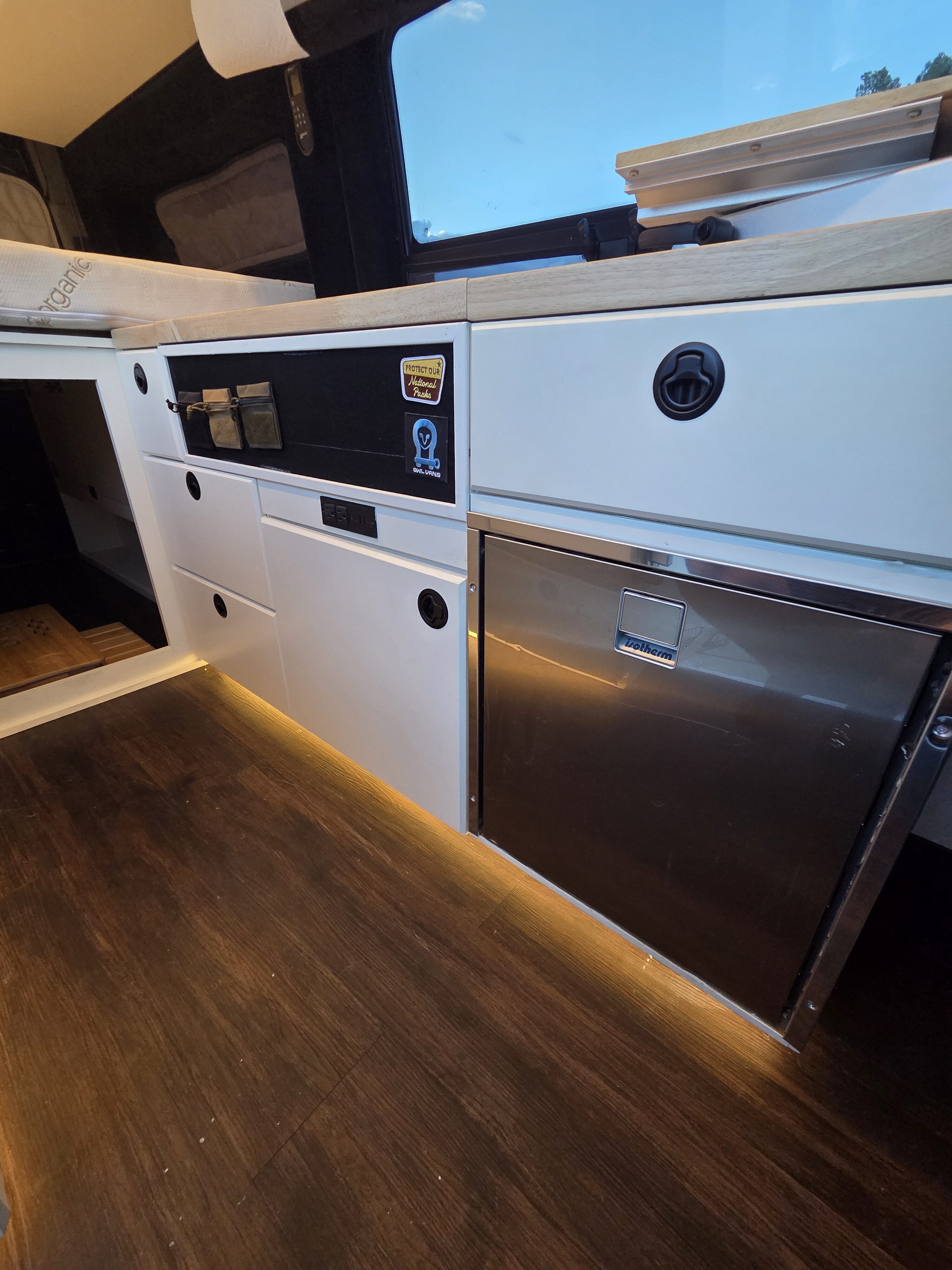

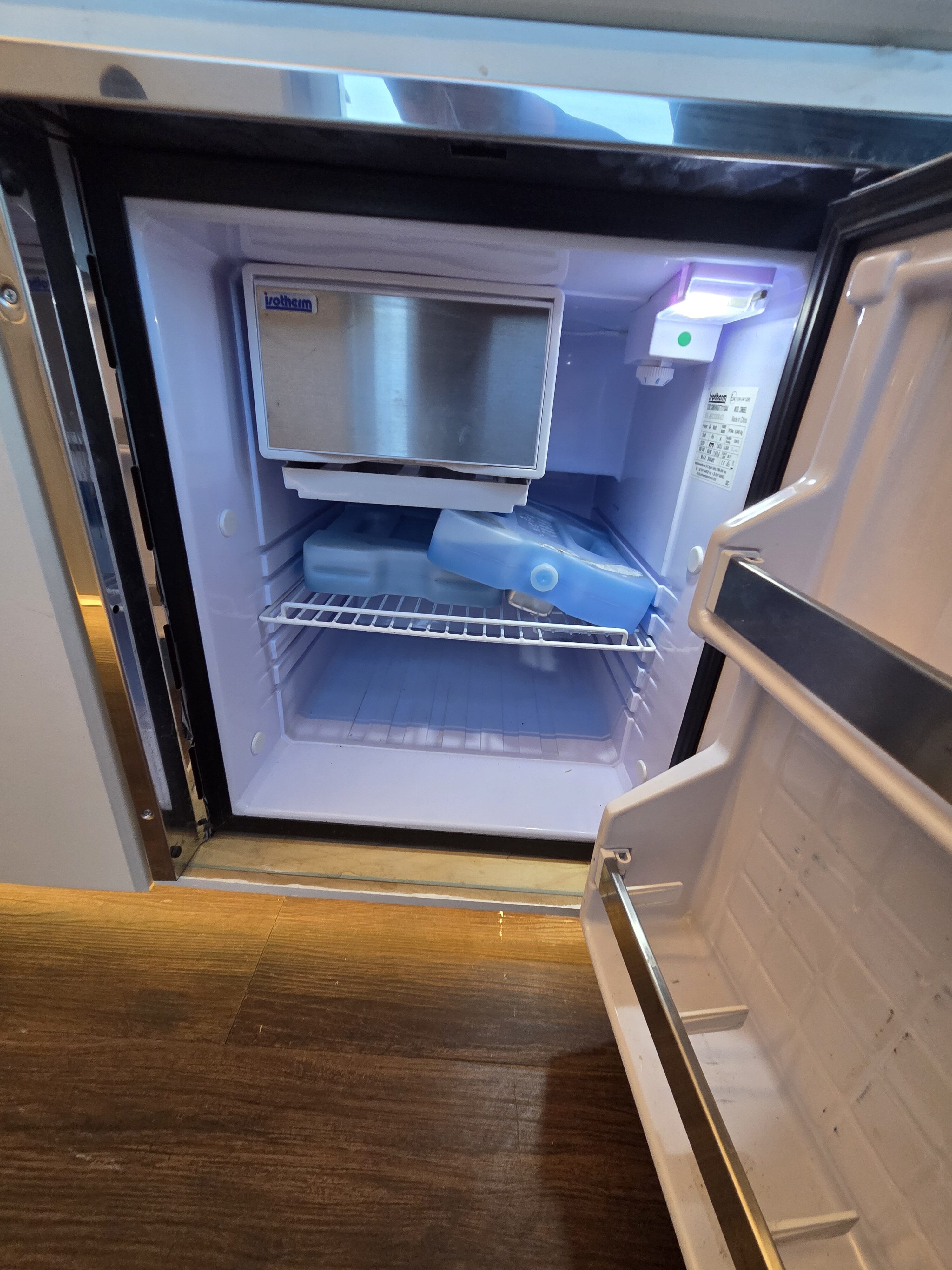

• Isotherm Cruise 65 refrigerator

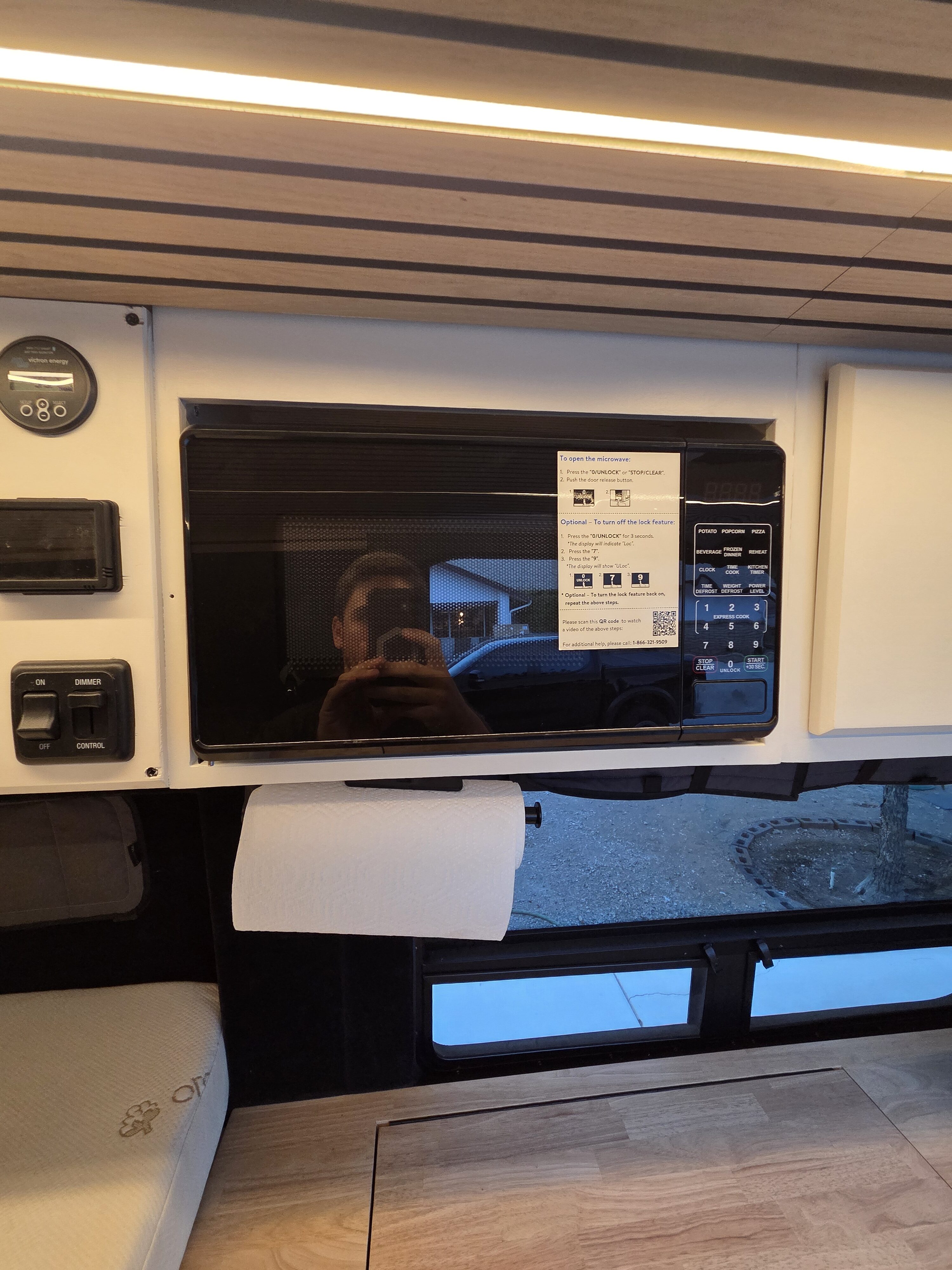

• Microwave

• Portable two-burner propane cooktop included

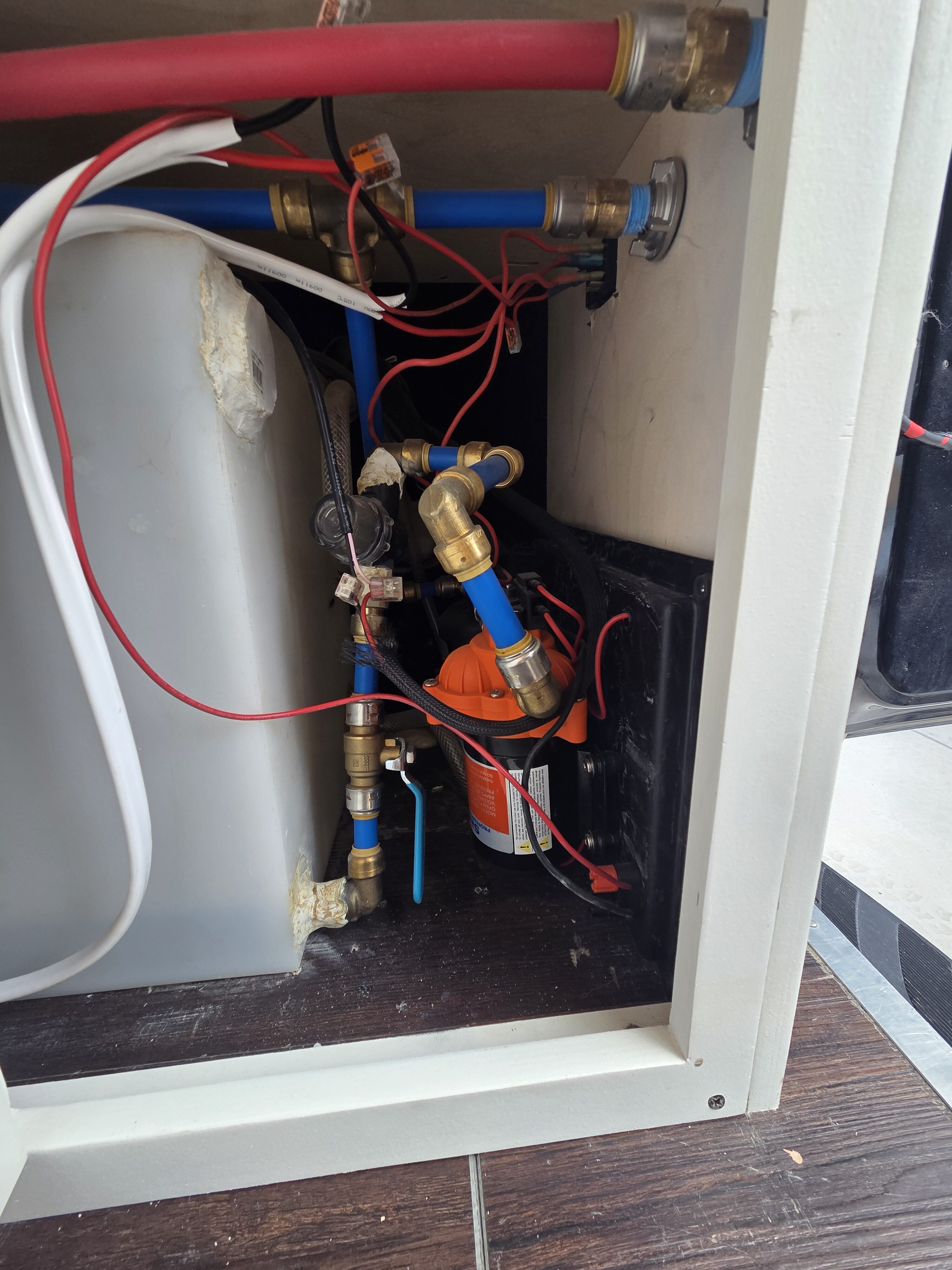

• 20-gallon fresh-water tank

• Approximately 4-gallon engine-heated water heater—about 24 gallons of fresh water onboard when both are full

• 11-gallon gray-water tank

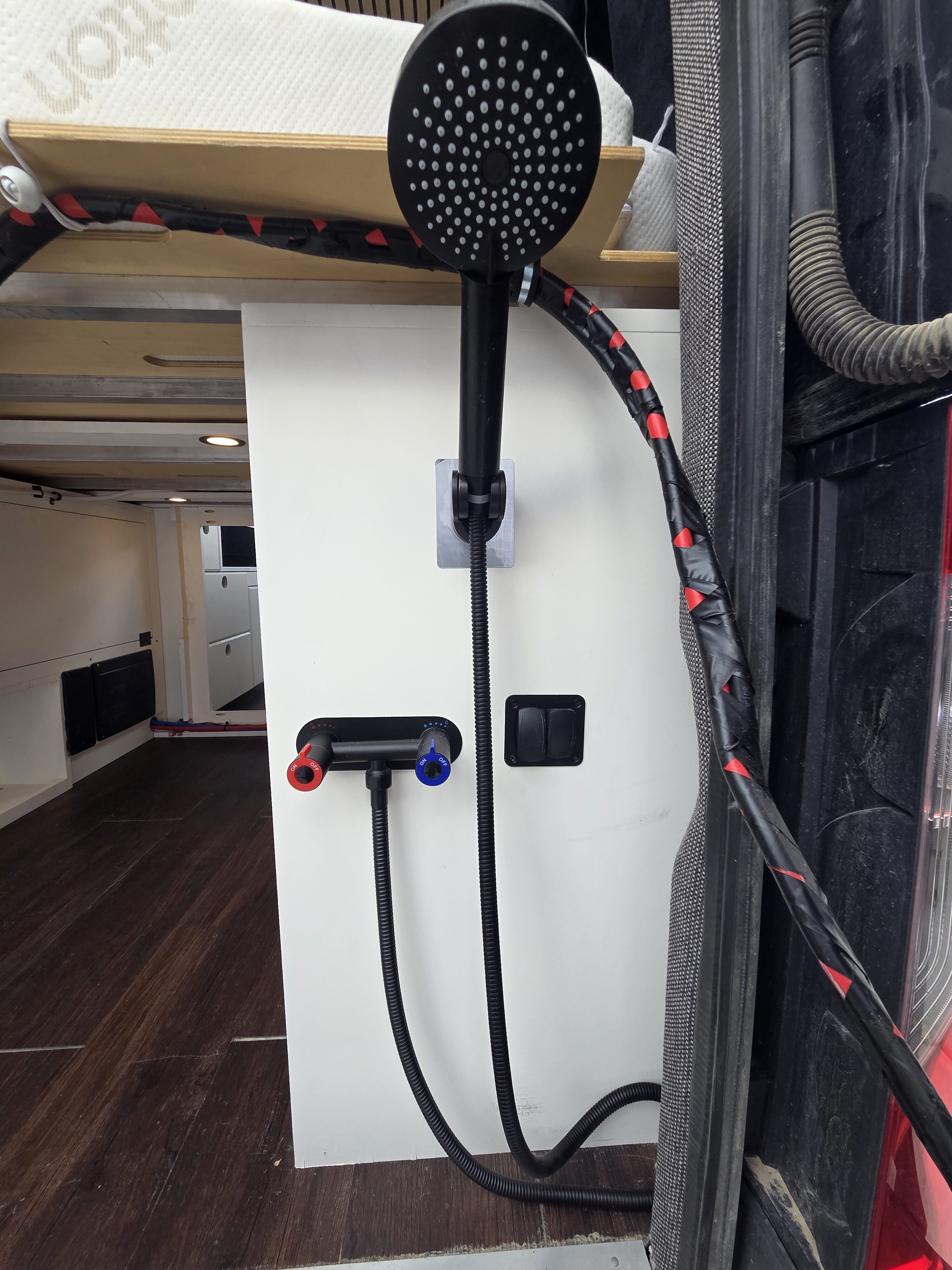

• Outdoor hot-and-cold shower

• Rear-door shower curtains and shower base included

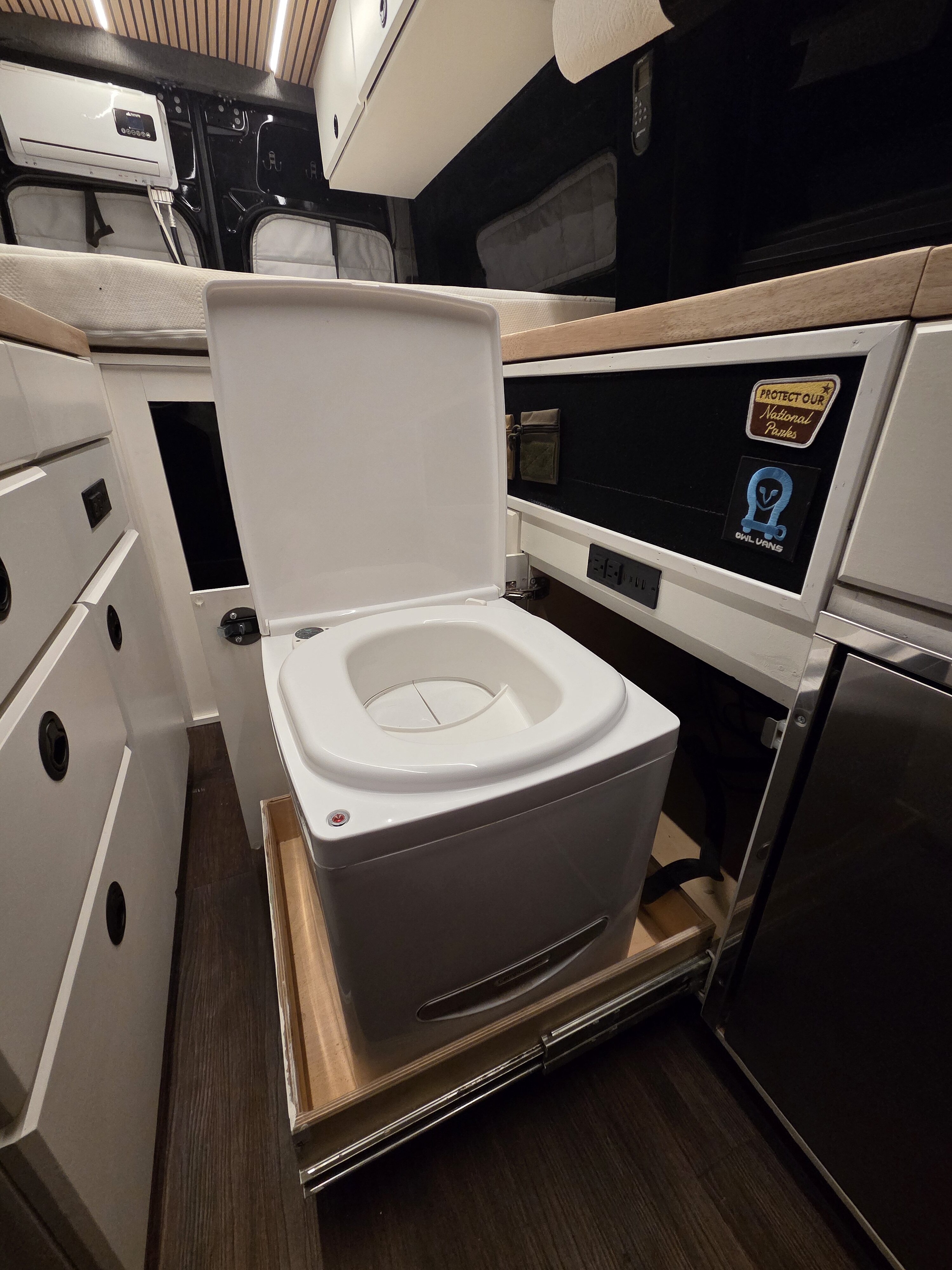

• Compo Closet Cuddy Lite toilet modified with a dry-flush setup and separate liquid collection

• Original toilet solids bin included for conversion back to its original configuration

An electric water-heater element is included but is not installed. The current hot-water setup uses engine heat.

CONDITION & DETAILS TO KNOW

This is a used, owner-built camper van with normal wear from travel. I’ve kept up with regular servicing, primarily through a local shop, and can request service records for interested buyers. The brakes were recently serviced, the tires have approximately 15,000 miles on them, and the inverter is new. All installed systems are currently working.

There are two details I want buyers to know:

• The fuel gauge sometimes reads inconsistently with the larger aftermarket fuel tank. This has not been corrected.

• An item inside the van slid into and broke the left-rear glass, which I replaced with a carbon window panel. This was not from a vehicle collision. The right-rear window remains factory glass; the matching replacement kit is included, uninstalled.

INCLUDED & SHOWINGS

The van comes with the listed equipment and pictured van accessories. Shower curtains and base, insulated window covers, bedding, cooktop, Starlink equipment, and leveling blocks are included.

I’m happy to give the buyer a thorough walkthrough of the van and its systems.

Available to view in Las Vegas, Nevada. Message me with questions or to arrange a showing.

Asking $98,000.
