2022 Mercedes Sprinter 4×4

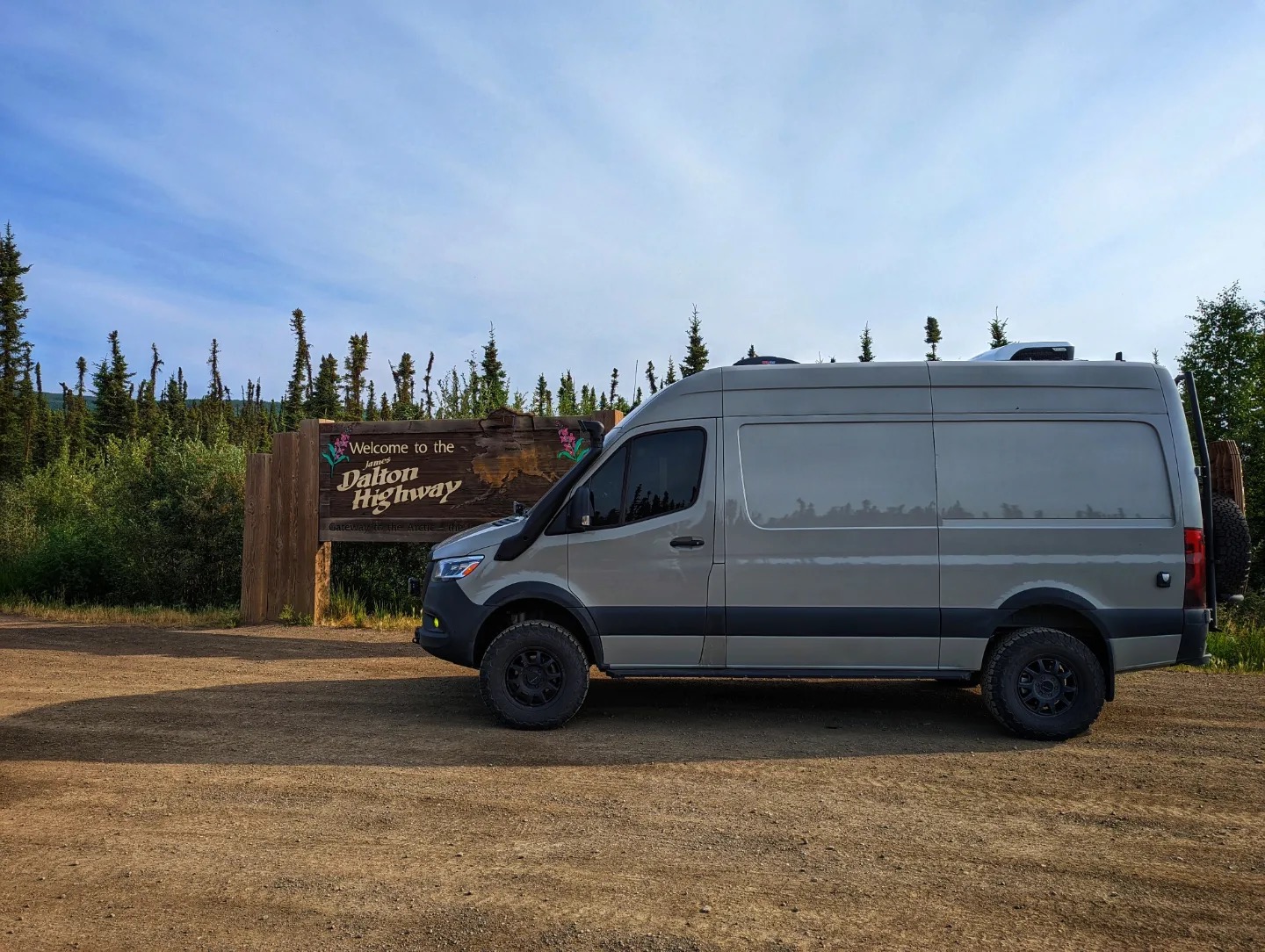

We initially built this van for a Summer trip to Prudhoe Bay, AK and across nearly all of Canada, which it accomplished with ease. Since then it has taken us back and forth across the US numerous times, been our basecamp for 3-5 week ski trips every year, and taken us everywhere else we’ve wanted to go with it. Life changes, and needs change, and unfortunately for us, it’s time for the van to find a new home for continuing adventures!

The van was built thoughtfully and practically as a DIY build. If you’re looking for a van that is built as a flashy Instagram style, this isn’t what you’re looking for. If you want something that is comfortable and usable, with all the necessities, keep on reading! It started life as a brand new Sprinter 2500 4×4 cargo van, and upon making the 400 mile drive home, the work started.

Some highlights:

1. 3M Thinsulate, TAI, Minicell, and Low-E Foamcore insulation throughout (cab and cargo areas), as well as 80mil CLD acoustic insulation.
2. Espar S2 D2L Diesel heater
3. 700Ah of Battle Born lithium batteries (the drop down menus wouldn’t let me pick 700Ah) with thermostatically controlled heating pads and 3M Thinsulate/Minicell insulation wrap

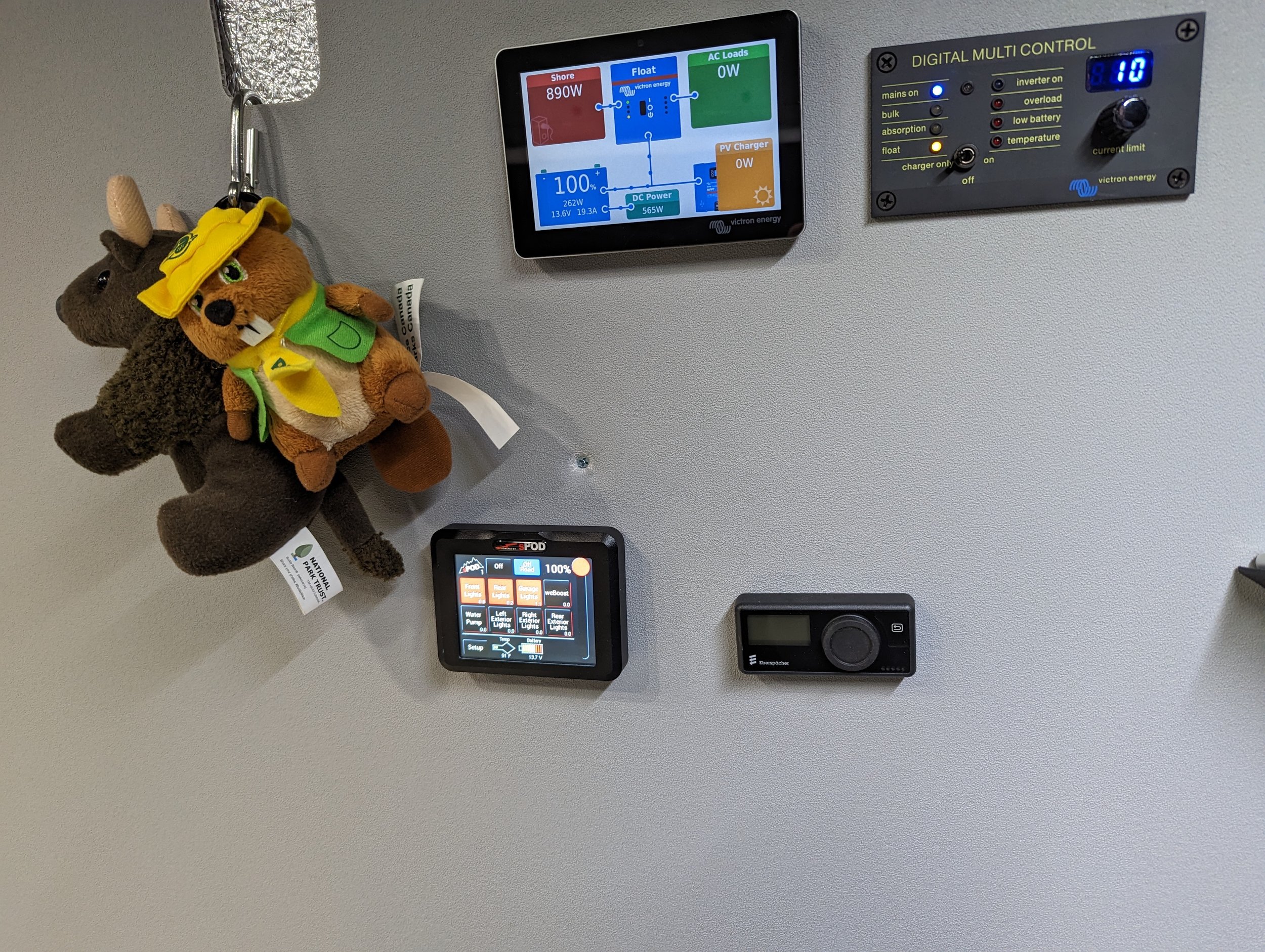

4. All Victron management/monitoring – Smart BatteryProtect, SmartShunt, 2x MPPT Controllers (roof and hood), 3x Orion-TR 30A DC-DC chargers, Cerbo GX, Touch 50 display, Multiplus 12/3000)
5. Thermostatically controlled fans for electrical compartment
6. RUUVI temperature sensors integrated into Cerbo GX for numerous areas and exterior
7. Blue Sea remote battery switch and distribution throughout
8. Blue Sea AC breakers
9. 350w Solar on the roof (2x 175w Renogy panels)
10. Cascadia 4×4 Hood solar panels (90w)
11. 30A Shore Power connection
12. 2x sPod switch controllers for the living area, with dual touch controllers
13. Numerous USB, 12v, and 120v outlets
14. 1.5″x1.5″ Aluminum Extrusion for all interior framing
15. 20gal fresh water tank with Clearsource triple filtration system (3M Thinsulate and Minicell insulation wrap); 12v SHURflo water pump, PTC, thermostatically controlled heating pad on water tank, thermostatically controlled 100W PTC heater for water pump, lines and compartment
16. Sink w/ 5 gallon gray tank
17. Microwave and portable single burner induction cooktop

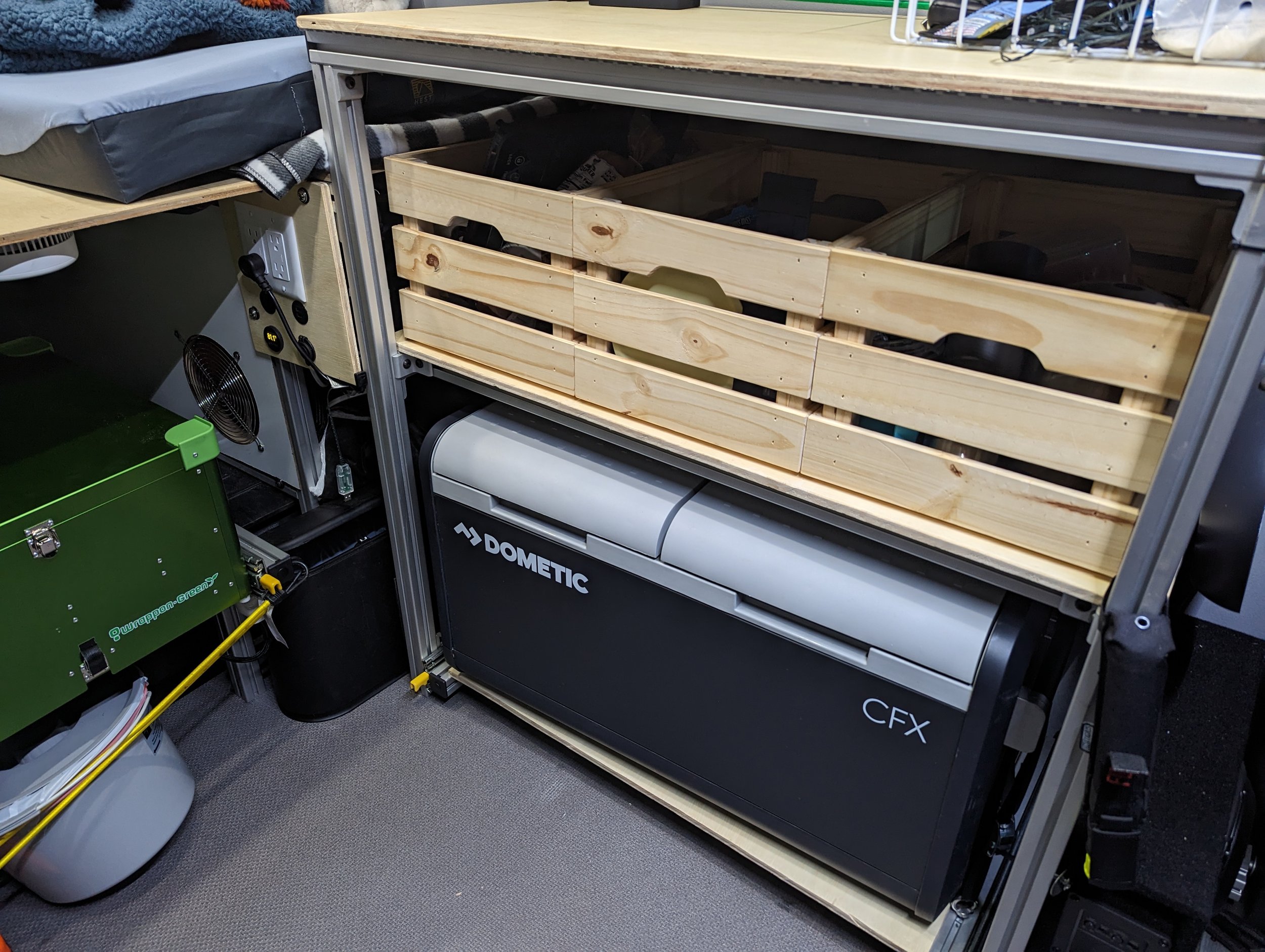

18. Dometic CFX3 75DZ Fridge/Freezer on drawer slides
19. Wrappon Green Toilet on 500lb slides
20. Integrated dual zone ceiling puck lights (dimmable) as well as additional dimmable lights for cab/seats, kitchen cabinet area, under sink storage, garage area, and compartments.
21. Dometic RTX2000 12v A/C above bed
22. Maxxair 7500K Remote controlled fan above galley

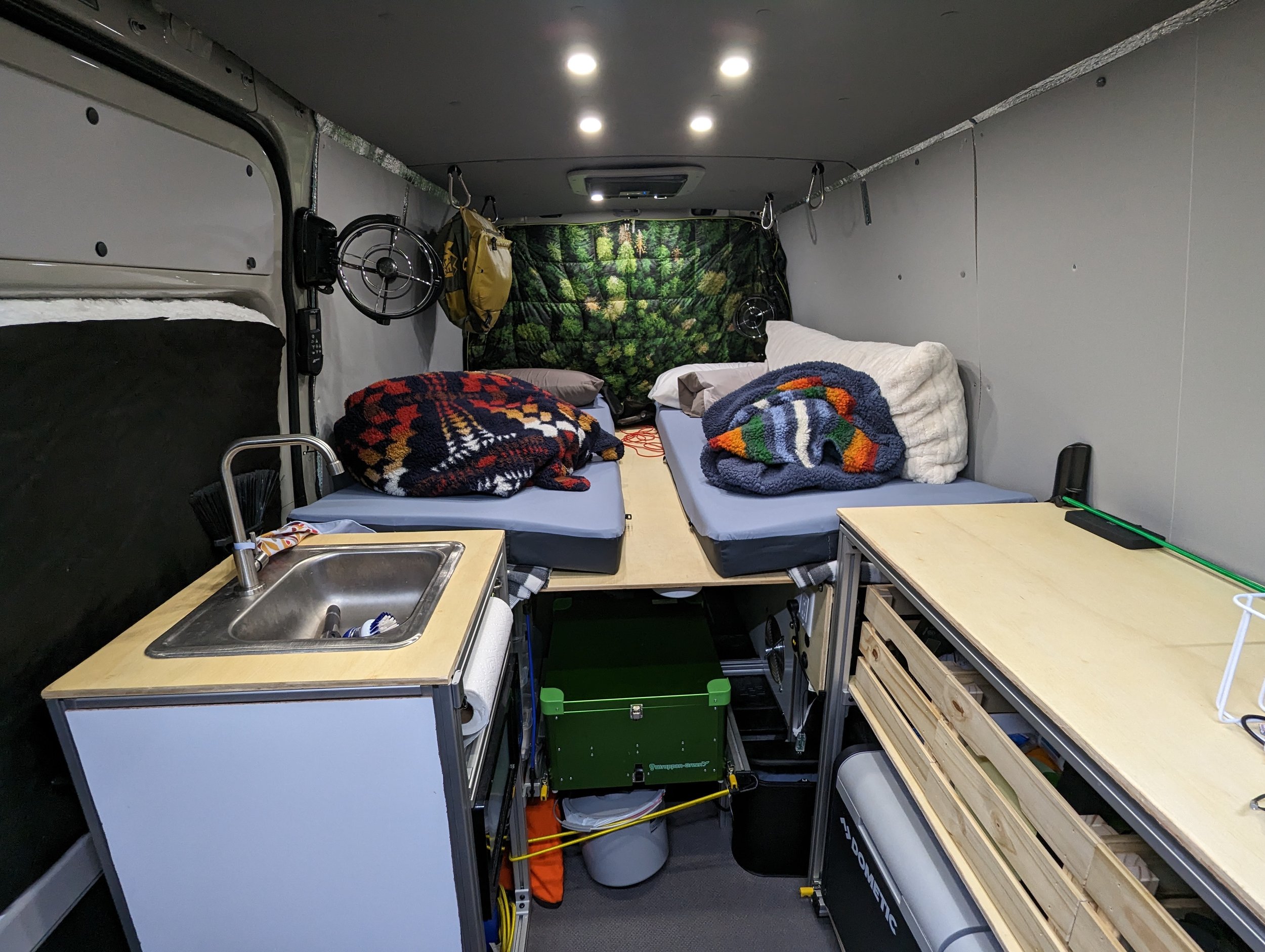

23. Raised bed platform with 2x HEST Foamy Wide mattresses
24. Ceiling mounted L Track above beds for hanging bags and iPad mount
25. WeBoost Drive RV
26. Pre-wired for Starlink Mini
27. Scirocco Fans (one at rear and one in the middle)
28. Quest Overland Insulated Window covers
29. TerraWagen BugBarrier Window Vents
30. BugWall Sliding door roll up bug net
31. Lagun Table w/ 2 mounting locations
32. DECKED Drawer system
33. Interior plastic wall panels and ceiling.
34. Novel Rig dash mount for Garmin Tread XL, 2 phones, ValentineOne V2 Radar, etc
35. SwitchPros SP-9100 controller for exterior lights
36. VanCompass Floating Light mount
37. 4x Diode Dynamics SS5 Pro
38. VanCompass 4.3 Suspension w/ mini leaf pack and Baja Brackets
39. VanCompass Hidden Winch Mount w/ Recovery points
40. Warn VR Evo 12-S Winch, Factor55 Flatlink E, Factor55 Fairlead
41. VanCompass Rocker guards/sliders/steps
42. VanCompass Full skid plate set under engine/transmission/transfer case and rear diff
43. S&B 47 gallon fuel tank
44. Diode Dynamics SSC1 Pro Wide Scene Lights – 2 per side, 2 on tire carrier
45. Diode Dynamics C1R Stop/Tail/Turn/Reverse Lights – under rear bumper
46. Owl Spare Tire Carrier/Ladder
47. Owl B2 Carrier w/ Owl Medium Expedition Box and Owl Ski Box
48. Method 702 Wheels – 17×7.5 w/ LT265/70/17 Tires – Falken Wildpeak A/T3W on the front with about 15k miles, BFG KO3s on the rear with ~10,000 fewer miles
49. Method spare w/ BFG KO2 on rear tire carrier
50. OEM Steel spare w/ matching size KO2 in OEM tire carrier for true dual spares
51. Renntech Flash
52. BMC Air filter
53. Bravo Snorkel
54. Mid-City remote start w/ Drone LTE module
55. TerraWagen flares and hood spoiler
56. VanCompass Air Mount w/ ARB Twin Air compressor
57. Stereo Upgrade w/ Kicker KEYLOC, KEY200.4 DSP/Amp, Hertz Dieci Tweeters and Cento Woofers in active crossover, JL Audio MicroSub+ 8″ subwoofer behind driver’s seat

Some known issues:

1. Surface corrosion on side steps, skid plates, and winch housing
2. Several corrosion spots on roof above the windshield
3. Numerous chips that have been touched up on the windshield and sides of the van
4. Partially melted trim around passenger side exterior mirror housing

There's plenty of smaller less consequential upgrades and updates that have been done as well. Full build list as well as original window sticker is available at www.siyehoverland.com/sprinter
