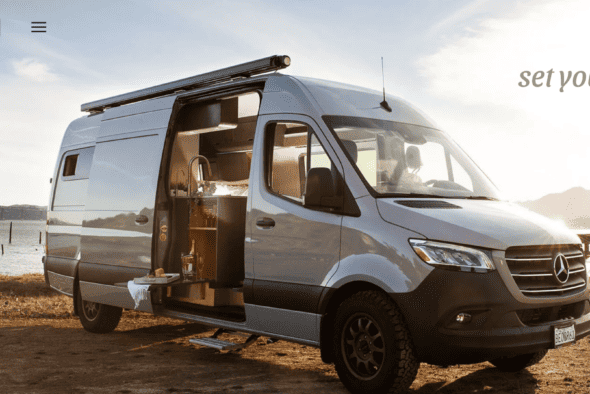

Custom Mercedes-Benz Sprinter van conversion! Beautiful build with focus on high-quality craftsmanship, using strong materials like angle aluminum and hardwoods, and employing a durable, lightweight framing system that’s bolted to the vehicle for long-lasting stability. The build prioritizes storage space for necessities, cookware, and gear. With a 3x3x5 foot garage can easily store ski, bike, or camping gear. Emphasizing attention to detail with features like dovetailed cabinet boxes and aluminum-edged finishes. This van is built for all four season with insulated battery packs and water shut off valves to allow for snow and ski adventures. Don’t miss this one of kind custom adventure van!
Conversion
● 1” floor framing with R6 insulation, 1⁄2” subfloor, and Life Proof flooring.
● Interior components and framing to be constructed of 80/20 (1.5 x 1.5
ultralight smooth extruded aluminum. Properly secured with 3/16”
corner brackets, carriage bolts, washers, nylock nuts and lock tight.
● Main van body walls, ceiling, sliding door and rear doors to be treated
with Kilmat sound dampening, and Thinsulate and Reflectix insulations.
● Main van body walls, ceiling, sliding door and rear doors to be covered
in appropriate thickness plywood, acoustic deadening wall foam and
tweed fabric.
● Aluminum covered kitchen exterior and separation wall.
● CRL awning style window in the kitchen, sliding door, and drivers side
sleeping area.
● Flarespace bedroom area extensions on both driver and passenger
sides.
● 32 gallon fresh water tank with exterior water fill.
● 7 gallon removable gray water tank.
● Camplux water heater and outdoor shower.
● Interior Pex plumbing lines with brass connections, 1⁄4” turn shutoffs,
and braided flex as needed/appropriate.
● Stainless steel kitchen sink and faucet.
● Butcher Block countertop.
● Water pump and debris screen filter.
● Built-in Dometic cassette toilet.
● 600 amp hour lithium battery bank.
● 300 watt solar system connected to the battery system with Victron 30
amp charge controller.
● Victron 30amp charger controller for shore power connection.
● Victron 30 amp non isolated dc-dc charger to battery system.
● Marine grade appropriate gauge wiring.
● Appropriate electrical disconnects, fuses, and breakers.
● Switches, dimmers, lighting.
● Renogy 3,000 watt pure sine power inverter.
● Multiple shore power outlets.
● Inverter powered outlets.
● Multiple USB charging plugs.
● Multiple zone / dimmable ceiling lights.
● Maxxair fan in kitchen ceiling.
● Espar heater under front passenger seat controlled by thermostat.
● Fresair Evaporative AC system.
● Induction two burner cooktop.
● Isotherm Cruise 130 AC/DC refrigerator.
● Lagoon swivel table system with solid Walnut hardwood tabletop.
● Overhead cabinet stretching from the kitchen all the way to the back of
the van including 5 separate compartments.
● Kitchen cabinet structure including 4 drawers, sink base opening, and
fridge opening.
● Bench structure with 3 cabinets and benchtop cushion.
● Drawers built out of high end multilayer 1⁄2” plywood (sidewalls and floor)
using dovetailed joinery and pocketed floor with softclose sliders and
bullet style latches and modern stainless handles.
● Drawer faces and cabinet doors built out of solid Walnut hardwood.
● Aluminum edge banding and trim to floor, cabinets, and garage areas
for durability.
● Rugged side ladder.
● Black Rino rims and BFG KO2 tires.
● Expedition One roof rack with LED strip light.
● 3M hood and skirt wrap.
● Garage / Storage area approximately 36x36x66.
