2022 Mercedes Sprinter 4×4

4X4 Off-Grid Sprinter fully kitted out for endless 4-season off-grid adventures!

The San Juan Vans SJ3 is a one of a kind layout. This premium adventure van seats and sleeps three people. This model has the industry leading off-grid electrical system with 12 kilowatt hours of 48 volt battery power from Volta Power systems. The secondary alternator and rooftop solar array keeps this rig going off-grid with 4-season amenities. The 48 volt DC air conditioning system provides over 13 hours of air conditioner run time at 12k BTUs!

The Van

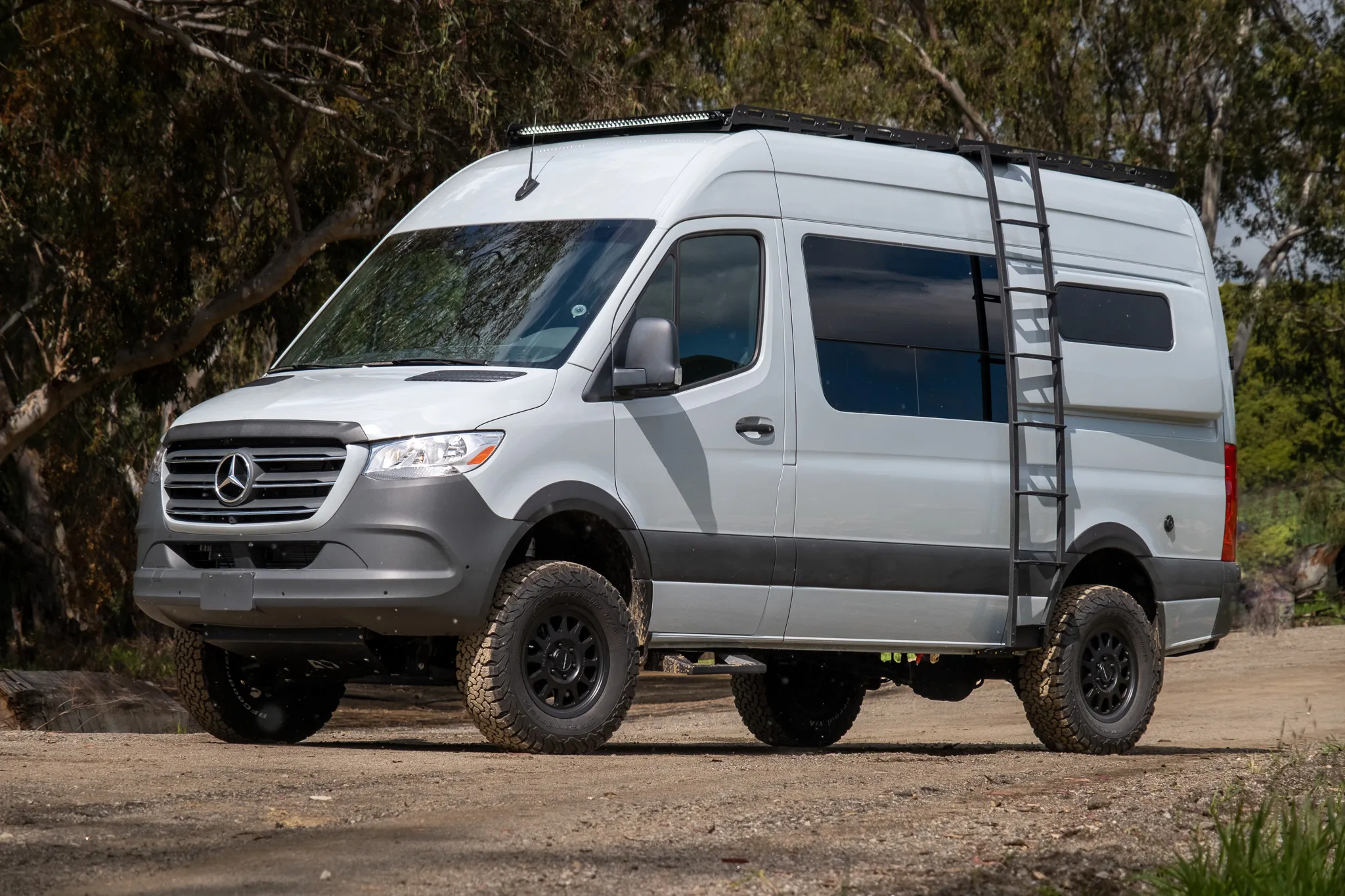

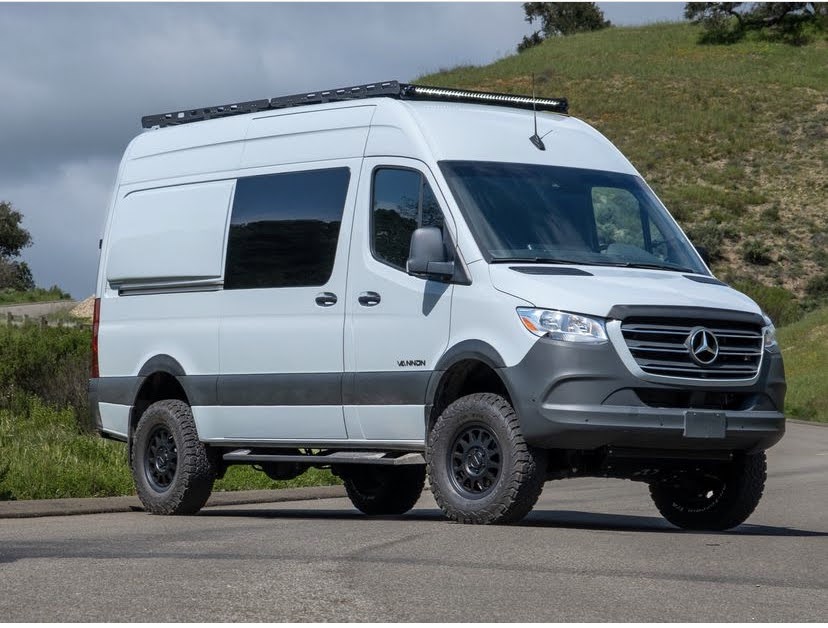

2022 Mercedes Sprinter 2500 4×4

5 year, 100k mile extended warranty from Mercedes-Benz USA

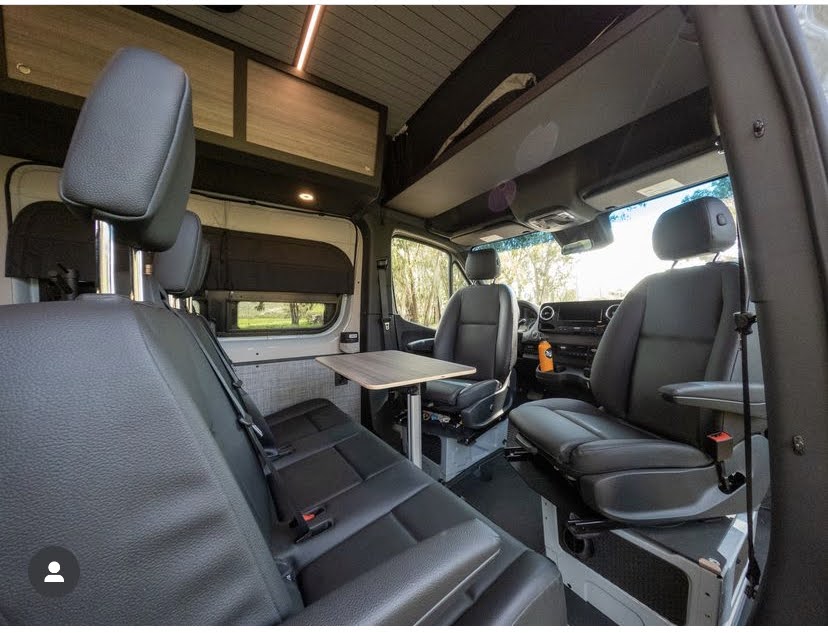

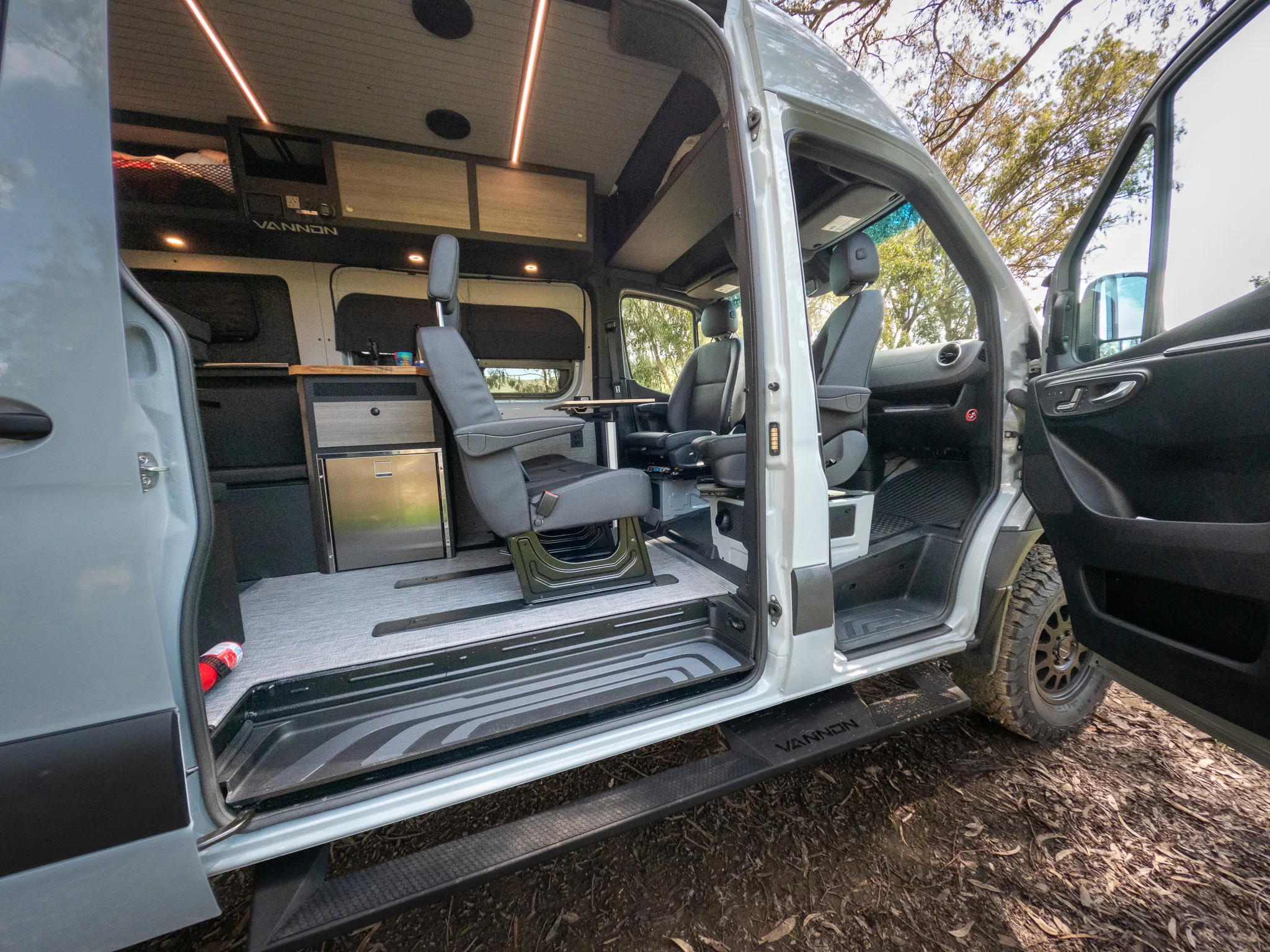

Factory heated and swiveling black leatherette seats

7” touchscreen with 360 degree camera system

Adaptive Cruise Control

Optional Add-Ons

Additional Solar Panels

Front winch-bumper

Extended range 47 gallon fuel tank

Interior Finishes

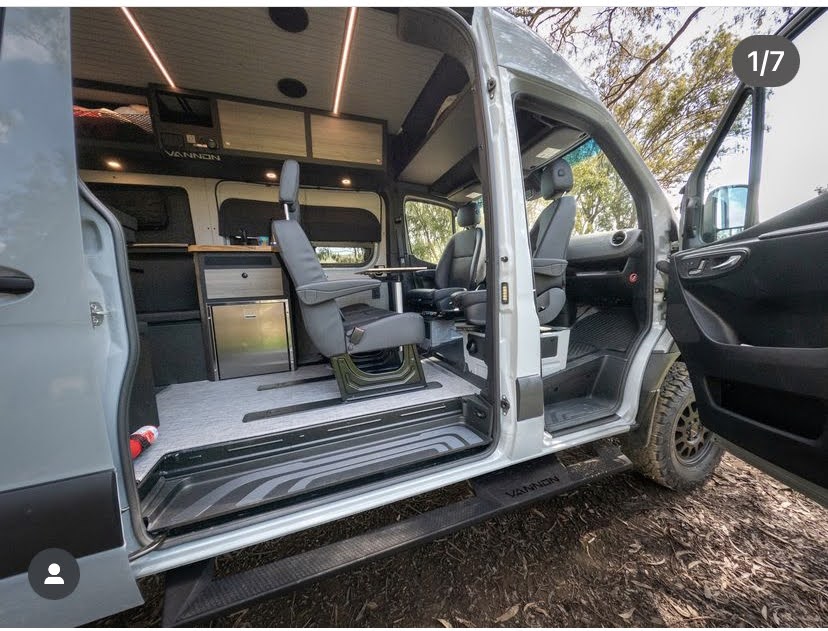

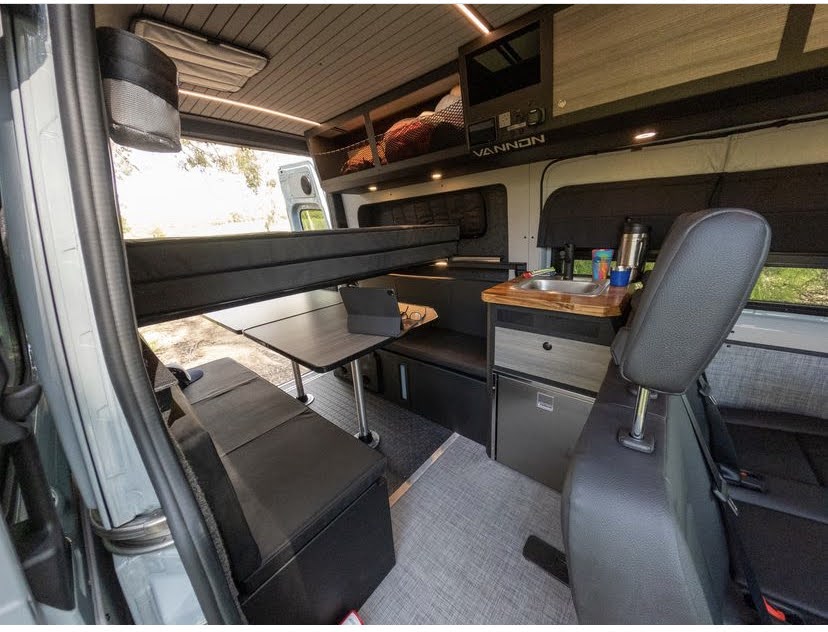

San Juan Vans SJ3 layout with seating/sleeping for three people

Custom bamboo cabinetry and ceiling with integrated dimmable LED lighting throughout

Lonseal loncoin marine grade vinyl flooring

Durasein solid surface countertop with built in 2 burner induction cooktop and Ruvati sink with hot/cold faucet

Microwave

Fabworx UK convertible seat/bed with custom upholstery

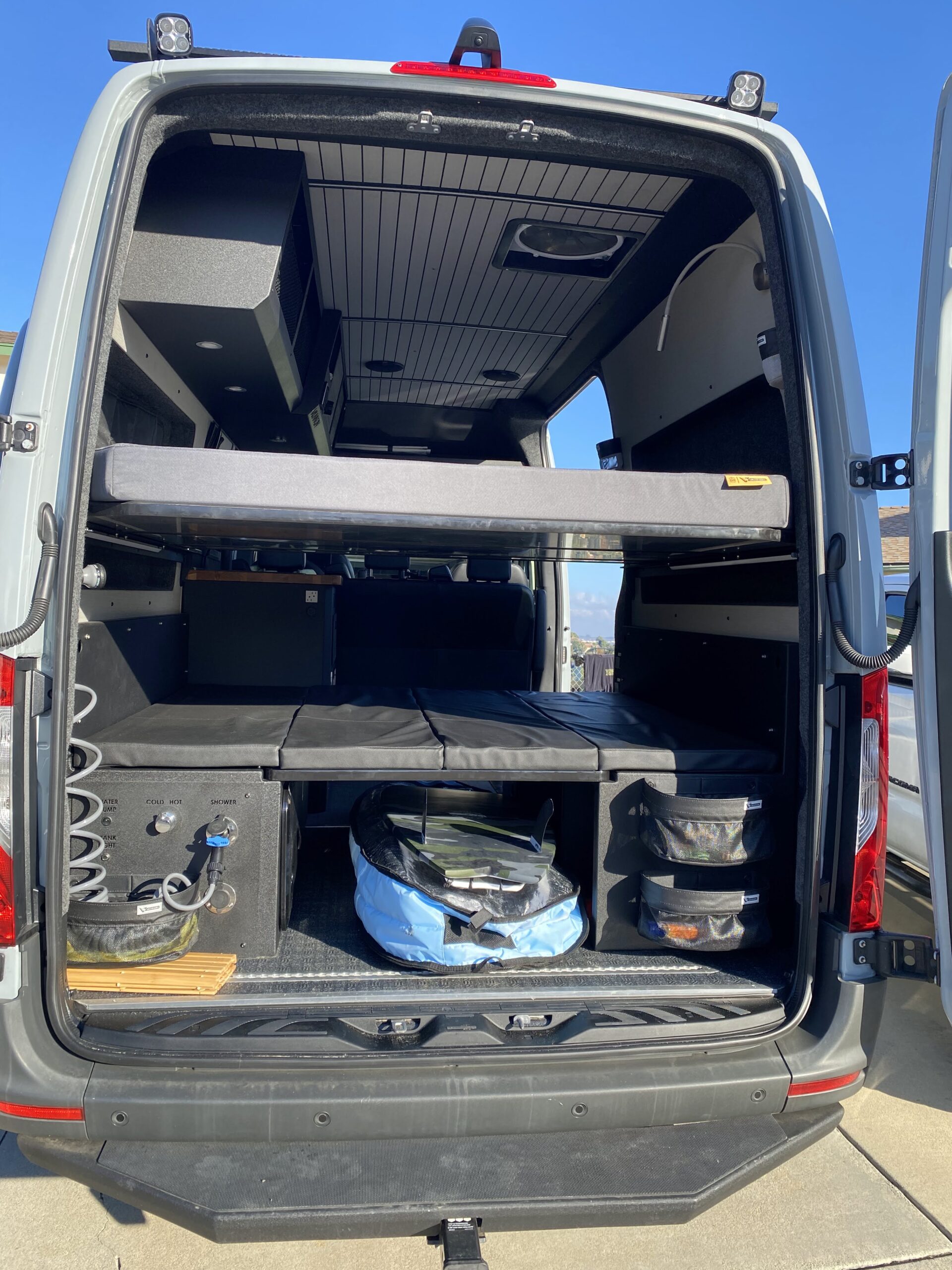

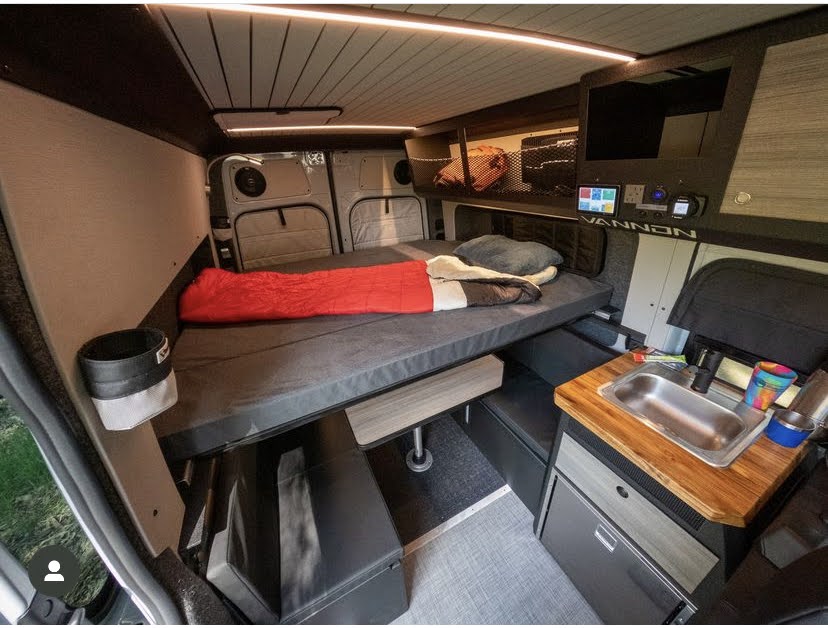

6” thick queen size mattress with East/West sleeping provided by Vanspeed capsules

Electrical System

12 Kilowatt Hour Volta Power systems 48 Volt off-grid battery system

Dedicated secondary alternator with up to 7 kilowatts of charging capacity

Mid-City Engineering High Idle/Remote Start/Alarm System

250 watts of rooftop solar panels

Victron 48 Volt Quattro inverter/charger

Victron MPPT Solar Charge Controller

Victron 48-12 DC-DC converters

Paneltronics Breaker panels

Power system monitoring via bluetooth and interior monitor

30 amp shore power service

20 amp exterior outlet

USB and DC outlets throughout interior

HVAC/Plumbing

AquaHot hydronic diesel powered (from van’s fuel tanks) heating and on demand hot water system

Cruise’n’Comfort 12k BTU 48 volt mini-split air conditioning system

Maxxair Deluxe remote operated roof fan

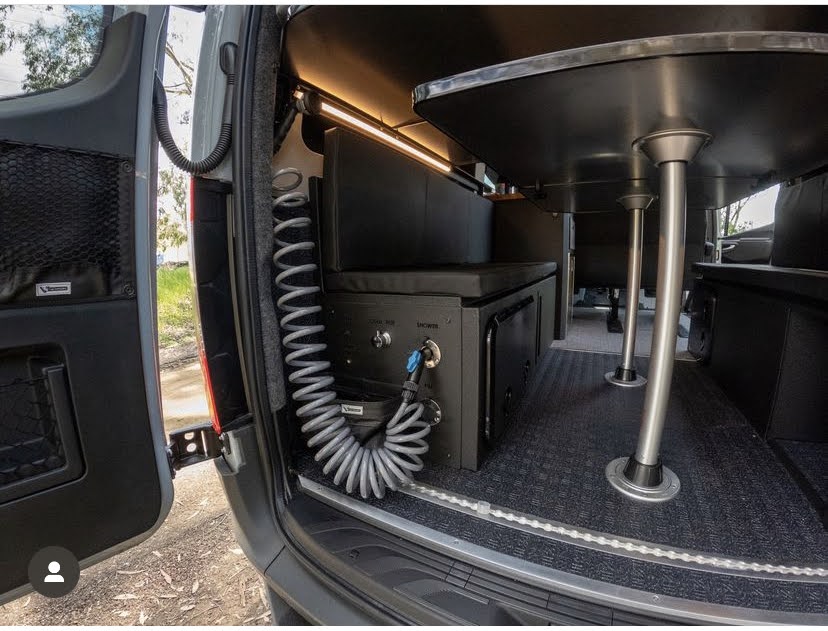

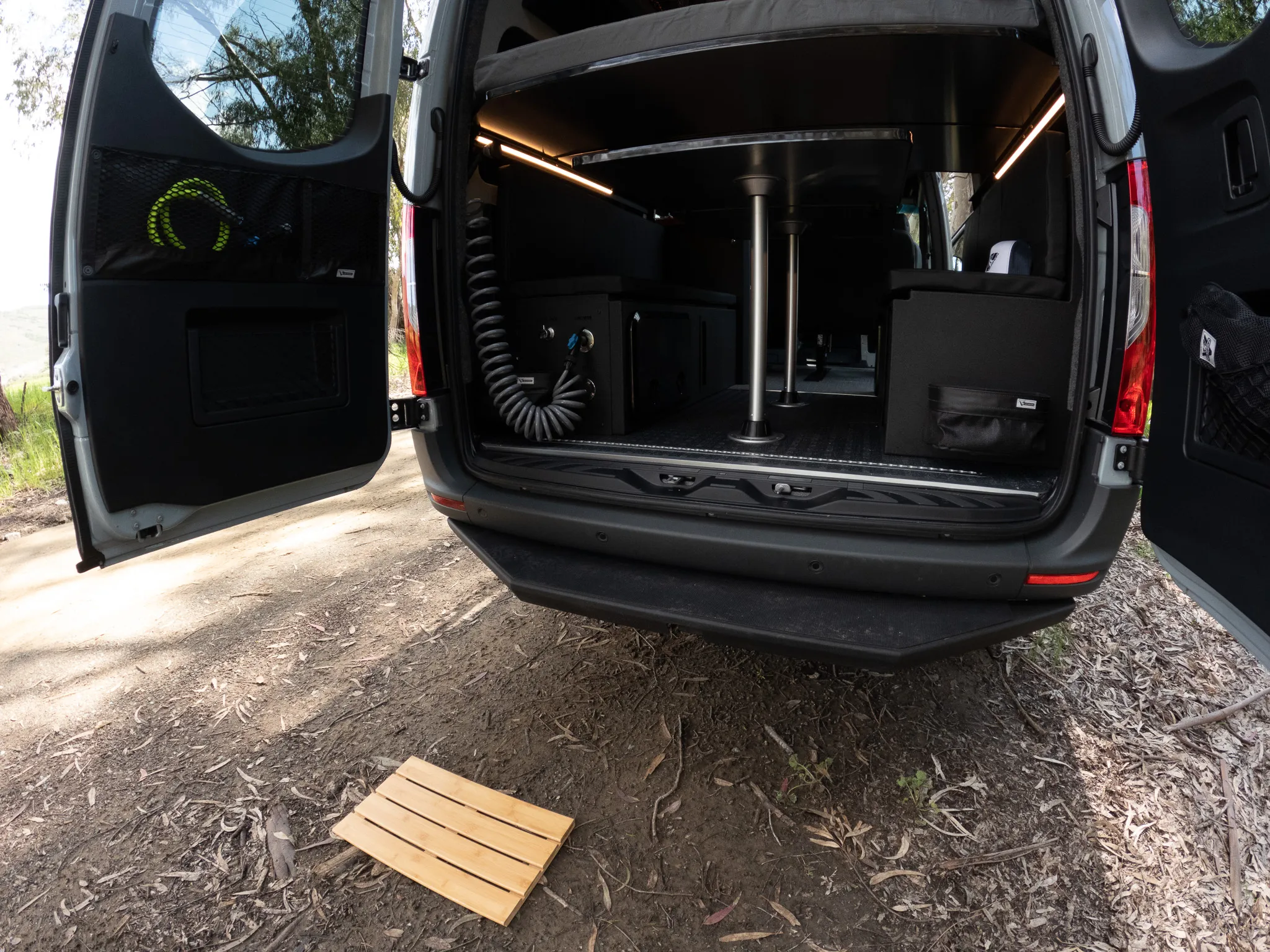

Exterior shower sprayer and drop down interior shower system

Dual freshwater tanks for 41 gallons of freshwater storage (interior tank for 4-season operation)

8 gallon under sink grey water tank with push button dump valve

Optional cassette or dry-flush toilet

Chassis Upgrades

Van Compass Stage 6.3 adjustable suspension with 2” lift

Black Rhino Arsenal wheels

BFG K02 275/75/17 upgraded tires

Flatline Van Company Safari Rack with 250 watts of solar and roof-top deck space

KC Lights curved light bar with eight high illumination LED lights

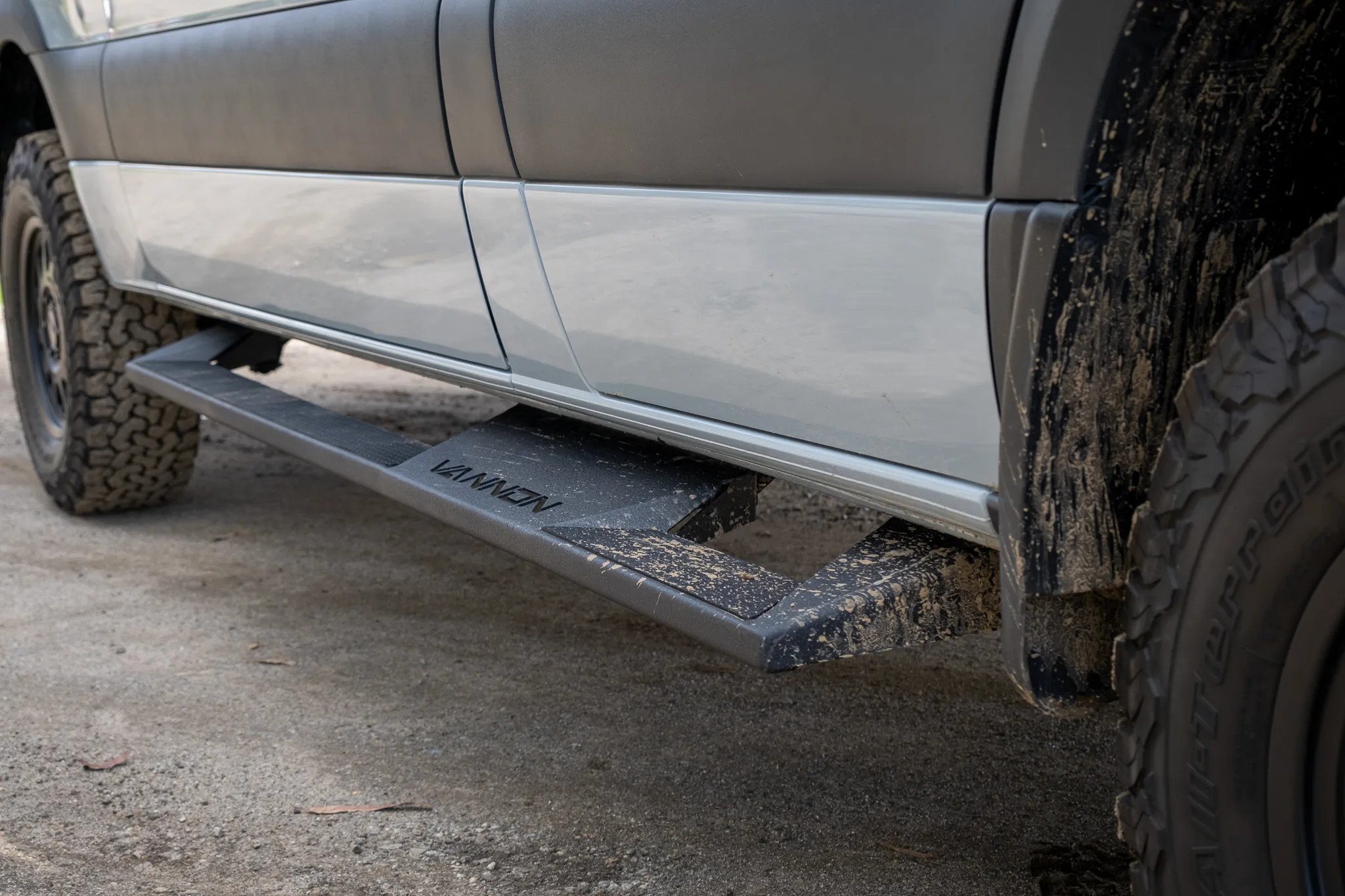

Stoked Adventure Outfitters Nerf Bars (running boards)

Owl Vans Ladder/Tire Carrier

Owl Vans B2 Carrier with Large Expedition box and 2 1Up bike Trays

Ceramic Tinted Front Cabin Windows

Textured wrap on lower rocker panels
