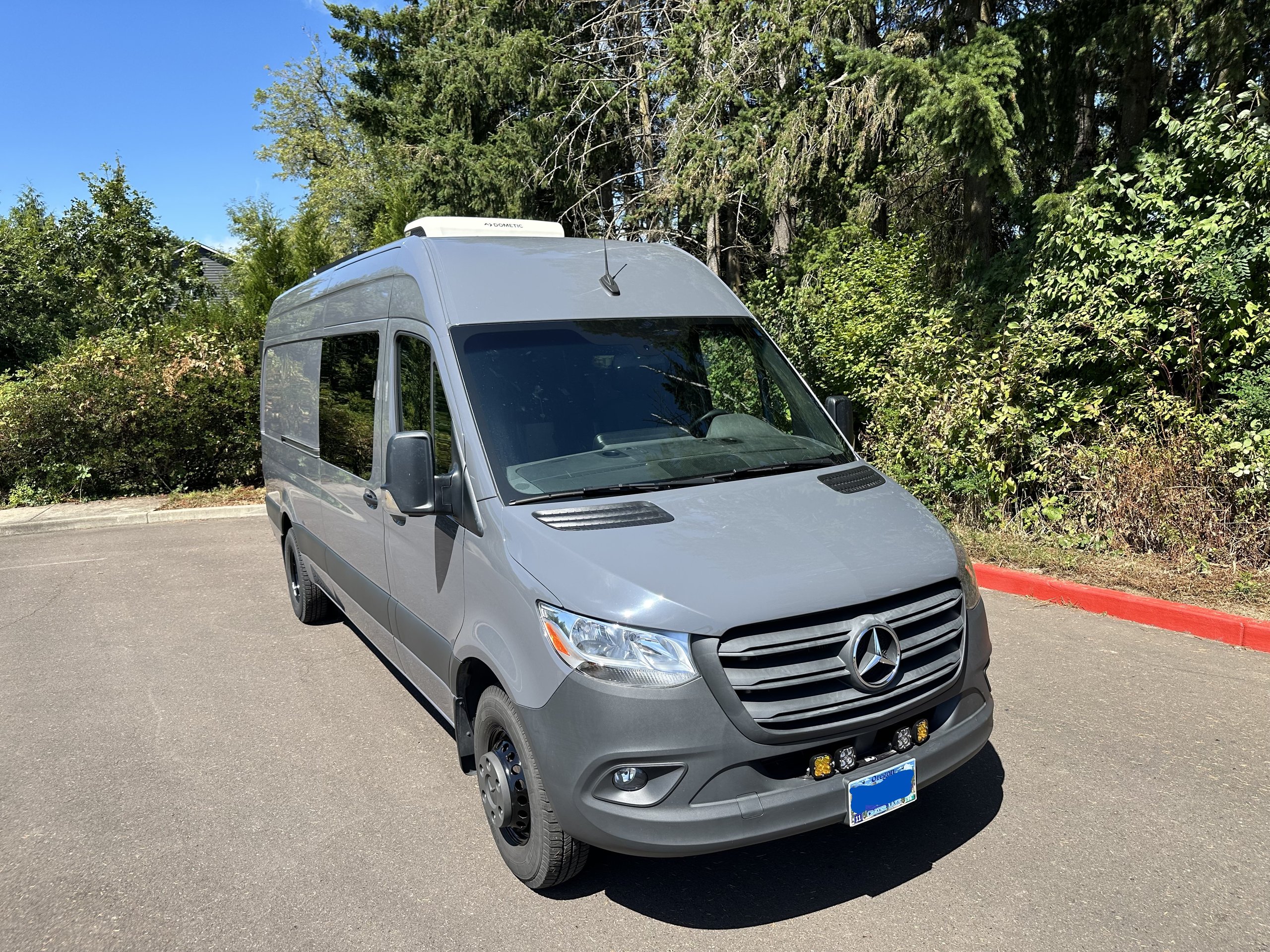

2022 Mercedes Sprinter 3500XD

Summary

Selling our Mercedes Sprinter Adventure Van. This is a true off grid four-season capable platform. It is ideal for families (large and small) with modular DOT approved seating for up to six – with 1, 2, 3, or 4 in the second row. It sleeps four easily and can accommodate more with a bit of creativity. The van has all the comforts of home. It was designed and built using the highest quality components with a focus on safety, reliability, redundancy, and flexibility. Professional installation and testing of major components supported by Just Roaming Design (Portland) and AM Solar (Eugene). Comes fully stocked – just add clothes and food before hitting the road. If you think you need four-wheel drive, think again. We have spent many weekends at the mountain and have yet to take out our shovel or chains. Asking $119k OBO. We are not in a hurry and don’t need help selling. Thanks!

Vehicle / Chassis

2022 Mercedes Sprinter 3500xd 2WD (custom ordered – see build sheet for options)

Clean Title

170 inch wheelbase

~21k highway miles (this is not a daily driver)

Scale weight less than 9k pounds (well under 11k GVWR)

Service A and Service B completed

VanCompass Stage 3 Suspension: Rear Falcon shocks + front and rear Sumo Springs

Dually valve stems for easy access

Four keys/remotes

Exterior

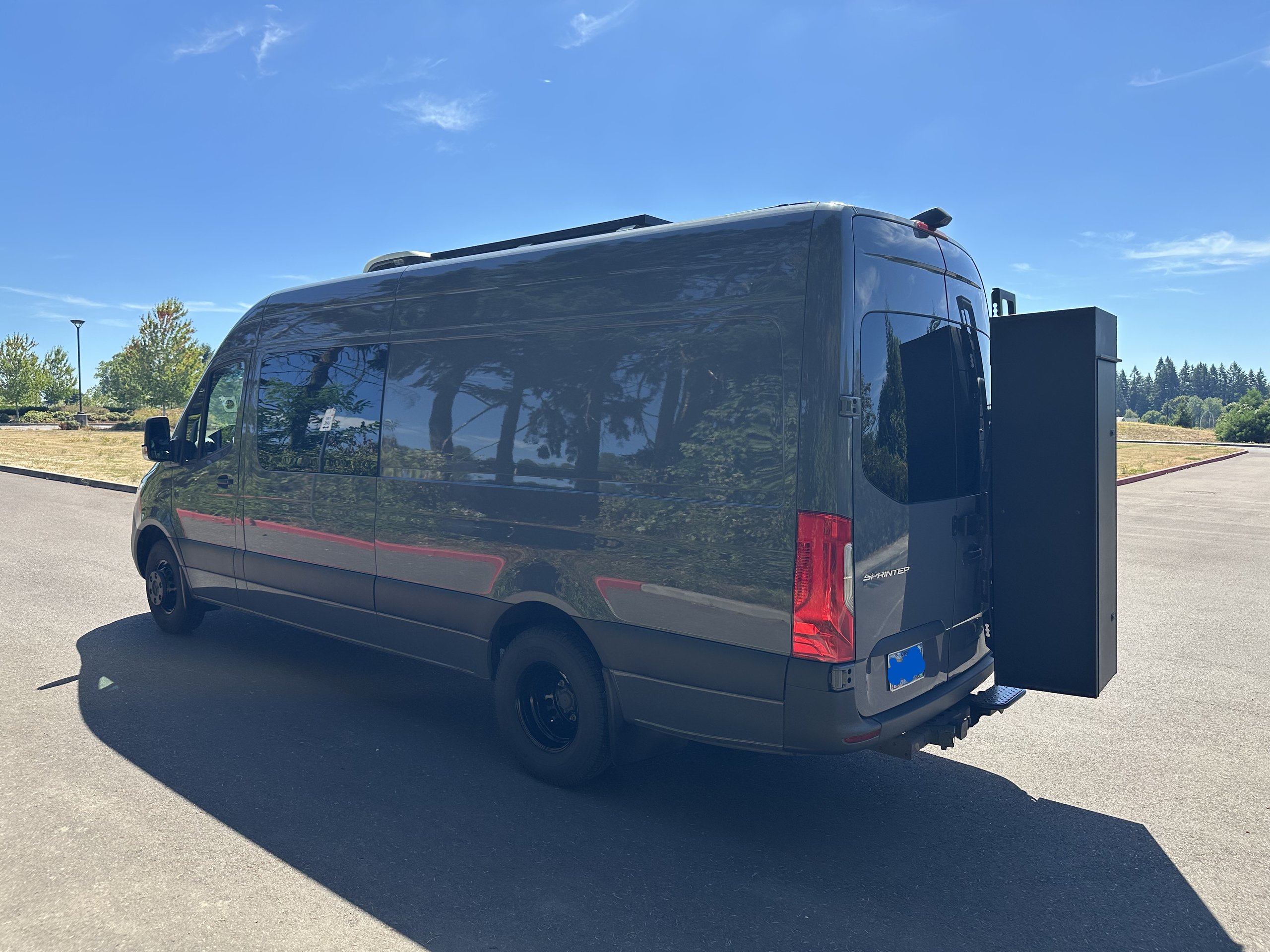

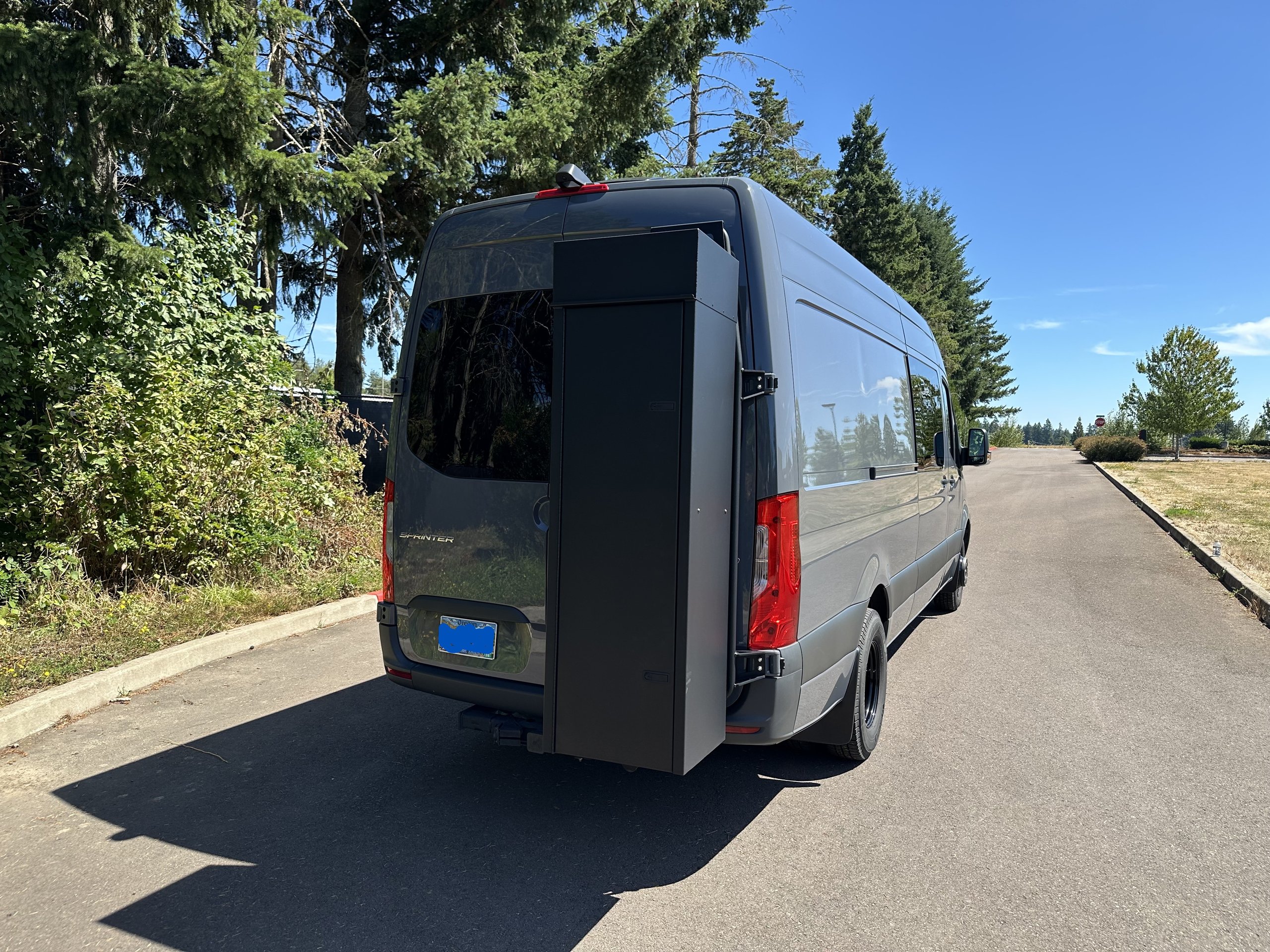

Sandy Vans Starboard Rack + Boost Box

Agile Offroad Front Light Bracket + Baja Designs Squadron Pro (amber/pair) + Squadron SAE (white/ pair)

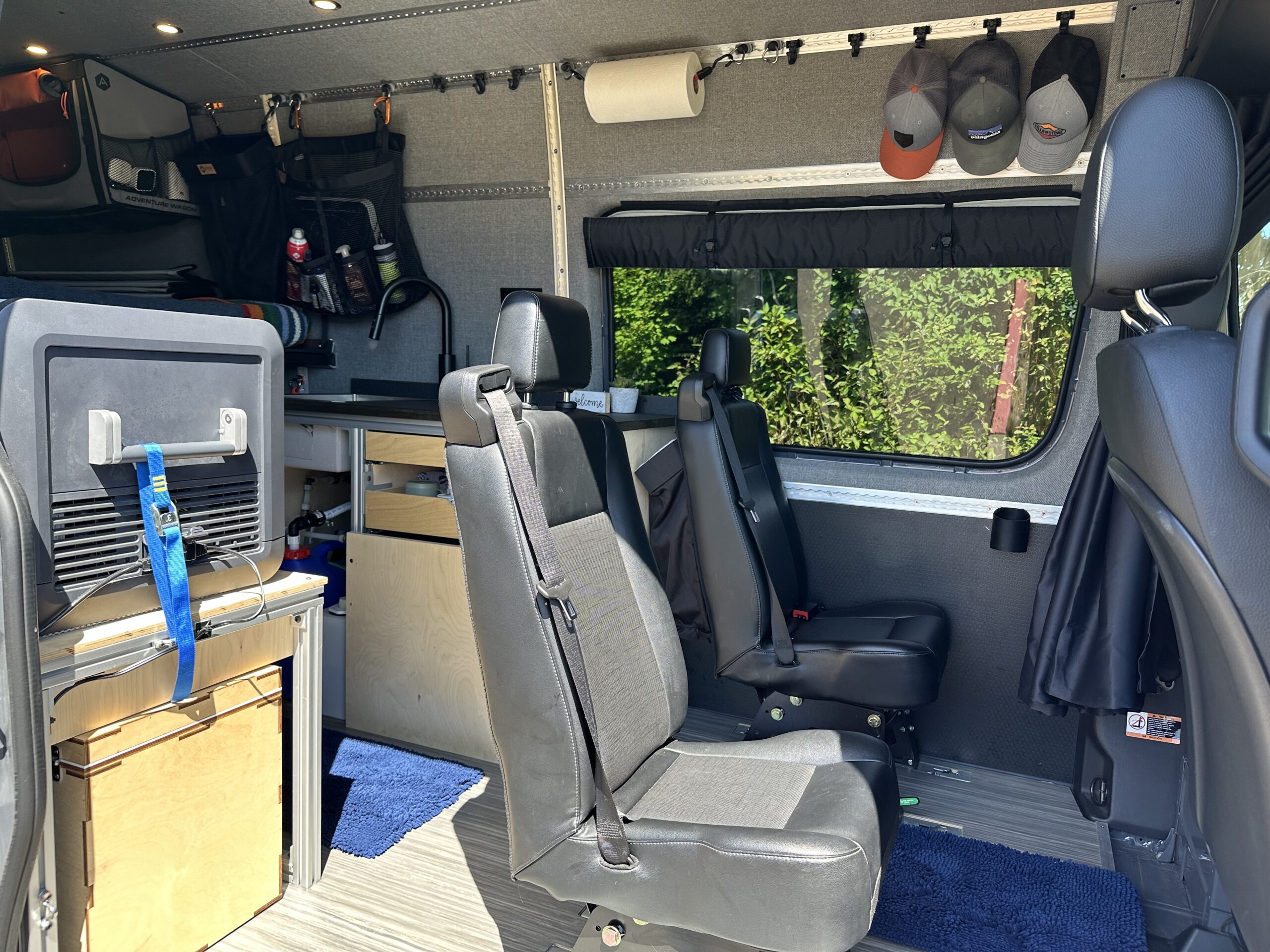

Interior

Coosa composite insulated subfloor topped with Marmoleum

Havelock Wool Insulation

Adventure Wagon Kit

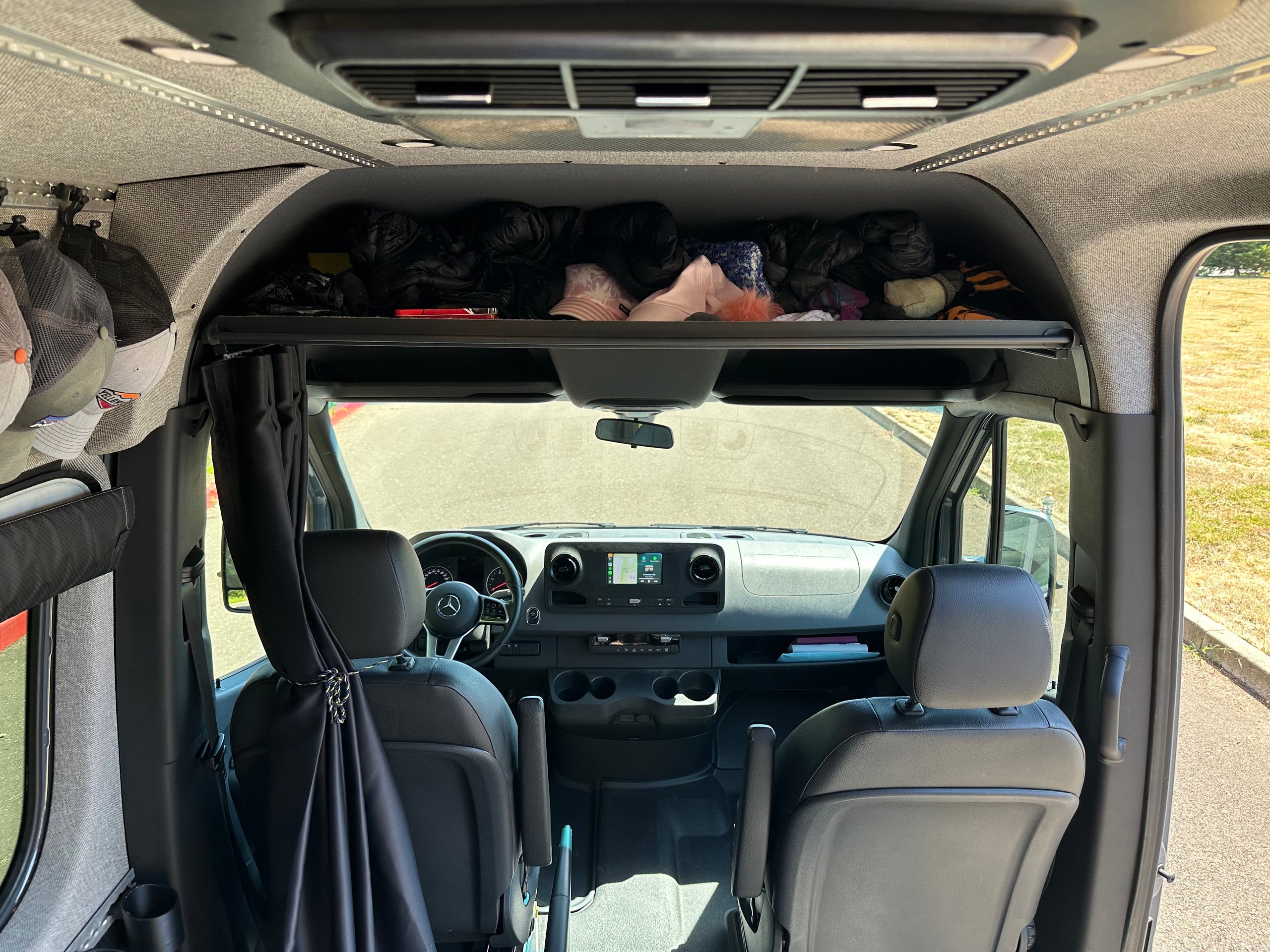

Headliner shelf with curtain and towel bar

Maxx Air fan with remote

Dometic RTX2000 12V AC (roof mounted)

Espar Airtronic D2/SL diesel heater (mounted under front passenger seat)

Rear Door Speakers (Vitrus Nano Carbon Integra 62)

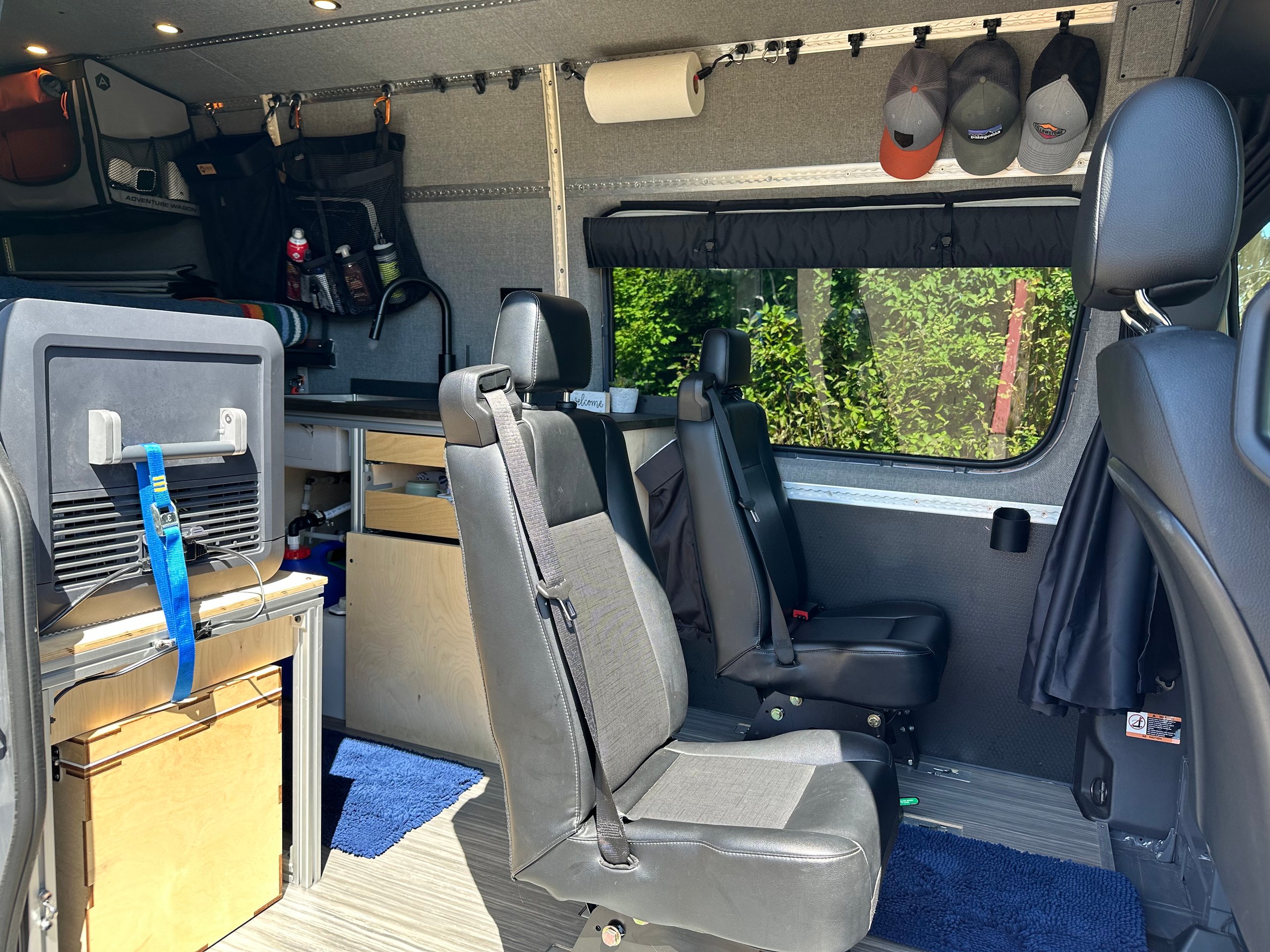

DOT Approved Abilitrax Modular Seating (comes with two single seats and one double seat that can be mounted in various configurations)

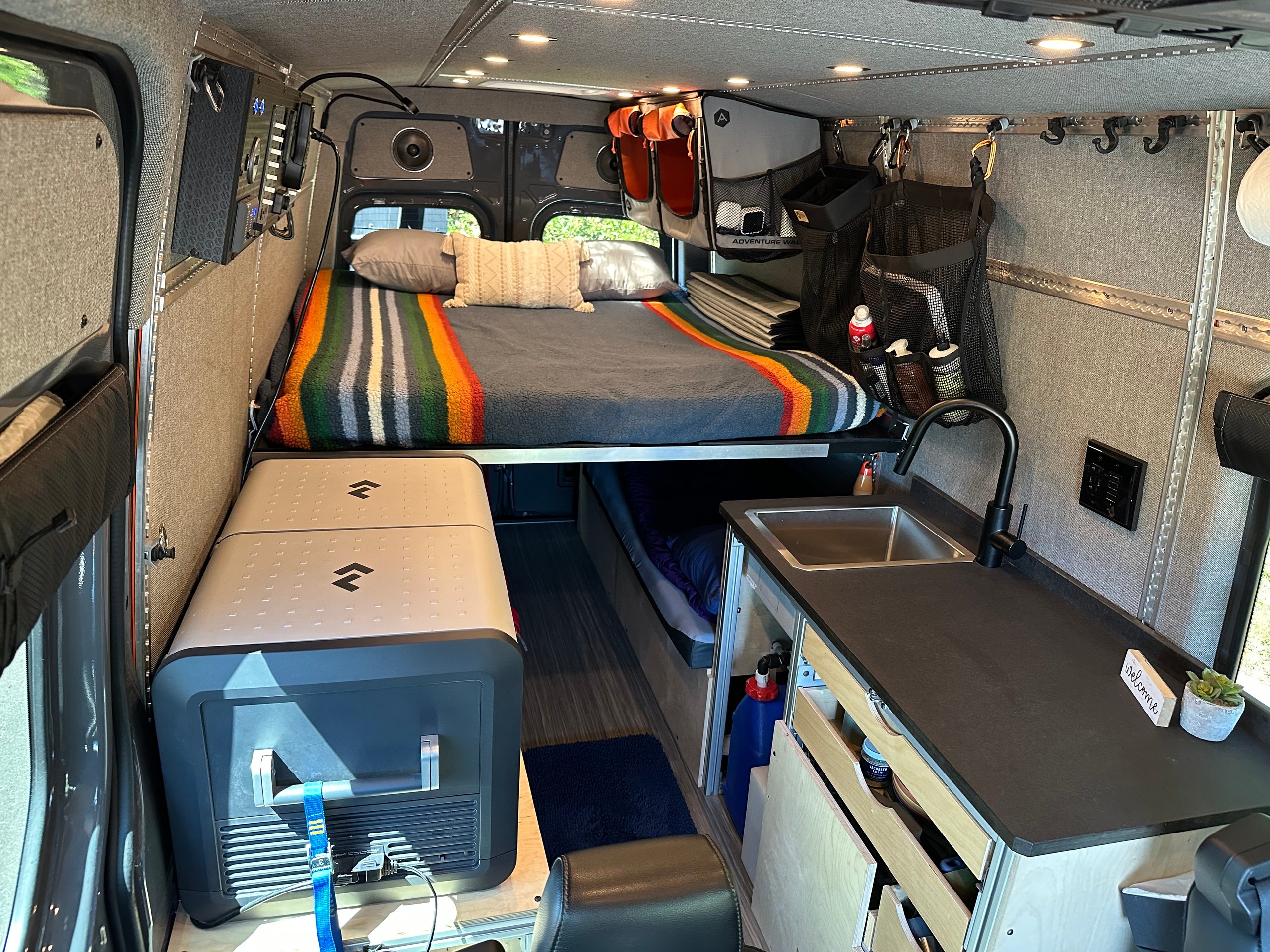

Galley with stainless sink, pull down faucet, solid surface counters, drawer boxes, and Blum soft close hardware

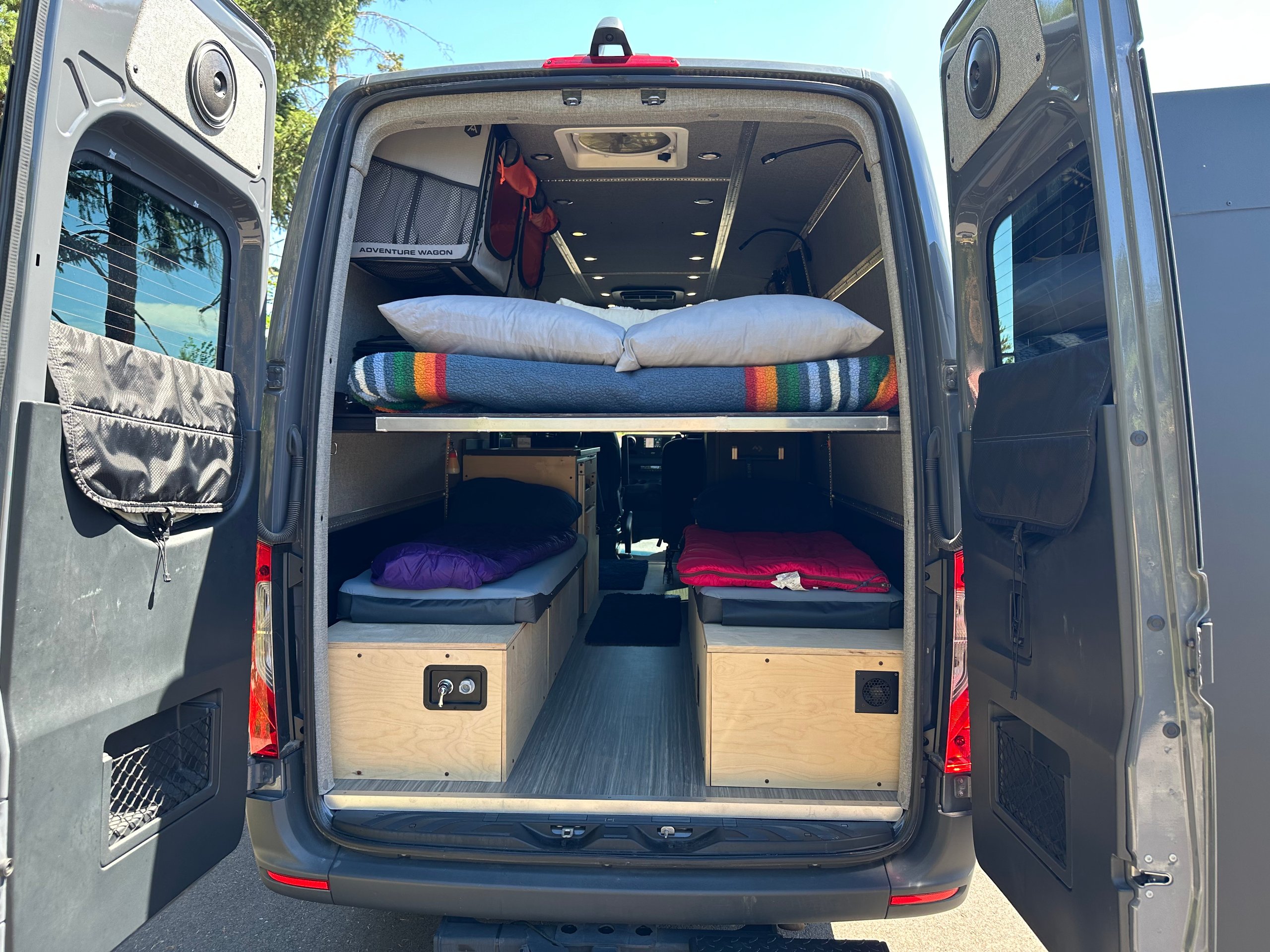

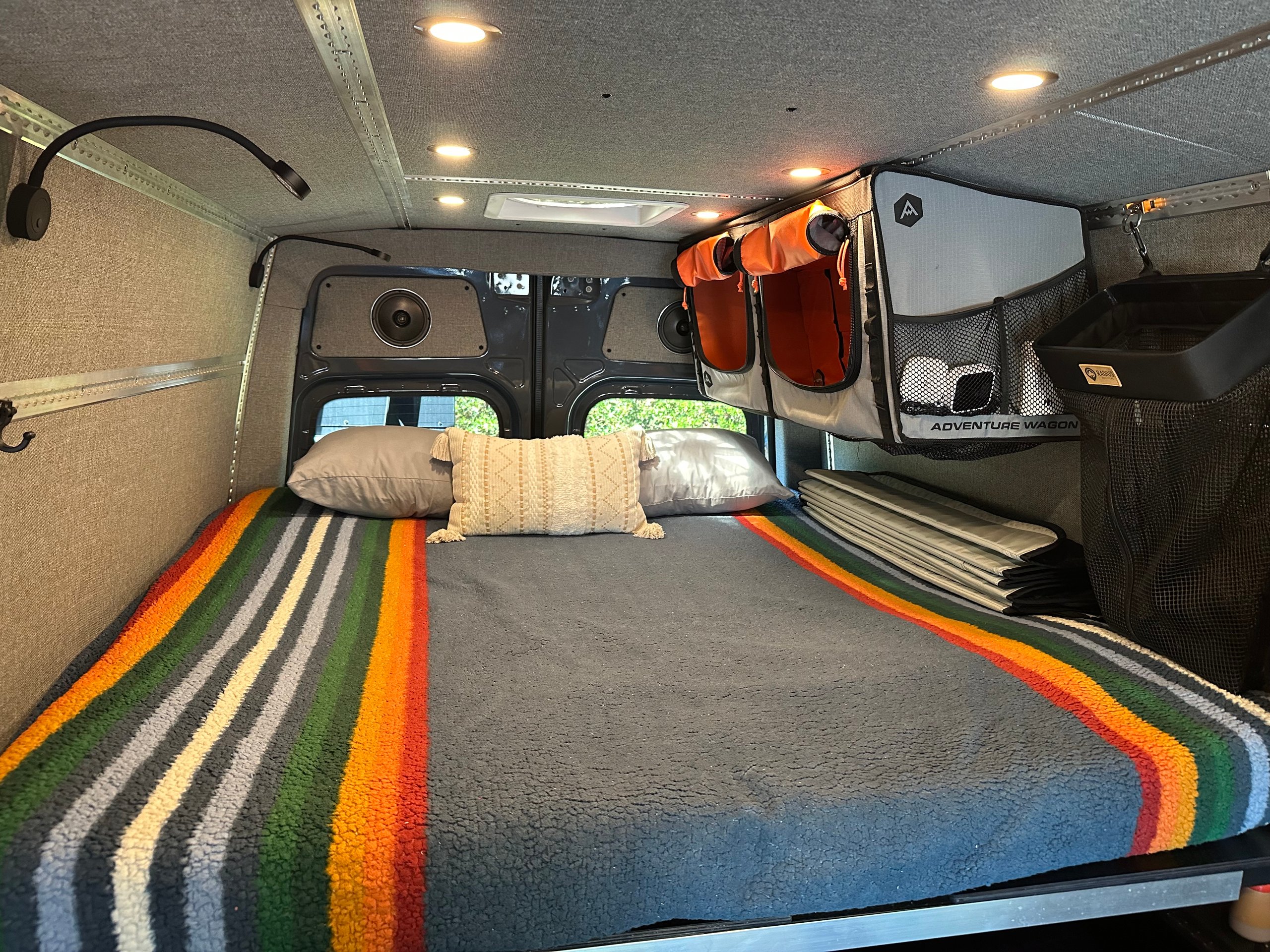

Adventure Wagon MOAB bed platform

Adventure Wagon MULE bags (x2)

Hest mattresses (one double and two singles)

VanMade insulated window coverings (all windows)

Rear shower with hot/cold mixing valve and quick disconnect hose

IsoTemp Slim Square hot water heater

~30 gallons of fresh water w/ 12v pump

7 gallon portable grey water tank for sink

Two zone LED lighting with dimmer switches

Reading lights with USB charging

Radius Outfitters gear bags (galley, laundry, and trash)

Dometic CFX375 fridge/freezer

Terra Wagen front window vents

Kildwick Composting Toilet

Single burner induction cooktop (portable)

Electrical

Victron 3000w inverter

Victron DC to DC charger (dual) for combined 60amps of alternator charging

Victron 100/30 MPPT for solar charging

Victron Lynx Distributor + SmartShunt + BMV712

Solaria 400w roof mounted solar panel

618AH of SOK 12v lithium batteries

BlueSea breaker panels and fuses

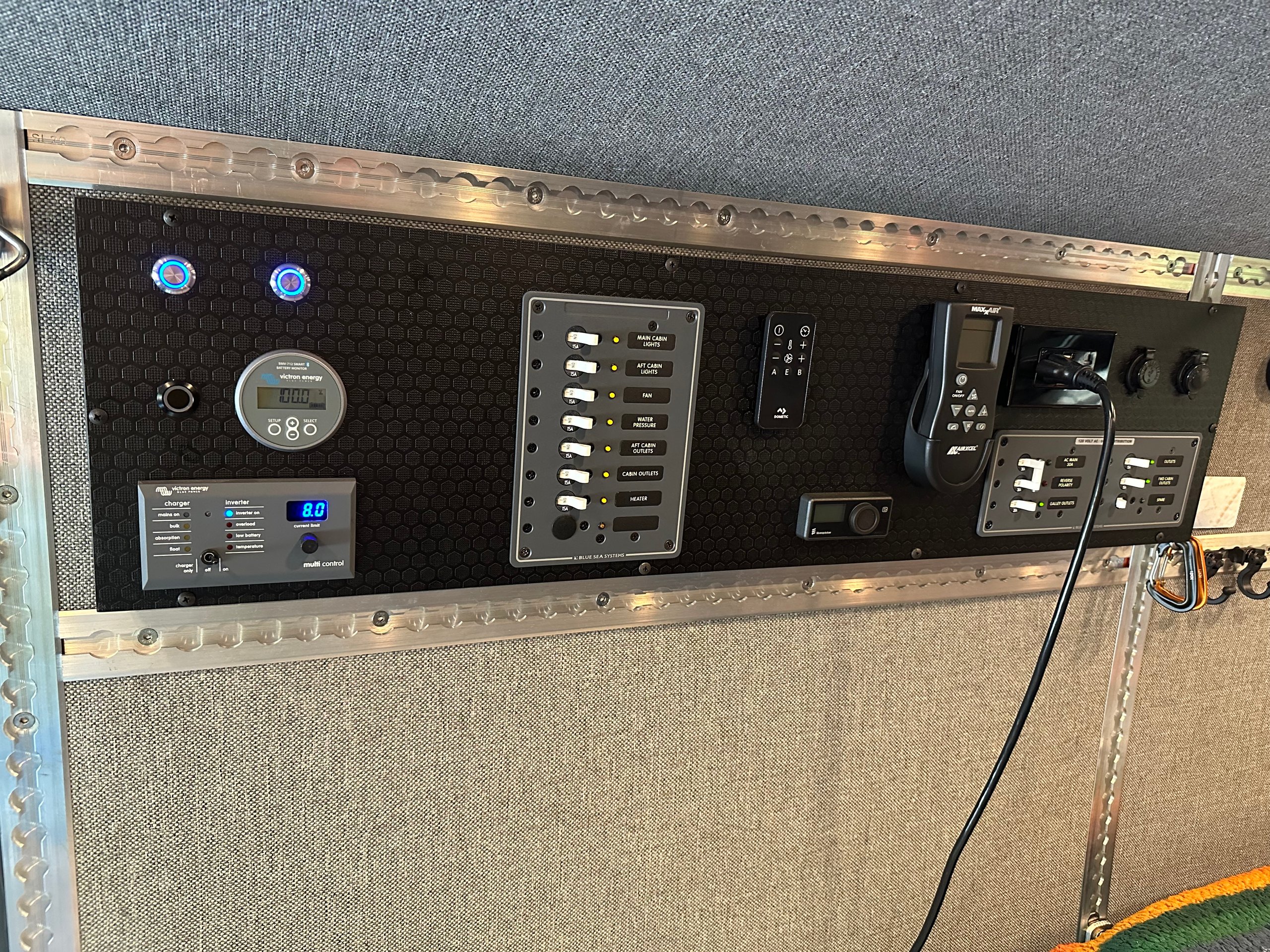

Custom command center with monitoring and switching equipment

20amp circuits in key locations

Numerous 12v, 120v AC, and USB outlets throughout van

AC Infinity Fans for cooling of electrical components

SmartPlug for shore power

Exterior 120v AC outlet
