Highlights
- Fully Off-Grid Capable- robust electrical system with 400 watts of solar panels & 412 amh lithium batteries
- Furnace- Espar M2-B4L Airtronic commercial 4KW heater
- Skylight- Lewmar low profile Series 54 skylight/roof hatch
- Projector- HD projector with custom motorized screen
- Indoor Shower- hot water shower also serves as outdoor shower
- Toilet- with urine diverter to external grey tank
- Stove/Oven- built in under flip-up counter space
- Swivel Seating- dual driver & passenger swivel seats
- Shore Power- 15 amp, 125 volt receptacle
- Navigation- Garmin RV 890 GPS Navigator w/ iOverlander app
- Abundant electrical outlets/lighting- 2 110v A/C outlets, 10 USB ports, 1 USB Type-C port, 11 LED dimmable lights on 5 switches
- Expandable Water Capacity- customized as needed based on usage
- Open Air Design- 2 additional side windows and skylight
- Under Vehicle Grey Tank- 10 gallon with indoor drain switch
- Easy Winterization (if required)
- Balance of Ram factory warranty is fully transferable
Conversion and Vehicle Details
Electrical
400 Watts (2 x 200 Watt) Monocrystalline 12 Volt Rich Solar Panels
2 x 206 Ah SOK LiFePo4 Lithium Batteries (412 Ah usable capacity)
Victron Energy SmartSolar MPPT 100/50 Charge Controller with Bluetooth Interface
Victron Energy BMV-712 Smart Battery Monitor with Bluetooth Interface
Xantrex PROWatt 2000 inverter- pure sine wave
Noco 15amp shore power inlet socket, 125 volt waterproof receptacle on rear passenger-side panel
2 110v A/C outlets
10 USB charging ports
1 USB Type-C charge port
12 LED dimmable lights on 5 switches all placed conveniently at point of use

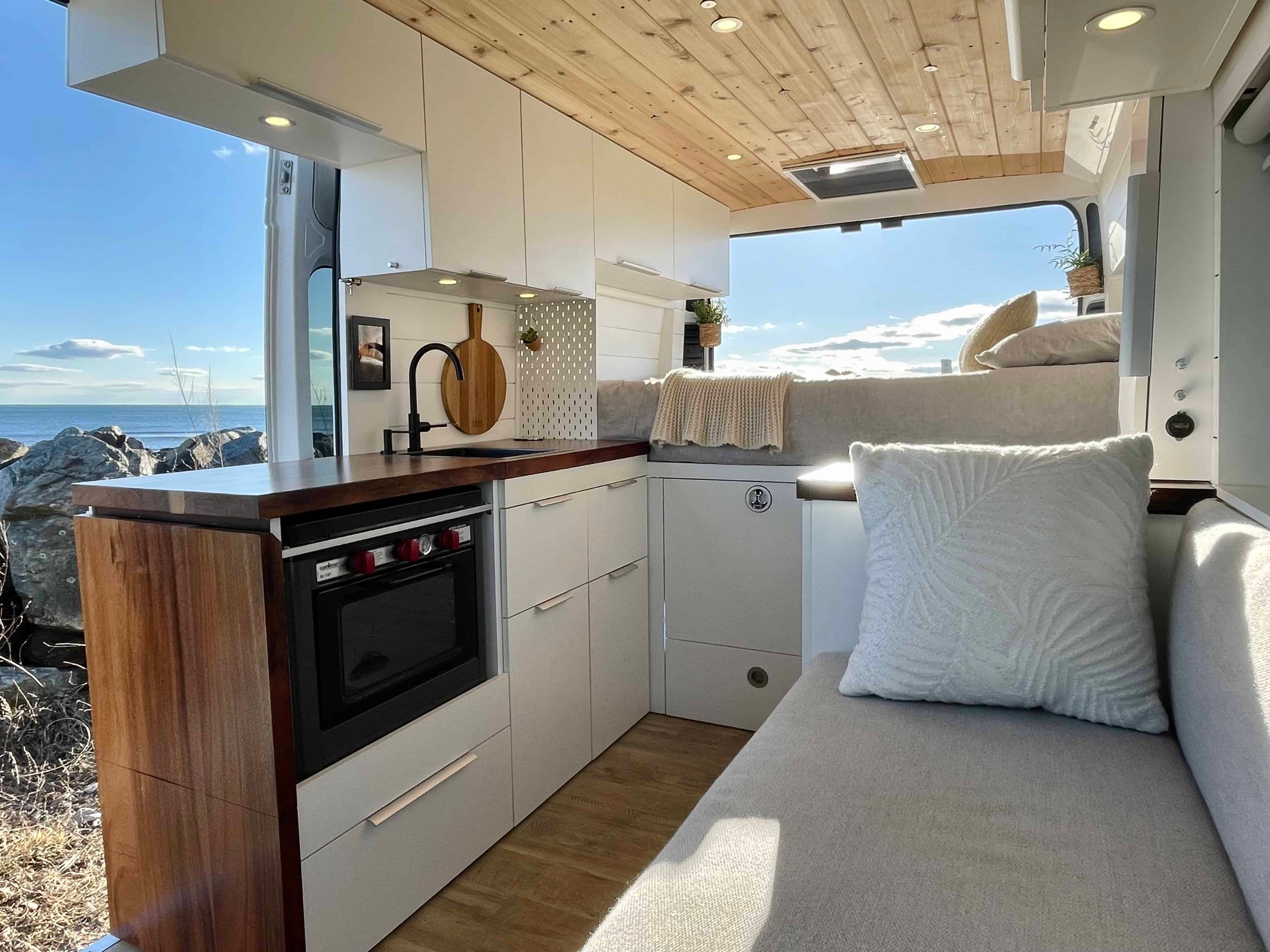

Kitchen
slide-out Dometic CFX-3 55IM refrigerator on heavy-duty 250lb slides

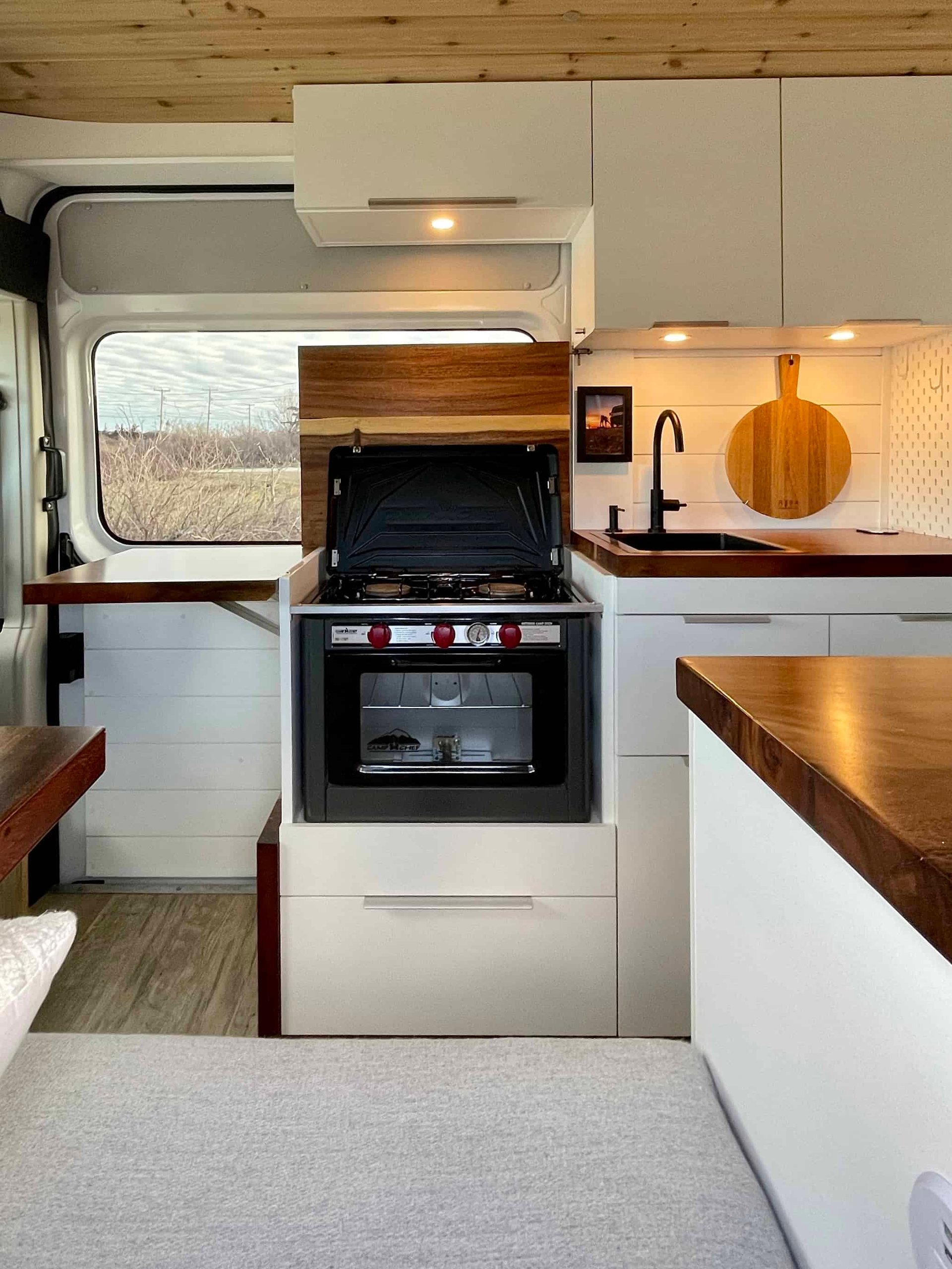

Camp Chef Deluxe Propane Stove/Oven: two 9,000 BTU burners, 3,000 BTU oven up to 400 degrees, compatible with 1lb disposable bottle or bulk tank with hose adapter
1.5” Acacia wide-plank countertop
waterfall side with flip-up hinges adds 18 inches additional counter space
110v/USB splash proof household outlet built into countertop surface
magnetic cabinet door locks
shelf above slider for spices or small decor
3 dimmable LED under-cabinet lights controlled by convenient knob on cabinet
fire extinguisher
24” x 10 x 18” pots/pans drawer
24” x 3” x 18” wide shallow drawer for utensils
15” x 10” x 18” utility drawer with full extension slides
tip-out drawer under sink for sponges/dish products
two 15” x 20” x 18” cabinets for water pump & storage
13” x 15” x 9” 16-gauge metallic black stainless steel sink with faucet and built-in soap dispenser
7 gallon fresh water tank with quick disconnect adapter under sink for easy swap-out
2 gallon grey water tank under sink allows for easy disposal
marine foot pump allows for very controlled & precise use of water in faucet
Multi-Purpose Bench Seating Area
bench houses lithium batteries, electronics, inverter, Espar heater as well as slide out 18” x 10” x 14” storage drawer
large Motion Window with T-slider glass panel, bug screen & solar shade screen
48” bench seat with lux foam, dacron wrapped cushion
acacia wood table mounted on a Lagun 360 degree swivel mount
two dimmable, under-cabinet LED lights with easy reach mounted knob
two 15” x 24” overhead storage cabinets with magnetic locks
110V A/C power outlet
3 standard USB charging ports, 1 Type-C USB port
Sleeping
Sealy full-size 8” memory foam mattress with CopperChill technology for cooler more comfortable sleep with stretch knit cover -medium firm
Hypervent Aire-Flow mattress underlay to prevent moisture
2 dimmable LED lights with conveniently located dimmer knob above bed
bedside 2 port USB charging outlet with convenient docking shelf
two 24” x 15” overhead cabinets at foot of bed for clothes storage
Motion Window above head of bed with half slider and screen
10.5” slide-out step with storage for easier on/off access to bed

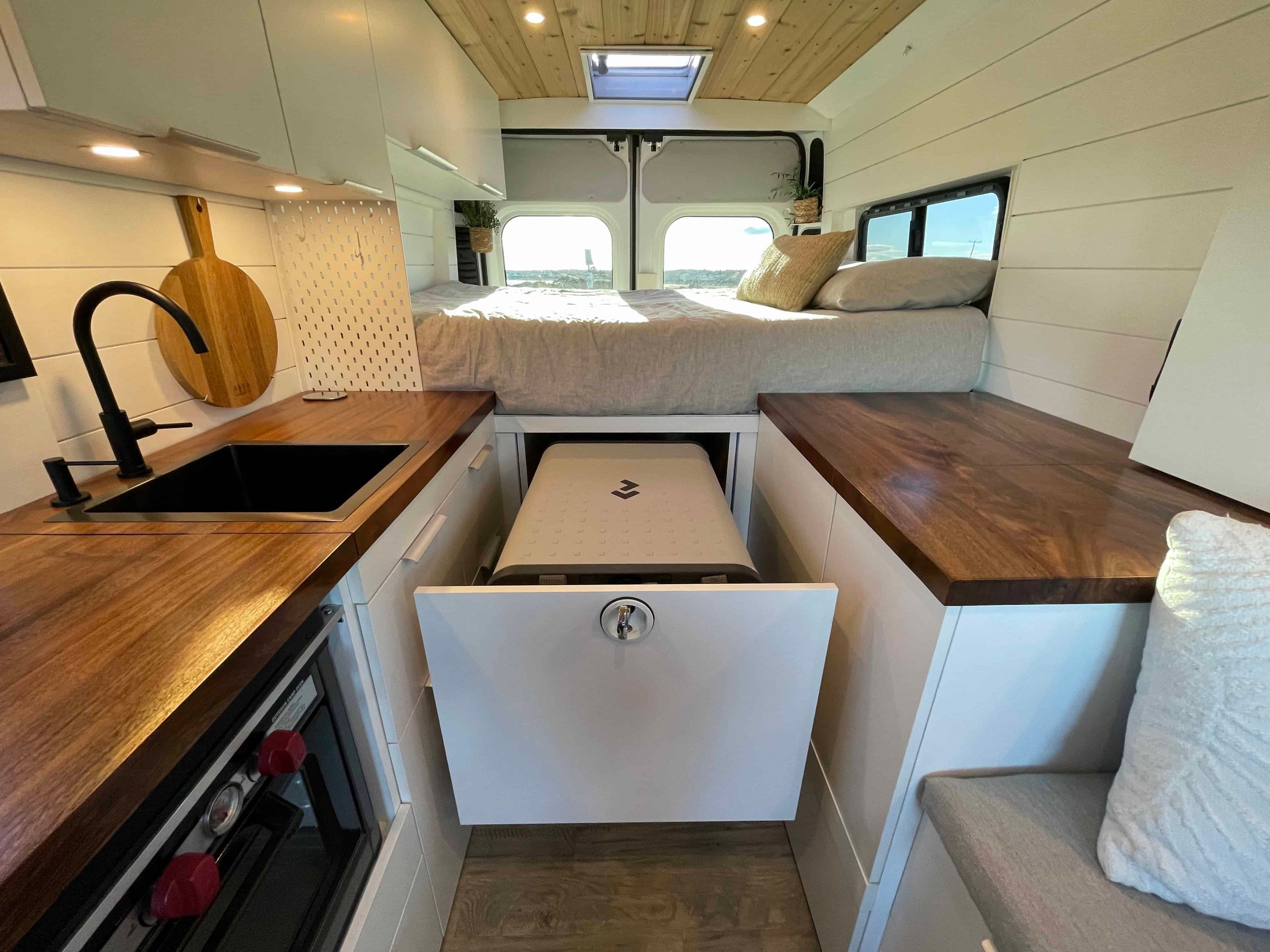

Wet Cabinet
unique space saving pull-out shower, toilet, water supply, heating element

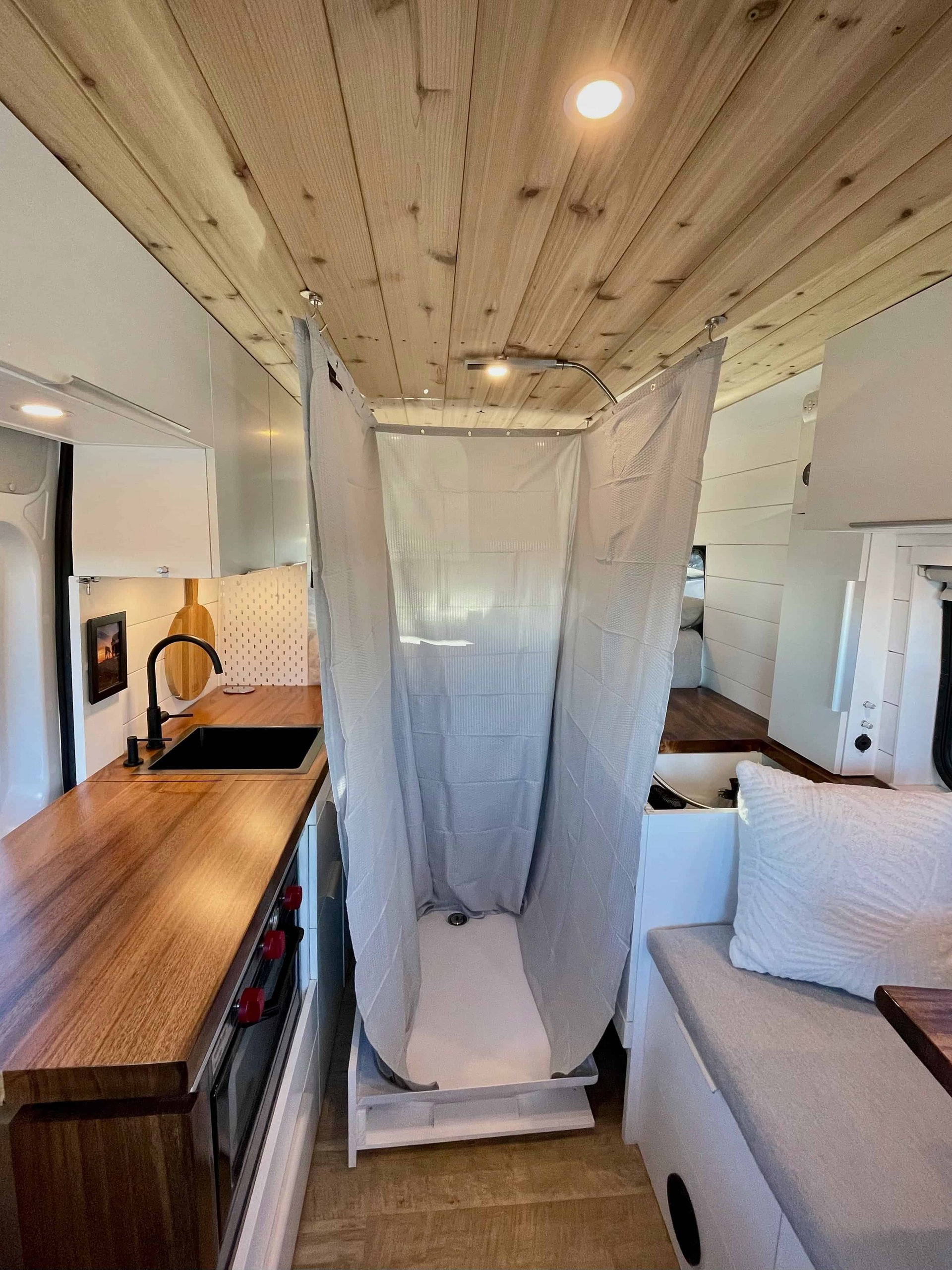

33” x 10” lower drawer slides out to reveal a 32” x 22” rectangular shower pan
10 gallon under van grey tank connected to shower drain and urine diverter
rocker switch in toilet area drains grey tank remotely

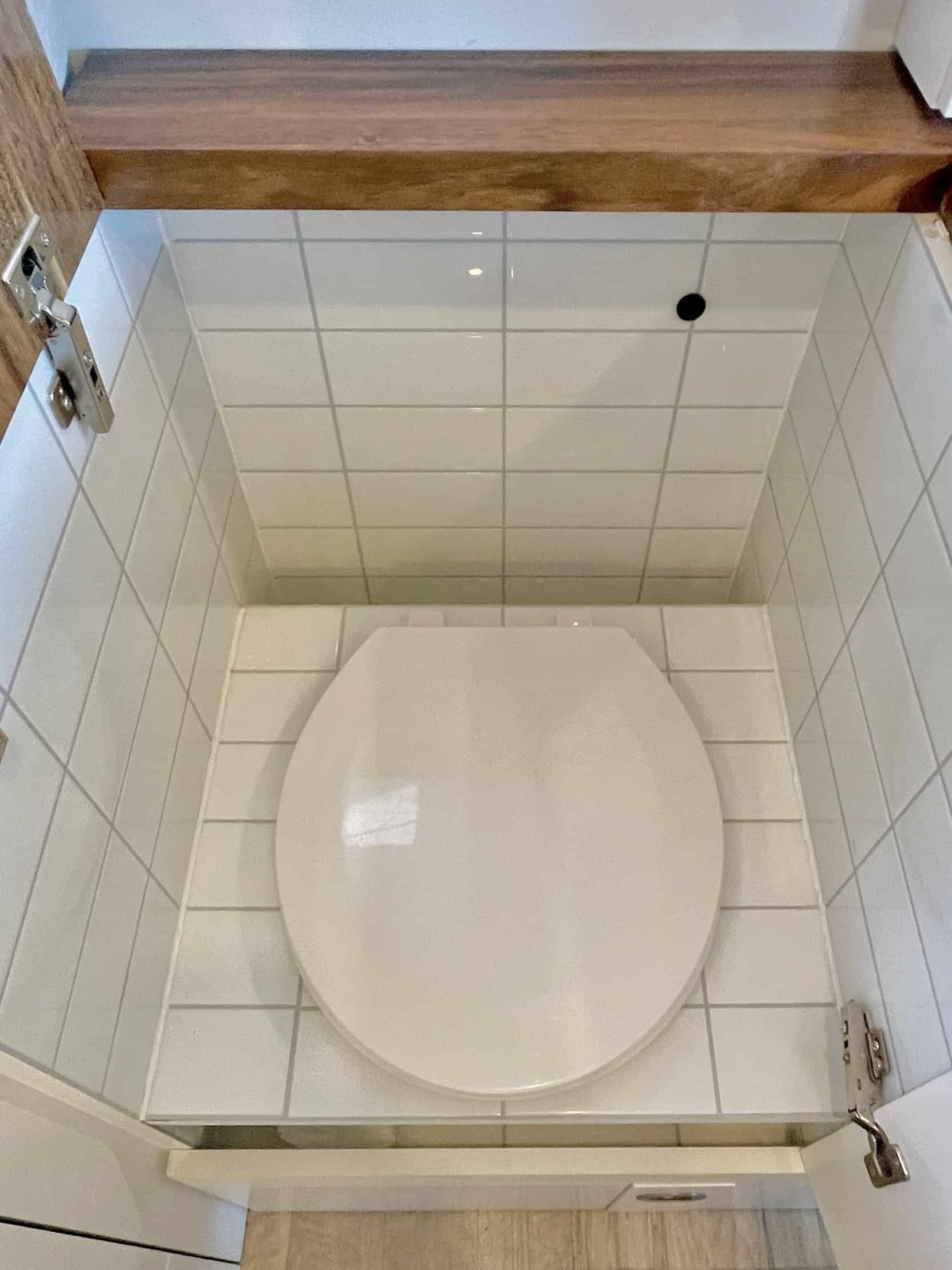

urine diverter with household toilet seat
convenient storage in toilet area of cabinet
toilet paper holder & small flip-down container to store personal hygiene products mounted on cabinet door
decorative vinyl peel & stick tile for easy maintenance and cleaning
water heater with custom temperature settings
sleek low profile shower head powered by pump with lithium battery on/off switch
shower head designed to pass through window to be used as alternative outdoor shower
separate 12 volt water pump is used to fill shower water container and/or other water containers
onboard water quantity is designed to be variable based on individual needs and easy winterization
10” x 36” x 4” vanity cabinet mounted to wall above cabinet countertop with 2 small flip-down dispensers perfect for storing toiletry items
panel above vanity holds electronic controls for van functions
Ceiling/Walls/Floor Materials
walls, floor and ceiling are insulated with a combination of Polyiso, Havelock wool, EVA foam & spray foam
ceiling constructed of 12’ x 6” natural cedar planks
Stainmaster Deluxe soft-step lay flat waterproof vinyl floor for easy cleaning and durability
white radiata pine nickel gap shiplap walls
sound deadening material installed on walls and ceiling
4 dimmable LED lights on ceiling controlled in two zones

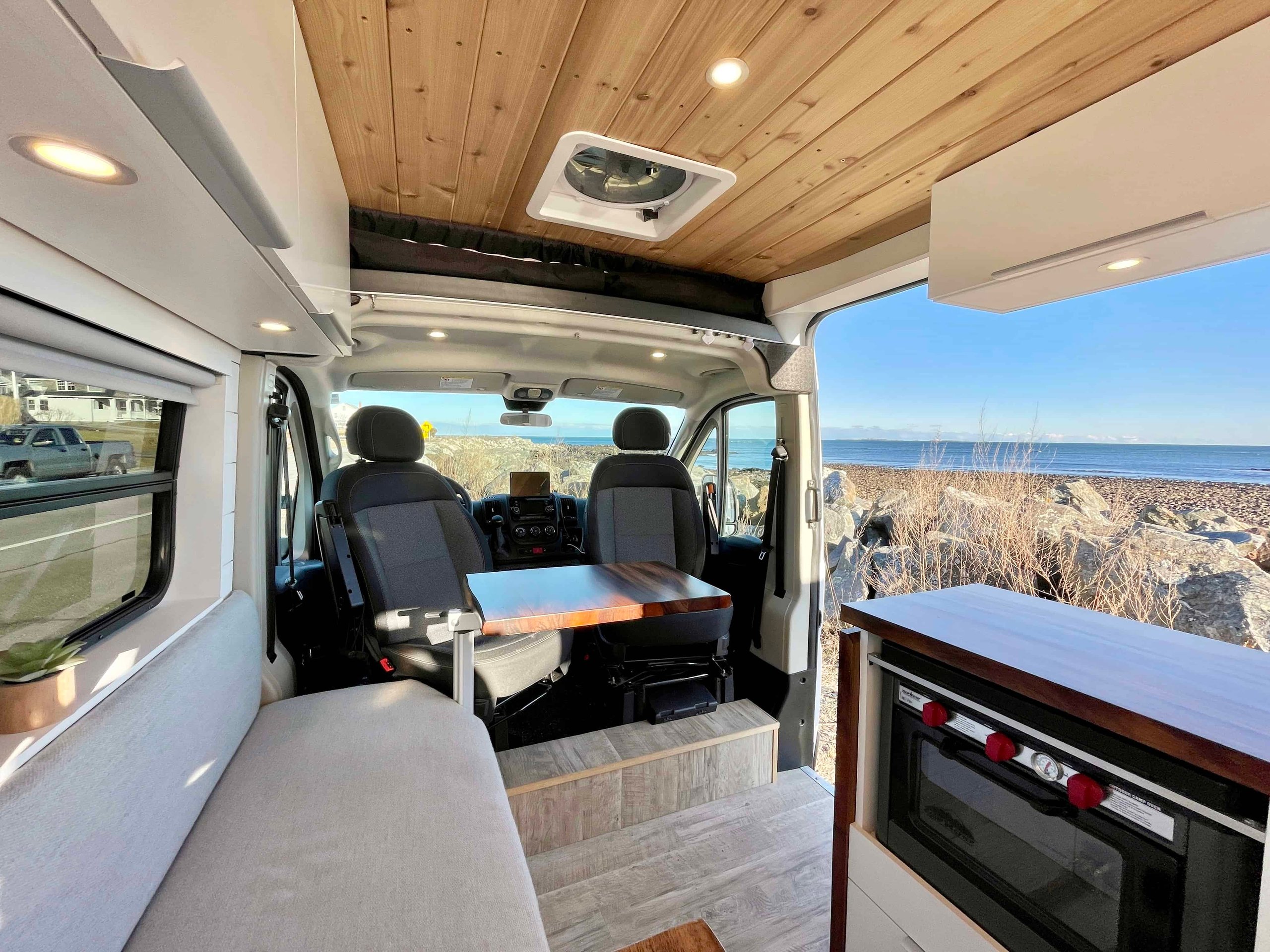

Front Cab Area
expands living area of van with the addition of Scopema driver & passenger swivel seats
2 dimmable overhead LED lights conveniently controlled by knob on headliner
handy 48” x 8” x 8” floor storage adjacent to seats doubles as foot rest when seats are swiveled
factory overhead cab storage area

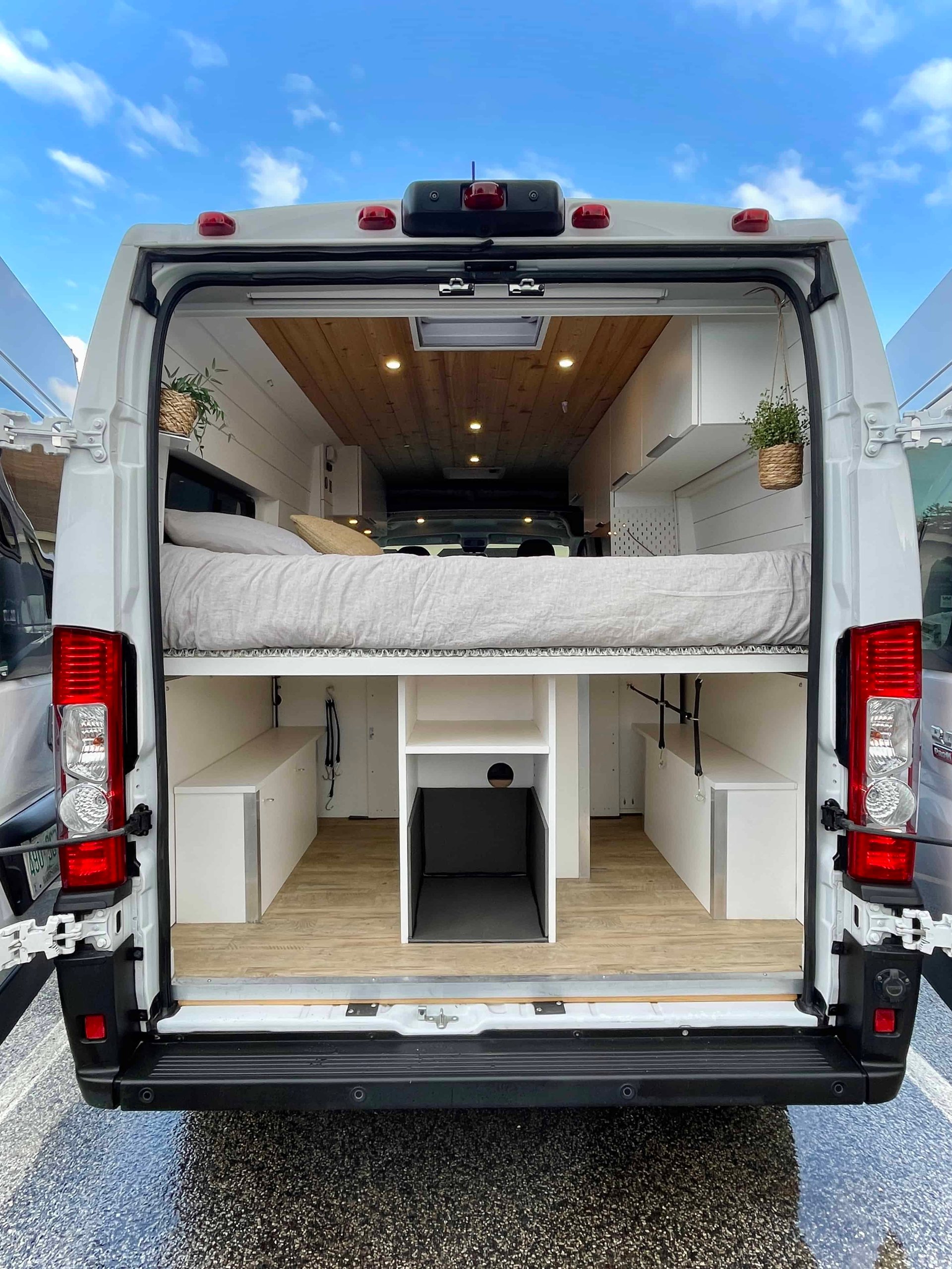

Garage
large cargo storage area designed for versatility and flexibility
plywood walls & center opening provides options for shelving & anchor tie downs
center section is water proofed for water jug storage or other items
left and right sides have long shelves above wheel wells with bungee cords to hold items in place
each side can hold a full sized bike with front tire removed
LED bar light with push button switch on side panel
aluminum corner guards and Scuff Defense washable paint
Tire and Suspension Upgrades
Sumo SuperSprings suspension products, both front and rear to enhance load carrying ability, stabilize sway and improve overall driver control and rider comfort
BF Goodrich KO2 All-Terrain tires
Heating and Cooling
MaxxFan Deluxe 7500K roof vent fan with remote control
Espar M2-B4L Airtronic commercial 4KW heater:
gasoline powered from van fuel tank
built-in altitude adjustment
EasyStart Pro control unit with precise temperature degree settings
SkyLight
Lewmar low profile Series 54 skylight/roof hatch
high quality hatch designed for marine applications
measures 18-1/4” x 22-3/4”
lays nearly flat on roof
friction levers hold lid in open position up to 95 degrees
provides a great deal of additional natural light, increased ventilation as well as easy roof access
removable bug screen and black-out insert secured by magnets
Navigation System
Garmin RV 890 GPS Navigator
8 inch display screen
voice control
pre-loaded apps, including iOverlander
Amazon Alexa Auto
voice control and integration with your mobile device

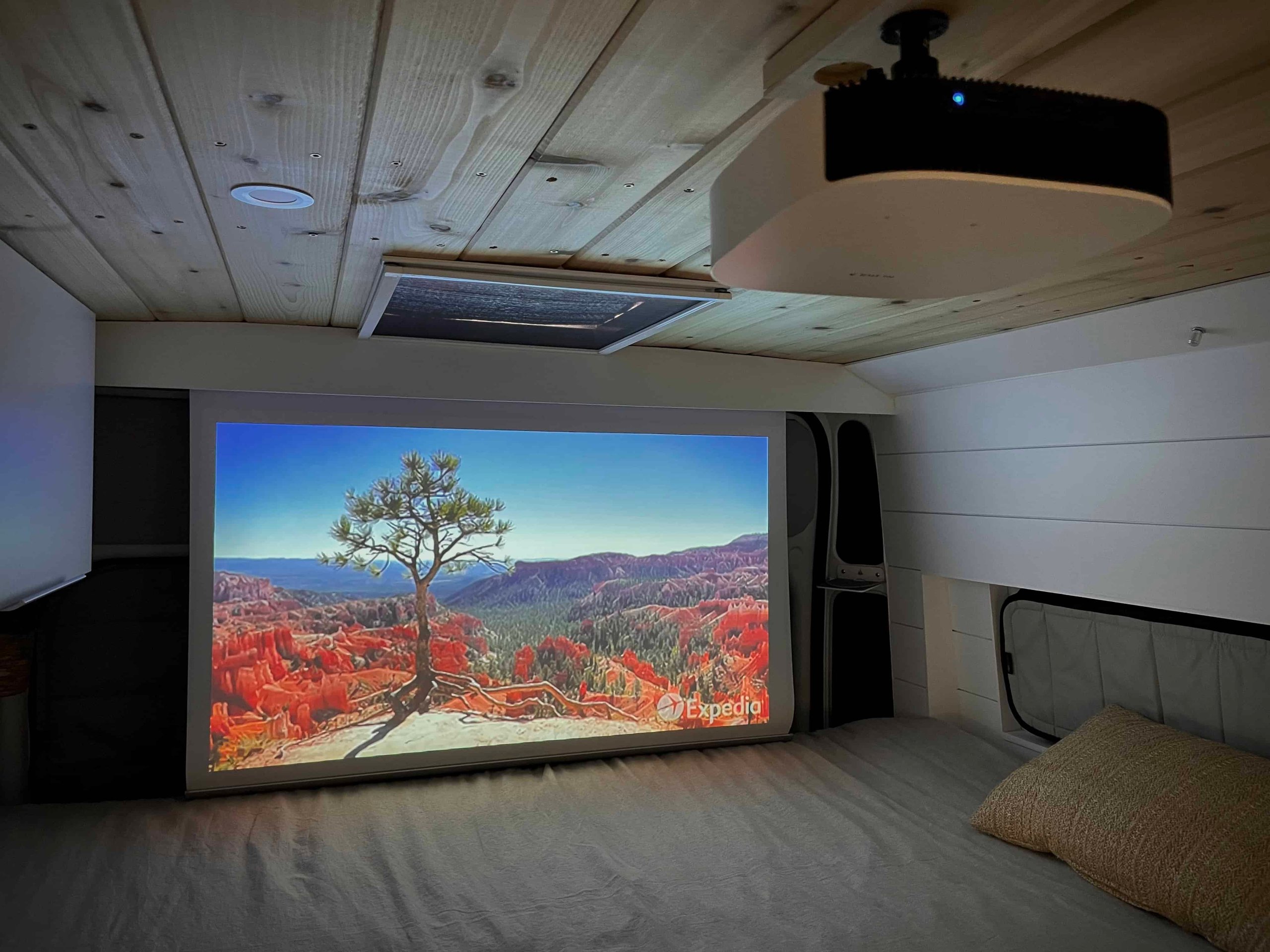

Projector Screen and HD Smart Projector
Custom USB rechargeable motorized projector screen is hidden behind rear ceiling trim piece when not in use
operated with remote control with single-touch raise/lower function
Anker Nebula Solar portable HD Smart projector custom mounts to ceiling to project onto cabinets or projector screen
bright, full HD image with auto focus and auto keystone
compatible with streaming devices (Amazon Fire Stick, Roku etc..) to watch your favorite streaming apps (Netflix, Prime, YouTube, HBO etc..) or downloaded movies

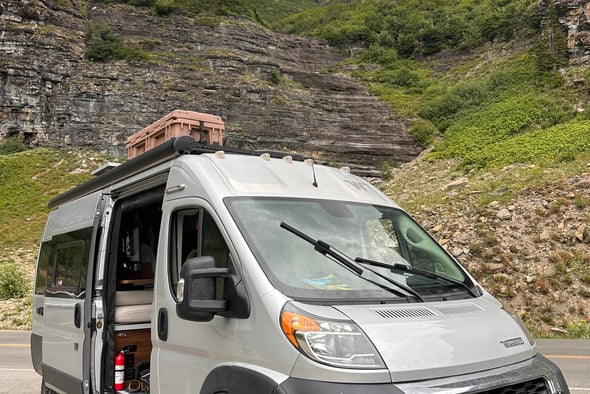

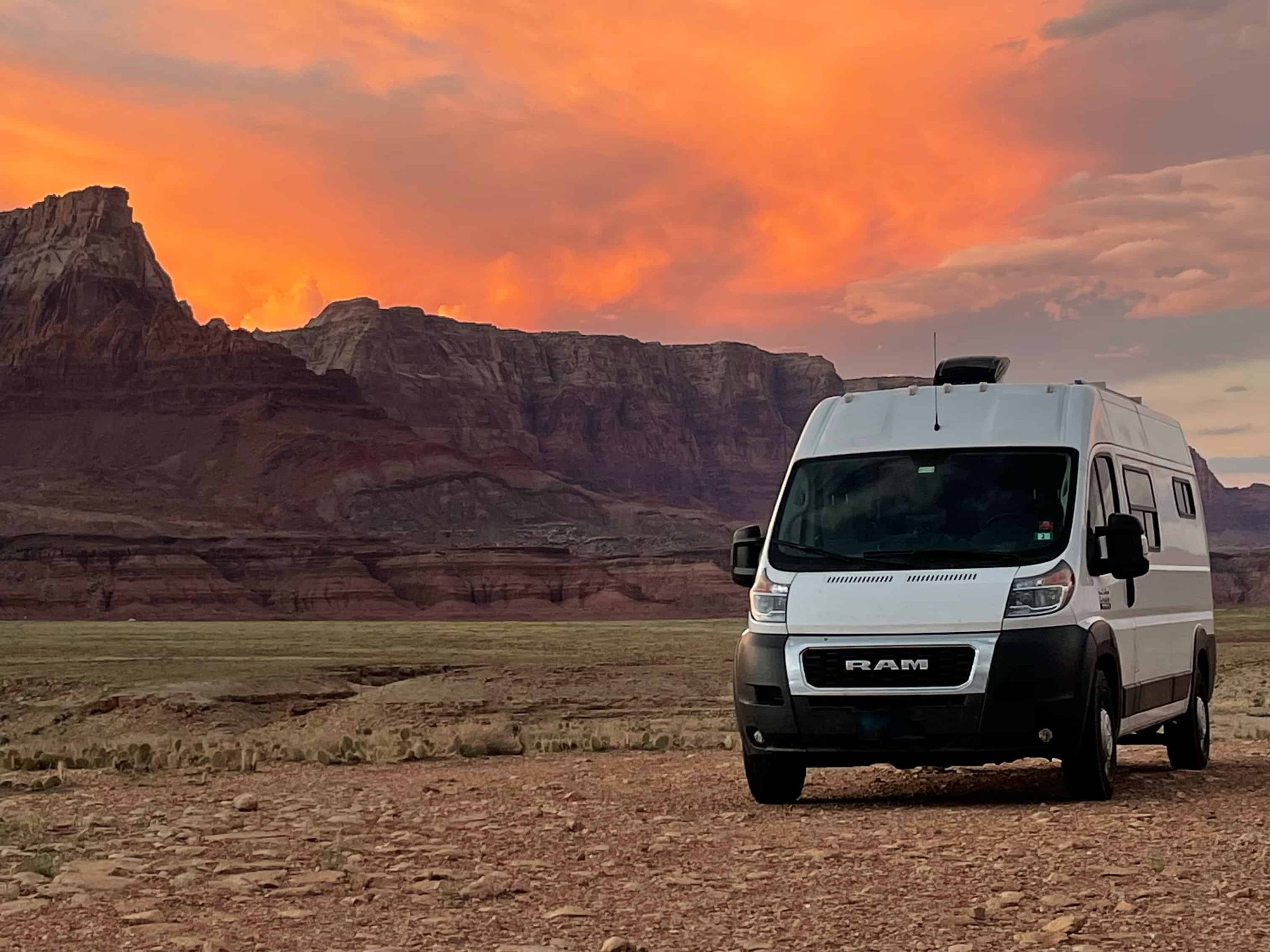

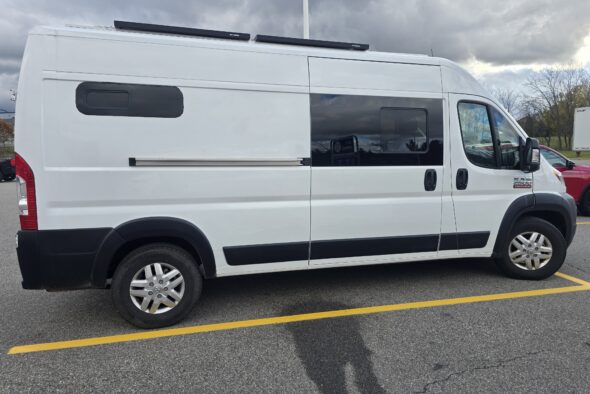

Vehicle Overview
Year: 2021
Make: Ram
Model: ProMaster 2500 High Roof 159″ Wheel Base
Exterior Color: Bright White Clearcoat
Interior Color: Black/Grey
Engine: 3.6L V-6 Gas
Transmission: Automatic
Drive Type: FWD
Fuel Type: Gas
Roof Height: High
Rear Backup Camera
Speed Control
6-Way Adjustable Driver Seat with Lumbar support
Rear Park Assist System
Factory Tinted Fixed Glass Windows on Slider & Rear Doors
Fog Lights
Power Folding Heated Mirrors
BF Goodrich KO2 All-Terrain tires
Sumo Supersprings system for front and rear suspension
Balance of Ram factory warranty fully transferable
Summary
This 2021 Ram Promaster 2500 was purchased new in December 2021, and the conversion was completed in April 2022.
With four previous Promaster conversions and five years of nomadic vanlife travel under our belts, this build combines enhancements from our tried-and-true design.
The van is built for full-time off-grid adventure travel with simplicity and functionality in mind. Bright, airy and wrapped with shiplap, the modern style is constructed with high quality materials, including ample storage and clever multi-use features that blend seamlessly into the unique custom design.
Every detail was carefully considered in preparation for living, working, and exploring off-grid while still enjoying the comforts and conveniences of home. A perfect solution for the weekend explorer, digital nomad, or anyone looking to live a free and adventurous lifestyle.
We decided to use this van for our own personal adventures before listing it for sale. From the Iceberg Festival in Newfoundland, Canada to desert camping in California, every detail of this conversion performed flawlessly for us. We are excited to pass along this van and the adventures it can bring to new owners.
Side Notes
ample indoor garage storage for outdoor equipment to fit inside vehicle & not be prone to theft
lower center of gravity and tightest turn radius in industry for comparable vans
the Promaster width allows for side to side sleeping on a standard full size mattress
straighter interior walls in the Promaster provides an airy, open feel
159” wheelbase is about 2 ft. longer than the 136”, yet fits in a standard parking spot
