Bay Area, California! Unleash Your Inner Explorer with Our Luxurious Camper Van Conversion – LuxVan Lagunitas!
River Rafting, Rock Climbing, Surfing, National Park Adventures, Visiting Distant Friends and Family – Your No-Hassle Ultimate Spring Getaway Awaits!
Visit us at www.LuxVan.net
Call Sarah: (619) 993-6973

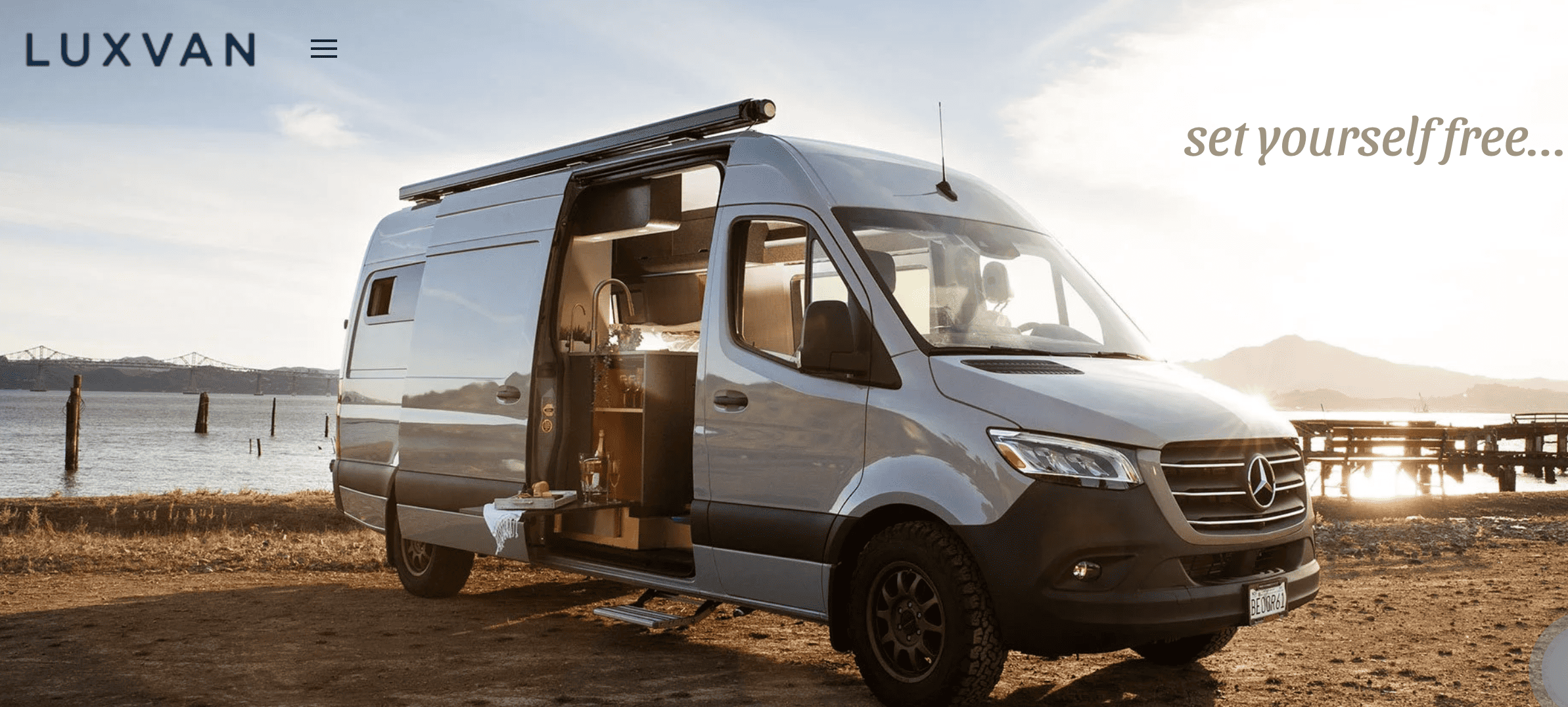

Experience the joy of travel and adventure in LuxVan Lagunitas -our stunning Mercedes Sprinter Diesel Camper Van Conversion. Our LuxVan offers the latest navigation and driver assist technology, making your journey safe, comfortable, and memorable. With a spacious 22-foot long wheelbase, this camper van boasts easy parking and handling, thanks to a 360° camera system.
Bedroom: Enjoy a peaceful night’s sleep in a queen-size bed, featuring 5-inch bamboo side shelves and a view of the stars when you open the back door. Queen Bed with 5″ Bamboo Side Shelves at Mattress Level. The long wheel base allows us to place the bed along the van instead of across it, so you can get out of bed without climbing over your partner! And, that extra 10″ of width offers plenty of room to sprawl as you sleep with your bed-buddy, as well as bring extra pillows along for lounging.
All-Electric: 200Ah of LiFePo4 batteries provide 2.4kWh of stored electrical energy, recharging automatically while driving, through 300W solar panels or shore power. Never deal with propane tanks again.
Toilet: Separett Tiny Waterless Urine Diverting Toilet with a noiseless electric fan for a fresh and odor-free environment.
Shower: Hot water provided by an electric Bosch 2.5-gallon water heater and a bamboo shower mat for clean feet.

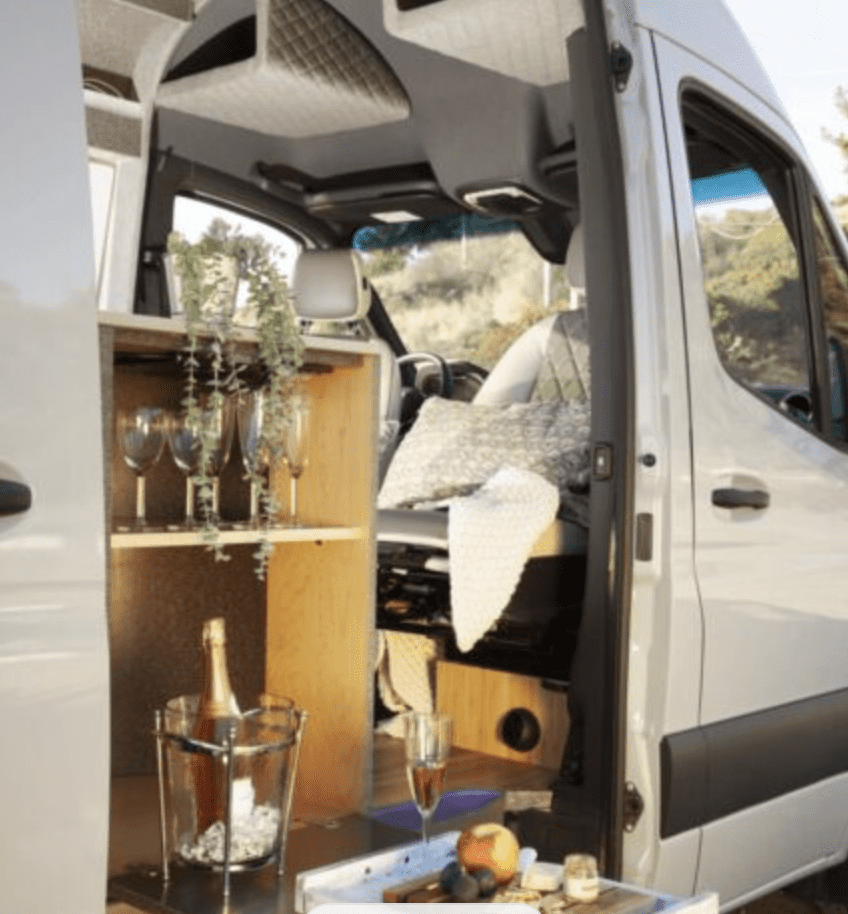

Kitchen: Modern electric induction cooktop set into custom granite countertop with deep stainless steel sink and integrated cutting board. Hot and cold running water, electric refrigerator freezer, see-through curved base cabinet opening to a drop-down outdoor prep table let you work with your partner without stepping on each other to make the meals you love without compromise.

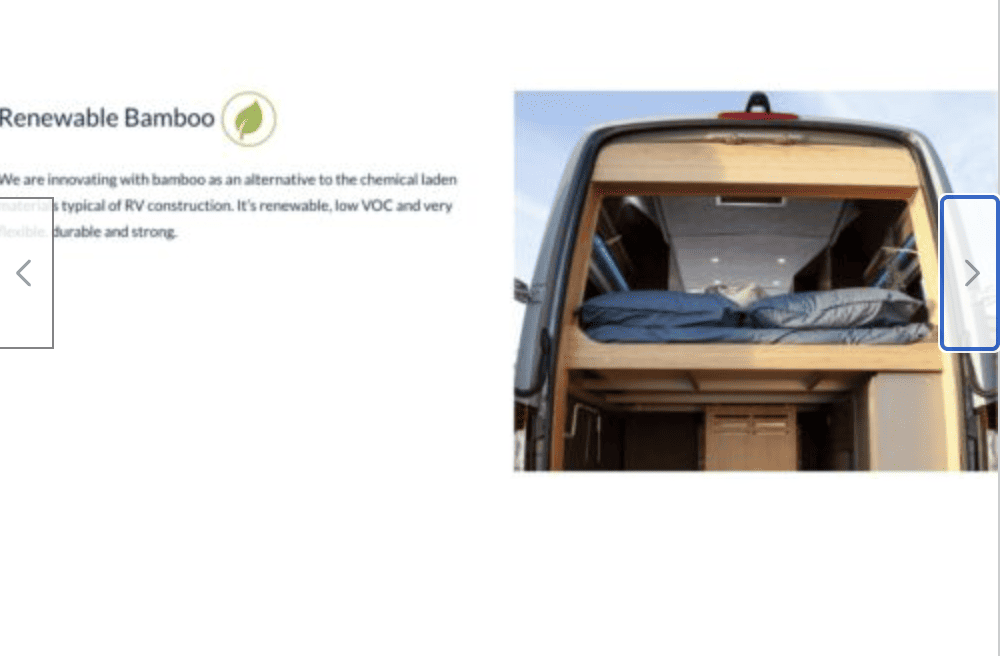

Sustainable Bamboo Materials: Renewable, low VOC, flexible, durable, and strong.
Storage & Cabinetry: Plenty of storage options, including top rack C-shelves, under-bed pullouts, and kitchen cabinets.
Electrical & Plumbing: House wiring harness, solar panels, LED lighting, 25-gallon fresh water tank, and running water pumps.
Interior & Exterior: Features include programmable multicolor under-cabinet LED lighting, refrigerator, full kitchen, queen-sized bed, automatic magnetic safety step, solar panels, electric awning, and Rhino tires.
Check out the full list of technical specs, original build details, and Mercedes chassis feature list below.
Don’t miss this opportunity to own the ultimate adventure vehicle and get on the road this Spring – contact Sarah at (619)993-6973 today!
#CamperVan #MercedesSprinter #VanLife #AdventureAwaits #LuxVan
CABINETRY & STORAGE
Top rack C-shelves
Enclosed horizontal top rack cabinet
Underbed Pullouts
Kitchen Cabinet
Vertical cabinet with or without drawers
Bench storage with optional refrigerator/ toilet
Headliner Storage
Footbed Drawers
ELECTRICAL
House Wiring Harness
One kwh lifepo4 batteries
100W solar panels
Alternator charging
Three zone lighting
USB and 12V power throughout
LED transom lights
PLUMBING
25 gallon fresh water tank
Toilet
Water heater
Running water pumps
Kitchen sink: Pivoting faucet
Water filter spout
Direct exterior drainage
INTERIOR
Programmable multicolor under-
cabinet LED lighting
Backlit LED Resin Transom: rear and side
Refrigerator
Full Kitchen, accessories included
Queen sized bed
EXTERIOR
Step: Automatic magnetic safety closure
Solar Panel 100 Watts (3x)
Electric awning: full size // vehicle
height, automatic
Exterior carbon fiber wrap
Gear racks
Ladder
Rhino Tires
ORIGINAL BUILD DETAILS
==================================
Sub Structure
Floors: 5 Layer floor totals 1.25” thick (Silicone, Kilmat, Cork, Plywood, Vinyl)
Walls: Closed Cell Foam Insulation and plywood
Track System: 8020
Finishes
Ceiling: Joann Gray
Bamboo Trims: Amber Edge Grain
Base Components
Windows: Van Windows Direct
Forward Driver Side and Passenger Side: Full Size (30” x 54.25”)
Rear Bunk Driver and Passenger Side: Bunk Windows (39” x 15”)
Electrical System
Renogy 3000w inverter (12v to AC) includes charger and switch
Solar Panels: Renogy 100w panels (Qty 3) provides a total of 300 watts
Renogy Solar Charger (50A 12v battery charger)
LifePo Batteries: 100 Amp Hour Lithium Batteries (Qty 2)
Blue Sea 360 Distribution Control Panel and Master switch
DC Fuse Panel: 12 way box
True Induction Stove Cooktop: single burner 15” x 12”
Refrigerator: Vitrifrigo 4 way (12v, 24v, 110v, 220v) dimensions: 31″ x 23″ x 21″
Diesel Space Heater: Vevor
GFI Accessory Outlet above sink
LED lighting
Shore Power: 30amp connector and 2’ adaptor extension (aka – pig tail or whip)
Plumbing
Fresh Water Tank: Titan Van (20 gallon)
Gray Water Tank: Class – A Customs (20 gallon)
Water Heater: Bosch Tronic 3000T (2.5 gallon)
Water Pump: Remco (55 – AQUAJET ARV) 12v
Accumulator:
Macerator Pump: Jabesco (18590 – 2092) 12v
Water Strainer: Shurflo (Qty 1)
3 Way water filtration: Frizzlife SP99
Compostable Toilet: Separett Tiny Waterless Urine Diverting Toilet with Urine Container
Fresh Water inlet: Aquor RV City Water Inlet with removable faucet connector and adapter
Furnishings
Air Fans: 1 Stock vent above kitchen and 1 MaxxAir above bed
Automatic Step: Mercedes
Awning: – Awnlux
Kitchen Counter: Granite
Kitchen Sink: Ruvati 15” x 20”
Shades: 25mm Tubular Motor (DC12v) with Remote Control System
Removable Swivel Table
Wheel Rims: Method
Cabinetry
Upper Cabinets:
With Doors
Open Cabinets
Vertical Kitchen Pantry:
Kitchen Sink Cabinet
Vertical Control Panel
Under Bed Storage Area
Bench Cabinet
Headliner Cubby
ORIGINAL MERCEDES CHASSIS FEATURE LIST
==================================
VIN: W1Y4ECVY8MT066475
MODEL: 2021 M2CA7X
7708 Silver Gray
Standard Accessories
AR2 Axle ratio 3.923
BA3 Active Brake Assist
BH1 Hold Function
C6L Multifunction steering wheel
CL1 Adjustable steering wheel (ang
D03 High roof
E07 Hill Start Assist
E1U USB-C socket, 5 V
E30 Starter battery disconnect
E40 Trailer hitch prep. wiring
ED4 AGM battery 12V 92 AH 850 A
EK1 Body Builder Connector
ES0 Jump start terminal
EY5 Emergency Call System
EY6 Breakdown management
F68 Heated & electrically adjustab
FF5 Shelf above windshield
FG8 Cupholder front
FJ4 Storage compartment underneath
G42 Automatic transmission, 7G-tro
H21 Windshield with filter band
HH2 Heater, auxiliary electric hot
HH9 Air Condition, Front
IC1 Model series C907 / C910 Sprinter
IE0 Model series C907 VS30 RWD
IG4 Standard
IG5 Basic
IK0 Complete vehicle
IL5 Left-hand drive
IR6 Wheelbase 4325 mm, overhang 1615 mm
IT9 4.0-tonner
J11 Speedometer, miles and km/h
J55 Seat belt warning for co-drive
J58 Seat belt reminder driver
J65 Outside temperature gauge
JA8 Crosswind Assist
JH3 Communication module (LTE) for
K56 Red diesel filler cap
K60 Exhaust straight to rear
KB7 24.5 gallon fuel tank
KL5 Fuel filter with water separat
KP6 3rd generation SCR emission co
L94 Parking lights deletion
LA2 Headlight assistant
LB5 3rd brake light
M46 Alternator 14 V/220 A
MG5 3.0L V6 turbo diesel engine
MI0 ULEV emission
P47 Front mudflaps
P48 Rear mudflaps
Q11 Longitudinal member reinforcem
R65 Spare wheel bracket below fram
R87 Spare wheel
RH8 Tires LT 245/75 R16
RS3 6.5 J x 16 steel wheels
RY2 Tire pressure monitoring lamp
S22 Armrest for driver’s seat
S25 Armrest for front passenger se
SA5 Front airbag, driver
SA6 Front airbag, passenger
SH1 Thorax-pelvis sidebag, driver
SH2 Thorax-pelvis sidebag, co-driv
SH9 Airbag, driver/passenger windo
T16 Sliding door, passenger side
V94 Cable duct – side wall
V95 Cable duct – rear portal
X64 Plates/booklets in English (US
XC8 VIN visible from outside
XL2 GVWR 9,050 lbs. / 4.100 Kg
XQ1 VIN-encoded vehicle data with
XY1 Model Year 1
XZ0 Model generation 0
Y43 Jack, hydraulic
Z44 Registration of vehicle not po
ZM0 Panel van
ZU8 USA country version
ZZ4 Brand content Mercedes-Benz No
Options
C00PKG Comfort Package
C01PKG Driver Convenience Package
C03PKG Premium Plus Package
CA2PKG C02 in combination with C03
X13PKG Exterior Lighting Package
X30PKG 4×4 Package
X67PKG Chrome Grille Package
X68PKG Comfort Plus Package
X69PKG Swivel Seat Package
B25 Electric parking brake
CL3 Leather steering wheel
CN2 Radiator grille frame in vehic
CT1 Rear spring vibration absorber
D93 Omission bulkhead
E1B Tray for smartphones incl. wir
E1G Intelligent navigation
E1S Sirius XM, satellite radio
E36 Cutoff relay for additional ba
E46 12 V power outlet, driver seat
E4M MBUX Multimedia System with 10
ED5 Parametric special module (PSM
EE3 115 V socket
ES2 12 V power outlet, rear compar
ES5 Charging package, dashboard
ET4 Active Distance Assist DISTRON
EX9 Free map data updates for 3 ye
F49 Electrically heated windshield
F64 Electrically folding exterior
FJ1 Hinged lid for storage compart
FJ5 Hinged Lid for Storage Compart
FK3 Chrome plated radiator grille
FM3 Wet Wiper System
FY7 Optional 3-button keys
FZ9 Keys, two additional masters
H15 Heated front passenger seat
H16 Heated driver’s seat
H1I Front-to-rear outlet in instru
H72 Roof fan, electric
JA7 Blind Spot Assist
JA9 Traffic Sign Assist
JB4 Active Lane Keeping Assist
JB6 Parking Package with 360 degre
JF1 Rain sensor
JK5 Instrument cluster with color
JW8 Attention Assist
K51 Misfueling prevention for Dies
KL1 Aux fuel sending unit w/ fuel
L13 Fog lamp with cornering light
L22 Partial LED tail lights
L65 Interior lights, cargo compart
LA1 High beam assist
LC4 Comfort overhead control panel
LG7 LED high performance headlamps
Q24 Trailer hitch, 5,000 lbs
QA9 Half-sided step rear (for trai
R98 Rims painted jet black
RD9 Unspecified tire brand
RM0 All-season tires
S28 Armrest, driver’s and co-drive
S87 Driver’s seat frame, low
S88 Passenger seat frame, low
SE4 Lumbar support, co-driver’s se
SE5 Lumbar support, driver’s seat
SF1 Driver’s seat electrically adj
SF2 Co-driver’s seat electrically
SK0 Comfort head restraint, driver
SK1 Comfort head restraint, co-dri
SR8 Swivel base for driver’s seat
SR9 Swivel base for front passenge
T55 Electric sliding door right
T57 Electric sliding step
T75 Door-mounted assist handles, d
T85 Assist handle, left rear door
T86 Assist handles, right rear doo
V93 Without factory installed floo
VA3 Side wall paneling full hardbo
VF6 Artico Man-Made Leather Black
W54 Rear doors, opening to side wa
XM4 Acoustic package
XO5 Digital owner’s manual
Y10 First-aid kit
Z4X Production Charleston
Z5W Vehicle class Truck
Z75 Bodyshell, additional measures
ZG3 4×4 – High range transfer case
