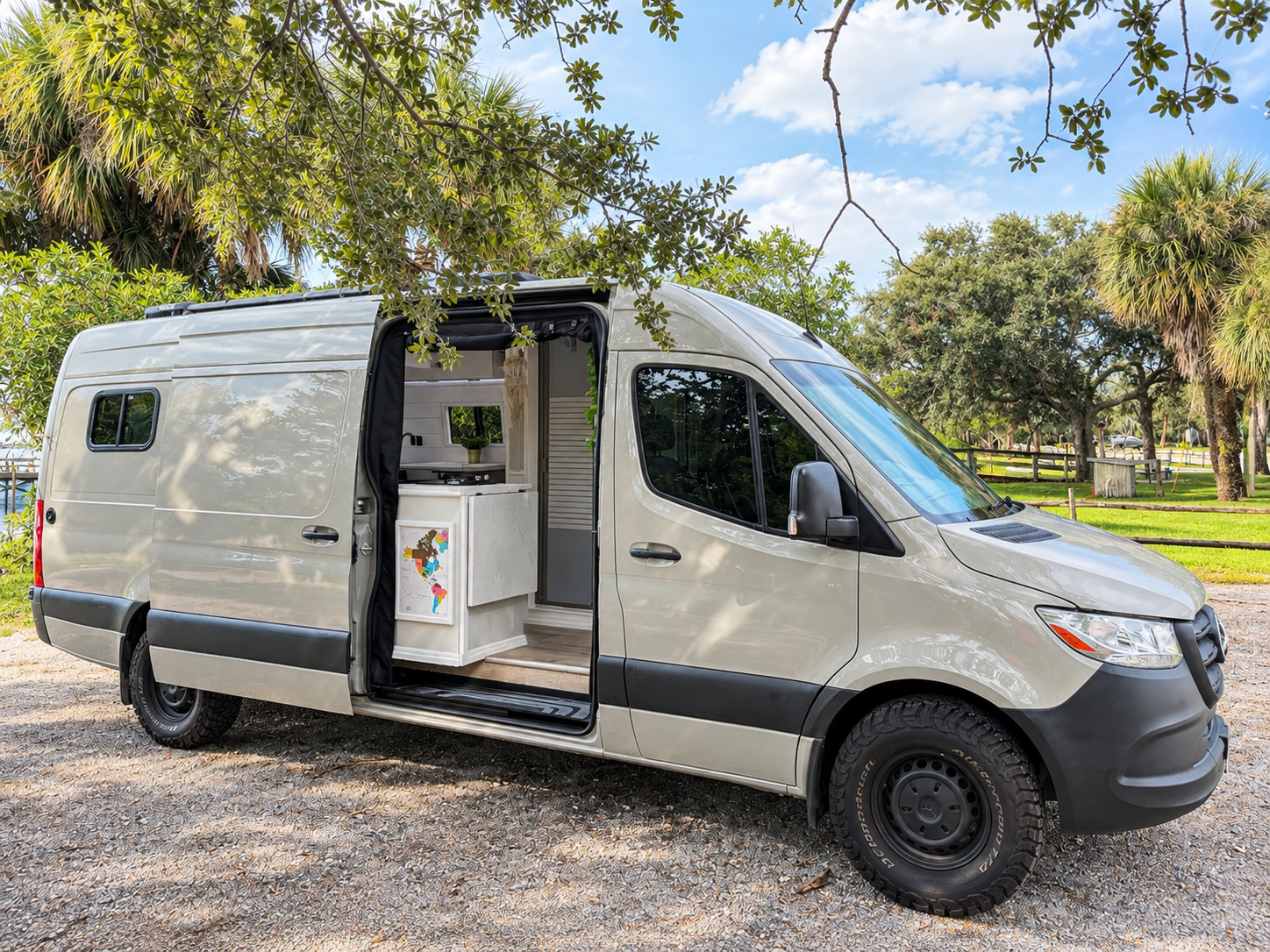

2021 Mercedes-Benz Sprinter 2500 (170″ WB) – Fully Off-Grid

Proven Overland Camper Van | Built for 100% Off-Grid Independence | Tested Across 60 Countries

1. Year / Model: 2021 Mercedes-Benz Sprinter 2500
2. Engine: 4-Cylinder Turbo Diesel
3. Fuel Economy: ~22 MPG Highway Average
4. Wheelbase / Size: 170" Wheelbase – Open Concept Layout
5. Condition: Fully Refreshed & Ready for Immediate Adventure

OUR STORY & THE VAN (“CANELA”)

We custom-built "Canela" with one goal in mind: complete autonomy without needing to rely on campsites or external hookups. Starting in 2021, this van took us on the ultimate Pan-American journey from Alaska to Ushuaia over 2.5 years. Later, we shipped her to Europe and traveled through 60 countries, including Morocco, the UK, Ireland, Turkey, Georgia, Armenia, and all the way up to North Cape (Nordkapp)—the northernmost point in Europe accessible by road.

This van has been field-tested in Arctic cold and harsh climates. The internal plumbing design and top-tier insulation ensured zero freezing issues even in extreme conditions. We are now back in the US and have fully refreshed the van so its next owner can hit the road with complete confidence and freedom.

KEY HIGHLIGHTS & COMPARABLE VALUE

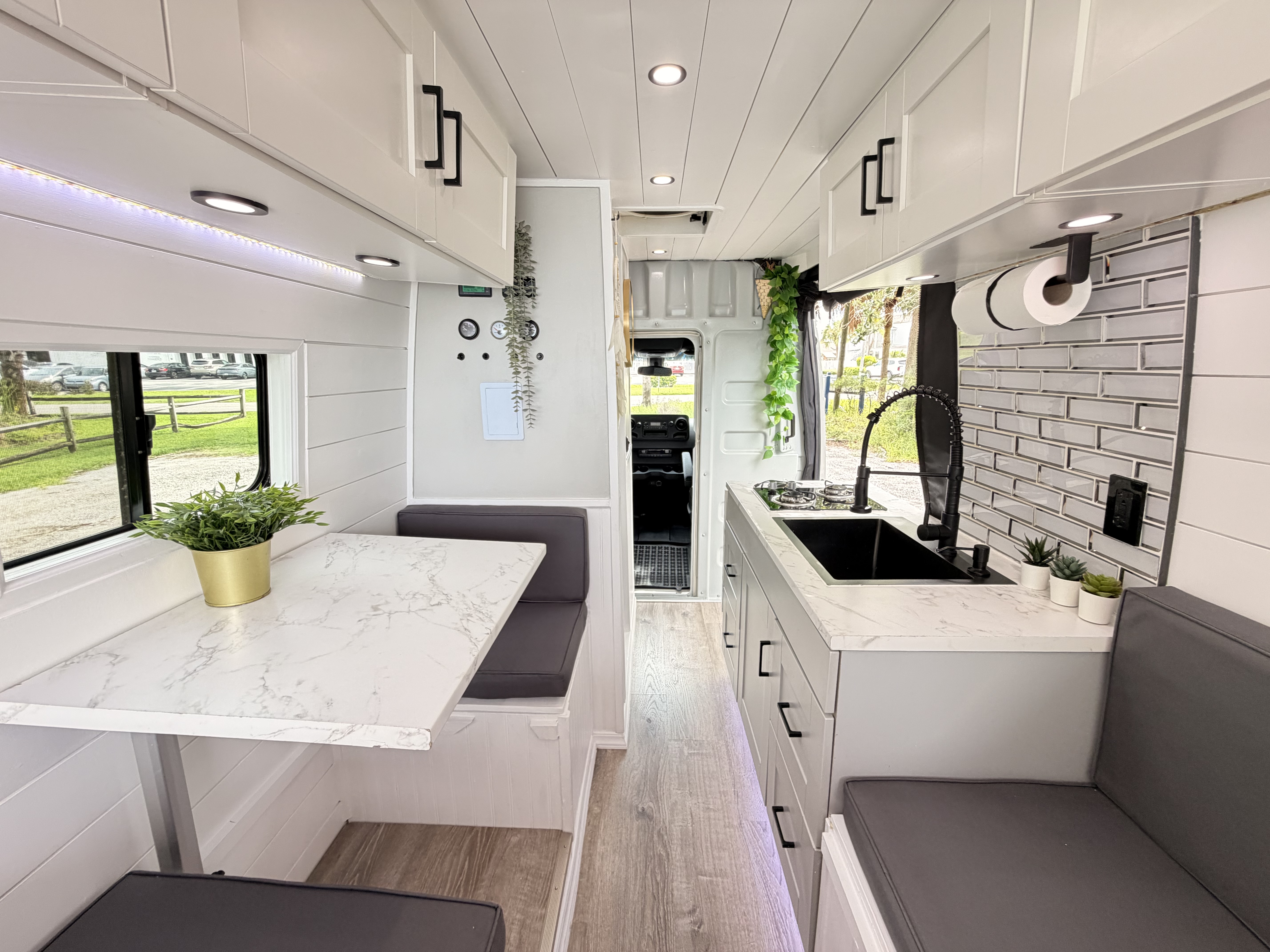

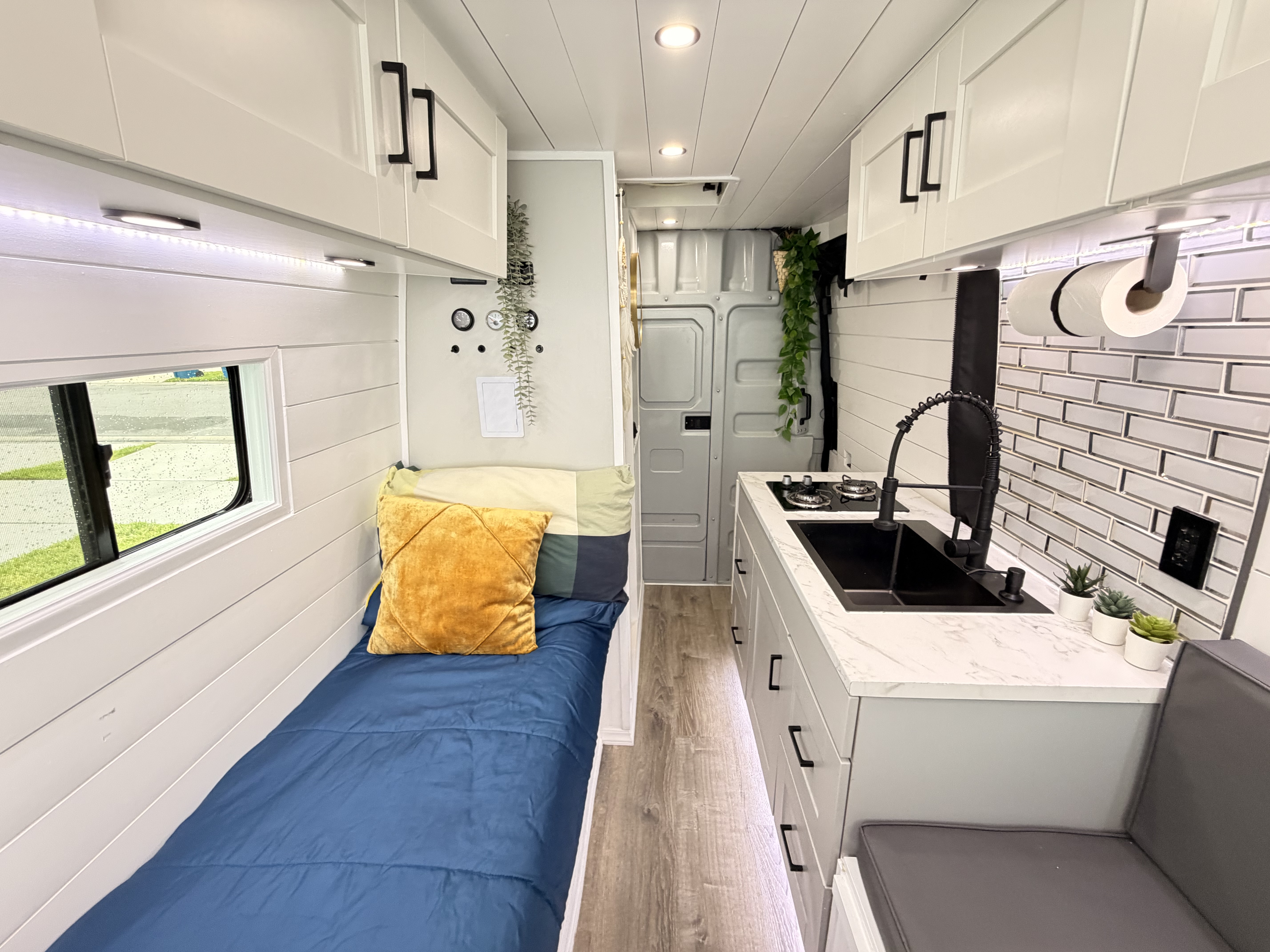

1. Spacious Open-Concept Design: Maximizes livable space and interior flow.
2. Extreme Cold & Heat Prepared: Heavy insulation with internal water tanks.
3. Triple-Charging Power System: Solar, Alternator (DC-DC), and Shore Power.
4. Market Value: Comparable 170" Sprinter conversions with this level of off-grid capacity and heavy-duty suspension upgrades are listed between $110,000 – $135,000.

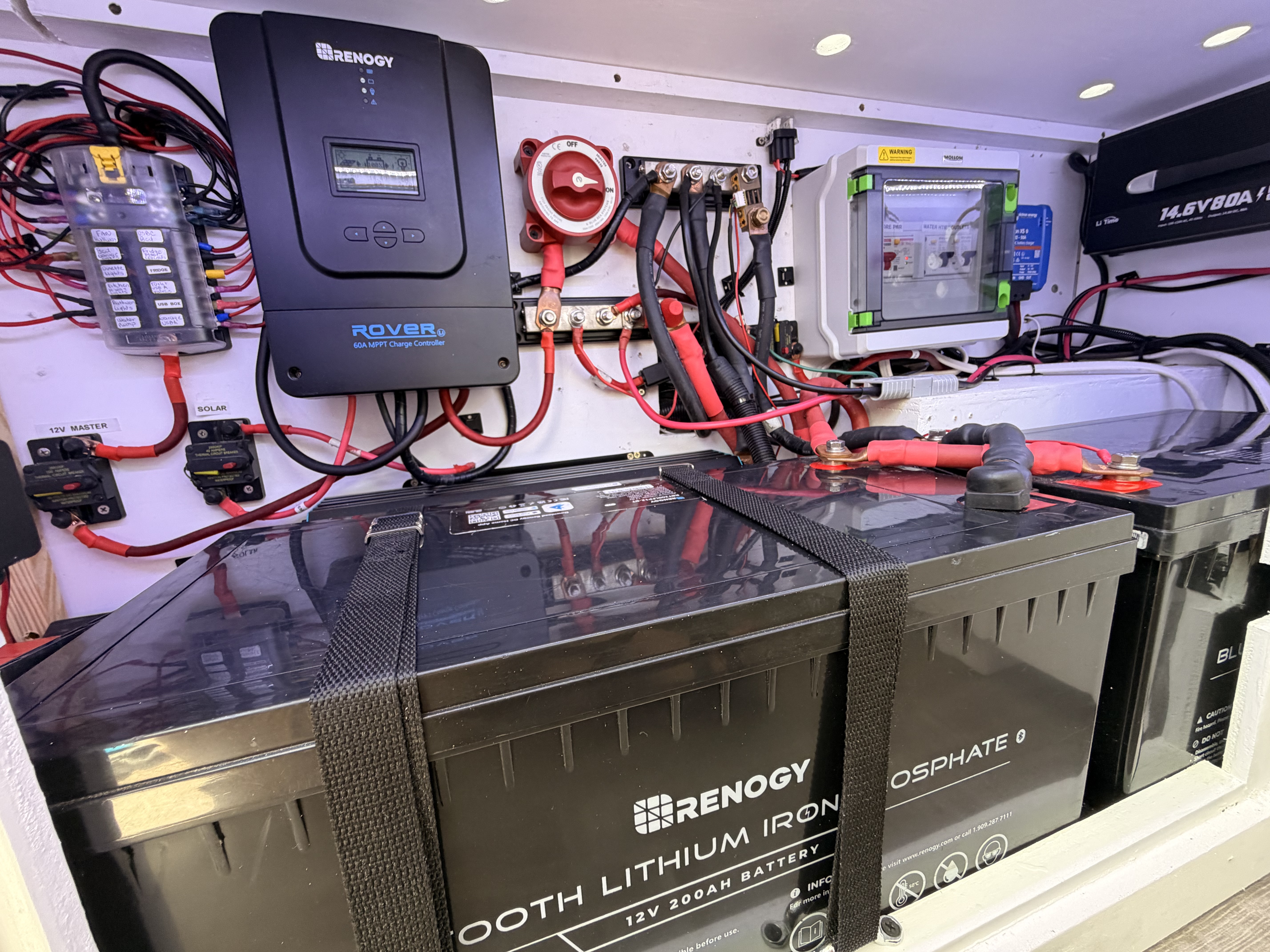

1. POWER & ELECTRICAL SYSTEM (Off-Grid Ready)

1. Batteries: 12V 400Ah LiFePO4 Lithium Iron Phosphate Battery

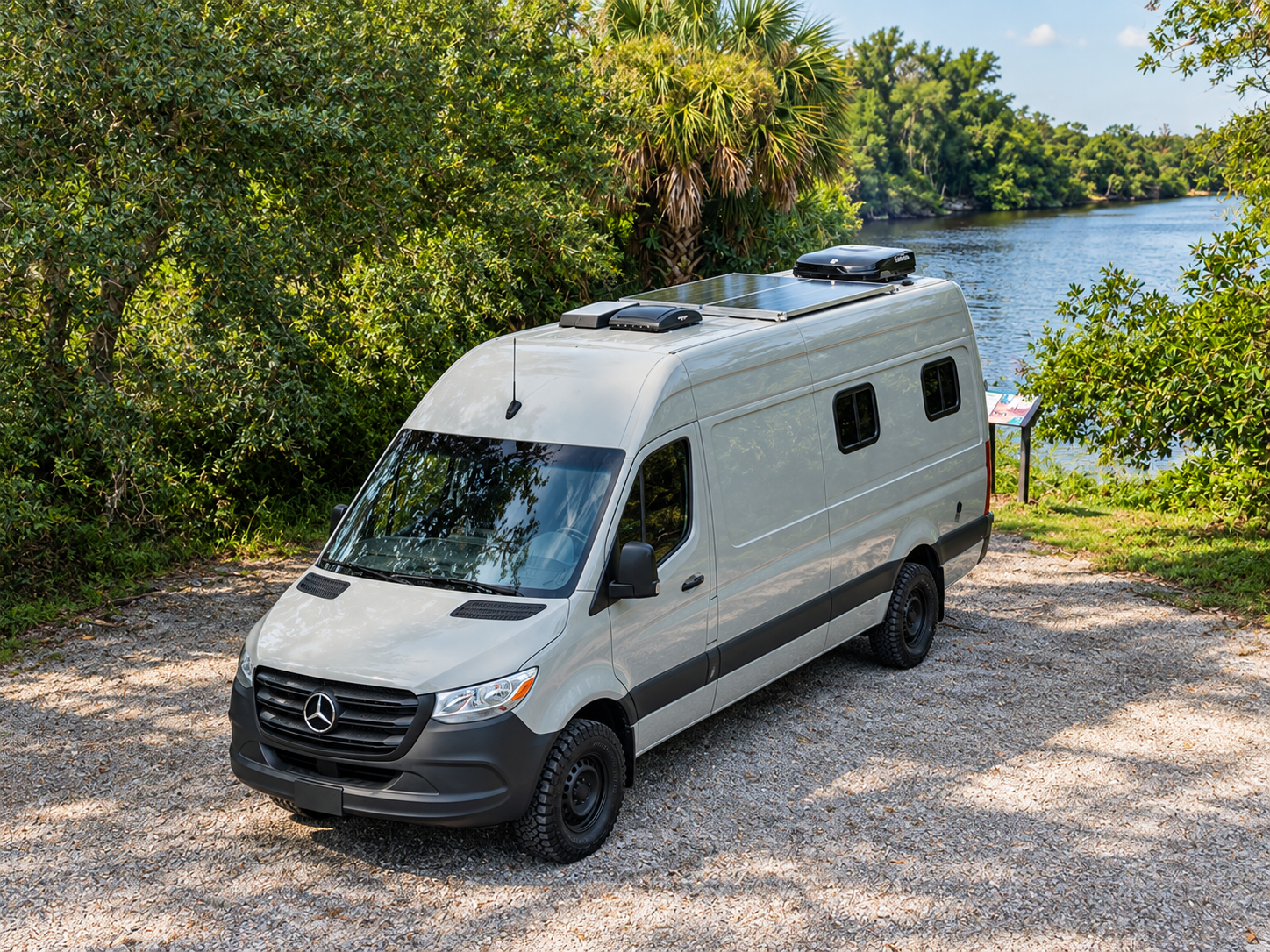

2. Solar Power: 400W Monocrystalline Roof Solar Panel Array
3. Solar Controller: Rover 60A MPPT Solar Charge Controller
4. Inverter: 3000W 12V Pure Sine Wave Inverter
5. Alternator Charger: Victron Energy Orion-XS Smart DC-DC Charger (12/12V 50A / 700W with Bluetooth)
6. AC Fast Charger: 12V 80A Dedicated Lithium AC-DC Battery Charger
7. System Monitor: 500A Battery Monitor with Shunt
8. Shore Power: Exterior Shore Power Hookup
9. Charging Versatility: 3 independent charging sources (Solar, Alternator while driving, and Shore Power).
10. Outlets: Multiple 110V AC outlets and USB charging ports throughout.

2. CLIMATE CONTROL, INSULATION & SOUNDPROOFING

1. Heating: Autoterm Air 2D 2kW 12V Diesel Auxiliary Heater with Comfort Control LED Panel & Quiet Fuel Pump (Proven performance in Nordic winters).
2. Rooftop AC Unit: 12V Top-Mounted Air Conditioner (10,000 BTU) with Heating & Cooling functions.
3. Ventilation: MaxxFan Deluxe Roof Vent with Remote Control.
4. Thermal Insulation: 3M Thinsulate SM600L Acoustic & Thermal insulation throughout walls and ceiling.
5. Sound Deadening: 80-mil Butyl Automotive Sound Deadening Mat installed all around for a quiet highway ride.
6. Floor Insulation: Radiant Barrier Double Reflective Insulation layer installed under the subfloor for maximum thermal efficiency and cold-floor protection.

3. SUSPENSION & WHEELS

1. Tires: New BFGoodrich All-Terrain T/A KO3 Tires.
2. Front Suspension: SuperSprings SumoSprings Front Kit.
3. Rear Suspension: SuperSprings SumoSprings Rear Kit.
4. Leaf Spring Upgrade: Rear Heavy-Duty Add-a-Leaf Spring installed for improved weight distribution, ride stability, and elimination of rear sag under full conversion load.

4. WATER SYSTEM & BATHROOM

1. Fresh Water: 42-Gallon Internal Fresh Water Tank (Protected against freezing).
2. Grey Water: 5-Gallon Dedicated Kitchen Grey Water Tank.
3. Grey/Shower Water: 15-Gallon Dedicated Tank for shower/toilet drainage.
4. Plumbing: Full PEX tubing setup secured with stainless steel pinch clamps.
5. Hot Water Heater: 4-Gallon Bosch Tronic 3000 Electric Water Heater.
6. Drainage: Motorized Ball Valve for effortless electronic tank emptying.

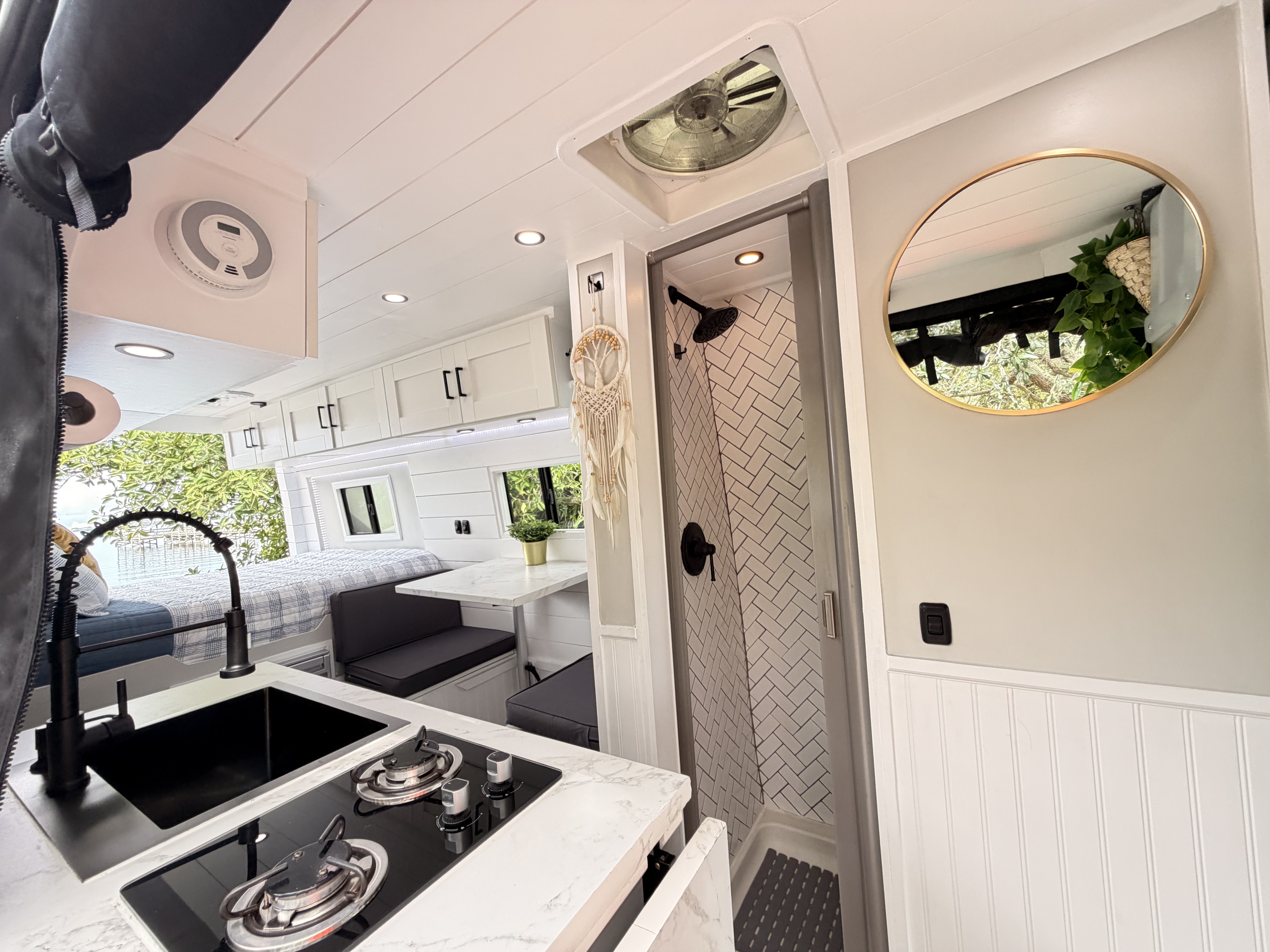

7. Bathroom: Indoor Full Shower with Hot/Cold Water & Self-Cleaning Retractable Shower Door.

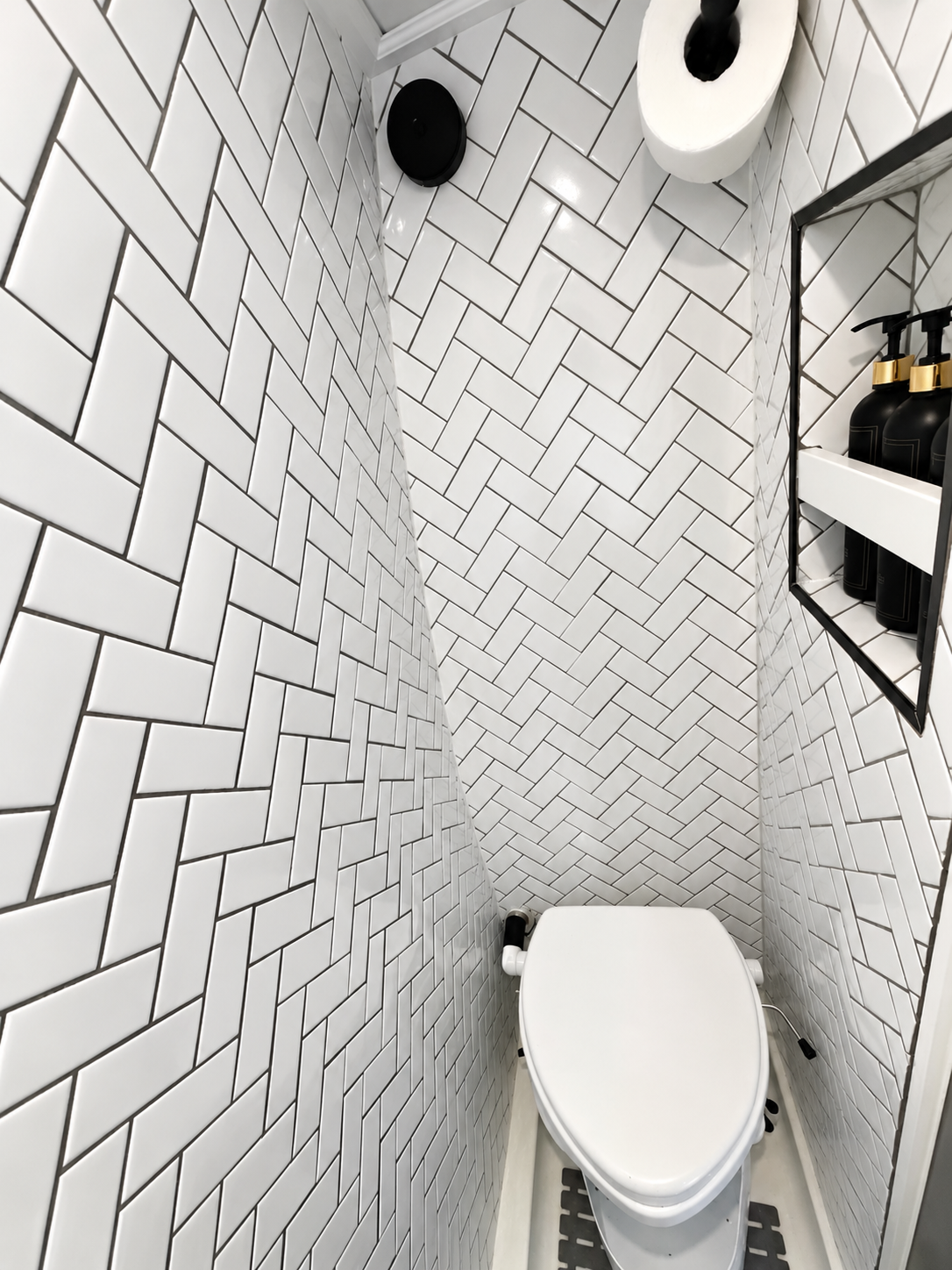

8. Toilet: Nature’s Head Self-Contained Composting Toilet.
9. Outdoor Shower: Exterior Rear Hose/Shower Connection.

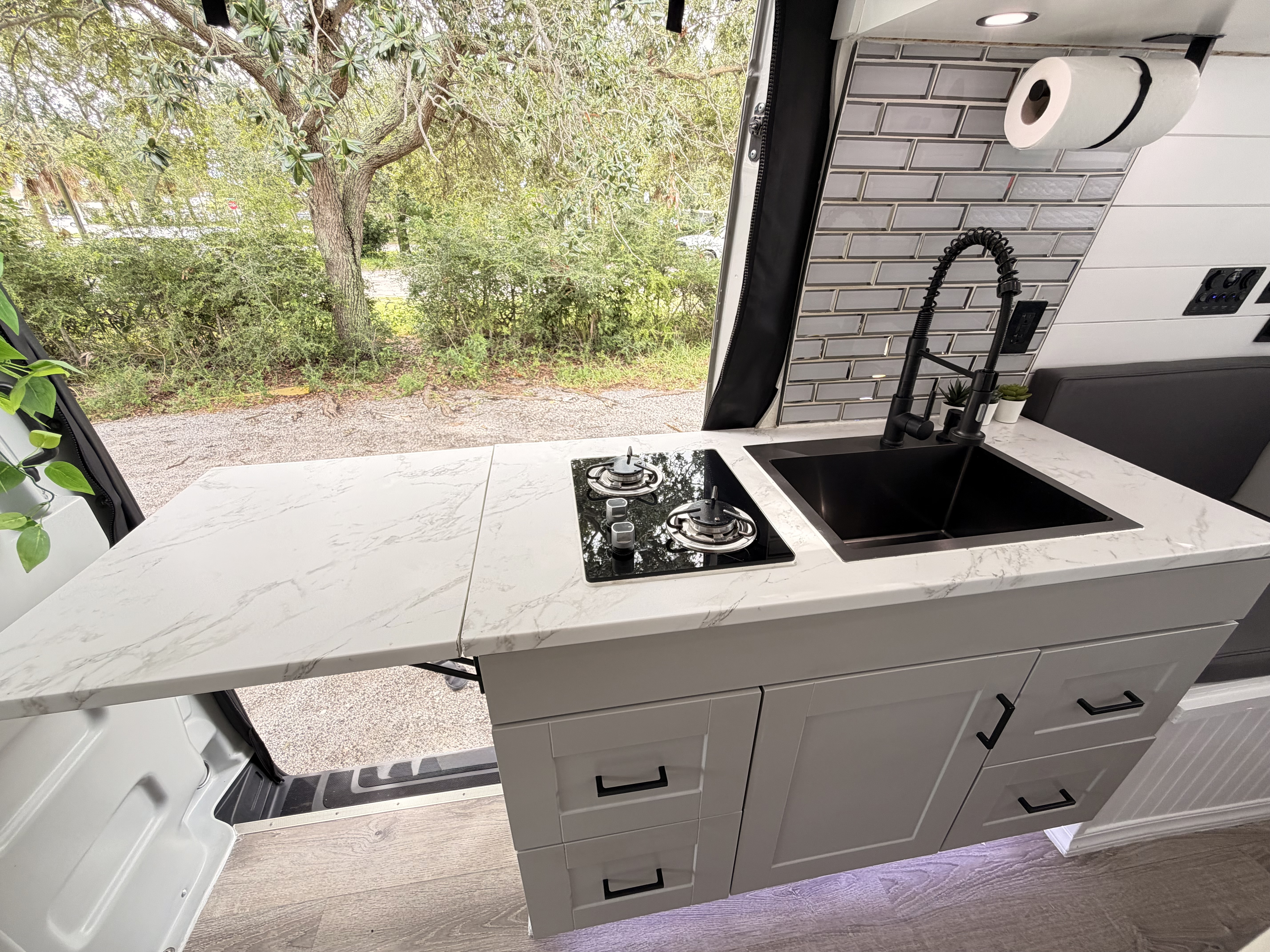

5. KITCHEN & DINING

1. Refrigerator/Freezer: 12V Dometic CRX-80 Compressor Fridge/Freezer.
2. Cooktop: 2-Burner Gas Stove powered by a 20 lb Propane Tank housed in a vented safety locker (lasts up to 7 months of normal use).
3. Countertops: High-Durability Laminated Countertops.
4. Sink & Faucet: 18-Gauge 304 Stainless Steel Single-Bowl Sink with Casavilla Pull-Down Hot/Cold Faucet.

6. SLEEPING & LIVING SPACE

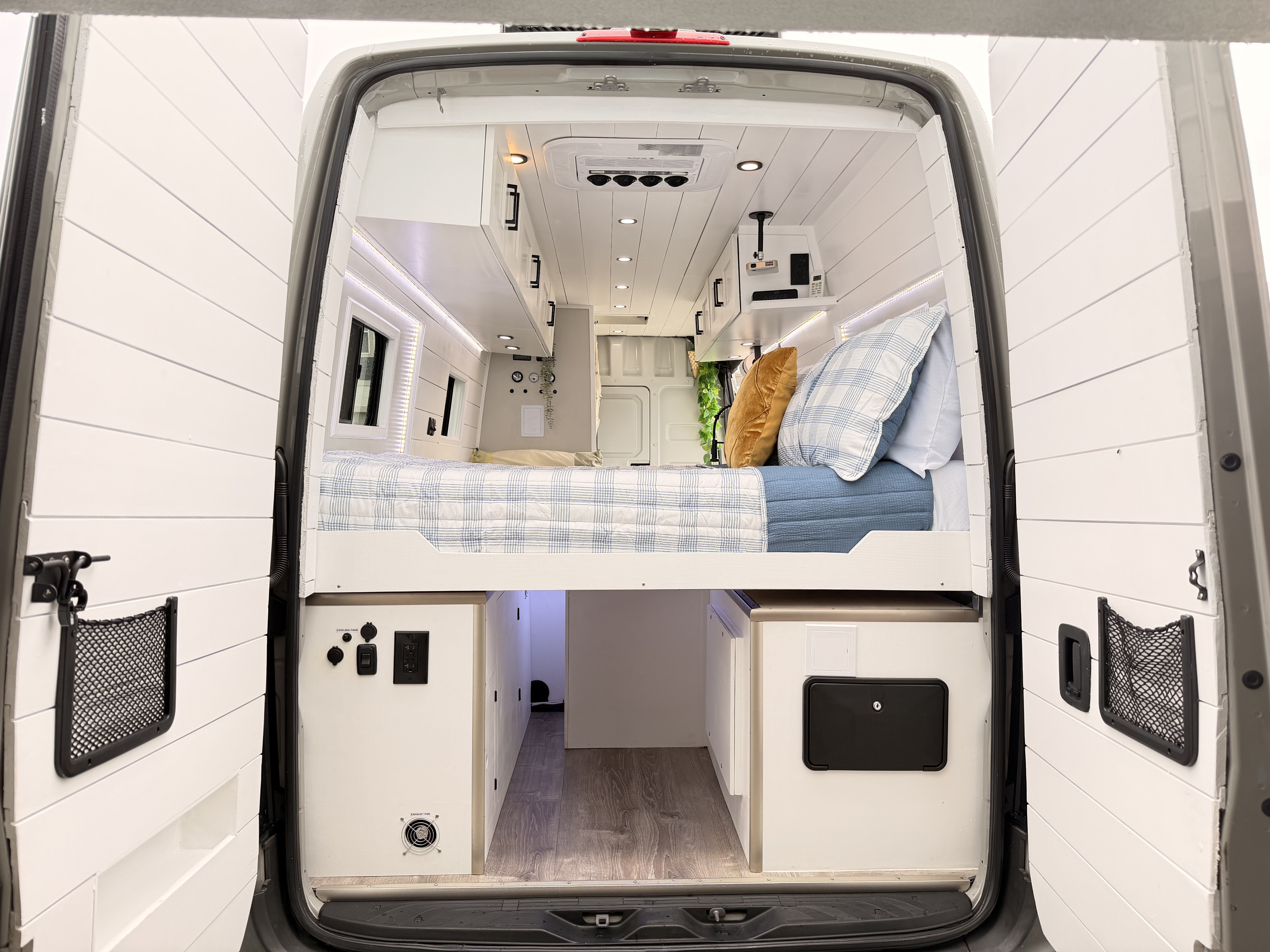

1. Primary Bed: Comfortable Rear Bed (69" x 55").
2. Convertible Bed / Lounge: Dinette table converts into a second bed (60" x 24") suitable for a child, small adult, or pet lounge area.
3. Capacity: Comfortably sleeps 2 Adults + 1 Child or Pet.
4. Flooring: Waterproof Luxury Vinyl Plank Flooring

7. ENTERTAINMENT, CONNECTIVITY & EXTRAS

1. Internet Ready: Roof-mounted Starlink preparation with internal router connection.
2. Home Theater: KODAK Luma 350 Portable Smart Projector with onboard Android, Wi-Fi, and Bluetooth.

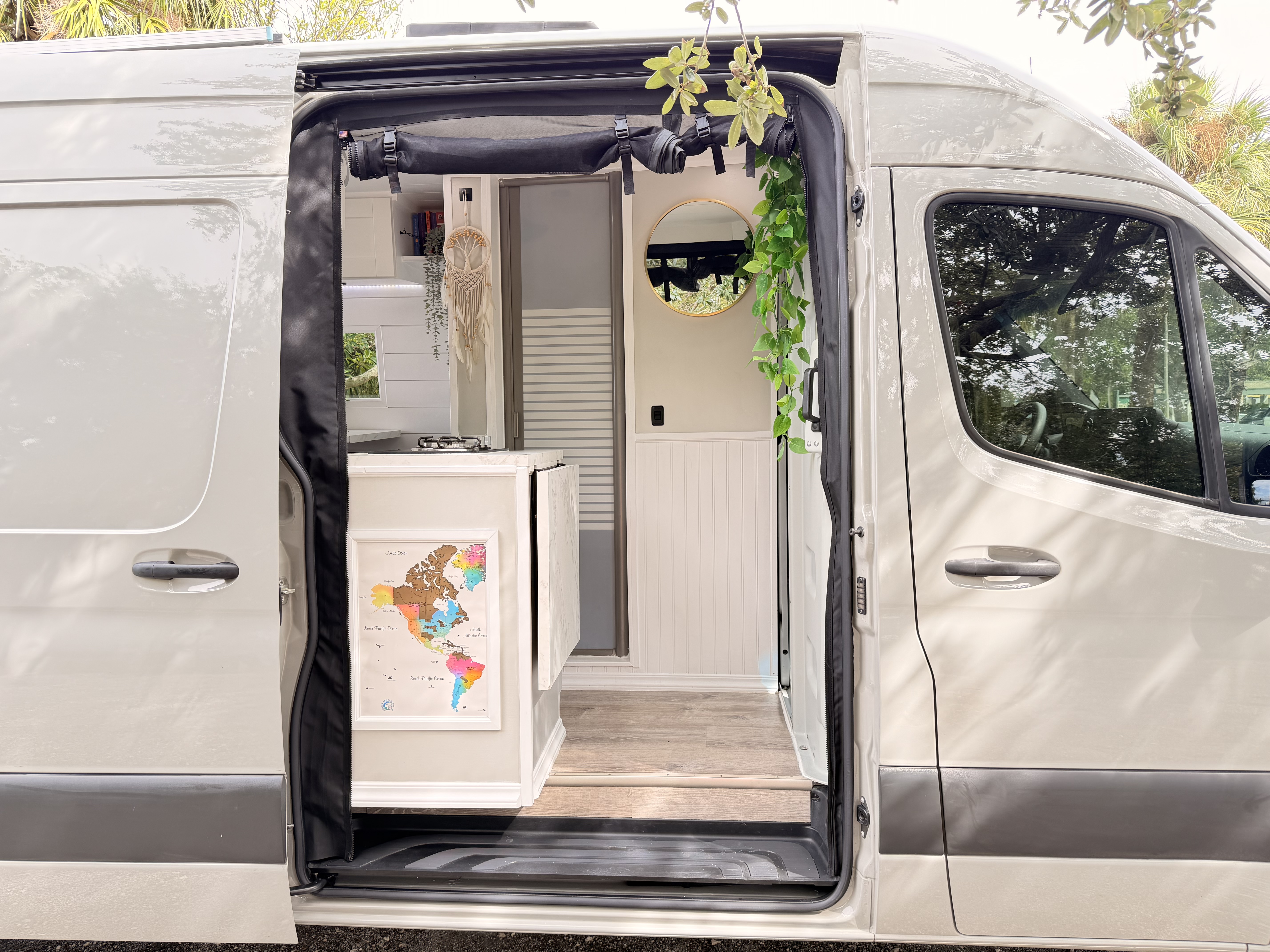

3. Bug Protection: Sliding Side Door Magnetic Insect Screen with high-opening zipper access.

Serious buyers only. Please reach out via message to schedule an in-person viewing or a virtual video walkthrough.
