Fully offgrid capable and still under factory warranty! Plus over $2000 worth of upgrades – Including custom Van Made Gear blackout window covers and Fiamma awning.
Every detail was thoughtfully designed for the adventure of living, working and exploring off grid while maintaining the comforts and conveniences of home. A perfect solution for the weekend explorer, digital nomad or those wanting to enjoy a lifestyle of freedom and new experiences. We’ve used this van to explore on the weekends but our family is growing and the space works best for two people. Factory warranty is good until 36,000 miles or December 31, 2023
Robust electrical system-400 watts of solar panels & 200 amh lithium batteries. Features: Indoor hot water shower; Toilet; Built-in propane stove with oven; Dual driver & passenger swivel seat; 2 110v A/C outlets, 11 USB ports, 12 LED dimmable lights on 5 switches; 2 additional side windows for increased visibility & cross ventilation; Under vehicle grey tank with indoor drain switch. About 2 ft. longer than the 136″wheelbase Promaster yet fits in a regular parking space.
Conversion and Vehicle Details:

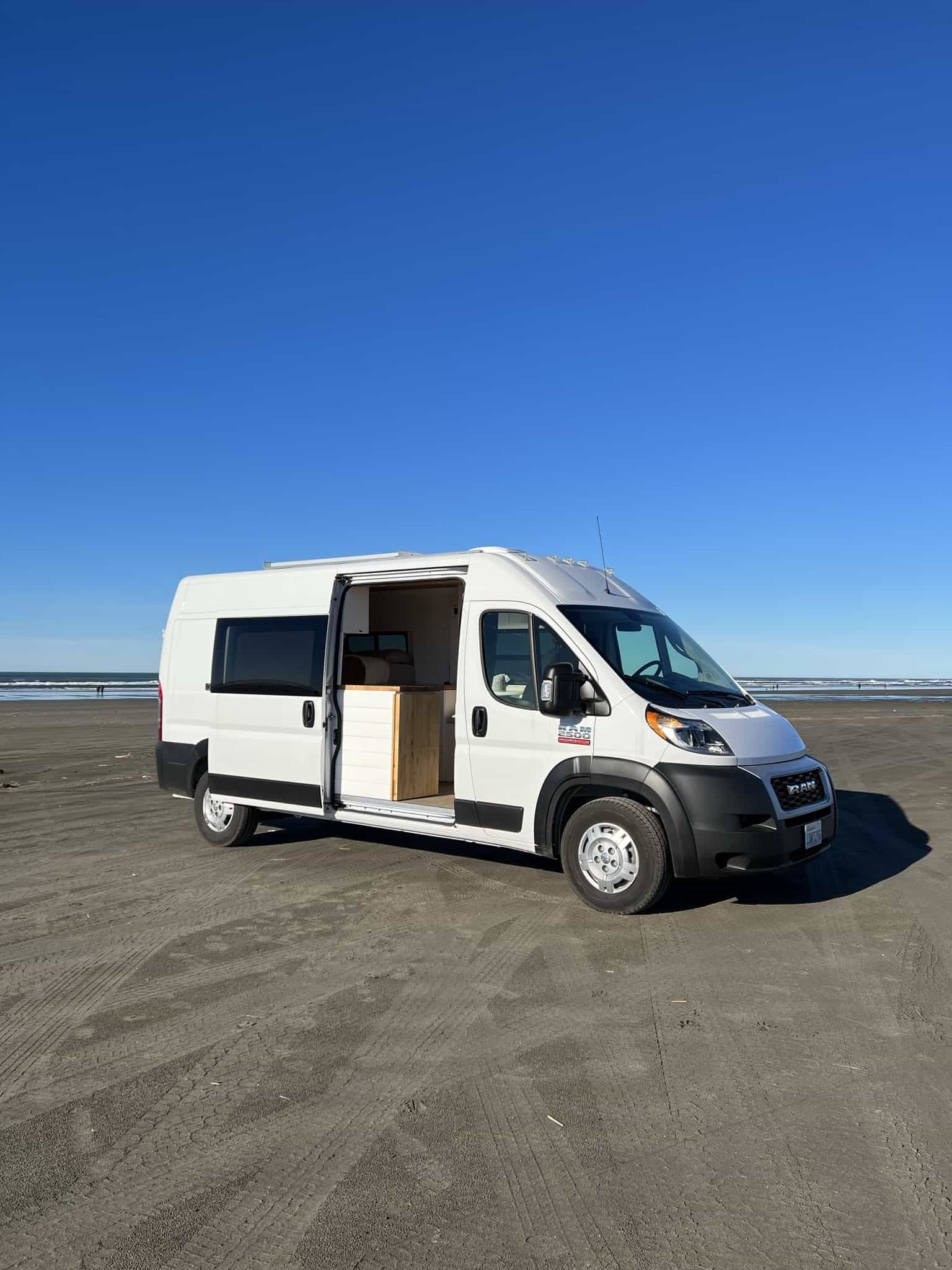

Year: 2021
Make: Ram
Model: ProMaster 2500 High Roof 159″ Wheel Base
Exterior Color: Bright White Clearcoat
Interior Color: Black/Grey
Engine: 3.6L V-6 Gas
Transmission: Automatic
Drive Type: FWD
Fuel Type: Gas
Roof Height: High
Factory Navigation – Bluetooth Connectivity/Voice
Control and 5″ screen
Rear Backup Camera
Speed Control
Daytime running lamps
6-Way Adjustable Driver Seat with Lumbar support
Rear Park Assist System
16″ five spoke wheel covers
Factory Tinted Fixed Glass Windows on Slider & Rear Doors
Electrical:

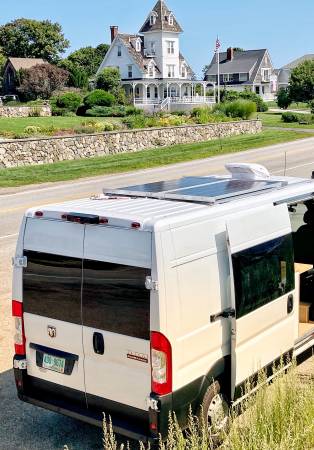

400 Watts (2 x 200 Watt) Monocrystalline 12 Volt Renogy Solar Panels.
2 × 100 Ah Battle Born LiFePO4 Lithium Batteries (200 Ah usable capacity).
Victron Energy SmartSolar MPPT 100/50 Charge Controller.
Victron Energy BMV-712 Smart Battery Monitor.
Xantrex PROWatt 2000 inverter pure sine wave.
2 110v A/C outlets.
11 USB charging ports.
12 LED dimmable lights on 5 switches all placed conveniently at point of use.
125 volt shore power inlet socket.

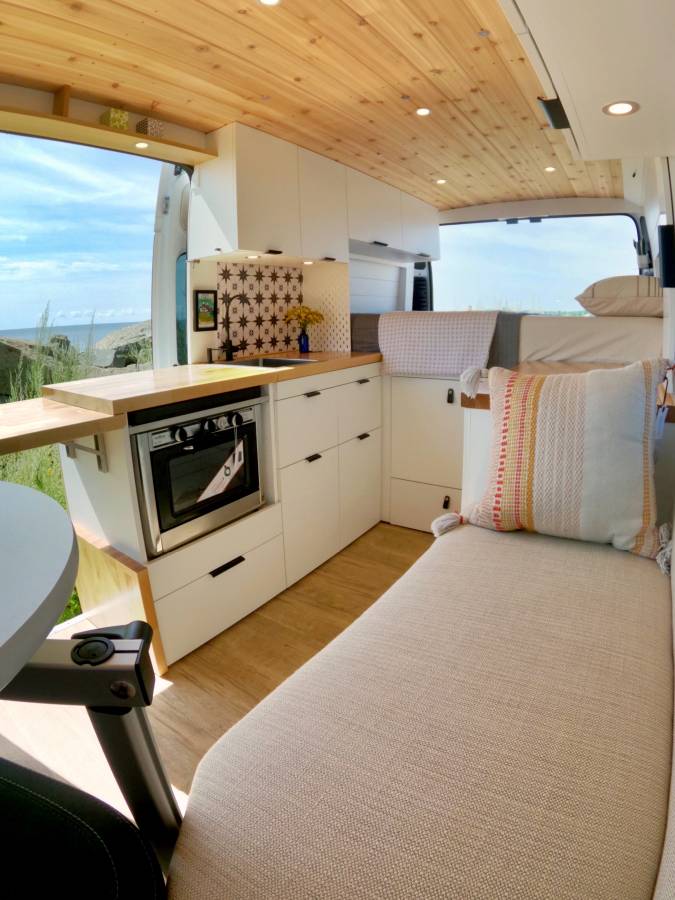

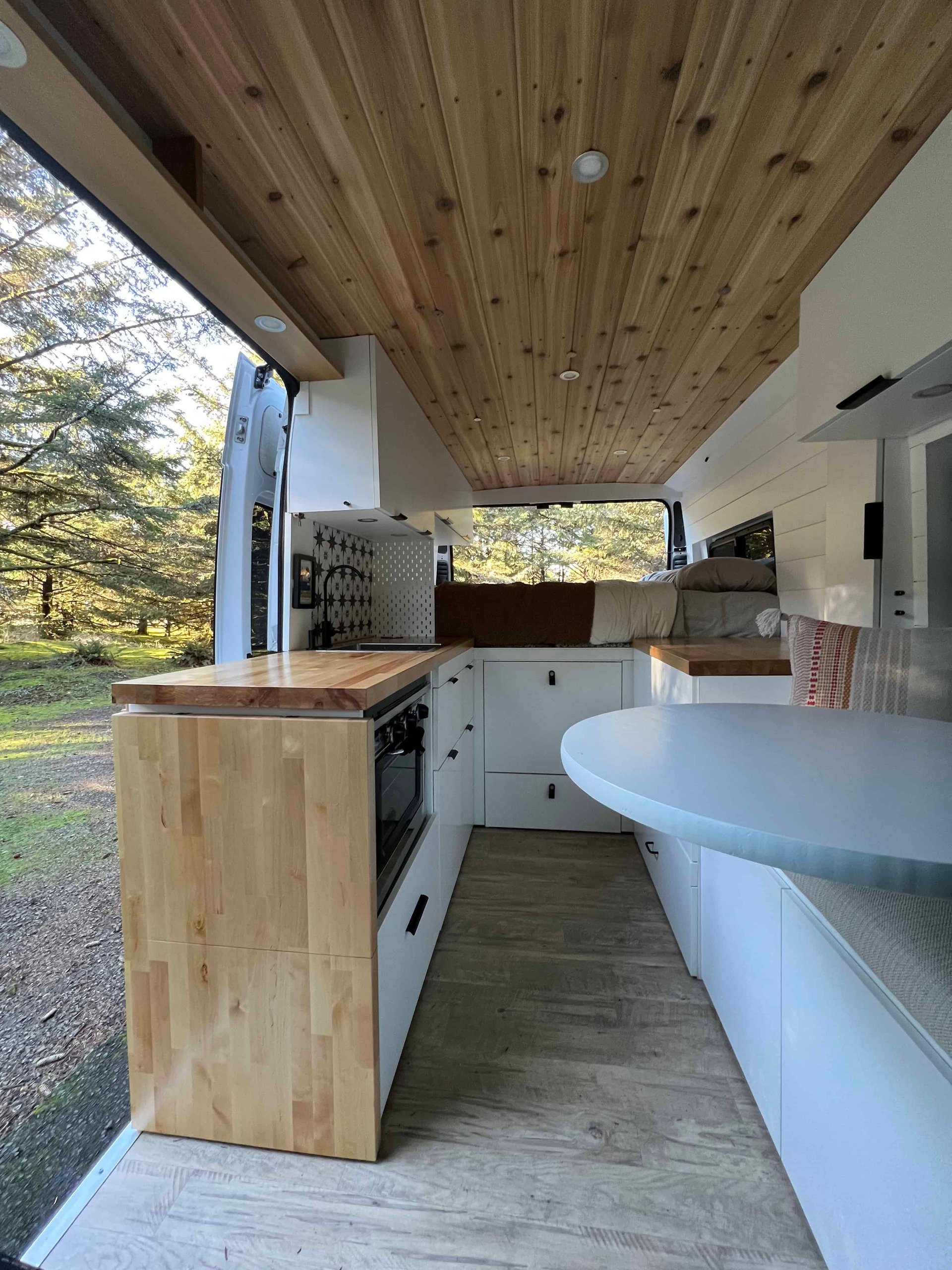

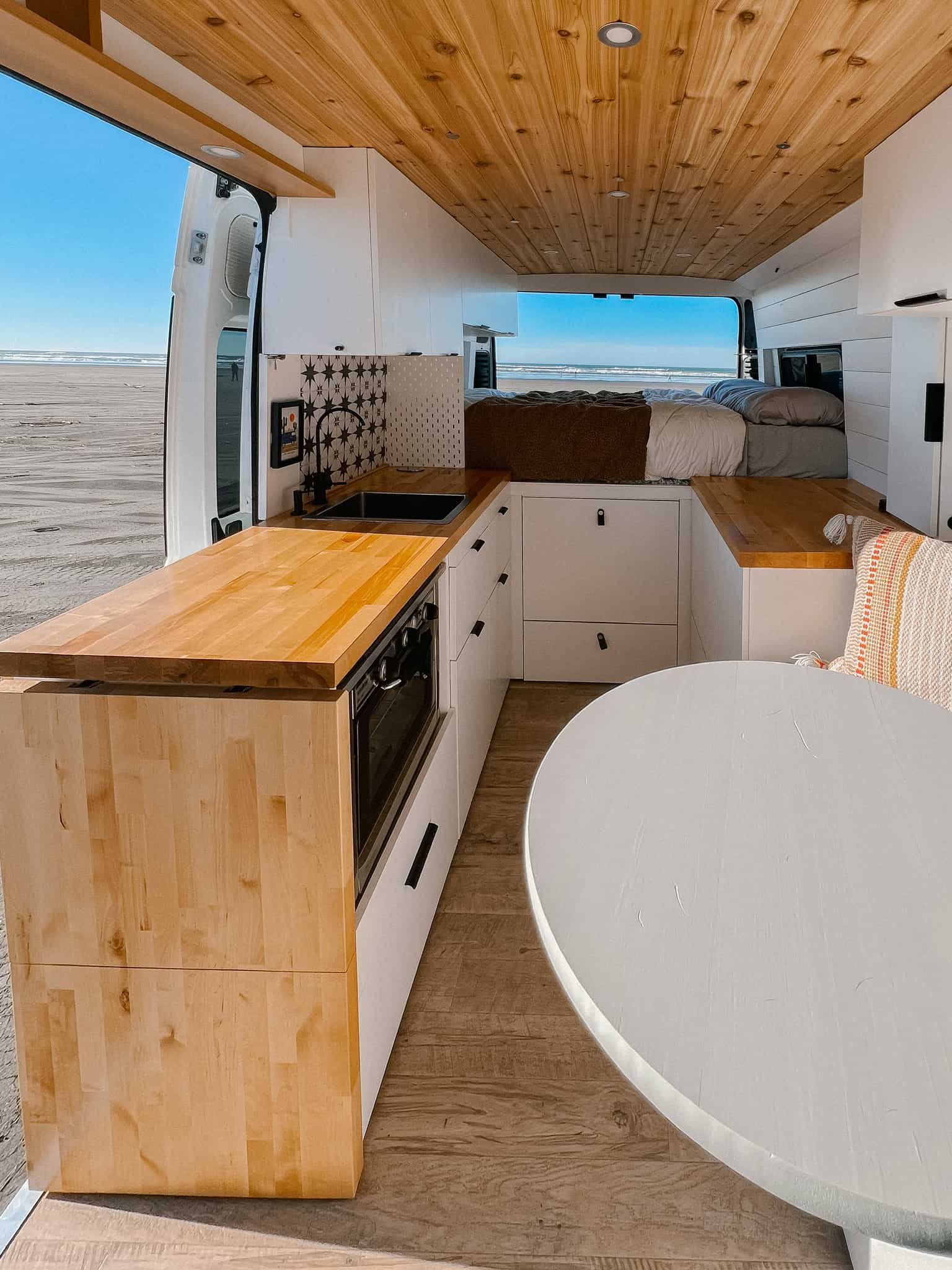

Kitchen:

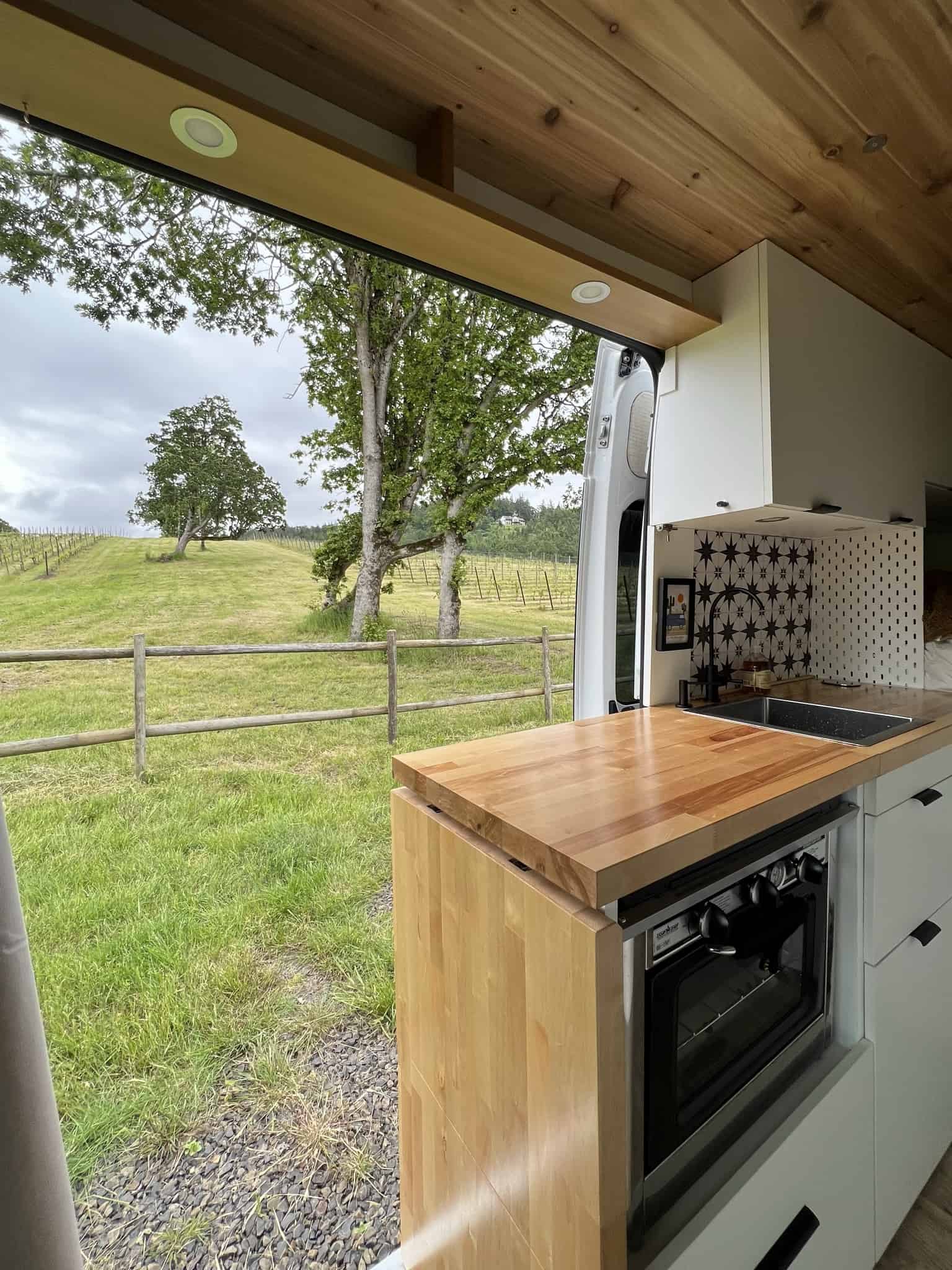

1.5″ birch butcher block countertop fitted above stove with a flip-up hinge.
Waterfall side with flip-up hinges adds 17 inches.
Additional counter space and can also be used as side table for passenger swivel seat.
Stylish vinyl peel & stick tile backsplash on removable base with shiplap behind (customizable as your design tastes change).
110 V splash proof A/C household outlet with USB charge port built into countertop surface.

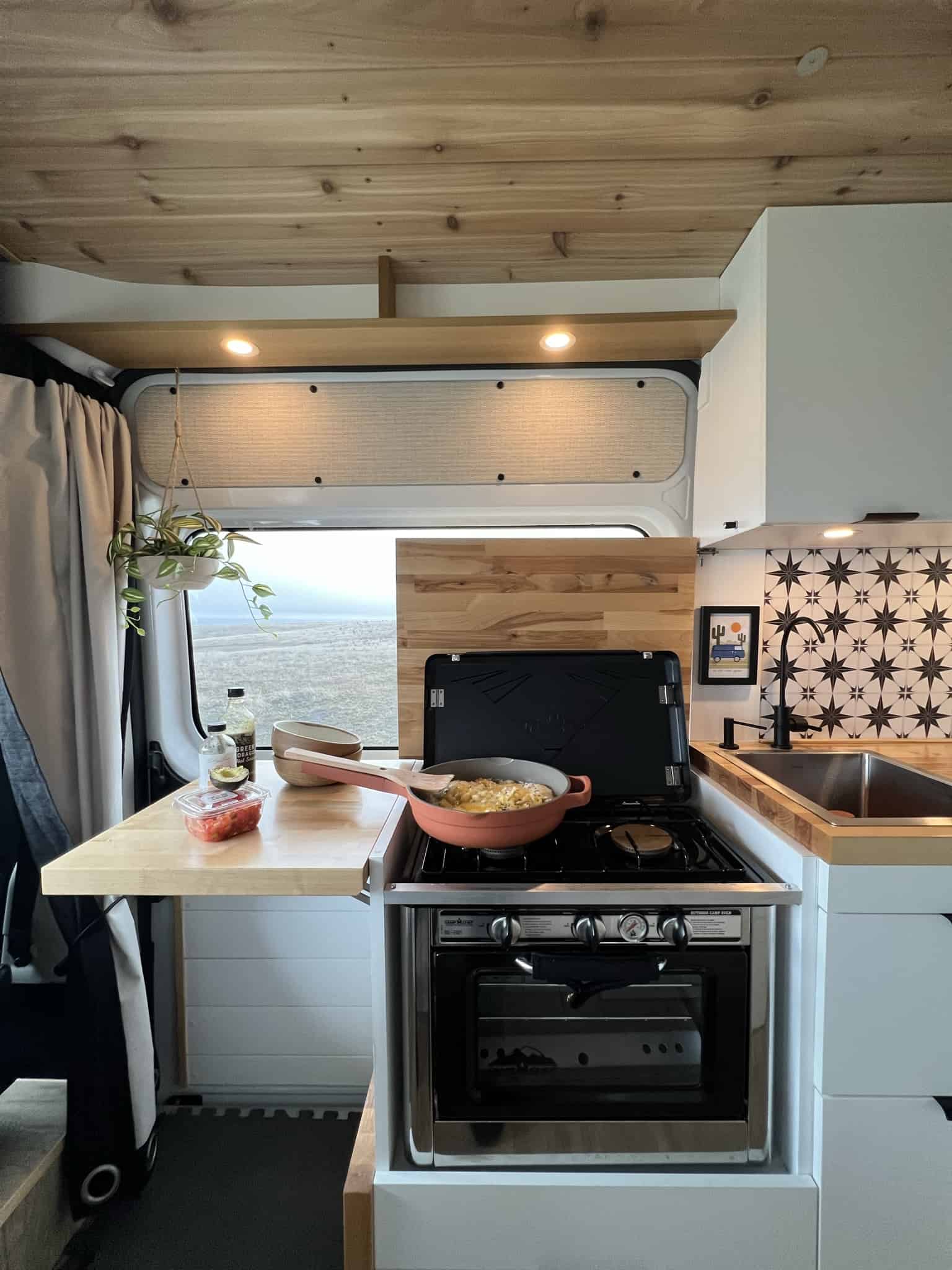

Camp Chef Propane Stove/Oven: two 7,500
BTU large brass burners, oven heats to 400 degrees, 2 rack oven fits 9″ x 13″ pans, powered by 1lb propane canister.
Magnetic cabinet door locks.
Spacious Drawers & Cabinets:
24″ x 10 x 18″ pots/pans drawer.
24″ × 3″ × 18″ wide shallow drawer for utensils.
15″ × 10″ × 18″ utility drawer with full extension slides.
Tip-out drawer under sink for sponges/dish products.
Two 15″ x 20″ x 18″ cabinets for water pump & storage.
13″ x 15″ x 8″ 16-gauge stainless steel sink with faucet and built-in soap dispenser.
Two 15″ x 20″ side by side vertical cabinets.
Sink:
7 gallon fresh water under sink tank with one push quick disconnect adapte.
2 gallon grey water tank under sink allows for easy disposal.
Marine foot pump allows for very controlled & precise use of water in faucet.

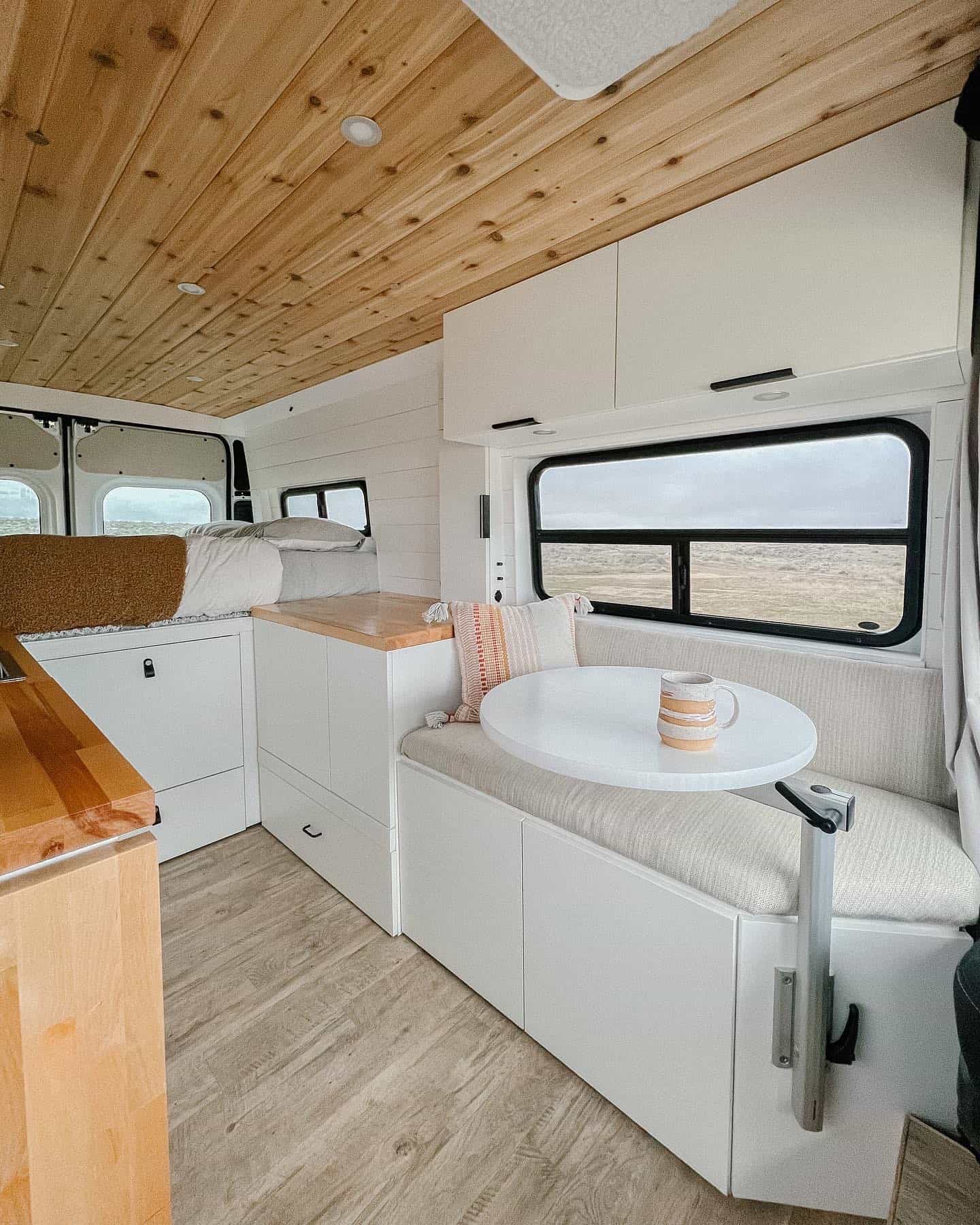

Multi-Purpose Bench Seating Area:
Slide-out Dometic CFX-3 55IM refrigerator on heavy-duty 2501b slides.
Large window with T-slider glass panel and screen.
48″ bench seat with lux foam, dacron wrapped cushion.
24″ diameter table mounted on a Lagun 360 degree swivel mount.
Two dimmable, under-cabinet LED lights with easy reach mounted knob.

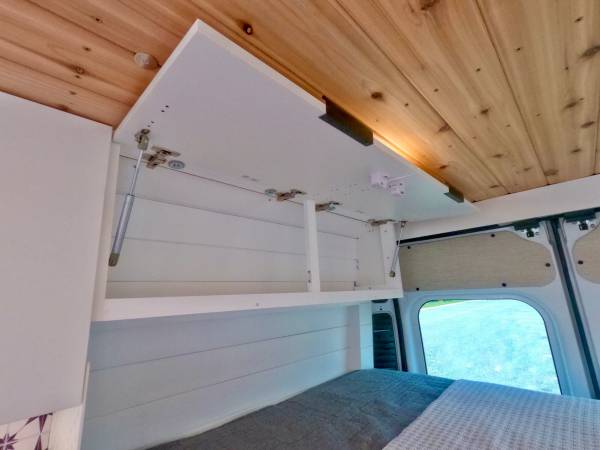

Two 15″ x 24″ overhead storage cabinets with magnetic locks.
110V A/C power outlet.
4 USB charging ports.
Storage area under bench for hamper or other storage.
Sleeping:
Full-size 8″ gel memory foam mattress for temperature regulation and pressure relief. Includes stretch knit cover for breathable sleep surface. Medium firm. 75″ × 54″ x 8″.
Hypervent Aire-Flow mattress underlay to prevent moisture bed platform painted with moisture and mold resistant paint for added protection.
2 dimmable LED lights with conveniently located dimmer knob above bed.
Bedside two port USB charging outlet.
Wet Cabinet:

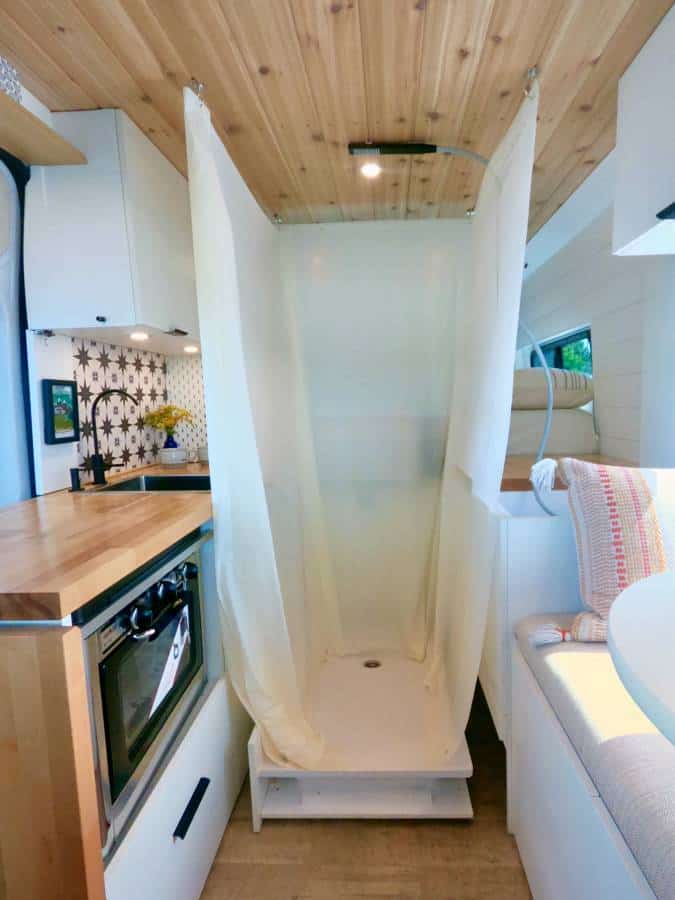

Low profile multi-purpose area that contains a unique space saving pull-out shower, toilet, water supply, heating element.

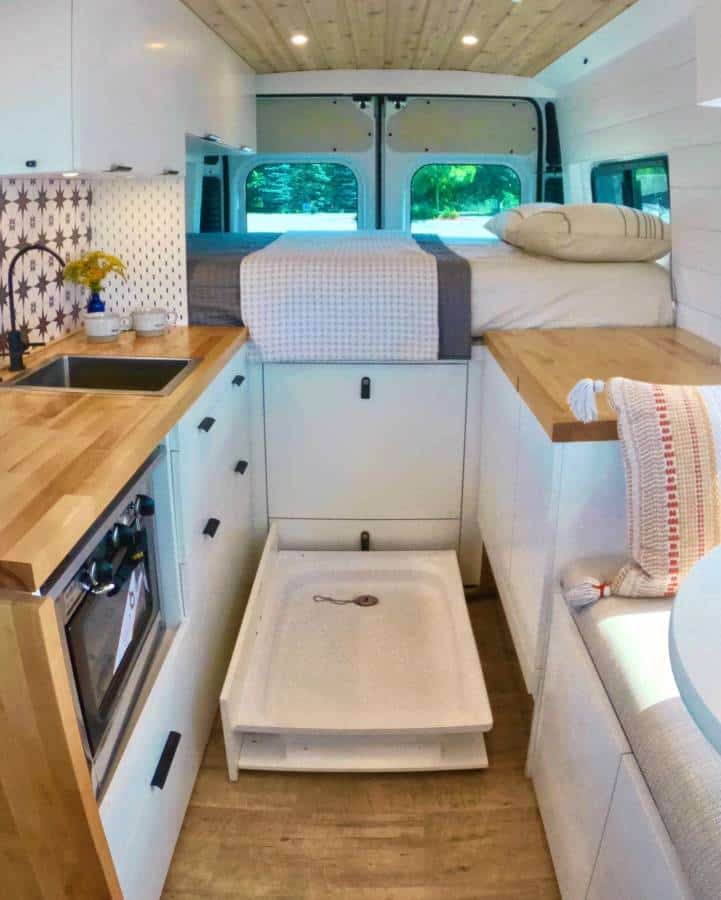

33″ × 10″ lower drawer slides out to reveal a 32″ x 22″ rectangular shower pan.
Rocker switch in toilet area drains grey tank remotely.
Urine diverter with household toilet seat.
Decorative vinyl peel & stick tile for easy maintenance and cleaning.
10 gallon under van grey tank connected to shower drain and urine diverter interior switch controls ball valve to open and close grey tank drain.
7 gallons fresh water container for shower usage.
Water heater with custom temperature settings.

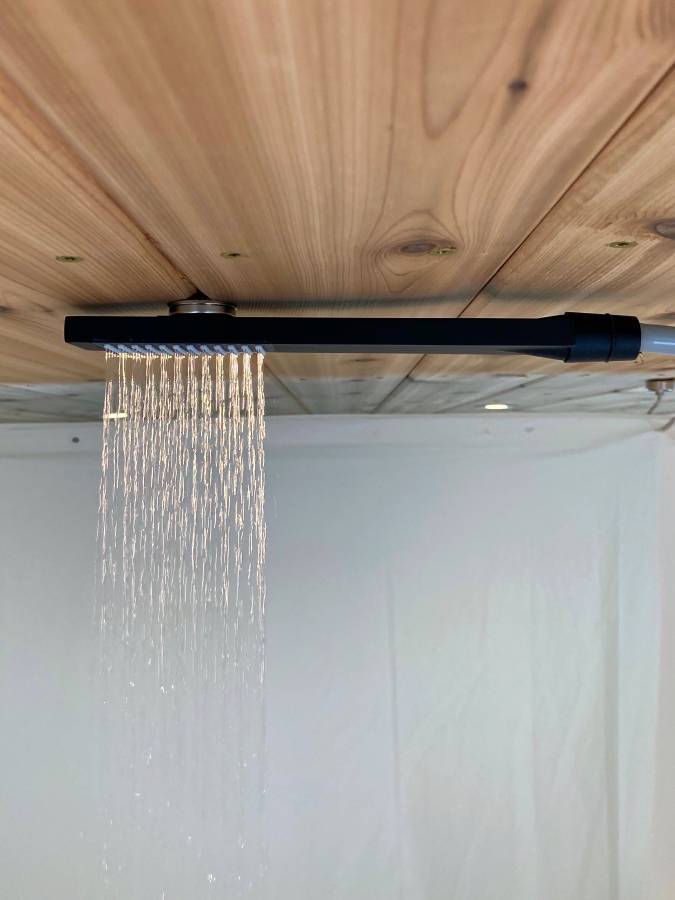

Sleek low profile shower head powered by pump with lithium battery on/off switch.
Separate 12 volt water pump used to fill shower water container.
Onboard water quantity is designed to be variable based on individual needs (carry as much or as little as needed in interchangeable 7 gallon Aquatainers which are easy to fill up at most exterior water faucets found at campgrounds, parks, rest areas or filtered water stations).
Ceiling/Walls/Floors:
Custom Van Made Gear blackout window coverings and bug nets.
Built in Fiamma F45S awning for ample outdoor living space.
MaxxAir Deluxe roof vent fan with rain guard and remote control. Portable Mr. Heater Buddy heater for chilly nights.
Walls and ceiling fully insulated with a combination of Polyiso, Havelock wool & spray foam.

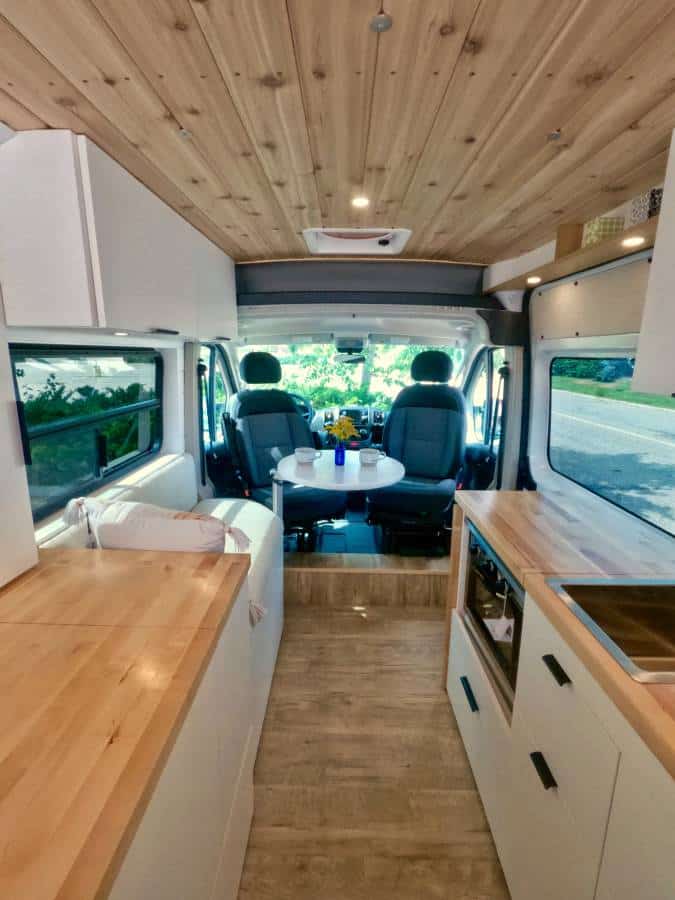

Ceiling constructed of 12′ x 5″ cedar planks.
1/2″ plywood over composite factory floor is fully insulated with EVA foam pads covered with softstep premium one sheet waterproof vinyl flooring.
White shiplap wall.
Sound deadening material installed on walls and ceiling.
6 dimmable LED lights
10″ × 30″ × 4″ “vanity” cabinet
Front Cab Area:
Expands living area of van with the addition of both driver and passenger side swivel seats.
2 dimmable overhead LED lights conveniently controlled by knob on headliner.

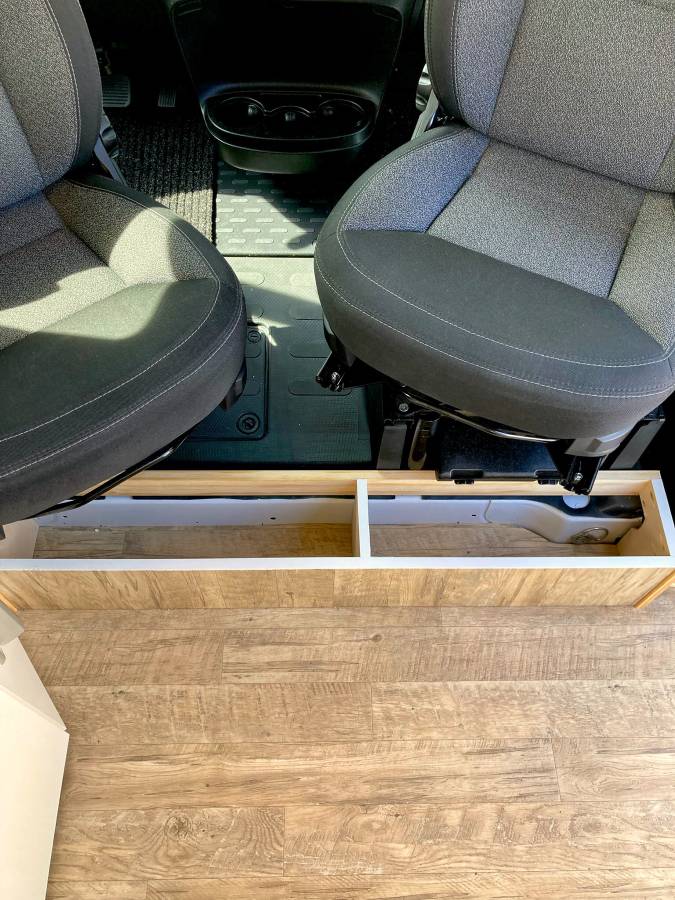

48″ x 8″ × 8″ front storage directly behind seats doubles as foot rest (great for heavier pantry items, 1lb propane canisters etc.).
Factory overhead cab storage area.

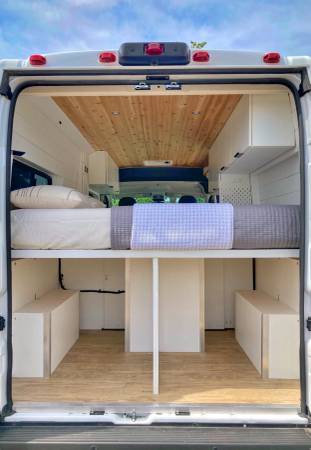

Garage:
Large cargo storage area designed for versatility and flexibility, whether it’s additional water jugs, bicycles or other outdoor adventure equipment.
1/2″ plywood sidewalls and center support provide flexible options for shelving and anchor tie down points.
