Update: my timeline for moving to Australia has pulled forward and I’m motivated to sell in the next 2-3 weeks.
This 4-season van has been thoughtfully designed and handcrafted to make a comfortable home or an epic weekender. The interior boasts a full kitchen, tiled shower, queen-width bed, four person dining, ample storage and power + water options for on and off-grid travel. Plus it has the vehicle upgrades to take you anywhere, including AWD and a 2″ suspension lift, tow hitch, roof rack, off roading lights and more.
The dining + living room is centred on a foldable swivel table, providing a large and functional space for hosting guests, playing board games, working, and lounging. Plus this zone quickly converts into a queen bed with reading lights and a bedside table/ nook on each side. A swivel passenger seat allows you to spread out inside the van facing the living areas, or looking out towards the views and breeze.
There is generous interior storage for clothes, and lifestyle items including overhead cubbies, drawers, and a full length hanging closet. Adventure gear can be stored in the large rear-access trunk, rear exterior box, and optional rooftop boxes.
The kitchen is functional and easy to use thanks to a fold-up additional bench space, easy access to spices and oils, pantry, fridge, and a generous sink. The primary cooktop is induction and a butane burner can be easily stored behind the driver seat for quick access to two-pot cooking.
The essential systems allow comfortable on and off-grid living thanks to the massive 50 gallon onboard water storage and a variety of power sources. The Renogy DC-DC charger charges the large 300 Ah lithium battery bank while driving (or idling), shore power can be connected whenever it’s available, and solar provides ongoing additional top-ups. The Separett composting toilet is waterless and creates no smell thanks to the exterior-vented fan. The contents can be easily emptied into a fixed-toilet (liquids) or trash can (solids) wherever you happen to be.
I purchased this van from the original owners in June 2022, who designed, built and travelled in the van for 18 months. See YouTube video below featuring them and their build, which was their second van-build.
I have now lived and travelled in the van for 10 months and will be moving back to Australia later this year. My travels included July in California, and February to March in Colorado at 11,000′, where temperatures dipped below 0 degrees F for weeks. In the depths of winter, comfort is provided by the diesel heater, full surround insulation and warm showers, while the AWD provides confidence and safety on the road, and the rooftop box provides space for four sets of skis. In summer you can enjoy outdoor living under the awning, with the outdoor shower, and sleeping under the stars on the roof (without the ski box). Plus staying cool is easy thanks to the cross breeze between two opposing windows and two reversible fans.
The interiors have been repainted and deep-cleaned, ready for the new owners.
Many more photos are available. Reach out if you’d like them.
Exterior upgrades
- 2″ lift with heavy duty leaf springs and bump stops – no more swaying!
- Front brush guard/light bar
- Side rails for additional step and easy entry (Aluminess nerf bars)
- Exterior off-road LED lighting – front, rear, and both sides
- 10′ retractable awning, Fiamma
- Axe mounted on roof rack
- Cooper Discoverer tires, oversized 245/70-16 – including spare
- Tow hitch wired for trailer brakes
- Aftermarket interior locks for driver & passenger doors
- Aftermarket exterior locks on the sliding door and rear door
- Brand new premium bug net (Bugwall)

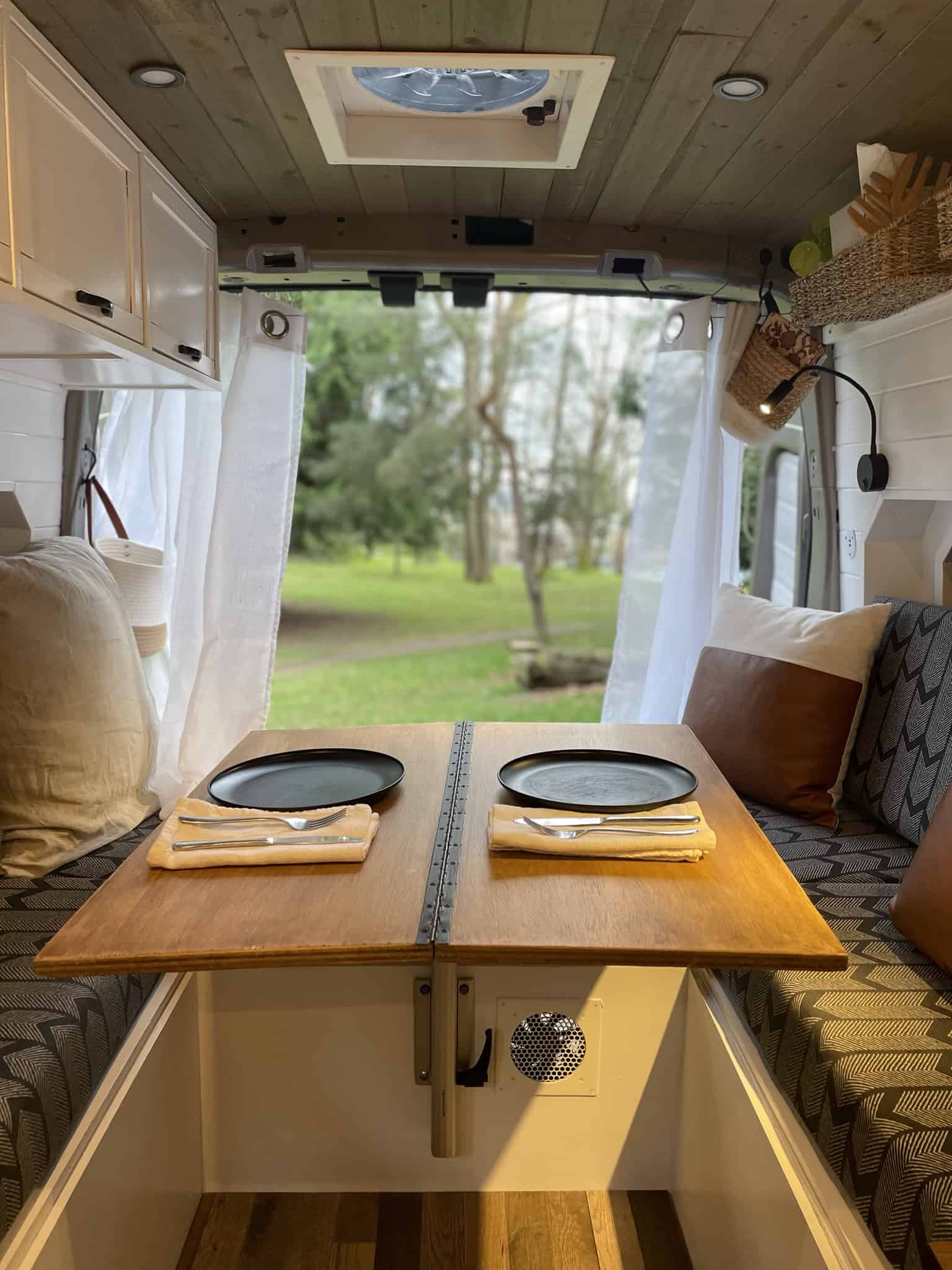

Dining/Work Spaces
- 4 person dinette with Lagun swivel mount
- Table flips open to adjust size
- Swivel passenger seat
- WeBoost cell signal booster

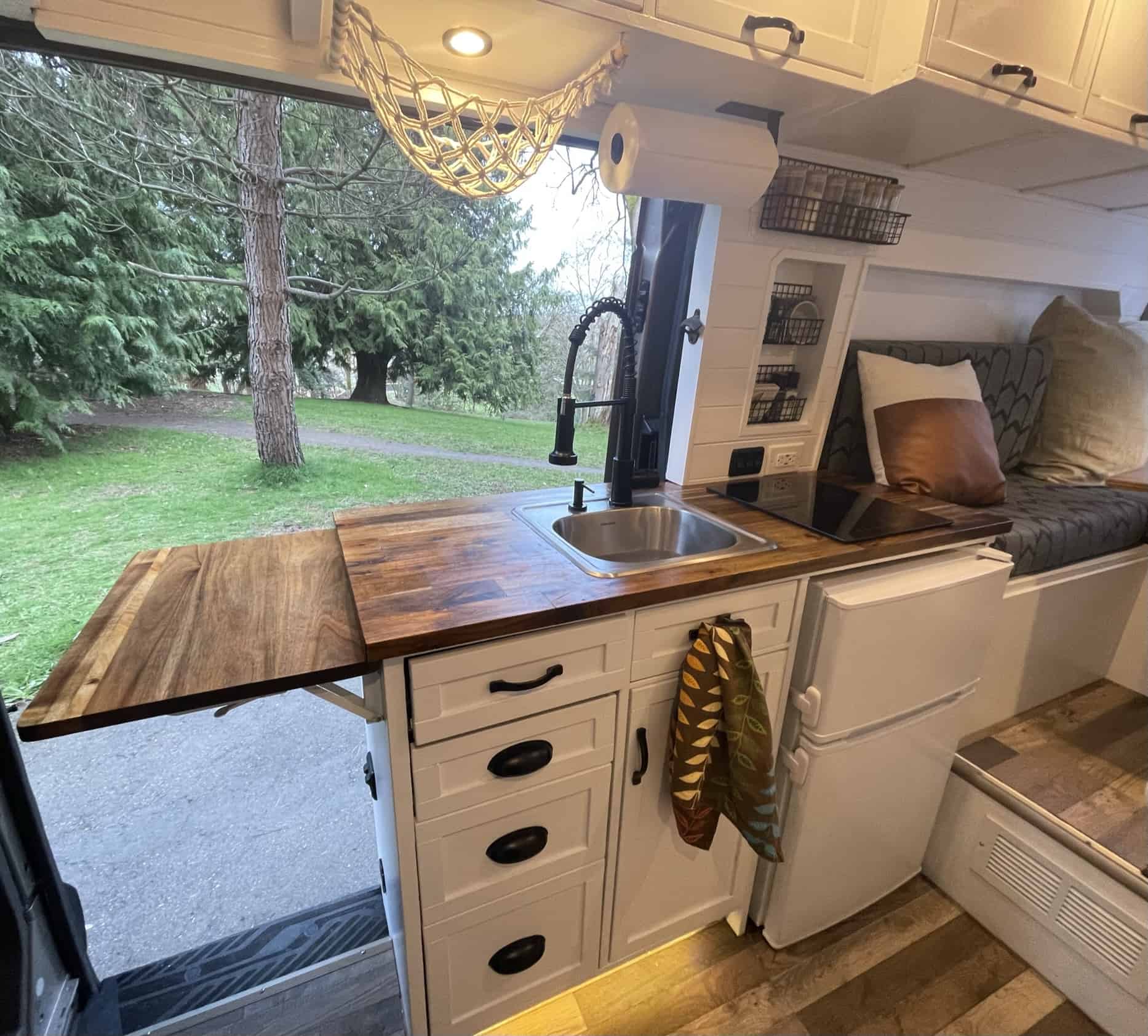

Kitchen
- Butchers block counter with extension
- Single induction cooktop
- 5 cu ft refrigerator with separate freezer
- Stainless steel kitchen sink
- Faucet with spray feature + hand soap pump built-in
- Discrete storage drawer for dish brush storage

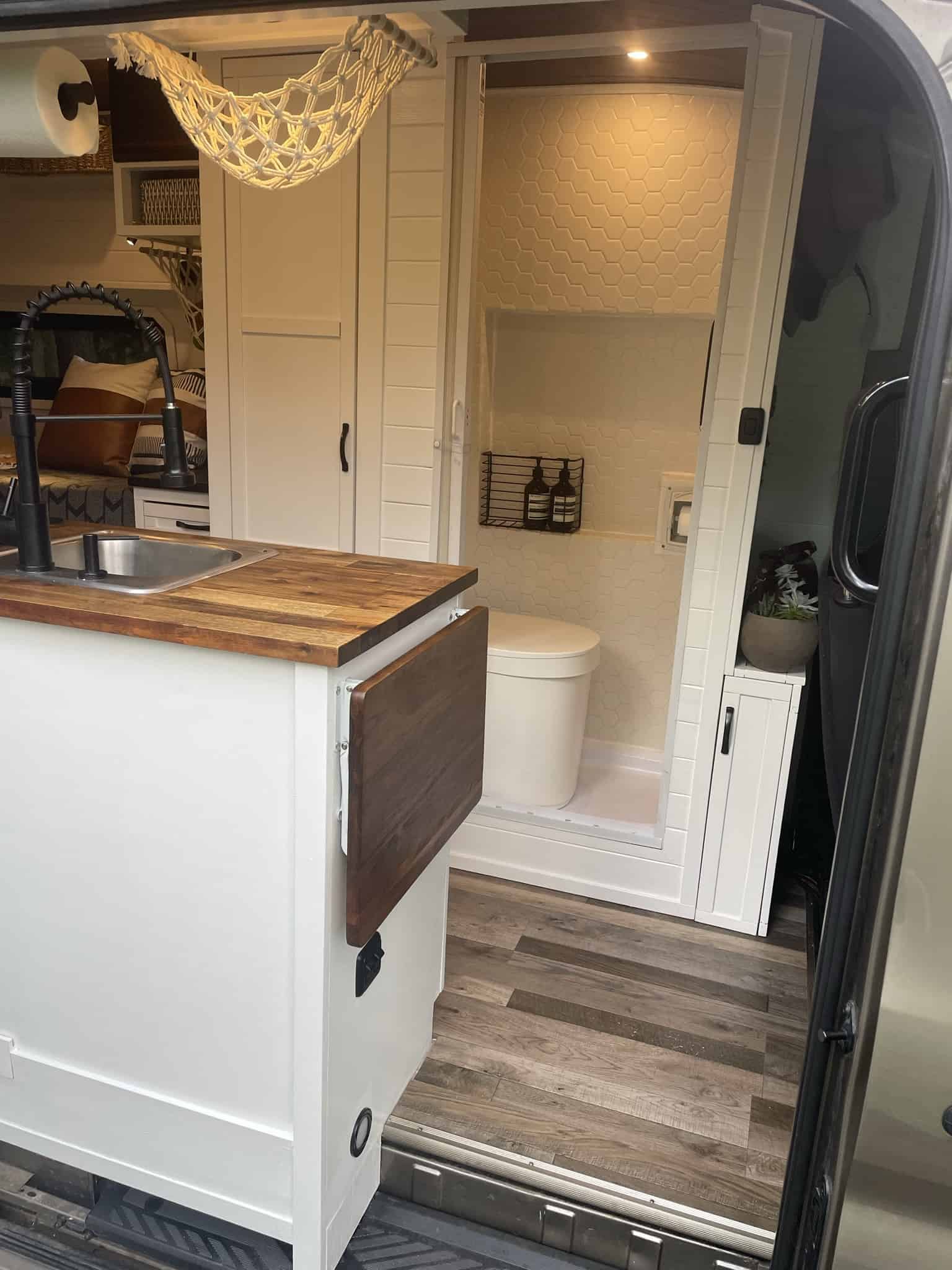

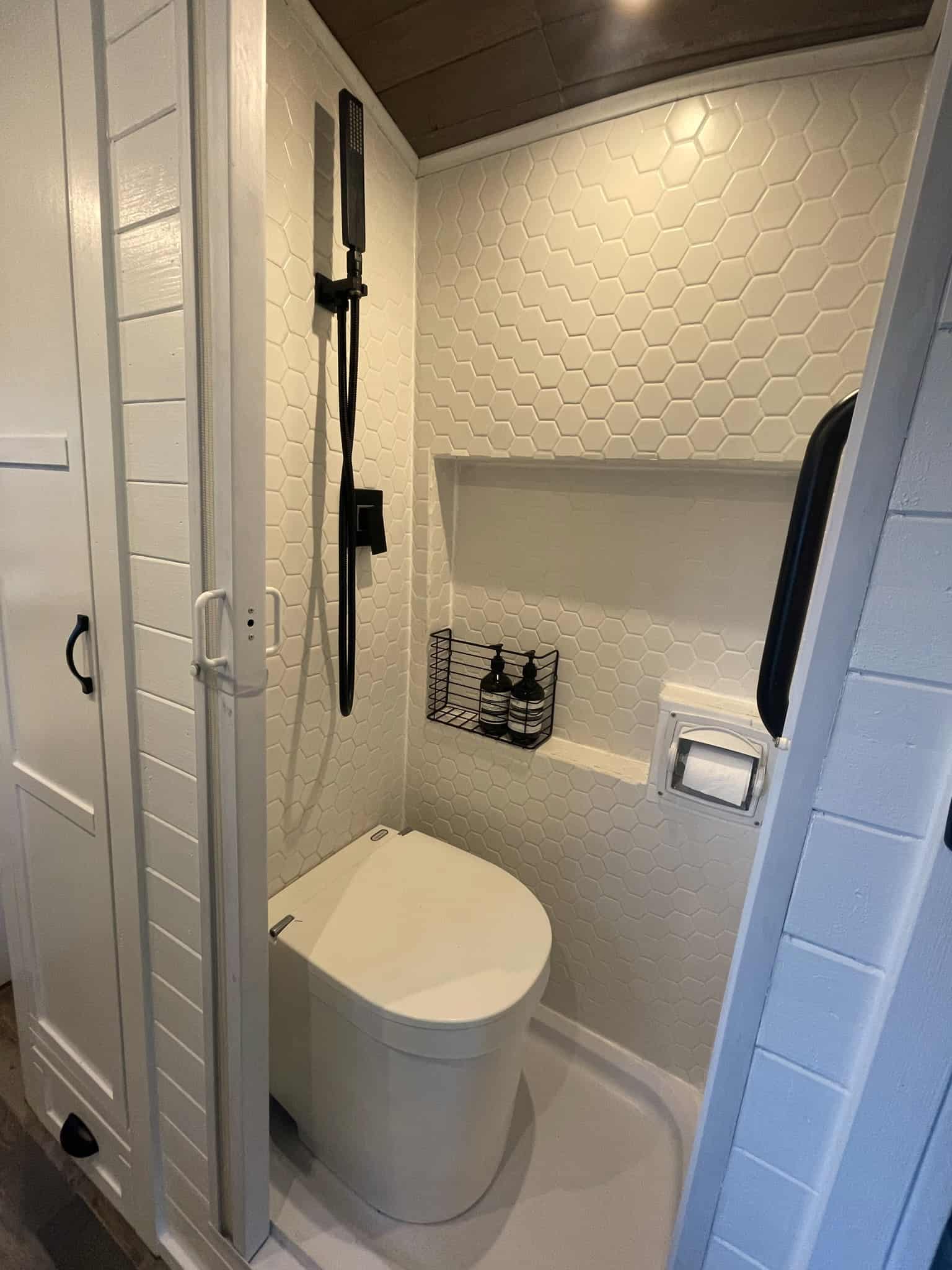

Bathroom
- Tiled 24″x32″ shower with accordion door, handheld spray wand
- Storage for products, and handle for accessibility
- Separett composting toilet
- Outdoor shower, multi-purpose for cleaning gear & fish

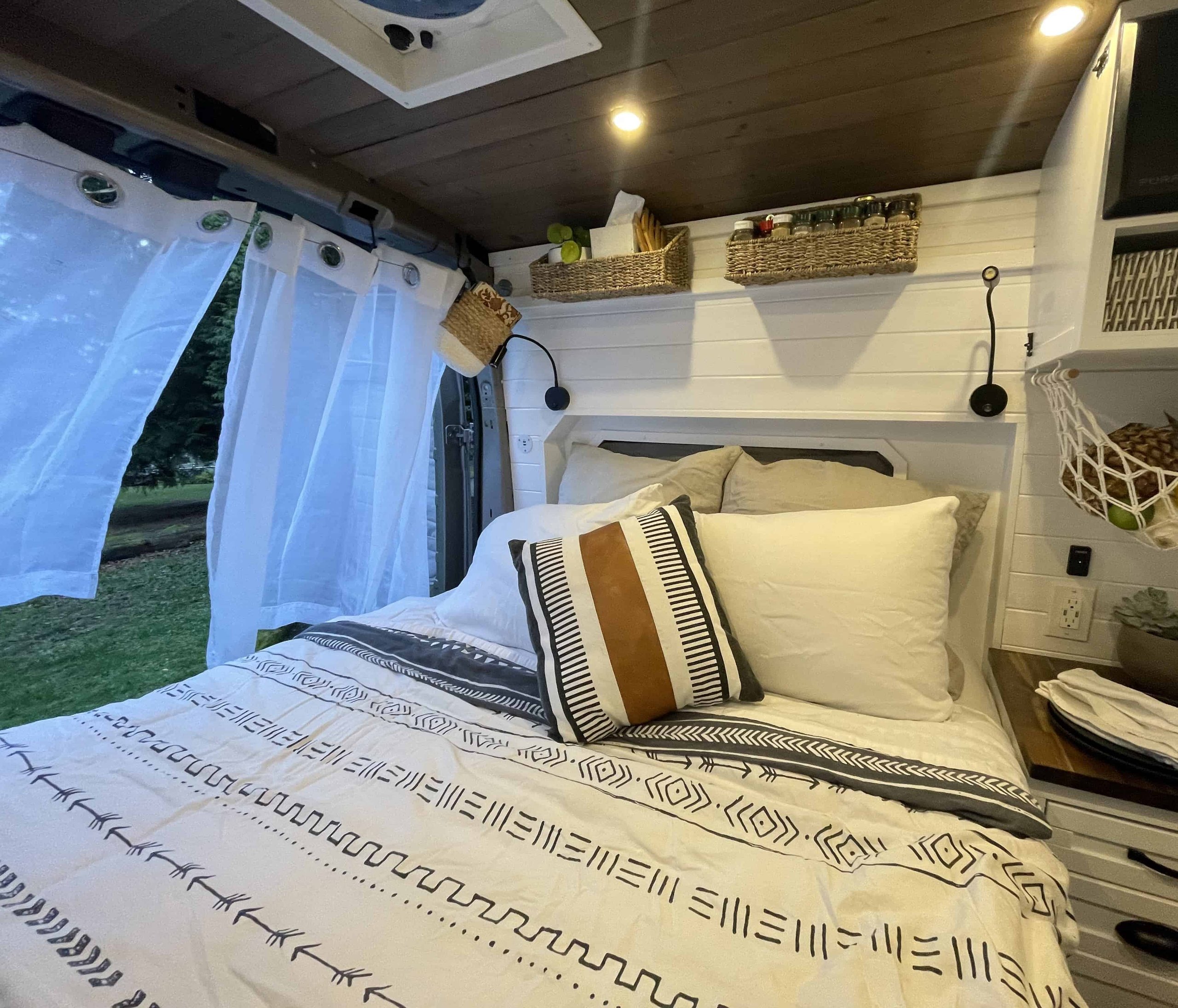

Bedroom
- Queen-width bed, 72″ long, with 4-1/2″” memory foam mattress
- Overhead LED lighting with dimmer in the bedroom
Heating & Ventilation
- Full floor & wall insulation with sound deadening
- 5kW Diesel heater under passenger seat
- 2x Dometic Fantastic fans (excellent kitchen ventilation and cross breeze)
- Large sliding window with mosquito mesh on sliding door
- Smaller window above bed, swing open with mosquito mesh
- Insulated covers on back doors and windows
- Front windshield & window reflective shades
- Water pipes insulated
Water
- Hot water heater (propane gas) for indoor shower and kitchen
- 50 gallon freshwater tank (2 x 25 gallon tanks)
- 25 gallon grey water tank with electric heating mat to prevent freezing
- Aqua Pro 3gpm 12v water pump
- SeaFlo water accumulator tank
- Hook up to campground/city water supply, bypassing freshwater tanks

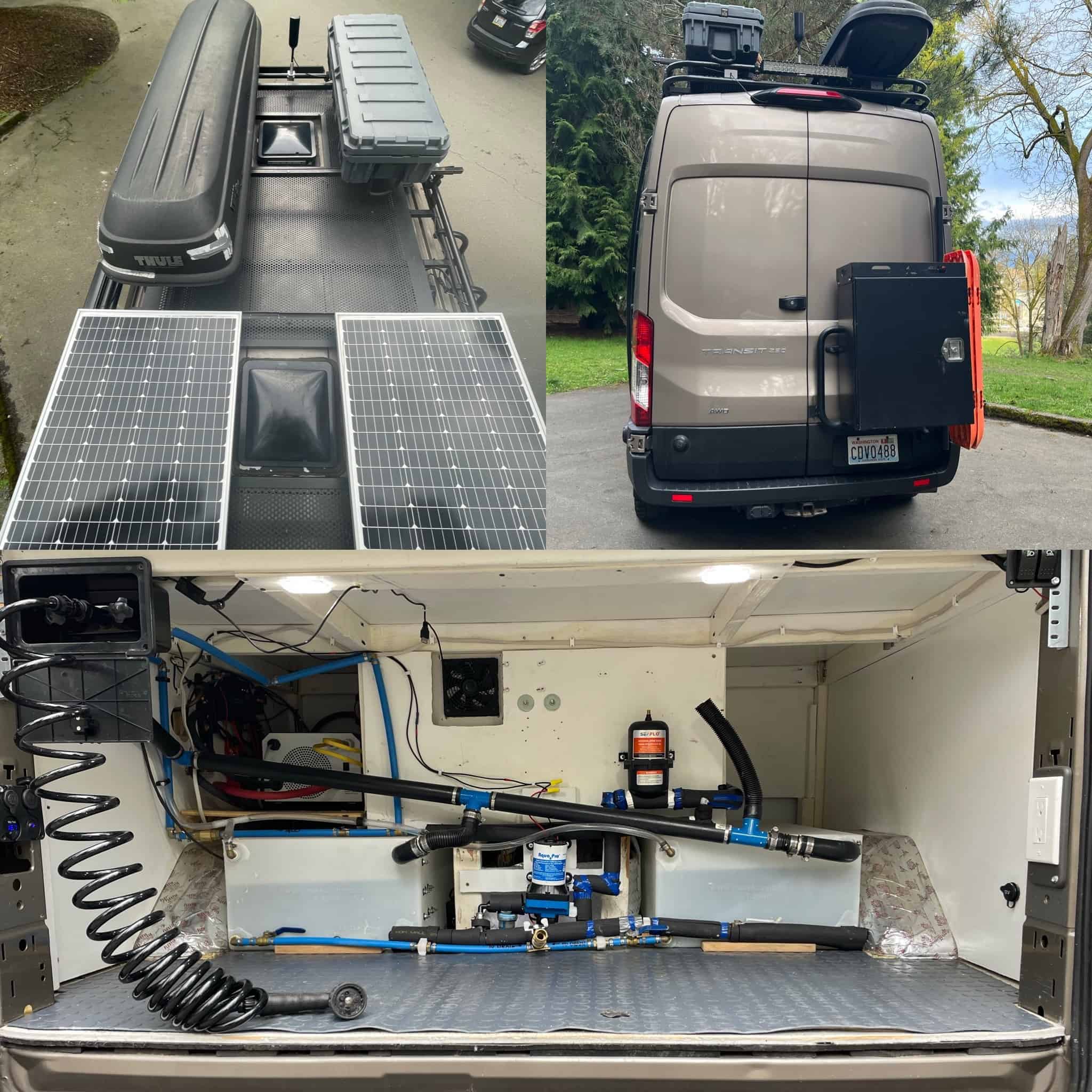

Exterior Storage
- Rear door mounted storage box, Aluminess (30″ tall x 16″ deep x 24″ wide)
- Ski roof box, Thule Frontier (88″ long, fits 4+ sets of skis)
- Full roof rack (Aluminess)
- Rugged, weatherproof storage box on roof

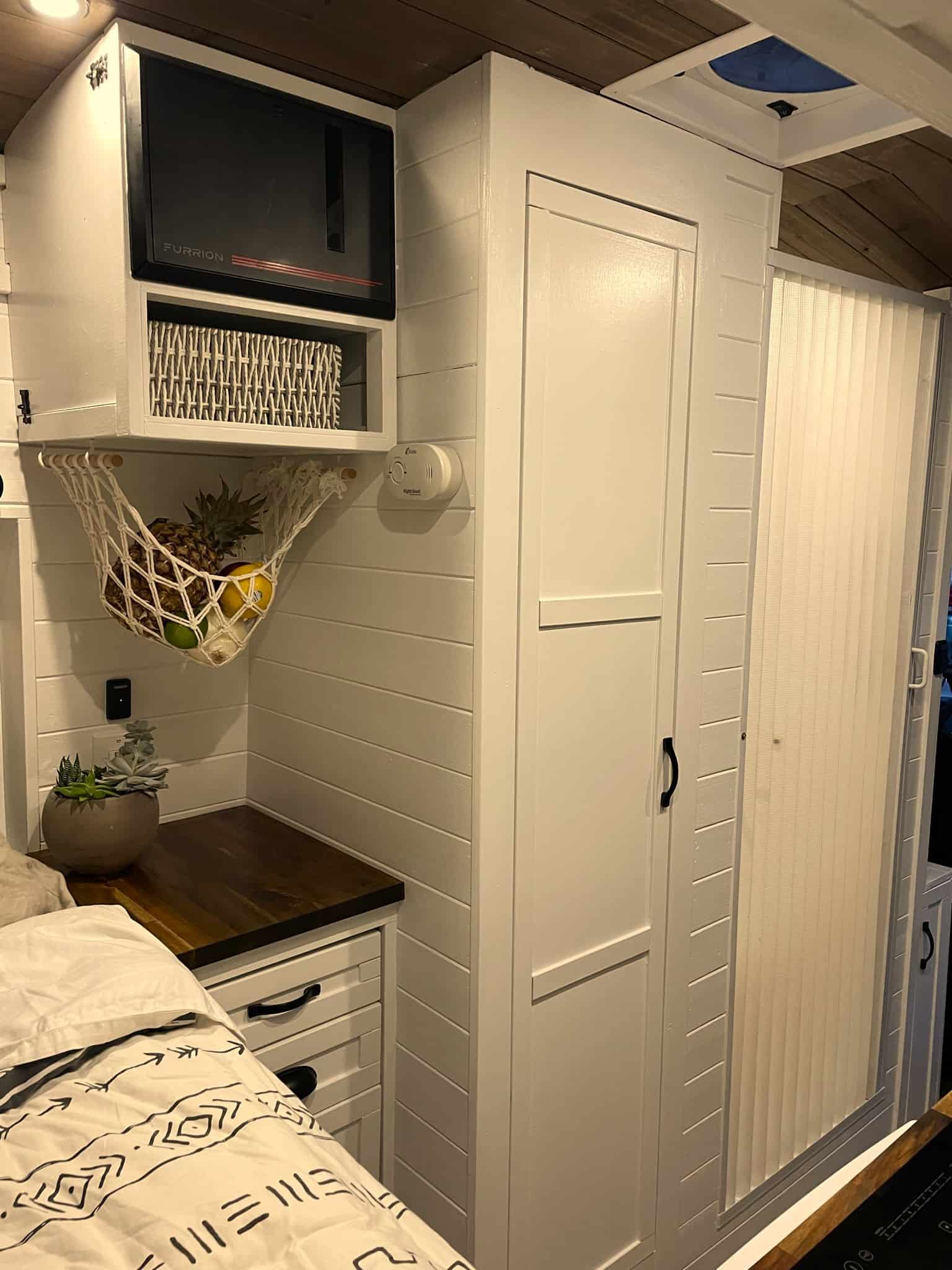

Interior Storage
- 6x cubby boxes overhead in kitchen & bedroom
- 1x long cupboard (fits long coats, yoga mats, windows covers etc)
- Bedside table with 4x slow close drawers
- 5x kitchen drawers
- Under sink storage large enough for bin, cleaning products etc.
- Underfloor storage beneath table/bed, top access
- Ample spice racks in kitchen
- 2x baskets above bed
- 2x banana hammocks, kitchen & bedroom
- Removable net above cab seats
Garage
- Comfortably fits 2x 17 gal storage totes, with additional space
- Garage electrical includes lights, USB, 12v receptacle, and 1 110v plugs
- Framing + pull out trolley for easy access to cooler/boxes
Electricity
- 300 amp hour LiFePO 4 battery bank
- 200 watt solar panels
- Renogy solar charger (with Bluetooth module)
- Renogy 60 amp DC to DC charger
- 30 amp shore power plug (or off grid with a generator)
- Renogy 2000 watt power inverter/charger – powers all of your 110v appliances and gadgets. Also automatically switches to charge mode when you plug in to shore power.
- Renogy battery monitor
- Furrion 30 amp AC and DC distribution panel – all fuses and circuit breakers in one place
- 10 USB ports
- 8 110v plugs
