2019 Mercedes Sprinter 4×4

Turnkey, 4-Season Ready, Off-Grid

~~~~~~~~~~~~~~~~

Skip the 18-month lead times and massive build costs.

.

This is an ultra-high-spec, professional 4×4 Sprinter build with an original build investment of ~$320,000.

.

Built with zero compromises, it features custom cabinetry by Comox Marine & Woodworking, a massive 9.6kWh lithium power system, marine-grade tinned wiring throughout, and a winter-ready Eberspächer diesel heating system. Completely road-ready today at a fraction of the cost to replicate.

.

.

==========================

Major Highlights & Build Quality

==========================

Professional Marine-Grade Electrical:

Built for extreme safety and reliability. Full Victron power ecosystem wired with marine-grade tinned copper (4/0AWG main lines to 14AWG branches) and heavy-duty tinned lugs throughout.

~

Massive Off-Grid Power:

750Ah (~9.6kWh) Lithium bank, 3,000W Victron MultiPlus inverter, 400W solar array, and alternator DC-DC charging while driving.

~

144″ Wheelbase Sweet Spot:

The ultimate balance of living space and maneuverability. Fits in standard parking spots and handles tight mountain switchbacks and forestry roads with ease.

`

3500 Dually Stability:

Built on the heavy-duty 3500 dually 4×4 chassis, offering superior payload capacity and stability for the custom build without the oversized footprint of a 170″ body.

~

4-Season Ready:

Eberspächer diesel heater (taps directly into the main fuel tank—no propane required), insulated with 3M Thinsulate and pour-in-place spray foam.

~

True 4×4 Utility:

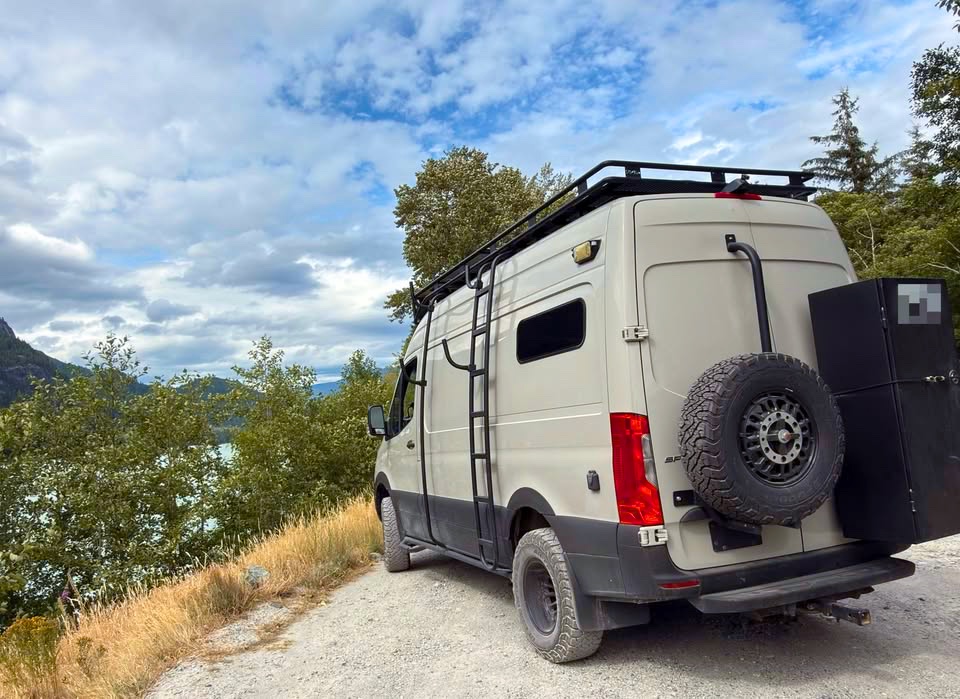

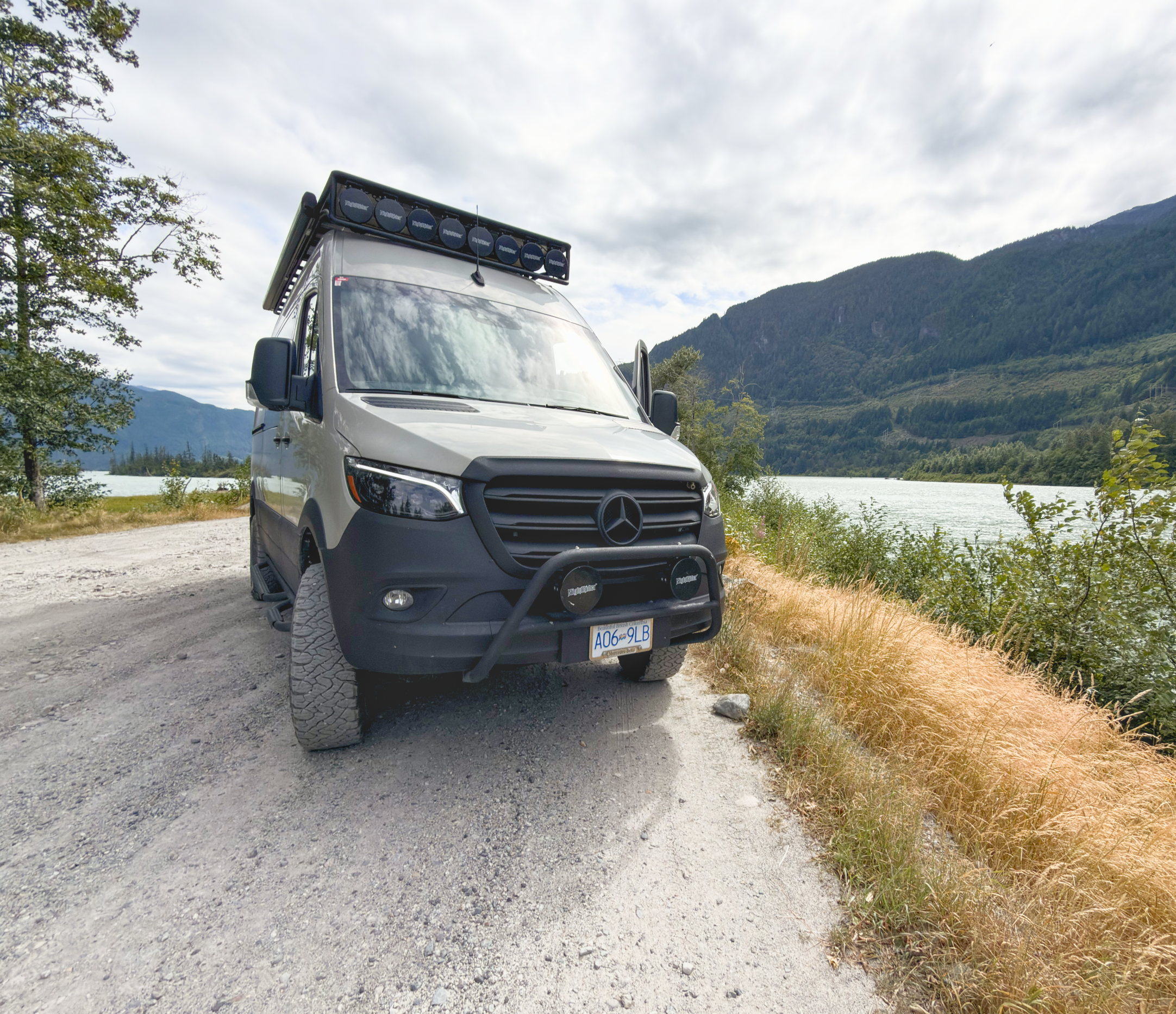

3500 dually chassis, built-in air compressor (front & rear connects), custom rear TIG-welded aluminum gear box, Stoked Adventure Outfitters roof rack, and brush guard with LED lighting.

~

Custom Cabinetry & Finishes: Professionally built by Comox Marine & Woodworking. Custom stainless steel countertops with teak trim, Blumotion soft-close hardware, two-tone Di-Noc finishes, and rattle-proof cork/carpet-lined storage.

.

.

=======================

Vehicle & Drivetrain

=======================

Year/Model:

2019 Mercedes-Benz Sprinter 3500 4×4

.

Mileage:

~62,000 km

.

Chassis/Brakes:

Class 1 Dually (LGVW < 5,500 kg), Hydraulic Brakes

.

Tires:

Excellent condition (6.4mm–7.9mm tread depth)

.

.

=======================

Power & Electrical Systems

=======================

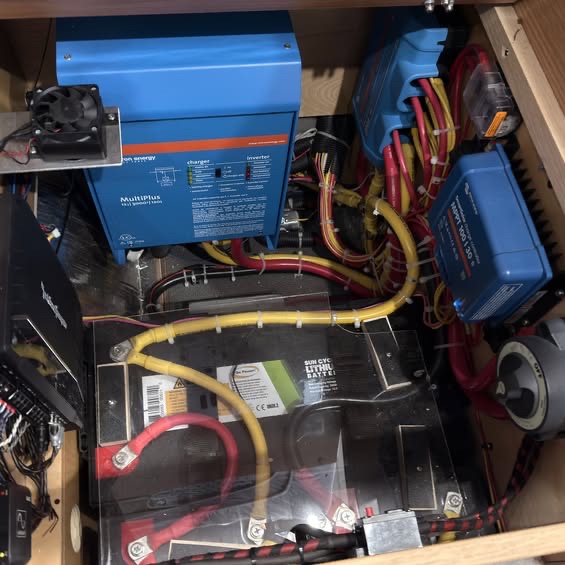

Lithium Battery Bank:

750Ah / ~9.6kWh (3x Battery Bunker GP-LIFEPO4-250 12V/250Ah)

.

Inverter/Charger:

Victron MultiPlus 12/3000/120-50 (3,000W continuous)

.

Monitoring & Management:

Victron BMV-712 Smart Monitor

.

Charging:

Victron Orion-Tr DC-DC converter (charges while driving) + 400W Rooftop Solar

.

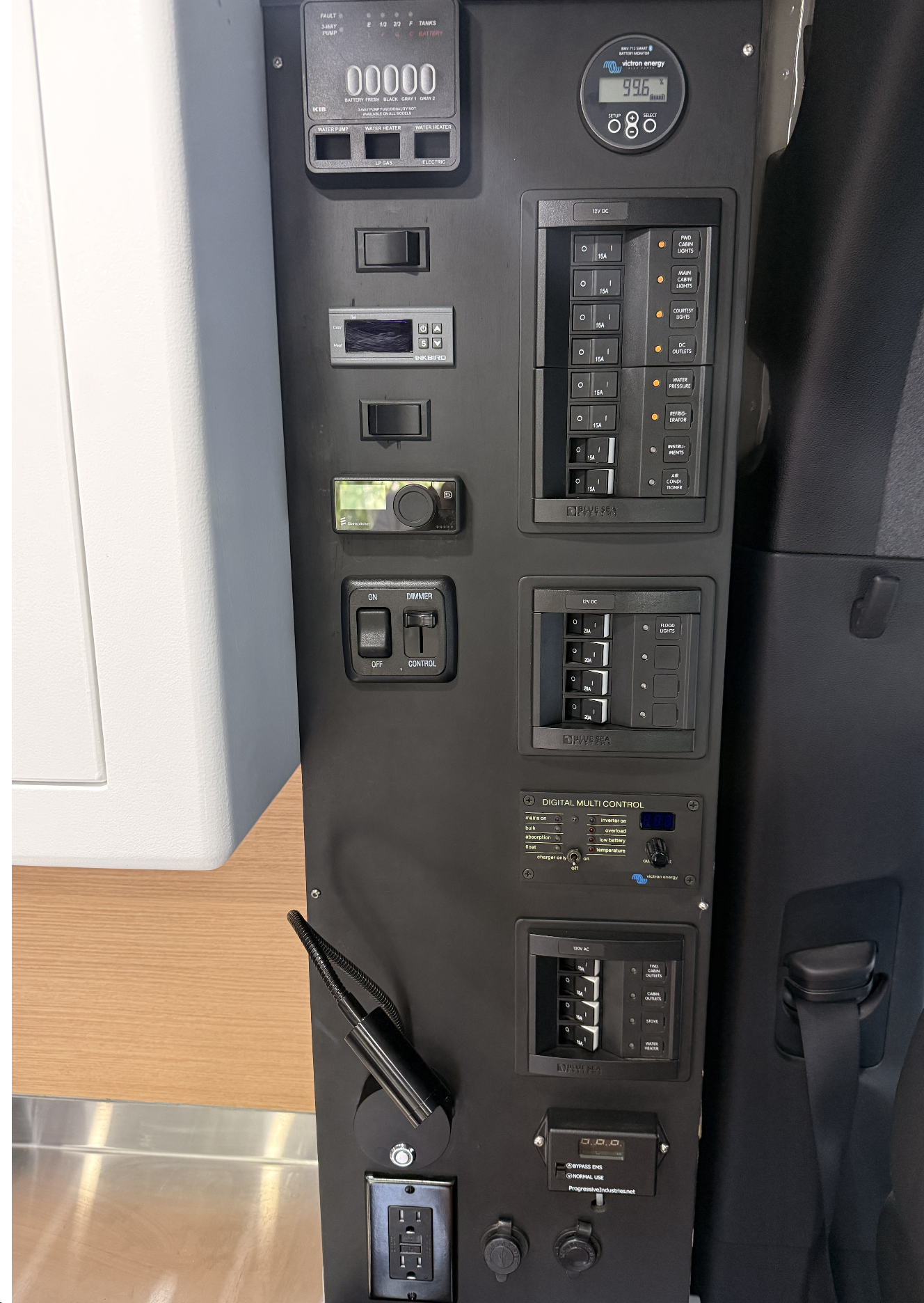

Distribution & Safety:

Victron Lynx Distributor, Blue Sea breaker panels/fuse blocks, Furrion 30A shore power inlet with 25′ cable & EMS surge protector

.

Lighting/Tech:

Interior LED reading lights, USB stations, exterior motion lighting, front brush-guard LEDs, backup camera, and dash cam

.

.

=======================

Interior & Craftsmanship

=======================

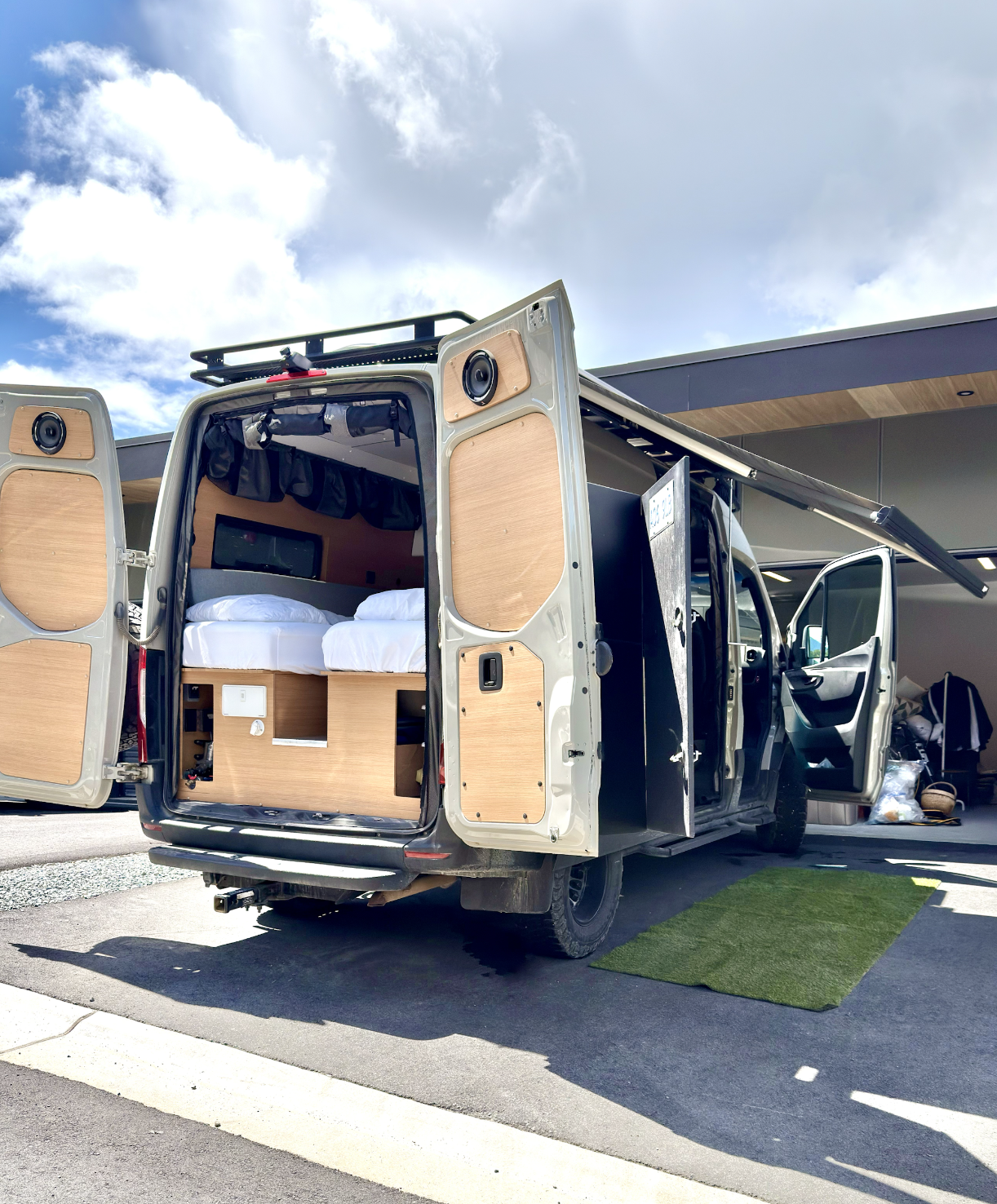

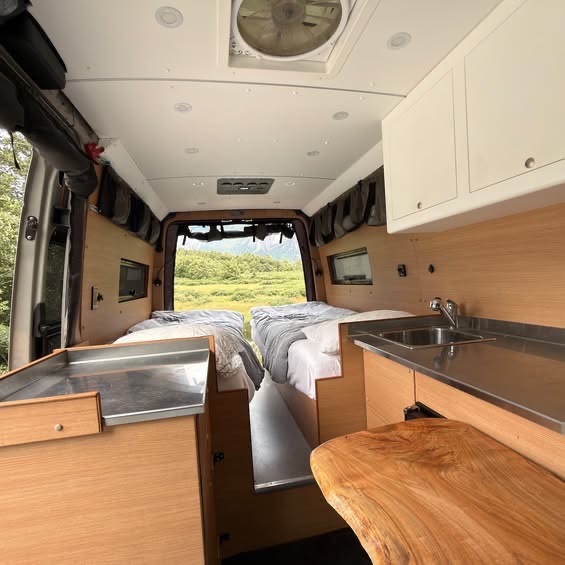

Cabinetry:

Custom marine woodwork, soft-close Blum hardware, two-tone wood-grain and leather-texture finishes

.

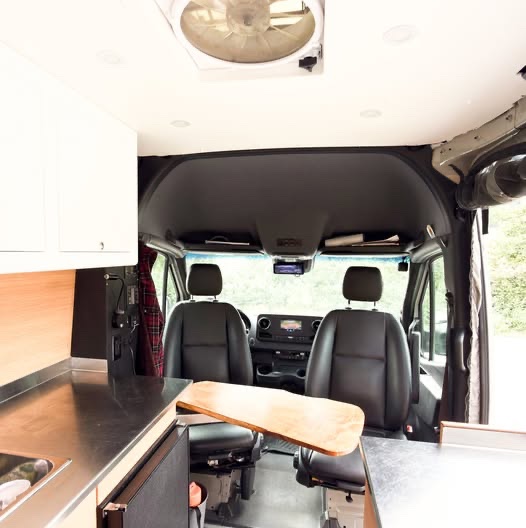

Galley:

Stainless steel counter, hand-fit teak backsplash, Novakool R3800 DC compressor fridge (3.42 cu. ft.), chrome pull-out faucet

.

Living/Sleeping:

Twin full-length (28 wide each, with 14in of floor space) side beds with custom foam mattresses & fitted toppers, Lagun swivel table, T-track modular floor tie-down system with custom fabric storage bags

.

Head/Shower:

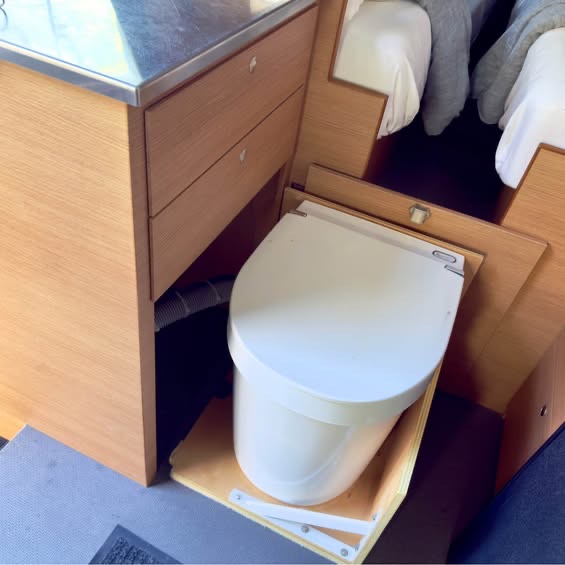

Marine shower, marine toilet with push-button vent fan

.

.

=======================

Plumbing & Climate Control

=======================

Heating:

Eberspächer Airtronic diesel air heater (runs off main diesel tank)

.

Insulation:

3M Thinsulate SM-600L + 2-part polyurethane spray foam in cavity walls/ceiling

.

Ventilation:

MaxxAir 06200K powered roof fan

.

Water System:

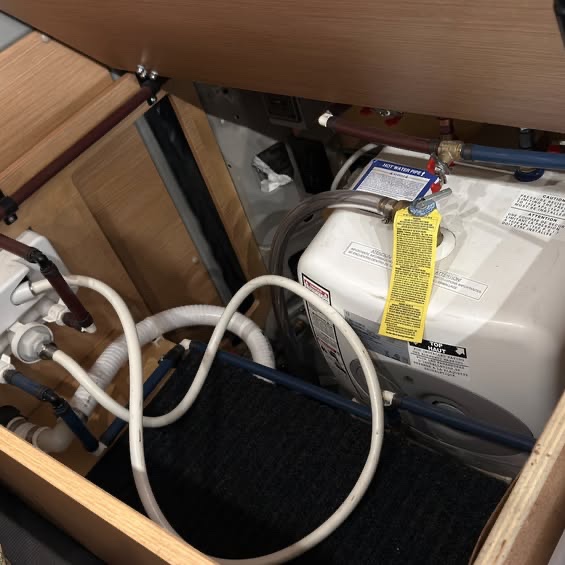

3 GPM Parmax-3 12V pump, fresh water tank with city fill, HT400ED waste tank with remote level monitor

.

.

=======================

Exterior, Windows & Gear

=======================

Rack & Storage:

Stoked Adventure Outfitters roof rack, TIG-welded powder-coated rear aluminum gear box

.

Onboard Air:

Built-in compressor with front and rear quick-connect ports

.

Protection & Comfort:

Pura Vida Vans awning, front/side bug nets, magnetic rear galley window covers, front exterior window shade kit

.

Glass:

Dual AW1033 universal windows + right-side sliding door window

.

Extras:

Assembled bike rack, LED brush guard

.

.

=======================

Condition & Notes

=======================

3,603kg / 7,943 lb

Meticulously maintained, fully inspected, and meticulously constructed with high-end components.

.

Everything is operational and ready for immediate long-haul overlanding or weekend getaways.

.

Serious inquiries only.

.

Vehicle located in Squamish BC

.

Contact to schedule a viewing or video walk-through.
