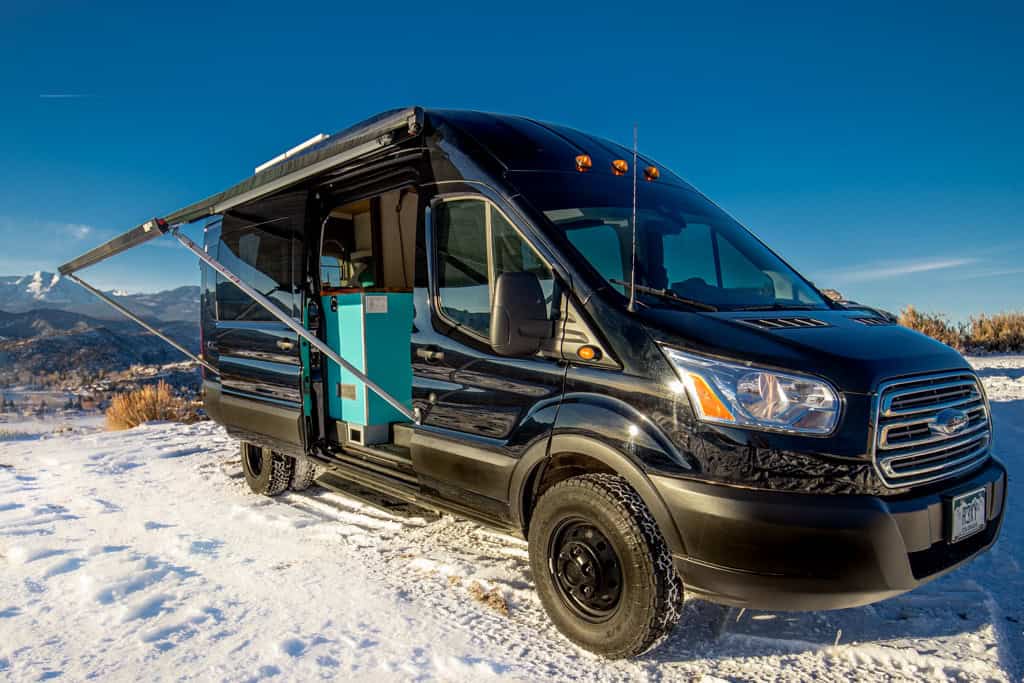

This is a 2019 Ford Transit 350HD XLT Lifted Dually with a 3.7 Ti-VCT V6 engine
22 feet long (266″) with a 148″ WB
Ford Powertrain Warranty
Easy to drive automatic transmission
2WD
7 Toyo Tires Open Country A/T LT215/85R16 (includes spare)
Airlift Load Lifter 5000 Ultimate
Agile Offroad Liftkit
Professionally Powder Coated Wheels
Trailer class Ill trailer hitch receiver and wiring harness
KONIG XB-16 245 Snow Chains- 4 total
Surround tinted windows for an open feeling and to see the views with sliding door screen
2 additional screened side windows
GVWR 10,360 los
Mileage: 39,761
Fuel type: gasoline
Back-Up camera
Sleeping capacity: 3

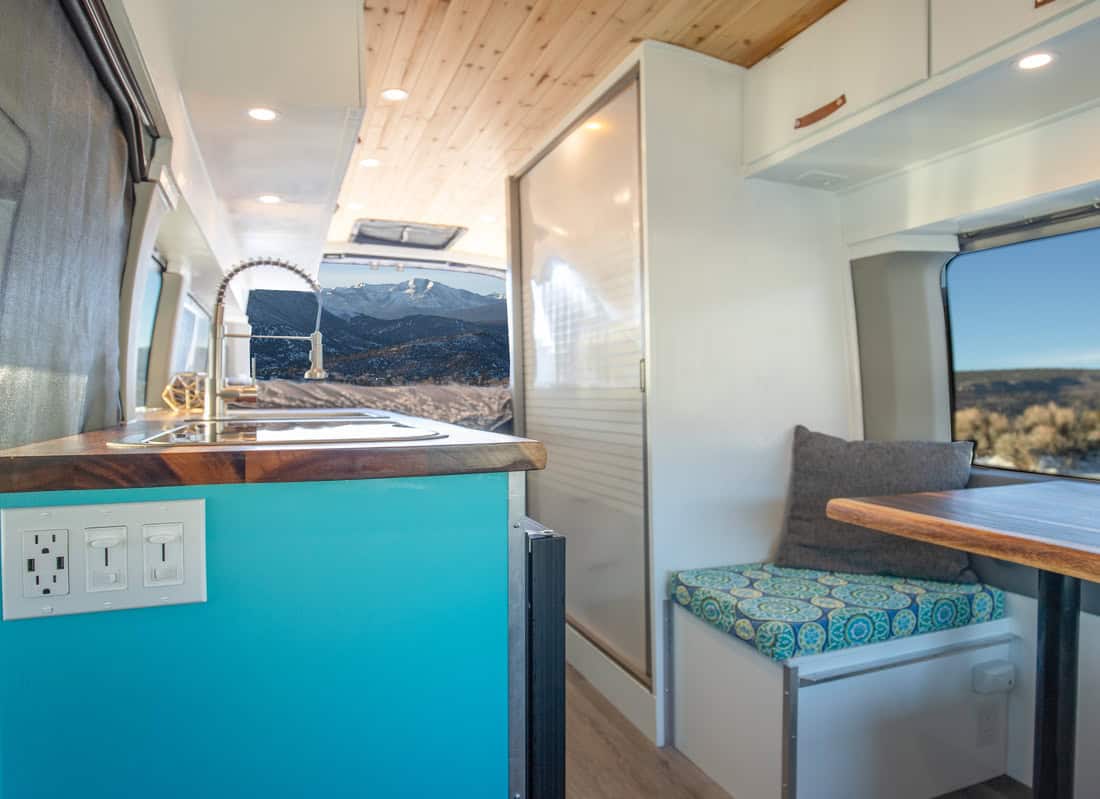

Interior Details
The entire interior build is anchored with rivet nuts to the frame. This is a solid build done with life long adventure in mind.
10 massive feet of overhead storage, PLUS 2 large dresser drawers, 2 large storage benches in dining room area, and
all kitchen cabinet storage
Nightfall Overland Window Shades for front 3 windows

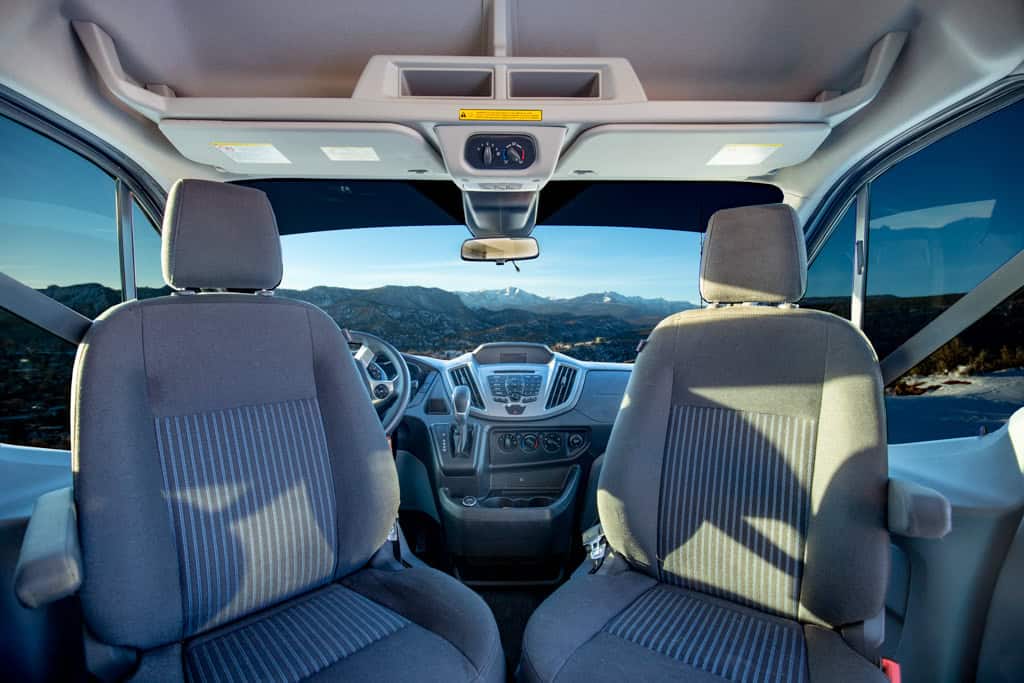

Driver & Passenger swivel captains chairs
Novakool energy-efficient R3800 Fridge/Freezer with stainless steel door 12v
Suburban 2 Burner propane cooktop model SDS2
Ruvati 16 Gauge Stainless Steel Sink 15 “x 15” with cutting board cover
Full size kitchen faucet with spray head
Propane tank 5 lb
Grey Tank 5 gallons with motorized ball valve drain mounted outside van
Nearly 6 feet x 25″ thick live edge Acacia hardwood counter
21’x 25″ live edge Acacia hardwood removable table top
Custom hardwood plywood cabinets
Pneumatic lifts for cabinet doors
Self closing ball bearing drawer slides
Natural food grade Tung Oil finish on countertops
Custom faux leather handles

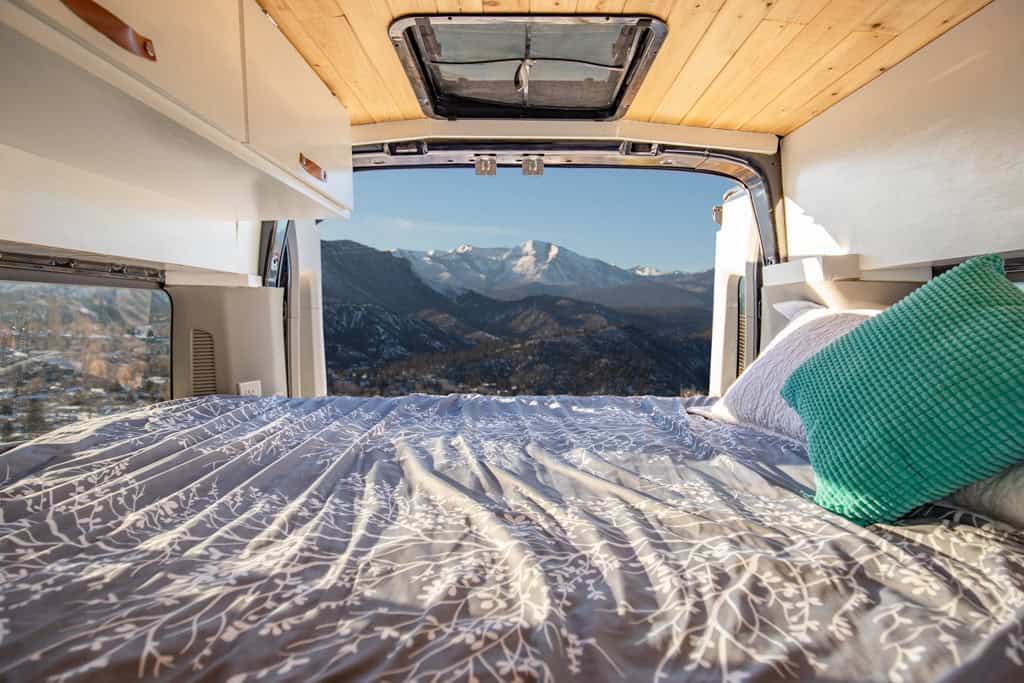

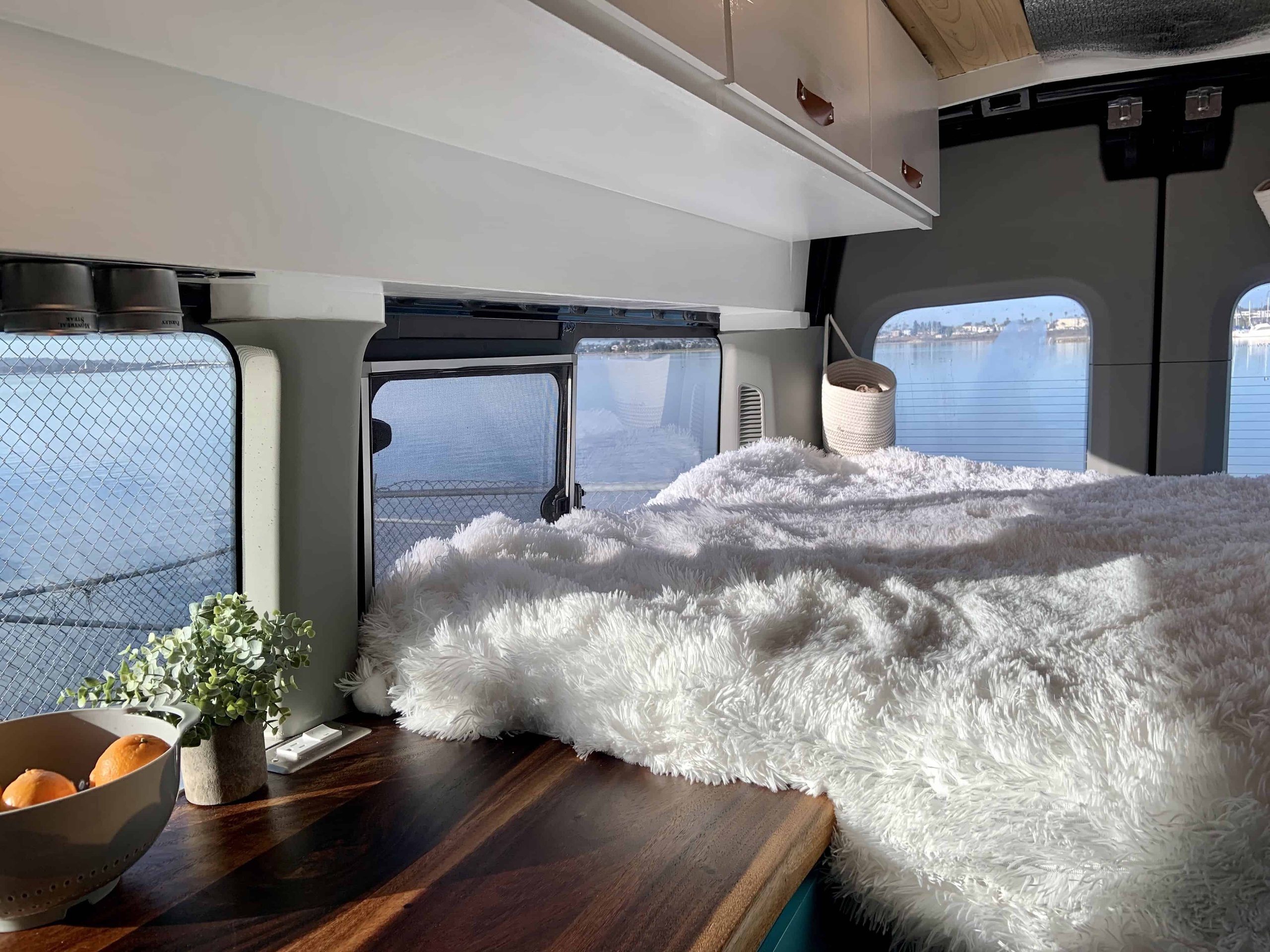

Fixed bed that is ALWAYS ready for a great night sleep!
Sleep Master Zinus Deluxe 8″ RV Queen Memory Foam Mattress with encasement and additional quilted cover pad
Den-Dry mattress underlay for superior air flow under mattress
Tongue and groove cedar ceiling

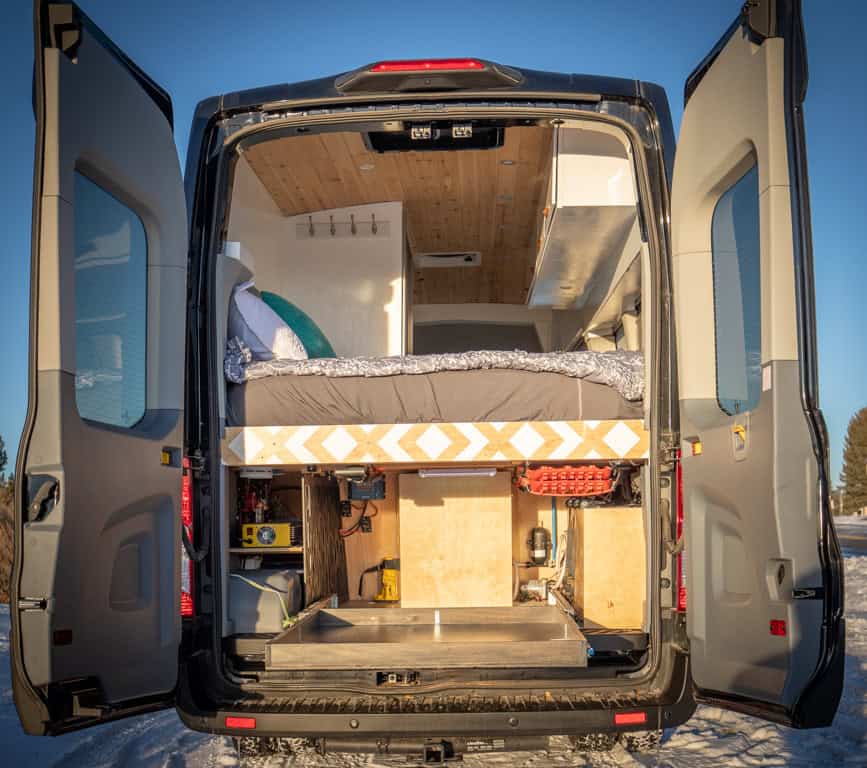

Massive lighted garage storage with sliding door with a 500 lb capacity
120v outlet in garage for convenience
Carbon monoxide alarm
Propane gas leak detector
Fire extinguisher
Custom Slider door bug screen
Smoke alarm
RV door latches
Towel & coat racks
Dimmable LED lighting throughout
Grey vinyl plank flooring throughout including the garage
Rear OEM air conditioner to cool while driving
Rear OEM heater to heat while driving
Bathroom/Wet room Details

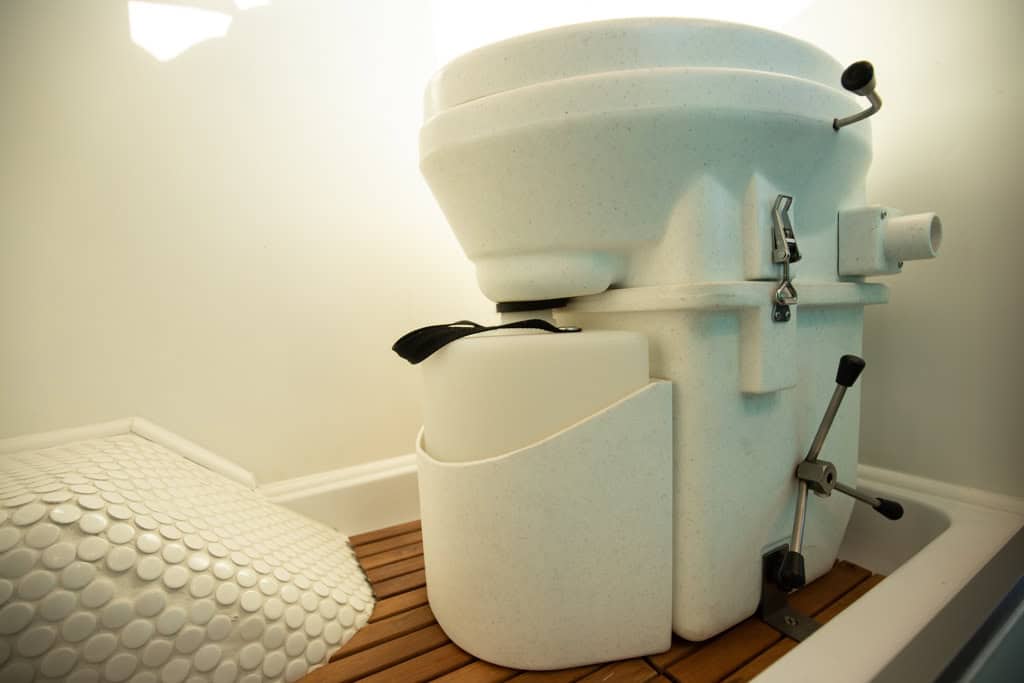

Nature’s Head Composting Toilet (gets the highest reviews of all toilet options from van and RV owners)
24″ x40″ Shower Pan for hot showers
Nautilus Self Cleaning Shower Door
Handheld water saving shower head
Teak wood shower floor
Plumbing Details
Bosch Tronic 3000T ES 2.5 gallon Electric Water Heater
33 Gallon fresh water tank mounted inside van with remote water level sensor
Shurflo 4008 RV Revolution Bypass Pump
Facon Heater pads on the hot water heater, water tank, and batteries to allow camping in cold weather
1/2″ PEX tubing pipe with crimp connections and drain valve
Insulation Details
3M Thinsulate Acoustic/Thermal Insulation 1 3/4″
Minicell Floor Installation
Super Shield Easy Cool Insulation
Foamular 1′ insulation in floor
Maximum sound deadening on floors, walls, and roof
Flame and mold retardant insulation
Exterior Details
Fiamma Awning F45s and rain guard seal
Bomar Boat Hatch 20″ x 20″ (this is the skylight over the bed)
Professionally Tinted windows
Maxair 00-06200K MaxxFan
Dream Lighting LED heavy duty light bar 720 lumens
Aluminum roof rack and solar mounts
Rear doors open 180 degrees
20 Amp Exterior Shore power hook-up
Electrical & Solar Details
The system can be charged 3 ways: solar, by the vehicles alternator, and by a shore plug
2 Battle Born non-toxic LiFePO4 Deep Cycle Battery 100 Ah each
2000W Samlex PST-2000-12 PST Series Pure Sine Wave Inverter
60 Amps Sterling BB1260 Battery to Battery Charger
Webasto Air Top 2000 STC Gas Heater (uses fuel from the van tank)
Samlex Remote Controller RC-300 for Inverter
2 Newpowa 175 watt Solar Panels total 350 watts
4- 120v outlets with 2 USB outlets
VERED BY weebly
AC and DC outlets for charging electrical devices and running lights & kitchen
Smartsolar MPPT 100/30 Charge Controller
Ancor Marine Grade electrical connections & writing
Blue Sea Systems fuses
Victron BMV-712 Battery Monitor
Shore power hook-up
