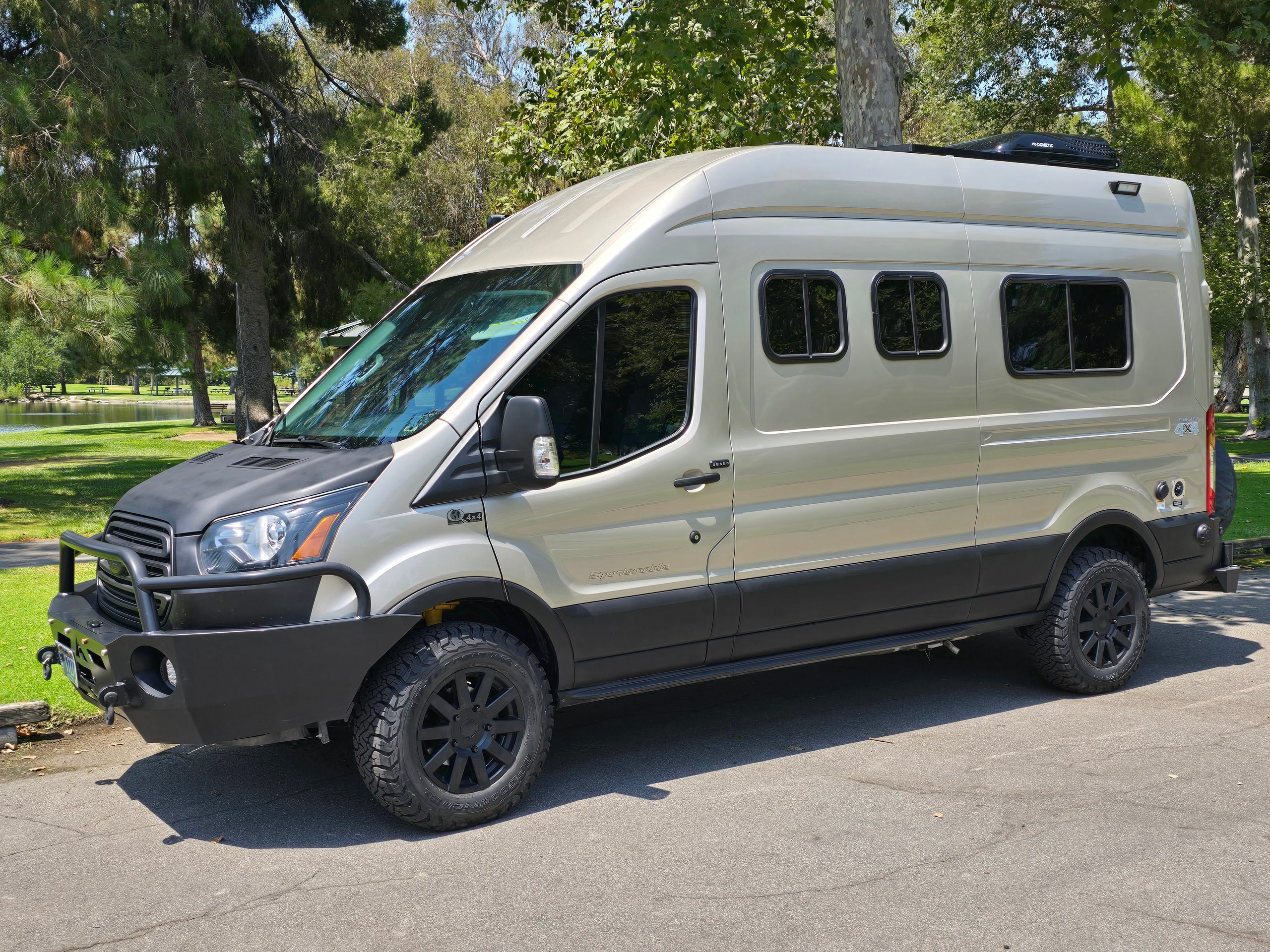

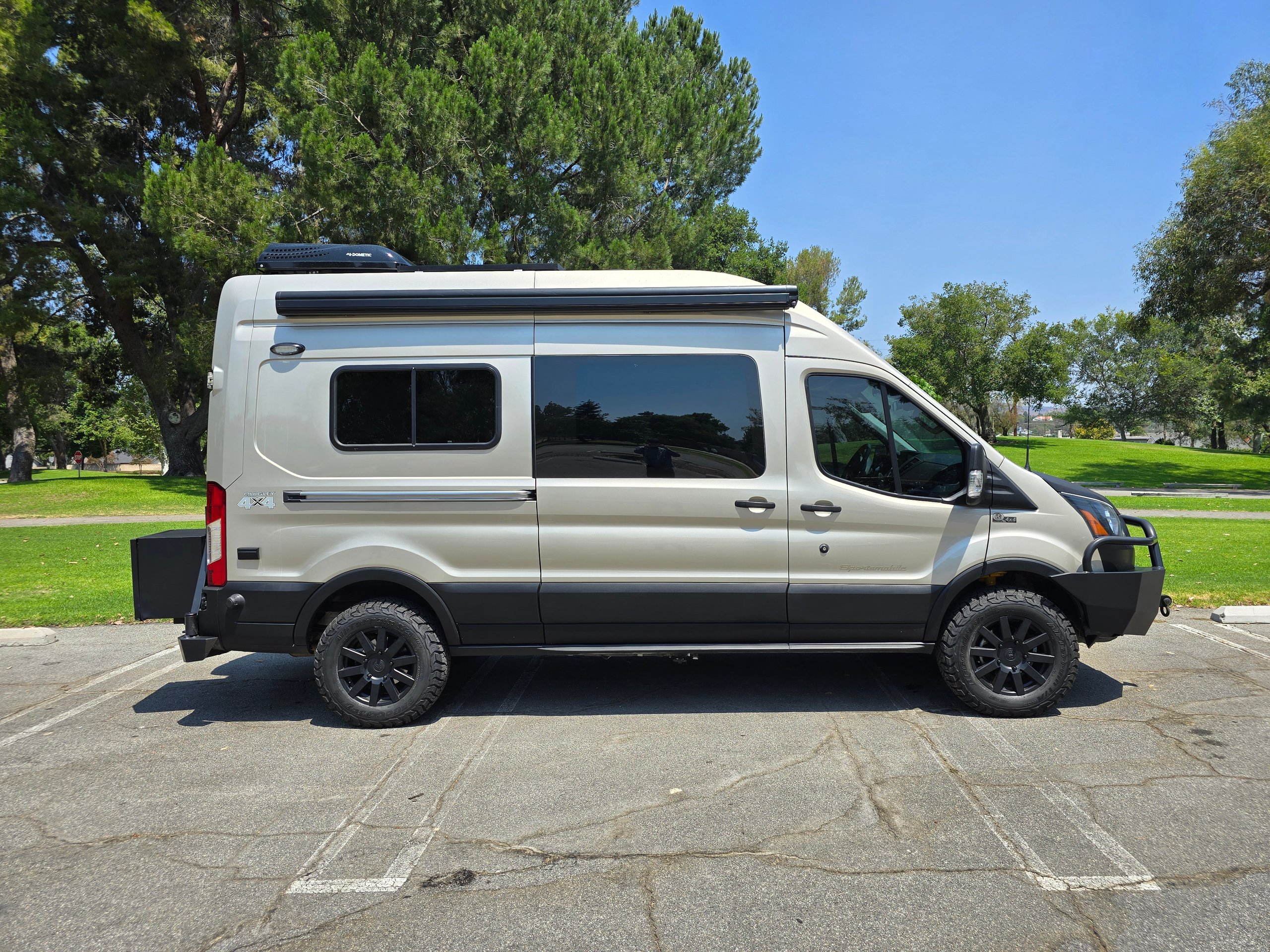

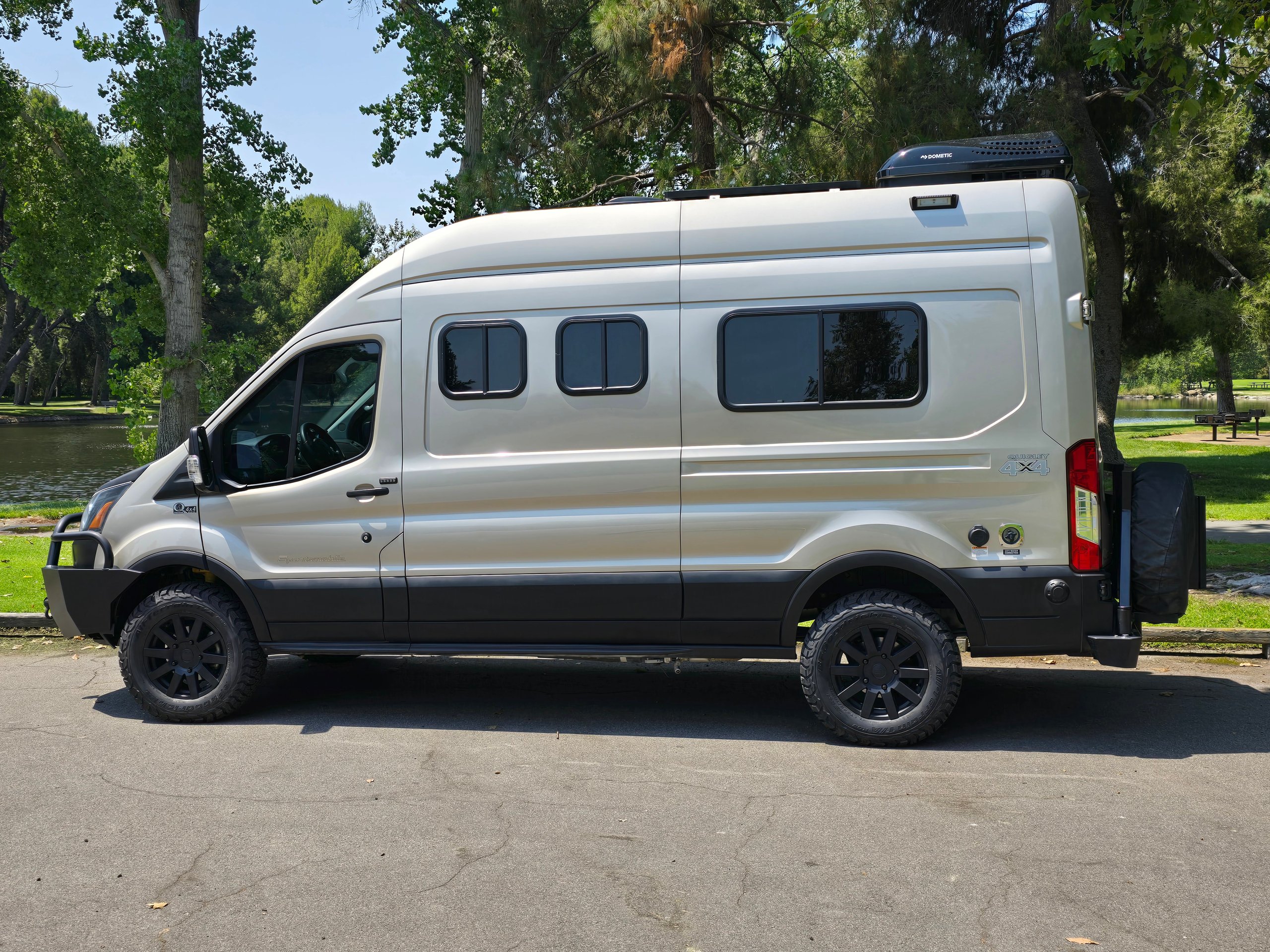

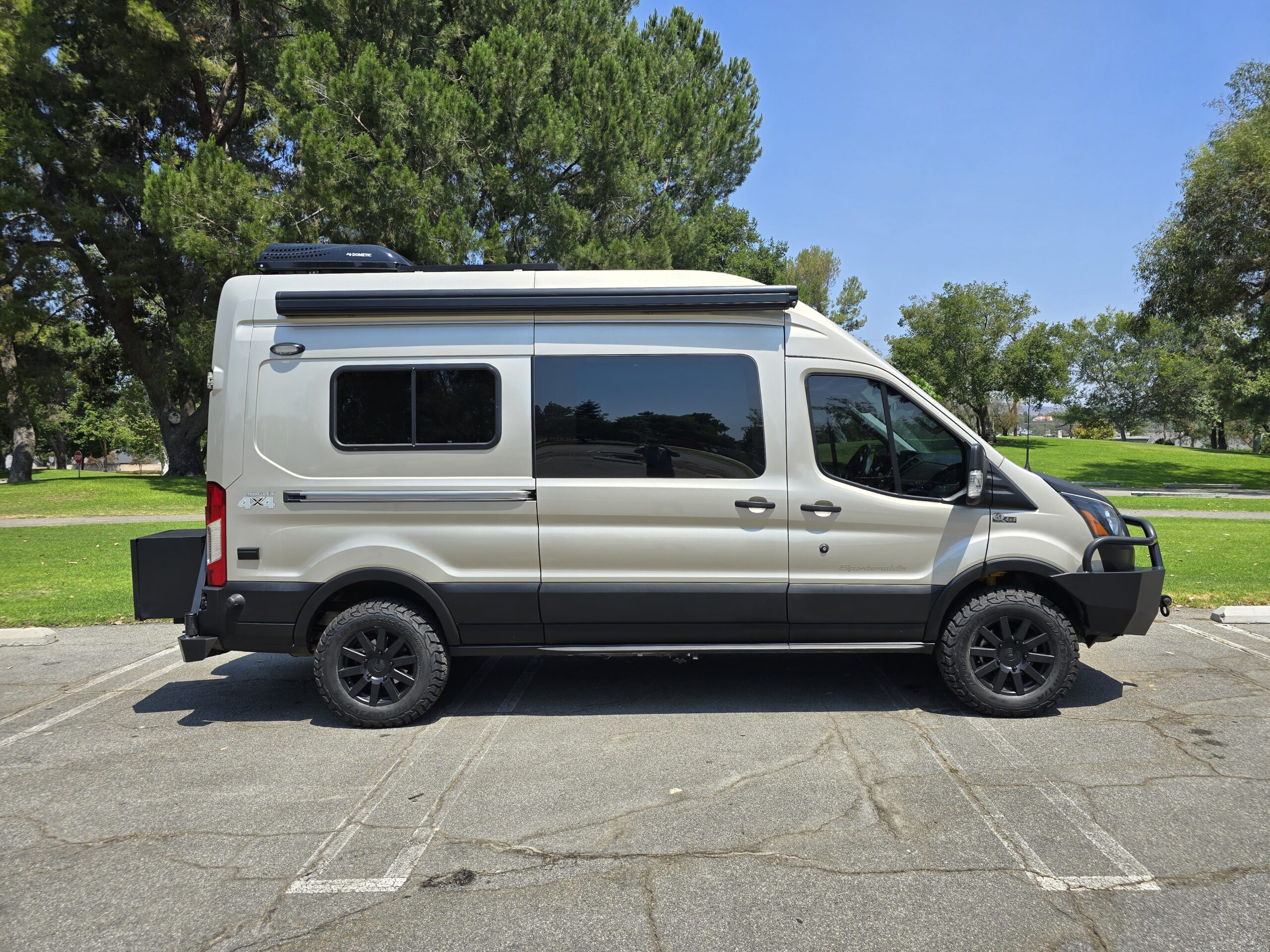

2019 Ford Transit 350 High Roof, 148″ Wheelbase
This vehicle was delivered to us from Sportsmobile West (Fresno, CA) in January 2020. It’s one of the last vehicles to come out of the Fresno facility before they separated from Sportsmobile and became Field Vans.
The van was shipped by train from the factory in Kansas City to Quigley in Manchester, PA. for the 4X4 conversion. After the 4X4 conversion it was shipped by truck to Sportsmobile West in Fresno, CA for upfitting.
Clean Oregon title and no accidents

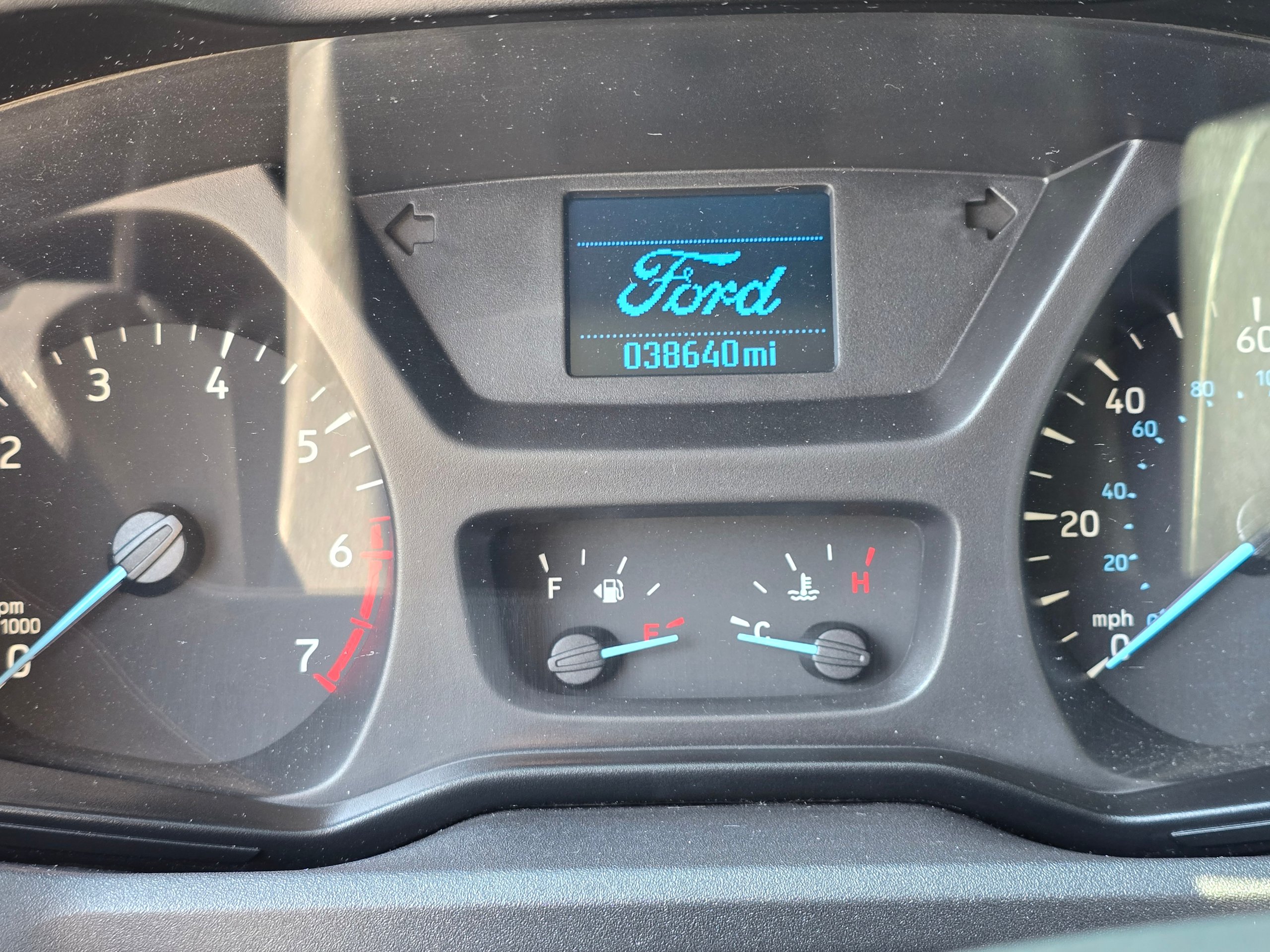

Approximately 39,000 miles at time of posting.
When not on the road the van is always stored indoors.

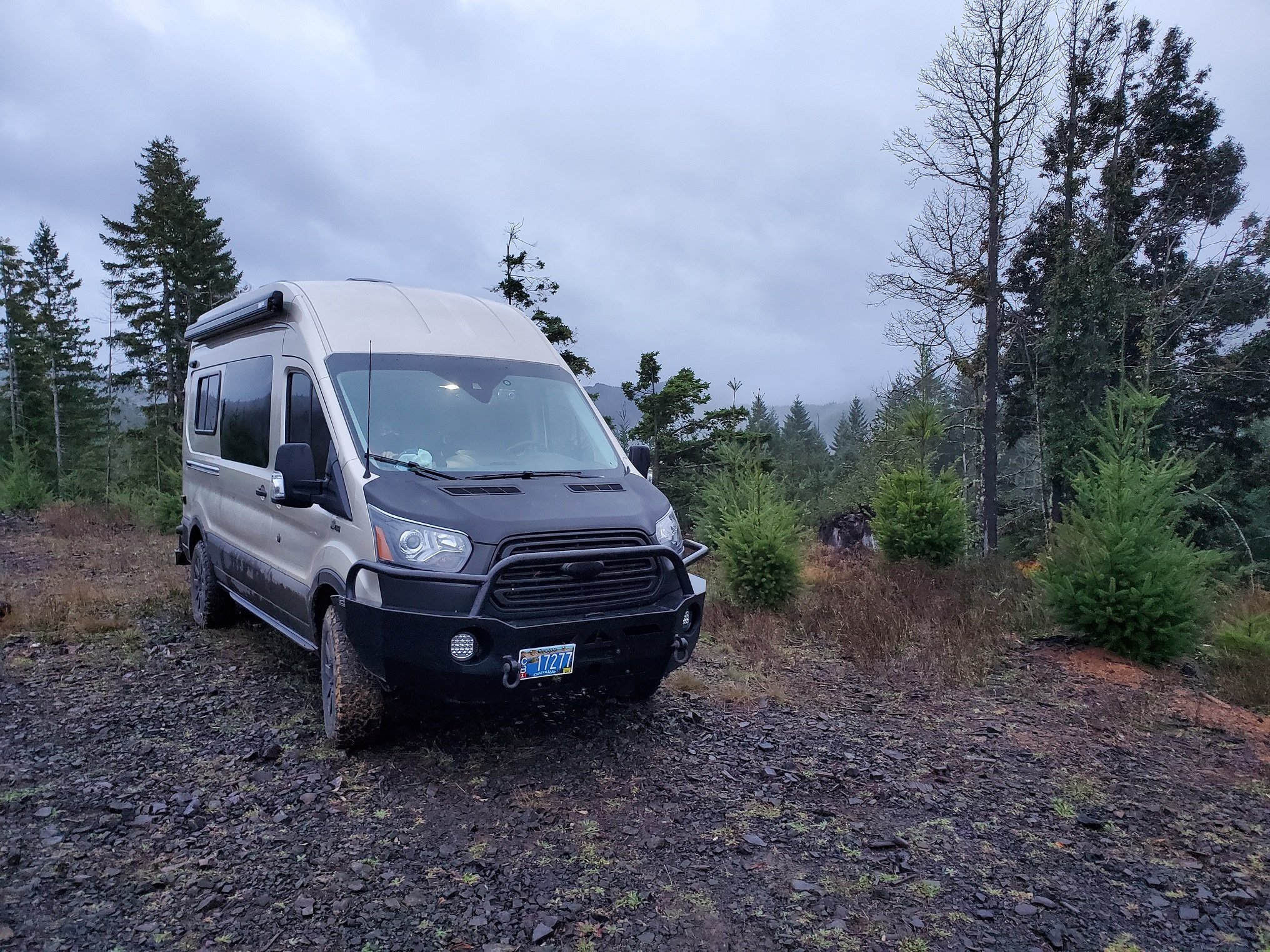

We will truly miss this exceptionally capable van, which has been our trusted companion on countless unforgettable adventures. Throughout our travels, we’ve rarely stayed in traditional campgrounds, instead choosing the freedom and solitude of remote destinations—BLM land, secluded National Forest clearings far off the beaten path, and quiet spots at the end of winding logging roads.
Thanks to the ample onboard provisions, we’ve comfortably stayed up to five days in these pristine, off-grid locations—our only limits being the food and water we carried.

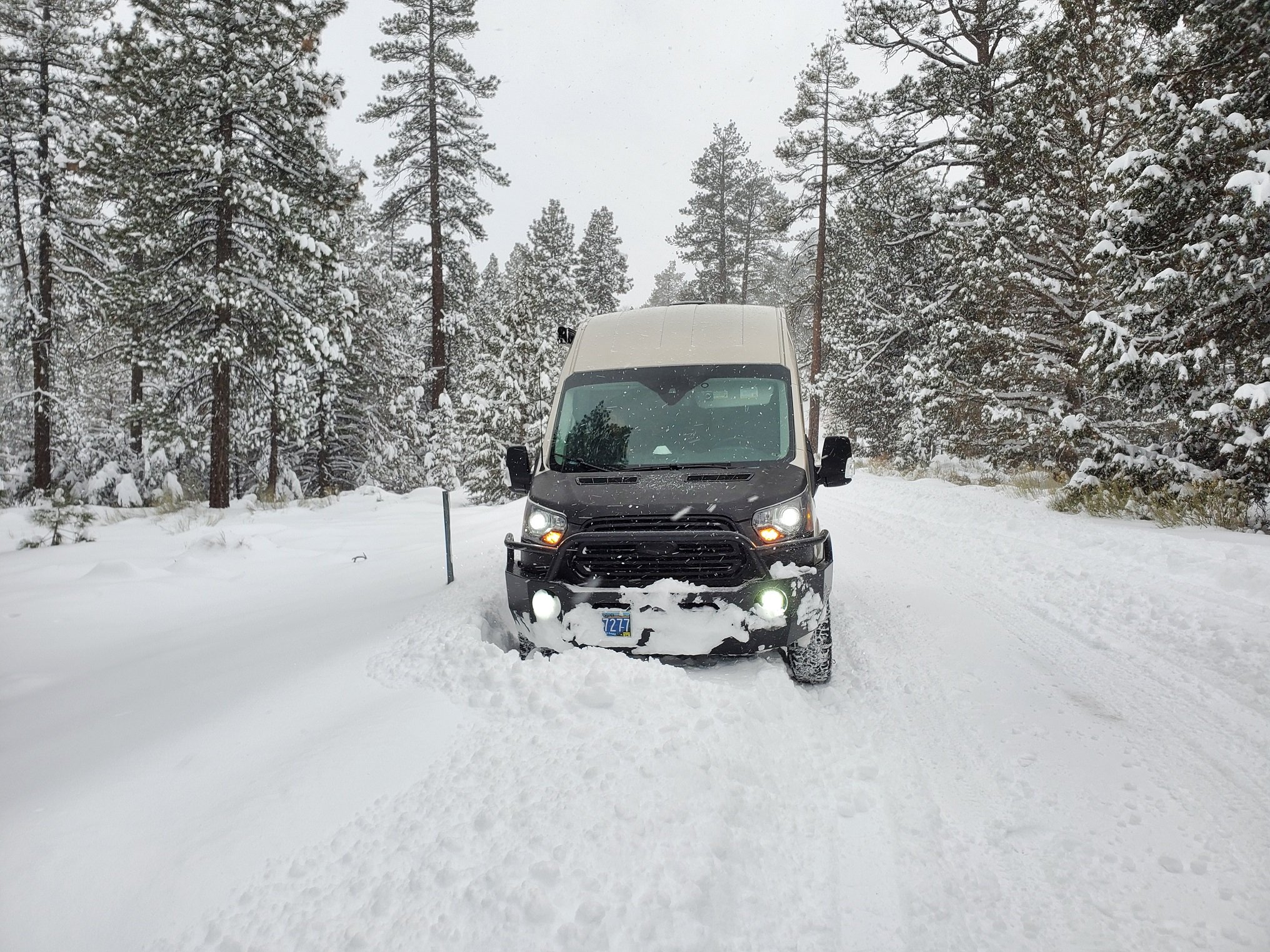

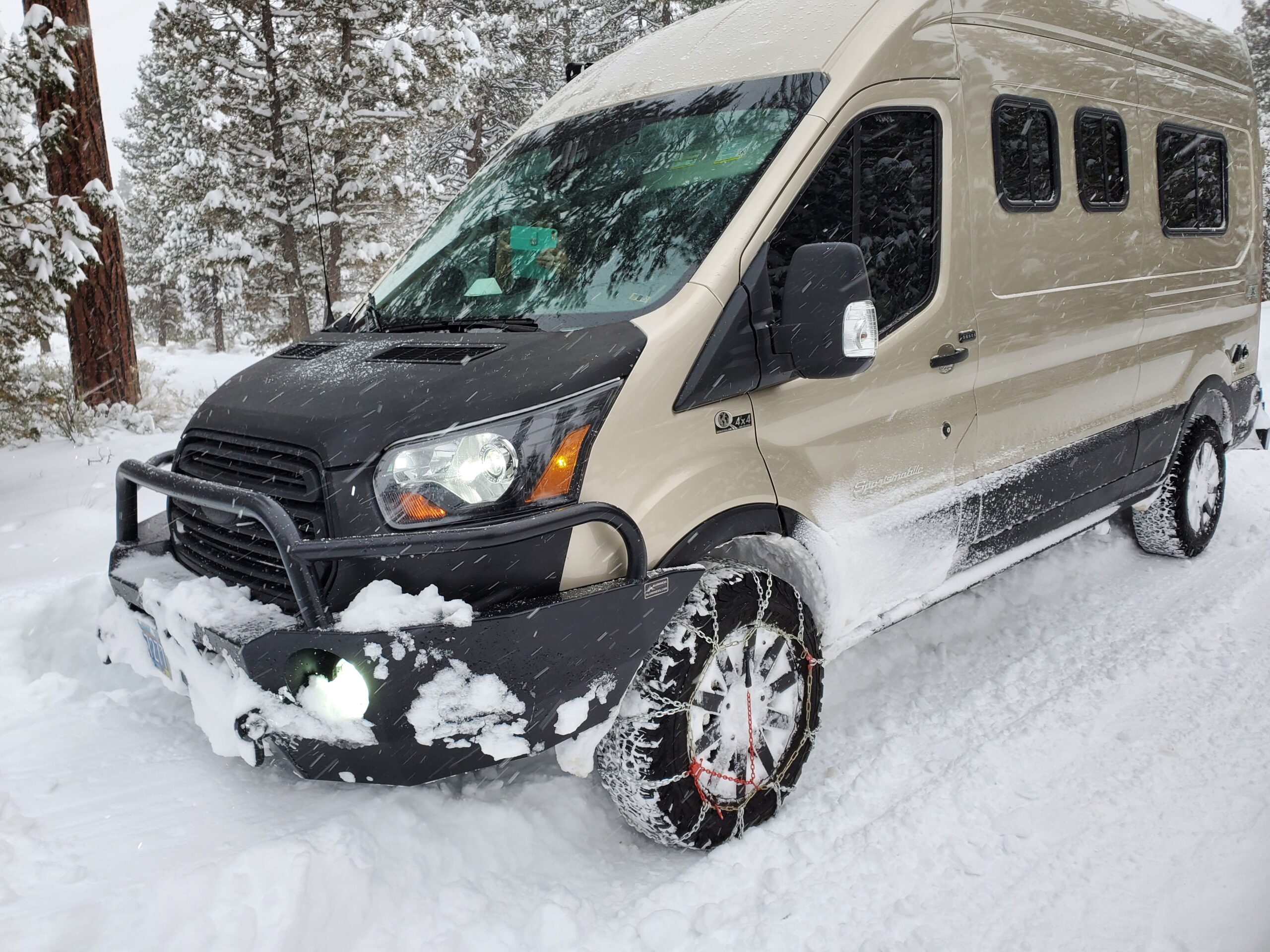

The Quigley 4×4 system (a true 4×4, not AWD) with a two-speed transfer case is incredibly robust, opening access to places many vans simply can’t reach. While my co-pilot, boss, and wife has wisely kept me from testing the most extreme trails, we’ve never been stuck—snow included.
This van has carried us to some of the most breathtaking, picturesque landscapes across the country. With its upgraded suspension, it offers a smooth, confident ride—whether cruising down the interstate or navigating what could generously be called a “road.”
As for the Sportsmobile upfitting—this is truly a high-quality, rugged build. Every detail reflects expert craftsmanship, and in all our time with it, we’ve had zero issues with their workmanship. As the saying goes, you get what you pay for—and in this case, you get excellence.
From the factory:
3.5L V6, twin-turbo Ecoboost engine, 310 hp, 400 lb-ft torque (compare that to the Sprinter diesel)
White Gold exterior paint (because it’s pretty close to dirt color)

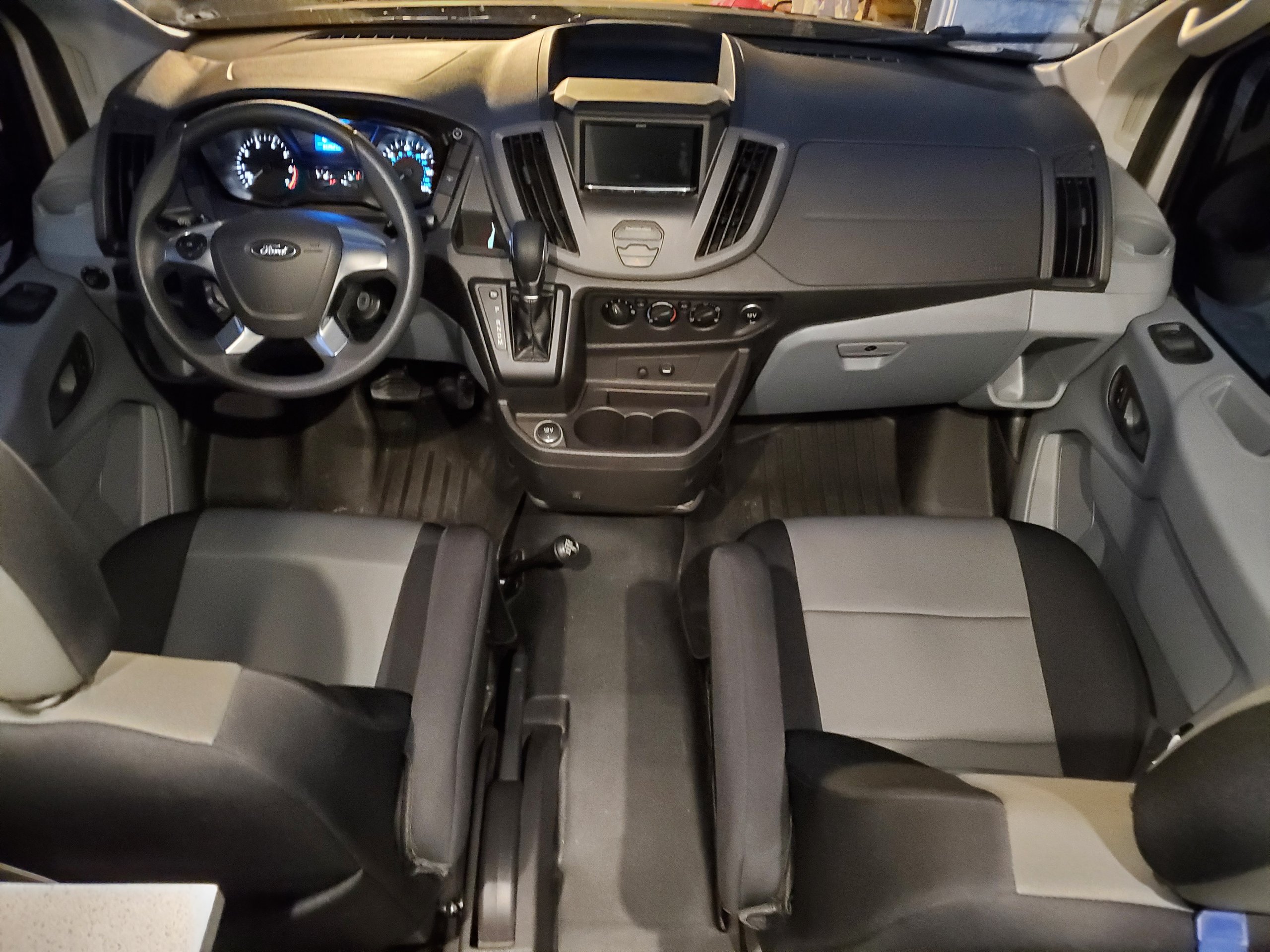

Charcoal gray cloth seats, Driver and Passenger 10 way power adjustable & heated (seat covers on since new)
3.31 limited slip rear differential
Wheel well liners
Keyless entry pad on driver’s door
Automatic headlights and rain sensing wipers
Power mirrors, heated, with integrated turn signals
Backup camera
25.0 gallon fuel tank
HD Trailer hitch and wiring
Rear window defogger
Perimeter anti-theft and Securilock PATS
Cruise control
Heavy duty 220 amp alternator
Pushdown parking brake
Four sets of keys
Upgrades:
Quigley 4×4 conversion including two speed transfer case and 2” lift

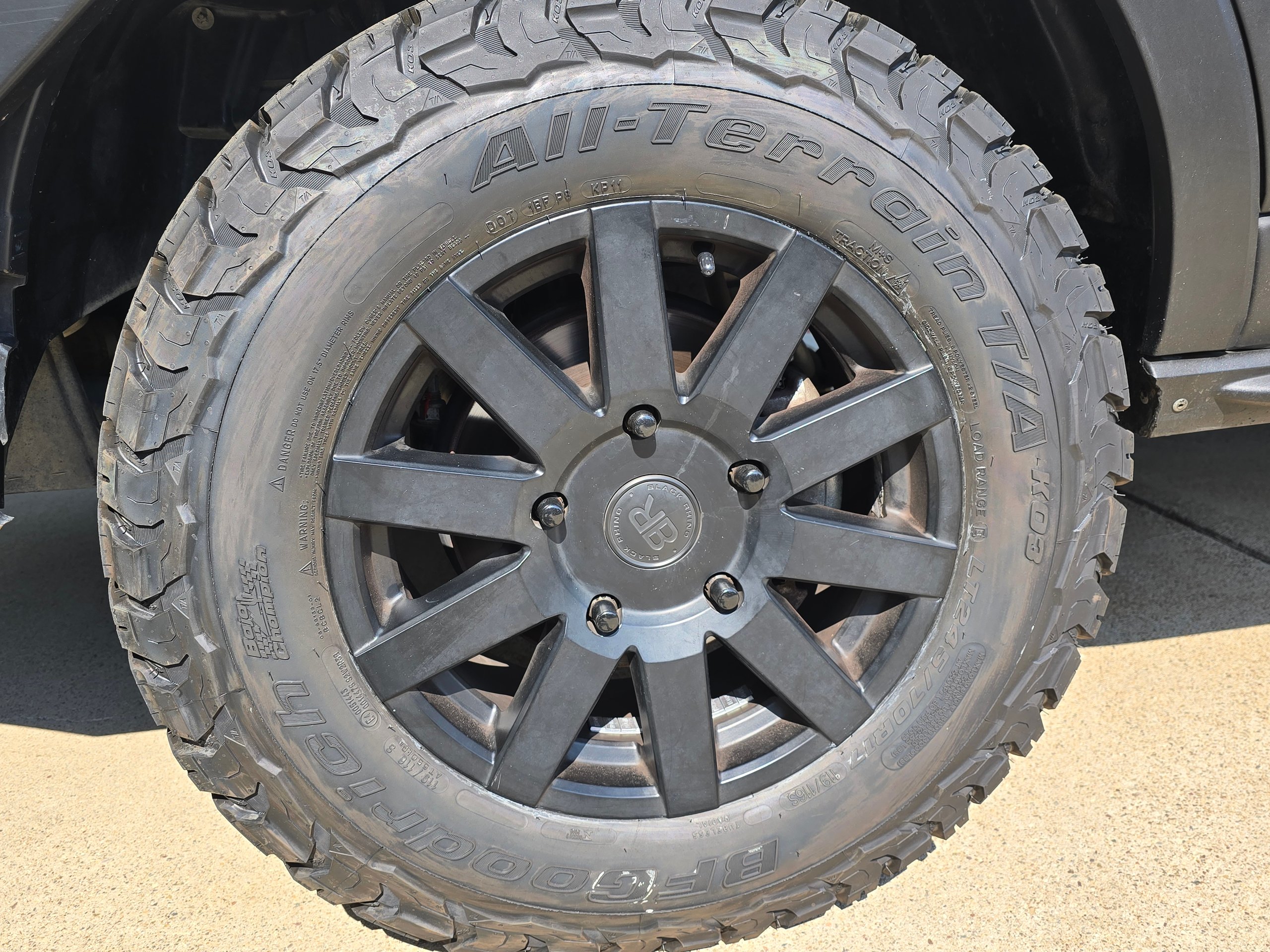

New 245/70 17 BFG A/T tires on Black Rhino Journey wheels (5)
Bilstein B6 Front Struts, Falcon 2.1 Monotube rear shocks with high clearance lower mount bracket
Sportmobile upfitting:

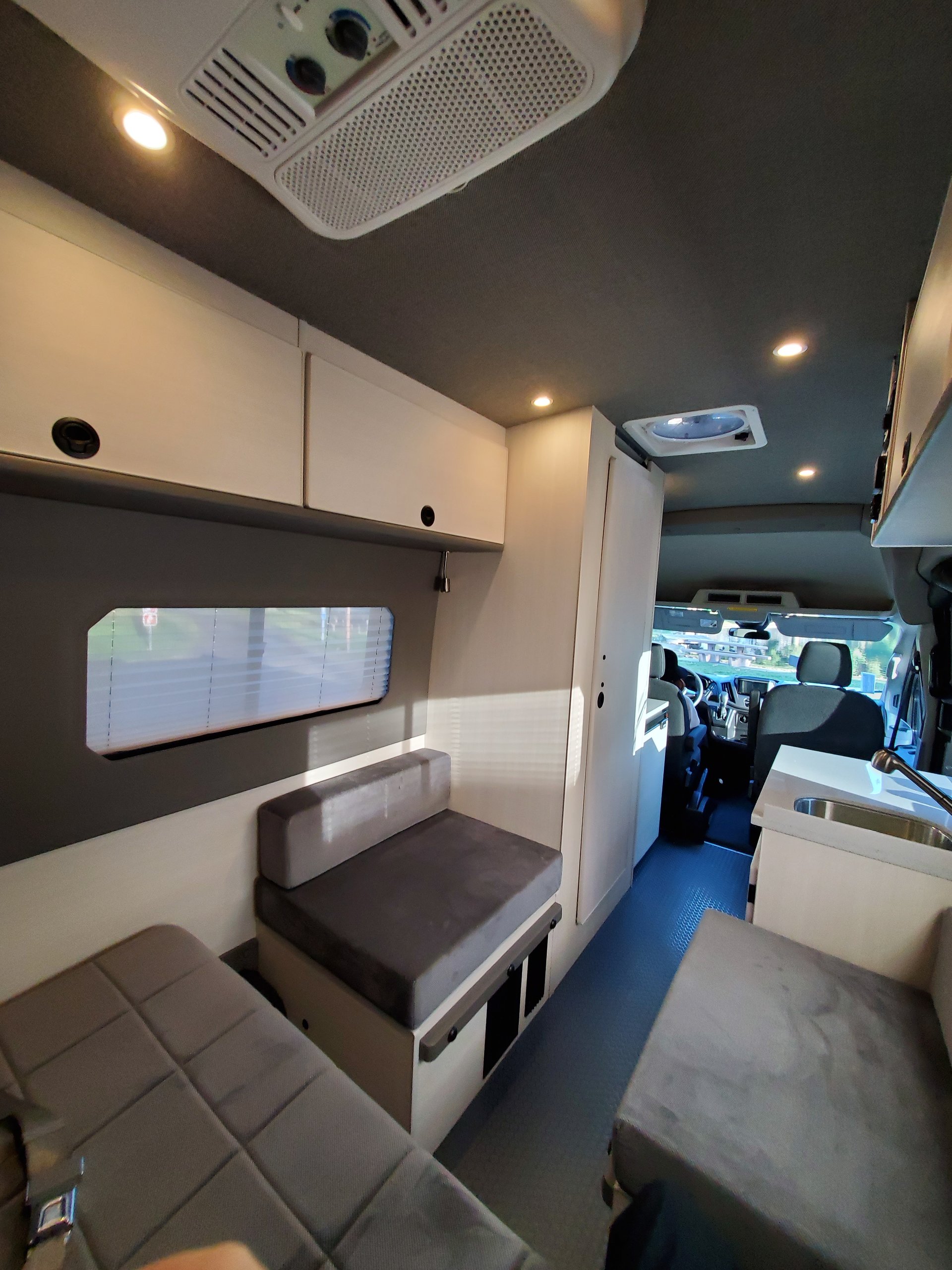

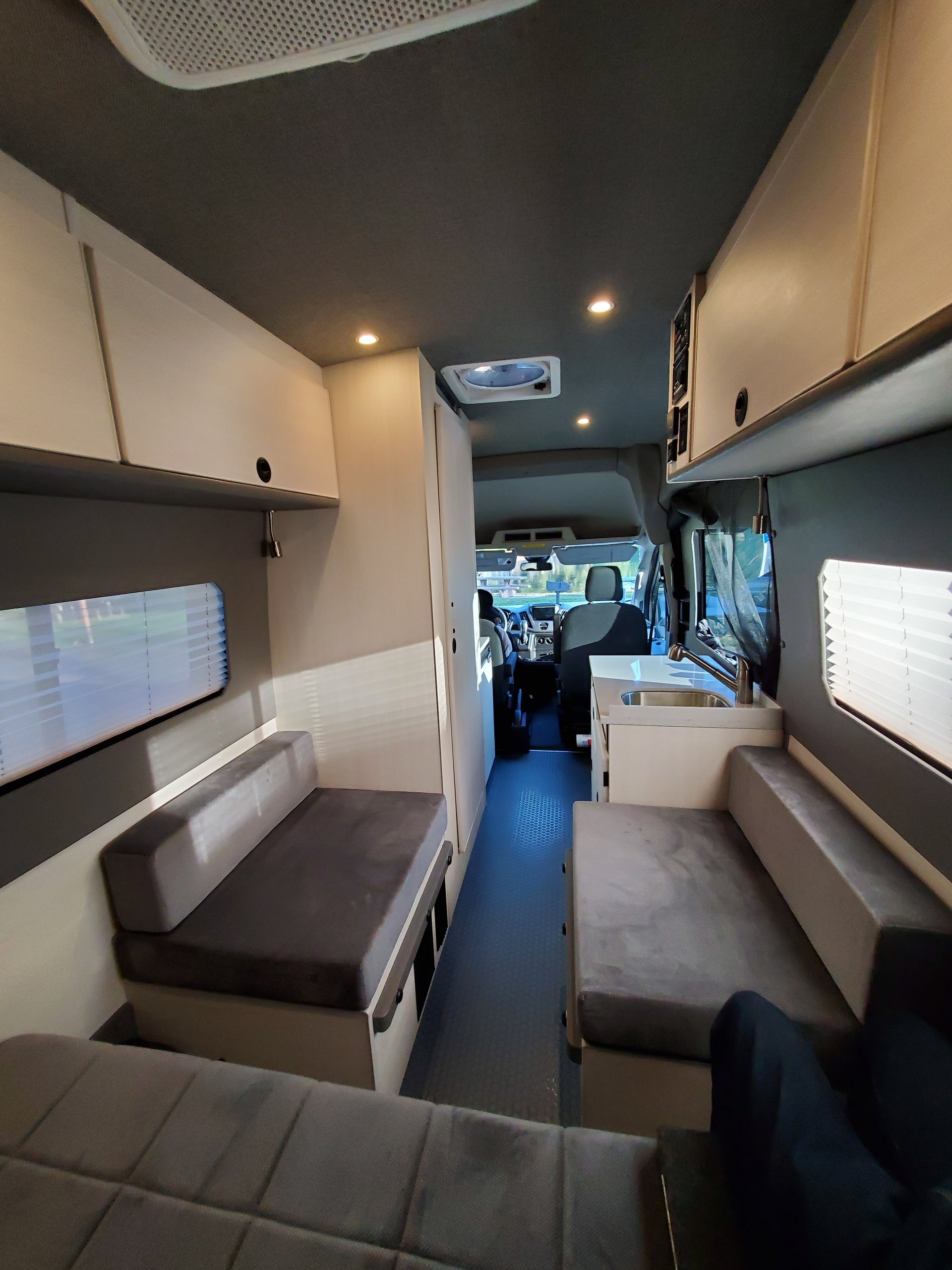

Front facing rear couch that folds down to ~queen size bed
Sportsmobile installed “Artic” extreme weather insulation
Custom made Thinsulate blankets for windows
Quartz countertops

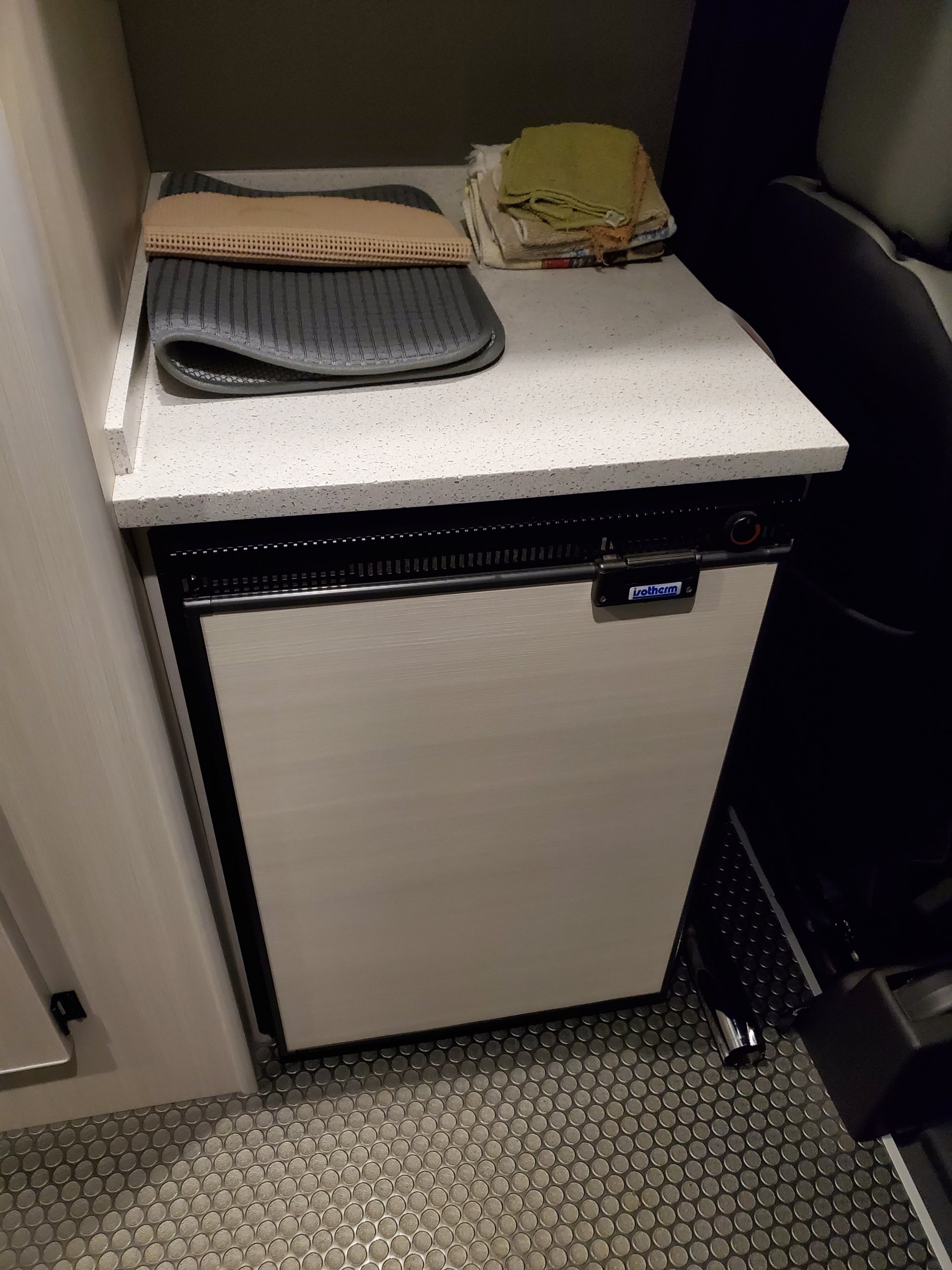

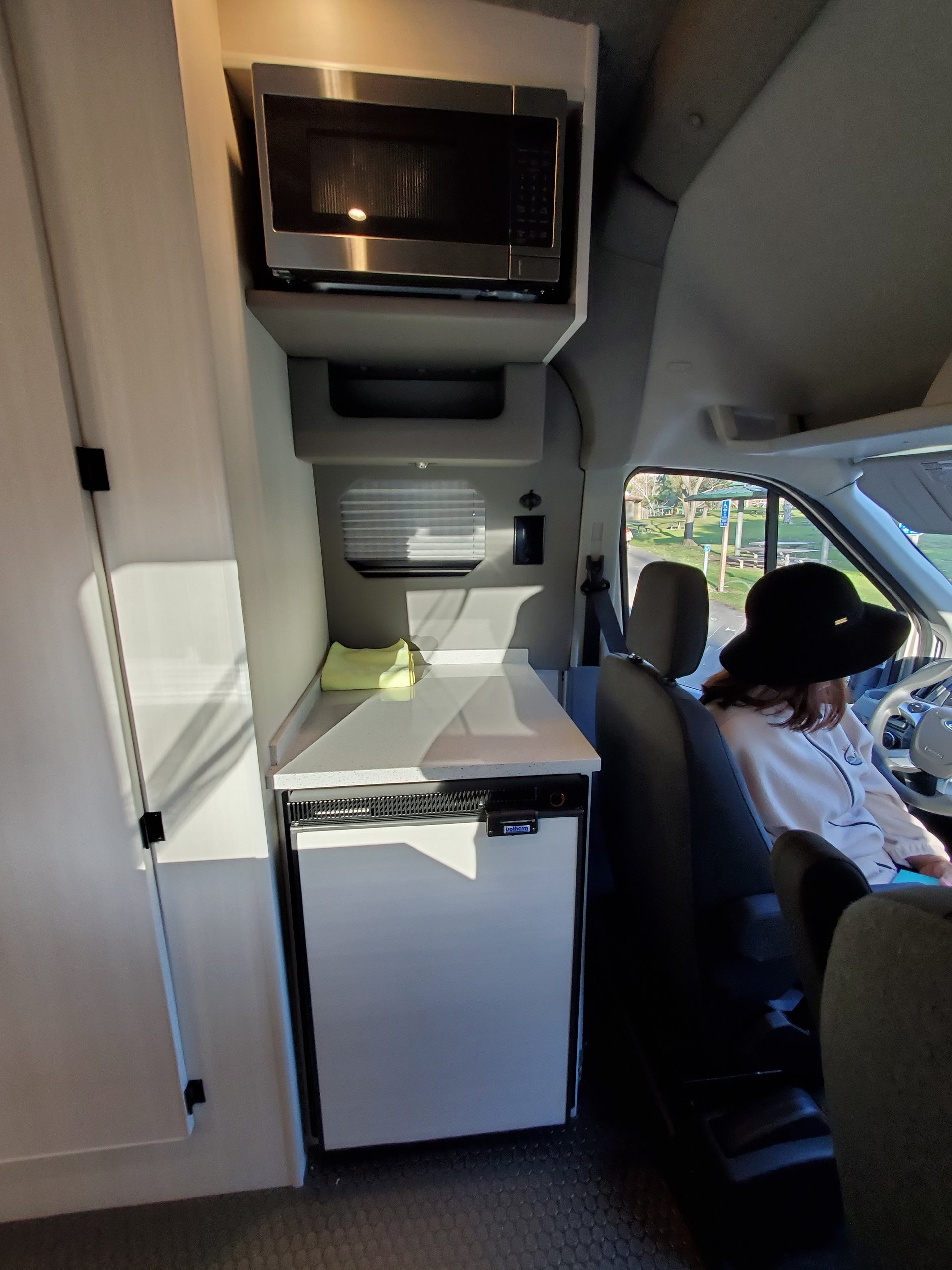

Isotherm Cruise 100 refrigerator

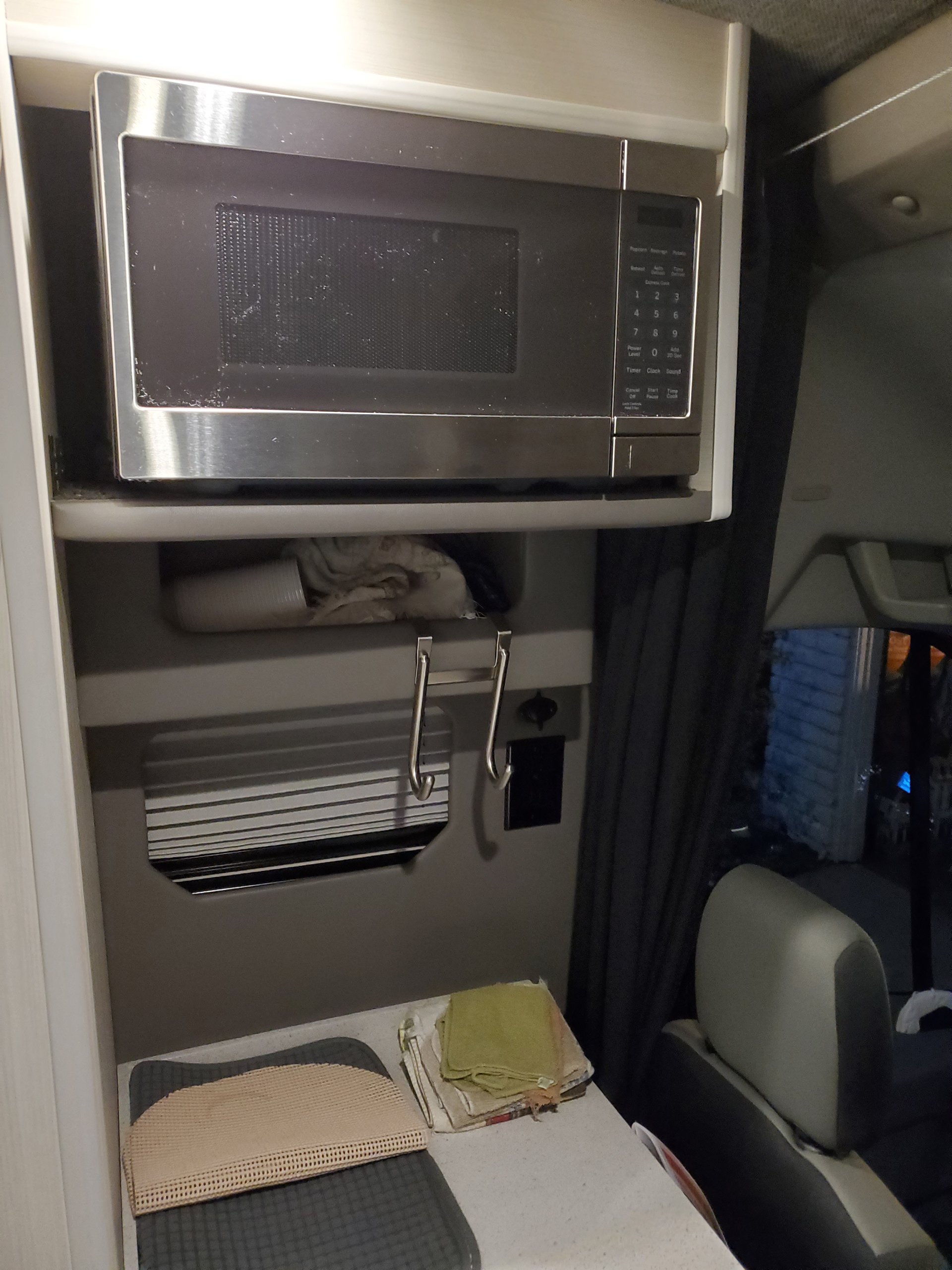

Microwave

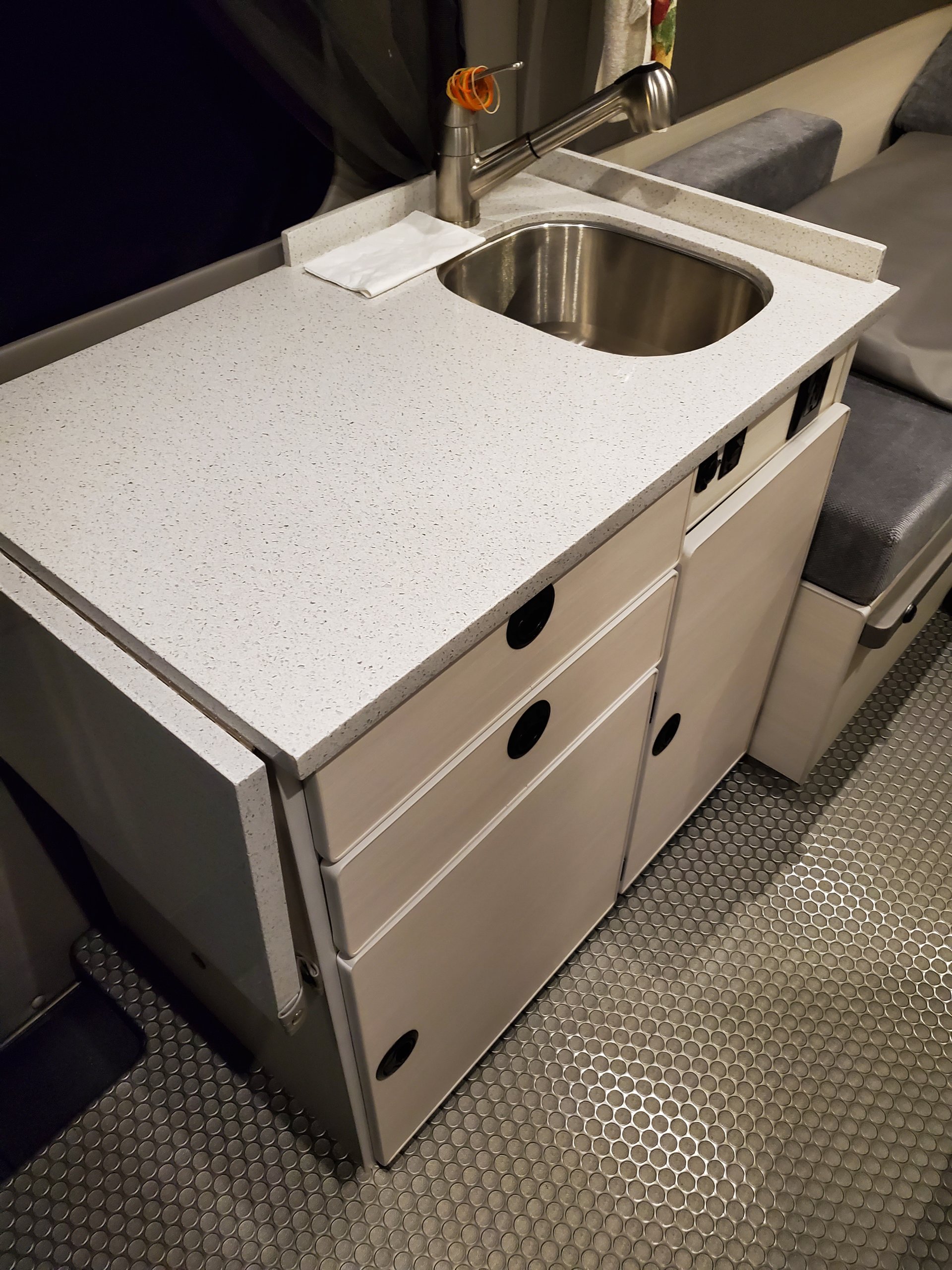

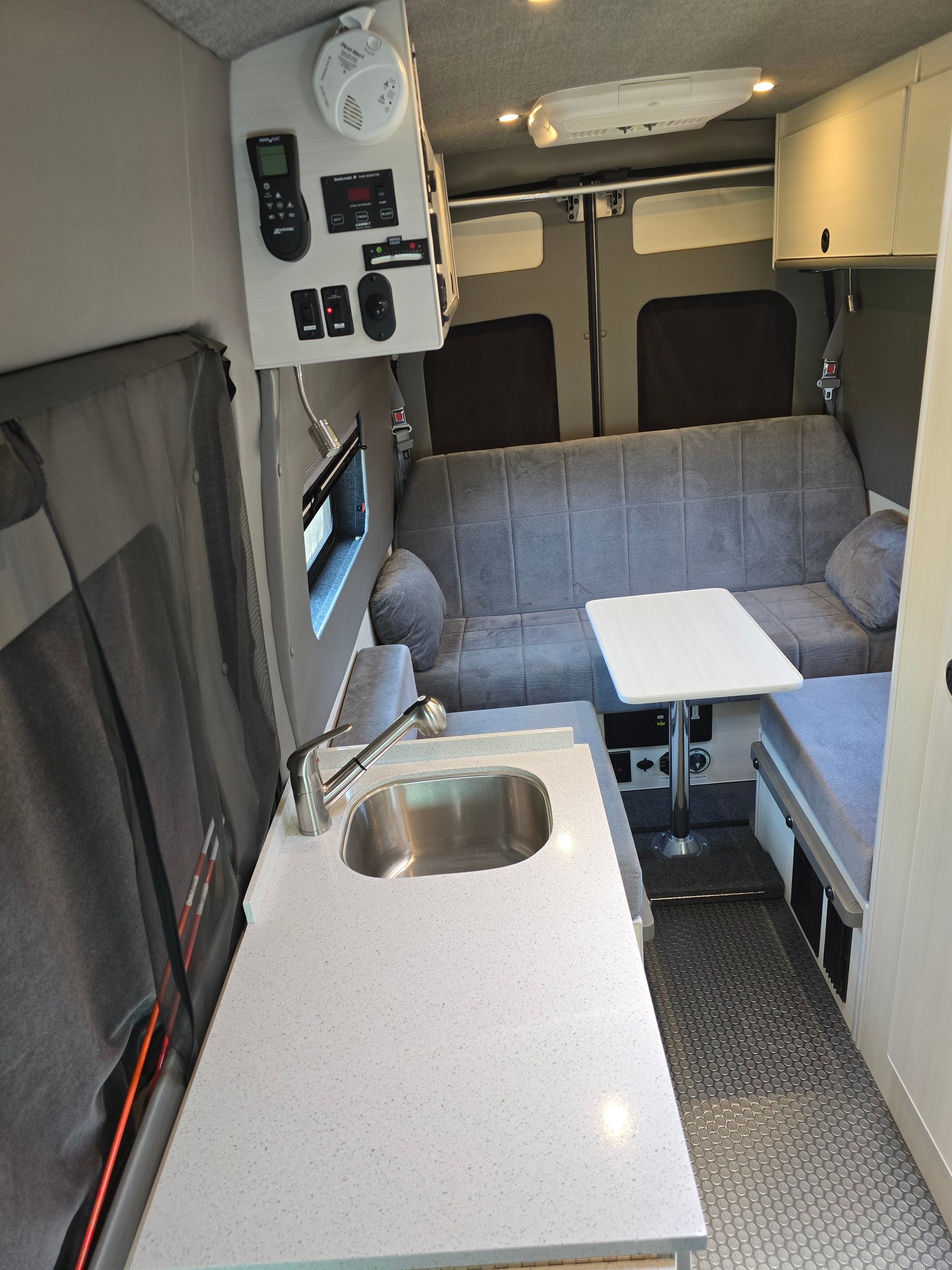

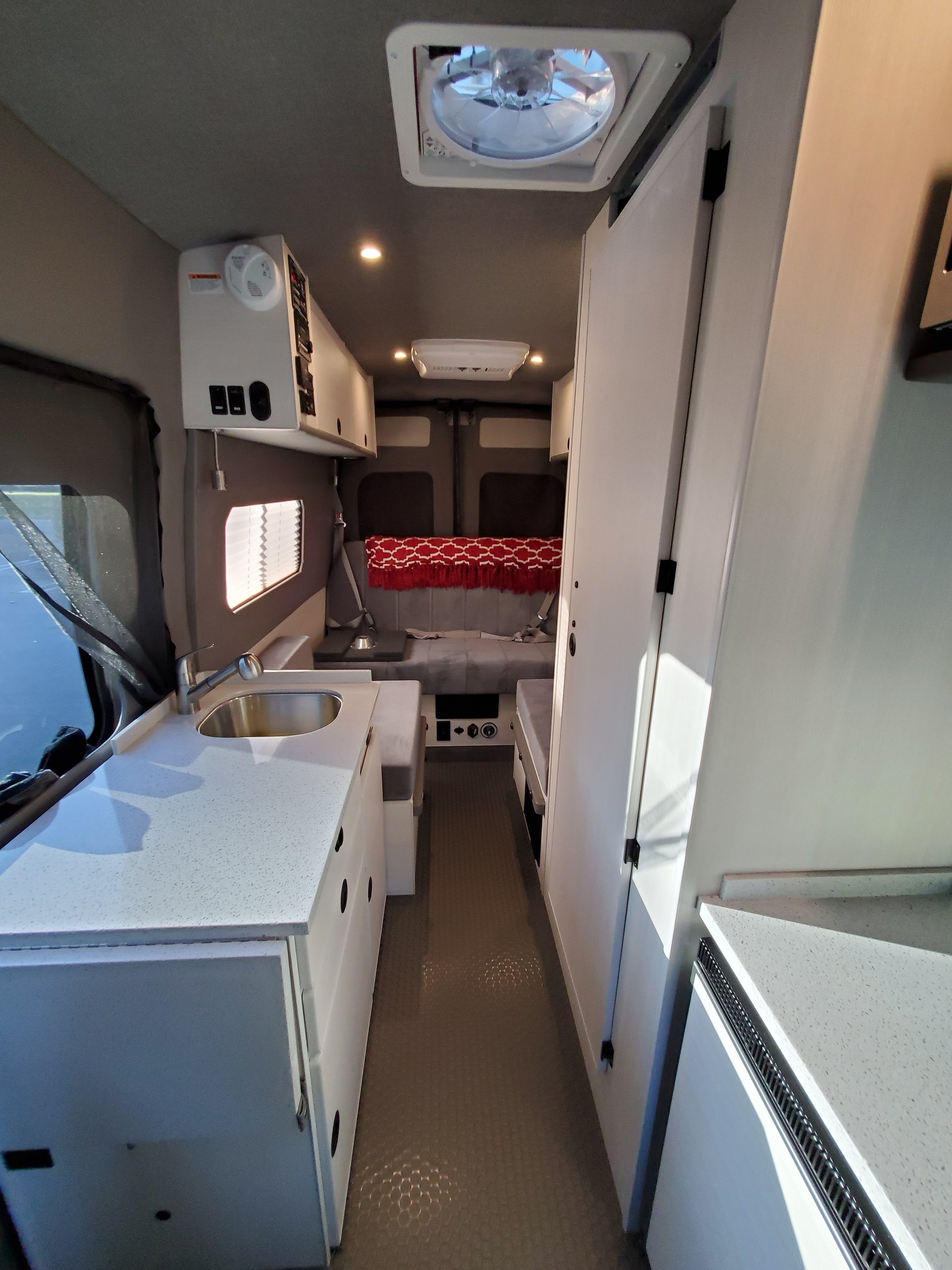

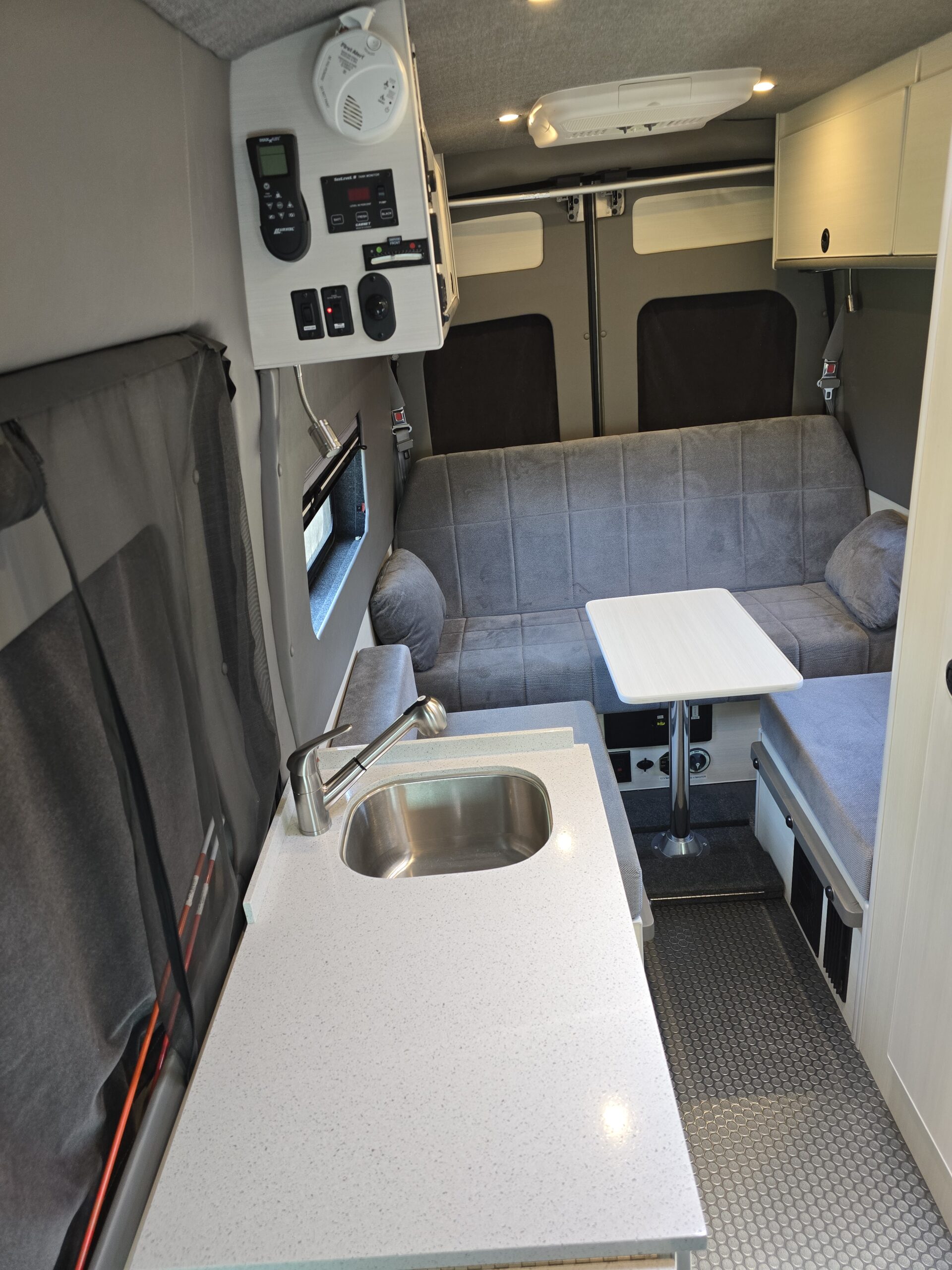

Kitchen area with sink, two additional foldout counter tops
Espar B5 (gas) water/room heater (Rixen)

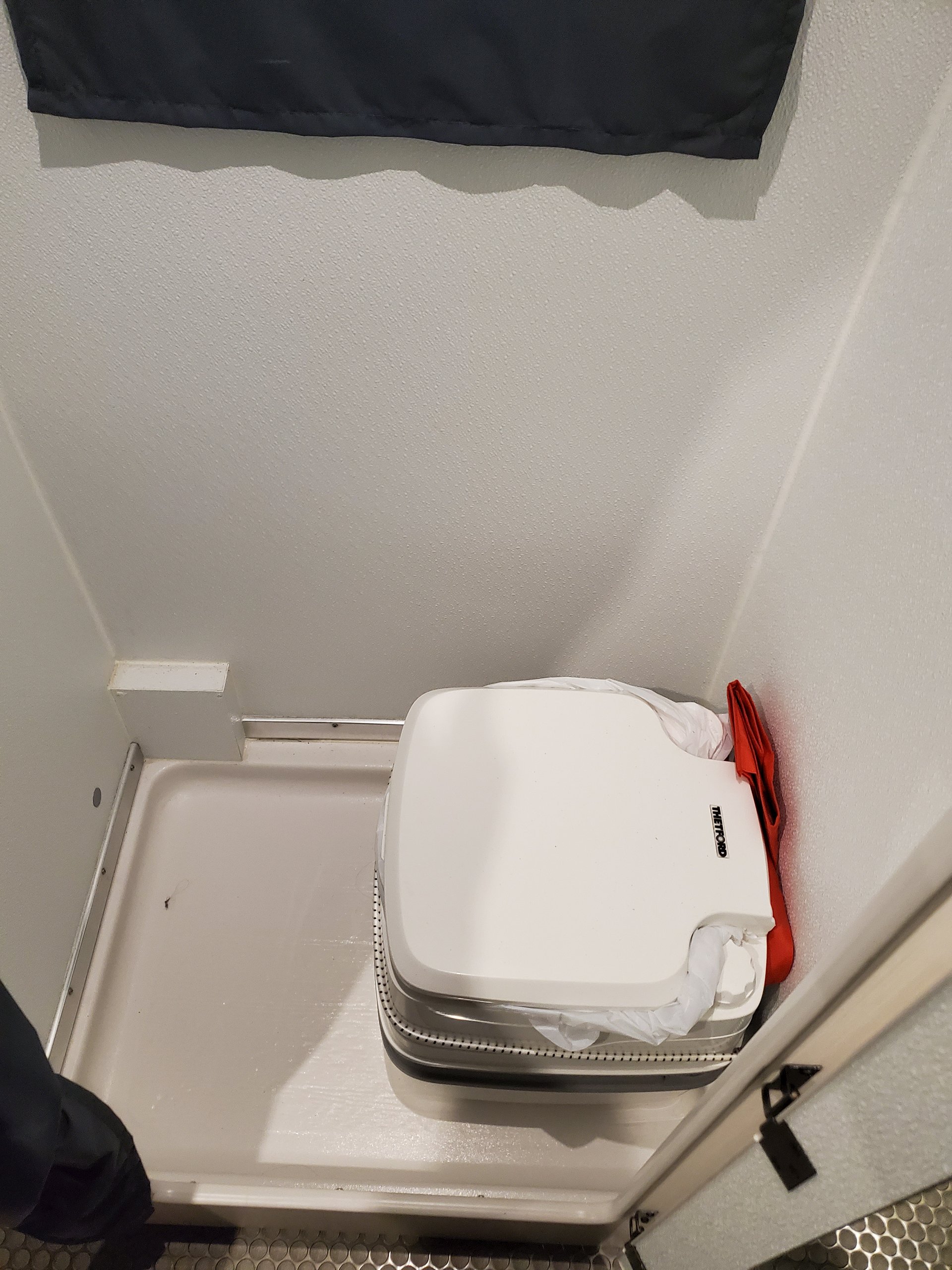

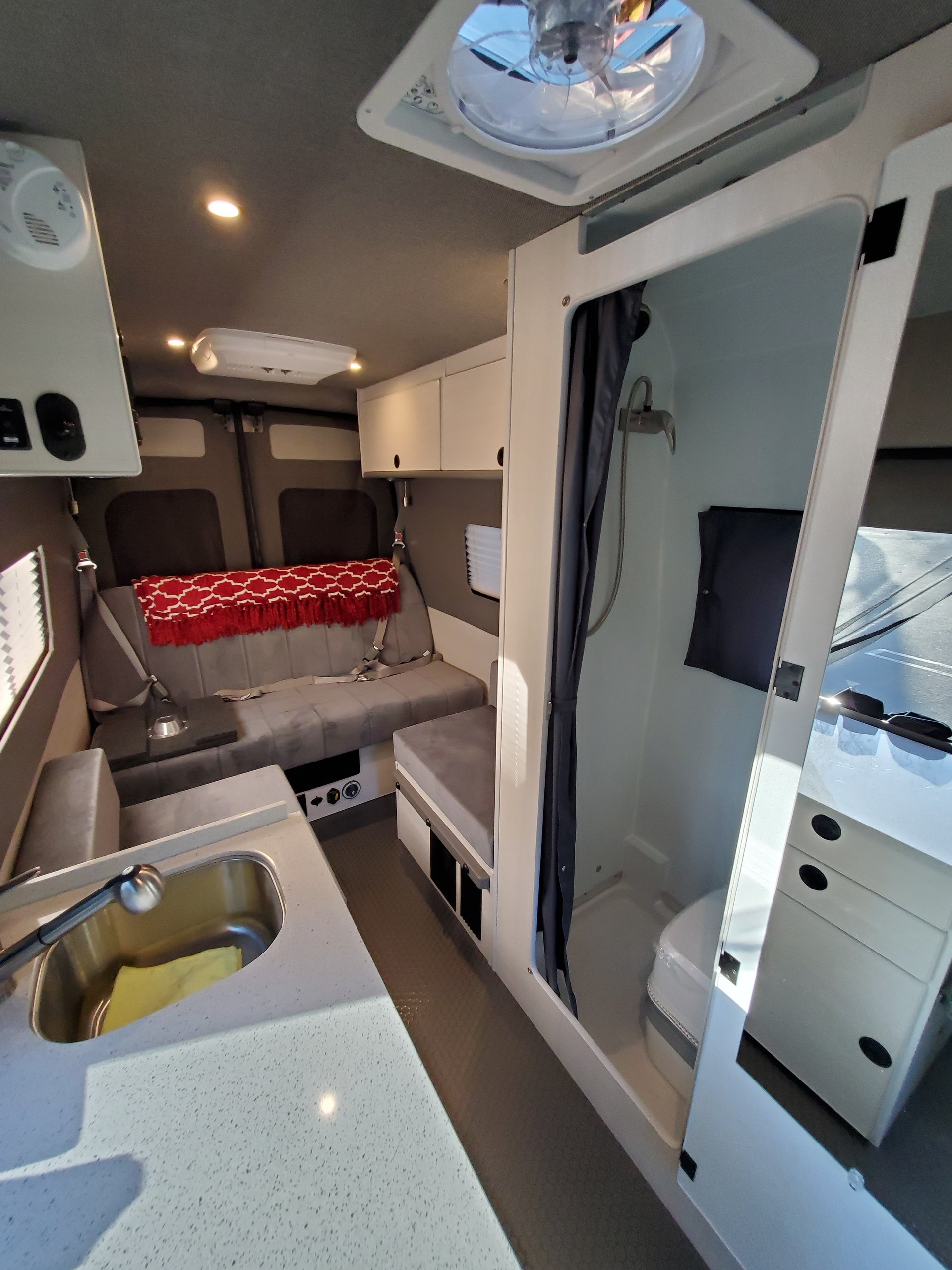

Shower compartment with portable cassette toilet
External shower
23 gal fresh water tank with Shurflow 4008 water pump
Overhead and under seat storage areas
Multiple 12V receptacles
120 VAC receptacles inside and outside
Shore power and city water hookups
AGM 4D battery (replaced May 2023)
Magnum 2800 watt inverter

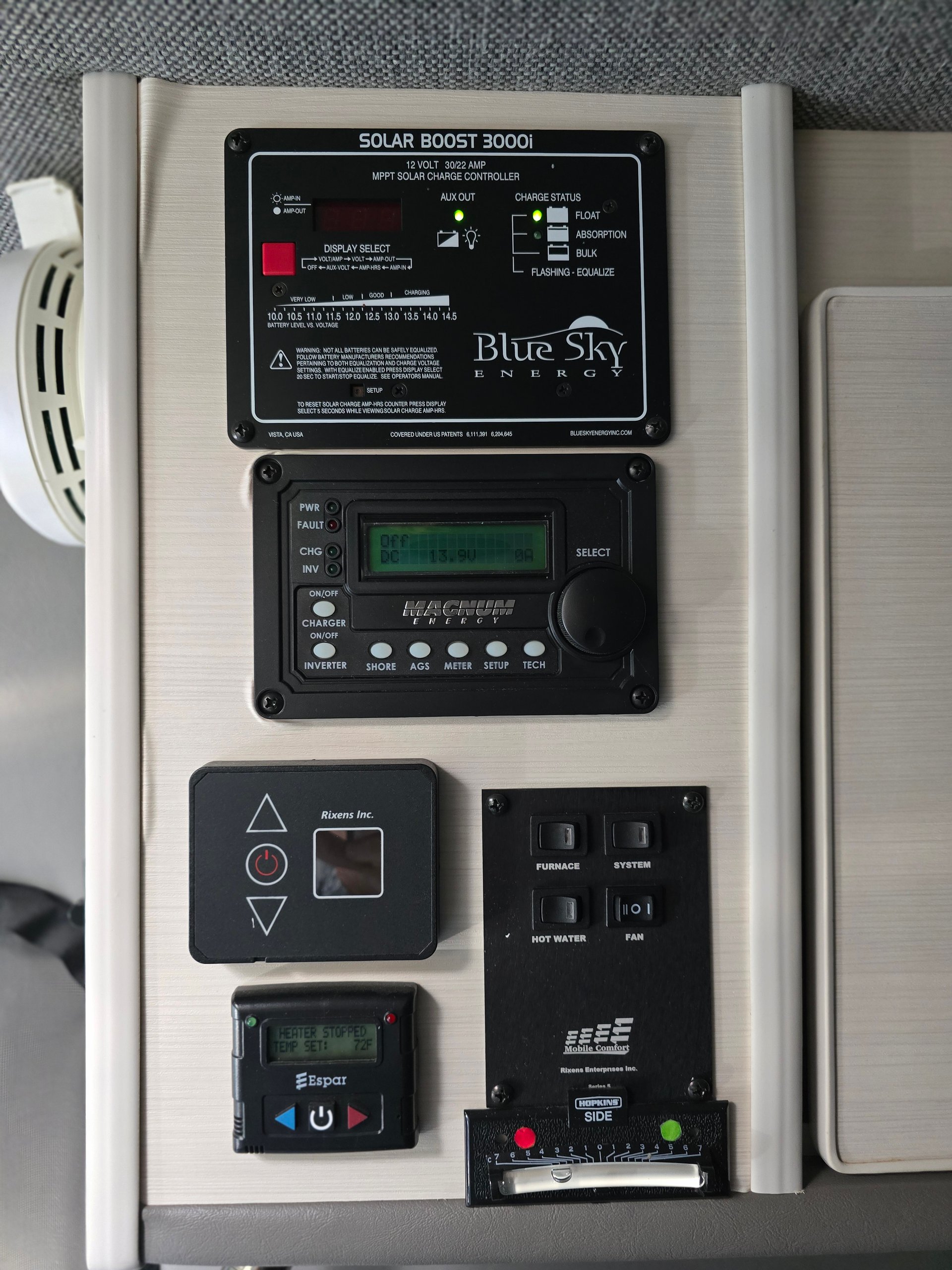

Two 115 watt Zamp solar panels with Blue Sky controller
Passenger seat swivel

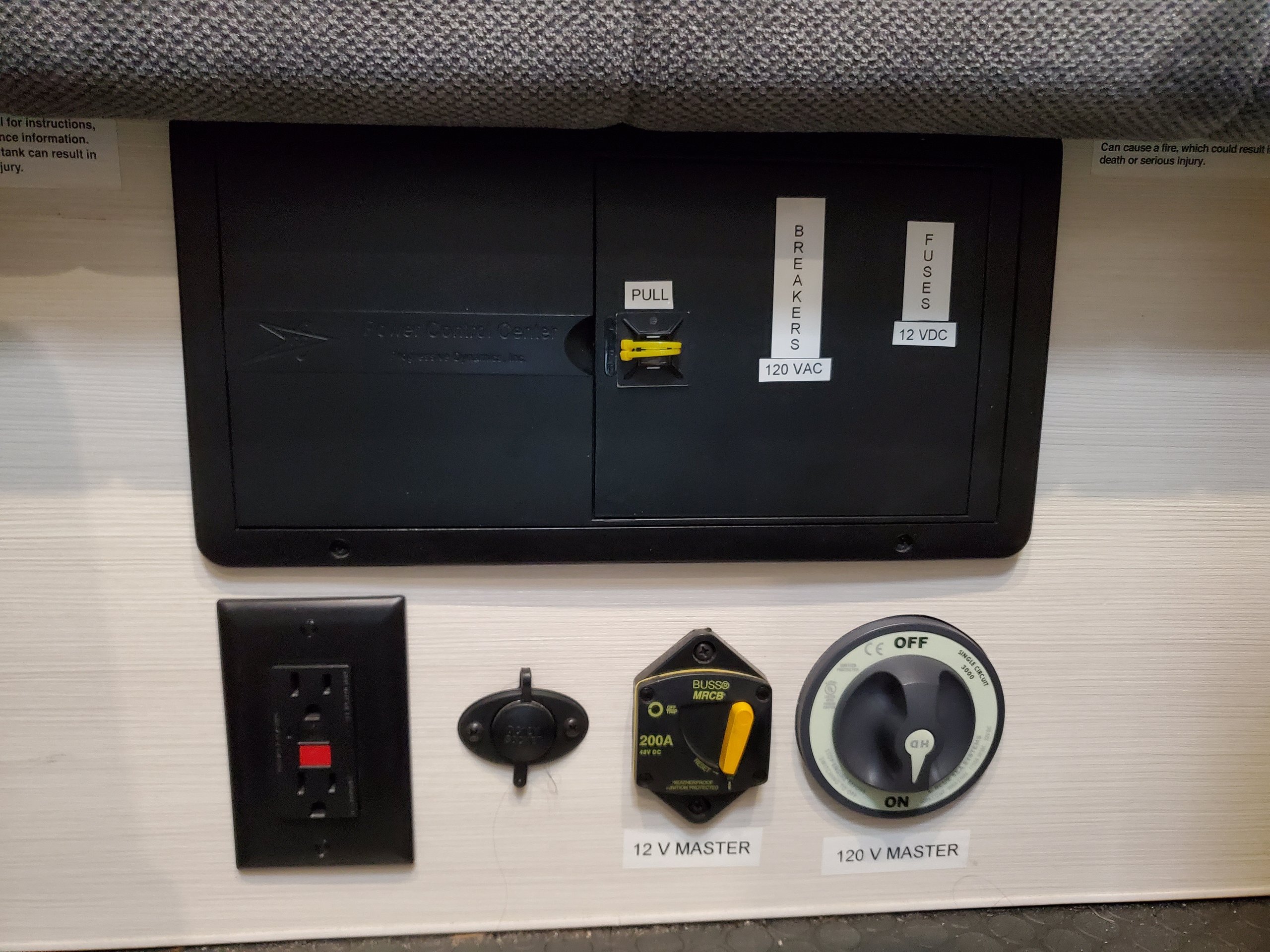

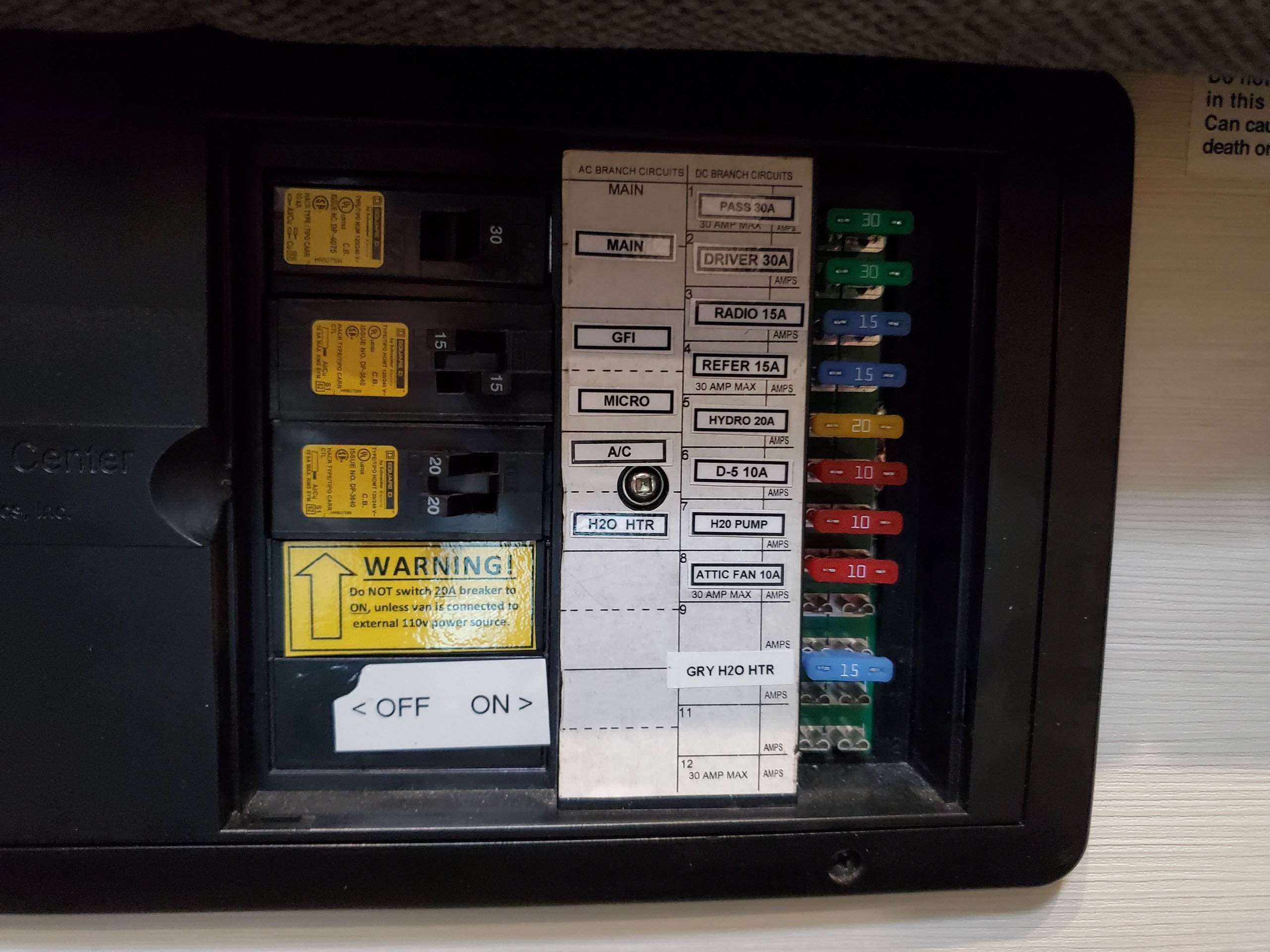

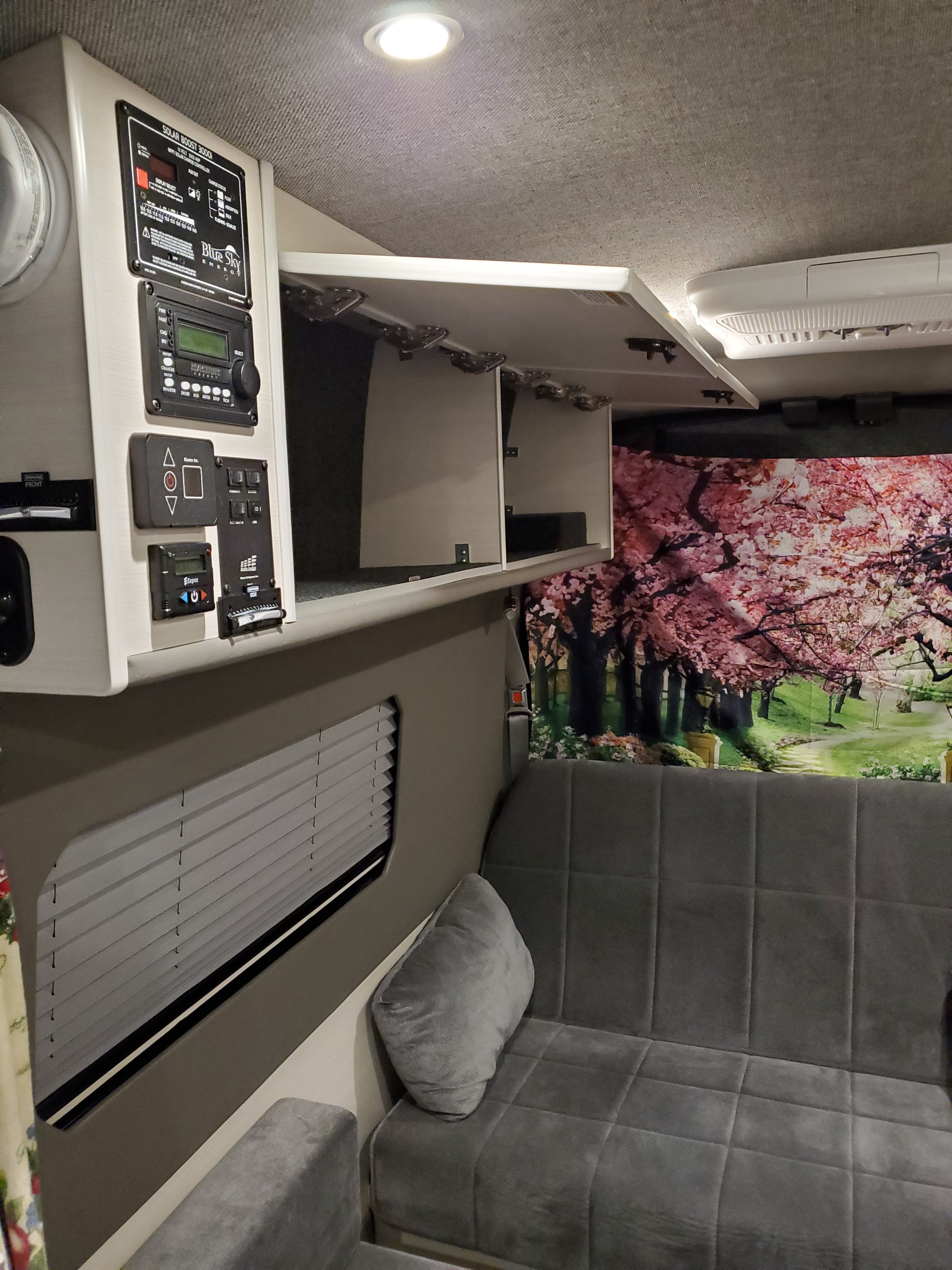

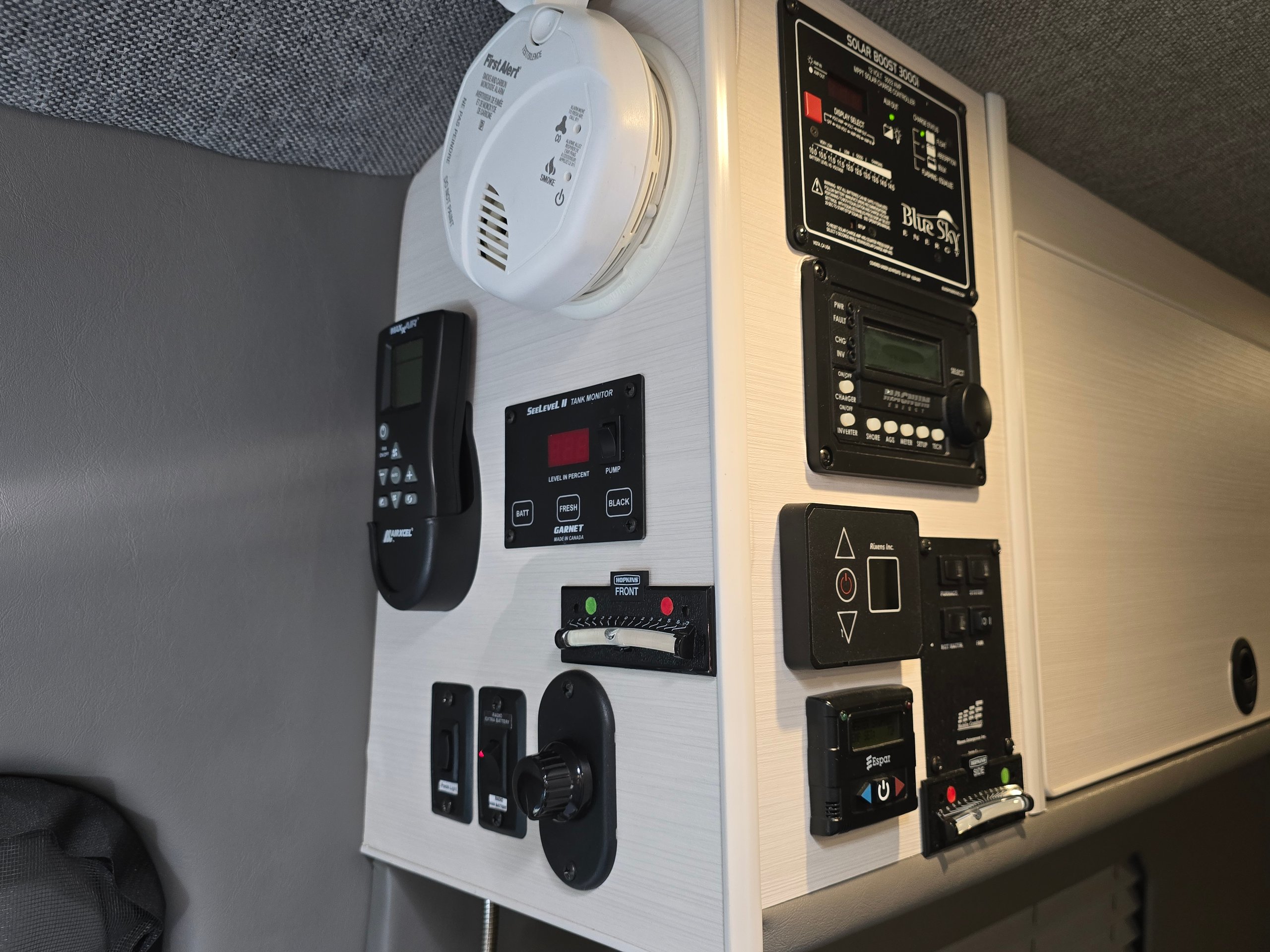

House battery monitoring/charging system
Zippered screens for sliding door and dual rear door areas
External LED lights for sides of van
10” Fiamma awning
Roof mounted Dometic A/C unit
MaxxAir MaxxFan Plus
Kenwood stereo radio with under seat amplifier and rear subwoofer (this system is really good!)
Loncoin flooring
Stowable table for use inside or outside
Additional Modifications:
Four new 245/70 17 BFG AT T/A KO3 tires at 38,576 miles
New engine battery; Interstate group H6 AGM in June 2025
Halogen headlights converted to HID projectors

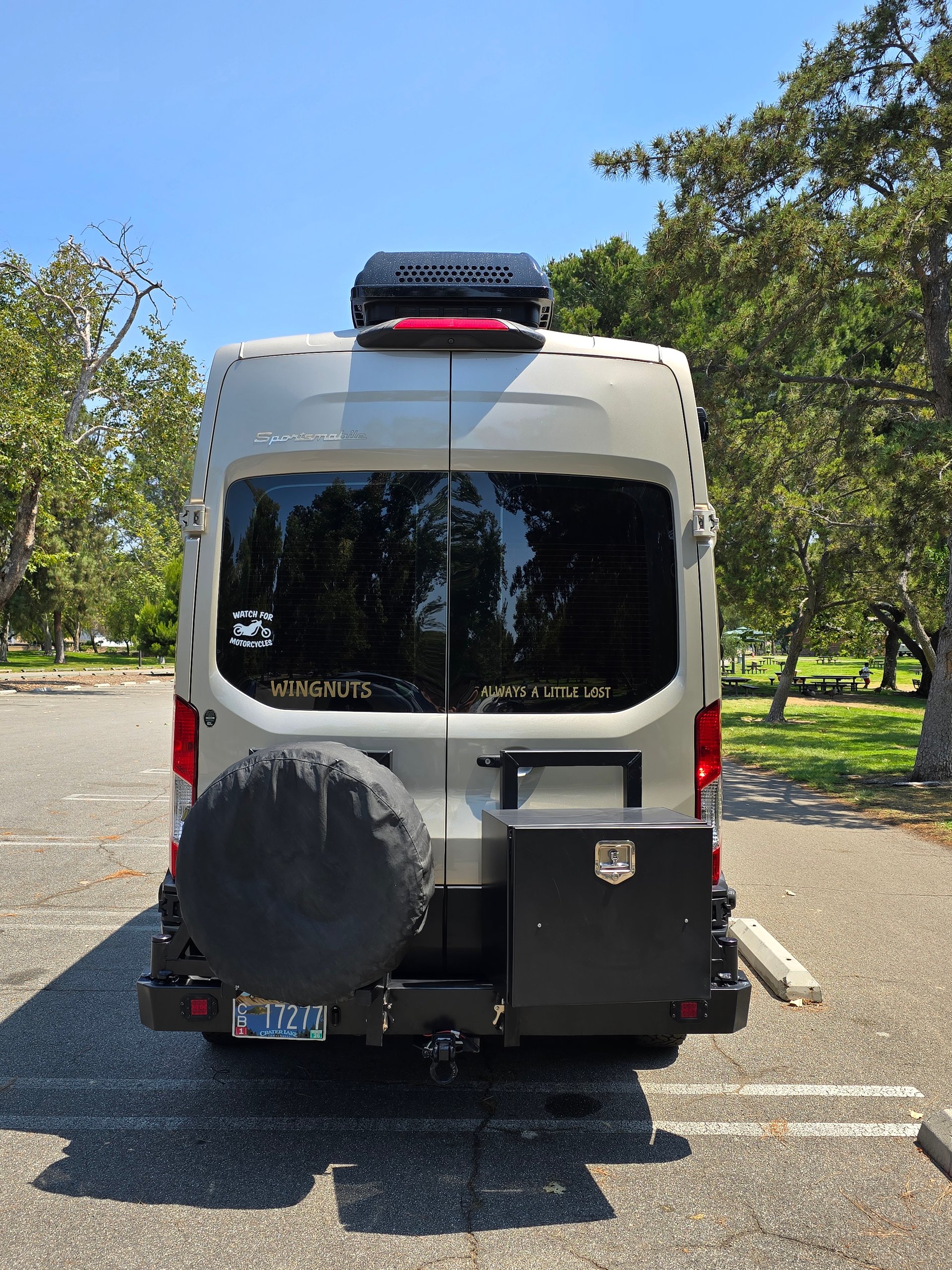

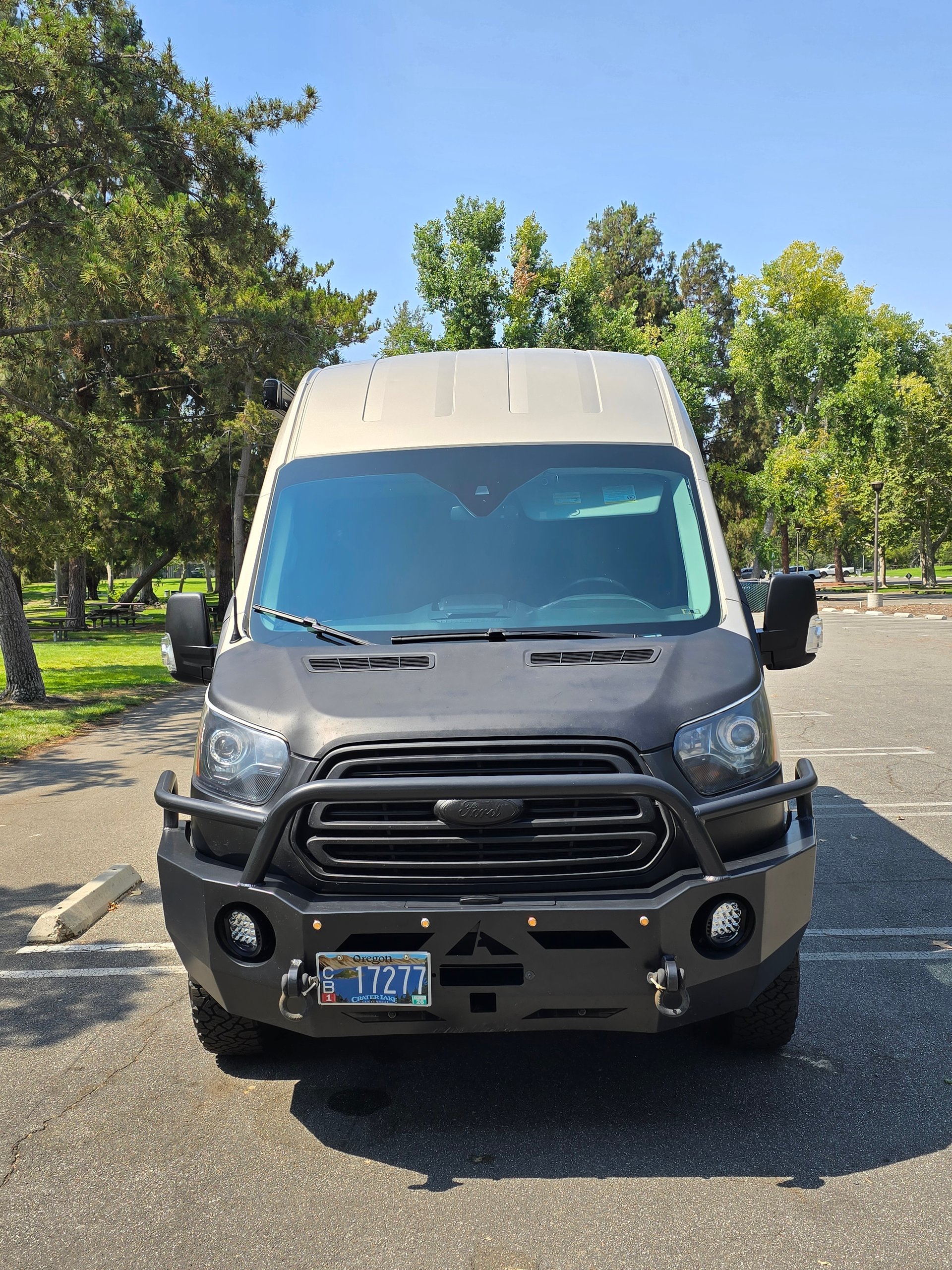

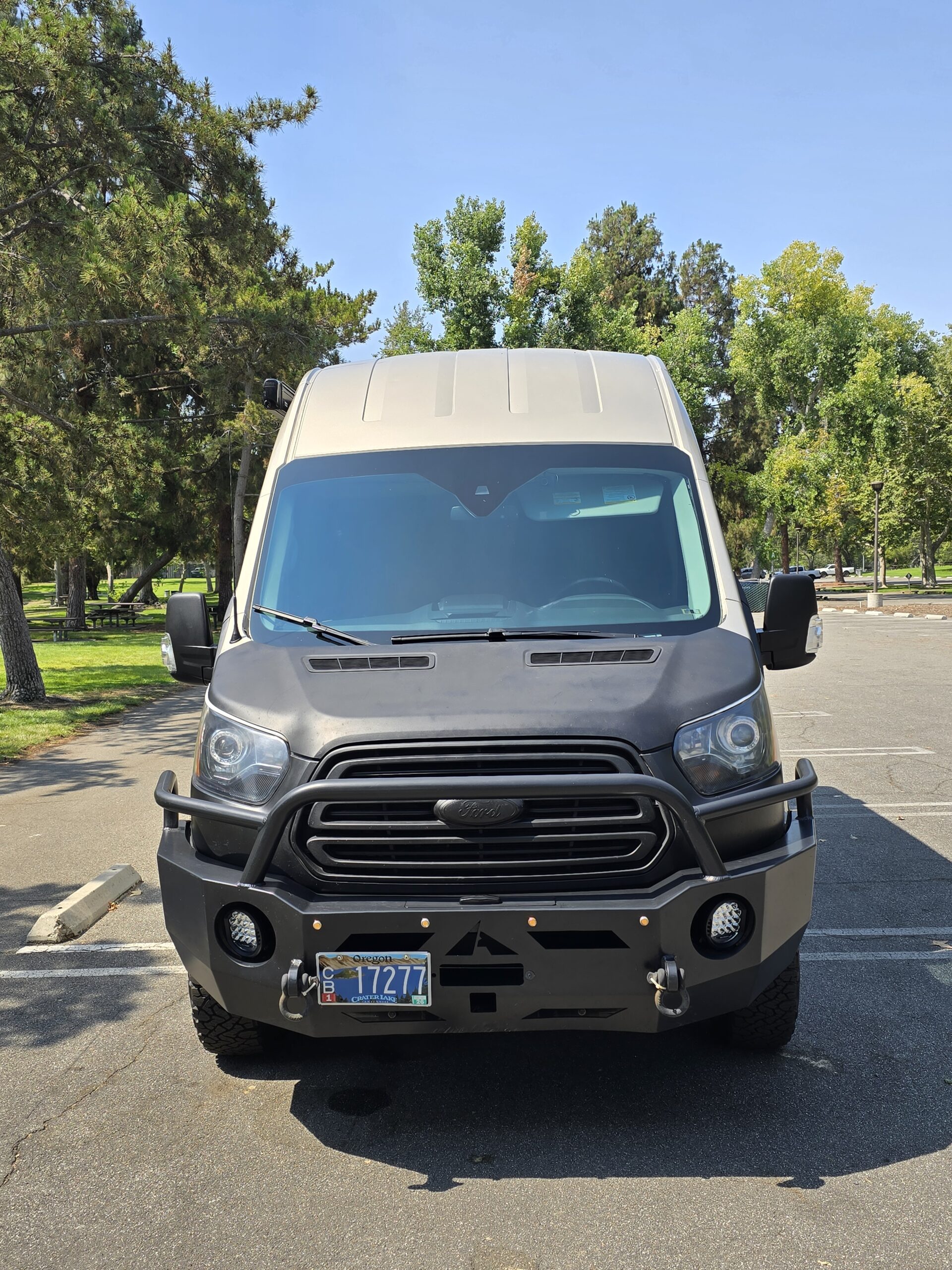

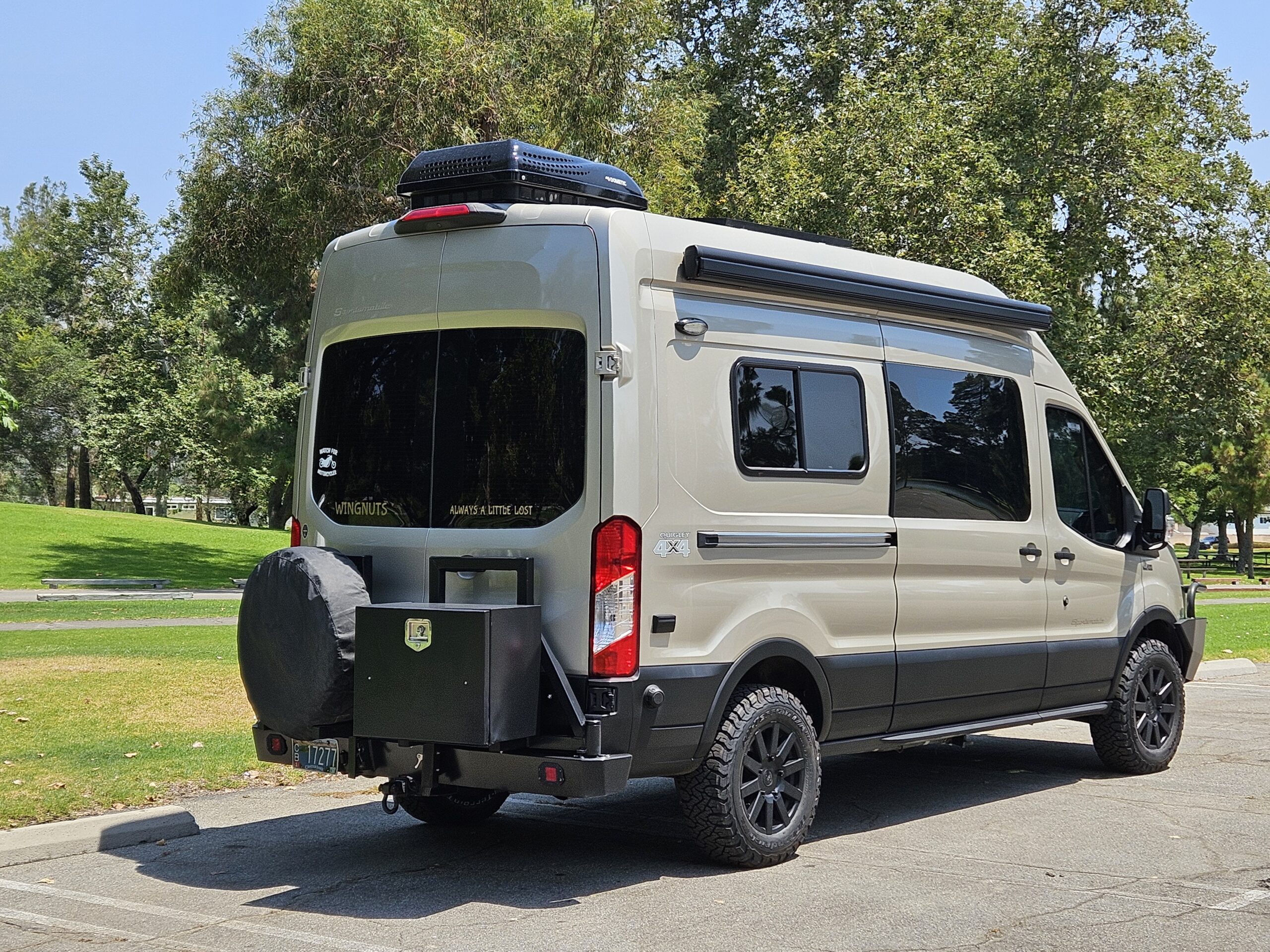

Aluminess bumpers front and rear including spare tire and Galley Box swing arms. Front bumper ready for winch and receiver hitch
Hella LED ditch lights mounted in front bumper
Fumoto valve (F107SX) in oil pan for cleaner oil changes
JLT Oil Separator
100% UV clear windshield film and all other windows tinted (but not too dark)
Garmin Dash Cam 67W
Thick 3M Thinsulate blankets for all windows except windshield. This is a 4 season van. These work great summer and winter
LaSalle Bristol Holding Tank heaters on both gray water tanks

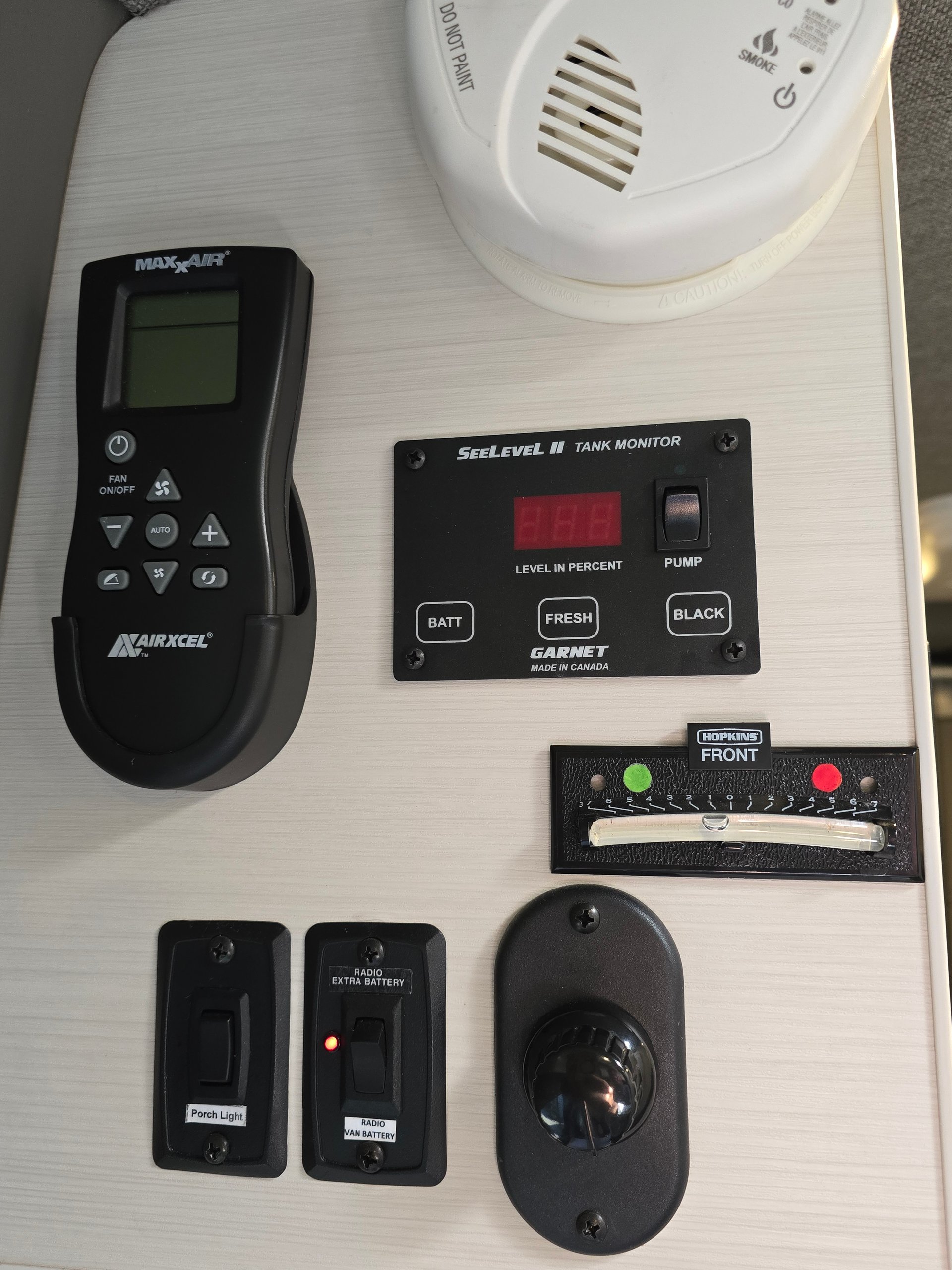

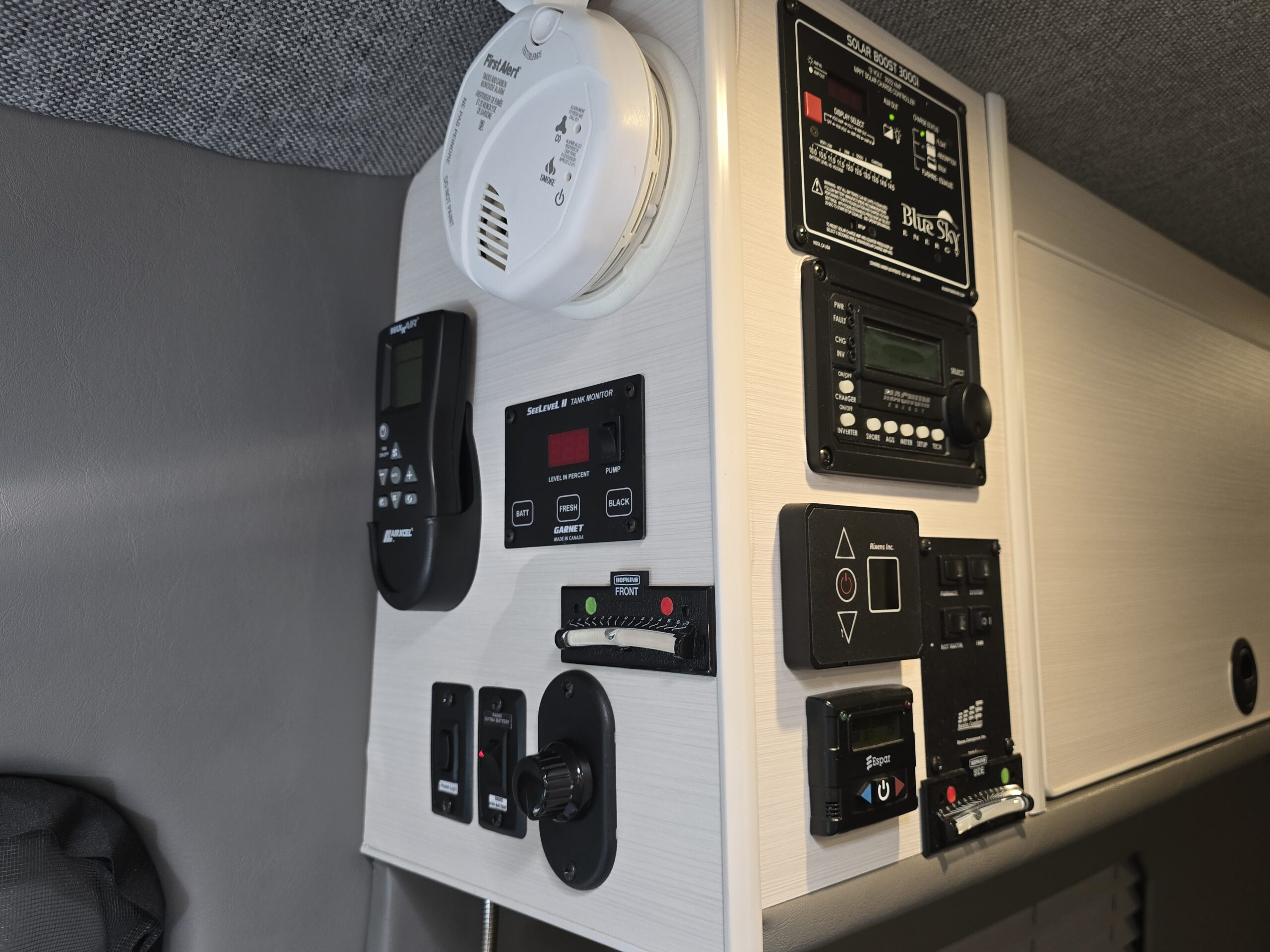

Garnet SeeLevel II digital fresh water tank monitoring system
Weathertech floor mats
Seat covers on driver and front passenger seats since new
Blackout curtain behind front seats
Other Stuff:
The van weighs in at about 8,700 pounds (3850 front axle, 4850 rear axle) fully loaded with 2 people, lots of food, all our clothing and gear, full tank of fuel, full fresh water tank, tools, etc.
The van height is ~10′ 4″
Overall length is ~21′
The window sticker and service records are available
Also included: Traction ramps, tire chains (links, not cables), jumper cables, shore power cable and 30A surge protector, inline water filter for city water input, jumper cables, oil filters
