Built in 2019 with upgrades in 2023, Gray Area is a Peak Series custom build by Outside Van that was designed to allow fun for the whole family. With 4WD and seating/sleeping for five, there’s no path that can’t be traveled.
This 170 has all the bells and whistles needed to adventure in comfort. We thought of all the big things, but also the little comforts like dimmable lights, quality, and easy to clean materials, convenient light switch locations and under cabinet LED lights. Think you’ll have enough storage with a party of five? You betcha! Gray Area features an overhead cab shelf, a VERY large overhead cabinet, and an exo cabinet, not to mention a large garage space for the rest of your gear. With two high output AGM batteries, 2000W inverter system, 130W solar panel, and a secondary alternator, power still isn’t an issue. This provides all the off-grid power needed to the aftermarket 12v rooftop air conditioner, fridge, induction stove, 112v and USB outlet.
This is a one-owner van, lightly used, and well taken care of. We are sad to part with it, but excited for the new owners!
Please see details below, and if you have any questions, don’t hesitate to reach out!
Keys to the van: 3
Chassis details:
Year: 2018
Wheelbase: 170
2500 or 3500: 2500
Cargo, crew, or passenger van: Cargo
Color: Silver Grey
Back up camera? Yes
Factory swivel/air? Swivel
We are including all of our van supplies in the sale which makes this van immediately ready for adventures. Here’s what is included:
-Tools: Axe, mallet, handheld shovel, allen wrench set, adjustable wrench,
-2 Bike locks
-handheld vacuum
-small space heater
-handheld lantern light
-toilet waste bags
-luggable loo
-rug/mat for kitchen
-lighter fluid
-medical first aid kit
-sleeping bags
-head lamps
-organization baskets
-phone charger
-All kitchen supplies/utensils: collapsible measure cups, tongs, spatulas, kitchen knife, grater, peeler, soap, spray, bowls, plates, water kettle, pot/pan, thermal mugs, Tupperware, napkins/paper towels
Nitty Gritty Details from the original 2019 build:
Full interior for Sprinter 170”: Includes: marine grade ¾” plywood custom floor, full 3M Thinsulate insulation, core sound deadening package, mahogany luan plywood, closed cell acoustic foam, and interweave fabric (*including factory cab headliner) – Marine grade vinyl flooring, including wheel tub boxes. 2.79” Flush Mount LED overhead lighting installed on ceiling. 8 lights total with 3 switch locations. Safety package (Nest 02 and smoke detector/Fire Extinguisher) OSV die out vinyl wrap below lower exterior trim. Stealth kit- blacked out Mercedes Stars – front & rear.
Flooring: Lonemoire Topseal Blanc M51
Interweave: Charcoal walls
Switch locations: 1) B-pillar by slider door 2) overhead control panel 3) P1 over bed by rear doors.
Exterior badges: black
SiLeather ceiling
Vent – Maxxair 10 speed deluxe, Deluxe 7500K – 10-speed reversible Maxxair roof vent with thermostat, rain sensor, screen, smoke lid, and manual or remote control. Runs on Power System or Shore Power. Built in rain shield. Location: C2 and C7
Window – T-vent – opposite slider – driver side: Aftermarket mercedes sprinter t-vent window for driver side/opposite sliding door with deep tint and bug screens. Includes OSV snap-in curtain. Interweave: charcoal
Window – t-vent – sliding door – passenger side: After market mercedes sprinter t-vent window for sliding door/passenger side with deep tint and bug screens. Includes OSV snap-in curtains.
Window – 10”x40” narrow window: Custom 10”x40” narrow deep tinted siding windows, includes screen and OSV snap in curtain. Location: center, align with height of rear windows, interweave: charcoal
Window – 10”x33” deep tinted window: Custom 10”x33” narrow deep tinted sliding windows. Includes screen and OSV snap in curtain. Location: rear, and as high as possible, interweave: charcoal
Air conditioner – 12V rooftop air conditioning: 13,000 BTU output will run on engine or shore power
Air conditioning – shroud color match: exterior A/C shroud painted to match van factory color, color: silver gray
Flamma: 13’ 2” Awning: above slider door. Color: black
Sun shades – full set: folding sun shades with mini-diamond interior fabric and super reflective exterior material, includes driver, passenger, and windshield.
Audio Option Best: Alpine 8” hd radio, bluetooth phone and audio navigation, ipod ipad iphone connectivity, steering wheel controls, aux battery connection with switch, back up camera in 3rd brake light location, alpine spr door and dash tweeters, alpine spr rear door coaxial, alpine PDX 5 channel amp, JL audio 10” woofer with box and grill

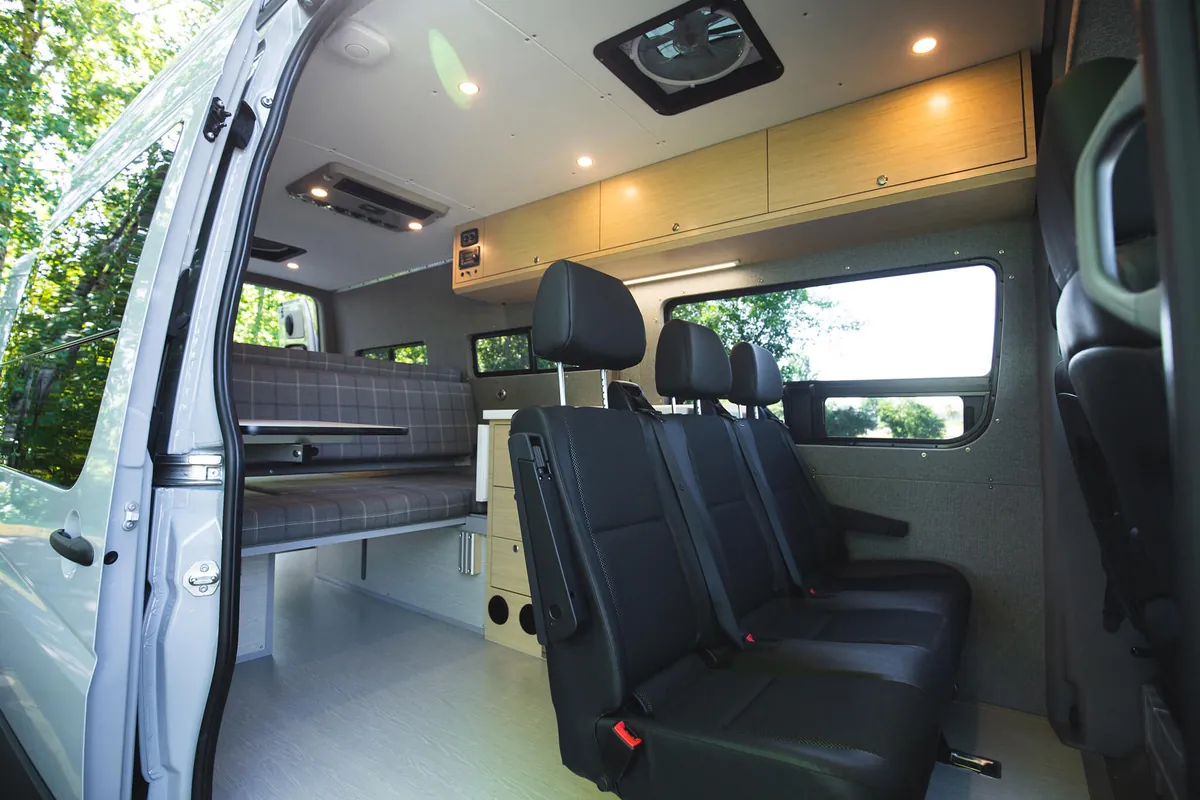

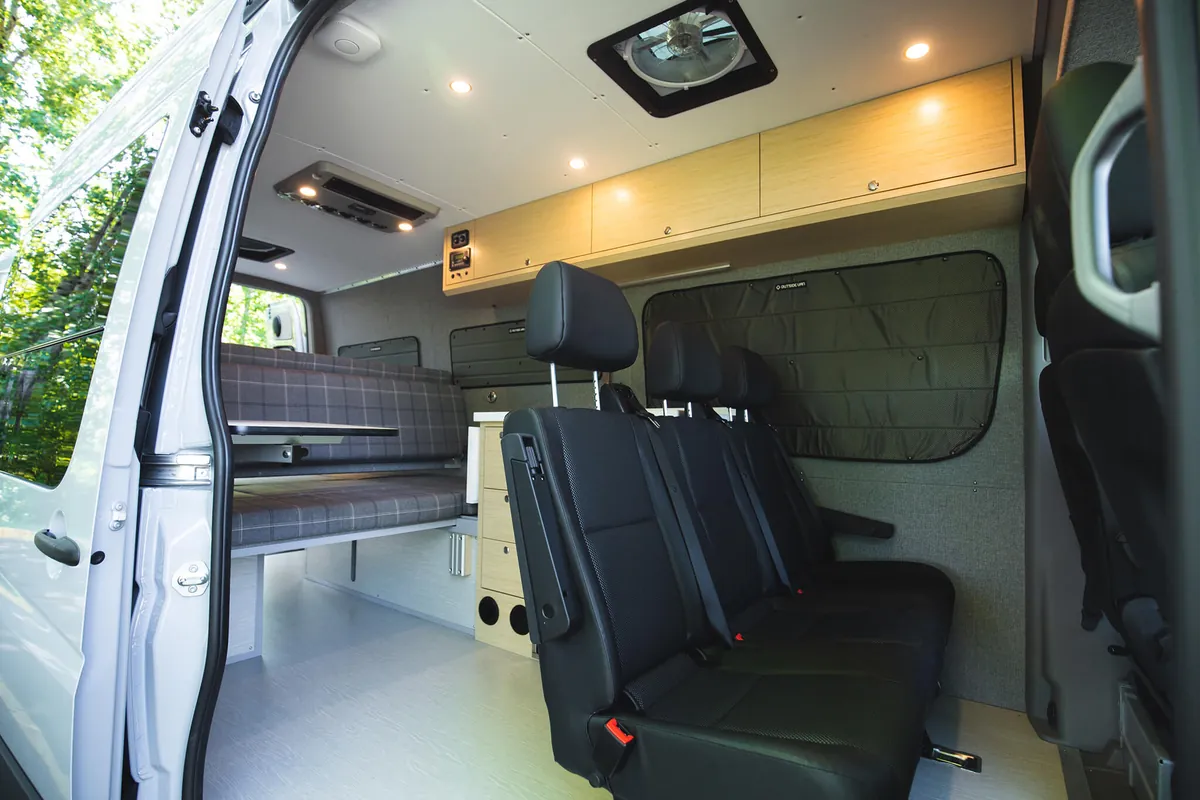

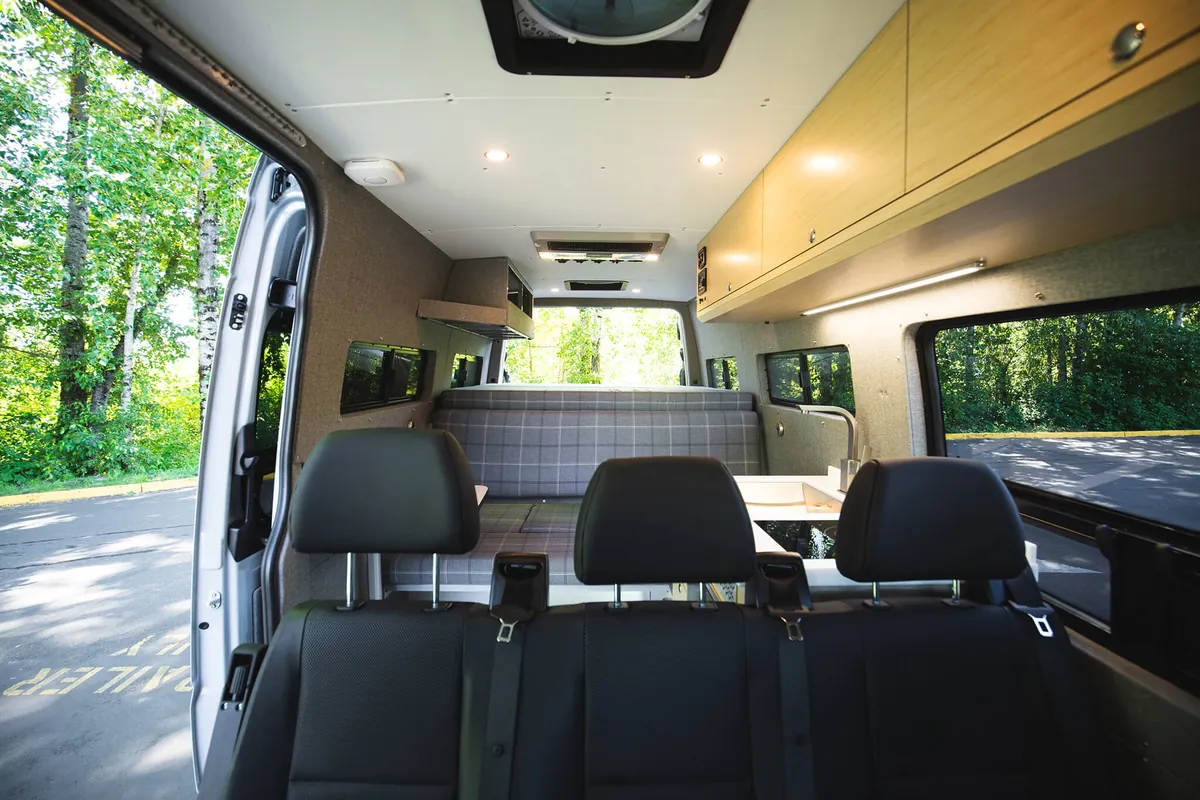

Bench seat: Mercedes Benz removable 3 person bench seat.

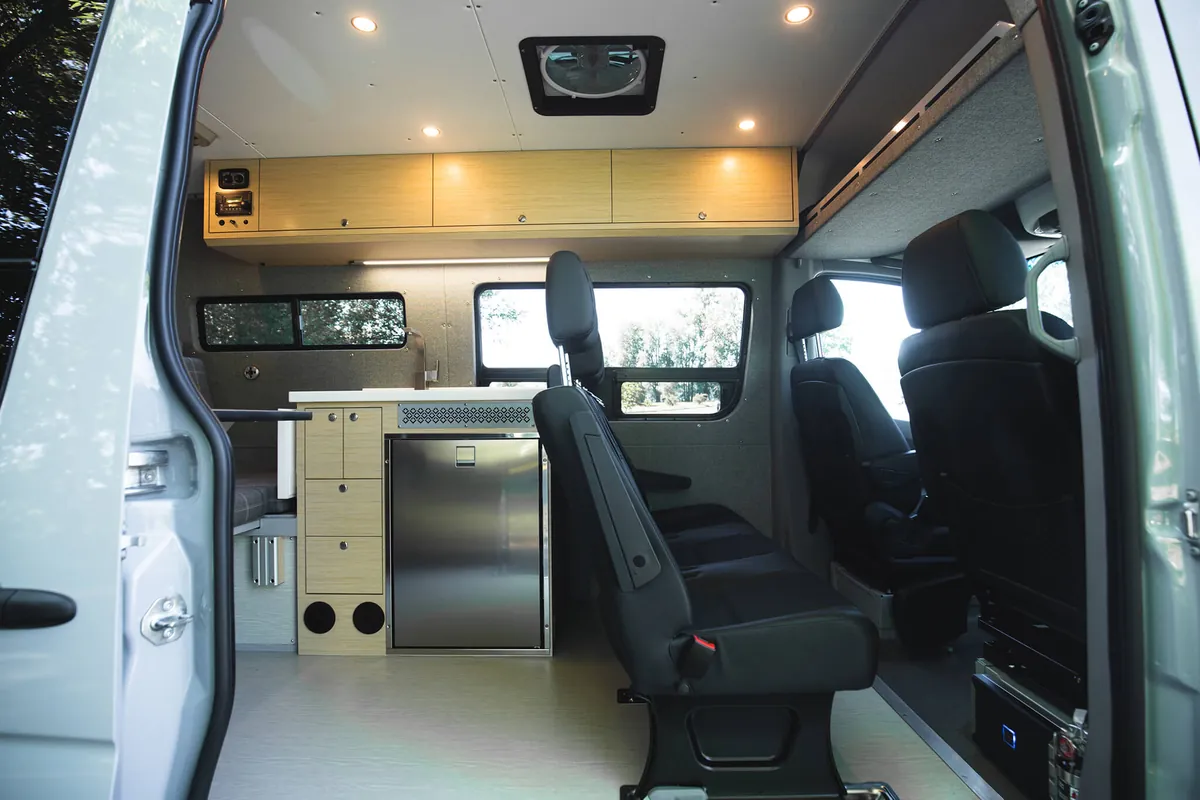

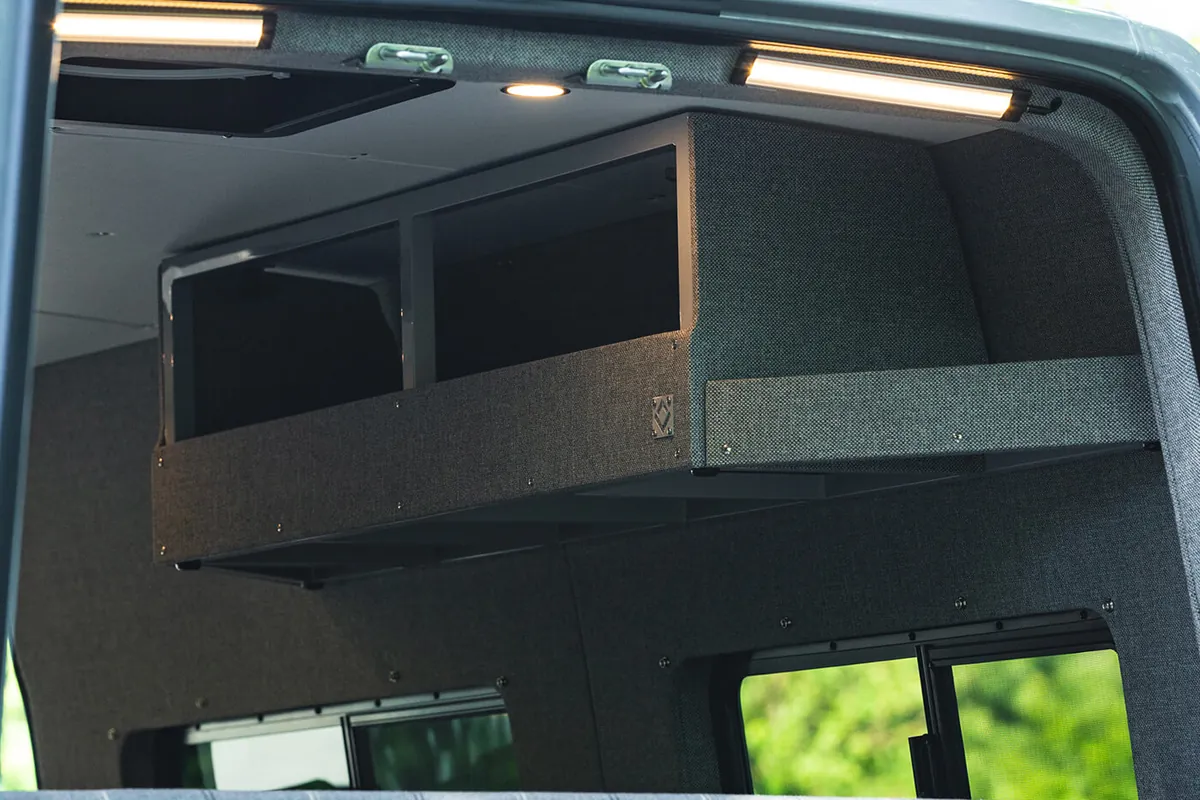

Cabinet: Overhead cabinet with steel frame exoskeleton and ultra-durable paneling.
LED – 40” ultra-slim under cabinet: 40” ultra-slim LED light for underneath overhead cabinet. Switch location: on light. Dimmer installed for interior LED lighting.

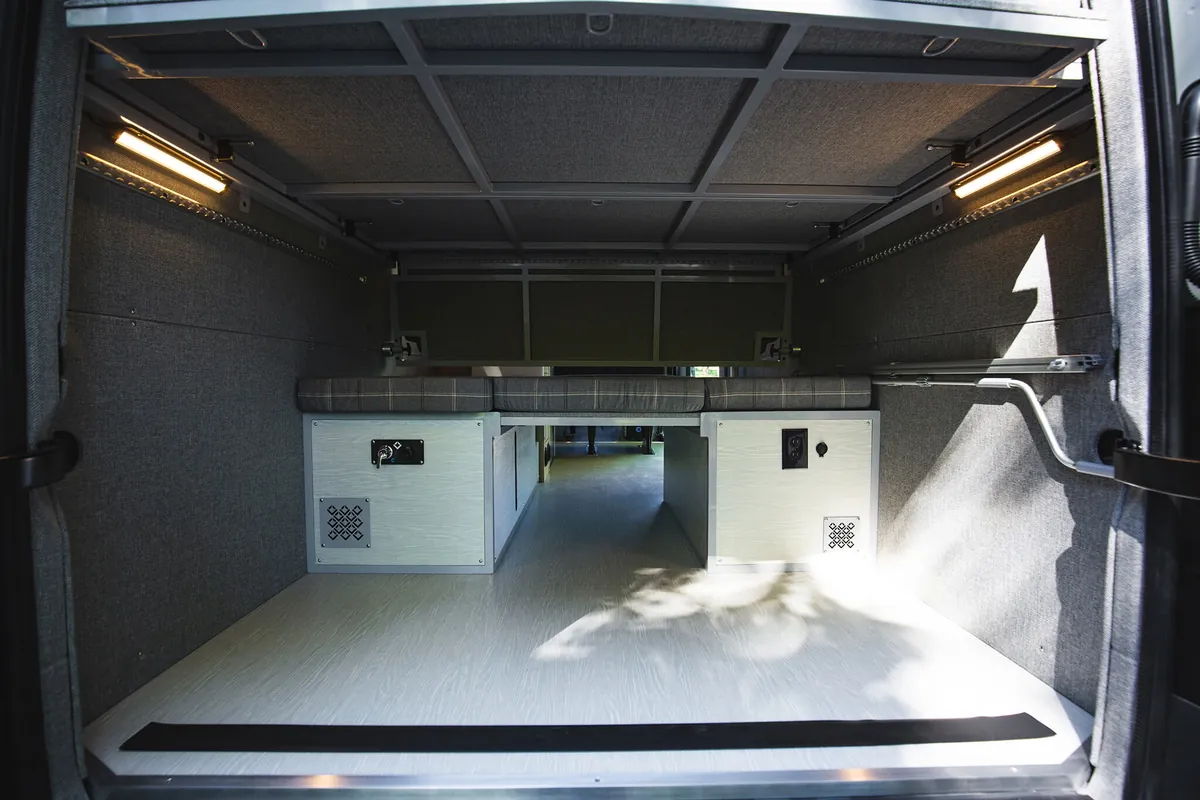

LED – gear area: LED lights installed to illuminate your gear storage area.
LED – second switch: second light switch on left side side of galley near outlets
Outlet 110V: one on left and right side of galley, another on back of power box
Outlet Dual USB: marine grade, dual USB charging ports, location: P2 and D2
Outlet- 12v marine high amp: on back of power box

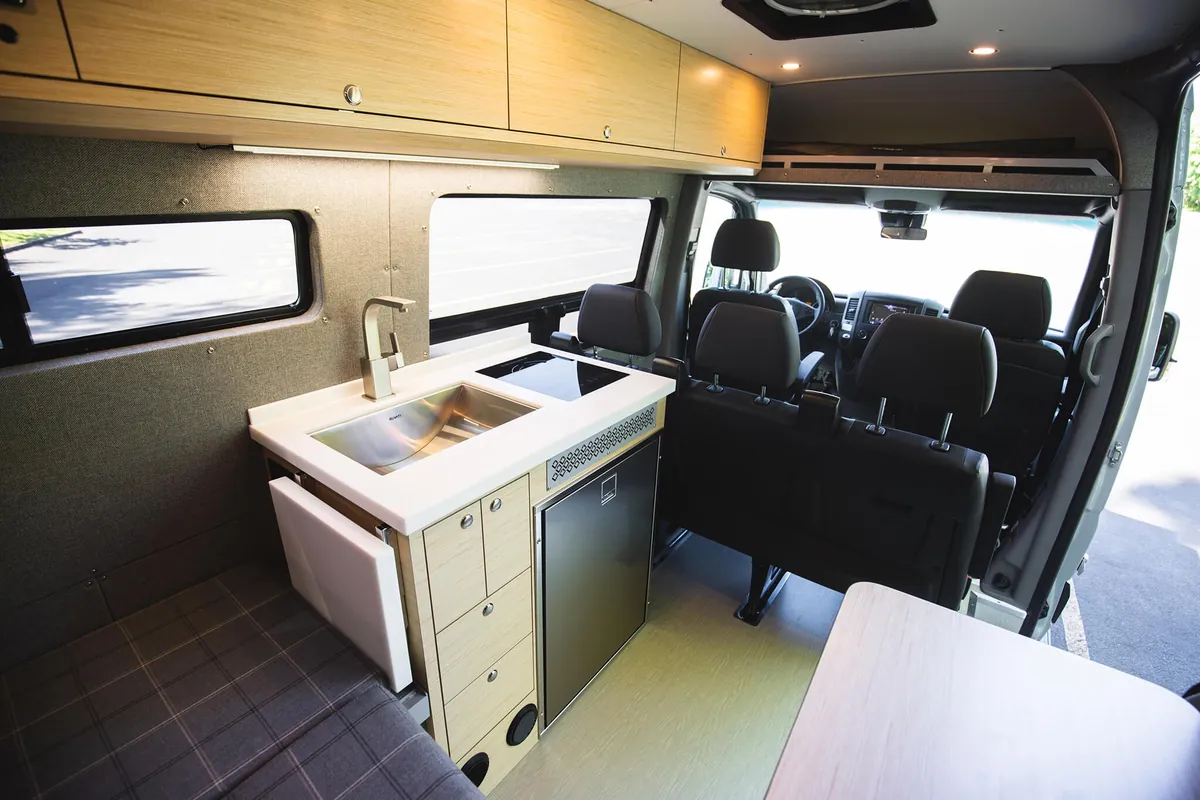

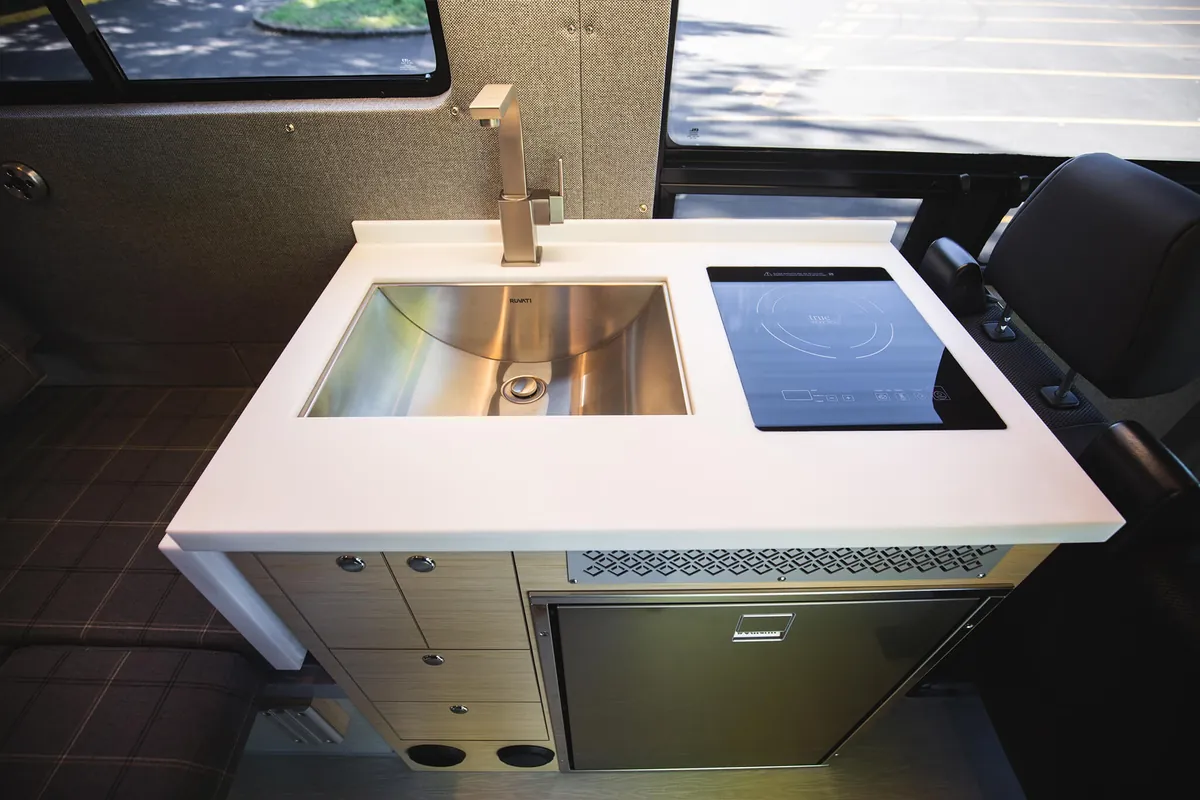

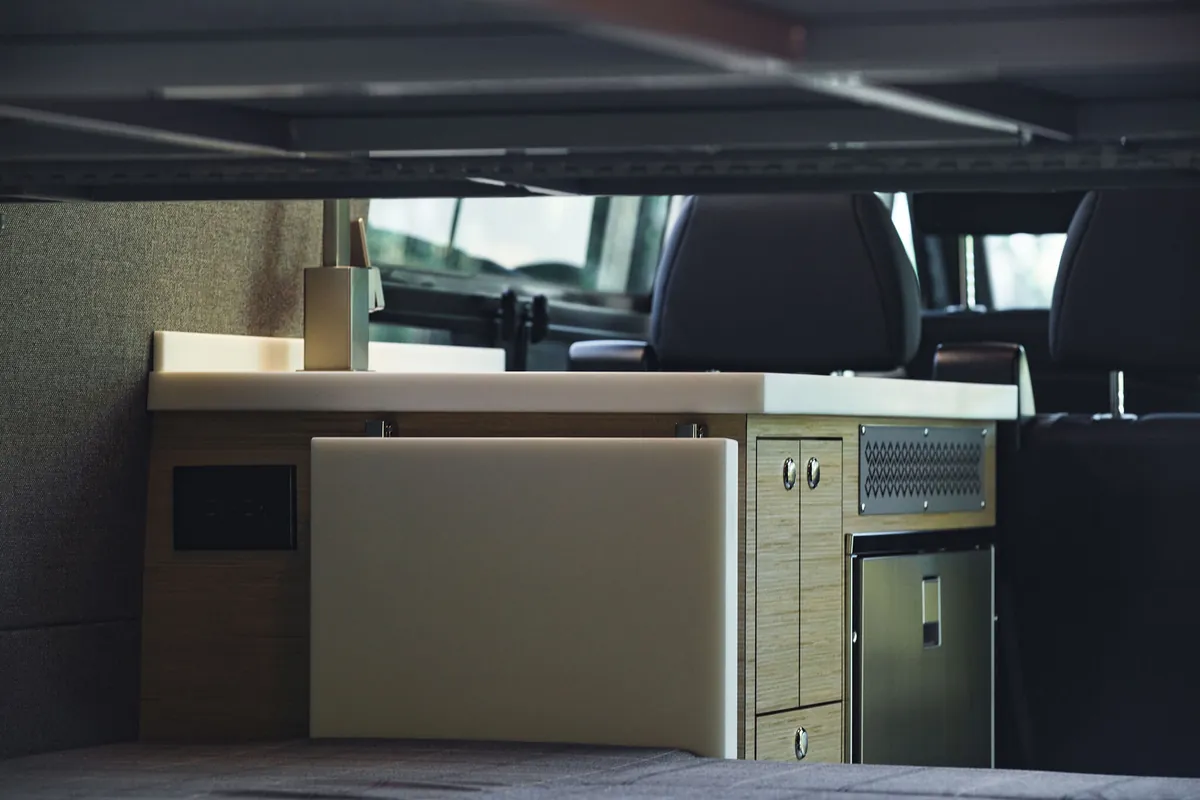

Custom medium galley cabinet: includes sink with glass top and fold down faucet, countertop, flush induction stove, laminate surfacing (interior laminate: wilsonart snow white velvet standard HPL finish 15501) and drawer pulls (locking push pulls).
Refrigerator: isotherm 4.6 cu ft. stainless steel refrigerator with danfoss compressor. Door swing: right
Table: flip up table with heavy duty hinge. Location: left side of galley
Table lagun: includes adjustable swiveling RV table mounting system and one lagun additional mount.
Power system: 2-long-life extreme capacity high-output AGM batteries and top of the line 2000 Watt Magnum inverter with built in high-efficiency charger, transfer switch, solar plug and remote panel
Alternator Kit: alternator kit with 280XP high amp alternator. Runs alternator with approved Mercedes Benz parts, includes external voltage regulator, works with all power systems to optimize charging while motor is running.
Solar Panel System: solar panel mounted on roof in custom aluminum rack, includes charge controller/control panel and power coat.

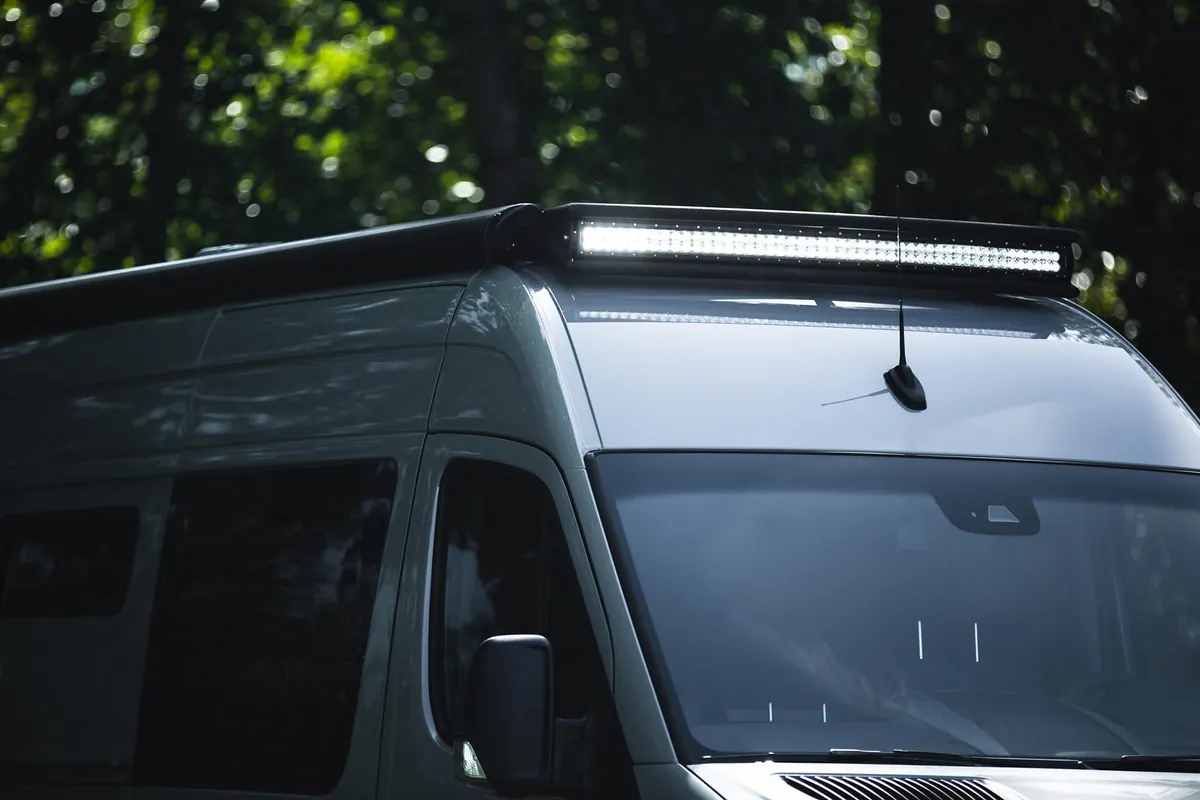

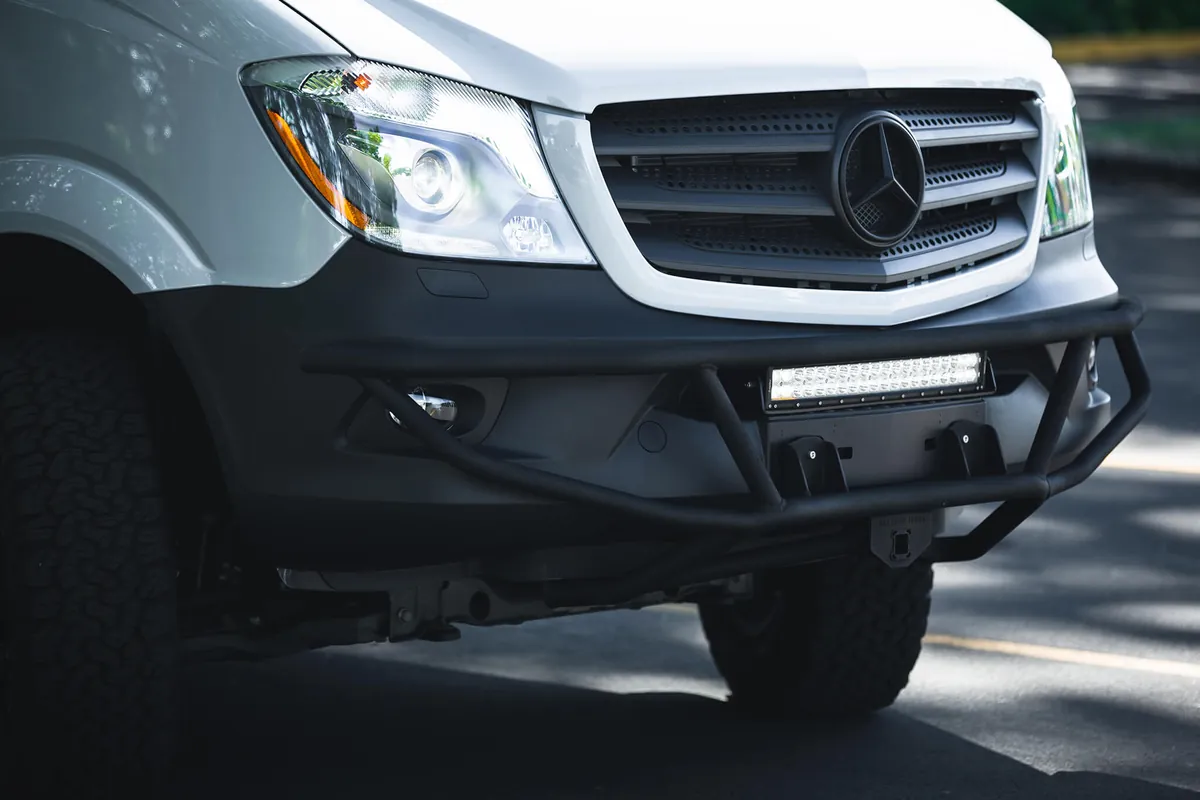

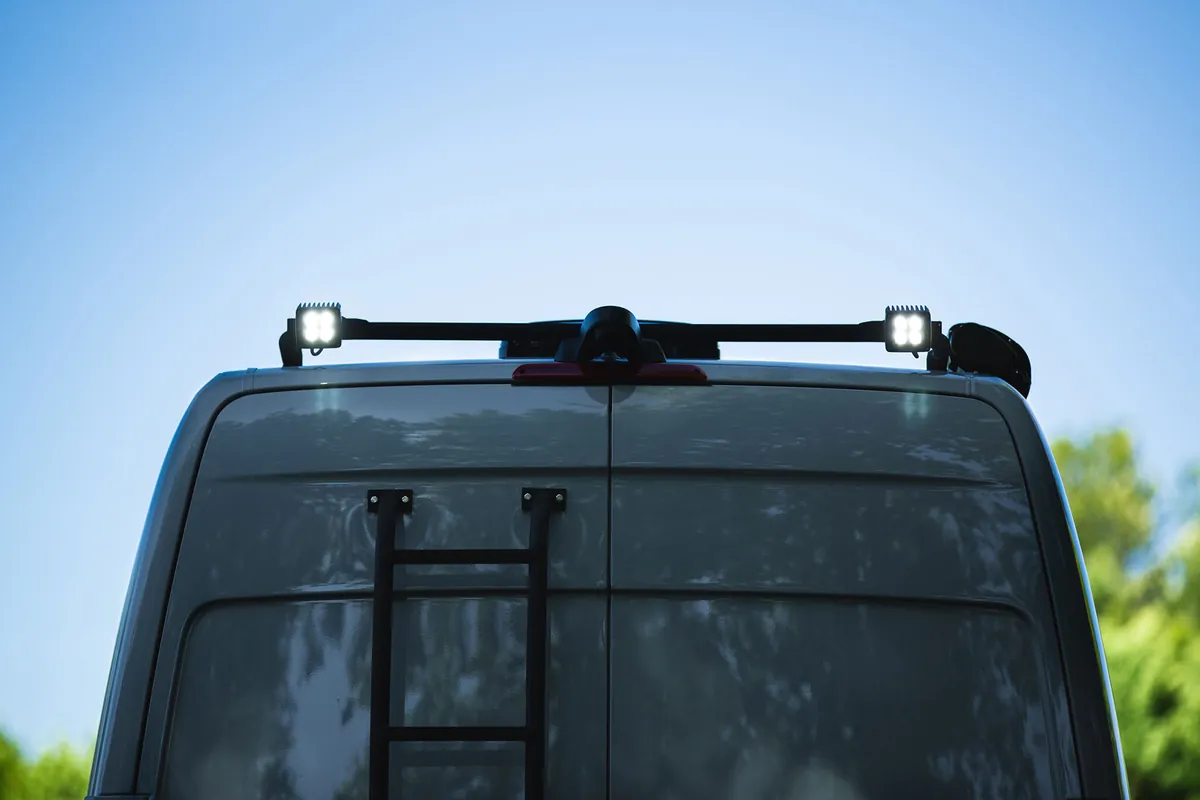

Exterior lights: Roof mounted lights on rear, and front of vehicle

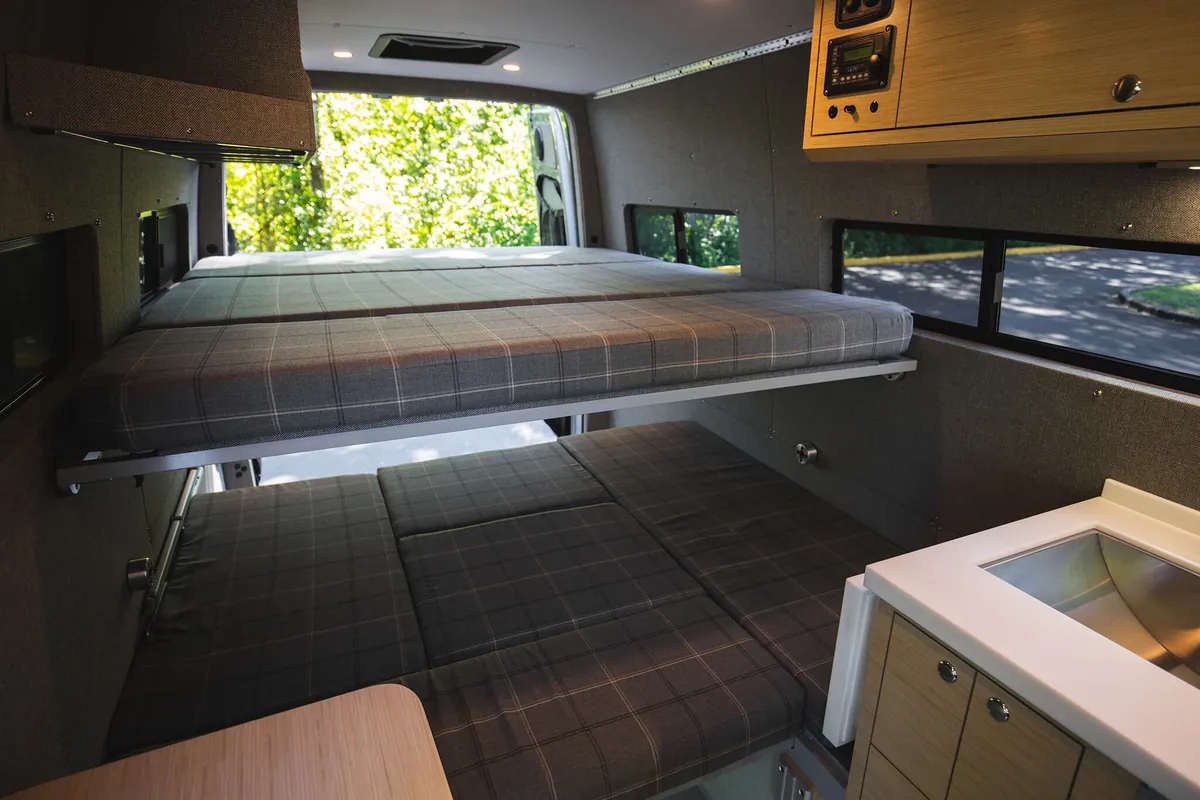

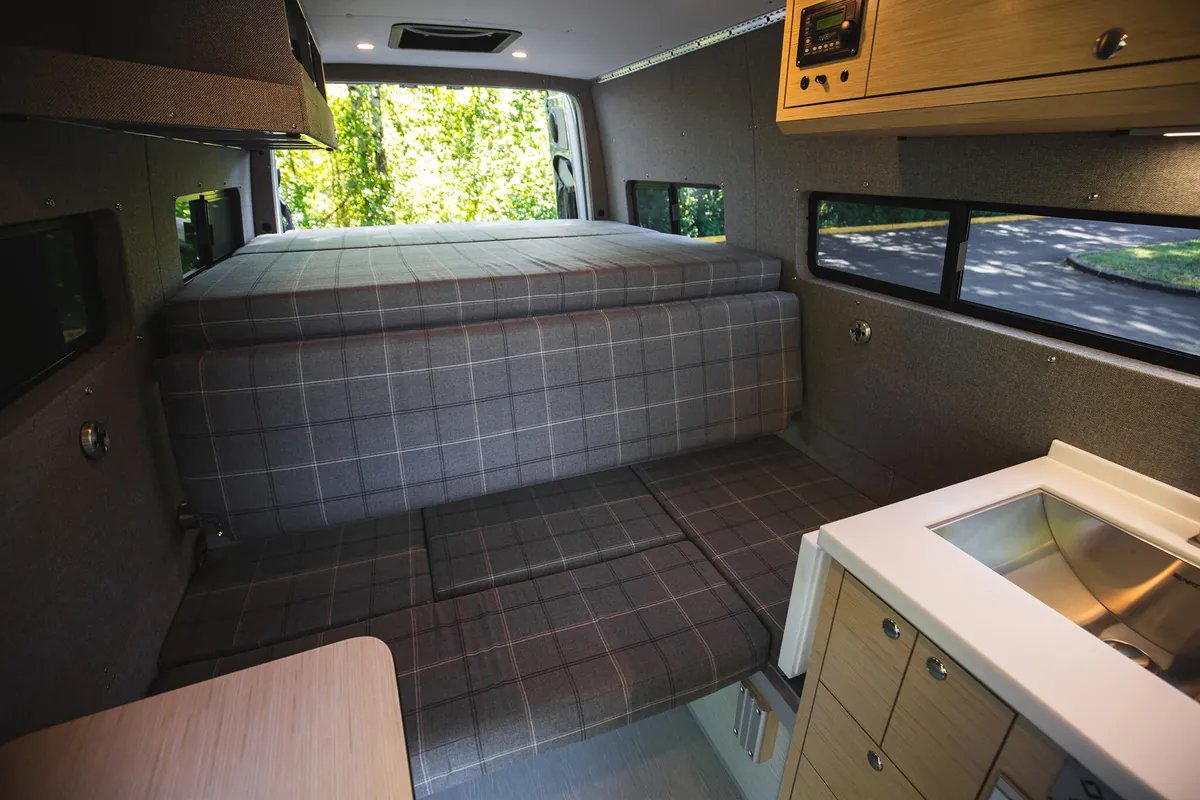

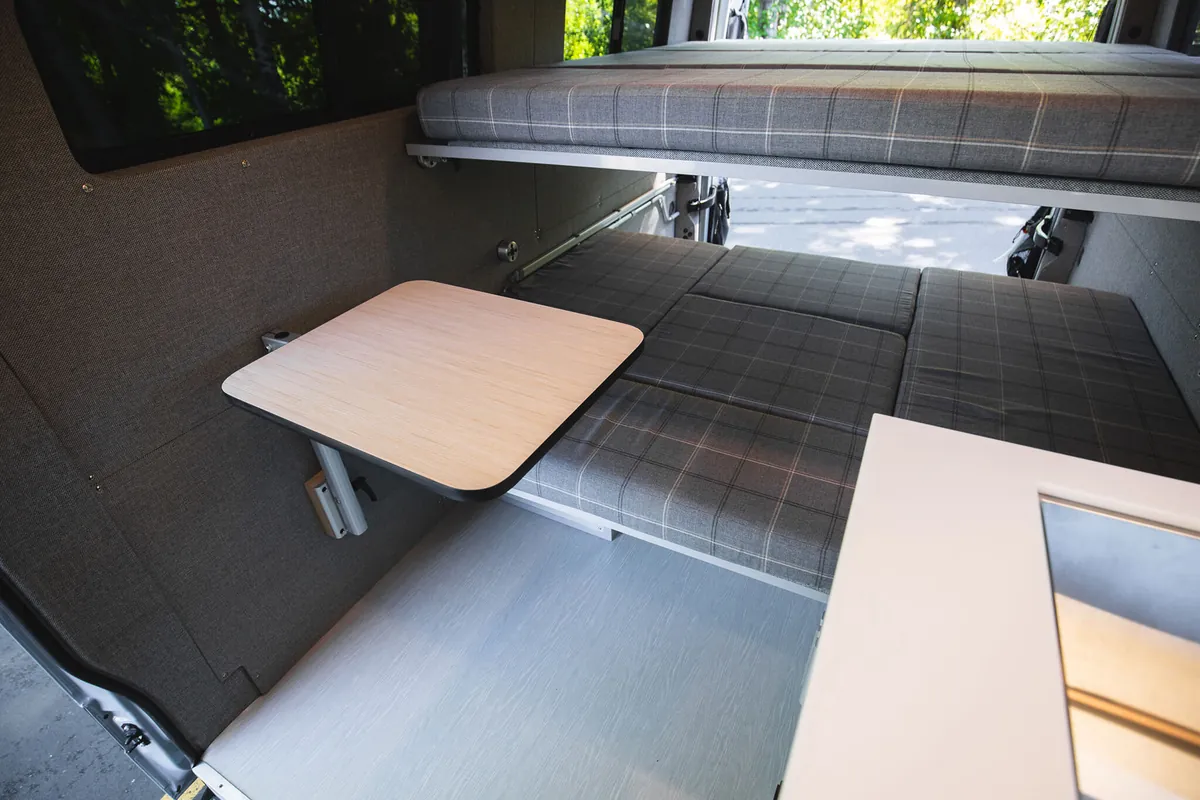

4 Panel Bed and Sofa System: custom removable 4 panel bed and sofa system. 3 bed panels, 3rd panel hinged to 2nd panel that becomes sofa back rest, 4th panel for the seat. Includes: powder coated steel frames and rails, latches, interweave fabric and cushion
Underbed clearance: 42”
Bed Length: 72” overall
2 panel bed: additional 2 panels behind bottom sofa panel of 4 panel sofa/bed to create a 3 panel bed below 3 panel bed
Mattress: custom upholstered foam mattress
Foam thickness: 4”
Foam Density: Soft
Water System: includes 25 gallon freshwater tank in custom box, pump with wiring and switch, plumbing, carbon water filter, and external water fill.

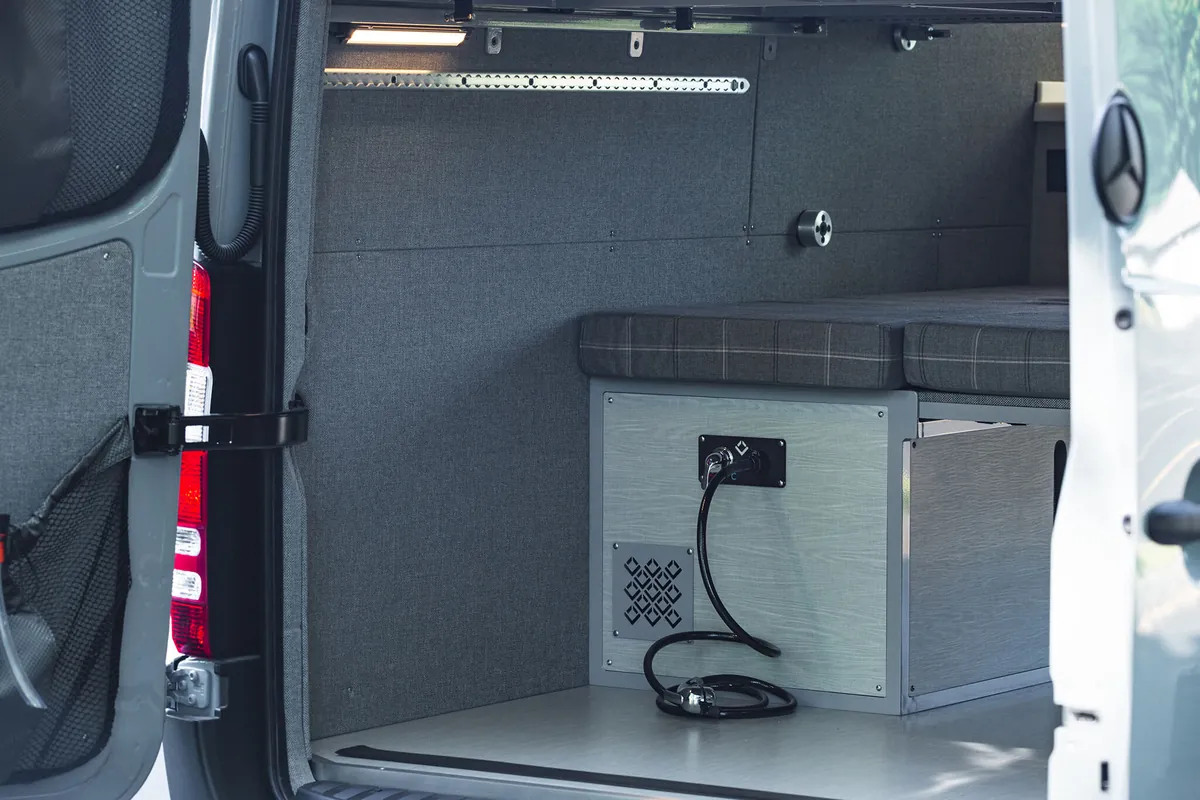

Shower: Exterior flush mount shower in cargo area with hot/cold valve and quick connect. Shower head and hose included.
Webasto Dual Top EVO 6 – Diesel Hydronic Heating System: Heats cabin with multi-speed fan and provides 120 – 159 hot water to galley and/or shower. Includes control panel, thermostat and OSV vent cover. Location: forward of drivers side wheel tub. Control location: on overheads w/ other controls

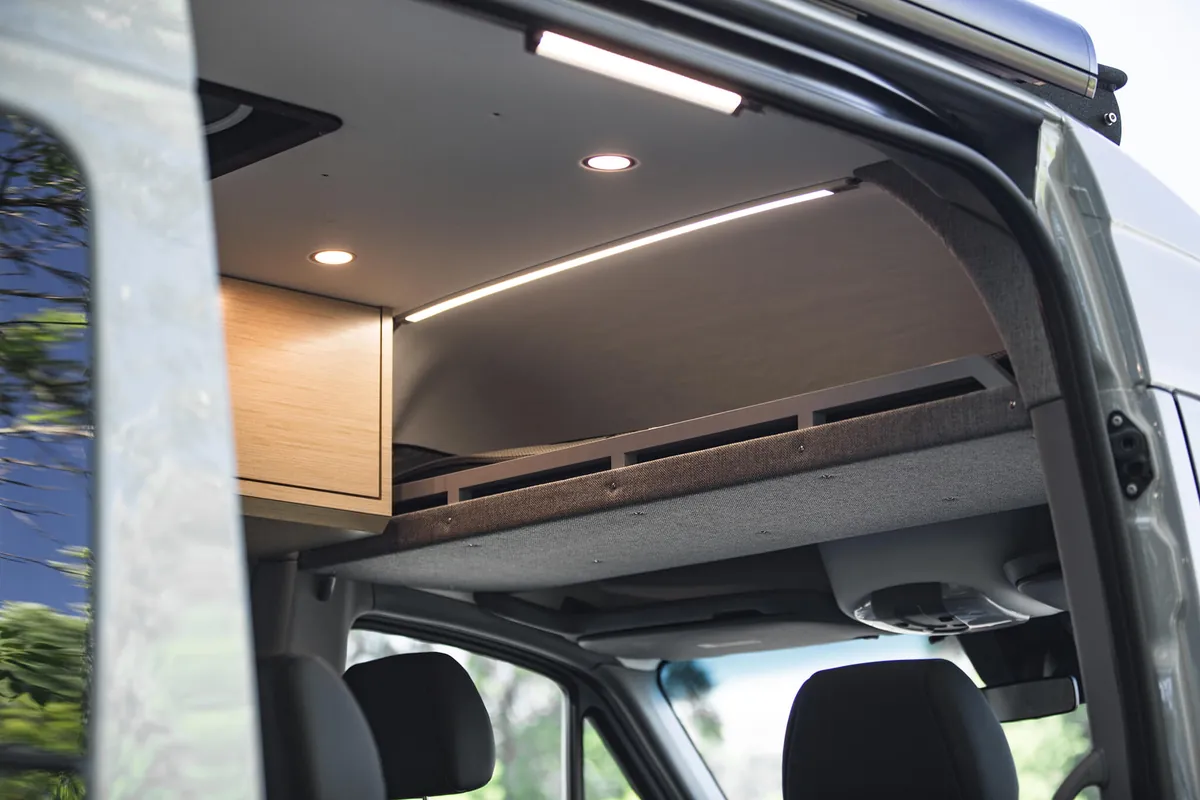

Overhead cab shelf: custom overhead cab shelf for overhead storage above cockpit

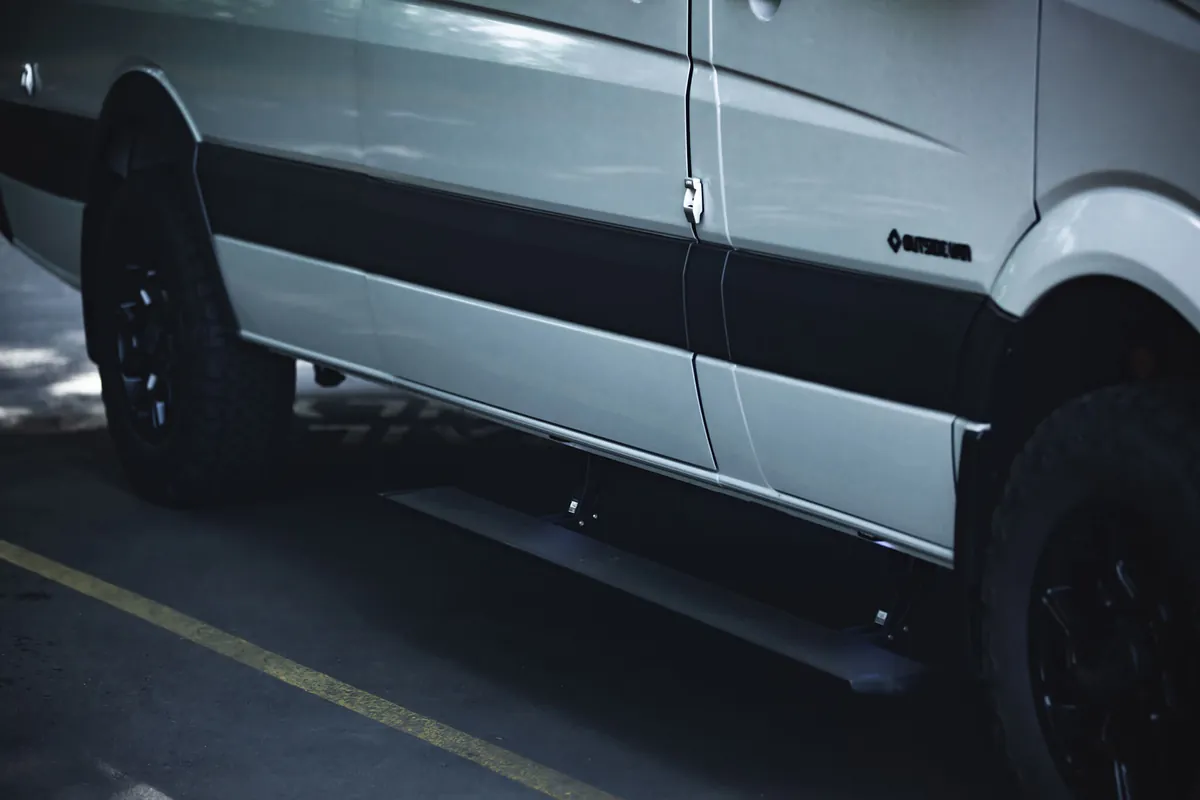

Running board: extended passenger and slider door electric retractable running board.
Mac Track: Mac’s VersaTie Track mounted under bed rail tabs of upper bed, over bed at wall and ceiling seam, and above the slider door
Ladder: OSV custom powder coated aluminum rear door latter
Thetford Curve Porta Potty: with batter powered flush
Stuff sacks: lower rear door stuff sacks for storage, ultra durable mesh and fabric, mounted to lower door panels.
Details from 2023 improvements:
Espar Hydronic Plus Evo 55 diesel heating system: 17,000 BTU full concealed installation of diesel furnace forced air heating system. Runs on auxiliary power and pulls minimal fuel from vehicle tank. Includes SmarTemp 2.0 Control Panel and custom OSV vent cover. Location: inside the driver’s side dinette
Power System: 2 x Lithionics power 315Ah Lithium batteries (630Ah total) with 2000 watt magnum interter and ion gauge display
