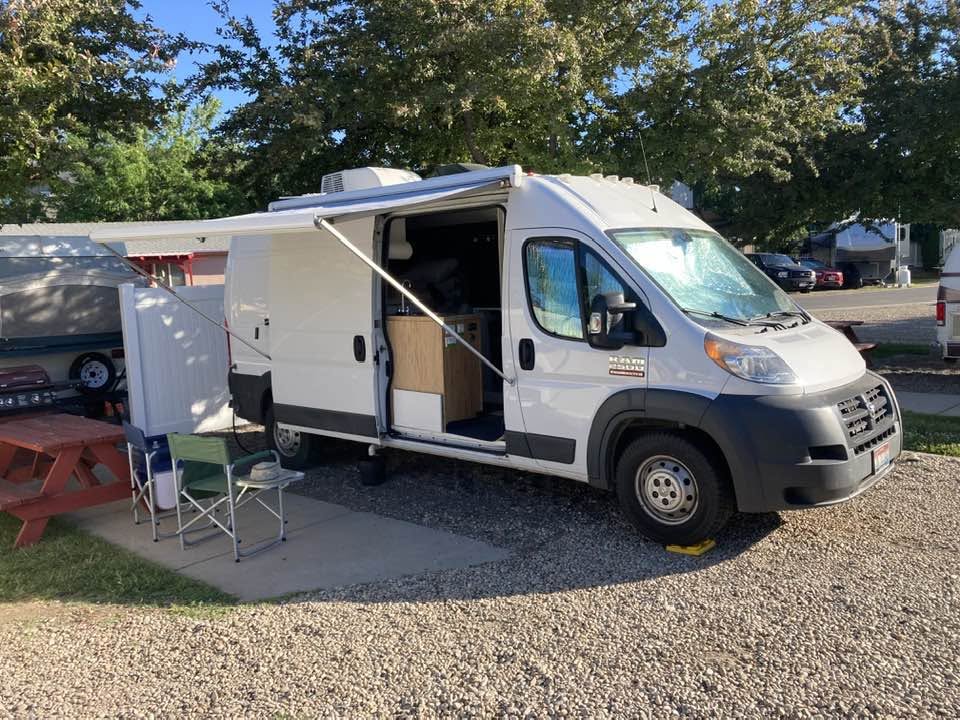

2017 Ram Promaster 2WD

Layout based on watching years of @TrentandAllie!

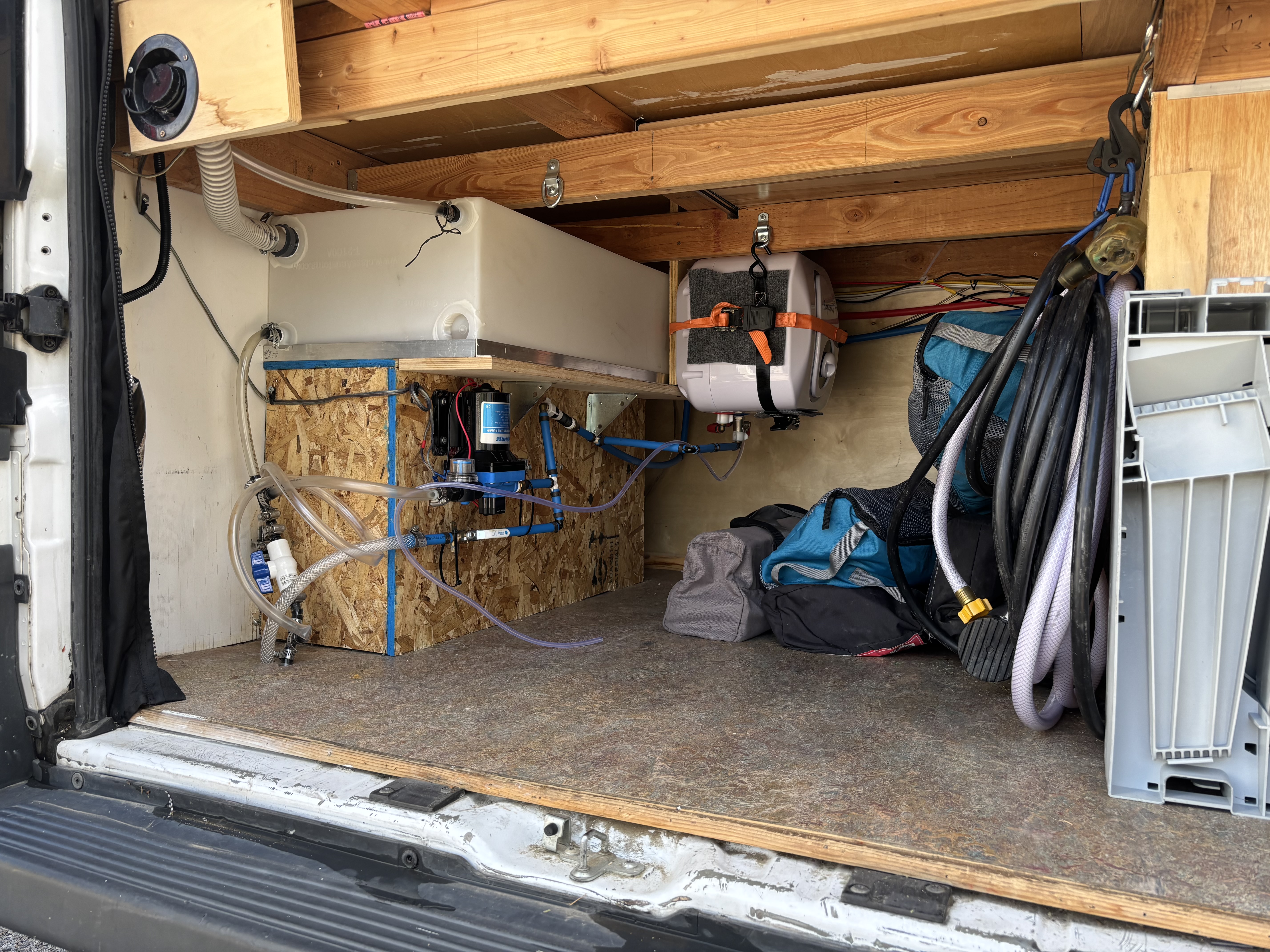

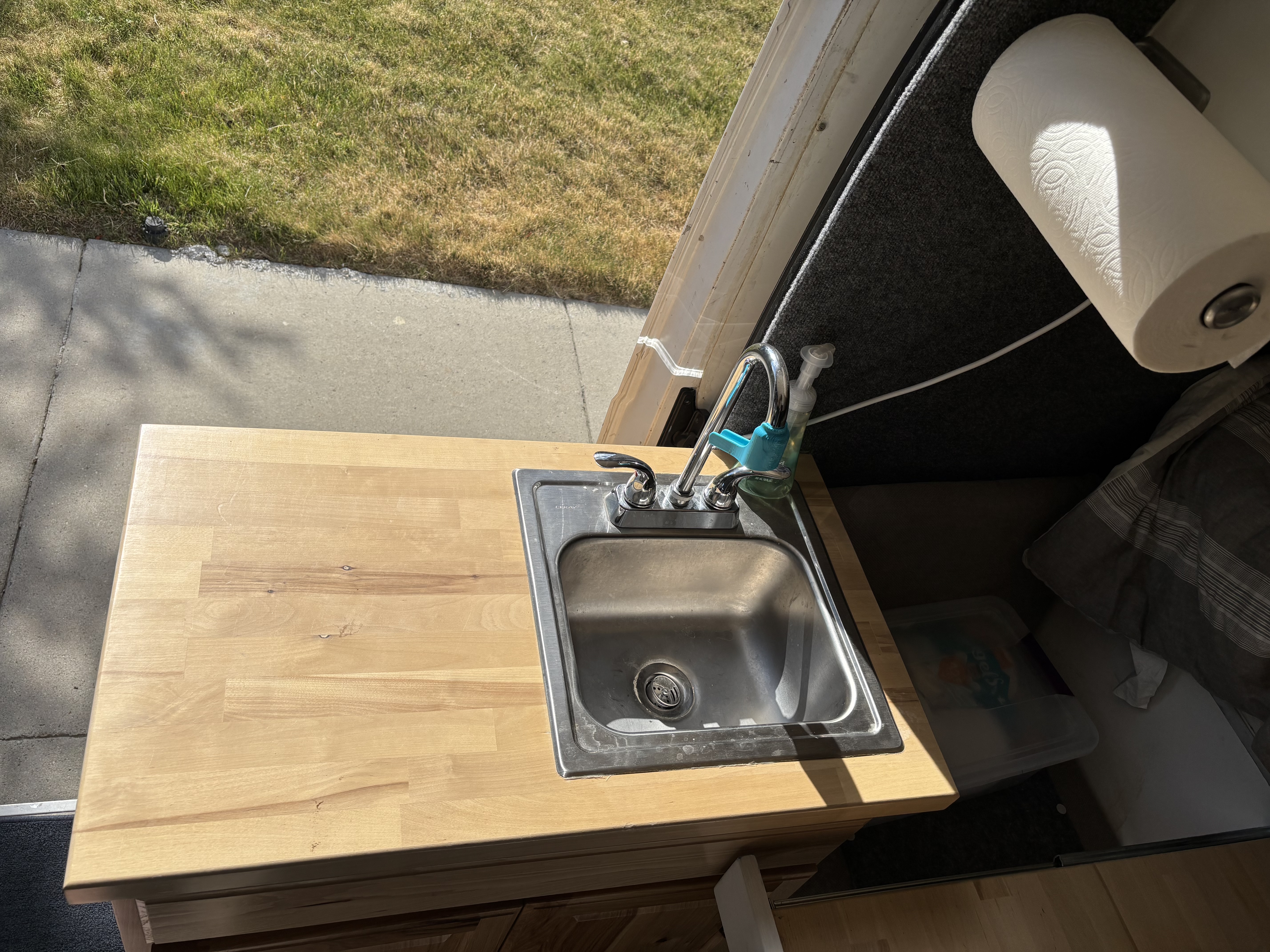

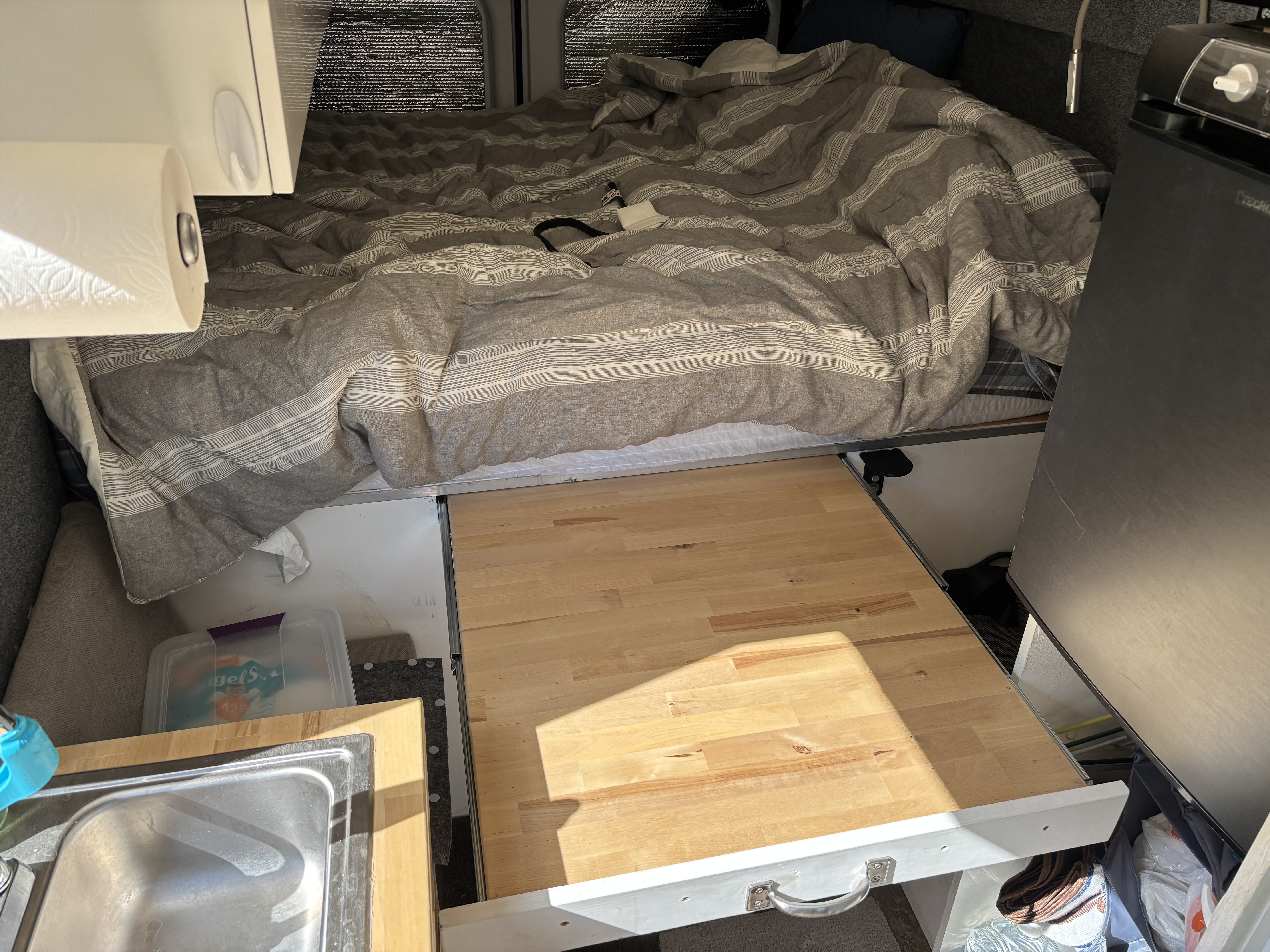

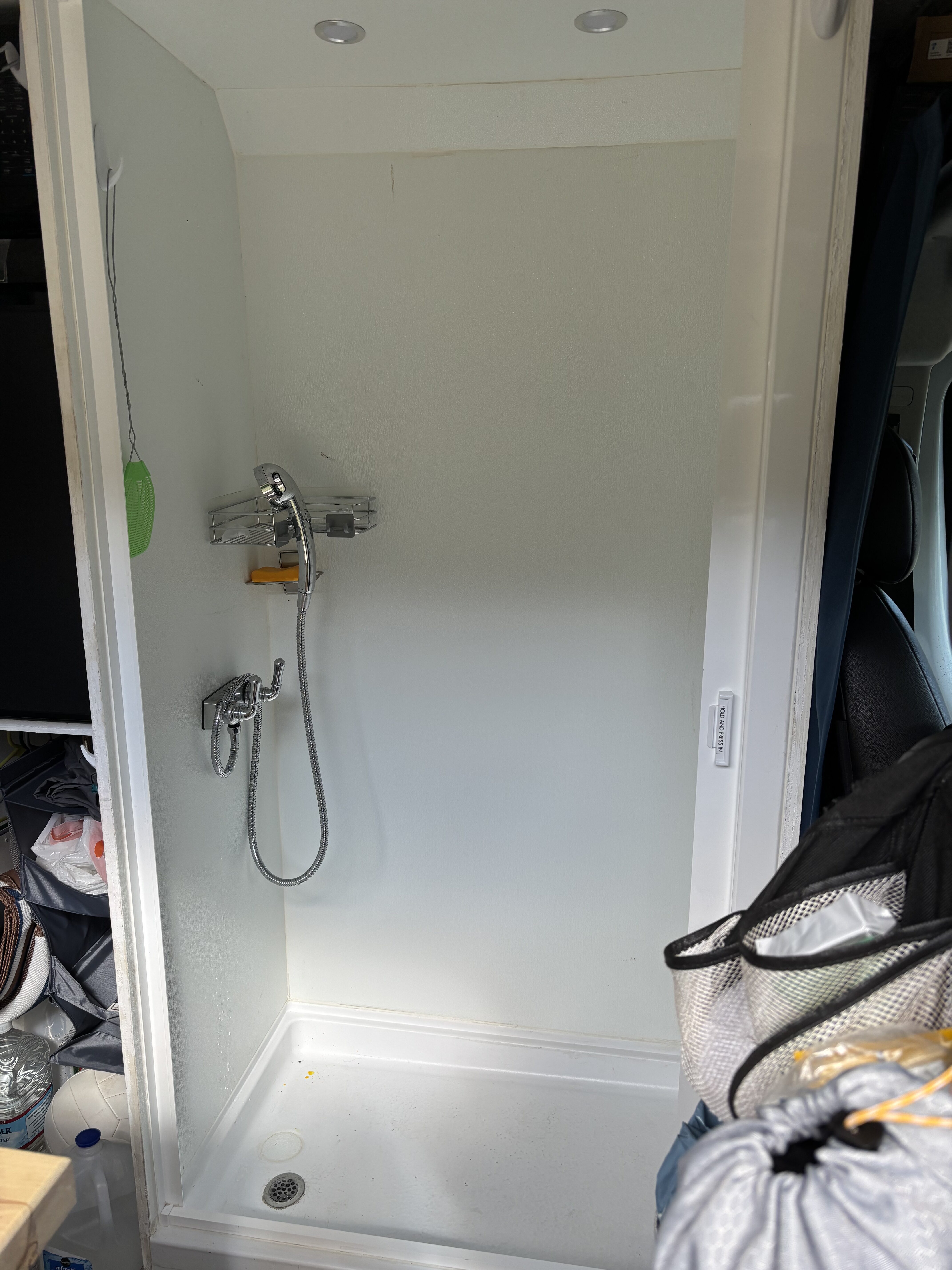

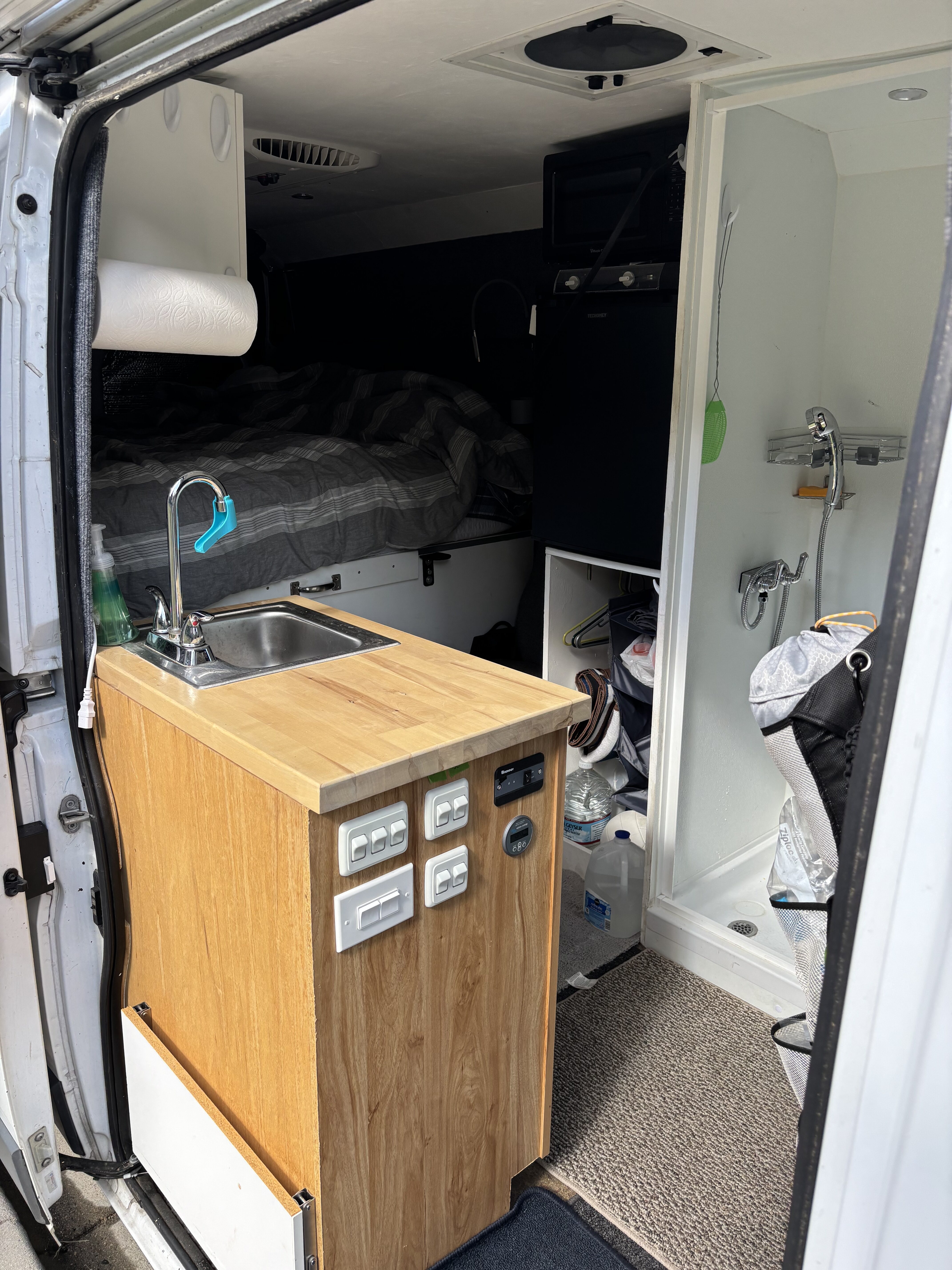

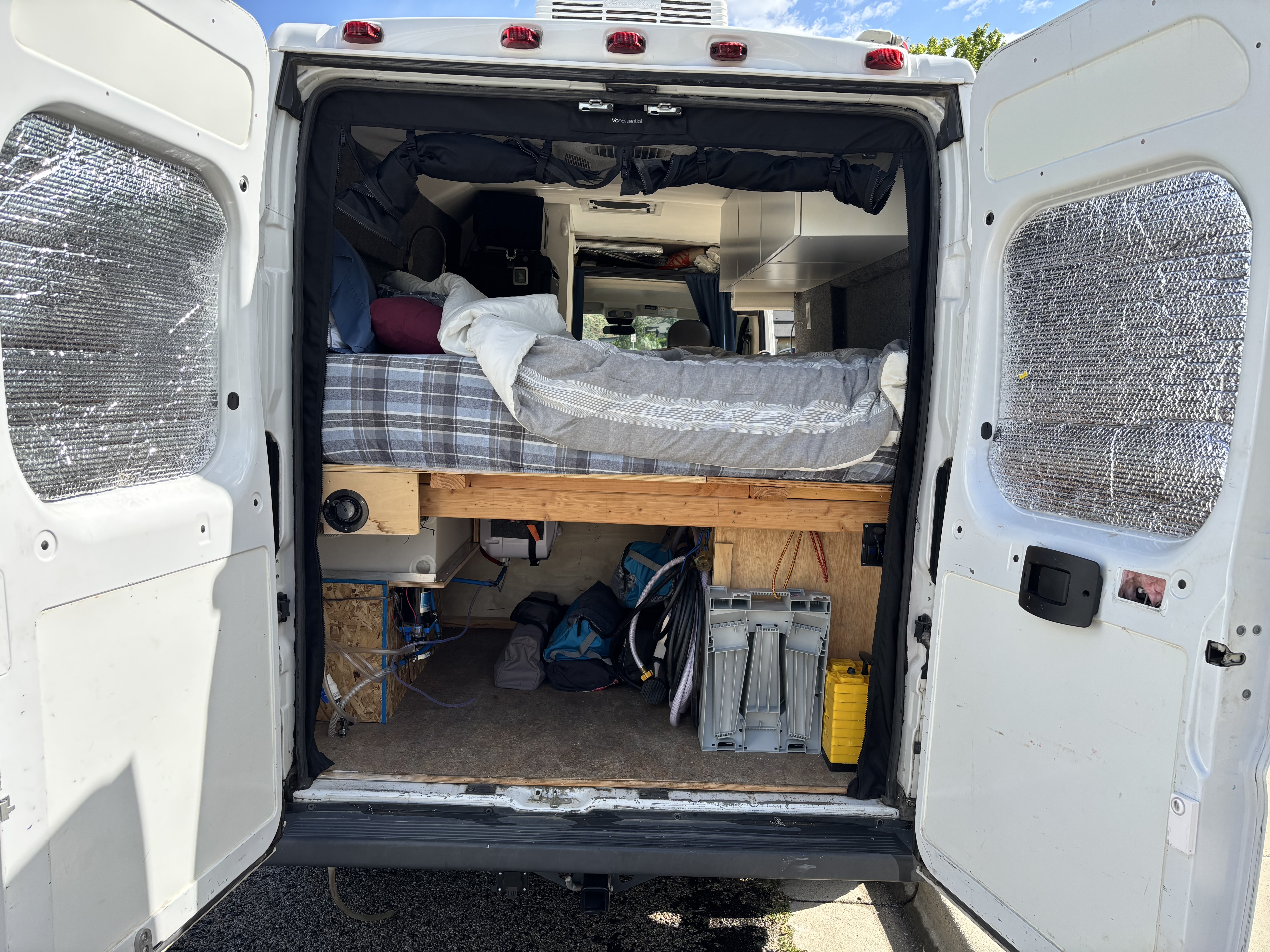

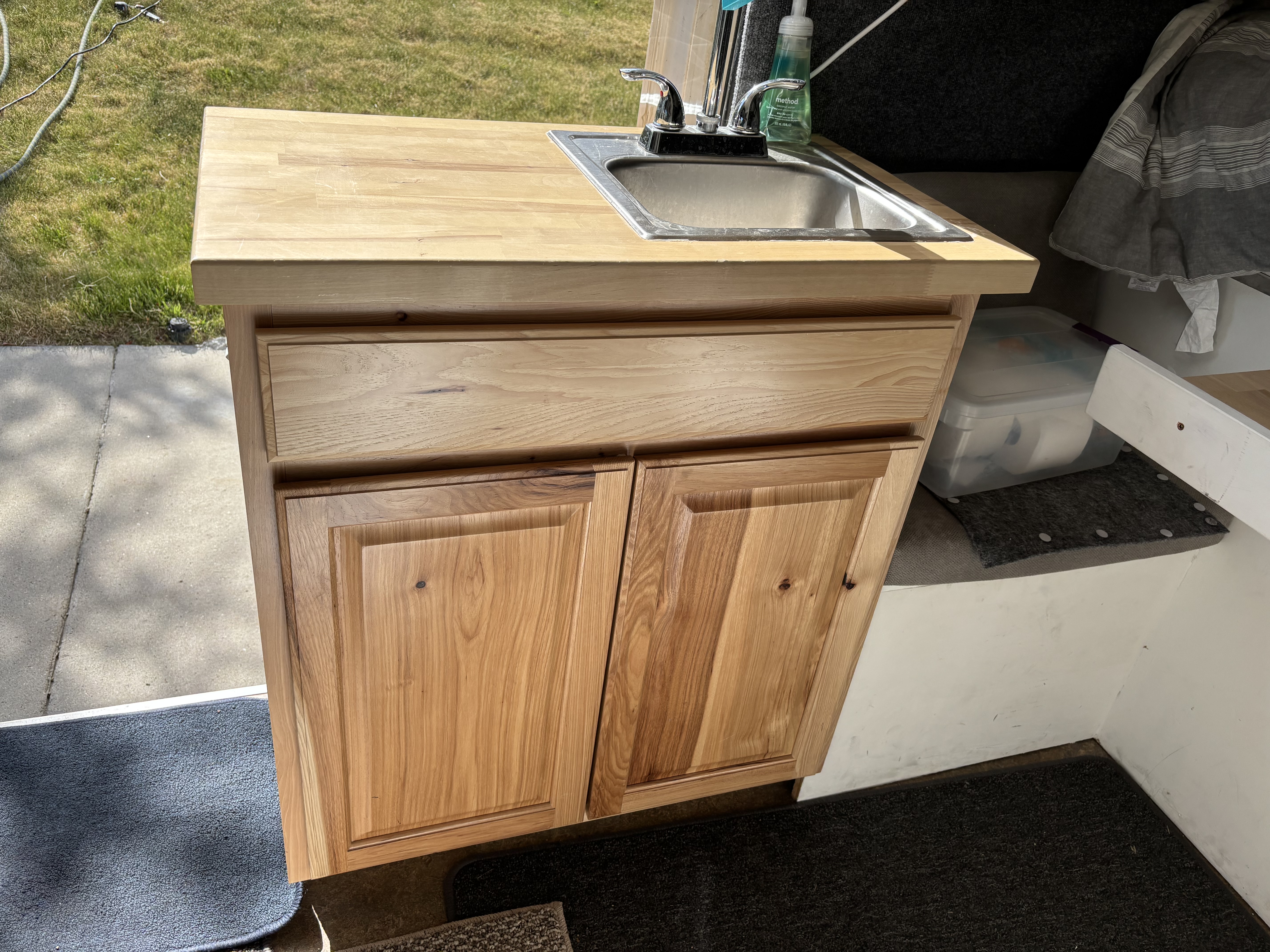

Solid bed platform, pullout table, custom butcher block counters, hanging storage, overhead ikea storage. Custom shower with retractable curtain. Sink, fridge, microwave. 20 gal fresh water, 20 gal grey tank. Off-grid system is complete Renogy system. Hot water heater is DC. AC is shore or generator power.

Details:

– 2017 RAM ProMaster 2500 high-roof van (126k miles) – 3.6L V6 engine (276 HP / 250 lb-ft torque) – 6-speed automatic transmission – GVWR: 8,900 lbs – GCWR: 12,500 lbs – 24-gallon fuel tank – 3,500 lb. hitch receiver (4/7 pin wiring) – Bilstein shocks + Sumo springs – 3 seat belts **Size & Dimensions** – Length: 20’ 11” – Height: 9’ 3” (with A/C) – Width: 83” – Wheelbase: 159” – Interior height: 74” – Bilstein shocks – Sumo springs – Retractable awning (manual) **Off-Grid Capability** – 200W solar panel (x3) – 3,000W Renogy inverter – (2) AGM Renogy house batteries (200Ah ea) – 30-amp service – DC-DC Renogy converter – Victron Battery monitor – 20gal holding tanks – 20gal fresh water – DC water heater – Starlink pass-through **Interior** – Microwave – Sink – AC/DC Fridge – Butcherblock counters – RV Queen bed – Underbed storage – Overhead storage – Hanging storage – Hide-away table – Wet bath with retractable shower curtain – Composting C-Head toilet – Rooftop vent – Rooftop AC/Heat – Rooftop rails – Mosquito netting front/rear – Walls – Insulated, Killamat – LED puck lighting – LED cabinet lighting
