2014 Freightliner Sprinter 2WD

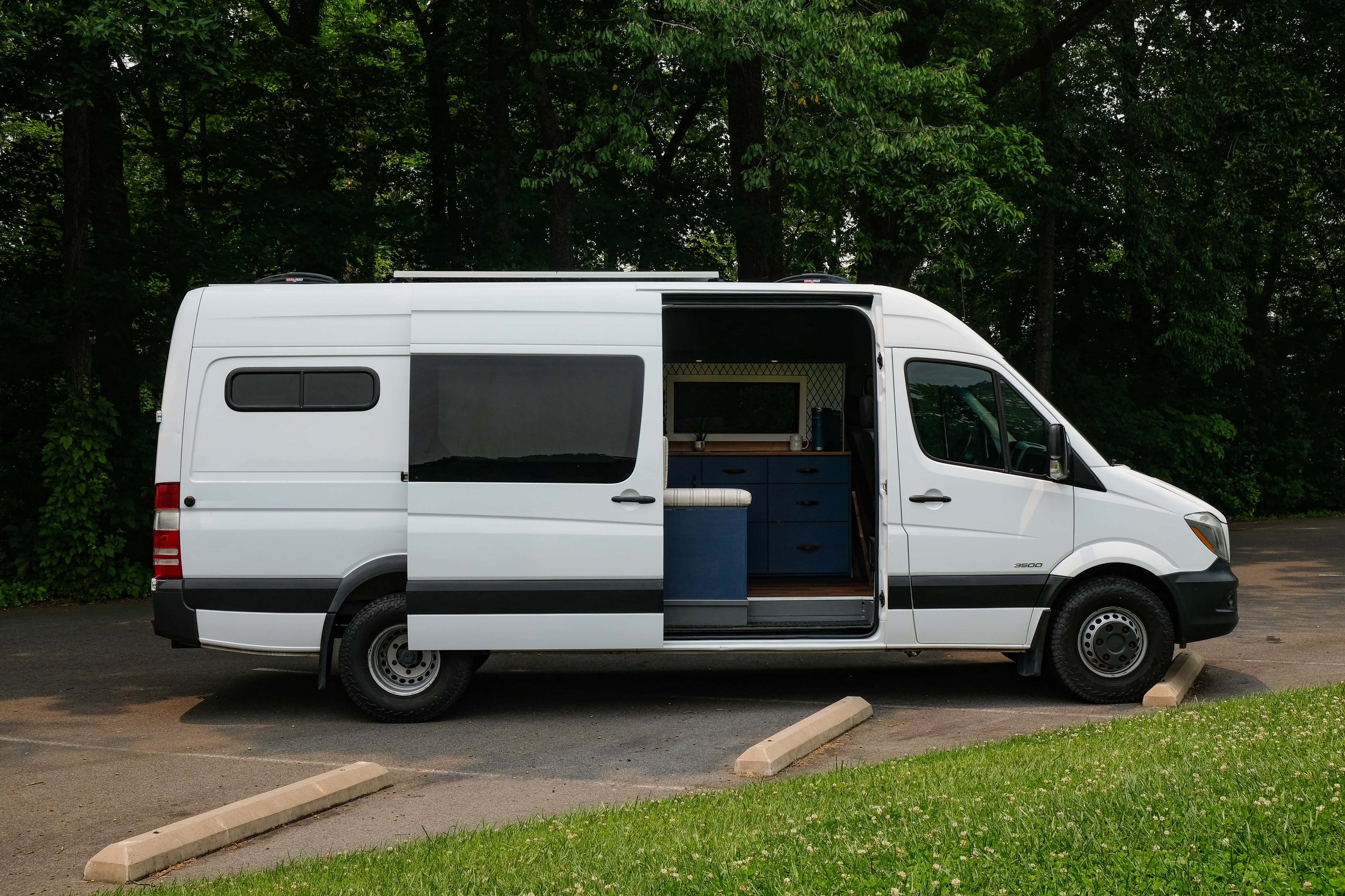

2014 Freightliner (Mercedes) Sprinter 3500 170WB

2022 Conversion

Engine: Mercedes 3.0L V6 Turbo Diesel

The conversion was finished in October of 2022 & was lived in on & off till May 2023. This is my baby & I have invested A LOT of time into making this conversion as perfect as possible. I hate to see it go but it’s time for someone else to enjoy it.

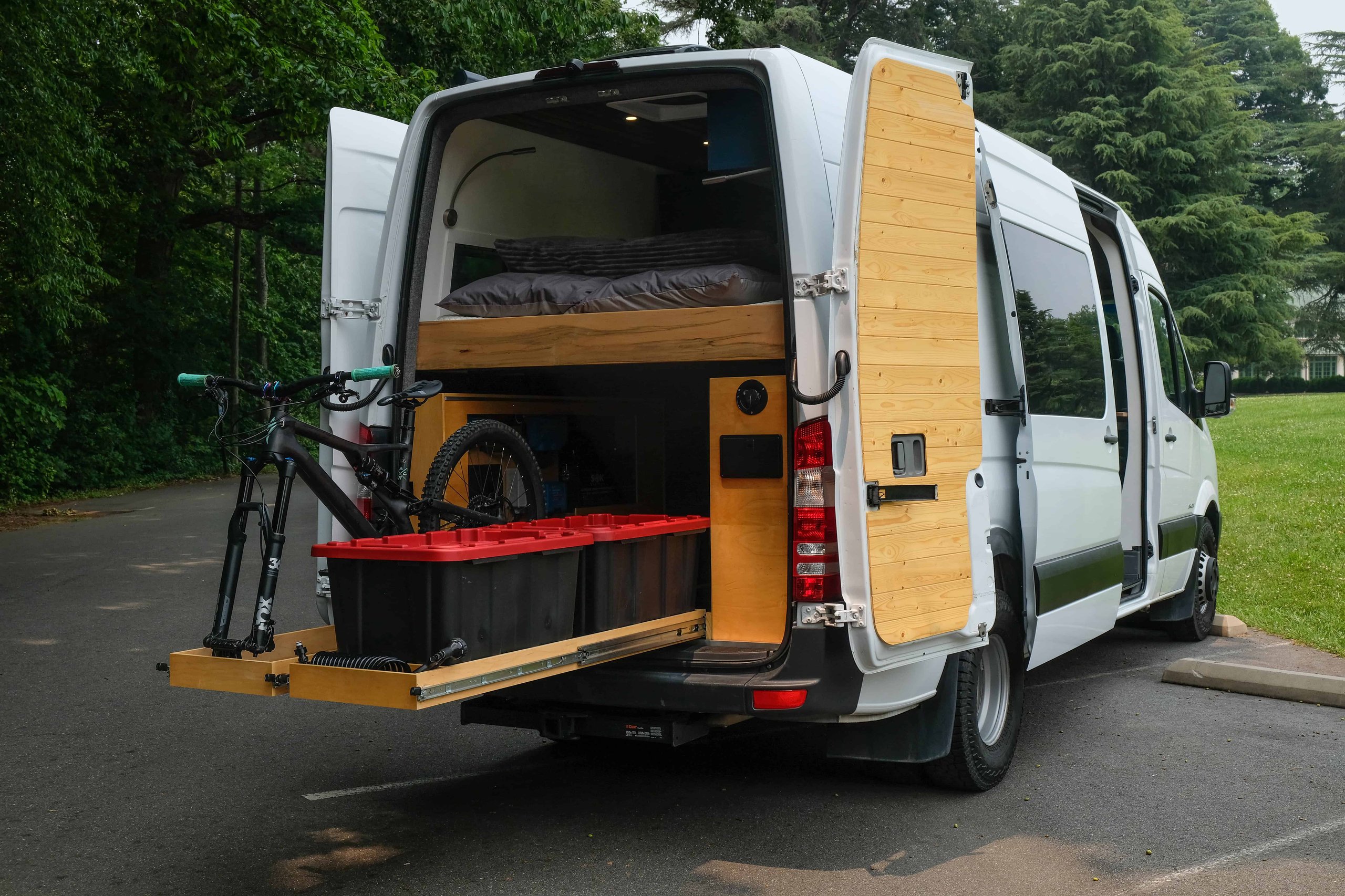

4 seasons, Queen bed, TV, power for an airfryer, hot water heater, toilet, indoor/outdoor shower, huge gear garage, bike storage, mirror, 40 gallon fresh & 20 gallon grey water tanks, over 6’2” interior height, 2 Maxxair Deluxe fans, induction stove top, Isotherm fridge/freezer, full set of windowshades, Diesel heater, upgraded speakers

Electrical: 12v and 120v outlets, 400 watts of solar, 2 SOK lithium 206ah batteries, Victron MPPT, Victron Orion, Victron Lynx Distributor, Victron BMV-712 Bluetooth, Renogy 3000w inverter, WeBoost cell booster

If you wish to have a full detailed build sheet please reach out, I also have plenty more photos. This conversion was well thought out and overbuilt. Feel free to message me with any questions. Possible delivery anywhere in the US. Negotiable. Thanks

Detailed build sheet and photos upon request

Build Out Information

Interior Height 6’2.5”

Insulation: 3M Thinsulate (walls/ceiling), mini cell foam (floors)

KILMAT sound deadening throughout

Maxxair Deluxe (smoked, intake, exhaust, thermostat, remote control)

WeBoost Drive Reach OTR Cell Signal Booster

True Induction 12-in 1 Element Coil Black Electric Cooktop

Bosch Electric Mini-Tank Water Heater 2.5 Gallon

Isotherm Freeline 115 Elegance AC/DC Refrigerator/Freezer

Insignia - 24" Class F20 Series LED Full HD Smart Fire TV

Vanessential window/Maxxair fan cover set

5KW Diesel Heater

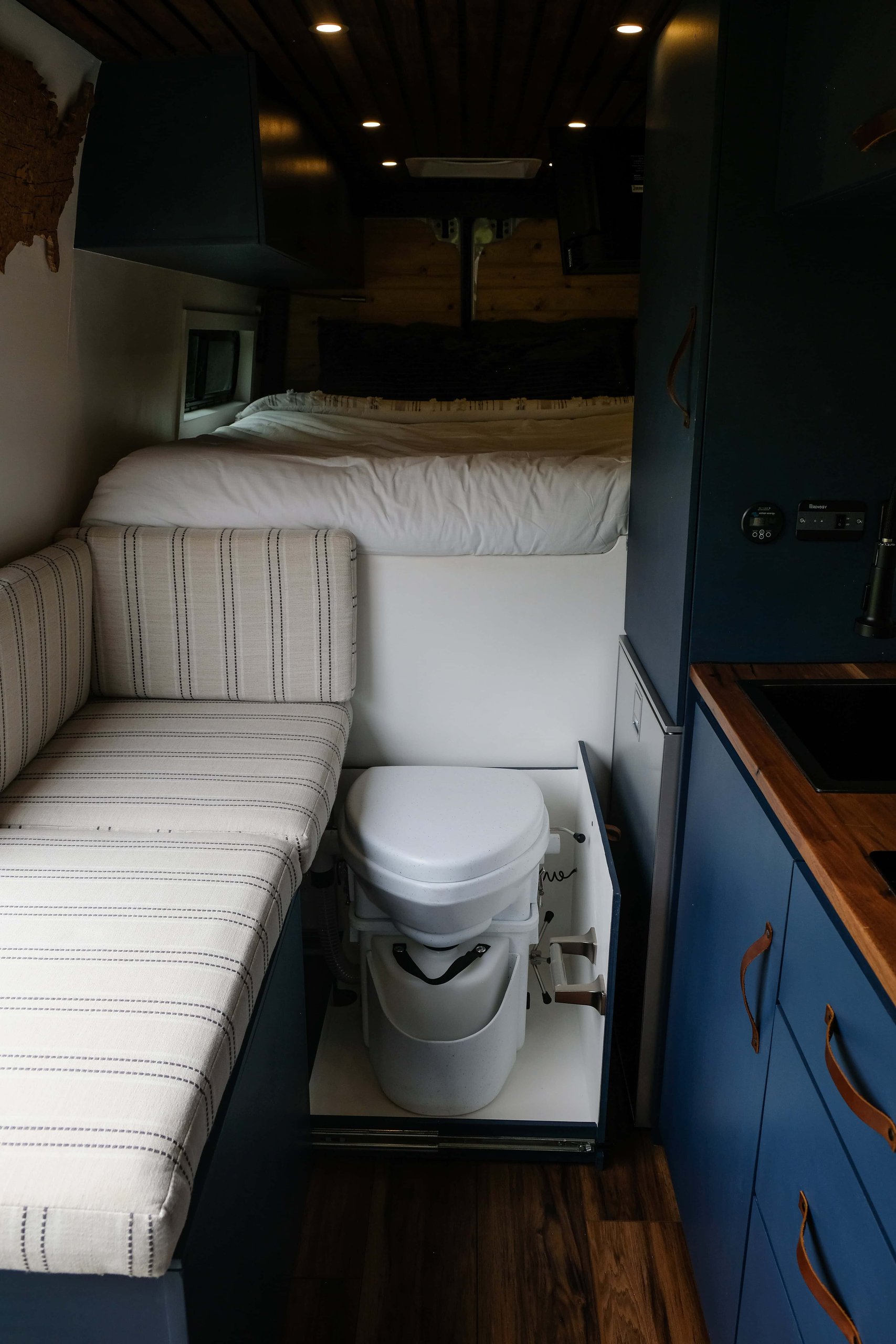

Nature's Head Composting Toilet

Bicycle work stand

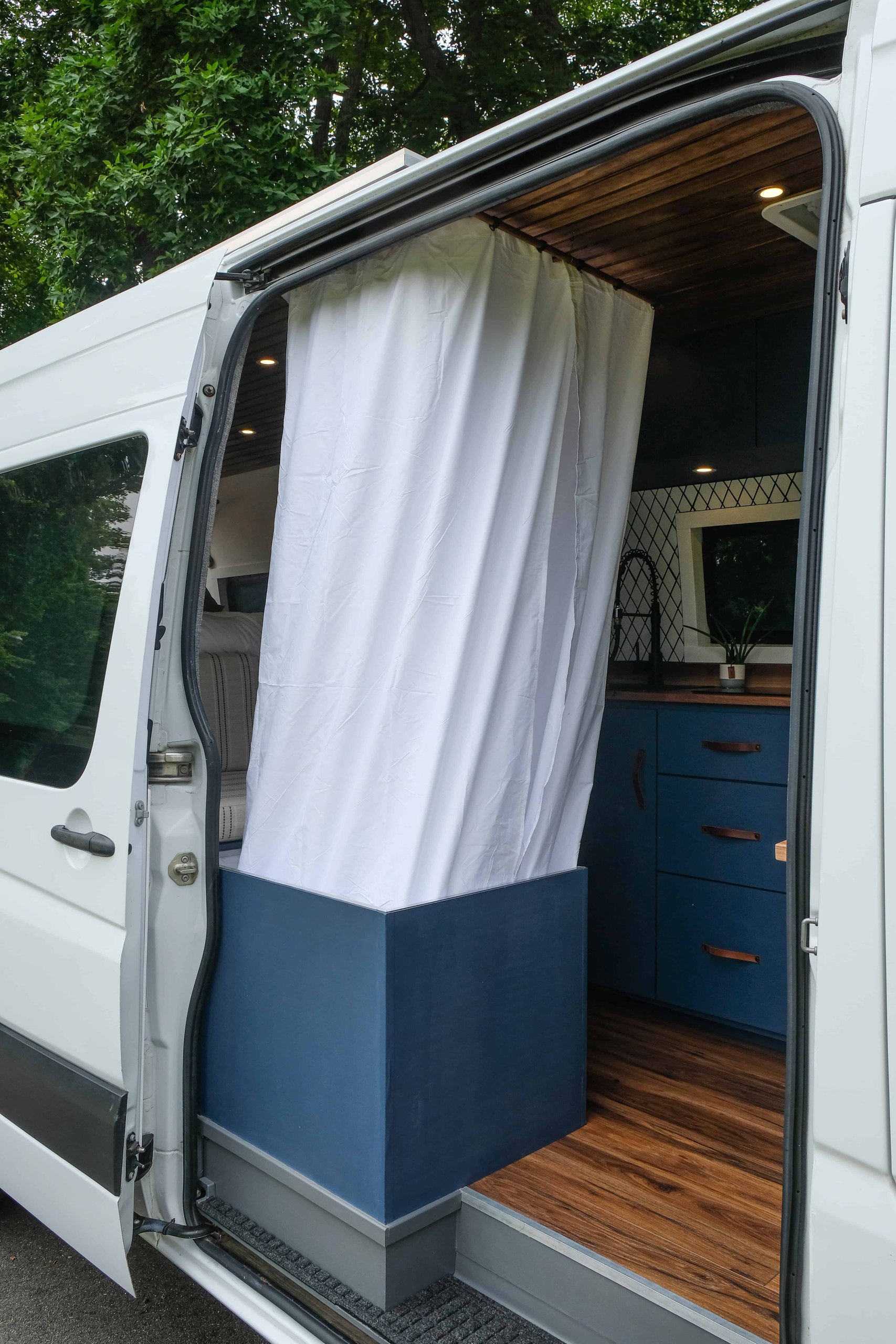

Indoor and Outdoor Shower

Full-Size mirror

Safe hidden in the closet

Carbon Monoxide Alarm

Touch Dimmable light switches

Swivel Passenger seat with Lagoon table

Full-size Trashcan

Mid City Engineering backup camera

Upgraded speakers

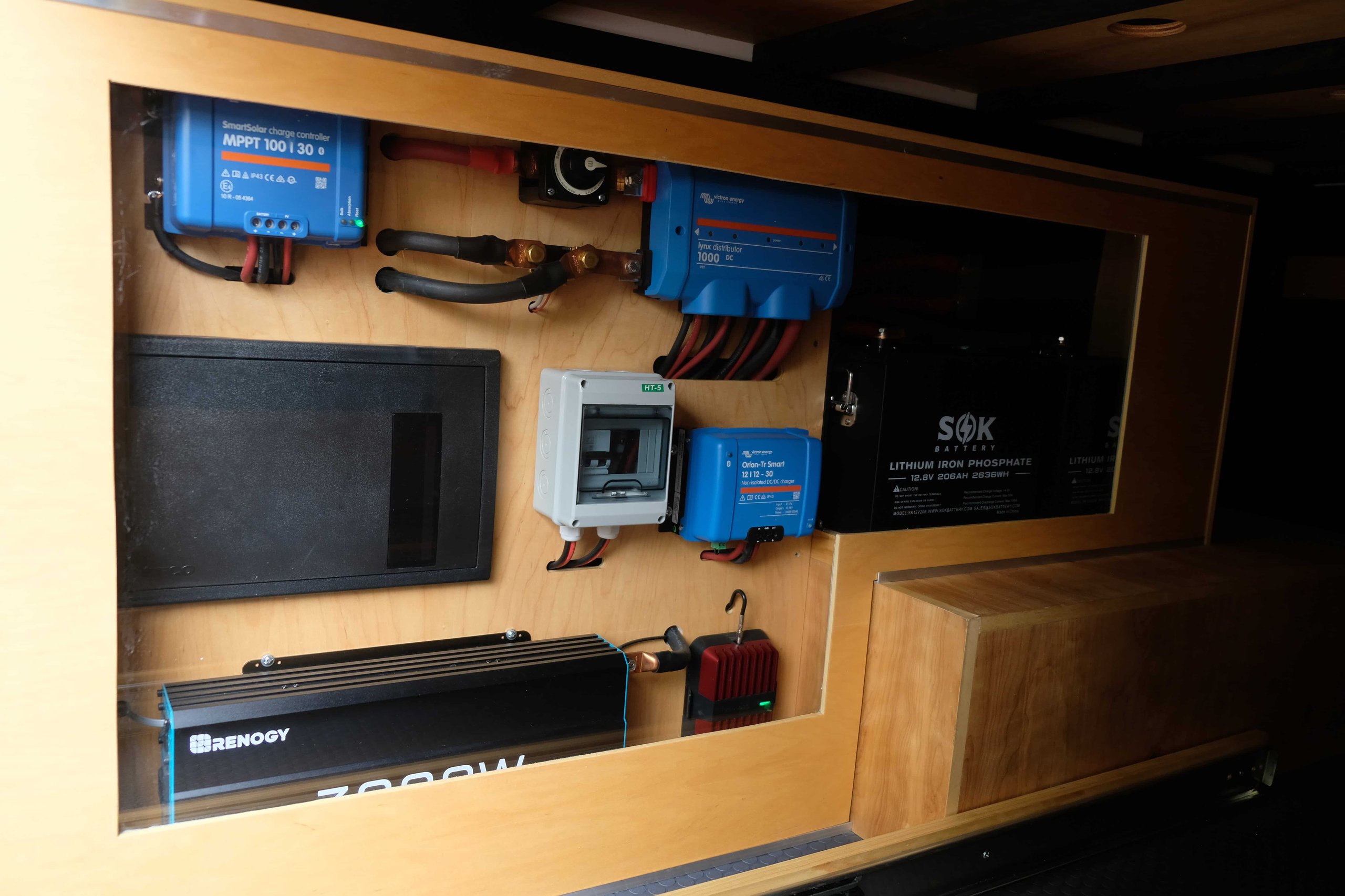

Electrical System

120V Outlets: 4

USB charge ports: 5

Four 100-watt RichSolar Polycrystalline Solar Panels (400 watts)

Two SOK Battery Lithium Iron Phosphate 12.8V 206AH 2636WH (wired in parallel)

Victron Energy SmartSolar charge controller MPPT 100-30 Bluetooth

Victron Energy Orion-Tr Smart 12-12-30 Non-isolated DC/DC charger Bluetooth

Victron Energy Lynx distributor 1000 DC

Victron Energy BMV-712 Smart Bluetooth Battery Controller

Renogy 3000W Pure Sine wave inverter

WeBoost Drive Reach OTR Cell Signal Booster (on fold-down antenna mount)

Blue Sea Systems Battery Switch

Walfront 63A solar breaker

Arterra 12V and 120V Fuse/Breaker Distribution Box

Blue Sea Systems MEGA fuse holder

Plumbing

40 Gallon Freshwater Tank

20 Gallon Greywater Tank

Water pump switch next to sink

Multiple shutoff valves in case of maintenance

Waterdrop 10UA Water filter (filters all water that leaves freshwater tank)

Wavin HepvO Sanitary Waste Valve (prevents greywater smells from coming up sink)

Shurflo 3.5 gallons per minute - 45 PSI water pump

Shurflo Pre-Pressurized Accumulator Tank

½ inch PEX Pipe

Tank overflow/drain plumbed to exterior
