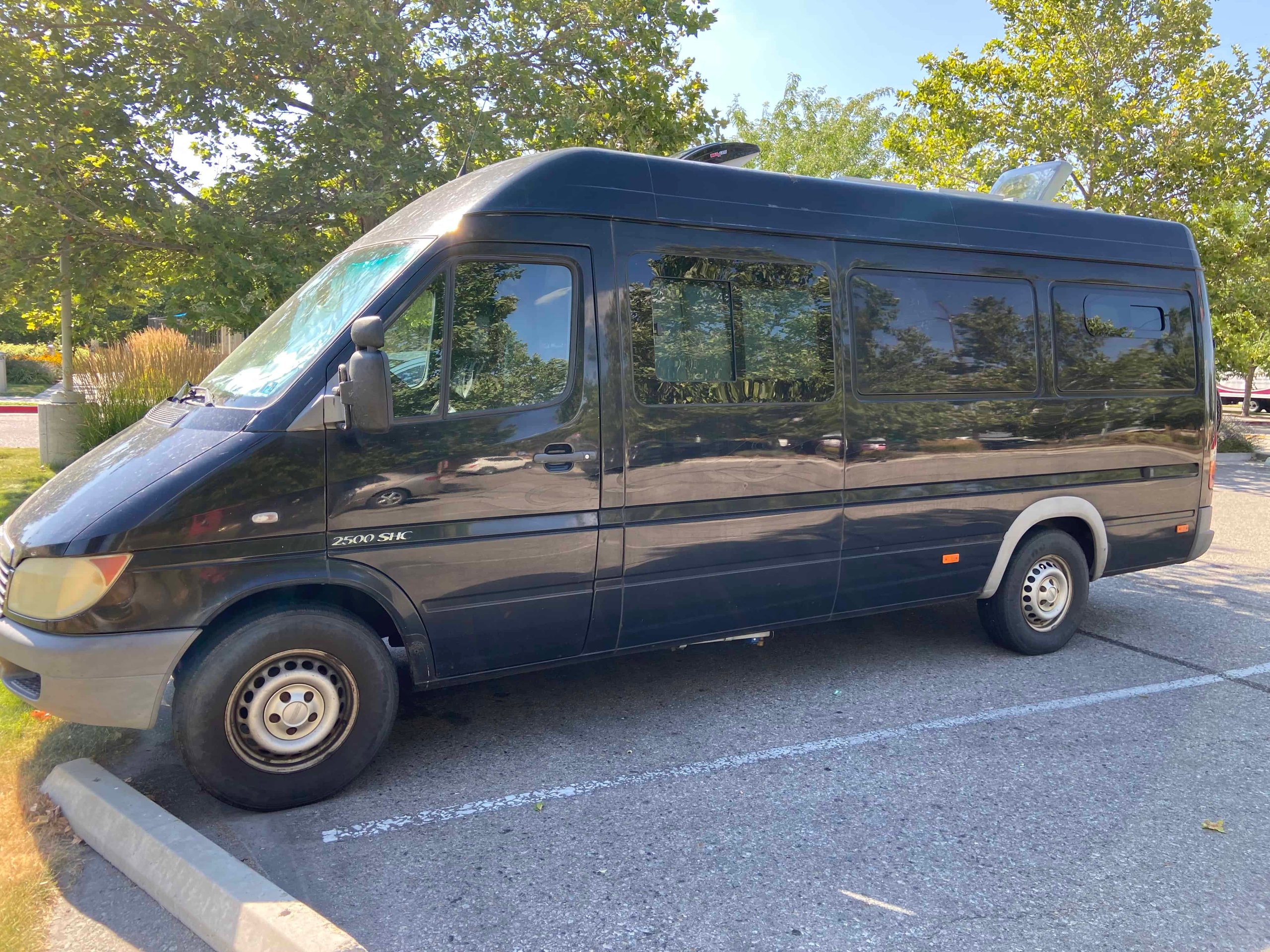

2005 Freightliner Sprinter (T1N) 2500 super high cab, 158” extended wheel base
135,000 miles, Diesel engine
Upgraded 150 A Alternator, new battery, recently recharged A/C
Self converted, all up to code/spec, we qualified for RV insurance after inspection.
Seats 4, sleeps 4
Passenger and Driver side sliding windows and small driver side bedroom window installed
Electrical:

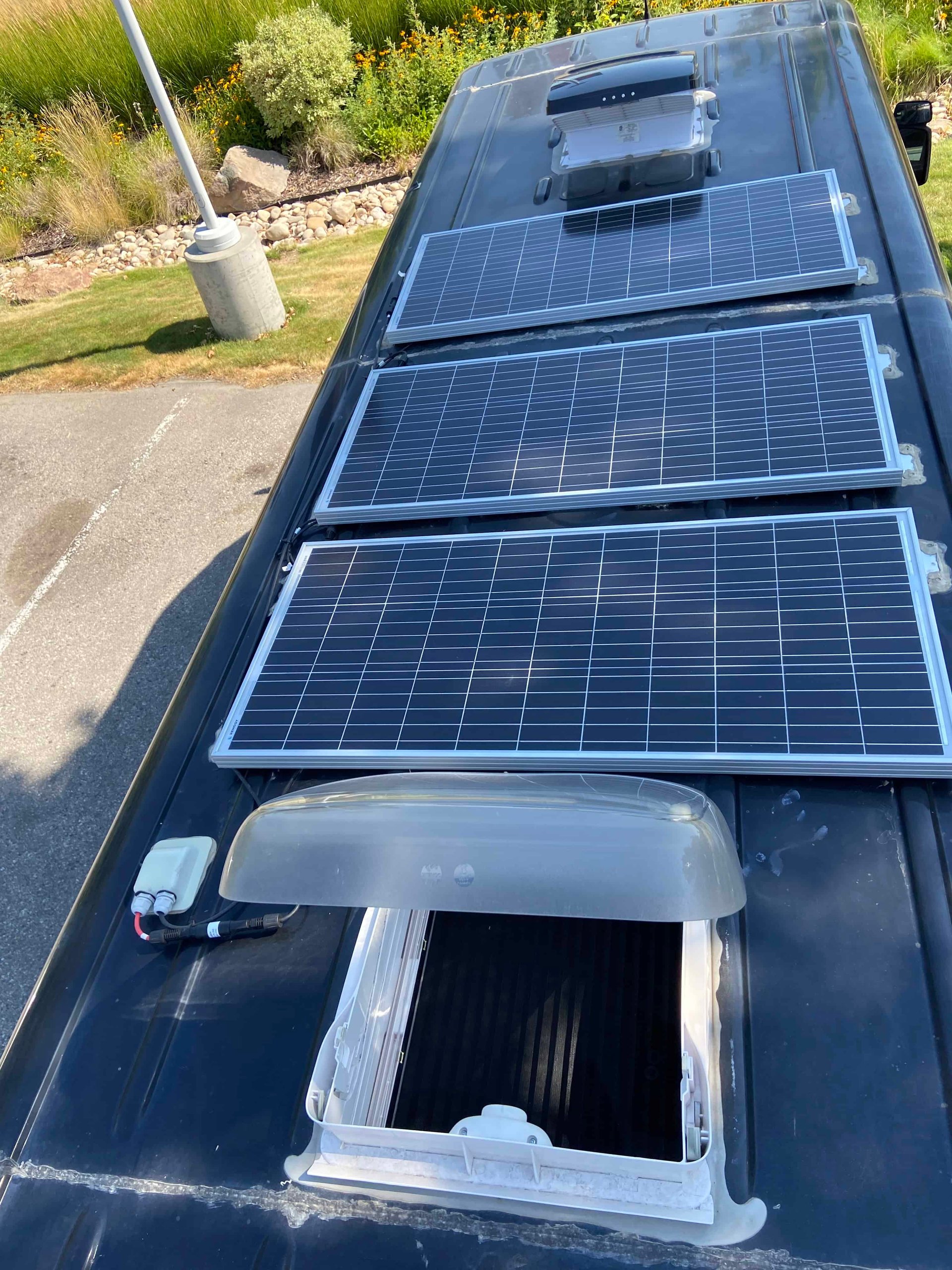

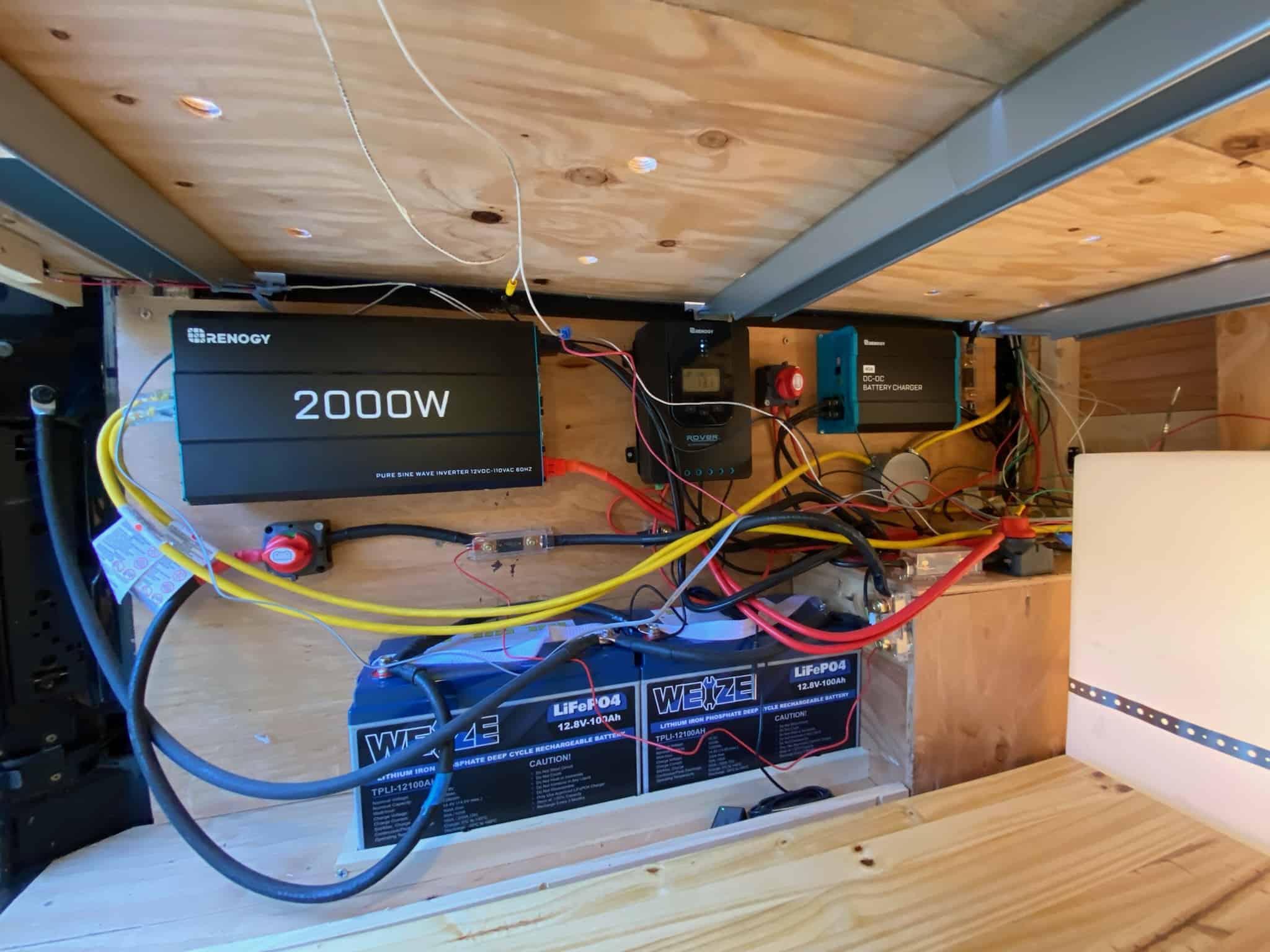

200 Amp Hours of Lithium Ion, 2000 Watt inverter, 40 amp DC to DC charger (the alternator charges the batteries when the engine is running), 300 Watts of Solar, 40 Amp mppt solar charge controller. 6 unused circuits so there’s room to expand, battery percentage indicator
Designed with space to add another battery and solar panel if you’d like
Maxxair fan, Dometic skylight, marine fan, reading lights, LED puck lights, Under-shelf strip lighting, 4 12 v charging slots, 8 USB C/A slots, 4 120 V plugs.
We have enough power to run an 8 quart Instapot or a 2.5 gallon water heater while running the lights and fans
Plumbing:
Inside 40 gallon fresh water tank with protected fill, includes in-line filter
Outside 7 gallon grey tank with solenoid drain (press a switch inside the van to drain the tank)
2.5 gallon hot water heater
Large/deep sink!, faucet with spray and flow options
Hose with shower head with on/off switch that connects to the sink for showering outside or in the van
Water pump and pressure accumulator

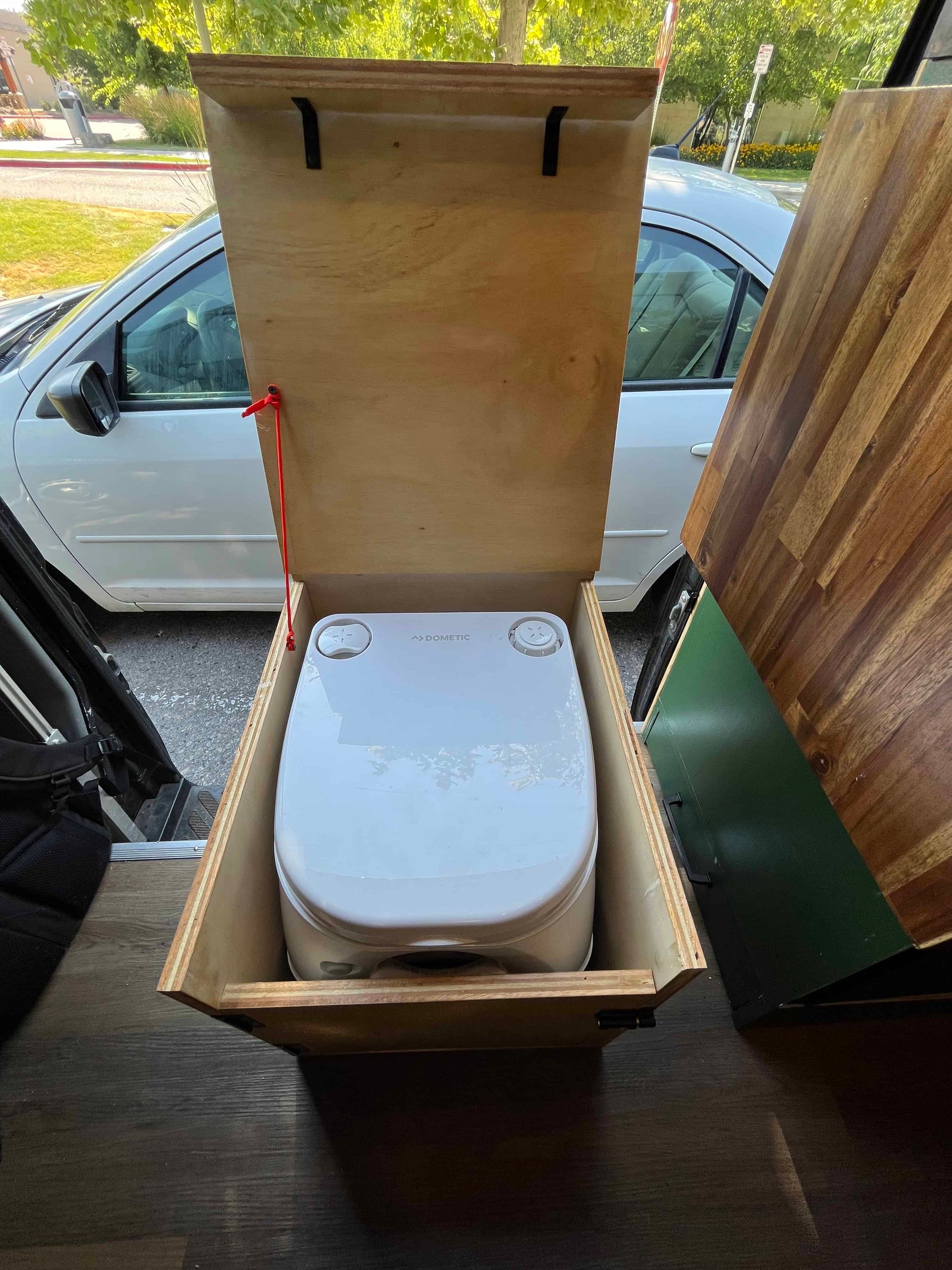

5 gallon Dometic cassette toilet (we’ve never had a smell problem!)

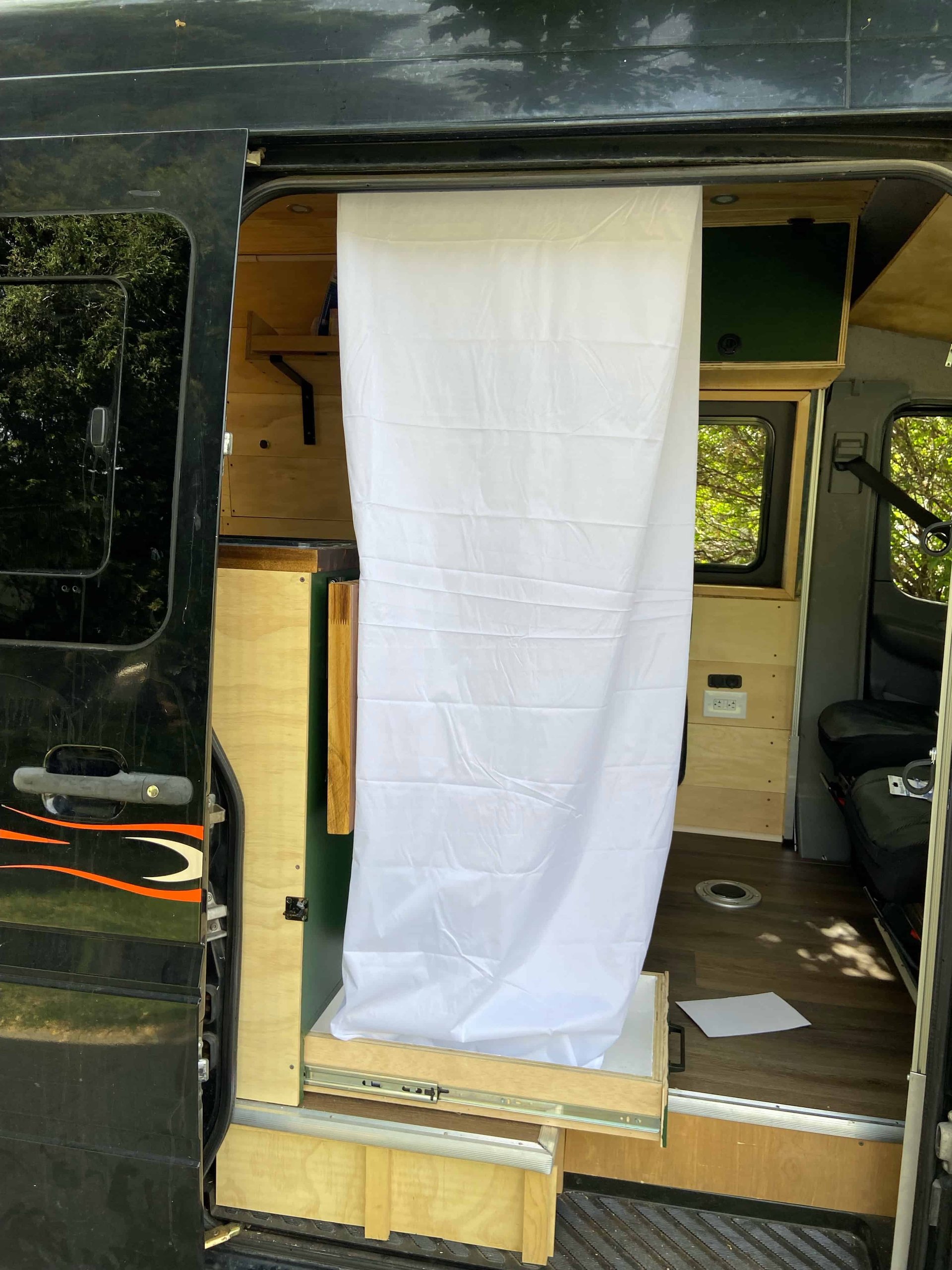

Pull out shower pan!

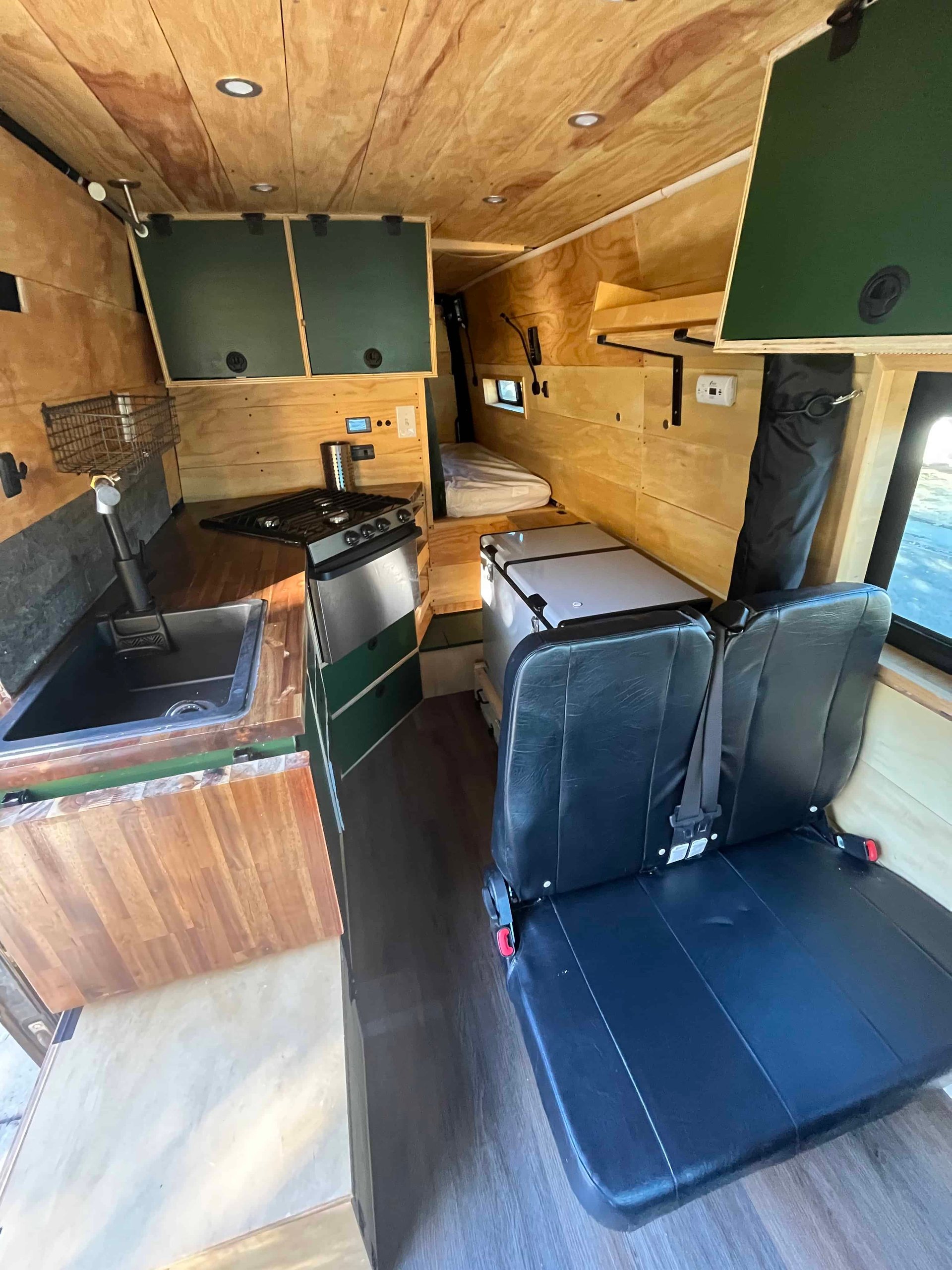

Kitchen:
Propane stove/oven combo with 3 burners and room to cook a pizza or casserole in the oven
3 level deep spice rack with room for larger items like olive oil, condiments, vinegars etc
90 quart fridge/freezer. 12 volts, and it just sips power. It has a small and large compartment, with individual temperature controls so each can be a fridge or freezer
TONS of storage, including storage for cans and pasta under the fridge, baking goods under the step to the bedroom, a large produce basket etc
Extendable butcher block counter, paper towel holder
Separate dining table slots into the floor and seats 4
Odds and Ends

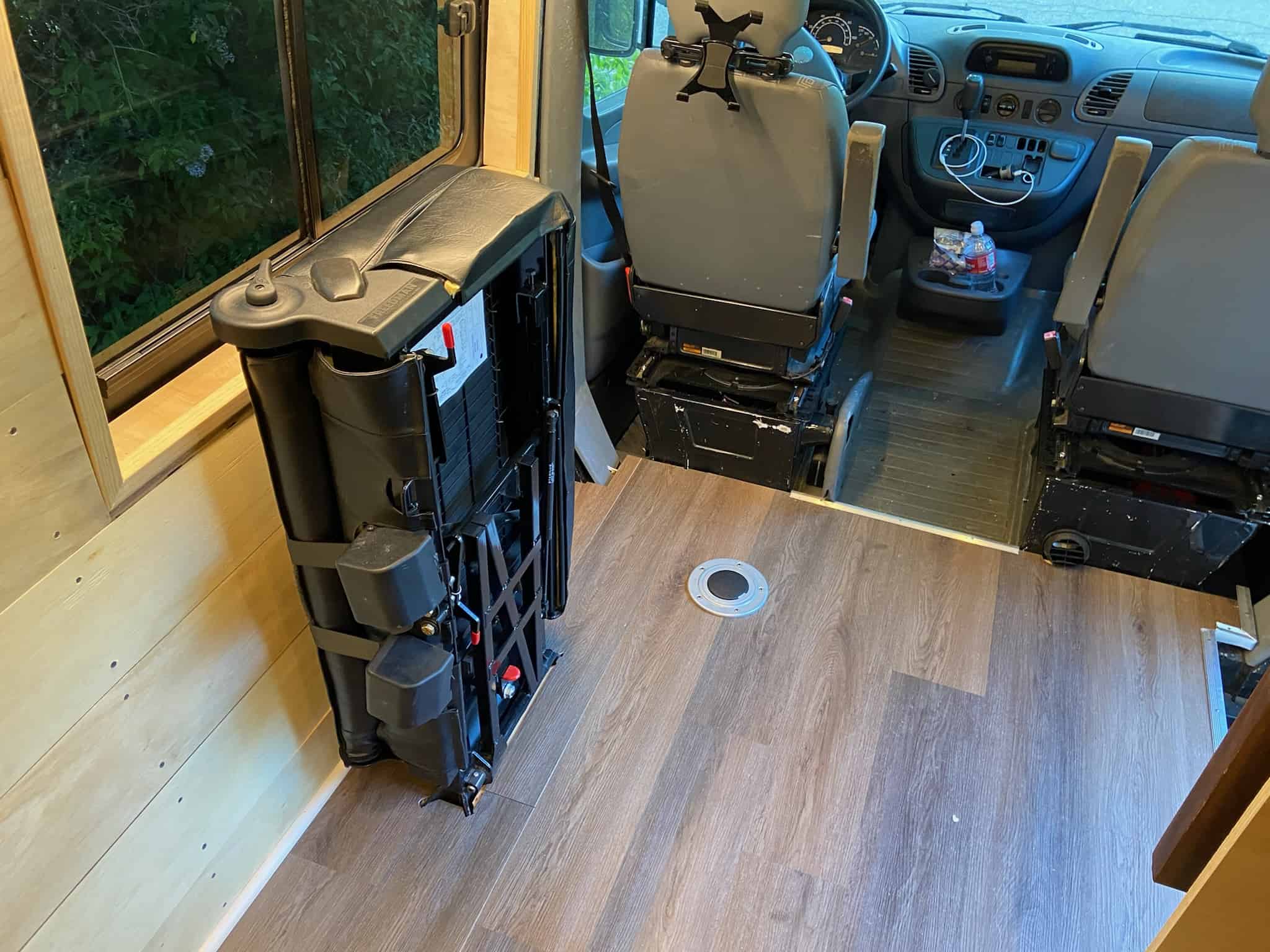

Driver and Passenger seat swivel 360 degrees!
Rear passenger seat fits two, has car seat attachments, and folds up against the wall, sticking out only 6 inches
Waterproof flooring
5000 BTU Diesel heater with thermostat, runs off of separate tank from the van
Full size spare tire and rack

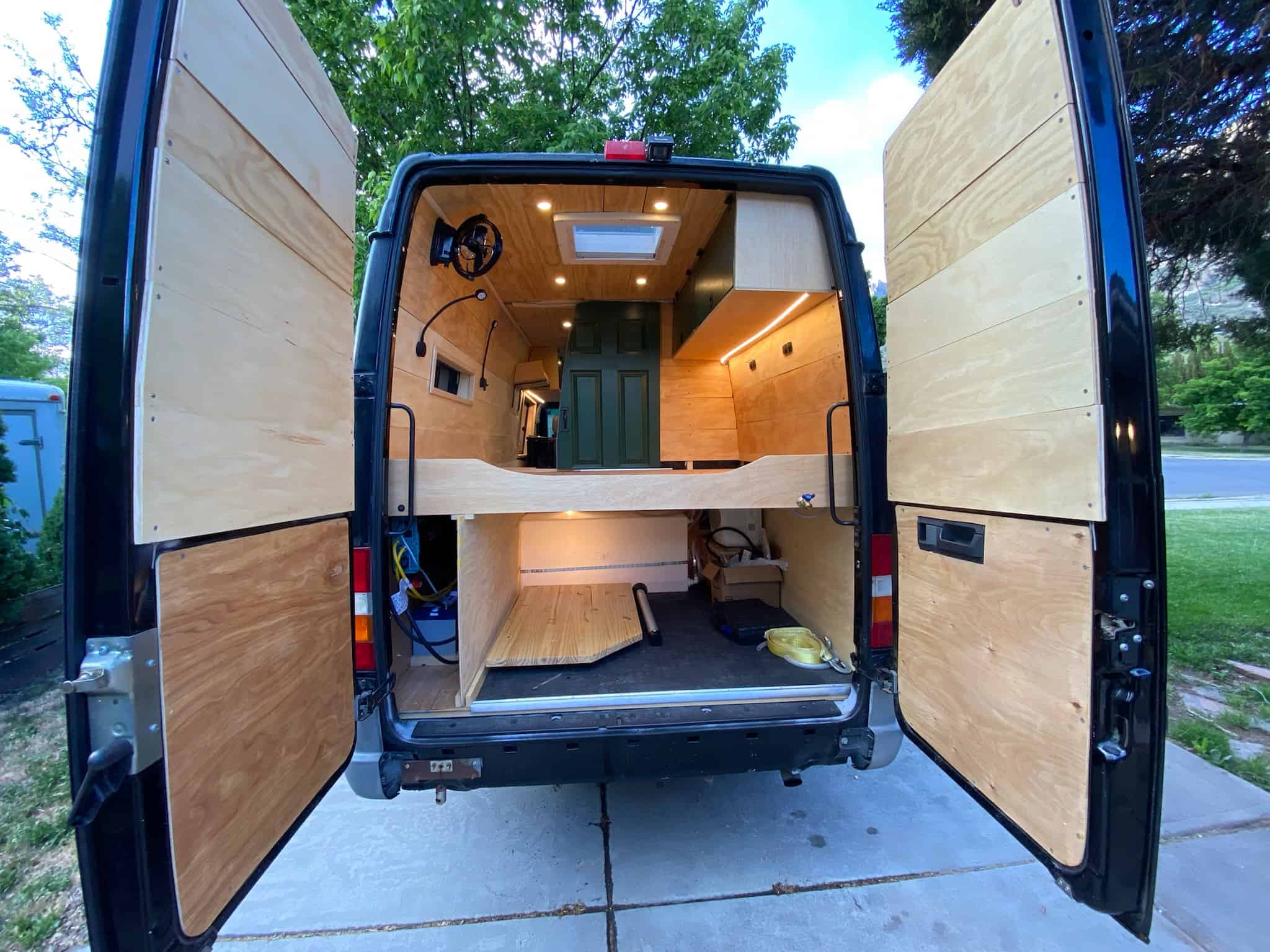

TONS of storage space under the bed, we fit several paddle boards, strollers and bikes underneath
The whole van is insulated with 3M Thinsulate or 6R foam board, it does great holding the heat in the winter, and we have insulated window covers for every window and the Maxxair fan
Comes with comfy 6” mattress, and Cabbunk sleep system
Work that needs to be done:
The shocks will need to be replaced/upgraded eventually. The paint job isn’t the best, we removed some vinyl flames from the sides and a skull/crossbones from the hood. You might want to get a paint job at some point, but we don’t mind it!
