Luxury Boutique 2021 Ram Promaster

Campervan’s are all the rage nowadays. Mochagoat Industries was born to transcend what was previously thought possible and to create the “boutique” and luxurious feel of a high end hotel, packaged in a neat, ‘go anywhere’ package. Intensive effort was poured into this Promaster to give it the perfect balance of attention to detail, while maximizing overall space and functionality.

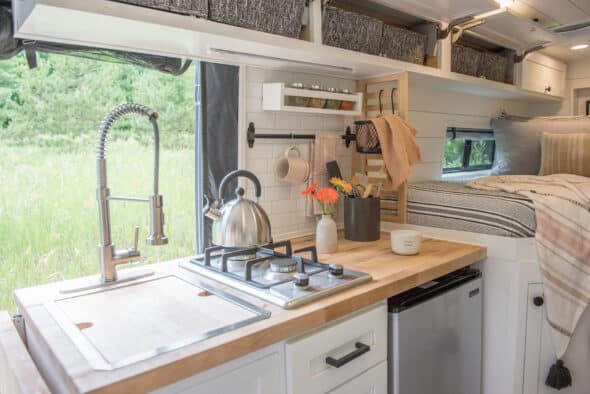

No expense has been spared when it comes to the functional elements of the van. A full-size bed easily allows two people to sleep comfortably, while the Maxxair fan and integrated Webasto petrol heater maintain a comfortable environment. A fully-equipped kitchen contains a large stainless sink and kitchen faucet, with a 20-gallon freshwater tank. Galley drawers have been purpose built to house all kitchen and dinnerware, eliminating worries about items shifting around on bumpy off-road trails. The dual zone Dometic fridge has plentiful room to keep items ice-cold, and draws very little power from the 200+ AH Relion lithium battery bank. Sub-zero temps can even store ice and frozen items indefinitely. The 400 watt rooftop panel recharges the system quickly and efficiently, coupled with a DC-DC charger that replenishes batteries while driving. USB-A and USB-C integrated ‘fast charging’ outlets are interspersed throughout the van to make charging any device effortless.

With massive amounts of storage space, you won’t be limited in the amount or types of gear you can bring along. Cabinets contain integrated LED lighting, gas shocks, and soft close hinges, so you won’t be fumbling with flashlights or smashing fingers while trying to access stored items. A full-sized wardrobe makes storing jackets, dress clothes, and other hanging items painless.

Off-road LED lights and a 1.5″ lift kit allow for breaking free from the asphalt. A full-length roof rack and access ladder provide endless opportunities for enjoying starry nights and hanging out on the upper deck.

Build Details

Van:

• 2021 Ram Promaster 2500 High Roof 159″ Wheelbase
• 3.6L 6 cylinder gas engine
• Front wheel drive
• 1.5″ lift kit
• Factory installed rear and sliding windows

Exterior:

• Driver Side CR Laurence T-Vent window
• MaxxAir 10 speed remote controlled vent fan (smoke lid)
• RV shore power integrated into rear bumper
• Full length custom roof rack with integrated LED overhead lighting and expanded metal base
• Custom low profile ladder
• Rock bumper with integrated LED lighting

Electrical:

• 400 Watt fixed rooftop solar panel
• 30A MPPT Smart solar charge controller (Victron)
• 30A Smart isolated DC/DC alternator charger (Victron)
• AC/DC Shore power charging (120v/240v)
• 200AH Lithium ion battery bank (ReLion)
• Victron 3000W Multiplus pure sine inverter
• Bluetooth control for solar power system
• AC/DC Panel with labelling for simplified diagnostics
• Fast Charging 120v outlets w/USB-A and USB-C ports
• Dimmable LED flush mount lights
• Automatic interior LED cabinet lighting
• Garage LED lighting and 120V outlet
• Digital battery monitor (Victron)

Plumbing and Kitchen

• 20 Gallon wheel well tank fresh water storage
• 20 Gallon grey water tank w/pullout slides and quick disconnect
• Propane hot water heater
• Electric water pump
• Two burner propane stove with Lacanche French range knobs
• 3LB Propane system with quick disconnect and adapter for 20LB
• Dometic CFX3 75 dual zone fridge/freezer with slide out drawer

Living Space

• Full insulation with Havelock Wool
• Sound dampening panels
• Passenger swivel seat
• Waterproof manufactured wood flooring
• Loveseat with channel tufting
• Pull-out fridge drawer
• Pull-out trash cabinet w/trash can and broom
• Upper cabinet storage w/soft close hinges and gas shocks
• Rejuvenation brass hardware throughout
• Custom wainscoting on cabinet faces
• Dimmable LED lights with brass control knobs
• Large stainless steel sink
• Brass faucet
• Tile backsplash
• Fluted side-splash divider
• Brass towel rack
• Propane storage cabinet w/pop-out door
• Custom drawers in galley to house all cookware and dinnerware
• Dinnerware, glassware, flatware and cookware included
• Pull-out under sink drawer for extra storage
• Custom luxury bedroom wallpaper
• Textured ceiling wallpaper
• 120v wall sconce in bedroom with vintage push button switch
• Floating bed platform (w/ability to add spacers to change bed height)
• 8 Inch full-size memory foam mattress
• Sheets and linens included
• Integrated solar cabinet
• Webasto petrol heater integrated under passenger seat (direct supply)
• Carbon monoxide and propane detector
• Wardrobe cabinet with closet rod and LED lighting (fits standard sized hangers)
• Extra large storage drawer (250lb slides) beneath wardrobe
• D-Rings throughout for securing larger cargo
• Overhead LED and rock light controller integrated into dash panel
